MINOURA DS-150F User manual

Tire Holder for Fat-Bike
DS-150F
instructions manual
(ver.1.1 2016/9)
• Fits up to 5-inch width fat tire.
• Install the Tire Rack together with the Wheel Support of on the Step-Bar.
Be sure the Tire Rack is not fixed and freely movable even though the
Wheel Supports are fixed onto the Step-Bar.
• Adjust the Wheel Support frame span prior to installing the Tire Rack.
• The shorter Step-Bar found in the original DS-150 doesn't come with the
DS-150F. Only the longer one is in the kit.
<Overview>
Be sure the Tire Rack is
positioned out of the Wheel
Supports.
Make sure the shorter
guide side is positioned
inward of DS-150F.
Tire Rack
Wheel Support
Step-Bar
!
DS-150F
※
※
Warranty Period : 1-year
For more information, visit:
http://www.minoura.jp/
english/support/cs/contact.html
Schematics
Step-Bar
Cap Bolt M6x12
M6 Spring Washer
M6 Flat Washer
Cap Bolt M6x10
Plate Nut
Tire Holder (Red)
Wheel Support
Insert the Plate Nut into
the hole on the Wheel
Support first, then put
the Step-Bar through
and tighten the bolt
from outside to hold.
Adjust The Frame Span Span
Tire Holder (Red)
Adjust the Wheel Support frame span to fit the actual tire
width.
Loosen the M6x12 Cap Bolts, and change both side
Wheel Support frame position as equally as possible while
maintaining the red Tire Holder horizontal.
After adjustment, tighten the cap bolts firmly.

Contact MINOURA JAPAN
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
URL: www.minoura.jp / Email: [email protected]
Made in Japan

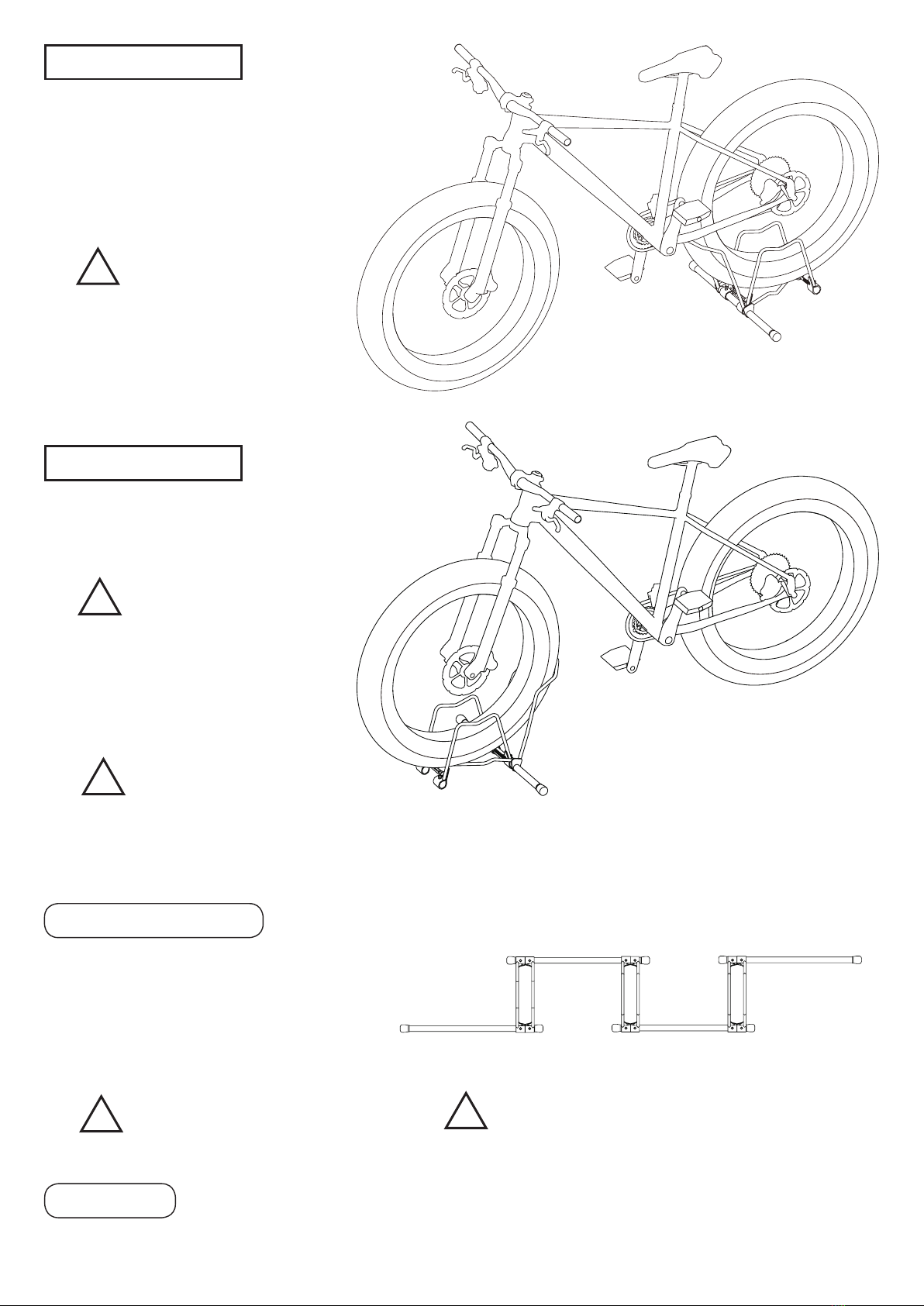

Connecting DS-150Fs
We suggest using multiple DS-150Fs for better
support than a single DS-150F.
To connect the stands, change the Step-Bar
clamping position to the end, then clamp the next
DS-150F at another end.
!When using a single DS-150F, set the frames
to the center of the Step-Bar symmetrically to
achieve maximum stability.
[Example : congulation of three DS-150F stands]
!Using a single DS-150F is
not as stable as using than in
a multiple conguration.
To prevent the bike from
tipping, be sure to set up the
Step-Bar symmetrically.
Using on Rear Tire
While supporting the rear tire by the
Wheel Support, holds the tire by the
Tire Rack.
Get on the Tire Rack first, then move
the bike backward to insert the tire
between the Wheel Supports.
!When using on the rear tire,
shift the rear derailleur a
few steps toward low before
setting.
Leaving it in top gear, the
derailleur arm could be
damaged due to the contact
with the Wheel Support frame.
Using on Front Tire
Use as same as for the front tire.
Make sure the longer side of the Tire
Rack is facing to the bike center.
!When you use on the front
tire, make sure the streering
is not angled but straight in
order to prevent the bike from
falling down.
If the bike has been steered,
it will have to be leant due to
the bike frame mechanism
and get unstable.
!You will see two Plate-Nuts and two M6x10 Bolts will be
left when you assemble just single DS-150F.
These are for connecting another DS-150, 150F or 110
stand. It's not the wrong number.
