Welcome to the fold
Thank you for choosing to join
the growing MiRiDER community.
We’re sure riding your MiRiDER One
(GB3) will create some amazing new
experiences and memories to last a
lifetime. The MiRiDER One (GB3) is
designed with a focus on providing
reassuring performance ride after
ride, using a combination of advanced
technology, superior style, and
unbeatable quality, your MiRiDER One
(GB3) was carefully crafted to be the
ultimate electric folding bike.
Enjoy your MiRiDER One (GB3)

4
1. Preface 6
1.1. About this manual 6
1.2. Original instructions 6
1.3. Symbols used in this manual 7
1.4. Warranty 7
1.5. Disclaimer 8
1.6. Assistance 9
2. Product information 9
2.1. Product description 9
2.2. Importantspecications 10
2.3. Symbols and labels on the
product 11
2.4. Main parts 12
2.5. Handlebar MiRiDER One 14
2.6. Handlebar MiRiDER One GB3 16
2.7. Battery and charger 18
3. Safety 19
3.1. Intended use and
foreseeable unintended use 19
3.2. Safety warnings and
regulations 19
4. Installation 26
4.1. Contents of the package 26
4.2. Unfolding your e-bike frame 28
4.3. Unfoldingthehandlebarstem 30
4.4. Mounting the handlebar 31
4.5. Mounting the LCD screen* 34
4.6. Mounting the bell 35
4.7. Mounting the mudguards 36
4.8. Inserting the seatpost 38
4.9. Adjustingtheclampforce 40
5. Preparation 41
5.1. Folding and unfolding the
pedals 41
5.1.1. Foldable pedals* 41
5.1.2. CNC foldable pedals* 42
5.2. Adjusting the handlebar
stem height 43
5.3. Adjusting the brake levers 44
5.4. Adjusting the brake levers
for smaller hands* 45
5.5. Adjusting the saddle height 46
5.6. Adjusting the saddle
horizontal position 47
5.7. Adjusting the saddle angle 48
5.8. Adjusting the headlight 49
5.9. Gettingusedtoyoure-bike 50
TABLE OF CONTENTS

5
6. Use 50
6.1. Switching your e-bike on
ando 50
6.2. Settingtheassistancelevel 50
6.3. Switching the headlights
onando 50
6.4. Previewing display functions 51
6.5. Using the throttle 51
6.6. Using the walk assist 52
6.7. Shifting gears* 53
6.8. Resetting the trip distance
and time 53
7. After use 54
7.1. Folding your e-bike 54
7.2. Transporting your e-bike 55
7.3. Charging the battery 56
7.3.1. Charging the battery via
the frame 57
7.3.2. Charging the battery
separately 58
8. Maintenance 60
8.1. Serviceplan 60
8.2. Maintaining your e-bike
yourself 61
8.2.1. Checking your e-bike 61
8.3. Tightening the bolts 62
8.4. Replacing the innertube 63
8.5. Lubricating the chain* 63
8.6. Cleaning your e-bike 64
9. Storage and security 65
9.1. Storage 65
9.2. Security 65
10. Troubleshooting 65
11. Disposal 67
12. Appendices 68
12.1. Technicalspecications 68
12.2. Torque values 71
12.3. Spare parts and accessories 72
12.4. Additional resources 72
12.5. Social media handles 72
12.6. EC Declaration of Conformity 73
12.7. Maintenance logbook 74
12.7.1. Identication 74
12.7.2. Maintenance work 74

6
1. PREFACE
1.1. ABOUT THIS MANUAL
This manual is written for the end user of the MiRiDER One (GB3).
This manual is written for the end user of the MiRiDER One (GB3). In this manual you will
ndalltheinformationyouneedtocorrectlyuseandmaintainyoure-bike.Pleaseensure
you have read and understood the contents of this manual in full before operation of your
e-bike. Keep this manual in a safe place for future reference.
In this manual, the MiRiDER One (GB3) will also be referred to as “your e-bike”.
1.2. ORIGINAL INSTRUCTIONS
This manual has been translated into multiple languages. The original manual is written in
UK English. All other language versions are translations of the original manual.

7
1.3. SYMBOLS USED IN THIS MANUAL
This manual contains safety warnings that may result in injury when ignored. Each safety
warning is indicated with a signal word. The signal word corresponds with the level of risk
of the described hazardous situation.
Symbol Description
6WARNING Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
6CAUTION Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
NOTICE Indicates practices that could damage the product or cause
it to not function properly.
Indicates additional useful information.
1.4. WARRANTY
The following warranty conditions apply to your e-bike. All terms are applicable from the
date of purchase:
·A two-year warranty* on the frame, seatpost, and handlebar.
·A two-year warranty* on the motor.
·A two-year warranty* on the battery.
·A two-year warranty* on the electronic cabling, display, throttle, and electronic brake
cutos.
·A one-year warranty on all other parts. Wear parts such as tyres, the chain or drive belt,
pedals, freewheels etc. are exempt from this warranty.

8
The warranty is invalid in the event of:
·Damage that occurs due to the result of using non-original accessories and or parts.
·Damagethatoccursforanymodicationsoftheoriginalconditionofyoure-bike.
·Damage that occurs as a result of a misuse or involvement with a crash.
·Lack of proper maintenance.
·Misuse of the motor and or components.
·Misuse of the controller settings.
·Derestricting the bike.
*Toaccessthefulltwo-yearwarranty,youmustregisteryoure-bikewithin30daysfromthedateofpurchase.Pleasevisit
www.mirider.co.uk/warranty to register your e-bike. If your e-bike is not registered within this time, the warranty will
be limited to one year.
Warranties and complaints are handled by MiRiDER for direct sales. For purchases made
viatheMiRiDERdealernetwork,thedealerwhoyou’vepurchasedfromisalwaysyourrst
pointofcontact.MiRiDERinconsultationwithyourdealerwillmakeadenitivedecision
as to whether the warranty claim is valid. The MiRiDER warranty is for the original owner
onlyandisnon-transferable.MiRiDERcanonlyoerawarrantyonpurchasesthrougha
registered dealer or direct from the MiRiDER web store.
1.5. DISCLAIMER
MiRiDER has prepared the warranty conditions with the greatest care. However, we accept
no liability resulting from printing and typesetting errors.
Your e-bike is not indestructible and the components will not last forever. MiRiDER bikes
are built to withstand day to day stress under normal conditions. We cannot predict the
stress of our bikes in extreme conditions, competition, or in the event of a crash. The life
of any part will be dramatically reduced and fail without warning in the event of collision or
extreme use.

9
1.6. ASSISTANCE
If you have any questions regarding your e-bike, you can contact us by:
Phone: [phone]
E-mail: [email protected]
Visiting address: MiRiDER,3CroftwoodSquare,WiganWN50LG,UnitedKingdom
2. PRODUCT INFORMATION
2.1. PRODUCT DESCRIPTION
The MiRiDER One (GB3) is an electric bike for use on paved roads with pedal assist that
operates at speeds of up to 25 km/h.
You can manually adjust the pedal assist level as desired while cycling, with the control
panelonthehandlebars.Youcanchoosebetweenvedierentassistlevels.
Pay attention to your surroundings if you wish to change power level. Only change the
setting if it’s safe to do so.
The MiRiDER One (GB3) is also equipped with a walk assist mode. When activated, your
e-bike drives at a speed of up to 6 km/h.
The MiRiDER One (GB3) is driven by a hub motor located at the centre of the rear wheel.
The hub motor is powered by a rechargeable, removable battery which is built into the
frame. The battery can be charged with the provided charger.

10
Ontopofthat,youre-bikeisttedwiththreegearratios.*
·1st gear: For climbing or riding without assistance.
·2nd gear: For typical riding.
·3rd gear: For cruising or riding at maximum speed.
*Only applicable to the MiRiDER One GB3
2.2. IMPORTANT SPECIFICATIONS
Product name MiRiDER One MiRiDER One GB3
Unfolded dimensions 1340×575×400mm
Folded dimensions 780×690×460mm
Net weight 17.3 kg 19.4 kg
Max. combined weight
(e-bike, rider, and load) 120kg

11
2.3. SYMBOLS AND LABELS ON THE PRODUCT
Symbol Description
Indicates that the product complies with all relevant European directives.
Indicates that the product complies with all relevant United Kingdom
directives.
Indicates that the product must not be disposed with household waste.
Recycle this product in an environmentally friendly manner according to
local regulations.
Indicates that the product is free of restricted materials which are
hazardoustotheenvironmentandpollutelandllsandaredangerousin
terms of occupational exposure during manufacturing and recycling.
Indicates a hot surface.

12
2.4. MAIN PARTS
1t
y
u
i
o
p
a
d
f
s
h
g
2
3
w
9
q
5
4
6
7
8
e
r
jk l z x c v b

13
1Saddle
2Seatpost height adjustment clamp
3Telescopic seatpost
4Seatpost clamp
5 Reector
6Seat tube clamp
7Seat tube
8Shock absorber
9Rear mudguard
qWheel
wMotor
eRear disk brake
rCrank arm
tTelescopic handlebar stem
yCables
uHandlebar clamp
iHandlebar stem
oHandlebar stem safety lock
pHandlebar stem latch
aHeadlight
sFrame safety lock
dFrame latch
fFrame
gFront mudguard
hFront disk brake
jKickstand
kMagnet
lChain1
zSprocket1
xDrive belt2
cGearbox1
vFoldable pedal1
bCNC foldable pedal2
1Only applicable to the MiRiDER One
2Only applicable to the MiRiDER One GB3

14
2.5. HANDLEBAR MIRIDER ONE
H
TM
TTM
AVS
MXS
MPH
KM
ODO
DST
VOL
Mil
KM/H
CRUISE PAS THROTTLE
G
E
R
T
Y
U
m
APOIS
Q=W
n
F
D
ZJ KL

15
nAssistance level
mBattery capacity
QCruise control
WPower-assist start up
ESingle trip time
RTotal trip time
TThrottle indicator
YAverage speed
UMaximum speed
ITotal trip distance
OSingle trip distance
PBattery voltage
ABrake indicator
SLight indicator
DDown button
FPower button
GUp button
HLeft brake lever (rear brake)
JHandlebar clamp
KBell
LWalk assist / Thumb throttle
ZRight brake lever (front brake)

16

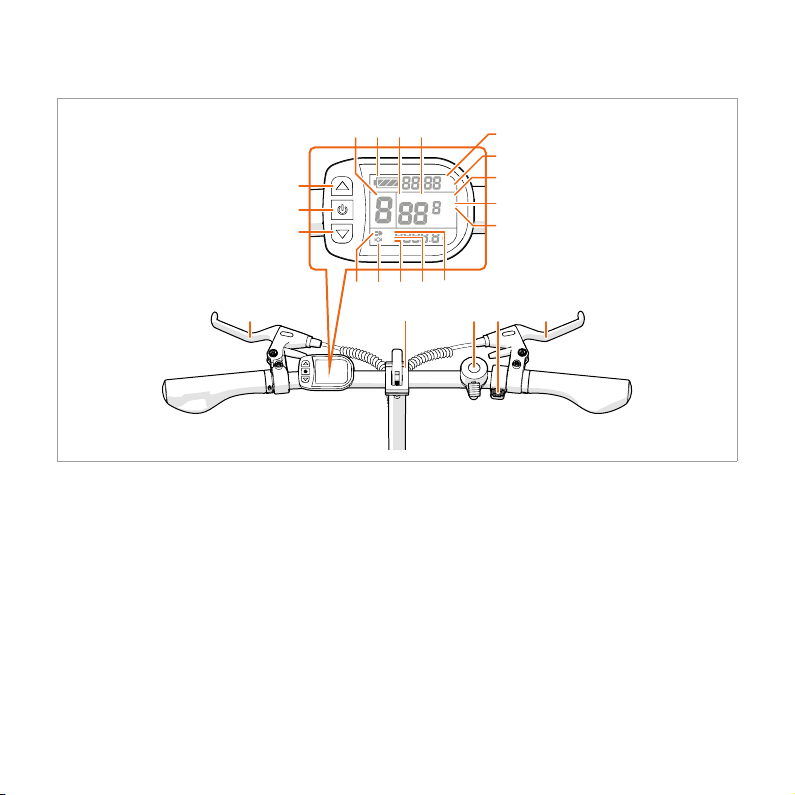

2.6. HANDLEBAR MIRIDER ONE GB3
ƒ
X
B
£
⁄
¥
¢
NM{
}
~
¡
|
C
V
§
“¤
'

17
XUp button
CPower button
VDown button
BBattery capacity
NBattery voltage
MBrake indicator
{Light indicator
|Ambient temperature
}Power display
~Single trip distance/total trip distance
¡Single trip time/total trip time
¢Assistance level
£Throttle indicator
⁄Riding speed
¥Average speed/maxiumum speed
ƒLeft brake lever (rear brake)
§Handlebar clamp
¤Bell
'Walk assist / Thumb throttle
“Right brake lever (front brake)

18
2.7. BATTERY AND CHARGER
fi
–
†
fl
›
‹
«
«Charger port
‹Charger
›Battery handle
fiBattery
flCharger power cable
–Battery lock
†Keys

19
3. SAFETY
3.1. INTENDED USE AND FORESEEABLE UNINTENDED USE
Your e-bike is intended to be used as an electric bike with pedal assist for single person
cycling only.
Only use your e-bike as described in this user manual.
Any other use of your e-bike than described in this user manual is regarded as unintended
use and may cause injury or damage to the product and void the warranty.
The following is considered as foreseeable unintended use:
·Failure to comply with the instructions in this user manual.
·Unauthorisedmodicationstotheproduct.
·Use of spare parts or accessories not recommended by the manufacturer.
·Failure to eliminate defects of the products that increase the safety risks.
3.2. SAFETY WARNINGS AND REGULATIONS
6WARNING
·Observethelocallyapplicable(bicycle)tracrulesatalltimes,includingthose
concerning the use of bicycle lights.
·Do not wear loose or long clothing that may become entangled in the various parts of
your e-bike.
·Your e-bike can easily reach speeds of up to 25 km/h. It is recommended to wear a
helmet while cycling to prevent head injuries in the event of an accident.
·Always switch on the headlights when cycling in the dark. Cycling in the dark without
lights increases the risk of poor visibility and poor visibility for other road users.

20
·Always watch out for cars, pedestrians, and other cyclists. Be careful when cycling past
parked cars. Doors may open unexpectedly.
·Avoid potholes, soft or low verges that could cause a crash, or debris which may cause
damage to your tyres.
·Always allow for extended braking distance in adverse weather conditions. Reduce your
speed in adverse weather conditions and/or poor visibility.
·Children must be supervised during installation, use, cleaning, and maintenance to
ensure that children do not play with your e-bike.
·Donotmakemodicationstoyoure-bike.Modicationsreducethelifespanandrisk
damage to your e-bike and are also hazardous to your safety and that of other road
users.
·Do not open the electrical parts or your e-bike. Electrical parts may only be opened by
qualiedservicetechnicianandmayonlyberepairedusingoriginalreplacementparts.
·Always use original spare parts when replacing parts of your e-bike. Third party spare
partsmaynotoperateinthesamewayorbeofthesamequality,whichmayaectthe
safety of your e-bike.
·Do not touch the brake discs without protection. The brake discs have sharp edges and
may become hot after a period of braking.
·Always fully close the frame latch before cycling. If the frame latch is not closed
properly, the frame may fold unexpectedly during cycling.
·Always insert the seatpost at least up to the minimum marking into the frame. Not
inserting the seatpost far enough into the tube may lead to loss of control of your
e-bike during cycling and/or irreparable damage to the seatpost or frame.
·Always adjust the height of the handlebar stem within the indicated range markings.
Placing the height of the handlebar stem above the minimum insertion marking may
lead to loss of control of your e-bike during cycling or failure of the e-bike.
