Autel TS609 User manual

i
Trademarks
Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiTPMS®, MaxiRecorder®, and
MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd.,
registered in China, the United States and other countries. All other marks are
trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or any
economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
www.maxitpms.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-22672493/86532091 (China)
[email protected]
For technical assistance in all other markets, please contact your local
distributor.

ii
Safety Information
For your own safety and the safety of others, and to prevent damage to the
device and vehicles upon which it is used, it is important that the safety
instructions presented throughout this manual be read and understood by all
persons operating or coming into contact with the device.
There are various procedures, techniques, tools, and parts for servicing
vehicles, as well as in the skill of the person doing the work. Because of the
vast number of test applications and variations in the products that can be
tested with this equipment, we cannot possibly anticipate or provide advice
or safety messages to cover every circumstance. It is the automotive
technician’s responsibility to be knowledgeable of the system being tested. It
is crucial to use proper service methods and test procedures. It is essential
to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being
used, or the vehicle being tested.
Before using the device, always refer to and follow the safety messages and
applicable test procedures provided by the manufacturer of the vehicle or
equipment being tested. Use the device only as described in this manual.
Read, understand, and follow all safety messages and instructions in this
manual.
Safety Messages
Safety messages are provided to help prevent personal injury and
equipment damage. All safety messages are introduced by a signal word
indicating the hazard level.
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in
death or serious injury to the operator or to bystanders.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could result in
death or serious injury to the operator or to bystanders.

iii
Safety Instructions
The safety messages herein cover situations Autel is aware of. Autel cannot
know, evaluate or advise you as to all of the possible hazards. You must be
certain that any condition or service procedure encountered does not
jeopardize your personal safety.
DANGER
When an engine is operating, keep the service area WELL VENTILATED or
attach a building exhaust removal system to the engine exhaust system.
Engines produce carbon monoxide, an odorless, poisonous gas that causes
slower reaction time and can lead to serious personal injury or loss of life.
SAFETY WARNINGS
Always perform automotive testing in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment away from all moving
or hot engine parts.
Operate the vehicle in a well-ventilated work area, for exhaust gases are
poisonous.
Put the transmission in PARK (for automatic transmission) or NEUTRAL
(for manual transmission) and make sure the parking brake is engaged.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while testing.
Be extra cautious when working around the ignition coil, distributor cap,
ignition wires and spark plugs. These components create hazardous
voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline, chemical, and electrical
fires nearby.
Do not connect or disconnect any test equipment while the ignition is on
or the engine is running.
Keep the test equipment dry, clean, free from oil, water or grease. Use a
mild detergent on a clean cloth to clean the outside of the equipment as
necessary.
Do not drive the vehicle and operate the test equipment at the same
time. Any distraction may cause an accident.

iv
Refer to the service manual for the vehicle being serviced and adhere to
all diagnostic procedures and precautions. Failure to do so may result in
personal injury or damage to the test equipment.
To avoid damaging the test equipment or generating false data, make
sure the vehicle battery is fully charged and the connection to the
vehicle DLC is clean and secure.
Do not place the test equipment on the distributor of the vehicle. Strong
electro-magnetic interference can damage the equipment.

v
CONTENTS
SAFETY INFORMATION................................................................................................II
SAFETY MESSAGES....................................................................................................II
SAFETY INSTRUCTIONS............................................................................................. III
1 USING THIS MANUAL........................................................................................... 6
CONVENTIONS............................................................................................................6
2 GENERAL INTRODUCTION.................................................................................8
MAXITPMS TS609 DISPLAY TABLET...................................................................... 9
MAXIVCI V200 – VEHICLE COMMUNICATION INTERFACE.................................... 13
OTHER ACCESSORIES............................................................................................. 14
3 GETTING STARTED............................................................................................ 16
POWER UP............................................................................................................... 16
REGISTER &LOG IN................................................................................................ 16
VCI CONNECTION....................................................................................................17
4 SERVICE PROCEDURES...................................................................................18
5 COMPLIANCE INFORMATION.......................................................................... 21
6 WARRANTY...........................................................................................................24
LIMITED ONE YEAR WARRANTY............................................................................. 24

6
1Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional
equipment that are not included in your system. Contact your sales
representative for availability of other modules and optional tools or
accessories.
Conventions
The following conventions are used.
Bold Text
Bold text is used to highlight selectable items such as buttons and menu
options.
Tap OK.
Notes and Important Messages
Notes
ANOTE provides helpful information such as additional explanations, tips,
and comments.
NOTE
New batteries reach full capacity after approximately 3 to 5 charging and
discharging cycles.
Important
IMPORTANT indicates a situation that, if not avoided, may result in damage
to the test equipment or vehicle.

7
IMPORTANT
Keep the cable away from heat, oil, sharp edges and moving parts. Replace
damaged cables immediately.
Hyperlink
Hyperlinks or links that take you to other related articles, procedures, and
illustrations are active in electronic documents. Blue italic text indicates a
selectable hyperlink and blue underlined text indicates a website link or an
email address link.
Illustrations
Illustrations used in this manual are samples, the actual testing screen may
vary for each vehicle being tested. Observe the menu titles and on-screen
instructions to make correct option selection.

8
2General Introduction
When it comes to ultra-portability, MaxiTPMS TS609 (hereinafter referred to
as TS609) is your perfect companion. TS609 offers maximum convenience
and swift diagnosis. The intuitive user interface makes using the device
effortless through a 5.5-inch LCD touch screen that displays at 1280 x 720
quality. Together with the ability to quickly read and clear Original Equipment
Manufacturers (OEM) enhanced codes for TPMS module of the majority of
the makes and models on the market, TS609 provides you with superior
special functions for TPMS services with ease.
There are two main components of the TS609 system:
TS609 Display Tablet – the central processor and monitor for the
system.
MaxiVCI VCI200 (Vehicle Communication Interface) – the device for
accessing vehicle data.
This manual describes the construction and operation of both the devices
and how they work together to deliver diagnostic solutions.

9
MaxiTPMS TS609 Display Tablet
Functional Description

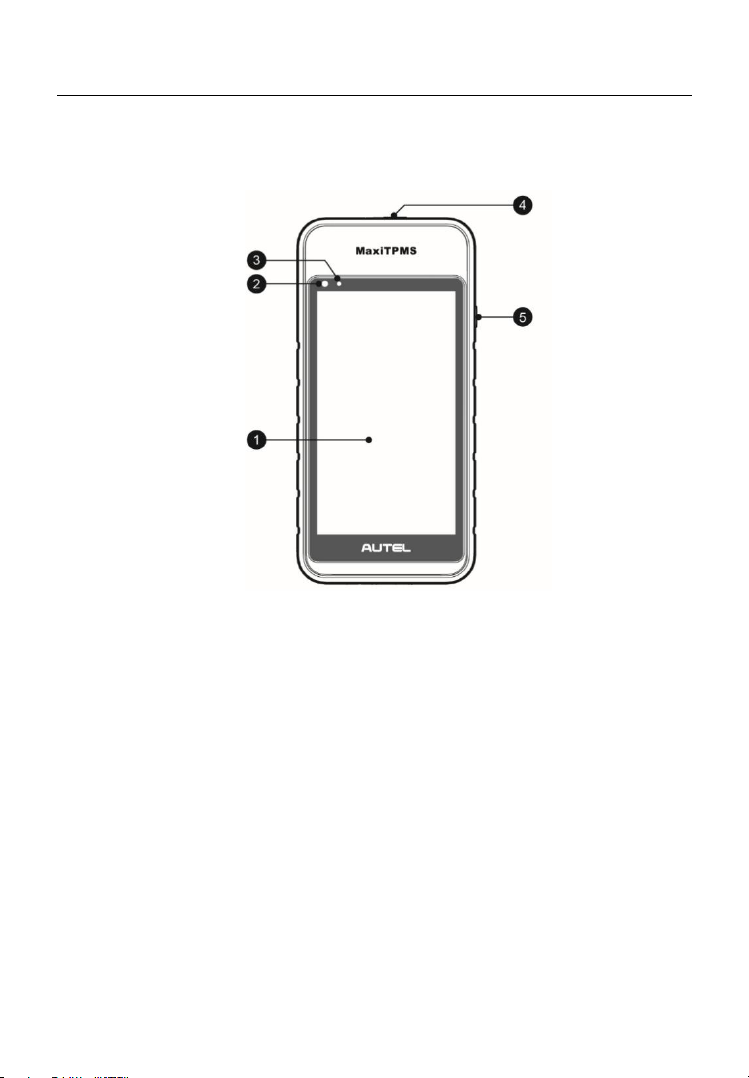

Figure 2- 1 Display Tablet Front View
1. 5.5” LCD Capacitive Touchscreen
2. Ambient Light Sensor – detects ambient brightness.
3. Power LED – indicates battery level & charging or system status.
4. TPMS Service Symbol – indicates the position of the embedded TPMS
antenna.
5. Lock/Power Button – long press button to turn tablet off and on. Quick
press button to lock screen.
The power LED displays green, yellow or red depending on the charging
status and operating state:
A. Green
Illuminates green when the Display Tablet is fully charged.
B. Yellow

10
Illuminates yellow when the Display Tablet is charging.
C. Red
Illuminates red when the Display Tablet is powered on and when a
problem is detected.
Figure 2- 2 Display Tablet Back View
6. Sticker
7. Rear Camera
8. Camera Flash
9. Speaker

11
Figure 2- 3 Display Tablet Top View
10. Micro SD Card Slot
11. Mini USB OTG Port
12. Microphone
Power Sources
The tablet can receive power from any of the following sources:
Internal Battery Pack
AC/DC Power Supply
External Power Supply
Internal Battery Pack
The tablet can be powered with the internal rechargeable battery, which if
fully charged can provide sufficient power for about 7 hours of continuous
operation.
AC/DC Power Supply
The tablet can be powered from a wall socket using the AC/DC power
adapter. The AC/DC power supply also charges the internal battery pack.
Vehicle Power

12
The tablet can be powered from the cigarette lighter or other suitable power
port on the test vehicle through a direct cable connection. The vehicle power
cable connects to the DC power supply port on the top side of the display
unit.
Technical Specifications
Table 2- 1 Specifications
Item
Description
Recommended Use
Indoor
Operating System
AndroidTM 9.0
Processor
Quad-core processor (1.5 GHz)
Memory
1GB RAM DDR4 & 32GB ROM
Display
5.5-inch LCD capacitive touchscreen with
1280x720 resolution
Connectivity
Wi-Fi
USB 2.0, Type C
BT
Sensors
Light sensor for brightness auto adjust
Audio input/output
Input: N/A
Output: Beep
Power and Battery
3.8 V/5000 mAh lithium-polymer battery
Charges via 5 V AC/DC power supply
Tested Battery Life
Around 7 hours of continuous use
Battery Charging
Input
5 V/2 A
Power Consumption
600 mA (LCD on with default brightness,

13
Item
Description
Wi-Fi on) @3.8 V
Operating Temp.
-10 to 55°C (32 to 131°F)
Storage Temp.
-20 to 70°C (-4 to 140°F)
Dimensions (W x H x D)
183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0
mm (0.87”)
Net Weight
368 g (0.8 lb.)
Protocols
ISO9141-2, ISO14230-2,ISO15765,
K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850PWM, ISO11898 (Highspeed,
Middlespeed, Lowspeed and Singlewire
CAN, fault-tolerant CAN), SAE J2610,GM
UART,UART Echo Byte Protocol, Honda
Diag-H Protocol, TP2.0, TP1.6
MaxiVCI V200 – Vehicle Communication Interface
The wireless diagnostic interface MaxiVCI V200 is a small vehicle
communication interface (VCI) used to connect to a vehicle’s DLC and
connect wirelessly with the tablet for vehicle data transmission.
Figure 2- 4 MaxiVCI V200 Views

14
Functional Description

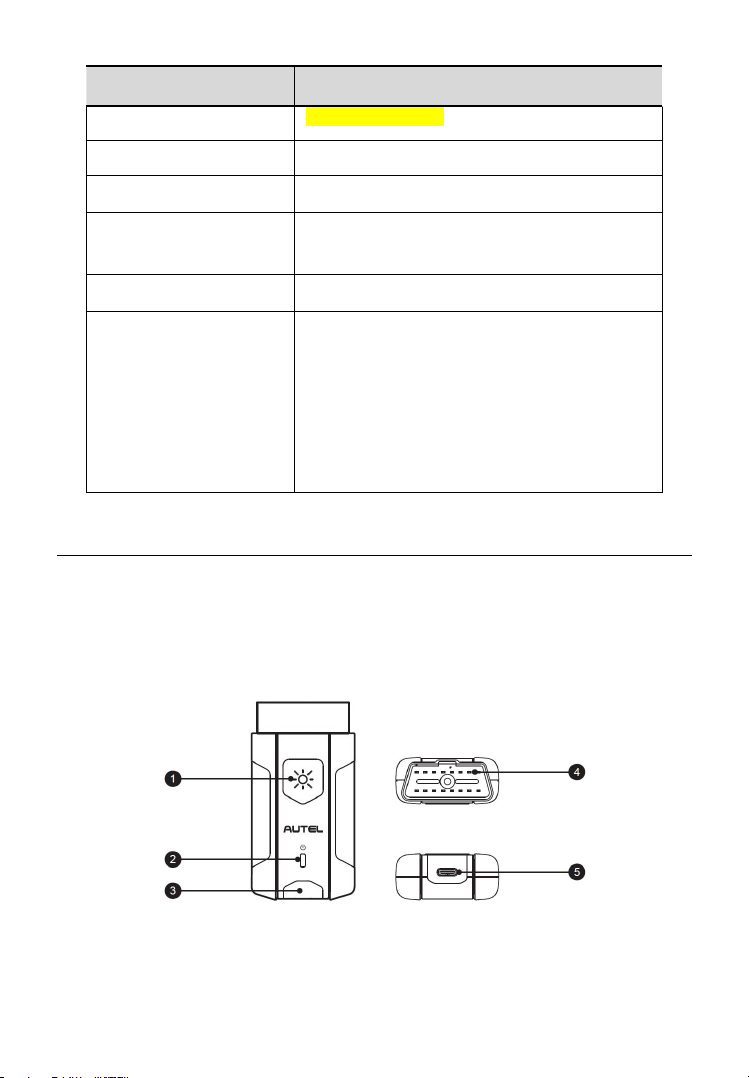

1. Lighting Push Button
2. Power LED
3. Vehicle/Connection LED
4. Vehicle Data Connector (16-Pin) – connects the MaxiVCI V200 to the
vehicle’s 16-pin DLC directly.
5. USB Port – provides the easiest connection between the device and the
display tablet via a USB cable.
Technical Specifications
Table 2- 4 Specifications
Item
Description
Communications
EDR
USB 2.0
Wireless Frequency
2.4 GHz
Input Voltage Range
6 V-36V DC
Supply Current
150 mA @ 12V DC
Operating Temp.
-10°C to 60°C (14°F to 140°F)
Storage Temp.
-40°C to 80°C （-40°F to 176°F)
Dimensions
(L x W x H)
89.89 mm (3.53”) x 46.78 mm (1.84”) x 21
mm (0.82”)
Weight
70.7g (0.156 lb.)
Built-in Battery
3.7V Lithium Battery
Light
White LED
Other Accessories

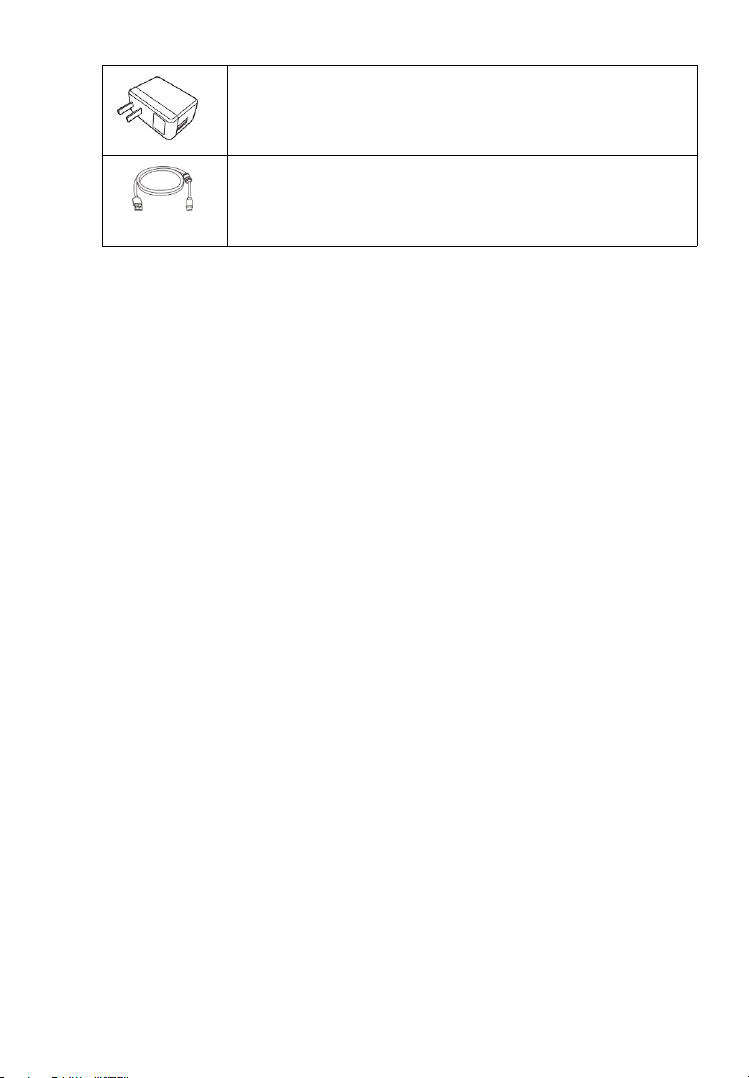

Table 2- 5 Accessories

15
Power Adapter
Used with USB cable to charge BT608 via DC electrical
outlet.
USB Cable
Connect to power adapter and to BT608. Use to charge
unit.

16
3Getting Started
Ensure the tablet is sufficiently charged or is connected to the external
power supply.
Power up
Press the Lock/Power button on the top right side of the tablet to power
the tool on.
Register & log in
Scan QR code to visit our website at www.autel.com.

17
Create an Autel ID and register the product with your ID and password.
VCI Connection
Connect the V200 VCI to the Vehicle's OBDII port and put the
vehicle ignition in the On position to pair it with the TS609 and
establish a communication link with the vehicle.

18
4Service Procedures
This section introduces information for technical support, repair service, and
application for replacement or optional parts.
Technical Support
If you have any question or problem about the operation of the product,
please contact us (see the following contact info) or your local distributor.
AUTEL CHINA HQ
Phone: [phone]
Website: www.autel.com,www.maxitpms.com
Email: [email protected]
Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili,
Nanshan, Shenzhen, 518055, China
AUTEL NORTH AMERICA
Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST
Website: www.autel.com,www.maxitpms.com
Email: [email protected]
Address: 175 Central Avenue, Suite 200, Farmingdale, New York, USA.
11735
AUTEL EUROPE
Phone: 0049 (0) 61032000522
Website: www.autel.eu,www.maxitpms.com
Email: [email protected],[email protected]
Address: Robert-Bosch-Strasse 25, 63225, Langen, Germany
AUTEL SOUTH AMERICA

19
Phone: [phone]
Website: www.autel.com/es,www.maxitpms.com
Email: [email protected],[email protected]
Address: Office 103, Building 3845, International Business Park,
Veracruz, Panamá Pacífico, Panamá
AUTEL AUSTRALIA
Phone: [phone]
Website: www.autel.com.au,www.maxitpms.com
Email: [email protected]
Address: 155 Islington Street, Melbourne, Collingwood, VIC
Repair Service
If it becomes necessary to return your device for repair, please contact us
first and then download the repair service form from www.autel.com and
www.maxitpms.com, and fill it in. The following information must be included:
Contact name
Return address
Telephone number
Product name
Complete description of the problem
Proof-of-purchase for warranty repairs
Preferred method of payment for non-warranty repairs
NOTE
For non-warranty repairs, payment can be made with Visa, Master Card, or
with approved credit terms.
Send the device to your local agent, or to the below address:
8th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen,
518055, China

20
Other Services
You can purchase the optional accessories directly from Autel’s authorized
tool suppliers, and/or your local distributor or agent.
Your purchase order should include the following information:
Contact information
Product or part name
Item description
Purchase quantity
