Mitel StreamLine Manual

Mitel StreamLine
HARDWARE INSTALLATION GUIDE
Release 1.1

ii
Proprietary Notice
All information contained in this document is confidential and proprietary to Mitel Networks Corporation
Any disclosure, duplication, reproduction or transmission of this document or the information it contains is
prohibited without the prior written authorization of Mitel Networks Corporation
Mitel believes that at the time of publication, this document accurately reflects Mitel StreamLine and
StreamLine Dongle features, requirements and specifications. However, this document may contain
errors or omissions, and Mitel makes no warranties regarding the content of this document.
Mitel is not responsible for any loss or damages arising from the use or misuse of this document.
The information contained in this document as well as all product specifications are subject to change
without notice.
Trademarks
Mitel, Mitel StreamLine, and StreamLine Dongle are trademarks of Mitel Networks Corporation
All other trademarks, registered trademarks and service marks are the property of their respective
owners.
Corporate Contact Information
Mitel Networks Corporation
350 Legget Drive
Kanata, ON K2K 1X3
Canada
Tel.: [phone]
Fax: [phone]
Web: www.mitel.com
Mitel StreamLine Hardware Installation Guide
Release 1.1 – March 2015
®,™ Trademark of Mitel Networks Corporation
© Copyright 2015, Mitel Networks Corporation
All rights reserved

Mitel StreamLine Switch - Hardware Installation Guide
iii
Warranty Information
All statements in this document concerning the Mitel®StreamLine switch are for informational
purposes only. No part of this document constitutes a warranty, either express or implied,
regarding the StreamLine switch. Our standard limited warranty is provided with the sales
contract and/or product package.
Service and Support
Mitel is dedicated to customer satisfaction and the high quality of its products. Our technical
support team is prepared to assist you in maximizing the efficiency and dependability of your
StreamLine switch environment, and will provide you with an immediate solution should a
problem with your product arise. Contact us to discuss a plan of action, and be prepared to
provide us with:
North America
1-800-561-0860 or 613-592-7849.
Please have your Technical Support ID Code ready when calling.
Europe, Middle East, Africa
Customer Management Center on [phone].
Please have your Channel Support Agreement/Contract Number and password ready when
calling.
Asia-Pacific
ap [e-mail] and include your Technical Support ID Code.
South-Pacific
spac [email protected] and include your Technical Support ID Code.
Returning a Unit
If you must return a StreamLine switch, StreamLine Adapter or accessory component to Mitel
Networks Corporation, ensure that all items are adequately protected with insulating material and
packaged in the original carton before shipping. Failure to do so may void the equipment
warranty. Consult the warranty statements included with the sales contract and/or product
package. Contact us for specific RMA requirements before you ship.
Audience
This document is intended for the use of service technicians, system administrators, information
technology experts and other personnel who are qualified to install, configure and maintain the
StreamLine switch in the telephone network environment. The tasks and procedures described in
this guide require a basic understanding of IP communications, Ethernet LAN networks, PBX
telephone systems and the strategies and solutions currently practiced in your network
environment. This document assumes that you are familiar with the architecture, specifications
and functionality of your network. Certification training is required on the various Communication
Platforms existing in the Network (i.e. 3300 ICP; 5000 CP; SX-200 ICP).
Document Conventions
In this document, some instructions are given particular emphasis to denote cautions, warnings
and notes.

Mitel StreamLine Switch - Hardware Installation Guide
iv
Cautions
A caution contains an instruction that the reader must follow in order to prevent damage to
equipment, network failure or loss of data.
Example:

CAUTION: Do not expose the StreamLine switch or any of its components to a
magnetic field or electrostatic charge. Damage to system components could result.
Warnings
A warning contains an instruction that the reader must follow in order to prevent electrical
shock, death or serious injury to personnel.
Example:
WARNING: ENSURE THAT THE UNIT IS INDEPENDENTLY GROUNDED WITH A
WIRE SECURELY ATTACHED TO THE GROUND LUG AT THE REAR OF THE UNIT.
Notes or Tips
A note or tip provides helpful information related to the topic of discussion.
Examples:
Note: The power supply unit is a field-replaceable part.
TIP: Use the handle on the right side to pull the power supply unit out.

Mitel StreamLine Switch - Hardware Installation Guide
v
CHAPTER 1 PRODUCT DESCRIPTION.....................................................................1
Quick Links................................................................................................................................1
Mitel®StreamLine 24-Port and 48-Port Switches ..............................................................................1
Mitel StreamLine 8-Port Switch..........................................................................................................1
Introduction................................................................................................................................2
StreamLine Family of Switches .................................................................................................3
StreamLine 24-Port and 48-Port Switches............................................................................................3
StreamLine 8-Port Switch......................................................................................................................3
Downlink Ports.......................................................................................................................................3
StreamLine Hardware Description.............................................................................................4
StreamLine 24-Port and 48-Port Switches............................................................................................4
Front View..........................................................................................................................................4
Rear View...........................................................................................................................................4
Product Numbers ...............................................................................................................................5
Dimensions.........................................................................................................................................5
Operating and Storage Environment..................................................................................................5
Internal Components..........................................................................................................................5
Power Supply Unit..............................................................................................................................5
Front View..........................................................................................................................................6
Rear View...........................................................................................................................................6
Uplink Ports........................................................................................................................................6
Downlink Ports ...................................................................................................................................8
Out-of-band Management Port ........................................................................................................10
Console Port.....................................................................................................................................11
Reset Button.....................................................................................................................................12
Status Indicators...............................................................................................................................12
StreamLine 8-Port Switch....................................................................................................................13
Front View........................................................................................................................................13
Rear View.........................................................................................................................................15
Software Upgrades...........................................................................................................................15
StreamLine Dongle Hardware Description ..........................................................................................16
StreamLine Dongle Product Number...............................................................................................16
StreamLine Dongle Dimensions.......................................................................................................17
Network Infrastructure Connector ....................................................................................................17
Ethernet Connector..........................................................................................................................17
CHAPTER 2 UNPACKING STREAMLINE SWITCHES .............................................19
StreamLine 24-Port and 48-Port Switches ..............................................................................19
Product Package..................................................................................................................................19
Before You Install.................................................................................................................................20
Size Requirements...........................................................................................................................20
Physical Location Requirements......................................................................................................20

Mitel StreamLine Switch - Hardware Installation Guide
vi
Wiring Plant Requirements ..............................................................................................................21
What You Will Need.........................................................................................................................21
StreamLine 8-Port Switch........................................................................................................23
Product Package..................................................................................................................................23
Before You Install.................................................................................................................................23
Physical Location Requirements......................................................................................................23
Wiring Plant Requirements ..............................................................................................................24
What You Will Need.........................................................................................................................24
Uplink Ports......................................................................................................................................24
CHAPTER 3 INSTALLATION.....................................................................................25
Quick Links..............................................................................................................................25
StreamLine 24-Port and 48-Port Switches ..............................................................................25
Requirements.......................................................................................................................................25
Safety Precautions...............................................................................................................................26
ESD Procedure....................................................................................................................................26
Care of the Mitel StreamLine 24-Port/48-Port Switches......................................................................27
Care of Replaceable Components.......................................................................................................27
StreamLine 24-Port/48-Port Switch Installation Overview...................................................................27
Installing the Unit in a Rack.................................................................................................................29
Rackmount Safety Instructions ........................................................................................................31
Replacing Legacy Devices with IP Endpoint Devices .........................................................................32
Connecting a PC Behind the IP Phone ...............................................................................................33
Connecting to the 2-wire Network Infrastructure.................................................................................33
Connecting to the Console ..................................................................................................................34
Connecting to the IP PBX....................................................................................................................35
GbE Port Connection .......................................................................................................................35
GBIC Port Connection......................................................................................................................36
Installing the SFP Transceiver Modules...........................................................................................37
Installing the Fiber Optic Cable........................................................................................................38
Connecting to Power ...........................................................................................................................40
AC Connection.................................................................................................................................40
Back Up Power.................................................................................................................................41
UPSs ................................................................................................................................................41
Multiple Unit Configurations.................................................................................................................42
Daisy-chaining Mitel StreamLine Units for Power Supply Redundancy..............................................42
Replacing the Power Supply Unit........................................................................................................45
StreamLine 8-Port Switch........................................................................................................47
Before You Install.................................................................................................................................47
Physical Location Requirements......................................................................................................47
Wiring Plant Requirements ..............................................................................................................47
What You Will Need.........................................................................................................................47
Uplink Ports......................................................................................................................................48

Mitel StreamLine Switch - Hardware Installation Guide
vii
CHAPTER 4 TECHNICAL SPECIFICATIONS ........................................................... 49
Mitel StreamLine Switches ......................................................................................................49
Mitel Wiring Harnesses............................................................................................................53
50-port Wiring Harness ....................................................................................................................53
APPENDIX A VERIFYING WIRING AND CABLING....................................................56
Verifying the Wiring Plant ........................................................................................................56
StreamLine 24-Port and 48-Port Switches Uplink Ports......................................................................56
StreamLine 8-Port Switch Uplink Ports................................................................................................56
All StreamLine Switches Downlink Ports.............................................................................................57
Verifying the Cabling Plant ......................................................................................................57
APPENDIX B ACRONYMS AND ABBREVIATIONS ...................................................59
Acronyms and Abbreviations...................................................................................................59
Index........................................................................................................................................60

Mitel StreamLine Switch - Hardware Installation Guide
viii

Mitel StreamLine Switch - Hardware Installation Guide
1
Chapter 1 PRODUCT DESCRIPTION
QUICK LINKS
MITEL®STREAMLINE 24-PORT AND 48-PORT SWITCHES
StreamLine 24-Port and 48-Port Switches, page 4
Front View, page 4
Rear View, page 4
Power Supply Unit, page 5
Uplink Ports, page 6
Downlink Ports, page 8
Out-of-band Management Port, page 10
Console Port, page 11
Reset Button, page 12
Status Indicators, page 12
StreamLine Dongle Hardware Description, 16
MITEL STREAMLINE 8-PORT SWITCH
StreamLine 8-Port Switch, page 13
Front , page 13
Reset Switch, page 15
Uplink Ports, page 13
Downlink Ports, page 14
Rear View, page 15

Mitel StreamLine Switch - Hardware Installation Guide
2
INTRODUCTION
The Mitel StreamLine family are Power over Ethernet L2 switches. Unlike traditional L2 Ethernet
switches which are limited in operation to distances of 100 m (328ft); the Mitel StreamLine
switches can operate over distances of up to 365 m (1,200ft) over a single pair of CAT-31cable.
A StreamLine Dongle is installed at each IP endpoint, the dongle bridges the signaling and power
delivered from the StreamLine switch over the single pair of CAT-3 cable to the connected IEEE
802.3af compliant end device.
There are three different switches available within the Mitel StreamLine family:
8-Port switch
24-Port switch
48-Port switch
The default Mitel StreamLine configuration supports IP phones and provides a plug and play
solution for replacing a legacy voice network using the existing network cabling plan. Up to 48 IP
phones can be powered from a single Mitel StreamLine switch. The following diagram shows a
typical configuration using a StreamLine 24-port switch and a StreamLine 48-port switch.

1StreamLine is supported on CAT-3 or better, and CW1308 cabling of up to 365 m (1,200ft). For more
technical details, please consult the StreamLine Site Survey document available at
"www.mitel.com/molstreamline".

Mitel StreamLine Switch - Hardware Installation Guide
3
STREAMLINE FAMILY OF SWITCHES
STREAMLINE 24-PORT AND 48-PORT SWITCHES
The Mitel StreamLine 24-Port and 48-Port Power over Ethernet (PoE) switches are 1 VU in height
and 48 cm (19") in width, both models are rack mountable. The upstream ports connect to the
Mitel IP PBX, router or data switch over Gigabit Ethernet copper or fibre optic Ethernet
connections. Unlike typical PoE switches, the downstream ports connect to either one or two 25-
pair RJ21 connectors and run over voice-grade cable1extending up to 365 m (1,200ft).
Both StreamLine 24-Port and the 48-Port switches are fully managed switches, for details refer to
the StreamLine Administration guide.
STREAMLINE 8-PORT SWITCH
The StreamLine 8-Port switch allows small businesses and distributed enterprises to migrate to a
hosted or premise based VoIP solution easily and inexpensively. It is ideal for those customers
who simply want to introduce IP phones without the cost and inconvenience of having to rewire
their existing cable plant. Instead, it transforms the existing voice infrastructure into a data
connection with power delivery, ideal for IP Telephony.
The StreamLine 8-Port switch is not a managed switch; as such, it is intended for applications
where a simple plug and play solution is called for.
DOWNLINK PORTS
All Mitel StreamLine switches permit the use of a legacy 2-wire telephony infrastructure to carry
voice, data, and signals between the upstream switch or IP PBX to all IP endpoints in the
network. StreamLine Dongles at the IP endpoints are like media converters that switch from the
single pair to a standard RJ45 Ethernet PoE connection for providing connectivity and power to
the attached IP device.
Important: Devices attached at the IP endpoints must be IEEE 802.3af compliant1.
The StreamLine family of switches allows customers to combine all of the advantages of the Mitel
IP telephony solution with the robustness of a centralized power distribution system for the IP
phones.
Two StreamLine 8-Port switches can be connected together to allow the number of downlink
ports to be expended to 16. To support larger deployments the StreamLine 24-Port and/or 48-port
switches can be interconnected allowing the number of downlink ports to be increased.
When multiple Mitel StreamLine 24-Port/48-Port switches are deployed, higher system availability
can be realized by making use of the StreamLine power supply sharing capabilities which allows
the StreamLine switches to continue operating in the event that a StreamLine power supply
should fail.
1The StreamLine 24-Port and 48-Port switches support PoE to IEEE 802.3af Class 1 and Class 2 end
points. Some Class 3 end points are also supported, but the Powered Device (PD) must be rated at 10
Watts or less.

Mitel StreamLine Switch - Hardware Installation Guide
4
STREAMLINE HARDWARE DESCRIPTION
STREAMLINE 24-PORT AND 48-PORT SWITCHES
FRONT VIEW

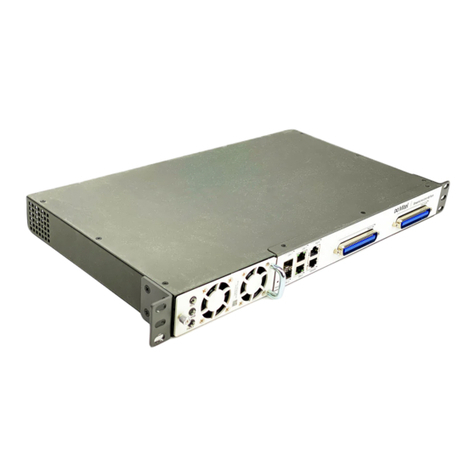

The picture below shows the front view of StreamLine 48-Port model.
REAR VIEW
Models 24-Port and 48-Port
DC Output
connector PSU fan
outlet
Unit fan outlet DC Input
connector
Ground lug
A
C power inlet

Mitel StreamLine Switch - Hardware Installation Guide
5
PRODUCT NUMBERS
The nameplate affixed to the bottom of the Mitel StreamLine switch indicates the generic model
number (24-Ports or 48-Ports). The product serial number and the unit-specific model number are
on a label affixed to the left side of the rear panel. You may be asked to provide these numbers if
you contact Mitel Technical Support for assistance.
Product Nameplate and Label Locations
Generic model number on the nameplate (bottom)
Serial number and unit-specific model number on the label (rear panel)
DIMENSIONS
Height: 4.45 cm (1.75”), 1U
Width: 43.5 cm (17.13”)
Depth: 25.2 cm (9.92”)
Weight: Model 24-Port: Net weight 3.215 kg (7 lb); Gross weight 4.491 kg (9.9 lb)
Model 48-Port: Net weight 3.370 kg (7.4 lb); Gross weight 4.646 kg (10.24 lb)
OPERATING AND STORAGE ENVIRONMENT
Operating temperature: -10°C to 50°C (14°F to 122°F)
Storage temperature: -25°C to 70°C (-13°F to 158°F)
Relative humidity: 10% to 95% (non-condensing) at 35°C (95°F)
BTU rating: Model 24-Port: 61 BTU per hour
Model 48-Port: 81 BTU per hour
INTERNAL COMPONENTS
Processor: Broadcom BCM56018 switch processor, 266 MHz
Memory: 32MB FLASH, 64MB DDR SDRAM
POWER SUPPLY UNIT
Field-replaceable AC power supply unit (PSU)
1 male AC connector at the rear: Autosensing 100-240VAC, 50/60 Hz
2 male DC connectors (In/Out) at the rear of the Unit for power supply redundancy: -52VDC
(nominal),
-42VDC to -58VDC tolerance
Power output: 500W max at 100VAC; 1000W max at 240VAC

Mitel StreamLine Switch - Hardware Installation Guide
6
Power injection (PoE): -54VDC; endpoint devices must be compliant with IEEE 802.3af
2 fans for cooling, front to rear
3 LEDs at the front: RUN (green), ALARM (amber) and FAULT (red). Refer to Status
Indicators, page 12.
FRONT VIEW
CAUTION: Do not lift the Mitel StreamLine using the handle at the front of
the PSU. This handle is intended for removing and replacing the power
supply only. Refer to
Replacing the Power Supply Unit, page 45.

REAR VIEW
UPLINK PORTS
The front panel of the StreamLine 24-Port and 48-Port switches provides four Gigabit
Ethernet connectors to allow for an uplink connection to the IP PBX, router or data switch.
These Gigabit Ethernet connections also permit in-band management of the StreamLine
24-Port and 48-Port switches from a computer connected to the LAN; including all system
OAM&P functions: software updates, configuration upload/download, status monitoring, and
management system interactions.
These connections run at 1 Gigabit/s and they operate in full duplex mode.

Mitel StreamLine Switch - Hardware Installation Guide
7
There are two copper connectors and two fiber connectors provided so that uplink resiliency
can be supported; however, to prevent network loops RSTP must be enabled and the
Administrator must ensure that the LAN is properly designed to support RSTP.
The StreamLine 24-Port and 48-Port switches support a maximum of 2 uplink connections:
either both GbE ports, or both GBIC ports, or one of each. If you want to use one GbE port
and one GBIC port, then the port numbers must be different.
If only one uplink connection is required, then the Administrator should use GbE 1 for a
copper connection or GBIC 1 for a fiber connection.
CAUTION: Do not connect both ports to the network unless STP/RSTP is
enabled, the StreamLine 24-Port/48-Port switch RSTP parameters are correctly
configured, and the customer's network has been designed to support the
Spanning Tree Protocol. For more information, see the StreamLine Admin
Guide. The StreamLine Admin Guide has a section that discusses STP and
RSTP under the Services Tab. General information on designing networks with
RSTP/STP can be found in the MCD Resiliency Guidelines.
Cable required: copper, CAT-5e or better
PORT LABEL PORT TYPE CABLE REQUIRED
GbE 1, GbE 2 RJ45, Ethernet IEEE 802.3
10/100/1000 Base-T autosensing, independent speed selection
Auto-MDIX
CAT-5e copper cable
Note: To select the type of medium to be used, copper or fiber, the Administrator will need to go to
the Configure GbE Interface screen and make the desired selection. For details refer to the
StreamLine Admin Guide.

Mitel StreamLine Switch - Hardware Installation Guide
8
GbE Port Pinout
PIN FUNCTION
1, 2 T/Rx+, T/Rx–
3, 6 T/Rx+, T/Rx–
4, 5 T/Rx+, T/Rx–
7, 8 T/Rx+, T/Rx–
GBIC (Fiber) SFF Sockets
The GBIC SFF sockets will accept 1 Gb/s Ethernet IEEE 802.3z compliant Small Form Factor
optical transceivers, allowing uplink connections ranging from 550 m (1,804ft) to 5 km (16,404ft).
The correct fiber optic cable to use will depend on the type of IEEE 802.3z transceiver being
used. The transceivers and fiber optic cables are customer supplied.
PORT LABEL PORT TYPE TRANSCEIVER & CABLE REQUIRED
GBIC 1, GBIC 2 Small Form Factor GBIC (SFC) Socket The appropriate SFC GBIC Transceiver and
fiber cable will be determined by the
customer's environment.
DOWNLINK PORTS
Provide downlink connections (Ethernet with PoE)
Speed: 10 Mb/s, full duplex
Number of ports:
Model 24-Port: 1 RJ21 male Telco connector (standard), 24 pairs used
Model 48-Port: 2 RJ21 male Telco connectors (standard), 48 pairs used

Mitel StreamLine Switch - Hardware Installation Guide
9
Cable required: CAT-3 or better. Alternately, CW13081, 24 AWG
Maximum cable length: 365 m (1200ft)
PoE power: 10 Watts maximum at IP end point (PD). See Footnote2.
CAUTION: To avoid possible damage to either the StreamLine switch or the IP end
points, DO NOT POWER UP the StreamLine switch until all wiring has been
completed and all IP end points are connected.

CAUTION: Once the StreamLine switch has been installed, and if it is necessary to
make any wiring changes (Moves, Adds or Changes); the StreamLine switch
SHOULD BE powered down.
Wiring changes at cross-connect panels MUST ALWAYS be performed with the
StreamLine switch powered down, NEVER work on a cross-connect panel with live
wires.
Downlink Port Pinout
StreamLine 24-port and 48-port switches:
PIN
Number 1 2 3 4 5 6 7 8 18 19 20 21 22 23 24 25
Port
Number
TR
+ –
1
TR
+ –
2
TR
+ –
3
TR
+ –
4
TR
+ –
5
TR
+ –
6
TR
+ –
7
TR
+ –
8
TR
+ –
18
TR
+ –
19
TR
+ –
20
TR
+ –
21
TR
+ –
22
TR
+ –
23
TR
+ –
24 X
PIN
Number 26 27 28 29 30 31 32 33 43 44 45 46 47 48 49 50
Port
Number
TR
+ –
1
TR
+ –
2
TR
+ –
3
TR
+ –
4
TR
+ –
5
TR
+ –
6
TR
+ –
7
TR
+ –
8
TR
+ –
18
TR
+ –
19
TR
+ –
20
TR
+ –
21
TR
+ –
22
TR
+ –
23
TR
+ –
24 X
1 StreamLine is supported on CAT-3 or better, and CW1308 cabling of up to 365 m (1,200ft). For more
technical details, please consult the StreamLine Site Survey document available at
"www.mitel.com/molstreamline".
2The StreamLine 24-Port and 48-Port switches support PoE to IEEE 802.3af Class 1 and Class 2 end
points. Some Class 3 end points are also supported, but the PD must be rated at 10 Watts or less.

Mitel StreamLine Switch - Hardware Installation Guide
10
StreamLine 48-port StreamLine switch:
PIN
Number 1 2 3 4 5 6 7 8 18 19 20 21 22 23 24 25
Port
Number
TR
+ –
25
TR
+ –
26
TR
+ –
27
TR
+ –
28
TR
+ –
29
TR
+ –
30
TR
+ –
31
TR
+ –
32
TR
+ –
42
TR
+ –
43
TR
+ –
44
TR
+ –
45
TR
+ –
46
TR
+ –
47
TR
+ –
48 X
PIN
Number 26 27 28 29 30 31 32 33 43 44 45 46 47 48 49 50
Port
Number
TR
+ –
25
TR
+ –
26
TR
+ –
27
TR
+ –
28
TR
+ –
29
TR
+ –
30
TR
+ –
31
TR
+ –
32
TR
+ –
42
TR
+ –
43
TR
+ –
44
TR
+ –
45
TR
+ –
46
TR
+ –
47
TR
+ –
48 X
OUT-OF-BAND MANAGEMENT PORT
1 IEEE 802.3 Ethernet LAN port labeled MGMT
Dedicated port for out-of-band management of the Mitel StreamLine, including all system
OAM&P functions
Speed: 10/100 Base-T autosensing Auto-MDIX
Cable required: standard RJ45 LAN cable, CAT-5 or better
Out-of-band Management Port Pinout
PIN FUNCTION
1 TX +
2 TX –
3 RX +
4, 5 Bob Smith Termination
6 Rx –
7, 8 Bob Smith Termination

Mitel StreamLine Switch - Hardware Installation Guide
11
CAUTION: The Management Port default IP address of 192.168.1.1 may conflict
with other network devices/IP addresses and it needs to be changed. Refer to
“Steps to Change the Management Port IP Address” section of the Quick Install
Guide.
Note: VLAN 1001 is reserved for internal use by the StreamLine Switch.
CONSOLE PORT
1 RJ45 UART port labeled Console
Dedicated port for management of the Mitel StreamLine via a console terminal or PC
Speed: 115200 Baud
8 data bits, no parity, 1 stop bit
Cable required: RS232 RJ45 to DB9 connector included with StreamLine
Console Port RTS DTR TxD GND GND RxD DSR CTS
RJ45 Pin 1 2 3 4 5 6 7 8
DB-9 Pin 8 6 2 5 5 3 4 7
Console Device CTS DSR RxD GND GND TxD DTR RTS

Mitel StreamLine Switch - Hardware Installation Guide
12
RESET BUTTON
Recessed button labeled Reset, for manually restarting the Mitel StreamLine
Located on the front panel of the Mitel StreamLine immediately to the right of the power
supply unit
Use a paper clip or something similar to press the Reset button in.
CAUTION: Do NOT use a pencil tip to press the Reset button.
Note: If you press and hold for 10 seconds, the Mitel StreamLine will revert to its factory
configuration, except for the Mgmt IP address. If you press and hold for under 10
seconds, the Mitel StreamLine will only reboot.
STATUS INDICATORS
3 LEDs on the front panel of the power supply unit indicate the operating status of the PS unit and
Mitel StreamLine:
RUN (green): Flashes during startup. Lights solid when the Mitel StreamLine is up and
running.
ALARM (amber): Flashes once during startup, then turns off. Lights solid to indicate a
problem with the PS unit.
FAULT (red): Flashes once during startup, then turns off. Lights solid to indicate a Mitel
StreamLine software or hardware failure. Contact Mitel Technical Support for assistance.
RUN LED (green)
A
LARM LED (amber)
FAULT LED (red)
