Mitsubishi Electric MFZ-KA-VA Instruction manual

TECHNICAL DATA BOOK
CONTENTS
1. REFERENCE SERVICE MANUAL·············································2
2. SPECIFICATIONS ······································································3

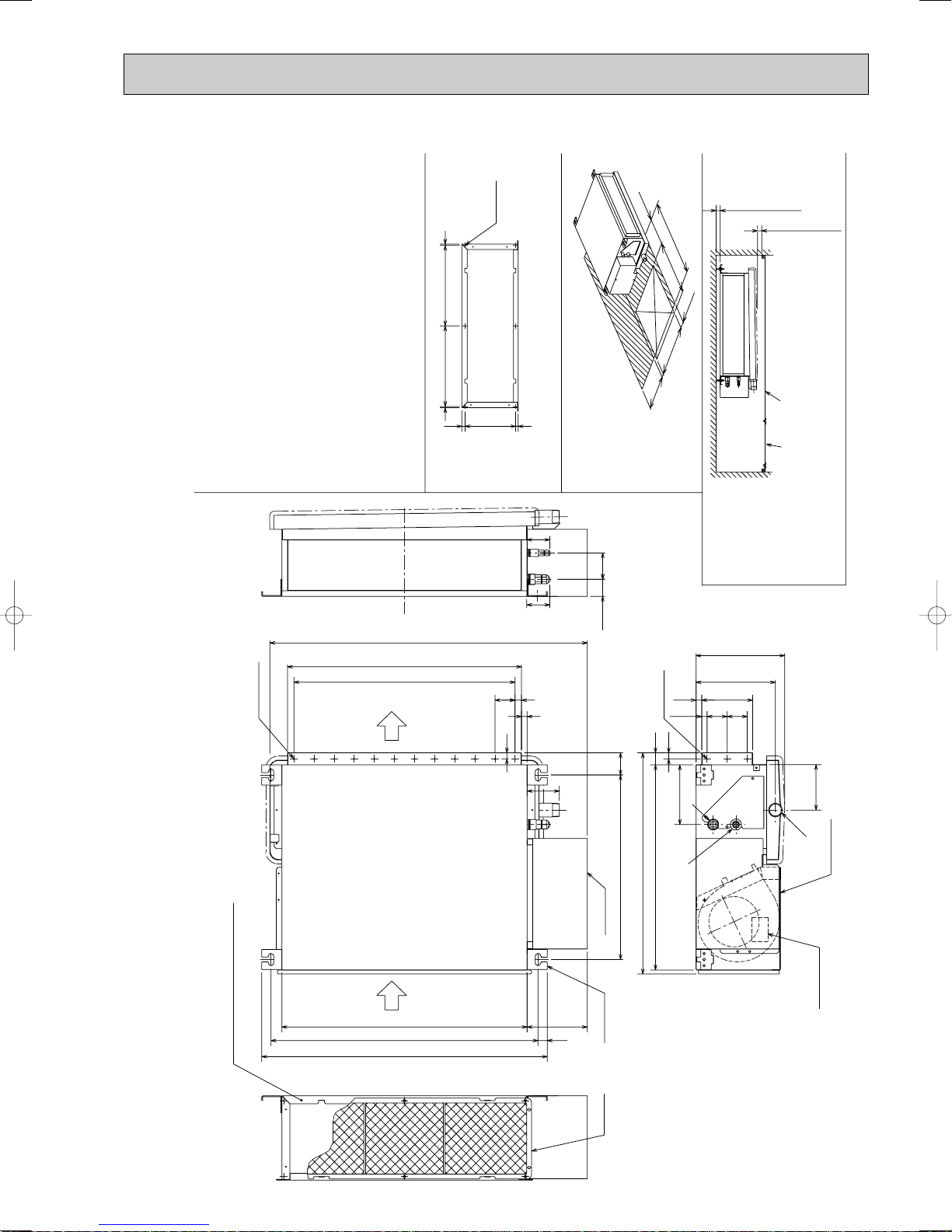

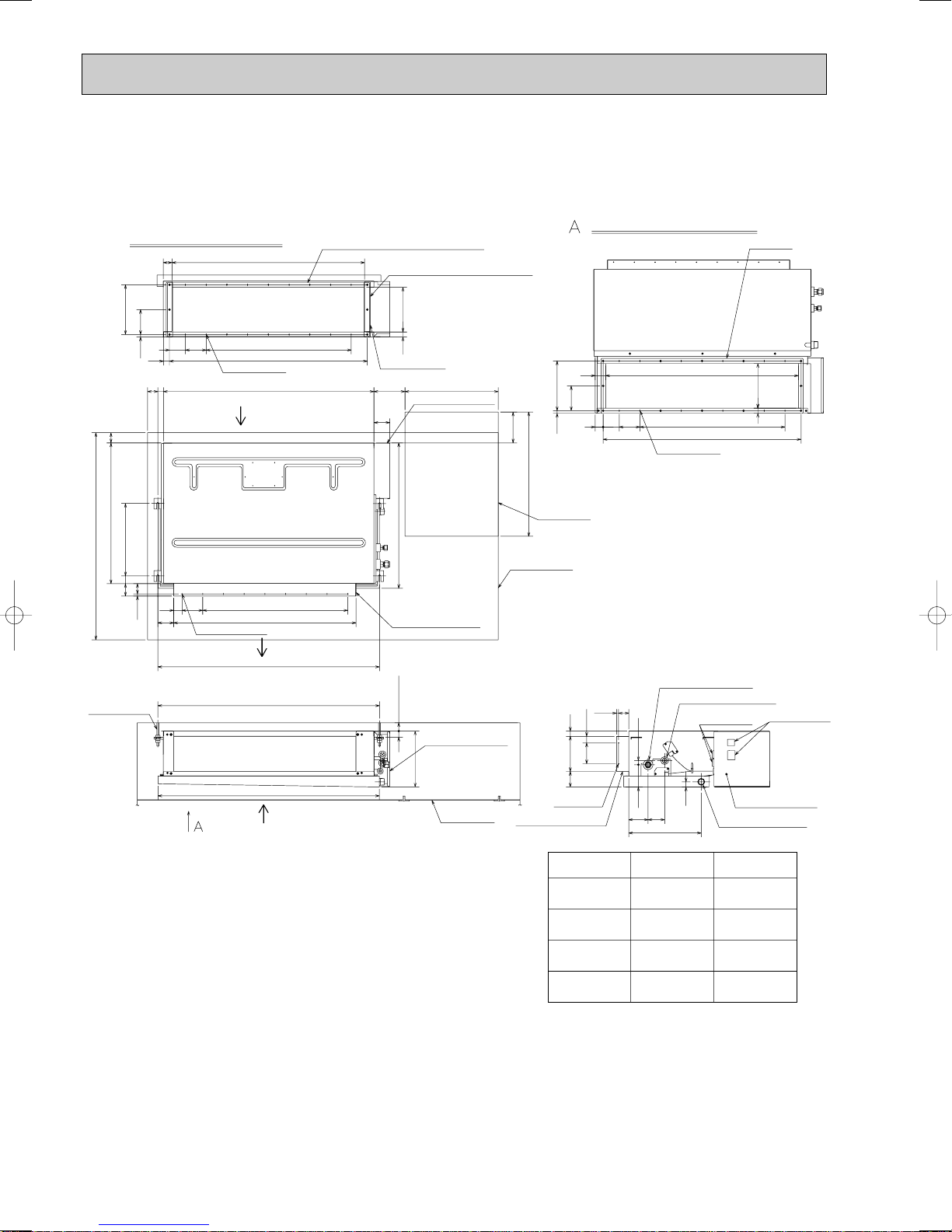

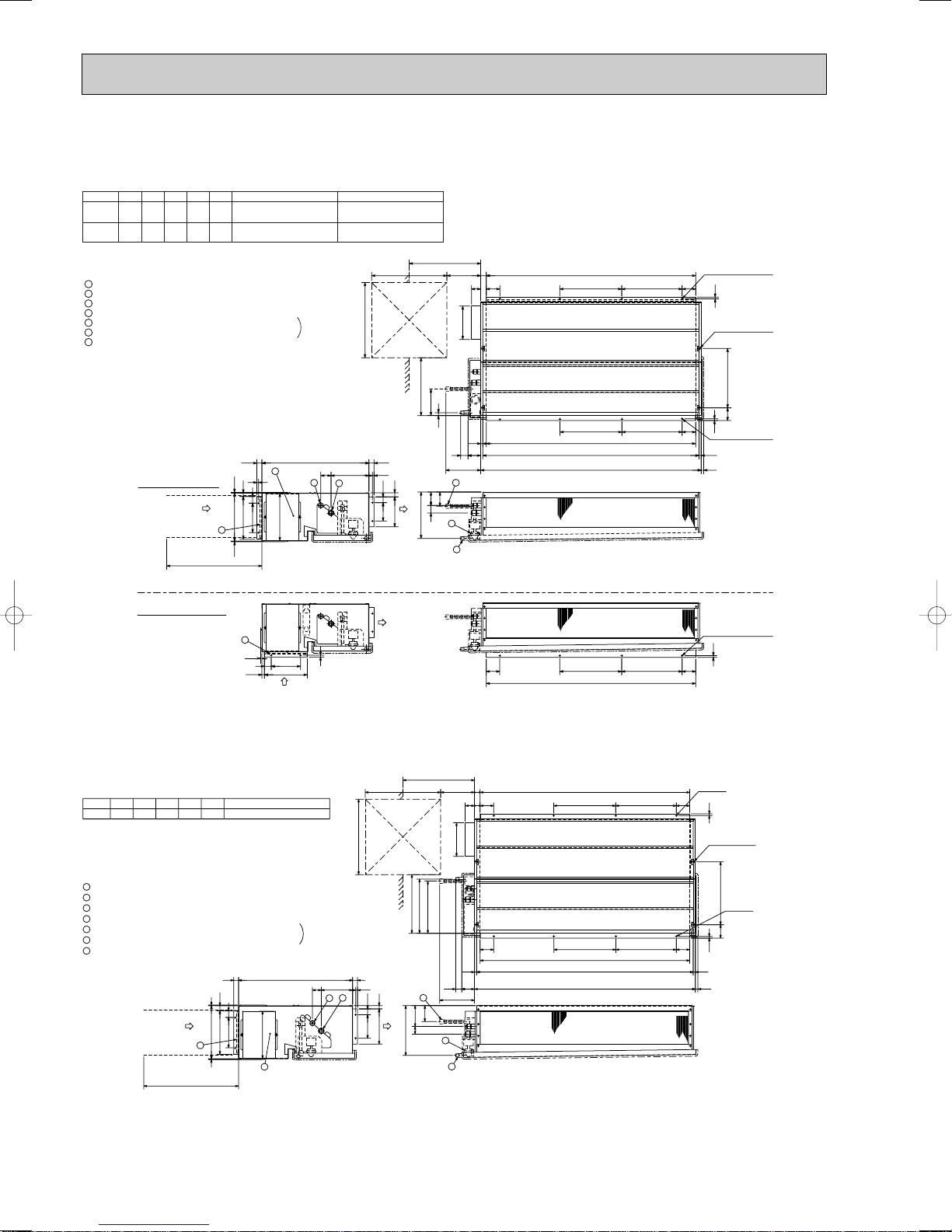

3. OUTLINES AND DIMENSIONS················································11
4. WIRING DIAGRAM···································································26
5. REFRIGERANT SYSTEM DIAGRAM ······································39
6. PERFORMANCE CURVES······················································42
7. APPLICABLE EXTENSION PIPE FOR EACH MODEL ··········44
8. AIR FLOW DATA······································································46
9. NOISE CRITERION CURVES ··················································58
10. OPTIONAL PARTS ····················································Back Cover
<Indoor unit>
[Model names]
R410A
MFZ-KA·VA
SLZ-KA·VA
SLZ-KA·VAL
SEZ-KC·VA
SEZ-KA·VA
PLA-RP·AA
PCA-RP·GA
PEAD-RP·EA
PEAD-RP·EA2
PEAD-RP·GA
PEA-RP·EA
<Outdoor unit>
[Model names]
No. OCS03
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SUZ-KA25/35/50/60/71VA
SUZ-KA25/35VAH
May 2006
INVERTER
kW Model
OCS03-1.qxp 06.5.16 1:03 PM Page 1

2
1-1. Indoor Unit
Model name Service Ref. Service
Manual No.
1-2. Outdoor Unit
Model name Service Ref.
For information on service,please refer to the service manual as follows.
Service
Manual No.
SLZ-KA25/35/50VA SLZ-KA25/35/50VA.TH OC320
SLZ-KA25/35/50VAL SLZ-KA25/35/50VAL.TH
SEZ-KA35/50/60/71VA SEZ-KA35/50/60/71VA.TH OC321
MFZ-KA25/35/50VA-E1 MFZ-KA25/35/50VA-E1 OB409
SEZ-KC25VA SEZ-KC25VA.W MEE04K350
MFZ-KA25/35/50VA-A1 MFZ-KA25/35/50VA-A1 OB410
PLA-RP35/50/60/71AA PLA-RP35/50/60/71AA.UK OC335
PLA-RP35/50/60/71AA OC327
PCA-RP50/60/71GA PCA-RP50/60/71GA OC328
PEAD-RP50/6071EA PEAD-RP50/6071EA.UK
PEAD-RP35EA2 PEAD-RP35EA2.UK HWE05210
PEAD-RP60/71GA PEAD-RP60/71GA.UK HWE05060
PEA-RP71EA PEA-RP71EA.TH-A OC326
SUZ-KA25/35/50/60/71VA SUZ-KA25/35/50/60/71VA.TH OC322
SUZ-KA25/35VAH SUZ-KA25/35VAH.TH
SUZ-KA25/35/50/60/71VA SUZ-KA25/35/50/60/71VA.TH-A OC323
1REFERENCE SERVICE MANUAL
(Note)
When you connect P series indoor units with SUZ, always make sure to follow the piping size of SUZ.
Never use bigger sized pipings in order to ensure not only the system performance but also for your safety.
OCS03-1.qxp 06.5.16 1:03 PM Page 2

3
SPECIFICATIONS2
2-1. FLOOR STANDING TYPE
Model name Indoor unit MFZ-KA25VA MFZ-KA35VA MFZ-KA50VA
Outdoor unit SUZ-KA25VA(H)SUZ-KA35VA(H)SUZ-KA50VA
Cooling Capacity Btu/h 8,500 11,900
kW 2.5(0.9-3.4)3.5(0.9-3.9)4.8(0.9-5.4)
Total input kW 0.58 1.09 1.55
EER 4.31 3.21 3.1
Energy label class A A B
SHF 0.66 0.65 0.63
Heating Capacity Btu/h 11,600 13,600 20,500
kW 3.4(0.9-5.1)4.0(0.9-6.2)6.0(0.9-7.9)
Total input kW 0.835 1.10 1.86
COP 4.07 3.64 3.23
Energy label class A A C
Booster heater kW - - -
Power supply Phase [111
Cycle Hz 50 50 50
Voltage V 230 230 230
Breaker size A 10 10 20
Indoor unit Air flow at cooling CMM 4.8-5.8-7.1-8.7 5.0-6.1-7.4-9.1 7.1-7.9-9.2-10.7
(Low-Medium-High-Super High)CFM 170-205-250-310 180-215-260-320 250-280-325-380
Air flow at heating CMM 5.0-6.2-7.6-9.1 5.2-6.2-7.8-9.5 7.4-8.8-9.8-11.8
(Low-Medium-High-Super High)CFM 180-220-270-320 185-220-275-335 260-310-345-415
External static pressure Pa 0 0 0
Sound level at cooling dB(A)22-27-32-37 23-28-33-38 32-35-39-43
(Low-Medium-High-Super High)
Sound level at heating dB(A)22-27-32-37 25-28-33-38 32-35-39-44
(Low-Medium-High-Super High)
External finish (Panel)White Munsell 1.0Y 9.2/0.2
Dimension W : mm 700
Unit (Panel) D : mm 200
H : mm 600
W : inch 27-5/8
D : inch 7-7/8
H : inch 23-5/8
Weight kg 14
Unit (Panel)lbs 31
Outdoor unit Air flow at cooling CMM 34.3 33.4 27.5-49
(Low-High)CFM 1,210 1,180 970-1,730
Air flow at heating CMM 32.3 33.4 36.8-49
(Low-High)CFM 1,140 1,180 1,300-1,730
Sound level at cooling dB(A)46 47 51-53
(Low-High)
Sound level at heating dB(A)46 48 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 800 800 840
D : mm 285 285 330
H : mm 550 550 850
W : inch 31-1/2 31-1/2 33-1/16
D : inch 11-1/4 11-1/4 13
H : inch 21-5/8 21-5/8 33-7/16
Weight kg 33 37 53
lbs 73 82 117
Refrigerant pipe size Gas side O.D. mm 9.52 9.52 12.7
inch 3/8 3/8 1/2
Liquid side . mm 6.35 6.35 6.35
inch 1/4 1/4 1/4
Refrigerant pipe length Height difference m Max. 12 Max. 12 Max. 15
Length m Max. 20 Max. 20 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 46˚C D.B. 46˚C D.B.43˚C D.B.
KA25, KA35VA KA25, KA35VAH KA50
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
-20˚C D.B. ,-21˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 3

4
2-2. CEILING CASSETTE TYPE
Model name Indoor unit SLZ-KA25VA(L)SLZ-KA35VA(L)SLZ-KA50VA(L)
Outdoor unit SUZ-KA25VA(H)SUZ-KA35VA(H)SUZ-KA50VA
Cooling Capacity Btu/h 8,500 11,900 15,700
kW 2.5(0.9-3.2)3.5(1.0-3.9)4.6(1.1-5.2)
Total input kW 0.69 1.06 1.63
EER 3.62 3.30 2.82
Energy label class A A C
SHF 0.86 0.77 0.68
Heating Capacity Btu/h 10,200 13,600 17,100
kW 3.0(0.9-4.5)4.0(0.9-5.0)5.0(0.9-6.5)
Total input kW 0.83 1.10 1.55
COP 3.61 3.64 3.23
Energy label class A A C
Booster heater kW - - -
Power supply Phase [111
Cycle Hz 50 50 50
Voltage V 230 230 230
Breaker size A 10 10 20
Indoor unit Air flow CMM 8-9-10 8-9-11 8-9-11
(Low-Medium-High)CFM 280-320-355 280-320-390 280-320-390
External static pressure Pa 0 0 0
Sound level dB(A)28-31-37 29-33-38 30-34-39
(Low-Medium-High)
External finish (Panel)White Munsell 0.70Y 8.59/0.97
Dimension W : mm 570(650)
Unit(Panel)D : mm 570(650)
H : mm 208(20)
W : inch 22-7/16(25-9/16)
D : inch 22-7/16(25-9/16)
H : inch 8-3/16(13/16)
Weight kg 16.5(3)
Unit (Panel)lbs 36(7)
Unit drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow at cooling CMM 34.3 33.4 27.5-49
(Low-High)CFM 1,210 1,180 970-1,730
Air flow at heating CMM 32.3 33.4 36.8-49
(Low-High)CFM 1,140 1,180 1,300-1,730
Sound level at cooling dB(A)46 47 51-53
(Low-High)
Sound level at heating dB(A)46 48 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 800 800 840
D : mm 285 285 330
H : mm 550 550 850
W : inch 31-1/2 31-1/2 33-1/16
D : inch 11-1/4 11-1/4 13
H : inch 21-5/8 21-5/8 33-7/16
Weight kg 33 37 53
lbs 73 82 117
Refrigerant pipe size Gas side O.D. mm 9.52 9.52 12.7
inch 3/8 3/8 1/2
Liquid side O.D. mm 6.35 6.35 6.35
inch 1/4 1/4 1/4
Refrigerant pipe length Height difference m Max. 12 Max. 12 Max. 15
Length m Max. 20 Max. 20 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 46˚C D.B. 46˚C D.B.43˚C D.B.
KA25, KA35VA KA25, KA35VAH KA50
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
-20˚C D.B. ,-21˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 4

5
Model name Indoor unit PLA-RP35AA PLA-RP50AA PLA-RP60AA PLA-RP71AA
Outdoor unit SUZ-KA35VA(H)SUZ-KA50VA SUZ-KA60VA SUZ-KA71VA
Cooling Capacity Btu/h 11,900 17,100 19,400 24,200
kW 3.5(1.0-3.9)5.0(1.1-5.6)5.7(1.1-6.3)7.1(0.9-8.1)
Total input kW 1.09 1.78 1.94 2.53
EER 3.21 2.81 2.94 2.81
Energy label class A C C C
SHF 0.88 0.86 0.83 0.77
Heating Capacity Btu/h 14,000 20,500 23,500 27,300
kW 4.1(0.9-5.0)6.0(0.9-7.2)6.9(0.9-8.0)8.0(0.9-10.2)
Total input kW 1.11 1.76 2.11 2.49
COP 3.69 3.41 3.27 3.21
Energy label class A B C C
Booster heater kW - - - -
Power supply Phase [1111
Cycle Hz 50 50 50 50
Voltage V 230 230 230 130
Breaker size A 10 20 20 20
Indoor unit Air flow CMM 11-12-13-14 14-15-16-18 14-15-16-18 15-16-18-20
(Low-Medium2-Medium1-High)
CFM 390-425-460-495 495-530-565-635 495-530-565-635 530-565-635-705
External static pressure Pa 0 0 0 0
Sound level dB(A)27-28-29-31 28-29-31-33 28-29-31-33 28-30-32-34
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 0.70Y 8.59/0.97
Dimension W : mm 840 (950)
Unit (Panel)D : mm 840 (950)
H : mm 258 (30)
W : inch 33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)
H : inch 10-3/16 (1-3/16)
Weight kg 24 (5)
Unit (Panel)lbs 53 (11)
Unit drain pipe I.D. mm 32
inch 1-1/4
Outdoor unit Air flow at cooling CMM 33.4 27.5-49 27.5-49 27.5-49
(Low-High)CFM 1,180 970-1,730 970-1,730 970-1,730
Air flow at heating CMM 33.4 36.8-49 36.8-49 36.8-49
(Low-High)CFM 1,180 1,300-1,730 1,300-1,730 1,300-1,730
Sound level at cooling dB(A)47 51-53 51-53 51-53
(Low-High)
Sound level at heating dB(A)48 53-55 53-55 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 800 840 840 840
D : mm 285 330 330 330
H : mm 550 850 850 850
W : inch 31-1/2 33-1/16 33-1/16 33-1/16
D : inch 11-1/4 13 13 13
H : inch 21-5/8 33-7/16 33-7/16 33-7/16
Weight kg 37 53 53 58
lbs 82 117 117 128
Refrigerant pipe size Gas side O.D. mm 9.52 12.7 15.88 15.88
inch 3/8 1/2 5/8 5/8
Liquid side O.D. mm 6.35 6.35 6.35 9.52
inch 1/4 1/4 1/4 3/8
Refrigerant pipe length Height difference m Max. 12 Max. 15 Max. 15 Max. 15
Length m Max. 20 Max. 30 Max. 30 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 46˚C D.B. 46˚C D.B.43˚C D.B.
KA35VA KA35VAH
KA50, KA60, KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
-20˚C D.B. ,-21˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 5

6
Model name Indoor unit PCA-RP50GA PCA-RP60GA PCA-RP71GA
Outdoor unit SUZ-KA50VA SUZ-KA60VA SUZ-KA71VA
Cooling Capacity Btu/h 16,000 18,800 24,200
kW 4.7(1.1-5.4)5.5(1.1-6.3)7.1(0.9-8.1)
Total input kW 1.80 1.92 2.53
EER 2.61 2.86 2.81
Energy label class D C C
SHF 0.70 0.79 0.71
Heating Capacity Btu/h 18,800 23,500 27,300
kW 5.5(0.9-6.6)6.9(0.9-8.0)8.0(0.9-10.2)
Total input kW 1.92 2.05 2.49
COP 2.86 3.37 3.21
Energy label class D C C
Booster heater kW - - -
Power supply Phase [1
Cycle Hz 50
Voltage V 230
Breaker size A 20
Indoor unit Air flow CMM 10-11-12-13 14-15-16-18
(Low-Medium2-Medium1-High)
CFM 355-390-425-460 495-530-565-635
External static pressure Pa 0 0
Sound level dB(A)37-38-40-42 37-39-41-43
(Low-Medium2-Medium1-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 1000 1310
D : mm 680
H : mm 210
W : inch 39-3/8 51-9/16
D : inch 26-3/4
H : inch 8-1/4
Weight kg 27 34
lbs 60 75
Unit drain pipe I.D. mm 26
inch 1
Outdoor unit Air flow at cooling CMM 27.5-49 27.5-49 27.5-49
(Low-High)CFM 970-1,730 970-1,730 970-1,730
Air flow at heating CMM 36.8-49 36.8-49 36.8-49
(Low-High)CFM 1,300-1,730 1,300-1,730 1,300-1,730
Sound level at cooling dB(A)51-53 51-53 51-53
(Low-High)
Sound level at heating dB(A)53-55 53-55 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 840 840 840
D : mm 330 330 330
H : mm 850 850 850
W : inch 33-1/16 33-1/16 33-1/16
D : inch 13 13 13
H : inch 33-7/16 33-7/16 33-7/16
Weight kg 53 53 58
lbs 117 117 128
Refrigerant pipe size Gas side O.D. mm 12.7 15.88 15.88
inch 1/2 5/8 5/8
Liquid side O.D. mm 6.35 6.35 9.52
inch 1/4 1/4 3/8
Refrigerant pipe length Height difference m Max. 15 Max. 15 Max. 15
Length m Max. 30 Max. 30 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 43˚C D.B.
KA50, KA60, KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
2-3. CEILING-SUSPENDED TYPE
OCS03-1.qxp 06.5.16 1:03 PM Page 6

7
Model name Indoor unit SEZ-KC25VA SEZ-KA35VA SEZ-KA50VA SEZ-KA60VA SEZ-KA71VA
Outdoor unit SUZ-KA25VA(H)SUZ-KA35VA(H)SUZ-KA50VA SUZ-KA60VA SUZ-KA71VA
Cooling Capacity Btu/h 8,500 11,900 17,100 18,800 24,200
kW 2.5(0.9-3.2)3.5(1.0-3.9)5.0(1.1-5.6)5.5(1.1-6.3)7.1(0.9-8.3)
Total input kW 0.73 1.06 1.78 1.96 2.46
EER 3.42 3.30 2.81 2.81 2.89
Energy label class A A C C C
SHF 0.74 0.77 0.75 0.75 0.74
Heating Capacity Btu/h 10,200 13,600 20,100 23,500 27,600
kW 3.0(0.9-4.5)4.0(0.9-5.0)5.9(1.1-7.2)6.9(0.9-8.0)8.1(0.9-10.4)
Total input kW 0.83 1.10 1.84 2.45 2.36
COP 3.61 3.64 3.21 2.82 3.43
Energy label class A A C D B
Booster heater kW - - - - -
Power supply Phase [11111
Cycle Hz 50 50 50 50 50
Voltage V 230 230 230 230 230
Breaker size A 10 10 20 20 20
Indoor unit Air flow CMM 4.8-7.9 10-13 12-17 12-20 12-20
(Low-High)CFM 170-280 355-460 425-600 425-705 425-705
External static pressure
Pa Std:5 Max:5 Std:30 Max:50 Std:30 Max:50 Std:30 Max:50 Std:30 Max:50
Sound level dB(A)25-36 30-35 31-39 32-43 32-43
(Low-High)
External finish Galvanized sheets
Dimension W : mm 790 1100
D : mm 550 700
H : mm 225 270
W : inch 31-1/8 43-5/16
D : inch 21-5/8 27-9/16
H : inch 8-7/8 10-5/8
Weight kg 19 33.5 35
lbs 42 74 77
Unit drain pipe R1(External thread)R1(External thread)
Outdoor unit Air flow at cooling CMM 34.3 33.4 27.5-49 27.5-49 27.5-49
(Low-High)CFM 1,210 1,180 970-1,730 970-1,730 970-1,730
Air flow at heating CMM 32.3 33.4 36.8-49 36.8-49 36.8-49
(Low-High)CFM 1,140 1,180 1,300-1,730 1.300-1,730 1,300-1,730
Sound level at cooling dB(A)46 47 51-53 51-53 51-53
(Low-High)
Sound level at heating dB(A)46 48 53-55 53-55 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 800 800 840 840 840
D : mm 285 285 330 330 330
H : mm 550 550 850 850 850
W : inch 31-1/2 31-1/2 33-1/16 33-1/16 33-1/16
D : inch 11-1/4 11-1/4 13 13 13
H : inch 21-5/8 21-5/8 33-7/16 33-7/16 33-7/16
Weight kg 33 37 53 53 58
lbs 73 82 117 117 128
Refrigerant pipe size Gas side O.D. mm 9.52 9.52 12.7 15.88 15.88
inch 3/8 3/8 1/2 5/8 5/8
Liquid side O.D. mm 6.35 6.35 6.35 6.35 9.52
inch 1/4 1/4 1/4 1/4 3/8
Refrigerant pipe length Height difference m Max. 12 Max. 12 Max. 15 Max. 15 Max. 15
Length m Max. 20 Max. 20 Max. 30 Max. 30 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 46˚C D.B. 46˚C D.B.43˚C D.B.
KA25, KA35VA KA25, KA35VAH KA50, KA60, KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
-20˚C D.B. ,-21˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
2-4. CEILING-CONCEALED TYPE
OCS03-1.qxp 06.5.16 1:03 PM Page 7

8
Model name Indoor unit PEAD-RP35EA2 PEAD-RP50EA PEAD-RP60EA PEAD-RP71EA
Outdoor unit SUZ-KA35VA(H)SUZ-KA50VA SUZ-KA60VA SUZ-KA71VA
Cooling Capacity Btu/h 12,300 16,700 20,500 24,200
kW 3.6(1.0-3.9)4.9(1.1-5.6)6.0(1.1-6.3)7.1(0.9-8.1)
Total input kW 1.12 1.74 2.05 2.53
EER 3.21 2.82 2.93 2.81
Energy label class A C C C
SHF 0.90 0.79 0.80 0.81
Heating Capacity Btu/h 14,000 20,100 23,900 27,300
kW 4.1(0.9-5.0)5.9(0.9-7.2)7.0(0.9-8.0)8.0(0.9-10.2)
Total input kW 1.13 1.69 2.07 2.49
COP 3.63 3.49 3.38 3.21
Energy label class A B C C
Booster heater kW - - - -
Power supply Phase [1111
Cycle Hz 50 50 50 50
Voltage V 230 230 230 230
Breaker size A 10 20 20 20
Indoor unit Air flow CMM 13.5-17 17-21 20-25
(Low-High)CFM 476-600 600-741 706-883
External static pressure Pa 30(70)30(70)70(130)
Sound level dB(A)36-40 37-41 37-41
(Low-High)(
70Pa : 38-44)( 70Pa : 39-46)( 130Pa : 40-45)
External finish Galvanized sheets Galvanized sheets
Dimension W : mm 935 1175
D : mm 700 700 740
H : mm 295 295 325
W : inch 36-13/16 46-1/8
D : inch 27-5/8 27-5/8 29-1/8
H : inch 11-5/8 11-5/8 12-13/16
Weight kg 33 35 42 44
lbs 73 77 92 97
Unit drain pipe R1(External thread)R1(External thread)
Outdoor unit Air flow at cooling CMM 33.4 27.5-49 27.5-49 27.5-49
(Low-High)CFM 1,180 970-1,730 970-1,730 970-1,730
Air flow at heating CMM 33.4 36.8-49 36.8-49 36.8-49
(Low-High)CFM 1,180 1,300-1,730 1,300-1,730 1,300-1,730
Sound level at cooling dB(A)47 51-53 51-53 51-53
(Low-High)
Sound level at heating dB(A)48 53-55 53-55 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 800 840 840 840
D : mm 285 330 330 330
H : mm 550 850 850 850
W : inch 31-1/2 33-1/16 33-1/16 33-1/16
D : inch 11-1/4 13 13 13
H : inch 21-5/8 33-7/16 33-7/16 33-7/16
Weight kg 37 53 53 58
lbs 82 117 117 128
Refrigerant pipe size Gas side O.D. mm 9.52 12.7 15.88 15.88
inch 3/8 1/2 5/8 5/8
Liquid side O.D. mm 6.35 6.35 6.35 9.52
inch 1/4 1/4 1/4 3/8
Refrigerant pipe length Height difference m Max. 12 Max. 15 Max. 15 Max. 15
Length m Max. 20 Max. 30 Max. 30 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 46˚C D.B. 46˚C D.B.43˚C D.B.
KA35VA KA35VAH
KA50, KA60, KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
-20˚C D.B. ,-21˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 8

9
Model name Indoor unit PEAD-RP60GA PEAD-RP71GA
Outdoor unit SUZ-KA60VA SUZ-KA71VA
Cooling Capacity Btu/h 19,400 24,200
kW 5.7(1.1-6.3)7.1(0.9-8.1)
Total input kW 2.03 2.53
EER 2.81 2.81
Energy label class C C
SHF 0.82 0.81
Heating Capacity Btu/h 23,900 27,300
kW 7.0(0.9-8.0)8.0(0.9-10.2)
Total input kW 2.05 2.49
COP 3.41 3.21
Energy label class B C
Booster heater kW - -
Power supply Phase [1
Cycle Hz 50
Voltage V 230
Breaker size A 20
Indoor unit Air flow CMM 16.5-21 20-25
(Low-High)CFM 582-741 706-883
External static pressure Pa 10/50/70
Sound level dB(A)33-37/35-40/36-42 35-38/37-41/37-43
(Low-High)(
10/50/70Pa)( 10/50/70Pa)
External finish Galvanized sheets
Dimension W : mm 1171
D : mm 740
H : mm 275
W : inch 46-1/8
D : inch 29-1/8
H : inch 10-13/16
Weight kg 42
lbs 93
Unit drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow at cooling CMM 27.5-49 27.5-49
(Low-High)CFM 970-1,730 970-1,730
Air flow at heating CMM 36.8-49 36.8-49
(Low-High)CFM 1,300-1,730 1,300-1,730
Sound level at cooling dB(A)51-53 51-53
(Low-High)
Sound level at heating dB(A)53-55 53-55
(Low-High)
External finish Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 840 840
D : mm 330 330
H : mm 850 850
W : inch 33-1/16 33-1/16
D : inch 13 13
H : inch 33-7/16 33-7/16
Weight kg 53 58
lbs 117 128
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 6.35 9.52
inch 1/4 3/8
Refrigerant pipe length Height difference m Max. 15 Max. 15
Length m Max. 30 Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 43˚C D.B.
KA60, KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 9

10
Model name Indoor unit PEA-RP71EA
Outdoor unit SUZ-KA71VA
Cooling Capacity Btu/h 23,500
kW 6.9
Total input kW 2.90
EER 2.38
SHF 0.84
Heating Capacity Btu/h 27,300
kW 8.0
Total input kW 2.49
COP 3.21
Booster heater kW -
Power supply Phase [1
Cycle Hz 50
Voltage V 230
Breaker size A 20
Indoor unit Air flow CMM 22-27
(Low-High)R/s 367-450
External static pressure Pa 125
Sound level dB(A)52-55
(Low-High)
External finish Galvanized sheets
Dimension W : mm 785
D : mm 690
H : mm 428
W : inch 31
D : inch 27-1/16
H : inch 16-7/8
Weight kg 46
lbs 101
Unit drain pipe R1(External therad)
Outdoor unit Air flow at cooling CMM 27.5-49
(Low-High)CFM 970-1,730
Air flow at heating CMM 36.8-49
(Low-High)CFM 1,300-1,730
Sound level at cooling dB(A)51-53
(Low-High)
Sound level at heating dB(A)53-55
(Low-High)
External finish
Ivory Munsell 3.0Y 7.8/1.1
Dimension W : mm 840
D : mm 330
H : mm 850
W : inch 33-1/16
D : inch 13
H : inch 33-7/16
Weight kg 58
lbs 128
Refrigerant pipe size Gas side O.D. mm 15.88
inch 5/8
Liquid side O.D. mm 9.52
inch 3/8
Refrigerant pipe length Height difference m Max. 15
Length m Max. 30
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit 32˚C D.B. , 23˚C W.B. 43˚C D.B.
KA71
Lower limit 21˚C D.B. , 15˚C W.B. -10˚C D.B.
Heating Upper limit 27˚C D.B. 24˚C D.B. , 18˚C W.B.
Lower limit 20˚C D.B. -10˚C D.B. ,-11˚C W.B.
4. Above data based on indicated voltage
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz
OCS03-1.qxp 06.5.16 1:03 PM Page 10

11
OUTLINES AND DIMENSIONS3
Unit : mm
INDOOR UNIT
60
12
19 60
125
147
454155
60
35
45
110
80
60
72
337 337
363
333210 593 7
131131
4-[6 Hole
Indoor unit
Installation plate
96
123
125
6019
12
60
128
118
165
205
20012
12
11
Gas pipe
25, 35:[9.52(flared)3/8
50:[12.7(flared)1/2
Liquid pipe
[6.35(flared)1/4
drain
Air in
Air out
Air out
46.5 46.5
600
700
54 508 137
607
More than 100mm
More than
100mm More than
100mm
MFZ-KA25VA
MFZ-KA35VA
MFZ-KA50VA
OCS03-1.qxp 06.5.16 1:03 PM Page 11

12
Unit : mm
SLZ-KA25VAL
SLZ-KA35VAL
SLZ-KA50VAL
SLZ-KA25VA
SLZ-KA35VA
SLZ-KA50VA
SLZ-KA50VA(L)
SLZ-KA35VA(L)
SLZ-KA25VA(L)
Brand label
(Case of Wired remote controller)
Terminal block Terminal block
87
Suspension bolt M10 or 3/8 (procure locally)
1/4F
flared connection
{6.35mm
1/4F
flared connection
{6.35mm {9.52mm
flared connection
3/8F 1/2F
flared connection
Refrigerent pipe (liquid)
Refrigerent pipe (gas)
Models
{6.35mm
flared connection
1/4F
Refrigerent pipe (liquid) Refrigerent pipe
(gas)
{12.7mm {9.52mm
flared connection
3/8F
15~37 15~37
576~620
570
530
Grille
Fresh air intake
Drain pipe VP-25 connection (O.D. {32)
Vane motor
Drain hole
V/M
Air intake grille
55 35
35 55
Auto vane
Grille
Air intake hole
Air intake hole
Air outlet hole
Air outlet hole
301
301
Emergency operation switch(cooling)
Emergency operation switch(heating)
Operation lamp
DEFROST/STAND BY lamp
(WIRELESS PANEL)
Receiver
Detail drawing of fresh air intake
Ceiling surface
Cut out hole
{73.4
Burring hole
3- {2.8 hole
{100
118
25
120°
120°
377
377
650
650
Suspension bolt
lower edge
230
18248
Wiring entry
Ceiling surface
235
208
27 +5
0193
20
93
38~58
66121
17 202
56
57
31
Ceiling hole
Suspension bolt pitch
15~37 15~37576~620
420
570
335
199
352 335
Suspension bolt pitch
Ceiling hole
V/M
V/M
V/M
OCS03-1.qxp 06.5.16 1:03 PM Page 12

13
Unit : mm
SEZ-KC25VA
Make the access door at the appointed position properly for service maintenance.
Ceiling surfaceAccess door
Required space for service and maintenance
Lifting plate (4-14x30)
Air filter
80
Control box
Terminal bed
(Power source) Bottom plate
23 664(Lifting bolt pitch)
710
The part air intake duct is attached.(✻3) (When the air intake duct is used)
610
50
150
790
582
204.5
42.5
30
225(✻2)
15
148
13.55050
510
14127
56.5
(52)
(57)
129
55301 301
189
Detailed chart around the air intake duct frange(✻3) (Duct and frange should be supplied in the field)
550(✻1)
More than 20mm
More than 20mm
6- ø 3hole
55
50X11=550
16
2X12- ø 3hole
14
459(Lifting bolt pitch)
15
113
Air outlet
Air inlet
450
50~150
300 450
2X3- ø 3hole
25
500 50~150
1
2
3
Note 1. Use M10 screw for the lifting bolt (field supply).
2. Keep the service space for the maintenance from the bottom
when the heat exchanger is cleaned.
3. The direction of air intake can be changed from the bottom to
the rear by attaching the bottom plate to the air intake side.
4. Drain Pan is changeable from right and left. 5. The dimension is changed, in case the optional long-life filter
is attached.
Rear Air-Intake spec. :Depth is increased by 30mm(✻1)
Bottom Air-Intake spec. :Height is increased by 30mm(✻2) Refrigerant piping flare connection
(gas ø 9.52 copper tube):LP ········1
Refrigerant piping flare connection
(liquid ø 6.35 copper tube):HP ········2
Drain piping connection R1 (External thread) ········3
OCS03-1.qxp 06.5.16 1:03 PM Page 13

14
SEZ-KA35VA
SEZ-KA50VA
SEZ-KA60VA
SEZ-KA71VA
Unit : mm
(10) 50
50 880
7x100=700
100
40
9 x 2-{2.9 holes
1000
50
38
60
680
350
Suspension bolt pitch
In case of bottom side suction,
mount the PLATE (A) on the rear side.
Air inlet (rear side) dimensions
240
1016
42 930
back side or bottom side.
29 955
7x100=700
100
77.5
12012.5
(Inlet size)
24-{2.9 holes
5027
Air inlet
(rear side)
Air outlet duct flange
120
12.5 240
(It is necessary to maintain a working
service area from the ceiling.)
150
32.5
25
(10) 50
77
600
700
Access door
Service space
Air outlet
Suspension bolt pitch
1070
(Suspension bolt pitch)
Electrical parts box
(1070)
20 or more30
20
PLATE (B) x2
After installation, remove the
transportation support PLATE (B).
25 (Inlet size)
215
450150 Electrical parts box
wSelect the either
SEZ-KA60VA
SEZ-KA50VA
Terminal block
3/8F
flared connection
{9.52mm
{6.35mm
flared connection
1/4F
Air outlet duct flange
51
25
930
(Inlet size)
39
955
7x100=700
100
77.5
(Inlet size)
215
Air inlet (bottom side) dimensions
24-{2.9 holes
flared connection
{6.35mm
Electrical parts box
2x2-{2.9
holes
flared connection
{15.88mm
5/8F
flared connection
1/2F
{12.7mm
Refrigerent pipe
(gas)
Refrigerent pipe
(liquid)
1/4F
flared connection
{6.35mm
SEZ-KA35VA
Models
Wiring entry
Refrigerent pipe (liquid)
Refrigerent pipe (gas)
Drain plug R1 (male)
108
94 80
25
350
1/4F
SEZ-KA71VA flared connection
{9.52mm flared connection
5/8F
{15.88mm
3/8F
wSelect the either back side or bottom side.
Air inlet
(bottom side)
100
75 170
Suspension bolt
M10 or 3/8
(procure locally)
1100
270
Access door
PLATE (A)
OCS03-1.qxp 06.5.16 1:03 PM Page 14

15
PLA-RP60,71AA
PLA-RP35,50AA
Models
241
A
258
B
80
C
Receiver Operation lamp
DEFROST/STAND BY lamp
Emergency operation switch (cooling)
A (WIRELESS PANEL)
Emergency operation switch (heating)
Branch duct hole
(Cut out hole)
{175
{150
14 - {2.8
Burring hole
350
90
70_
100 100 90
100 130
155
167
Suspension bolt pitch
Ceiling hole
Branch
duct hole
Suspension bolt pitch
Ceiling hole
840
197 159
159
605
159192
98
89
C
840
860 - 91020 - 45 20 - 45
20 - 4520 - 45
Fresh air intake
Branch duct hole
860 - 910
810
159
16
Terminal block
Drain pipe
VP-25connection
(O.D.{32)
Ceiling surface
Power line entry
Suspension bolt lower edge
Suspension bolt M10
or W3/8
Control wire entry
Feeding hole
(Drain pump) 37428660
17+5
0
30
190
170
140
50 - 70
105
A
B
1
2
High efficiency filter
& Fresh air intake casement (option)
17+5
0135
Air outlet hole
Vane motor
Auto vane
Drain hole
Grille
Air outlet hole
Air intake hole
411
Air intake hole
Air intake grille 577
77 51
M
M
M
A
M
950
51 77
950 577 411
RP35, 50
Use the current nuts meeting the pipe size of the outdoor unit.
Available pipe size
Factory flare nut attachment to the heat-exchanger.
1LIQUID SIDE
2GAS SIDE
RP60 RP71
[6.35 [6.35 —
[9.52 [9.52 [9.52
[12.7 — —
[15.88 [15.88 [15.88
———
Detail drawing of fresh air intake
3 - {2.8
Burring hole {125
Burring hole pitch
{100
(Cut out hole)
Ceiling surface
120_
120_
158
Unit : mm
PLA-RP35AA PLA-RP50AA PLA-RP60AA PLA-RP71AA
OCS03-1.qxp 06.5.16 1:03 PM Page 15

16
PCA-RP50GA
NOTES:
1. Use M10 or W3/8 screws for anchor bolt.
2. When optional drain lift-up mechanism is installed, always provide
upward piping for refrigerant piping.
180
210
157
15 85
182 liquid
201 gas
241 (Drainage)
Air intake
918
161 90
254
680
506 56
Electrical box
226
70
6
2
7
17
150
140 70
320 80
933 (suspension bolt pitch)
983
1000
Air outlet
81
904
76
525 928 352
263
171
138
86
46 175 1
131
38 38 79
161 32
179
42
6~7
Ceiling
Electrical box [Front view]
When electrical
box is pulled
down
3
2
8
514
[15.88
[12.7
[6.35
Available pipe size
[9.52
4GAS SIDE
5LIQUID SIDE
RP50
Use the current nuts meeting the pipe size of the outdoor unit.
: Factory flare nut attachment to the heat-exchanger.
1Drainage pipe connection (26mm I.D.)
2Drainage pipe connection (for the left arrangement)
3Knock out hole for left drain-piping arrangement
4Refrigerant-pipe connection (gas pipe side/flared connection)
5Refrigerant-pipe connection (liquid pipe side/flared connection)
6Knock out hole for upper drain pipe arrangement
7Knock out hole for left drain pipe arrangement
8Knock out hole for wiring arrangement
Unit : mm
OCS03-1.qxp 06.5.16 1:03 PM Page 16

17
PCA-RP60GA
PCA-RP71GA
161 90
254
680
506 56
1240 (suspension bolt pitch)
140
150
320 80
17
70
6
1290
1214
210 180
81 76
1310
Air outlet
1228
Air intake
85
182
201
241
15
157
(liquid)
(5/8F gas)
(Drainage)
7
2
Electrical box
70
226
3
2
8
514
Electrical box
When electrical
box is pulled
down
[ Front view ]
Ceiling
32
179
161
38 3879
42
6~7
525 1235 416
263
171
138
86
131
175 1
46
: Factory flare nut attachment to the heat-exchanger.
4GAS SIDE
5LIQUID SIDE
Use the current nuts meeting the pipe size of the outdoor unit.
Available pipe size RP71RP60
[6.35
[9.52
[15.88
[9.52
[15.88
1Drainage pipe connection (26mm I.D.)
2Drainage pipe connection (for the left arrangement)
3Knock out hole for left drain-piping arrangement
4Refrigerant-pipe connection (gas pipe side/flared connection)
5Refrigerant-pipe connection (liquid pipe side/flared connection)
6Knock out hole for upper drain pipe arrangement
7Knock out hole for left drain pipe arrangement
8Knock out hole for wiring arrangement
Unit : mm
NOTES:
1. Use M10 or W3/8 screws for anchor bolt.
2. When optional drain lift-up mechanism is installed, always provide
upward piping for refrigerant piping.
OCS03-1.qxp 06.5.16 1:03 PM Page 17

18
PEAD-RP35EA2
PEAD-RP50EA
PEAD-RP60EA
PEAD-RP71EA
2
1
3
4
5
6
7
Refrigerant piping flare connection (liquid [F copper tube):HP
Refrigerant piping flare connection (gas [G copper tube):LP
Drain R1(External thread)
Electrical parts box
Drain Pump (Option)
Drain Pipe (Option) ... Flexible joint VP-25(I.D.
[ 32)
Filter
R407C Outdoor unit : 9.52
F
R410A Outdoor unit : 6.35 w
R407C Outdoor unit : 9.52 w
Outdoor unit (SUZ) : 6.35
EDCBA
804830
- 305772
Model
RP60
R407C Outdoor unit : 15.88
G
R410A Outdoor unit : 12.7 w
15.88
104410702902801012
RP35,50
wSetting at shipment
2
1
3
4
Air inlet
Air outlet
Access door 55
50~150
81
197
Service space:500 or more
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
5
6
75 44
18
365~465
B81
10
56 355
7
159
243
Air outlet
Air inlet
7
Lifting bolt hole
(14×22)
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
In case of rear inlet
In case of bottom inlet 10-
[ 3 (RP35,50)
12-
[ 3 (RP60)
D30
C
10
81BC
A
450
450
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
176
40
288
256
3.5 3.5
10
109 179
10
35
24
30640
30
21
277 80
45
282
13
13E
A
61 227
29
85
40 176
10
15
3.5
256 BC 81
10
81
A
Set
15.8810441070290 FEDCBA 2801012
Model
RP71
w Setting at shipment
7
44
243
308
323
75
6
5
13
Refrigerant piping flare connection (liquid [9.52 copper tube):HP
Refrigerant piping flare connection (gas [F copper tube):LP
Drain R1 (External thread)
Electrical parts box
Drain Pump (Option)
Drain Pipe (Option) ... Flexible joint VP25(I.D.[32)
Filter
Service space:500 or more
81
365~465
197
81
50~150
55
29
Access door
Air outlet
Air inlet
43
12
7
6
5
4
3
2
1
113
307 122
12-[3
(14x22)
Lifting bolt hole
45
Set
210
12-[3
450
450
140
282
680
3.5 3.5
30
319
261
181
40
30
A
C B 81
10
375
10 80
C B 81
A
E13
30D
20
35
30
1053 169
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
Unit : mm
OCS03-1.qxp 06.5.16 1:03 PM Page 18

19
PEAD-RP60GA
PEAD-RP71GA Unit : mm
Model ABCDE
7
7
8
9.52 15.88
15.88
8
FG H J
RP60
RP71
1125
1125
1090
1090
1050
1050
1012
1012
840
840
Outdoor unit(SUZ) : 6.35
Other outdoor unit : 9.52 w
wSetting at shipment
OCS03-1.qxp 06.5.16 1:03 PM Page 19

20
50
55
530
690
(130)
22.5
4070
105 510 35
40 40 650
15
15
730
155 155155
14 220 120
3.2
300242
2656075
35
45
20 345
11 11
672
22.5
20 20690
15
2512512525
100
600
70 (530) 300
900
(10)
25
562
21
(10)381
858525
15
70
11
14514524.5 33920
418
90
200 200
250 175
Terminal
block
4-12 ✕ 30
oblong
Suspension
bolt holes
Air intake
Air outlet
Service space
(opening)
in the ceiling
Heat insulator t10
(Drainage pan)
Room temperature thermistor
Drainage pan connection R1
Wiring entry(2-[22holes)
Refrigerant-pipe flared
connection [15.88(5/8)
Refrigerant-pipe flared
connection [9.52(3/8)
Electrical parts box
Service panel
(Condenser/evaporator
temperature thermistor)
Service panel
(Room temperature thermistor) Air intake
Air intake duct flange
14-[2.9 holes
For air intake
duct connection
Heat insulator t10
Air outlet duct flange Air outlet
(Drainage pan)
12-[2.9 holes
For air outlet
duct connection
Mounting plate
Unit : mm
PEA-RP71EA
OCS03-1.qxp 06.5.16 1:03 PM Page 20
