Mitsubishi electric Mr.slim pla-a12ea7 User manual

P-Series (March 2017)

P-SERIES

Contents

1 REFERENCE SERVICE MANUAL................................................................................................................................... 4

1-1. INDOOR UNIT ..........................................................................................................................................................4

2-1. OUTDOOR UNIT ......................................................................................................................................................4

2 SPECIFICATIONS............................................................................................................................................................5

2-1. INVERTER CEILING CASSETTE TYPE(PLA) ......................................................................................................... 5

2-2. INVERTER WALL-MOUNTED TYPE (PKA)............................................................................................................. 7

2-3. INVERTER CEILING-SUSPENDED TYPE (PCA).................................................................................................... 9

2-4. INVERTER CEILING CONCEALED TYPE (PEAD)................................................................................................ 11

2-5. INVERTER MULTI POSITION TYPE (PVA)............................................................................................................ 13

2-6. HYPER HEATING INVERTER................................................................................................................................ 15

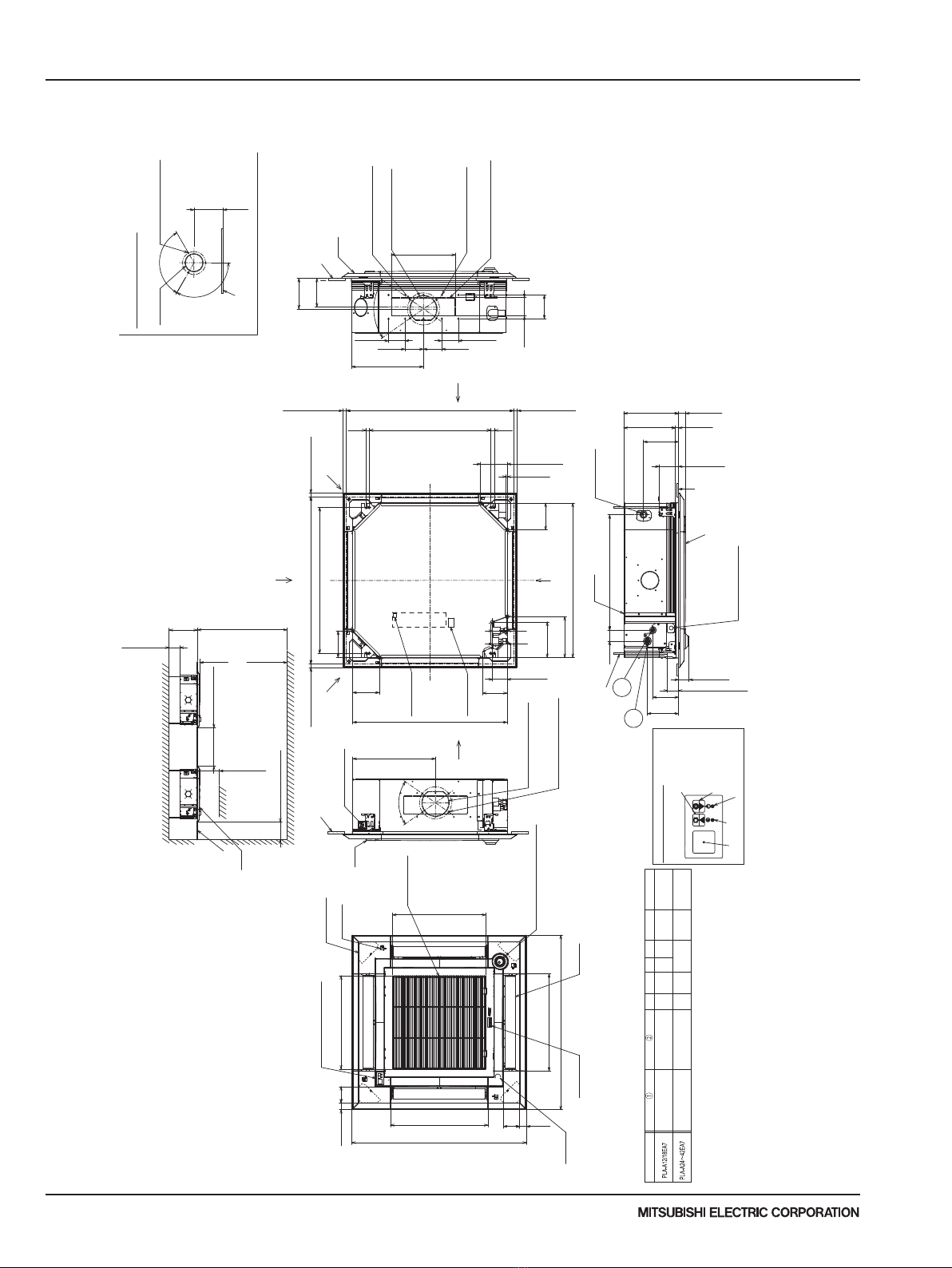

3 OUTLINES AND DIMENSIONS .....................................................................................................................................20

INDOOR UNIT................................................................................................................................................................20

PLA-A12EA7 PLA-A18EA7 PLA-A24EA7 PLA-A30EA7 PLA-A36EA7 PLA-A42EA7............................... 20

PKA-A12HA7 PKA-A18HA7.............................................................................................................................. 21

PKA-A24KA7 PKA-A30KA7 PKA-A36KA7 .................................................................................................... 22

PCA-A24KA7 PCA-A30KA7.............................................................................................................................. 23

PCA-A36KA7 PCA-A42KA7.............................................................................................................................. 24

PEAD-A12AA7 PEAD-A18AA7 PEAD-A24AA7............................................................................................. 25

PEAD-A30AA7 PEAD-A36AA7 PEAD-A42AA7............................................................................................. 25

PVA-A12AA7 PVA-A18AA7 PVA-A24AA7 ..................................................................................................... 27

PVA-A30AA7 PVA-A36AA7 PVA-A42AA7 ..................................................................................................... 27

PVA-A12AA7 PVA-A18AA7 PVA-A24AA7 ..................................................................................................... 28

PVA-A30AA7 PVA-A36AA7 PVA-A42AA7 ..................................................................................................... 28

OUTDOOR UNIT............................................................................................................................................................29

PUZ-A12/18NKA7 PUZ-A12/18NKA7-BS PUY-A12/18NKA7 PUY-A12/18NKA7-BS................................. 29

PUZ-A24/30NHA7 PUZ-A24/30NHA7-BS ........................................................................................................ 30

PUY-A24/30NHA7 PUY-A24/30NHA7-BS......................................................................................................... 30

PUZ-A36/42NKA7 PUZ-A36/42NKA7-BS......................................................................................................... 31

PUY-A36/42NKA7 PUY-A36/42NKA7-BS ......................................................................................................... 31

PUZ-HA30NHA5 PUZ-HA36NHA5 ................................................................................................................... 32

PUZ-HA42NKA..................................................................................................................................................... 33

WIRED REMOTE CONTROLLER ....................................................................................................................... 34

WIRELESS REMOTE CONTROLLER................................................................................................................. 35

4 POSITION OF THE CENTER OF GRAVITY........................................................................................................ 36

4-1. INDOOR UNIT .............................................................................................................................................. 36

4-2. OUTDOOR UNIT .......................................................................................................................................... 37

5 WIRING DIAGRAM ........................................................................................................................................................38

5-1. INDOOR UNIT ........................................................................................................................................................38

PLA-A12EA7 PLA-A18EA7 PLA-A24EA7 PLA-A30EA7 PLA-A36EA7 PLA-A42EA7............................... 38

PKA-A12HA7 PKA-A18HA7............................................................................................................................... 39

PKA-A24KA7 PKA-A30KA7 PKA-A36KA7 .................................................................................................... 40

PCA-A24KA7 PCA-A30KA7 PCA-A36KA7 PCA-A42KA7 .......................................................................... 41

PEAD-A12AA7 PEAD-A18AA7 PEAD-A24AA7 PEAD-A30AA7 PEAD-A36AA7 PEAD-A42AA7.................. 42

PVA-A12AA7 PVA-A18AA7 PVA-A24AA7 PVA-A30AA7 PVA-A36AA7 PVA-A42AA7 ................................... 43

5-2. OUTDOOR UNIT ....................................................................................................................................................44

PUZ-A12/18NKA7 PUZ-A12/18NKA7-BS PUY-A12/18NKA7 PUY-A12/18NKA7-BS................................. 44

PUZ-A24/30NHA7 PUZ-A24/30NHA7-BS PUY-A24/30NHA7 PUY-A24/30NHA7-BS................................ 45

PUZ-A36/42NKA7 PUZ-A36/42NKA7-BS PUY-A36/42NKA7 PUY-A36/42NKA7-BS................................. 46

PUZ-HA30NHA5 PUZ-HA36NHA5 ................................................................................................................. 47

PUZ-HA42NKA..................................................................................................................................................... 48

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

P-SERIES

6 REFRIGERANT SYSTEM DIAGRAM ............................................................................................................................ 49

6-1. INDOOR UNIT ........................................................................................................................................................49

PLA-A·EA7 ...........................................................................................................................................................49

PKA-A·HA7 ..........................................................................................................................................................49

PCA-A·KA7 ..........................................................................................................................................................50

PEAD-A·AA7 ........................................................................................................................................................50

PVA-A·AA7...........................................................................................................................................................50

6-2. OUTDOOR UNIT ....................................................................................................................................................51

PUZ-A12NKA7 PUZ-A18NKA7.......................................................................................................................... 51

PUZ-A12NKA7-BS PUZ-A18NKA7-BS.............................................................................................................. 51

PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7 PUZ-A42NKA7 ................................................................... 51

PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS PUZ-A42NKA7-BS ........................................... 51

PUY-A12NKA7 PUY-A18NKA7 .......................................................................................................................... 52

PUY-A12NKA7-BS PUY-A18NKA7-BS .............................................................................................................. 52

PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7 PUY-A42NKA7....................................................................52

PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS PUY-A42NKA7-BS............................................ 52

PUZ-HA30NHA5 PUZ-HA36NHA5 .................................................................................................................... 53

PUZ-HA42NKA..................................................................................................................................................... 54

7 PERFORMANCE CURVES ...........................................................................................................................................55

FOR THE COMBINATION OF OUTDOOR UNIT PUZ-A·NKA7(-BS) PUZ-A·NHA7(-BS) ...............................................55

Cooling performance curve .................................................................................................................................. 55

FOR THE COMBINATION OF OUTDOOR UNIT PUY-A·NKA7(-BS) PUY-A·NHA7(-BS)................................................56

Cooling performance curve .................................................................................................................................. 56

Heating performance curve.................................................................................................................................. 57

FOR THE COMBINATION OF OUTDOOR UNIT PUZ-HA·NHA5 PUZ-HA·NKA ......................................................... 58

Cooling performance curve .................................................................................................................................. 58

Rated heating performance curve..................................................................................................................................59

Rated heating capacity...................................................................................................................................................59

8 PERFORMANCE CHART ..............................................................................................................................................60

8-1. INVERTER ..............................................................................................................................................................60

8-1-1. COOLING CAPACITY................................................................................................................................ 60

8-1-2. HEATING CAPACITY ................................................................................................................................ 74

8-2. HYPER HEATING INVERTER................................................................................................................................ 76

8-2-1. COOLING CAPACITY................................................................................................................................ 76

8-2-2. HEATING CAPACITY ................................................................................................................................ 82

9 CORRECTION FACTORS .............................................................................................................................................84

9-1. INVERTER ..............................................................................................................................................................84

9-2. HYPER HEATING INVERTER................................................................................................................................ 86

10 AIR FLOW DATA............................................................................................................................................................87

10-1. OUTLET AIR SPEED AND COVERAGE RANGE ............................................................................................... 87

10-2. PLA-A·EA7............................................................................................................................................................88

10-2-1. FRESH AIR INTAKE AND BRANCH DUCT.............................................................................................88

10-3. PKA-A-HA7 .........................................................................................................................................................103

10-3-1. TEMPERATURE AND AIR FLOW DISTRIBUTIONS............................................................................. 103

10-4. PKA-A-KA7 .........................................................................................................................................................107

10-4-1. TEMPERATURE AND AIR FLOW DISTRIBUTIONS............................................................................. 107

10-5. PCA-A-KA7 ......................................................................................................................................................... 113

10-5-1. TEMPERATURE AND AIR FLOW DISTRIBUTIONS............................................................................. 113

10-6. PEAD-A·AA7.......................................................................................................................................................122

10-6-1. INDOOR FAN PERFORMANCE AND CORRECTED AIR FLOW ......................................................... 122

10-7. PVA-A·AA7..........................................................................................................................................................129

10-7-1. INDOOR FAN PERFORMANCE AND CORRECTED AIR FLOW ......................................................... 129

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

P-SERIES

10 AIR FLOW DATA..........................................................................................................................................................130

11 NOISE CRITERION CURVES .....................................................................................................................................136

11-1. INDOOR UNIT.....................................................................................................................................................136

11-2. OUTDOOR UNIT.................................................................................................................................................149

12 OPTIONAL PARTS....................................................................................................................................................... 152

OPTIONAL PARTS LIST FOR INDOOR [P-SERIES] .................................................................................................. 152

OPTIONAL PARTS LIST FOR OUTDOOR [P-SERIES] .............................................................................................. 154

13 SYSTEM CONTROL .................................................................................................................................................... 156

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

1 REFERENCE SERVICE MANUAL

1-1. INDOOR UNIT

1-2. OUTDOOR UNIT

For information on service, please refer to the service manual as follows.

Model name Service Ref. Service

Manual No.

PLA-A12/18/24/30/36/42EA7 PLA-A12/18/24/30/36/42EA7 OCH640

OBH640

PKA-A12/18HA7 PKA-A12/18HA7 OCH637

OBH637

PKA-A24/30/36KA7 PKA-A24/30/36KA7.TH OCH639

OBH639

PCA-A24/30/36/42KA7 PCA-A24/30/36/42KA7.TH OCH638

OBH638

PEAD-A12/18/24/30/36/42AA7 PEAD-A12/18/24/30/36/42AA7 HWE16080

PVA-A12/18/24/30/36/42AA7 PVA-A12/18/24/30/36/42AA7 MD-1404-K011

Model name Service Ref. Service

Manual No.

PUZ-A12/18/36/42NKA7

PUZ-A24/30NHA7

PUZ-A12/18/36/42NKA7-BS

PUZ-A24/30NHA7-BS

PUY-A12/18/36/42NKA7

PUY-A24/30NHA7-BS

PUY-A12/18/36/42NKA7-BS

PUY-A24/30NHA7-BS

PUZ-A12/18/36/42NKA7

PUZ-A24/30NHA7

PUZ-A12/18/36/42NKA7-BS

PUZ-A24/30NHA7-BS

PUY-A12/18/36/42NKA7

PUY-A24/30NHA7-BS

PUY-A12/18/36/42NKA7-BS

PUY-A24/30NHA7-BS

OCH636

OCB636

PUZ-HA30/36NHA5 PUZ-HA30/36NHA5 OCH607

OCB607

PUZ-HA42NKA PUZ-HA42NKA OCH567

OCB567

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

2 SPECIFICATIONS

2-1. INVERTER CEILING CASSETTE TYPE (PLA)

Model name Indoor unit PLA-A12EA7 PLA-A18EA7 PLA-A24EA7 PLA-A30EA7 PLA-A36EA7 PLA-A42EA7

Outdoor unit PUY-A12NKA7 PUY-A18NKA7 PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7 PUY-A42NKA7

PUY-A12NKA7-BS PUY-A18NKA7-BS PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS PUY-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 5,800 8,000 10,000 9,000 16,000 16,000

Total Input W 730 1,250 1,670 2,540 2,780 3,590

EER Btu/h/W 16.4 14.4 14.3 11.8 12.9 11.6

SEER Btu/h/W 27.0 24.6 24.2 22.8 21.8 21.0

Moisture Removal Pints/h 1.2 2.4 3.0 5.4 4.5 7.9

SHF 0.89 0.85 0.86 0.80 0.86 0.79

Power factor % 93.4 95.3 94.3 95.2 93.7 94.6

Heating Max. Capacity Btu/h - - - - - -

Rated Capacity Btu/h - - - - - -

Min. Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

HSPF(IV/V) Btu/h/W - - - - - -

Power factor % - - - - - -

Heating

at low ambient

Rated Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller

DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan Motor F.L.A 0.36 0.60 0.74 0.95

Fan Motor Output W 50 120 120

Air ow DRY

(Lo-M2-M1-Hi) WET

CMM 12-13-14-15 13-14-16-17 15-18-20-23 16-19-22-25 19-24-29-34 21-26-30-34

CMM 10-11-12-14 11-13-15-17 14-17-19-22 15-18-21-24 18-23-28-33 20-25-29-33

Air ow DRY

(Lo-M2-M1-Hi) WET

CFM 420-460-490-530 460-490-570-600 530-640-710-810 570-670-780-880 670-850-1,020-1,200740-920-1,060-1,200

CFM 380-420-450-490 420-450-530-560 490-600-670-770 530-630-740-840 630-810-980-1,160 700-880-1,020-1,160

External pressure in.WG[Pa] 0

Sound level

(Lo-M2-M1-Hi) dB(A) 27-28-29-30 28-29-31-32 28-30-33-36 28-32-35-38 32-37-41-44 34-38-42-45

External nish White Munsell 6.4Y 8.9/0.4

Dimension

Unit (Panel)

W:mm[inch] 840(950)[33-3/32(37-13/32)]

D:mm[inch] 840(950)[33-3/32(37-13/32)]

H:mm[inch] 258(40)[10-3/16(1-9/16)] 298(40)[11-3/4(1-9/16)]

Weight Unit kg 21 25

lbs 46 56

Field Drain pipe size mm[inch] 32[1-1/4]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method -

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) -

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 41[92] 44[99] 68[151] 96[211]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 50m [Max.165ft] Max. 69m [Max.225ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-28.9°C(-20°F)*

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-18°C(0°F)*

Heating Maximum D.B. 28°C(82°F) D.B. 21°C(70°F), W.B. 15°C(59°F)

Minimum D.B. 10°C(50°F) D.B. -11°C(12°F), W.B. -12°C(10°F)

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PLA-A12EA7 PLA-A18EA7 PLA-A24EA7 PLA-A30EA7 PLA-A36EA7 PLA-A42EA7

Outdoor unit PUZ-A12NKA7 PUZ-A18NKA7 PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7 PUZ-A42NKA7

PUZ-A12NKA7-BS PUZ-A18NKA7-BS PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS PUZ-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 5,800 8,000 10,000 9,000 16,000 16,000

Total Input W 730 1,250 1,670 2,540 2,780 3,590

EER Btu/h/W 16.4 14.4 14.3 11.8 12.9 11.6

SEER Btu/h/W 27.0 24.6 24.2 22.8 21.8 21.0

Moisture Removal Pints/h 1.2 2.4 3.0 5.4 4.5 7.9

SHF 0.89 0.85 0.86 0.80 0.86 0.79

Power factor % 93.4 95.3 94.3 95.2 93.7 94.6

Heating Max. Capacity Btu/h 20,000 23,000 29,000 33,000 42,000 48,000

Rated Capacity Btu/h 14,000 19,000 26,000 32,000 38,000 45,000

Min. Capacity Btu/h 5,500 7,900 9,000 9,000 18,000 18,000

Total Input W 830 1,300 1,750 2,400 2,540 3,290

COP W/W 4.94 4.28 4.35 3.90 4.38 4.00

HSPF(IV/V) Btu/h/W 12.8/8.8 11.0/7.8 11.2/8.1 11.6/8.4 10.4/7.6 9.3/7.3

Power factor % 95.0 95.8 95.1 95.7 93.6 94.1

Heating

at low ambient

Rated Capacity Btu/h 10,100 11,000 14,900 18,100 22,000 28,000

Total Input W 1,170 1,300 1,600 1,880 2,490 3,070

COP W/W 2.53 2.47 2.72 2.82 2.58 2.67

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller

DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan Motor F.L.A 0.36 0.60 0.74 0.95

Fan Motor Output W 50 120 120

Air ow DRY

(Lo-M2-M1-Hi) WET

CMM 12-13-14-15 13-14-16-17 15-18-20-23 16-19-22-25 19-24-29-34 21-26-30-34

CMM 10-11-12-14 11-13-15-17 14-17-19-22 15-18-21-24 18-23-28-33 20-25-29-33

Air ow DRY

(Lo-M2-M1-Hi) WET

CFM 420-460-490-530 460-490-570-600 530-640-710-810 570-670-780-880 670-850-1,020-1,200740-920-1,060-1,200

CFM 380-420-450-490 420-450-530-560 490-600-670-770 530-630-740-840 630-810-980-1,160 700-880-1,020-1,160

External pressure in.WG[Pa] 0

Sound level

(Lo-M2-M1-Hi) dB(A) 27-28-29-30 28-29-31-32 28-30-33-36 28-32-35-38 32-37-41-44 34-38-42-45

External nish White Munsell 6.4Y 8.9/0.4

Dimension

Unit (Panel)

W:mm[inch] 840(950)[33-3/32(37-13/32)]

D:mm[inch] 840(950)[33-3/32(37-13/32)]

H:mm[inch] 258(40)[10-3/16(1-9/16)] 298(40)[11-3/4(1-9/16)]

Weight Unit kg 21 25

lbs 46 56

Field Drain pipe size mm[inch] 32[1-1/4]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse Cycle

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) 46 48 53

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 42 [93] 45[100] 69[153] 97[214]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2F] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4F] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 30m [Max.100ft] Max. 50m [Max.165ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Rating conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

2-2. INVERTER WALL-MOUNTED TYPE (PKA)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-28.9°C(-20°F)*

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PKA-A12HA7 PKA-A18HA7 PKA-A24KA7 PKA-A30KA7 PKA-A36KA7

Outdoor unit PUY-A12NKA7 PUY-A18NKA7 PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7

PUY-A12NKA7-BS PUY-A18NKA7-BS PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000

Min. Capacity Btu/h 5,800 8,000 10,000 9,000 16,000

Total Input W 1,000 1,820 1,960 3,150 3,330

EER Btu/h/W 12.0 9.9 12.2 9.5 10.8

SEER Btu/h/W 20.8 18.5 21.4 19.8 18.8

Moisture Removal Pints/h 2.0 5.2 5.0 8.1 9.7

SHF 0.81 0.68 0.77 0.70 0.70

Power factor % 94.5 95.3 95.7 96.4 96.5

Heating Max. Capacity Btu/h - - - - -

Rated Capacity Btu/h - - - - -

Min. Capacity Btu/h - - - - -

Total Input W - - - - -

COP W/W - - - - -

HSPF(IV/V) Btu/h/W - - - - -

Power factor % - - - - -

Heating

at low ambient

Rated Capacity Btu/h - - - - -

Total Input W - - - - -

COP W/W - - - - -

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1

MOCP A 15

Fan Motor F.L.A 0.33 0.36 0.57

Fan Motor Output W 30 56

Air ow DRY

(Lo-Mid-Hi) WET

CMM 9-10.5-12 18-20-22 20-23-26

CMM 8-9.5-11 16-18-20 18-21-23

Air ow DRY

(Lo-Mid-Hi) WET

CFM 320-370-425 635-705-775 705-810-920

CFM 290-335-380 570-635-700 635-730-830

External pressure in.WG[Pa] 0

Sound level

(Lo-Mid-Hi) dB(A) 36-40-43 39-42-45 43-46-49

External nish White Munsell 1.0Y 9.2/0.2

Dimension

Unit (Panel)

W:mm[inch] 898[35-3/8] 1,170[46-1/16]

D:mm[inch] 249[9-13/16] 295[11-5/8]

H:mm[inch] 295[11-5/8] 365[14-3/8]

Weight Unit kg 13 21

lbs 29 46

Field Drain pipe size mm[inch] 16[5/8]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method -

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) -

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 41[92] 44[99] 68[151] 96[211]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4] 9.52[3/8]

Refrigerant pipe length Height difference Max. 30m [Max.100ft]

Length Max. 50m [Max.165ft] Max. 69m [Max.225ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-18°C(0°F)*

Heating Maximum D.B. 28°C(82°F) D.B. 21°C(70°F), W.B. 15°C(59°F)

Minimum D.B. 10°C(50°F) D.B. -11°C(12°F), W.B. -12°C(10°F)

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PKA-A12HA7 PKA-A18HA7 PKA-A24KA7 PKA-A30KA7 PKA-A36KA7

Outdoor unit PUZ-A12NKA7 PUZ-A18NKA7 PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7

PUZ-A12NKA7-BS PUZ-A18NKA7-BS PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000

Min. Capacity Btu/h 5,800 8,000 10,000 9,000 16,000

Total Input W 1,000 1,820 1,960 3,150 3,330

EER Btu/h/W 12.0 9.9 12.2 9.5 10.8

SEER Btu/h/W 20.8 18.5 21.4 19.8 18.8

Moisture Removal Pints/h 2.0 5.2 5.0 8.1 9.7

SHF 0.81 0.68 0.77 0.70 0.70

Power factor % 94.5 95.3 95.7 96.4 96.5

Heating Max. Capacity Btu/h 18,000 22,000 28,000 34,000 40,000

Rated Capacity Btu/h 14,000 19,000 26,000 32,000 38,000

Min. Capacity Btu/h 5,500 7,700 9,000 8,900 18,200

Total Input W 950 1,300 1,750 2,460 2,460

COP W/W 4.31 4.28 4.35 3.81 4.52

HSPF(IV/V) Btu/h/W 10.2/7.6 10.2/7.5 11.0/8.2 9.9/7.4 9.2/7.0

Power factor % 93.9 94.2 96.3 96.4 95.5

Heating

at low ambient

Rated Capacity Btu/h 9,200 11,300 15,700 18,300 22,400

Total Input W 1,020 1,340 1,750 1,960 2,610

COP W/W 2.64 2.47 2.62 2.73 2.51

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1

MOCP A 15

Fan Motor F.L.A 0.33 0.36 0.57

Fan Motor Output W 30 56

Air ow DRY

(Lo-Mid-Hi) WET

CMM 9-10.5-12 18-20-22 20-23-26

CMM 8-9.5-11 16-18-20 18-21-23

Air ow DRY

(Lo-Mid-Hi) WET

CFM 320-370-425 635-705-775 705-810-920

CFM 290-335-380 570-635-700 635-730-830

External pressure in.WG[Pa] 0

Sound level

(Lo-Mid-Hi) dB(A) 36-40-43 39-42-45 43-46-49

External nish White Munsell 1.0Y 9.2/0.2

Dimension

Unit (Panel)

W:mm[inch] 898[35-3/8] 1,170[46-1/16]

D:mm[inch] 249[9-13/16] 295[11-5/8]

H:mm[inch] 295[11-5/8] 365[14-3/8]

Weight Unit kg 13 21

lbs 29 46

Field Drain pipe size mm[inch] 16[5/8]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse Cycle

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) 46 48 53

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 42 [93] 45[100] 69[153] 97[214]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2F] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4F] 9.52[3/8]

Refrigerant pipe length Height difference Max. 30m [Max.100ft]

Length Max. 30m [Max.100ft] Max. 50m [Max.165ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Rating conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

2-3. INVERTER CEILING-SUSPENDED TYPE (PCA)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-28.9°C(-20°F)*

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PCA-A24KA7 PCA-A30KA7 PCA-A36KA7 PCA-A42KA7

Outdoor unit PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7 PUY-A42NKA7

PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS PUY-A42NKA7-BS

Cooling Max. Capacity Btu/h 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 10,000 9,000 16,000 16,000

Total Input W 1,960 3,190 3,270 4,110

EER Btu/h/W 12.2 9.4 11.0 10.2

SEER Btu/h/W 21.2 19.6 19.1 17.6

Moisture Removal Pints/h 5.8 8.3 8.7 11.7

SHF 0.73 0.69 0.73 0.69

Power factor % 94.7 96.3 94.2 95.6

Heating Max. Capacity Btu/h - - - -

Rated Capacity Btu/h - - - -

Min. Capacity Btu/h - - - -

Total Input W - - - -

COP W/W - - - -

HSPF(IV/V) Btu/h/W - - - -

Power factor % - - - -

Heating

at low ambient

Rated Capacity Btu/h - - - -

Total Input W - - - -

COP W/W - - - -

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan Motor F.L.A 0.54 0.97

Fan Motor Output W 95 160

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CMM 15-16-17-19 16-17-18-20 22-24-26-28 23-25-27-29

CMM 14-15-16-18 15-16-17-19 20-22-24-26 21-23-25-27

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CFM 530-565-600-670 565-600-635-705 775-850-920-990 810-885-955-1,025

CFM 495-530-565-635 530-565-600-670 705-775-850-920 740-810-885-955

External pressure in.WG[Pa] 0

Sound level

(LoLo-Lo-Mid-Hi) dB(A) 33-35-37-40 35-37-39-41 37-39-41-43 39-41-43-45

External nish White Munsell 6.4Y 8.9/0.4

Dimension

Unit (Panel)

W:mm[inch] 1,280[50-3/8] 1,600[63]

D:mm[inch] 680[26-3/4]

H:mm[inch] 230[9-1/16]

Weight Unit kg 32 36 39

lbs 71 79 86

Field Drain pipe size mm[inch] 26[1-1/32]

Remote controller Attached in Indoor Unit

Outdoor unit MCA A 19 25

MOCP A 26 31

Fan Motor F.L.A 0.4 0.5 + 0.5

Fan Motor Output W 86 74

Compressor Type SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 11 13

Air ow CMM[CFM] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method -

Sound level at cooling dB(A) 47 52

Sound level at heating dB(A) 0

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 330 + 30 [13 + 1-3/16]

H:mm[inch] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 68[151] 96[211]

Refrigerant Type R410A

Charge kg[lbs,oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 15.88[5/8]

Liquid side O.D. mm[inch] 9.52[3/8]

Refrigerant pipe length Height difference Max. 30m [Max.100ft]

Length Max. 69m [Max.225ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-18°C(0°F)*

Heating Maximum D.B. 28°C(82°F) D.B. 21°C(70°F), W.B. 15°C(59°F)

Minimum D.B. 10°C(50°F) D.B. -11°C(12°F), W.B. -12°C(10°F)

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PCA-A24KA7 PCA-A30KA7 PCA-A36KA7 PCA-A42KA7

Outdoor unit PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7 PUZ-A42NKA7

PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS PUZ-A42NKA7-BS

Cooling Max. Capacity Btu/h 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 10,000 9,000 16,000 16,000

Total Input W 1,960 3,190 3,270 4,110

EER Btu/h/W 12.2 9.4 11.0 10.2

SEER Btu/h/W 21.2 19.6 19.1 17.6

Moisture Removal Pints/h 5.8 8.3 8.7 11.7

SHF 0.73 0.69 0.73 0.69

Power factor % 94.7 96.3 94.2 95.6

Heating Max. Capacity Btu/h 28,000 34,000 40,000 48,000

Rated Capacity Btu/h 26,000 32,000 38,000 45,000

Min. Capacity Btu/h 8,800 8,600 17,900 18,100

Total Input W 1,800 2,520 2,410 3,480

COP W/W 4.23 3.72 4.62 3.78

HSPF(IV/V) Btu/h/W 10.8/8.1 10.0/7.9 10.2/7.2 10.2/8.2

Power factor % 94.3 96.1 92.7 94.6

Heating

at low ambient

Rated Capacity Btu/h 15,400 18,800 21,100 31,800

Total Input W 1,700 2,050 2,430 3,160

COP W/W 2.65 2.68 2.54 2.94

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan Motor F.L.A 0.54 0.97

Fan Motor Output W 95 160

Air ow DRY

(Lo-M2-M1-Hi) WET

CMM 15-16-17-19 16-17-18-20 22-24-26-28 23-25-27-29

CMM 14-15-16-18 15-16-17-19 20-22-24-26 21-23-25-27

Air ow DRY

(Lo-M2-M1-Hi) WET

CFM 530-565-600-670 565-600-635-705 775-850-920-990 810-885-955-1,025

CFM 495-530-565-635 530-565-600-670 705-775-850-920 740-810-885-955

External pressure in.WG[Pa] 0

Sound level

(Lo-M2-M1-Hi) dB(A) 33-35-37-40 35-37-39-41 37-39-41-43 39-41-43-45

External nish White Munsell 6.4Y 8.9/0.4

Dimension

Unit (Panel)

W:mm[inch] 1,280[50-3/8] 1,600[63]

D:mm[inch] 680[26-3/4]

H:mm[inch] 230[9-1/16]

Weight Unit kg 32 36 39

lbs 71 79 86

Field Drain pipe size mm[inch] 26[1-1/32]

Remote controller Attached in Indoor Unit

Outdoor unit MCA A 19 25

MOCP A 26 31

Fan Motor F.L.A 0.4 0.5 + 0.5

Fan Motor Output W 86 74

Compressor Type SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 11 13

Air ow CMM[CFM] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse Cycle

Sound level at cooling dB(A) 47 52

Sound level at heating dB(A) 48 53

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 330 + 30 [13 + 1-3/16]

H:mm[inch] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 69[153] 97[214]

Refrigerant Type R410A

Charge kg[lbs,oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 15.88[5/8]

Liquid side O.D. mm[inch] 9.52[3/8]

Refrigerant pipe length Height difference Max. 30m [Max.100ft]

Length Max. 50m [Max.165ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Rating conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

2-4. INVERTER CEILING CONCEALED TYPE (PEAD)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-28.9°C(-20°F)*

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PEAD-A12AA7 PEAD-A18AA7 PEAD-A24AA7 PEAD-A30AA7 PEAD-A36AA7 PEAD-A42AA7

Outdoor unit PUY-A12NKA7 PUY-A18NKA7 PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7 PUY-A42NKA7

PUY-A12NKA7-BS PUY-A18NKA7-BS PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS PUY-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 5,000 8,000 10,000 9,000 16,000 16,000

Total Input W 920 1,660 2,050 3,000 3,000 3,920

EER Btu/h/W 13.0 10.8 11.7 10.0 12.0 10.7

SEER Btu/h/W 21.1 19.9 19.6 19.1 19.1 16.1

Moisture Removal Pints/h 1.8 3.7 6.9 8.6 8.1 9

SHF 0.83 0.77 0.68 0.68 0.75 0.76

Power factor % 90.9 91.4 92.8 93.8 93.8 93.6

Heating Max. Capacity Btu/h - - - - - -

Rated Capacity Btu/h - - - - - -

Min. Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

HSPF(IV/V) Btu/h/W - - - - - -

Power factor % - - - - - -

Heating

at low ambient

Rated Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1.45 1.69 2.63 2.73 3.30 3.50

MOCP A 15

Fan Motor F.L.A 1.16 1.35 2.10 2.18 2.64 2.80

Fan Motor Output W 85 121 244

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CMM 10.0-12.0-14.0 12.0-14.5-17.0 14.5-18.0-21.0 17.5-21.0-25.0 24.0-29.0-34.0 29.5-35.5-42.0

CMM 9.0-11.0-13.0 11.0-13.5-16.0 13.5-17.0-20.0 16.5-20.0-24.0 23.0-28.0-33.0 28.5-34.5-41.0

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CFM 353-424-494 424-512-600 512-635-741 618-742-883 847-1,024-1,201 1,042-1,254-1,483

CFM 313-384-454 384-472-560 472-595-701 578-702-843 807-984-1,161 1,002-1,214-1,443

External pressure in.WG[Pa] [35/50/70/100/150]

Sound level

(LoLo-Lo-Mid-Hi) dB(A) 28-30-34 30-33-37 30-33-37 30-34-39 33-38-42 36-40-44

External nish Galvanized

Dimension

Unit (Panel)

W:mm[inch] 900[35-7/16] 1,100[43-5/16] 1,400[55-1/8]

D:mm[inch] 732[28-7/8]

H:mm[inch] 250[9-7/8]

Weight Unit kg 26 28 33 41 43

lbs 58 62 73 91 95

Field Drain pipe size mm[inch] OD. φ32[1-1/4]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method -

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) -

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 41[92] 44[99] 68[151] 96[211]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 50m [Max.165ft] Max. 69m [Max.225ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-18°C(0°F)*

Heating Maximum D.B. 28°C(82°F) D.B. 21°C(70°F), W.B. 15°C(59°F)

Minimum D.B. 10°C(50°F) D.B. -11°C(12°F), W.B. -12°C(10°F)

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PEAD-A12AA7 PEAD-A18AA7 PEAD-A24AA7 PEAD-A30AA7 PEAD-A36AA7 PEAD-A42AA7

Outdoor unit PUZ-A12NKA7 PUZ-A18NKA7 PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7 PUZ-A42NKA7

PUZ-A12NKA7-BS PUZ-A18NKA7-BS PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS PUZ-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 5,000 8,000 10,000 9,000 16,000 16,000

Total Input W 920 1,660 2,050 3,000 3,000 3,920

EER Btu/h/W 13.0 10.8 11.7 10.0 12.0 10.7

SEER Btu/h/W 21.1 19.9 19.6 19.1 19.1 16.1

Moisture Removal Pints/h 1.8 3.7 6.9 8.6 8.1 9.0

SHF 0.83 0.77 0.68 0.68 0.75 0.76

Power factor % 90.9 91.4 92.8 93.8 93.8 93.6

Heating Max. Capacity Btu/h 18,000 22,000 28,000 34,000 40,000 48,000

Rated Capacity Btu/h 14,000 19,000 26,000 32,000 38,000 45,000

Min. Capacity Btu/h 5,800 7,900 9,000 8,800 18,200 18,100

Total Input W 1,030 1,400 1,750 2,490 2,410 3,290

COP W/W 3.98 3.97 4.35 3.76 4.62 4.00

HSPF(IV/V) Btu/h/W 10.2/7.5 10.2/7.6 10.8/8.0 10.8/7.7 9.9/7.3 10.0/7.9

Power factor % 91.4 92.0 92.8 93.3 92.7 92.9

Heating

at low ambient

Rated Capacity Btu/h 8,700 11,000 14,800 18,500 20,900 30,600

Total Input W 1,100 1,350 1,630 1,980 2,350 3,040

COP W/W 2.31 2.38 2.66 2.73 2.60 2.95

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 1.45 1.69 2.63 2.73 3.30 3.50

MOCP A 15

Fan Motor F.L.A 1.16 1.35 2.10 2.18 2.64 2.80

Fan Motor Output W 85 121 244

Air ow DRY

(Lo-Mid-Hi) WET

CMM 10.0-12.0-14.0 12.0-14.5-17.0 14.5-18.0-21.0 17.5-21.0-25.0 24.0-29.0-34.0 29.5-35.5-42.0

CMM 9.0-11.0-13.0 11.0-13.5-16.0 13.5-17.0-20.0 16.5-20.0-24.0 23.0-28.0-33.0 28.5-34.5-41.0

Air ow DRY

(Lo-Mid-Hi) WET

CFM 353-424-494 424-512-600 512-635-741 618-742-883 847-1,024-1,201 1,042-1,254-1,483

CFM 313-384-454 384-472-560 472-595-701 578-702-843 807-984-1,161 1,002-1,214-1,443

External pressure in.WG[Pa] [35/50/70/100/150]

Sound level

(Lo-Mid-Hi) dB(A) 28-30-34 30-33-37 30-33-37 30-34-39 33-38-42 36-40-44

External nish Galvanized

Dimension

Unit (Panel)

W:mm[inch] 900[35-7/16] 1,100[43-5/16] 1,400[55-1/8]

D:mm[inch] 732[28-7/8]

H:mm[inch] 250[9-7/8]

Weight Unit kg 26 28 33 41 43

lbs 58 62 73 91 95

Field Drain pipe size mm[inch] OD. φ32[1-1/4]

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse Cycle

Sound level at cooling

dB(A) 44 47 52

Sound level at heating

dB(A) 46 48 53

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 42 [93] 45[100] 69[153] 97[214]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2F] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4F] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 30m [Max.100ft] Max. 50m [Max.165ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Rating conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

2-5. INVERTER MULTI POSITION TYPE (PVA)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-28.9°C(-20°F)*

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PVA-A12AA7 PVA-A18AA7 PVA-A24AA7 PVA-A30AA7 PVA-A36AA7 PVA-A42AA7

Outdoor unit PUY-A12NKA7 PUY-A18NKA7 PUY-A24NHA7 PUY-A30NHA7 PUY-A36NKA7 PUY-A42NKA7

PUY-A12NKA7-BS PUY-A18NKA7-BS PUY-A24NHA7-BS PUY-A30NHA7-BS PUY-A36NKA7-BS PUY-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 4,800 7,000 10,000 10,000 14,600 15,000

Total Input W 890 1,570 1,960 3,000 3,250 4,150

EER Btu/h/W 13.4 11.4 12.2 10.0 9.8 10.1

SEER Btu/h/W 21.4 20.2 20.5 19.0 19.3 18.0

Moisture Removal Pints/h 1.2 2.4 3 5.4 4.5 7.9

SHF 0.77 0.76 0.83 0.74 0.77 0.81

Power factor % 87.9 89.8 89.7 93.2 88.3 87.6

Heating Max. Capacity Btu/h - - - - - -

Rated Capacity Btu/h - - - - - -

Min. Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

HSPF(IV/V) Btu/h/W - - - - - -

Power factor % - - - - - -

Heating

at low ambient

Rated Capacity Btu/h - - - - - -

Total Input W - - - - - -

COP W/W - - - - - -

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 3.00 4.13 5.50 5.63

MOCP A 15

Fan Motor F.L.A 2.4 3.3 4.4 4.5

Fan Motor Output W 121 244 430

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CMM 7.9-9.6-11.3 14.6-17.7-20.8 17.3-21.1-24.8 22.3-27.1-31.9 29.4-35.7-42.0

CMM

Air ow DRY

(LoLo-Lo-Mid-Hi) WET

CFM 280-340-400 515-625-735 613-744-875 788-956-1,125 1,040-1,262-1,485

CFM

External pressure in.WG[Pa] <75>-125-<200>

Sound level

(LoLo-Lo-Mid-Hi)

75Pa dB(A) 24-28-32 28-33-36 30-34-38 30-34-38 34-38-42

125Pa dB(A) 27-31-35 30-34-38 32-36-40 32-36-40 36-40-44

200Pa dB(A) 32-36-42 34-38-42 35-39-43 37-42-45 39-43-47

External nish Galvanized steel cabinet-Powder coated Slate Gray

Dimension

Unit (Panel)

W:mm[inch] 432[17] 534[21] 635[25]

D:mm[inch] 548[21-5/8]

H:mm[inch] 1,275[50-1/4] 1,378[54-1/4] 1,511[59-1/2]

Weight Unit kg 51 64 78

lbs 113 141 172

Field Drain pipe size mm[inch] 19.05[3/4] FPT

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method -

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) -

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1- 3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 41[92] 44[99] 68[151] 96[211]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 50m [Max.165ft] Max. 69m [Max.225ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

Operating range

Indoor intake air temperature Outdoor intake air temperature

Cooling

Maximum D.B. 32°C(90°F), W.B. 23°C(73°F) D.B. 46°C(115°F)

Minimum D.B. 19°C(66°F), W.B. 15°C(59°F) D.B.-5°C(23°F)

D.B.-18°C(0°F)*

Heating Maximum D.B. 28°C(82°F) D.B. 21°C(70°F), W.B. 15°C(59°F)

Minimum D.B. 10°C(50°F) D.B. -11°C(12°F), W.B. -12°C(10°F)

* In case that the wind bafe is installed. (In case that the wind bafe is not installed, the minimum temperature will be -5°C(23°F)DB.)

Model name Indoor unit PVA-A12AA7 PVA-A18AA7 PVA-A24AA7 PVA-A30AA7 PVA-A36AA7 PVA-A42AA7

Outdoor unit PUZ-A12NKA7 PUZ-A18NKA7 PUZ-A24NHA7 PUZ-A30NHA7 PUZ-A36NKA7 PUZ-A42NKA7

PUZ-A12NKA7-BS PUZ-A18NKA7-BS PUZ-A24NHA7-BS PUZ-A30NHA7-BS PUZ-A36NKA7-BS PUZ-A42NKA7-BS

Cooling Max. Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Rated Capacity Btu/h 12,000 18,000 24,000 30,000 36,000 42,000

Min. Capacity Btu/h 4,800 7,000 10,000 10,000 14,600 15,000

Total Input W 890 1,570 1,960 3,000 3,250 4,150

EER Btu/h/W 13.4 11.4 12.2 10.0 9.8 10.1

SEER Btu/h/W 21.4 20.2 20.5 19.0 19.3 18.0

Moisture Removal Pints/h 1.2 2.4 3 5.4 4.5 7.9

SHF 0.77 0.76 0.83 0.74 0.77 0.81

Power factor % 87.9 89.8 89.7 93.2 88.3 87.6

Heating Max. Capacity Btu/h 19,000 23,000 28,000 34,000 42,000 48,000

Rated Capacity Btu/h 14,000 19,000 26,000 32,000 38,000 46,000

Min. Capacity Btu/h 5,700 7,700 12,000 12,000 17,700 18,100

Total Input W 1,070 1,470 1,920 2,640 3,030 3,900

COP W/W 3.83 3.78 3.96 3.55 3.67 3.45

HSPF(IV/V) Btu/h/W 10.3/7.8 10.4/7.6 9.3/7.0 10.0/7.5 9.5/7.3 9.3/7.3

Power factor % 96.4 96.2 96.6 96.8 96.0 95.4

Heating

at low ambient

Rated Capacity Btu/h 9,900 12,000 15,000 18,000 24,000 28,500

Total Input W 1,400 1,520 1,760 2,110 2,990 3,440

COP W/W 2.07 2.31 2.49 2.50 2.35 2.42

Power supply Phase,Cycle,Voltage 1phase, 60Hz, 208/230V

Breaker size A 15 25 30

Voltage Indoor - Outdoor S1-S2 AC208V / 230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote controller DC12V

Indoor unit MCA A 3.00 4.13 5.50 5.63

MOCP A 15

Fan Motor F.L.A 2.4 3.3 4.4 4.5

Fan Motor Output W 121 244 430

Air ow DRY(Lo-Mid-Hi) CMM 7.9-9.6-11.3 14.6-17.7-20.8 17.3-21.1-24.8 22.3-27.1-31.9 29.4-35.7-42.0

Air ow WET(Lo-Mid-Hi) CMM

Air ow DRY(Lo-Mid-Hi) CFM 280-340-400 515-625-735 613-744-875 788-956-1,125 1,040-1,262-1,485

Air ow WET(Lo-Mid-Hi) CFM

External pressure in.WG[Pa] <75>-125-<200>

Sound level

(Lo-Mid-Hi)

75Pa dB(A) 24-28-32 28-33-36 30-34-38 30-34-38 34-38-42

125Pa dB(A) 27-31-35 30-34-38 32-36-40 32-36-40 36-40-44

200Pa dB(A) 32-36-42 34-38-42 35-39-43 37-42-45 39-43-47

External nish Galvanized steel cabinet-Powder coated Slate Gray

Dimension

Unit (Panel)

W:mm[inch] 432[17] 534[21] 635[25]

D:mm[inch] 548[21-5/8]

H:mm[inch] 1,275[50-1/4] 1,378[54-1/4] 1,511[59-1/2]

Weight Unit kg 51 64 78

lbs 113 141 172

Field Drain pipe size mm[inch] 19.05[3/4] FPT

Remote controller Attached in indoor unit

Outdoor unit MCA A 11 19 25

MOCP A 28 26 31

Fan Motor F.L.A 0.5 0.4 0.5 + 0.5

Fan Motor Output W 46 86 74

Compressor Type SNB092FNCM SNB130FNCM2 SNB172FWHM1 MNB33FBRMC-L

R.L.A 7 8

L.R.A 12 11 13

Air ow CMM[CFM] 45[1,590] 55[1,940] 110[3,880]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse Cycle

Sound level at cooling dB(A) 44 47 52

Sound level at heating dB(A) 46 48 53

External nish Ivory Munsell 3Y 7.8/1.1

Dimension W:mm[inch] 809+62 [31-13/16 + 7/16] 950 [37-13/32] 1,050 [41-5/16]

D:mm[inch] 300 [11-3/16] 330 + 30 [13 + 1-3/16]

H:mm[inch] 630 [24-13/16] 943 [37-1/8] 1,338 [52-11/16]

Weight kg[lbs] 42 [93] 45[100] 69[153] 97[214]

Refrigerant Type R410A

Charge kg[lbs,oz] 2.0 [4 lbs 7 oz] 2.2 [4 lbs 14 oz] 3.5 [7 lbs 11 oz] 4.7 [10 lbs 6 oz]

Oil L[oz] 0.35 (FV50S) [12] 0.50 (FV50S) [16] 0.70 (FV50S) [23] 1.40 (FV50S) [45]

Refrigerant pipe size Gas side O.D. mm[inch] 12.7[1/2F] 15.88[5/8]

Liquid side O.D. mm[inch] 6.35[1/4F] 9.52[3/8]

Refrigerant pipe length

Height difference Max. 30m [Max.100ft]

Length Max. 30m [Max.100ft] Max. 50m [Max.165ft]

Refrigerant piping Not Supplied

Connection Method Flared

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Rating conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

*3.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -15°C(5°F), W.B. -15°C(5°F)

Operating range Indoor intake air temperature

D.B. 32°C(90°F), W.B. 23°C(73°F)

Outdoor intake air temperature

D.B. 46°C(115°F)

Cooling

Heating

Maximum

Minimum

* In case that the wind baffle is installed. (In case that the wind baffle is not installed, the minimum temperature will be -5°C(23°F)DB.)

D.B. 19°C(66°F), W.B. 15°C(59°F)

D.B. 28°C(83°F)

D.B. 10°C(50°F)

D.B. -5°C(23°F)

D.B. -18°C(0°F)*

D.B. -25°C(-13°F), W.B. -25°C(-13°F)

D.B. 21.1°C(70°F), W.B. 15°C(59°F)

2-6. HYPER HEATING INVERTER

Model name Indoor unit PLA-A30EA7 PLA-A36EA7 PLA-A42EA7

Outdoor unit PUZ-HA30NHA5 PUZ-HA36NHA5 PUZ-HA42NKA

Cooling Max. Capacity Btu/h 30,000 36,000 42,000

Rated Capacity Btu/h 30,000 36,000 42,000

Min. Capacity Btu/h 18,000 18,000 19,000

Total Input W 2,400 2,850 4,160

EER Btu/h/W 12.5 12.6 10.1

SEER Btu/h/W 15.6 17.0 14.8

Moisture Removal Pints/h 7.2 7.1 10.9

SHF 0.73 0.71 0.71

*1 Power factor % 94.9 93.9 94.7

Heating Max. Capacity Btu/h 34,000 40,000 54,000

Rated Capacity Btu/h 32,000 38,000 48,000

Min. Capacity Btu/h 18,000 18,000 21,000

Total Input W 3,330 3,130 4,560

COP W/W 2.81 3.55 3.08

HSPF (IV/V) Btu/h/W 9.6/7.3 10.2/8.2 10.1/8.4

*1 Power factor % 96.5 95.5 96.5

Heating at 17°F

(-8.3°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 5,720 5,300 7,100

*2 COP W/W 1.69 2.12 1.98

Heating at 5°F

(-15°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 6,460 5,790 7,770

*3 COP W/W 1.45 1.92 1.81

Power supply Phase, Cycle, Voltage 1phase, 60Hz, 208/230V

Breaker size A 30 40

Voltage Indoor - Outdoor S1-S2 AC208/230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote Controller DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan motor F.L.A. 0.74 0.95

Fan motor output W 120

Air ow DRY(Lo-M2-M1-Hi) CMM 16.0-19.0-22.0-25.0 19.0-24.0-29.0-34.0 21.0-26.0-30.0-34.0

Air ow WET(Lo-M2-M1-Hi) CMM 15.0-18.0-21.0-24.0 18.0-23.0-28.0-33.0 20.0-25.0-29.0-33.0

Air ow DRY(Lo-M2-M1-Hi) CFM 570-670-780-880 670-850-1,020-1,200 740-920-1,060-1,200

Air ow WET(Lo-M2-M1-Hi) CFM 530-630-740-840 630-810-980-1,160 700-880-1,020-1,160

External pressure in.WG [Pa] 0

Sound level

(Lo-M2-M1-Hi) dB(A) 28-32-35-38 32-37-41-44 34-38-41-45

External nish (panel) White Munsell 6.4Y 8.9/0.4

Dimension Unit (panel) W: mm [inch] 840 (950) [33-3/32 (37-13/32)]

D: mm [inch] 840 (950) [33-3/32 (37-13/32)]

H: mm [inch] 298 (40) [11-3/4 (1-9/16)]

Weight Unit(panel) kg[lbs] 25 (5) [56 (11)]

Field drain pipe size O.D. mm[inch] 32 [1-1/4]

Remote Controller Attached in indoor unit

Outdoor unit MCA A 28 37

MOCP A 40 44

Fan motor F.L.A. 0.4 + 0.4

Fan motor output W 86 + 86

Compressor Type ANB33FJEMT ANB42FJTMT

R.L.A. 18.0 19.0

L.R.A. 27.5 28.0

Air ow CMM [CFM] 100 [3,530] 94 [3,320]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse cycle

Sound level at cooling dB(A) 52 49

Sound level at heating dB(A) 53 51

External nish Munsell 3Y 7.8/1.1

Dimension Unit W: mm [inch] 950 [37-3/8] 1,050 [41-6/16]

D: mm [inch] 300+30 [13 + 1-3/16]

H: mm [inch] 1,350 [53-1/8] 1,338 [52-11/16]

Weight Unit kg[lbs] 120 [265] 130 [287]

Refrigerant Type R410A

Charge kg [lbs,oz] 5.5 [12lbs 2oz] 6.0 [13lbs 4oz]

Oil L [oz] 1.4(FV50S) [45] 1.7(FVC68D) [54]

Refrigerant pipe

size

Gas side O.D. mm [inch] 15.88 [5/8]

Liquid side O.D. mm [inch] 9.52 [3/8]

Refrigerant pipe

length

Height difference IU-OU Max. 30m [Max.100ft]

Length Max. 75m [Max.245ft]

Refrigerant Piping Not Supplied

Connection Method Flared

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

*3.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -15°C(5°F), W.B. -15°C(5°F)

Operating range Indoor intake air temperature

D.B. 32°C(90°F), W.B. 23°C(73°F)

Outdoor intake air temperature

D.B. 46°C(115°F)

Cooling

Heating

Maximum

Minimum

* In case that the wind baffle is installed. (In case that the wind baffle is not installed, the minimum temperature will be -5°C(23°F)DB.)

D.B. 19°C(66°F), W.B. 15°C(59°F)

D.B. 28°C(83°F)

D.B. 10°C(50°F)

D.B. -5°C(23°F)

D.B. -18°C(0°F)*

D.B. -25°C(-13°F), W.B. -25°C(-13°F)

D.B. 21.1°C(70°F), W.B. 15°C(59°F)

Model name Indoor unit PKA-A30EA7 PKA-A36EA7

Outdoor unit PUZ-HA30NHA5 PUZ-HA36NHA5

Cooling Max. Capacity Btu/h 30,000 34,200

Rated Capacity Btu/h 30,000 33,500

Min. Capacity Btu/h 18,000 18,000

Total Input W 2,500 2,790

EER Btu/h/W 12.0 12.0

SEER Btu/h/W 16.5 16.2

Moisture Removal Pints/h 8.1 8.7

SHF 0.70 0.71

*1 Power factor % 96.2 96.3

Heating Max. Capacity Btu/h 34,000 40,000

Rated Capacity Btu/h 32,000 38,000

Min. Capacity Btu/h 18,000 18,000

Total Input W 2,930 3,410

COP W/W 3.20 3.27

HSPF (IV/V) Btu/h/W 9.5/7.3 10.0/7.8

*1 Power factor % 96.5 96.3

Heating at 17°F

(-8.3°C)

Max. Capacity Btu/h 32,000 38,000

Total Input W 5,080 6,010

*2 COP W/W 1.85 1.85

Heating at 5°F

(-15°C)

Max. Capacity Btu/h 32,000 38,000

Total Input W 5,770 6,760

*3 COP W/W 1.63 1.65

Power supply Phase, Cycle, Voltage 1phase, 60Hz, 208/230V

Breaker size A 30

Voltage Indoor - Outdoor S1-S2 AC208/230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote Controller DC12V

Indoor unit MCA A 1

MOCP A 15

Fan motor F.L.A. 0.36 0.57

Fan motor output W 56

Air ow DRY(Lo-Mid-Hi) CMM 18.0-20.0-22.0 20.0-23.0-26.0

Air ow WET(Lo-Mid-Hi) CMM 16.0-18.0-20.0 18.0-21.0-23.0

Air ow DRY(Lo-Mid-Hi) CFM 635-705-775 705-810-920

Air ow WET(Lo-Mid-Hi) CFM 570-635-700 635-730-830

External pressure in.WG [Pa] 0

Sound level

(Lo-Mid-Hi) dB(A) 39-42-45 43-46-49

External nish White Munsell 1.0Y 9.2/0.2

Dimension Unit W: mm [inch] 1,170 [46-1/16]

D: mm [inch] 295 [11-5/8]

H: mm [inch] 365 [14-3/8]

Weight Unit kg[lbs] 21 [46]

Field drain pipe size O.D. mm[inch] 16 [5/8]

Remote Controller Attached in indoor unit

Outdoor unit MCA A 28

MOCP A 40

Fan motor F.L.A. 0.4 + 0.4

Fan motor output W 86 + 86

Compressor Type ANB33FJEMT

R.L.A. 18.0

L.R.A. 27.5

Air ow CMM [CFM] 100 [3,530]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse cycle

Sound level at cooling dB(A) 52

Sound level at heating dB(A) 53

External nish Munsell 3Y 7.8/1.1

Dimension Unit W: mm [inch] 950 [37-3/8]

D: mm [inch] 300+30 [13 + 1-3/16]

H: mm [inch] 1,350 [53-1/8]

Weight Unit kg[lbs] 120 [265]

Refrigerant Type R410A

Charge kg [lbs,oz] 5.5 [12lbs 2oz]

Oil L [oz] 1.4(FV50S) [45]

Refrigerant pipe

size

Gas side O.D. mm [inch] 15.88 [5/8]

Liquid side O.D. mm [inch] 9.52 [3/8]

Refrigerant pipe

length

Height difference IU-OU Max. 30m [Max.100ft]

Length Max. 75m [Max.245ft]

Refrigerant Piping Not Supplied

Connection Method Flared

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

*3.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -15°C(5°F), W.B. -15°C(5°F)

Operating range Indoor intake air temperature

D.B. 32°C(90°F), W.B. 23°C(73°F)

Outdoor intake air temperature

D.B. 46°C(115°F)

Cooling

Heating

Maximum

Minimum

* In case that the wind baffle is installed. (In case that the wind baffle is not installed, the minimum temperature will be -5°C(23°F)DB.)

D.B. 19°C(66°F), W.B. 15°C(59°F)

D.B. 28°C(83°F)

D.B. 10°C(50°F)

D.B. -5°C(23°F)

D.B. -18°C(0°F)*

D.B. -25°C(-13°F), W.B. -25°C(-13°F)

D.B. 21.1°C(70°F), W.B. 15°C(59°F)

Model name Indoor unit PCA-A30KA7 PCA-A36KA7 PCA-A42KA7

Outdoor unit PUZ-HA30NHA5 PUZ-HA36NHA5 PUZ-HA42NKA

Cooling Max. Capacity Btu/h 30,000 36,000 42,000

Rated Capacity Btu/h 30,000 34,000 42,000

Min. Capacity Btu/h 18,000 18,000 19,000

Total Input W 2,480 2,810 4,200

EER Btu/h/W 12.1 12.1 10.0

SEER Btu/h/W 16.1 16.6 14.5

Moisture Removal Pints/h 8.3 8.2 11.7

SHF 0.69 0.73 0.69

*1 Power factor % 96.3 93.3 95.6

Heating Max. Capacity Btu/h 34,000 40,000 54,000

Rated Capacity Btu/h 32,000 38,000 48,000

Min. Capacity Btu/h 18,000 18,000 21,000

Total Input W 2,990 3,270 4,150

COP W/W 3.14 3.41 3.39

HSPF (IV/V) Btu/h/W 9.3/7.2 10.3/8.2 10.4/9.0

*1 Power factor % 96.3 94.2 95.5

Heating at 17°F

(-8.3°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 5,170 5,720 7,020

*2 COP W/W 1.81 1.95 2.00

Heating at 5°F

(-15°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 5,830 6,550 7,580

*3 COP W/W 1.61 1.70 1.85

Power supply Phase, Cycle, Voltage 1phase, 60Hz, 208/230V

Breaker size A 30 40

Voltage Indoor - Outdoor S1-S2 AC208/230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote Controller DC12V

Indoor unit MCA A 1 2

MOCP A 15

Fan motor F.L.A. 0.54 0.97

Fan motor output W 95 160

Air ow DRY(Lo-M2-M1-Hi) CMM 16.0-17.0-18.0-20.0 22.0-24.0-26.0-28.0 23.0-25.0-27.0-29.0

Air ow WET(Lo-M2-M1-Hi) CMM 15.0-16.0-17.0-19.0 20.0-22.0-24.0-26.0 21.0-23.0-25.0-27.0

Air ow DRY(Lo-M2-M1-Hi) CFM 565-600-635-705 775-850-920-990 810-885-955-1,025

Air ow WET(Lo-M2-M1-Hi) CFM 530-565-600-670 705-775-850-920 740-810-885-955

External pressure in.WG [Pa] 0

Sound level

(Lo-M2-M1-Hi) dB(A) 35-37-39-41 37-39-41-43 39-41-43-45

External nish White Munsell 6.4Y 8.9/0.4

Dimension Unit W: mm [inch] 1,280 [50-3/8] 1,600 [63]

D: mm [inch] 680 [26-3/4]

H: mm [inch] 230 [9-1/16]

Weight Unit kg[lbs] 32 [71] 36 [79] 39[86]

Field drain pipe size O.D. mm[inch] 26 [1-1/32]

Remote Controller Attached in indoor unit

Outdoor unit MCA A 28 37

MOCP A 40 44

Fan motor F.L.A. 0.4 + 0.4

Fan motor output W 86 + 86

Compressor Type ANB33FJEMT ANB42FJTMT

R.L.A. 18.0 19.0

L.R.A. 27.5 28.0

Air ow CMM [CFM] 100 [3,530] 94 [3,320]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse cycle

Sound level at cooling dB(A) 52 49

Sound level at heating dB(A) 53 51

External nish Munsell 3Y 7.8/1.1

Dimension Unit W: mm [inch] 950 [37-3/8] 1,050 [41-6/16]

D: mm [inch] 300+30 [13 + 1-3/16]

H: mm [inch] 1,350 [53-1/8] 1,338 [52-11/16]

Weight Unit kg[lbs] 120 [265] 130 [287]

Refrigerant Type R410A

Charge kg [lbs,oz] 5.5 [12lbs 2oz] 6.0 [13lbs 4oz]

Oil L [oz] 1.4(FV50S) [45] 1.7(FVC68D) [54]

Refrigerant pipe

size

Gas side O.D. mm [inch] 15.88 [5/8]

Liquid side O.D. mm [inch] 9.52 [3/8]

Refrigerant pipe

length

Height difference IU-OU Max. 30m [Max.100ft]

Length Max. 75m [Max.245ft]

Refrigerant Piping Not Supplied

Connection Method Flared

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

*3.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -15°C(5°F), W.B. -15°C(5°F)

Operating range Indoor intake air temperature

D.B. 32°C(90°F), W.B. 23°C(73°F)

Outdoor intake air temperature

D.B. 46°C(115°F)

Cooling

Heating

Maximum

* In case that the wind baffle is installed. (In case that the wind baffle is not installed, the minimum temperature will be -5°C(23°F)DB.)

*4. The factory setting of external static pressure is shown without <>.

*5. The values are measured at the factory setting of external static pressure.

D.B. -5°C(23°F)

D.B. -18°C(0°F)*

D.B. 21.1°C(70°F), W.B. 15°C(59°F)

D.B. -25°C(-13°F), W.B. -25°C(-13°F)

D.B. 19°C(66°F), W.B. 15°C(59°F)

D.B. 28°C(83°F)

D.B. 10°C(50°F)

Minimum

Maximum

Minimum

Model name Indoor unit PEAD-A30AA7 PEAD-A36AA7 PEAD-A42AA7

Outdoor unit PUZ-HA30NHA5 PUZ-HA36NHA5 PUZ-HA36NHA5

Cooling Max. Capacity Btu/h 30,000 36,000 42,000

Rated Capacity Btu/h 27,000 33,000 42,000

Min. Capacity Btu/h 18,000 18,000 19,000

Total Input W 2,160 2,640 4,200

EER Btu/h/W 12.5 12.5 10.0

SEER Btu/h/W 16.5 16.8 14.3

Moisture Removal Pints/h 8.9 7.3 9.0

SHF 0.67 0.76 0.76

*1 Power factor % 93.0 93.3 94.1

Heating Max. Capacity Btu/h 34,000 40,000 54,000

Rated Capacity Btu/h 32,000 38,000 48,000

Min. Capacity Btu/h 18,000 18,000 21,000

Total Input W 2,750 3,150 3,800

COP W/W 3.41 3.53 3.70

HSPF (IV/V) Btu/h/W 9.5/7.3 10.4/8.2 10.8/9.2

*1 Power factor % 94.1 93.8 93.3

Heating at 17°F

(-8.3°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 4,930 5,400 6,500

*2 COP W/W 1.90 2.06 2.16

Heating at 5°F

(-15°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 5,420 6,100 7,030

*3 COP W/W 1.73 1.82 2.00

Power supply Phase, Cycle, Voltage 1phase, 60Hz, 208/230V

Breaker size A 30 40

Voltage Indoor - Outdoor S1-S2 AC208/230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote Controller DC12V

Indoor unit MCA A 2.73 3.30 3.50

MOCP A 15

Fan motor F.L.A. 2.18 2.64 2.80

Fan motor output W 121 244

Air ow DRY(Lo-Mid-Hi) CMM 17.5-21.0-25.0 24.0-29.0-34.0 29.5-35.5-42.0

Air ow WET(Lo-Mid-Hi) CMM 16.5-20.0-24.0 23.0-28.0-33.0 28.5-34.5-41.0

Air ow DRY(Lo-Mid-Hi) CFM 618-742-883 847-1,024-1,201 1,042-1,254-1,483

Air ow WET(Lo-Mid-Hi) CFM 578-702-843 807-984-1,161 1,002-1,214-1,443

External pressure in.WG [Pa] [35/50/70/100/150]

Sound level

(Lo-Mid-Hi) dB(A) 30-34-38 33-38-42 36-40-44

External nish Galvanized

Dimension Unit W: mm [inch] 1,100[43-5/16] 1,400[55-1/8]

D: mm [inch] 732[28-7/8]

H: mm [inch] 250[9-7/8]

Weight Unit kg[lbs] 33 [73] 41 [91] 43 [95]

Field drain pipe size O.D. mm[inch] 32[1-1/4]

Remote Controller Attached in indoor unit

Outdoor unit MCA A 28 37

MOCP A 40 44

Fan motor F.L.A. 0.4 + 0.4

Fan motor output W 86 + 86

Compressor Type ANB33FJEMT ANB42FJTMT

R.L.A. 18.0 19.0

L.R.A. 27.5 28.0

Air ow CMM [CFM] 100 [3,530] 94 [3,320]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse cycle

Sound level at cooling dB(A) 52 49

Sound level at heating dB(A) 53 51

External nish Munsell 3Y 7.8/1.1

Dimension Unit W: mm [inch] 950 [37-3/8] 1,050 [41-6/16]

D: mm [inch] 300+30 [13 + 1-3/16]

H: mm [inch] 1,350 [53-1/8] 1,338 [52-11/16]

Weight Unit kg[lbs] 120 [265] 130 [287]

Refrigerant Type R410A

Charge kg [lbs,oz] 5.5 [12lbs 2oz] 6.0 [13lbs 4oz]

Oil L [oz] 1.4(FV50S) [45] 1.7(FVC68D) [54]

Refrigerant pipe

size

Gas side O.D. mm [inch] 15.88 [5/8]

Liquid side O.D. mm [inch] 9.52 [3/8]

Refrigerant pipe

length

Height difference IU-OU Max. 30m [Max.100ft]

Length Max. 75m [Max.245ft]

Refrigerant Piping Not Supplied

Connection Method Flared

2 SPECIFICATIONS

P-Series (March 2017)

Due to continuing improvement, above specication may be subject to change without notice.

NOTES : *1.Rating conditions (cooling)-Indoor : D.B. 26.7°C(80°F), W.B. 19.4°C(67°F) Outdoor : D.B. 35°C(95°F), W.B. 23.9°C(75°F)

(heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. 8.3°C(47°F), W.B. 6.1°C(43°F)

*2.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -8.3°C(17°F), W.B. -9.4°C(15°F)

*3.Conditions (heating)-Indoor : D.B. 21.1°C(70°F), W.B. 15.6°C(60°F) Outdoor : D.B. -15°C(5°F), W.B. -15°C(5°F)

Operating range Indoor intake air temperature

D.B. 32°C(90°F), W.B. 23°C(73°F)

Outdoor intake air temperature

D.B. 46°C(115°F)

Cooling

Heating

Maximum

* In case that the wind baffle is installed. (In case that the wind baffle is not installed, the minimum temperature will be -5°C(23°F)DB.)

*4. The factory setting of external static pressure is shown without <>.

*5. The values are measured at the factory setting of external static pressure.

D.B. -5°C(23°F)

D.B. -18°C(0°F)*

D.B. 21.1°C(70°F), W.B. 15°C(59°F)

D.B. -25°C(-13°F), W.B. -25°C(-13°F)

D.B. 19°C(66°F), W.B. 15°C(59°F)

D.B. 28°C(83°F)

D.B. 10°C(50°F)

Minimum

Maximum

Minimum

Model name Indoor unit PVA-A30AA7 PVA-A36AA7 PVA-A42AA7

Outdoor unit PUZ-HA30NHA5 PUZ-HA36NHA5 PUZ-HA42NKA

Cooling Max. Capacity Btu/h 30,000 36,000 42,000

Rated Capacity Btu/h 28,500 33,000 42,000

Min. Capacity Btu/h 18,000 18,000 19,000

Total Input W 2,280 2,640 4,270

EER Btu/h/W 12.5 12.5 9.8

SEER Btu/h/W 17.0 17.8 15.3

Moisture Removal Pints/h 8.0 7.9 9.0

SHF 0.70 0.74 0.76

*1 Power factor % 92.6 87.6 88.4

Heating Max. Capacity Btu/h 34,000 40,000 54,000

Rated Capacity Btu/h 32,000 38,000 48,000

Min. Capacity Btu/h 18,000 18,000 18,000

Total Input W 2,590 3,040 4,010

COP W/W 3.62 3.66 3.50

HSPF Btu/h/W 9.7/7.5 11.0/9.0 11.0/9.2

*1 Power factor % 93.8 88.7 88.1

Heating at 17°F

(-8.3°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 4,930 5,400 6,700

*2 COP W/W 1.90 2.06 2.09

Heating at 5°F

(-15°C)

Max. Capacity Btu/h 32,000 38,000 48,000

Total Input W 5,320 6,100 7,360

*3 COP W/W 1.76 1.82 1.91

Power supply Phase, Cycle, Voltage 1phase, 60Hz, 208/230V

Breaker size A 30 40

Voltage Indoor - Outdoor S1-S2 AC208/230V

Indoor - Outdoor S2-S3 DC24V

Indoor - Remote Controller DC12V

Indoor unit MCA A 4.13 5.50 5.63

MOCP A 15

Fan motor F.L.A. 3.3 4.4 4.5

Fan motor output W 244 430

Air ow DRY(Lo-Mid-Hi) CMM 17.3-21.1-24.8 22.3-27.1-31.9 29.4-35.7-42.0

Air ow WET(Lo-Mid-Hi) CMM

Air ow DRY(Lo-Mid-Hi) CFM 613-744-875 788-956-1,125 1,040-1,262-1,485

Air ow WET(Lo-Mid-Hi) CFM

External pressure in.WG [Pa] <75>-125-<200>

Sound level

(Lo-Mid-Hi)

75Pa

dB(A)

30-34-38 30-34-38 34-38-42

125Pa 32-36-40 32-36-40 36-40-44

200Pa 35-39-43 37-42-45 39-43-47

External nish Galvanized steel cabinet-Powder coated Slate Gray

Dimension Unit W: mm [inch] 534[21] 635[25]

D: mm [inch] 548[21-5/8]

H: mm [inch] 1,378 [54-1/4] 1,511 [59-1/2]

Weight Unit kg[lbs] 64 [141] 78 [172]

Field drain pipe size O.D. mm[inch] 19.05 [3/4] FPT

Remote Controller Attached in indoor unit

Outdoor unit MCA A 28 37

MOCP A 40 44

Fan motor F.L.A. 0.4 + 0.4

Fan motor output W 86 + 86

Compressor Type ANB33FJEMT ANB42FJTMT

R.L.A. 18.0 19.0

L.R.A. 27.5 28.0

Air ow CMM [CFM] 100 [3,530] 94 [3,320]

Refrigerant Control Electronic Expansion Valve

Defrost Method Reverse cycle

Sound level at cooling dB(A) 52 49

Sound level at heating dB(A) 53 51

External nish Munsell 3Y 7.8/1.1

Dimension Unit W: mm [inch] 950 [37-3/8] 1,050 [41-6/16]

D: mm [inch] 300+30 [13 + 1-3/16]

H: mm [inch] 1,350 [53-1/8] 1,338 [52-11/16]

Weight Unit kg[lbs] 120 [265] 130 [287]

Refrigerant Type R410A

Charge kg [lbs,oz] 5.5 [12lbs 2oz] 6.0 [13lbs 4oz]

Oil L [oz] 1.4(FV50S) [45] 1.7(FVC68D) [54]

Refrigerant pipe

size

Gas side O.D. mm [inch] 15.88 [5/8]

Liquid side O.D. mm [inch] 9.52 [3/8]

Refrigerant pipe

length

Height difference IU-OU Max. 30m [Max.100ft]

Length Max. 75m [Max.245ft]

Refrigerant Piping Not Supplied

Connection Method Flared

2SPECIFICATIONS

Due to continuing improvement, above specication may be subject to change without notice.

P-Series (March 2017)

3OUTLINES AND DIMENSIONS

PLA-A12EA7 PLA-A18EA7 PLA-A24EA7 PLA-A30EA7 PLA-A36EA7 PLA-A42EA7

INDOOR UNIT

Unit: inch (mm)

12(305)

OR MORE 177-3/16(4500)

OR LESS

REFRIGERANT PIPEΦ6.35

FLARED CONNECTION 1/4F

REFRIGERANT PIPE

{

12.7

FLARED CONNECTION 1/2F

REFRIGERANT PIPEΦ9.52

FLARED CONNECTION 3/8F

REFRIGERANT PIPE

{

15.88

FLARED CONNECTION 5/8F

9-1/2

(241)

11-1/16

(281)

11-3/4

(298)

10-3/16

(258) 3(76)

3-1/8

(79.5)

3(76.5)

MODELS

PLA-A.EA7*

12/18/24/30/36/42

137-13/16(3500)

OR LESS

10-7/16(265)

OR MORE

WALL

CEILING HEIGHT SPACE IN THE

CEILING

GRILLE 70-7/8(1800mm) OR MORE

FROM FLOOR

INDOOR UNIT

FLOOR

BETWEEN INDOOR UNIT

OBSTACLE

CEILING

OR MORE

118-1/8(3000mm)

59-1/16(1500mm) OR MORE

39-3/8 OR MORE

(1000mm)

1/4 OR MORE

(7mm)

BETWEEN THE TOP OF UNIT

AND CEILING SLAB

CEILING

{3-15/16({100)

CUTOUT HOLE

{4-15/16({125) BURRING HOLE PITCH

SELF-TAP 4 SCREWS:3 PLACES

DETAILS OF FRESH AIR INTAKE HOLE

6-1/4

(158)

120°

MAIN UNIT

SUSPENSION BOLT

M10 OR W3/8

INDOOR UNIT/OUTDOOR UNIT

CONNECTING WIRE,

POWER SUPPLY WIRE ENTRY

GRILLE

DRAIN PIPE

VP-25 CONNECTION

(CONNECTED THE ATTACED

DRAIN SOCKET)

CEILING

SUSPENSION BOLT

LOWER EDGE

THE BOTTOM OF

I-SEE SENSOR

(17 )

+3/16

2-5/16 (58)

1-15/16 TO 2-3/4

(50-70) 5-1/2

(140)

6-11/16

(170)

4-1/8 (105)

7-1/2

(190)

11/16

1-9/16 (40)

2-3/8

(60)

24-3/4(628)

GRILLE

CEILING

{6-7/8({175) BURRING HOLE PITCH

SELF-TAP 4 SCREWS:4 PLACES

(CONNECTING TO BRANCH DUCT)

{5-7/8({150) CUTOUT HOLE

(CONNECTING TO BRANCH DUCT)

SELF-TAP 4 SCREWS:14 PLACES

(CONNECTING TO BRANCH DUCT)

13-3/4×3-15/16(350×100) CUTOUT HOLE

(CONNECTING TO BRANCH DUCT)

6-9/16

(167)

6-1/8

(155)

15-3/8(390)

3-9/16

(90)

3-15/16

(100)

3-15/16

(100)

3-9/16

(90)

13-3/4

(350)

5-1/8

(130)

3-15/16

(100)

70°

BRANCH DUCT HOLE

(CEILING HOLE)

(SUSPENSION BOLT PITCH)

(CEILING HOLE)

FRESH AIR

INTAKE HOLE

BRANCH DUCT HOLE

REMOTE CONTROLLER

WIRE ENTRY

INDOOR UNIT/

OUTDOOR UNIT

CONNECTING

TERMINAL BLOCK BRANCH DUCT

HOLE

+40

+1-9/16

(660 )

REMOTE

CONTROLLER

TERMINAL BLOCK

BRANCH DUCT HOLE

13/16 TO 1-3/4

(20-45)

33-7/8 TO 35-13/16(860-910)

13/16

(20)

13/16 TO 1-3/4

(20-45)

13/16 TO 1-3/4

(20-45)

13/16 TO 1-3/4

(20-45)

31-5/16 (795)

33-7/8 TO 35-13/16(860-910)

33-1/16(840)

5-11/16

(145)

5-11/16

(145)

1/4(6)

5-11/16

(145)

5-11/16(145)

13/16

(20)

8-3/4

(222)

7-5/8

(193)

3-1/8(79.5)

5-1/4

(133)

REMOTE CONTROLLER

WIRE ENTRY

GRILLE

{5-7/8({150) CUTOUT HOLE

(CONNECTING TO BRANCH DUCT)

{6-7/8({175) BURRING HOLE PITCH

SELF-TAP 4 SCREWS:4 PLACES

(CONNECTING TO BRANCH DUCT)

CEILING

17-11/16(450)

70°

COMPANY NAME

I-SEE SENSOR CORNER PANEL

SOME GRILLES DO NOT HAVE THIS PART.

*CAN INSTALL TO THE CORNER

EXCEPT DRAIN PIPE CORNER

(NEED TO FUNCTION SETTING BY

REMOTE CONTROLLER)

AIR INTAKE GRILLE

CORNER POCKET

DRAIN HOLE

AUTO VANE

(AIR OUTLET HOLE)

(AIR INTAKE HOLE)

OPTIONAL PART:SIGNAL RECEIVER

20-7/8(530)

37-3/8(950)

20(508)

3-1/2

(89)

1-7/16(37)

3-1/2

(89)

1-7/16

(37)

DEFROST/STAND BY LAMP

OPERATION

LAMP

RECEIVER

EMERGENCY OPERATION

SWITCH <HEATING>AND

EMERGENCY UP/DOWN

SWITCH<DOWN>

EMERGENCY OPERATION

SWITCH <COOLING>AND

EMERGENCY UP/DOWN

SWITCH<UP>

DETAILS OF SIGNAL RECEVER

VANE MOTOR

NOTE1.CHOOSE THE GRILLE AMONG THE DEDICATED GRILLES.

2.REINFORCE THE SUSPENSION BOLT FOR EARTHQUAKE-RESISTANCE AS NEEDED.

3.FOR THE SUSPENSION BOLT, USE M10 OR W3/8.

(PROCURED AT THE LOCAL SITE.)

4.FOR DRAIN PIPE, USE VP-25(O.D.

n1-1/4''(

{

32) PVC TUBE).

DRAIN PUMP INCLUSION.

RAISE IS MAX 33-7/16''(850mm) FROM THE CEILING.

5.ELECTRICAL BOX MAY BE REMOVED FOR THE SERVICE PURPOSE.

MAKE SURE TO SLACK THE ELECTRICAL WIRE LITTLE BIT FOR

CONTROL/POWER WIRES CONNECTION.

6.THE HEIGHT OF THE INDOOR UNIT IS ABLE TO BE ADJUSTED

WITH THE GRILLE ATTACHED.

7.REQUIRES "E" OR MORE SPACE BETWEEN TRANSOM AND CEILING FOR THE INSTALLATION.

8.WHEN INSTALLING THE BRANCH DUCTS, BE SURE TO INSULATE ADEQUATELY.

OTHERWISE CONDENSATION AND DRIPPING MAY OCCUR.

(IT BECOMES THE CAUSE OF DROPLET OR DROPLET DRIPPING.)

9.AS FOR NECESSARY INSTALLATION/SERVICE SPACE, PLEASE REFER TO THE

RIGHT AT FIGURE.

10.FOR THE INSTALLATION OF THE OPTIONAL HIGH EFFICIENCY FILTER OR

MULTI-FUNCTIONAL CASEMENT,REFER TO SPECIAL DRAWING.

This manual suits for next models

Table of contents

Other Mitsubishi Electric Air Conditioner manuals

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PEA-M200 User manual

Mitsubishi Electric

Mitsubishi Electric SUZ-KA09NAH2.MX User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PKFY-P VLM Series User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GF60VE User manual

Mitsubishi Electric

Mitsubishi Electric PUZ-ZM35VKA User manual

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM PKA-M-LAL Series User manual

Mitsubishi Electric

Mitsubishi Electric city multi PLFY-P-VCM-E2 User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GA50VA User manual

Mitsubishi Electric

Mitsubishi Electric MCF-GA35VB-E1 User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PEAD-RP35JAQ User manual

Mitsubishi Electric

Mitsubishi Electric PCA-RP KAQ User manual

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PUMY-P200YKM2 Operating manual

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM Mr. SLIM S KA Series User manual

Mitsubishi Electric

Mitsubishi Electric MSH-GA60VB-E1 User manual

Mitsubishi Electric

Mitsubishi Electric PUHY-P200 How to use

Mitsubishi Electric

Mitsubishi Electric Mr.Slim MXZ-2A20NA User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-GE22VA User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-Z Series User manual

Mitsubishi Electric

Mitsubishi Electric Mr. SLIM SLZ-M FA Series User manual

Mitsubishi Electric

Mitsubishi Electric PCA-A24KA User manual

Mitsubishi Electric

Mitsubishi Electric MUZ-D-NA Series User manual

Mitsubishi Electric

Mitsubishi Electric City Multi PURY-EP-YJM-A User manual

Mitsubishi Electric

Mitsubishi Electric MSZ-DW25VF User manual

Mitsubishi Electric

Mitsubishi Electric TRANE NTXDKS09A112AA User manual

Popular Air Conditioner manuals by other brands

Airbloc

Airbloc AB 225A instruction manual

Frico

Frico PA2500 Original instructions

Friedrich

Friedrich Floating Air Pro-Premiere FPHW091 Service & parts manual

Olimpia splendid

Olimpia splendid PELER 4E Instructions for use and maintenance

Garrison

Garrison 043-6127-2 instruction manual

Haier

Haier HSU-09RQ03 Operatiing manual

Airwell

Airwell XLM17RCA Operation and installation instructions

Amana

Amana PTC073E Series Service instructions

Trane Technologies

Trane Technologies Precedent TZJ150A Installation, operation and maintenance

Samsung

Samsung RD VHXF Series installation manual

Trane

Trane YSC036G Installation, operation and maintenance

IP Enclosures

IP Enclosures IP-ACOWM085 user manual

Haier

Haier HSU-103C01 user guide

AIREDALE

AIREDALE Artus Installation and commissioning guide

KITANO

KITANO Roka II Series Operation and installation manual

AERMEC

AERMEC Omnia UL 11 S Use and installation manual

Samsung

Samsung AQ12FCX user manual

Hitachi

Hitachi RAS-18CX9KS manual

Mitsubishi Electric Mr.Slim PLA-A12EA7 User manual

Popular Air Conditioner manuals by other brands
