TECHNICAL DATA BOOK
CONTENTS
1. REFERENCE SERVICE MANUAL·············································2
2. SPECIFICATIONS ······································································3

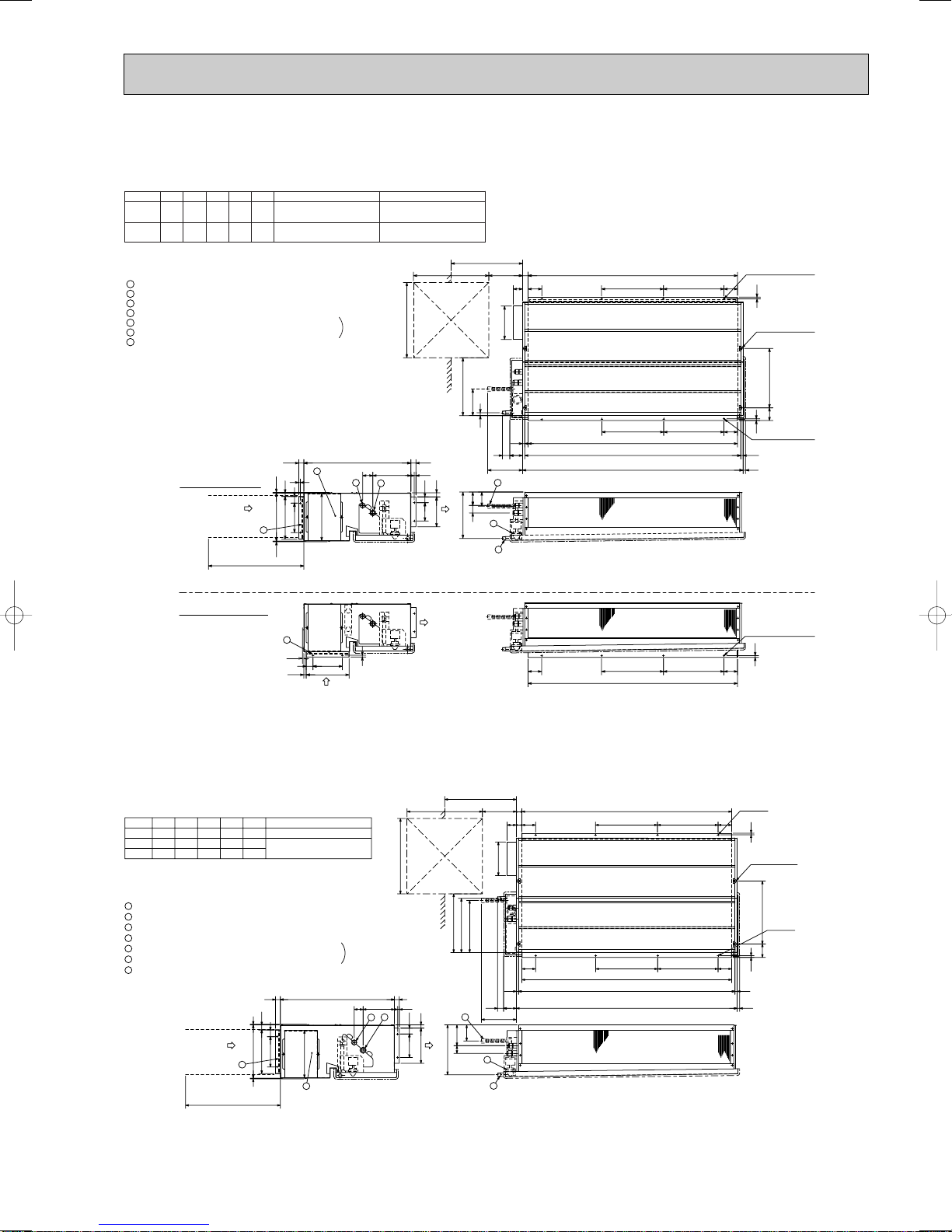

3. OUTLINES AND DIMENSIONS················································17
4. WIRING DIAGRAM···································································36
5. REFRIGERANT SYSTEM DIAGRAM ······································48
6. PERFORMANCE CURVES······················································50
7. CORRECTION FACTORS························································52
8. APPLICABLE EXTENSION PIPE FOR EACH MODEL ··········53
9. AIR FLOW DATA······································································56
10. NOISE CRITERION CURVES ··················································70
11. OPTIONAL PARTS·····································································82
<Indoor unit>
[Model names]
R410A
PLA-RP·AA
PLA-RP·AA2
PEAD-RP·EA
PEAD-RP·EA2
PEAD-RP·GA
PKA-RP·GAL
PKA-RP·FAL
PCA-RP·GA
PCA-RP·HA
PSA-RP·GA
PMH-P·BA
<Outdoor unit>
[Model names]
No. OCS07
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
PUH-P71/100VHA
PUH-P71/100/125/140YHA
PU-P71/100VHA
PU-P71/100/125/140YHA
March 2006
kW Model
OCS07-1.qxp 06.3.22 3:39 PM Page 1

2
For information on service, please refer to the service manual as follows.
Model name Service Ref. Service
Manual No.
PLA-RP35/50/60/71AA PLA-RP35/50/60/71AA.UK OC335
OC327
PLA-RP100/125/140AA2 PLA-RP35/50/60/71AA PLA-RP100/125/140AA2.UK OC357
PCA-RP50/60/71GA PCA-RP50/60/71GA OC328
PCA-RP100/125/140GA PCA-RP100/125/140GA
PCA-RP71/125HA PCA-RP71/125HA OC329
PKA-RP35/50GAL PKA-RP35/50GAL OC330
PKA-RP60/71/100FAL PKA-RP60/71/100FAL OC331
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA OC332
PEAD-RP50/60/71/125/140EA PEAD-RP50/60/71/125/140EA.UK
HWE05210
PEAD-RP35/100EA2 PEAD-RP35/100EA2.UK
PEAD-RP60/71/100GA PEAD-RP60/71/100GA.UK
HWE05060
PMH-P25/35/50BA PMH-P25/35/50BA OC333
1-2. OUTDOOR UNIT
Model name Service Ref. Service
Manual No.
OC379PUH-P71/100VHA
PUH-P71/100/125/140YHA
PU-P71/100VHA
PU-P71/100/125/140YHA
PUH-P71/100VHA.UK
PUH-P71/100/125/140YHA.UK
PU-P71/100VHA.UK
PU-P71/100/125/140YHA.UK
1-1. INDOOR UNIT
1REFERENCE SERVICE MANUAL
OCS07-1.qxp 06.3.22 3:39 PM Page 2

3
SPECIFICATIONS
2
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11:, W.B. -12˚C
4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
Model name Indoor unit PLA-RP71AA PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Outdoor unit PUH-P71VHA PUH-P71YHA PUH-P100VHA PUH-P100YHA PUH-P125YHA PUH-P140YHA
Cooling Capacity Btu/h 27,300 34,100 42,000 48,500
kW 8.0 10.0 12.3 14.2
Total input kW 2.83 3.53 4.36 5.41
EER 2.83 2.83 2.82 2.62
Energy label class C C C D
SHF 0.74 0.78 0.74 0.71
Heating Capacity Btu/h 30,700 [37,300] 39,200 48,800 58,000
kW 9.0 [10.93] 11.5 14.3 17.0
Total input kW 2.82 [4.75] 3.40 4.23 5.35
COP 3.19 3.38 3.38 3.18
Energy label class D C C D
Booster heater kW [2.1] - - -
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 15-16-18-20 19-21-23-27 24-25-27-30
(Low-Medium2-Medium1-High)
CFM 530-565-635-705 670-740-810-950 850-880-950-1060
External pressure Pa 0 0 0
Sound level dB(A)28-30-32-34 33-36-39-41 37-40-43-45
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 0.70Y 8.59/0.97
Dimension W : mm 840 (950)840 (950)
Unit (Panel)D : mm 840 (950)840 (950)
H : mm 258 (30)298 (30)
W : inch 33-1/16 (37-3/8)33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)33-1/16 (37-3/8)
H : inch 10-3/16 (1-3/16)11-3/4 (1-3/16)
Weight kg 24 [26] (5)32 (5)
Unit (Panel)lbs 53 [57] (11)71 (11)
Unit drain pipe I.D. mm 32 32
inch 1-1/4 1-1/4
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)50 52 52 53
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
2-1. CEILING CASSETTE TYPE
OCS07-1.qxp 06.3.22 3:39 PM Page 3

4
Model name Indoor unit PLA-RP71AA PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA PU-P125YHA PU-P140YHA
Cooling Capacity Btu/h 27,300 34,100 42,000 48,500
kW 8.0 10.0 12.3 14.2
Total input kW 2.83 3.53 4.36 5.41
EER 2.83 2.83 2.82 2.62
Energy label class C C C D
SHF 0.74 0.78 0.74 0.71
Heating Capacity Btu/h ----
kW - - - -
Total input kW - - - -
COP - - - -
Energy label class - - - -
Booster heater kW - - - -
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 15-16-18-20 19-21-23-27 24-25-27-30
(Low-Medium2-Medium1-High)
CFM 530-565-635-705 670-740-810-950 850-880-950-1060
External pressure Pa 0 0 0
Sound level dB(A)28-30-32-34 33-36-39-41 37-40-43-45
(Low-Medium2-Medium1-High)
External finish (Panel)White Munsell 0.70Y 8.59/0.97
Dimension W : mm 840 (950)840 (950)
Unit (Panel)D : mm 840 (950)840 (950)
H : mm 258 (30)298 (30)
W : inch 33-1/16 (37-3/8)33-1/16 (37-3/8)
D : inch 33-1/16 (37-3/8)33-1/16 (37-3/8)
H : inch 10-3/16 (1-3/16)11-3/4 (1-3/16)
Weight kg 24 (5)32 (5)
Unit (Panel)lbs 53 (11)71 (11)
Unit drain pipe I.D. mm 32 32
inch 1-1/4 1-1/4
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)––––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 4

5
Model name Indoor unit PEAD-RP71EA PEAD-RP100EA2 PEAD-RP125EA PEAD-RP140EA
Outdoor unit PUH-P71VHA PUH-P71YHA PUH-P100VHA PUH-P100YHA PUH-P125YHA PUH-P140YHA
Cooling Capacity Btu/h 27,000 34,100 42,000 48,500
kW 7.9 10.0 12.3 14.2
Total input kW 2.97 3.69 4.41 5.63
EER 2.66 2.71 2.79 2.52
Energy label class D D D E
SHF 0.83 0.86 0.82 0.83
Heating Capacity Btu/h 30,700 [37,300] 39,200 [46,800] 48,800 [58,200] 57,000 [66,400]
kW 9.0 [10.93] 11.5 [13.71] 14.3 [17.06] 16.7 [19.46]
Total input kW 3.11 [5.04] 3.42 [5.63] 4.32 [7.08] 5.28 [8.04]
COP 2.89 3.36 3.31 3.16
Energy label class D C C D
Booster heater kW [2.1] [2.4] [3.0] [3.0]
Power supply Phase [1133
Cycle Hz 50 50 50 50
Voltage V 230 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 20-25 33.5-42 33.5-42 36.5-46
(Low-High)CFM 706-883 1183-1483 1183-1483 1288-1624
External pressure Pa 70(130)70(130)70(130)
Sound level dB(A)37-41 44-50 44-50 46-51
(Low-High)(
130Pa : 40-45)( 130Pa : 46-52)( 130Pa : 46-52)( 130Pa : 47-53)
External finish Galvanized sheets
Dimension W : mm 1175 1415 1415 1715
D : mm 740 740 740
H : mm 295 325 325
W : inch 46-1/8 55-11/16 55-11/16 67-1/2
D : inch 27-5/8 29-1/8 29-1/8
H : inch 11-5/8 12-13/16 12-13/16
Weight kg 44 [46] 65 [68] 65 [68] 70 [73]
lbs 97 [101] 143 [150] 143 [150] 154 [161]
Unit drain pipe R1(External thread)
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)50 52 52 53
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
2-2. CEILING-CONCEALED TYPE
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11:, W.B. -12˚C
4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 5

6
Model name Indoor unit PEAD-RP71EA PEAD-RP100EA2 PEAD-RP125EA PEAD-RP140EA
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA PU-P125YHA PU-P140YHA
Cooling Capacity Btu/h 27,000 34,100 42,000 48,500
kW 7.9 10.0 12.3 14.2
Total input kW 2.97 3.69 4.41 5.63
EER 2.66 2.71 2.79 2.52
Energy label class D D D E
SHF 0.83 0.86 0.82 0.83
Heating Capacity Btu/h ----
kW ----
Total input kW - - - -
COP - - - -
Energy label class - - - -
Booster heater kW - - - -
Power supply Phase [1133
Cycle Hz 50 50 50 50
Voltage V 230 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 20-25 33.5-42 33.5-42 36.5-46
(Low-High)CFM 706-883 1183-1483 1183-1483 1288-1624
External pressure Pa 70(130)70(130)70(130)
Sound level dB(A)37-41 44-50 44-50 46-51
(Low-High)(
130Pa : 40-45)( 130Pa : 46-52)( 130Pa : 46-52)( 130Pa : 47-53)
External finish Galvanized sheets
Dimension W : mm 1175 1415 1415 1715
D : mm 740 740 740
H : mm 295 325 325
W : inch 46-1/8 55-11/16 55-11/16 67-1/2
D : inch 27-5/8 29-1/8 29-1/8
H : inch 11-5/8 12-13/16 12-13/16
Weight kg 44 65 65 70
lbs 97 143 143 154
Unit drain pipe R1(External thread)
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)––––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 6

7
Model name Indoor unit PEAD-RP71GA PEAD-RP100GA
Outdoor unit PUH-P71VHA PUH-P71YHA
PUH-P100VHA PUH-P100YHA
Cooling Capacity Btu/h 27,000 33,100
kW 7.9 9.7
Total input kW 2.97 3.98
EER 2.66 2.44
Energy label class D E
SHF 0.83 0.86
Heating Capacity Btu/h 30,700 39,200
kW 9.0 11.5
Total input kW 3.11 4.09
COP 2.89 2.81
Energy label class D D
Booster heater kW - -
Power supply Phase [1313
Cycle Hz 50 50 50 50
Voltage V 230 400 230 400
Breaker size A 32 16 32 16
Indoor unit Air flow CMM 20-25 26.5-33
(Low-High)CFM 706-883 935-1165
External pressure Pa 10/50/70 10/50/70
Sound level dB(A)35-38/37-41/37-43 40-43/42-45/42-46
(Low-High)(
10/50/70Pa)( 10/50/70Pa)
External finish Galvanized sheets
Dimension W : mm 1171 1411
D : mm 740
H : mm 275
W : inch 46-1/8 55-9/16
D : inch 29-1/8
H : inch 10-13/16
Weight kg 42 50
lbs 93 111
Unit drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 55 65
CFM 1,940 2,290
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)50 52
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 943
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8
Weight kg 93 94
lbs 205 207
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11:, W.B. -12˚C
4. Above data based on indicated voltage
wIf optional Air protect
g
uide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 7

8
Model name Indoor unit PEAD-RP71GA PEAD-RP100GA
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA
Cooling Capacity Btu/h 27,000 33,100
kW 7.9 9.7
Total input kW 2.97 3.98
EER 2.66 2.44
Energy label class D E
SHF 0.83 0.86
Heating Capacity Btu/h --
kW - -
Total input kW - -
COP - -
Energy label class - -
Booster heater kW - -
Power supply Phase [1313
Cycle Hz 50 50 50 50
Voltage V 230 400 230 400
Breaker size A 32 16 32 16
Indoor unit Air flow CMM 20-25 26.5-33
(Low-High)CFM 706-883 935-1165
External pressure Pa 10/50/70 10/50/70
Sound level dB(A)35-38/37-41/37-43 40-43/42-45/42-46
(Low-High)(
10/50/70Pa)( 10/50/70Pa)
External finish Galvanized sheets
Dimension W : mm 1171 1411
D : mm 740
H : mm 275
W : inch 46-1/8 55-9/16
D : inch 29-1/8
H : inch 10-13/16
Weight kg 42 50
lbs 93 111
Unit drain pipe O.D. mm 32
inch 1-1/4
Outdoor unit Air flow CMM 55 65
CFM 1,940 2,290
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 943
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8
Weight kg 93 94
lbs 205 207
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 8

9
Model name Indoor unit PCA-RP71GA PCA-RP100GA PCA-RP125GA PCA-RP140GA
Outdoor unit
PUH-P71VHA PUH-P71YHA PUH-P100VHA PUH-P100YHA PUH-P125YHA PUH-P140YHA
Cooling Capacity Btu/h 25,900 33,400 42,000 48,500
kW 7.6 9.8 12.3 14.2
Total input kW 2.84 3.55 4.52 5.44
EER 2.68 2.76 2.72 2.61
Energy label class D D D D
SHF 0.74 0.75 0.77 0.75
Heating Capacity Btu/h 30,000 [36,600] 39,200 [47,700] 48,800 [58,200] 58,000 [67,400]
kW 8.8 [10.73] 11.5 [13.98] 14.3 [17.06] 17.0 [19.76]
Total input kW 2.76 [4.69] 3.45 [5.93] 4.72 [7.48] 5.22 [7.98]
COP 3.19 3.33 3.03 3.26
Energy label class D C D C
Booster heater kW [2.1] [2.7] [3.0] [3.0]
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 14-15-16-18 20-21-23-25 27-30-32-34
(Low-Medium2-Medium1-High)
CFM 495-530-565-635 705-840-810-885 955-1060-1130-1200
External pressure Pa 0 0 0
Sound level dB(A)37-39-41-43 40-41-43-45 41-43-45-46 42-44-46-48
(Low-Medium2-Medium1-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 1310 1310 1620
D : mm 680 680 680
H : mm 210 270 270
W : inch 51-9/16 51-9/16 63-3/4
D : inch 26-3/4 26-3/4 26-3/4
H : inch 8-1/4 10-5/8 10-5/8
Weight kg 34 [36] 37 [39.5] 43 [46] 45 [48]
lbs 75 [79] 82 [87] 95 [101] 99 [106]
Unit drain pipe I.D. mm 26
inch 1
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)50 52 52 53
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
2-3. CEILING-SUSPENDED TYPE
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11:, W.B. -12˚C
4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 9

10
Model name Indoor unit PCA-RP71GA PCA-RP100GA PCA-RP125GA PCA-RP140GA
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA PU-P125YHA PU-P140YHA
Cooling Capacity Btu/h 25,900 33,400 42,000 48,500
kW 7.6 9.8 12.3 14.2
Total input kW 2.84 3.55 4.52 5.44
EER 2.68 2.76 2.72 2.61
Energy label class D D D D
SHF 0.74 0.75 0.77 0.75
Heating Capacity Btu/h ----
kW - - - -
Total input kW - - - -
COP - - - -
Energy label class - - - -
Booster heater kW - - - -
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 14-15-16-18 20-21-23-25 27-30-32-34
(Low-Medium2-Medium1-High)
CFM 495-530-565-635 705-840-810-885 955-1060-1130-1200
External pressure Pa 0 0 0
Sound level dB(A)37-39-41-43 40-41-43-45 41-43-45-46 42-44-46-48
(Low-Medium2-Medium1-High)
External finish White Munsell 0.70Y 8.59/0.97
Dimension W : mm 1310 1310 1620
D : mm 680 680 680
H : mm 210 270 270
W : inch 51-9/16 51-9/16 63-3/4
D : inch 26-3/4 26-3/4 26-3/4
H : inch 8-1/4 10-5/8 10-5/8
Weight kg 34 37 43 45
lbs 75 82 95 99
Unit drain pipe I.D. mm 26
inch 1
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)––––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 10

11
Model name Indoor unit PCA-RP71HA PCA-RP125HA
Outdoor unit PUH-P71VHA PUH-P71YHA PUH-P125YHA
Cooling Capacity Btu/h 25,600 42,000
kW 7.5 12.3
Total input kW 2.79 4.55
EER 2.69 2.70
Energy label class D D
SHF 0.74 0.77
Heating Capacity Btu/h 30,400 48,800
kW 8.9 14.3
Total input kW 2.85 5.01
COP 3.12 2.85
Energy label class D D
Booster heater kW - -
Power supply Phase [133
Cycle Hz 50 50 50
Voltage V 230 400 400
Breaker size A 32 16 25
Indoor unit Air flow CMM 17-19 30-38
(Low-High)CFM 600-670 1060-1350
External pressure Pa 0 0
Sound level dB(A)34-38 44-50
(Low-High)
External finish Stainless steel
Dimension W : mm 1136 1520
D : mm 650
H : mm 280
W : inch 44-3/4 59-7/8
D : inch 25-5/8
H : inch 11
Weight kg 41 56
lbs 90 124
Unit drain pipe I.D. mm 26
inch 1
Outdoor unit Air flow CMM 55 100
CFM 1,940 3,530
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)50 52
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 1350
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 93 131
lbs 205 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Heating Indoor: D.B. 20:(68˚F) Outdoor : D.B. 7:(45˚F) W.B. 6:(43˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w
Heating Upper limit D.B. 28˚C D.B. 21:, W.B. 15˚C
Lower limit D.B. 17˚C D.B. -11:, W.B. -12˚C
4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 11

12
Model name Indoor unit PCA-RP71HA PCA-RP125HA
Outdoor unit PU-P71VHA PU-P71YHA PU-P125YHA
Cooling Capacity Btu/h 25,600 42,000
kW 7.5 12.3
Total input kW 2.79 4.55
EER 2.69 2.70
Energy label class D D
SHF 0.74 0.77
Heating Capacity Btu/h --
kW - -
Total input kW - -
COP - -
Energy label class - -
Booster heater kW - -
Power supply Phase [133
Cycle Hz 50 50 50
Voltage V 230 400 400
Breaker size A 32 16 25
Indoor unit Air flow CMM 17-19 30-38
(Low-High)CFM 600-670 1060-1350
External pressure Pa 0 0
Sound level dB(A)34-38 44-50
(Low-High)
External finish Stainless steel
Dimension W : mm 1136 1520
D : mm 650
H : mm 280
W : inch 44-3/4 59-7/8
D : inch 25-5/8
H : inch 11
Weight kg 41 56
lbs 90 124
Unit drain pipe I.D. mm 26
inch 1
Outdoor unit Air flow CMM 55 100
CFM 1,940 3,530
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 1350
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 53-1/8
Weight kg 93 131
lbs 205 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 12

13
Model name Indoor unit PKA-RP71FAL PKA-RP100FAL
Outdoor unit PUH-P71VHA PUH-P71YHA PUH-P100VHA PUH-P100YHA
Cooling Capacity Btu/h 27,000 33,400
kW 7.9 9.8
Total input kW 2.84 3.50
EER 2.78 2.80
Energy label class D D
SHF 0.77 0.77
Heating Capacity Btu/h 30,000 [36,600] 39,200 [46,800]
kW 8.8 [10.73] 11.5 [13.71]
Total input kW 3.08 [5.01] 3.47 [5.68]
COP 2.86 3.31
Energy label class D D
Booster heater kW [2.1] [2.4]
Power supply Phase [1313
Cycle Hz 50 50 50 50
Voltage V 230 400 230 400
Breaker size A 32 16 32 16
Indoor unit Air flow CMM 15-20 22-28
(Low-High)CFM 530-705 780-990
External pressure Pa 0
Sound level dB(A)39-45 41-46
(Low-High)
External finish Munsell 3.4Y 7.7/0.8
Dimension W : mm 1400 1680
D : mm 235
H : mm 340
W : inch 55-1/8 66-1/8
D : inch 9-1/4
H : inch 13-3/8
Weight kg 24 [26] 28 [30]
lbs 53 [57] 62 [66]
Unit drain pipe O.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 55 65
CFM 1,940 2,290
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)50 52
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 943
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8
Weight kg 93 94
lbs 205 207
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
2-4. WALL-MOUNTED TYPE
OCS07-1.qxp 06.3.22 3:39 PM Page 13

14
Model name Indoor unit PKA-RP71FAL PKA-RP100FAL
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA
Cooling Capacity Btu/h 27,000 33,400
kW 7.9 9.8
Total input kW 2.84 3.50
EER 2.78 2.80
Energy label class D D
SHF 0.77 0.77
Heating Capacity Btu/h --
kW - -
Total input kW - -
COP - -
Energy label class - -
Booster heater kW - -
Power supply Phase [1313
Cycle Hz 50 50 50 50
Voltage V 230 400 230 400
Breaker size A 32 16 32 16
Indoor unit Air flow CMM 15-20 22-28
(Low-High)CFM 530-705 780-990
External pressure Pa 0
Sound level dB(A)39-45 41-46
(Low-High)
External finish Munsell 3.4Y 7.7/0.8
Dimension W : mm 1400 1680
D : mm 235
H : mm 340
W : inch 55-1/8 66-1/8
D : inch 9-1/4
H : inch 13-3/8
Weight kg 24 28
lbs 53 62
Unit drain pipe O.D. mm 20
inch 13/16
Outdoor unit Air flow CMM 55 65
CFM 1,940 2,290
Sound level at cooling dB(A)49 50
Sound level at heating dB(A)––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950
D : mm 330+30 330+30
H : mm 943 943
W : inch 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8
Weight kg 93 94
lbs 205 207
Refrigerant pipe size Gas side O.D. mm 15.88 15.88
inch 5/8 5/8
Liquid side O.D. mm 9.52 9.52
inch 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30
Length m Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 14

15
Model name Indoor unit PSA-RP71GA PSA-RP100GA PSA-RP125GA PSA-RP140GA
Outdoor unit
PUH-P71VHA PUH-P71YHA PUH-P100VHA PUH-P100YHA PUH-P125YHA PUH-P140YHA
Cooling Capacity Btu/h 25,900 34,100 42,000 47,800
kW 7.6 10.0 12.3 14.0
Total input kW 2.88 3.66 4.54 5.53
EER 2.64 2.73 2.71 2.53
Energy label class D D D E
SHF 0.73 0.81 0.75 0.74
Heating Capacity Btu/h 30,700 [37,300] 39,200 [47,700] 48,800 [58,200] 58,000 [67,400]
kW 9.0 [10.93] 11.5 [13.98] 14.3 [17.06] 17.0 [19.76]
Total input kW 2.85 [4.78] 3.42 [5.90] 4.41 [7.17] 5.47 [8.23]
COP 3.16 3.36 3.24 3.11
Energy label class D C C D
Booster heater kW [2.1] [2.7] [3.0] [3.0]
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 15-18 24-31 26-33 27-35
(Low-High)CFM 530-635 850-1060 920-1165 955-1240
External pressure Pa 0
Sound level dB(A)40-45 44-49 46-51 47-52
(Low-High)
External finish
White Munsell 0.70Y 8.59/0.97 White Munsell 0.70Y 8.59/0.97 White Munsell 0.70Y 8.59/0.97
Dimension W : mm 600 600 600
D : mm 270 350 350
H : mm 1900 1900 1900
W : inch 23-5/8 23-5/8 23-5/8
D : inch 10-5/8 13-3/4 13-3/4
H : inch 74-13/16 74-13/16 74-13/16
Weight kg 43 [45] 51 [53] 51 [53] 53 [55]
lbs 95 [99] 112 [117] 112 [117] 117 [121]
Unit drain pipeO.D. mm 20 20 20
inch 13/16 13/16 13/16
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)50 52 52 53
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
2-5. FLOOR STANDING TYPE
OCS07-1.qxp 06.3.22 3:39 PM Page 15

16
Model name Indoor unit PSA-RP71GA PSA-RP100GA PSA-RP125GA PSA-RP140GA
Outdoor unit PU-P71VHA PU-P71YHA PU-P100VHA PU-P100YHA PU-P125YHA PU-P140YHA
Cooling Capacity Btu/h 25,900 34,100 42,000 47,800
kW 7.6 10.0 12.3 14.0
Total input kW 2.88 3.66 4.54 5.53
EER 2.64 2.73 2.71 2.53
Energy label class D D D E
SHF 0.73 0.81 0.75 0.74
Heating Capacity Btu/h ----
kW - - - -
Total input kW - - - -
COP - - - -
Energy label class - - - -
Booster heater kW - - - -
Power supply Phase [1313 3
Cycle Hz 50 50 50 50 50
Voltage V 230 400 230 400 400
Breaker size A 32 16 32 16 25
Indoor unit Air flow CMM 15-18 24-31 26-33 27-35
(Low-High)CFM 530-635 850-1060 920-1165 955-1240
External pressure Pa 0
Sound level dB(A)40-45 44-49 46-51 47-52
(Low-High)
External finish White Munsell 0.70Y 8.59/0.97 White Munsell 0.70Y 8.59/0.97 White Munsell 0.70Y 8.59/0.97
Dimension W : mm 600 600 600
D : mm 270 350 350
H : mm 1900 1900 1900
W : inch 23-5/8 23-5/8 23-5/8
D : inch 10-5/8 13-3/4 13-3/4
H : inch 74-13/16 74-13/16 74-13/16
Weight kg 43 51 51 53
lbs 95 112 112 117
Unit drain pipeO.D. mm 20 20 20
inch 13/16 13/16 13/16
Outdoor unit Air flow CMM 55 65 100
CFM 1,940 2,290 3,530
Sound level at cooling dB(A)49 50 50 51
Sound level at heating dB(A)––––
External finish Ivory Munsell 5Y 7/1
Dimension W : mm 950 950 950
D : mm 330+30 330+30 330+30
H : mm 943 943 1350
W : inch 37-3/8 37-3/8 37-3/8
D : inch 13 + 1-3/16 13 + 1-3/16 13 + 1-3/16
H : inch 37-1/8 37-1/8 53-1/8
Weight kg 93 94 131
lbs 205 207 289
Refrigerant pipe size Gas side O.D. mm 15.88 15.88 15.88
inch 5/8 5/8 5/8
Liquid side O.D. mm 9.52 9.52 9.52
inch 3/8 3/8 3/8
Refrigerant pipe length Height difference m Max. 30 Max. 30 Max. 30
Length m Max. 50 Max. 50 Max. 50
NOTE: 1. Rating conditions (ISO T1)
Cooling Indoor : D.B. 27:(80˚F) W.B. 19:(66˚F) Outdoor : D.B. 35:(95˚F) W.B. 24:(75˚F)
Refrigerant piping length (one way) : 5m (16ft.)
2. Guaranteed operating range
Indoor Outdoor
Cooling Upper limit D.B. 35˚C, W.B. 22.5˚C D.B. 46:
Lower limit D.B. 19˚C, W.B. 15˚C D.B. -5:w4. Above data based on indicated voltage
wIf optional Air protect guide installed. D.B.-15:
Indoor unit Single phase 230V 50Hz
Single phase 230V 50Hz
/ 3 phase 400V 50Hz
Outdoor unit
3. Guaranteed voltage
198~264V, 50Hz : Single phase
342~457V, 50Hz : 3 phase
OCS07-1.qxp 06.3.22 3:39 PM Page 16

17
3OUTLINES AND DIMENSIONS
PLA-RP60,71AA
PLA-RP35,50AA
Models
PLA-RP100,125,140AA2
241
281
A
258
298
B
80
84
C
Receiver Operation lamp
DEFROST/STAND BY lamp
Emergency operation switch (cooling)
A (WIRELESS PANEL)
Emergency operation switch (heating)
Branch duct hole
(Cut out hole)
{175
{150
14 - {2.8
Burring hole
350
90
70_
100 100 90
100 130
155
167
Suspension bolt pitch
Ceiling hole
Branch
duct hole
Suspension bolt pitch
Ceiling hole
840
197 159
159
605
159192
98
89
C
840
860 - 91020 - 45 20 - 45
20 - 4520 - 45
Fresh air intake
Branch duct hole
860 - 910
810
159
16
Terminal block
Drain pipe
VP-25connection
(O.D.{32)
Ceiling surface
Power line entry
Suspension bolt lower edge
Suspension bolt M10
or W3/8
Control wire entry
Feeding hole
(Drain pump) 37428660
17+5
0
30
190
170
140
50 - 70
105
A
B
1
2
High efficiency filter
& Fresh air intake casement (option)
17+5
0135
Air outlet hole
Vane motor
Auto vane
Drain hole
Grille
Air outlet hole
Air intake hole
411
Air intake hole
Air intake grille 577
77 51
M
M
M
A
M
950
51 77
950 577 411
RP35, 50
Use the current nuts meeting the pipe size of the outdoor unit.
Available pipe size
Factory flare nut attachment to the heat-exchanger.
1LIQUID SIDE
2GAS SIDE
RP60 RP71
[6.35 [6.35 — —
[9.52 [9.52 [9.52 [9.52
[12.7 — — —
[15.88 [15.88 [15.88 [15.88
———[19.05
RP100, 125, 140 P35,50,60,71
——
[9.52 [9.52
——
[15.88 —
—[19.05
P100, 125, 140
Detail drawing of fresh air intake
3 - {2.8
Burring hole {125
Burring hole pitch
{100
(Cut out hole)
Ceiling surface
120_
120_
158
Unit : mm
INDOOR UNIT
PLA-RP35AA PLA-RP50AA PLA-RP60AA PLA-RP71AA
PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
OCS07-1.qxp 06.3.22 3:39 PM Page 17

18
Unit : mm
Details of fresh air intake hole
Knock out
4-{2.8 Burring hole
Flesh air intake hole
110
230
235 or more
110
suspension bolt(M10 or W3/8)
Panel(grille):PMP-40BM
Installation space required around indoor unit
mounting plate
176
Panel(grille):PMP-40BM
Lower view
60 40
200600200
Top
Air outlet(lower)
46
43
2828
20 26
20
53
69 247
30
Right side
outer line of grille
center of unit
75926 811 suspension bolt pitch74.5 960 seiling opening20 20
1000 outer side of grille
17.517.5
45
340 suspension bolt pitch
45
430 ceiling opening
470 outer side of grille
20 20
74.5
Terminal block for indoor/outdoor connection
Terminal block for remote controller
812
96
Left side
Front drain pan
elect box
Drainage pipe PVC pipe:VP-20[O.D.{25]
Refrigerant pipe(gas)
Refrigerant pipe(liquid)
ceiling panel
drain pan ceiling
panel
PVC pipe:VP-20[O.D.{25(1")]
O.D.{35
O.D.{12.7(1/2") O.D.{15.88(5/8")
O.D.{6.35(1/4") O.D.{9.52(3/8")
PMH-P50BA PMH-P35BA
PMH-P25BA
Drainage pipingGas pipe
Liquid pipe pipe cover
Refrigerant piping
1000outer side of grille
470 outer side of grille
{50
(56)
230
(96)
(20)
(10)
302
254
198
141 759
395
90-
{
122
{
100
108
250 288.5
same line
PMH-P25BA PMH-P35BA PMH-P50BA
OCS07-1.qxp 06.3.22 3:39 PM Page 18

19
PEAD-RP35EA2
PEAD-RP50EA
PEAD-RP60EA
PEAD-RP71EA
PEAD-RP100EA2
PEAD-RP125EA
PEAD-RP140EA
2
1
3
4
5
6
7
Refrigerant piping flare connection (liquid [F copper tube):HP
Refrigerant piping flare connection (gas [G copper tube):LP
Drain R1(External thread)
Electrical parts box
Drain Pump (Option)
Drain Pipe (Option) ... Flexible joint VP-25(I.D.
[ 32)
Filter
R407C Outdoor unit : 9.52
F
R410A Outdoor unit : 6.35 w
R407C Outdoor unit : 9.52 w
Outdoor unit (SUZ) : 6.35
EDCBA
804830
- 305772
Model
RP60
R407C Outdoor unit : 15.88
G
R410A Outdoor unit : 12.7 w
15.88
104410702902801012
RP35,50
wSetting at shipment
2
1
3
4
Air inlet
Air outlet
Access door 55
50~150
81
197
Service space:500 or more
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
5
6
75 44
18
365~465
B 81
10
56 355
7
159
243
Air outlet
Air inlet
7
Lifting bolt hole
(14×22)
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
In case of rear inlet
In case of bottom inlet 10-
[ 3 (RP35,50)
12-
[ 3 (RP60)
D30
C
10
81BC
A
450
450
10- [ 3 (RP35,50)
12-
[ 3 (RP60)
176
40
288
256
3.5 3.5
10
109 179
10
35
24
30640
30
21
277 80
45
282
13
13E
A
61 227
29
85
40 176
10
15
3.5
256 BC 81
10
81
A
Set
R407C outdoor unit : 19.05158416104704601552RP140
15.8810441070290 F
R410A Outdoor unit : 15.88 w
EDCBA
12841310370360
2801012
1252
Model
RP100,125
RP71
w Setting at shipment
7
44
243
308
323
75
6
5
13
Refrigerant piping flare connection (liquid [9.52 copper tube):HP
Refrigerant piping flare connection (gas [F copper tube):LP
Drain R1 (External thread)
Electrical parts box
Drain Pump (Option)
Drain Pipe (Option) ... Flexible joint VP25(I.D.[32)
Filter
Service space:500 or more
81
365~465
197
81
50~150
55
29
Access door
Air outlet
Air inlet
43
12
7
6
5
4
3
2
1
113
307 122
12-[3
(14x22)
Lifting bolt hole
45
Set
210
12-[3
450
450
140
282
680
3.5 3.5
30
319
261
181
40
30
A
C B 81
10
375
10 80
C B 81
A
E 13
30D
20
35
30
1053 169
Keep duct-work length 850mm or more.
Be sure to apply the air filter
near the air inlet grille.
Unit : mm
OCS07-1.qxp 06.3.22 3:39 PM Page 19

20
PEAD-RP60GA
PEAD-RP71GA
PEAD-RP100GA
Unit : mm
Model ABCDE
7
7
9
8
9.52
9.52
15.88
15.88
8
10
FG H J
RP60
RP71
RP100
1125
1125
1365
1090
1090
1330
1050
1050
1290
1012
1012
1252
840
840
1080
Outdoor unit(SUZ) : 6.35
Other outdoor unit : 9.52 w
R410A Outdoor unit : 15.88 w
R407C Outdoor unit : 19.05
wSetting at shipment
OCS07-1.qxp 06.3.22 3:39 PM Page 20
