Job Name: Location: Date:
Purchaser: Engineer:
Submitted to: For Reference Approval Construction
System Designation: Schedule No.:
Cooling Capacity*............................11,100 Btu/h
Heating Capacity*............................13,600 Btu/h
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB, 67ºF (19ºC) WB; Outdoor: 95ºF
(35ºC) DB, 75ºF (24ºC) WB.
(Heating at 47ºF) - Indoor: 70ºF (21ºC) DB, 60ºF (16ºC) WB; Outdoor: 47ºF (8ºC) DB, 43ºF (6ºC) WB.
(For data on specic indoor units combinations [all ducted, all non-ducted, and both
ducted and non-ducted], see the MXZ-B Technical and Service Manual.)
Electrical Requirements
Power Supply ....................208 / 230V, 1-Phase, 60 Hz
MCA .............................................. 1 A
Voltage
Indoor - Outdoor S1-S2 ......................AC 208 / 230V
Indoor - Outdoor S2-S3 .........................DC 12-24V
Fan Motor .................................... 0.28 F.L.A.
Airow (Lo - Med - Hi) ................. 280 - 320 - 390 Dry CFM
250 - 290 - 350 Wet CFM
Air Filter .........................Polypropylene Honeycomb
Sound Pressure Level (Lo - Med - Hi) .........30 - 34 - 39 dB(A)
DIMENSIONS UNIT INCHES / MM GRILLE INCHES / MM
W 22-7/16 / 570 25-5/8 / 650
D 22-7/16 / 570 25-5/8 / 650
H 8-3/16 / 208 13/16 / 19
Weight (Unit/Grille)
Lbs............................................. 36 / 7
kg............................................. 16 / 3
External Finish (Unit/Grille) .......... Galvanized-steel Sheets /
Munsell 6.4Y 8.9 / 0.4
Field Drainpipe Size O.D...................... 1-1/4” / 32 mm
Refrigerant Type ...................................R410A
Refrigerant Pipe Size O.D.
Gas Side ................................ 3/8" / 9.52 mm
Liquid Side............................... 1/4" / 6.35 mm
Connection Method ................................Flared

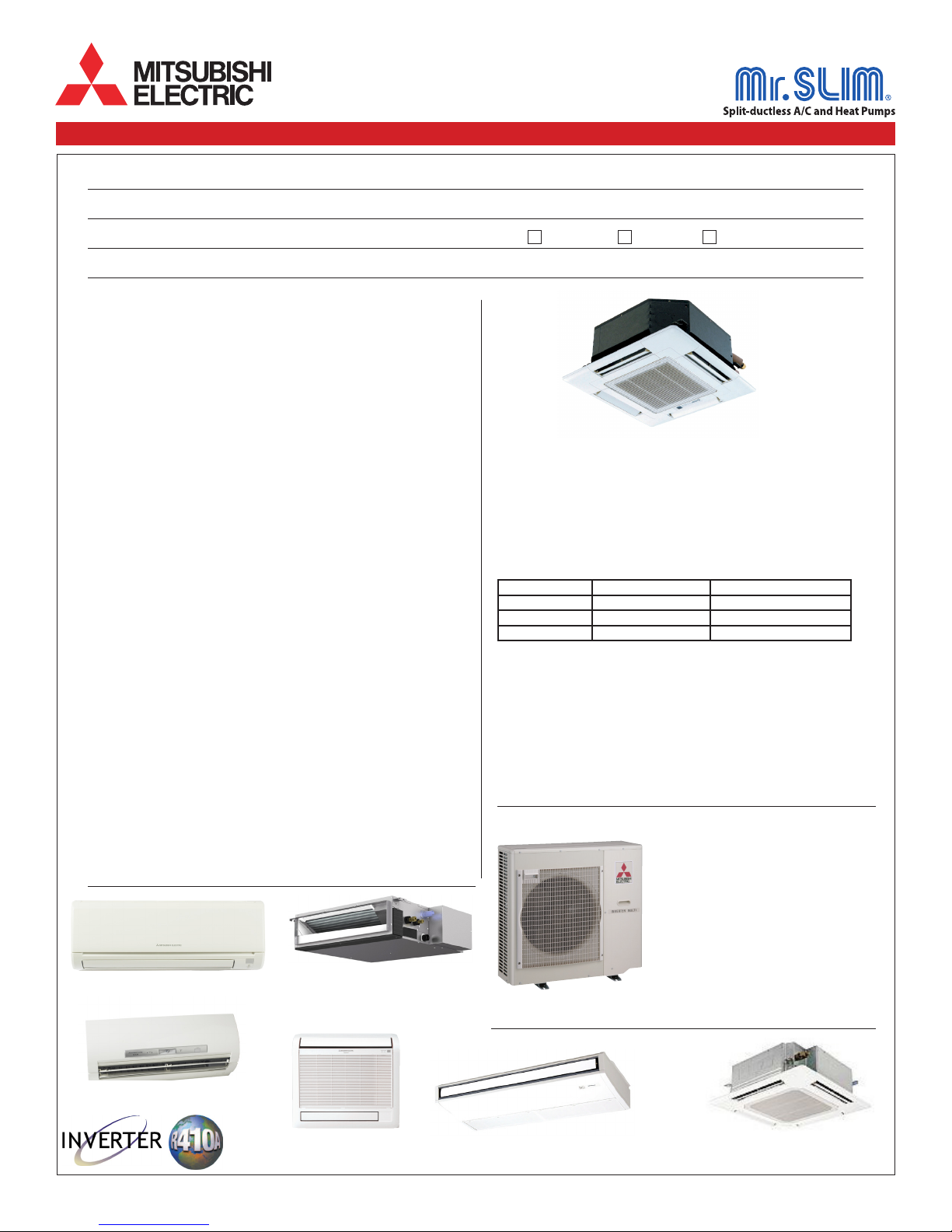

SUBMITTAL DATA: SLZ-KA12NA. . . . . . . . 12,000 BTU/H CEILING-CASSETTE INDOOR UNIT FOR MXZ-B MULTI-ZONE HEAT-PUMP SYSTEMS
MXZ-B SERIES HEAT-PUMP OUTDOOR UNITS
SEZ-KD and PEAD-A24
MSZ-GE
MXZ-B MULTI-ZONE SYSTEMS CAN INCLUDE:
• Ducted Indoor Units:
SEZ-KD09,12,15,18NA, PEAD-A24AA
• Nonducted Indoor Units:
MSZ-GE06,09,12,15,18,24NA,
MSZ-FE09,12,18NA, MFZ-KA09,12,18NA,
PCA-A24KA, SLZ-KA09,12,15NA, and
PLA-A12,18,24BA
• A combination of both Ducted and Nonducted
Indoor Units
Refer to the separate submittal forms for the
MSZ-GE, MSZ-FE, SEZ-KD, SLZ-KA, PEAD,
PCA, PLA Indoor Units, and MXZ Outdoor Units.
Outdoor Unit: MXZ-3B30NA
MSZ-FE
MFZ-KA PCA-KA SLZ-KA and PLA-ABA
OPTIONAL ACCESSORIES
Indoor Unit
□Grille (SLP-15AAUW; required - shipped with unit)
GENERAL FEATURES
• Four-way 2'x2' ceiling-cassette indoor unit for residential
applications
• Built-in drain mechanism for condensate removal; lifts to
19-11/16"
• Wide air-ow pattern for better air distribution
• Design features ventilation air intake knockout
• Long-life air lter included with indoor unit
• Indoor unit powered from outdoor unit using A-Control
• Automatic fan speed control; auto restart following a power outage
• Limited warranty: ve years on parts/defects, seven years on
compressors
Controller Options
□Wall-mounted Wired Remote Controller (PAR-21MAA)
□M-NET Control Adapter (MAC-399IF)
□Remote Temperature Sensor (M21-JKO-307)
□Handheld Wireless Remote Controller (PAR-FL32MA;
req. PAR-SA9FA)
□Receiver Kit for PAR-FL32MA Handheld Wireless Remote
Controller (PAR-SA9FA)
□Lockdown Bracket for Handheld Controller (RCMKP1CB)
SLZ-KA12NA

3400 Lawrenceville Suwanee Rd
Suwanee, GA 30024
Tele: 678-376-2900 • Fax: [phone]
Toll Free: 800-433-4822 (#3)
www.mehvac.com
Specications are subject to change without notice.
C SD - SLZ-KA12NA for MXZ Multiple Indoor Unit Styles - 201012 © MITSUBISHI ELECTRIC / HVAC 2010
DIMENSIONS: SLZ-KA12NA
Dimensions
SLZ-KA09/12/15NA
Unit inch (mm)
Refrigerant pipe
Models
1/4 inch 3/8 inch
SLZ-KA09NA flared connection flared connection
6.35 mm 9.52 mm
1/4 inch 3/8 inch
SLZ-KA12NA flared connection flared connection
6.35 mm 9.52 mm
1/4 inch 1/2 inch
SLZ-KA15NA flared connection flared connection
6.35 mm 12.7 mm
