Mitsubishi Electric MS-18RV User manual

SPLIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
ADVANCED AND EVER ADVANCING
English
Deutsch
Français
Nederlands
Español
Italiano
∂ÏÏËÓÈο
Português
Dansk
Svenska
Türkçe
MS-18RV
MS-24RV
MS-C18TV
MS-C24TV
OPERATING INSTRUCTIONS For customers
•To use this unit correctly and safely, be sure to read this operating instructions
before use.
Bedienungsanleitung Für Kunden
•Um diese Einheit richtig und sicher zu verwenden, unbedingt diese Bedienungs-
anleitung vor der Inbetriebnahme durchlesen.
NOTICE D’UTILISATION A l’attention des clients
•
Pour avoir la certitude d’utiliser cet appareil correctement et en toute sécurité, veuillez
lire attentivement cette notice d’instructions avant de mettre l’appareil en fonction.
GEBRUIKSAANWIJZING Voor de klant
•Om dit apparaat op de juiste manier en veilig te gebruiken, dient u eerst deze
gebruiksaanwijzing aandachtig door te lezen.
MANUAL DE INSTRUCCIONES Para los clientes
•Para emplear correctamente este aparato y por razones de seguridad debe leer
este manual de instrucciones de manejo antes de su utilización.
LIBRETTO D’ISTRUZIONI Per gli utenti
•Per utilizzare correttamente quest’unità, leggere questo libretto d’istruzioni atten-
tamente e per intero.
√¢∏°π∂™ §∂π∆√Àƒ°π∞™ °È· ÙÔÓ ÂÏ¿ÙË
•°È· Ó· ¯ÚËÛÈÌÔÔÈ‹ÛÂÙ ·˘Ù‹ ÙËÓ ÌÔÓ¿‰· ÛˆÛÙ¿ Î·È Ì ·ÛÊ¿ÏÂÈ·, ‚‚·Èˆı›ÙÂ
fiÙÈ ¤¯ÂÙ ‰È·‚¿ÛÂÈ ·˘Ùfi ÙÔ ÂÁ¯ÂÈÚ›‰ÈÔ Ô‰ËÁÈÒÓ ÚÈÓ ·fi ÙËÓ ¯Ú‹ÛË.
INSTRUÇÕES DE OPERAÇÃO Para os clientes
•Para utilizar esta unidade correctamente, certifique-se de que lêestas instruções
de operação antes da utilização.
BRUGSANVISNING Til kunden
•Læs denne brugsanvisning før brugen såkorrekt og forsvarlig anvendelse af klima-
anlægget sikres.
BRUKSANVISNING För kunder
•För att använda enheten pårätt och säkert sätt ska denna bruksanvisning läsas
innan enheten tas i bruk.
‹fiLETME TAL‹MATLARI Sat›n al›c›lar için
•Bu birimi do¤ru ve güvenli olarak çal›flt›rmak için, kullanmadan önce bu iflletme
talimatlar›n› mutlaka okuyun.
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ Для пользователей
•Для обеспечения правильного и безопасного использования прибора следует
до начала его эксплуатации внимательно прочитать данное руководство.
Русский
Back to Index

2
SAFETY PRECAUTIONS
WARNING
CAUTION
•Since rotating parts and parts which could cause an electric shock are used in this product, be sure
to read these “Safety Precautions” before use.
•Since the cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
Incorrect handling could cause a serious hazard, such as death, serious injury,
etc. with a high probability.
Incorrect handling could cause a serious hazard depending on the conditions.
Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
(Black) Never insert your finger or stick, etc.
(Black) Never step onto the indoor/outdoor unit and do not put anything on them.
(Yellow) Danger of electric shock, be careful.
(Blue) Be sure to disconnect the power supply plug from the power outlet.
(Blue) Be sure to shut off the power.
•After reading this manual, keep it together with the installation manual in a handy place for easy
reference.
Warning mark positions and safety devices
FRONT PANEL
ENCLOSURE
ENCLOSURE
AIR OUTLET
SAFETY PRECAUTIONS ............................................................................... 2
NAME OF EACH PART .................................................................................. 5
PREPARATION BEFORE OPERATION......................................................... 7
I FEEL... AUTO OPERATION ......................................................................... 8
MANUAL OPERATION (COOL, DRY, FAN) ................................................... 9
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT........................... 10
ECONO COOL OPERATION........................................................................ 11
TIMER OPERATION (ON/OFF TIMER) ........................................................ 12
WHEN THE AIR CONDITIONER IS NOT GOING TO BE USED FOR A
LONG TIME................................................................................................... 12
MAINTENANCE............................................................................................ 13
CLEANING THE AIR FILTER AND THE DEODORIZING
FILTER (OPTION) ......................................................................................... 13
REPLACEMENT OF THE DEODORIZING FILTER (OPTION)/AIR
CLEANING FILTER (OPTION) ..................................................................... 14
BEFORE CONTACTINGTHE SERVICE REPRESENTATIVE,
CHECK THE FOLLOWING AGAIN .............................................................. 14
WHEN YOU THINK THAT TROUBLE HAS OCCURRED ............................. 15
INSTALLATION, RELOCATION AND INSPECTION ................................... 16
SPECIFICATIONS ........................................................................................ 17
CONTENTS

3
WARNING
•This air conditioner is NOT intended for use by children or infirm persons without supervisions.
Do not insert your finger
or a stick,etc. into the air
inlet/outlet.
•Since the fan rotates at high
speed, this may cause an injury.
•Young children should be super-
vised to ensure that they do not
play with the air conditioner.
Repair or relocation
should not be done by
the customer.
•If this is done incorrectly, it may
cause a fire, an electric shock,
or injury from the unit falling,wa-
ter leaking, etc.
Consult your dealer.
The customer should
not install this unit.
•If this is done incorrectly, it may
cause a fire, an electric shock,
or injury from the unit falling,wa-
ter leaking, etc.
Consult your dealer.
SAFETY PRECAUTIONS
CAUTION
When the air filter is to
be removed, do not
touch the metal parts of
the indoor unit.
•This may cause an injury.
When the unit is to be
cleaned, switch it off and
disconnect the power
supply plug or turn off
the breaker.
•Since the fan rotates at high
speed during operation, this may
cause an injury.
Do not operate switches
with wet hands.
•This may cause an electric
shock.
Do not clean the air con-
ditioner with water.
•Water may enter the unit and de-
grade the insulation. This may
cause an electric shock.
Do not put a pet or
houseplant where it will
be exposed to direct air-
flow.
•This could injure the pet or plant.
Do not use an insecti-
cide or flammable spray.
•This may cause a fire or defor-
mation of the cabinet.
Ventilate well in using
the unit with a stove, etc.
•An oxygen shortage may occur.
Do not use the unit for
special purposes.
•Do not use this air conditioner
to preserve precision devices,
food, animals, plants and art ob-
jects.
This may cause deterioration of
quality, etc.
Do not put a stove, etc.
where they are exposed
to direct airflow.
•This may cause imperfect com-
bustion.
Do not use intermediate
connection of the power
supply cord or the exten-
sion cord and do not con-
nect many devices to one
AC outlet.
•A fire or an electric shock may
result from poor contact,poor in-
sulation, exceeding the permis-
sible current, etc.
Do not scratch or proc-
ess the power supply
cord, etc.
•Do not put heavy object on the
power supply cord and do not
scratch or process the cord.The
cord may be damaged and this
may cause a fire or an electric
shock.
Do not turn the breaker
off/on or disconnect/con-
nect the power supply
plug during operation.
•This may cause a fire due to
spark, etc.
•Be sure to turn off the breaker
or disconnect the power supply
plug absolutely after switching
the indoor unit off with the re-
mote controller.
Do not expose your skin di-
rectly to cool air for a long time.
•This could damage your health.
When an abnormality
(burning smell, etc.) oc-
curs, stop the air condi-
tioner and disconnect
the power supply plug or
turn off the breaker.
•If the unit continues to be oper-
ated in an abnormal condition, it
may cause a fire, trouble, etc. In
this case, consult your dealer.

4
When the unit is not go-
ing to be used for a long
time, disconnect the
power supply plug or
turn off the breaker.
•Otherwise, dirt may collect and
this may cause a fire.
Do not step or put any-
thing on the indoor/out-
door unit.
•This may cause an injury, etc. if
you fall down.
Do not leave the unit on
an installation stand
which is damaged.
•The unit may fall and this may
cause an injury.
Do not operate the unit
for a long time in high
humidity, e.g. leaving a
door or window open.
•In the cooling mode, if the unit is
operated in a room with high hu-
midity (80% RH or more) for a
long time, water condensed in the
air conditioner may drop and wet
or damage furniture, etc.
Do not step onto an un-
stable bench when main-
taining the unit, etc.
•This may cause an injury, etc. if
you fall down.
Do not pull the power
supply cord.
•The core wire of the power sup-
ply cord may be disconnected
and this may cause a fire.
SAFETY PRECAUTIONS
CAUTION
Replace the 2 batteries
with new ones of same
type.
•Using an old battery together
with a new one may result in heat
generation, leakage or an explo-
sion.
Do not charge or disas-
semble the batteries and
do not throw them into a
fire.
•This may result in leakage, fire
or an explosion.
If liquid from the alkaline
batteries gets onto your
skin or clothes, wash it
well with clean water.
•If liquid from the alkaline batter-
ies gets into your eyes, wash
them well with clean water and
consult a doctor at once.
For installation
WARNING
•Consult your dealer for installation of the air conditioner.
CAUTION
Earth the unit.
•Do not connect the earth to a gas pipe, wa-
ter pipe, lightning rod or the earth of a tel-
ephone. If the earthing is incorrect, it may
cause an electric shock.
Install an earth leakage breaker depend-
ing on the place where the air condi-
tioner is to be installed (humid places,
etc.).
•If the earth leakage breaker is not installed, it may
cause an electric shock.
Do not install the unit where flammable
gas could leak.
•If gas leak and collect around the unit, it may cause
an explosion.
Drain should be fully drained.
•If the drainage route is incomplete, water may drop
from the unit. This may wet and damage the furni-
ture.

5
Operation Indicator
NAME OF EACH PART
Indoor unit Outdoor unit
Air filter
Vertical vane
Operation section
(When the front panel is opened)
Front panel
Air inlet
to Breaker
Power supply cord
Remote control
receiving section
Horizontal vane
Remote
controller
Display section
Emergency
operation switch
Operation
Indicator lamp
Receiving
section
Deodorizing filter
(Gray sponge
type) (OPTION)
Air cleaning filter
(White bellows
type) (OPTION)
Air inlet (back and side)
Piping
Drainage hose
Air outlet
Drain outlet

6
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
AMPM
RESET CLOCK
ON/OFF
TOO
COOL
AMPM
CLOCK
˚C
AMPM
TOO
WARM
Signal transmitting section
Operation display section
ON/OFF (operate/
stop) button
Operation select button
Fan speed control button
ECONO COOL button
On-timer button
CLOCK set button
HR.button
MIN.button
(Time set button)
Temperature buttons
Vane control button
Off-timer button
RESET button
(This diagram shows an overall view.)
Open the front lid.
NAME OF EACH PART
Remote controller

7
FAN
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
RESET CLOCK

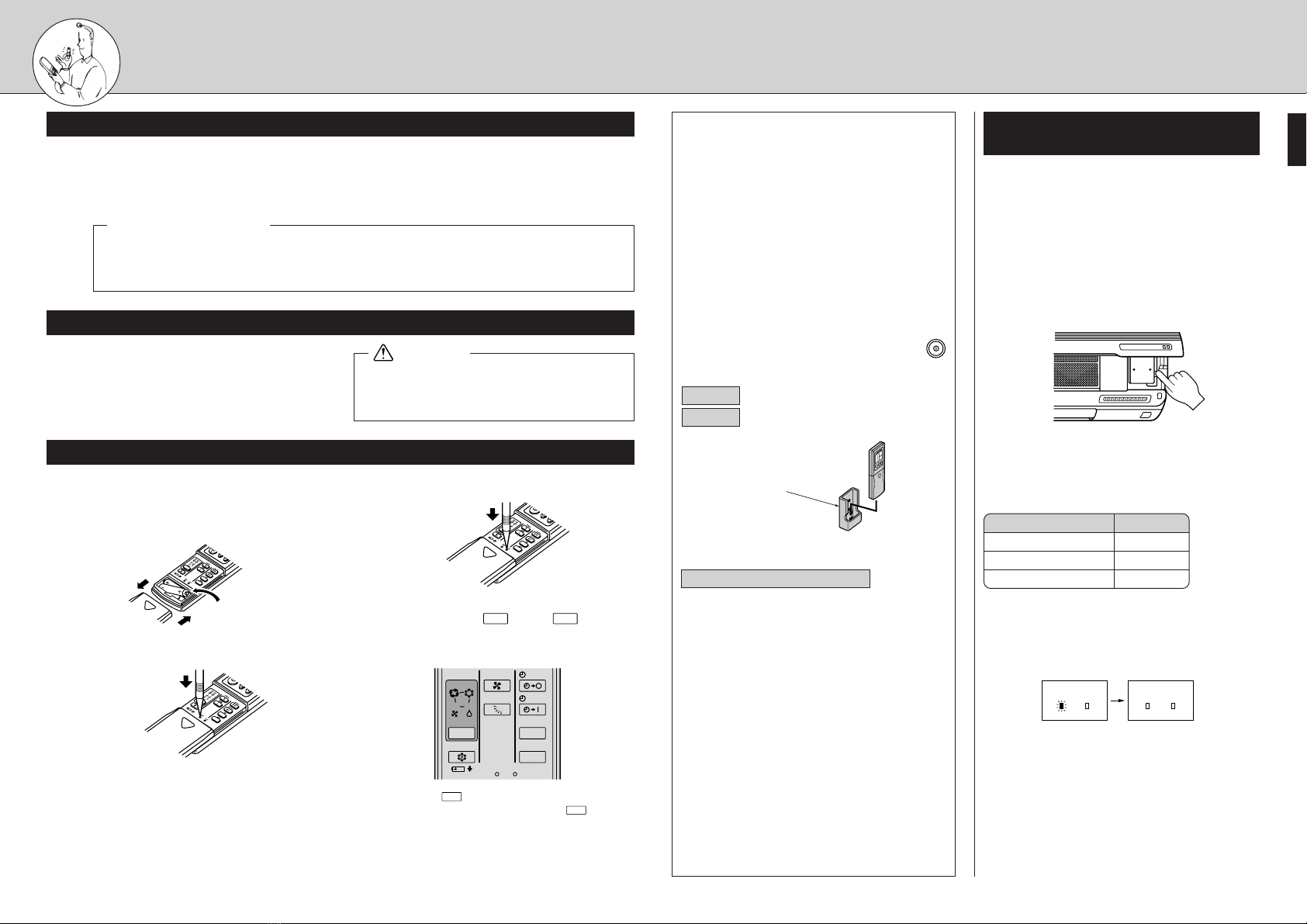

PREPARATION BEFORE OPERATION
3Press the CLOCK set button.
4Press the
HR.
and
MIN.
button
(TIME SET button) to set the current
time.
■Each time the
HR.
button is pressed, the set time in-
creases by 1 hour, and each time the
MIN.
button is
pressed, the set time increases by 1 minute.
5Press the CLOCK set button again
and close the front lid.
WARNING
Remove dirt from the power supply plug and insert
the plug securely.
If dirt adheres to the plug or insertion is incomplete,
it may cause a fire or an electric shock.
Press using
a thin stick.
Auto restart function
■These models are equipped with an auto restart function, but this function is OFF
when the units are shipped from the factory. If you want to use the auto restart
function, please consult the service representative because the setting of the unit
needs to be changed.
Auto restart function is ...
When the indoor unit is controlled with the remote controller, the operation mode, the set temperature and
the fan speed are stored in the memory. If a power failure occurs or the main power is turned off during
operation, “Auto restart function”sets automatically to start operating in the same mode as the one set with
the remote controller just before the shutoff of the main power.
Remote controller (How to set the batteries and the current time)
Indoor unit
■Insert the power supply plug into the
power outlet and/or turn the breaker
on.
1Remove the front lid and insert bat-
teries.Then reattach the front lid.
Insert the minus pole of the batteries first.
Check if the polarity of the batteries is correct.
2Press the RESET button.
■If the RESET button is not pressed, the remote control-
ler may not operate correctly.
Press using
a thin stick.
Insert the minus pole
of the batteries first.
When the remote controller cannot
be used (emergency operation)
When the batteries of the remote controller run out or
the remote controller malfunctions,the emergency op-
eration can be done using the EMERGENCY OPERA-
TION switch.
1Press the EMERGENCY OPERA-
TION switch.
* When the EMERGENCY OPERATION switch
is pressed, the unit will operate in test run for
30 minutes at first and then the operation mode
shifts to EMERGENCY COOL MODE.
Details of EMERGENCY COOL MODE are as shown be-
low. However, the temperature control does not work
for 30 minutes in test run and the unit is set to continu-
ous operation.The fan speed is set to Hi in test run and
shifts to Medium after 30 minutes.
Operation mode COOL
Set temperature 24°C
Fan speed Medium
Horizontal vane Auto
The operation mode is indicated by the Operation Indi-
cator lamp on the indoor unit as following figures.
Operation Indicator lamp
EMERGENCY COOL STOP
■To stop the EMERGENCY COOL
MODE, press the EMERGENCY OP-
ERATION switch again.
* Each time the switch is pressed, the opera-
tion mode alternates between the EMER-
GENCY COOL MODE and STOP MODE.
Handling of the remote controller
•The range that the signal can reach is about 6 m
when the remote controller is pointed at the front
of the indoor unit.
•When a button is pressed, one or two beeps will
be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote
controller may not operate.
When installing on a wall, etc.
•Install the remote controller installation case in a
position where the signal reception sound (beep)
can be heard from the indoor unit when the
ON/OFF
button is pressed.
How to install/remove the remote controller
Installing Insert the remote controller downward.
Removing Pull it up.
Dry-cell batteries
Reference for replacing batteries
When the indoor unit does not respond to the signal
from the remote controller, or the display becomes
dim, replace the batteries with new ones (size AAA).
•Though both alkaline batteries and manganese
batteries can be used, alkaline batteries are rec-
ommended because their service life is longer
than that of manganese batteries.
•The service life of an alkaline battery is about 1
year.
However, a battery which the time limit is ap-
proaching may be exhausted soon. The recom-
mended usable time limit is indicated (month/year)
on the bottom of the battery.
•Replace the 2 batteries with new ones of the same
type.
•Do not use rechargeable batteries.
•To prevent liquid leakage, take out all batteries
when the remote controller is not going to be used
for a long time.
•Dispose of exhausted batteries in the correct man-
ner.
Remote controller
installation case
Operation Indicator Operation Indicator

8
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
˚C
AMPM
RESET CLOCK
FAN
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN
I FEEL COOL
FAN DRY
I FEEL... AUTO OPERATION
With the “(I FEEL...)”auto operation mode,
the optimum room condition can be set automati-
cally with a one-touch operation.
•To start operation:
■Press the
ON/OFF
button.
When the “(I FEEL...)”mode is selected, the air
conditioner is automatically controlled at the optimum
temperature.
•To stop operation:
■Press the
ON/OFF
button.
•If you feel slightly warm:
■Press the
TOO
WARM
button to lower the tempera-
ture.
One press lowers the temperature by about 1°C.
•If you feel slightly cool:
■Press the
TOO
COOL
button to raise the tempera-
ture.
One press raises the temperature by about 1°C.
When“(I FEEL...)”is not selected, press the
MODE
button until it is set.
Each time the button is pressed, the operation mode is
changed in sequence: (I FEEL...) →→
→→
→(COOL) →→
→→
→(DRY)
→→
→→
→(FAN)
Description of “I FEEL...”mode
Details of operation
According to the room temperature when the operation starts,
the operation mode is automatically set to either COOL or DRY.
However, when operation is started again within 2 hours after it
is stopped, the same operation mode before the operation is
stopped is selected. The operation mode selected first is not
changed even if the room temperature changes.If the operation
mode does not match the room condition, select the appropri-
ate operation mode by pressing the
MODE
button.
Details of auto operation
NOTE
COOL: When the room temperature is 2°C higher than the set temperature, the set temperature may not be
changed since the air conditioner is operating to reach the target (set) temperature. In this case,
please wait until the room temperature drops to within 2°C of the set temperature and then change
the set temperature.
Details of display on the indoor unit
The operation indicator at the right side of the indoor unit indi-
cates the operation state.
Operation indicator lamp
Operation state
This shows that the air conditioner is operating to reach the
target temperature. Please wait until the target temperature
is obtained.
This shows that the room temperature is approaching the
target temperature.
Indication Difference between target
temperature and room temperature
About 2°C or more
About 2°C or less
Room temperature Operation mode Target temperature
when started (initial state)
About 25°C or higher COOL About 24°C
About 25°C or lower DRY —
Room temperature:
About 25 °C or higher
→COOL
About 25 °C or lower
→DRY
Lighting
Not lighting
Operation Indicator

9
MANUAL OPERATION (COOL, DRY, FAN)
To select the COOL, DRY or FAN mode
1Press the
ON/OFF
button.
2Select the operation mode by pressing the
MODE
button.
Each time this button is pressed, the operation mode
is changed in sequence: (I FEEL...) →→
→→
→(COOL)
→→
→→
→(DRY) →→
→→
→(FAN)
To stop operation:
■Press the
ON/OFF
button.
After the operation mode is set once, the operation
starts in the mode set previously from the next time
by simply pressing the
ON/OFF
button.
■When the set temperature is to be changed:
■Press the
TOO
WARM
button to lower the temperature. One
press lowers the temperature by about 1°C.
■Press the
TOO
COOL
button to raise the temperature. One
press raises the temperature by about 1°C.
In DRY operation
■The temperature control (temperature setting) can-
not be done.
■The room temperature is slightly lowered in this op-
eration mode.
■The details of the display on the indoor unit are
explained on page 8.
NOTE
When the ambient temperature is too high, the room tem-
perature may not reach the set temperature since the unit
operates to cool under high load.
1Close the windows and pull
down blinds. Sunshine is re-
duced and cooling efficiency
increases.
2Paste a heat shield film (gen-
erally available) on the window.
Heat entering the room is re-
duced.
3Block the outdoor unit from di-
rect sunlight. This saves en-
ergy.
DRY The humidity at which people feel comfortable
When air contains too much moisture, people feel clammy. Humidity is related to temperature and wind.The
humidity at which people feel comfortable is 60% - 75% RH in summer, 55% - 70% RH in winter.
CONVENIENT INFORMATION
COOL For effective cooling
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
˚C
AMPM
RESET CLOCK

10
1
2
3
4
5
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT
AIR FLOW velocity and direction can be selected
as required.
■To change the AIR FLOW velocity, press
the
FAN
button.
Each time the button is pressed, the fan speed is
changed in sequence: (Lo) →→
→→
→(Med) →→
→→
→(Hi) →→
→→
→
(AUTO)
•Use the (Hi) notch to cool the room more.
•If the operating sound of the air conditioner disturbs your
sleep, use the (Lo) notch.
■To change the AIR FLOW blowing direc-
tion vertically, press the
VANE
button.
Each time the button is pressed, the angle of the hori-
zontal vane is changed in sequence: (1) →→
→→
→(2)
→→
→→
→(3) →→
→→
→(4) →→
→→
→(5) →→
→→
→(SWING) →→
→→
→(AUTO)
SWING OPERATION
Use the swing operation for the air flow to reach all corners
of the room.
Recommended horizontal vane
range
Use the (AUTO) position usu-
ally.
Use position (1) or (2) in the
COOL or DRY mode when adjust-
ing to your requirements.
NOTE
■In the cooling operation, when the air conditioner is op-
erated with setting the horizontal vane to (4) or (5)
for 1 hour, the AIR FLOW direction is automatically set
to horizontal to prevent condensed water from dropping.
■Adjust the vertical AIR FLOW direction using the remote
controller. If the horizontal vane is moved manually, it
may cause trouble.
Auto air flow direction control operation
■When the AUTO mode is selected with the
VANE
button, the position of the horizontal vane is automatically set
to correspond to the operation mode for effective operation.
(1) COOL, DRY (2) FAN
The air is blown out horizontally. The air is blown out downwards.
■To change the horizontal direction of the air flow, move the vertical vane manu-
ally.
Adjust the vane before operation starts.
Since the horizontal vane moves automatically, your fingers may be caught.
COOL
DRY
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
˚C
AMPM
RESET CLOCK

11
ECONO COOL OPERATION
Use this operation when you want to be com-
fortable in COOL mode even with energy saved.
Perform the following operations while the
unit is operating.
■Press the
ECONO COOL
button.
When the (ECONO COOL) operation is selected in
COOL mode, the air conditioner performs swing op-
eration in various cycle according to the temperature
of air conditioner.
Also SET TEMPERATURE is automatically set 2°C
higher than in COOL mode.
To release the ECONO COOL operation:
■Press the
ECONO COOL
button again.
■ECONO COOL operation is available only in MANUAL COOL
mode.
■When the
VANE
button is pressed or the operation mode is
changed during the ECONO COOL operation, ECONO COOL
operation is released.
■The
FAN
button, the
TOO
WARM
or
TOO
COOL
button and ON/OFF timer (page
12) are available.
What is “ECONO COOL”?
Swing air flow (change of air flow) makes you feel cooler
than constant air flow. So, even though the set tempera-
ture is automatically set 2°C higher, it is possible to oper-
ate cooling operation with keeping comfort. As a result,
energy can be saved.
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
˚C
AMPM
RESET CLOCK

12
TIMER OPERATION (ON/OFFTIMER)
TIMER
It is convenient to set the timer when you go to
bed, when you get home, when you get up, etc.
How to set the ON timer
1Press the
START
button during operation.
Each time the button is pressed, the ON timer mode
alternates between ON and OFF.
2Set the time of the timer using the
HR.
and
MIN.
buttons.
Each time the
HR.
button is pressed, the set time in-
creases by 1 hour;each time the
MIN.
button is pressed,
the set time increases by 10 minutes.
To release the ON timer:
■Press the
START
button.
How to set the OFF timer
1Press the
STOP
button during operation.
Each time the button is pressed, the OFF timer mode
alternates between ON and OFF.
2Set the time of the timer using the
HR.
and
MIN.
buttons.
Each time the
HR.
button is pressed, the set time in-
creases by 1 hour;each time the
MIN.
button is pressed,
the set time increases by 10 minutes.
To release the OFF timer:
■Press the
STOP
button.
Programming timer operation
The ON timer and the OFF timer can be used in combination.
The timer of the set time that is reached first will operate first.
(“”mark indicates the order of timer operations.)
■If the current time has not been set, the timer operation can-
not be used.
WHEN THE AIR CONDITIONER IS NOT GOING
TO BE USED FOR A LONG TIME
When it is not going to be used for a
long time:
1Perform the FAN operation for 3 or 4 hours
to dry the inside of the air conditioner.
2Turn off the breaker and/or disconnect the
power supply plug.
CAUTION
Turn off the breaker or disconnect the power sup-
ply plug when the air conditioner is not going to be
used for a long time.
Dirt may collect and this may cause a fire.
3Remove the batteries from the remote con-
troller.
CAUTION
To prevent liquid leakage, take out all batteries when
the remote controller is not going to be used for a
long time.
When the air conditioner is to be
used again:
1Clean the air filter and install it in the in-
door unit.
(Refer to page 13 for cleaning instructions.)
2Check that the air inlet and outlet of the
indoor/outdoor units are not blocked.
3Check that the earth is connected correctly.
CAUTION
Earth the unit.
Do not connect the earth to a gas pipe, water pipe, light-
ning rod or the earth of a telephone. If the earthing is
incorrect, it may cause an electric shock.
Clean the
filter before
installing.
ON/OFF
FAN
TOO
WARM TOO COOL
VANE
MODE
ECONO COOL
STOP
START
HR.
MIN.
I FEEL COOL
FAN DRY
AMPM
CLOCK
˚C
AMPM
RESET CLOCK
FAN operation

13
MAINTENANCE
Cleaning the indoor unit
■Clean the unit using a soft dry cloth.
Do not use gasoline, benzine, polishing powder, deter-
gent and insecticide.The unit may be damaged.
CLEANING THE AIR FILTER AND
THE DEODORIZING FILTER (OPTION)
Do not open the front panel up past the level position in order to prevent it from being damaged.
Before starting maintenance
■Turn off the breaker and/or disconnect the
power supply plug.
CAUTION
When the unit is to be cleaned, switch it off and dis-
connect the power supply plug or turn off the
breaker. Since the fan rotates at high speed during
operation, it may cause an injury.
Cleaning the deodorizing filter
(about once every 2 weeks)
1Remove the air filter, and then remove the
deodorizing filter (Gray sponge type).
■The deodorizing filter is harmless to people.
However, to keep its effectiveness, be sure
to hold the frame and not to touch the sur-
face of the filter with your hand.
2Soak the filter together with its frame in
lukewarm water for about 15 minutes.
■If the dirt is conspicuous, use a solution of
detergent in lukewarm water.
■If hot water (50°C or more) is used, the filter
may be deformed.
■Do not use a scrubbing brush or sponge.This
may damage the surface of the filter.
■Do not use a chlorine detergent.
3After washing with water/lukewarm water,
dry the deodorizing filter well in the shade.
■Do not expose the deodorizing filter to direct
sunlight or heat from a fire when drying it.
4Install the deodorizing filter, and then in-
stall the air filter.
Cleaning the air filter
(about once every 2 weeks)
1Remove the air filter.
CAUTION
When the air filter is to be removed, do not touch
the metal parts of the indoor unit.
This may cause an injury.
2Remove dirt from the air filter using a
vacuum cleaner or by washing the filter
with water.
■If dirt is conspicuous, wash the filter with a
solution of detergent in lukewarm water.
■If hot water (50°C or more) is used, the filter
may be deformed.
3After washing with water/lukewarm water,
dry the air filter well in the shade.
■Do not expose the air filter to direct sunlight
or heat from a fire when drying it.
4Install the air filter.
Open the front
panel, then
remove/replace
the filter.
Air filter
Remove.
Install.
Deodorizing filter
Install.

14
REPLACEMENT OF THE DEODORIZING FILTER
(OPTION)/AIR CLEANING FILTER (OPTION)
When the capacity is lowered because of dirt, etc., it is necessary to replace the deodorizing filter/air cleaning filter.
Deodorizing filter replacement
(about once a year)
1Remove the air filter.
2Remove the deodorizing filter (Gray
sponge type).
3Install a new deodorizing filter.
4Install the air filter and securely close the
front panel.
Deodorizing filter
■Cleaning is necessary about once every 2 weeks.
However, if dirt is conspicuous, clean more often.
■When the colour of the filter is not restored even if
the filter is washed as the procedure shown on page
13 or when the filter becomes black, replace the fil-
ter with a new one.
■Standard interval for filter replacement is about 1
year.
Air cleaning filter replacement
(about once every 4 months)
1Remove the air filter.
2Remove the air cleaning filter (White bel-
lows type).
3Install a new air cleaning filter.
4Install the air filter and securely close the
front panel.
Air cleaning filter
■If the air cleaning filter is clogged, it may lower the
unit’s capacity or cause condensation at the air out-
let.
■The air cleaning filter is disposable. The standard
usable term is about 4 months. However, if the col-
our of the filter turns to dark brown, replace the filter
at once.
BEFORE CONTACTING THE SERVICE REPRE-
SENTATIVE, CHECK THE FOLLOWING AGAIN
Optional parts Optional parts are available from your local dealer.
Name of part Type name
DEODORIZING FILTER MAC-1600DF
AIR CLEANING FILTER MAC-1100FT
The air conditioner
cannot be operated.
dd
dd
d
Check the following.
1Is the breaker turned
on?
2Isn’t the fuse blown?
Cannot be cooled
sufficiently.
dd
dd
d
Check the following.
1Is the temperature set-
ting correct?
2Isn’t the air filter dirty?
3Isn’t the outlet of the
outdoor unit blocked?
Display of the remote con-
troller does not appear (1,
2). The remote control sig-
nal cannot be received if
the remote controller is
not operated near the air
conditioner (1).
dd
dd
d
Check the following.
1Aren’t the batteries ex-
hausted?
2Is the polarity (+, -) of the
batteries correct?
When a power failure
occurs.
To restart the unit, press the ON/
OFF button on the remote control-
ler again after the restoration of the
power.
Even if the above items are checked, when the air conditioner does not recover from the trouble, stop using the
air conditioner and consult your dealer.
In the following cases, stop operation and consult your dealer.
■The remote control signal may
not be received in a room where
an electronic ON/OFF type fluo-
rescent lamp (inverter-type fluo-
rescent lamp, etc.) is used.
■In the region where the electric
wave is weak, when the air con-
ditioner is operated, noise may
be generated in radio reception.
■When thunder is heard, stop op-
eration and disconnect the
power supply plug or turn off the
breaker. Otherwise, the electrical
parts may be damaged.
Air filter Air filter
Deodorizing filter Air cleaning filter 3Isn’t the ON-timer set?

15
WHEN YOU THINK THAT TROUBLE HAS OCCURRED
Question
The air conditioner
cannot be operated
for about 3 minutes
when restarted.
Cracking sound is
heard.
The room smells
strange.
The fan stops during
the DRY operation.
The sound of water
flowing is heard.
The sound as bur-
bling is heard.
Answer (not a malfunction)
■This protects the air conditioner according to in-
structions from the microprocessor. Please wait.
■This sound is generated by the expansion/con-
traction of the front panel, etc. due to change in
temperature.
■The air conditioner sucks in an odor adhering to
the wall, carpet, furniture, cloth, etc. and blows it
out with the air.
■In DRY operation, the unit operates using the
same refrigerant circuit as in COOL operation.
DRY operation time has to be reduced in order to
lower humidity without much room temperature
decreasing. So the compressor sometimes stops,
and at the same time the indoor fan stops. This
prevents water condensed on the heat exchanger
from evaporating again.
■This is the sound of refrigerant flowing inside the
air conditioner.
■This is the sound of condensed water flowing in
the heat exchanger.
■This is the sound of the heat exchanger defrost-
ing.
■This sound is heard when the outside air is ab-
sorbed from the drain hose in turning on the
range hood or the ventilation fan and that makes
water flowing in the drain hose spout out.
This sound is also heard when the outside air
blows into the drain hose in case the outside wind
is strong.
Question
The room cannot be
cooled sufficiently.
Mechanical sound is
heard from the in-
door unit.
The air flow direc-
tion changes during
operation.
Water leak from the
outdoor unit.
Answer (not a malfunction)
■When a ventilation fan or a gas cooker is used in
a room, the cooling load increases, resulting in
an insufficient cooling effect.
■When the outside air temperature is high, the
cooling effect may not be sufficient.
■This is the switching sound in turning on/off the
fan or the compressor.
■When the air conditioner is operated in COOL or
DRY mode, if the operation continues with air
blowing down for 1 hour, the direction of the air
flow is automatically set to horizontal to prevent
condensed water from dropping.
■During COOL and DRY operations, pipe or pipe
connecting sections are cooled and this causes
water to condense.

16
INSTALLATION, RELOCATION AND INSPECTION
Inspection and maintenance
■When the air conditioner is used for several seasons,
the capacity may be lowered due to dirt inside the
unit.
■Depending on the condition, an odor may be gener-
ated or dehumidified water may not drain out
smoothly due to dirt, dust, etc.
■It is recommended that the unit be inspected and
maintained (charged) by specialist in addition to nor-
mal maintenance. Consult your dealer.
Operating sound considerations
■Do not put an object around the air outlet of the out-
door unit. This may lower the capacity or increase
the volume of the operating sound.
■If an abnormal sound is heard during operation, con-
sult your dealer.
Relocation
■When the air conditioner is to be removed or re-in-
stalled because of rebuilding, moving, etc., special
techniques and work are required.
WARNING
Repairs or relocation should not be done by the cus-
tomer.
If this is done incorrectly, it may cause a fire, an
electric shock, or an injury from the unit falling, wa-
ter leaking, etc. Consult your dealer.
Disposal
To dispose of this product, consult your dealer.
If you have any questions, consult your dealer.
Installation place
Avoid installing the air conditioner in the following
places.
■Where flammable gas could leak.
CAUTION
Do not install the unit where flammable gas could
leak.
If gas leak and collect around the unit, it may cause an
explosion.
■Where there is much machine oil.
■Salty places such as the seaside.
■Where sulfide gas is generated such as a hot spring.
■Where oil is splashed or where the area is filled with
oily smoke.
Electrical work
■Provide an exclusive circuit for the power supply of
the air conditioner.
■Be sure to observe the breaker capacity.
WARNING
■The customer should not install this unit.
If installation is done incorrectly, it may cause a
fire, an electric shock, or injury from the unit fall-
ing, water leaking, etc.
■Do not use intermediate connection of the power
supply cord or the extension cord and do not
connect many devices to one AC outlet.
A fire or an electric shock may result from poor
contact, poor insulation, exceeding the permis-
sible current, etc.
Consult your dealer.
CAUTION
■Earth the unit.
Do not connect the earth to a gas pipe, water pipe,
lightning rod or the earth of a telephone. If the
earthing is incorrect, it may cause an electric
shock.
■Install an earth leakage breaker depending on the
place where the air conditioner is to be installed
(humid places, etc.).
If the earth leakage breaker is not installed, it may
cause an electric shock.
Keep the outdoor unit 3 m or
more away from the antennas
of TV sets or radios.
To prevent the effects
of a fiuorescent lamp,
keep as far apart as
possible.
wall, etc.
Inverter-type
fluorescent lamp
Keep a space
to prevent the
distortion or
the noise.
1 m
or more
Radio
100 mm or
more
3 m
or more
Well-
ventilated
dry place
500 mm or
moreTV

17
SPECIFICATIONS
Model
Function
Power supply
Capacity kW
Input kW
Weight Indoor kg
Outdoor kg
Refrigerant filling kg
capacity (R-22)
IP code Indoor
Outdoor
Permissible LP ps MPa
excessive
operating HP ps MPa
pressure
Noise level Indoor dB(A)
Outdoor dB(A)
MS-18RV MS-24RV
Cooling
~ /N, 220-240V, 50Hz
5.1 6.4
1.91-2.01 2.78-2.90
14
48 61
1.05 2.15
IP20
IP24
1.3
4.5 4.2
42 45
52 53
Model
Function
Power supply
Capacity kW
Input kW
Weight Indoor kg
Outdoor kg
Refrigerant filling kg
capacity (R-407C)
IP code Indoor
Outdoor
Permissible LP ps MPa
excessive
operating HP ps MPa
pressure
Noise level Indoor dB(A)
Outdoor dB(A)
MS-C18TV MS-C24TV
Cooling
~ /N, 230V, 50Hz
5.1 6.4
2.10 2.84
14
48 61
1.10 1.85
IP20
IP24
1.7
5.0
42 45
52 53
Note:
1. Rating condition
Cooling —Indoor: 27°C DB, 19°C WB
Outdoor: 35°C DB
2. Guaranteed operating range
Indoor Outdoor
Upper limit 32°C DB 43°C DB
Cooling 23°C WB —
Lower limit 21°C DB 21°C DB
15°C WB —

HEAD OFFICE MITSUBISHI DENKI BLDG. MARUNOUCHI TOKYO 100-8310 TELEX J24532 CABLE MELCO TOKYO
SG79A640H01
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
The product at hand is based on
the following EU regulations:
• Low Voltage Directive 73/23/ EEC
• Electromagnetic Compatibility Directive
89/336/ EEC
• Machinery Directive 98/37/ EC
