Mitsubishi Electric MU-A08VD-P1 User manual

SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES ····································2
2. PART NAMES AND FUNCTIONS······················2
3. SPECIFICATION·················································3
4. OUTLINES AND DIMENSIONS ·························4
5. WIRING DIAGRAM ············································4
6. REFRIGERANT SYSTEM DIAGRAM················5
7. PERFORMANCE CURVES································6
8. TROUBLESHOOTING········································8

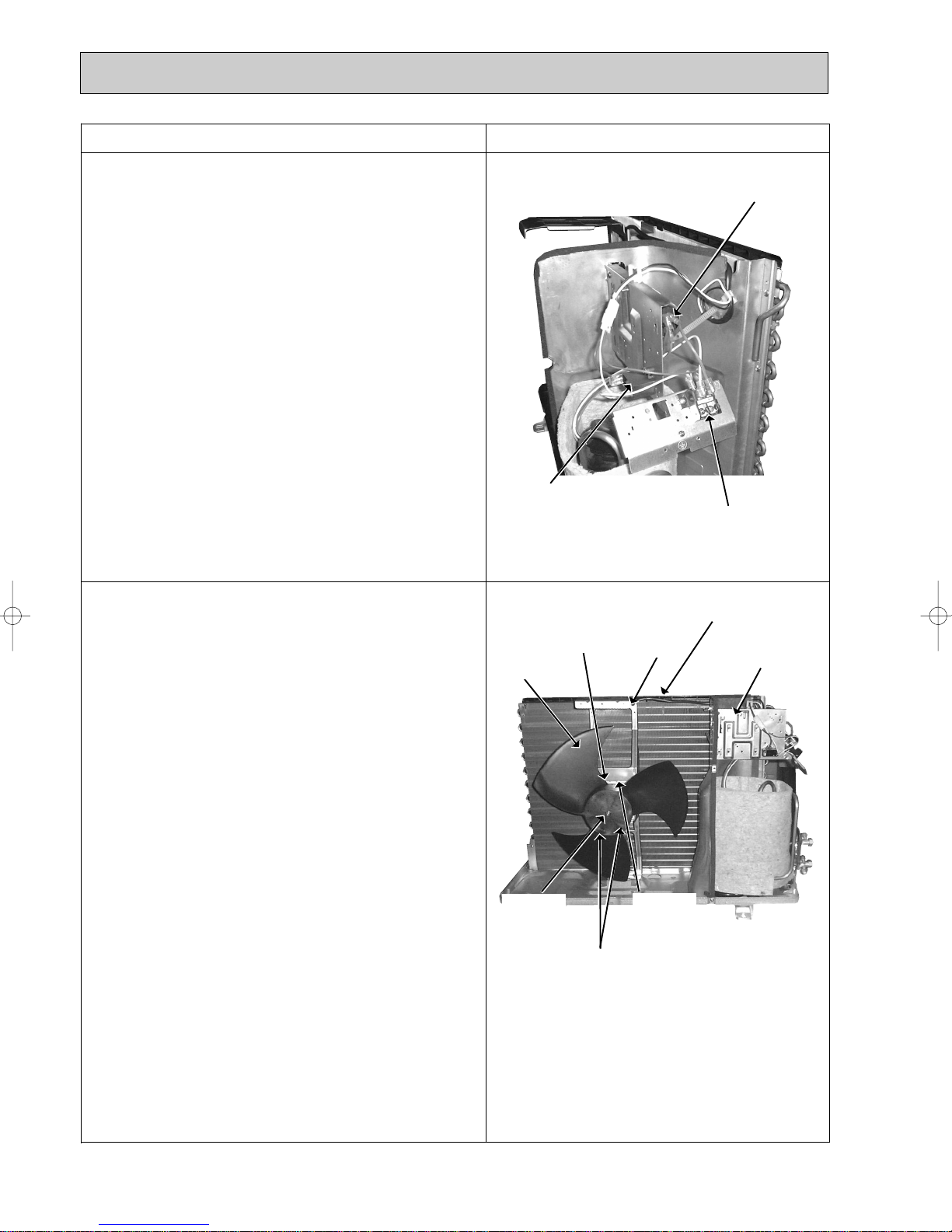

9. DISASSEMBLY INSTRUCTIONS·····················11
10. PARTS LIST······················································16
11. OPTIONAL PARTS···········································18
Wireless type
Models
SPLIT-TYPE, AIR CONDITIONERS
MU-A08VD-
MU-A10VD-
MU-A13VD- P1
P1
P1
TM
No. OB397
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
Indication of
model name
NOTE:
• This service manual describes technical data of outdoor units.
• As for indoor units MS-A08VD - ,MS-A10VD - and MS-A13VD - , refer to the service manual OB396.
P1P1P1
OB397--1.qxp 05.3.18 2:12 PM Page 1

2

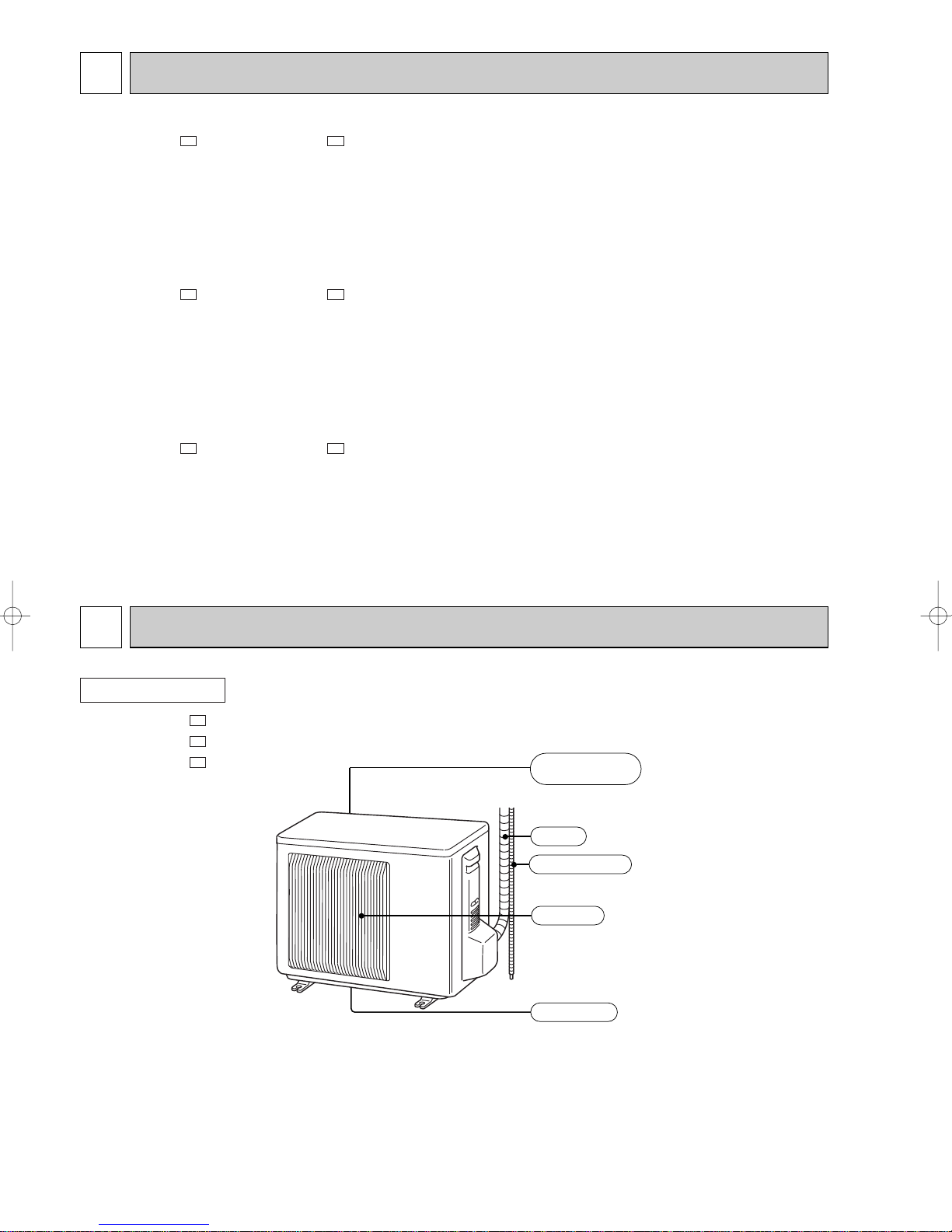

PART NAMES AND FUNCTIONS
2
TECHNICAL CHANGES1
MU-07UV - ➔MU-A08VD -
1. Outdoor unit model has been changed.
•Dimension has been changed. (780Wo540Ho255D ➔800Wo550Ho285D)
•Valve bed has been added.
2. Compressor has been changed. (RH135VGCC ➔RH135VHCC)
3. Outdoor fan motor has been changed. (RA6V23-HA ➔RA6V21-AC)
4. Outdoor fan motor capacitor has been changed.
5. Compressor capacitor has been changed.
MU-10UV - ➔MU-A10VD -
1. Outdoor unit model has been changed.
•Dimension has been changed. (780Wo540Ho255D ➔800Wo550Ho285D)
•Valve bed has been added.
2. Compressor has been changed. (RH165VGCC ➔RH145VHCC)
3. Outdoor fan motor has been changed. (RA6V23-HA ➔RA6V21-AC)
4. Outdoor fan motor capacitor has been changed.
5. Compressor capacitor has been changed.
MU-13UV - ➔MU-A13VD -
1. Outdoor unit model has been changed.
•Dimension has been changed. (780Wo540Ho255D ➔800Wo550Ho285D)
•Valve bed has been added.
2. Compressor has been changed. (RH231VHAC ➔RH207VHAC)
3. Outdoor fan motor has been changed. (RA6V33-FA ➔RA6V33-KA)
4. Outdoor fan motor capacitor has been changed.
5. Compressor capacitor has been changed.
P1P1
P1P1
P1P1
OUTDOOR UNIT
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
Air inlet
Piping
Drain hose
Air outlet
Drain outlet
(back )
OB397--1.qxp 05.3.18 2:12 PM Page 2

3
SPECIFICATION
3
Outdoor model
Function
Power supply
Coefficient of performance (C.O.P)
Capacity
Dehumidification
Air flow
Starting current
Compressor motor current
Fan motor current
Model
Output
Winding
resistance (at20:)
Model
Winding
resistance (at20:)
Dimensions WOHOD
Weight
Sound level
Fan speed
Fan speed regulator
Refrigerant filling
capacity (R22)
Refrigeration oil (Model)
kW
R/h
K/h
A
A
A
W
"
"
mm
kg
dB
rpm
kg
cc
MU-A13VD - P1
3.7-3.7-3.7
1.7
1848-1872-1896
28-29.5-31
4.53-4.52-4.51
0.33-0.34-0.35
3.36-3.36-3.36
RH207VHAC
1000
C-R 2.59
C-S 3.94
RA6V33-KA
WHT-BLK 215
BLK-RED 307
36
47-47-48
835-845-855
1.05
520 (MS56)
Electrical data
Fan motor
Special remarks Compressor
Capacity
MU-A08VD - P1
2.3-2.3-2.3
1.0
17-18-19
2.85-2.85-2.84
3.24-3.24-3.24
RH135VHCC
650
C-R 4.18
C-S 5.76
MU-A10VD - P1
2.75-2.75-2.75
1.2
18-19-20
3.22-3.22-3.21
3.46-3.46-3.46
RH145VHCC
700
C-R 4.03
C-S 5.71
1740-1800-1860
0.24-0.25-0.25
RA6V21-AC
WHT-BLK 347
BLK-RED 281
31
44-45-46
725-745-770
0.55
300 (MS56)
Cooling
Single phase
220-230-240V, 50Hz
800o550o285
1
NOTE: Test conditions are based on JIS C 9612.
Cooling : Indoor DB27°C / WB19°C
Outdoor DB35°C / WB24°C
Indoor-Outdoor piping length 5 m
OB397--1.qxp 05.3.18 2:12 PM Page 3

WIRING DIAGRAM
5
OUTDOOR UNIT
220-230-240V~
N
2
TB
C2
C1
BLU
WHT
RED
WHT
BLU
WHT
BLK
RED
TO INDDOR UNIT CONNECTING
C
R
SMC
1
3
2BLK
RED
WHT MF
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
SYMBOL
C1
C2
SYMBOL
MC
MF
SYMBOL
TB
NAME NAME NAME
COMPRESSOR CAPACITOR
OUTDOOR FAN CAPACITOR
COMPRESSOR (INNER PROTECTOR)
OUTDOOR FAN MOTOR (INNER FUSE )
TERMINAL BLOCK
MODEL WIRING DIAGRAM
4

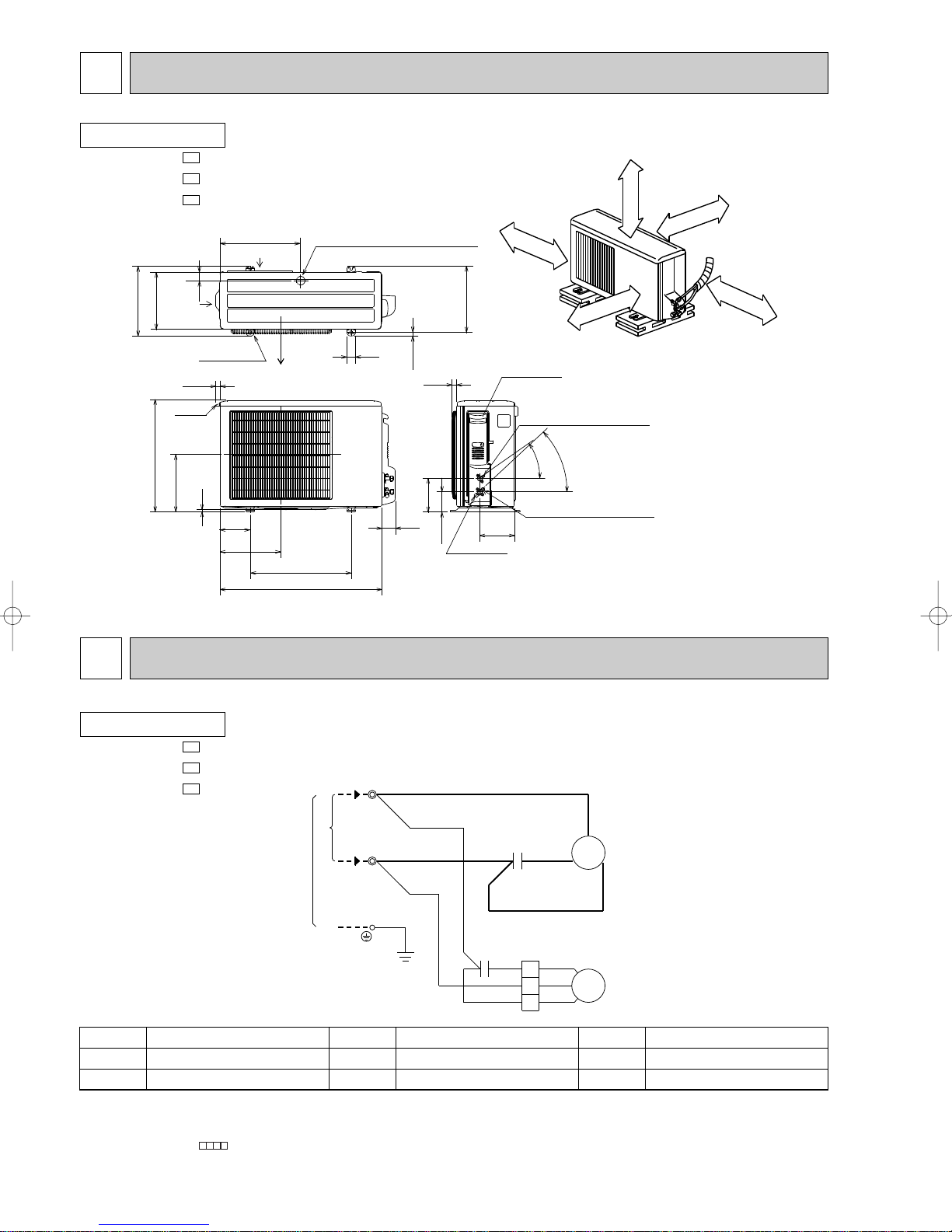

OUTLINES AND DIMENSIONS4
Unit : mm
OUTDOOR UNIT
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
10
69
800
302.5
500 Bolt pitch for installation
150
22.3
Handle
550
280
164.5
99.5
170.5
23 Service panel
Service port
285
344.5
44
400
Air in
Air out
Air in
17.5
Bolt pitch for
installation
304~325
40
Liquid refrigerant pipe joint
Refrigerant pipe (flared) [6.35
Gas refrigerant pipe joint
Refrigerant pipe (flared) [9.52 (MU-A08/A10VD)
Refrigerant pipe (flared) [12.7 (MU-A13VD)
43-
35-
2 holes 10X21
REQUIRED SPACE Basically open 100mm or more
without any obstruction in front
and on both sides of the unit.
350mm or more
200mm or more
100mm or more
100mm or more
Open two sides of left,
right, or rear side.
Drain hole [42
NOTE:1. About the indoor side electric wiring refer to the indoor unit electric wiring diagram for servicing.
2. Use copper conductors only. (For field wiring)
3. Symbols below indicate.
/: Terminal block, : Connector
OB397--1.qxp 05.3.18 2:12 PM Page 4

5

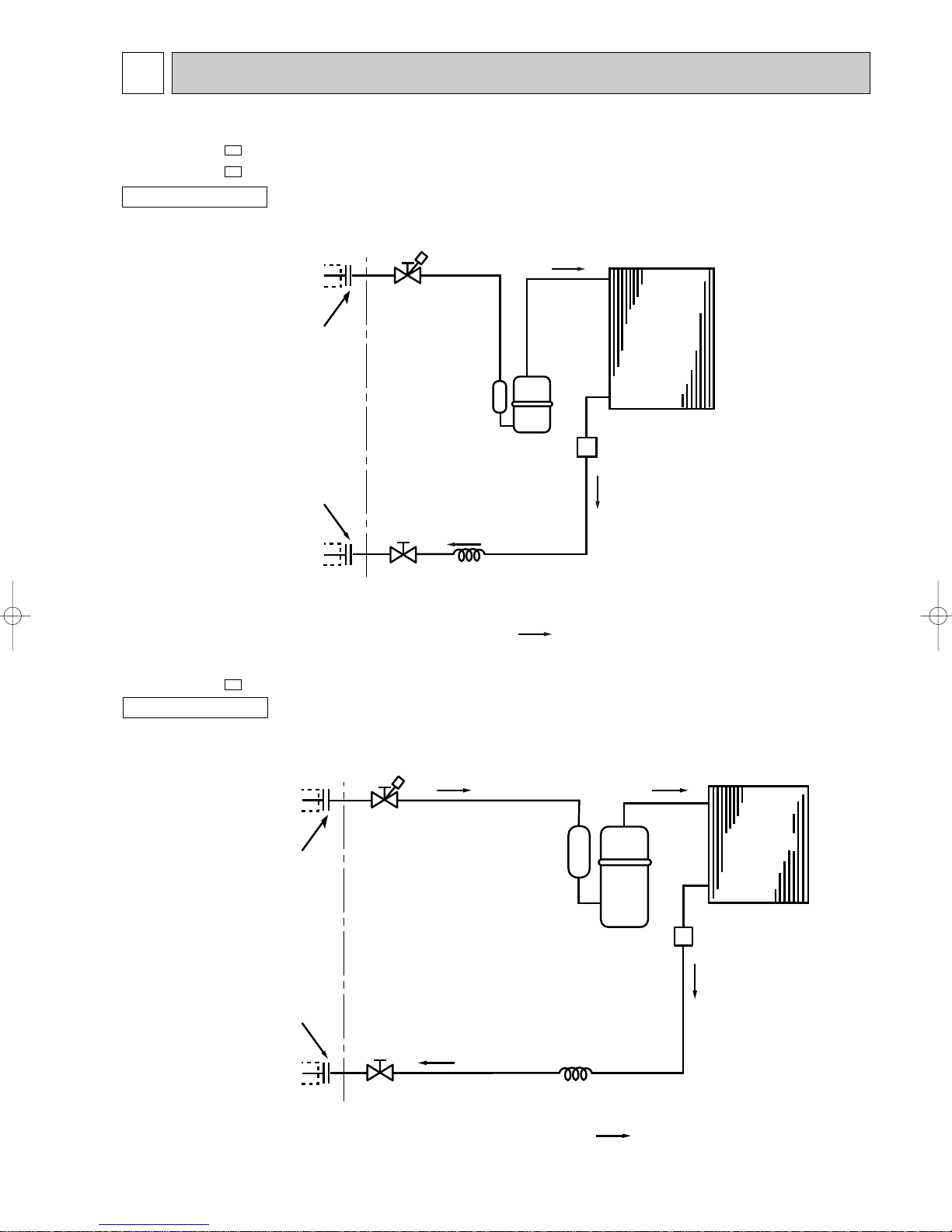

REFRIGERANT SYSTEM DIAGRAM
6
OUTDOOR UNIT
Capillary tube
{3.0 x {1.6x650
Stop valve
(with service port)
Stop valve
Compressor Strainer
#100
Outdoor heat
exchanger
Refrigerant pipe
(Option){6.35
(with heat insulator)
Refrigerant pipe
(Option){12.7
(with heat insulator)
Flared
connection
Flared
connection
Refrigerant flow in cooling
MU-A08VD -
MU-A10VD - P1
P1
OUTDOOR UNIT
Refri
g
erant flow in coolin
g
Capillary tube
{3.0 x {1.6 x 850
Compressor
Stop valve
(with service port)
Stop valve
Strainer
#100
Outdoor
heat
exchanger
Refrigerant pipe
(Option){6.35
(with heat insulator)
Refrigerant pipe
(Option){9.52
(with heat insulator)
Flared
connection
Flared
connection
Unit : mm
MU-A13VD - P1
OB397--1.qxp 05.3.18 2:12 PM Page 5

6

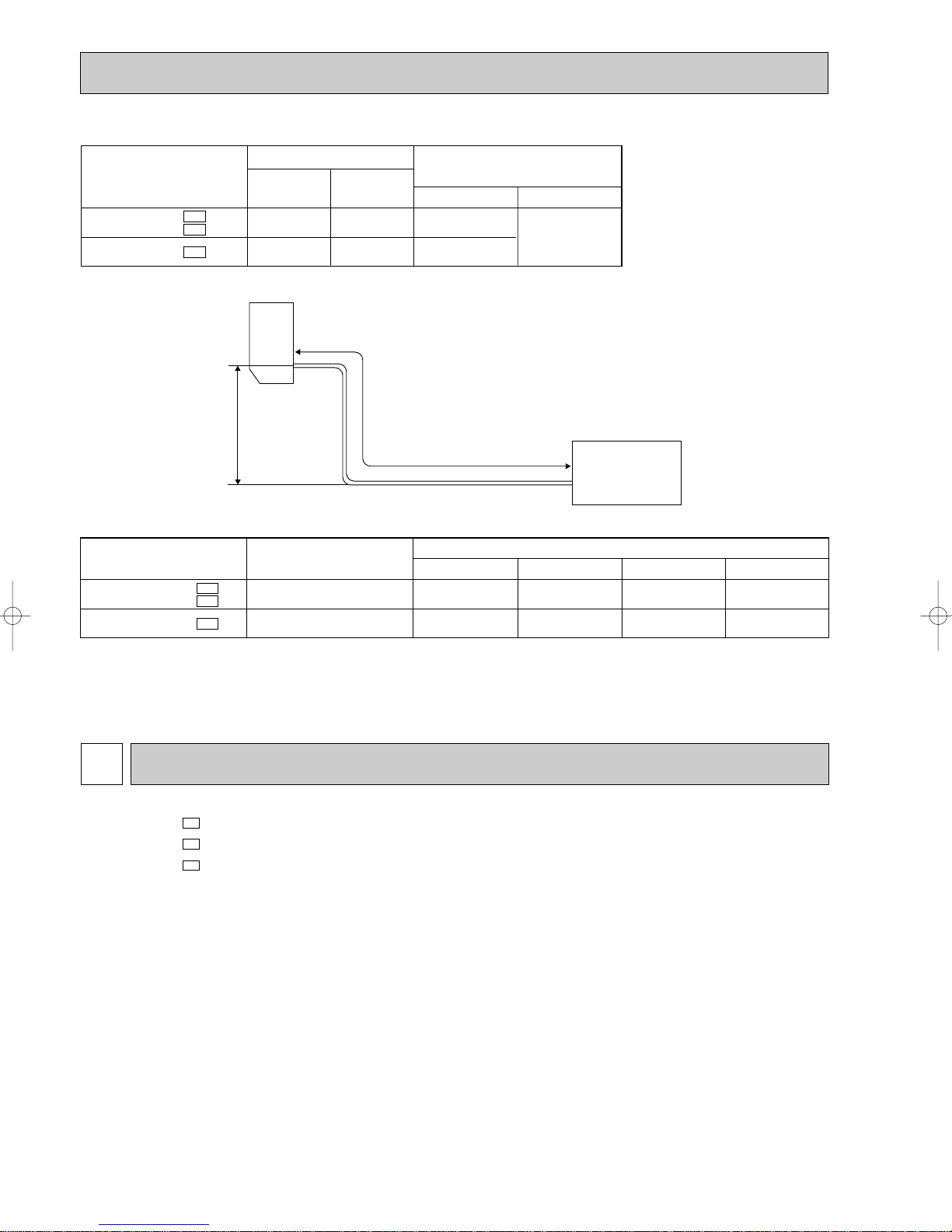

MAX.REFRIGERANT PIPING LENGTH
Model Piping size O.D : mm
Refrigerant piping : m
Gas
{9.52
{12.7
Liquid
{6.35
20
20
10
10
MU-A08VD - P1
MU-A10VD - P1
MU-A13VD - P1
Max. length
AMax. height B
Indoor
unit
w Max. Height
B
Outdoor unit
Refrigerant Piping
Max. Length
A
MAX.HEIGHT DIFFERENCE
ADDITIONAL REFRIGERANT CHARGE(R22 : g)
NOTE : Calculation : Xg=15g/m ✕ (Refrigerant piping length (m)-7)
Model Outdoor unit precharged Refrigerant piping length (one way)
15m
120
120
20m
195
195
7m
0
0
10m
45
45
550
1050
MU-A08VD - P1
MU-A10VD - P1
MU-A13VD - P1
PERFORMANCE CURVES7
The standard data contained in these specifications apply only to the operation of the air conditioner under normal conditions.
Since operating conditions vary according to the areas where these units are installed. The following information has been
provided to clarify the operating characteristics of the air conditioner under the conditions indicated by the performance curve.
(1) GUARANTEED VOLTAGE
198 ~ 264V, 50Hz
(2) AIR FLOW
Air flow should be set at MAX.
(3) MAIN READINGS
(1) Indoor intake air wet-bulb temperature : °CWB
(2) Indoor outlet air wet-bulb temperature : °CWB
(3) Outdoor intake air dry-bulb temperature : °CDB
(4) Total input: W
Indoor air wet/dry-bulb temperature difference on the left side of the chart on next page shows the difference between the
indoor intake air wet/dry-bulb temperature and the indoor outlet air wet/dry-bulb temperature for your reference at service.
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
OB397--1.qxp 05.3.18 2:12 PM Page 6

7
1Both indoor and outdoor units are under the same temperature/humidity condition.

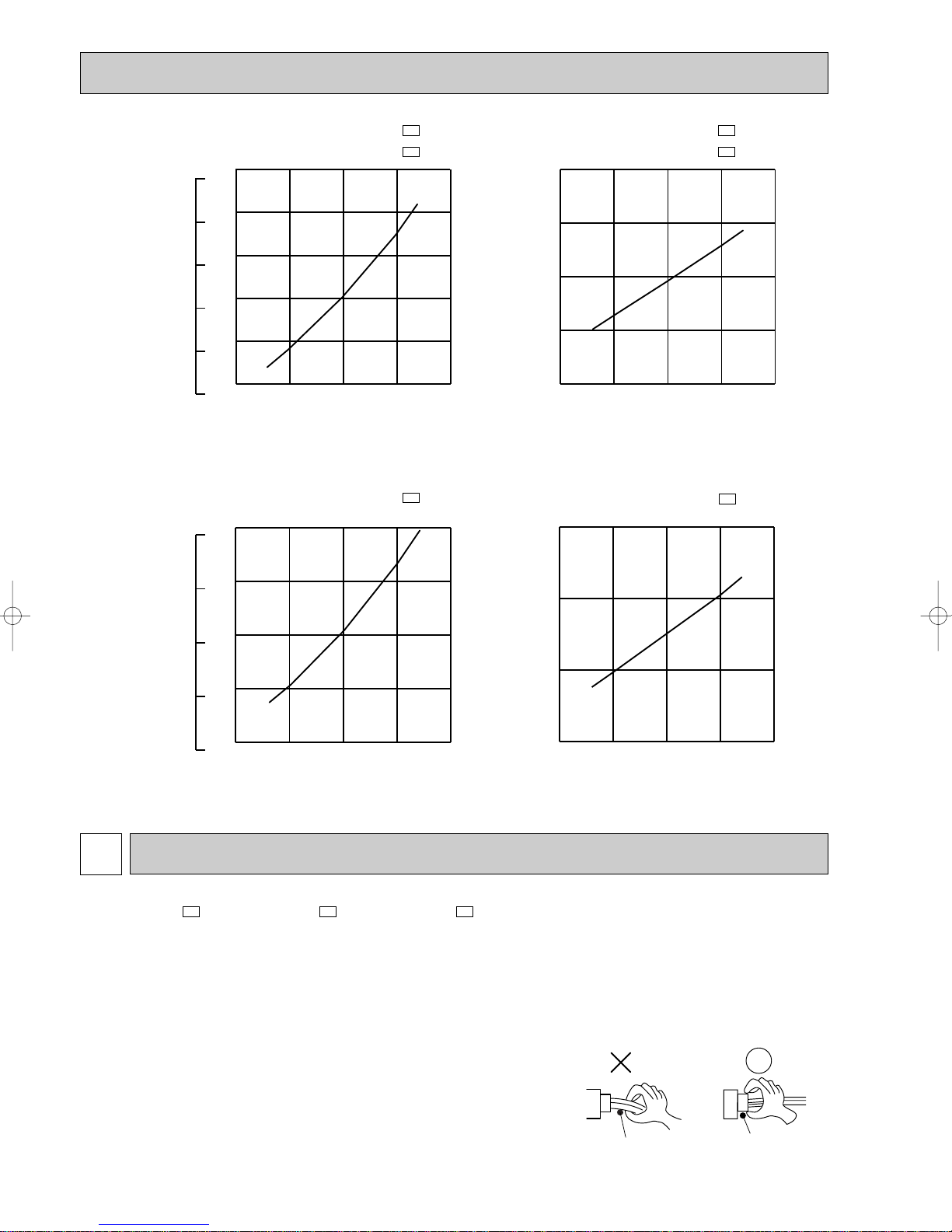

OUTDOOR LOW PRESSURE AND OUTDOOR UNIT CURRENT
COOL operation
2Air flow should be set at MAX.
Dry-bulb temperature (:)Relative humidity (%)
20 50
25 60
30 70
3The unit of pressure has been changed to MPa on the international system of units(SI unit system).
The conversion factor is : 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])
Indoor intake air WB temperature (:)
Outdoor intake air DB temperature (:)
Indoor intake air WB temperature (:)
Outdoor intake air DB temperature (:)
MS-A10VD - P1
MS-A13VD - P1
MU-A10VD - P1
MS-A08VD - P1
MU-A08VD - P1
MU-A13VD - P1
4.8
4.3
5.4
7.0
6.5
5.9
7.5
6.7
8.4
11.2
10.2
9.3
Wet-and dry-bulb
thermometers
Wet and dry-bulb
thermometers
How to measure the indoor air wet/dry-bulb temperature difference
1. Attach at least 2 sets of wet and-dry-bulb thermometers to the indoor air intake as shown in the figure, and at least 2 sets
of wet and dry-bulb thermometers to the indoor air outlet. The thermometers must be attached to the position where air
speed is high.
2. Attach at least 2 sets of wet and dry-bulb thermometers to the outdoor air intake.
Cover the thermometers to prevent direct rays of the sun.
3. Check that the air filter is cleaned.
4. Open windows and doors of the room.
5. Press the EMERGENCY OPERATION switch once to start the EMERGENCY COOL MODE.
6. When system stabilizes after more than 15 minutes, measure temperature and take an average temperature.
7. 10 minutes later, measure temperature again and check that the temperature does not change.
INDOOR UNIT OUTDOOR UNIT
OB397--1.qxp 05.3.18 2:12 PM Page 7

8
15 20
50 25 60 30 70 35(:) (%)
0.4
0.5
0.6
0.7
0.8
220V
4.0
5.0
6.0
7.0
8.0
9.0 0.9
15 20
50 25 60 30 70 35(:)
(%)
2.0
2.5
3.0
3.5
4.0
220V
MU-A08VD -
MU-A10VD - P1
P1
MU-A08VD -
MU-A10VD - P1
P1
Outdoor low pressure
Outdoor unit current (A)
(kgf/F[Gauge])(MPa [Gauge])
Ambient temperature (˚C)/Ambient humidity (%) Ambient temperature (˚C)/Ambient humidity (%)
15 20
50 25 60 30 70 35(:) (%)
0.3
0.4
0.5
0.6
0.7
15 20
50 25 60 30 70 35(:) (%)
3
4
5
6
7.0
6.0
5.0
4.0
3.0
220V 220V
Ambient temperature (˚C)/Ambient humidity (%)
Outdoor low pressure
Ambient temperature (˚C)/Ambient humidity (%)
Outdoor unit current (A)
MU-A13VD - P1 MU-A13VD - P1
(kgf/F[Gauge])(MPa [Gauge])
TROUBLESHOOTING8
8-1. Cautions on troubleshooting
1. Before troubleshooting, check the following:
1) Check the power supply voltage.
2) Check the indoor/outdoor connecting wire for mis-wiring.
2. Take care the following during servicing.
1).Before servicing the air conditioner, be sure to turn off the main unit first with the remote controller, and then after con-
firming the horizontal vane is closed, turn off the breaker and / or disconnect the power plug.
2) Be sure to turn OFF the power supply before removing the front panel,
the cabinet, the top panel and the electronic control P.C. board.
3) When removing the electronic control P.C. board, hold the edge of the
board with care NOT to apply stress on the components.
4) When connecting or disconnecting the connectors, hold the housing of the
connector. DO NOT pull the lead wires.
MU-A08VD - MU-A10VD - MU-A13VD - P1P1P1
Lead wiring Housing point
OB397--1.qxp 05.3.18 2:12 PM Page 8

9
Start
Indoor unit
operates.
Outdoor unit
doesn't
operate.
Indoor unit
doesn't receive
the signal from
remote controller.
OPERATION INDICATOR
lamp on the indoor unit is
flashing on and off.
Outdoor unit
operates in
only Test Run
operation.
Outdoor unit
doesn't
operate
even in
Test Run
operation.
Indoor unit
operates, when
the EMERGENCY
OPERATION
switch is pressed.
Indoor unit
doesn't operate,
when the
EMERGENCY
OPERATION
switch is pressed.
Check room
temperature
thermistor.
Refer to
"Test point
diagram and
voltage".
Check of 5.
wiring
diagram
of outdoor
unit.
Refer to
"Check of
remote controller
and receiver
P.C. board".
Left lamp
2-time flash
Cause:
Indoor unit
• Trouble of room
temperature/
indoor coil
thermistor
Left lamp
3-time flash
Cause:
Indoor unit
• Trouble of
indoor fan
motor
Check room
temperature
thermistor and
indoor coil thermistor.
Refer to
"Test point diagram
and voltage".
Refer to
"Check of
indoor fan
motor".
1. Check indoor /
outdoor
connecting wire.
2. Refer to
"Check of indoor
electronic control
P.C. board".
Left lamp
4-time flash
Cause:
Indoor unit
• Trouble of
indoor control
system
Replace the
indoor
electronic
control P.C.
board.
As for indoor unit,
refer to service
manual OB396.
Both lamps
(Left and right)
Flash on and off at
0.5-second intervals
Cause:
Indoor unit
• The horizontal vanes
are not installed
correctly.
Refer to "Check of
installation of the
horizontal vane".
8-2. Instruction of troubleshooting
OB397--1.qxp 05.3.18 2:12 PM Page 9

10
Outdoor fan
motor (MF)
INNER FUSE
149i 3:OPEN
Measure the resistance between the terminals with a tester.
(Coil wiring temperature -10°C ~ 40°C)
Color of
lead wire Normal Abnormal
Open or
short-circuit
WHT-BLK
BLK-RED 189 ~ 233 "
270 ~ 332 "
MU-A13VD
305 ~ 374 "
247 ~ 304 "
MU-A08/A10VD
WHT
RED
BLK
AUX.
MAIN
FUSE
Compressor
(MC)
INNER
PROTECTOR
MU-A08/A10VD
150i 5:OPEN
90i10:CLOSE
MU-A13VD
155i 5:OPEN
90i10:CLOSE

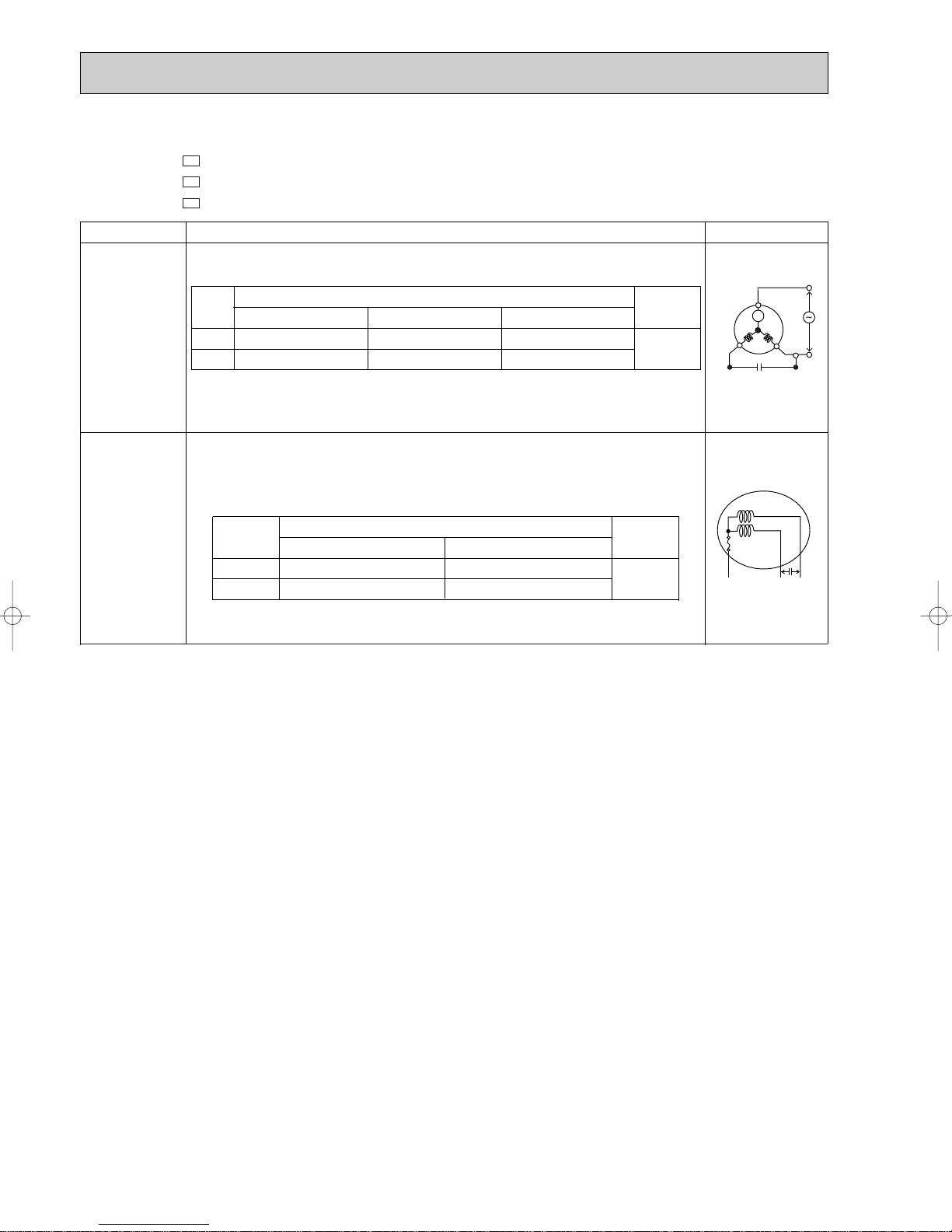

8-3. Trouble criterion of main parts
Part name Check method and criterion
Measure the resistance between the terminals with a tester.
(Coil wiring temperature -10°C ~ 40°C)
Figure
RED
WHT
BLK
P
C
S R
Color of
lead wire
Normal MU-A13VD
2.0 ~ 2.8 "
3.0 ~ 4.25 "
C-R
C-S
Abnormal
Open or
short-circuit
MU-A08VD
3.0 ~ 4.51 "
5.0 ~ 6.22 "
MU-A10VD
3.0 ~ 4.35 "
5.0 ~ 6.16 "
PP:INNER PROTECTOR
MU-A08VD -
MU-A10VD -
MU-A13VD - P1
P1
P1
OB397--1.qxp 05.3.18 2:12 PM Page 10

11
DISASSEMBLY INSTRUCTIONS
9
(1) Slide the sleeve and check if there is a locking lever or not. (2) The terminal with this connector has the locking
mechanism.
1Slide the sleeve.
2Pull the terminal while
pushing the locking
lever.
1Hold the sleeve, and
pull out the terminal
slowly.
The terminal which has the locking mechanism can be detached as shown below.
There are two types ( Refer to (1) and (2)) of the terminal with locking mechanism.
The terminal without locking mechanism can be detached by pulling it out.
Check the shape of the terminal before detaching.
<"Terminal with locking mechanism" Detaching points>
Connector
Sleeve
Locking lever
9-1. MU-A08VD - MU-A10VD -
OUTDOOR UNIT
P1P1
OPERATING PROCEDURE PHOTOS
1. Removing the cabinet
(1) Remove the screws fixing the top panel. (See Photo 2 and
3.)
(2) Remove the top panel. (See Photo 3.)
(3) Remove the screw fixing the service panel. (See Photo 3.)
(4) Pull down the service panel and remove it. (See Photo 3.)
(5) Remove the screws fixing the cabinet.
(6) Remove the cabinet.
(7) Disconnect the indoor/outdoor connecting wire.
(8) Remove the screws fixing the back panel.
(9) Remove the back panel.
Photo 1
Photo 3
Screws of
the top panel
Screws of
the cabinet
Screws of the cabinet
Photo 2
Screws of the front panel and motor support
Screws of the
top panel
Service
panel
Screw of the
cabinet
Direction
to remove
Hooks
Screw of the
service panel
OB397--1.qxp 05.3.18 2:12 PM Page 11

12
OPERATING PROCEDURE PHOTOS
3. Removing the propeller and the outdoor fan motor
(1) Remove the cabinet. (Refer to 1.)
(2) Remove the propeller nut and the propeller.
NOTE : Loose the propeller in the rotating direction for
removal.
When attaching the propeller, align the mark on the
propeller and the motor shaft cut section.
Set the propeller in position by using the cut on the shaft
and the mark on the propeller.
(3) Remove the lead clamps and outdoor fan motor lead wires.
(4) Remove the screws fixing the outdoor fan motor.
(5) Remove the outdoor fan motor.
Photo 5
Propeller
Propeller
nut Outdoor
fan motor
Set screws of the
outdoor fan motor Hook Relay panel
Outdoor fan motor lead wires
Set screws of the
outdoor fan motor
2. Removing the electrical parts
(1) Remove the service panel and the cabinet.(Refer to 1.)
(2) Remove the following parts.
•Compressor capacitor (C1)
•Outdoor fan capacitor (C2)
•Terminal block (TB)
Photo 4
Outdoor fan capacitor (C2)
Compressor capacitor (C1)
Terminal block(TB)
OB397--1.qxp 05.3.18 2:12 PM Page 12

13
OPERATING PROCEDURE PHOTOS
4. Removing the compressor
(1) Remove the cabinet. (Refer to 1.)
(2) Remove the soundproof felt.
(3) Remove the screws fixing the relay panel.
(4) Remove the terminal cover.
(5) Pull out the lead wires from the glass terminal of the com-
pressor.
(6) Recover gas from the refrigerant circuit.
NOTE : Recover gas from the pipes until the pressure gauge
shows 0 kg/cm2(0MPa).
(7) Disconnect the welded part of the suction pipe and
discharge pipe.
(8) Remove the nuts fixing the compressor.
(9) Remove the compressor.
Photo 6
Compressor
Suction pipe
Discharge pipe
Compressor
nuts
Glass
terminal
OB397--1.qxp 05.3.18 2:12 PM Page 13

14
OPERATING PROCEDURE PHOTOS
2. Removing the electrical parts
(1) Remove the service panel and the cabinet. (Refer to 1.)
(2) Remove the following parts.
•Compressor capacitor (C1)
•Outdoor fan capacitor (C2)
•Terminal block (TB)
9-2. MU-A13VD -
OUTDOOR UNIT
P1
Photo 4
Outdoor
fan
capacitor
(C2)
Connector
Compressor
capacitor (C1)
Terminal
block (TB)
1. Removing the cabinet
(1) Remove the screws fixing the top panel. (See Photo 2 and
3.)
(2) Remove the top panel. (See Photo 3.)
(3) Remove the screw fixing the service panel. (See Photo 3.)
(4) Pull down the service panel and remove it. (See Photo 3.)
(5) Remove the screws fixing the cabinet.
(6) Remove the cabinet.
(7) Disconnect the indoor/outdoor connecting wire.
(8) Remove the screws fixing the back panel.
(9) Remove the back panel.
Photo 1
Screws of the cabinet
Screws of the front panel and motor support
Photo 3 Screws of the
top panel
Service
panel
Screw of the
cabinet
Direction
to remove
Hooks
Screw of the
service panel
Screws of
the top panel
Screws of
the cabinet
Photo 2
OB397--1.qxp 05.3.18 2:12 PM Page 14

15
PHOTOS
Photo 6
Photo 5
OPERATING PROCEDURE
3. Removing propeller and the outdoor fan motor
(1) Remove the cabinet. (Refer to 1)
(2) Remove the propeller nut and remove the propeller.
NOTE : Loose the propeller in the rotating direction for
removal.
When attaching the propeller, align the mark on the
propeller and the motor shaft cut section.
Set the propeller in position by using the cut on the
shaft and the mark on the propeller.
(3) Disconnect the connector and remove the lead clamps and
outdoor fan motor lead wires.
(4) Remove the screws fixing the outdoor fan motor.
(5) Remove the outdoor fan motor.
4. Removing the compressor
(1) Remove the cabinet. (Refer to 1)
(2) Remove the relay panel.
(3) Remove the soundproof felt.
(4) Remove the terminal cover.
(5) Pull out the lead wires from the glass terminal of the com-
pressor.
(6) Recover gas from the refrigerant circuit.
NOTE : Recover gas from the pipes until the pressure gauge
shows 0 kg/cm2(0MPa).
(7) Disconnect the welded part of the suction pipe and dis-
charge pipe.
(8) Remove the nuts fixing the compressor and the compres-
sor.
Glass
terminal Discharge
pipe
Suction
pipe
Compressor nuts
Compressor
Propeller
Propeller
nut Outdoor
fan motor
Set screws of the
outdoor fan motor Hook Relay panel
Outdoor fan motor lead wires
Set screws of the
outdoor fan motor
OB397--1.qxp 05.3.18 2:12 PM Page 15

16
PARTS LIST10
10-1. OUTDOOR UNIT
STRUCTURAL PARTS, ELECTRICAL PARTS AND FUNCTIONAL PARTS
MU-A08VD - MU-A10VD - MU-A13VD - P1P1P1
1
2
14
17 10 9
3 4 5 6 7 8
1516
18
19
111213
This figure shows MU-A13VD.
OB397--1.qxp 05.3.18 2:12 PM Page 16

17
CABINET
GRILLE
PROPELLER
BASE
BASE
COMPRESSOR
COMPRESSOR
COMPRESSOR
COMPRESSOR RUBBER SET
STOP VALVE (GAS)
STOP VALVE (GAS)
STOP VALVE (LIQUID)
SERVICE PANEL
BACK PANEL
TERMINAL BLOCK
OUTDOOR FAN CAPACITOR
OUTDOOR FAN CAPACITOR
COMPRESSOR CAPACITOR
COMPRESSOR CAPACITOR
SEPARATOR
SEPARATOR
MOTOR SUPPORT
MOTOR SUPPORT
CONDENSER NET
CONDENSER NET
TOP PANEL
OUTDOOR HEAT EXCHANGER
OUTDOOR HEAT EXCHANGER
OUTDOOR FAN MOTOR
OUTDOOR FAN MOTOR
CAPILLARY TUBE
CAPILLARY TUBE
E02 899 232
E02 927 521
E02 665 501
E02 899 290
E02 900 290
E02 940 900
E02 899 900
E02 900 900
E02 075 506
E02 899 661
E02 900 661
E02 899 662
E02 927 245
E02 899 233
E02 815 374
E02 899 351
E02 900 351
E02 665 353
E02 900 353
E02 899 293
E02 900 293
E02 899 515
E02 900 515
E02 899 523
E02 900 523
E02 927 297
E02 899 630
E02 900 630
E02 899 301
E02 900 301
E02 746 936
E02 746 937
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
RH135VHCC
RH145VHCC
RH207VHAC
3RUBBERS/SET
{9.52
{12.7
{6.35
2P
1.8µF/440VAC
2.0µF/440VAC
25µF/450VAC
30µF/440VAC
RA6V21 -
RA6V33 -
{3.0✕{1.6✕850
{3.0✕{1.6✕650
MC
MC
MC
TB
C2
C2
C1
C1
MF
MF
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Symbol
in Wiring
Diagram
Q'ty/unit
Remarks
Part No.
No.
Part Name
MU-A08VD-
P1
MU-A10VD-
P1
MU-A13VD-
P1
MU-A08VD - MU-A10VD - MU-A13VD -
10-1. OUTDOOR UNIT
STRUCTURAL PARTS, ELECTRICAL PARTS AND FUNCTIONAL PARTS
P1P1P1
Part number that is circled is not shown in the illustration.
OB397--1.qxp 05.3.18 2:12 PM Page 17

OPTIONAL PARTS
18
11
MAC-MS0905F
MAC-MF1305F
5m
5m [6.35 (1/4) [27 [31
[21
[27 0
9.52 (3/8)
12.7 (1/2)
MU-A08VD-
MU-A10VD-
MU-A13VD-
Pipe length Cross-section
P1
P1
P1
Part No.Model A-Gas B-Liquid
Pipe size O.D mm (in.) Insulation
DC
Additional
refrigerant
charge
R22(g)




,



REFRIGERANT PIPES
The air conditioner has flared connections its indoor and outdoor sides.
Please use the optional extension pipe as follows.
OB397--1.qxp 05.3.18 2:12 PM Page 18

19
OB397--1.qxp 05.3.18 2:12 PM Page 19

HEAD OFFICE: MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO100-8310, JAPAN
CCCopyright 2005 MITSUBISHI ELECTRIC ENGINEERING CO.,LTD.
Distributed in Mar. 2005. No.OB397 106
Made in Japan
New publication, effective Mar. 2005
Specifications subject to change without notice.
TM
OB397--1.qxp 05.3.18 2:12 PM Page 20
