~ MITSUBISHI
~ELECTRIC
SPRIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
MS09NW
MS12NN
MS15NN
MS17NN
m 1r. $l II m
l For customers I
CONTENTS
SAFETY PRECAUTIONS ...........................................................1
NAME OF EACH PART •••..•.••••..•.•••...•••..•.••...•.•.••...•.••....••••.•..••.. 5
PREPARATION BEFORE OPERATION •..•••••..•.•••••••••••...•••••.•.••. 7
"I FEEL • ." AUTO OPERATION ••••.•.••••.•.•.•.•..•.•..•.•..•••.•••••••••..••.. 9

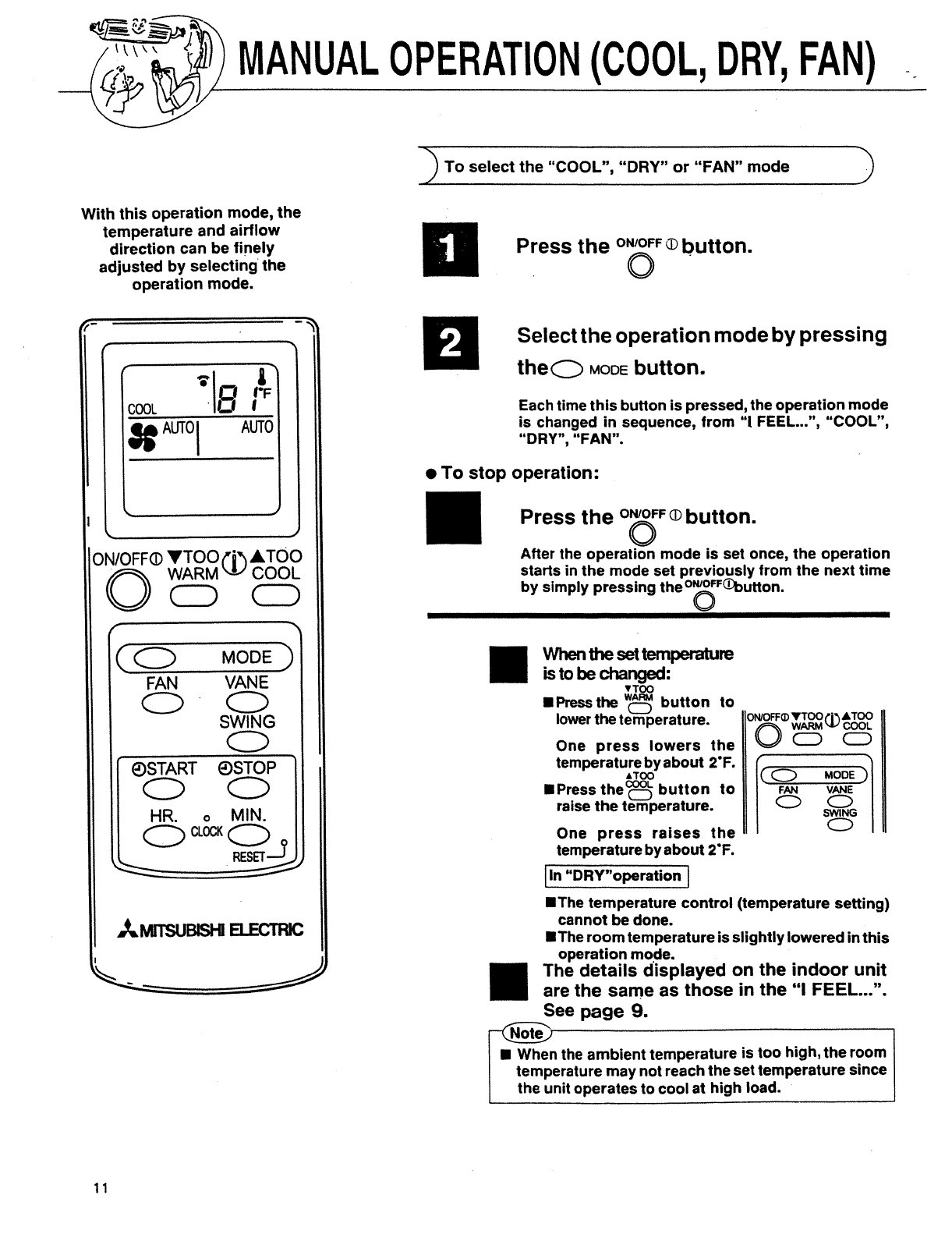

MANUAL OPERATION (COOL, ORY, FAN) ••••..•...•••..••.•.....•••.• 11

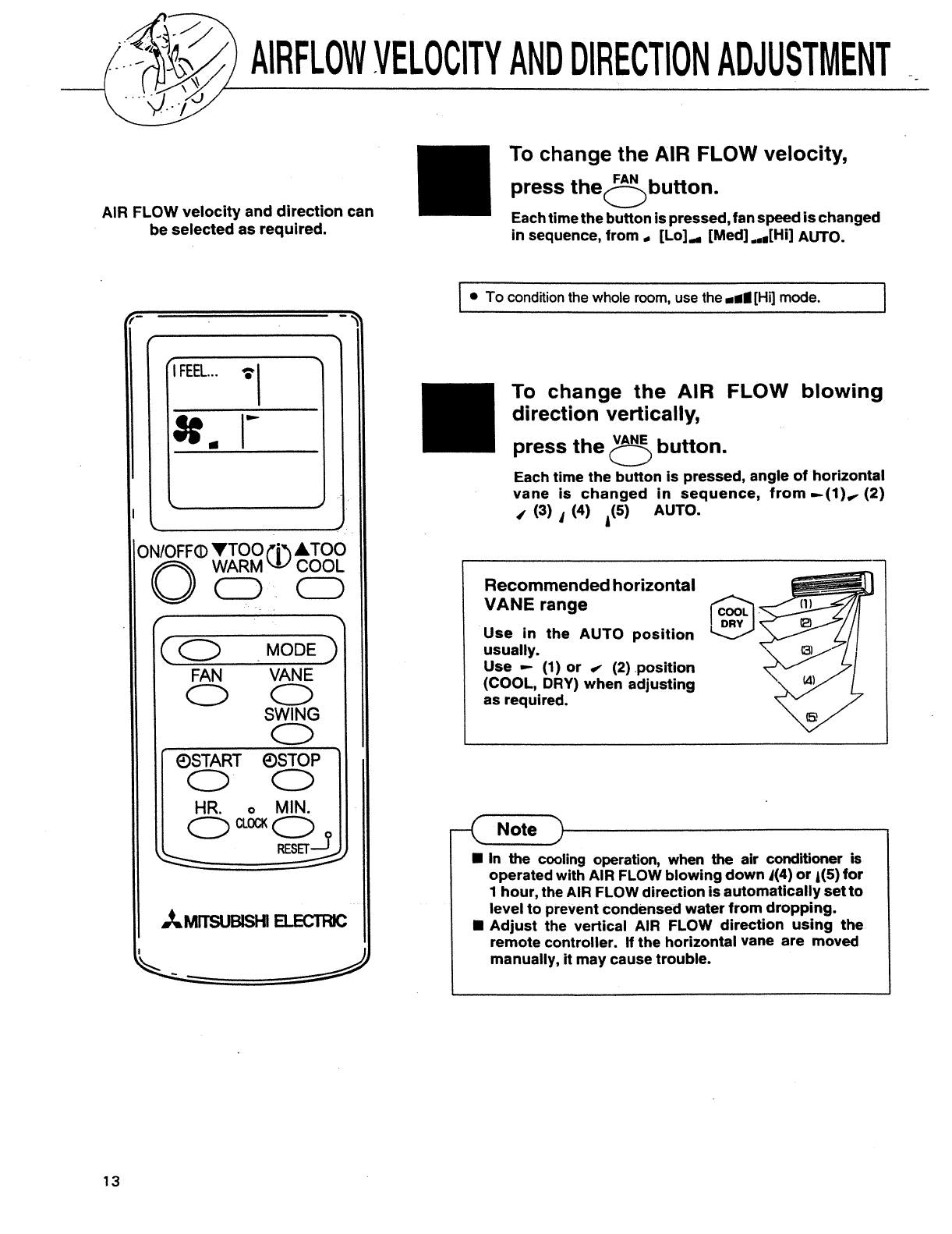

AIRFLOW VELOCITY AND DIRECTION ADJUSTMENT •••...•• 13
SWING OPERATION ................................................................ 15
TIMER OPERATION (ON/OFF TIMER) .•••.••••••••••.•.••••••...••.••..• 16
WHEN THE AIR CONDITIONER IS NOT GOING TO BE
USED FOR A LONG TIME ••••••.•••.••.•••••..•••••..••••.•••••.•••••••••••••..• 17
MAINTENANCE .......................................................................18
CLEANING THE AIR FILTER/DEODORIZING FILTER ••....•••..• 19
REPLACEMENT OF THE DEODORIZING FILTER/
AIR CLEANING FILTER (OPTION) ••••..••••...•••••..••••••••••••..•••••.•• 20
BEFORE CONTACTING THE SERVICE MAN,
CHECK THE FOLLOWING AGAIN ........................................... 21
WHEN YOU THINK THAT TROUBLE HAS OCCUREO ••• L .... 22
· INSTALLATION, RELOCATION ANO INSPECTION ................ 24
Thank you very much for purchasing this Mitsubishi room air conditioner.
• To use this unit correctly and safely, be sure to read this instruction manual before use. Keep this manual carefully for later
reference.
• Be sure to receive a guarantee card from your dealer and check that the purchased data and shop name, etc. are entered
correctly.
• This air conditioner should not be installed by the customer (Safety and performance functions cannot be assured).

SAFETY PRECAUTIONS
• This air conditioner is for house hold use.
• Before using the unit, carefully read these "safety precautions" and use correctly.
• Since these cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
F
'I
Lt
WARNING
Incorrect handling could cause a serious hazard, such as death, serious injury, etc with a
high probability.
Lt
CAUTION
Incorrect handling could cause a serious hazard depending on the conditions.
'-
Meanings of symbols used in this manual are as shown below.
'I
~
Be sure not to do.
8 Be sure
to follow the instruction.
~
Danger of an electric shock. Be careful.
~
• After reading this manual, keep it available together with the installation manual for prompt reference.
1

& WARNING
Do not insert your finger or
stick,etc.intotheairinlet/air
outlet.
• Since the fan rotates at high speed, this may
cause an injury.
Do not expose the skin to
coolairdirectlyforlongtime.
• This could damage your health.
When an abnormality occurs,
stop the air conditioner, and turn
off the breaker.
Repair or relocation should
notbedone by thecustomer.
• If this is done incorrectly, it may cause a fire,
electric shock, injury by dropping of the unit,
water leakage, etc.
Consult your dealer.
The customer should not
install this unit.
• If this is done incorrectly, it may cause a fire,
electric shock, injury by dropping of the unit,
water leakage, etc.
Consult your dealer.
2

3
SAFETY PRECAUTIONS
When the air filter is to be
removed, donottouch the
metal parts of the indoor
unit.
• It may cause an injury.
)it~
I
Insure power is turr:ied
off at the circuit breaker
before cleaning the unit.
• Sincethe fan rotates at high speed
during operation, it may cause an
injury.
Do not operate switches
with wet hands.
• It may cause an electric shock.
Do not clean the air
conditonerwith water.
• Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Do notputapetorhouse
plant where will be
exposedtodirectairflow.
• This could injure the pet or plant.
Do not apply an
insecticideorflammable
·spray.
• It may cause a fire or deformation
of the cabinet.
/
✓~ ~
..... -,,
···= 11
--
,rJ /,
-:\ ' '
-.:_:..:.:;\ ,
~
~ CAUTION
Ventilatewell whenused
togetherwithastove,etc.
• An oxygen shortage may occur.
ji5ii]
0
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
animal, plants and art objects.
It may cause deterioration of
quality, etc.
Do notputa stove, heater, etc,
where it is exposed to direct air
flow or near the air conditioner
and remote controller.
• It may causeJmperfect combustion.
• The heat may deform the front
panel and remote controller.

If the air conditioner will not be
operated for long periods of time,
disconnect power to the system
or tum the circuit breaker off.
Do not step on the
indoor/outdoor unit and
do not putanythingonit.
• It may cause an injury through
dropping or falling down.
Do not leave on
installation stand which
'is damaged.
• Theunitmaydroporfall down and
cause an injury.
Do not operate for a long
time in high humidity, e.g.
leaving a door or window
open.
• In the cooling mode, ifit is operated in
a room with high humidity (80%r.h. or
more) for a long time, water condensed
in the air conditioner may drop and
may wet and spoil furniture, etc.
Do not step onto an
unstable bench when
attaching/detaching the
panel.
• It maycasean injury,etc. byfalling
down. ·
it WARNING
• Consultyourdealerforinstalling
the air conditioner.
~CAUTION
Apply grounding.
• Do not connect agrounding wire
to a gas pipe,water pipe, lightning
rod or ground wire of atelephone.
If agrounding is incorrect, it may
cause an electric shock. 0
If the air conditioner is installed in a
high humidity area or near a water
source, a Ground Fault Interrupt
(GFI) circuit breaker should be
installed to protect against shock.
0
Do not install the unit
where flammable gas
could leak.
• H ~ leaks and collect around the
unit, it may cause an explosion.
Drain water should be
fully drained.
• Hthe drainage route is inoomplete,
water may drop from the unit. It may
wet and spo,l furniture.
4

dlJ/) NAME OF EACH PART
Indoor unit
(when the front panel is opened)
MS09NW
I
MS12NN,MS15NN,MS17NN
florizontal vane
I-Remote controller
MS09NW
«d,MHJ,14®'.fa@M,UMffii-
rh, zj St=ifflt"'/j,
MS12NN,MS15NN,MS17NN
Outdoor unit MU12NN,MU15NN,MU17NN
MU09NW
Drain outlet
5

.
Signal transmittingsection
:operation i!isptaysection
-----ff-+-i
IFEEL.. ._, vl
0
COOL DRY FAN asi=
.. AUT01';:~ AUTO
...... ~,,
FANSPEEDCONTROLbutton
HR. button _- .
NIN.button ··
(TIME SET button)
AMPM CLOCK AMPM
IB:BB !+" :B:BD
E>START II\ E>STOP
ON/OFF<D ~'TOO(D· ATOO
WARM COOL
c::) c::) ,
MODE
FAN VANE
SWING
©STOP
J...MITSUBISH B.ECTRIC
~ - ~
(This diagram shows an overall view.)
TEMPERATURESbutton
6

Turn the breaker ON.
Remote· controller (how to set the current time) .. · · · . . · .·
OJ
Remove the back lid and insert
batteries. And then reattach the
back lid. u
~
..,.
..,.
...
nfuse l ·
+)and(-).
Press the RESET button.
..
Press it using a
thin stick.
■ After batteries are replaced, press the reset button.
■ If the reset button is not pressed, the remote controller
may not operate correctly.
7
Press the CLOCK SET button.
Press it using a
thin stick.
""'7 Press the o and o button
~ (TIME SET button) to set the
current time.
ON/OFF<D ~TOO l'i'"\ATOO
0 D \J/ D
....
(C)
MODE)
FAN
VANE
C) C)
SWING
C)
©START ©STOP
C)
C)
HR. 0 MIN.
C)a.OCKC)
,.__ RESETd.
J..MITSUBISHI B.ECTRIC
~ ~
--...:::-====---
• Each time the c:"> button is pressed, the. set time is
counted up by 1 hour, and each time theobutton
is pressed, the set time is counted up by 1 minute.
R7 Pre~s the CLOCK SET button
~ agam.

Handling of the remote controller
• The range that the signal can reach is about
6 m when pointed at the front of the indoor
unit.
• When the button is pressed, one or two
beeps will be heard from the indoor unit. If
no sound is heard, operate again.
• Use the remote controller carefully.
If it is dropped, thrown or gets wet, it may not
operate.
When installing on a wall, etc.
• Install it using the remote controller
installation case in a position where the
signal reception sound (beep) can be heard
from the indoor unit when the oN/OOFF © button
is pressed.
How to install/remove the remote controller
IInstalling IInsertthe remote controller
downward.
!Removing! Pull it up.
Remote controller ml
;MtmOtioaea,e---®'
Dry-cell batteries
IReference for replacing batteries I
When the signal does not operate the indoor
unit, or the display becomes dim, replace the
batterieswithnewalkalinebatteries(size AAA).
• Replace 2batteries with new batteries of the
same type.
• Do not use rechargeable batteries.
• To prevent from liquid leakage, take out all
batteries when the remote controller is not
going to be used for a long time.
• Theservice life ofanalkalinebattery is about
1 year.
However, since the recommended usable
time limit is indicated (month/year) on the
bottom of the battery,a batterythe time limit
of which is approachingmaybecomeexhaust
sooner.
WHEN THE REMOTE CONTROLLER
CANNOTBEUSED(EMERGENCY
OPERATION)
When the batteries of the remote controller run out
or remote controller malfunctions, EMERGENCY
OPERATION can be done using the EMERGENCY
OPERATION switch.
D
■
Press the EMERGENCY
OPERATION switch.
• Each time the switch is pressed, the unit
alternates between the EMERGENCY
COOL MOOE and STOP MOOE.
MS09NW MS12NN,MS15NN,MS17NN
Details of operation are as shown below.
However, the temperature control does
not work for about 30 minutes at first
and the unit Is set to the continuous
operation mode with the fan speed set
to "Medium".
/ Operation Mode COOL
Set temperature 75"F
Fan speed Medium
,Horizontal vane Auto
The operation mode is indicated on the
operation indicator lamp on the Indoor
unit ·
Operation Indicator Lamp
EMERGENCY COOL STOP
~-~
~ LE_EJ
To stop EMERGENCY COOL
MODE, press EMERGENCY
OPERATION switch again.
8

9

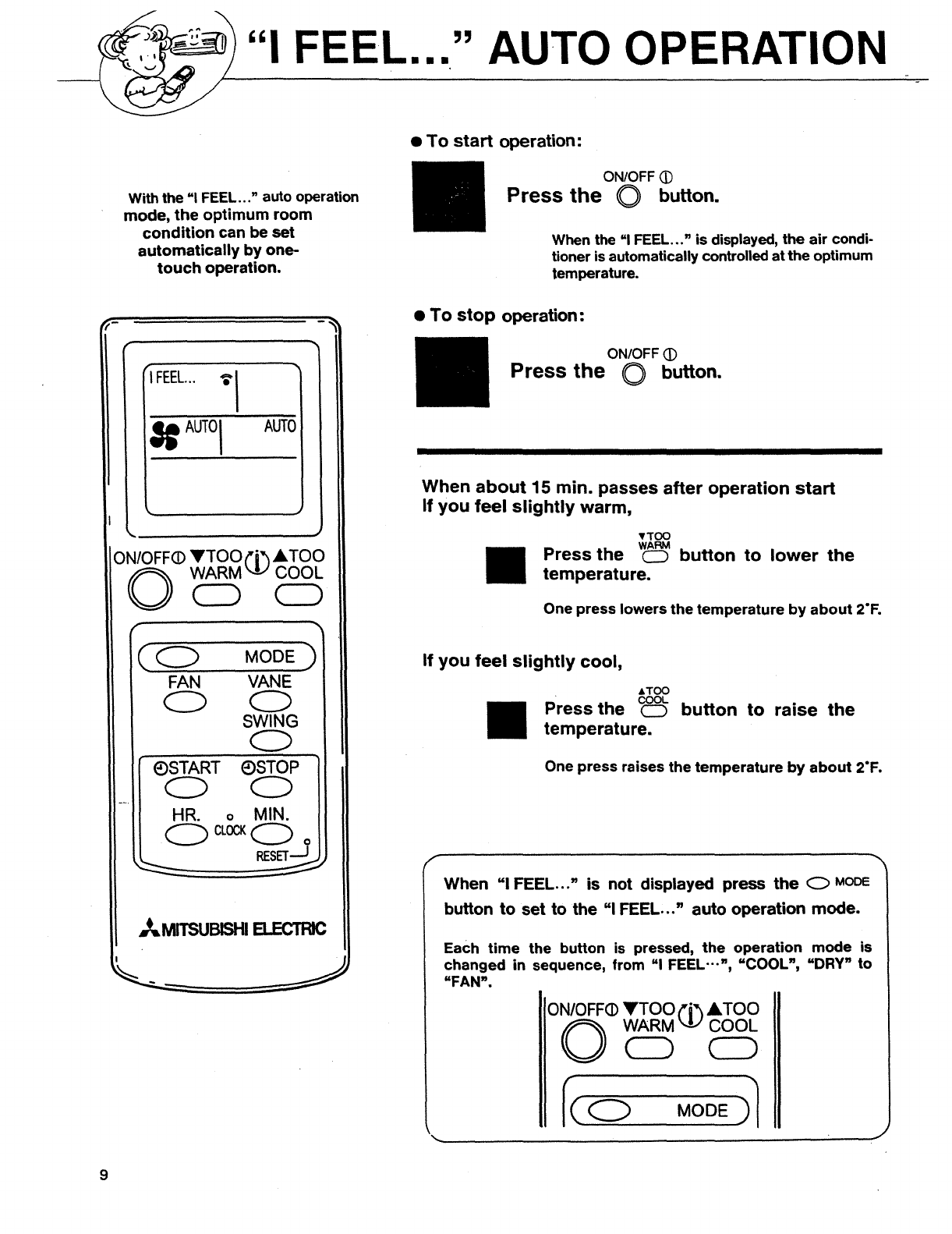

"I FEEL..." AUTO OPERATION
With the "I FEEL ..." auto operation
mode, the optimum room
condition can be set
automatically by one-
touch operation.
I FEEL. ..
AUTO
ON/OFF<D 'TTOO (D" • TOO
00 D
co
MODE)
FAN
VANE
C)
C)
SWING
C)
©START
C)
©STOP
C)
HR. o MIN.
C)CLOCKC) 0
\.'---- RESET~:.,
J..MITSUBISHI ELECTRIC
~~~
• To start operation:
ON/OFF CD
Press the O button.
When the "I FEEL..." is displayed, the air condi•
tioner is automatically controlled at theoptimum
temperature.
• To stop operation:
ON/OFF(])
Press the O button.
When about 15 min. passes after operation start
If you feel slightly warm,
•TOO
WARM
Press the C) button to lower the
temperature.
One press lowers the temperature by about 2"F.
If you feel slightly cool,
aTOO
COOL
Press the o button to raise the
temperature.
One press raises the temperature by about 2"F.
When "I FEEL. .." is not displayed press the O MOOE
button to set to the "I FEEL ..." auto operation mode.
Each time the button is pressed, the operation mode is
changed in sequence, from "I FEEL···", "COOL", "DRY" to
"FAN".
OOID~(i)~
le o MODE )l

Description of "I FEEL ..." mode
Details of operation
According to the room temperature when the operation
starts,theoperationmodeisautomaticallyselectedbetween
COOLand DRY. However, when operation isstartedagain
within 2 hours after the operation is stopped, the same
operation mode before it is stopped is selected. The
operation mode selected first is not changed even if the
room temperature changes.If the operation mode does not
match the room condition, select the required operation
mode by pressing theQMOoebutton.
Details of "I FEEL ..." auto operation
Room temperature Operation mode Target temperature
when started (Initial state)
About 77·f or higher
COOL
About75.F
About 77°F or lower
DRY
-
~:~~-&
~
,,
,1 J\---.
_., '7 About 77°F or higher -, COOL
..
.,., .,
1
Room temperatu~e:
- ... _ _. •----. About lower than 77°F ➔ ORY/I,
I
OTE,-----------------------------,
Whentheroomtemperatureis 4·F higherthanthe set temperature,ti,e settemperaturemaynotbedecreased
since the unit operates at high power. In this case, wait until the room temperature drops to within 4.F of set
temperature.
Display details on the indoor unit
The operation indicator at the right side of
the indoor unit indicate the operation state.
Operation Indicator
_,.,_ D
, '
Operation Indicator lamp
Indication
Operation state
This shows that the air conditioner is operating to reach the
_,,, __ ,,,_
, ' ,I '
target temperature. Wait for some time until the target
temperature is obtained.
,,,
D
This shows that the room temperature is approaching the
- -
, '
target temperature.
Description of "AUTO RESTART FUNCTION"
Difference between set
temperature and room
temperature
About 4·F or more
About 4.F or less
■ This unit isequipped with the auto restart function. When the main power is turned on, the airconditioner will start
·operation automatically in the same mode as setwith the remote controller before the shutoff of main power.
■ If the unit was set to off with the remote controller before the shutoff of main power, it will remain stopped
even after the main power is turned on.
■ If the unit was in the emergency operation before the shutoff of main power, it will start operation, at main
power on, in the same mode as set with the remote controller before the emergency operation.
■ Since the air conditioner has been shipped from the factory with the cooling mode saved in the memory for auto
restart function, it starts cooling operation whenthe user turns on the main powerfor the first time after installation.
10

~~.__M_A_N_UA_L_O_PE_R_A_JIO_N____;(;___CO_O_L_, D_R_Y, _FA_N-=---) _
With this operation mode, the
temperature and airflow
direction can be finely
adjusted by selecting the
operation mode.
ON/OFF(!) TTOO CD" ... TOO
ODD
r '
(c=)
MODE
)
FAN
VANE
c=)
C)
SWING
c=)
©START
©STOP
C) C)
HR.
0
MIN.
C)CLOCKC)
'_J
..__ RESET _.-,
J...MITSUBISH B.ECTRIC
~-~
11
To select the "COOL", "DRY" or "FAN" mode
a Press the
oN,oFF <D button.
. 0.
Selecttheoperationmode by pressing
theO MODE button.
Each time this button ispressed,the operationmode
is changed in sequence, from "l FEEL •.• ", "COOL",
"DRY", "FAN".
• To stop operation:
Press the o5F CD button.
After the operation mode is set once, the operation
starts in the mode set previously from the next time
by simply pressing the
0
(:r<Ibutton.
Whenthe set temperature
isto be changed:
•TOO
■ Press the O button to
lower thetemperature.
One press lowers the
temperaturebyabout 2"F.
•TOO
■ Press the8 button to
raise the temperature.
One press raises the
temperaturebyabout 2"F•
IIn "DRY"operation I
ONIOFF<D TTOO i'i'\A TOO
0 WARMWCOOL
c:::) c:::)
co
MOOE)
FAN VANE
0
~
0
■ The temperature control (temperature setting)
cannot be done.
■ The room temperatureisslightlyloweredin this
operation mo.de.
The details displayed on the indoor unit
are the same as those in the "I FEEL .•• ".
See page 9.
Note 'r---------------- ......
■ When the ambient temperature is too high,theroom
temperature maynotreach thesettemperature since
the unitoperates to cool at high load.

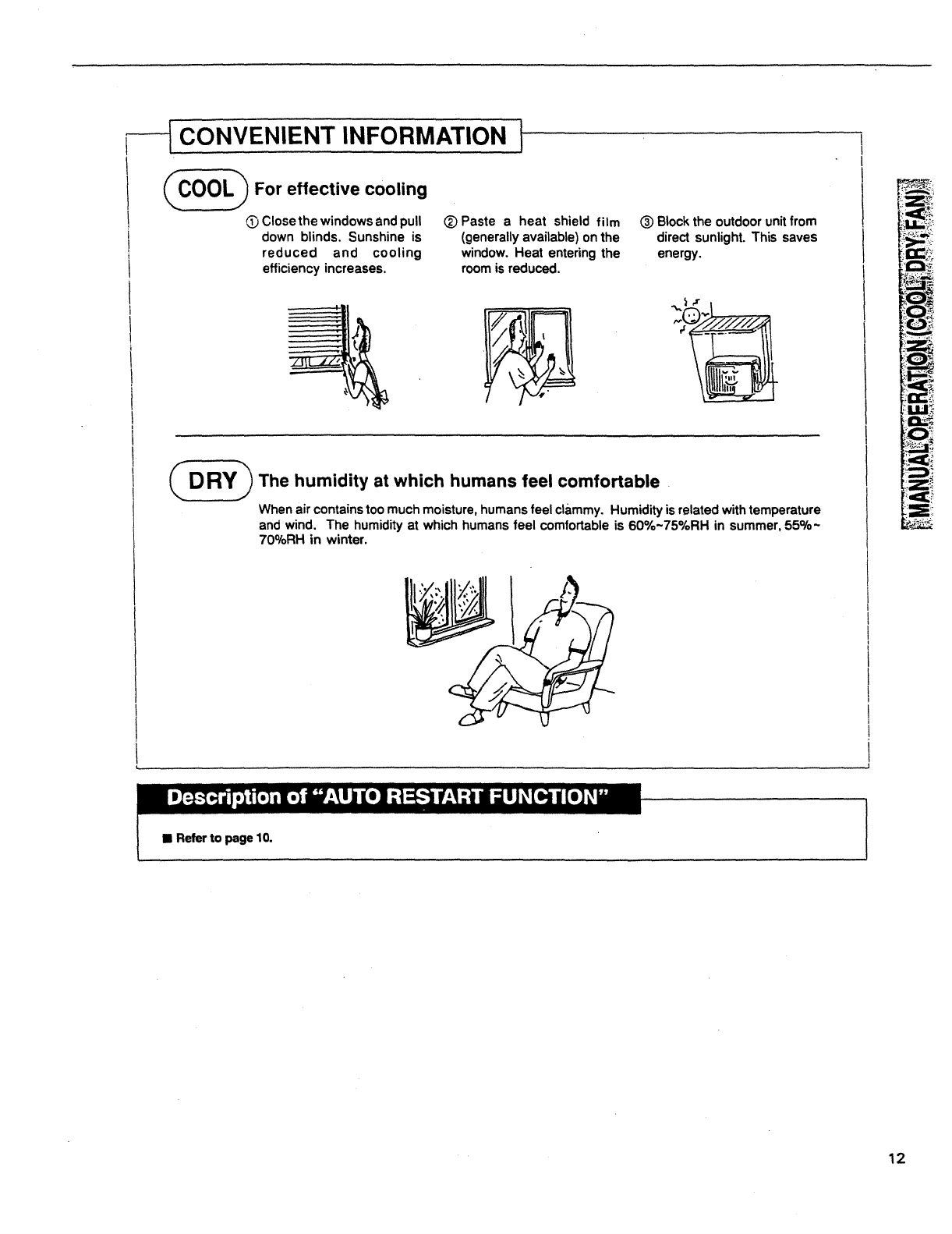

rl CONVENIENT INFORMATION I
(§) For effective cooling
(j) Closethewindowsand pull
down blinds. Sunshine is
reduced and cooling
efficiency increases.
® Paste a heat shield film
(generally available) on the
window. Heat entering the
room is reduced.
@ Block the outdoor unit from
direct sunlight. This saves
energy.
~ The humidity at which humans feel comfortable
When air contains too much moisture, humans feel clammy. Humidity is related withtemperature
and wind. The humidity at which humans feel comfortable is 60%~75%RH in summer, 550/o~
700/oRH in winter.
~·JI-W@Nil ❖ ifil'iL•lmt-i@;ili'IMMt•
■ Refer to page 10.
12

1~ AIRFLOW VELOCITY AND DIRECTION ADJUSTMENT .
····:·1 ):f
y.-·l
AIR FLOW velocity and direction can
be selected as required.
IFEEL... ..I
ON/OFF<D TTOO(D"A TOO
0
WARM COOL
C)_C)
/
(C)
MODE
)
FAN
VANE
C)
C)
SWING
C)
©START
©STOP
C)
C)
HR.
0
MIN.
C)CLOCKC)
'_j
'- ...__ RESET --
J..MITSUBISHI ELECTRIC
~~~
13
To change the AIR FLOW velocity,
press theQbutton.
Eachtime the button ispressed,fanspeed is changed
in sequence, from ,. [Lo]_. [Med] •• ,[Hi] AUTO.
• To condition the whole room, use the ••• [Hi] mode.
To change the AIR FLOW blowing
direction vertically,
press the c::> button.
Each time the button is pressed, angle of horizontal
vane is changed in sequence, from -(1)~ (2)
~ (3) , (4) A(5) AUTO.
Recommendedhorizontal
VANE range
Use in the AUTO position
usually.
Use -(1) or ~ (2) position
(COOL, DRY) when adjusting
as required.
Note
■ In the cooling operation, when the air conditioner is
operatedwith AIR FLOW blowing down ,(4) or A(5) for
1 hour, the AIR FLOW direction is automatically set to
level to prevent condensed water from dropping.
■ Adjust the vertical AIR FLOW direction using the
remote controller. If the horizontal vane are moved
manually, it may cause trouble.

AUTO AIR FLOW DIRECTION CONTROL OPERATION
VANE
♦ When the AUTO mode is selected with the O button, the position of the horizontal vane
are automatically set to correspond to the operation mode to perform effective operation.
(1) COOL, DRY
(2) FAN
The air flow blows level. The air flow blows down
To change the horizontal direction of the AIR FLOW
move the vertical vanes manually.
Adjust the vanes before starting operation starts.
Since the horizontal vane move automatically, your fingers may be caughl
14

.,~~:_\::jtl SWING OPERATION
'· G:
,:
15
For AIR FLOW to reach all
corners of the room or to
strike a point directly, use
the swing operation.
I FEEL...
ON/OFF<D TTOO CD' .. TOO
OD 0
r
MODE)
FAN
VANE
C)
C)
SWING
C)
e)START
C)
e:>STOP
C)
HR. o MIN.
C)CLOCKC)
'_j
..__ RESET -- •
J...MITSUBISH aECTRIC
~-~
Perform the following operations while the unit is running.
.,
Press the sQ button.
• To release the SWING operation mode;
Press the sQ button again.
VANE
■ If the O button Is pressed during swing operation, swing
operation is released.

TIMER OPERATION (ON/OFF TIMER)
It is convenient to set the timer for the
time when you go to bed, when you get
home, when you get up, etc.
I FEEL. ..
AUTO
PM
,n-nn
fU•UU
©STOP
ON/OFF<D -.TOO(D' A TOO
OD 0
co
MODE)
FAN
VANE
C)
C)
SWING
C)
©START
C)
©STOP
C)
HR. o MIN.
C)CLOCKC)
:_j
..__ RESET __..,,,
J..MITSUBISHI ELECTRIC
( How to setthe ON timer )
a
B
©START
Press the o button to set the ON
timer mode during operation.
,z
'0'
·. -~·
·~
.ct
Each time the button is pressed, the ON timer mode i a:
alternates between ON and OFF. • W
Set the time of the timer using the O . ~
andQbuttons. • C,
Each time the o button is pressed, the set time is ·. z
counted up by 1 hour; each time the O button is i S:
pressed, the set time is counted up by 10 minutes. ; >
• To release the ON timer: ; en
Press the e>OT button to release the ,
timer.
·-
(_H_o_w_t_o_s_e_t_th_e_O_F_F_t_i_m_e_r _____ ) ;~
D Press the e:>c3'.
button to release ·the
timer mode during operation.
•i=
LL
.LL
0
z
Each time the button is pressed, the OFF timer mode , 9,
alternates between ON and OFF. .z:
Set the time of the timer using the
O
:~
and Q buttons. . ~
Each time theobutton is pressed, the set time is . ~
counted up by 1 hour; each time the O button is :o
pressed, the set time is counted up by 10 minutes. •a:
• To release the OFF timer: · ~
e:>STOP . •-
PreSS the o button to release the • I--
timer.
IProgramming timer operation I
The ON timerand OFF timer can be used in combination.The timer
of the set timewhich is reached first will operate first. ("!:;" mark
indicatesthe order of timer operations.)
■ Ifthecurrenttimehas not beenset, the timeroperation
cannot be done.
16

~~
WHEN THE AIR CONDITIONER IS NOT
GOING TO BE USED FOR A LONG TIME
11~ tJ,J
-----\ ,/---------------------------
When it is not going to be used
for a longtime:
a Perform
FAN operation for 3 or
4 hours to dry the inside of the
air conditioner.
II Turn off the breaker.
17
LhCAUTION----------.
Turn off the breaker when the air con-
ditioner is not going to be used for a
long time.
EJ
Remove the batteries from the
remote controller.
Whenthe air conditioner is to
be used again:
II
B
B
Clean the air filter and install it
in the indoor unit.
(Refer to page 19 for cleaning it.)
Clean it before
installing.
Checkthattheairinletandoutlet
of the indoor/outdoor unit are
not blocked.
~ Q :~:.:;;, l===:::::,....l.JI
dJ "'"'·"'"
Check that the ground wire is
connected correctly.
LhCAUTION----------.
Apply grounding.
Do not connect a grounding wire to a gas pipe, water
pipe, lightning rod or ground wire of a telephone. If a
grounding is incorrect, it may cause an electric shock.

~ MAINTENANCE
r, !l
. -7..
·Before ·-~tarting maintenance
■ Turn off the breaker.
0
ihCAUTION---------,
When the unit is to be cleaned, switch
off and turn off the breaker.
Since the fan rotates at high speed during operation,
it may cause an injury.
Cleanin({the indoor unit
Clean using soft dry cloth.
-~---~~~---....
' :•,•· -
=
=
- -'j - '!1- +
Do not use gasoline, benzine, polishing powder and
detergent. And do not spray with insecticide. The
unit may be damaged.
·Y.
..
•
~ ~
z~
'.•••1 .
....
-~J
·Z
.~~
18

Jr1 CLEANING THE AIR FILTER/
/~=~~· I DEODORIZING FILTER
---{ -➔ )1 ----------------------------------
F"f
When the front panel is to beopened, do not open it up to the level position. H you do,the front panel may come off.
Cleaning the air filter
(about once every2 weeks) •
II Remove the air filter.
Remove It.
Open. front panel,
removing/replacing
the filter
&CAUTION-~..a.-_------.
When the air filter is to be removed, do not
touch the metal parts of the indoor unit.
It may cause an injury.
B Clean
dirt from the air filter using a
vacuum cleaner or by washing with
water.
El
■ If dirt is conspicuous, wash with a solution
of detergent in lukewarm water.
■ If hot water (120"F or more) is used, it maybe
deformed.
After washing with water, dry well in
the shade.
■ Do not expose the air filter to direct sunlight
or heat from a fire when drying it.
II Install the air filter.
19
Cleaning thedeodorizing filter
(about once every2 weeks) (OPTION)
II
B
El
II
Remove the air filter and then remove
the deodorizing filter (gray sponge
type).
■ The deodorizing is harmless to humans.
However, to keep its effect, be sure to hold
the frame and do not touch the surface of
the filter with your hand.
Deodorizing filter
Soak the filter together with frame in
lukewarmwater for about 15minutes.
■ If dirt is conspicuous, use a solution of
detergent in lukewarm water.
■ Do not use a scrubbing brush or sponge.
It may damage the surface of the filter.
■ Do not use a chlorine detergent.
After washing with water/lukewarm
water, dry completely in the shade.
Install the deodorizing filter (gray
sponge type) and then install the air
filter.
Install H.
