TECHNICAL & SERVICE MANUAL
CONTENTS
1. TECHNICAL CHANGES.........................2
2. SAFETY PRECAUTION..........................3
3. PART NAMES AND FUNCTIONS..........5
4. SPECIFICATION...................................12

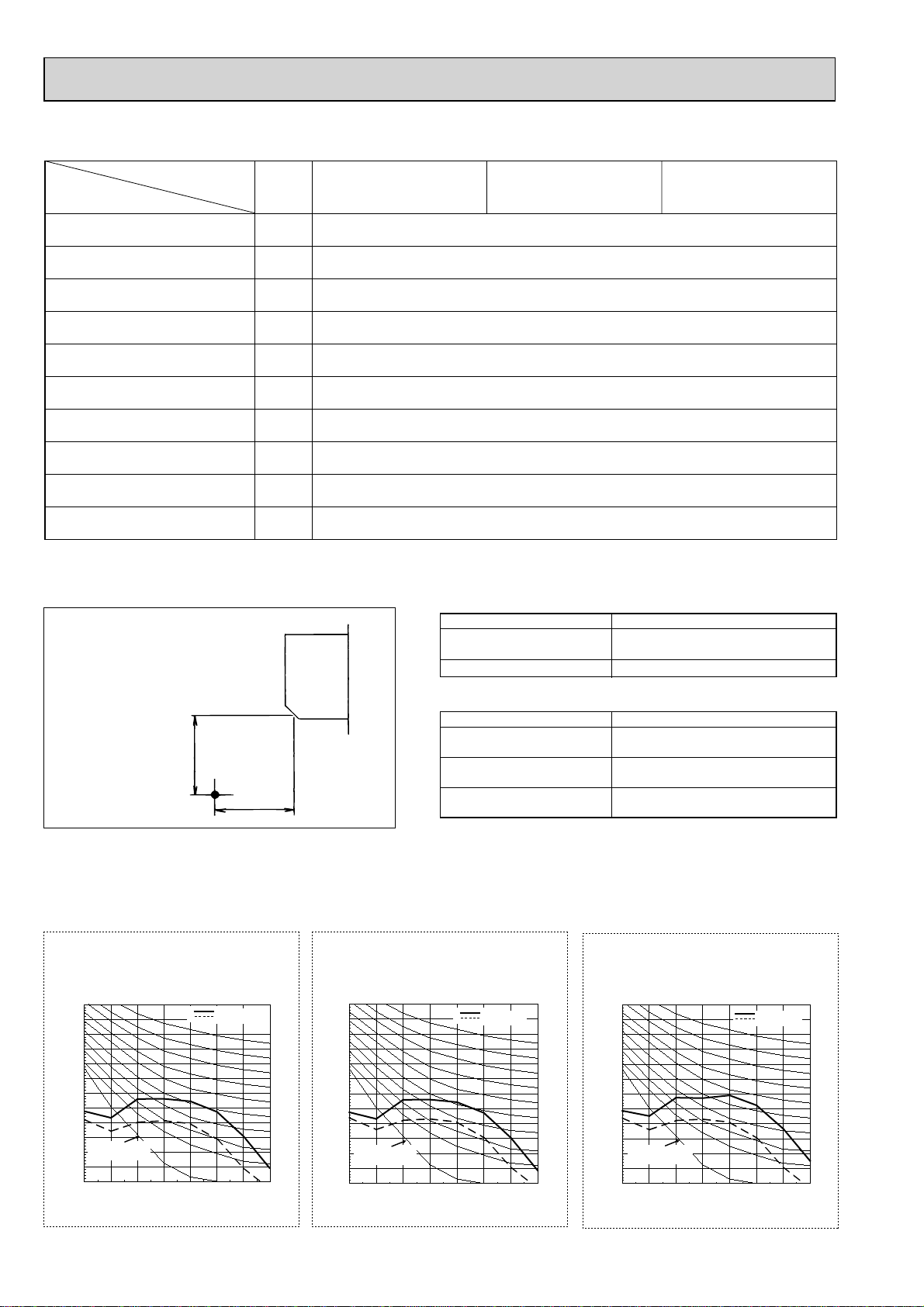

5. OUTLINES AND DIMENSIONS............15

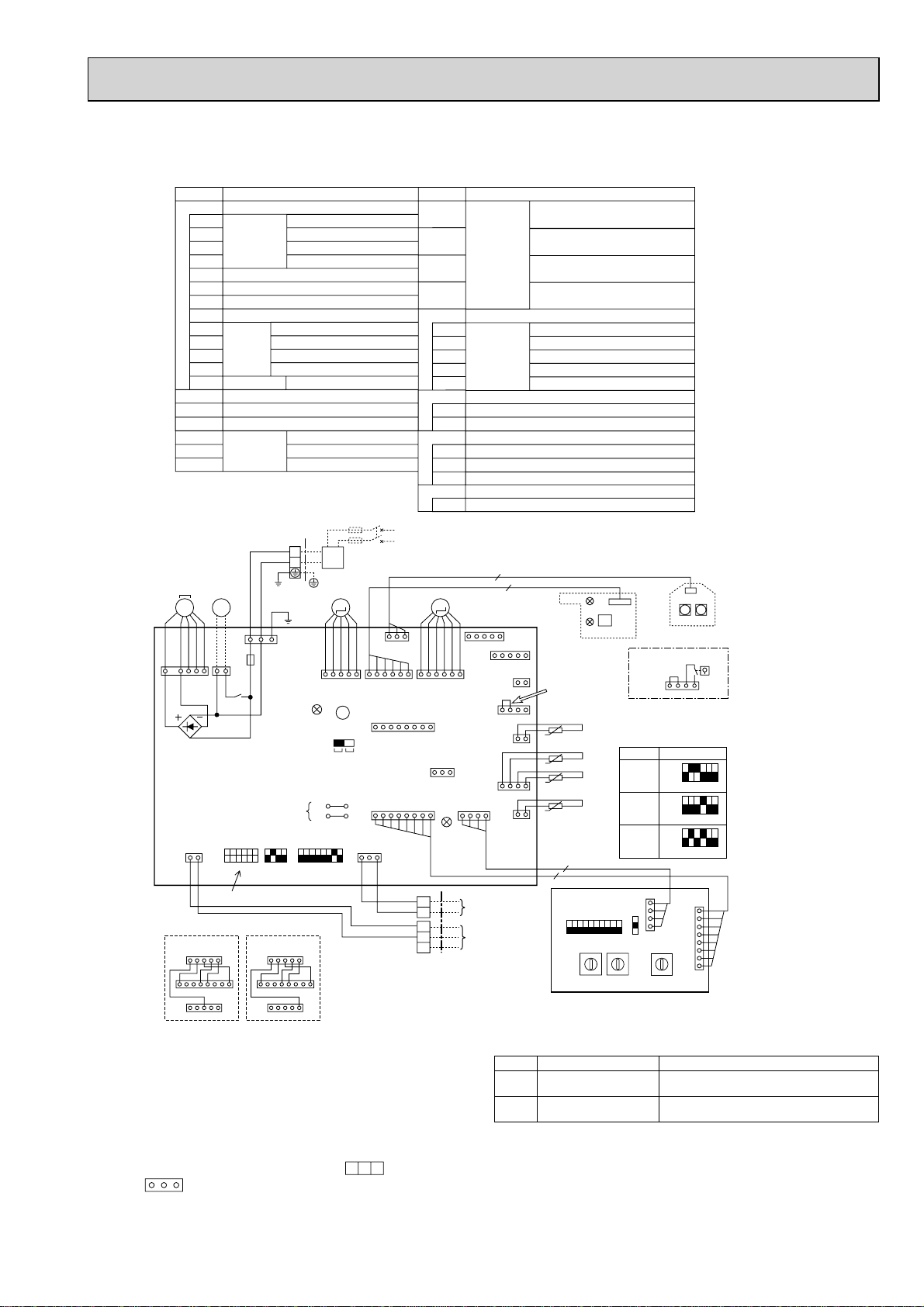

6. WIRING DIAGRAM...............................16
7. REFRIGERANT SYSTEM DIAGRAM........18
8. TROUBLESHOOTING..........................18
9. DISASSEMBLY PROCEDURE.............26
Indoor unit
[Model names] [Service Ref.]
No. OCH442
REVISED EDITION-B
INDOOR UNIT
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
R410A
Note:
•This manual describes
only service data of the
indoor units.
•RoHS compliant products
have <G> mark on the
spec name plate.
December 2012
PARTS CATALOG (OCB442)
Revision:
•PKFY-P32/40/50VHM-ER2
have been added in
REVISED EDITION-B.
•Some descriptions have
been modified.
•Plase void OCH442
REVISED EDITION-A.
PKFY-P32VHM-E
PKFY-P32VHM-ER1
PKFY-P32VHM-ER2
PKFY-P40VHM-E
PKFY-P40VHM-ER1
PKFY-P40VHM-ER2
PKFY-P50VHM-E
PKFY-P50VHM-ER1
PKFY-P50VHM-ER2
PKFY-P32VHM-E
PKFY-P40VHM-E
PKFY-P50VHM-E

2
1TECHNICAL CHANGES
PKFY-P32VHM-ER1 PKFY-P32VHM-ER2
PKFY-P40VHM-ER1 PKFY-P40VHM-ER2
PKFY-P50VHM-ER1 PKFY-P50VHM-ER2
1. INDOOR CONTROLLER BOARD (I.B.) has been changed. (S/W version up)
PKFY-P32VHM-E PKFY-P32VHM-ER1
PKFY-P40VHM-E PKFY-P40VHM-ER1
PKFY-P50VHM-E PKFY-P50VHM-ER1
1. INDOOR CONTROLLER BOARD (I.B.) has been changed. (S/W version up)
2. Fan speed has been changed. (4 speed →3 speed)
3. Heat exchanger has been changed.
PKFY-P32VHM-E
PKFY-P40VHM-E
PKFY-P50VHM-E
Service parts of room temp. thermistor (TH21) has been changed. (T7W E05 202 →R01 N20 202)
(The position to be attached has been changed. Band/PVC tube have been added.)
OCH442B

3
2SAFETY PRECAUTION
CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
OCH442B

4
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.

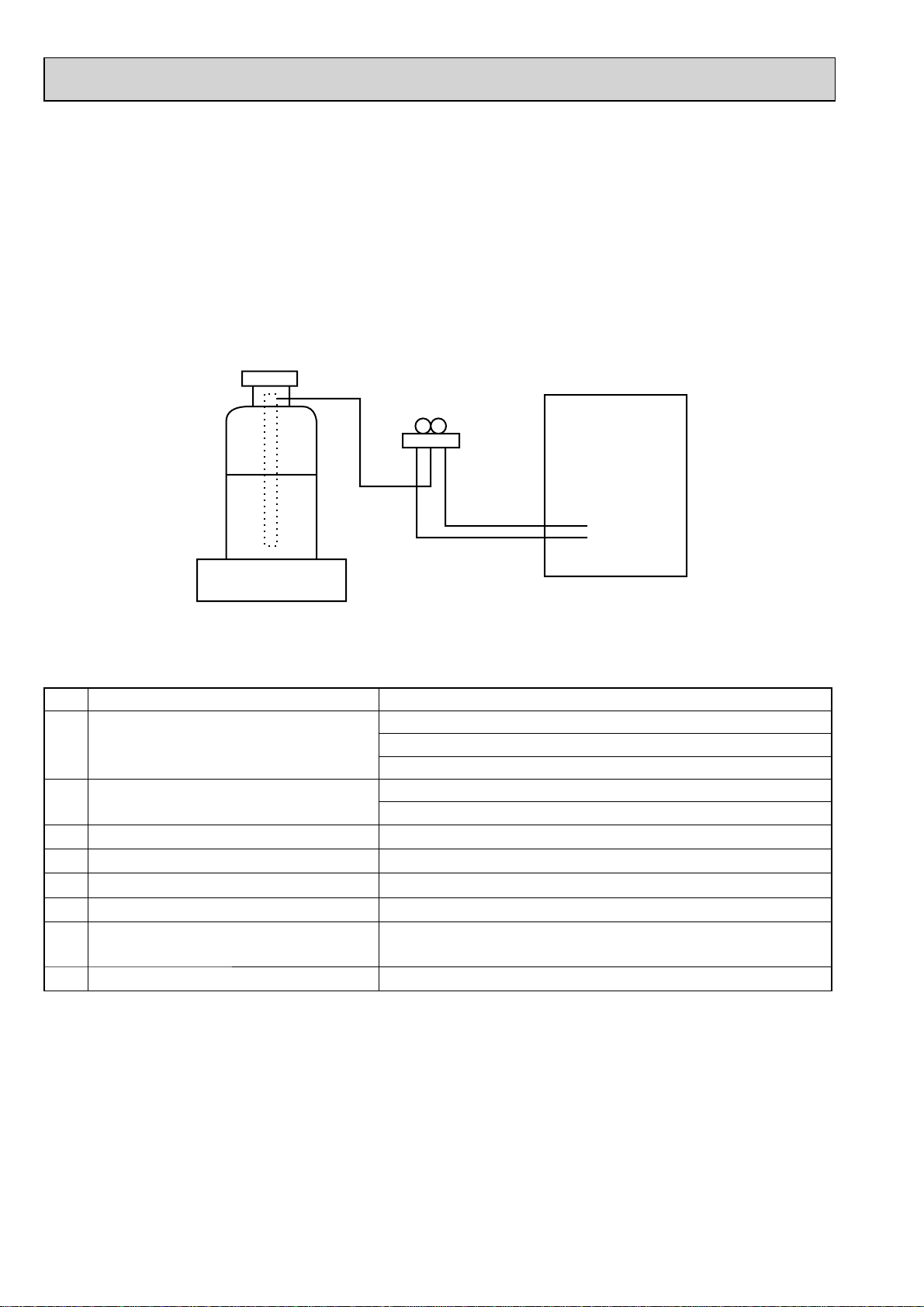

[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3 MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09 MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment —
OCH442B

55
3PART NAMES AND FUNCTIONS

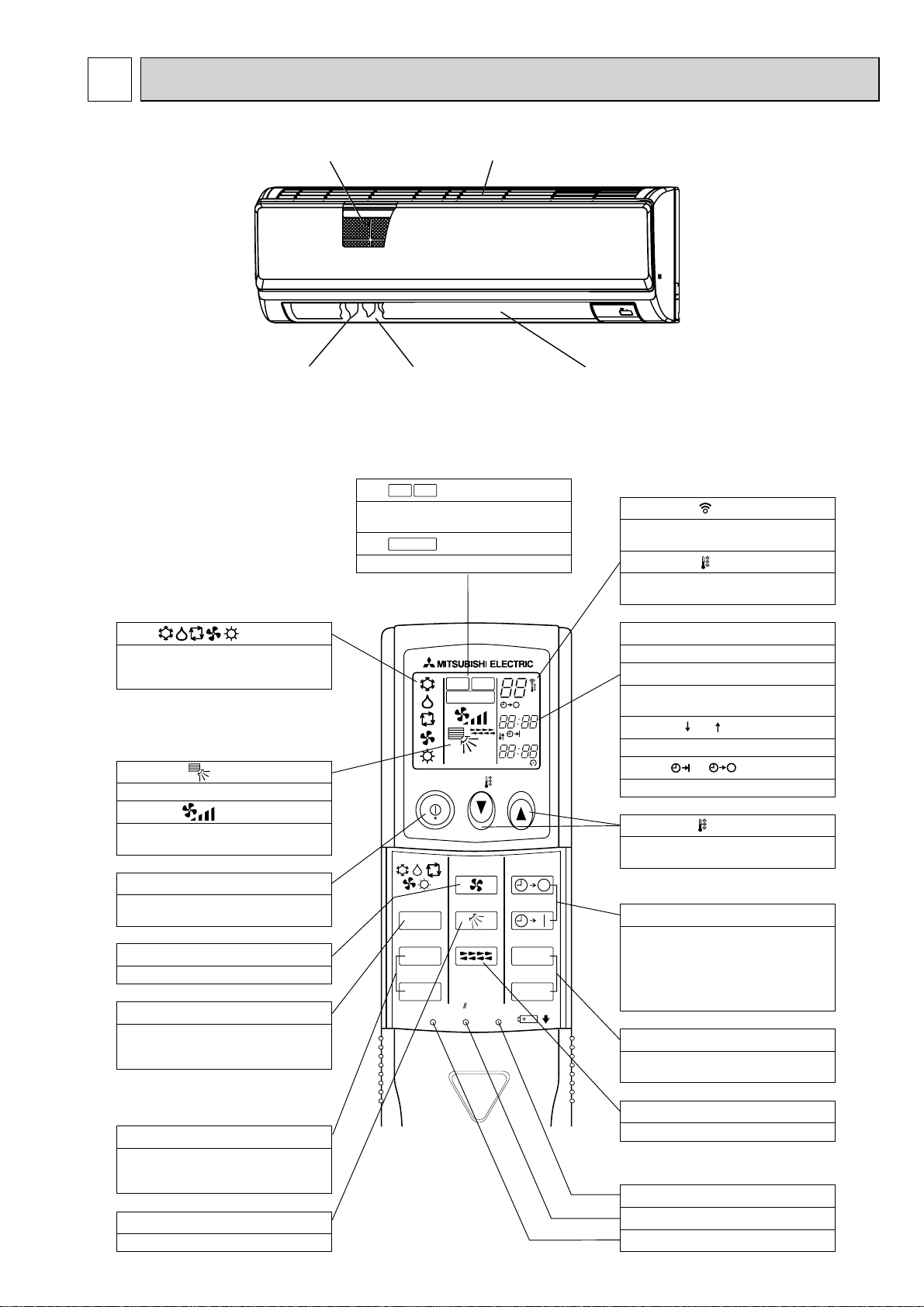

3-1. Indoor unit
Filter Air intake
Louver Air outlet Vane
3-2. Wireless remote controller
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOTAVAILABLE
CHECK TEST RUN
°C
AMPM
AMPM
VANE CONTROL button
Used to change the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
Changes left/right airflow direction.
(Not available for this model.)
MODE SELECT button
Used to switch the operation mode between
cooling, drying, fan, heating and auto mode.
CHECK-TEST RUN buttons
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
buttons
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“ ” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
+In case the outdoor unit is cool only type,
the heating and auto mode are not
available.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
display
CHECK and TEST RUN display indicate that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which
operation mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch is
set, the air conditioner will be automatically
stopped at the preset time.
AUTO START (ON timer): when this switch is
set, the air conditioner will be automatically
started at the preset time.
MODEL SELECT
CHECK TEST RUN
SET TEMP. display indicates the set desired
temperature.
Lights up while the signal is transmitted to
the indoor unit when the button is pressed.
OCH442B

6
Function buttons
F1 F2 F3 F4
Press to turn ON/OFF the indoor unit.
ON / OFF button
When the backlight is off, pressing any button turns
the backlight on and does not perform its function.
(except for the (ON / OFF) button)
The functions of the function buttons change depending on
the screen. Refer to the button function guide that appears
at the bottom of the LCD for the functions they serve on a
given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to save the setting.
SELECT button
Press to return to the previous screen.
RETURN button
Press to bring up the Main menu.
MENU button
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time
depending on the screen.
Backlit LCD
This lamp lights up in green while the unit is in operation.
It blinks while the remote controller is starting up or when
there is an error.
ON / OFF lamp
Main display : Press to change the operation mode.
Main menu : Press to move the cursor down.
Function button F1
Main display : Press to decrease temperature.
Main menu : Press to move the cursor up.
Function button F2
Main display : Press to increase temperature.
Main menu : Press to go to the previous page.
Function button F3
Main display : Press to change the fan speed.
Main menu : Press to go to the next page.
Function button F4
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Main display> <Main menu>
Function guide

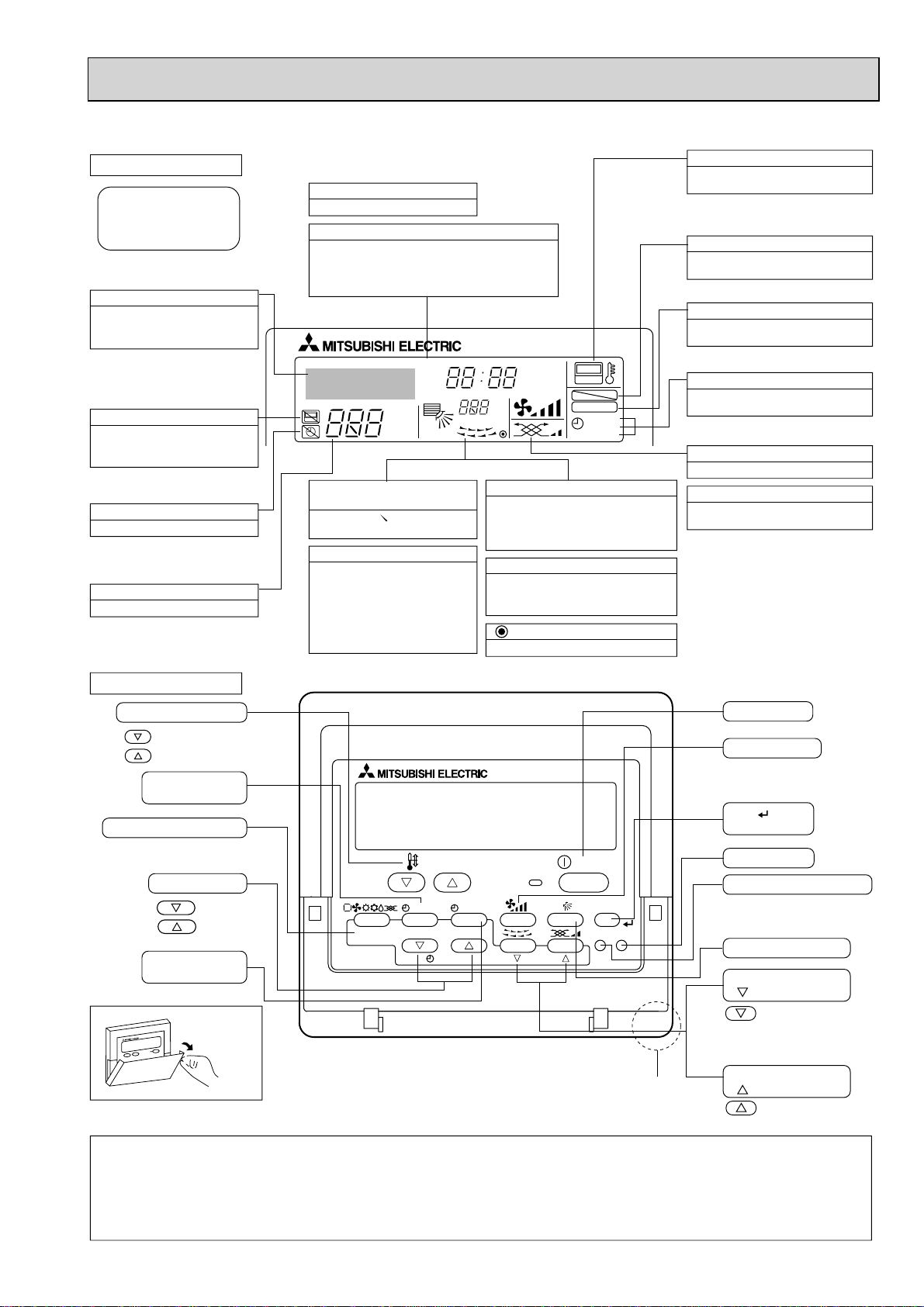

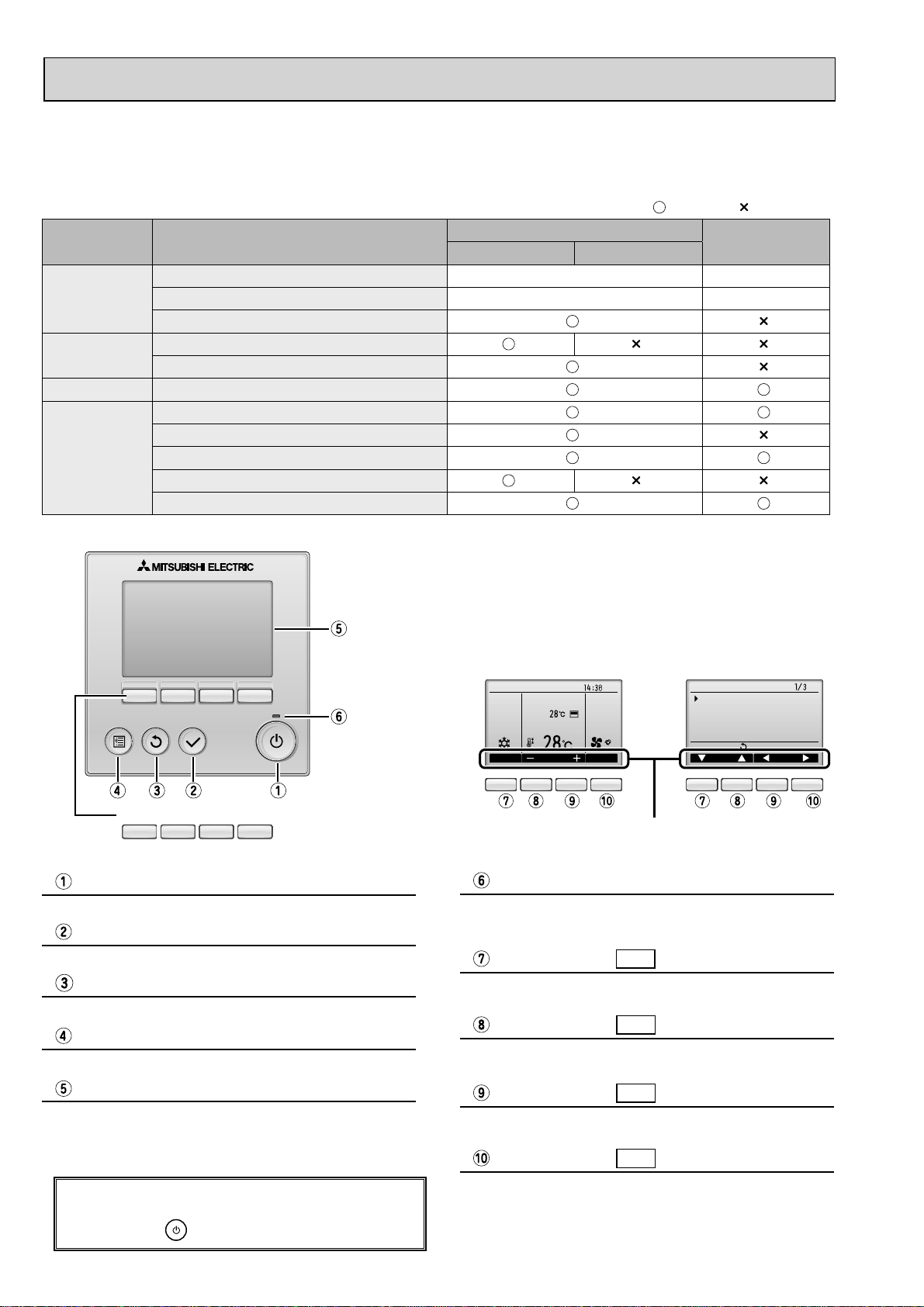

3-3. WIRED REMOTE CONTROLLER <PAR-30MAA/PAR-31MAA>
* The functions which can be used are restricted according to the model. : Supported : Unsupported
Function PAR-30MAA/PAR-31MAA PAR-21MAA
Slim City multi
Body Product size H × W × D (mm) 120 × 120 × 19 120 × 130 × 19
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy-saving Energy-saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function Operation lock function
Weekly timer
On / Off timer
High Power
Manual vane angle
Wired remote controller function
OCH442B

7
Fri
Mode Temp. Fan
Room
Cool Auto
Set temp.
Fri
Cool
Mode Temp. Fan
AutoSet temp.
The main display can be displayed in two different modes: "Full" and "Basic".
T
he factory setting is "Full". To switch to the "Basic" mode, change the setting on the Main display setting.
<Full mode> <Basic mode>
* All icons are displayed for explanation.
Most settings (except ON / OFF, mode, fan speed, temperature) can be made from the Menu screen.
Indoor unit operation mode appears here.
Operation mode
Preset temperature appears here.
Preset temperature
Current time appears here.
Clock (See the Installation Manual.)
Fan speed
Fan speed setting appears here.
Functions of the corresponding buttons appear here.
Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the filter reset function is centrally controlled.
Indicates when filter needs maintenance.
Current room temperature appears here.
Room temperature
(See the Installation Manual.)
Appears when the buttons are locked.
Appears when the On/Off timer or Night setback function is
enabled.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy-save
mode.
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature.
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Indicates the vane setting.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
OCH442B

8
Not all functions are available on all models of indoor units.
Filter information
Error information
Energy saving
Auto return
Schedule
Night setback
Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Vane · Louver · Vent. (Lossnay)
High power
Weekly timer
Restriction
Maintenance
Initial setting
On / Off timer
Auto-Off timer
Temp. range
Operation lock
Manual vane angle
Main / Sub
Timer
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Service
Service menu
Input maintenance info.
Function setting
Lossnay (City Multi only)
Check
Self check
Maintenance password
Remote controller check
Test run
Clock
Drain pump test run
Auto descending panel
Menu structure
OCH442B

9
Setting and display items Setting details
Vane · Louver · Vent.
(Lossnay) Use to set the vane angle. • Select a desired vane setting from five different settings.
Use to turn ON / OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Timer On/Off timer Use to set the operation On/Off times.
• Time can be set in 5-minute increments.
* Clock setting is required.
Auto-Off
timer Use to set the Auto-Off time. • Time can be set to a value from 30 to 240 in 10-minute increments.
Filter information Use to check the filter status.
• The filter sign can be reset.
Error information Use to check error information when an error occurs.
• Error code, error source, refrigerant address, unit model, manufacturing number, contact
information (dealer's phone number) can be displayed.
* The unit model, manufacturing number, and contact information need to be registered in
advance to be displayed.
Weekly timer Use to set the weekly operation On / Off times.
• Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
Energy
saving Auto return Use to get the units to operate at the preset temperature after performing energy-save operation for a specified time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
* This function will not be valid when the preset temperature ranges are restricted.
Schedule Set the start/stop times to operate the units in the energy-save mode for each day of the
week, and set the energy-saving rate.
• Up to four energy-save operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy-saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
* Clock setting is required.
Night setback Use to make Night setback settings.
• Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and
the start/stop times can be set.
* Clock setting is required.
Restriction Temp. range Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation
lock Use to lock selected functions. • The locked functions cannot be operated.
Maintenance Auto
descending
panel
Auto descending panel (Optional parts) Up / Down you can do.
Manual
vane angle Use to set the vane angle for each vane to a fixed position.
Initial setting Main/Sub When connecting two remote controllers, one of them needs to be designated as a sub
controller.
Clock Use to set the current time.
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The default setting is "Full."
Contrast Use to adjust screen contrast.
Main menu list
OCH442B

10
Setting and display items Setting details
Initial setting Display
details Make the settings for the remote controller related items as necessary. Clock: The factory settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set the Auto mode display or Only Auto display.
Auto mode Whether or not to use the AUTO mode can be selected by using the button.
This setting is valid only when indoor units with the AUTO mode function are connected.
Administrator
password
The administrator password is required to make the settings for the following items.
• Timer setting • Energy-save setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Language
selection Use to select the desired language.
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input
maintenance Select "Input maintenance Info." from the Service menu to bring up the Maintenance information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input
Function
setting Make the settings for the indoor unit functions via the remote controller as necessary.
LOSSNAY
setting
(City Multi only)
This setting is required only when the operation of City Multi units is interlocked with
LOSSNAY units.
Check Error history: Display the error history and execute delete error history.
Refrigerant leak check: Refrigerant leaks can be judged.
Smooth maintenance: The indoor and outdoor maintenance data can be displayed.
Request cord: Details of the operation data including each thermistor temperature and error
history can be checked.
Self check Error history of each unit can be checked via the remote controller.
Maintenance
password Take the following steps to change the maintenance password.
Remote
controller
check
When the remote controller does not work properly, use the remote controller checking
function to troublushoot the problem.
OCH442B

11
°F°C
°F°C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
●
●
Display Section
For purposes of this explanation,
all parts of the display are shown.
During actual operation, only the
relevant items will be lit.
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is available.
“Centrally Controlled” indicator
Indicates that operation from the
remote controller has been prohib-
ited by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, the time to be
switched off is shown.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
To be displayed on when it is time to
clean the filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Room Temperature display
Shows the room temperature. The room
temperature display range is 8 - 39.
The display blinks if the temperature
is less than 8or 39or more.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is not
running.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Operation Section
Temperature setting buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
cover
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
To return operation
number
Ventilation button
( Operation button)
To go to next operation
number
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
“NOTAVAILABLE” message
This message is displayed if an invalid button is pressed (to operate a function that the indoor unit does not have).
If a single remote controller is used to operate multiple indoor units simultaneously that are different types, this message will not be displayed as
far as any of the indoor units is equipped with the function.
Built-in temperature sensor
Displayed if the airflow is set to
Low or downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off in one hour,
at which time the airflow direction
also changes.
3-4. WIRED REMOTE CONTROLLER <PAR-21MAA>
OCH442B

12
4.5
3,900
15,400
4,000
0.03
0.30
5.0
4,300
17,100
0.03
0.30
*1 Nominal cooling conditions
Note : Indoor :
Outdoor :
Pipe length :
Level difference :
27°CDB/19°CWB (81°FDB/66°FWB)
35°CDB (95°FDB)
7.5 m (24-9/16 ft)
0m (0 ft)
*2 Nominal cooling conditions
27°CDB/19.5°CWB (81°FDB/67°FWB)
35°CDB (95°FDB)
5m (16-3/8 ft)
0m (0 ft)
*3 Nominal heating conditions Unit converter
20°CDB (68°FDB)
7°CDB/6°CWB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
* Due to continuing improvement, above specification may be subject to change without notice.
* Nominal conditions *1, *3 are subject to JIS B8615-1.
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m
3
/min × 35.31
lb = kg/0.4536
*Above specification data is
subject to rounding variation.
Service Ref.
Power source
Cooling capacity
(Nominal)
Heating capacity
(Nominal )
External finish
External dimension H × W × D
Net weight
Heat exchanger
Fan
Noise level (Low-Mid2-Mid1-High)
(measured in anechoic room)
Insulation material
Air filter
Protection device
Refrigerant control device
Connectable outdoor unit
Diameter of
refrigerant pipe
Field drain pipe size
Standard
attachment
Remarks
Power input
Current input
Power input
Current input
Type × Quantity
External
static press.
Motor type
Motor output
Driving mechanism
Airflow rate
(Low-Mid2-Mid1-High)
Liquid
Gas
Document
Accessory
Optional parts
Installation
kW
kcal/h
Btu/h
kcal/h
kW
A
kW
kcal/h
Btu/h
kW
A
mm
in.
kg (lb)
Pa
mmH2O
kW
m3/min
L/s
cfm
dB <A>
mm (in.)
mm (in.)
mm (in.)
*1
*1
*1
*2
*3
*3
*3
(R410A)
(R410A)
Installation Manual, Instruction Book
—
1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Cross fin (Aluminum fin and copper tube)
DC motor
Direct-drive
Polyethylene sheet
PP honeycomb
Fuse
LEV
R410A CITY MULTI
PKFY-P32VHM-E
Plastic, MUNSELL (1.0Y 9.2/0.2)
3.6
3,100
12,300
3,150
0.03
0.30
4.0
3,400
13,600
0.03
0.30
295 × 898 × 249
11-5/8" × 35-3/8" × 9-13/16"
13 (29)
Line flow fan × 1
0
0
0.030
PKFY-P40VHM-E
9 - 10 - 11 - 12
150 - 167 - 183 - 200
318 - 353 - 388 - 424
34 - 37 - 40 - 43
I.D. 16mm (5/8")
ø6.35 (ø1/4")
ø12.7 (ø1/2") Flare Flare ø6.35 (ø1/4") ø12.7 (ø1/2") Flare Flare
PKFY-P50VHM-E
5.6
4,800
19,100
5,000
0.03
0.30
6.3
5,400
21,500
0.03
0.30
8 - 9.5 - 10.5 - 11.5
133 - 158 - 175 - 192
283 - 335 - 371 - 406
33 - 36 - 38 - 41
ø6.35 (ø1/4")
ø12.7 (ø1/2") Flare Flare
—
—Flare nut 3/8F, 5/8F
Details on foundation work, insulation work, electrical wiring, power source switch, and other items shall be referred to the
Installation Manual.
4SPECIFICATION
4-1. Specifications
OCH442B

1313
4.5
3,900
15,400
4,000
0.04
0.40
5.0
4,300
17,100
0.03
0.30
*1 Nominal cooling conditions
Note : Indoor :
Outdoor :
Pipe length :
Level difference :
27°CDB/19°CWB (81°FDB/66°FWB)
35°CDB (95°FDB)
7.5 m (24-9/16 ft)
0m (0 ft)
*2 Nominal cooling conditions
27°CDB/19.5°CWB (81°FDB/67°FWB)
35°CDB (95°FDB)
5m (16-3/8 ft)
0m (0 ft)
*3 Nominal heating conditions Unit converter
20°CDB (68°FDB)
7°CDB/6°CWB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
* Due to continuing improvement, above specification may be subject to change without notice.
* Nominal conditions *1, *3 are subject to JIS B8615-1.
kcal/h = kW × 860
Btu/h = kW × 3,412
cfm = m3/min × 35.31
lb = kg/0.4536
*Above specification data is
subject to rounding variation.
Service Ref.
Power source
Cooling capacity
(Nominal)
Heating capacity
(Nominal )
External finish
External dimension H × W × D
Net weight
Heat exchanger
Fan
Noise level (Low-Mid-High)
(measured in anechoic room)
Insulation material
Air filter
Protection device
Refrigerant control device
Connectable outdoor unit
Diameter of
refrigerant pipe
Field drain pipe size
Standard
attachment
Remarks
Power input
Current input
Power input
Current input
Type × Quantity
External
static press.
Motor type
Motor output
Driving mechanism
Airflow rate
(Low-Mid-High)
Liquid
Gas
Document
Accessory
Optional parts
Installation
kW
kcal/h
Btu/h
kcal/h
kW
A
kW
kcal/h
Btu/h
kW
A
mm
in.
kg (lb)
Pa
mmH2O
kW
m3/min
L/s
cfm
dB <A>
mm (in.)
mm (in.)
mm (in.)
*1
*1
*1
*2
*3
*3
*3
(R410A)
(R410A)
Installation Manual, Instruction Book
1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Cross fin (Aluminum fin and copper tube)
DC motor
Direct-drive
Polyethylene sheet
PP honeycomb
Fuse
LEV
R410A CITY MULTI
PKFY-P32VHM-ER1
PKFY-P32VHM-ER2
Plastic, MUNSELL (1.0Y 9.2/0.2)
3.6
3,100
12,300
3,150
0.04
0.40
4.0
3,400
13,600
0.03
0.30
295 × 898 × 249
11-5/8" × 35-3/8" × 9-13/16"
13 (29)
Line flow fan × 1
0
0
0.030
PKFY-P40VHM-ER1
PKFY-P40VHM-ER2
9 - 10.5 - 12
150 - 175 - 200
318 - 371 - 424
34 - 39 - 43
I.D. 16mm (5/8")
ø6.35 (ø1/4")
ø12.7 (ø1/2") Flare Flare ø6.35 (ø1/4") ø12.7 (ø1/2") Flare Flare
PKFY-P50VHM-ER1
PKFY-P50VHM-ER2
5.6
4,800
19,100
5,000
0.04
0.40
6.3
5,400
21,500
0.03
0.30
9 - 10 - 11
150 - 167 - 183
318 - 353 - 388
34 - 37 - 41
ø6.35 (ø1/4")
ø12.7 (ø1/2") Flare Flare
—
Drain pump kit PAC-SH75DM-E
Details on foundation work, insulation work, electrical wiring, power source switch, and other items shall be referred to the
Installation Manual.
*4
*4
9 - 10.5 - 11.5
150 - 175 - 192
318 - 371 - 406
34 - 38 - 41
*4 Electrical characteristics of cooling are included optional drain-pump. *5 Connect the joint (purchased locally)
for R407C/R22.
OCH442B

14
Parts name
Service Ref. Symbol
TH21
TH22
TH23
TH24
FUSE
MF
MV
LEV
TB2
TB5
TB15
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
250V 3.15A
8-Pole Output 30W / RCOJ30-CK
MSFBC20 DC12V
(L, N, ) 250V 20A
(M1, M2, S) 250V 20A
(1, 2) 250V 10A
Room temperature thermistor
Liquid pipe thermistor
Gas pipe thermistor
Fuse
(Indoor controller board)
Fan motor
Vane motor (with limit switch)
Linear expansion valve
Power supply terminal block
Transmission terminal block
MA remote controller terminal block
PKFY-P32VHM-E
PKFY-P32VHM-ER1
PKFY-P32VHM-ER2
PKFY-P40VHM-E
PKFY-P40VHM-ER1
PKFY-P40VHM-ER2
DC12V Stepping motor drive
Port :3.2 (0~2000pulse)
PKFY-P50VHM-E
PKFY-P50VHM-ER1
PKFY-P50VHM-ER2
PKFY-P32, 40VHM-E
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PKFY-P32, 40VHM-ER1
PKFY-P32, 40VHM-ER2
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
* Measured in anechoic room.
PKFY-P32VHM-E
PKFY-P40VHM-E
PKFY-P50VHM-E
33-36-38-41
34-37-40-43
Sound level dB (A)
Sound level at anechoic room : Low-(Middle2-Middle1)-High
OCTAVE BAND PRESSURE LEVEL (dB) 0dB = 20MPa
1.0m
1.0m
Measurement location
OCTAVE BAND PRESSURE LEVEL (dB) 0dB = 20MPa
PKFY-P32VHM-ER1
PKFY-P32VHM-ER2
PKFY-P40VHM-ER1
PKFY-P40VHM-ER2
PKFY-P50VHM-ER1
PKFY-P50VHM-ER2
34-37-41
34-39-43
Sound level dB (A)
Sound level at anechoic room : Low-Middle-High
Service Ref.
Service Ref.
34-38-41
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
High speed
Low speed
NC60
NC50
NC40
NC30
NC20
OCTAVE BAND CENTER FREQUENCIES(Hz) OCTAVE BAND CENTER FREQUENCIES(Hz)
High speed
Low speed
PKFY-P50VHM-E PKFY-P50VHM-ER1
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
OCTAVE BAND PRESSURE LEVEL (dB) 0dB = 20MPa
OCTAVE BAND CENTER FREQUENCIES(Hz)
Approximate minimum
audible limit on
continuous noise
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC60
NC50
NC40
NC30
NC20
High speed
Low speed
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC60
NC50
NC40
NC30
NC20
PKFY-P50VHM-ER2
4-2. Electrical parts specifications
4-3. Sound levels
4-4. NC curves
OCH442B

1515
OUTLINES AND DIMENSIONS
5
Min.7
250mm or greater with optional
drain pump installation.
Required space (Indoor unit)
Min.50
Min.220 Min.150
550mm or greater with optional drain pump installation.
Min.250 Min.50
55mm or greater with left or rear left pipng or drain pump installation.
197
387 192
599
Top side
Front side
155
688
898
55
295
Front side (Grille open)
169
158
184
457 Gas pipe 
539 Liquid pipe 
Terminal block for power supply
Terminal block for transmission
Terminal block for MA-remote controller
Emergency operation switch (cooling/heating)
Under side
Vane (auto)
Effective length = 400
Operation lamp
612
DEFROST/STAND BY lamp
Receiver
Knockout hole for lower piping
Louver (manual)
Knockout hole for lower piping C
8
B
Size
Refrigerant pipe : :6.35 Flared connection : 1/4F Refrigerant pipe : :12.7 Flared connection : 1/2F
:16 O.D.

Liquid pipe

Gas pipe

Drain hose
Knockout hole for right piping
Right side
Mount board
21.8 0 20 32.7 53.5
66
128.5
153.5 231.5
273.2
449
281
193.5
180.3
278.3
167
140
115
0
174
213
238
394
449
253.5
232.5 203.5 178.5
166
103.5
91
78.5
116
41
28.516
0
372.3
356.3
327.5
291.5
265
225
200
125
70
15
0
15
70
125
200
225
265
238
291.5
327.5
372.3
356.3
Indoor unit outline
Mount board
4-:9 Bolt hole
77-:5.1 Tapping screw hole
0
58
3.8
Center measurement hole :2.5
AB
43
656
46
60
46
43
59
C
56
12.5
43
D
43
656
69
Knockout hole for piping
Knockout hole for left piping
Left side
Sleeve (purchased locally)
:65~:80 :65~:80
Through hole
249
A 5
P50VHM-E
P50VHM-ER1
:6.35 / :9.52 1/4F / 3/8F
:12.7 / :15.88 1/2F / 5/8F
P40
P32
PKFY-P32VHM-E
PKFY-P40VHM-E
PKFY-P50VHM-E
PKFY-P32VHM-ER1
PKFY-P40VHM-ER1
PKFY-P50VHM-ER1
PKFY-P32VHM-ER2
PKFY-P40VHM-ER2
PKFY-P50VHM-ER2
Unit : mm
OCH442B

16

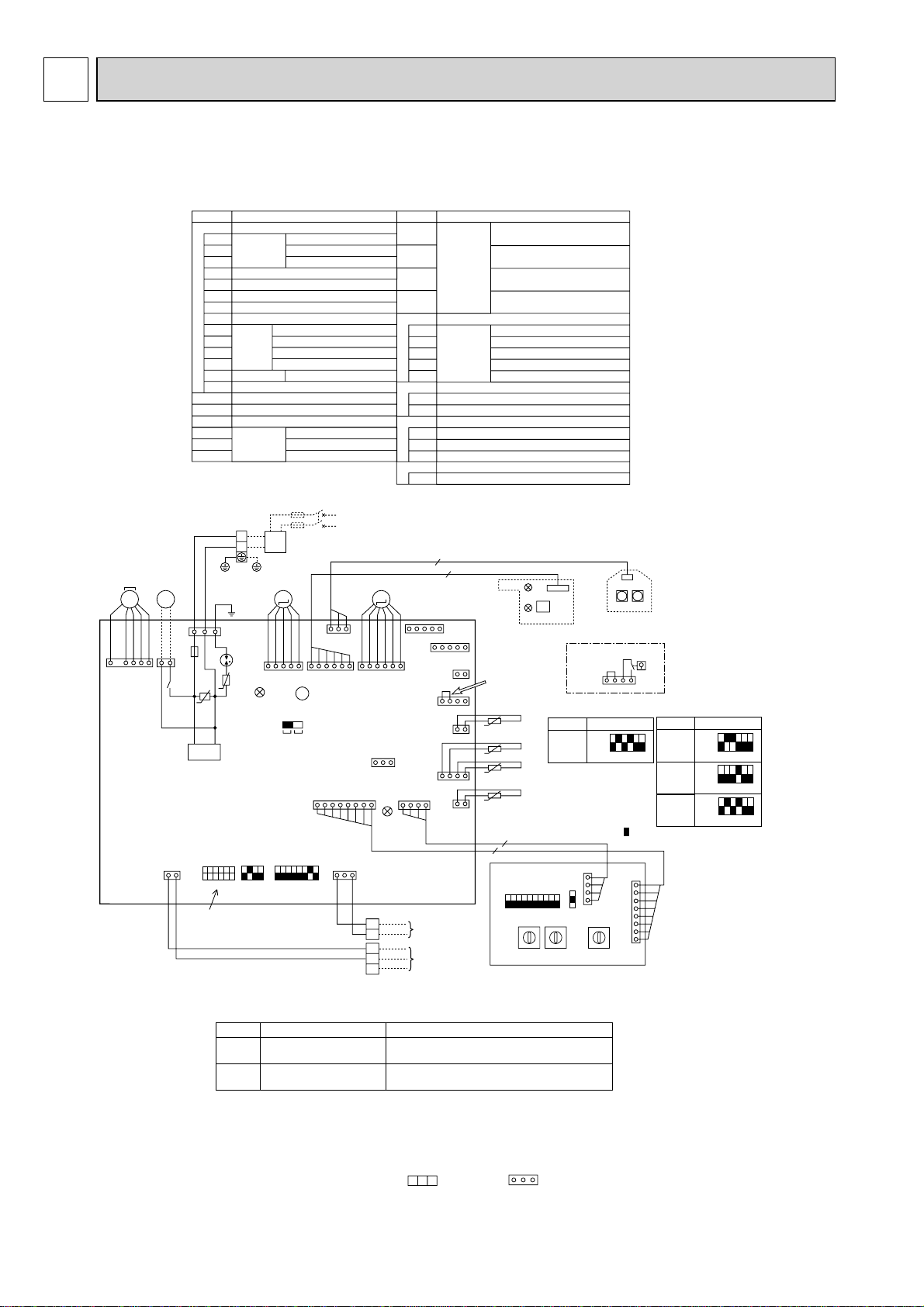

WIRING DIAGRAM6
<fig.  1> PKFY-P·VHM-E
Models SW2
P32
P40
P50 123456
ON
OFF
FAN
CNMF
(WHT)
163
MS
3
~
M
1
~
M
VANE
CN151
(WHT)
51 LEV
CN60
(YLW)
6
6
1
CNRU
(WHT)
LDSWE ( A )
(
BLU )
61
3
3
151
51
41
41
21
21
31
41
81
13
51
13
12
12345678
SW3
123456
SW2
ON
OFF
ON
OFF
1234
SW4
21
11 2
2
3
3
45678910
SW1
SWA
L
N
LED1
X1
LED2
M
DC311 ~ 339V
RECTIFICATION
FUSE
CNP
( BLU )
CND
(BLK)
RED BLU YLW
MOV1
BLK WHT
MF DP MV LEV
DSA
MOV2
SWE
OFF
BZ
ON
BLU
TB2
RED
RED
BLU
BLU
YLW
WHT
ORN ORN
ORN
ORN
YLW
BLU
BRN
BRN
RED
GRN/YLW
RED
BLU
BLK
U
U
I.B S.B
W.B
A.B
PULL
BOX
FUSE
( 16A )
BREAKER
( 16A )
TO NEXT
INDDOR
UNIT
POWER SUPPLY
~/N220-240V 50Hz
220V 60Hz
GRN
CN52
(GRN)
LD SWE(B)
LD101(B) SWE1
LED1
TH24
TH23
TH22
TH21
LED2 SWE2
CN51
(WHT)
CN24
(YLW)
FLOAT SW
CN4F
(WHT)
FLOAT SW
CN4F
(WHT)
LIQUID/GAS1
CN44
(WHT)
INTAKE
CN20
(RED)
ADDRESS
CN81
(RED)
ADDRESS
CN42
(RED)
GAS2
CN2G
(BLK)
ADDRESS
CN43
(RED)
ADDRESS
CN82
(RED)
MA-REMOCON
CN3A
(BLU)
M-NET
CN2M(BLU)
CN32
(WHT)
RU
4
8
t○
t○
t○
t○
See fig.  1
TB5
(SHIELD)
M1
M2
TB15
1
S
2
TO MA- REMOTE
CONTROLLER
DC8.7-13V
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
SW14SW11SW12
10ths
DIGIT 1s DIGIT BRANCH No.
FS
1
4
When attaching drain
pump(option), remove
the jumper connector
CN4F and fit the drain
float switch (FS).
When attaching drain pump
(option)
SYMBOL NAME
I.B INDOOR CONTROLLER BOARD
BZ
CN32
CN51
CN52
CONNECTOR
BUZZER
DSA SURGE ABSORBER
REMOTE SWITCH
A.B ADDRESS BOARD
S.B SWITCH BOARD
W.B PCB FOR WIRELESS REMOTE CONTROLLER
SW1
SWA
SW11
SW12
MODE SELECTION
FAN SPEED SELECTOR
ADDRESS SETTING 1s DIGIT
SWE1
SWE2 EMERGENCY OPERATION(HEAT) EMERGENCY OPERATION(COOL)
LED(OPERATION INDICATOR: GREEN)
LED(OPERARTION FOR HEATING : ORANGE )
RECEIVING UNIT
ADDRESS SETTING 10ths DIGIT
SW14 BRANCH No.
CENTRALLY CONTROL
REMOTE INDICATION
SWITCH
X1 AUX.RELAY
FUSE FUSE (T3.15AL 250V)
LED1 POWER SUPPLY (I.B)
LED2
LED1
DP DRAIN PUMP (OPTION)
DRAIN FLOAT SWITCH (OPTION)
FS
LED2
RU
POWER SUPPLY (I.B)
SYMBOL NAME
TH21
MF
MV
THERMISTOR ROOM TEMP. DETECTION
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION / LIQUID
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION / GAS1
(0°C/15kΩ, 25°C/5.4kΩ)
LEV LINEAR EXPANSION VALVE
TH22
TH23
PIPE TEMP. DETECTION / GAS2
(0°C/15kΩ, 25°C/5.4kΩ)
TH24
FAN MOTOR
VANE MOTOR
MOV 01.02 VARISTOR DRAIN PUMP (
OPTION )
TB2
TB5
TB15 TRANSMISSION
MA-REMOTE CONTROLLER
TERMINAL
BLOCK POWER SUPPLY
SW2
SW3
SW4
SWE
CAPACITY CODE
MODE SELECTION
MODEL SELECTOR
DRAIN PUMP (TEST MODE)
SWITCH
NOTES:
1. At servicing for outdoor unit,always follow the wiring diagram of outdoor unit.
2. In case of using MA-Remote controller, please connect to TB15.
(Remote controller wire is non-polar.)
3. In case of using M-NET, please connect to TB5. (Transmission line is non-polar.)
4. Symbol [S] of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are, : terminal block, :connecter.
6. The setting of the SW2 dip switches differs in the capacity. For the detail, refer to the fig. 1.
Mark Meaning Function
Power supply for
MA-Remote controller
Main power supply (Indoor unit: 220-240V)
Power on →Iamp is lit
LED on indoor board for service
LED1 Main power supply
Power supply for MA-Remote controller
on →Iamp is lit
LED2
PKFY-P·VHM-ER1
Models SW2
P32
P40
P50
123456
ON
OFF
123456
ON
OFF
123456
ON
OFF
The black square ( ) indicates a switch position.
PKFY-P32VHM-E PKFY-P40VHM-E PKFY-P50VHM-E
PKFY-P32VHM-ER1 PKFY-P40VHM-ER1 PKFY-P50VHM-ER1
OCH442B

1717
PKFY-P32VHM-ER2 PKFY-P40VHM-ER2 PKFY-P50VHM-ER2
Models
P32
SW2
123456
ON
OFF
P40 123456
ON
OFF
P50 123456
ON
OFF
SYMBOL NAME
I.B INDOOR CONTROLLER BOARD
BZ1
CN32
CN51
CN52
CN100
CONNECTOR
BUZZER
REMOTE SWITCH
A.B ADDRESS BOARD
S.B SWITCH BOARD
W.B PCB FOR WIRELESS REMOTE CONTROLLER
SW1
SWA
SW11
SW12
MODE SELECTION
FAN SPEED SELECTOR
ADDRESS SETTING 1s DIGIT
SWE1
SWE2 EMERGENCY OPERATION (HEAT) EMERGENCY OPERATION (COOL)
LED (OPERATION INDICATOR: GREEN)
LED (PREPARATION FOR HEATING: ORANGE)
RECEIVING UNIT
ADDRESS SETTING 10ths DIGIT
SW14 BRANCH No.
CENTRALLY CONTROL
REMOTE INDICATION
IT TERMINAL
SWITCH
X1 AUX.RELAY
FUSE FUSE (T3.15AL 250V)
LED1 POWER SUPPLY (I.B)
LED2
LED1
DP DRAIN PUMP (OPTION)
DRAIN FLOAT SWITCH (OPTION)
FS
LED2
RU
POWER SUPPLY (I.B)
SYMBOL NAME
TH21
MF
MV
THERMISTOR ROOM TEMP. DETECTION
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION / LIQUID
(0°C/15kΩ, 25°C/5.4kΩ)
PIPE TEMP. DETECTION / GAS1
(0°C/15kΩ, 25°C/5.4kΩ)
LEV LINEAR EXPANSION VALVE
TH22
TH23
PIPE TEMP. DETECTION / GAS2
(0°C/15kΩ, 25°C/5.4kΩ)
TH24
FAN MOTOR
VANE MOTOR
DRAIN PUMP (
OPTION )
TB2
TB5
TB15 TRANSMISSION
MA-REMOTE CONTROLLER
TERMINAL
BLOCK POWER SUPPLY
SW2
SW3
SW4
SWE
CAPACITY CODE
MODE SELECTION
MODEL SELECTOR
DRAIN PUMP (TEST MODE)
SWITCH
NOTES:
1. At servicing for outdoor unit,always follow the wiring diagram
of outdoor unit.
2. In case of using MA-Remote controller, please connect to TB15.
(Remote controller wire is non-polar.)
3. In case of using M-NET, please connect to TB5.
(Transmission line is non-polar.)
4. Symbol [S] of TB5 is the shield wire connection.
5. Symbols used in wiring diagram above are, : terminal
block, :connecter.
6. The setting of the SW2 dip switches differs in the capacity.
For the detail, refer to the fig: *1.
Mark Meaning Function
Power supply for
MA-Remote controller
Main power supply (Indoor unit:220-240V)
Power on →Iamp is lit
LED on indoor board for service
LED1 Main power supply
Power supply for MA-Remote controller
on →Iamp is lit
LED2
FAN
CNMF
(WHT)
163
MS
3
~M 1~ M
VANE
CN151
(WHT)
51 LEV
CN60
(YLW)
6
6
1
CNRU
(WHT)
LDSWE(A )
(
BLU )
61
3
3
151
5
1
53 1
51
41
41
21
21
31
41
81
13
51
13
12
12345678
SW3
123456
SW2
ON
OFF
ON
OFF
1234
SW4
21
11 2
2
3
3
45678910
SW1
SWA
L
N
LED1
X1
LED2
M
FUSE
CNP
( BLU )
CND
(BLK)
RED BLU YLW BLK WHT
MF DP MV LEV
SWE
OFF
BZ1
ON
BLU
TB2
RED
RED
BLU
BLU
YLW
WHT
ORN ORN
ORN
ORN
YLW
BLU
BRN
BRN
RED
GRN/YLW
RED
BLU
BLK
I.B S.B
W.B
A.B
PULL
BOX
FUSE
( 16A )
BREAKER
( 16A )
TO NEXT
INDOOR
UNIT
POWER SUPPLY
~/N220-240V 50Hz
220V 60Hz
GRN
CN52
(GRN)
LD SWE(B)
LD101(B) SWE1
LED1
TH24
TH23
TH22
TH21
LED2 SWE2
CN51
(WHT)
CN24
(YLW)
FLOAT SW
CN4F
(WHT)
FLOAT SW
CN4F
(WHT)
LIQUID/GAS1
CN44
(WHT)
INTAKE
CN20
(RED)
ADDRESS
CN81
(RED)
81
CN100
(WHT)
ADDRESS
CN42
(RED)
GAS2
CN2G
(BLK)
ADDRESS
CN43
(RED)
ADDRESS
CN82
(RED)
MA-REMOCON
CN3A
(BLU)
M-NET
CN2M (BLU)
CN32
(WHT)
RU
4
8
t°
t°
t°
t°
See fig: *1
TB5
(SHIELD)
M1
M2
TB15
1
S
2
TO MA- REMOTE
CONTROLLER
DC8.7-13V
TO OUTDOOR UNIT
BC CONTROLLER
REMOTE CONTROLLER
DC24-30V
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
SW14SW11SW12
10ths
DIGIT 1s DIGIT BRANCH No.
FS
1
4
When attaching drain
pump(option), remove
the jumper connector
CN4F and fit the drain
float switch (FS).
When attaching drain pump
(option)
*2
*2
8541
CN100 (WHT)
IT terminal
PAC-IT51AD-E
CN51 (WHT)
*2
*2
J41
Pair
No. J42
5
1
51
8541
CN100 (WHT)
IT terminal
PAC-IT52AD-E
In connecting optional IT terminal,
use either CN51 or CN52 which is
not connected.
Be careful for connector colors.
CN52 (WHT)
The black square ( ■ )
indicates a switch
position. <
*1>
OCH442B

18
TROUBLESHOOTING
8
7REFRIGERANT SYSTEM DIAGRAM
8-1. HOW TO CHECK THE PARTS
PKFY-P32VHM-E PKFY-P40VHM-E PKFY-P50VHM-E
PKFY-P32VHM-ER1 PKFY-P40VHM-ER1 PKFY-P50VHM-ER1
PKFY-P32VHM-ER2 PKFY-P40VHM-ER2 PKFY-P50VHM-ER2
Parts name Check points
Disconnect the connector then measure the resistance with a tester.
(At the ambient temperature 10- 30)
Disconnect the connector then measure the resistance value with a tester.
(Coil temperature 20)
Vane motor (MV)
Linear expansion
valve (LEV)
Refer to the next page for the details.
Room temperature
thermistor (TH21)
Liquid pipe temperature
thermistor (TH22)
Gas pipe temperature
thermistor (TH23 ,24)
Normal
4.3k~9.6k
Abnormal
Open or short
Normal
200± 10%
Abnormal
(1)-(5)
White-Red (2)-(6) Yellow-Brown (3)-(5) Orange-Red (4)-(6) Blue-Brown Open or short
Measure the resistance between the terminals with a tester. (Coil temperature 25)
Normal
350± 7%
Abnormal
-
Brown-Red -
Brown-Orange
-
Brown-Yellow
-
Brown-Green
Open or short
Fan motor (MF)
 Red
 Yellow
 Brown Orange

Green
Connect pin No.
M
1
2
3
4
5
6
LEV
White
Yellow
Orange
Blue
Red
Brown
CN60
Refer to 8-1-3.
Strainer (#50mesh)
Strainer (#100mesh)
Strainer1 (#50mesh)
Strainer2 (#100mesh)
Heat exchanger
Room temparature thermistor TH21
Gas pipe thermistor TH23
Liquid pipe thermistor TH22
Linear expansion valve
Gas pipe
Liquid pipe
Flare connection
Gas pipe
Liquid pipe
PKFY-P32VHM-E(R1/R2)
PKFY-P40VHM-E(R1/R2)
:12.7(1/2)
:6.35(1/4)
PKFY-P50VHM-ER1
PKFY-P50VHM-ER2
:12.7(1/2)
:6.35(1/4)
Item Service Ref. Unit : mm (inch)
Gas pipe thermistor TH24
PKFY-P50VHM-E
:12.7(1/2)/:15.88(5/8)
:6.35(1/4)/:9.52(3/8)
PKFY-P32VHM-E PKFY-P40VHM-E PKFY-P50VHM-E
PKFY-P32VHM-ER1 PKFY-P40VHM-ER1 PKFY-P50VHM-ER1
PKFY-P32VHM-ER2 PKFY-P40VHM-ER2 PKFY-P50VHM-ER2
OCH442B

1919
0
10
20
30
40
50
-20-100 1020304050
< Thermistor for lower temperature >
Temperature ()
Resistance (K)
4:4
3
6
5
:3
2:2
1:1
:4
:3
:2
:1
Controller board
Drive circuit
Connector(CN60)
DC12V
Brown
Red
Blue
Orange
Yellow
White
M
4
6
2
3
5
1
Blue
Brown
Yellow
Orange
Red
White
Linear expansion valve
<Thermistor Characteristic graph>
Room temperature thermistor (TH21)
Liquid pipe temperature thermistor (TH22)
Gas pipe temperature thermistor (TH23)
(TH24)
Thermistor R0=15k" ± 3%
Fixed number of B=3480 ± 2%
Rt=15exp { 3480( ) }
0:15k"
10:9.6k"
20:6.3k"
25:5.4k"
30:4.3k"
40:3.0k"
Thermistor for
lower temperature
1Operation summary of the linear expansion valve
• Linear expansion valve opens/closes through stepping motor after receiving the pulse signal from the indoor controller board.
• Valve position can be changed in proportion to the number of pulse signal.
<Connection between the indoor controller board and the linear expansion valve>
1
273+t 1 273
8-1-2. Liner expansion valve
8-1-1. Thermistor
OCH442B

20
Output
(Phase)
Output
{11
ON
{2ON
{3 OFF
{4OFF
2
OFF
ON
ON
OFF
3
OFF
OFF
ON
ON
4
ON
OFF
OFF
ON
<Output pulse signal and the valve operation>
2Linear expansion valve operation
3Troubleshooting
D
A
E
B
C
Open
Open
Extra tightening (200~800 pulse)
Pulse number
Outdoor unit R410A model : 1400 pulse
Outdoor unit R22/R407C model : 2000 pulse
Opening a valve
all the way
Close
Close
Valve position (capacity)
Closing a valve : 1 →2 →3 →4 →1
Opening a valve : 4 →3 →2 →1 →4
The output pulse shifts in above order.
• When linear expansion valve operation stops, all output phase
become OFF.
• At phase interruption or when phase does not shift in order, motor
does not rotate smoothly and motor will lock and vibrate.
• When the switch is turned on, 2200 pulse closing valve signal will
be sent till it goes to point Ain order to define the valve
position.
• When the valve moves smoothly, there is no noise or vibration
occurring from the linear expansion valves; however, when the
pulse number moves from Eto Aor when the valve is locked,
more noise can be heard than in a normal situation.
• Noise can be detected by placing the ear against the screw
driver handle while putting the screw driver tip to the linear
expansion valve.
6
5
4
3
2
1
LED1k
Symptom Check points
Operation circuit
failure of the micro
processor
Disconnect the connector on the controller board, then con-
nect LED for checking.
When power is turned on, pulse signals will be output for 10
seconds. There must be some defects in the operation circuit
if the LED does not light while the signals are output or keeps
lighting even after the signals stop.
Countermeasures
Exchange the indoor con-
troller board in case of
drive circuit failure.
Linear expansion
valve mechanism is
locked.
Valve does not close
completely.
Wrong connection
of the connector or
contact failure
To check the linear expansion valve, operate the indoor unit
in fan mode and at the same time operate other indoor units
in cooling mode, then check the pipe temperature <liquid
pipe temperature> of the indoor unit by the
outdoor multi controller board operation
monitor. During fan operation, linear expan-
sion valve is closed completely and if there
is any leaking, detecting temperature of
the thermistor will go lower. If the detected
temperature is much lower than the tem-
perature indicated in the remote controller,
it means the valve is not closed all the way.
It is not necessary to exchange the linear expansion valve, if
the leakage is small and not affecting normal operation.
Thermistor
(Liquid pipe)
Linear
expansion
valve
Motor will idle and make a ticking noise when the motor is
operated while the linear expansion valve is locked. This tick-
ing sound is the sign of the abnormality.
Check the color of lead wire and missing terminal of the con-
nector.
Exchange the linear expan-
sion valve.
Exchange the linear expan-
sion valve.
If large amount of refriger-
ant is leaked, exchange
the linear expansion valve.
Disconnect the connector
at the controller board,
then check the continuity.
Measure the resistance between each coil (white-red, yellow-
brown, orange-red, blue-brown) using a tester. It is normal if
the resistance is in the range of 200 ±10%.
Short or breakage
of the motor coil of
the linear expansion
valve
OCH442B
