Mitsubishi Electric SG-1-SD Instruction sheet

How to Install & How To Use
WARNING
CAUTION
1) Install this unit with the back surface facing the wall side to eliminate the effects of external winds.
2) This unit should not be installed in such a way that the wind blows directly at the back of the unit.
3) The installation of this product will reduce the unit's capacity by approximately 2% - 3% and increase the outdoor unit's noise level by approximately 1dB - 2dB.
4) Use this product only if there is no obstruction on either side or above the outdoor unit (discharge air will be blocked). This could result in a short cycle.

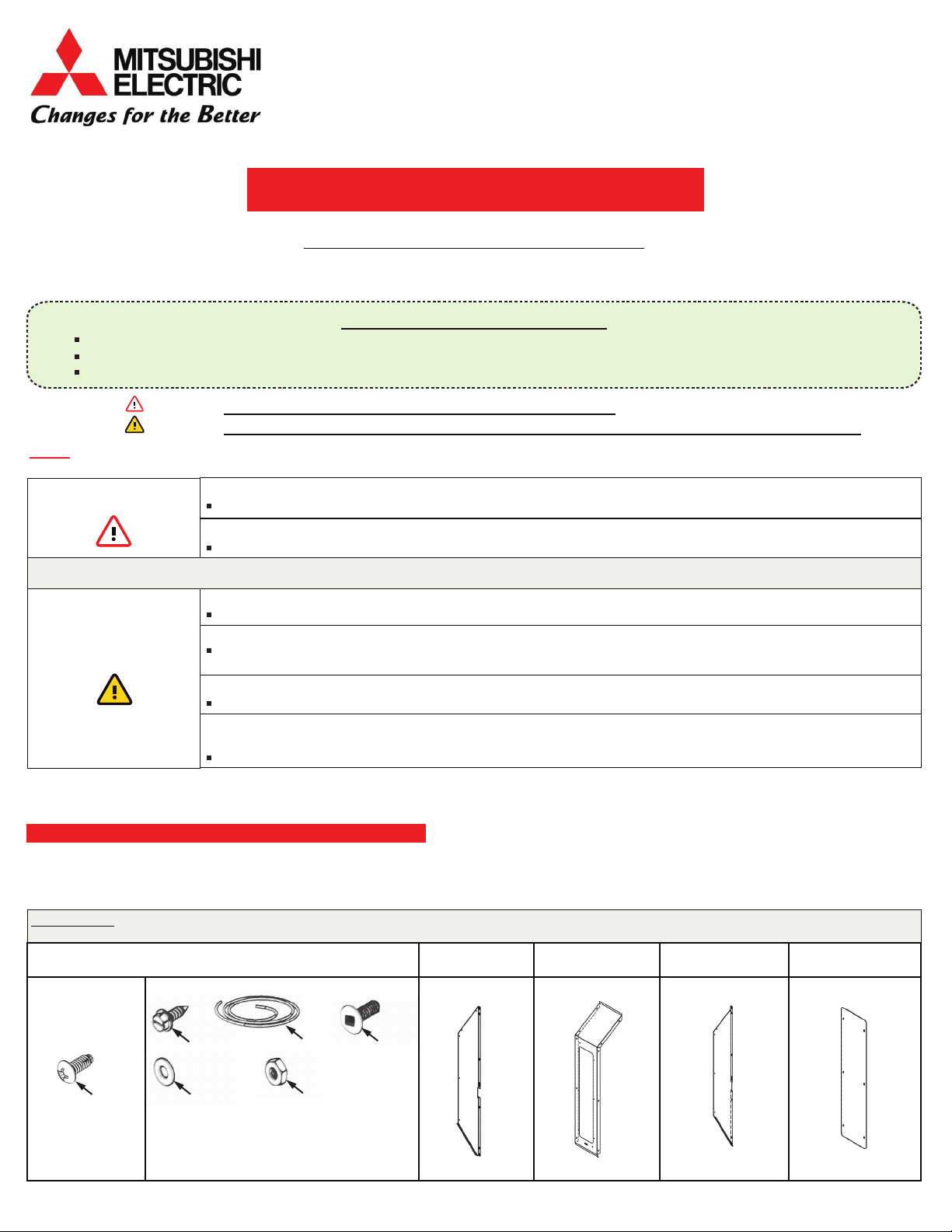

Parts Check:
Note: Check that the following items, along with this manual, are in this box:
IM_SG-1-SD
IM_SG-1-SD_202209
E & OE
NOTE: After installation, run a test run to ensure that there are no anomalies, and ask your customer to always keep this installation sheet
with the instruction manual. In addition, if the end user changes, request that these manuals be transferred to the new user.
INQUIRE WITH THE DEALER OR SPECIALIST ABOUT INSTALLATION
Water leaks, electric shocks, fires, and other hazards may occur if the user installs the product incorrectly.
CAREFULLY INSTALL THE PANEL IN ACCORDANCE WITH THIS INSTALLATION SHEET
Incorrect installation could result in a water leak, electric shock, or fire, among other things.
POLYETHYLENE BAGS SHOULD NOT BE LEFT IN THE REACH OF CHILDREN
Putting a polyethylene bag over one’s head will close off your breathing pathways, potentially resulting in suffocation.
TO AVOID CONDENSATION, SECURELY APPLY HEAT INSULATION TO THE REFRIGERANT PIPE
Condensation on the surface of pipes, as well as dewdrops on the ceiling, floor, or valuables, might develop if heat
insulation is insufficient.
USE ONLY SPECIFIED ELECTRIC WIRES WITH CURRENT CAPACITY IF ELECTRICAL WORK IS REQUIRED.
Unsuitable wire may cause an electric leak, overheating, or fire.
SECURELY COMPLETE DRAIN PIPING WORK IN ACCORDANCE WITH THE INSTALLATION MANUAL TO
AVOID CONDENSATION.
If the piping work is incorrect, a water leak may occur, causing the ceiling, furniture, and other items to become wet.
When the outdoor unit fan enters low speed rotation mode with the fan controller turned on, this Snow Guard prevents reverse rotation. It is also used to
protect the fan when strong winds, such as a typhoon or wind blowing through tall buildings, strike the air outlet directly. Furthermore, installation of this product
is required when cooling operations are to be carried out in outside-air temperatures of -5°C or lower (down to -15°C).
When installing this product, pay special attention to the following:
*** Prior to installation (moving) and electrical work ***
1 x SD
LHS Panel
1 x SD
Panel
1 x SD
RHS Panel
1 x SD
Service Panel
IMPROPER HANDLING MAY CAUSE DEATH OR SERIOUS INJURY.
WARNING:
CAUTION: INJURY OR DAMAGE TO HOUSE AND HOUSEHOLD ARTICLES MAY RESULT FROM IMPROPER HANDLING.
Optional Parts for a Package Air Conditioner
Snow Guard Installation Instructions
ALWAYS KEEP SAFETY IN MIND
Read this section carefully [always keep safety in mind] and securely install the optional parts.
Make sure to follow the precautions outlined below: They contain critical safety content.
The classifications for danger and possible consequences of incorrect handling are shown in the following indications.
2 x #10-24 HEX NUTS (ZINC)
8 x #10 WASHERS (ZINC)
2 x #10-24 X ½” PAN COMB MACHINE SCREWS (ZINC)
SPECIAL SCREW
16 PCS
8 PCS 2 PCS
2 PCS
6 PCS
Installation Hardware
6 x #10-24 x ½” TRUSS
HEAD TYPE ‘F’ SCREWS
(STAINLESS)
16 x #8 X 1/2” HWH SELF TAPPING SCREWS (ZINC)
2 x Lanyard 16” (STAINLESS STEEL)
2 PCS

SG-1-SD (SNOW GUARD)
INSTALLATION PROCEDURE
NOTE: Make sure to inspect and look for any missing or loose screws after the snowguards have been installed.
IM_SG-1-SD_202209
E & OE
A. Install the SD LHS Panel & SD RHS
Panel as shown using the included (6)
Truss Head Type ‘F’ Screws.
B. Install the ½” Wide Anti-Vibration
foam on to the exterior edges of the
SD LHS Panel & SD RHS Panels.
C. With the supplied #8 HWH screws attach the SD Panel to
the SD RHS Panel & SD LHS Panels using the provided holes.
D.1. Install provided Lanyards to cabinet
chassis with the existing screws as shown.
E. Install Service Panel with the
supplied #8 HWH screws to the
SD Panel using the provided holes.
D.2.Tighten the 2 screws already
installed on the SD Panel.
