OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el nal antes de poner en marcha la unidad de aire acondicionado
para garantizar un uso seguro y correcto.
FOR USER
PARA EL USUARIO
POUR L’UTILISATEUR
Air-Conditioners For Building Application
INDOOR UNIT
PKFY-NBMU-E2 / PKFY-NHMU-E2
PMFY-NBMU-E
Español
English
Français
BG79U634H06_EN.indd 1 2016/06/01 8:46:37

2
1. Safety Precautions
Contents
Before installing the unit, make sure you read all the “Safety
Precautions”.
The “Safety Precautions” provide very important points regard-
ing safety. Make sure you follow them.
Please report to or take consent by the supply authority before
connection to the system.
Symbols used in the text
Warning:
Describes precautions that should be observed to prevent danger of
injury or death to the user.
Caution:
Describes precautions that should be observed to prevent damage
to the unit.
Symbols used in the illustrations
: Indicates a part which must be grounded.
Warning:
• Forappliancesnotaccessibletothegeneralpublic.
• Theunitmustnotbeinstalledbytheuser.Askthedealeroran
authorized company to install the unit. If the unit is installed im-
properly,waterleakage,electricshockorremayresult.
• Donotstandon,orplaceanyitemsontheunit.
• Donotsplashwaterovertheunitanddonottouchtheunitwith
wet hands. An electric shock may result.
• Donotspraycombustiblegasclosetotheunit.Firemayresult.
• Donotplaceagasheateroranyotheropen-ameappliancewhere
it will be exposed to the air discharged from the unit. Incomplete
combustion may result.
• Donotremovethefrontpanelorthefanguardfromtheoutdoor
unit when it is running.
• Neverrepairtheunitortransferittoanothersitebyyourself.
• Whenyounoticeexceptionallyabnormalnoiseorvibration,stop
operation, turn off the power switch, and contact your dealer.
• Neverinsertngers,sticksetc.intotheintakesoroutlets.
• Ifyoudetectodd smells, stop using the unit,turnoffthepower
switch and consult your dealer. Otherwise, a breakdown, electric
shockorremayresult.
• ThisairconditionerisNOTintendedforusebychildrenorinrm
persons without supervision.
• Youngchildrenmustbesupervisedtoensurethattheydonotplay
with the air conditioner.
• Iftherefrigerationgasblowsoutorleaks,stoptheoperationofthe
air conditioner, thoroughly ventilate the room, and contact your
dealer.
• Wheninstallingorrelocating,orservicingtheairconditioner,use
onlythespeciedrefrigerant(R410A)tochargetherefrigerant
lines. Do not mix it with any other refrigerant and do not allow air
to remain in the lines.
If air is mixed with the refrigerant, then it can be the cause of
abnormal high pressure in the refrigerant line, and may result in
an explosion and other hazards.
 Theuseofanyrefrigerantotherthanthatspeciedforthe
system will cause mechanical failure or system malfunction or
unit breakdown. In the worst case, this could lead to a serious
impediment to securing product safety.
Caution:
• Donotuseanysharpobjecttopushthebuttons,asthismaydam-
age the remote controller.
• Never block or cover the indoor or outdoor unit’s intakes or outlets.
• Neverwipetheremotecontrollerwithbenzene,thinnerchemical
rags, etc.
• Donotoperatetheunitforalongtimeinhighhumidity,e.g.leaving
a door or window open. In the cooling mode, if the unit is operated
inaroomwithhighhumidity(80%RHormore)foralongtime,wa-
ter condensed in the air conditioner may drop and wet or damage
furniture, etc.
• Donottouchtheupperairoutletvaneorthelowerairoutletdamper
during operation. Otherwise, condensation may form and the unit
may stop operating.
Disposing of the unit
When you need to dispose of the unit, consult your dealer.
1. Safety Precautions ............................................................................. 2
2. Parts Names....................................................................................... 2
3. Screen Conguration.......................................................................... 6
4. Setting the Day of the Week and Time............................................... 6
5. Operation............................................................................................ 6
6. Timer................................................................................................... 8
7. Other Functions...............................................................................11
8. Function Selection.......................................................................... 12
9. Emergency operation for wireless remote-controller...................... 16
10. Care and Cleaning.......................................................................... 16
11. Trouble Shooting............................................................................. 17
12. Specications ................................................................................. 19
Indoor Unit
PKFY-P·NBMU-E2 PKFY-P·NHMU-E2 PMFY-P·NBMU-E
Fan speed 4 speed 3 speed+ Auto* 4 speed
Vane Steps 4 steps 5 steps 4 steps
Auto swing
Louver Manual Manual Manual
Filter Normal Normal Normal
Filter cleaning indication 100 hr 100 hr 100 hr
2. Parts Names
* This operation is available only using the remote controller
that is able to set its Fan speed setting "Auto".
Note:
The phrase “Wired remote controller” in this operation manual refers to the PAR-21MAA.
If you need any information for the other remote controller, please refer to the instruction book included in these box.
BG79U634H06_EN.indd 2 2016/06/01 8:46:37

3
PKFY-P·NBMU-E2
Wall Mounted
PMFY-P·NBMU-E
1-way Ceiling Cassette
Filter
Air inlet
Louver
Air outlet
Vane
Filter Air intake
Louver Air outlet Vane
2. Parts Names
PKFY-P·NHMU-E2
Wall Mounted
Filter Air intake
Louver Air outlet Vane
BG79U634H06_EN.indd 3 2016/06/01 8:46:37

4
(PowerOnindicator)
Indicates that the power is on.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is stationary.
Room Temperature display
Shows the room temperature. The room
temperature display range is 8–39°C,
46-102°F. The display blinks if the tem-
perature is less than 8°C, 46°F or 39°C,
102°F or more.
Wired Remote-Controller
Display Section
Operation Section
Identiesthecurrentoperation
Shows the operating mode, etc.
* Multi-language display is sup-
ported.
“CentrallyControlled” indicator
Indicates that operation of the re-
mote controller hasbeen prohibited
by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto
Off timer is set.
If the simple or Auto Off timer is set, shows the time
remaining.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locking function” indicator
Indicates that remote controller buttons
have been locked.
“Clean The Filter” indicator
Comes on when it is time to clean
the lter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Airowup/downdirectionindicator
The indicator shows the direction
of the airow.
“One Hour Only” indicator
Displayed if the airow is set to Low and
downward during COOL or DRY mode.
(Operation varies according to model.)
The indicator goes off after one hour when
the airow direction also changes.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Temperature set buttons
Down
Up
Set Time buttons
Timer On/Off button
(Set Day button)
Opening
the door
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airow Up/Down button
Louver button
( Operation button)
To return operation
number
Ventilation button
(Operation button)
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
Operation mode blinking display
When multiple indoor units are connected to a single outdoor unit and an operation mode is selected for one indoor unit that is different from the current
operation mode of another indoor unit, the operation mode display blinks. Select the same operation mode of the other indoor unit.
“NOT AVAILABLE” message
This message is displayed if a button is pressed to operate a function that the indoor unit does not have.
When the same remote controller is used to operate multiple indoor units, this message is displayed if the main indoor unit is not equipped with the
selected function.
Room temperature display
The indoor unit temperature sensors or the remote controller temperature sensor can be selected to measure the room temperature. The indoor unit
temperature sensors are the initial setting. When the indoor unit temperature sensors are selected to measure the room temperature, the room tem-
perature measured at the main indoor unit is displayed on the remote controller that operates multiple indoor units.
2. Parts Names
Built-in temperature sensor To go to next operation number
Back
Ahead
For purposes of this explanation,
all parts of the display are shown.
During actual operation, only the
relevant items will be displayed.
Timer Menu button
(Timer monitor/Timer set button)
Operation mode button
(Back button)
BG79U634H06_EN.indd 4 2016/06/01 8:46:38

5
1
2
3
2. Parts Names
Wireless Remote-Controller
When using the wireless remote controller, point it towards the receiver on the indoor unit.
If the remote controller is operated within approximately two minutes after power is supplied
to the indoor unit, the indoor unit may beep twice as the unit is performing the initial automatic
check.
The indoor unit beeps to conrm that the signal transmitted from the remote controller has been
received. Signals can be received up to approximately 23ft.(7m) in a direct line from the indoor
unit in an area 45° to the left and right of the unit. However, illumination such as uorescent
lights and strong light can affect the ability of the indoor unit to receive signals.
If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be in-
spected. Consult your dealer for service.
Handle the remote controller carefully! Do not drop the remote controller or subject it to strong
shocks. In addition, do not get the remote controller wet or leave it in a location with high humid-
ity.
To avoid misplacing the remote controller, install the holder included with the remote controller
on a wall and be sure to always place the remote controller in the holder after use.
Battery installation/replacement
1. Remove the top cover, insert two AAA batter-
ies, and then install the top cover.
2. Press the Reset button.
Two AAA batteries
Insert the negative (–)
end of each battery rst.
Install the batteries in
the correct directions
(+, –)!
Press the Reset button
with an object that has a
narrow end.
Top cover
* For explanation purposes, all of the items
that appear in the display are shown.
* All items are displayed when the Reset
button is pressed.
Transmission indicator
Timer indicator
Remote controller display
ON/OFF button
Temperature set buttons
Fan Speed button (Changes fan speed)
Airow button (Changes up/down airow direction)
Mode button (Changes operation mode)
Check button
Test Run button
Transmission area
Operation areas
Timer Off button
Timer On button
Hour button
Minute button
Set Time button (Sets the time)
Louver button (Changes left/right airow direction)
Reset button
BG79U634H06_EN.indd 5 2016/06/01 8:46:38

6
SUN MON TUE WED THU FRI SAT
WEEKLY
TIME SUN
˚F
˚F
NO
˚F
TIMER
MON
OFF
WEEKLY
Function Selection of remote controller
Set Day/Time
Standard Control Screens
OFF
Timer Monitor Timer Setup
Day of the Week &
Time display
TIME SUN
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
˚F
˚F
Time Setting
TIME SUN
Day of the Week Setting
4.SettingtheDayoftheWeekandTime
˚F
˚F
5.1. Turning ON/OFF
<To Start Operation>
Press the ON/OFF button .
• The ON lamp and the display area come on.
Note:
When the unit is restarted, initial settings are as follows.
Remote Controller settings
Mode Last operation mode
Temperature setting Last set temperature
Fan speed Last set fan speed
Airow up/down
Mode
COOL or DRY Horiz. outlet *1
HEAT Last setting *2
FAN Horiz. outlet *1
*1 Last setting might be applied depending on the type of the indoor
unit.
*2 Incaseofthelastsettingisswing,airowmightbeDownward4
depending on the type of the indoor unit.
<Screen Types>
For details on setting the language for the remote controller display, refer
to section 8. Function Selection.
The initial language setting is English.
Function Selection of remote controller:
Set the functions and ranges available to the
remote controller (timer functions, operating
restrictions, etc.)
Set Day/Time: Set the current day of the week or time.
Standard Control Screens:
View and set the air conditioning system’s operat-
ing status.
Timer Monitor: View the currently set timer (weekly timer, simple
timer or Auto Off timer).
Timer Setup: Set the operation of any of the timers (weekly
timer, simple timer or Auto Off timer).
<How to change the screen>
A: Hold down both the Mode button and the Timer On/Off button for 2
seconds.
B: Press the Timer Menu button.
C: Press the Operation mode (Back) button.
D: Press either of the Set Time buttons ( or ).
3.ScreenConguration
5. Operation
Note:
The day and time will not appear if clock use has been disabled at
Function Selection of remote controller.
1. Press the or Set Time button 1to show display 2.
2. Press the Timer On/Off (Set Day) button to set the day.
* Each press advances the day shown at 3:
Sun Mon ... Fri Sat.
3. Press the appropriate Set Time button 1as necessary to set the time.
* As you hold the button down, the time (at 4) will increment rst in
one-minute intervals, then in ten-minute intervals, and then in one-hour
intervals.
4. After making the appropriate settings at Steps 2 and 3, press the Filter
button 4to lock in the values.
˚F
1
26
7
5
3
2
5
67
3
A D C
B C
B
<To Stop Operation>
Press the ON/OFF button 1again.
• The ON lamp 1and the display area go dark.
Note:
Even if you press the ON/OFF button immediately after shutting down
the operation is progress, the air conditioner will not start for about
three minutes. This is to prevent the internal components from being
damaged.
BG79U634H06_EN.indd 6 2016/06/01 8:46:38

7
Note:
The number of available fan speeds depends on the type of unit connected.
Note also that some units do not provide an “Auto” setting.
In the following cases, the actual fan speed generated by the unit will differ
from the speed shown the remote controller display.
1. While the display is showing “STAND BY” or “DEFROST”.
2. When the temperature of the heat exchanger is low in the heating mode.
(e.g.immediatelyafterheatingoperationstarts)
3. In HEAT mode, when room temperature is higher than the temperature
setting.
4.WhentheunitisinDRYmode.
5.2. Mode select
Press the operation mode ( ) button 2and select the opera-
tion mode 2.
Cooling mode
Drying mode
Fan mode
Heating mode
Automatic (cooling/heating) mode
Automatic operation
According to a set temperature, cooling operation starts if the room tem-
perature is too hot and heating operation starts if the room temperature
is too cold.
During automatic operation, if the room temperature changes and re-
mains 1.5°C, 3°F or more above the set temperature for 3 minutes, the
air conditioner switches to cooling mode. In the same way, if the room
temperature remains 1.5°C, 3°F or more below the set temperature for
3 minutes, the air conditioner switches to heating mode.
5. Operation
Cooling mode 3 minutes (switches from
heating to cooling)
Set temperature +1.5°C, +3°F
Set temperature
Set temperature -1.5°C, -3°F
3 minutes (switches fromcooling
to heating )
Because the room temperature is automatically adjusted in order to
maintain a xed effective temperature, cooling operation is performed a
few degrees warmer and heating operation is performed a few degrees
cooler than the set room temperature once the temperature is reached
(automatic energy-saving operation).
5.3. Temperature setting
To decrease the room temperature:
Press button 3 to set the desired temperature.
The selected temperature is displayed at 3.
To increase the room temperature:
Press button 3 to set the desired temperature.
The selected temperature is displayed at 3.
• Available temperature ranges are as follows:
Cooling/Drying: 19 - 30°C, 67 - 87 °F
Heating: 17 - 28°C, 63 - 83 °F
Automatic: 19 - 28°C, 67 - 83 °F
• The display blinks either 8°C - 39°C, 46°F - 102°F to inform you if the
room temperature is lower or higher than the displayed temperature.
5.4. Fanspeedsetting
Press the Fan Speed button 5as many times as necessary while the
system is running.
• Each press changes the force. The currently selected speed is shown
at 5.
• The change sequence, and the available settings are as follows.
FAN SPEED Display
4-speed
+
Auto *
3-speed
+
Auto *
4-speed
model
Speed 1 Speed 2 Speed 3 Speed 4
Speed 1 Speed 2 Speed 3 Speed 4 Auto
■Automaticfanspeedsetting(Forwirelessremotecontroller)
It is necessary to set for wireless remote controller only when auto-
matic fan speed is not set at default setting.
It is not necessary to set for wired remote controller with automatic
fan speed at default setting.
1Press the SET button with something sharp at the end.
Operate when display of remote controller is off.
MODEL SELECT
blinks and Model No. is lighted A.
2Press the AUTO STOP button.
blinks and setting No. is lighted B.
(Setting No.01: without automatic fan speed )
3Press the temp. buttons to set the setting No.02.
(Setting No.02:with automatic fan speed )
If you mistook the operation, press the ON/OFF button and oper-
ate again from procedure 2.
4Press the SET button with something sharp at the end.
MODEL SELECT
and Model No. are lighted for 3 seconds, then turned off.
5.5.Airowdirectionsetting
<ToChangetheAirow’sUp/DownDirection>
With the unit running, press the Airow Up/Down button 6as necessary.
• Each press changes the direction. The current direction is shown at 6 .
• The change sequence, and the available settings, are as follows.
* Note that during swing operation, the directional indication on the screen
does not change in sync with the directional vanes on the unit.
* Some models do not support directional settings.
*1. For MA remote controller only, other remote controllers display the same
as 4 steps model.
*2. PKFY-P·NBMU-E2 has no swing display.
*3. Airow direction setting <Auto>
COOL / FAN / DRY: Setting 1 (Horizontal), HEAT: Setting 5 (Downward 5)
Airow Display
5 steps
model*1
4 steps
model
1 2 3 4
(Horiz.)
Swing
Swing Auto 1 2 345
ON/OFF TEMP
RESETSET CLOCK
MODEL SELECT
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
B
A
3
2
14
* For MA remote controller only.
Automatic fan speed setting is necessary for wireless remote controller.
Speed 1 Speed 2 Speed 3 Auto
BG79U634H06_EN.indd 7 2016/06/01 8:46:39

8
<How to Set the Weekly Timer>
1. Be sure that you are at a standard control screen, and that the weekly
timer indicator 1is shown in the display.
2. Press the Timer Menu button 2, so that the “Set Up” appears on the
screen (at 2). (Note that each press of the button toggles the display
between “Set Up” and “Monitor”.)
3. Press the Timer On/Off (Set Day) button 9to set the day. Each press
advances the display at 3to the next setting, in the following sequence:
“Sun Mon Tues Wed Thurs Fri Sat” “Sun” ... “Fri” “Sat”
“Sun Mon Tues Wed Thurs Fri Sat”...
4. Press the or Operation button (7or 8) as necessary to select the
appropriate operation number (1 to 8) 4.
* Your inputs at Steps 3 and 4 will select one of the cells from the matrix
illustrated below.
(The remote-controller display at left shows how the display would
appear when setting Operation 1 for Sunday to the values indicated
below.)
Setup Matrix
Op No. Sunday Monday … Saturday
No. 1
• 8:30
• ON
• 73°F
No. 2 • 10:00
• OFF
• 10:00
• OFF
• 10:00
• OFF
• 10:00
• OFF
…
No. 8
6.1. For Wired Remote-controller
You can use Function Selection of remote controller to select which of three
types of timer to use: 1 Weekly timer, 2Simple timer or 3Auto Off timer.
6.1.1. Weekly Timer
The weekly timer can be used to set up to eight operations for each day
of the week.
• Each operation may consist of any of the following: ON/OFF time to-
gether with a temperature setting, or ON/OFF time only, or temperature
setting only.
• When the current time reaches a time set at this timer, the air condi-
tioner carries out the action set by the timer.
Time setting resolution for this timer is 1 minute.
Note:
*1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the
same time.
*2. The weekly timer will not operate when any of the following condi-
tions is in effect.
The timer feature is off; the system is in an malfunction state; a test
run is in progress; the remote controller is undergoing self-check
or remote controller check; the user is in the process of setting a
function; the user is in the process of setting the timer; the user
is in the process of setting the current day of the week or time;
thesystemisundercentralcontrol.(Specically,thesystemwill
notcarryoutoperations(uniton,unitoff,ortemperaturesetting)
thatareprohibitedduringtheseconditions.)
1
˚F
SUN
ON
WEEKLY
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
2
0
2 9 78
3
1
4
4 2 3
1
Operation No.
Day Setting
6. Timer
5. Operation
<Operation 1 settings for Sunday>
Start the air conditioner at 8:30, with
the temperature set to 73 °F
<Operation 2 settings for every day>
Turn off the air conditioner at 10:00.
˚F
SUN
ON
WEEKLY
Shows the selected operation (ON or OFF)
* Does not appear if operation is not set.
Shows the temperature setting
* Does not appear if temperature is not
set.
Shows the time
setting
(Low) (High)
No display
(Stop)
(OFF)
5.6. Ventillation
For LOSSNAY combination
5.6.1. For Wired Remote-controller
To run the ventilator together with the indoor unit:
Press the ON/OFF button 1.
• The Vent indication appears on the screen (at 8 ). The ventilator will
now automatically operate whenever the indoor unit is running.
To run the ventilator only when the indoor unit is off:
Press the Ventilation button 8 while the indoor unit is off.
• The On lamp (at 1) and the Vent indication (at 8) come on.
To change the ventilator force:
Press the Ventilation button 8 as necessary.
• Each press toggles the setting as shown below.
Note:
 Withsomemodelcongurations,thefanontheindoorunitmay
come on even when you set the ventilator to run independently.
Note:
By setting the day to “Sun Mon Tues Wed Thurs Fri Sat”, you can
set the same operation to be carried out at the same time every day.
(Example:Operation 2above,whichisthesameforalldaysofthe
week.)
<[Manual]ToChangetheAirow’sLeft/RightDirection>
* The louver button 7cannot be used.
• Stop the unit operation, hold the lever of the louver,
and adjust to the desired direction.
* Do not set to the inside direction when the unit is
in the cooling or drying mode because there is a
risk of condensation and water dripping.
Caution:
When you operate the process above, be sure to take measures to
avoid falls.
Note:
Available directions depend on the type of unit connected. Note
also that some units do not provide an “Auto” setting.
In the following cases, the actual air direction will differ from the
direction indicated on the remote controller display.
1. While the display is showing “STAND BY” or “DEFROST”.
2.Immediatelyafterstartingheatermode(whilethesystemiswait-
ingforthemodechangetotakeeffect).
3. In heat mode, when room temperature is higher than the tem-
perature setting.
BG79U634H06_EN.indd 8 2016/06/01 8:46:39

9
ONHr
AFTER
SIMPLE
Timer Setting
Action (On or Off)
* “— —” is displayed if there is no
setting.
˚F
˚F
TIME SUN
WEEKLY
˚F
˚F
TIME SUN
WEEKLY
6. Timer
ONHr
AFTER
SIMPLE
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
1. Be sure that the weekly timer indicator is visible on the screen (at 1).
2. Press the Timer Menu button 2so that “Monitor” is indicated on the
screen (at 8).
3. Press the Timer On/Off (Set Day) button 9as necessary to select the
day you wish to view.
4. Press the or Operation button (7or 8) as necessary to change
the timer operation shown on the display (at 9).
* Each press will advance to the next timer operation, in order of time
setting.
5. To close the monitor and return to the standard control screen, press
the Operation mode (Back) button 2.
<To Turn Off the Weekly Timer>
Press the Timer On/Off button 9so that “Timer Off” appears at .
<To Turn On the Weekly Timer>
Press the Timer On/Off button 9so that the “Timer Off” indication (at )
goes dark.
6.1.2. Simple Timer
You can set the simple timer in any of 3 ways.
• Start time only:
The air conditioner starts when the set time has elapsed.
• Stop time only:
The air conditioner stops when the set time has elapsed.
• Start & stop times:
The air conditioner starts and stops at the respective elapsed times.
The simple timer (start and stop) can be set only once within a 72-hour
period.
The time setting is made in hour increments.
Note:
*1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the
same time.
*2. The simple timer will not operate when any of the following condi-
tions is in effect.
The timer is off; the system is in malfunction state; a test run is
in progress; the remote controller is undergoing self-check or
remote controller check; the user is in the process of selecting a
function; the user is in the process of setting the timer; the system
isundercentralcontrol.(Undertheseconditions,On/Offoperation
isprohibited.)
<How to Set the Simple Timer>
1. Be sure that you are at a standard control screen, and that the simple
timer indicator is visible in the display (at 1).
When something other than the Simple Timer is displayed, set it to
SIMPLE TIMER using the function selection of remote controller (see
8.[4]–3 (3)) timer function setting.
2. Press the Timer Menu button 2, so that the “Set Up” appears on the
screen (at 2). (Note that each press of the button toggles the display
between “Set Up” and “Monitor”.)
3. Press the ON/OFF button 1to display the current ON or OFF simple
timer setting. Press the button once to display the time remaining to
ON, and then again to display the time remaining to OFF. (The ON/OFF
indication appears at 3).
• “ON” timer:
The air conditioner will start operation when the specied number of
hours has elapsed.
• “OFF” timer:
The air conditioner will stop operation when the specied number of
hours has elapsed.
4. With “ON” or “OFF” showing at 3: Press the appropriate Set Time but-
ton as necessary to set the hours to ON (if “ON” is displayed) or the
hours to OFF (if “OFF” is displayed) at 4.
• Available Range: 1 to 72 hours
5. To set both the ON and OFF times, repeat Steps 3 and 4.
* Note that ON and OFF times cannot be set to the same value.
6. To clear the current ON or OFF setting: Display the ON or OFF setting
(see step 3) and then press the Check (Clear) button 0so that the time
setting clears to “—” at 4. (If you want to use only an ON setting or only
an OFF setting, be sure that the setting you do not wish to use is shown
as “—”.)
<Setting the Weekly Timer>
5. Press the appropriate Set Time button 1as necessary to set the desired
time (at 5).
* As you hold the button down, the time rst increments in minute
intervals, then in ten-minute intervals, and then in one-hour intervals.
6. Press the ON/OFF button 1to select the desired operation (ON or OFF)
at 6.
* Each press changes the next setting, in the following sequence: No
display (no setting) “ON” “OFF”
7. Press the appropriate Temperature set button 3to set the desired
temperature (at 7).
* Each press changes the setting, in the following sequence: No display
(no setting) 75 77 ... 84 87 53 ... 73 No
display.
(Available range: The range for the setting is 12°C, 54°F to 30°C,
86°F. The actual range over which the temperature can be controlled,
however, will vary according to the type of the connected unit.)
8. After making the appropriate settings at Steps 5, 6 and 7, press the
Filter button 4to lock in the values.
To clear the currently set values for the selected operation, press and
quickly release the Check (Clear) button 0once.
* The displayed time setting will change to “—:—”, and the On/Off and
temperature settings will all disappear.
(To clear all weekly timer settings at once, hold down the Check
(Clear) button 0for two seconds or more. The display will begin
blinking, indicating that all settings have been cleared.)
Note:
Your new entries will be cancelled if you press the Operation mode
(Back)button2before pressing the Filter button 4.
If you have set two or more different operations for exactly the same
time, only the operation with the highest Operation No. will be carried
out.
9. Repeat Steps 3 to 8 as necessary to ll as many of the available cells
as you wish.
10. Press the Operation mode (Back) button 2to return to the standard
control screen and complete the setting procedure.
11. To activate the timer, press the Timer On/Off button 9, so that the
“Timer Off” indication disappears from the screen. Be sure that the
“Timer Off” indication is no longer displayed.
* If there are no timer settings, the “Timer Off” indication will blink on
the screen.
<How to View the Weekly Timer Settings>
Timer Settings
˚F
TIMER
SUN
ON
OFF
WEEKLY
BG79U634H06_EN.indd 9 2016/06/01 8:46:39

10
NOREMIT
OFF
Hr
AFTER
SIMPLE
Timer Setting
˚F
˚F
SIMPLE
˚F
˚F
ONHr
AFTER
SIMPLE
ONHr
AFTER
SIMPLE
˚F
˚F
OFF
Hr
AFTER
SIMPLE
SIMPLE
˚F
˚F
OFF
Hr
AFTER
SIMPLE
ONHr
AFTER
SIMPLE
Display changes to show the timer’s OFF setting
(hours remaining to OFF).
The time displayed is OFF setting (7 hours) – ON
setting (3 hours) = 4 hours.
At Timer Start
Display shows the timer’s ON setting (hours
remaining to ON).
At 7 hours after timer start
The air conditioner goes off and will remain off
until it is restarted.
˚F
˚F
SIMPLE
Display changes to show the timer’s ON setting (hours
remaining to ON).
The time displayed is ON setting (5 hours) – OFF
setting (2 hours) = 3 hours.
At Timer Start
Display shows the timer’s OFF setting (hours
remaining to OFF).
At 5 hours after timer start
The air conditioner comes on and will continue to run
until it is turned off.
AFTER OFF
AUTO OFF
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
AFTER OFF
AUTO OFF
Timer Setting
6. Timer

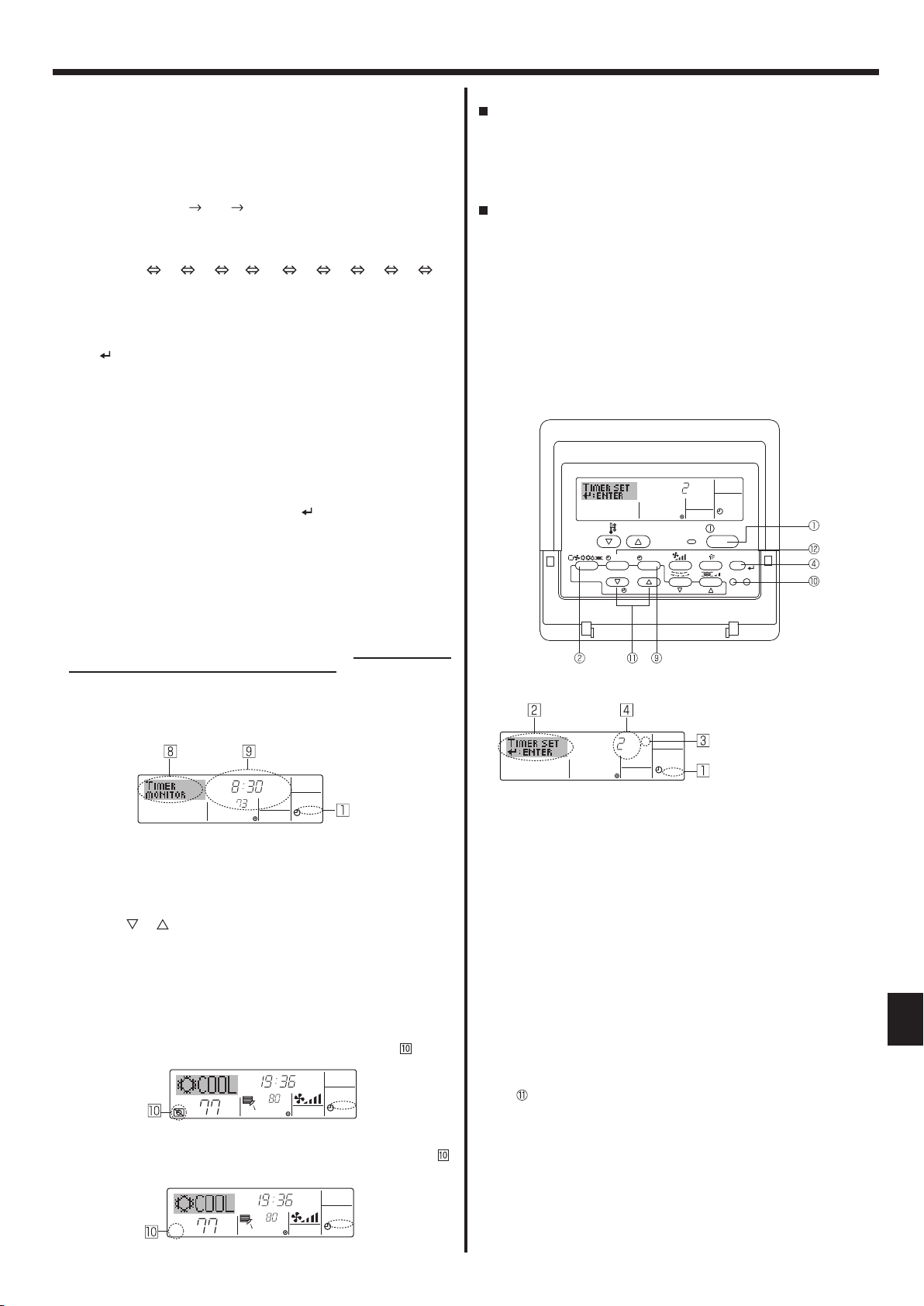

<How to Set the Auto Off Timer>
1. Be sure that you are at a standard control screen, and that the Auto Off
timer indicator is visible in the display (at 1).
When something other than the Auto Off Timer is displayed, set it to
AUTO OFF TIMER using the function selection of remote controller (see
8.[4]–3 (3)) timer function setting.
2. Hold down the Timer Menu button 2for 3 seconds so that the “Set Up”
appears on the screen (at 2).
(Note that each press of the button toggles the display between “Set Up”
and “Monitor”.)
3. Press the appropriate Set Time button 1as necessary to set the OFF
time (at 3).
4. Press the Filter button 4to lock in the setting.
Note:
YourentrywillbecancelledifyoupresstheOperationmode(Back)
button 2before pressing the Filter button 4.
5. Press the Operation mode (Back) button 2to complete the setting
procedure and return to the standard control screen.
6. If the air conditioner is already running, the timer starts countdown im-
mediately. Be sure to check that the timer setting appears correctly
on the display.
6.1.3. Auto Off Timer
This timer begins countdown when the air conditioner starts and shuts
the air conditioner off when the set time has elapsed.
Available settings run from 30 minutes to 4 hours in 30-minute intervals.
Note:
*1. Weekly Timer/Simple Timer/Auto Off Timer cannot be used at the
same time.
*2. The Auto Off timer will not operate when any of the following condi-
tions is in effect .
The timer is off; the system is in malfunction state; a test run is
in progress; the remote controller is undergoing self-check or
remote controller check; the user is in the process of selecting a
function; the user is in the process of setting the timer; the system
isundercentralcontrol.(Undertheseconditions,On/Offoperation
isprohibited.)
7. After completing steps 3 to 6 above, press the Filter button 4to lock
in the value.
Note:
Your new settings will be cancelled if you press the Operation mode
(Back)button2before pressing the Filter button 4.
8. Press the Operation mode (Back) button 2to return to the standard
control screen.
9. Press the Timer On/Off button 9to start the timer countdown. When the
timer is running, the timer value is visible on the display. Be sure that
the timer value is visible and appropriate.
<Viewing the Current Simple Timer Settings>
1. Be sure that the simple timer indicator is visible on the screen (at 1).
2. Press the Timer Menu button 2, so that the “Monitor” appears on the
screen (at 5).
• If the ON or OFF simple timer is running, the current timer value will
appear at 6.
• If ON and OFF values have both been set, the 2 values appear alter-
nately.
3. Press the Operation mode (Back) button 2to close the monitor display
and return to the standard control screen.
<To Turn Off the Simple Timer...>
Press the Timer On/Off button 9so that the timer setting no longer appears
on the screen (at 7).
<To Turn On the Simple Timer...>
Press the Timer On/Off button 9so that the timer setting becomes visible at 7.
Examples
If ON and OFF times have both been set at the simple timer, operation and
display are as indicated below.
Example 1:
Start the timer with ON time set earlier than OFF time
ON Setting : 3 hours
OFF Setting : 7 hours
Example 2:
Start the timer with OFF time set earlier than ON time
ON Setting : 5 hours
OFF Setting: 2 hours
At 3 hours after timer start
At 3 hours after timer start
BG79U634H06_EN.indd 10 2016/06/01 8:46:40

11
AFTER
TIMER
OFF
AUTO OFF
Timer Setting
˚F
˚F
AUTO OFF
AUTO OFF
˚F
˚F
FFORETFA
AUTO OFF
7. Other Functions
˚F
˚F
TIME SUN
FUNCTION
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Lock Indicator
˚F
˚F
FUNCTION
˚F
˚F
FUNCTION
˚F
˚F
6. Timer
<Checking the Current Auto Off Timer Setting>
1. Be sure that the “Auto Off” is visible on the screen (at 1).
2. Hold down the Timer Menu button 2for 3 seconds so that “Monitor” is
indicated on the screen (at 4).
• The timer remaining to shutdown appears at 5.
3. To close the monitor and return to the standard control screen, press the
Operation mode (Back) button 2.
<To Turn Off the Auto Off Timer...>
Hold down the Timer On/Off button 9for 3 seconds so that “Timer Off”
appears (at 6) and the timer value (at 7) disappears.
Alternatively, turn off the air conditioner itself. The timer value (at 7) will
disappear from the screen.
<To Turn On the Auto Off Timer...>
Hold down the Timer On/Off button 9for 3 seconds. The “Timer Off”
indication disappears (at 6), and the timer setting comes on the display
(at 7).
Alternatively, turn on the air conditioner. The timer value will appear at
7.
7.1. LockingtheRemoteControllerButtons(Operation
functionlimitcontroller)
If you wish, you can lock the remote controller buttons. You can use the
Function Selection of remote controller to select which type of lock to
use. (For information about selecting the lock type, see section 8, item
[4]–2 (1)).
Specically, you can use either of the following two lock types.
1Lock All Buttons:
Locks all of the buttons on the remote controller.
2Lock All Except ON/OFF:
Locks all buttons other than the ON/OFF button.
Note:
The “Locked” indicator appears on the screen to indicate that buttons
are currently locked.
<How to Lock the Buttons>
1. While holding down the Filter button 4, press and hold down the ON/
OFF button 1for 2 seconds. The “Locked” indication appears on the
screen (at 1), indicating that the lock is now engaged.
* If locking has been disabled in Function Selection of remote controller,
the screen will display the “Not Available” message when you press
the buttons as described above.
• If you press a locked button, the “Locked” indication (at 1) will blink
on the display.
<How to Unlock the Buttons>
1. While holding down the Filter button 4, press and hold down the ON/
OFF button 1for 2 seconds—so that the “Locked” indication disappears
from the screen (at 1).
1Press the
AUTO STOP
or
AUTO START
button (TIMER SET).
• Time can be set while the following symbol is blinking.
OFF timer : Ais blinking.
ON timer : Ais blinking.
2Use the
h
and
min
buttons to set the desired time.
3 Canceling the timer.
To cancel the OFF timer, press the
AUTO STOP
button.
To cancel the ON timer, press the
AUTO START
button.
• It is possible to combine both OFF and ON timers.
• Pressing the ON/OFF button of the remote controller during timer
mode to stop the unit will cancel the timers.
• If the current time has not been set, the timer operation cannot be used.
6.2. For Wireless Remote-controller
F
A
2
13
BG79U634H06_EN.indd 11 2016/06/01 8:46:40

12
7.2. Error Codes indication
If you have entered contact number to be called in the event of a problem, the screen displays this number.
(You can set this up under Function Selection of remote controller. For information, refer to section 8.)
ON/OFF
˚F
˚F
ERROR CODE
ON/OFF
CALL:XXXX
XXX:XXX
Error Code
8.FunctionSelection
Function selection of remote controller
The setting of the following remote controller functions can be changed using the remote controller function selection mode. Change the setting when needed.
Item 1 Item 2 Item 3 (Setting content)
1.Change Language
(“CHANGE LAN-
GUAGE”)
Language setting to display • Display in multiple languages is possible
2.Function limit
(“FUNCTION SELEC-
TION”)
(1) Operation function limit setting (operation lock)
(“LOCKING FUNCTION”)
• Setting the range of operation limit (operation locking functiion)
(2) Use of automatic mode setting (“SELECT
AUTO MODE”)
• Setting the use or non-use of “automatic” operation mode
(3) Temperature range limit setting (“LIMIT TEMP
FUNCTION”)
• Setting the temperature adjustable range (maximum, mini-
mum)
3.
Operation mode selection
(“MODE SELECTION”)
(1) Remote controller main/sub setting (“CON-
TROLLER MAIN/SUB”)
• Selecting main or sub remote controller
* When two remote controllers are connected to one group, one
controller must be set to sub.
(2) Use of clock setting (“CLOCK”) • Setting the use or non-use of clock function
(3) Timer function setting (“WEEKLY TIMER”) • Setting the timer type
(4) Contact number setting for error situation
(“CALL.”)
• Contact number display in case of error
• Setting the telephone number
4.Display change
(“DISP MODE SET-
TING”)
(1) Temperature display °C/°F setting (“TEMP
MODE °C/°F”)
• Setting the temperature unit (°C or °F) to display
(2) Suction air temperature display setting
(“ROOM TEMP DISP SELECT”)
• Setting the use or non-use of the display of indoor (suction) air
temperature
(3) Automatic cooling/heating display setting
(“AUTO MODE DISP C/H”)
• Setting the use or non-use of the display of “Cooling” or “Heat-
ing” display during operation with automatic mode
7. Other Functions
When the Check button is pressed:
ON/OFF
ERROR CODE
ON lamp
(Blinking)
Error Code
Unit No.
If the ON lamp and error code are both blinking: This means that the air conditioner is out of order and operation has been stopped (and cannot resume).
Take note of the indicated unit number and error code, then switch off the power to the air conditioner and call your dealer or servicer.
If only the error code is blinking (while the ON lamp remains lit): Operation is continuing, but there may be a problem with the system. In this case, you
should note down the error code and then call your dealer or servicer for advice.
* If you have entered contact number to be called in the event of a problem, push the Check button to display it on the screen. (You can set this up under
Function Selection of remote controller. For information, refer to section 8.)
BG79U634H06_EN.indd 12 2016/06/01 8:46:40

13
[Functionselectionowchart]
Setting language (English)
OFF
no1
no2
OFF
ON
OFF
ON
OFF
OFF
CALL-
ON
OFF
ON
OFF
˚C
˚F
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
English
German
Spanish
Russian
Italian
Chinese
French
Japanese
Item 3
Item 2Item 1
Hold down the buttonand pressthe button for 2 seconds.
Hold down the button and press the button for 2 seconds.
Remote controller function selection mode
Press the operation mode button.
Press the TIMER MENU button.
Press the TIMER ON/OFF button.
Dot display
Normal display
(Display when the air conditioner is not running)
Room air temperature is not displayed.
One of “Automatic cooling” and “Automatic heating” is displayed
under the automatic mode is running. (Initial setting value)
Only “Automatic” is displayed under the automatic mode.
Change
Language
Function
selection
Mode
selection
Display
mode setting
8.FunctionSelection
Operation lock setting is not used.
(Initial setting value)
Operation lock setting is except On/Off button.
Operation lock setting is All buttons.
The automatic mode is displayed when the operation
mode is selected. (Initial setting value)
The automatic mode is not displayed when the operation mode
is selected.
The temperature range limit is not active. (Initial setting value)
The temperature range can be changed on cooling/dry mode.
The temperature range can be changed on heating mode.
The temperature range can be changed on automatic mode.
The remote controller will be the main controller. (Initial setting value)
The remote controller will be the sub controller.
The clock function can be used. (Initial setting value)
The clock function can not be used.
Weekly timer can be used. (Initial setting value)
Auto off timer can be used.
Simple timer can be used.
Timer mode can not be used.
The set contact numbers are not displayed in case of error.
(Initial setting value)
The set contact numbers are displayed in case of error.
The temperature unit °C is used.
The temperature unit °F is used. (Initial setting value)
Room air temperature is displayed. (Initial setting value)
Fixed airow direction mode
Not necessary to set this mode. Refer to OPERATION MANUAL of
indoor unit for details on operation.
Automatic lter elevation panel up/down operation mode
Not necessary to set this mode. Refer to OPERATION MANUAL of
Optional Parts (Panel) for details on operation.
BG79U634H06_EN.indd 13 2016/06/01 8:46:41

14
8.FunctionSelection
[4]–3. Operation mode selection setting
(1) Remote controller main/sub setting
• To switch the setting, press the [ ON/OFF] button D.
1Main: The controller will be the main controller.
2Sub: The controller will be the sub controller.
(2) Use of clock setting
• To switch the setting, press the [ ON/OFF] button D.
1ON: The clock function can be used.
2OFF: The clock function cannot be used.
(3) Timer function setting
• To switch the setting, press the [ ON/OFF] button D(Choose one
of the following.).
1WEEKLY TIMER (initial setting value):
The weekly timer can be used.
2AUTO OFF TIMER:
The auto off timer can be used.
3SIMPLE TIMER:
The simple timer can be used.
4TIMER MODE OFF:
The timer mode cannot be used.
* When the use of clock setting is OFF, the “WEEKLY TIMER” cannot
be used.
(4) Contact number setting for error situation
• To switch the setting, press the [ ON/OFF] button D.
1CALL OFF:
The set contact numbers are not displayed in case of error.
2CALL **** *** ****:
The set contact numbers are displayed in case of error.
CALL_:
The contact number can be set when the display is as shown
above.
• Setting the contact numbers
To set the contact numbers, follow the following procedures.
Move the blinking cursor to set numbers. Press the [ TEMP.
() and ( )] button Fto move the cursor to the right (left). Press
the [ CLOCK ( ) and ( )] button Cto set the numbers.
[4]–4. Display change setting
(1) Temperature display °C/°F setting
• To switch the setting, press the [ ON/OFF] button D.
1°C: The temperature unit °C is used.
2°F: The temperature unit °F is used.
(2) Room air temperature display setting
• To switch the setting, press the [ ON/OFF] button D.
1ON : The room air temperature is displayed.
2OFF: The room air temperature is not displayed.
(3) Automatic cooling/heating display setting
• To switch the setting, press the [ ON/OFF] button D.
1ON:
One of “Automatic cooling” and “Automatic heating” is displayed
under the automatic mode is running.
2OFF:
Only “Automatic” is displayed under the automatic mode.
[Detailed setting]
[4]–1. CHANGE LANGUAGE setting
The language that appears on the dot display can be selected.
• Press the [ MENU] button Gto change the language.
1English (GB), 2German (D), 3Spanish (E), 4Russian (RU),
5Italian (I), 6Chinese (CH), 7French (F), 8Japanese (JP)
Refer to the dot display table.
[4]–2. Function limit
(1) Operation function limit setting (operation locking function)
• To switch the setting, press the [ ON/OFF] button .
1no1 :Operation lock setting is made on all buttons other than
the [ ON/OFF] button.
2no2 :Operation lock setting is made on all buttons.
3OFF (Initial setting value): Operation lock setting is not made.
* To make the operation lock setting valid on the normal screen, it
is necessary to press buttons (Press and hold down the [FILTER]
and [ ON/OFF] buttons at the same time for two seconds.) on
the normal screen after the above setting is made.
(2) Use of automatic mode setting
When the remote controller is connected to the unit that has automatic
operation mode, the following settings can be made.
• To switch the setting, press the [ ON/OFF] button D.
1ON (Initial setting value):
The automatic mode is displayed when the operation mode is
selected.
2OFF:
The automatic mode is not displayed when the operation mode
is selected.
(3) Temperature range limit setting
After this setting is made, the temperature can be changed within the
set range.
• To switch the setting, press the [ ON/OFF] button D.
1LIMIT TEMP COOL MODE:
The temperature range can be changed on cooling/dry mode.
2LIMIT TEMP HEAT MODE:
The temperature range can be changed on heating mode.
3LIMIT TEMP AUTO MODE:
The temperature range can be changed on automatic mode.
4OFF (initial setting): The temperature range limit is not active.
* When the setting, other than OFF, is made, the temperature range
limit setting on cooling, heating and automatic mode is made at
the same time. However, the range cannot be limited when the set
temperature range has not changed.
• To increase or decrease the temperature, press the
[ TEMP. ( ) or ( )] button F.
• To switch the upper limit setting and the lower limit setting, press the
[ ] button H. The selected setting will blink and the temperature
can be set.
• Settable range
Cooling/Dry mode:
Lower limit: 19°C~30°C, 67°F~87°F
Upper limit: 30°C~19°C, 87°F~67°F
Heating mode:
Lower limit: 17°C~28°C, 63°F~83°F
Upper limit: 28°C~17°C, 83°F~63°F
Automatic mode:
Lower limit: 19°C~28°C, 67°F~83°F
Upper limit: 28°C~19°C, 83°F~67°F
BG79U634H06_EN.indd 14 2016/06/01 8:46:41

15
8.FunctionSelection
[Dot display table]
Waiting for start-up
Operation mode Cool
Dry
Heat
Auto
Auto(Cool)
Auto(Heat)
Fan
Ventilation
Stand by
(Hot adjust)
Defrost
Set temperature
Fan speed
Not use button
Check (Error)
Test run
Self check
Unit function selection
Setting of ventilation
CHANGE LANGUAGE
Function selection
Operation function limit setting
Use of automatic mode setting
Temperature range limit setting
Limit temperature cooling/day
mode
Limit temperature heating mode
Limit temperature auto mode
Operation mode selection
Remote controller setting MAIN
Remote controller setting SUB
Use of clock setting
Setting the day of the week and
time
Timer set
Timer monitor
Weekly timer
Timer mode off
Auto off timer
Simple timer
Contact number setting of error
situation
Display change
Temperature display °C/°F setting
Air inlet temperature display
setting
Automatic cooling/heating display
setting
Selecting language
Selecting language English German Spanish Russian Italian Chinese French Japanese
English German Spanish Russian Italian Chinese French Japanese
BG79U634H06_EN.indd 15 2016/06/01 8:46:44

16
B
A
E
D C
ON/OFF
TEMP.
˚F
˚F
FILTER
10.CareandCleaning
PKFY-P·NBMU-E2
PKFY-P·NHMU-E2
When the remote-controller cannot be used
When the batteries of the remote controller run out or the remote control-
ler malfunctions, the emergency operation can be done using the emer-
gency buttons.
ADEFROST/STAND BY lamp
BOperation lamp
CEmergency operation switch (heating)
DEmergency operation switch (cooling)
EReceiver
Starting operation
• To operate the cooling mode, press the button D for more than 2
seconds.
• To operate the heating mode, press the button C for more than 2
seconds.
Note:
• Detailsofemergencymodeareasshownbelow.
Details of EMERGENCY MODE are as shown below.
Operation mode COOL HEAT
Set temperature 24°C, 75°F 24°C, 75°F
Fan speed High High
Airow direction Horizontal Downward 4 (5)
Stopping operation
• To stop operation, press the button Dor the button C for more
than 2 seconds.
9. Emergency Operation for Wireless Remote-controller
Indicates that the lter needs cleaning.
Ask authorized people to clean the lter.
When resetting “FILTER” display
When the [FILTER] button is pressed two times successively after clean-
ing the lter, the display goes off and is reset.
Note:
When 2 or more different types of indoor unit are controlled, the
cleaningperioddifferswiththetypeoflter.Whenthemasterunit
cleaning period arrives, “FILTER” is displayed. When the lter
display goes off, the cumulative time is reset.
“FILTER” indicates the cleaning period when the air conditioner
was used under general indoor air conditions by criteria time. Since
the degree of dirtiness depends on the environmental conditions,
cleanthelteraccordingly.
 Theltercleaningperiodcumulativetimedifferswiththemodel.
This indication is not available for wireless remote controller.
Cleaningthelters
• Clean the lters using a vacuum cleaner. If you do not have a vacuum
cleaner, tap the lters against a solid object to knock off dirt and dust.
• If the lters are especially dirty, wash them in lukewarm water. Take care
to rinse off any detergent thoroughly and allow the lters to dry completely
before putting them back into the unit.
Caution:
• Donotdrytheltersindirectsunlightorbyusingaheatsource,
such as an electric heater: this may warp them.
• Donotwashtheltersinhotwater(above50°C, 122°F),asthismay
warp them.
• Makesurethattheairltersarealwaysinstalled.Operatingtheunit
withoutairlterscancausemalfunction.
• Beforeyoustartcleaning,stopoperationandturnOFFthepower
supply.
• Indoorunitsareequippedwithlterstoremovethedustofsucked-
inair.Cleantheltersusingthemethodsshowninthefollowing
sketches.
Filter removal
Caution:
• Inremovingthelter,precautionsmustbetakentoprotectyour
eyes from dust. Also, if you have to climb up on a stool to do the
job, be careful not to fall.
• Whenthelterisremoved,donottouchthemetallicpartsinside
the indoor unit, otherwise injury may result.
1Pull both the bottom corners of the intake grille to open the grille, then
lift the lter.
(ForPKFY-P·NHMU-E2)
BG79U634H06_EN.indd 16 2016/06/01 8:46:45

17
PMFY-P·NBMU-E
1
Pressing the PUSH button on the outer side of the intake grille causes
the intake grille to open.
2 A lter with an intake grille on it can be removed by pulling the lter
forward.
10.CareandCleaning
11. Trouble Shooting
Having trouble? Here is the solution. (Unit is operating normally.)
Air conditioner does not heat or cool well. Clean the lter. (Airow is reduced when the lter is dirty or clogged.)
Check the temperature adjustment and adjust the set temperature.
Make sure that there is plenty of space around the outdoor unit. Is the
indoor unit air intake or outlet blocked?
Has a door or window been left open?
When heating operation starts, warm air does not blow from the indoor
unit soon. Warm air does not blow until the indoor unit has sufciently warmed up.
During heating mode, the air conditioner stops before the set room
temperature is reached. When the outdoor temperature is low and the humidity is high, frost
may form on the outdoor unit. If this occurs, the outdoor unit performs
a defrosting operation. Normal operation should begin after approxi-
mately10 minutes.
Airow direction changes during operation or airow direction cannot
be set. During cooling mode, the vanes automatically move to the horizontal
(down) position after 1 hour when the down (horizontal) airow direction
is selected. This is to prevent water from forming and dripping from the
vanes.
During heating mode, the vanes automatically move to the horizontal
airow direction when the airow temperature is low or during defrost-
ing mode.
When the airow direction is changed, the vanes always move up and
down past the set position before nally stopping at the position. When the airow direction is changed, the vanes move to the set posi-
tion after detecting the base position.
A owing water sound or occasional hissing sound is heard. These sounds can be heard when refrigerant is owing in the air condi-
tioner or when the refrigerant ow is changing.
A cracking or creaking sound is heard. These sounds can be heard when parts rub against each due to expan-
sion and contraction from temperature changes.
The room has an unpleasant odor. The indoor unit draws in air that contains gases produced from the
walls, carpeting, and furniture as well as odors trapped in clothing, and
then blows this air back into the room.
A white mist or vapor is emitted from the indoor unit. If the indoor temperature and the humidity are high, this condition may
occur when operation starts.
During defrosting mode, cool airow may blow down and appear like a
mist.
BG79U634H06_EN.indd 17 2016/06/01 8:46:45

18
11. Trouble Shooting
Having trouble? Here is the solution. (Unit is operating normally.)
Water or vapor is emitted from the outdoor unit. During cooling mode, water may form and drip from the cool pipes and
joints.
During heating mode, water may form and drip from the heat exchang-
er.
During defrosting mode, water on the heat exchanger evaporates and
water vapor may be emitted.
The operation indicator does not appear in the remote controller display. Turn on the power switch. “ ” will appear in the remote controller
display.
The air conditioner does not operate even though the ON/OFF but-
ton is pressed. The operation mode display on the remote controller
disappears.
Is the power switch of the indoor unit turned off? Turn on the power
switch.
“” appears in the remote controller display. During central control, “ ” appears in the remote controller display
and air conditioner operation cannot be started or stopped using the
remote controller.
When restarting the air conditioner soon after stopping it, it does not
operate even though the ON/OFF button is pressed. Wait approximately three minutes.
(Operation has stopped to protect the air conditioner.)
Air conditioner operates without the ON/OFF button being pressed. Is the on timer set?
Press the ON/OFF button to stop operation.
Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
Has the auto recovery feature from power failures been set?
Press the ON/OFF button to stop operation.
Air conditioner stops without the ON/OFF button being pressed. Is the off timer set?
Press the ON/OFF button to restart operation.
Is the air conditioner connected to a central remote controller?
Consult the concerned people who control the air conditioner.
Does “ ” appear in the remote controller display?
Consult the concerned people who control the air conditioner.
Remote controller timer operation cannot be set. Are timer settings invalid?
If the timer can be set, WEEKLY , SIMPLE or AUTO OFF appears in the
remote controller display.
“PLEASE WAIT” appears in the remote controller display. The initial settings are being performed. Wait approximately 3 minutes.
An error code appears in the remote controller display. The protection devices have operated to protect the air conditioner.
Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure to
provide the dealer with the model name and information that appeared in
the remote controller display.
Draining water or motor rotation sound is heard. When cooling operation stops, the drain pump operates and then stops.
Wait approximately 3 minutes.
Noise is louder than specications. The indoor operation sound level is affected by the acoustics of the particu-
lar room as shown in the following table and will be higher than the noise
specication, which was measured in an echo-free room.
High sound-ab-
sorbing rooms Normal rooms Low sound-ab- sorbing rooms
Location
examples
Broadcasting
studio, music
room, etc.
Reception
room, hotel
lobby, etc.
Ofce, hotel
room
Noise levels 3 to 7 dB 6 to 10 dB 9 to 13 dB
Nothing appears in the wireless remote controller display, the display
is faint, or signals are not received by the indoor unit unless the remote
controller is close.
The batteries are low.
Replace the batteries and press the Reset button.
If nothing appears even after the batteries are replaced, make sure that
the batteries are installed in the correct directions (+, –).
The operation lamp near the receiver for the wireless remote controller
on the indoor unit is blinking. The self diagnosis function has operated to protect the air conditioner.
Do not attempt to repair this equipment by yourself.
Turn off the power switch immediately and consult your dealer. Be sure to
provide the dealer with the model name.
Warm air blows from the indoor unit intermittently when heating mode
is off or during fan mode. When another indoor unit is operating in heating mode, the control valve
opens and closes occasionally to maintain stability in the air conditioning
system. This operation will stop after a while.
* If this will cause an undesirable rise in the room temperature in small
rooms, etc., stop the operation of the indoor unit temporarily.
BG79U634H06_EN.indd 18 2016/06/01 8:46:46

19
12.Specications
PKFY Series
Model PKFY-P06NBMU-E2 PKFY-P08NHMU-E2 PKFY-P12NHMU-E2 PKFY-P15NHMU-E2 PKFY-P18NHMU-E2
Power source Single 208/230V 60Hz
Capacity Cooling <BTU/h> 6,000 8,000 12,000 15,000 18,000
Heating <BTU/h> 6,700 9,000 13,500 17,000 20,000
Dimension
H <inch> 11-5/8
W <inch> 32-1/8 35-3/8
D <inch> 8-7/8 9-13/16
Net weight <Ibs> 22 29
Fan Airow rate
(Low-Middle2-Middle1-High)
DRY <CFM>
170-180-200-210 320-370-405 320-370-425
WET <CFM>
160-170-180-190 290-335-365 290-335-380
Noise level
(Low-Middle2-Middle1-High) <dB(A)> 32-33-35-36 34-39-43 36-41-45
PMFY Series
Model PMFY-P06NBMU-E PMFY-P08NBMU-E PMFY-P12NBMU-E PMFY-P15NBMU-E
Power source Single 208/230V 60Hz
Capacity Cooling <BTU/h> 6,000 8,000 12,000 15,000
Heating <BTU/h> 6,700 9,000 13,500 17,000
Dimension (Grille)
H <inch> 9-1/16 (1-3/16)
W <inch> 33-5/8 (39-3/8)
D <inch> 1/-9/16 (18-1/2)
Net weight (Grille) <Ibs> 31 (7)
Fan Airow rate
(Low-Middle2-Middle1-High)
DRY <CFM>
230-250-280-300 250-280-300-320 270-300-340-370
WET <CFM> 200-220-250-270 220-250-270-290 240-270-310-340
Noise level
(Low-Middle2-Middle1-High) <dB(A)> 27-30-33-35 32-34-36-37 33-35-37-39
1. Cooling/Heating capacity indicates the maximum value at operation under the following condition.
Coolong : Indoor 27°C DB, 81°F DB/19°C WB, 67°F WB, Outdoor 35°C DB, 95°F DB
Heating : Indoor 20°C DB, 68°F DB, Outdoor 7°C DB, 45°F DB/ 6°C WB, 43°F WB
Range of application
The range of working temperatures for both the indoor and outdoor units of the series Y is as below.
Caution:
The use of your air conditioner outside the range of working temperature and humidity can result in serious failure.
Mode Indoor unit Outdoor unit
PUHY PURY PUMY
Cooling
15°C - 24°C, 59˚F - 75˚F WB –5°C - 46°C, 23˚F - 115˚F DB –5°C - 46°C, 23˚F - 115˚F DB –5°C - 46°C, 23˚F - 115˚F DB
Heating 15°C - 27°C, 59˚F - 81˚F DB –20°C - 15.5°C, – 4˚F - 60˚F WB –20°C - 15.5°C, – 4˚F - 60˚F WB –18°C - 15.5°C, 0˚F - 60˚F WB
Note:Asanapplicablehumiditystandardforbothindoorsandoutdoors,werecommendusewithinarangeof30-80%relativehumidity.
Warning:
Iftheairconditioneroperatesbutdoesnotcoolorheat(dependingonmodel)theroom,consultyourdealersincetheremaybearefrigerant
leak. Be sure to ask the service representative whether there is refrigerant leakage or not when repairs are carried out.
The refrigerant charged in the air conditioner is safe. Refrigerant normally does not leak, however, if refrigerant gas leaks indoors, and comes
intocontactwiththereofafanheater,spaceheater,stove,etc.,harmfulsubstanceswillbegenerated.
BG79U634H06_EN.indd 19 2016/06/01 8:46:46

20
1. Consignes de sécurité
Index
Avant d’installer le climatiseur, lire attentivement toutes les
“Consignes de sécurité”.
Le “Consignes de sécurité” reprennent des points très impor-
tants concernant la sécurité. Veillez bien à les suivre.
Veuillez consulter ou obtenir la permission votre compagnie
d’électricité avant de connecter votre système.
Symboles utilisés dans le texte
Avertissement:
Précautions à suivre pour éviter tout danger de blessure ou de décès
de l’utilisateur.
Précaution:
Décrit les précautions qui doivent être prises pour éviter d’endommager
l’appareil.
Symboles utilisés dans les illustrations
: Indique un élément qui doit être mis à la terre.
Avertissement:
•Pour les appareils qui ne sont pas accessibles au public.
• Cetappareilnedoitpasêtreinstalléparl’utilisateur.Demanderau
revendeur ou à une société agréée de l’installer. Si l’appareil n’est
pas correctement installé il peut y avoir un risque de fuite d’eau,
d’électrocution ou d’incendie.
• Nepasmarchersurl’appareilniydéposerdesobjets.
• Ne jamais éclabousser l’appareil ni le toucher avec des mains
humides.Ilpourraitenrésulterunrisqued’électrocution.
• Nepasvaporiserdegazinammableàproximitédel’appareilsous
risque d’incendie.
• Nepasplacerdechauffageaugazoutoutautreappareilfonctionnant
avecuneammevivelàoùilseraitexposéàl’échappementd’airdu
climatiseur. Cela risquerait de provoquer une mauvaise combustion.
• Ne pas retirer la face avant ou la protection du ventilateur de
l’appareil extérieur pendant son fonctionnement.
• Nejamaisrépareroudéménagerpersonnellementl’appareil.
• Sivousremarquezdesvibrationsoudesbruitsparticulièrement
anormaux, arrêter l’appareil, éteindre l’interrupteur et prendre
contact avec le revendeur.
• Nejamaismettredesdoigts,desbâtons,etc.danslesentréeset
sorties d’air.
Précaution:
• Nepasutiliserd’objetpointupourenfoncerlesboutonscarcela
risquerait d’endommager la commande à distance.
• Nejamaisobstruerlesentréesetsortiesdesappareilsextérieurs
et intérieurs.
• Nejamaisnettoyerlatélécommandeavecdubenzène,unchiffon
imbibé de diluant, etc.
• Nepaslaisserl’appareilfonctionnerpendantunepériodeprolongée
dans des conditions humides, par exemple avec une porte ou une
fenêtre ouverte. En mode de refroidissement, si l’appareil fonctionne
1. Consignes de sécurité...................................................................... 20
2. Nomenclature ................................................................................... 20
3. Conguration d’écran ....................................................................... 24
4. Régler le jour de la semaine et l’heure............................................. 24
5. Fonctionnement................................................................................ 24
6. Minuterie........................................................................................... 26
7. Autres fonctions.............................................................................. 29
8. Sélection des fonctions................................................................... 30
9. Fonctionnement d’urgence de la télécommande sans l ............... 34
10. Entretien et nettoyage .................................................................... 34
11. Guide de dépannage ...................................................................... 35
12. Spécications techniques............................................................... 37
Unité interne
PKFY-P·NBMU-E2 PKFY-P·NHMU-E2 PMFY-P·NBMU-E
Vitesse du ventilateur 4 Vitesses 3 Vitesses+ Auto* 4 Vitesses
Ailette
Modes 4 modes 5 modes 4 modes
Auto avec
variation
Louvre Manuel Manuel Manuel
Filtre Normal Normal Normal
Témoin de nettoyage
du ltre 100 heures 100 heures 100 heures
2.Nomenclature
* Cette opération n’est possible qu’à l’aide de la télécommande
qui permet de régler la vitesse du ventilateur sur “Auto”.
Remarque :
Dansleprésentmanueld’utilisation,l’expression“Télécommandelaire”faitréférenceaumodèlePAR-21MAA.
Pour toute information relative à un autre modèle de télécommande, reportez-vous au livret d’instructions fourni dans la boîte de cette dernière.
• Sivous sentez des odeurs étranges, arrêter l’appareil,le mettre
horstensionetcontacterlerevendeur.Sivousneprocédezpas
de cette façon, il pourrait y avoir risque de panne, d’électrocution
ou d’incendie.
• Ne JAMAIS laisser des enfants ou des personnes handicapées
utiliser le climatiseur sans surveillance.
• Toujourssurveillerquelesjeunesenfantsne jouentpasavecle
climatiseur.
• Silegazderéfrigérantfuit,arrêterlefonctionnementduclimatiseur,
aérer convenablement la pièce et prendre contact avec le revendeur.
• Lorsdel’installation,dudéplacementoudel’entretienduclimati-
seur,n’utilisezqueleréfrigérantspécié(R410A)pourremplirles
tuyauxderéfrigérant.Nepaslemélangeravecunautreréfrigérant
et faire le vide d’air dans les tuyaux.
Si du réfrigérant est mélangé avec de l’air, cela peut provoquer des
pointes de pression dans les tuyaux de réfrigérant et entraîner une
explosion et d’autres risques.
 L’utilisation d’un réfrigérant différent de celui spécié pour le
climatiseur peut entraîner des défaillances mécaniques, des dys-
fonctionnements du système ou une panne de l’appareil. Dans le
pire des cas, cela peut entraîner un obstacle à la mise en sécurité
du produit.
longtempsdansunepiècehumide(RHde80%ouplus),l’eaucon-
denséeàl’intérieurduclimatiseurrisquedetacheroud’abîmerles
meubles, etc.
• Nepastoucherl’ailettedesortied’airsupérieurenileregistrede
sortie d’air inférieur pendant le fonctionnement d’appareil. De la
condensation risquerait de se former d’appareil pourrait s’arrêter
de fonctionner.
Rangement de l’appareil
Lorsque vous devez ranger l’appareil, veuillez consulter votre revendeur.
BG79U634H06_FR.indd 20 2016/06/01 8:47:50
