Mitsubishi Electric AE-200A/AE-50A User manual

Contents
1. Introduction .........................................................................2
1-1. Terms Used in This Manual ........................................................2
1-2. PC Requirements .......................................................................2
1-3. Notes on using the integrated centralized control software
TG-2000A ...................................................................................2
2. Setting the Operating Environment.....................................3
2-1. Setting the IP Address of the PC ................................................3
2-2. Setting the Web Browser............................................................5
3. Logging in to the Web Browser for System Maintenance
Engineer..............................................................................8
4. Monitor/Operation .............................................................11

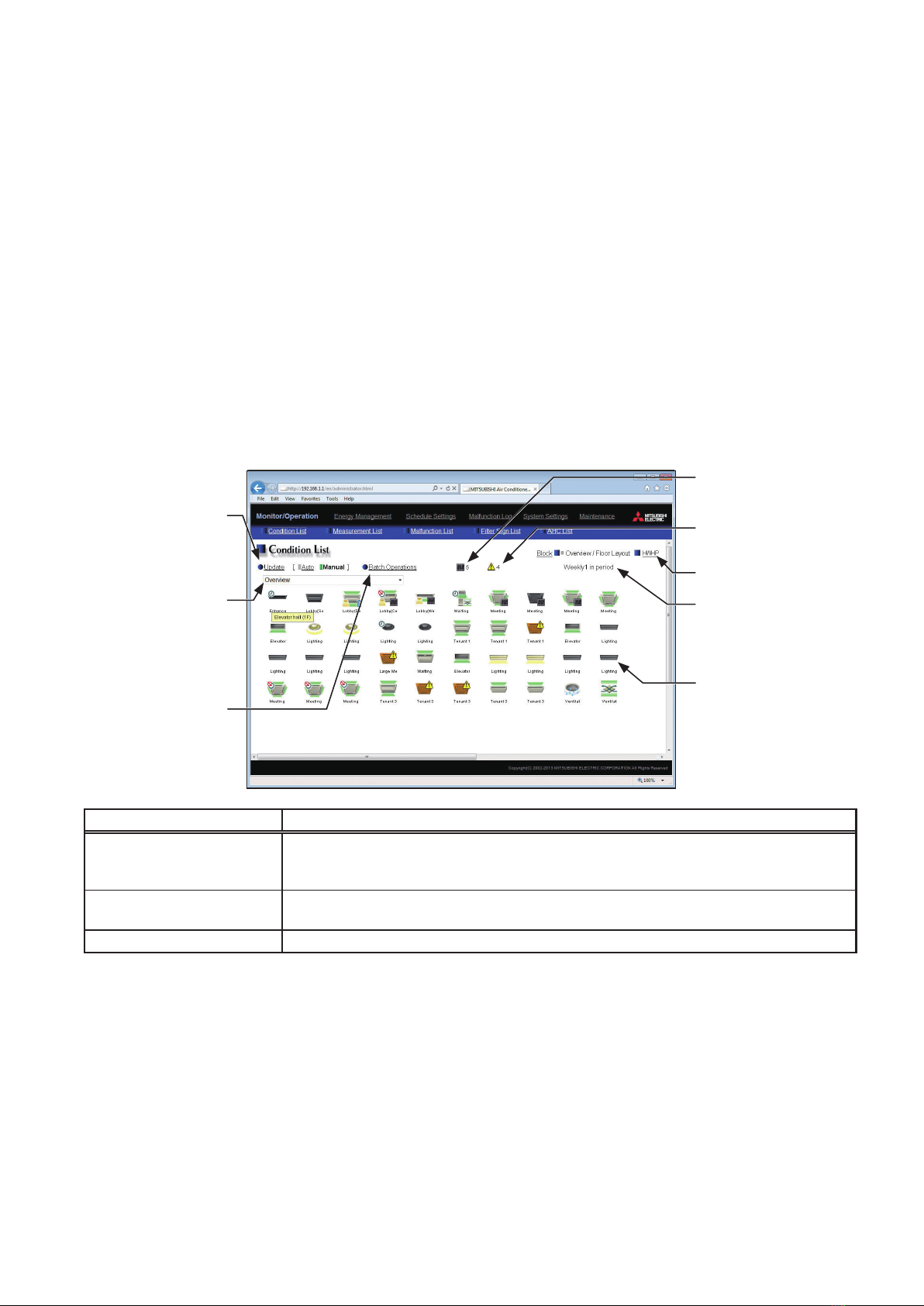

4-1. Condition List............................................................................11
4-2. Measurement List .....................................................................20
4-3. Malfunction List.........................................................................21
4-4. Filter Sign List...........................................................................23
4-5. AHC List....................................................................................24
5. Energy Management.........................................................26
5-1. Energy Use Status....................................................................26
5-2. Ranking ....................................................................................32
5-3. Target Value Setting..................................................................35
5-4. Peakcut Control Status.............................................................37
6. Schedule Settings.............................................................39
6-1. Weekly Schedule......................................................................41
6-2. Annual Schedule.......................................................................46
6-3. Today’s Schedule......................................................................49
7. Malfunction Log.................................................................51
7-1. Unit Error/Communication Error ...............................................51
8. System Settings ................................................................52
8-1. Date/Time Settings ...................................................................52
8-2. User Registration......................................................................53
9. Maintenance .....................................................................54
9-1. Send Mail Log...........................................................................54
9-2. Gas Amount Check...................................................................55
9-3. Outdoor unit status ...................................................................56
9-4. Free Contact List ......................................................................57
9-5. CSV output ...............................................................................58
10.License registration for optional functions.........................69
Before using the controller, please read this Instruction Book carefully to ensure proper operation.
Retain this manual for future reference.
Instruction Book
–Web Browser for System Maintenance Engineer–
Air Conditioning Control System
Centralized Controller
AE-200A/AE-50A
AE-200E/AE-50E

2
WT07139X01
1. Introduction
This Instruction Book explains how to monitor and operate the units connected to the AE-200A/AE-50A and
AE-200E/AE-50E using a Web browser.
For initial settings and function settings, refer to the Instruction Book (Web Browser for Initial Settings).
1-1. Terms Used in This Manual
- “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200.”
- “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50.”
- “Booster unit” and “Water HEX unit” are referred to as “Air To Water (PWFY) unit.”
- “Advanced HVAC CONTROLLER” is referred to as “AHC.”
- “Hot Water Heat Pump unit” is referred to as “HWHP (CAHV) unit.”
- Screen images used in this manual are from Windows 7®and Internet Explorer 9.0.
Note: Windows is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
1-2. PC Requirements
Table1-1 PC Requirements
Item Requirement
CPU 1 GHz or faster
Memory 512 MB or more
Screen resolution 1024 x 768 or higher recommended
Browser
Microsoft®Internet Explorer 8.0
Microsoft®Internet Explorer 9.0
Microsoft®Internet Explorer 10.0
* Java execution environment is required.
(Oracle®Java Plug-in Ver. 1.7.0_51)
* Install Oracle®Java Plug-in that is appropriate for your operating system. When
using a 64-bit Internet Explorer, install a 64-bit Java Plug-in.
* The version of the Oracle®Java Plug-in can be verified by clicking [Java] in the
Control Panel.
On-board LAN port or LAN card 100 BASE-TX
Pointing device e.g., mouse
Note: Microsoft is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Oracle and Java are trademarks or registered trademarks of Oracle Inc. in the United States and/or other countries.
1-3. Notes on using the integrated centralized control software TG-2000A
If the system is connected to a TG-2000A, make or change all settings from the TG-2000A so that the data in the
TG-2000A and AE-200 will match.
Note: Use TG-2000A Ver. 6.50 or later.

3
WT07139X01
2. Setting the Operating Environment
This chapter explains how to make PC settings and Web browser settings to monitor and operate the air
conditioning units.
2-1. Setting the IP Address of the PC
Follow the instructions below to set the PC’s IP address for the Web browser to recognize the AE-200 unit.
The PC’s IP address must have the same network address as the AE-200/AE-50’s IP address.
(i.e., AE-200’s IP address: [192.168.1.1], PC’s IP address: [192.168.1.101])
When connecting an AE-200/AE-50 to an existing LAN, consult the system administrator to decide the IP
addresses.
Note: When using an AE-200/AE-50-dedicated LAN, it is recommended that the AE-200 unit be assigned an IP address
between the range [192.168.1.1] and [192.168.1.40], the AE-50 unit be assigned an IP address between the range
[192.168.1.211] and [192.168.1.249], and that the PC connected to the AE-200/AE-50 be assigned an IP address
between the range [192.168.1.101] and [192.168.1.150].

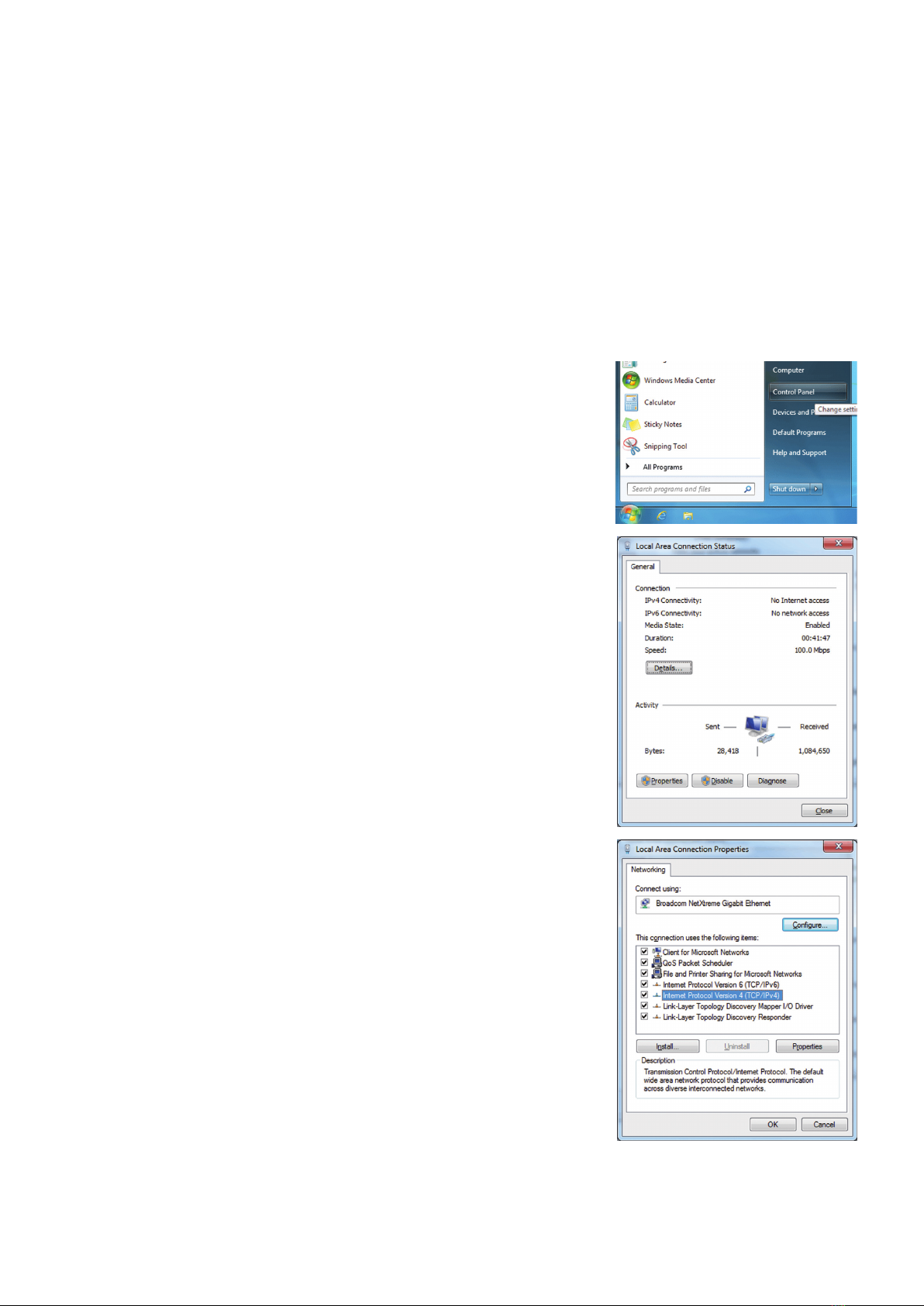

(1) Click [Control Panel] in the Start menu.
(2) Click [Network and Sharing Center]>[Local Area Setting].
In the [Local Area Connection Status] window, click [Properties].
(3) Click [Internet Protocol Version 4 (TCP/IPv4)] to select it, and click
[Properties].

4
WT07139X01
(4) In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window,
check the radio button next to [Use the following IP address].
Enter the PC’s IP address (e.g., [192.168.1.101]) in the [IP address]
field, and enter the subnet mask [255.255.255.0] (unless otherwise
specified) in the [Subnet mask] field.
In the [Default gateway] field, enter the gateway address as necessary.
Note: Consult the system administrator to decide the IP, subnet mask, and
gateway addresses.
(5) Keep clicking [OK] or [Close] to close all windows.

5
WT07139X01
2-2. Setting the Web Browser
Web browser setting varies with the Internet connection type. See the sections below for how to make Web
browser settings for different types of Internet connection.
To prevent unauthorized access, always use a security device such as a VPN router when
connecting the AE-200/AE-50 to the Internet.
2-2-1. No Internet connection
To monitor and operate the air conditioning units from a PC with no Internet connection, follow the instructions
below to set the environment for the Web browser.
(1) Click [Tools] in the menu bar, then click [Internet options].
(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Never dial a connection] in the middle
of the window, and click [OK] to close the window.

6
WT07139X01
2-2-2. Dial-up Internet connection
To monitor and operate the air conditioning units from a PC that connects to the Internet through a dial-up
connection, follow the instructions below to set the environment for the Web browser.
(1) Click [Tools] in the menu bar, then click [Internet options].
(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Dial whenever a network connection
is not present] in the middle of the window, and click [OK] to close the
window.
By making these settings, a message will appear asking whether
or not to use a dial-up connection when an Internet connection is
necessary. Follow the message to connect to the Internet.

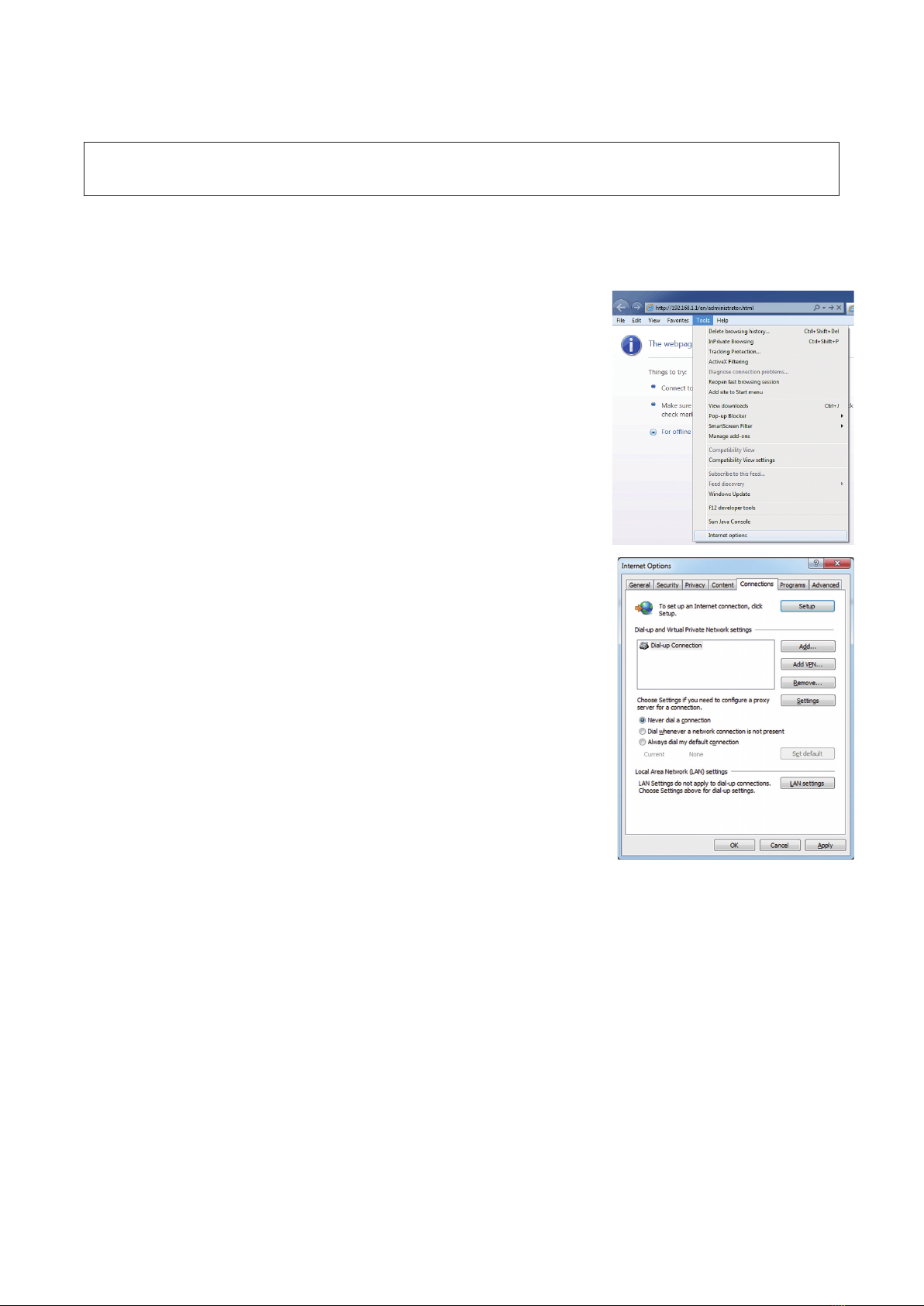

2-2-3. Connecting to the Internet via proxy server using an existing LAN
To monitor and operate the air conditioning units from a PC that connects to the Internet through a proxy server
by connecting to an existing LAN, such as a LAN within your company, follow the instructions below to set the
environment for the Web browser.
(1) Click [Tools] in the menu bar, then click [Internet options].

7
WT07139X01

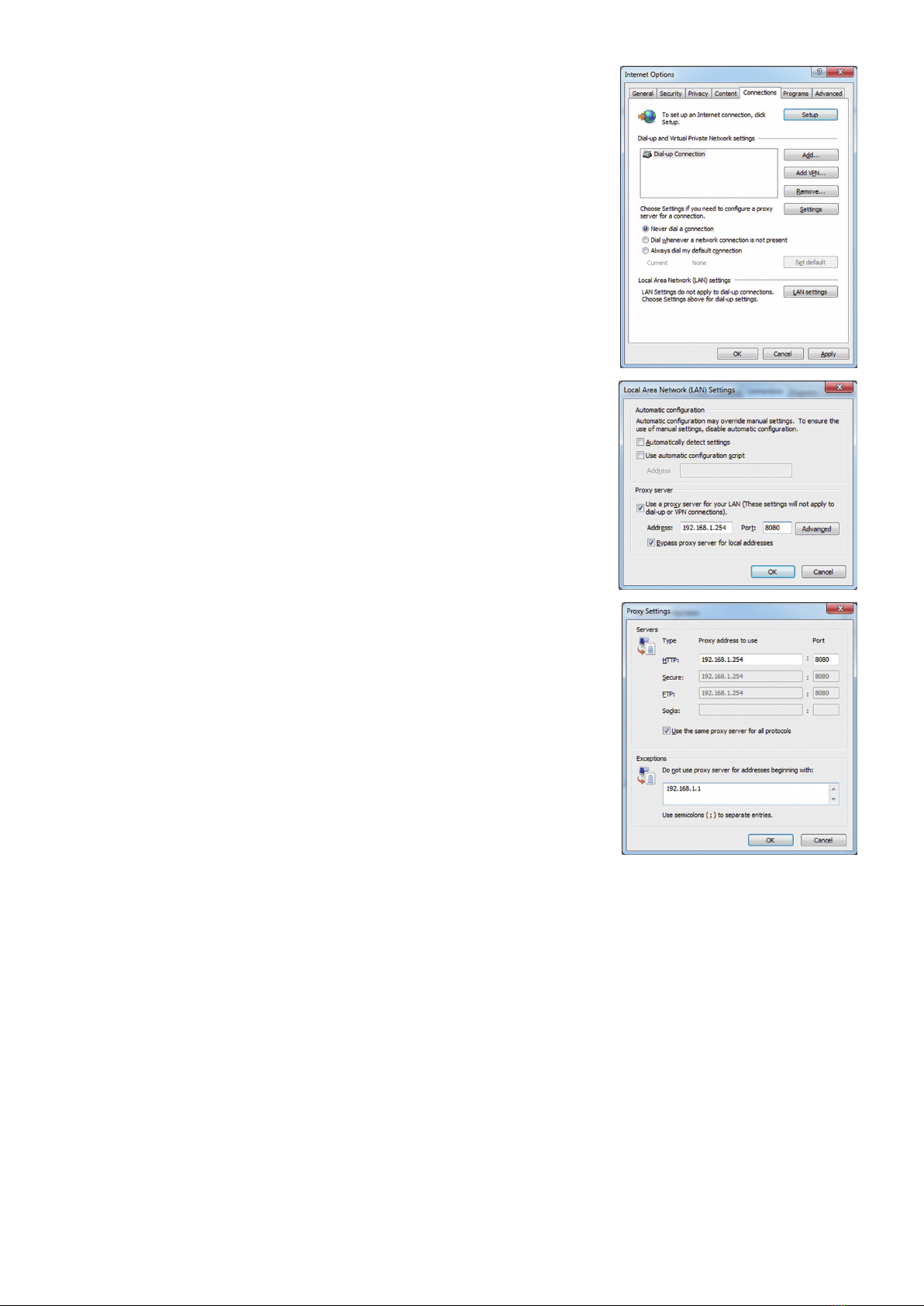

(2) In the [Internet Options] window, click the [Connections] tab.
(3) Check the radio button next to [Never dial a connection] in the middle
of the window.
(4) Click [LAN settings] under [Local Area Network (LAN) settings].
(5) In the [Local Area Network (LAN) Settings] window, check [Bypass
proxy server for local addresses], and click [Advanced].
(6) In the [Proxy Settings] window, enter the AE-200/AE-50’s IP address
(e.g., 192.168.1.1) in the [Exceptions] field. Then, keep clicking [OK]
or [Close] to close all windows.
If connecting multiple AE-200/AE-50 units, enter their addresses (e.g.,
[192.168.1.1; 192.168.1.2]). It is also possible to use an asterisk as a
wildcard (e.g., [192.168.1.*]).

8
WT07139X01
3. Logging in to the Web Browser for System
Maintenance Engineer

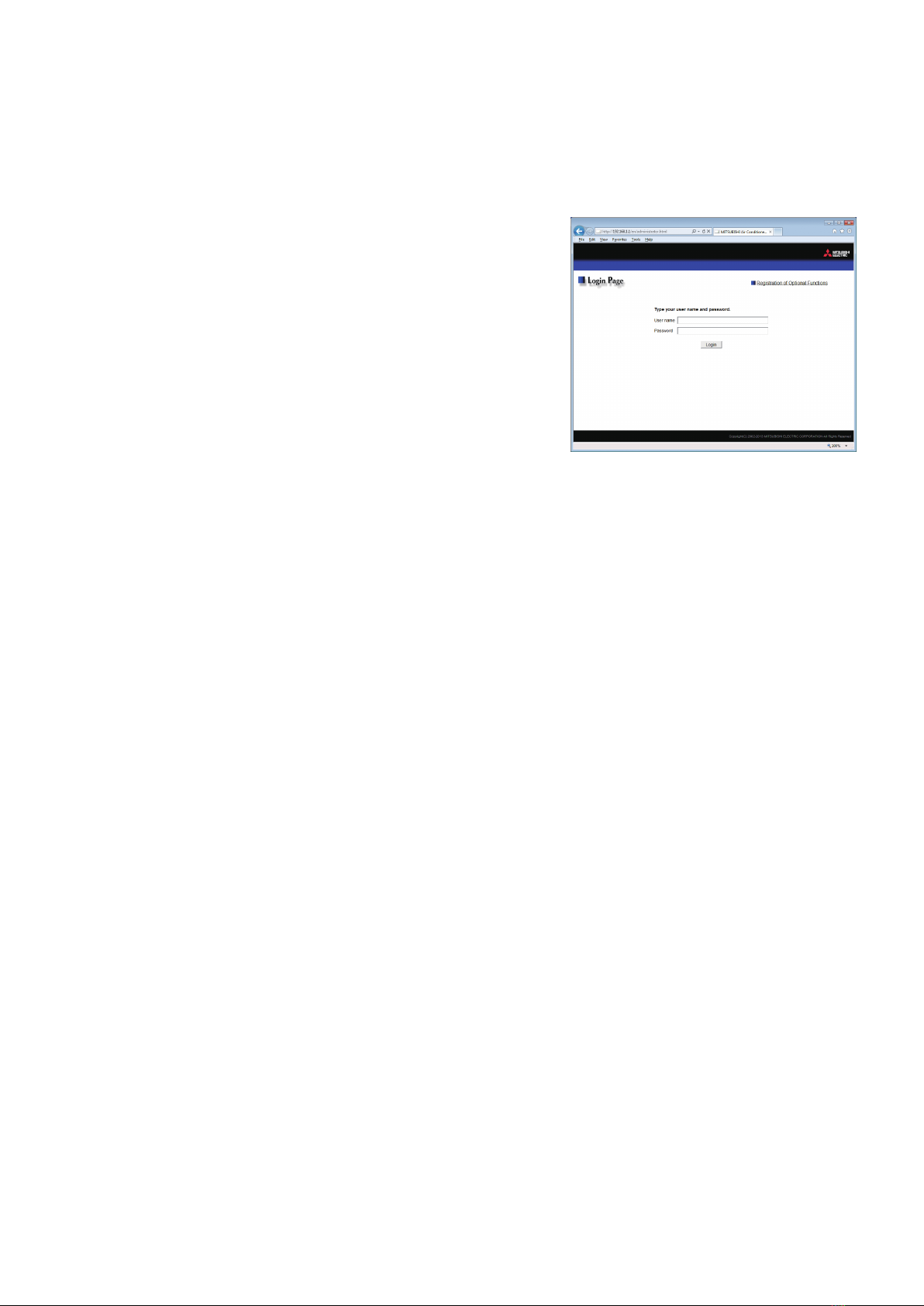

(1) Enter the web page address in the address field of the Web browser as follows:
http://[IP address of each AE-200/AE-50]/administrator.html
Press the [Enter] key. A login screen will appear.
Note: If the IP address of the AE-200/AE-50 is [192.168.1.1], the web
page address is [http://192.168.1.1/administrator.html].
Note: Default IP address of AE-200 and AE-50 is [192.168.1.1].
When one or more AE-50 controllers are connected, none of
their IP addresses should overlap. The recommended IP address
ranges are as follows.
AE-200: Between [192.168.1.1] and [192.168.1.40]
AE-50: Between [192.168.1.211] and [192.168.1.249]
Note: Log in to the AE-200 or AE-50 Web browser respectively to
monitor or operate the units that are under the control of AE-200
or AE-50. The Web browser cannot be switched between the
AE-200 and the AE-50.
Note: If the login screen does not appear then take the steps below to
delete the temporary files.
<Internet Explorer>
1. Click [Tools] in the menu bar, then click [Internet options].
2. On the [General] tab, click [Delete] in the middle of the window.
3. In the [Delete Browsing History] window, click [Delete].
<Java>
1. Click [Control Panel] from the Start menu.
2. Click the [Java] icon to launch the Java Control Panel.
3. On the [General] tab, click [Settings] in the [Temporary Internet
Files] section.
4. Click [Delete Files].
5. In the [Delete Files and Applications] window, click [OK].
Note: The web page will be displayed in the same language as the operating system on the PC.
The web page can be displayed in other languages by entering the web page address as follows:
Chinese http://[IP address of each AE-200/AE-50]/zh/administrator.html
English http://[IP address of each AE-200/AE-50]/en/administrator.html
French http://[IP address of each AE-200/AE-50]/fr/administrator.html
German http://[IP address of each AE-200/AE-50]/de/administrator.html
Italian http://[IP address of each AE-200/AE-50]/it/administrator.html
Japanese http://[IP address of each AE-200/AE-50]/ja/administrator.html
Portuguese http://[IP address of each AE-200/AE-50]/pt/administrator.html
Russian http://[IP address of each AE-200/AE-50]/ru/administrator.html
Spanish http://[IP address of each AE-200/AE-50]/es/administrator.html
Note: You can add the web page address to your Favorites on the login screen for easy access in the future.

9
WT07139X01

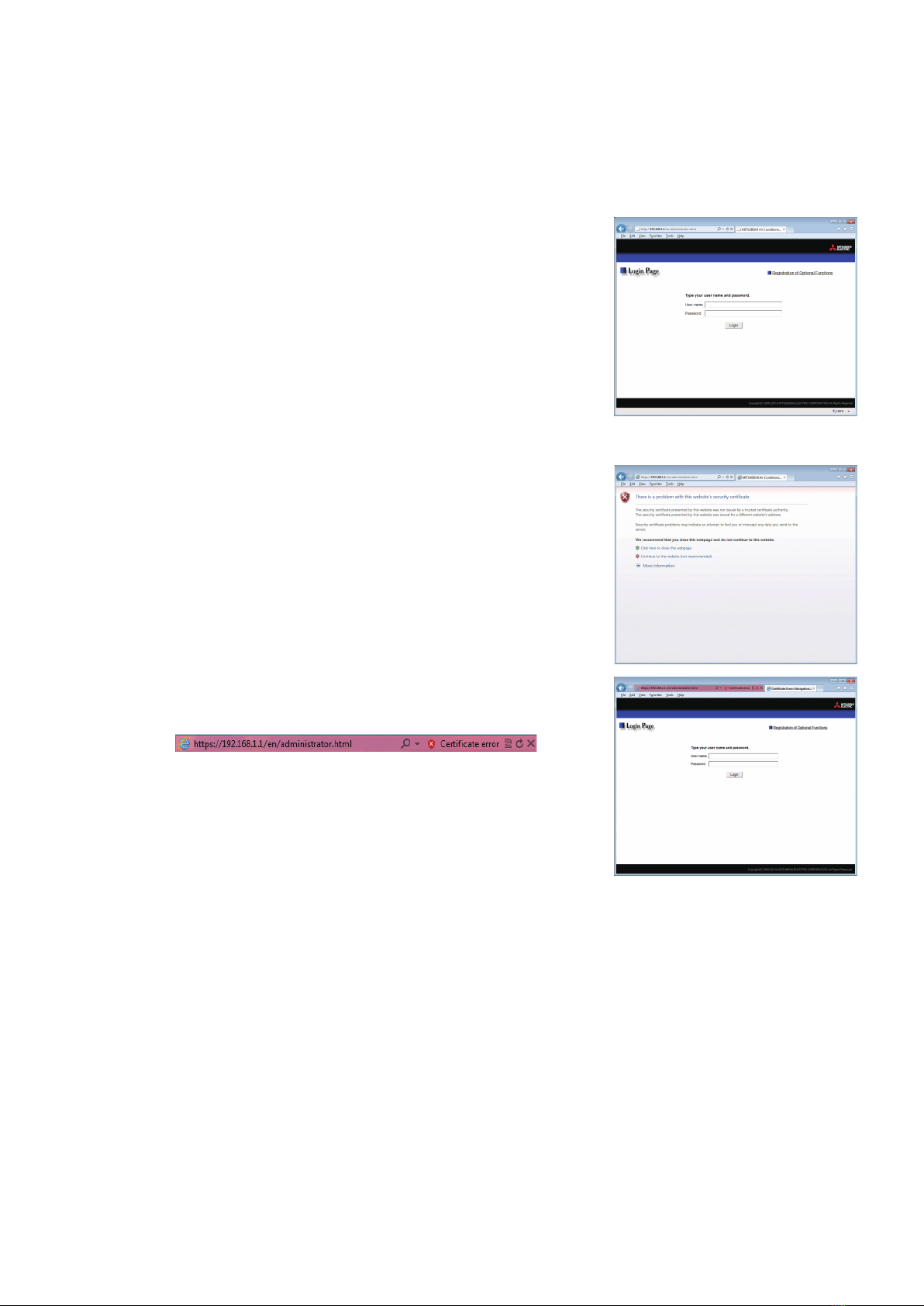

(2) Enter the user name and the password in the login screen, and click [Login]. A screen for monitoring the
operation conditions will appear.
The table below shows the web page addresses for building managers and general users, their respective
default user names and passwords, and their accessible functions.
User Web page address Default
user name
Default
password Available functions
Building
manager
http://[IP address of
each AE-200/AE-50]/
administrator.html
administrator admin
Monitor/
Operation
Condition List
Measurement List
Malfunction List
Filter Sign List
AHC List
Energy
Management
Energy Use Status
Ranking
Target Value Setting
Peakcut Control Status
Schedule
Settings
Today's Schedule
Weekly Schedule 1
Weekly Schedule 2
Weekly Schedule 3
Weekly Schedule 4
Weekly Schedule 5
Annual Schedule
Malfunction
Log
Unit Error
Communication Error
System
Settings
Date/Time Settings
User Registration
Maintenance
Send Mail Log
Gas Amount Check
Outdoor unit status
Free Contact List
CSV output
General
user
http://[IP address of
each AE-200/AE-50]/
index.html
guest guest Monitor/
Operation Condition List
Note: The license “Personal Web” is required to register up to 50 general users and to specify the accessible unit groups for
each general user. Refer to section 8-2 “User Registration” for details.
Note: It is recommended to change the default user name and password so that the users other than the building managers
and general users will not be able to change the settings.
Note: When one or more AE-50 controllers are connected, log in to the AE-50 Web browser to monitor or operate the units that
are under the control of AE-50 controllers. The Web browser cannot be switched between the AE-200 and the AE-50.

10
WT07139X01
Encrypting the communication data and logging in to the Web browser
(HTTPS connection)
AE-200/AE-50 can encrypt communication data using HTTPS (SSL).
When connecting the AE-200/AE-50 to the LAN that is accessible to the general public, it is recommended that
the following settings be made so that the units are monitored and controlled on the encrypted web page.
Note: Depending on the operating system or the Java version, HTTPS encrypted communication may not be enabled properly.
If this happens, use an HTTP connection as explained in the previous page.
(1) Prefix the web address with [https], enter the rest of the address, and
press the [Enter] key.
https://[IP Address of each AE-200/AE-50]/administrator.html
Note: If the IP address of the AE-200/AE-50 is [192.168.1.1], the web page
address is [https://192.168.1.1/administrator.html].
The encrypted data communication will begin, and the Login screen
will appear.
If a security certificate error page appears instead of the Login screen,
go to step (2) below.
(2) If the security certificate is invalid, a security certificate error page (as
shown at right) will appear.
Click [Continue to this website (not recommended)].
(3) If the connection is successfully made, the Login screen will appear.
Note: Although the address bar will turn red and a message “Certificate error”
will appear, you can still access the Web browser.

11
WT07139X01
4. Monitor/Operation
This chapter explains how to monitor and operate the connected unit groups and to check the measurement
data, malfunctioning units, units whose filter sign is triggered, and AHC status.
4-1. Condition List
This section explains how to monitor the operation conditions of all groups collectively (see section 4-1-1) or
groups per block (see section 4-1-2), how to monitor the operation conditions of HWHP (CAHV) unit groups (see
section 4-1-3), and also explains how to operate each group (see section 4-1-4), groups per block (see section
4-1-5), or all groups collectively (see section 4-1-6).
After login, the Overview (Floor Layout) display of the Condition List screen will appear, which shows the
operation conditions of all air conditioning unit groups, LOSSNAY unit (ventilator) groups, general equipment
groups, and Air To Water (PWFY) unit groups.
To access the Condition List screen from the other screen, click [Monitor/Operation] in the menu bar, and then
click [Condition List].
4-1-1. Checking the operation conditions of all groups
On the Overview (Floor Layout) display of the Condition List screen, the operation conditions of all groups can be
monitored. The operator can also check the unit malfunctions on this screen and prevent the units from being left
on unintentionally.
Item Description
Block/Overview (Floor
Layout)/HWHP
Click [Block] to display the operation conditions of groups per block, click [Overview (Floor
Layout)] to display the operation conditions of all groups, and click [HWHP] to display the
operation conditions of HWHP (CAHV) unit groups.
Update Click to show the most recent operation conditions.
When [Auto] is selected, the operation conditions are updated automatically every minute.
Batch Operations Click to operate the units in all groups at once. (See section 4-1-6.)
Update
Click to show the most
recent operation conditions.
Batch Operations
Click to operate the units in
all groups at once.
Number of units whose
filter sign is turned on
Number of units in error
Block/Overview (Floor
Layout)/HWHP
Weekly schedule number
Indicates the weekly
schedule that is currently
effective.
Group icons
The icons indicate the
operation conditions of
groups.
Click the icon to switch to
the operation screen.
Floor selection
Select a floor you want to
monitor.

12
WT07139X01
Item Description
Floor selection
If Floor Layout settings have been made on the AE-200’s LCD, preset floors are available
for selection. Select a floor you want to monitor.
Note: Floor Layout settings can be made only on the AE-200’s LCD. Refer to the AE-200
Instruction Book for how to make Floor Layout settings and how to read floor layout
plans. If the floor layout is changed on the AE-200’s LCD, restart the Web browser to
update the floor layout.
Note: On a high-resolution display, the whole floor can be displayed by increasing the
browser display size.
Note: After clicking a group icon, the operation settings screen of the group will appear.
Scroll up to the left top of the screen to display the operation settings area.
Number of units whose filter
sign is turned on *1
The number of units under the control of AE-200/AE-50 whose filter sign is currently turned
on will appear. Clicking “ ” will bring up the Filter Sign List screen. (See section 4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic System
settings screen, accessible via the Web Browser for Initial Settings.
Number of units in error *1
The number of units under the control of AE-200/AE-50 that are currently in error will
appear.
Clicking “ ” will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is “0.”
The font color (black or
white) of the group names
can be switched.

13
WT07139X01
Item Description
Group icons
Each group icon indicates the operation condition of the group. Move the cursor to the icon to display
its group name. Clicking the icon will bring up the operation screen.
The icons to indicate the operation conditions are shown below.
(1) Air conditioning unit group
ON OFF Error Filter sign ON *1
Interlocked
LOSSNAY ON *2 *8
Interlocked
LOSSNAY OFF *3 *8 Schedule set *4 Schedule disabled
Energy-saving ON *5 Setback ON *11 Starting up *12 Occupied/Vacant
*6*7*8
Bright/Dark *9*10*11 HOLD ON *13
Note: Besides the 4-way airflow unit icons, 2-way airflow or ceiling-suspended unit icons are also
available. Icons can be selected on the group settings screen, accessible via the Web Browser for
Initial Settings.
*1 Whether or not to display the filter sign can be set on the Basic System settings screen, accessible via the
Web Browser for Initial Settings.
*2 If the LOSSNAY unit is interlocked with the operation of Mr. Slim units, “Interlocked LOSSNAY ON” icon will
appear, even when the LOSSNAY unit is operated individually.
(Applicable M-NET adapter model: PAC-SF48/50/60/70/80/81MA-E)
*3 If a LOSSNAY unit is interlocked with the operation of indoor units in multiple groups, the LOSSNAY unit
may be in operation, even when the "Interlocked LOSSNAY OFF" icon is displayed.
*4 If any schedule setting is applied to a DIDO controller whose prohibition setting is enabled ([Allow
operations] is set to [No operations] on the group settings screen, accessible via the Web Browser for Initial
Settings), the "Schedule set" icon will appear, but the scheduled operations will not be performed.
*5 The "Energy-saving ON" icon will appear while the Peak Cut control is performed on the group or on the
outdoor unit that is connected to the group.
*6 The Occupancy/Vacancy status icon will appear only when [Show occupancy icon], [Show vacancy icon], or
[Show both icons] is selected in the [Occupancy sensor display] section under the [Display Format] section
of the Basic System settings screen, accessible via the Web Browser for Initial Settings.
*7 The Occupancy/Vacancy status icon will not appear if the remote controller in the group does not have an
occupancy sensor.
*8 The Occupancy/Vacancy status icon takes priority over the “Interlocked LOSSNAY ON” or “Interlocked
LOSSNAY OFF” icon.
*9 The Brightness/Darkness status icon will appear only when [Show bright symbol], [Show dark symbol],
or [Show both symbols] is selected in the [Brightness sensor display] section under the [Display Format]
section of the Basic System settings screen, accessible via the Web Browser for Initial Settings.
*10 The Brightness/Darkness status icon will not appear if the remote controller in the group does not have a
brightness sensor.
*11 The “Setback ON” icon takes priority over the Brightness/Darkness status icon.
*12 The “Starting up” icon will stay when the unit cannot be recognized after startup. Check for proper
connection of the air conditioning unit and proper group settings.
*13 The Hold function can be used on the AE-200A/AE-50A, but not on the AE-200E/AE-50E.
(Gray)(Blue)
(Gray)(Yellow)

14
WT07139X01
Item Description
Group icons
(2) LOSSNAY unit (ventilator) group
ON OFF Error Filter sign ON *1
Schedule set Energy-saving ON *2 HOLD ON
*1 Whether or not to display the filter sign can be set on the Basic System settings screen, accessible via the
Web Browser for Initial Settings.
*2 The “Energy-saving ON” icon will appear while the Peak Cut control is performed on the LOSSNAY unit
group.
(3) Air To Water (PWFY) unit group and HWHP (CAHV) unit group
ON OFF Error Schedule set
Schedule disabled Energy-saving ON *1 Water temperature
display *2 HOLD ON
*1 The “Energy-saving ON” icon will appear while the Peak Cut control is performed on the Air To Water (PWFY)
unit group. This icon will not appear for the HWHP (CAHV) unit groups.
*2 The “Water temperature display” icon will not appear for the HWHP (CAHV) unit groups.
(4) General equipment group
ON OFF Error Schedule set
Schedule disabled HOLD ON
Note: Besides the lighting icons, pump or card key icons are also available. The icon can be selected
on the group settings screen, accessible via the Web Browser for Initial Settings.
Group name
Only the first 8 characters will be visible under the icons. To display all characters, move the cursor to
the icon.
Note: Whether or not to display the group names can be set on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
Icons with group names Icons without group names

15
WT07139X01
4-1-2. Checking the operation conditions of the groups in a given block
In the Block display of the Condition List screen, select a block to display the operation conditions (such as
operation mode, set temperature, and room temperature) of the air conditioning unit groups, LOSSNAY unit
(ventilator) groups, Air To Water (PWFY) unit groups, and general equipment groups in the block.
Item Description
Block/Overview (Floor
Layout)/HWHP
Click [Block] to display the operation conditions of groups per block, click [Overview (Floor
Layout)] to display the operation conditions of all groups, and click [HWHP] to display the
operation conditions of HWHP (CAHV) unit groups.
Update Click to show the most recent operation conditions.
When [Auto] is selected, the operation conditions are updated automatically every minute.
Batch Operations Click to operate the units in all groups in a given block at once. (See section 4-1-5.)
Block selection Select a block you want to monitor.
Group icons Each group icon indicates the operation condition of the group. Clicking the icon will bring
up the operation screen.
Group name The name of the group will appear.
Operation mode The operation mode of the group will appear.
Set temperature
The set temperature of the group will appear.
Note: For Air To Water (PWFY) unit groups, the set water temperature will appear.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Room temperature
Indoor unit return air temperature will appear.
Note: The temperature shown may be different from the actual room temperature.
Note: Whether to show or hide the room temperature can be set on the Basic System
settings screen, accessible via the Web Browser for Initial Settings.
Note: For Air To Water (PWFY) unit groups, the current water temperature will appear.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Room humidity
The reading of the humidity sensor on the ME remote controller (North America: PAR-
U01MEDU, Europe: PAR-U02MEDA) will appear.
Note: If a ME remote controller (North America: PAR-U01MEDU, Europe: PAR-U02MEDA)
is connected to the group and the built-in humidity sensor is enabled, the reading of
the sensor will appear.
Number of units whose filter
sign is turned on *1
The number of units under the control of AE-200/AE-50 whose filter sign is currently
turned on will appear. Clicking “ ” will bring up the Filter Sign List screen. (See section
4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic
System settings screen, accessible via the Web Browser for Initial Settings.
Update
Click to show the most
recent operation conditions.
Block selection
Group name
Group icons
The icons indicate the
operation conditions of
groups.
Click the icon to switch to
the operation screen.
Set temperature
Batch Operations
Click to operate the units in
all groups in a given block at
once.
Block/Overview (Floor
Layout)/HWHP
Number of units in error
Number of units whose
filter sign is turned on
Room humidity
Room temperature
Operation mode
Weekly schedule number
Indicates the weekly
schedule that is currently
effective.

16
WT07139X01
Item Description
Number of units in error *1 The number of units under the control of AE-200/AE-50 that are currently in error will
appear. Clicking “ ” will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is “0.”
4-1-3. Checking the operation conditions of HWHP (CAHV) unit groups
On the Condition List screen, click the [HWHP] button to display the operation conditions of the HWHP (CAHV)
unit groups.
Note: The [HWHP] button will not appear if no HWHP (CAHV) units have been registered to any group.
Item Description
Block/Overview (Floor
Layout)/HWHP
Click [Block] to display the operation conditions of groups per block, click [Overview (Floor
Layout)] to display the operation conditions of all groups, and click [HWHP] to display the
operation conditions of HWHP (CAHV) unit groups.
Update Click to show the most recent operation conditions.
When [Auto] is selected, the operation conditions are updated automatically every minute.
Batch Operations Click to operate the units in all HWHP (CAHV) unit groups at once.
HWHP (CAHV) unit group
icons
Each group icon indicates the operation condition of the group. Clicking the icon will bring
up the operation screen.
Group name The name of the group will appear.
Operation mode The operation mode of the group will appear.
Set temperature
The set temperature of the group will appear.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Temperature
The representative water temperature, outdoor temperature, inlet water temperature, and
outlet water temperature will appear.
Note: When there is a communication error, the temperature value will be “--.”
Note: The temperature unit (°C or °F) can be selected on the Basic System settings
screen, accessible via the Web Browser for Initial Settings.
Fan mode The fan mode of the group will appear.
Update
Click to show the most
recent operation conditions.
Group name
HWHP (CAHV) unit group
icons
The icons indicate the
operation conditions of
groups.
Click the icon to switch to
the operation screen.
Operation mode
Set temperature
Batch Operations
Click to operate the units
in all HWHP (CAHV) unit
groups at once.
Block/Overview (Floor
Layout)/HWHP
Weekly schedule number
Indicates the weekly
schedule that is currently
effective.
Fan mode
Temperature

17
WT07139X01

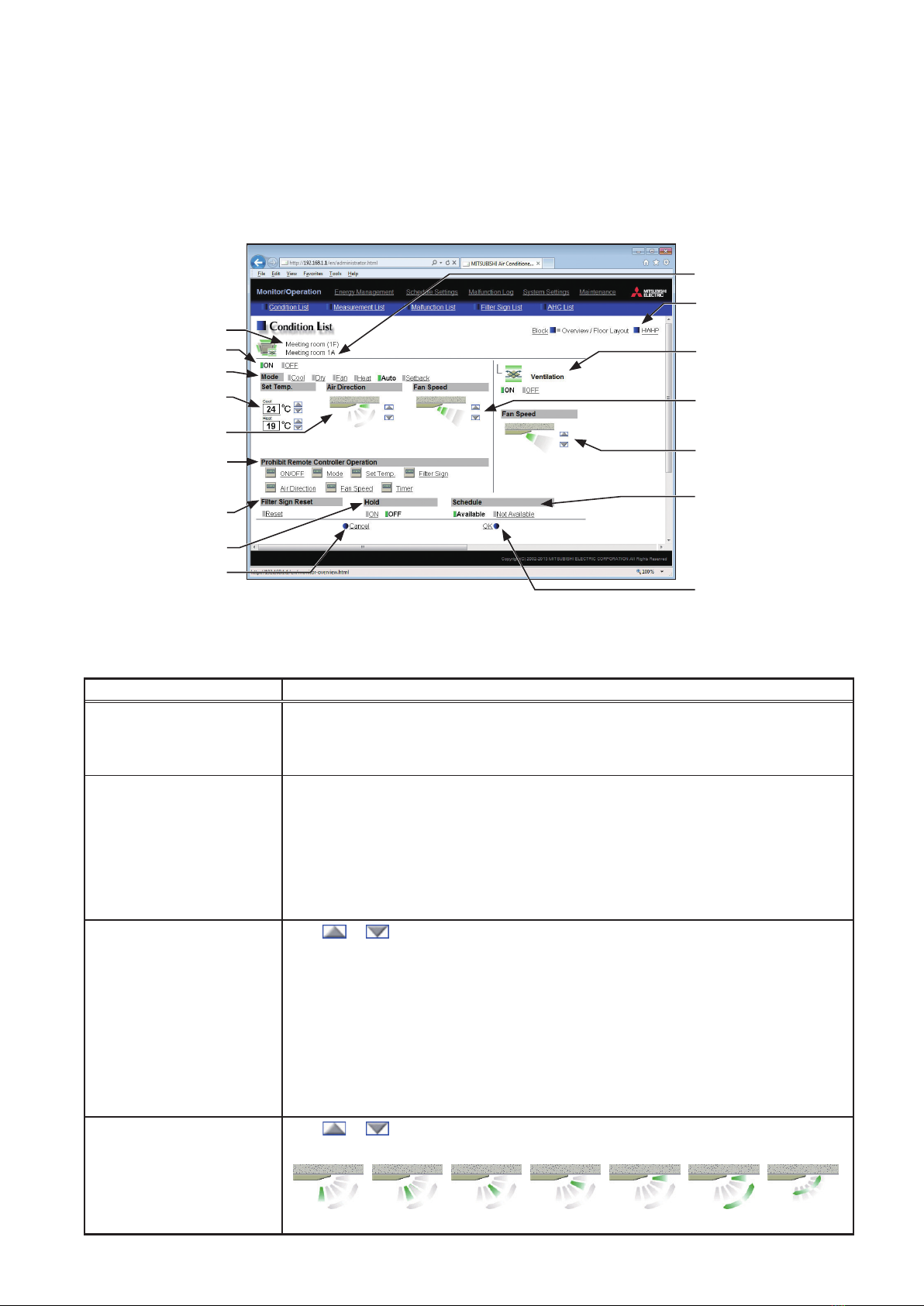

4-1-4. Operating the units in a given group
In the Overview (Floor Layout) display of the Condition List screen, click one of the group icons to display its
operation settings screen, which shows the current operation conditions. Change the desired settings and click
[OK] to reflect the changes. Click [Cancel] to return to the previous screen without making any changes.
Note: Only the ON/OFF operation and the “Schedule” setting are possible for general equipment groups. The general
equipment whose prohibition setting is enabled ([Allow operations] is set to [No operations] on the group settings screen,
accessible via the Web Browser for Initial Settings) cannot be operated.
Note: To operate an HWHP (CAHV) unit group, click the icon of the group on the HWHP display of the Condition List screen.
Item Description
ON/OFF
Click [ON] or [OFF] to turn on or off the units in a given group.
Note: Switching this switch will turn on or off the LOSSNAY unit as well that is interlocked
with the operation of indoor units in the group. To turn on or off the LOSSNAY unit
only, use the “Interlocked LOSSNAY ON/OFF” switch.
Operation mode *1
Click the desired operation mode.
Air conditioning unit: Cool, Dry, Fan, Heat, Auto, Setback
LOSSNAY unit: Heat Recovery, Bypass, Auto
Air To Water (PWFY) unit: Heating, Heating ECO, Hot Water, Anti-freeze, Cooling
HWHP (CAHV) unit: Heating, Heating ECO, Hot Water, Anti-freeze
Note: Only the operation modes available for the unit model will appear.
Note: The Setback mode can be selected on the AE-200A/AE-50A, but not on the
AE-200E/AE-50E.
Set temperature *1
Click or to adjust the set temperature of the air conditioning unit or the Air To
Water (PWFY) unit.
Note: The settable temperature ranges depend on the unit model.
Note: If the indoor unit supports the dual set point function in the AUTO mode and when the
operation mode above is set to Auto or Setback, two set temperatures for Cool mode
and Heat mode can be set.
Note: When the indoor units that support the dual set point function and the indoor units
that do not support the dual set point function exist in the same group, only one set
temperature can be set in the AUTO mode.
Note: The temperature unit (°C or °F) can be selected on the Basic System settings screen,
accessible via the Web Browser for Initial Settings.
Air Direction *1
Click or to adjust the air direction.
(Mid 3) (Mid 2) (Mid 1) (Mid 0) (Horizontal) (Swing) (Auto)
Note: Available air directions depend on the unit model.
Block name
ON/OFF
Operation mode
Set temperature
Air direction
Prohibit Remote Controller
Operation
Filter Sign Reset
Hold
Cancel
Click to return to the
previous screen without
making any changes.
Group name
Interlocked LOSSNAY
ON/OFF
Fan speed
Fan speed of interlocked
LOSSNAY
OK
Click to reflect the changes
made.
Schedule
Block/Overview (Floor
Layout)/HWHP

18
WT07139X01
Item Description
Fan Speed *1
Click or to adjust the fan speed.
(Low) (Mid 2) (Mid 1) (High) (Auto)
Note: Available fan speeds depend on the unit model.
Fan Mode *1
This item will appear only on the operation settings screen for HWHP (CAHV) unit groups.
The fan can be set to keep rotating even while the unit is stopped to avoid snow
accumulation on the fan guard during the winter.
Select [Normal] to stop the fan while the unit is stopped. Select [Snow] to operate the fan
even while the unit is stopped.
Prohibit Remote Controller
Operation
The following operations or setting change from the local remote controllers and the Web
Browser for User can be prohibited: ON/OFF, Operation mode, Set temperature, Filter sign
reset, Air Direction, Fan Speed, and Timer.
Click the operation item [ON/OFF], [Mode], [Set Temp.], [Filter Sign], [Air Direction], [Fan
Speed], or [Timer] to switch the setting between (Prohibit) or (Permit).
Note: For LOSSNAY unit (ventilator) groups, the item [Mode] or [Set Temp.] will not appear.
Note: [Air Direction], [Fan Speed], and [Timer] may not be displayed, depending on the unit
model.
Note: When the [ON/OFF] operation is prohibited and the “Automatic recovery after power
failure” switch on the indoor unit is set to “Turn off the power, or restore operation
regardless of the operation status immediately before power failure,” the operation of
the indoor unit will not be restored, even when turned on after power restoration.
When the switch is set to “Turn off the power, or restore operation if the unit was in
operation immediately before power failure,” the operation of the indoor unit will be
restored regardless of whether the [ON/OFF] operation is prohibited or not.
Refer to the indoor unit Installation Manual for details about switch settings.
Filter Sign Reset
Click [Reset] to switch between resetting and not resetting the filter sign. The rectangular
icon next to Reset will appear in yellow-green when it is set to Reset ( ).
Note: If a filter sign in the group has not been triggered, then the item [Filter Sign Reset] will
not appear.
Note: Filter sign of LOSSNAY units will not be reset.
Schedule
Click [Available] or [Not Available] to enable/disable the scheduled operations. When the
Schedule is enabled, the scheduled operations are disabled.
Note: The operations that have been scheduled on the remote controller will not be
disabled.
Hold
Click [ON] or [OFF] to enable/disable the Hold function. When the Hold function is enabled,
the scheduled operations are disabled.
Note: The operations that have been scheduled on the remote controller will also be
disabled.
Note: [Hold type] can be specified on the Basic System settings screen, accessible via the
Web Browser for Initial Settings.
Note: The Hold function can be used on the AE-200A/AE-50A, but not on the
AE-200E/AE-50E.
Interlocked LOSSNAY
ON/OFF
Click [ON] or [OFF] to turn on or off the interlocked LOSSNAY unit.
Note: For a group that is not connected to an interlocked LOSSNAY unit (ventilator), the
item [Interlocked LOSSNAY ON/OFF] will not appear.
Fan speed of interlocked
LOSSNAY
Click or to adjust the fan speed of the interlocked LOSSNAY unit (ventilator).
Note: For a group that is not connected to an interlocked LOSSNAY unit, the item [Fan
speed of interlocked LOSSNAY] will not appear.
*1 The item may not be displayed, depending on the unit model.

19
WT07139X01

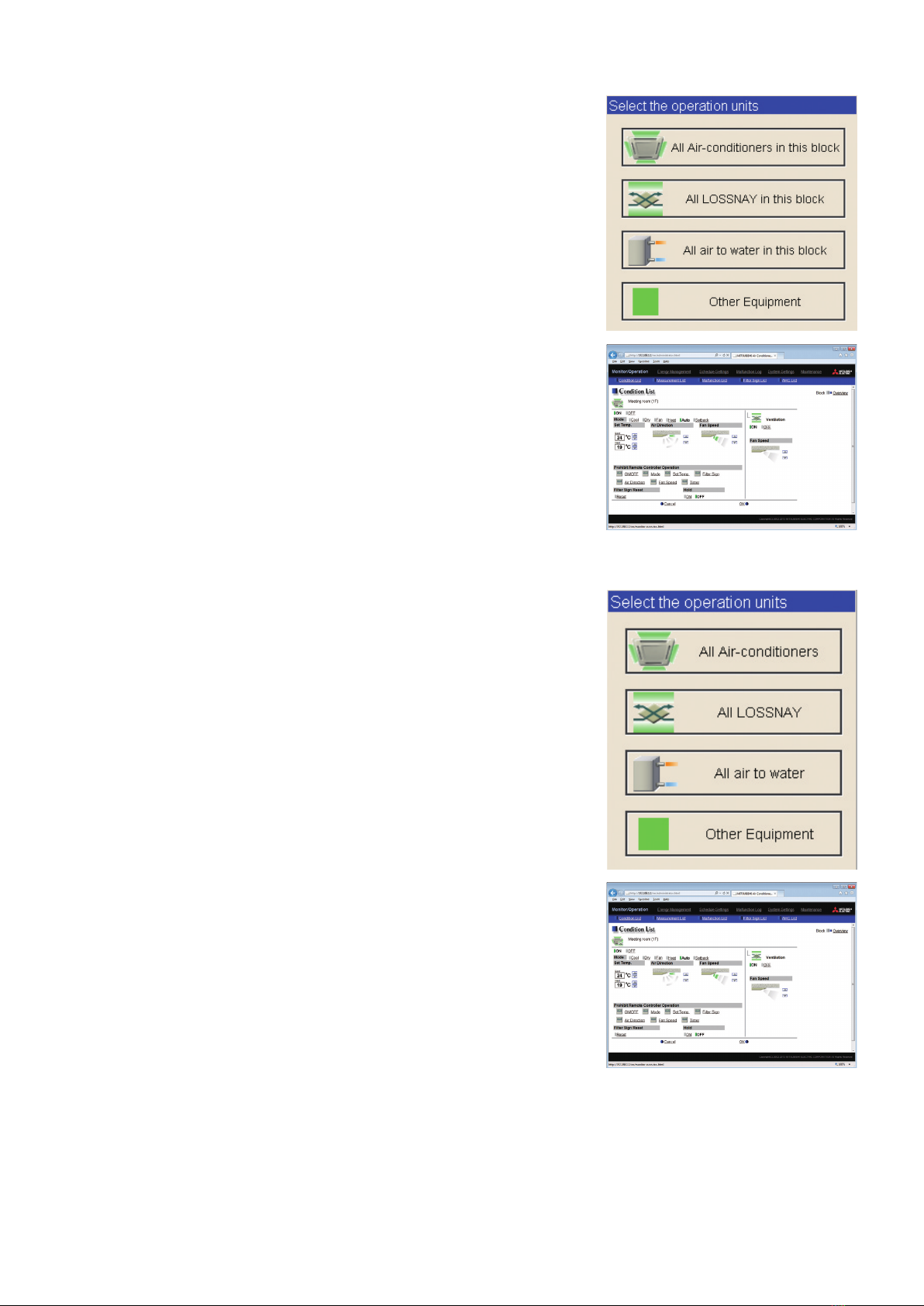

4-1-5. Operating the units in a given block
(1) In the Block display of the Condition List screen, select a block to
operate, and click [Batch Operations].
If air conditioner group, LOSSNAY unit (ventilator) group, Air To Water
(PWFY) unit group, and general equipment group exist together in the
same block, a screen to select a group type will appear.
Click one of the group types to change its settings.
(2) On the operation settings screen, change the desired settings and
click [OK] to reflect the changes.
Click [Cancel] to return to the previous screen without making any
changes.
Note: When the filter sign is reset on this screen, the cumulative operation time
of all units will be reset, irrespective of whether or not the filter sign was
triggered. Reset the filter sign on this screen when the filters of all units
were cleaned at once.
4-1-6. Operating the units in all groups
(1) In the Overview (Floor Layout) display of the Condition List screen,
click [Batch Operations]. If air conditioner group, LOSSNAY unit
(ventilator) group, Air To Water (PWFY) unit group, and general
equipment group exist together in the same system, a screen to select
a group type will appear.
Click one of the group types to change its settings.
Note: To operate all HWHP (CAHV) unit groups, click [Batch Operations] in the
HWHP display of the Condition List screen.
(2) On the operation settings screen, change the desired settings and
click [OK] to reflect the changes.
Click [Cancel] to return to the previous screen without making any
changes.
Note: When the filter sign is reset on this screen, the cumulative operation time
of all units will be reset, irrespective of whether or not the filter sign was
triggered. Reset the filter sign on this screen when the filters of all units
were cleaned at once.

20
WT07139X01
4-2. Measurement List
This section explains how to check the measurement data of the temperature sensors, humidity sensors, and
metering devices.
Click [Monitor/Operation] in the menu bar, and then click [Measurement List] to access the Measurement List
screen.
Note: An AI controller (PAC-YG63MCA), a commercially available temperature sensor, and a humidity sensor are required to
measure the temperature and humidity.
Note: A PI controller (PAC-YG60MCA) and a commercially available pulse-output metering devices are required to measure the
electric, water, heat, and gas consumptions.
Item Description
Update Click to show the most recent measurement data.
When [Auto] is selected, the measurement data is updated automatically every minute.
Measurement value
The current measurement values will appear.
Note: The following icons are used to indicate the measuring devices. Icons will appear in
orange when the measurement value reaches the upper or lower alarm threshold
value that has been set on the Measurement screen, accessible via the Web Browser
for Initial Settings.
Normal
Upper/lower alarm
threshold value is
reached.
Communication
error
Temperature sensor *1
Humidity sensor *1
Metering device *2
*1 When there is a communication error, the measurement value of the temperature or
humidity sensor will be “--.”
*2 When there is a communication error, the measurement value of the metering device will be
the measured value immediately before the error detection.
Number of units whose filter
sign is turned on *1
The number of units under the control of AE-200/AE-50 whose filter sign is currently turned
on will appear. Clicking “ ” will bring up the Filter Sign List screen. (See section 4-4.)
Note: This item will not appear if the [Filter Sign Display] is set to [OFF] on the Basic
System settings screen, accessible via the Web Browser for Initial Settings.
Number of units in error *1
The number of units under the control of AE-200/AE-50 that are currently in error will
appear.
Clicking “ ” will bring up the Malfunction List screen. (See section 4-3.)
*1 The item will not appear if the number of units is “0.”
Update
Click to show the most
recent measurement data.
Measurement item
Measurement value
Number of units whose
filter sign is turned on
Number of units in error
