Mitsubishi Electric AE-200A User manual

Contents
1. Safety precautions ..............................................................2
1-1. General precautions ...................................................................2
1-2. Precautions for relocating or repairing the unit ...........................3
1-3. Additional precautions.................................................................3
2. Introduction .........................................................................4
2-1. Terms used in this manual ..........................................................4
2-2. Required licenses .......................................................................4
2-3. “Group” and “Block” definitions ...................................................4
2-4. Main and Sub system controllers (M-NET).................................5
2-5. Controller interface .....................................................................6
2-6. Number of connectable units ......................................................7
2-7. Product features .........................................................................7
3. Basic operations ...............................................................10
3-1. Monitor/Operation .....................................................................10
3-2. Energy Management ................................................................27
3-3. Schedule...................................................................................36
3-4. Status List .................................................................................48
3-5. Malfunction Log ........................................................................51
3-6. Error code list............................................................................52
4. Practical operations ..........................................................55
4-1. Maintenance .............................................................................55
5. Initial startup settings ........................................................61
5-1. Initial startup setting procedures...............................................61
5-2. Initial Settings ...........................................................................66
5-3. Function1 ..................................................................................91
5-4. Function2 ..................................................................................94
5-5. User Information .......................................................................99
6. Maintenance ...................................................................102
6-1. Backing up settings data.........................................................102
6-2. Importing settings data ...........................................................103
6-3. Software Update .....................................................................104
7. Specifications..................................................................105
Air Conditioning Control System
Centralized Controller
AE-200A/AE-50A
AE-200E/AE-50E
Instruction Book
Before installing the controller, please read this Instruction Book carefully to ensure proper operation.
Retain this manual for future reference.
Ver. 7.10

2
WT07190X01
1. Safety precautions
►Thoroughly read the following safety precautions prior to installation.
►Observe these precautions carefully to ensure safety.
►After reading this manual, pass the manual on to the end user to retain for future
reference.
►The user should keep this manual for future reference and refer to it as necessary. This
manual should be made available to those who repair or relocate the units. Make sure
that the manual is passed on to any future air conditioning system user.
: indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
: indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
: addresses practices not related to personal injury, such as product
and/or property damage.
1-1. General precautions
Do not install the controller in areas where large amounts of oil, steam, organic solvents,
or corrosive gases (such as ammonia, sulfuric compounds, or acids), or areas where
acidic/alkaline solutions or special chemical sprays are used frequently. These substances
may significantly reduce the performance and corrode the internal parts, resulting in
electric shock, malfunction, smoke, or fire.
To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or
fire, do not wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunction, smoke, or fire, do not touch the electrical
parts, USB memory, or touch panel with wet fingers.
To reduce the risk of injury or electric shock, before spraying a chemical around the
controller, stop the operation and cover the controller.
To reduce the risk of injury, keep children away while installing, inspecting, or repairing the
controller.
If you notice any abnormality (e.g., burning smell), stop the operation, turn off the
controller, and consult your dealer. Continuing the operation may result in electric shock,
malfunction, or fire.
Properly install all required covers to keep moisture and dust out of the controller. Dust
accumulation and the presence of water may result in electric shock, smoke, or fire.
To reduce the risk of fire or explosion, do not place flammable materials or use flammable
sprays around the controller.
To reduce the risk of electric shock or malfunction, do not touch the touch panel, switches,
or buttons with a sharp object.
To avoid injury from broken glass, do not apply excessive force to the glass parts.

3
WT07190X01
To reduce the risk of injury, electric shock, or malfunction, avoid contact with the sharp
edges of certain parts.
Consult your dealer for the proper disposal of the controller. Improper disposal will pose a
risk of environmental pollution.
1-2. Precautions for relocating or repairing the unit
The controller must be repaired or moved only by qualified personnel. Do not disassemble
or modify the controller. Improper installation or repair may result in injury, electric shock,
or fire.
1-3. Additional precautions
To avoid discoloration, do not use benzene, thinner, or chemical rag to clean the controller.
When the controller is heavily soiled, wipe the controller with a well-wrung cloth that has
been soaked in water with mild detergent, and then wipe off with a dry cloth.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.

4
WT07190X01
2. Introduction
AE-200A/AE-50A/AE-200E/AE-50E is a centralized controller.
Any connected air conditioning systems can be operated or monitored on the AE-200A/AE-50A/AE-200E/AE-50E’s
LCD or the Web browser. Each AE-200A/AE-50A/AE-200E/AE-50E can control up to a total of 50 indoor units and
other equipment. By connecting AE-200A/AE-200E (main controller) and AE-50A/AE-50E (sub controllers), up to
200 indoor units and other equipment can be controlled.
2-1. Terms used in this manual
- “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200.”
- “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50.”
- “Booster unit” and “Water HEX unit” are referred to as “Air To Water (PWFY) unit.”
- “Advanced HVAC CONTROLLER” is referred to as “AHC.”
- “Hot Water Heat Pump unit” is referred to as “HWHP (CAHV) unit.”
2-2. Required licenses
The required licenses vary, depending on the functions to be used. Refer to the License Classification List for
details. Purchase the required licenses from your dealer. Refer to section 5-2-4 for license registration.
2-3. “Group” and “Block” definitions
The terms “Group” and “Block” used in this manual are defined as follows.
Group: Group is a group of air conditioning units and controllers and is the smallest unit that the AE-200/AE-50
can control. The maximum number of units that each group can contain is 16.
Block: Each block consists of one or more groups. Multiple groups of units in a given block can be monitored or
operated collectively.

5
WT07190X01
2-4. Main and Sub system controllers (M-NET)
Each group can be controlled by a Main system controller or a Sub system controller.
AE-200/AE-50 is exclusively for use as a Main system controller and cannot be used as a Sub system controller.
Main system controller
Main system controller refers to a system controller that controls all other system controllers including the units
they control. If a given system has only one system controller, that controller becomes a Main system controller.
Group settings and interlock settings can be made only from a Main system controller.
Sub system controller
Sub system controller refers to a system controller that is controlled by a Main system controller.

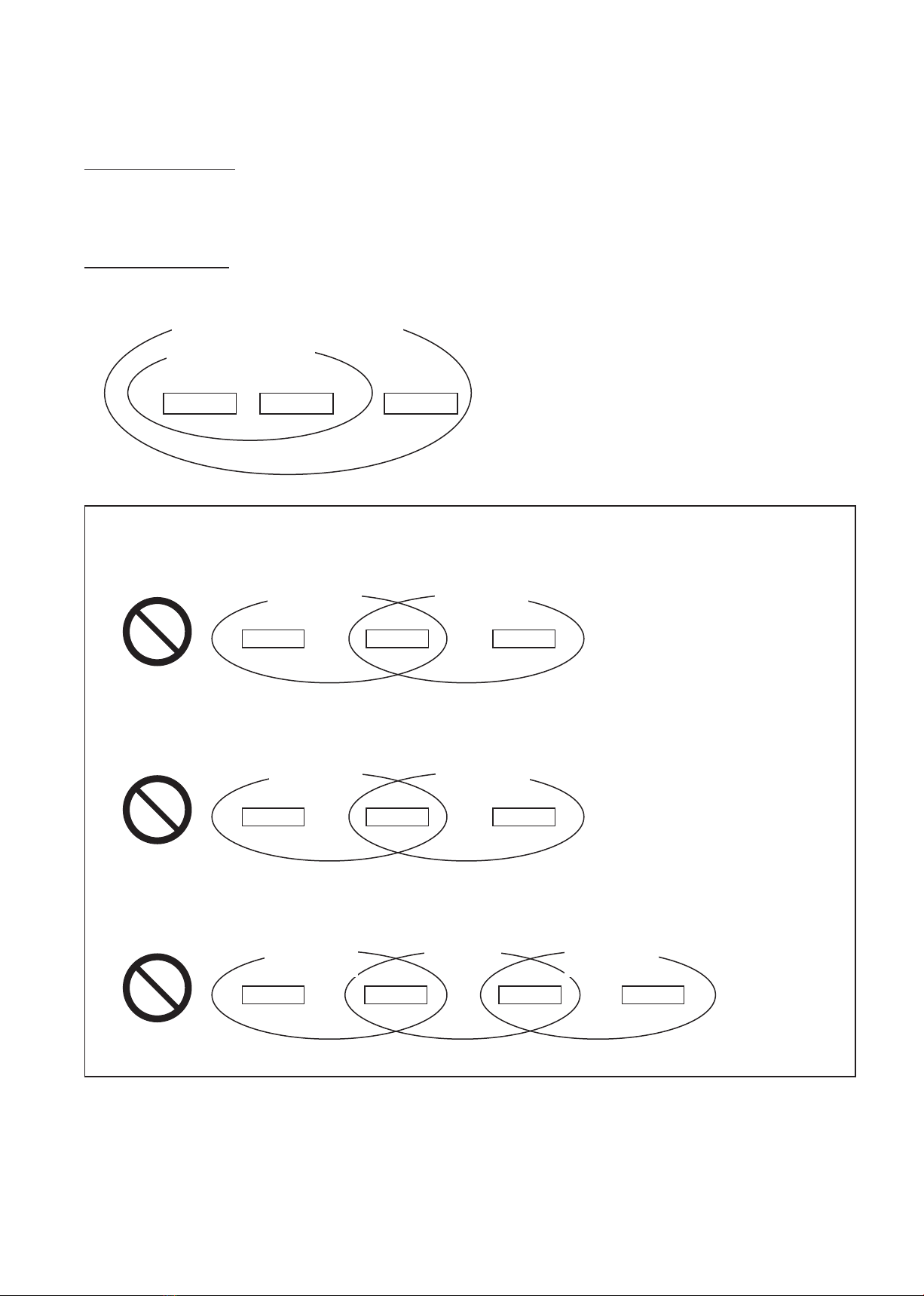

The system cannot be configured as shown in the examples below.
●Groups that are not under the control of a Main system controller cannot be controlled from a Sub system controller.
●Each group cannot be placed under the control of two or more Main system controllers.
●Sub system controllers cannot be placed under the control of two or more Main system controllers.
Sub system controller's
control range
Main system controller's
(AE-200/AE-50's) control range
Group Group Group
Group
Main system
controller
Group
Sub system
controller
Group
Group
Main system
controller 1
Group
Main system
controller 2
Group
Group
Main system
controller 1
Group
Sub system
controller
Group
Main system
controller 2
Group

6
WT07190X01
2-5. Controller interface
Important
●Before using the controller, remove the protective sheet on the cover to avoid the sheet from sticking to the touch panel and
causing malfunctions.
●Use the supplied L-shaped driver to remove or attach the cover.
Item Description
LED
Power Lit in green Power ON
Unlit Power OFF
LAN1 Blink in orange Data transmission in progress (LAN1)
ON/OFF
Lit in green One or more air conditioning units are ON.
Blink in green One or more air conditioning units are in error.
Unlit All air conditioning units are OFF.
LAN2 Blink in orange Data transmission in progress (LAN2)
Status
Blink in orange The SD card may be damaged, or the startup failed.
Blink in blue Software update in progress
Blink in pink Software update failed
USB port Used when the settings data is backed up to or imported from
the USB memory device.
USB port
Power
LAN1
ON/OFF
LAN2
Status
Display/Touch panel
When the backlight is off, touching the panel turns the backlight on,
and it will stay lit for three minutes. The backlight stays lit while an
error is occurring.

7
WT07190X01
2-6. Number of connectable units
The table below summarizes the number of connectable units.
Unit type Number of connectable units
Indoor units, independent OA processing units, LOSSNAY units, DIDO
controllers (PAC-YG66DCA), Air To Water (PWFY) units, Advanced
HVAC CONTROLLERs, HWHP (CAHV) units, AI controllers (PAC-
YG63MCA), PI controllers (PAC-YG60MCA) in each AE-200/AE-50
system
Up to 50 units (including the interlocked LOSSNAY
units)*1*2*3*4
Indoor units, independent OA processing units, LOSSNAY units,
DIDO controllers (PAC-YG66DCA), Air To Water (PWFY) units,
HWHP (CAHV) units in a group
1–16 units
(Indoor units, independent OA processing units,
LOSSNAY units, DIDO controllers (PAC-YG66DCA),
Air To Water (PWFY) units, and HWHP (CAHV) units
cannot be combined in one group.)
Remote controllers in a group 0–2 units
System controllers in a group 0–4 units (Up to four remote and system controllers
combined can be assigned to each group.)
Advanced HVAC CONTROLLER in a group 0–1 unit
LOSSNAY unit that can be interlocked with each indoor unit 1 unit
Indoor units that can be interlocked with each LOSSNAY unit 1–16 units
*1 The maximum number of controllable units varies, depending on the number of channels used for the DIDO controller. In a system with
connection to Advanced HVAC CONTROLLERs, the number of connectable units is 70 units when using the monitoring function on the
Maintenance Tool, and 60 units when not using the monitoring function on the Maintenance Tool.
*2 By connecting AE-50 controllers to an AE-200, up to 200 units can be controlled (when connecting three AE-50 controllers).
*3 Each contact of DIDO controller (PAC-YG66DCA) counts as one unit.
*4 Although up to 15 PI controllers (PAC-YG60MCA) can be set for each AE-200/AE-50, the number of PI controllers in a system with
connection to one or more AE-50 controllers must be 20 or less.
2-7. Product features
The table below summarizes the items that can be displayed or set on the AE-200/AE-50.
Note: The items may not be displayed, depending on the model of the connected units.
Function Description
User's operation functions
Operation
ON/OFF The ON/OFF operation can be performed for units in a given group.
Operation mode The operation mode can be switched.
Ventilation mode (LOSSNAY
unit) The ventilation mode can be switched.
Fan speed The fan speed (2 to 4 speeds and Auto) can be changed.
Fan speed (LOSSNAY unit) The fan speed (3 speeds and Auto) can be changed.
Set temperature The set temperature can be set.
Air direction The air direction (5 directions, Swing, and Auto) can be changed.
ON/OFF/Fan speed (LOSSNAY
unit)
Interlocked LOSSNAY units can be operated or stopped. The fan
speed (2 speeds) can be changed.
Schedule (Available/Not Avail.) The scheduled operations can be enabled or disabled.
Hold (AE-200A/AE-50A only) The Hold function can be enabled or disabled.
Prohibition of local remote
controller operation
Some operations or settings from the local remote controllers can be
prohibited.
Filter sign reset Filter sign can be reset.
Schedule Settings Weekly, annual, and today’s schedules can be set.
Malfunction reset Displayed errors can be reset.
Clear malfunction log Displayed unit errors and communication errors can be cleared.
External input
Using external contact signals, the following collective operations
can be controlled: Demand level, Emergency stop, ON/OFF
operation, and Prohibit/Permit local remote controller operation. (An
external input/output adapter is required.)

8
WT07190X01
Function Description
User's operation functions
Monitor
ON/OFF (LED on the
controller)
ON: One or more units are in operation.
OFF: All units are stopped.
Operation status of each group The operation status of each group can be displayed.
Filter sign The filter sign indicates that the filter is due for cleaning.
Prohibition of local remote
controller operation
The icon to indicate that the operation is prohibited by the
AE-200/AE-50 or other system controllers can be displayed.
Measurement List The readings of the temperature sensor, humidity sensor, and
metering device can be displayed.
AHC List The input and output status of Advanced HVAC CONTROLLERs
can be displayed.
Malfunction List The address of the unit in error and the error code can be displayed.
Malfunction Log Up to the latest 128 errors can be displayed for each AE-200/AE-50.
External output The ON/OFF and Error signals can be output to an external device.
(An external input/output adapter is required.)
Energy Use Status The energy consumption data and comparison data can be
displayed in a graph.
Ranking The rankings in electric energy consumption and the fan operation
time of given indoor units can be displayed in a bar graph.
Target Value Setting The target electric energy consumption values for the entire system
can be set.
Peakcut Control Status The Peakcut control status can be checked.
Initial settings
Initial Settings
Date and time The current date/time and daylight savings time can be set.
License The license for optional functions can be registered.
Unit Info. The unit information can be set.
Network The network settings can be made.
Groups
Air conditioning units, Air To Water (PWFY) units, LOSSNAY units,
HWHP (CAHV) units, general equipment, remote controllers, and
sub system controllers can be registered to a group.
Interlocked LOSSNAY The operation of indoor units and LOSSNAY units can be
interlocked.
Blocks The groups can be registered to a block.
Floor Layout The basic floor settings, location setting of the groups, and floor plan
settings can be made.
System View Refrigerant system information (connection information of outdoor
and indoor units) can be checked.
Advanced
The following settings can be made: [Time Master/Sub], [Schedule:
Season setting], [Hold type] (AE-200A/AE-50A only), and [Old model
compatibility mode].
Function1 Measurement AI and PI controllers, temperature sensor, humidity sensor, and
metering device can be registered.
Function2
External Temperature Interlock
This function adjusts the set temperature based on the temperature
difference between the set temperature and the outdoor
temperature. A temperature sensor to measure the outdoor
temperature can be selected, and a maximum temperature value to
be added to the set temperature can be set for each group.
Night Setback Control
This function performs cooling or heating operation when the room
temperature goes outside of the specified temperature range. The
start/end times and temperature range can be set for each group.
User information
Maintenance user User name and password for maintenance users can be set.
Building manager User name, password, and available functions to building managers
can be set.

9
WT07190X01
Function Description
Initial settings
Maintenance
Backing up settings data The settings data can be stored to a USB memory device.
Importing settings data Backed-up settings data can be restored from a USB memory
device.
CSV output
The operation data, such as apportioning parameters and power
consumption, can be output to a USB memory device. (Each file
contains the data of up to 62 days.)
Touch Panel Calibration The touch panel can be calibrated.
Software Update The software can be updated.
Miscellaneous
Data back-up
Group setting information/
Interlocked LOSSNAY
information
The group setting information and interlocked LOSSNAY information
are retained in the hardware, even if power is turned off.
Malfunction log The malfunction log is retained in the hardware, even if power is
turned off.
Scheduled operations The scheduled operations set for each group are retained in the
hardware, even if power is turned off.
Current date and time The current date and time are retained by the built-in capacitor when
power is turned off.
Maintenance
Screen lock function The touch panel operation can be locked.
Touch panel cleaning The touch panel can be locked when it needs to be cleaned.
Time synchronization Clocks on the controllers and the units that are under the control of
the main system controller are synchronized once a day.

10
WT07190X01
3. Basic operations
3-1. Monitor/Operation
This section explains how to monitor and operate the unit groups.

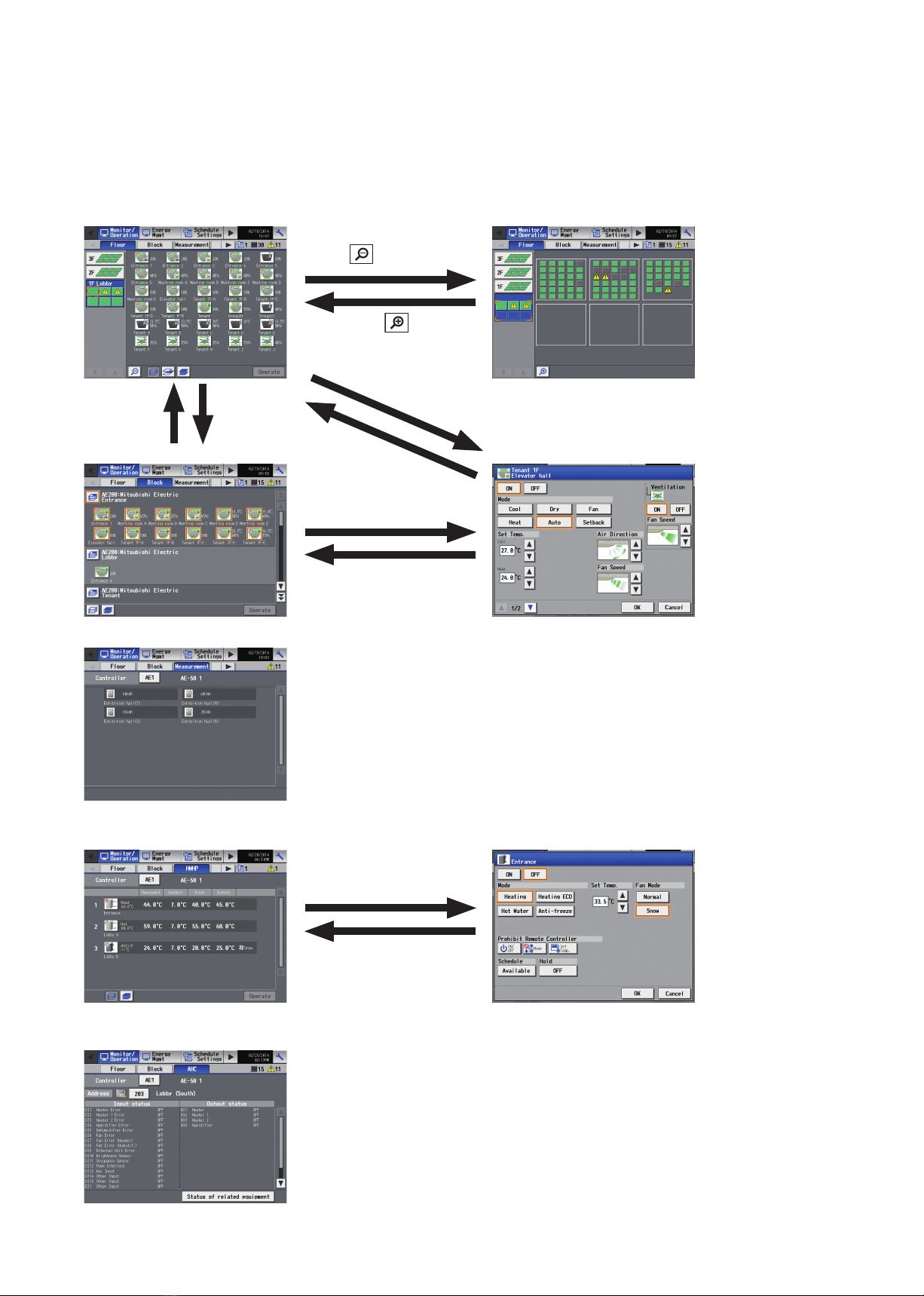

3-1-1. Screen sequence
[Floor] display (zoomed-in) [Floor] display (zoomed-out)
[Block] display Operation settings screen
[Measurement] display

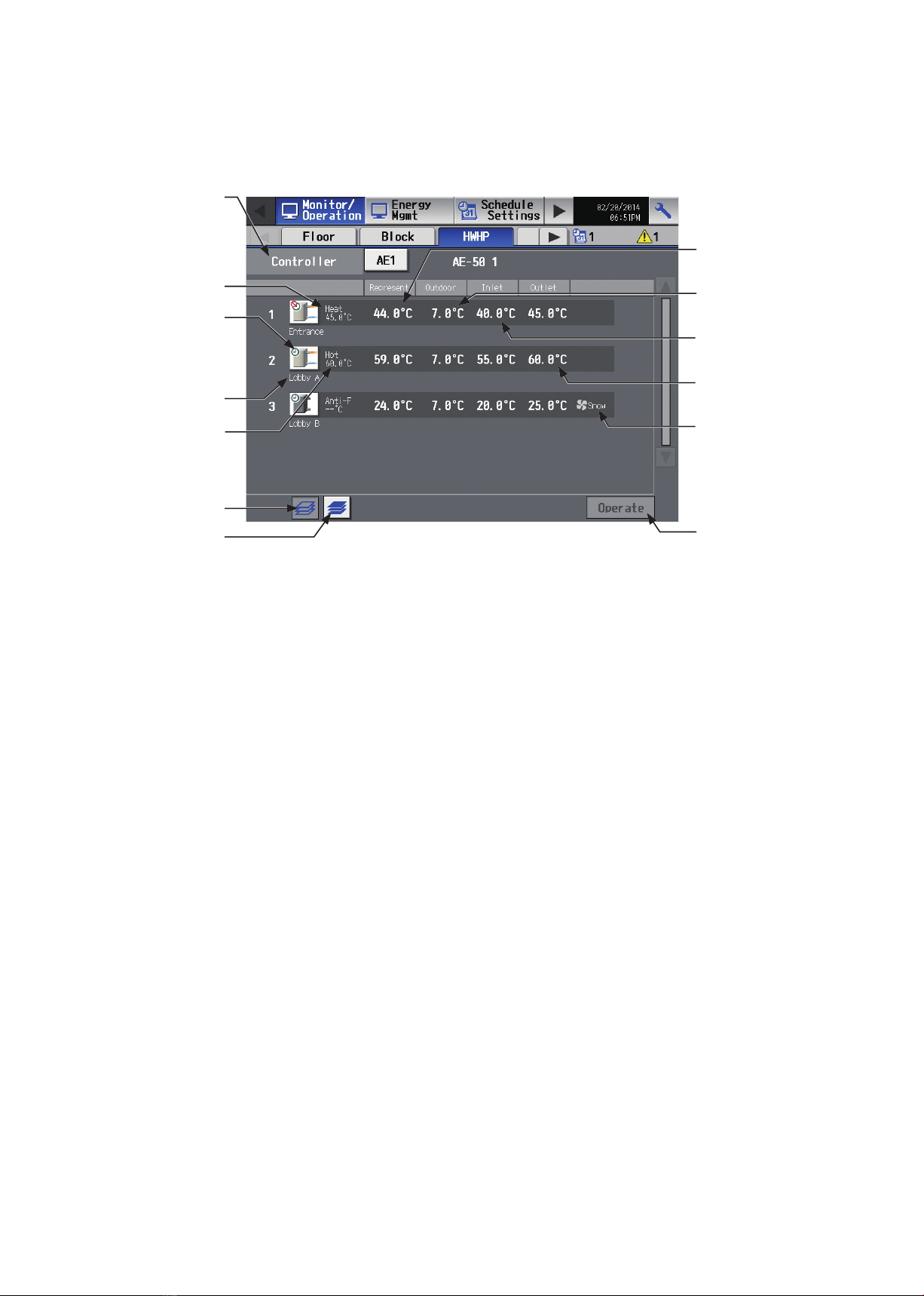

[HWHP] display Operation settings screen

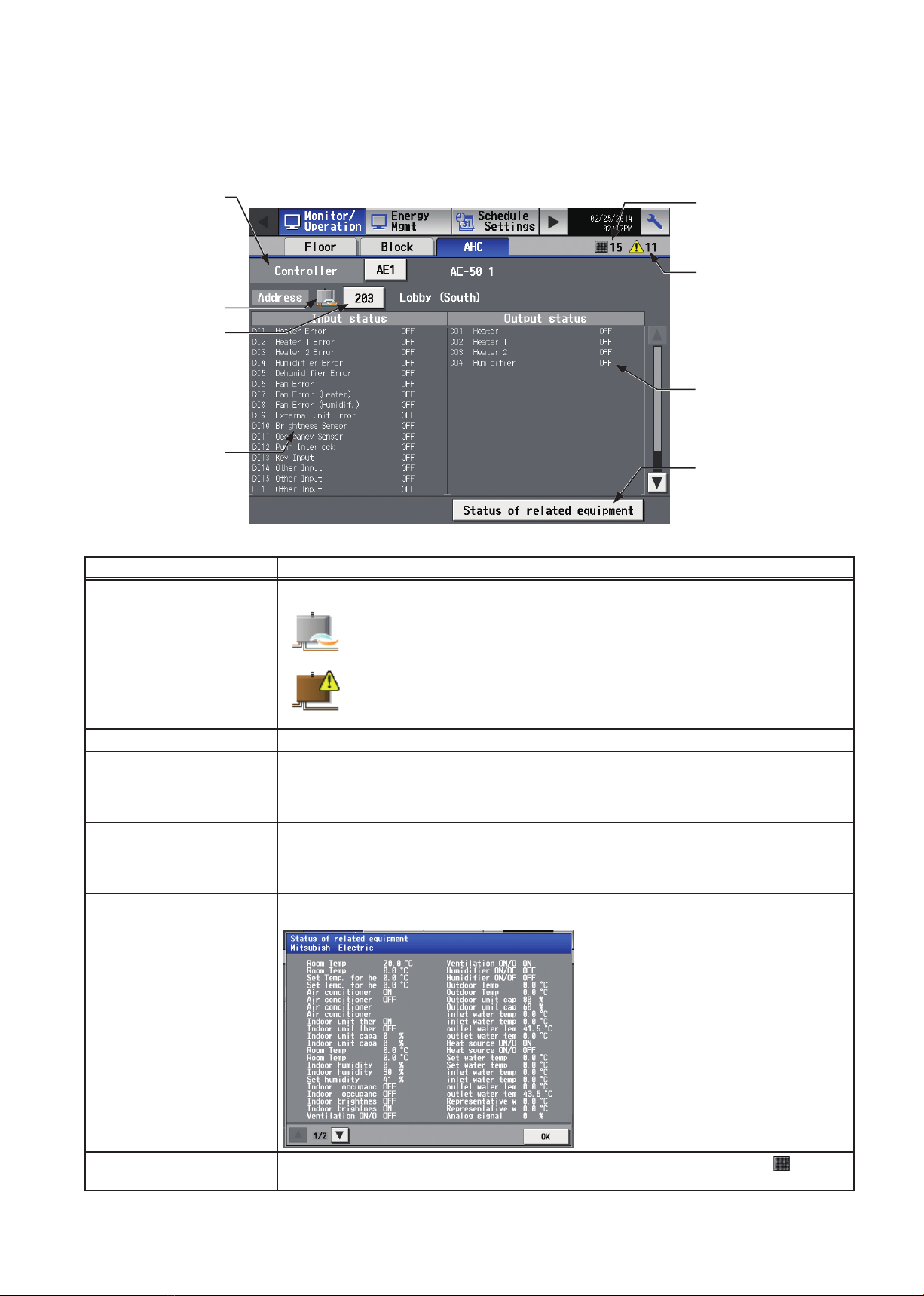

[AHC] display
Touch [ ].
Touch [ ].
Select a group and
touch [Operate].
Touch [Block].
Touch [OK] or
[Cancel].
Touch [Floor].
Select a group and
touch [Operate].
Touch [OK] or [Cancel].
* The [Measurement] tab will appear only when an AI or PI controller is connected.
Touch [OK] or [Cancel].
Select a group and
touch [Operate].
* The [HWHP] tab will appear only when an HWHP (CAHV) unit is connected.

11
WT07190X01
3-1-2. Group icons
Each group icon indicates the operation condition of the group. Touch the icon, and then touch [Operate] to bring up
the operation settings screen.
[1] Air conditioning unit group
ON OFF Error Interlocked
LOSSNAY ON *1 *7
Interlocked
LOSSNAY OFF *2 *7
Schedule set *3 Schedule disabled Energy-saving ON *4 Setback ON *10 Starting up *11
Occupied/Vacant
*5 *6 *7
Bright/Dark
*8 *9 *10
Room temperature
display
Room humidity
display HOLD ON *12
Note: Besides the 4-way airflow unit icons, 2-way airflow or ceiling-suspended unit icons are also available. Icons can be selected on
the [Groups] screen.
*1 If the LOSSNAY unit is interlocked with the operation of Mr. Slim units, “Interlocked LOSSNAY ON” icon will appear, even when the LOSSNAY
unit is operated individually.
(Applicable M-NET adapter model: PAC-SF48/50/60/70/80/81MA-E)
*2 If a LOSSNAY unit is interlocked with the operation of indoor units in multiple groups, the LOSSNAY unit may be in operation, even when the
“Interlocked LOSSNAY OFF” icon is displayed.
*3 If any schedule setting is applied to a DIDO controller whose prohibition setting is enabled ([Allow operations] is set to [No operations] on the
[Groups] screen), the “Schedule set” icon will appear, but the scheduled operations will not be performed.
*4 The “Energy-saving ON” icon will appear while the Peak Cut control is performed on the group or on the outdoor unit that is connected to the
group.
*5 The Occupancy/Vacancy status icon will appear only when [ ] (blue), [ ] (gray), or [ ] (blue/gray) is selected in the [Occupancy]
section on the [Unit Info.] screen.
*6 The Occupancy/Vacancy status icon will not appear if the remote controller in the group does not have an occupancy sensor.
*7 The Occupancy/Vacancy status icon takes priority over the “Interlocked LOSSNAY ON” or “Interlocked LOSSNAY OFF” icon.
*8 The Brightness/Darkness status icon will appear only when [ ] (yellow), [ ] (gray), or [ ] (yellow/gray) is selected in the
[Brightness Sensor] section on the [Unit Info.] screen.
*9 The Brightness/Darkness status icon will not appear if the remote controller in the group does not have a brightness sensor.
*10 The “Setback ON” icon takes priority over the Brightness/Darkness status icon.
*11 The “Starting up” icon will stay when the unit cannot be recognized after startup. Check for proper connection of the air conditioning unit and
proper group settings.
*12 The Hold function can be used on the AE-200A/AE-50A, but not on the AE-200E/AE-50E.
[2] LOSSNAY unit (ventilator) group
ON OFF Error Schedule set Schedule disabled
Energy-saving ON *1 HOLD ON
*1 The “Energy-saving ON” icon will appear while the Peak Cut control is performed on the LOSSNAY unit group.
(gray)(blue) (gray)(yellow)

12
WT07190X01
[3] Air To Water (PWFY) unit group and HWHP (CAHV) unit group
ON OFF Error Schedule set Schedule disabled
Energy-saving ON *1 Water temperature
display *2 HOLD ON
*1 The “Energy-saving ON” icon will appear while the Peak Cut control is performed on the Air To Water (PWFY) unit group. This icon will not
appear for the HWHP (CAHV) unit groups.
*2 The “Water temperature display” icon will not appear for the HWHP (CAHV) unit groups.
[4] General equipment group
ON OFF Error Schedule set Schedule disabled
HOLD ON
Note: Besides the lighting icons, pump or card key icons are also available. The icon can be selected on the [Groups] screen.

13
WT07190X01
3-1-3. Checking the operation conditions
This section explains how to display the operation conditions of units.

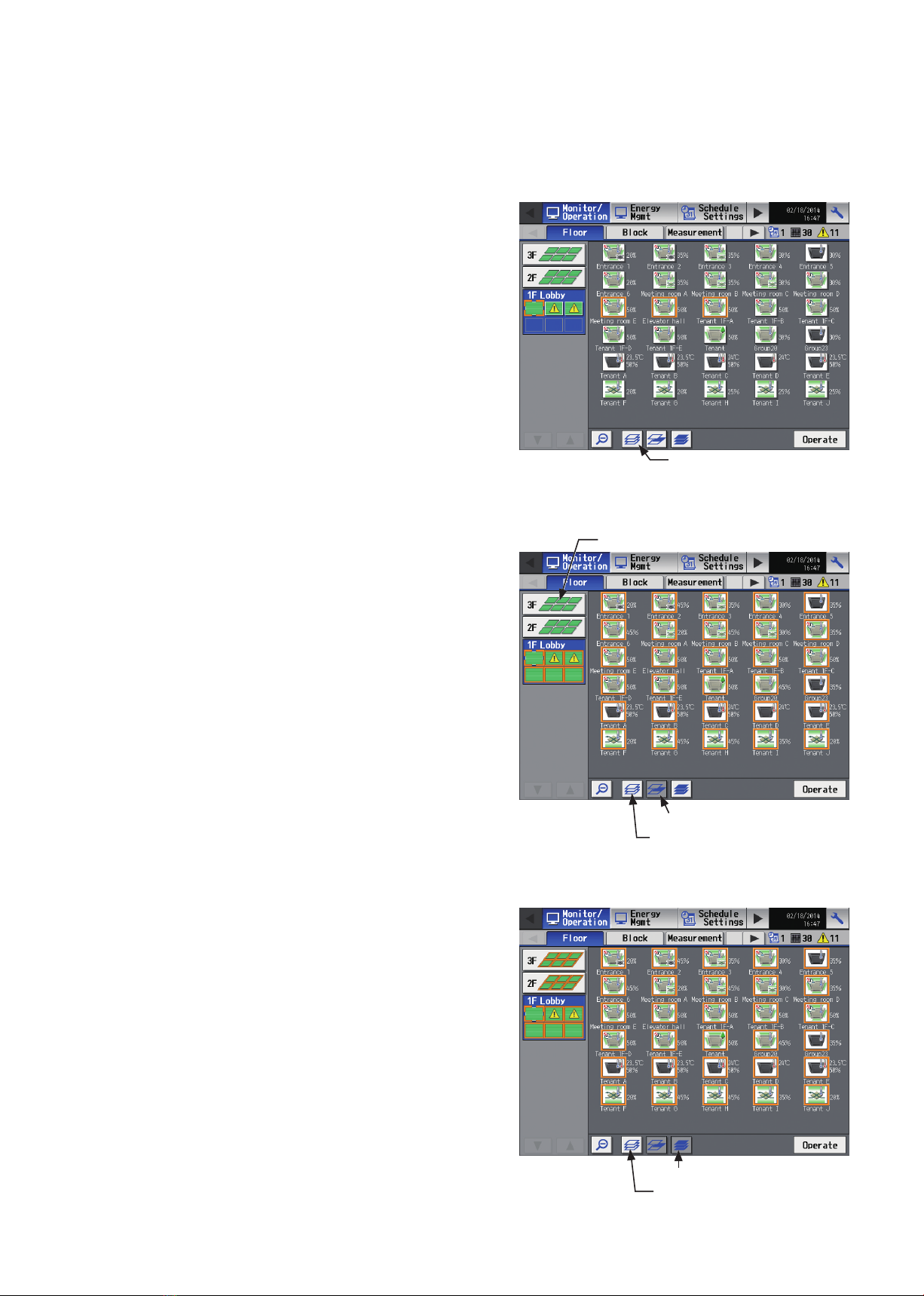

[1] [Floor] display
Touch [Monitor/Operation] in the menu bar, and then touch [Floor].
Note: The unit groups that are under the control of both AE-200 and AE-50 can be displayed.
Screen images when using the Floor Layout function (Refer to section 5-2-10 “Floor Layout” for details.)
Floor selection
Area selection
Group icons
The icon indicates the
operation condition of the
group.
Zoom-out
Deselect-all
Select-all-groups-on-the-
floor
Select-all-groups
Weekly schedule number
Number of units in error
Number of units whose
filter sign is turned on
Group name
Room temperature
Operate
Touch to display the
operation settings screen of
the selected group.
Room humidity
Floor selection
Zoom-in
(zoomed-out display)
(zoomed-in display) (zoomed-out display)

14
WT07190X01
Item Description
Floor selection Select a floor you want to monitor.
Area selection Select an area of the selected floor you want to monitor.
Group name The name of the group will appear.
Room temperature
Indoor unit return air temperature will appear.
Note: The temperature shown may be different from the actual room temperature.
Note: Whether to show or hide the room temperature can be set on the [Unit Info.] screen.
Note: For Air To Water (PWFY) unit groups, the current water temperature will appear.
Note: The temperature unit °C or °F will appear, depending on the temperature unit that has
been selected on the [Unit Info.] screen.
Room humidity The room humidity will appear.
Weekly schedule number The weekly schedule that is currently effective will appear.
Number of units whose filter
sign is turned on *1
The number of units whose filter sign is currently turned on will appear. Touching “ ” will
bring up the [Filter Sign] screen. (See section 3-4-2 “Filter Sign List”.)
Number of units in error *1 The number of units that are currently in error will appear. Touching “ ” will bring up the
[Malfunction] screen. (See section 3-4-1 “Malfunction List”.)
Deselect-all Touch to cancel all group selections.
Select-all-groups-on-the-floor Touch to select all groups on the currently selected floor.
Select-all-groups Touch to select all groups.
Zoom-out Touch to display the status of the whole floor.
Zoom-in Touch to go to the zoomed-in screen.
*1 The item will not appear if the number of units is “0.”

15
WT07190X01
[2] [Block] display
Touch [Monitor/Operation] in the menu bar, and then touch [Block].
Item Description
Block selection Select a block you want to monitor.
Group name The name of the group will appear.
Room temperature
Indoor unit return air temperature will appear.
Note: The temperature shown may be different from the actual room temperature.
Note: Whether to show or hide the room temperature can be set on the [Unit Info.] screen.
Note: For Air To Water (PWFY) unit groups, the current water temperature will appear.
Note: The temperature unit °C or °F will appear, depending on the temperature unit that has
been selected on the [Unit Info.] screen.
Room humidity The room humidity will appear.
Weekly schedule number The weekly schedule that is currently effective will appear.
Number of units whose filter
sign is turned on *1
The number of units whose filter sign is currently turned on will appear. Touching “ ” will
bring up the [Filter Sign] screen. (See section 3-4-2 “Filter Sign List”.)
Number of units in error *1 The number of units that are currently in error will appear. Touching “ ” will bring up the
[Malfunction] screen. (See section 3-4-1 “Malfunction List”.)
Deselect-all Touch to cancel all group selections.
Select-all-groups Touch to select all groups.
*1 The item will not appear if the number of units is “0.”
Block name
Group icons
The icon indicates the
operation condition of the
group.
Weekly schedule number
Number of units in error
Number of units whose
filter sign is turned on
Group name
Deselect-all
Select-all-groups
Scroll bar
Room temperature
Room humidity
Operate
Touch to display the
operation settings screen of
the selected block or group.
Block selection

16
WT07190X01
[3] [Measurement] display
Touch [Monitor/Operation] in the menu bar, and then touch [Measurement].
The measurement data of the temperature sensors, humidity sensors, and metering devices will appear.
Note: Measurement settings on the [Measurement] screen under the [Function1] menu are required to display the measurement
data on this screen.
Note: An AI controller (PAC-YG63MCA), a commercially available temperature sensor, and a humidity sensor are required to
measure the temperature and humidity.
Note: A PI controller (PAC-YG60MCA) and a commercially available pulse-output metering devices are required to measure the
electric, water, heat, and gas consumptions.
Note: The [Controller] setting will appear when the [System Exp] setting on the [Unit Info.] screen is set to [Expand]. Switch the
[Controller] setting between [AE200], [AE1], [AE2], and [AE3] to display the data for each AE-200 and AE-50 individually.
Item Description
Measurement value
The current measurement values will appear.
Note: The following icons are used to indicate the measuring devices. Icons will appear in
orange when the measurement value reaches the upper or lower alarm threshold value
that has been set on the [Measurement] screen.
Normal
Upper/lower alarm
threshold value is
reached.
Communication
error
Temperature sensor *1
Humidity sensor *1
Metering device *2
*1 When there is a communication error, the measurement value of the temperature or
humidity sensor will be “--.”
*2 When there is a communication error, the measurement value of the metering device will be
the measured value immediately before the error detection.
Controller
Select [AE200] to display
the data for AE-200, and
select [AE1], [AE2], or [AE3]
to display the data for each
AE-50.
Measurement item
Measurement value

17
WT07190X01
[4] [HWHP] display
Touch [Monitor/Operation] in the menu bar, and then touch [HWHP].
The operation status of each HWHP (CAHV) unit group will appear.
Note: The [Controller] setting will appear when the [System Exp] setting on the [Unit Info.] screen is set to [Expand]. Switch
the [Controller] setting between [AE200], [AE1], [AE2], and [AE3] to display the information for each AE-200 and AE-50
individually.
Controller
Select [AE200] to display the
information for AE-200, and
select [AE1], [AE2], or [AE3]
to display the information for
each AE-50.
Group name
Operation mode
Group icons
The icon indicates the
operation condition of the
group.
Set water temperature
Deselect-all
Select-all-groups
Representative water
temperature
Outdoor temperature
Inlet water temperature
Outlet water temperature
Fan mode
Operate
Touch to display the
operation settings screen of
the selected group.

18
WT07190X01
[5] [AHC] display
Touch [Monitor/Operation] in the menu bar, and then touch [AHC].
The status of input and output ports of each Advanced HVAC CONTROLLER (AHC) can be monitored.
Note: The [Controller] setting will appear when the [System Exp] setting on the [Unit Info.] screen is set to [Expand]. Switch
the [Controller] setting between [AE200], [AE1], [AE2], and [AE3] to display the information for each AE-200 and AE-50
individually.
Item Description
AHC icon
The following icons indicate the AHC status.
: Normal
: A communication error is occurring or an error signal has been input to the AHC.
AHC address The address of the connected AHC will appear.
Input status
[Input port code * + Input port name + Input status] will appear.
* DI1–DI15 (Digital input), EI1–EI4 (Extended digital input), AI1–AI8 (Analog input)
Note: The status of the unused ports will not appear.
Note: If a communication error occurs with AHC, no port information will appear.
Output status
[Output port code * + Output port name + Output status] will appear.
* DO1–DO9 (Digital output), EO1–EO4 (Extended digital output), AO1–AO2 (Analog output)
Note: The status of the unused ports will not appear.
Note: If a communication error occurs with AHC, no port information will appear.
Status of related equipment
Touch to display the status of the equipment that are used to control the equipment that are
connected to the AHC.
Number of units whose filter
sign is turned on *1
The number of units whose filter sign is currently turned on will appear. Touching “ ” will
bring up the [Filter Sign] screen. (See section 3-4-2 “Filter Sign List”.)
Controller
Select [AE200] to display the
information for AE-200, and
select [AE1], [AE2], or [AE3]
to display the information for
each AE-50.
Number of units whose
filter sign is turned on
Number of units in error
Output status
Status of related
equipment
AHC icon
AHC address
Input status

19
WT07190X01
Item Description
Number of units in error *1 The number of units that are currently in error will appear. Touching “ ” will bring up the
[Malfunction] screen. (See section 3-4-1 “Malfunction List”.)
*1 The item will not appear if the number of units is “0.”

20
WT07190X01
3-1-4. Selecting the icons of the groups to be operated
On the [Floor] or [Block] display under the [Monitor/Operation] menu, select the icon(s) of the group(s) to be
operated as explained below, and then touch [Operate] to bring up the operation settings screen.
[1] Selecting group icons
(1) Selecting a group
On the [Floor] or [Block] display, touch the icon(s) of the
group(s) you want to operate. The selected group icon(s)
will appear with an orange frame.
Touch again to deselect.
To cancel all group selections, touch the “Deselect-all”
button.
(2) Selecting all groups on the selected floor
On the [Floor] display, touch the floor(s) you want to
operate, and then touch the “Select-all-groups-on-the-
floor” button. The selected floor and group icons will
appear with an orange frame.
To cancel all group selections, touch the “Deselect-all”
button.
(3) Selecting all groups on all floors
On the [Floor] or [Block] display, touch the “Select-all-
groups” button. All floor and group icons will appear with
an orange frame.
To cancel all group selections, touch the “Deselect-all”
button.
Deselect-all
Select-all-groups-on-the-floor
Deselect-all
Floor selection
Deselect-all
Select-all-groups
