Centralized Controller
AG-150A
AG-150A-A Installation Manual
Before installing the controller, please read this Installation Manual carefully to ensure
proper operation. Retain this manual for future reference.
Air-conditioner Control System
WT05368X08_toc.fm Page 1 Thursday, March 17, 2011 9:08 AM

- 1 -
This manual describes how to install the centralized controller and wiring. Before installing the controller, read the
1 Safety Precautions section carefully to ensure proper installation.
Safety symbols used in this manual
The following symbols are used in this manual to indicate the type and severity of potential consequences that may result when
given instructions are not followed exactly as stated.
Retain the Installation Manual and the Instruction Book for future reference. Make sure both the Installation Manual and the
Instruction Book are passed to any future air condition system users.
1 Safety Precautions
WARNING Indicates a risk of death or serious injury.
CAUTION Indicates a risk of injury or damage to the controller.
WARNING
CAUTION
The controller must be professionalling installed.
Improper installation by an unqualified person may result in
electric shock or fire.
Make sure the controller is securely mounted so that it
will not fall.
Only use specified cables. Securely connect each
cable so that the weight of the cable is not applied to
the connectors.
Loose or improper connections may result in heat
generation or fire.
Do not attempt to modify or repair the controller.
Modification or improper repair may result in electric shock
or fire.
Consult your dealer when repairs are necessary.
Securely install the controller according to the
installation manual.
Improper installation may result in electric shock or fire.
Electric work must be perform by authorized
personnel according to the local regulations and the
instructions detailed in the installation manual.
Inadequate circuit capacity or improper installation may
result in electric shock or fire.
Ask your dealer or an authorized technician to move
the controller.
Improper installation may result in electric shock or fire or
damage to the controller.
Do not install the controller where there is a risk of
flammable gas.
If the leaked gas accumulates around the controller, it may
ignite and cause an explosion.
Do not use the controller in an environment high in oil,
steam, or sulfuric gas.
These substances may have adverse effects on the
performance of the controller or damage its parts.
Do not install this controller in a place that has the
potential for steam or dew formation.
Steam or dew formation may cause an electric shock or a
unit malfunction.
Do not install this controller where an acid or alkaline
solution or special chemical spray is used frequently
to avoid electric shock or malfunction.
When installing the controller in a hospital or communication facility, take appropriate measures to reduce
electrical noise interference.
Inverter equipment, generators, high-frequency medical equipment, or radio communication equipment may interfere with
the normal operation of the controller; or the electrical noise from the controller may interfere with the medical practice or
cause image distortion and static.
To prevent over-heating and fire, wire so that the
weight of the cable will not strain the connectors.
Seal the wire lead-in port with putty to prevent the
entry of dew, water, and insects to avoid electric shock
or malfunction of the controller.
Do not wet the controller.
Water may damage the controller and cause an electric shock.
Do not install this controller where the ambient temperature
exceeds 40°C (104°F) or drops below 0°C (32°F).
To prevent the controller from being damaged and
malfunctioning, install it out of direct sunlight.
To reduce the risk of electric shock, install and wire the
unit with the power to the PAC-SC51KUA power supply
unit turned off.
Consult an authorized agency for the proper disposal
of the unit.
The backlight (fluorescent lamp) of the liquid crystal
display module contains a minute amount of mercury,
which is harmful to the environment.
Use specified wires with the proper current carrying
capacity to prevent current leakage, over-heating, or
fire.
Do not touch the PCB (Printed Circuit Board) with your
hand or a tool.
Keep the PCB dust-free to prevent fire or malfunction.
To avoid the risk of electric shock or damage to the
controller, do not touch the touch panel or USB
storage device connector with wet hands.
To avoid the risk of electric shock or damage to the
controller, do not press the touch panel with sharp
objects.
To avoid causing damage or fire, do not apply an AC
voltage or a voltage higher than 32VDC to the M-NET
or the Power (24VDC) terminal blocks on the
controller.
Use a security device such as a VPN router when
connecting the AG-150A, AG-150A-A to the Internet to
prevent unauthorized access.
WT05368X08.fm Page 1 Thursday, March 17, 2011 9:21 AM

- 2 -
* The Installation Manual and the parts listed below are included with the unit.
*1 ISO metric screw thread
*2 If the enclosed screw for attaching the installation plate cannot be used because the wall is too thick, obtain a longer M4 flathead
screw that matches the wall thickness.
* Besides the above parts, purchase a power supply unit (PAC-SC51KUA) that supplies power to the centralized controller (24VDC)
and the M-NET transmission line.
AG-150A and AG-150A-A operate by receiving 24VDC power from PAC-SC51KUA.
A PAC-YG50ECA Expansion controller (sold separately) is required to control 50 or more units of equipments (e.g., indoor units
and LOSSNAY units).
Up to three Expansion controllers can be connected to a system, each of which can control up to 50 units of equipments.
To control 50 or more units of equipments, use AG-150A, AG-150A-A software version 2.10 or later.
Hereinafter, Centralized controller AG-150A, AG-150A-A, unless otherwise specified, will be called "AG-150A".
2 Parts List
No. Description Usage Qty.
1AG-150A or AG-150A-A
Centralized controller
1
2A type Installation plate Use to attach the AG-150A or AG-
150A-A using the B type installation
plate or the Electric box (PAC-
YG83UTB; sold separately) on the wall
or in the control board.
1
3B type Installation plate Use to install the AG-150A or AG-150A-
A on the wall using the A type
installation plate.
1
4Wood screw (M4.1×25)*1For mounting the controller directly on
the wall
4
5M4 flathead screw (M4×40)*1, 2 For attaching the A type installation
plate to either the B type installation
plate or electric box (PAC-YG83UTB;
sold separately)
4
6M4 roundhead screw (M4×12)*1For attaching the AG-150A or AG-
150A-A to the A type installation plate
4
7Installation Manual 1
8Instruction Book 1
9Instruction Book
(Web browser for System
maintenance engineer)
1
0Instruction Book
(Web browser for Initial Settings)
1
aLicense sheet 1
WT05368X08.fm Page 2 Thursday, March 17, 2011 9:32 AM

- 3 -

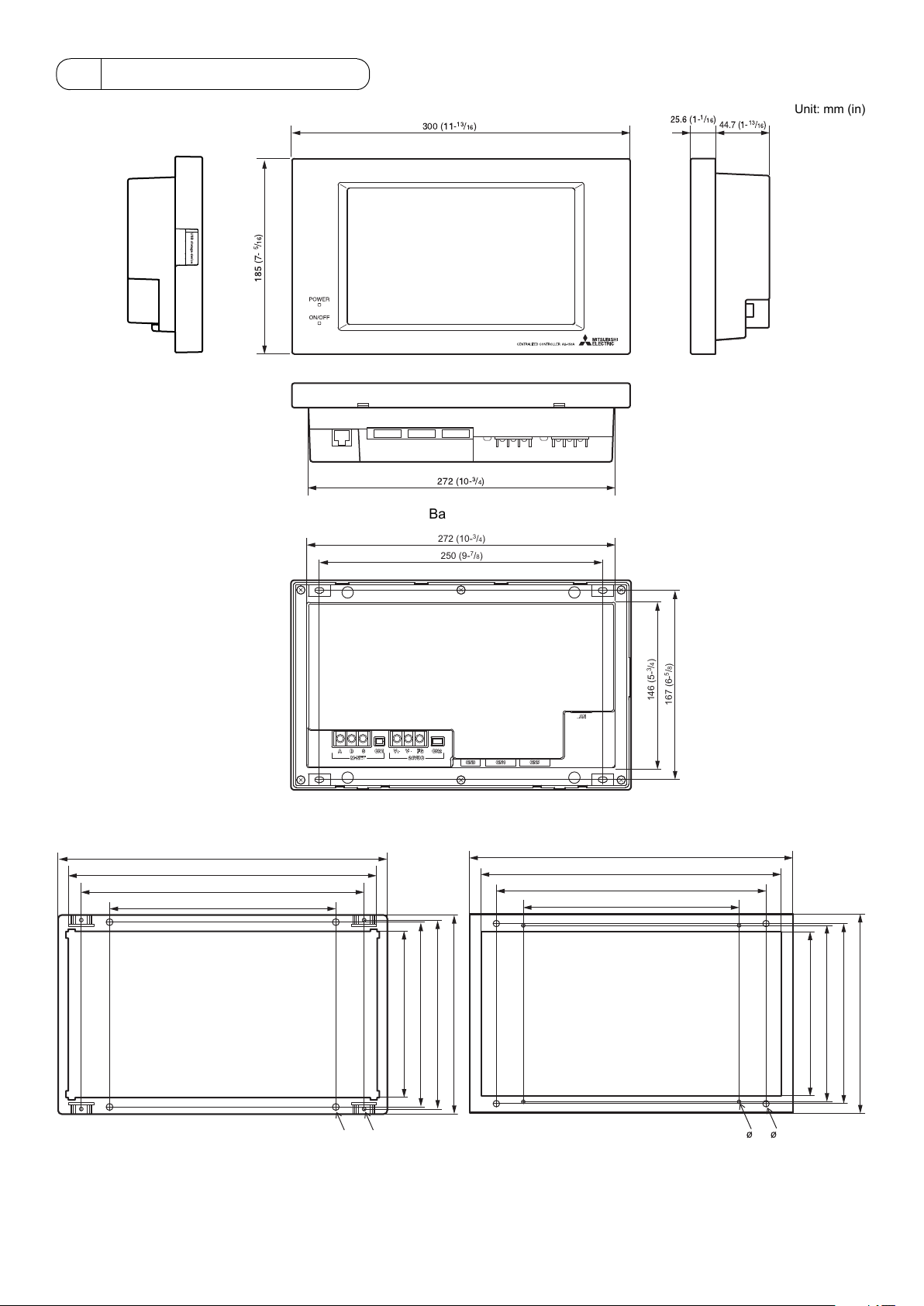

3 External Dimensions
185 (7- 5/16)
272 (10-3/4)
44.7 (1-
13
/ 16 )
25.6
(1 -
1/16)
300 (11-13/16)
Unit: mm (in)
250 (9-
7
/ 8 )
272 (10-
3
/ 4 )
146 (5-
3
/
4
)
167 (6-
5
/
8
)
Back View
290.8 (11-1/2)
273 (10-3/4)
250 (9-7/8)
200 (7-7/8)
147 (5-13/16)
ø6
(1/4)
ø4
(3/16)
163.4 (6-7/16)
167 (6-5/8)
175.8 (6-15/16)
300 (11-
13
/ 16 )
278 (10-
15
/ 16 )
250 (9-
7
/ 8 )
200 (7-
7
/ 8 )
6
(1/4)
4
(3/16)
152 (6)
163.4 (6-
7
/
16
)
167 (6-
5
/
8
)
185 (7-
5
/
16
)
A type installation plate B type installation plate Unit: mm (in)
WT05368X08.fm Page 3 Thursday, March 17, 2011 9:21 AM

- 4 -
AG-150A is a centralized controller that features advanced functions such as the Web function.
Air conditioning units connected to this controller can be operated or monitored directly from this controller or over the Web by
purchasing a license, using a browser software on the computer.
Up to 50 indoor units and general equipment can be monitored and operated from an AG-150A unit.
By connecting three PAC-YG50ECA Expansion controllers (sold separately), a maximum of 150 units of equipments can be
controlled.
1. Specification
2. Parts names and functions
4 Product Features
Item Specifications
Power supply M-NET Terminal 17VDC~32VDC * Power supply: PAC-SC51KUA
Controller drive 24VDC
Temperature Operating 0~40°C [32~104°F] For indoor installation only
* To be used in an business office or
similar environment
Non operating -20~60°C [-4~140°F]
Humidity 30~90%RH (No condensation)
Weight 2.1kg [4.6 lbs]
Dimensions (W × H × D) 300 × 185 × 70.3 [25.6] mm 11-13/16 × 7-5/16 × 2-13/16 [1-1/16] in
* [ ]: indicate the thickness from the wall.

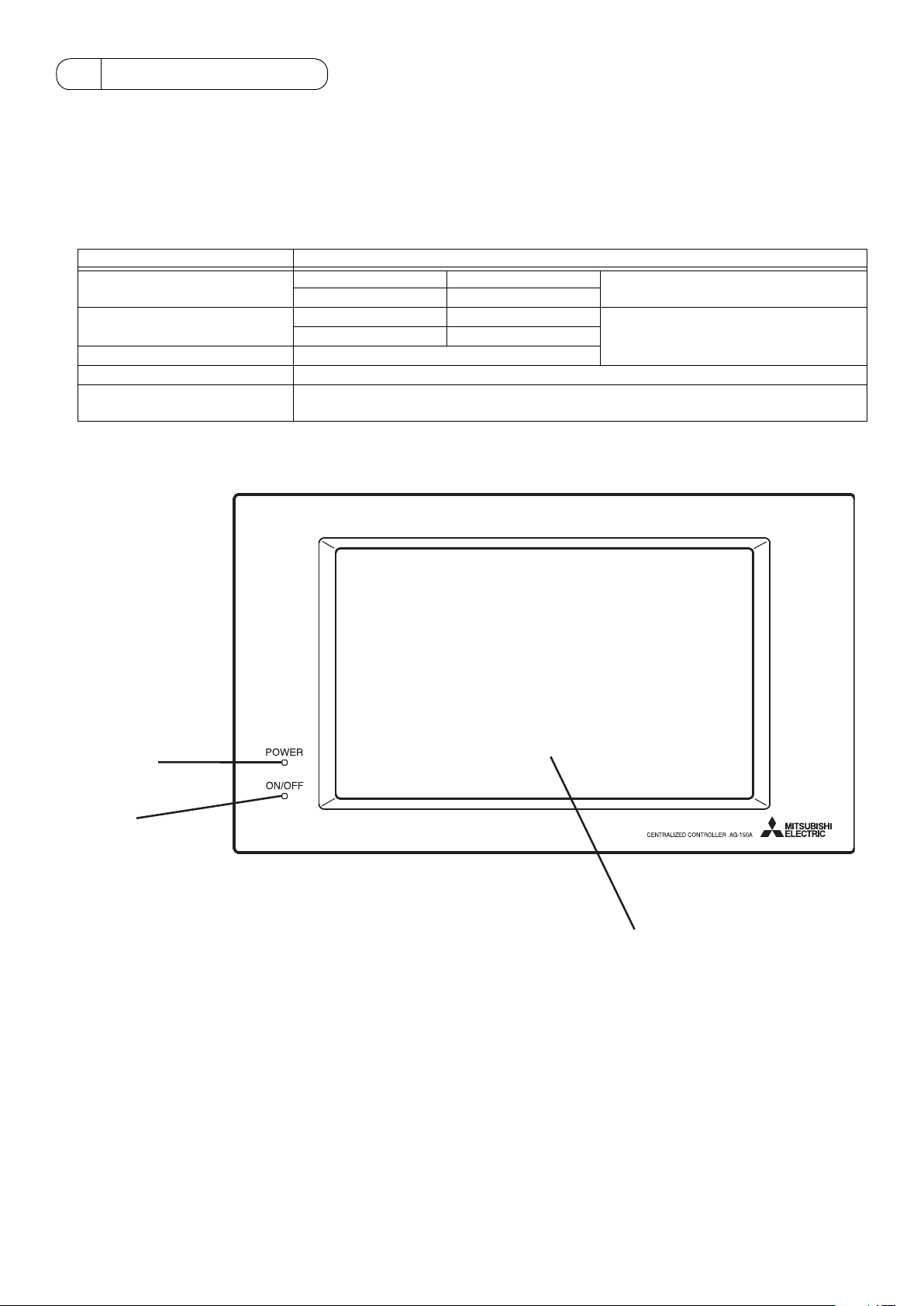

Front View
Display/Touch panel
POWER LED
Lit: Power ON
Unlit: Power OFF
ON/OFF LED
Lit: One or more units are
in operation.
Unlit: All units are stopped.
Blink: One or more errors
have occurred.
WT05368X08.fm Page 4 Thursday, March 17, 2011 9:21 AM

- 5 -
NOTE
* M-NET terminal (A, B, S) and CN1 cannot be used simultaneously.
* Power supply terminal block (V+, V-, FG) and CN2 cannot be used simultaneously.
USB storage device
Connects to a USB storage device
to copy and read data from the
AG-150A
Left view
Back View
LAN
Connects to other units of
equipments over the LAN via a
switching HUB.
CN5
Connects to PAC-YG10HA
external input/output adapter
CN4
Unused
CN3
Unused
CN2
Connects to the power cable when
the mounting attachment A type
(PAC-YG85KTB; sold separately)
is used to attach the controller.
V+, V-, FG
Connects to power supply unit (PAC-SC51KUA) that supplies 24 VDC power.
(V+: +24VDC terminal, V-: 0V terminal, FG: Functional earthing terminal; ground)
CN1
Connects to the M-NET cable when the mounting attachment A type
(PAC-YG85KTB; sold separately) is used to attach the controller.
Do not use this terminal when a PAC-YG50ECA Expansion controller is used.
A,B,S
Connects to the M-NET transmission cable from the power supply unit (PAC-SC51KUA).
(A, B: M-NET transmission cable terminal: non-polarized, S: Shield terminal)
Do not use this terminal when a PAC-YG50ECA Expansion controller is used.
WT05368X08.fm Page 5 Thursday, March 17, 2011 9:21 AM

- 6 -

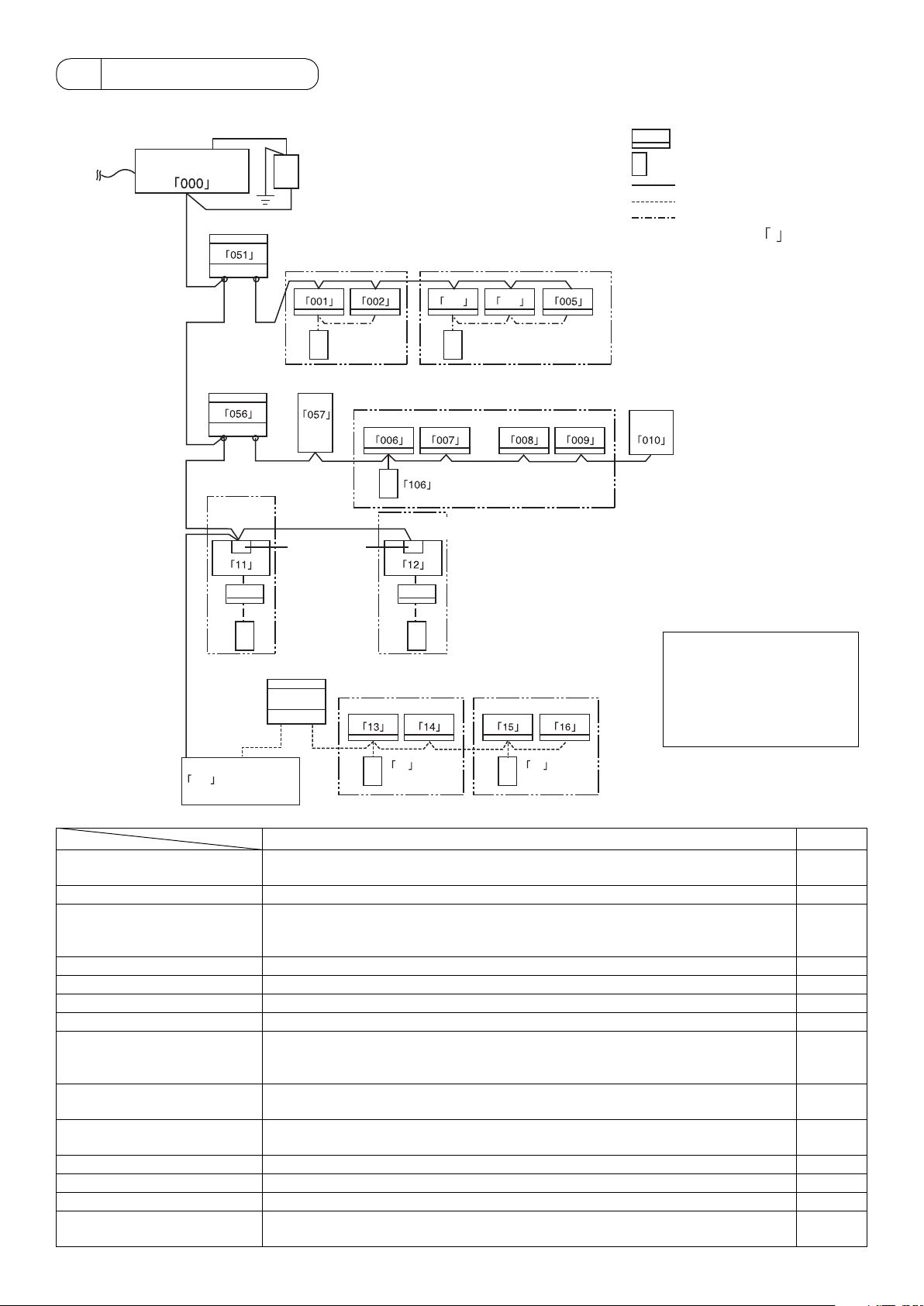

1. Standard configuration (using the AG-150A to control a system with 50 or fewer units of equipments)
* Address setting for each M-NET device (Addresses cannot be duplicated).
5 System Diagram
Address setting method Address
Indoor unit Set the indoor unit you want to make the main unit in the same group to the minimum
address, then sequentially set the indoor unit addresses in the same group. 1~50
Outdoor unit Minimum indoor unit address in same refrigerant system + No.50 unit. 51~100
BC controller/OS controller
Outdoor unit address in same refrigerant system + No.1 unit.
However, for Sub-BC controller, the minimum indoor unit address that connects the
local refrigerant piping should be + 50.
52~100
K control side remote controller Same address as indoor unit main unit. 1~50
Mr. Slim Outdoor unit
Same address as indoor unit main unit. An M-NET adapter (sold separately) is required. 1~50
M-NET remote controller Set to the minimum indoor unit main address in the same group + 100. 101~200
Sub system controller Assign an address that equals the lowest group number plus 200. 201~250
DIDO controller
(PAC-YG66DCA)
Assign an arbitrary but unused address to the PAC-YG66DCA DIDO controller after
assigning an address to all units to be assigned an address between 1 and 50.
The number of controllable units depends on the number of channels used.
1~50
Pl controller (PAC-YG60MCA) Assign an arbitrary but unused address to the PI controller after assigning an address
to all units to be assigned an address between 1 and 50. 1~50
Al controller (PAC-YG63MCA) Assign an arbitrary but unused address to the AI controller after assigning an address
to all units to be assigned an address between 1 and 50. 1~50
MA remote controller Address setting is unnecessary. -
OA processing unit/LOSSNAY After setting all the indoor units, set an arbitrary but unused address. 1~50
K transmission converter Minimum address of K control indoor unit + 200. 201~250
Air To Water
Set the Air To Water you want to make the main unit in the same group to the minimum
address, then sequentially set the Air To Water addresses in the same group.
1~50
M-NET
LOSSNAY
TB7 TB3
ME
MA
K
TB7 TB3
MA
K
R2
213
13 15
TB7 TB3
MA MA
003 004
Indoor unit
Local remote controller
M-NET transmission line
K transmission line
MA remote controller line
The numbers in the
indicate the address No.
NOTE
* This diagram does not
show the AC power supply
wiring. Only the
configuration for the
transmission line is shown.
POWER (24VDC)
Centralized controller
Model:AG-150A Power supply unit (optional)
Model: PAC-SC51KUA
LAN
M-NET
outdoor unit
BC controller
Group 3
Group 1 Group 2
M-NET
outdoor unit
Mr. Slim
Outdoor unit Mr. Slim
Outdoor unit
M-NET adapter
Group 4 Group 5
K control
outdoor unit
Group 13 Group 15
K transmission converter
Model:PAC-SC25KAA
WT05368X08.fm Page 6 Thursday, March 17, 2011 9:21 AM

- 7 -
1-1. M-NET wiring configuration
(1) Types and maximum allowable length of M-NET transmission cables
The wiring diagram below shows a sample M-NET transmission wiring for a CITY MULTI system.
The maximum total line distance (centralized control and indoor-outdoor transmission lines) for each M-NET system is expressed
in the formula below. Observe the maximum length to ensure proper signal transmission to and from the connected equipments
over the M-NET transmission line.
If the maximum line length is exceeded, the M-NET signals will be attenuated, resulting in communication error and control
failure.
a+b+d+e(f) ≤500m a+b+c+g ≤500m e(f)+d+c+g ≤500m
The local remote controller cable length should be 10 m or shorter. The part that exceeds the 10 m limit should be included in the
maximum total line length of 500 m.
(A) Centralized control transmission line
The power supply distance for the centralized controller transmission line is expressed in the formula below.
This is the maximum length of the centralized control transmission line to which proper amount of power reaches. If the maximum
line length is exceeded, those equipments at the end of the transmission line may not receive enough power, resulting in
communication error and control failure.
a+b ≤200m a+b+c ≤200m
(B) Indoor-outdoor transmission line
The power supply distance for the indoor-outdoor transmission line is expressed in the formula below.
This is the maximum length of the indoor-outdoor transmission line to which proper amount of power reaches. If the maximum
line length is exceeded, those equipments at the end of the transmission line may not receive enough power, resulting in
communication error and control failure.
d+e(f) ≤200m g≤200m
The length of the local remote controller cable that exceeds the 10 m limit should be included in the maximum total line length of
500 m and in the power supply distance of 200 m.
NOTES
* Apply following precautions when using the K transmission converter (model PAC-SC25KAA; discontinued) and controlling the
M-NET model and K control model with the same controller.
Refer to the K transmission converter (PAC-SC25KAA) installation manual for details.
1Centralized controller address
Always set the controller address to “000”.
2Centralized controller function selects
Set the “K Converter Address” by using the “M-NET Settings” on the Initial settings screen.
3Indoor unit address
Set all M-NET model indoor units from the No.1 unit, then set the K control model addresses.
Indoor unit No.1 unit ~M-NET indoor unit max. address> K control indoor unit minimum address ~50
4K control model group No.
The minimum indoor address No. of that group becomes the group No. (Same for K control side local remote controller.)
5The remote controller address does not need to be included in the K-control unit group settings.
NOTE
* Some types of units cannot be controlled from the AG-150A controller.
Cable type
Facility type All facility types
Type Shielded cable CVVS·CPEVS
No. of cores 2-core cable
Cable size Minimum 1.25 mm2
Maximum transmission line distance between the outdoor unit
and the farthest indoor unit 200 m
Distance of the transmission line for the central control system
and indoor-outdoor transmission line to the farthest indoor unit
(Maximum line distance via outdoor unit)
500 m
* The maximum line distance from the power supply unit on
the transmission line for the central control system to each
outdoor unit or to the system controller is 200 m.
a
c
bde
f
g
10m
Centralized control transmission line Indoor-outdoor transmission line
Centralized
controller
(AG-150A)
Outdoor
unit
Outdoor
unit
Power supply
unit for
transmission line
Indoor unit Indoor unit
Indoor unit
Indoor unitIndoor unit
M-NET
remote
controller
WT05368X08.fm Page 7 Thursday, March 17, 2011 9:21 AM

- 8 -

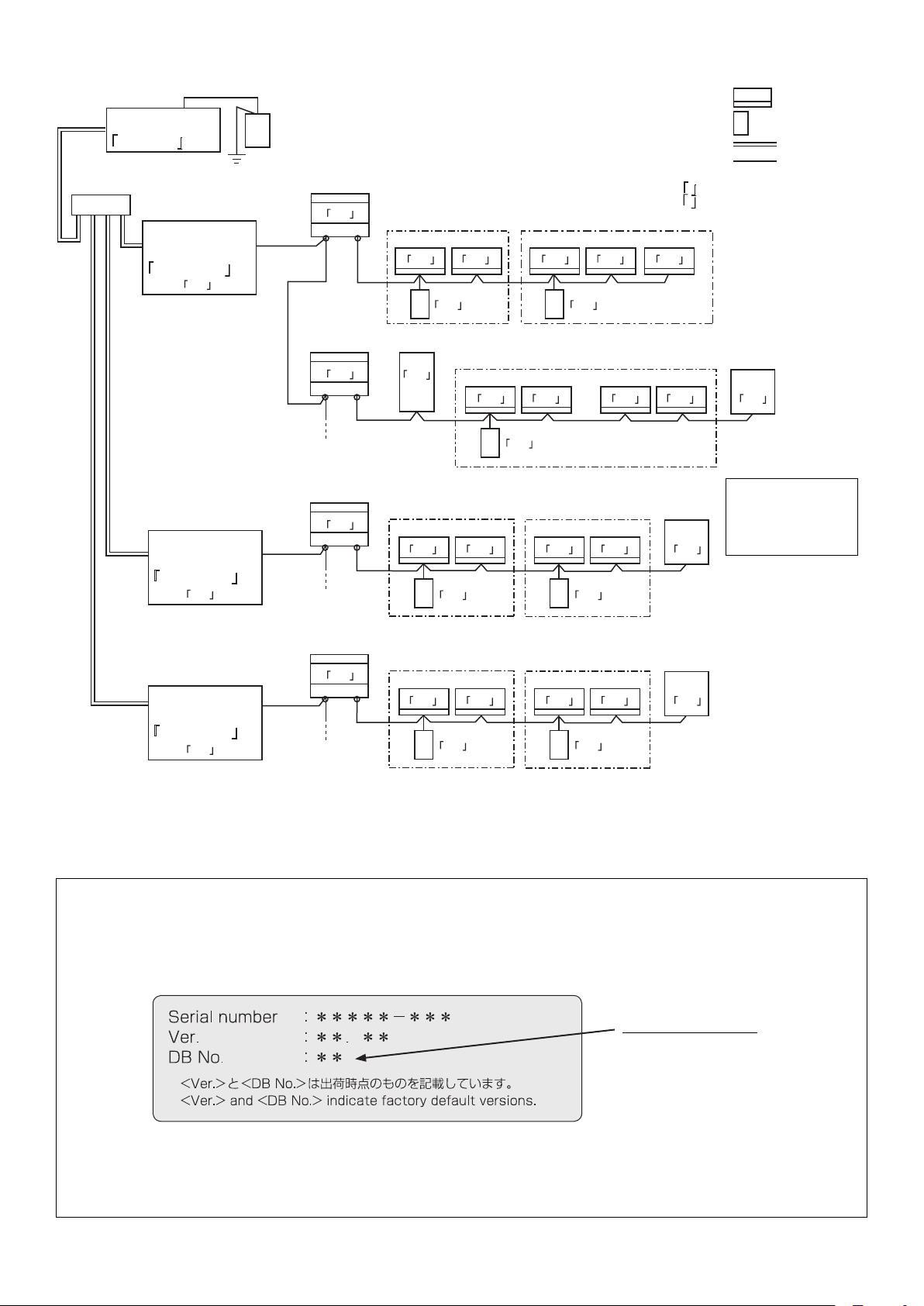

2. System with connection to an Expansion controller (system with 51 or more units)
• Refer to the PAC-YG50ECA Expansion controller Installation/Instructions Manual for how to set the IP address.
• The same M-NET address cannot be used twice in the same M-NET system that connects to the same PAC-YG50ECA
Expansion controller.
See section 1 “Standard configuration” for how to set the addresses for the equipments that are connected to the Expansion
controller within an M-NET system.
NOTES
* The DB No. of PAC-YG50ECA is found on the package box and the controller itself in the [DB No. : **] format.
Only the Expansion controllers with the same DB No. as the AG-150A can be connected to the AG-150A. Be sure to check the
DB No. before connecting the Expansion controller to the system.
If the DB numbers of the AG-150A and PAC-YG50ECA do not match, the software needs to be updated. Consult your dealer.
* Provide “one-point grounding” for the M-NET transmission line (centralized control system) by grounding the shield of the an
Expansion controller. (Class-D grounding)
Ground the indoor-outdoor transmission line in each outdoor unit refrigerant system.
* Set the centralized control switch (SW2-1) on the outdoor units on the M-NET line to ON.
(Refer to the outdoor unit Installation Manual for the details of the dipswitch settings.)
TB7 TB3
ME
R2
TB7 TB3
ME ME
000
051
TB7 TB3
ME ME
TB7 TB3
ME ME
001
101 103
101 103
101 103
106
002
006 007 008 009 010
003 004 005
001 002 003 004 005
001 002 003 004 005
056 057
051
051
000
000
Power supply (DC24V)
Centralized controller
Model name: AG-150A *
1
192.168.1.1
Power supply unit (sold separately)
Model name: PAC-SC51KUA *2
*1: M-NET terminals will not be used.
*2: Terminal block TB2 will not be used.
M-NET
Outdoor unit
Expansion controller
Model name:
PAC-YG50ECA
192.168.1.211
Expansion controller
Model name:
PAC-YG50ECA
192.168.1.212
Expansion controller
Model name:
PAC-YG50ECA
192.168.1.213
M-NET
Outdoor unit
M-NET
Outdoor unit
M-NET
Outdoor unit
Group 1-1 Group 1-2
Indoor unit
Local remote
controller
LAN
M-NET
transmission line
Figures in indicate IP address.
Figures in indicate M-NET address.
Group 1-3
Group 2-1 Group 2-2
Group 3-1 Group 3-2
BC controller LOSSNAY
unit
LOSSNAY
unit
LOSSNAY
unit
LAN
Switching
HUB
LAN
LAN
M-NET
M-NET
M-NET
• This diagram only
shows transmission
line configurations.
Power wires are
omitted.
DB No. appears here.
Label contents
WT05368X08.fm Page 8 Thursday, March 17, 2011 9:21 AM

- 9 -
* Main and sub system controllers (M-NET)
AG-150A is for exclusive use as a main SC. AG-150A cannot be used as a sub SC.
• Main system controller (Main SC)
Main SC refers to a controller that controls all other system controllers including the units they control. If a given system has
only one system controller, that controller becomes the main controller. Group settings and interlock settings can only be made
from a main controller.
• Sub system controller (Sub SC)
Sub controller refers to a system controller that is controlled (including the units it controls) by a main system controller.
NOTES
* Up to three PAC-YG50ECA controllers can be connected to each AG-150A unit.
* Main system controllers (e.g., AG-150A) cannot be connected to an M-NET system that is controlled by an Expansion controller.
NOTES The following types of configurations are not possible.
• A sub controller can only control the groups that are under the control of its main controller.
• No groups can be placed under the control of more than one main system controller.
• No sub system controllers can be placed under the control of more than one main system controller.
AG-150A, PAC-YG50ECA etc.
Range of units the main SC
controls (M-NET)
Group Group
Group AG-150A is for exclusive use as a main SC. AG-150A cannot be used as a sub
SC or controlled from another main SC.
Range of units the
sub SC controls
Group Group Group
Main system
controller
Sub system
controller
Group Group Group
Main system
controller 1
Main system
controller 2
Group Group Group Group
Main system
controller 1
Sub system
controller
Main system
controller 2
WT05368X08.fm Page 9 Thursday, March 17, 2011 9:21 AM

- 10 -
1. Field-supplied Parts
1 Electric box: PAC-YG83UTB (sold separately) (When following installation method described in section “2. Installation” item 1 .)
2Mounting attachment B Type: PAC-YG81TB (sold separately) (Required only when following installation method described in
section “2. Installation” item 3.)
3Mounting attachment A Type: PAC-YG85KTB (sold separately) (Required only when following installation method described
in section “2. Installation” item 4.)
4Locknuts and bushing for the conduit tube.
5M-NET transmission cable. (Refer to Page 12.)
6DC power cable. (Refer to Page 12.)

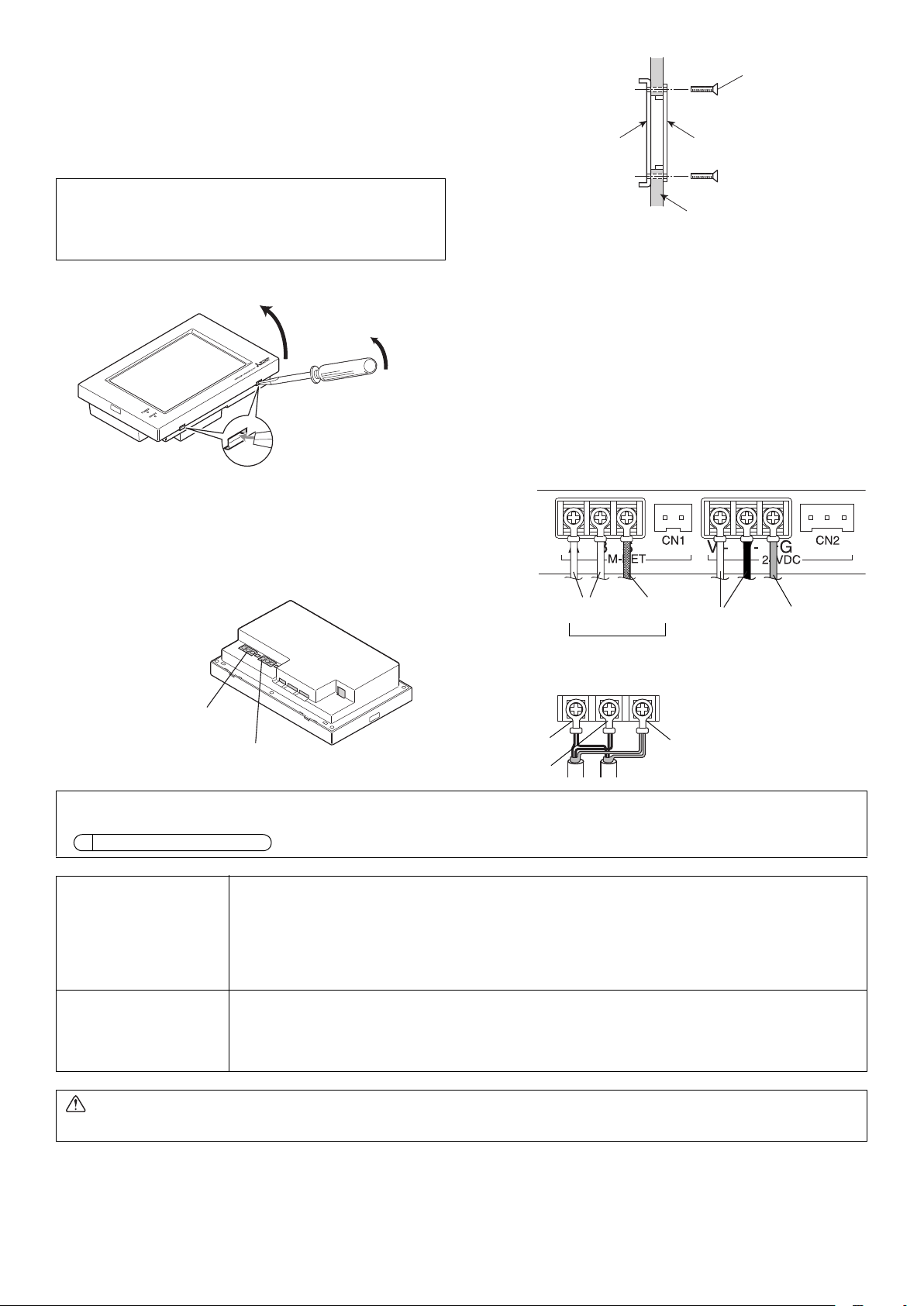

2. Installation
The controller can be installed by following one of the methods below:
6 Installation
CAUTION
* Install and wire the unit with the power to the power supply unit (PAC-SC51KUA) turned off.
* Do not put the signal wire and power wire in the same conduit.
* When routing the cable from the top of the controller, let the cable hang down below the connector before connecting it to the
terminal block or connector as shown in the figure below to prevent water from running down the cable and causing electric
shock or fire.

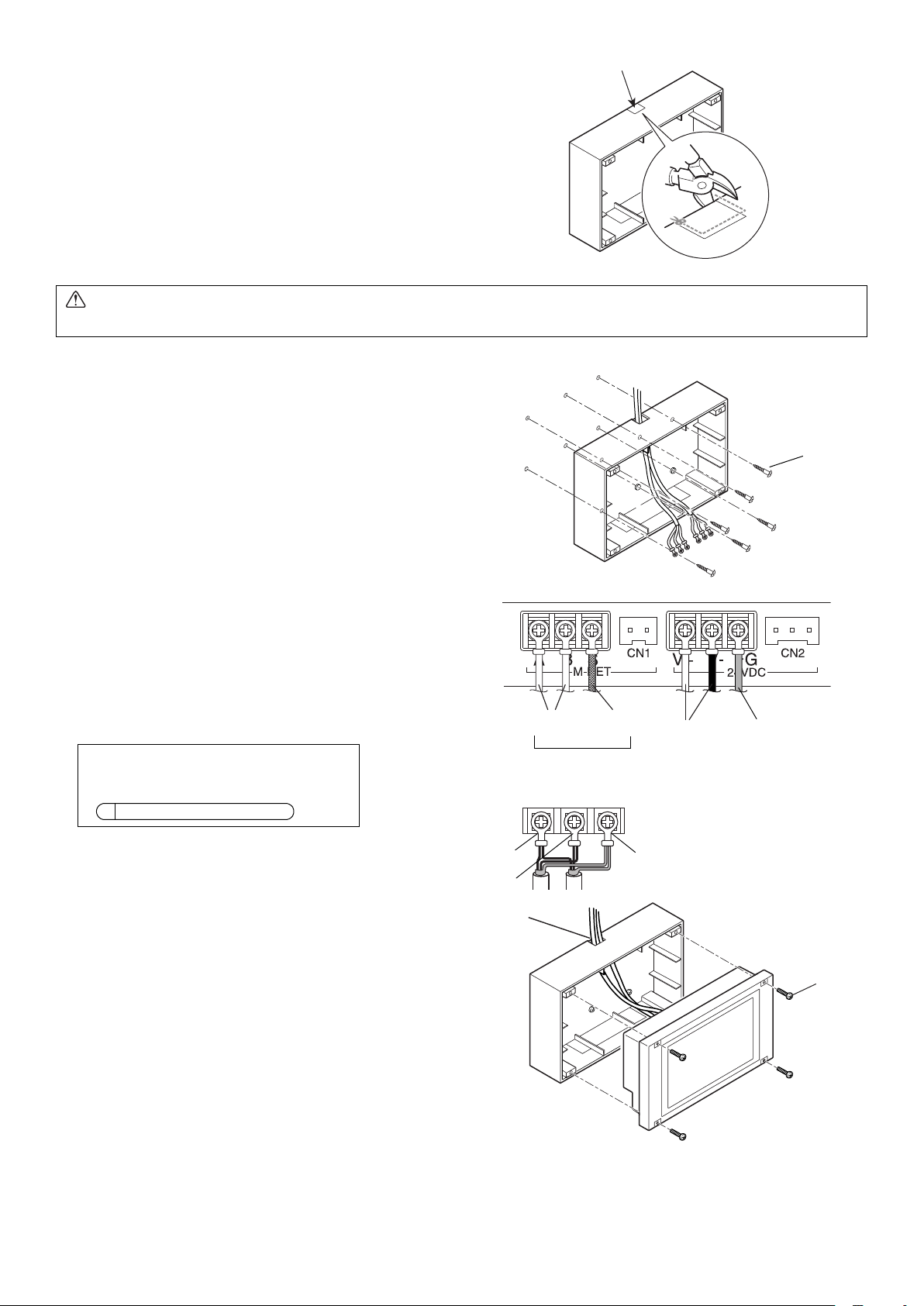

1By embedding the centralized controller in the wall.
Method of using two plates included with AG-150A.

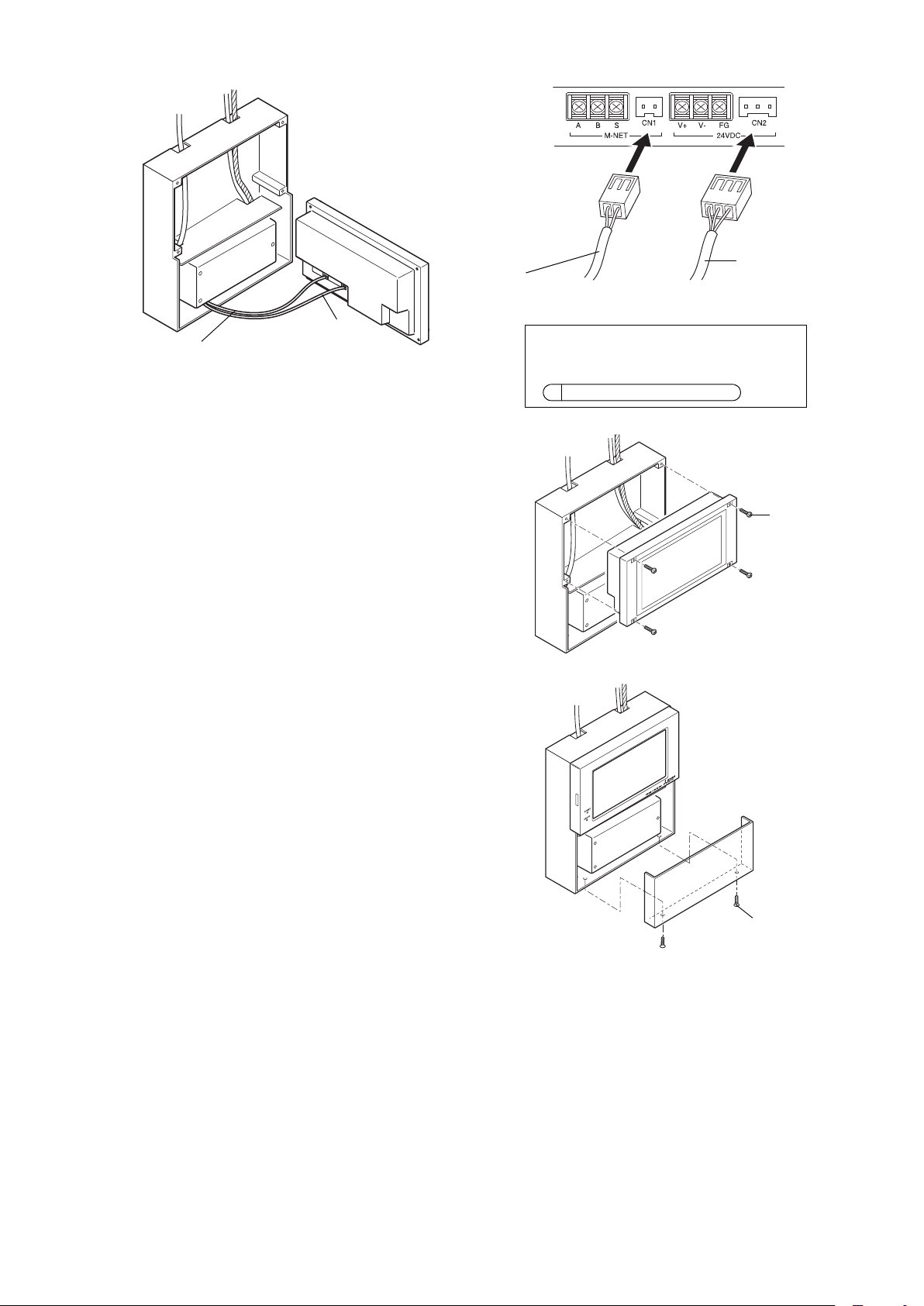

2By embedding the centralized controller in the wall and
mounting it to an electric box.
An electric box (PAC-YG83UTB; sold separately) is required.
3By installing the centralized controller directly on the wall.
Mounting attachment B type (PAC-YG81TB; sold separately) is
required.
Terminal block or
connector
Good example Bad example
AG-150A
Wall
Electric box
(PAC-YG83UTB; sold
separately)
Wall
AG-150A
Wall
AG-150A
PAC-YG81TB (sold
separately) is required
mount installations.
WT05368X08.fm Page 10 Thursday, March 17, 2011 9:21 AM

- 11 -
2-1. Embedding the centralized controller in the wall.
1Ensure there is enough space to install the controller as shown
in the figure at right.
2Cut out an opening in the wall as shown in the shaded area
in the figure at right. (W × H: 278 mm (11 in) × 152 mm (6 in))
Follow the dimensions in the figure exacting. If the opening is
too large, it will be hard to properly install the unit.
Make mounting plate (A type and B type) screw holes on the
hole as shown in the right figure. (Use the supplied M4
screws to mount the plates.)
3Insert the B type installation plate (supplied) through the hole
in the wall and hold it.
4By installing the centralized controller and a power supply unit
(PAC-SC51KUA; sold separately) inside the mounting
attachment on the wall.
Mounting attachment A type (PAC-YG85KTB; sold separately)
is required.
5Attach the AG-150A to the control board.
NOTES
* When installing two or more controllers side-by-side and horizontally ensure that there is at least 130 mm (5-1/8in) or more
between the units.
* When installing two or more controllers vertically, ensure that there is at least 150 mm (5-15/16 in) between units; otherwise, it will
be hard to remove the cover.
* The amount of space required on the left of the controller is the amount necessary to connect/disconnect the USB drive. (If the
specified amount of space is not available, use a USB extension cable.)
* The amount of space required under the controller is the amount necessary for the mounting/dismounting of the controller
cover.
Wall
AG-150A
PAC-YG85KTB (sold
separately) is required
in wall mount
installation with both
the controller and a
power supply unit.
Power supply unit
(PAC-SC51KUA; sold
separately)
Wall
AG-150A
Control board
Power supply unit
(PAC-SC51KUA; sold
separately)
Unit: mm (in)
AG-150A
30 (1-3/16)
100 (3-
15
/
16
)
300 (11-13/16)
120 (4-3/4)
30 (1-3/16)
185 (7-5/16)
Unit: mm (in)
278 (10-
15
/ 16 )
200 (7-
7
/ 8 )
152 (6)
163.4 (6-
7
/
16
)
B type installation plate
(supplied)
WT05368X08.fm Page 11 Thursday, March 17, 2011 9:21 AM

- 12 -
4Attach the A type installation plate (supplied) to the B type
installation plate (supplied) with the M4 flathead screws
(supplied), sandwiching the wall between the two plates.
Prior to installation, check that the wall is strong enough to
support the weight of the controller to prevent the controller
from falling.
5Remove the AG-150A surface cover.
6Push the wire through the wall hole, and connect the M-NET
transmission cable (centralized control cable that is connected to TB2 of
the power supply unit (PAC-SC51KUA)) to M-NET transmission cable
terminal A, B (both non polarity) and S.
Connect the DC power cable from the power supply unit
(PAC-SC51KUA) to the 24VDC power supply terminal block of the
controller. There is V+ and V- polarity.
NOTE
* If the screw provided for the installation plate, cannot be
used because of the wall thickness, use an M4 flathead
screw that matches the wall thickness.
NOTE
* When using an LAN and external signal I/O, refer to section
11 External input/output usage .
M-NET transmission
cable
Type of the cable; Shielded cable which comply with the following specifications or equivalent.
• CPEVS φ1.2mm to φ1.6mm
• CVVS 1.25mm² to 2mm² (AWG16 to 14)
*CPEVS; PE insulated PVC jacketed shielded communication cable
*CVVS; PVC insulated PVC jacketed shielded control cable
PE: Polyethylene PVC: Polyvinyl chloride
DC power cable The DC power cable should comply with both local standards as well as the power requirement of the
unit.
Recommended type: 0.75mm² to 2mm² (AWG18 to 14), 3-conductor power cable
Cable length: Within 50m (164 ft)
CAUTION
* Do not connect the AC power cable to the M-NET and POWER (24VDC) terminal blocks of the controller. It may cause a failure.
Inside the wall
B type Installation plate
(supplied)
A type Installation plate
(supplied)
Wall
M4 flathead screw
(supplied)
Insert a flat-tip
screwdriver in the
holes indicated
and move the
handle up to
remove the cover.
Back of controller
M-NET
transmission
cable
DC power cable
Shield
* When using bridge wiring of the shield,
use the S-terminal as shown below.
S
A
B
Function earthing
(ground) cable
* When a PAC-YG50ECA Expansion controller is used, the
M-NET terminals will not be used.
M-NET transmission cable
DC power cable
WT05368X08.fm Page 12 Thursday, March 17, 2011 9:21 AM

- 13 -
7Attach the controller to the A type installation plate with the
M4 roundhead screws (supplied).
8Replace the AG-150A surface cover.
2-2. Wall-Embedded installation with an Electric box (PAC-YG83UTB; sold separately)
1Ensure there is enough space to install the controller as shown below. Wall space (see diagram below) and 60 mm (2-3/8in) of
clearance behind the wall are required to mount an Electric box.
2Punch out the appropriate knockout holes on the Electric box depending on how the cable is routed.
3Install the Electric box in the wall.
Refer to the Installation Manual that came with the Electric box (PAC-YG83UTB) for details.
NOTES
* When installing two or more controllers side-by-side and horizontally ensure that there is at least 130 mm (5-1/8in) or more
between the units.
* When installing two or more controllers vertically, ensure that there is at least 150 mm (5-15/16 in) between units; otherwise, it will
be hard to remove the cover.
* The amount of space required on the left of the controller is the amount necessary to connect/disconnect the USB drive. (If the
specified amount of space is not available, use a USB extension cable.)
* The amount of space required under the controller is the amount necessary for the mounting/dismounting of the controller
cover.
M4 roundhead
screw (supplied)
A type Installation plate
(supplied)
300 (11-
13
/ 16 )
185 (7-
5
/
16
)
120 (4-
3
/
4
)
100 (3-
15
/ 16 )
30 (1-
3
/
16
)
30 (1-
3
/ 16 )
Electric box (PAC-YG83UTB; sold separately)
Inner wall
AG-150A
Building structure
60 mm
(2-
3
/
8
in)
minimum
Unit: mm (in)
AG-150A
Punch out the knockout holes.
(Punch out the appropriate
knockout hole.)
WT05368X08.fm Page 13 Thursday, March 17, 2011 9:21 AM

- 14 -
4Cut out an opening in the wall as shown in the shaded area in the figure below. (Width × Height: 278 mm (11 in) × 152 mm (6 in))
Follow the dimensions in the figure exactly. If the opening is too large, it will be hard to properly install the unit.
Make A-type mounting plate screw holes on the hole as shown in the right figure. (Use the supplied M4 screws to mount the
plate.)
5Securely seal the cable lead-in port with putty to prevent dew, water and
insects, etc. from entering.
* Seal the space between the electric box and conduit with putty.
6Attach the A type installation plate (supplied) with the M4 flathead screws
(supplied) on the Electric box.
7Remove the AG-150A surface cover.
8Connect the M-NET transmission cable (centralized control cable that is connected to TB2 of the power supply unit
(PAC-SC51KUA)) to M-NET transmission cable terminal A, B (both non polarity) and S.
Connect the DC power cable from the power supply unit (PAC-SC51KUA) to the 24VDC power supply terminal block of the
controller. There is V+ and V- polarity.
CAUTION
* Do not connect the AC power cable to the M-NET and POWER (24VDC) terminal blocks of the controller. It may cause a failure.
* When leading the cable out from above, seal the port so that water does not enter along the transmission cable and DC power
supply cable.
Unit: mm (in)
152 (6)
278 (11)
Unit: mm (in)
278 (10-
15
/ 16 )
200 (7-
7
/ 8 )
152 (6)
163.4 (6-
7
/
16
)
Conduit
Electric box
Seal with putty
Bushing
M-NET transmission cable
or DC power cable
Wall Lock nut
Line lead-in port
A type Installation plate (supplied)
M4 flathead screw (supplied)
Wall
NOTE
* If the screw provided for the installation
plate, cannot be used because of the
wall thickness, use an M4 flathead screw
that matches the wall thickness.
M-NET transmission cable
DC power cable
NOTE
* When using an LAN and external signal
I/O, refer to section
11 External input/output usage .
WT05368X08.fm Page 14 Thursday, March 17, 2011 9:21 AM

- 15 -
9Attach the controller to the A type installation plate with the roundhead screws (supplied).
0Replace the AG-150A surface cover.
2-3. Wall-mounting the centralized controller with the mounting attachment B type
(PAC-YG81TB; sold separately)
1Ensure there is enough space to install the controller as
shown in the figure at right.
NOTES
* When installing two or more controllers side-by-side and horizontally ensure that there is at least 130 mm (5-1/8in) or more
between the units.
* When installing two or more controllers vertically, ensure that there is at least 150 mm (5-15/16 in) between units; otherwise, it will
be hard to remove the cover.
* The amount of space required on the left of the controller is the amount necessary to connect/disconnect the USB drive. (If the
specified amount of space is not available, use a USB extension cable.)
* The amount of space required under the controller is the amount necessary for the mounting/dismounting of the controller
cover.
Back of controller
M-NET transmission cable DC power cable
* When using bridge wiring of the shield,
use the S-terminal as shown below.
M-NET transmission cable
DC power cable
shield
S
A
B
Function earthing
(ground) cable
* When a PAC-YG50ECA Expansion controller is used,
the M-NET terminals will not be used.
M4 rounded screw
(supplied)
Wall
Unit: mm (in)
Mounting attachment
B type
(PAC-YG81TB; sold
separately)
30 (1-3/16)
100 (3-15/16)
300 (11-13/16)
120 (4-3/4)
30 (1-3/16)
185 (7-5/16)
WT05368X08.fm Page 15 Thursday, March 17, 2011 9:21 AM

- 16 -
2Punch out the appropriate knockout hole, depending on how
the wiring is routed.
3Sand the cut surface of the knockout hole smooth.
4Push the M-NET transmission cable, DC power cable through the knockout hole.
5Install the mounting attachment B type (PAC-YG81TB; sold
separately) on the wall with the six screws (field-supplied;
use screws that are suitable for the type of wall the AG-150A
is installed on).
Prior to installation, check that the wall is strong enough to
support the weight of the controller.
6Remove the AG-150A surface cover.
7Connect the M-NET transmission cable (centralized control
cable that is connected to TB2 of the power supply unit
(PAC-SC51KUA)) to M-NET transmission cable terminal A, B
(both non polarity) and S.
Connect the DC power cable from the power supply unit
(PAC-SC51KUA) to the 24VDC power supply terminal block
of the controller. There is V+ and V- polarity.
8Securely seal the cable lead-in port with putty to prevent
dew, water and insect, etc. from entering.
9Install the controller on the mounting attachment B type
(PAC-YG81TB) with the four M4 rounded screws (supplied
with the PAC-YG81TB).
0Replace the AG-150A surface cover.
CAUTION
* Any rough edges that are left may damage the cable and cause electric shock or fire.
NOTE
* When using an LAN and external signal
I/O, refer to section
11 External input/output usage .
Knockout hole
Wall
Screws
(Field-
supplied)
Back of controller
DC power cable
Shield
* When using bridge wiring of the shield,
use the S-terminal as shown below.
S
A
B
Function earthing
(ground) cable
* When a PAC-YG50ECA Expansion controller is used, the
M-NET terminals will not be used.
M-NET
transmission
cable
Seal with putty
M4 roundhead
screw (supplied
with the PAC-
YG81TB)
WT05368X08.fm Page 16 Thursday, March 17, 2011 9:21 AM

- 17 -
2-4. Installing the centralized controller and a power supply unit (PAC-SC51KUA; sold separately) inside the
mounting attachment A type (PAC-YG85KTB; sold separately) on the wall
1Ensure there is enough space to install the controller as
shown in the figure at right.
2Install the mounting attachment A type (PAC-YG85KTB; sold
separately) on the wall with the six screws (field-supplied;
use screws that are suitable for the type of wall the AG-150A
is installed on).
Prior to installation, check that the wall is strong enough to
support the weight of the controller.
3Punch out the knockout holes on the mounting attachment A
type (PAC-YG85KTB).
4Sand the cut surface of the knockout holes smooth.
5Push the AC power cable, protective earth (ground) cable, and M-NET transmission cable through the knockout hole.
6Install the power supply unit (PAC-SC51KUA; sold
separately) inside the mounting attachment with the four M4
screws (Supplied with PAC-YG85KTB).
7Connect the cables to the power supply unit
(PAC-SC51KUA).
Refer to the PAC-SC51KUA Installation Manual for details.
8Securely seal the cable lead-in port with putty to prevent
dew, water and insect, etc. from entering.
9Remove the AG-150A surface cover.
NOTES
* When installing two or more controllers side-by-side and horizontally ensure that there is at least 130 mm (5-1/8in) or more
between the units.
* When installing two or more controllers vertically, ensure that there is at least 250 mm (9-7/8in) between units; otherwise, it will
be hard to remove the cover.
* The amount of space required on the left of the controller is the amount necessary to connect/disconnect the USB drive. (If the
specified amount of space is not available, use a USB extension cable.)
* The amount of space required under the controller is the amount necessary for the mounting/dismounting of the controller
cover.
CAUTION
* Any rough edges that are left may damage the cable and cause electric shock or fire.
220 (8-
11
/
16
)
100 (3-
15
/ 16 )
30 (1-
3
/
16
)
30 (1-
3
/ 16 )
300 (11-
13
/ 16 )
400 (15-
3
/
4
)
Unit: mm (in)
Mounting attachment
A type (PAC-
YG85KTB; sold
separately)
Wall
Knockout hole
Screws (Field-supplied)
AC power cable
M-NET transmission cable
Protective earth
(ground) cable
Power supply unit
(PAC-SC51KUA;
sold separately)
(weight 1.4kg [4lbs])
M4 screws (supplied
with PAC-YG85KTB)
WT05368X08.fm Page 17 Thursday, March 17, 2011 9:21 AM

- 18 -
0Connect the wiring from the power supply unit to the
centralized controller.
aInstall the controller inside the mounting attachment A type
(PAC-YG85KTB) with the four M4 rounded screws (supplied
with PAC-YG85KTB).
bReplace the AG-150A surface cover.
cAttach the power supply unit cover with the two screws.
(Supplied with PAC-YG85KTB)
M-NET
transmission cable
(supplied with
PAC-YG85KTB)
DC power cable
(supplied with PAC-
YG85KTB)
NOTE
* When using an LAN and external signal
I/O, refer to section
11 External input/output usage .
DC power cable
(supplied with
PAC-YG85KTB)
M-NET transmission cable
(supplied with PAC-YG85KTB)
M4 roundhead
screw (supplied
with PAC-
YG85KTB).
Screws (supplied with
PAC-YG85KTB)
WT05368X08.fm Page 18 Thursday, March 17, 2011 9:21 AM

- 19 -
2-5. Installing the centralized controller on the control board
1Make sure that there is an adequate amount of space to
install the controller as shown in the figure on the right.
2Install the control board on the wall.
Refer to the Control Board Installation Manual for details.
3Punch out the appropriate knockout hole on the control
board, and push the AC cable, protective earth (ground)
cable, and M-NET transmission cable through the knockout
hole.
4Install the power supply unit (PAC-SC51KUA; sold
separately) on the control board.
5Connect the cable to the power supply unit (PAC-SC51KUA).
Refer to the PAC-SC51KUA Installation Manual for details.
6Securely seal the cable lead-in port with putty to prevent dew, water and insects, etc. from entering.
* Seal the space between the control board and conduit with putty.
NOTES
* When installing two or more controllers side-by-side and horizontally ensure that there is at least 130 mm (5-1/8in) or more
between the units.
* When installing two or more controllers vertically, ensure that there is at least 150 mm (5-15/16 in) between units; otherwise, it will
be hard to remove the cover.
* The amount of space required on the left of the controller is the amount necessary to connect/disconnect the USB drive. (If the
specified amount of space is not available, use a USB extension cable.)
* The amount of space required under the controller is the amount necessary for the mounting/dismounting of the controller
cover.
300 (11-
13
/ 16 )
185 (7-
5
/
16
)
120 (4-
3
/
4
)
100 (3-
15
/
16
)
30 (1-
3
/
16
)
30 (1-
3
/ 16 )
Unit: mm (in)
Control board
Control board
Protective earth
(ground) cable
M-NET transmission cable
AC power cable
M4 screw
(Field-supplied)
WT05368X08.fm Page 19 Thursday, March 17, 2011 9:21 AM
