Mitsubishi Electric GB-50ADA-J User manual

Centralized Controller
AG-150A
AG-150A-A
GB-50ADA-A
GB-50ADA-J Instruction Book
(Web browser for User)
Contents
1 Introduction ........................................................................... 1
1-1 Terms Used in This Manual.................................................... 1
1-2 Computer Requirements ........................................................ 1
2 Setting the Operating Environment .......................................2
2-1 Setting the PC IP Address...................................................... 2
2-2 Setting the Web Browser........................................................ 4
2-3 Setting the Java Execution Environment................................ 6
3 Performing Operations .......................................................... 7
3-1 Logging in on the AG-150A .................................................... 7
3-2 Checking the Operation Condition........................................ 10
3-3 Performing the Operations ................................................... 13
Air-conditioner Network System
WT05492X13
Ver. 2.95
Before using the controller, please read this Instruction Book carefully to ensure proper operation.
Retain this manual for future reference.
WT05492X13_cover.fm Page 1 Thursday, October 25, 2012 3:19 PM

1
1 Introduction
Special features of Mitsubishi Electric Corporation’s “Centralized Controller AG-150A,” “Centralized Controller
AG-150A-A,” “Centralized Controller GB-50ADA-A,” and “Centralized Controller GB-50ADA-J” are that a PC
connected to a LAN can be used to monitor the operation condition of air conditioners and perform air
conditioner operations.
The document explains the procedures to monitor the status of and to operate the centralized controller on the
Web browser are described.
Hereinafter, Centralized controller AG-150A, AG-150A-A, GB-50ADA-A, and GB-50ADA-J, unless otherwise
specified, will be called "AG-150A".
Note: License of "Web Monitor" or "Basic License Pack" is necessary to use the web browser (to operate or monitor the air
conditioners). Some licenses are necessary depending on the functions to be used. Register the license key on the LCD
screen or on the registration screen.
Note: A one-day license key can be registered on the LCD screen that allows the user to use the "Web Monitor" only on the day of
the registration (not applicable to GB-50ADA-A and GB-50ADA-J). Use this license key to use the initial setting browser, or
in any other situations when a temporary license key "Web Monitor" is necessary.
Note: Use a security device such as a VPN router when connecting the AG-150A to the Internet to prevent unauthorized access.
Note: "Booster unit" and "Water HEX unit" are referred to as "Air To Water (PWFY)".
Note: GB-50ADA-A and GB-50ADA-J cannot be connected to the Expansion Controller (PAC-YG50ECA). Settings or displays of
the Expansion Controller cannot be made on the GB-50ADA-A and GB-50ADA-J.
1-1 Terms Used in this Manual
- “Click” refers to the action of positioning the mouse cursor on the object (such as button or folder), pressing
down, and releasing the left mouse button once.
- Unless otherwise specified, the example screen images used in this manual are Windows®XP and Internet
Explorer 6.0 screen images.
Note: Windows is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.
1-2 Computer Requirements
To monitor and operate air conditioners by web browser, computer must include the following requirements.
Table 1-1 Computer Requirements
Item Requirement
CPU Pentium 300MHz or faster
Memory 64M Bytes or more (128M Bytes or more recommended)
Screen resolution 1024 x 768 or higher recommended
Windows
Microsoft® Internet Explorer 6.0
Microsoft® Internet Explorer 7.0
Microsoft® Internet Explorer 8.0
Microsoft® Internet Explorer 9.0
Note: You must have a Java execution environment.
(Oracle®Java Plug-in Ver.1.6.0_02–Ver.1.6.0_33, Ver.1.7.0_07, 09)
Note: You can check the Oracle®Java Plug-in version in “Java” in a
control panel.
Note: Install Oracle®Java Plug-in that is appropriate for your operating
system. When using 64-bit Internet Explorer, install 64-bit Java
Plug-in.
Note: When using Oracle®Java Plug-in Ver. 1.6.0_10 or later, set the
Java execution environment according to the instructions in section
2-3 "Setting the Java Execution Environment."
Compatible browser
Macintosh
Safari (with Mac OS X)
Note: You must have a Java execution environment.
(Oracle Java Plug-in Ver. 1.6.0_31).
You can download from Apple Computer's homepage.
Note: You can check the Oracle Java Plug-in version at the
[Help]-[Installed Plug-ins] on the Safari browser.
Note: When using Oracle®Java Plug-in Ver.1.6.0_10 or later, set the
Java execution environment according to the instructions in
section 2-3 “Setting the Java Execution Environment.”
On-board LAN port or LAN card One connector (100BASE-TX)
Other Pointing device such as a mouse
Note: Microsoft is a registered trademark or trademark of Microsoft Corporation USA in the United States and other countries.
Oracle and Java are trademarks or registered trademarks of Oracle Inc. in the United States and/or other countries.

2
2 Setting the Operating Environment
PC settings and web browser settings required for using a web browser to monitor air conditioner units and
perform operations are explained in the following pages.
2-1 Setting the PC IP Address
Set an IP address on the PC that enables AG-150A to connect via a web browser. For instance, if the
AG-150A IP address is [192.168.1.1], the PC IP address will need to belong to the same system
[192.168.1.101].
If the AG-150A is connected to an existing LAN, ask the LAN administrator to decide what PC IP address to
use.
Note: When using a AG-150A dedicated LAN, it is recommended that the AG-150A main unit be given an IP address
within the range [192.168.1.1] - [192.168.1.40] and the PCs that will be connected to the AG-150A be given an IP
address within the range [192.168.1.101] - [192.168.1.150]

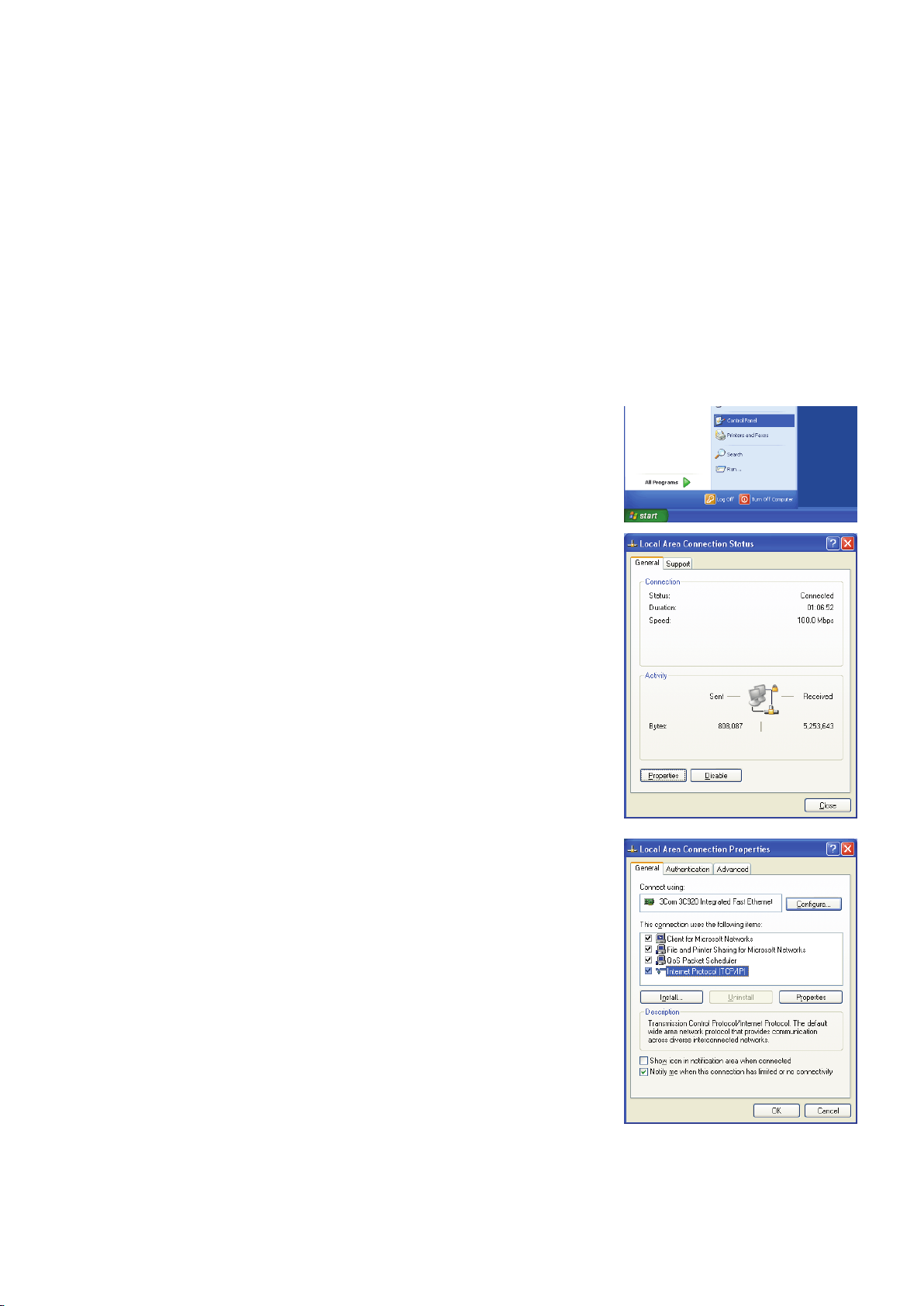

(1) Click on [Control Panel] under [Start] to open the Control Panel.
(2) In the Control Panel window, double click [Network and Dial-up
Connections] and the Network and Dial-up Connections window will
open. Double click on [Local Area Setting] and the [Local Area
Connection Status] dialog will open. Click [Properties].
(3) In the [Local Area Connection Properties] dialog, click [Internet
Protocol] to select it and click the [Properties] button.

3

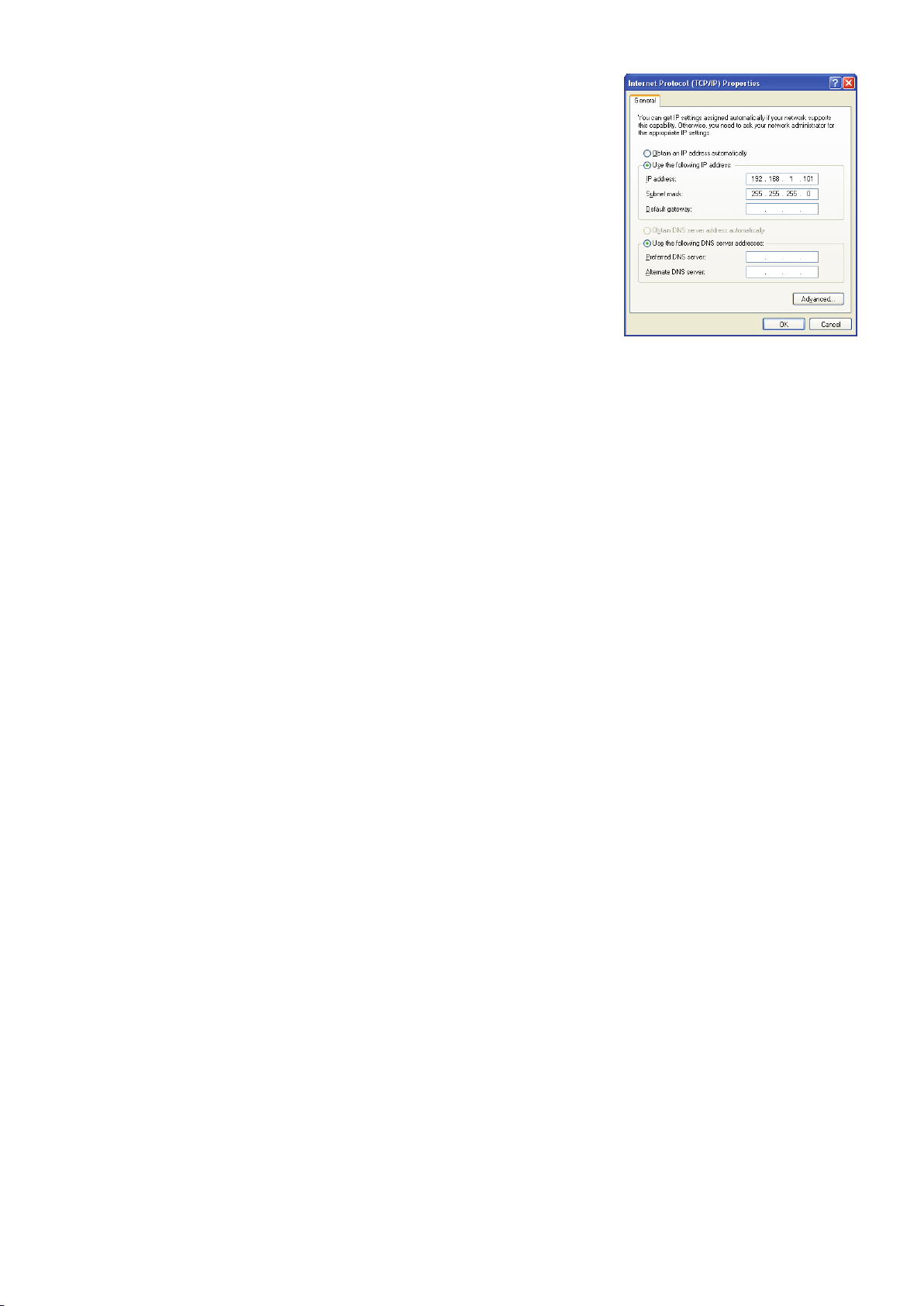

(4) In the [Internet Protocol (TCP/IP) Properties] dialog, click [Use the
following IP address] and enter the IP address (for example,
“192.168.1.101”) that you want to set in the IP address field.
You normally set [255.255.255.0] as the subnet mask.
Note: Ask your LAN administrator to provide the IP addresses and subnet
mask.
(5) Click the [OK] button to close this dialog, and then close the other
open dialogs to complete the network setting.

4
2-2 Setting the Web Browser
Necessary web browser settings must be performed to enable the web browser to connect to the AG-150A.
Note: The settings and screen images used as examples in this manual are based on Internet Explorer 6.0.
2-2-1 No Internet Connection
Follow the instructions below to make the web browser environment settings when using the PC with no
Internet connection for monitoring and operating the air conditioners.
(1) Click the web browser menu item [Tools] and then click [Internet
Options…] to select.
(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to
display.
(3) Select [Never dial a connection] in the Dial-up settings section and
click the [OK] button to close the dialog.
2-2-2 Internet Connection Using a Dial-Up
If the PC you use for monitoring air conditioners and performing operations is going to connect to the Internet
via a dial-up connection, use the procedure given below to set the web browser environment settings.
By performing these settings, a message will appear asking whether or not to use a dial-up connection when
an Internet connection is necessary. When connecting to the Internet, follow the directions below.
(1) Click the web browser menu item [Tools] and then click [Internet
Options…] to select.
(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to
display.
(3) Select [Dial whenever a network connection is not present] in the
Dial-up settings section and click the [OK] button to close the dialog.
Use a security device such as a VPN router when connecting the AG-150A to the Internet to prevent
unauthorized access.
If no security devices are installed, the operation settings may be changed by an unauthorized person
without the knowledge of the user.

5
2-2-3 Connecting to the Internet using a proxy server (Using an existing LAN)
If the PC you use for monitoring air conditioners and performing operations is going to access the Internet via
proxy server by connecting to an existing LAN such as a LAN within your company, use the procedure given
below to set the web browser environment settings.
By performing these settings, your PC will connect to a proxy server only when connecting to the Internet.
(1) Click the web browser menu item [Tools] and then click [Internet
Options…] to select.
(2) In the [Internet Options] tabbed dialog, click the [Connections] tab to
display.
(3) Select [Never dial a connection] in the Dial-up setting section.
(4) Click the [LAN Setting ...] button in the Local Area Network (LAN)
settings section to display the Local Area Network (LAN) Settings
dialog.
(5) In the Local Area Network (LAN) Settings dialog, check [Bypass proxy
server for local addresses] and click the [Advanced...] button.
(6) Enter the IP address for the AG-150A (e.g. 192.168.1.1) in the
Exceptions field of the Proxy Setting dialog and click the [OK] button to
close the dialog and then close the other open dialogs to complete the
setting.
Note: If connecting to more than one AG-150A, you can specify multiple IP
addresses like [192.168.1.1; 192.168.1.2], however, it is also possible to use
the asterisk (*) and specify [192.168.1*].

6
2-3 Setting the Java Execution Environment
When using Java Plug-in version 1.6.0_10 or later, make the following environment settings (not required for
version 1.6.0_09 or earlier).
Note: The setting samples and screenshots used in this manual are those of Java Plug-in version 1.6.0_11.

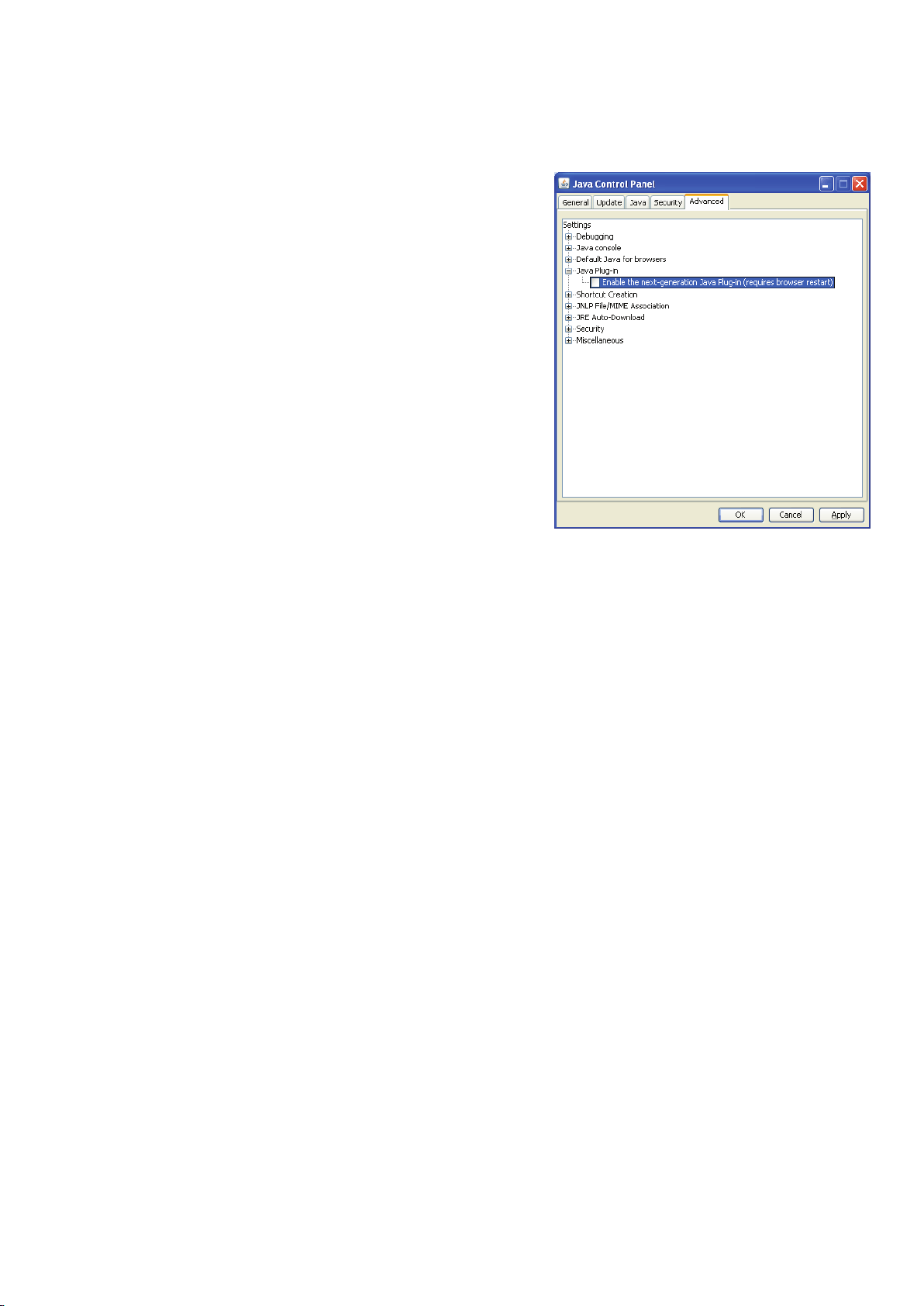

2-3-1 Disabling the next-generation Java Plug-in
(1) Open Java Control Panel by double-clicking Java in the
Control Panel.
(2) In the [Advanced] tab under the [Java Control Panel] screen,
click the plus next to [Java Plug-in] to expand the list, and
uncheck the checkbox next to [Enable the next-generation
Java Plug-in (requires browser restart.)].
*The checkbox cannot be unchecked depending on your
PC environment. In this case, update the version of Java
Plug-in to 1.6.0_30 or later.
*The above steps must be taken every time Java version is
updated.

7
3 Performing Operations
Text below explains how to connect to the AG-150A and how to monitor and adjust the operation condition of
air conditioners. Follow the directions given here when performing operations.
Note: If the AG-150A is restarted due to a power interruption etc., wait until the screen on the AG-150A main unit displays the
normal operation screen (it takes several minutes before the normal operation screen is displayed) before using a web
browser to access the AG-150A. If access is attempted while the AG-150A is still starting up, the most recent data might
not be displayed or communication errors could occur.
Note: Default IP address of AG-150A is "192.168.1.1". (Factory setting)
3-1 Logging in on the AG-150A
3-1-1 Logging in on the AG-150A

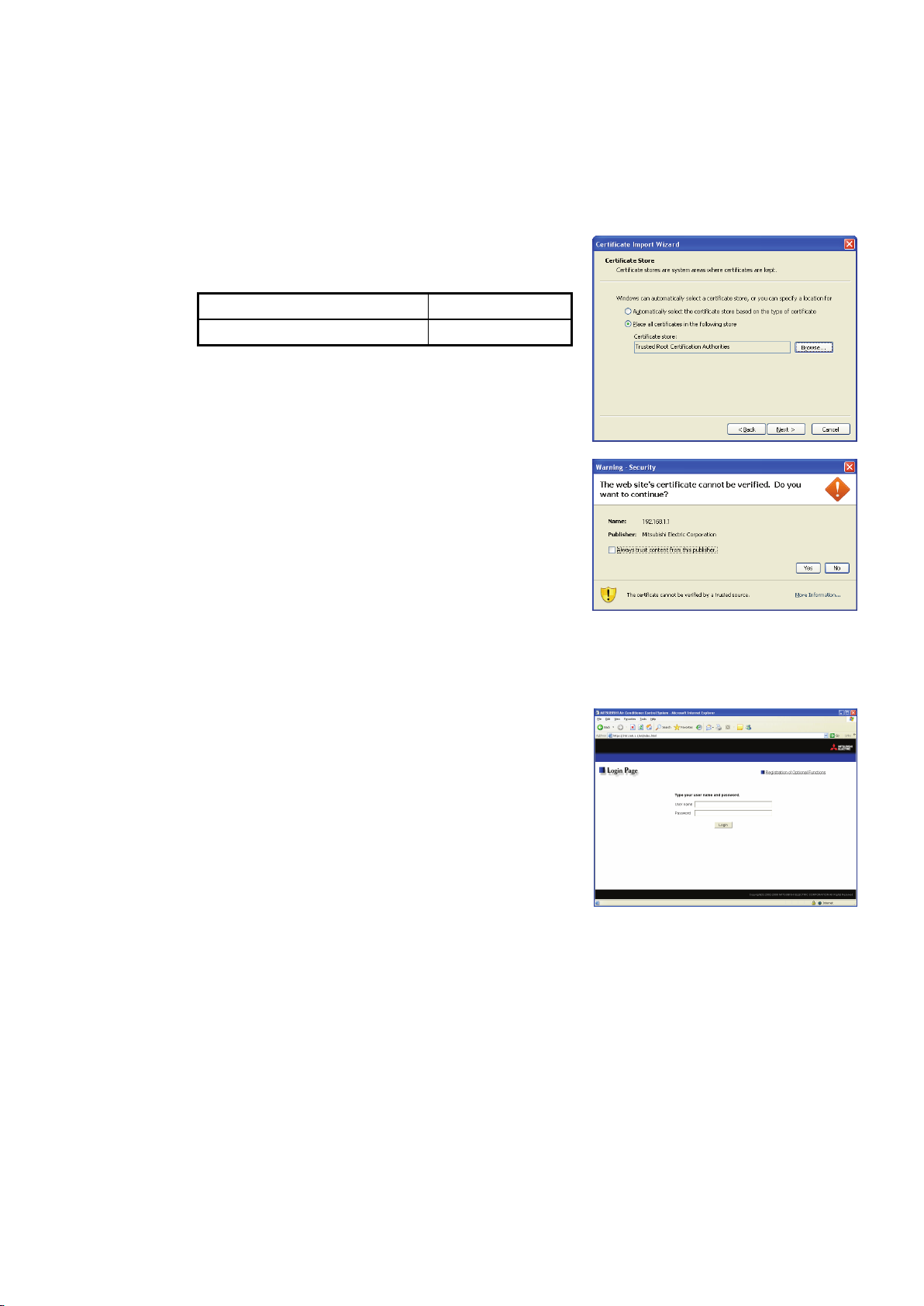

(1) Enter the web page address in the address field of the web
browser as follows:
http://[IP address of the AG-150A]/index.html
Press the [Enter] key on the keyboard. A screen appears for login.
Note: For example, type “http://192.168.1.1/index.html” if the AG-150A IP
address is [192.168.1.1].
*If the login screen does not appear then take the steps below to delete
the temporary files as it may help with the problem.
<Internet Explorer>
1. Open Internet Explorer and click on Tools.
2. Click on Internet Options.
3. On the General Tab, in the middle of the screen, click on Delete Files.
<Java>
1. Click Start > Control Panel.
2. Double-click the Java icon in the control panel to launch the Java Control Panel.
3. On the General Tab, click on Settings under Temporary Internet Files.
4. Click on Delete Files.
(2) To make connection easier for the next time, click the web
browser menu item [Favorites], click [Add to Favorites], then add
the address to the Favorites folder. Once this address is added to
the Favorites folder, it is not necessary to input the address of (1).
Simply select it from the Favorites folder and the AG-150A page
will appear.

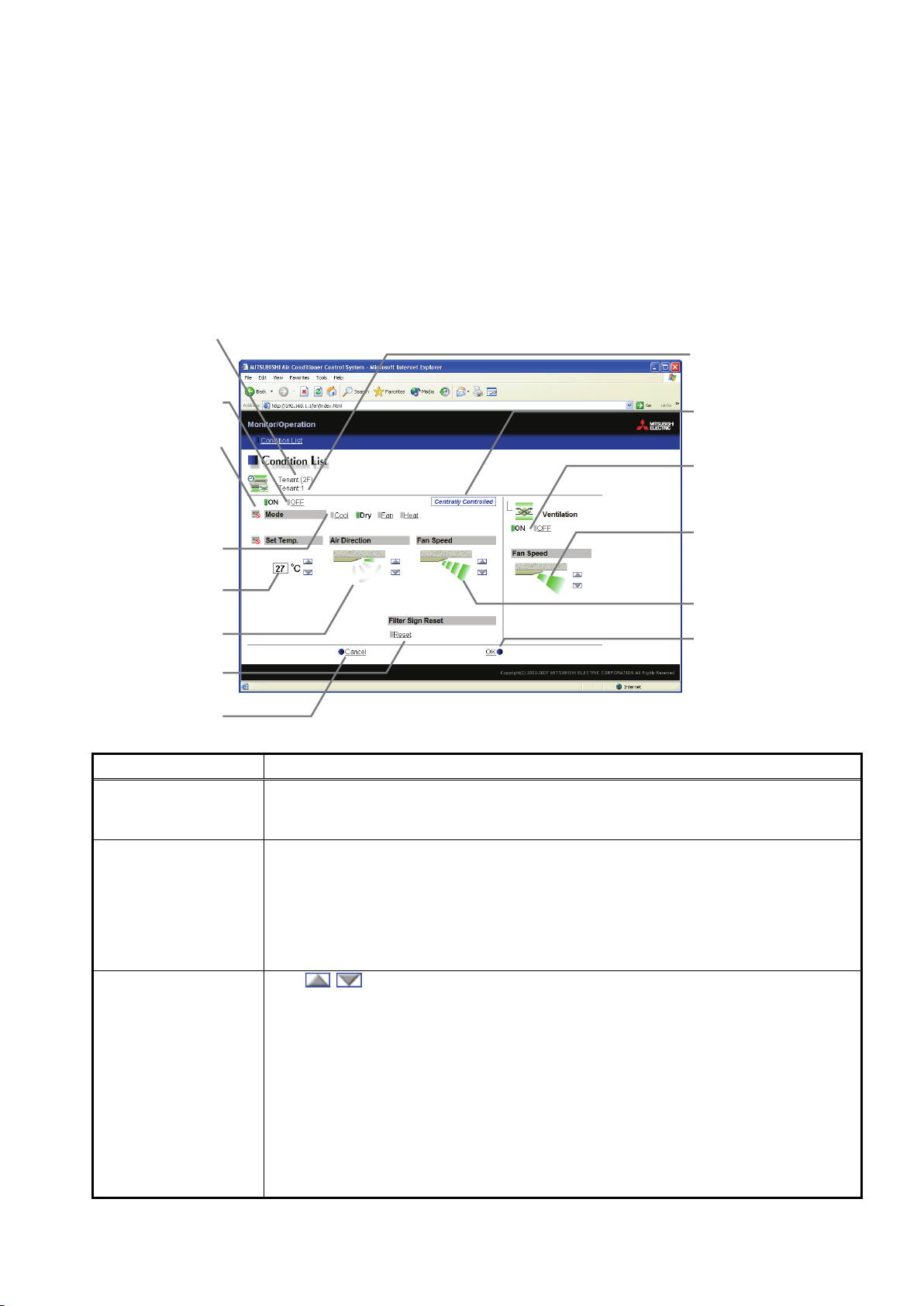

(3) Enter the user name and the password in the login screen, and click the [Login] button. The screen for
monitoring the operation condition will appear. An explanation on how to perform operations in the normal
operation screen begins from the next page.
Note: Consult your administrator for your user name and password.
Note: The Web page is displayed in the same language as the computer uses and it is also possible to display the Web page in
other languages by entering the following Web page addresses.
Chinese : http://[IP address of the AG-150A]/zh/index.html
English : http://[IP address of the AG-150A]/en/index.html
French : http://[IP address of the AG-150A]/fr/index.html
German : http://[IP address of the AG-150A]/de/index.html
Italian : http://[IP address of the AG-150A]/it/index.html
Japanese : http://[IP address of the AG-150A]/ja/index.html
Portuguese : http://[IP address of the AG-150A]/pt/index.html
Russian : http://[IP address of the AG-150A]/ru/index.html
Spanish : http://[IP address of the AG-150A]/es/index.html
Note: When the license of “Web Monitor” is not registered, the following message will appear when the [Login] button is clicked.

8
3-1-2 Encrypting the communication data and login on the AG-150A
AG-150A can encrypt communication data using HTTPS (SSL).
When connecting the AG-150A to the LAN that can be accessed by the general public, it is recommended
that the following settings be made so that the units are monitored and controlled on the encrypted Web page.
Note: Depending on the operating system or the version of Java, HTTPS encrypted messages may not be handled correctly. If
this happens, use a HTTP connection to monitor and control the units as noted in the section above.
(1) Go to [Tools]->[Internet Options]->[Advanced], and make the
following settings.
Item Checkbox setting
Use SSL 2.0 Uncheck the box.
Use SSL 3.0 Check the box.
Use TLS 1.0 Uncheck the box.
Do not save encrypted pages to disk Check the box.
Note: Some of the settings may have different names depending on the Web
browser version.
(2) Click on [Java] in the Control Panel, and make the settings for the
items under [Security] in the [Advanced] tab.
Item Checkbox setting
Use SSL 2.0 compatible Client Hello format Uncheck the box.
Use SSL 3.0 Check the box.
Use TLS 1.0 Uncheck the box.
Note: Some of the settings may have different names depending on the Java
version.
(3) Prefix the Web address with [https], enter the address, and hit the
[Enter] (Return) key on the keyboard.
https://[ IP Address of the AG-150A]/index.html
Note: For example, type “https://192.168.1.1/index.html” if the AG-150A IP
address is [192.168.1.1].
If the security alert is disabled as described in the note in the
following and the subsequent sections, encrypted date
communication will begin, and the Login screen will appear. If the
security alert has not been disabled, take the following procedures.

9
(4) If the security alert has not been disabled, after entering the web address and hitting the Enter (Return) key,
a security alert message will alert asking if you want to proceed. This is because the AG-150A uses the
self-authentication system. Click [Yes] and proceed.
Note: Disable the security alert that appears every time the browser is opened, take the following two steps:
1) Register the security certificate and
2) Change the Web browser's option settings
To register the security certificate, click the [View Certificate] button on the security alert window to display the certificate,
click on the [Install Certificate] button, and add the certificate to the Trusted Root Certification Authorities store. Just follow the
prompts of the Import Wizard.
Go to [Tools]->[Internet Options]->[Advanced], and make the following
settings for the Web browser.
Item Checkbox setting
Warn about invalid site certificates Uncheck the box.
(5) A Java security alert message will appear after you click [Yes] in
step (4) above, click [Yes] again to proceed.
Note: To disable the security alert message that appears every time the
browser is opened, check the check box next to [Always trust content
from this publisher], and click [Yes]. The browser may need to be
restarted to reflect the change.
Note: If the window shown on the right does not appear and connection fails,
the certificate needs to be added to the Java certificate list. Click the
[View Certificate] button on the screen in step (4) to display the
certificate, click on the [Copy to File] on the [Details] page, and save the
certificate in any desired location in the DER format. Open [Java] in the Control Panel, click on the [Certificates] button on
the [Security] page to bring up the certificate registration screen. On the screen, select [Secure Site], click on the [Import]
button, change the File of type to [All Files], and select the saved certificate. Now the certificate has been added to the Java
certificate list.
(6) If a connection is successfully made, the login window will appear.
All communication with the AG-150A will be encrypted. The Web
addresses for general users and in each language will have the
web address in the previous section with "http" changed to "https".

10
3-2 Checking the Operation Condition
When you login correctly using the Login Screen, the screen used to monitor the operation conditions of air
conditioner, ventilator (LOSSNAY), Air To Water (PWFY) groups, and general equipment will appear. If you
wish to operate, click the group icon to switch to the operation screen.
Note: The operation condition display will not update automatically. If you wish to view the very latest condition, click [Update] on
each screen.
Item Description
Update to most recent
condition Click [Update] to ensure the displayed items reflect the most recent operation condition.
Batch Operation Click [Batch Operations] if you want to perform an operation on all groups at once.
Weekly schedule number
Indicates the weekly schedule that is currently effective.
“Weekly * in period”
Note: The schedule number (1 through 5) that is currently effective is displayed in “ * ”.
Air-conditioners display
Switch to the screen where you can check the operation condition of air conditioner, LOSSNAY,
Air To Water (PWFY), general equipment groups.
This screen will not appear unless the HWHP (CAHV) group has been registered.
HWHP display Switch to the screen where you can check the operation condition of HWHP (CAHV) groups.
This screen will not appear unless the HWHP (CAHV) group has been registered.
Group name Group names are displayed.
Batch operation
Click to perform an operation
on all groups at once.
Update to most recent
condition
Click to update the screen so
that the most recent condition is
shown.
Group icons
These icons are used to
indicate the operation condition
of an air conditioner or a
general equipment group.
Switch to the operation screen
by clicking the icon.
Set temperature display
The set temperature is
displayed here.
Room temperature displa
y
The temperature of the
indoor unit’s intake is
displayed here.
Operation mode display
The operation mode is
displayed here.
Group name
Group names are displayed. Weekly schedule number
Indicates the weekly
schedule that is currently
effective.
Air-conditioners display
Click to display the operation
condition of groups in
air-conditioner group and
various groups.
HWHP display
Click to display the operation
condition of groups in HWHP
(CAHV) group.

11
Item Description

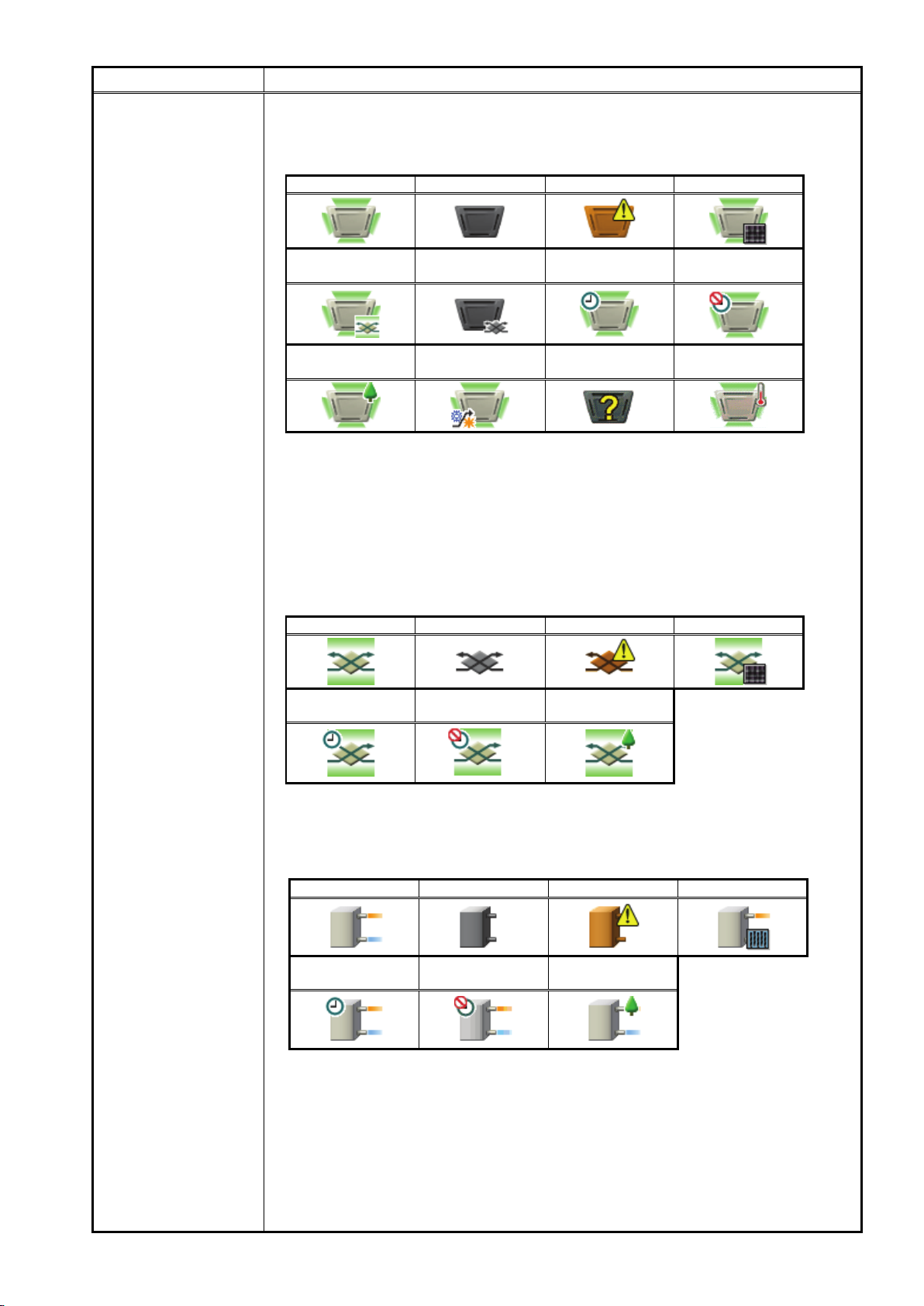

The operation condition is indicated by the icon that is displayed. When you point to a group
icon with the mouse cursor, the group name is displayed. To switch to the operation screen,
click on the icon. The icons used to indicate the operation condition are shown below.
(1) Air conditioner group operation condition
Group icon
(2) Ventilator (Lossnay) group operation condition
Note: When connecting multiple AG-150A controllers by connecting an Expansion Controller to the
system, “Schedule set,” “Schedule Not Available,” and “Energy saving” will be displayed only on
the AG-150A controller that is executing these functions.
(3) Air To Water (PWFY) group operation condition
Note: When connecting multiple AG-150A controllers by connecting an Expansion Controller to the
system, “Schedule set,” “Schedule Not Available,” and “Energy saving” will be displayed only
on the AG-150A controller that is executing these functions.
ON OFF Error Check water
Schedule set Schedule Not
Available Energy saving
ON OFF Error Filter sign
Interlocked
ventilator ON
Interlocked
ventilator OFF Schedule set Schedule Not Available
Energy saving Setback ON Unknown (during
initial startup)
The room
temperature
Note: Other than 4-aiflow icons, 2-airflow or ceiling-suspended icons are also available. Select the
icon type on Initial Setting Web.
Note: If a given LOSSNAY unit is interlocked with multiple indoor unit groups, the LOSSNAY unit
may be in operation even when the display shows that the unit is stopped.
Note: When setting ventilation interlock with Mr. Slim units (M-series units, P-series units), the air
conditioning and interlocked ventilation icon will display ON even when the interlocked
LOSSNAY is operating by itself. (This will occur when used with the following M-NET
adapter:PAC-SF48/50/60/70/80/81MA-E)
Note: When connecting multiple AG-150A controllers by connecting an Expansion Controller to the
system, “Schedule set,” “Schedule Not Available,” “Energy saving,” and “Setback ON” will be
displayed only on the AG-150A controller that is executing these functions.
ON OFF Error Filter sign
Schedule set Schedule Not
Available Energy saving

12
Item Description

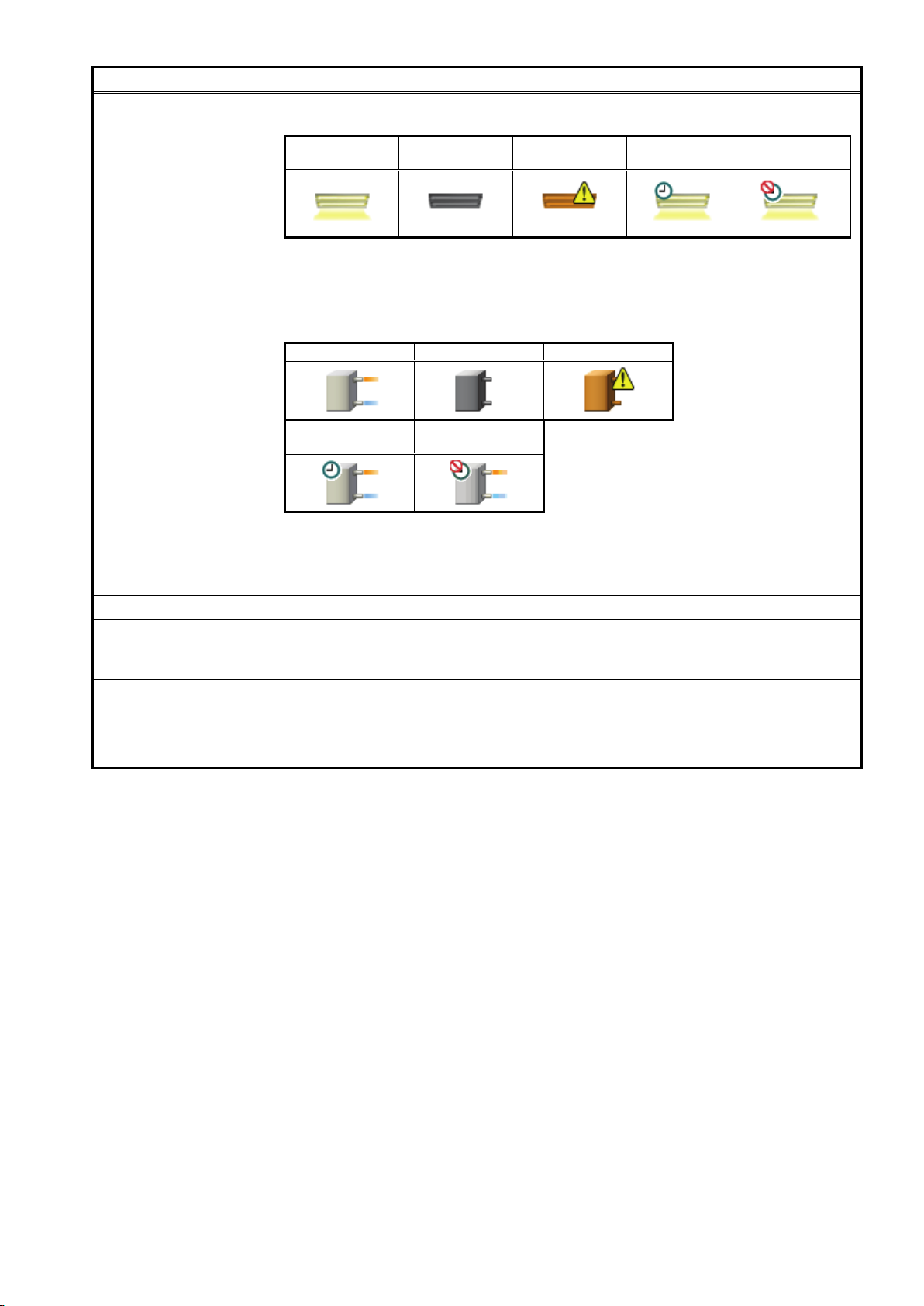

(4) General equipment group operation condition
(5) HWHP (CAHV) group operation condition
Note: When connecting multiple AG-150A controllers by connecting an Expansion Controller to the
system, “Schedule set” and “Schedule Not Available” will be displayed only on the AG-150A
controller that is executing these functions.
Operation mode display The operation mode is displayed here.
Set temperature display
The set temperature is displayed here.
Note: The water temperature setting will be displayed for the Air To Water (PWFY) group.
Note: The temperature display can be in either Celsius (°C) or Fahrenheit (°F) depending on the
setting.
Room temperature
display
The temperature of the indoor unit’s intake is displayed here.
Note: Because the temperature displayed here is of the indoor unit’s intake, it could be different from
the actual room temperature.
Note: The current water temperature will be displayed for the Air To Water (PWFY) group.
Note: The temperature display can be in either Celsius (°C) or Fahrenheit (°F) depending on the
setting.
ON OFF Error Schedule set
Schedule Not
Available
Note: Other than lighting icons, pump or card key icons are also available.
Note: When connecting multiple AG-150A controllers by connecting an Expansion Controller to the
system, “Schedule set” and “Schedule Not Available” will be displayed only on the AG-150A
controller that is executing these functions.
ON OFF Error
Schedule set Schedule Not
Available

13
3-3 Performing the Operations
Text below explains how to perform air conditioner, ventilator (LOSSNAY), Air To Water (PWFY), or general equipment operations,
and how to perform HWHP (CAHV) operations.
3-3-1 Performing the operations of air conditioner and various groups
Text below explains how to perform air conditioner, ventilator (LOSSNAY), Air To Water (PWFY), or general
equipment operations.
3-3-1-1 Performing the operations that target one group
When you click on a group icon in the operation condition monitoring screen, the operation screen for that
group will appear. The items shown in this screen are the current operation conditions. Modify the items you
want to change and click [OK] to confirm the operation details. Click [Cancel] to return to the previous screen
without making any changes.
Item Description
ON/OFF *1
Click [ON] or [OFF] to switch to ON or OFF.
Note: Ventilation units that are interlocked with a given group of indoor units will turn on and off when this
switch is turned on and off. To switch on/off the interlocked ventilation units only, use the
“Ventilation ON/OFF” button.
Operation mode
Click [Cool], [Dry], [Fan], [Heat] or [Auto] to switch the operation mode.
Note: This item will not appear if the operation mode switching function is not available.
Note: Some unit models do not support certain operation modes. Unsupported operation modes are not
displayed.
Note: For K control models, all modes are displayed, however, choose only the modes that can be
operated.
Note: If it is a ventilator group, select [Bypass], [Heat Recovery] or [Auto].
Note: When making the settings for the Air To Water (PWFY) group, elect from [Heating], [Heating ECO],
[Hot Water], [Anti-freeze], and [Cooling].
Set temperature
Click to adjust the set temperature.
For [Cool] and [Dry], the setting range is 19 ~ 30°C/67 ~ 87°F, for [Heat] it is 17 ~ 28°C/63 ~
83°F, and for [Auto] it is 19 ~ 28°C/67 ~ 83°F.
Note: This item will not appear if the temperature setting function is not available.
Note: The temperature setting range varies depending on the unit model.
Note: If the setting range for set temperature is restricted, the temperature setting range will be smaller.
Note: The temperature setting range for the Air To Water (PWFY) group is as follows:
[Boosterunit] [WaterHEXunit]
Heating: 30°C ~ 50°C / 87°F ~ 122°F Heating: 30°C ~ 45°C / 87°F ~ 113°F
Heating ECO: 30°C ~ 45°C / 87°F ~ 113°F Heating ECO: 30°C ~ 45°C / 87°F ~ 113°F
Hot Water: 30°C ~ 70°C / 87°F ~ 158°F Hot Water: Invalid
Anti-freeze: 10°C ~ 45°C / 50°F ~ 113°F Anti-freeze: 10°C ~ 45°C / 50°F ~ 113°F
Cooling: Invalid Cooling: 10°C~30°C/50°F~87°F
Note: The temperature display can be set to display in either Celsius (°C) or Fahrenheit (°F).
Fan speed of
interlocked ventilator
Click to adjust the fan speed
of the interlocked ventilator.
Interlocked ventilator
ON/OFF
Click to switch interlocked
ventilator ON or OFF.
Group name
The name of the group is
displayed here.
Fan speed
Click to adjust the fan speed.
OK button
Click to confirm the operation
details. You must press the OK
button for the operation to take
effect.
Central control mark
This is displayed when the
units are centrally controlled.
ON/OFF
Click to switch to ON or OFF.
Set temperature
Click to adjust the set
temperature.
Operation mode
Click to switch the operation
mode.
Air direction
Click to adjust the air direction.
Filter sign
Click to reset the filter sign.
Cancel button
Click to cancel all operations.
Block name
The name of the block is
displayed here.
Operation prohibition
mark
If the prohibit setting has been
set for an operation, the
prohibition mark will be
displayed.

14
Item Description
Air direction
Click to adjust the air direction.
Note: If it is a model that does not support air direction adjustment, this item is not displayed.
Note: Available functions vary depending on the unit model.
Fan speed
Click to adjust the fan speed.
Note: If it is a model that does not support fan speed adjustment, this item is not displayed.
Note: Available functions vary depending on the unit model.
Filter sign
Click [Reset] to specify whether to reset the filter sign. It is set to reset when a green indicator is
displayed on the left of Reset ([ Reset]).
Note: If filter signs are not triggered in the group, then this item is not displayed.
Interlocked ventilator
ON/OFF *1
Click [ON] or [OFF] to switch interlocked ventilator ON or OFF.
Note: For groups that are not connected to an interlocked ventilator, the items related to interlocked
ventilators are not displayed.
Fan speed of interlocked
ventilator
Click to adjust the fan speed of the interlocked ventilator.
Note: For groups that are not connected to an interlocked ventilator, the items related to interlocked
ventilators are not displayed.
Operation Prohibition
mark
When air conditioners are centrally controlled, a mark that indicates so will be displayed, and if
the prohibit setting has been set for any operations, the operation prohibition mark [ ] will be
displayed next to those operation items.
If the prohibit setting has been set for an item, it is not possible to operate that item.
*1: The change on the interlock setting between the indoor and LOSSNAY units made on the indoor unit side will not be reflected
on the LOSSNAY unit side on the screen until the OK is pressed and the change is saved. The actual interlock setting,
however, is immediately effective, so as soon as the interlock setting on the indoor unit side is set to ON, the LOSSNAY unit
will go into operation when one or more indoor units go into operation regardless of the display on the screen.
3-3-1-2 Adjusting the operation conditions that target all groups
(1) Click [Batch Operation] from the operation condition monitoring
screen that displays all groups in a list. When air conditioner
groups, ventilator (LOSSNAY) groups, and general equipment
groups exist together in the List, a new screen will appear to
select the group. Click one of the [All Air-conditioners], [All
LOSSNAY], [All Air To Water], or [Other Equipment] and the
screen to set the batch operation will appear.
If there are only air conditioner groups or only LOSSNAY
groups or only Air To Water (PWFY) groups or only general
equipment groups, this selection screen will not appear.
(2) After you have made the settings on the screen for batch
operation, click [OK] and only the items for which operation was
performed will be sent to all the air conditioner, ventilator
(LOSSNAY) groups, Air To Water (PWFY) groups or general
equipment groups.
To return to the previous screen without performing any
operations, click [Cancel].
Note: If the setting range for set temperature is restricted, the temperature
setting range will be smaller.
Note: If operation of an item has been prohibited, then operation is not
possible for that item.

15
3-3-2 Performing the operations of HWHP (CAHV) group
Text below explains how to perform HWHP (CAHV) operations.
3-3-2-1 Performing the operations that target one group
When you click on a group icon in the operation condition monitoring screen that shows the list of all groups,
the operation screen for that group will appear. The items shown in this screen are the current operation
conditions. Modify the items you want to change and click [OK] to confirm the operation details. Click
[Cancel] to return to the previous screen without making any changes.
Note: If the Web browser is configured to block Java Script, the operation window will appear at the left top of the floor layout
screen. If the floor layout window is scrolled down to click the group icon, scroll up the screen to the left to perform an
operation.
Item Description
ON/OFF Click [ON] or [OFF] to switch to ON or OFF.
Operation mode Click [Heating], [Heating ECO], [Hot Water] or [Anti-freeze] to switch the operation mode.
Set temperature
Click to adjust the set temperature.
Note: The temperature setting range is as follows:
Heating: 25-70ºC /77-158ºF
Heating ECO: Invalid
Hot Water: 25-70ºC /77-158ºF
Anti-freeze: Invalid (fixed at 25ºC/77ºF)
Fan mode
Click [Normal] or [Snow] to switch the fan mode.
Note: A function to prevent an accumulation of snow on top of the fan guard by forcing the fan to operate
even while the unit is stopped
3-3-2-2 Performing the operations that target all groups
Click [Batch Operation] from the operation condition monitoring screen, and the screen to set the batch
operation will appear.
After you have made settings on the screen for batch operation, click [OK] and the operation settings for only
the adjusted items will be sent to all the HWHP (CAHV) groups.
To return to the previous screen without performing any operations, click [Cancel].
Note: If operation of an item has been prohibited, then operation is not possible for that item.
OK button
Click to confirm the operation
details. You must press the OK
button for the operation to take
effect.
Fan mode
Click to switch the fan mode.
Group name
The name of the group is
displayed here.
ON/OFF
Click to switch to ON or OFF.
Set temperature
Click to adjust the set
temperature.
Operation mode
Click to switch the operation
mode.
Cancel button
Click to cancel all operations.

16
[Modification list]
Ver. Category Item Contents Page/Section
New Function
Weekly schedule
number display
The Monitor/Operation screen was
modified to display the weekly schedule
number that is currently effective.
P10 Section 3-2
Modification
Note about Java
execution environment
A note regarding Java Plug-in execution
environment was added. P6 Section 2-3-1
X11
Modification
“Web Monitor” license:
unregistered error
message
An explanation of new error message,
which appears when the license of “Web
Monitor” is not registered, was added.
P7 Section 3-1
New Function
Group Schedule
Available/Not Available
Schedule Available/Not Available icon for
individual groups has been added. P10 Section 3-2
Modification
Note about Java
execution environment
The company name Sun Microsystems
was changed to Oracle.
Information about compatible versions of
Java Plug-in was added.
P1 Section 1-2
X12
Modification
Note about Java
execution environment
A note regarding Java Plug-in execution
environment was added. P6 Section 2-3-1
New Function
Monitoring function of
HWHP (CAHV)
The item on the operation status of HWHP
(CAHV) group was added.
The item on switching between
Air-conditioner and HWHP (CAHV)
screens was added.
The item on group operation of HWHP
(CAHV) groups was added.
P10 Section 3-2
P15 Section 3-3-2
Modification
Note about
Recommended Browser
Internet Explorer and Java Plug-in versions
were added. P1 Section 1-2
X13
Modification
The structure of Section
3-3 was changed.
The structure of the table of contents was
changed to accommodate the addition of
HWHP (CAHV) control screen.
P13 Section 3-3

KB79U866H02_GB.fm Page 18 Monday, April 25, 2011 3:16 PM

KB79U866H02_GB.fm Page 18 Monday, April 25, 2011 3:16 PM

HEAD OFFICE: TOKYO BLDG., 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Please be sure to put the contact address/telephone number on
this manual before handing it to the customer.
This product is designed and intended for use in the residential,
commercial and light-industrial environment.
The product at hand is
based on the following
EU regulations:
• Low Voltage Directive 2006/95/EC
• Electromagnetic Compatibility Directive
2004/108/EC
WT05492X13
WT05492X13_Backcover.fm Page 24 Thursday, October 18, 2012 10:22 AM
