Mitsubishi Electric M700V Series User manual

III Functional Specifications

III - 1
1
Control Axes

III Functional Specifications
MITSUBISHI CNC
III - 2
1.1 Control Axes
The NC axis, spindle, PLC axis and auxiliary axis are generically called the control axis.
The NC axis is an axis that can be manually operated, or automatically operated with the machining
program. X, Y, Z, U, V, W, A, B and C axis can be used.
The PLC axis is an axis that can be controlled from the PLC ladder.
1.1.1 Number of Basic Control Axes (NC Axes)
1.1.2 Max. Number of Axes (NC Axes + Spindles + PLC Axes)
A number of axes that are within the maximum number of axes, and that does not exceed the
maximum number given for the NC axis, spindle and PLC axis can be used.
Connection specifications of NC axis, PLC axis and spindle
NC axes, PLC axes and spindles are connected to the optical servo channel (OPT).
Refer to the Connection manual for details.
1.1.2.1 Max. Number of NC Axes (In Total for All the Part Systems)
1.1.2.2 Max. Number of Spindles
Includes analog spindles.
1.1.2.3 Max. Number of PLC Axes
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○3 ○3 ○3 ○3 ○3 ○3
L system ○2 ○2 ○2 ○2 ○2 ○2
M720VW M730VW M750VW M720VS M730VS M750VS
M system 12 16 16 12 16 16
Lsystem121616121616
M720VW M730VW M750VW M720VS M730VS M750VS
M system 8 16 16 8 16 16
Lsystem121616121616
M720VW M730VW M750VW M720VS M730VS M750VS
M system 4 4 4 4 4 4
Lsystem466466
M720VW M730VW M750VW M720VS M730VS M750VS
M system 6 6 6 6 6 6
Lsystem666666

M700V Series Specifications Manual
1 Control Axes
III - 3
1.1.3 Max. Number of Auxiliary Axes (MR-J2-CT)
Auxiliary axis: This can be connected to the channel (SV2) for J2-CT.
1.1.4 Max. Number of PLC Indexing Axes
PLC axis indexing function: This function is used to move the PLC axis to the positioning destination or an
arbitrary coordinate position.
1.1.5 Number of Simultaneous Contouring Control Axes
Simultaneous control of all axes is possible as a principle in the same part system.
However, for actual use, the machine tool builder specification will apply.
1.1.6 Max. Number of NC Axes in a Part System
Listed are the maximum number of axes which can be controlled in a part system. Follow the specifications
by each machine tool builder for actual use.
M720VW M730VW M750VW M720VS M730VS M750VS
M system 4 6 6 0 0 0
L system 4 6 6 0 0 0
M720VW M730VW M750VW M720VS M730VS M750VS
M system 4 6 6 4 6 6
L system 4 6 6 4 6 6
M720VW M730VW M750VW M720VS M730VS M750VS
M system 4 4 8 4 4 8
L system 4 4 8 4 4 8
M720VW M730VW M750VW M720VS M730VS M750VS
M system 6 8 8 6 8 8
L system 6 8 8 6 8 8

III Functional Specifications
MITSUBISHI CNC
III - 4
1.2 Control Part System
1.2.1 Standard Number of Part Systems
1.2.2 Max. Number of Part Systems
For actual use, the machine tool builder specification will apply.
M720VW M730VW M750VW M720VS M730VS M750VS
M system 1 1 1 1 1 1
Lsystem111111
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○2○2○2○2○2○2
L system ○2○4○4○2○4○4

M700V Series Specifications Manual
1 Control Axes
III - 5
1.3 Control Axes and Operation Modes
1.3.1 Tape (RS-232C Input) Mode
In this mode, operation is performed using the machining program data from the RS-232C interface built in
the CNC unit. A paper tape reader must be provided if machining programs on paper tape are to be run.
1.3.2 Memory Mode
The machining programs stored in the memory of the CNC unit are run.
1.3.3 MDI Mode
The MDI data stored in the memory of the CNC unit is executed. Once executed, the MDI data is set to the
"setting incomplete" status, and the data will not be executed unless the "setting completed" status is
established by screen operations.
1.3.4 High-Speed Program Server Mode
1.3.4.1 CF Card in Control Unit
The machining program stored in CF card can be operated by installing a CF card in the control unit CF
(compact flash) card interface.
Machining programs can be copied to CF card with the front IC card or Ethernet on the input/output screen.
When a machining program stored in CF card is searched while "DS" is selected for device during operation
search, the machining program in CF card can be operated as a main program. (The operation mode is
"memory mode".)
Also, when "M198 Pp;" is commanded in the main program, the machining program in CF card can be called
and operated as a sub program.
Macros such as WHILE, IF and GOTO can be used during high-speed program server mode, as well. Also,
calling the sub program and macro program stored in memory or CF card is possible during high-speed
program server mode operation.
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system △△△―――
L system △△△―――

III Functional Specifications
MITSUBISHI CNC
III - 6
1.3.5 Front IC Card Mode
The machining program stored in PCMCIA card can be operated by installing a PCMCIA card on the front of
control unit.
When a machining program stored in PCMCIA card is searched while "Memory Card" is selected for device
during operation search, the machining program in PCMCIA card can be operated as a main program. (The
operation mode is "memory mode".)
Also, when "M98 Pp, Dd;" ("d" for designating a unit) is commanded in the main program, the machining
program in PCMCIA card can be called and operated as a sub program.
Macros such as WHILE, IF and GOTO can be used during IC card operation, as well. Also, calling the sub
program and macro program stored in memory or PCMCIA card is possible during IC card operation.
1.3.6 Hard Disk Mode
The machining program stored in the hard disk can be operated when using a high-resolution type display (a
display with a hard disk mounted).
When a machining program stored in hard disk is searched while "HD" is selected for device during
operation search, the machining program in the hard disk can be operated as a main program. (The
operation mode is "memory mode".)
Also, when "M98 Pp ,Dd;" ("d" for designating a unit) is commanded in the main program, the machining
program in the hard disk can be called and operated as a sub program.
Macros such as WHILE, IF and GOTO can be used during hard disk operation, as well. Also, calling the sub
program and macro program stored in memory or the hard disk is possible during hard disk operation.
M720VW M730VW M750VW M720VS M730VS M750VS
M system △△△△△△
L system △△△△△△
M720VW M730VW M750VW M720VS M730VS M750VS
M system △△△―――
L system △△△―――

III - 7
2
Input Command

III Functional Specifications
MITSUBISHI CNC
III - 8
2.1 Data Increment
2.1.1 Least Command Increment
The data increment handled in the controller includes the input setting increment and command increment.
Each type is set with parameters.
(1) The input setting increment indicates the increment handled in the internal processing of the
controller. The counter and tool compensation data, etc., input from the screen is handled with this
increment. This increment is applied per part system (1st to 4th part system, PLC axis).
(Note) The inch and metric systems cannot be used together.
(2) The command increment indicates the command increment of the movement command in the
machining program. This can be set per axis.
(Note) The inch and metric systems cannot be used together.
2.1.1.1 Least Command Increment 1 μm (Input Setting Increment 1μm)
It is possible to command 0.001mm for the linear axis and 0.001° for the rotation axis.
2.1.1.2 Least Command Increment 0.1 μm (Input Setting Increment 0.1μm)
It is possible to command 0.0001mm for the linear axis and 0.0001° for the rotation axis.
Input setting
increment
(parameter)
Metric unit system Inch unit system
Linear axis Rotary axis Linear axis Rotary axis
(Unit = mm) (Unit = °)(Unit = inch) (Unit = °)
1μm (B) 0.001 0.001 0.0001 0.001
0.1μm (C) 0.0001 0.0001 0.00001 0.0001
10nm (D) 0.00001 0.00001 0.000001 0.00001
1nm (E) 0.000001 0.000001 0.0000001 0.000001
Command
increment
(parameter)
Metric unit system Inch unit system
Linear axis Rotary axis Linear axis Rotary axis
(Unit = mm) (Unit = °)(Unit = inch) (Unit = °)
0 Accordance with #1003 iunit.
1 0.0001 0.0001 0.00001 0.0001
10 0.001 0.001 0.0001 0.001
100 0.01 0.01 0.001 0.01
1000 0.1 0.1 0.01 0.1
10000 1.0 1.0 0.1 1.0
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system △△△△△△
L system △△△△△△

M700V Series Specifications Manual
2 Input Command
III - 9
2.1.1.3 Least Command Increment 0.01 μm (10nm) (Input Setting Increment 10nm)
It is possible to command 0.00001mm for the linear axis and 0.00001°for the rotation axis.
2.1.1.4 Least Command Increment 0.001 μm (1nm) (Input Setting Increment 1nm)
It is possible to command 0.000001mm for the linear axis and 0.000001°for the rotation axis.
2.1.2 Least Control Increment
The least control increment includes 0.01μm and 0.001μm.
The least control increment determines the CNC's internal operation accuracy.
2.1.2.1 Least Control Increment 0.01μm (10nm)
2.1.2.2 Least Control Increment 0.001μm (1nm)
2.1.3 Indexing Increment
This function limits the command value for the rotary axis.
This can be used for indexing the rotary table, etc. It is possible to cause a program error with a program
command other than an indexing increment (parameter setting value).
(Example)When the indexing increment setting value is 2 degrees, only command with the 2-degree
increment are possible.
G90 G01 C102.000 ; …Moves to the 102 degree angle.
G90 G01 C101.000 ; … Program error
G90 G01 C102 ; … Moves to the 102 degree angle. (Decimal point type II)
M720VW M730VW M750VW M720VS M730VS M750VS
M system ―△△―△△
L system ―△△―△△
M720VW M730VW M750VW M720VS M730VS M750VS
M system ―△△―△△
L system ―△△―△△
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○

III Functional Specifications
MITSUBISHI CNC
III - 10
2.2 Unit System
2.2.1 Inch/Metric Changeover
The unit systems of the data handled in the controller include the metric unit system and inch unit system.
The unit (inch/mm) for the setting and display, as well as for the handle/incremental feed can be switched
with either the parameters or machining program (G20/G21 command).
An option is required when the unit is switched with the machining program command.
(Note) For the angle data, 1.0 means 1 degree (°) regardless of the unit system.
(Note 1) The parameter changeover is valid after the power is turned ON again.
(Note 2) The unit system for the PLC axis can be switched with a parameter different from the one used with
the NC axis.
The PLC axis unit system cannot be switched with the machining program (G20/G21 command).
(Note 3) When the power is turned ON or resetting is performed, the command increment depends on the
parameter setting.
2.2.2 Input Command Increment Tenfold
The program's command increment can be multiplied by an arbitrary scale with the parameter designation.
This function is valid when a decimal point is not used for the command increment.
For example, this function allows a CNC unit, for which the command increment is set to 1μm, to run a
machining program, which has been created with a 10μm input command increment, as same as before.
The scale is set with the parameters.
(Note 1) This function cannot be used for the dwell function G04_X_(P_);.
(Note 2) This function cannot be used for the compensation amount of the tool offset input.
(Note 3) This function can be used when decimal point type I is valid, but cannot be used when decimal
point type II is valid.
M720VW M730VW M750VW M720VS M730VS M750VS
M system △△△△△△
L system △△△△△△
Unit system Length data Meaning
Metric unit system 1.0 1.0mm
Inch unit system 1.0 1.0inch
Parameter
Data
Machining program
Screen data
(Compensation amount, user parameter,
counter, etc.)
/ Feedrate of handle, etc.
Machine parameter
/ PLC interface machine position, etc.
A0G20 Inch unit system Metric unit system Not affected
G21 Metric unit system
1G20 Inch unit system Inch unit system
G21 Metric unit system
B0Not affected Not affected Metric unit system
1Inch unit system
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ――――――

M700V Series Specifications Manual
2 Input Command
III - 11
2.3 Program Format
2.3.1 Program Format
This is G code (program) format.
The G-code of lathe system is selected by parameter.
This manual explains the G function with G-code list 3 as standard.
2.3.1.1 Format 1 for Lathe (G Code List 2, 3)
2.3.1.2 Format 2 for Lathe (G Code List 4, 5)
2.3.1.3 Special Format for Lathe (G Code List 6, 7)
2.3.1.4 Format 1 for Machining Center
2.3.1.5 Format 2 for Machining Center (M2 Format)
2.3.1.6 MITSUBISHI CNC Special Format
The formats of the turning fixed cycles (G77 to G79), multiple repetitive turning fixed cycles (G71 to G76)
and drilling fixed cycles (G80 to G89) can be switched to the MITSUBISHI CNC special formats.
M720VW M730VW M750VW M720VS M730VS M750VS
M system ――――――
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ――――――
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ――――――
L system ○○○○○○
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ――――――
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ――――――
M720VW M730VW M750VW M720VS M730VS M750VS
M system ――――――
L system ○○○○○○

III Functional Specifications
MITSUBISHI CNC
III - 12
2.4 Command Value
2.4.1 Decimal Point Input I, II
There are two types of the decimal point input commands and they can be selected by parameter.
(1) Decimal point input type I
When axis coordinates and other data are issued in machining program commands, the assignment of
the program data can be simplified by using a decimal point. The minimum digit of a command not using
a decimal point is the same as the least command increment.
The decimal point can be applied not only to axis coordinate position but also to speed commands and
dwell commands.
The decimal point position serves as the millimeter unit in the metric mode, as the inch unit in the inch
mode and as the second unit in a time designation of dwell command.
(2) Decimal point input type II
As opposed to type I, the minimum digit of a command without a decimal point serves as the millimeter
unit in the metric mode, as the inch unit in the inch mode and as the second unit in the time designation.
The "." (point) must be added when commands below the decimal point are required.
(*1) The F unit is mm/min for either type (inch system : inch/min).
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
Unit interpretation (for metric system)
Type I Type II
G00 X100. Y-200.5 X100mm, Y-200.5mm <-
G1 X100 F20. X100μm, F20mm/min X100mm, F20mm/min
G1 Y200 F100 (*1) Y200μm, F100mm/min Y200mm, F100mm/min
G4 X1.5 Dwell 1.5s <-
G4 X2 Dwell 2ms Dwell 2s

M700V Series Specifications Manual
2 Input Command
III - 13
2.4.2 Absolute/Incremental Command
(1) M system
When axis coordinate data is issued in a machining program command, either the incremental
command method (G91) that commands a relative distance from the current position or the absolute
command method (G90) that moves to a designated position in a predetermined coordinate system can
be selected.
The absolute and incremental commands can be both used in one block, and are switched with G90 or
G91. However, the arc radius designation (R) and arc center designation (I, J, K) always use
incremental designations.
G90 ... Absolute command (absolute command)
G91 ... Incremental command (incremental command)
These G codes can be commanded multiple times in one block.
Example
(Note 1) As with the memory command, if there is no G90/G91 designation in the MDI command,
the previously executed modal will be followed.
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
G90 X100. G91 Y200. G90 Z300. ;
Absolute position Incremental position Absolute position
(Incremental command) (Absolute command)
(a) Program coordinate
(C) Current position
(E) End point
(E)
Y100.
(C)
(0,0)
G91 X100. Y100.
Y100.
X100.
X100.
X100.
G90 X100. Y100.
Y100. (E)
(C)
(a)
(0,0)

III Functional Specifications
MITSUBISHI CNC
III - 14
(2) L system
When axis coordinate data is issued in a machining program command, either the incremental
command method that commands a relative distance from the current position or the absolute
command method that moves to a designated position in a predetermined coordinate system can be
selected.
When issuing an incremental command, register the axis address to be commanded as the incremental
axis name in the parameter. However, the arc radius designation (R) and arc center designation (I, J, K)
always use incremental designations.
Absolute command (absolute command) ... X, Z
Incremental command (incremental command) ... U, W
Example
The above drawing shows the case for the diameter command.
(Note) Absolute command and incremental command can be switched by the parameter. Inaddition to the
command method using the axis addresses as indicated above, a command method using G code
(G90/G91) may be selected.
G00 X100. W200. ;
Absolute position Incremental position
(Incremental command) (Absolute command)
(a) Program coordinate
(C) Current position
(E) End point
X
Z
G00 U- u1 W- w
1
(E)
u1
2
(C)
(0,0)
w1
X
Z
G00 Xx1 Zz1
(C)
(E)
z1
x1

M700V Series Specifications Manual
2 Input Command
III - 15
2.4.3 Diameter/Radius Designation
For axis command value, the radius designation or diameter designation can be changed over with
parameters.
When the diameter designation is selected, the scale of the length of the selected axis is doubled.
(Only the half (1/2) of the commanded amount moves.)
This function is used when programming the workpiece dimensions on a lathe as diameters.
Changing over from the diameter designation to the radius designation or vice versa can be set separately
for each axis.

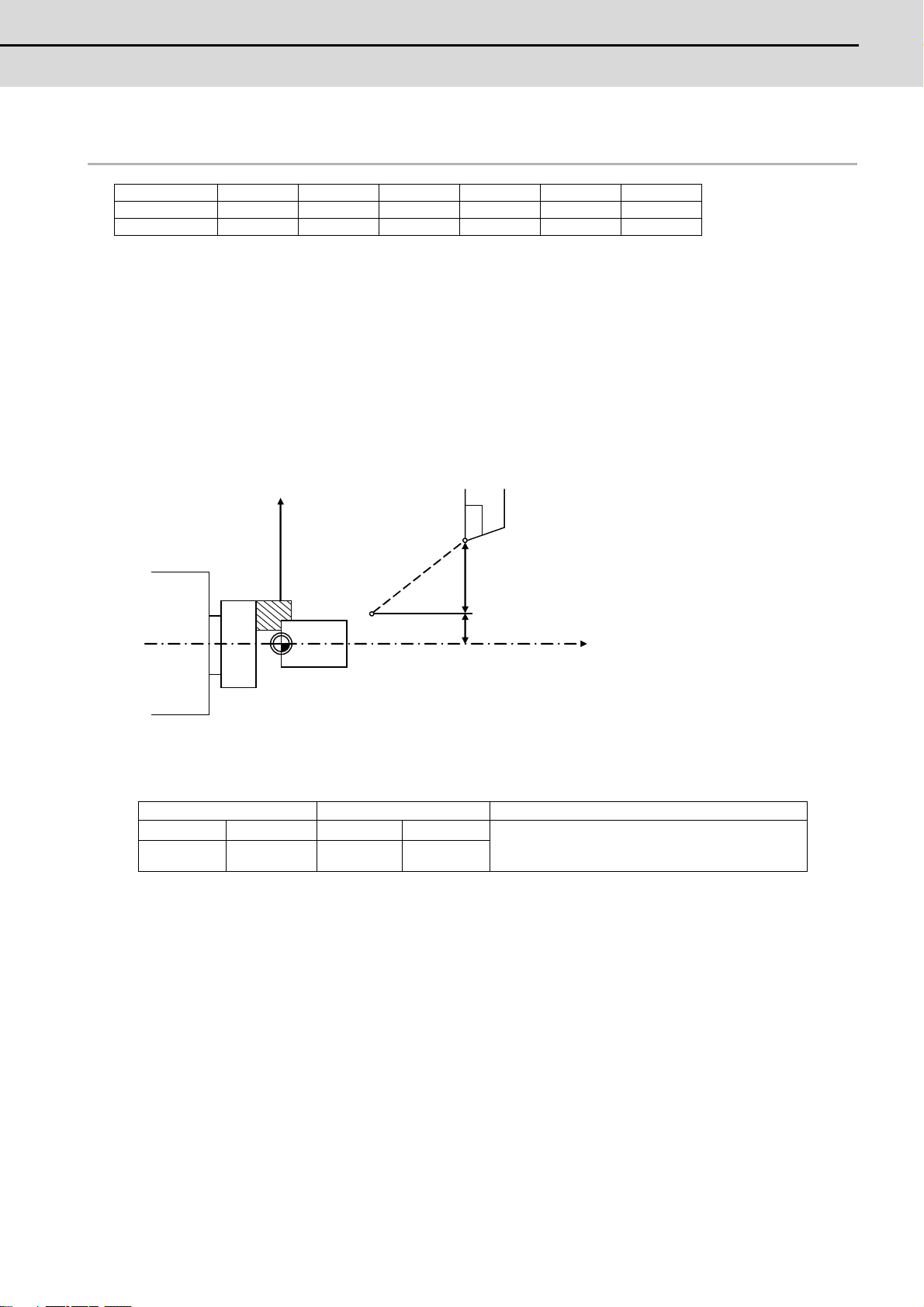

When the tool is to be moved from point P1 to point P2
SP Spindle
Radius and diameter commands
M720VW M730VW M750VW M720VS M730VS M750VS
M system ――――――
L system ○○○○○○
X command U command Remarks
Radius Diameter Radius Diameter Even when a diameter command has been selected, only
the U command can be made a radius command by
parameter.
X = r1X = 2r1U = r2U = 2r2
SP
X
Z
P1
P2
r
2
r
1

III Functional Specifications
MITSUBISHI CNC
III - 16

III - 17
3
Positioning/Interpolation

III Functional Specifications
MITSUBISHI CNC
III - 18
3.1 Positioning
3.1.1 Positioning
This function carries out high-speed positioning following the movement command given in a program.
The above command positions the tool with rapid traverse rate. The tool path takes the shortest distance to
the end point in the form of a straight line.
For details on the rapid traverse feed rate of the NC, refer to the section entitled "Rapid Traverse Rate".
Since the actual rapid traverse feed rate depends on the machine, refer to the specifications of the machine
concerned.
(1) The rapid traverse feed rate can be set for each axis with parameters.
(2) The number of axes which can be commanded simultaneously depends on the specifications (number
of simultaneously controlled axes). The axes can be used in any combination within this range.
(3) The feed rate is controlled within the range that it does not exceed the rapid traverse rate of each axis
and so that the shortest time is taken. (Linear type)
Parameter setting enables movement at the rapid traverse rates of the respective axes independently
for each axis. In this case, the tool path does not take the form of a straight line to the end point. (Non-
Linear type)
(4) The tool is always accelerated at the start of the program command block and decelerated at the end of
the block.
M720VW M730VW M750VW M720VS M730VS M750VS
M system ○○○○○○
L system ○○○○○○
G00 Xx1 Yy1 Zz1 ;(Also possible for additional axes A, B, C, U, V, W simultaneously)
Xx1, Yy1, Zz1 :Position data

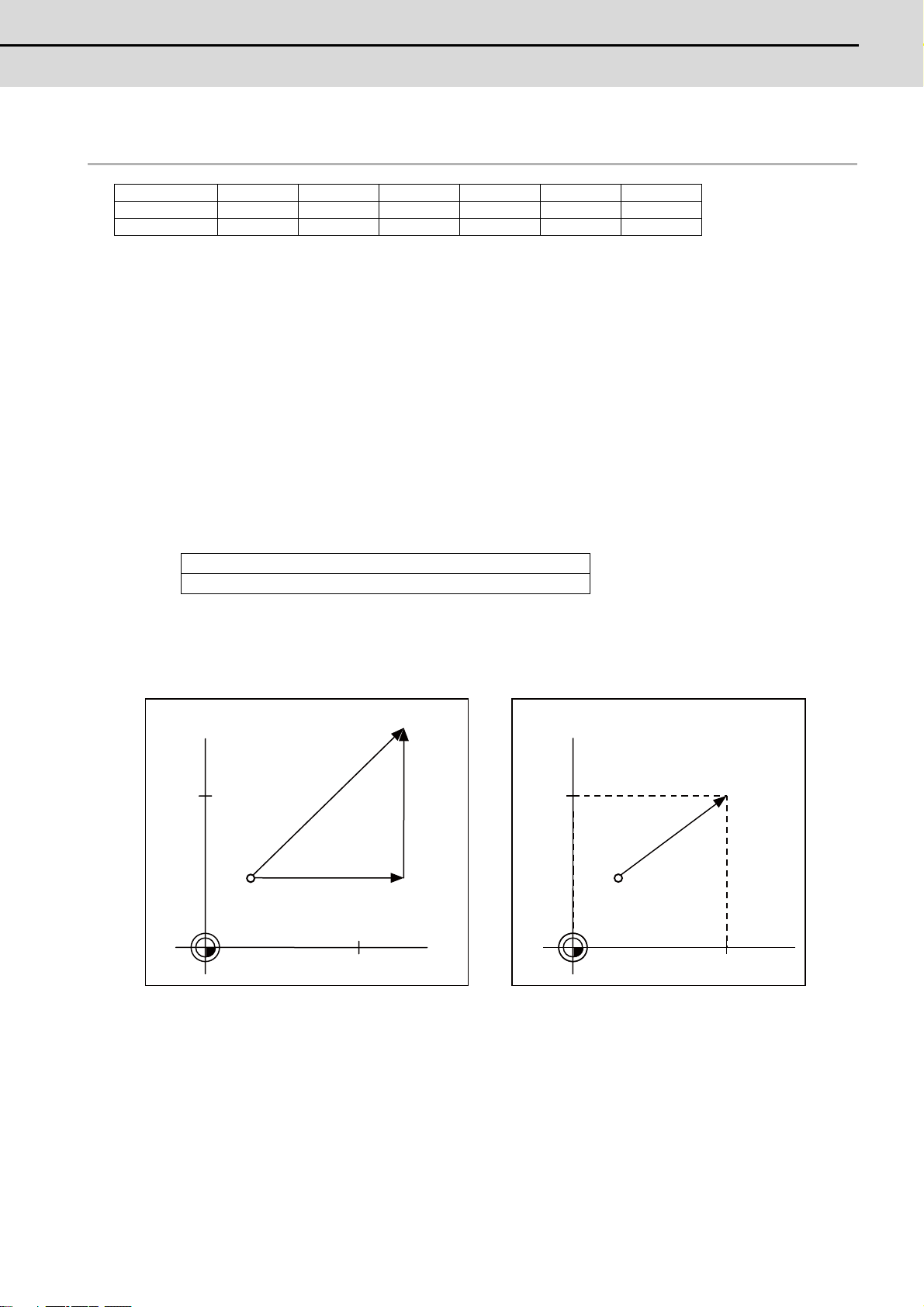

(Example) Linear type (Moves linearly to the end
point.) (Example) Non-linear type (Each axis moves at each parameter speed.)
G00 G91 X100. Y100. ; G00 G91 X100. Y100. ;
(C) Current position
(E) End point
Y
X
(E)
(C)
100.
100.
X
Y
(E)
(C) 100.
100.
