2.4 GHz Band Radio Unit
SWL31-ETMC
SWL31-R4ML
User's Manual
(Detailed Version)
Thank you for purchasing our 2.4 GHz Radio Unit (hereinafter called "Radio Unit").
For using the Radio Unit correctly and safely, at first please read this manual carefully before
using it to understand sufficiently its functions and performance.
Cautions
1. Do not copy this user's manual without permission.
2. Please note that descriptions in this manual may be changed without prior notification.

2/43
Table of Contents
1. SAFETY PRECAUTIONS......................................................................................................................... 3
2. CHECKING PACKAGE............................................................................................................................. 6
3. NAME/FUNCTION OF EACH SECTION.................................................................................................. 7
4. RADIO UNIT INSTALLATION ENVIRONMENT....................................................................................... 9
5. SYSTEM CONFIGURATION.................................................................................................................. 10
6. INSTALLATION PROCEDURE............................................................................................................... 12
6-1. Installation........................................................................................................................................ 13
6-2. Wiring............................................................................................................................................... 14
7. CHECKING RADIO COMMUNICATIONS.............................................................................................. 15
8. ABOUT SETTING UTILITY..................................................................................................................... 16
9. BUTTON SETTING PARAMETER LIST................................................................................................. 17
10. BUTTON OPERATION METHOD........................................................................................................... 23
11. ERROR CODE LIST............................................................................................................................... 27
12. SPECIFICATIONS .................................................................................................................................. 29
12-1. General Specifications..................................................................................................................... 29
12-2. Communication Specifications ........................................................................................................ 30
12-3. Mesh Communication...................................................................................................................... 31
12-4. The Maximum Number of Relay Units ............................................................................................ 32
12-5. Slave Station Interface Specifications............................................................................................. 32
12-6. Input Specifications.......................................................................................................................... 33
12-7. Output Specifications....................................................................................................................... 34
12-8. Pulse Count Specifications.............................................................................................................. 35
12-9. Terminal Block Specifications.......................................................................................................... 36
12-10.Appearance Specifications.............................................................................................................. 37
13. AUTHENTICATION STANDARDS.......................................................................................................... 38
14. FUNCTIONS REALIZED WITH SYSTEMAREA................................................................................... 39
15. ADDRESS ASSIGNMENT CHANGE WHEN EXTENSION UNITADDED TO RADIO SLAVE STATION .............. 41

3/43
1. SAFETY PRECAUTIONS
(Please be sure to read them before using the product.)
Please carefully read this manual before using the product and pay full attention to safety in order to
handle the product correctly.
Precautions given in this manual relate only to this product.
In this "1. SAFETY PRECAUTIONS," the safety precautions are ranked as "WARNING" and
"CAUTION."
Note that the CAUTION level may lead to serious consequences according to the circumstances.
Be sure to follow the instructions of both levels since they are important to personal safety.
Please be sure to pass this manual on to the end users.
In addition, please keep it in a safe place so that you can read it when needed.
[WIRING PRECAUTIONS]
●Be sure to block the power supply externally for all phases before wiring, otherwise an electric
shock or product damage may occur.
●Check the rated voltage and terminal layout of the product and correctly execute wiring for the
terminal block. Awrong rated power supply or wrong wiring may cause fires or breakdowns.
●Be careful not to let foreign matter such as sawdust or wire chips get inside the product. Fires,
breakdowns and malfunctions may occur.
WARNING
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
CAUTION
Indicates that incorrect handling may cause hazardous
conditions, resulting in moderate or minor injury or only
material damage.
CAUTION
WARNING

4/43
[DESIGN PRECAUTIONS]
●An external safety circuit shall be installed to this product so that the whole system operates at
the safety side, even if an abnormality of an external power supply has an abnormality, or a
breakdown of this product. Erroneous output and malfunctions may cause an accident.
(1) Interlock circuits for conflicting operations such as forward/backward rotation or for
machine damage prevention such as upper/lower limits shall be configured outside of the
product.
(2) If this product detects a communication abnormality, it will stop operation and set all
outputs to OFF/HOLD. In addition, if an input/output control section has an abnormality
which cannot be detected by the microcomputer within this product, all outputs may be
turned on. In such case, an external fail-safe circuit or mechanism shall be installed for
this product so that the machine operates at the safe side.
(3) Outputs may be set to on or off at all times depending on a breakdown of an output circuit
transistor etc. For output signals which may cause serious accidents, an external
monitoring circuit shall be installed.
●A fuse or other safety circuits shall be installed externally since smoke/fires may occur if a load
current which is higher than the rated current or an over current by a load short circuit flows
continuously for a long time.
●A circuit of the external power supply for input/output circuits shall be configured so that the
power supply is turned on after the power supply for this product is turned on. If the external
power supply is turned on first, erroneous output or malfunctions may cause an accident.
●Control wires and power supply cables shall not be bundled with the main circuit and power
wires or be laid close to them. Separate them by 100 mm (3.9 in) or more. Noise may cause
malfunction.
●An output circuit with a margin in the rated current shall be selected, because large currents
(ten times greater than normal ones) may flow when the output is set to ON from OFF on
control of lamp load or others at the output circuit.
[INSTALLATION PRECAUTIONS]
●This product shall be used with the environmental specifications described in this user's
manual. If it used in an environment outside of the environmental specification range, electric
shocks, fires, malfunctions, product damage, or degradation may occur.
●Do not directly touch the conductive section of this product. Malfunctions and breakdowns may
occur.
CAUTION
WARNING
CAUTION

5/43
[STARTING/MAINTENANCE PRECAUTIONS]
●Do not touch terminals while the product is energized. An electric shock may occur.
●Be sure to block power supply externally for all phases before cleaning.
If all phases are not blocked, an electric shock may occur.
Tightening screws too much may damage the product causing it to fall.
●Do not disassemble or modify the product. Breakdowns, malfunctions, injuries, or fires may
occur. Also, that is prohibited by the Radio Law.
[DISPOSAL PRECAUTIONS]
●When this product is disposed of, it shall be handled as industrial waste.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。
前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、
科學及醫療用電波輻射性電機設備之干擾。
WARNING
CAUTION
CAUTION
警語

6/43
2. CHECKING PACKAGE
Open the package and check the package to see if the set you have ordered is included.
Set model name
(1) SWL31-ETMC
(2) SWL31-R4ML
No.
Item name
Set Contents
(1)
(2)
1
2.4 GHz Band Radio Unit SWL31-ETMC (Master Station)
1
―
2
2.4 GHz Band Radio Unit SWL31-R4ML (Slave Station)
―
1
3
DIN Rail Mounting Attachment DRT-1
1
1
4
Attachment Fixing Screws (Pan Tapping Screws M3 x 8)
1
1
5
User's Manual (Hardware Version)
1
1
※Antennas must be purchased separately, refer to 3.Antenna (sold separately)
3. Antenna (sold separately)
(1) SWL31-ANP
(2) SWL31-ANT
No.
Item name
1
Pencil Type Antenna
SWL31-ANP
2
Flange Head TypeAntenna (Cord 2 m (78.7 in)) ※
SWL31-ANT
※If you buy Flange Head TypeAntenna, you will get Flange Head TypeAntenna Fixture Set

7/43

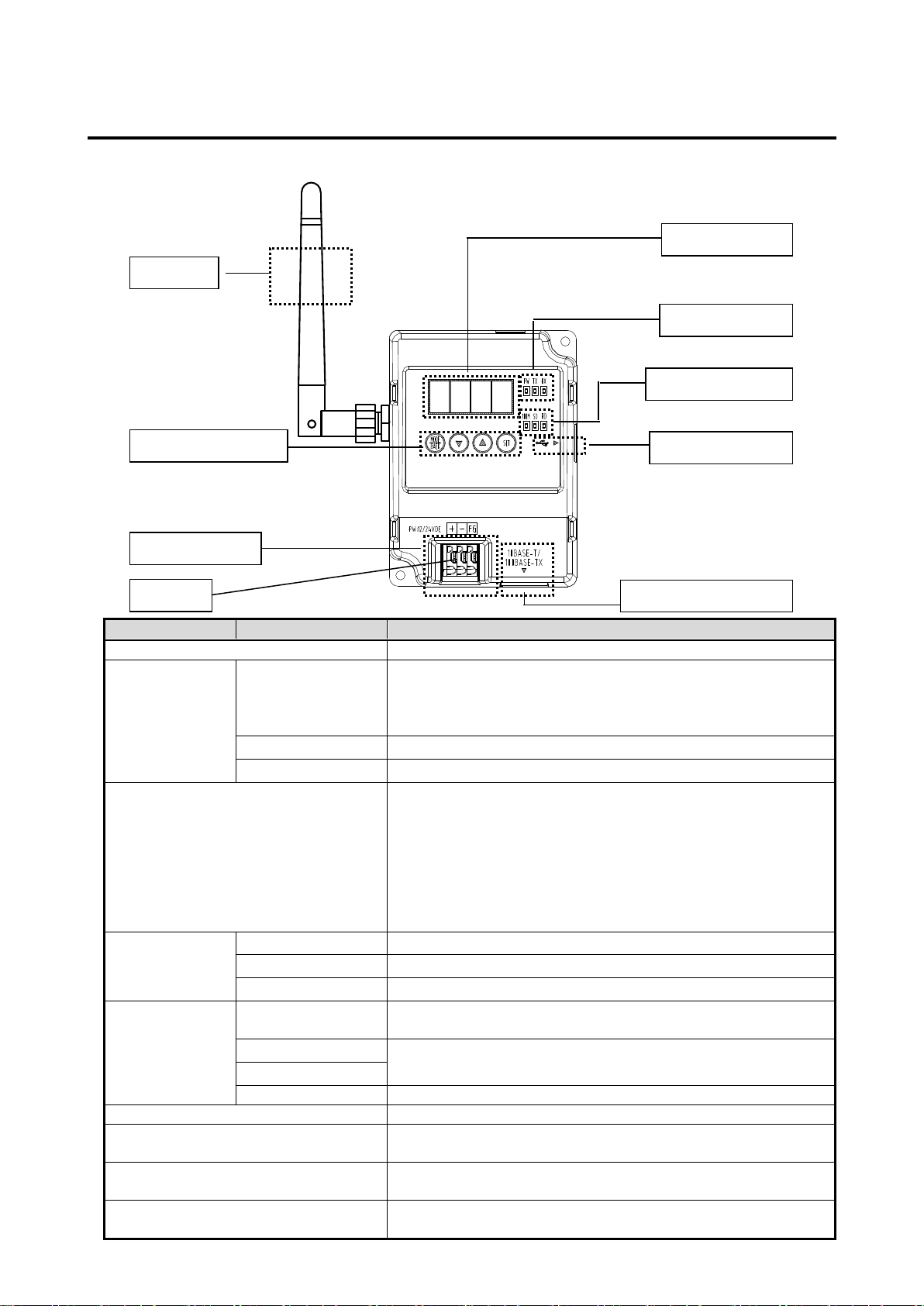

4. NAME/FUNCTION OF EACH SECTION
●SWL31-ETMC (Master Station)
Category
Name
Explanation
Antenna
A pencil type or flange head type (antenna)
Radio Monitor
PW
Lighting-on: Power on, normal communications
Blinking: Power on, error occurred, parameter setting
mode activated
Lighting-off: Power off
TX
Lighting-on while radio data are transmitted
RX
Lighting-on while radio data are received
Status Monitor
(Seven Segment)
Various displays with operation modes
•In Normal Mode
Normal communication:The channel number is displayed.
Error occurred: The error number is displayed.
•In Parameter Setting Mode: The parameter number is
displayed.
•In Radio Wave Intensity Mode: The radio wave intensity
level is displayed.
Ethernet
Monitor
100M
Lighting-on during 100BASE-TX communications
SD
Lighting-on during data transmission
RD
Lighting-on during data reception
Operation
Buttons
MODE/BACK
Operation mode switching and hierarchy transfer in
Parameter Setting Mode
▼ (Down key)
Parameter no./value increase/decrease in Parameter
Setting Mode
▲ (Up key)
SET
Hierarchy transfer in Parameter Setting Mode
Terminal Block
Refer to Section 13-9 Terminal Block Specification.
Stopper
Press the stopper to insert an electric wire and leave it to
fix the wire.
Ethernet Connector
A PLC is connected with an Ethernet cable for
communications.
USB Connector
A PC is connected to the USB connector for using the
Setting Utility (SWL31-UT1).
SWL31-ETMC
Antenna
Operation Buttons
Status Monitor
Radio Monitor
Ethernet Monitor
Terminal Block
USB Connector
Ethernet Connector
Stopper

8/43

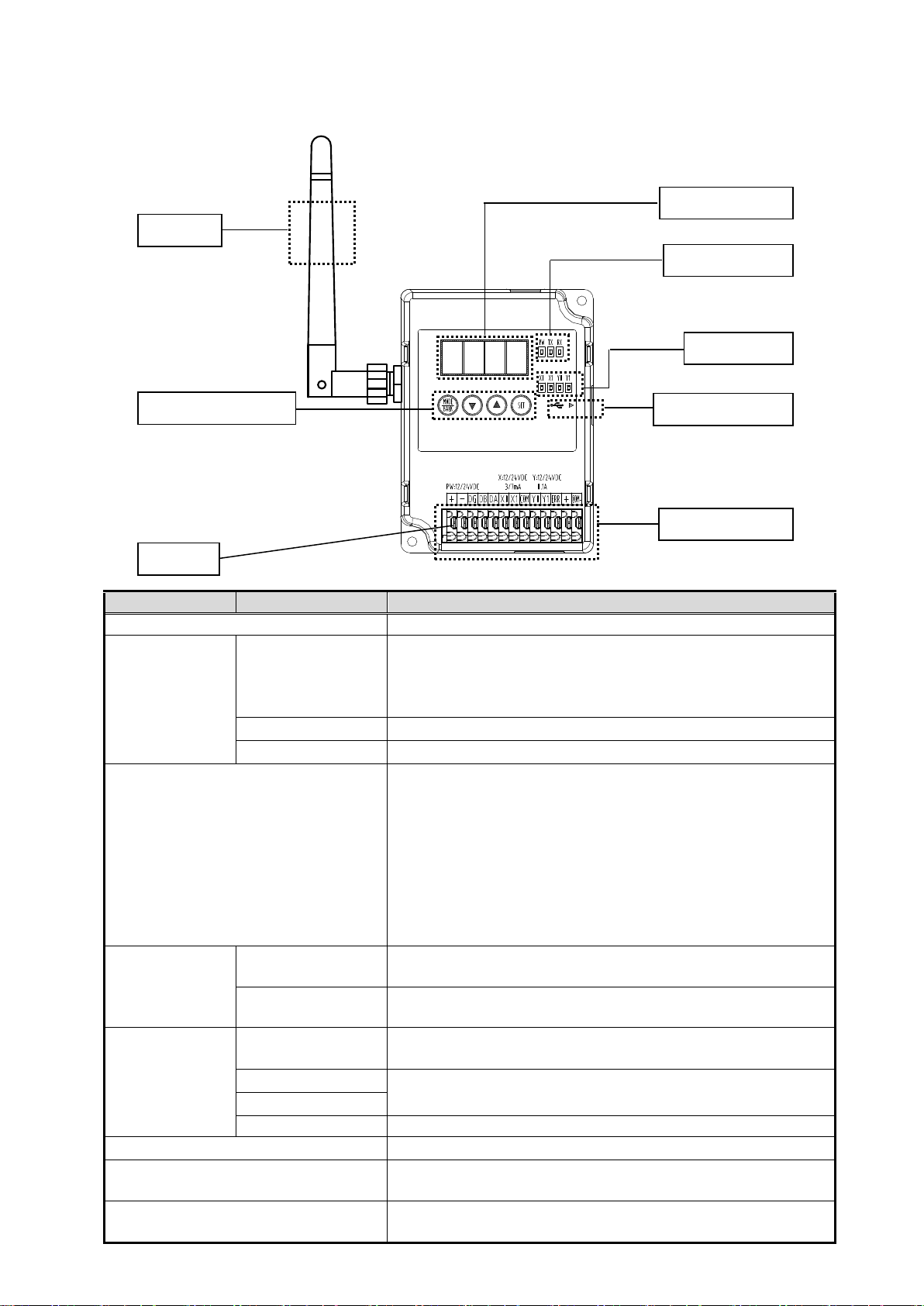

●SWL31-R4ML (Slave Station and Relay Station)
Category
Name
Explanation
Antenna
A pencil type or flange head type (antenna)
Radio Monitor
PW
Lighting-on: Power on, normal communications
Blinking: Power on, error occurred, parameter setting
mode activated
Lighting-off: Power off
TX
Lighting-on while radio data are transmitted
RX
Blinking while radio link is connected
Status Monitor
(Seven Segment)
Various displays with operation modes
•In Normal Mode
Normal communication: The channel number is
displayed.
Error occurred: The error number is displayed.
•In Parameter Setting Mode: The parameter number is
displayed.
•In Radio Wave Intensity Mode: The radio wave intensity
level is displayed.
I/O Monitor
X0, X1
Lighting-on when X0 or X1 signal is input to the terminal
block
Y0, Y1
Lighting-on when Y0 or Y1 signal is output from the
terminal block
Operation
Buttons
MODE/BACK
Operation mode switching and hierarchy transfer in
Parameter Setting Mode
▼ (Down key)
Parameter no./value increase/decrease in Parameter
Setting Mode
▲ (Up key)
SET
Hierarchy transfer in Parameter Setting Mode
Terminal Block
Refer to Section 13-9 Terminal Block Specification.
Stopper
Press the stopper to insert an electric wire and leave it to
fix the wire.
USB Connector
A PC is connected to the USB connector for using the
Setting Utility (SWL31-UT1).
SWL31-R4ML
Antenna
Operation Buttons
Status Monitor
Radio Monitor
I/O Monitor
Terminal Block
USB Connector
Stopper

9/43
5. RADIO UNIT INSTALLATION ENVIRONMENT
●Installation Environment
Install the Radio Unit avoiding the following environments.
•A place with direct sun light
•A place with extremely high humidity
•A place with corrosive or inflammable gases
•A place with intense electric field or ferromagnetic field occurrence
●Request on Installing Radio Unit
The Radio Unit transmits/receives data using radio waves. For using it with stable
communication status, install it paying attention on the following.
•Install the antennas of the units which communicate parallel to each other as much as
possible.
•Place metallic plates and concrete walls away from the antenna as far as possible (0.3 m
(11.8 in) at least).
•Install the antenna at a place 1.5 m (59.1 in) or higher from the floor to prevent impact from
moving objects (including human bodies).
•When communications are checked with a temporal installation, the unit shall be installed
on a control board or others which the unit is actually to be installed because
communications are affected by the environment near the fixing part such as metal and
concrete. (If the Radio Unit is installed in a metallic control board, install the flange head
antenna outside of the board.)
•The Radio Unit and antenna are indoor types.
If they are used outdoors, place them avoiding water (rain, fog, snow, etc.) and direct sun light
in a nonmetallic container such as a plastic case for outdoors.
Impact of water on the communication distance is assumed for electric wave characteristics.
In addition, if the plastic case has a metallic plate embedded, it shall not be used because it will
be an obstruction and significantly affect the communication distance.

10/43
6. SYSTEM CONFIGURATION
The system configuration example for the SWL31 Radio Series is described below.
The I/O addresses of the slave stations and extension units are closely allocated in the order of
smaller registered station numbers.
The bit I/O leading addresses' RXm and RYm depend on the parameters of the master station.
The word I/O leading addresses' RWr and RWw depend on the parameters of the master station.
* Refer to the I/O Correspondence Table in the next page.
* For the details of the parameter setting, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
Refer to the figure below for the maximum bit points, word points, number of slave stations registered,
and number of extension units registered.
SWLEX-X16
Ethernet
(100BaseTX)
MC Protocol
(3E Frame,
1E Frame)
[Master Station]
<Maximum bit number>
Input: 2048 points Output: 2048 points
<Maximum word number>
Input: 256 points Output: 256 points
<Maximum slave stations (relay stations
included)>
Registration number: 40 units
2-point input
2-point output
16-point input
16-point output
[SWLEX-XY16 Station No. 1]
16-point input
Extension Unit Link (RS485)
[Slave Station 1]
[Slave Station 2]
(Pulse count effective)
[Slave Station 3]
2-point input
2-point output
2.4 GHz Band
Radio
Communication
16-bit occupation
16-bit/2-word occupation
16-bit occupation
16-bit occupation
16-bit occupation
16-bit occupation
Extension Unit Link (RS485)
PLC
Address
RXm0 to F
RYm0 to F
Address
RX(m+1)0 to F
RY(m+1)0 to F
Address
RX(m+2)0 to F
RY(m+2)0 to F
Address
RX(m+4)0 to F
RY(m+4)0 to F
[SWLEX-XY16 Station No. 2]
[SWLEX-X16 Station No. 1]
Address
RX(m+5)0 to F
Address
RX(m+3)0 to F
RY(m+3)0 to F
SWL31-ETMC
SWL31-R4ML
SWL31-R4ML
SWL31-R4ML
[SWLEX-AD4 Station No. 3]
AD 4-point
input
Address
RWr+0 to 3
RWw+0 to 3
Pulse Count
1ch input RWr+4 to 5
RWw+4 to 5
[SWLEX-AD4 Station No. 2]
AD 4-point
input
Address
RWr+6 to 9
RWw+6 to 9
Four word occupation
Four word occupation
Slave Station 1
Slave Station 2
Slave Station 3
16-point input
16-point output
2-point
output
<Maximum bit number>
Input: 144 points Output: 144 points
<Maximum word number>
Input: 36 points Output: 36 points
<Maximum extension units>
Registration number: 8 units

11/43
I/O Correspondence Table
• Slave Station 1
Slave
station/extension
unit input signal
name
Slave Station 1
Input 16 Points/Output
16 Points Extension
Unit Station No. 1
Input 16 Points/Output
16 Points Extension
Unit Station No. 2
Analog Input
Extension Unit Station
No. 3
PLC device
assignment
(remote input)
PLC device
assignment
(remote output)
Slave
station/extension
unit output signal
name
Slave Station 1
Input 16 Points/Output
16 Points Extension
Unit Station No. 1
Input 16 Points/Output
16 Points Extension
Unit Station No. 2
Analog Input
Extension Unit Station
No. 3
16 bits occupied by one slave
station
(I/O data: 2 bits
System area: 14 bits)
16 bits occupied by one
extension
unit of input 16 points and
output 16 points
Four words occupied by one
extension
unit of analog input 4ch
• Slave Station 2
Slave
station/extension
unit input signal
name
Slave Station 2
PLC device
assignment
(remote input)
Pulse Count Value
PLC device
assignment
(remote input)
Slave
station/extension
unit output signal
name
Slave Station 2
Count Value Reset
Reset
Two words occupied by pulse
count 1ch input
• Slave Station 3
Slave
station/extension
unit input signal
name
Slave Station 3
Input 16 Points
Extension Unit Station
No. 1
Analog Input
Extension Unit Station
No. 2
PLC device
assignment
(remote input)
PLC device
assignment
(remote input)
Slave Station 3
Input 16 Points
Extension Unit Station
No. 1
Analog Input
Extension Unit Station
No. 2
Slave
station/extension
unit output signal
name
16 bits occupied by one
extension
unit of input 16 points

12/43
7. INSTALLATION PROCEDURE
The following is the procedure required to install the Radio Unit.
Check the installation environment and fix the master station, slave
stations, and extension units with screws or DIN rail mounting
attachments.
* For details, refer to "5. Radio Unit Installation Environment" and
"6-1. Installation."
Execute wiring for the master station, slave stations, and extension
units.
* For details, refer to "7-2. Wiring."
With the Setting Utility, set the selected radio frequency, group No.,
maximum number of relay stations, and number of slave stations.
* For details, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
With the Setting Utility, set the Ethernet parameters of the master
station.
For the PLC setting, refer to the manual of the PLC to be connected.
* For details, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
This process is not required if the pulse count is not used.
With the Setting Utility, set the pulse count to the parameter of the
slave stations.
* For details, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
This process is not required if the extension units are not used.
With the Setting Utility, register the extension units to the parameters
of the slave stations.
* For details, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
Set the station number setting switch (rotary switch) of the extension
units according to the extension setting number.
With the Setting Utility connected to the USB connector, write the
parameters of the master station and slave stations.
* For details, refer to "2.4 GHz Band Radio Unit Setting Utility
(SWL31-UT1) User's Manual."
Starting up
Installation
Wiring
Ethernet Setting
Pulse Count Setting
Extension Unit
Registration
Operation Start
Radio Unit Writing
Common Setting

13/43

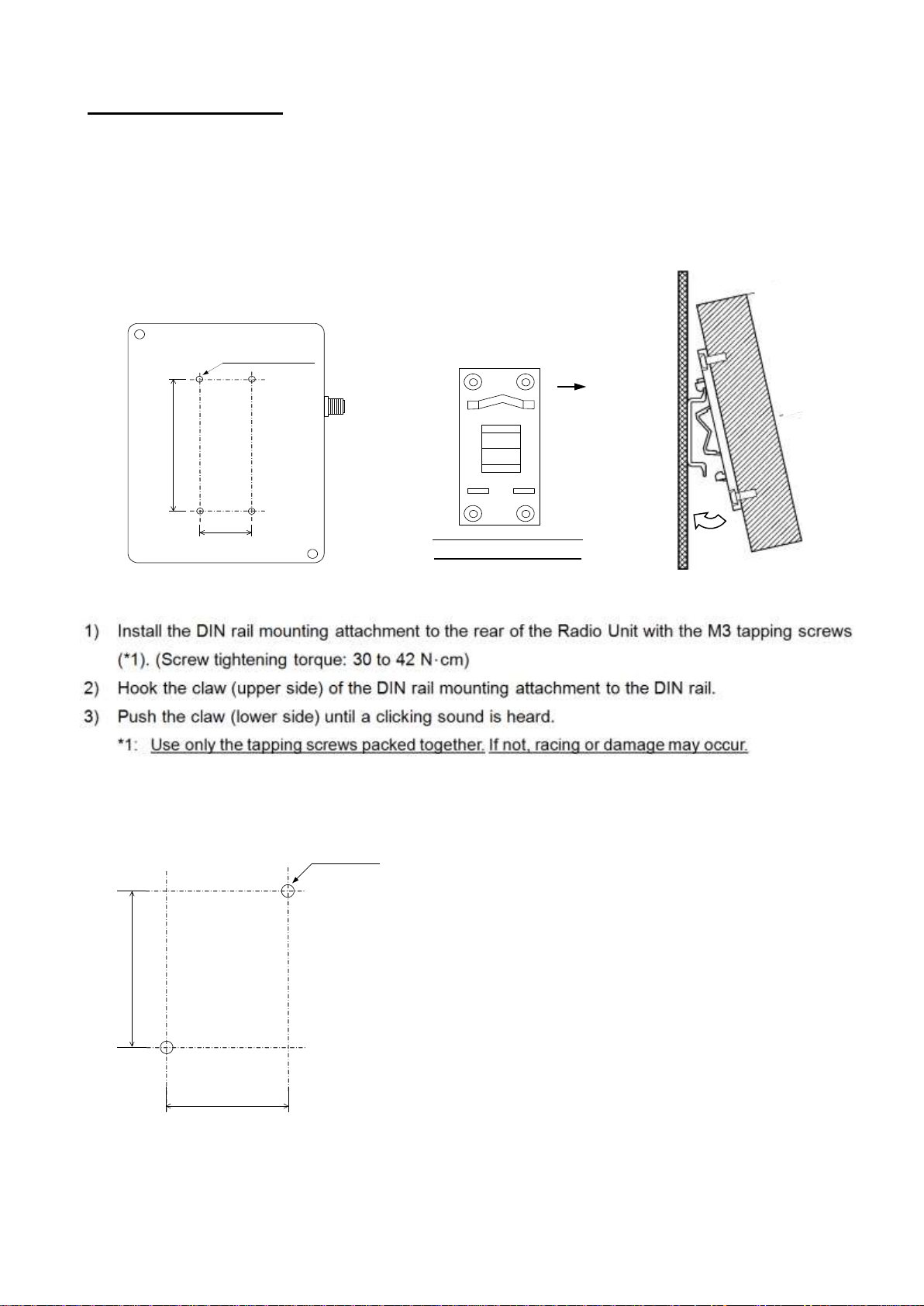

7-1. Installation
The unit can be installed to the DIN rails (35 mm (1.38 in) with the DIN rail mounting attachment or
installed with screws. (SWL31-ETMC and SWL31-R4ML can be installed with the same installation
method.)
(1) Installing to the DIN rail
Rear of Unit
4-2.4×6
DIN Rail Mounting Attachment Hole
DIN Rail Mounting
Attachment
Pay attention to the
mounting direction.
Antenna side
55
20
1) Install the DIN rail mounting attachment to the rear of the Radio Unit with the M3 tapping screws
(*1). (Screw tightening torque: 30 to 42 Ncm)
2) Hook the claw (upper side) of the DIN rail mounting attachment to the DIN rail.
3) Push the claw (lower side) until a clicking sound is heard.
*1: Use only the tapping screws packed together. If not, racing or damage may occur.
(2) Screwing
81±0.2
57±0.2
2-3.1
Mounting Hole
Processing Dimension
(Main Body
Mounting Hole)
Fix the unit with two screws.
Rear of Unit
DIN rail MountingAttachment Hole
DIN rail Mounting
Attachment

14/43
7-2. Wiring
For the terminal layout and conforming electric wire size, refer to "13-9. Terminal Block
Specification."
* To prevent induction noise, lay the power line and the signal line away from each other as far
as possible. (It is recommended that they are away from each other 100 mm (3.94 in) or
more.)
●Wiring Master Station
(1) Connect the unit power supply.
(2) Connect the FG terminal to the ground.
●Wiring Slave Station
(1) Connect the unit power supply.
(2) Connect the extension link.
(3) Connect the I/O signal line.
(4) Connect the error signal line.
●Wiring Extension Unit (SWLEX-X16/SWLEX-XY16/SWLEX-AD4)
(1) Connect the unit power supply.
(2) Connect the signal line.
(3) Connect the link cable to the slave station and extension unit.
* Extension unit link maximum communication distance: 1000 m (3280 ft)
* For connection locations, refer to the figure below.
[Wiring Extension Unit Link]
DG
DB
DA
DG (EXG)
DB (EXO)
DA (EXI)
DG (EXG)
DB (EXO)
DA (EXI)
TERM TERM
Slave
Station
Extension Unit 1 Extension Unit 2
RS485 cable with a
shield recommended
*2: Connect TERM to DB (EXO) of the extension unit connected
to the terminal to use a terminal resistor within the unit.
*1 *2
RS485 cable with a
shield recommended
*1: A terminal resistor is implemented within the slave
station.
[Screw-less Terminal Block Connection Method]
•Peel 8 mm (0.31 in) of the electric wire end as in the figure on the right.
•Insert the electric wire pressing the stopper with a screwdriver.
•Leave the screwdriver from the stopper to fix the electric wire.
8mm

15/43
8. CHECKING RADIO COMMUNICATIONS
Temporarily install the radio units to check the radio wave status with the Radio Wave Intensity
Display Mode.
The radio wave intensity is displayed only on the slave stations.
(Do not install them permanently when the radio wave status is not good. The installation locations
must be changed.)
●Operation
Refer to "9. Parameter Operation Method for Button Setting" and press the [MODE/BACK] key
several times to enter the Radio Wave Intensity Display Mode.
Pressing the [MODE/BACK] key in the Radio Wave Intensity Display Mode enters the Normal
Mode.
●Display
"Lv *" (Radio wave intensity level. Anumeral from 0 to 5 is displayed on *.) is displayed on the
status monitor.
Adjust the installation location for the radio wave intensity level to be three or higher at all times as
an indication of the radio wave status.
Radio Wave Intensity Level
Display
Indication of radio wave status
Lv 5
The radio wave status is good.
Lv 4
Lv 3
Lv 2
The radio wave status is unstable.
Lv 1
Lv 0
A radio wave is not arriving.
▼▲SET
MODE
BACK
▼ ▲ SET
MODE
BACK
Radio Wave Intensity Display Mode
Normal Mode

16/43
9. ABOUT SETTING UTILITY
Parameters of this product can be set from a PC with the Setting Utility.
For the details of the Setting Utility, refer to
"2.4 GHz Band Radio Unit Setting Utility (SWL31-UT1) User's Manual"
of our publication.

17/43
10.BUTTON SETTING PARAMETER LIST
The button setting parameters of this product are as follows. Check and set parameters as needed.
* Parameters of this product can also be set from a PC with the Setting Utility.
For details, refer to "2.4 GHz Band Radio Unit Setting Utility (SWL31-UT1) User's Manual."
For details of the button operation, refer to the "11. Button Operation Method" section.
● Master Station Parameters [P1**] (Host Station Radio Parameters and Host Station Ethernet Parameters)
Parameter
Detail
Default
Variable
range
Remarks
Read/
Write
P101_b
Information of
system bit points
0
0 to 2048
*1
Display of bit points used by the whole system
R
P101_d
Information of
system word points
0
0 to 256
*1
Display of word points used by the whole
system
R
P103
Group No.
0
0 to 15
Radio communication group No.
R/W
P107_F
Selectable
wavenumber
1
1
Selectable wavenumber
R
P107_C1
Selected frequency
1
1 to 15
1: 2.405 GHz, 2: 2.410 GHz, 3: 2.415 GHz
4: 2.420 GHz, 5: 2.425 GHz, 6: 2.430 GHz
7: 2.435 GHz, 8: 2.440 GHz, 9: 2.445 GHz
10: 2.450 GHz, 11: 2.455 GHz, 12: 2.460 GHz
13: 2.465 GHz, 14: 2.470 GHz, 15: 2.475 GHz
R/W
P108
Radio Output Power
4
0 to 4
0: 0.6 mW (-2 dBm), 1: 1.6 mW (2 dBm)
2: 2.5 mW (4 dBm), 3: 4.0 mW (6 dBm)
4: 6.3 mW (8 dBm)
R/W
P109
Maximum No. of
Relay Stages
1
0 to 3
*2
0: No relay, 1: 1-stage relay
2: 2-stage relay, 3: 3-stage relay
R/W
P110
Data Handling on
Error
2
0 to 3
0: Clear *3, 1: Hold
2: Bit clear/word hold *3
3: Word clear/bit hold *3
R/W
P111
Radio Timeout Time
000.0
000.0 to
999.9
*4
Time from radio transmission to
radio timeout error generation
Example: 10 sec. for 10.0 set
R/W
P121_Ad12
MAC Address
****
Fixed
MAC Address
R
P121_Ad34
****
Fixed
**:** : **:** : **:**
R
P121_Ad56
****
Fixed
Ad12 Ad34 AD56
R
P122_iP1
Host Station IP
Address
192
0 to 255
IPAddress
R/W
P122_iP2
168
0 to 255
192 : 168 : 10 : 2 (Default value)
R/W
P122_iP3
10
0 to 255
iP1 iP2 iP3 iP4
R/W
P122_iP4
2
0 to 255
R/W
P122_Pt
Host Station TCP
Port No.
C000
0000 to FFFF
Host Station TCP Port No.
R/W
P123_Sb1
Subnet Mask
255
128 to 255
Subnet Mask
R/W
P123_Sb2
255
0 to 255
255 : 255 : 255 : 0
R/W
P123_Sb3
255
0 to 255
Sb1 Sb2 Sb3 Sb4
R/W
P123_Sb4
0
0 to 254
R/W
P198
Radio Test Mode
0
0 to 1
0: Invalid, 1: Valid *5
R/W
P199
Software Version
v*.**
Fixed
―
R
*1:The total of [P201_b to P240_b] and [P201_d to P240_d] is automatically calculated and displayed.
*2:When 21 slave stations are registered for one master station, [1] or more shall be set. For the star
communication (no relay), up to 1:20 communications are available.
*3:If the power of the master station is off or the LAN cable is disconnected, the data will not be cleared.
*4:When 000.0 is set, the timeout time is automatically calculated.
*5:This shall be set to Valid when the radio wave intensity is checked only with the radio units without the
Ethernet communications. If the Radio Test Mode is valid, the radio communications will be executed
regardless of the Ethernet communications.

18/43
●Master Station Parameters [P2**] and [P3**] (Slave Station Registration Parameters)
Parameter
Detail
Default
Variable
range
Remarks
Read/
Write
P201_id1
Slave Station 1
Unit ID
0000
0000 to FFFF
Slave Station 1 unit ID
****:****:****:****
id1 id2 id3 id4
R/W
P201_id2
0000
0000 to FFFF
R/W
P201_id3
0000
0000 to FFFF
R/W
P201_id4
0000
0000 to FFFF
R/W
P201_b
Slave Station 1 Bit
Points
0
0 to 144 *1
Slave Station 1 bit points (extension units
included)
R/W
P201_d
Slave Station 1
Word Points
0
0 to 36 *2
Slave Station 1 word points (extension units
included)
R/W
P201_C
Slave Station 1
Relay Setting
0
0 to 1
0: Normal station, 1: Relay-dedicated station
R/W
P201_r
Slave Station 1
Reserve Setting
0
0 to 1
0: Used station, 1: Reserved station
R/W
P201_rT
For Manufacturer
Setting
1
0 to 5
For Manufacturer Setting
R/W
P202_id1
Slave Station 2
Unit ID
0000
0000 to FFFF
Slave Station 2 unit ID
****:****:****:****
id1 id2 id3 id4
R/W
P202_id2
0000
0000 to FFFF
R/W
P202_id3
0000
0000 to FFFF
R/W
P202_id4
0000
0000 to FFFF
R/W
P202_b
Slave Station 2 Bit
Points
0
0 to 144 *1
Slave Station 2 bit points (extension units
included)
R/W
P202_d
Slave Station 2
Word Points
0
0 to 36 *2
Slave Station 2 word points (extension units
included)
R/W
P202_C
Slave Station 2
Relay Setting
0
0 to 1
0: Normal station, 1: Relay-dedicated station
R/W
P202_r
Slave Station 2
Reserve Setting
0
0 to 1
0: Used station, 1: Reserved station
R/W
P202_rT
For Manufacturer
Setting
1
0 to 5
For Manufacturer Setting
R/W
-
-
-
-
-
-
P240_id1
Slave Station 40
Unit ID
0000
0000 to FFFF
Slave Station 40 unit ID
****:****:****:****
id1 id2 id3 id4
R/W
P240_id2
0000
0000 to FFFF
R/W
P240_id3
0000
0000 to FFFF
R/W
P240_id4
0000
0000 to FFFF
R/W
P240_b
Slave Station 40 Bit
Points
0
0 to 144 *1
Slave Station 40 bit points (extension units
included)
R/W
P240_d
Slave Station 40
Word Points
0
0 to 36 *2
Slave Station 40 word points (extension units
included)
R/W
P240_C
Slave Station 40
Relay Setting
0
0 to 1
0: Normal station, 1: Relay-dedicated station
R/W
P240_r
Slave Station 40
Reserve Setting
0
0 to 1
0: Used station, 1: Reserved station
R/W
P240_rT
For Manufacturer
Setting
1
0 to 5
For Manufacturer Setting
R/W
P398
Points Lock
*3
0
0 to 1
0: Locked, 1: Lock released
R/W
P399
No. of Slave
Stations Registered
*4
0
0 to 40
Display of No. of slave stations registered
R
*1:The bit points change for every 16 points.
*2:The word points change for every 2 points.
*3:When multiple slave stations are registered, to prevent address assignment change, the bit points [P2**_b]
and the word points [P2**_d] cannot be changed for other than the last station number. Changing the
value of [P398] to 1 releases the lock.
*4:It is automatically displayed from the status of [P201_b to P240_b]. (The value 0 is assumed to be
unregistered.)
The number of reservation registered stations includes reserved stations.

19/43
●Master Station Parameters [P4**] (Communication Destination Ethernet Parameters)
Parameter
Detail
Default
Variable
range
Remarks
Read/
Write
P401_iP1
Partner Station
192
0 to 255
IPAddress of Ethernet partner
R/W
P401_iP2
IPAddress
168
0 to 255
192 : 168 : 10 : 3 (Default value)
R/W
P401_iP3
10
0 to 255
iP1 iP2 iP3 iP4
R/W
P401_iP4
3
0 to 255
R/W
P401_Pt
Port Number
C100
0 to FFFF
Partner's TCP/IP port number (Hexadecimal)
R/W
P402
Network Number
00
00 to FF
*1 (Hexadecimal)
R/W
P403
PC Number
FF
00 to FF
*1 (Hexadecimal)
R/W
P404
Request Destination
I/O Station No.
3FF
0000 to FFFF
*1 (Hexadecimal)
R/W
P405
Request Destination
Unit Station No.
00
00 to FF
*1 (Hexadecimal)
R/W
P406
CPU Monitoring
Timer
16
0 to 3600
*1 (Decimal)
R/W
P407_dv
Bit Input
Device Type
0
0, 10
0: X, 10: D *2,*3
R/W
P407_st
Bit Input
Start Number
1000
0000 to 1FFF
For X device (Hexadecimal)
R/W
0000 to 9255
For D device (Decimal)
P408_dv
Bit Output
Device Type
0
0,10
0: Y, 10: D *2,*3
R/W
P408_st
Bit Output
Start Number
1000
0000 to 1FFF
For X device (Hexadecimal)
R/W
0000 to 9255
For D device (Decimal)
P409_dv
Word Input
Device Type
10
10
10: D
R/W
P409_st
Word Input
Start Number
300
0000 to 8000
Device start number (Decimal)
R/W
P410_dv
Word Output
Device Type
10
10
10: D
R/W
P410_st
Word Output
Start Number
600
0000 to 8000
Device start number (Decimal)
R/W
P411
Ethernet Timeout
Time
0100
0100 to 9999
Setting of Ethernet reception waiting time [ms] *4
R/W
P412
Ethernet Protocol
0
0 to 1
0: MC protocol 3E frame (Q Series)
1: MC protocol 1E frame (FX Series)
R/W
*1:P402 to P405 are MC protocol-related parameters. If communications are unavailable with the default
setting, refer to "MELSEC-Q/L MELSEC Communication Protocol Reference Manual" and "Model:
MC-PROTOCOL-R," manuals by Mitsubishi Electric, and check the details.
*2:If you use the PLC of Q Series or FX Series, "X device" or "D device" shall be selected respectively.
*3:If P412 is set to 0, D device cannot be selected.
*4: If communications are unavailable with the Ethernet partner even after Ethernet timeout time [ms] x 3
passes, the error code "EG" will be generated.
●Master Station Parameter Reset Setting [Pr**]
Parameter
Detail
Default
Variable
range
Remarks
Read/
Write
Pr01
[P1**] Parameter
Reset
0
0 to 1
0: Invalid
1: [P1**] is set back to the default.
R/W
Pr02
[P2**] Parameter
Reset
0
0 to 1
0: Invalid
1: [P2**] is set back to the default.
R/W
Pr04
[P4**] Parameter
Reset
0
0 to 1
0: Invalid
1: [P4**] is set back to the default.
R/W
Pr0E
[PE**] Error History
Reset
0
0 to 1
0: Invalid
1: The error history [PE**] is cleared.
R/W
Pr99
All Parameters
Reset
0
0 to 1
0: Invalid
1: All parameters and error history are set
back to the default.
R/W

20/43
●Slave Station Parameters [P1**] (Host Station Radio Parameters)
Parameter
Detail
Default
Variable
range
Remarks
Read/
Write
P101_b
Information of Bit
Points
16
16 to 144
*1
Bit points (extension units included)
R
P101_d
Information of Word
Points
0
0 to 36
*2
Word points (extension units included)
R
P102_id1
Unit ID
****
Fixed
Unit ID
****:****:****:****
id1 id2 id3 id4
R
P102_id2
****
Fixed
R
P102_id3
****
Fixed
R
P102_id4
****
Fixed
R
P103
Group No.
0
0 to 15
Radio communication group No.
R/W
P107_F
Selectable
wavenumber
1
1
Selectable wavenumber
R
P107_C1
Selected frequency
1
1 to 15
1: 2.405 GHz, 2: 2.410 GHz, 3: 2.415 GHz
4: 2.420 GHz, 5: 2.425 GHz, 6: 2.430 GHz
7: 2.435 GHz, 8: 2.440 GHz, 9: 2.445 GHz
10: 2.450 GHz, 11: 2.455 GHz, 12: 2.460 GHz
13: 2.465 GHz, 14: 2.470 GHz, 15: 2.475 GHz
R/W
P108
Radio Output Power
4
0 to 4
0: 0.6 mW (-2 dBm), 1: 1.6 mW (2 dBm)
2: 2.5 mW (4 dBm), 3: 4.0 mW (6 dBm)
4: 6.3 mW (8 dBm)
R/W
P109
Maximum No. of
Relay Stages
1
0 to 3
*3
0: No relay, 1: 1-stage relay
2: 2-stage relay, 3: 3-stage relay
R/W
P110
Data Handling on
Error
0
0 to 1
0: Clear, 1: Hold
R/W
P111
Radio Timeout Time
000.0
000.0 to
999.9
*4
Time from radio transmission to radio timeout
error generation
Example: 10 sec. for 10.0 set
R/W
P112
Error Terminal
Output
2
0 to 2
0: LIVE signal, 1: a contact signal
2: b contact signal
R/W
P113
Relay-dedicated
Station Setting
0
0 to 1
0: Normal station, 1: Relay-dedicated station
R/W
P131
Pulse Count Valid
Setting
0
0 to 2
0: Pulse count function invalid
1: Pulse count function (ch1) valid
2: Pulse count function (ch1, ch2) valid
R/W
P132_ PL1
Pulse Count Digit
No. Setting
8
1 to 8
Pulse count ch1 digit No. Setting
R/W
P132_ PL2
8
1 to 8
Pulse count ch2 digit No. Setting
R/W
P199
Software Version
v*.**
Fixed
―
R
*1:It is automatically calculated and displayed from the number of I/O extension units registered of the host
station (16 points) + extension units registered [P501_Un to P508_Un].
*2:It is automatically calculated and displayed from the number of analog input extension units registered of
the host station (2 points/number of pulse count channels [P131]) + extension units registered [P501_Un
to P508_Un].
*3:When 21 slave stations are registered for one master station, [1] or more shall be set. For the star
communication (no relay), up to 1:20 communications are available.
*4:When 000.0 is set, the timeout time is automatically calculated. Avalue with a margin shall be set so that
an error is not generated in a normal status.
