Mitsubishi Electric MR-J5W-G Series User manual

MR-J5-G/MR-J5W-G
User's Manual
(Communication Function)
-MR-J5-_G_
-MR-J5W_-_G
Mitsubishi Electric AC Servo System

1
SAFETY INSTRUCTIONS
Please read the instructions carefully before using the equipment.
To use the equipment correctly, do not attempt to install, operate, maintain, or inspect the equipment until you have read
through this manual, installation guide, and appended documents carefully. Do not use the equipment until you have a full
knowledge of the equipment, safety information and instructions.
In this manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
Note that the CAUTION level may lead to a serious consequence depending on conditions.
Please follow the instructions of both levels because they are important to personnel safety.
Forbidden actions and required actions are indicated by the following diagrammatic symbols.
In this manual, precautions for hazards that can lead to property damage, instructions for other functions, and other
information are shown separately in the "POINT" area.
After reading this manual, keep it accessible to the operator.
WARNING
Indicates that incorrect handling may cause hazardous conditions, resulting in
death or severe injury.
CAUTION
Indicates that incorrect handling may cause hazardous conditions, resulting in
medium or slight injury.
Indicates a forbidden action. For example, "No Fire" is indicated by .
Indicates a required action. For example, grounding is indicated by .

2
[Installation/wiring]
[Setting/adjustment]
[Operation]
[Maintenance]
WARNING
●To prevent an electric shock, turn off the power and wait for 15 minutes or more before starting wiring
and/or inspection.
●To prevent an electric shock, ground the servo amplifier.
●To prevent an electric shock, any person who is involved in wiring should be fully competent to do the
work.
●To prevent an electric shock, mount the servo amplifier before wiring.
●To prevent an electric shock, connect the protective earth (PE) terminal of the servo amplifier to the
protective earth (PE) of the cabinet, then connect the grounding lead wire to the ground.
●To prevent an electric shock, do not touch the conductive parts.
WARNING
●To prevent an electric shock, do not operate the switches with wet hands.
WARNING
●To prevent an electric shock, do not operate the switches with wet hands.
WARNING
●To prevent an electric shock, any person who is involved in inspection should be fully competent to do
the work.
●To prevent an electric shock, do not operate the switches with wet hands.

3
ABOUT THE MANUAL
e-Manuals are Mitsubishi Electric FA electronic book manuals that can be browsed with a dedicated tool.
e-Manuals enable the following:
• Searching for desired information in multiple manuals at the same time (manual cross searching)
• Jumping from a link in a manual to another manual for reference
• Browsing for hardware specifications by scrolling over the components shown in product illustrations
• Bookmarking frequently referenced information
• Copying sample programs to engineering tools
If using the servo for the first time, prepare and use the following related manuals to ensure that the servo is used safely. The
manuals used differ depending on the interface of the servo amplifier. For details, refer to the User's Manual (Introduction).
U.S. CUSTOMARY UNITS
U.S. customary units are not shown in this manual. Convert the values if necessary according to the following table.
Quantity SI (metric) unit U.S. customary unit
Mass 1 [kg] 2.2046 [lb]
Length 1 [mm] 0.03937 [inch]
Torque 1 [N•m] 141.6 [oz•inch]
Moment of inertia 1 [(× 10-4 kg•m2)] 5.4675 [oz•inch2]
Load (thrust load/axial load) 1 [N] 0.2248 [lbf]
Temperature N [°C] × 9/5 + 32 N [°F]
Rotary Servo Motor
Linear Servo Motor
Direct Drive Motor
This manual is necessary primarily for installing, wiring, and
using options.
The manual is necessary for operation of servo amplifiers.
The manual is necessary for adjustment of operation status.
The manual is necessary for using communication functions.
The manual is necessary for specifying the causes of alarms
and warnings.
Partner Encoder
Function
Adjustment
Object Dictionary
Troubleshooting
Introduction
Hardware
Communication Function
Parameters It describes the parameters of the servo amplifier.
It describes the objects for the servo amplifier.
For the usage of each function, refer to this manual.

4
CONTENTS
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
ABOUT THE MANUAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
U.S. CUSTOMARY UNITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CHAPTER 1 CC-Link IE TSN 5
1.1 Functions and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Function list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Communication specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Establishing and disconnecting the communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Summary of object dictionary (OD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Engineering tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.2 Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Network setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.3 Application function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
CC-Link IE TSN Network diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
IP address setting function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Parameter automatic setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Hold/Clear of output at CPU STOP and at CPU stop error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Clock function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Motion mode (high-speed) setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CHAPTER 2 APPENDIX 16
2.1 CC-Link IE TSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CC-Link IE TSN communication protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cyclic transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Transient transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Drive profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Setting of positioning data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
REVISIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

1 CC-Link IE TSN
1.1 Functions and configuration 5
1
1CC-Link IE TSN
1.1 Functions and configuration
This manual describes communication with the MR-J5_-_G_ servo amplifiers using CC-Link IE TSN. In addition to this
manual, reference the following manual when using CC-Link IE TSN.
MR-J5-G/MR-J5W-G User's Manual (Object Dictionary)
Outline
Motion mode
Motion mode is used with a controller supported by a CANopen profile. Combining with Mitsubishi Electric manufactured
Motion modules enables advanced motion control such as positioning of multiple axes, synchronous control by sequential
command or interpolation control. The positioning function built-in servo amplifier can be used for positioning operation.
Motion mode supports CiA 402 drive profile.
Refer to the following for control modes supported by motion mode.
Page 6 Function list
Page 46 Control mode
System configuration
Compatible controller
*1 Available on servo amplifiers with firmware version B2 or later.
Category Model
Motion module RD78G
RD78GH
Master/local module RJ71GN11-T2 *1

61 CC-Link IE TSN
1.1 Functions and configuration
Function list
Communication-related function list (Application)
Category Subcategory Function Description Details
Detailed explanation
Network Open network CC-Link IE TSN
communication protocol
This servo amplifier supports CC-Link IE TSN. Page 7
Communication
specifications
CC-Link IE TSN
communication setting
Network configuration settings and station-specific mode selection
are performed by using GX Works3.
Page 10 Startup
Common
protocol
SLMP This function supports SLMP (SeamLess Message Protocol).
Parameter setting and monitoring are enabled.
Page 16 CC-Link IE
TSN communication
protocol
Profile CSP+ File for describing the necessary information for startup, operation,
and maintenance of CC-Link family connected products.

Application
function
Functional
safety
Safety communication
function
Connecting the servo amplifier with a programmable controller that
supports functional safety enables safety sub-functions.
MR-J5 User's Manual
(Hardware)
MR-J5 User's Manual
(Function)
Cyclic
transmission
Hold/Clear of output at
CPU STOP and CPU
stop error
When the CPU module of the cyclic master is at STOP, when the stop
error occurs, Hold/Clear is automatically set on the refresh device
output. The servo amplifier stops regardless of the setting of Hold/
Clear of the cyclic master.
Page 15 Hold/Clear
of output at CPU STOP
and at CPU stop error
RAS function Automatic return When a station that has been disconnected due to a data link error
becomes normal, that particular station will automatically reconnect
to the network, and restart the data link.

Application
function
Synchronization CC-Link IE TSN
network synchronous
communication function
The control cycle of the slave station can be synchronized via the
CC-Link IE TSN in accordance with the synchronization cycle
specified by the master station. Thus, operation timing of other slave
stations connected to the same network can be synchronized.

Motion mode (high-
speed)
The communication cycle between the master station and the slave
station can be set to 31.25 μs.
Page 15 Motion
mode (high-speed)
setting
Network system
startup
Detect Now function The master station reads the information (a model code, a device
version, etc.) of the servo amplifier that is connected to the network
and automatically sets the network configuration.

Station mode check The master station checks whether the master station and the servo
amplifier are in the same station mode by obtaining the station mode
of the servo amplifier.

Parameter
setting
Parameter automatic
setting
This is a function where the controller automatically writes the servo
parameters when the servo amplifier is returning/entering.
Page 14 Parameter
automatic setting
Setting change Remote reset This is a function to reset a servo amplifier via the network. Servo
parameters to be enabled at power cycle are reflected by resetting
the servo amplifier.
Page 15 Remote
reset
IP address setting IP addresses are delivered from the controller to servo amplifiers via
CC-Link IE TSN.
Page 13 IP address
setting function
CC-Link IE TSN
Network
diagnostics
Reserved station
specification/
cancellation
Stations not connected to the network can be included in the total
number of stations for future connection.
Page 12 CC-Link IE
TSN Network diagnostics
Time
synchronization
Clock function This function is used to acquire time information from the grand
master (the station serving as a clock source) via CC-Link IE TSN so
that this information may be used for the time management of
functions performed by the servo amplifier, such as alarm history.
Page 15 Clock
function

1 CC-Link IE TSN
1.1 Functions and configuration 7
1
Communication specifications
Communication specifications of CC-Link IE TSN
*1 The communication cycle depends on the controller specifications and the number of the connected axes. The communication cycles of
31.25 μs and 62.5 μs can be used by servo amplifiers with firmware version A6 or later.
*2 There are restrictions on the communication cycle depending on the function used. For details, refer to "Function restrictions" in the
following manual.
MR-J5-G/MR-J5W-G User's Manual (Introduction)
*3 The communication speed can be set to 1 Gbps or 100 Mbps. 100 Mbps can be used with servo amplifiers with firmware version B6 or
later. When 100 Mbps is selected, the minimum communication cycle is 500 μs. When using 100 Mbps, set [Pr. NPA12 Communicaton
speed] to "1h". For details, refer to "Network basic parameters" in the following manual.
MR-J5-G/MR-J5W-G User's Manual (Parameters)
*4 The cycle of the cyclic transmission must match the communication cycle. When using GX Works3, select "Communication Period
Setting" in "Module parameter (network)", then modify "Basic Period Setting".
Item Description Remark
Physical layer 1000BASE-T (1 Gbps), 100BASE-TX (100 Mbps) Twisted pair
Communication connector RJ-45 × 2 
Communication
cable
Cable type Category 5e or higher, (double shielded/STP) straight cable 
Standard One of the following standards must be met.
• IEEE802.3 1000BASE-T
• ANSI/TIA/EIA-568-B (Category 5e)
Connector RJ-45 shielded connector
Network topology Line, tree (star) 
Communication speed 1 Gbps, 100 Mbps *3 
Transmission distance between stations Max. 100 m 
Number of connection nodes Max. 254 stations The number of connection nodes depends on
the specifications of the controller.
Guaranteeing method of communication
bandwidth
Time division 
Synchronization method IEEE802.1AS, IEEE1588 
Communication
cycle *1 *2 *4
MR-J5-_G_ 31.25 μs, 62.5 μs, 125 μs, 250 μs, 500 μs, 1 ms, 2 ms, 4 ms,
8 ms
When setting the communication cycle to 31.25
μs, refer to the following.
Page 15 Motion mode (high-speed) setting
MR-J5W2-_G 62.5 μs, 125 μs, 250 μs, 500 μs, 1 ms, 2 ms, 4 ms, 8 ms 
MR-J5W3-_G 125 μs, 250 μs, 500 μs, 1 ms, 2 ms, 4 ms, 8 ms 
Cyclic transmission [Motion mode]
Communicates data cyclically between stations using PDOs.
• Maximum RPDO size: 80 bytes/axis
• Maximum TPDO size: 80 bytes/axis
• The servo amplifiers support variable PDO mapping.
Page 18 Cyclic transmission
Page 23 PDO mapping objects
Transient transmission [Motion mode]
Communicates data non-cyclically between stations using
SLMP and other protocols. SDOs can be used to read and
write objects of the servo amplifier.
Page 30 Transient transmission
Port No. No. 161: For system use
No. 5010: SLMP communication port (UDP/IP)
No. 45237: For system use
No. 45238: For system use
No. 45239: For system use


81 CC-Link IE TSN
1.1 Functions and configuration
Establishing and disconnecting the communication
Establishing the communication
Configure the system and set the parameters or rotary switches that are required for startup of the CC-Link IE TSN master
station and the servo amplifier. The communication will be established if the settings of the master station and the servo
amplifiers are made correctly. When the communication is established, the 7-segment LED display of the servo amplifiers
changes to "controller is connected".
Disconnecting the communication
■Procedure for disconnecting the communication
When shutting off the system power or disconnecting the servo amplifier from the network, be sure to disconnect after servo-
off. Failing to do so may trigger [AL. 086].
■Changing the communication configuration
Make sure that the servo amplifier is in servo-off state before changing the network configuration. Failing to do so may trigger
[AL. 086].
Summary of object dictionary (OD)
The data that a device holds, such as control parameters, command values, and feedback values, is handled as an object
composed of an Index, object name, object type, R/W attribute, and other elements. The data is exchanged between the
master and slave devices. The aggregate of these objects is called an object dictionary (OD).
Section definition of object dictionary
The following shows the structure of an object dictionary. Each axis (Axes A, B, and C) of single-axis servo amplifier and
multi-axis servo amplifier has the same object dictionary configuration.
The classification of the objects defined by Mitsubishi Electric is as follows.
Index Description Reference
1000h to 1FFFh Communication profile MR-J5-G/MR-J5W-G User's Manual (Object
Dictionary)
2000h to 5FFFh Objects group defined by Mitsubishi Electric
6000h to 9FFFh CiA 402 drive profile
Index Description Reference
2000h to 27FFh Servo parameter MR-J5-G/MR-J5W-G User's Manual (Object
Dictionary)
2800h to 29FFh Point table
2A00h to 2A7Fh Alarm
2B00h to 2BFFh Monitor
2C00h to 2C7Fh Diagnostics
2D00h to 2DFFh Manufacturer defined control Page 34 Controlword/Control DI
Page 40 Statusword/Status DO

1 CC-Link IE TSN
1.1 Functions and configuration 9
1
Saving object dictionary data
Some of object dictionary data is stored in a non-volatile memory and some is not. Use [Store parameters (Obj. 1010h)] for
storing the object dictionary data in the non-volatile memory.
For details about objects that can be stored in the non-volatile memory, refer to the following.
MR-J5-G/MR-J5W-G User's Manual (Object Dictionary)
■Store parameters
Writing "65766173h" (= reverse order of the ASCII code "save") to [Store parameters (Obj. 1010h: 01h)] enables the setting
value of an object to be stored in the non-volatile memory of the servo amplifier.
It can take up to around 25 s for [Save all parameters (Obj. 1010h: 01h)] to write all the parameters. Do not shut off the power
supply during writing.
Reading [Save all parameters (Obj. 1010h: 01h)] will produce the following values. Bit 0 is "0" during saving and "1" when not
saving.
Precautions
To shut off the power supply after executing Store parameters, make sure that a save is not in progress (Bit 0 is on), then shut
off the power.
■Restore default parameters
Objects can be reset to the factory setting.
To initialize objects, write "64616F6Ch" (= reverse order of the ASCII code "load") to [Restore all default parameters (Obj.
1011h: 01h)], then cycle the power. Writing a value other than "load" (= 64616F6Ch) triggers an error. Initialization can take up
to around 25 s.
Reading [Restore all default parameters (Obj. 1011h: 01h)] will display "00000001h" (command valid).
Engineering tool
The following explains the main purposes of the engineering tools used in communication. For specific usages, refer to the
manuals of the engineering tool and controller.
Engineering tool list
This list shows engineering tools used in CC-Link IE TSN.
Index Sub Object Name Data Type Access Description
1010h 0 ARRAY Store parameters U8 ro Number of entries
1 Save all parameters U32 rw Saves all parameters.
Bit Description
0 0: Object cannot be saved by the command (save in progress)
1: Object can be saved by the command (save not in progress)
1 0: Not automatically saved
Index Sub Object Name Data Type Access Description
1011h 0 ARRAY Restore default parameters U8 ro Number of entries
1 Restore all default parameters U32 rw All parameter initialization
Engineering tool Description
MR Configurator2 This is a software that has the following functions: servo amplifier adjustment, monitor display, diagnosis,
reading/writing of servo parameters, and test operation. These functions are performed using a personal
computer.
Settings, such as a stroke limit, absolute position detection system, communication error detection time, are
made with this software.
If using MR Configurator2 via a network, start MR Configurator2 from GX Works3. The servo amplifier and the
personal computer do not need to be connected with a USB cable because they communicate each other via the
controller.
GX Works3 This is a software that comprehensively supports the design and maintenance of the programmable controllers.
The software performs settings such as servo amplifier profile (CSP+) registration, network configuration setting
(station specific mode, link device setting, etc.), refresh setting, and network synchronization setting.

10 1 CC-Link IE TSN
1.2 Startup
1.2 Startup
Outline
This chapter describes the setting procedure for CC-Link IE TSN. Refer to the following for startup of the servo amplifier.
MR-J5-G/MR-J5W-G User's Manual (Introduction)
Precautions
To ensure the safety of the system against unauthorized network access, take security measures such as using a firewall.
Network setting
Set GX Works3 as required for the servo amplifier network settings, then configure the network. Set the master station and
servo amplifier of CC-Link IE TSN according to the following procedure.
If an alarm has occurred, refer to the following.
MR-J5 User's Manual (Troubleshooting)
1. Master station setting
Refer to the GX Works3 manual.
2. IP address setting
Set the IP address with the rotary switch.
MR-J5-G/MR-J5W-G User's Manual (Introduction)
Refer to the following when setting with parameters.
Page 13 IP address setting function
3. Network setting servo parameter setting
MR-J5-G/MR-J5W-G User's Manual (Parameters)
4. Network connection procedure
Page 11 Network connection procedure
Settings when connecting to Mitsubishi Electric Motion Unit
To control the stroke limit on the controller side, set [Pr. PD41]. For details, refer to the manual for the controller being used.
When using an absolute position detection system, set [Pr. PA03] and [Pr. PC29]. For details, refer to the manual for the
controller being used.
If necessary, set the following servo parameters in accordance with the controller settings.
Set [Pr. NPA12] for use in 100 Mbps. The initial setting is 1 Gbps.
Servo parameter Name
PD41.2 Limit switch enabled status selection
PD41.3 Sensor input method selection
Servo parameter Name
PA03.0 Absolute position detection system selection
PC29.5 [AL. 0E3 Absolute position counter warning] selection
Servo parameter Name
PN02 Communication error - Detection time
PN05 Communication error - Detection frequency setting
Network parameter Name
NPA12 Communication speed

1 CC-Link IE TSN
1.2 Startup 11
1
Network connection procedure
Follow the procedures below to set up the network.
1. Connect the master station and the servo amplifier with a network cable. There is no difference between CN1A and
CN1B.
2. Turn on the power of the master station and the servo amplifier.
3. Open the diagnostic screen of GX Works3 and make sure that there is no error in the network. If the network is not
connected, check the following contents.
• Check if an alarm has occurred in the servo amplifier. If an alarm occurs, refer to the following manual and cancel the
alarm.
MR-J5 User's Manual (Troubleshooting)
• Check the rotary switch. Make sure that the 4th octet of the IP address set by the master station matches the setting of the
rotary switches.
Network disconnection procedure
Refer to the following.
Page 8 Disconnecting the communication
Changing the network configuration
Refer to the following.
Page 8 Changing the communication configuration

12 1 CC-Link IE TSN
1.3 Application function
1.3 Application function
CC-Link IE TSN Network diagnostics
The servo amplifier supports the following CC-Link IE TSN Network diagnostic functions. Check the reference destination in
the reference column for precautions specific to the servo amplifier. Refer to the GX Works3 manual for details of other
functions.
Selected station communication status monitor
The detailed state of the currently selectable device on the network map monitor is displayed on the selected station
communication status monitor. The items displayed on the selected station communication status monitor are shown below.
In the selected station communication status monitor, CN1A is displayed as PORT2, and CN1B as PORT1.
Remote Operation
The only executable function on servo amplifiers is Reset. When Reset is executed to the servo amplifier, the servo amplifier
resets the software. For details on software reset, refer to "Software reset" in the following manual.
MR-J5 User's Manual (Function)
Function type Function Description Reference
Monitoring function of
network status
Network map monitor The current network connection configuration is displayed as a diagram.
Information such as the connection status of cables, duplication of IP address,
and the disconnection status of stations can be monitored.
The error history stored in the servo amplifier can be read and deleted. These
operations can be performed by servo amplifiers with firmware version B0 or
later.

Selected station
communication status
monitor
The details of the unit status and the communication status of the selected
station are displayed. If an error occurs in the unit, the cause of the error and its
remedies can be checked.
Page 12
Selected station
communication
status monitor
Setting change function
of network status
Reserved station
specification/
cancellation
This function designates a specified station as a reserved station, or cancels it. 
Selected Station
Operation
Remote Operation A reset command can be sent to the specified station. Page 12
Remote Operation
Setting item Description Reference
Status display The status of the servo amplifier is displayed via LED. MR-J5-G/MR-
J5W-G User's
Manual
(Introduction)
CC-Link IE TSN status display The CC-Link IE TSN status (CN1A/CN1B connector LED) is displayed.

1 CC-Link IE TSN
1.3 Application function 13
1
IP address setting function
IP addresses are delivered from the controller to servo amplifiers via CC-Link IE TSN.
Set the IP address required for CC-Link IE TSN communication from the following items. The IP address range is between
0.0.0.1 and 223.255.255.254. Set the IP address within the range.
The initial value of the IP address is as follows.
[Pr. NPA01 IP address
setting]
Rotary switches
(SW1/SW2)
IP address
"00000000h" (The rotary switch is
used.)
00h 1st octet Use the value of/for [Pr. NPA02 IP address].
2nd octet
3rd octet
4th octet
01h to FEh 1st octet Use the 1st to 3rd octet values of [Pr. NPA02 IP address].
2nd octet
3rd octet
4th octet The setting value of the rotary switch (SW1/SW2) is used.
FFh Not available.
"00000001h" (Network
parameters are used.)
1st octet Use the value of/for [Pr. NPA02 IP address].
2nd octet
3rd octet
4th octet
Item Initial value
IP address 192.168.3.1
Subnet mask 255.255.255.0

14 1 CC-Link IE TSN
1.3 Application function
Parameter automatic setting
The parameters of the servo amplifier are held by the master station, and are compared with those of the replaced servo
amplifier. When there is a difference in those parameters, the parameters held by the CPU module are automatically written to
the replaced servo amplifier.
Storage method of parameters
There are following two ways to store parameters in the master station.
• If data in the non-volatile memory of the servo amplifier are rewritten by the engineering tool, the parameters in the CPU
module are also updated automatically.
• If differences from the previously stored parameters are found in a periodical check, the parameters in the CPU module are
also updated automatically (Set an interval in [Pr. PN20 Parameter automatic backup update interval] for that periodical
check).
Parameters that can be stored
The parameters that can be written on the servo amplifier and stored with this function are as follows.
• Servo parameter
• Network parameters
Precautions
• When the parameter that requires power cycling after being set is changed by the parameter automatic setting, [AL. 09E.7
Parameter unreflected warning] occurs. Cycle the power of the servo amplifier.
• Do not turn off the power supply of the controller during backup. Before turning off the power supply of the controller, check
the rewrite-status of the parameter file of the slave station by using the event history function of the controller.
• Parameters that are automatically updated by the servo amplifier, such as auto tuning data, may not match the data stored
in the slave station parameter file on the controller. To match the data, first read the servo amplifier parameters using MR
Configurator2 or other engineering tools, then reflect the readings on the slave station parameter file on "Detail Setting" in
"Parameter Automatic Setting" of GX Works3 before writing the readings to the controller again. Or, set [Pr. PN20
Parameter automatic backup update interval] so that the data can be backed up in the master station periodically.
• If performing automatic backup with the interval set in [Pr. PN20], use a master station which features power interruption
protection. Failing to do so triggers [AL. 19E.1 Parameter automatic backup setting warning]. At this time, the automatic
backup is disabled.

1 CC-Link IE TSN
1.3 Application function 15
1
Hold/Clear of output at CPU STOP and at CPU stop error
This function sets Hold/Clear of the auto refresh device output when CPU module operation of the cyclic master is at STOP or
at CPU stop error.
The following shows the servo amplifier status at CPU STOP and at stop error.
Motion mode
■Motion control axis
The servo amplifier stops the servo motor in the manner commanded by the controller.
■Motion non-control axis
The servo amplifier decelerates the servo motor to a stop.
Remote reset
Resetting can be done by sending the reset command to the specified station.
The reset command can be sent from the Remote Operation window of GX Works3.
Refer to the following for details.
Page 12 Remote Operation
Clock function
This function is used to acquire time information from the grand master (the station serving as a clock source) via CC-Link IE
TSN so that this information may be used for the time management of functions performed by the servo amplifier, such as
alarm history. The time synchronization protocol for the grand master and the servo amplifier uses IEEE1588 or
IEEE802.1AS.
Motion mode (high-speed) setting
The following explains the setting method of the motion mode (high-speed) that enables a communication cycle of 31.25 μs
between a master station (Motion module) and a slave station (servo amplifier).
• The communication cycles of 31.25 μs and 62.5 μs can be used by servo amplifiers with firmware version
A6 or later.
• [AL. 09E.2 Communication cycle setting warning] occurs when using a 31.25 μs connection to
communicate with a servo amplifier that does not have [Pr. PA01.7 High-speed mode selection] set to "1"
(enabled).
• When the communication cycle is set to 31.25 μs, the maximum size of RPDO is limited to 12 bytes, and the
maximum size of TPDO is limited to 22 bytes. If the setting is large, [AL. 09E.3 Number of cyclic points
warning] occurs.
Setting method
1. Configure the master station network settings with GX Works3.
2. Select unit parameter (network) from the unit information of the Motion module, and open the network configuration
settings.
3. Set "Motion mode (high-speed)" in the station specific mode setting when setting the network configuration.
4. After changing the station specific mode setting, set [Pr. PA01.7 High-speed mode selection] of the servo parameter to
"1" (enabled).

16 2 APPENDIX
2.1 CC-Link IE TSN
2APPENDIX
2.1 CC-Link IE TSN
CC-Link IE TSN communication protocol
Communication management
The communication state of the slave unit in CC-Link IE TSN is broadly classified as being either an "initialization phase" or an
"under control communication phase" and then managed.
■Communication state management of the motion mode
The motion mode of the servo amplifier support CANopen profile.
For devices that support the CANopen profile, the communication state of CC-Link IE TSN is managed by the Network
Management (NMT) state machine.
• Communication state
The NMT state machine manages the four states shown below (Init, Pre-Operational, Safe-Operational, and Operational).
The communication state transitions in each slave station. For multi-axis servo amplifiers, the communication state transitions
in the whole station (common to all the axes).
The state transition diagram of the NMT state machine is as follows.
The servo amplifier transitions the communication state by receiving the SLMP command (NMT State Download) from the
master station or by other means.
State Main processing details
Init Operates in accordance with the procedures performed in "initialization phase" of CC-Link IE TSN, such as
management master mediation, connection structure detection, propagation delay measurement, communication
band setting. The servo motor cannot be operated.
Pre-Operational The master station (the Motion module) and the slave station (the servo amplifier) send and receive SDOs with
transient transmission, and get ready to start or to resume operation by setting the control mode and PDO mappings
as well as performing other preparations. The servo motor cannot be operated. Refer to the following for transient
transmission.
Page 30 Transient transmission
Safe-Operational The master station (the Motion module) and the slave station (the servo amplifier) send and receive PDOs with cyclic
transmission.
The servo motor cannot be operated. Refer to the following for cyclic transmission.
Page 18 Cyclic transmission
Operational The master station (the Motion module) and the slave station (the servo amplifier) send and receive PDOs with cyclic
transmission.
The servo motor can be operated.
Pre-Operational
Safe-Operational
Init
Operational
(1)
(3)(2)
(4)(5) (7)
(8) (11)
(6)(9)
(10)
Initialization
phase
Under control
communication
phase

2 APPENDIX
2.1 CC-Link IE TSN 17
2
The controller and the servo amplifier perform the following procedure to establish communication (transition to
"Operational").
■SLMP command
The SLMP commands used in communication state management are as follows.
*1 The command is executed in the whole station (common to all axes), even if the command is issued to a specific axis of a multi-axis
servo amplifier.
Transition No. Operation
(1) Power-on
(2) During the transition from the initialization phase to the control communication phase of CC-Link IE TSN, the servo amplifier transitions
from "Init" to "Pre-Operational".
(3) When the master station issues NMT State Download (SLMP) for "Init" to the servo amplifier, or when a communication time-out occurs,
the servo amplifier transitions from "Pre-Operational" to "Init".
(4) When the master station issues NMT State Download (SLMP) for "Safe-Operational" to the servo amplifier, the servo amplifier
transitions to "Safe-Operational". The master station performs control mode setting and PDO mapping setting on the servo amplifier.
(5) When the master station issues NMT State Download (SLMP) for "Operational" to the servo amplifier, the servo amplifier transitions to
"Operational". When PDO mapping setting is not performed on the servo amplifier, the state transitions on this route.
(6) When the master station issues NMT State Download (SLMP) for "Init" to the servo amplifier, or when a communication time-out occurs,
the servo amplifier transitions from "Safe-Operational" to "Init".
(7) When the master station issues NMT State Download (SLMP) for "Pre-Operational" to the servo amplifier, the servo amplifier transitions
to "Pre-Operational". The servo motor becomes operable.
(8) When the master station issues NMT State Download (SLMP) for "Operational" to the servo amplifier, the servo amplifier transitions to
"Operational".
(9) When the master station issues NMT State Download (SLMP) for "Init" to the servo amplifier, or when a communication time-out occurs,
the servo amplifier transitions from "Operational" to "Init".
(10) When the master station issues NMT State Download (SLMP) for "Pre-Operational" to the servo amplifier, the servo amplifier transitions
to "Pre-Operational".
(11) When the master station issues NMT State Download (SLMP) for "Safe-Operational" to the servo amplifier, the servo amplifier
transitions to "Safe-Operational".
No. Command name Command Sub command Description
1 NMT State Upload *1 4020h 0007h NMT State reading
2 NMT State Download *1 4020h 0008h NMT State writing

18 2 APPENDIX
2.1 CC-Link IE TSN
Cyclic transmission
Cyclic transmission is a function that cyclically exchanges data between stations.
Cyclic transmission of motion mode
Cyclic transmission of the motion mode is a function that uses PDOs to cyclically exchange data between stations.
A PDO is an aggregate of objects such as [Modes of operation (Obj. 6060h)] and [Modes of operation display (Obj. 6061h)].
The placement of objects in a PDO is called PDO mapping, and the initial placement (default PDO mapping) is defined. The
PDO received by each station is called an RPDO, and the PDO transmitted by each station is called a TPDO. On multi-axis
servo amplifiers, PDOs are sent and received by each axis.
PDOs are transferred using the cyclic Ms frame (from the master station to the slave station) and the cyclic Ss frame (from the
slave station to the master station).

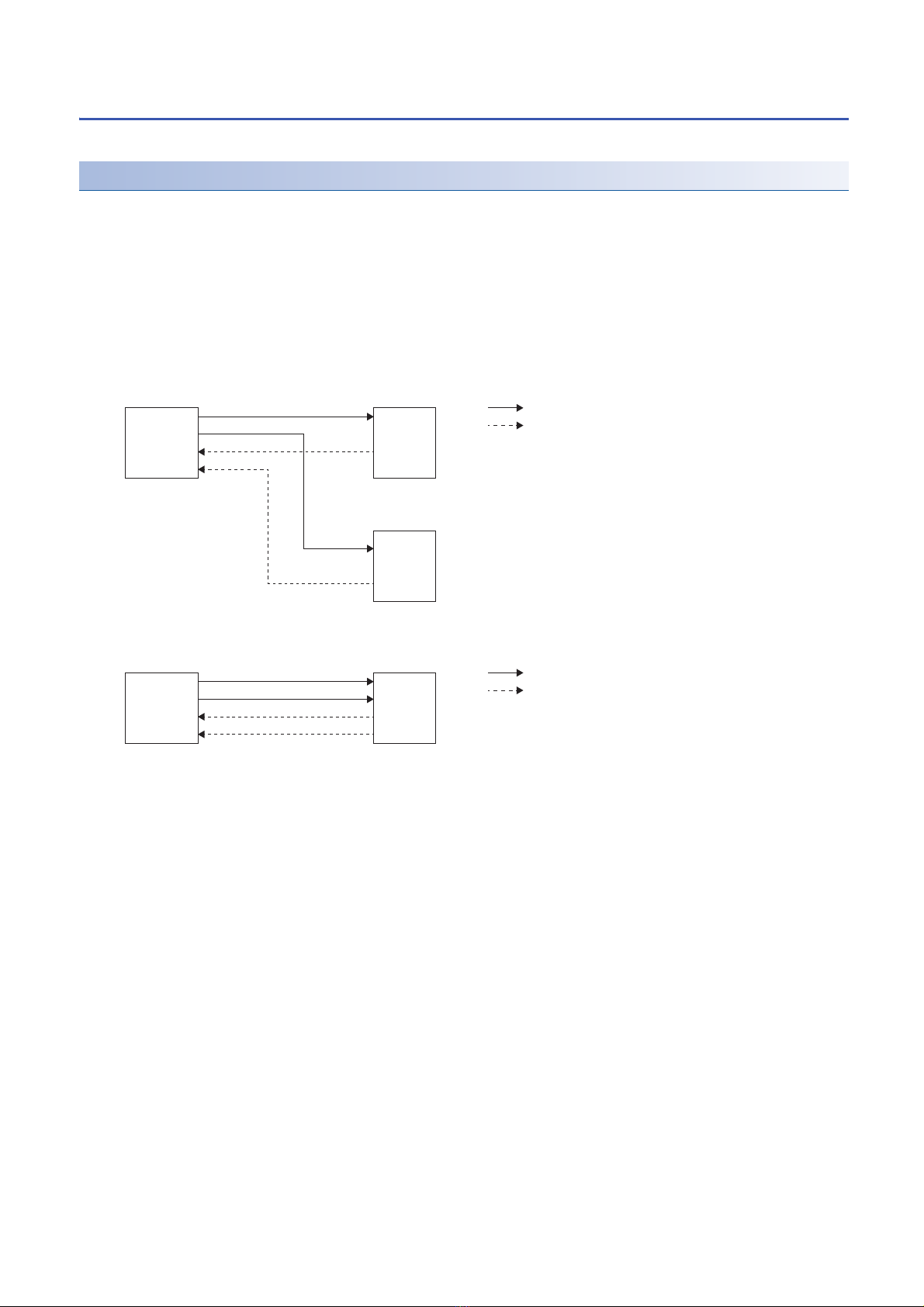

A conceptual figure of communication between a master station and slave stations (1-axis) is shown below.
A conceptual figure of communication between a master station and slave stations (multi-axis) is shown below.
RPDO1
RPDO2
TPDO1
TPDO2
RPDO1
RPDO2
TPDO1
TPDO2
Axis 1 TPDO1
Axis 2 TPDO1
Axis 1 RPDO1
Axis 2 RPDO1
Station 1
Station 2
Station 1
Station 2
Master station
(Controller)
Slave station 1
(1-axis servo amplifier)
: Ms (from the master to the slave)
: Ss (from the slave to the master)
Slave station 2
(1-axis servo amplifier)
RPDO1
RPDO2
TPDO1
TPDO2
Axis 1 TPDO1
Axis 2 TPDO2
Axis 1 RPDO1
Axis 2 RPDO2
Station 1
Station 1
Station 1
Station 1
Master station
(Controller)
Slave station 1
(Multi-axis servo amplifier)
: Ms (from the master to the slave)
: Ss (from the slave to the master)
