Mitsubishi Electric Ecodan EHSC-VM6D-CN User manual

Hydrobox |空气源（热泵）热水机组
EHSC-VM6D-CN
使用说明书
为安全且正确使用，请在操作空气源（热泵）热水机组之前仔细阅读本使用说明书。
适用于用户 中文
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating
the hydrobox.
English
FOR USER

1
zh
目录
1. 安全注意事项............................................... 2
2. 前言 ............................................................. 2
3. 自定义您家的设置........................................ 4
4. 服务和维护................................................... 7
5. 序列号.......................................................... 8
6. 含有有害物质的信息 .................................... 8
缩写和术语表
No. 缩写 /单词 说明
1外温联动出水温曲线模式 结合室外温度补偿的采暖模式
2 COP 热泵的性能系数
3冻结防止功能 防止水管冻结的制热控制程序
4 FTC 水温控制器，负责控制系统的电路板
5制热模式 通过热量发射器或地板制热的采暖模式
6空气源（热泵）热水机组 将室外热泵机组热量传递给热水采暖管路的室内机组
7PRV 减压阀
8回水温度 从主回路返回的水的温度
9分体式 板式热交换器（制冷剂 -水）、室内机和室外机分开的空调机组

2
安全注意事项
1
zh
警告
●禁止由用户安装或维修该设备。如果安装不正确，可能会导致漏水、触电和火灾。
●切勿阻挡紧急阀门的排放。
●在紧急阀门和恒温切断装置无法操作的情况下，请勿操作本机。如有疑问，请联系安装人员。
●请勿站立或斜靠在设备上。
●请勿将物体放置在设备上方或下方，当在设备旁放置物体时，请注意维修所需的空间。
●请勿用湿手触摸本机或控制器，否则可能会导致触电。
●请勿卸下设备的面板或尝试将物体强行插入设备的外壳内。
●请勿触摸突出的管道，因为它可能非常烫，并会导致身体灼伤。
●如果设备开始振动或发出异响，请停止操作、将其与电源分离并联系安装人员。
●如果设备开始发出燃烧的气味，请停止操作、将其与电源分离并联系安装人员。
●如果明显有水通过中间包排出，请停止操作、将其与电源分离并联系安装人员。
●本产品不适合由身体、感官或精神能力下降、或缺乏经验和知识的人（包括儿童）使用，除非他
们在使用本产品时受到负责其安全的人员的监督或指导。
●应对儿童进行监督，以确保他们不会使用本产品。
●在制冷泄漏的情况下，请停止设备的操作，使房间彻底通风，并联系安装人员。
●如果电源线损坏，必须由制造商、其服务代理商或类似的合格人员进行更换，以避免危险。
●请勿将装有液体的容器放在设备上方。如果液体泄漏或溢出，可能会损坏设备并可能发生火灾。
●安装、移位或维修空气源（热泵）热水机组时，只能使用指定的制冷剂（R410A）填充制冷剂管路。
请勿将其与其他任何制冷剂混合，也不要让空气留在管道中。如果空气与制冷剂混合，则会引起
制冷剂管路中的异常高压，并可能导致爆炸和其他危险。
对系统使用除规定之外的其他任何制冷剂将导致机械故障、系统故障或设备故障。在最坏的情况
下，这可能会对保障产品安全造成严重阻碍。
●在制热模式下，为避免地暖（散热器）被过热的水损坏，请将目标水温设置为比所有地暖（散热器）
最高允许温度至少低 2℃。
●本产品主要供家庭使用。对于商业应用，该产品旨在供商店、轻工业和农场中的专业或受过培训
的用户使用，或供非专业人员进行商业使用。
注意
●请勿使用尖锐物体按下主遥控器的按钮，否则将会损坏按钮。
●如果要长时间关闭设备电源，需排干水。
●请勿在顶部面板上放置装满水的容器等。
• 使用本机时，请遵守本手册中的说明和当地法规。
►在操作本机之前，请务必阅读安全注意事项。
►请遵守以下提供的安全点，以防止对你造成伤害或损坏设备。
本手册中使用的符号
警告 ：
请遵守该标题下列出的注意事项，以避免导致
用户受伤或死亡。
注意 ：
请遵守该标题下列出的注意事项，以避免导致
设备损坏。
本用户手册的目的是告知用户空气源热泵制热系
统如何工作、如何以最有效的方式运行系统以及
如何更改主遥控器上的设置。
本产品不适合由身体、感官或精神能力下降、或
缺乏经验和知识的人（包括儿童）使用，除非他
们在使用本产品时受到负责其安全的人员的监督
或指导。
应对儿童进行监督，以确保他们不会使用本产品。
本用户手册应与本机一起保存或放在易于取用的
场所，以备将来参考。
前言
2

3
zh
前言
2
2 kW
3 kW
1 kW
来自环境的低温可再生热能
电能输入
热能输出

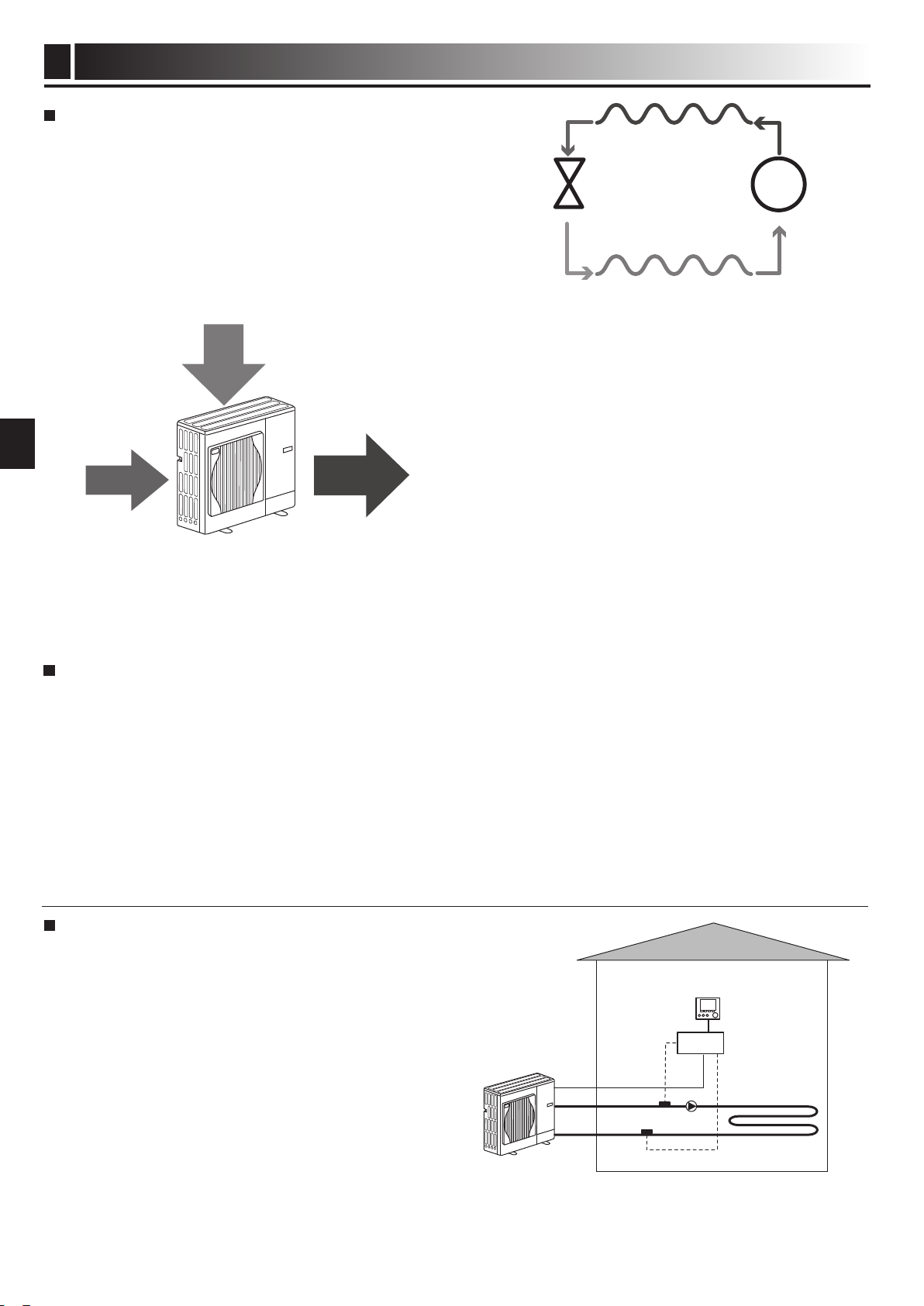

热泵如何工作
采暖模式
热泵使用电能和来自室外空气的低等级热能加热
制冷剂，再由制冷剂加热水以进行采暖制热。热
泵的效率被称为性能系数或 COP，是传递的热量
与消耗的功率之比。
热泵的操作类似于冰箱的反向操作。该过程被称
为蒸气压缩循环，以下为更详细的说明。
第一阶段始于制冷剂变冷和低压。
1. 回路中的制冷剂在通过压缩机时被压缩。其
变成热的高压气体。温度通常会升至 60℃。
2. 热的制冷剂气体在通过板式换热器的一侧时
冷凝。来自制冷剂气体的热量传递到换热器
的冷却器侧（水侧）。随着制冷剂温度降低，
其状态从气体变为液体。
3. 此时其作为冷却的液体仍具有高压。为了降
低压力，液体将通过膨胀阀。压力下降，但
制冷剂仍为冷却的液体。
4. 循环的最后阶段是制冷剂进入蒸发器并蒸发。
正是在这一阶段，外部空气中的部分自由热
能被制冷剂吸收。
只有制冷剂才能通过此循环 ；水在通过板式换热
器时会被加热。来自制冷剂的热能通过板式换热
器传递给较冷的水，使其温度升高。该已加热的
水进入主回路并循环，供采暖制热系统使用。
最经济的做法
 空气源热泵可以全年提供采暖制热。该系统
与传统的化石燃料制热系统不同。如前言中
所述，热泵的效率以其性能系数表示。为了
实现制热系统最高效、最经济的运行 , 应注
意以下几点。
·在大多数情况下，最好使用室温模式进行采暖
制热。这使得热泵能够利用专门的三菱电机
控制器检测当前的室温并以受控的方式对变
化作出反应。
·使用定时开关和度假模式功能可防止在工作日
中已知性能未被占用时不必要的采暖制热。
·由于流动温度较低 ,热泵制热系统应在地板下
的大面积制热中使用。这将为房间提供稳定
的热量，同时提高效率，从而降低系统的运
行成本，因为热泵无需产生流动温度非常高
的水。
4. 蒸发器
（室外机组空气换热器）
2. 冷凝器
（板式换热器）
1. 压缩机
3. 膨胀阀
返回水温传感器
水温传感器
室外温度
传感器
FTC
控制概述
水温控制器（FTC）内置于空气源（热泵）热水
机组中。该装置控制室外热泵机组和空气源（热
泵）热水机组的功能。先进技术意味着通过使
用水温控制控制的热泵，不仅与传统化石燃料
型制热系统相比，甚至与市场上的许多其他热
泵相比，您也能节省成本。
正如前面部分“热泵如何工作”所述，热泵在
提供低温水时效率最高。水温控制先进技术可
将室温保持在所需水平，同时利用热泵的最低
水温。
在室温（自动调整）模式下，控制器使用制热
系统周围的温度传感器来监测空间和水流温度。
该数据被控制器定期更新并与先前的数据进行
比较，以预测室温的变化并相应地调节流向采
暖制热回路的水的温度。通过不仅监测室外环
境，还同时监测房间和制热回路的水温，制热
更为一致，并且减少了所需热量输出的突然峰
值。从而实现了仅需要较低的整体水流温度。

自定义您家的设置
3
4
zh
F1 F2 F3 F4
主遥控器
B C D
E
A
10 921
13 12
主屏幕
如需更改制热系统的设置，请使用位于空气源（热
泵）热水机组前面板上的主遥控器。以下将指导
您如何查看主要设置。如果您需要更多信息，请
联系您的安装人员或当地的三菱电机经销商。

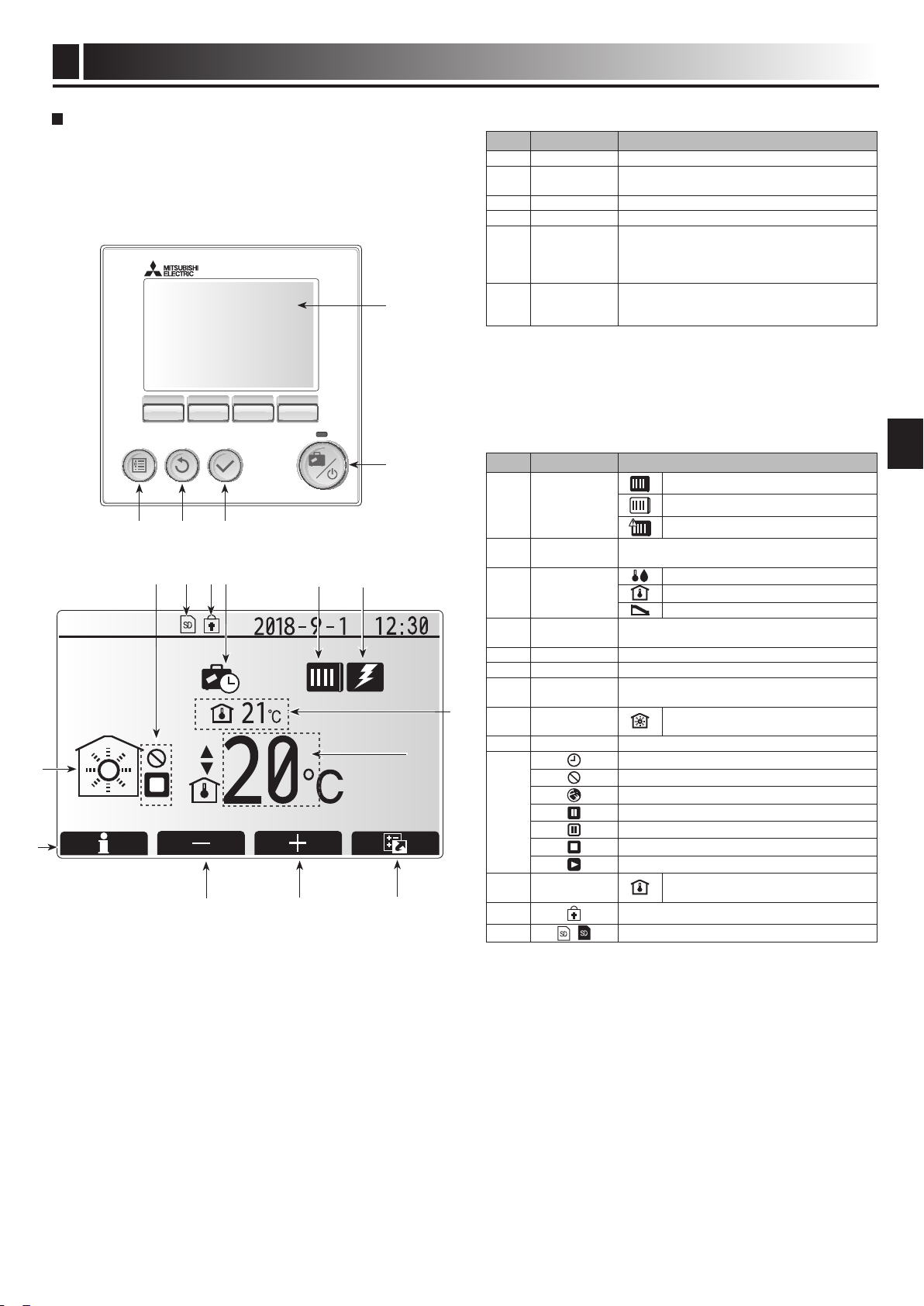

<主遥控器部件 >
字母 名称 功能
A屏幕 显示所有信息的屏幕。
B菜单 访问系统设置以进行初始设置和修改。
C后退 返回上一级菜单。
D确认 用于选择或保存。（回车键）
E电源 /
度假模式
如果系统关闭，按一次将启动系统。
系统打开时再次按下将启用度假模式。
按住按钮 3秒钟将关闭系统。(*1)
F1-4 功能键 用于滚动菜单和调整设置。功能由屏
幕A上可见的菜单画面决定。
*1
当系统关闭或电源断开时，室内机组保护功能（例如冻结
防止功能）将不会运行。请注意，如果没有启用这些安全
功能，室内机组可能会受到损坏。
<主屏幕图标 >
图标 说明
1热泵 “热泵”正在运行。
除霜
紧急制热
2辅助电加热 显示此图标时，正在使用“辅助电加
热”（辅助电加热器）。
3目标温度 目标水温
目标室温
外温联动出水温度曲线
4选项 按下此图标下方的功能按钮将显示选
项画面。
5+增加所需的温度。
6-降低所需的温度。
7信息 按下此图标下方的功能按钮将显示信
息画面。
8空间采暖模
式采暖模式
9度假模式
当显示此图标时，“度假模式”被激活。
10 定时开关设定
禁止中
服务器控制
待机
待机（*2）
停止
运行中
11 当前温度 当前室温
12 菜单按钮在选项画面中被锁定。(*3)
13 SD 存储卡（不适用于用户）已插入。
*2 该设备处于待机状态，且其他室内机组优先运行。
*3 如需锁定或解锁菜单，同时按住后退和确认键 3秒。
屏幕上显示的中文字体的版权属于 MORISAWA INC.。
8
3
654
11
7

自定义您家的设置
3
5
zh
制热
图标 说明
[制热 ]
[定时开关 ]
[度假模式 ]
[初始设定 ]
[服务 ]
选项画面
主设置菜单画面
<选项画面 >
此画面显示系统的主要运行模式。
使用功能按钮在采暖的运行中（►）、禁止中
（ ） 和定时开关设定（ ）、或能源或容量的
详细信息中切换。
选项画面允许以下内容的快速设置 ：
●采暖运行模式—按下 F3 更改模式（*1）
●能源监视器
显示以下累计能源值。
：总电力消耗（当月累计）（*2）
：总输送热能（当月累计）
如需监控 [当月累计 /上月 /上上个月 /本年
累计 /去年 ]的各运行模式的能源值，按下 F4
访问能源监视器菜单。
*1 当指示服务器控制（ ）时，模式（运行中（►）、
禁止中（ ）和定时开关设定（ ））无法通过
F3 更改。按住 F3 键3秒以激活操作。
*2 需使用外部电气仪表来指示消耗的电能。
注释 ：
如果监控需要一定的精度，则应设置显示接收的
来自外部电气仪表的数据的方法。有关详细信息，
请联系您的安装人员。
主设置菜单
如需访问主设置菜单，请按下按钮 B“菜单”
将显示以下菜单 ：
●[ 制热 ]
●[ 定时开关 ]
●[ 度假模式 ]
●[ 初始设定 ]
●[ 服务 ]（保密密码）
主页画面
一般操作
在一般操作中，主遥控器上显示的画面如右图
所示。
该画面显示目标温度、采暖模式、正在使用的
任何其他热源、度假模式以及日期和时间。
您可以使用功能按钮来访问更多信息。显示该
画面时，按下 F1 将显示当前状态，按下 F4 将
使用户进入选项菜单画面。

自定义您家的设置
3
6
zh
区域 1
制热
区域 1
外温联动出水温
曲线
[初始设定 ]
1. 在主设置菜单中，使用 F2 和F3 按钮高亮显示
“初始设定”图标，然后按下确认进行选择。
2. 使用 F1 和F2 按钮滚动菜单列表。所需标题高
亮显示后，按下确认进行编辑。
3.使用相关功能按钮编辑每个初始设定，然后按
下确认以保存设定。
可编辑的初始设定为
●[ 日/时]*务必将其设定为当地标准时间。
●[ 语言 ]
●[ 夏令时 ]
●[ 温度显示 ]
●[ 服务号码 ]
●[ 时间显示 ]
●[℃/℉]
●[ 室内感温器设定 ]
如需返回主设置菜单，请按下后退按钮。
制热
制热菜单使用通常的地板下制热系统处理采暖，
具体取决于安装。
有 3 种制热模式
●制热室温（自动调整）（ ）
●制热水温（ ）
●制热外温联动出水温曲线（ ）
< 室温（自动调整）模式 >
该模式在“控制概述”部分（第 3 页）中详细说明。
< 水温模式 >
流向制热回路的水温由安装人员设定，以最佳地
适应采暖系统设计和用户期望的要求。
外温联动出水温曲线的说明
在春末和夏季，对采暖的需求通常会减少。为防
止热泵为主回路带来过高的水温，可以使用外温
联动出水温曲线模式来实现效率最大化并降低运
行成本。
外温联动出水温曲线用于根据室外温度限制主采
暖回路的水温。水温控制使用室外温度传感器和
来自主回路电源的温度传感器的信息，以确保在
天气条件不需要的情况下热泵不会产生过高的水
温。
您的安装人员将根据当地条件和您家中使用的采
暖类型设置图形的参数。您无需更改这些设置。
但是，如果您发现在合理的运行期间采暖不制热
或使您的房屋过热，请联系您的安装人员，以便
他们检查您的系统是否有任何问题，并在必要时
更新这些设置。
 ：水 温
：室外温度阈值

制热
定时开关1
定时开关2
4月 10月
1月 12月
11月 3月
制热
自定义您家的设置
3
7
zh
[定时开关 ]
可以以两种方式设定定时开关，例如一个用于夏
季、另一个用于冬季。（分别参阅“定时开关 1”
和“定时开关 2”。）一旦指定了定时开关 2的期
限（月份），剩余的期限将被指定为定时开关 1。
在每个定时开关中，可以设定一种模式（制热）
的运行模式。如果没有为定时开关 2设定运行模
式，则仅有定时开关 1的模式有效。如果定时开
关2设定为全年（例如三月至二月），则仅有定
时开关 2的模式有效。
在选项画面中激活或停用定时开关。（见“一般
操作”章节）

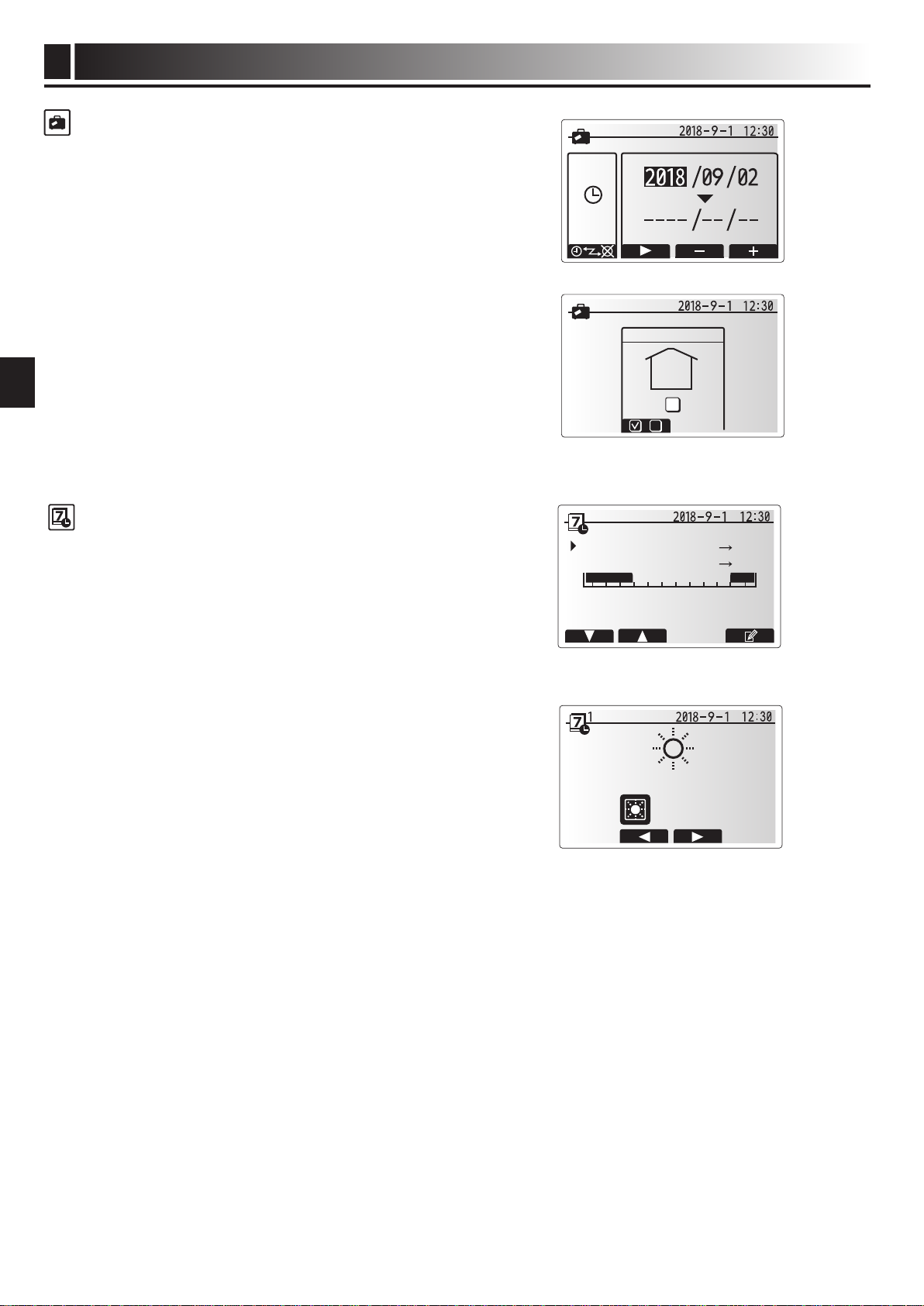

<设定定时开关时段 >
1. 在主设置菜单中，使用 F2 和F3 高亮显示定
时开关图标，然后按下确认。
2. 将显示定时开关时段预览画面。
3. 如需更改定时开关时段，请按下 F4 按钮。
4. 将显示时间栏编辑画面。
5. 使用 F2/F3 按钮以指向定时开关 2的开始月份，
然后按下确认。
6. 使用 F2/F3 按钮以指向定时开关 2的结束月份，
然后按下确认。
7. 按下 F4 保存设定。
<设定定时开关 >
1. 在主设置菜单中，使用 F2 和F3 高亮显示定
时开关图标，然后按下确认。
2. 在定时开关 2时段预览画面中使用 F1 和F2 依
次滚动通过按下确认选择的每个子标题。
3. 将显示定时开关子菜单。图标表示以下模式 ：
●[ 制热 ]
4. 使用 F2 和F3 按钮在模式图标间移动，按下
确认以显示各个模式的预览画面。
预览画面允许您查看当前设定。周几显示在画面
顶部。所有显示下划线的日期的设定都相同。
日夜的小时数显示为画面中央的条形图。黑色部
分为允许采暖。
定时开关 1模式选择画面
定时开关 2时段预览画面
[度假模式 ]
度假模式可用于使系统在较低的水温下运行，从
而在性能未被占用时减少耗电量。度假模式可以
在水温、室温、制热、外温联动出水温曲线制热
的情况下以降低的水温运行，以在使用者不在时
节省能源。
在主菜单画面中，请按下按钮 E。注意请勿按下
按钮 E太久，否则将会关闭控制器和系统。
显示度假模式激活画面后，您可以激活 /停用度
假模式并选择您希望度假模式运行的持续时间。
●按下按钮 F1 以激活或停用度假模式。
●使用按钮 F2、F3 和F4 输入您希望激活或停用
用于采暖的度假模式的日期。
<编辑度假模式 >
请参阅安装手册的“主遥控器”中的菜单树。
如果您需要更改度假模式设定，例如水温、室温，
请联系您的安装人员。

区域1
区域1
区域1
周1周2周3周4周5周6周7
区域1
周1周2周3周4周5周6周7
自定义您家的设置
3
8
zh
时段设定画面 1
时段设定画面 2
9. 将显示时间栏编辑画面。
10. 使用按钮 F2/F3 进行移动，以指向您不希望
所选的模式激活的位置，按下确认以启动。
11. 使用 F3 按钮设定所需的非活动时间，然后按
下确认。
12. 您可以在 24 小时间隔内添加最多 4个非活动
时段。
13. 按下 F4 保存设定。
在定时制热时，按钮 F1 可在时间和温度间更改
定时变量。这使得可在数小时中设定一个较低的
温度，例如在夜间当居住者睡眠时可能需要一个
较低的温度。
注释 ：
●用于采暖的定时开关以相同的方式设定。
●还将显示一个小垃圾箱符号，选择该图标将删
除上一个未保存的操作。
●需使用保存功能 F4 按钮保存设定。在该菜单中，
确认不用作保存。
预览画面
周几选择画面
5. 在预览菜单画面中按下 F4 按钮。
6. 首先选择您希望预定一周中的哪几天。
7. 按下 F2/F3 按钮在日期间移动，并按下 F1 勾
选或取消勾选复选框。
8. 选定日期后，按下确认。

服务和维护
4
9
zh
服务和维护
4
[服务 ]菜单
服务菜单受密码保护，以防止未经授权 /不合格的人员对运行设定进行意外更改。
故障排除
下表为可能发生的问题的指南。其并不保证详尽，所有问题都应由安装人员或其他合格人员进行调查。
用户不应尝试自行修复系统。
系统在任何时候都不应该使用旁路或插入的安全设备进行操作。
故障症状 可能的原因 解决方法
制热系统无法达到设定
温度。
选择了禁止、定时或度假模式 检查设定并进行适当更改。
地板制热尺寸不正确 请联系安装人员。
感温器所在的房间与其他房间的温度不
同。
将感温器重新放置在更合适的房间。
定时功能禁止系统运行
但室外机组运行。
冻结防止机能已启用。 正常运行，无需操作。
水泵在没有原因的情况
下短时间运行。
水泵防堵塞机制防止水垢堆积。 正常运行，无需操作。
听到来自室内机组的机
械噪音
热泵打开 /关闭 正常运行，无需操作。
管道噪音 空气混入系统 尝试对地暖（散热片）放气（如果有），如果症状持续，
请联系安装人员。
管道松动 请联系安装人员。
水从一个安全阀排出 系统过热或超压 关闭热泵和辅助电加热器的电源，然后联系安装人员。
少量水从一个安全阀滴
下。
污垢可能会阻碍阀门的紧密密封 沿指示的方向扭转阀盖，直到听到咔嗒声。这将从阀
门释放少量水冲洗污垢。需非常小心，释放的水会很
烫。如果阀门继续滴水，请联系安装人员，因为橡胶
密封件可能已损坏并需要更换。
主遥控器显示屏中将出
现错误代码。
室内或室外机组报告异常情况 记下错误代码编号并联系安装人员。
<电源故障 >
在没有电源的情况下，所有设定将会保存 1周，1周后将仅保存日 / 时。
<排干空气源（热泵）热水机组 >
警告 ：排出的水可能非常烫
1.在尝试排干空气源（热泵）热水机组前，将其与电源断开，以防止辅助电加热器烧坏。
2.将空气源（热泵）热水机组与主水路断开，并对其进行排水。使用合适的耐热软管来协助这些操作。
3.使用安装好的排放旋塞和软管排出辅助电加热器中剩余的水，以安全地排干设备。
4.排干空气源（热泵）热水机组后，水会残留在以下组成部件中。通过检查部件内部以彻底排干水。
●过滤器（取下过滤器盖。）
●减压阀（操作阀门。）
序列号
5序列号 5
■序列号显示在规格铭牌上。
制造年份（西历）：2018 8, 2019 9
制造月份 ：A (1)，B (2)，C (3)，D (4)，E (5)，F (6)，G (7)，H (8)，J (9)，K (10)，L (11)，M (12)
每个单元的序列号 ：00001–99999

序列号
5
10
zh
含有有害物质的信息
6
产品中有害物质名称及含量
部件名称
压缩机及其配件
制冷剂
电机
换热器
管路件
阀类
螺钉等紧固件
其他金属件
控制器及电器件
隔音材料
泡沫
其他塑料件
橡胶件
电源线及连接线
包装印刷组件
电池
铅
(Pb)
本表格依据
SJ/T 11364 的规定编制
: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。
: 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。
汞
(Hg)
镉
(Cd)
六价铬
（Cr(VI)）
多溴联苯
（PBB）
多溴二苯醚
（PBDE）
有害物质
注：* 含量表中的部件为不同型号产品的主要部件汇总，本产品是否包含该部件，以产品的实际配置为准。
* 含量表中未列出的产品其它部件以及其均质材料，均不含有有害物质。
* 含量表中含有害物质的所有部件以及其均质材料，均符合欧盟
RoHS 对有害物质限制使用的严格要求，请放心使用。
根据《电器电子产品有害物质限制使用管理办法》，该标记适用于在中国销售的电器
电子产品，其中的数字为产品的环保使用期限。只要遵守本产品在安全和使用方面的
注意事项，从生产日算起的环保使用期限内不会造成环境污染或对人体、财产产生深
刻的影响。
注 ) 产品正常使用废弃后，应按照国家和地方的法律法规完成该电器电子产品的回收
和再利用。
(1) 电器电子产品有害物质限制使用标识
(2) 产品中有害物质的名称及含量
本产品中所含有的
6 种有害物质的名称、含有信息及含有部件如下表所示。

1
en
Contents
1. Safety Precautions ........................................... 2
2. Introduction....................................................... 2
3. Customising Settings for Your Home............. 4
4. Service and Maintenance................................. 8
5. Serial number.................................................... 8
Abbreviations and glossary
No. Abbreviations/Word Description
1 Compensation curve mode Space heating incorporating outdoor ambient temperature compensation
2 COP Coefcient of Performance the efciency of the heat pump
3 Freeze stat. function Heating control routine to prevent water pipes freezing
4 FTC Flow temperature controller, the circuit board in charge of controlling the system
5 Heating mode Space heating through radiators or Underoor heating
6Hydrobox Indoor unit housing the component plumbing parts
7PRV Pressure relief valve
8 Return temperature Temperature at which water is delivered from the primary circuit
9 Split model Plate heat exchanger (Refrigerant - Water) in the indoor unit

2
Safety Precautions
1
en
WARNING
• TheunitshouldNOTbeinstalledorservicedbytheuser.Ifinstalledincorrectlywaterleakage,electricshockandremayresult.
• NEVER block discharges from emergency valves.
• Do not operate the unit without emergency valves and thermostatic cut-outs being operational. If in doubt contact your installer.
• Do not stand on or lean on unit.
• Do not place objects on top or below the unit and observe service space requirements when placing objects next to the unit.
• Do not touch the unit or controller with wet hands as electric shock may result.
• Do not remove the panels of the unit or try to force objects inside the unit’s casing.
• Do not touch protruding pipework as it may be very hot and cause burns to the body.
• Should the unit start vibrating or making abnormal noises stop operation, isolate from the power supply and contact the installer.
• Should the unit start to produce any burning smells stop operation, isolate from the power supply and contact the installer.
• Should water be visibly being discharged through the tundish stop operation, isolate from the power supply and contact the installer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• In the case of a refrigeration leak, stop the operation of the unit, thoroughly ventilate the room and contact the installer.
• Ifpowersupplycableisdamaged,itmustbereplacedbythemanufacturer,itsserviceagentorsimilarlyqualiedpersonsinordertoavoidahazard.
• Donotplacecontainerswithliquidsontopoftheunit.Iftheyleakorspilltheunitmaybedamagedandrecouldoccur.
• Wheninstalling,relocating,orservicingthehydrobox,useonlythespeciedrefrigerant(R410A)tochargetherefrigerantlines.Donotmixitwithany
other refrigerant and do not allow air to remain in the lines. If air is mixed with the refrigerant, then it can be the cause of abnormal high pressure in the
refrigerantline,andmayresultinanexplosionandotherhazards.
Theuseofanyrefrigerantotherthanthatspeciedforthesystemwillcausemechanicalfailureorsystemmalfunctionorunitbreakdown.Intheworst
case, this could lead to a serious impediment to securing product safety.
• Inheatingmode,toavoid the heatemittersbeingdamagedbyexcessivelyhotwater,setthetargetowtemperaturetoa minimum of2ºCbelowthe
maximum allowable temperature of all the heat emitters.
• This appliance is primarily intended for domestic use. For commercial applications this appliance is intended to be used by expert or trained users in
shops, in light industry and on farms, or for commercial use by lay persons.
CAUTION
• Do not use sharp objects to press the buttons of the main remote controller as this will cause damage to the buttons.
• If power to unit is to be turned off for a long time, the water should be drained.
• Donotplaceacontaineretc.lledwithwateronthetoppanel.
• Follow the instructions provided in this manual and local regulations when using this unit.
►Beforeoperatingthisunititisimportanttoreadthesafetyprecautions.
►Thefollowingsafetypointsareprovidedtopreventinjurytoyourselfanddamagetotheunitpleaseadheretothem.
Used in this manual
WARNING:
Precautions listed under this title should be observed to prevent
injury or death to the user.
CAUTION:
Precautions listed under this title should be observed to prevent
damage to the unit.
The purpose of this user manual is to inform users how their air source heat
pump heating system works, how to run the system at its most efcient and how
to change settings on the main remote controller.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction con-
cerning the use of the appliance by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appli-
ance.
This user manual should be kept with the unit or in an accessible place for
future reference.
Introduction
2

3
en
Introduction
2
2 kW
3 kW
1 kW
4. Evaporator
(Outdoor unit air heat exchanger)
Low temperature renewable heat
energy taken from the environment
Electrical energy
input
Heat energy output
2. Condenser
(Plate heat exchanger)
1. Compressor
3. Expansion valve
How the Heat Pump Works
Space heating
Heat pumps take electric energy and low grade heat energy from the outdoor air
to heat refrigerant which in turn heats water for space heating. The efciency of a
heat pump is known as the Coefcient of Performance or COP this is the ratio of
heat delivered to power consumed.
The operation of a heat pump is similar to a refrigerator in reverse. This process
is known as the vapour-compression cycle and the following is a more detailed
explanation.
The rst phase begins with the refrigerant being cold and low pressure.
1. The refrigerant within the circuit is compressed as it passes through the com-
pressor. It becomes a hot highly pressurised gas. The temperature also rises
typically to 60°C.
2. The hot refrigerant gas is then condensed as it passes across one side of a
plate heat exchanger. Heat from the refrigerant gas is transferred to the cooler
side (water side) of the heat exchanger. As the temperature of the refrigerant
decreases its state changes from a gas to a liquid.
3. Now as a cold liquid it still has a high pressure. To reduce the pressure the liq-
uid passes through an expansion valve. The pressure drops but the refrigerant
remains a cold liquid.
4. The nal stage of the cycle is when the refrigerant passes into the evaporator
and evaporates. It is at this point when some of the free heat energy in the out-
side air is absorbed by the refrigerant.
It is only the refrigerant that passes through this cycle; the water is heated as it
travels through the plate heat exchanger. The heat energy from the refrigerant
passes through the plate heat exchanger to the cooler water which increases in
temperature. This heated water enters the primary circuit and is circulated and
used to serve the space heating system.
Return temp. sensor
Flow temp. sensor
Ambient
temp.
sensor
FTC
EconomicalBestPractice
Air source heat pumps can provide space heating all year. The system is different
to a conventional fossil fuel heating system. The efciency of a heat pump is
shown by its coefcient of performance as explained in the introduction. The fol-
lowing points should be noted to achieve the most efcient and economical opera-
tion of your heating system.
• In most situations space heating is best performed using the room tempera-
ture mode. This enables the heat pump to analyse current room temperature
and react to changes in a controlled manner utilising the specialised Mitsubi-
shi Electric controls.
• Using the SCHEDULE and HOLIDAY functions prevent unnecessary Space
heating when the property is known to be unoccupied for instance during the
working day.
• Due to lower ow temperatures, heat pump heating systems should be used
with large surface area under-oor heating. This will provide a steady heat to
the room whilst improving efciency and so lowering running costs of the
system as the heat pump does not have to produce water at very high ow
temperatures.
Overview of Controls
Built into the hydrobox is the Flow Temperature Controller(FTC). This device
controls the function of both the outdoor heat pump unit and the hydrobox. The
advanced technology means that by using an FTC controlled heat pump you can
not only make savings compared to traditional fossil fuel type heating systems
but also compared to many other heat pumps on the market.
As explained in the earlier section, ‘How the Heat Pump Works,’ heat pumps are
most efficient when providing low flow temperature water. The FTC advanced
technology enables the room temperature to be kept at the desired level whilst
utilising the lowest possible ow temperature from the heat pump.
In room temp. (Auto adaptation) mode the controller uses temperature sensors
around the heating system to monitor space and ow temperatures. This data
is regularly updated and compared to previous data by the controller to predict
changes in room temperature and adjust the temperature of water owing to the
space heating circuit accordingly. By monitoring not only the outdoor ambient, but
the room and heating circuit water temperatures, the heating is more consistent
and sudden spikes in required heat output are reduced. This results in a lower
overall ow temperature being required.

Customising Settings for Your Home
3
4
en
F1 F2 F3 F4
Main remote controller
BC D
E
A
10 921
8
3
654
13 12
11
7
Main screen
To change the settings of your heating system please use the main remote con-
troller located on the front panel of the hydrobox. The following is a guide to view-
ing the main settings. Should you require more information please contact your
installer or local Mitsubishi Electric dealer.
<Main remote controller parts>
Letter Name Function
A Screen Screen in which all information is displayed.
B Menu Access to system settings for initial set up and
modications.
CBack Return to previous menu.
DConrm Used to select or save. (Enter key)
EPower/Holiday If system is switched off pressing once will turn
system ON. Pressing again when system is
switched on will enable Holiday Mode. Holding the
button down for 3 secs will turn the system off. (*1)
F1-4 Function keys Used to scroll through menu and adjust settings.
Function is determined by the menu screen visible
on screen A.
*1
When the system is switched off or the power supply is disconnected, the
indoorunitprotectionfunctions(e.g.freezestat.function)willNOToperate.
Please beware that without these safety functions enabled the indoor unit
may potentially become exposed to damage.
<Main screen icons>
Icon Description
1 Heat pump ‘Heat pump’ is running.
Defrosting
Emergency heating
2 Electric heater When this icon is displayed the ‘Electric heater’
(booster heater) is in use.
3 Target
temperature
Target ow temperature
Target room temperature
Compensation curve
4 OPTION Pressing the function button below this icon will dis-
play the option screen.
5 + Increase desired temperature.
6-Decrease desired temperature.
7 Information Pressing the function button below this icon displays
the information screen.
8 Space heating
mode Heating mode
9Holiday mode
When this icon is displayed ‘Holiday mode’ activated.
10 Timer
Prohibited
Server control
Stand-by
Stand-by (*2)
Stop
Operating
11 Current
temperature Current room temperature
12 The Menu button is locked in the Option screen. (*3)
13
SD memory card (NOT for the user) is inserted.
*2 This unit is in Stand-by whilst other indoor unit(s) is in operation by
priority.
*3TolockorunlocktheMenu,presstheBACKandCONFIRMkeys
simultaneously for 3 seconds.
The copyright of Chinese font indicated on the screen belongs to Morisawa Inc..

Customising Settings for Your Home
3
5
en
Heating
Icon Description
[Heating]
[Schedule timer]
[Holiday mode]
[Initial settings]
[Service]
Option screen
Main settings menu screen
<Option screen>
This screen shows the main operating modes of the system.
Use function buttons to switch between Operating (►), Prohibited ( ) and Timer
() for space heating, or detailed information on energy or capacity.
The option screen allows quick setting of the following;
• Space heating operating mode — to change mode press F3 (*1)
• Energy monitor
Following accumulated energy values are displayed.
: Consumed electrical energy in total (month-to-date) (*2)
: Delivered heat energy in total (month-to-date)
To monitor the energy values in each operation mode for [month-to-date/ last
month/ the month before last/ year-to-date/ last year], press F4 to access to
the Energy monitor menu.
*1 Modes (
Operating (►), Prohibited ( ) and Timer ( ) ) can not be changed by
F3 when Server control ( )indicates. Press F3 for 3 seconds to activate the
operation.
*2 External electric energy meter is necessary to indicate consumed electric
energy.
Note:
If a certain accuracy is required for the monitoring, the method to display
captured data from external energy meter(s) should be set up. Contact your
installer for further details.
Main Settings Menu
To access the main settings menu press button B ‘MENU’
The following menus will be displayed;
• [Heating]
• [Schedule timer]
• [Holiday mode]
• [Initial settings]
• [Service] (Password protected)
[Initial Settings]
1. From the main settings menu use F2 and F3 buttons to highlight ‘Initial set-
tings’ icon and select by pressing CONFIRM.
2. Use F1 and F2 buttons to scroll through the menu list. When the required title
is highlighted then press CONFIRM to edit.
3. Use the relevant function buttons to edit each initial setting then press CON-
FIRM to save the setting.
Initial settings that can be edited are
● [Date/Time] *Be sure to set it to the local standard time.
●[Language]
●[Summer time]
● [Temp. display]
●[Contact number]
● [Time display]
● [°C/°F]
●[Room sensor settings]
To return to the main settings menu press the BACK button.
Home screen
General Operation
In general operation the screen displayed on the main remote controller will be
shown as in the gure on the right.
This screen shows the target temperature, space heating mode, any additional
heat sources being used, holiday mode, and the date and time.
You should use the function buttons to access more information. When this
screen is displayed pressing F1 will display the current status and pressing F4
will take the user to the option menu screen.

Customising Settings for Your Home
3
6
en
[Holiday mode]
Holiday mode can be used to keep the system running at lower ow temperatures
and thus reduced power usage whilst the property is unoccupied. Holiday mode
can run either ow temp., room temp., heating, compensation curve heating all at
reduced ow temperatures to save energy if the occupier is absent.
From the main menu screen press button E should be pressed. Be careful not to
hold down button E for too long as this will turn off the controller and system.
Once the holiday mode activation screen is displayed you can activate/deactivate
and select the duration that you would like holiday mode to run for.
● Press button F1 to activate or deactivate holiday mode.
● Use buttons F2, F3 and F4 to input the date which you would like holiday
mode to activate or deactivate holiday mode for space heating.
<Editing holiday mode>
Refer to the menu tree in “Main remote controller” of Installation Manual.
Should you require the Holiday mode settings e.g. the ow temp., room temp. to
be altered you should contact your installer.
Heating
The heating menus deal with space heating using normally underoor heating
system depending on the installation.
There are 3 heating modes
● Heating room temp. (Auto adaptation) ( )
● Heating ow temp. ( )
● Heating compensation curve ( )
<Room temp. (Auto adaptation) mode>
This mode is explained in detail in ‘Overview of Controls’ Section (page 3).
<Flow temp. mode>
The temperature of the water owing to the heating circuit is set by the installer to
best suit the space heating system design, and user’s desired requirements.
Explanation of compensation curve
During late spring and summer usually the demand for space heating is reduced.
To prevent the heat pump from producing excessive ow temperatures for the
primary circuit the compensation curve mode can be used to maximise efciency
and reduce running costs.
The compensation curve is used to restrict the ow temperature of the primary
space heating circuit dependent on the outdoor temperature. The FTC uses in-
formation from both an outdoor temperature sensor and a temperature sensor
on the primary circuit supply to ensure the heat pump is not producing excessive
ow temperatures if the weather conditions do not require it.
Your installer will set the parameters of the graph depending on local conditions
and type of space heating used in your home. It should not be necessary for you
to alter these settings. If however you nd that over a reasonable operating pe-
riod the space heating is not heating or is overheating your home, please contact
your installer so they can check your system for any problems and update these
settings if necessary.
: Flow temp.
: Outdoor ambient temp.

Customising Settings for Your Home
3
7
en
Time of period setting screen 1
Time of period setting screen 2
9. The time bar edit screen will be displayed.
10.Use buttons F2/F3 to move to the point at which you do not want the selected
mode to be active press CONFIRM to start.
11.Use F3 button to set the required time of inactivity then press CONFIRM.
12.You can add up to 4 periods of inactivity within a 24 hour interval.
13.Press F4 to save settings.
When scheduling heating, button F1 changes the scheduled variable between
time and temperature. This enables a lower temperature to be set for a number of
hours e.g. a lower temperature may be required at night when the occupants are
sleeping.
Note:
• The schedule timer for space heating is set in the same way.
• A small rubbish bin character is also displayed choosing this icon will
delete the last unsaved action.
• It is necessary to use the SAVE function F4 button to save settings. CON-
FIRM does NOT act as SAVE for this menu.
Preview screen
Day of week select screen
<Setting the Schedule timer>
1. From the main settings menu use F2 and F3 to highlight the schedule icon
then press CONFIRM.
2.
From the schedule 2 period preview screen use F1 and F2 to scroll through the
selecting each subtitle in turn by pressing CONFIRM.
3. The schedule timer sub menu will be displayed. The icons show the following
mode;
• [Heating]
4. Use F2 and F3 buttons to move between mode icons press CONFIRM to be
shown the PREVIEW screen for each mode.
The preview screen allows you to view the current settings. Days of the week are
displayed across the top of the screen. Where day appears underlined the set-
tings are the same for all those days underlined.
Hours of the day and night are represented as a bar across the main part of the
screen. Where the bar is solid black, space heating is allowed.
5. In the preview menu screen press F4 button.
6. First select the days of the week you wish to schedule.
7. Press F2/F3 buttons to move between days and F1 to check or uncheck the
box.
8. When you have selected the days press CONFIRM.
[Schedule timer]
Scheduled timer can be set in two ways, for example; one for summer and the
other for winter. (Refer to as “Schedule 1” and “Schedule 2” respectively.) Once
the term (months) for the Schedule 2 is specied, rest of the term will be specied
as Schedule 1. In each Schedule, an operational pattern of mode (Heating) can
be set. If no operational pattern is set for Schedule2, only the pattern for Sched-
ule 1 will be valid. If Schedule 2 is set to full-year (i.e. March to Feb.), only the
operational pattern for Schedule 2 will be valid.
The schedule timer is activated or deactivated in the option screen. (See
‘General Operation’ section)
<Setting the Schedule period>
1. From the main settings menu use F2 and F3 to highlight the schedule icon
then press CONFIRM.
2. The Schedule period preview screen is displayed.
3. To change the Schedule period, press F4. button.
4. The time bar edit screen is displayed.
5. Use F2/F3 button to point at a starting month of the Schedule2, then press
CONFIRM.
6. Use F2/F3 button to point at an ending month of the Schedule2, then press
CONFIRM.
7. Press F4 to save settings.
Schedule2 period preview screen
Schedule1 mode select screen

Service and Maintenance
4
8
en
[Service] Menu
The service menu is password protected to prevent accidental changes being
made to the operation settings, by unauthorised/unqualied persons.
Troubleshooting
The following table is to be used as a guide to possible problems. It is not exhaustive and all problems should be investigated by the installer or another competent person.
Users should not attempt to repair the system themselves.
At no time should the system be operating with the safety devices by-passed or plugged.
Fault symptom Possible cause Solution
Heating system does not get up
to set temperature.
Prohibit, schedule or holiday mode selected Check settings and change as appropriate.
Incorrectly sized oor heatings Contact installer.
The room in which the temperature sensor is located is at
a different temperature to the rest of the room.
Reposition the temperature sensor to a more suitable room.
Schedule function inhibits the
system from operating but the
outdoor unit operates.
Freeze stat. function is active. Normal operation no action necessary.
Pump runs without reason for
short time.
Pump jam prevention mechanism to inhibit the build up of
scale.
Normal operation no action necessary.
Mechanical noise heard coming
from indoor unit
Heaters switching on/off Normal operation no action necessary.
Noisy pipework Air trapped in the system Try bleeding radiators (if present) If the symptoms persist contact installer.
Loose pipework Contact installer.
Water discharges from one of the
relief valves
The system has overheated or overpressurised Switch off power to the heat pump and booster heater then contact in-
staller.
Small amounts of water drip from
one of the relief valves.
Dirt may be preventing a tight seal in the valve Twist the valve cap in the direction indicted until a click is heard. This will
release a small amount of water ushing dirt from the valve. Be very care-
ful the water released will be hot. Should the valve continue to drip contact
installer as the rubber seal may be damaged and need replacing.
An error code appears in the
main remote controller display.
The indoor or outdoor unit is reporting an abnormal condi-
tion
Make a note of the error code number and contact installer.
<Power failure>
All setting will be saved for 1 week with no power, after 1 week Date/Time ONLY will be saved.
<Draining the hydrobox>
WARNING:DRAINEDWATERMAYBEVERYHOT
1. Before attempting to drain the hydrobox islolate from the electrical supply to prevent booster heater burning out.
2. Isolate hydrobox from primary water circuit and drain water from hydrobox. Use a suitable heat resistant hose to assist in these operations.
3. Drain any remaining water from booster heater using tted drain cock and hose to safely drain the unit.
4. After the hydrobox is drained, water remains in the following component parts. Drain water completely by checking the inside of the parts.
• Strainer (Remove the strainer cover.)
• Pressure relief valve (Operate the valve.)
Serial number
5
■The serial number is indicated on the SPEC NAME PLATE.
Year of manufacture (western calendar) : 2018 8, 2019 9
Month of manufacture: A (1), B (2), C (3), D (4), E (5), F (6), G (7), H (8), J (9), K (10), L (11), M (12)
Sequential number for each unit: 00001–99999

英国印刷
RG79F414H01
三菱电机空调影像设备（上海）有限公司 服务中心
地址 ：上海市外高桥保税区富特西一路 355 号1015-1016 室邮编 ：200131
电话 ：[phone] 传真 ：[phone]
服务热线 ：400-885-8830
http://www.mlc-aircon.com / http://www. 三菱电机空调 .com
总公司 ：三菱电机株式会社
地址 :日本国东京都千代田区丸之内 2-7-3 东京大厦
http://www.mitsubishielectric.com/
本说明书的技术信息如有变更，恕不另行通知。
