MODELS:
Lossnay Heat Recovery Ventilator
LGH-50RVS-E
LGH-80RVS-E
LGH-100RVS-E
Installation Instructions
For use by dealer/contractor
This product needs to be installed properly in order to ensure
maximum functionality as well as safety.
Please be sure to read this installation manual before starting the
installation.
lInstallation must be performed by a dealer or installation contractor.
Please note that improper installation may cause malfunction or
accident.
“Operating Instructions” and this manual must be handed over to
the customer after completing the installation.
Contents
1. Safety precautions...........................................2
2. Outline drawings..............................................5
3. Standard installation examples........................6
4. Installation method ..........................................7
4.1 Hanging the Lossnay unit...........................7
4.2 Duct works .................................................8
4.3 Drain pipe work ..........................................9
4.4 Electrical installation.................................10
5. Function settings ...........................................17
6. Check points after installation work...............29
7. Trial operation................................................30
2105876H63801

Eng-2
1. Safety precautions
The following signs indicate that death or serious injury may be caused by failure to heed the precautions described below.
WARNING Incorrect handling could cause serious injury or death.
Do not disassemble
Do not modify or disassemble.
It could cause re, electric shock or injury.
Prohibition of use
in bath or shower
room
The Lossnay unit and remote controller should not be installed where it is highly humid, like a bathroom, or other wet place.
It could cause electric shock or power leakage.
The surrounding air condition of the unit shall be between 0 and 40˚C, and the dew point of the ambient air shall be
lower than 11˚C in winter (e.g. 20˚C 56%RH or less).
It could cause electric shock, power leakage or water leakage.
Connect the
grounding wire.
Connect the product properly to ground.
Malfunctioning or power leaks can cause electrical shock.
The instructions
given must be
followed.
Use the specied power supply and voltage.
Use of incorrect power supply or voltage could cause re or electric shock.
Select a place with su󰀩cient strength and install the main unit securely.
It could cause injury or death.
Wiring work must be performed by qualied professionals, and be implemented safely and securely in accordance
with appropriate standards and regulations.
Poor connection or improper wiring work could cause electric shock or re.
Make sure to install an all-pole electric leakage isolator securely. All supply circuits must be disconnected before
obtaining access to the terminal devices. Use the specied cable size and connect the cables securely to prevent
disconnection when they are pulled.
If there is a defect in the connection, there is a possibility of re.
Select an adequate place for the opening to introduce outdoor air, where it will not intake the exhaust fumes like
combustion gas, or others, and there is no risk of blockage.
Shortage of fresh air could put the room in a state of oxygen deciency.
A duct made of steel must be installed with care not to be connected electrically with metal, wire, stainless steel
plate, or others.
It could cause re when power leakage occurs.
It is prohibited to use the unit where salt, sulphur or hot spring steam damage is expected.
It could cause re, electric shock or injury.
Do not touch the product for at least 5 minutes after the power is shut o󰀨.
It could cause electric shock.

Eng-3
CAUTION Incorrect handling could cause injury or damage to property or household e󰀨ects.
Prohibited
Do not place a burning appliance in a place where it is exposed directly to the air from the Lossnay unit.
It could cause an accident as a result of incomplete combustion.
Do not use at a place where it is exposed to high temperatures (40˚C or higher), naked ames, or in environment with
combustible fumes.
It could cause re.
Do not use in an environment such as a chemical factory, where hazardous gases such as acidic gases, alkaline
gases, organic solvent fumes, paint fumes, or gases containing corrosive components are generated.
It could cause malfunction.
Do not install this product in a place where it is exposed to ultraviolet light.
UV may damage covering insulation.
Do not install any booster fan to the downstream side of the fan of the product.
Avoid to install air inlets and outlets where insects are likely to gather like a place near interior or exterior lights. They
could be intrude inside the unit and a󰀨ect choking of the drain pipe. In that case, choose hoods or louvers which
have repellent net.
It could cause water leakage.
The instructions
given must be
followed.
Put on gloves during installation.
It could cause injury.
Make sure the power supply isolator is turned o󰀨 when Lossnay is not used for a long period of time after the
installation.
It could cause electric shock, power leakage, or re as a result of deteriorated insulation.
Always use the specied suspension bolts, nuts and washers or correctly rated wire / chain hangers.
Use of hardware with insu󰀩cient strength could result in the product dropping.
The outside ducts must be tilted at a gradient (1/30 or more) down toward the outdoor louvres from Lossnay, and
properly insulated.
The entry of rain water may cause power leakage, re, or damage to household property.)
The control box cover must be closed after the installation.
Dust or humidity may cause power leakage or re.
When connecting external devices (electric heater, damper, lamp, monitoring unit, etc.) using output signals of the
Lossnay unit, make sure to install safety equipment for the external devices.
It could cause re, damage, etc. without safety equipment.
When using this unit in the area where the outdoor temperature often becomes lower than 0˚C, a pre-heater is
recommended to install at OA duct.
Select a duct heater in compliance with local and national laws, regulations, and standards.
Choose a OA pre-heater which can control the heater outlet air temperature even both the air ow is maximum or
minimum, and set Lossnay inlet air temperature to 2 - 13˚C.
Otherwise it could fall the supply fan into intermittent operation.
Install the duct heater separated from the product by a distance of 2 m or more.
Failure to do so may result in re or equipment damage due to the transmission of residual heat from the heater.
The absolute humidity of RA shall be lower than 0.0139kg/kg(DA) in winter and the relative humidity of RA shall be
lower than 90%RH through the year.
* Examples of the absolute humidity 0.0139kg/kg(DA) are 20.7˚C 90%RH, 25˚C 70%, 30˚C 50% etc.
The unit shall be installed horizontally. The tolerance is ±0.5°.
Do not put positive pressure on the drain pipe from drain out ow side.
It may cause drain over ow from the unit.
Install weather louver or "Weather cover" for OA inlet & EA outlet to prevent rainwater from entering the Lossnay unit.
Ducts to outdoor (OA and EA) shall decline by 1/30 or more downward to outdoor.
Make sure to install all accessaries for drain work and decline 1/100 for drain pipe.
Do not use any detergent for maintenance and cleaning the unit. It may cause the damage of the drain pan.
It could cause water leakage.
In cold area or strong wind area, outdoor air may enter the unit because of the pressure di󰀨erence or external wind
even when the unit stops. It is recommended to install an electrically operated damper to block outdoor air in such
cases.
When outdoor temperature becomes lower than 0˚C, the supply fan starts intermittent operation for defrosting
operation.
0˚C to -5˚C : Intermittent operation 10min OFF, 30min ON.
-5˚C or less : Intermittent operation 55 min OFF, 5 min ON.
Exhaust fan changes to fan speed 4 during supply fan stopping at 0 to -5˚C, or all condition at less than -5˚C.
Take precautions when using the product in a quiet location.

Eng-4
CAUTION Incorrect handling could cause injury or damage to property or household e󰀨ects.
The instructions
given must be
followed.
In cold weather areas, even if they are within the range of operating conditions, dewing or freezing could occur on
the main unit, where the duct is connected, or other sections, depending on the conditions of outdoor air and indoor
temperature and moisture. Make sure to check the operating conditions and other precautions, and do not use the
product if dewing or freezing is anticipated.
Other than EU countries:
This appliance is not intended for use by persons (including children) with reduced physical sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do
not play with the appliance.
EU countries:
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without supervision.

Eng-5
2. Outline drawings
Accessory parts
Screws x16 Duct connecting anges x4 Slim-Lossnay connection cable (gray: two wires) x1
Special screws x4 Backow stopper x2 Stopper holder x1 Drain catch basin x1
Unit (mm)
Model Dimensions Ceiling suspension
xture pitch
Nominal
diameter
Duct connecting ange Duct pitch Weight
(kg)
Weight with
maximum drain water
A B C D E F G H J K L
LGH-50RVS-E 974 946 969 1001 32 200 192 208 83 692 127 120 55 67
LGH-80RVS-E 1185 997 1179 1051 55 250 242 258 82 683 157 161 63 77
LGH-100RVS-E 1185 1224 1179 1279 55 250 242 258 82 910 157 161 73 89
EA
(exhaust air outlet)
Air exhaust fan
OA
(outside air intake)
Heat exchanger, Air
lter, High-E󰀩ciency
lter, Fan, Drain pan
maintenance space
More than 600
Air lters
Heat exchanger
(Lossnay core)
In the case of xed ceiling (not grid ceiling),
150 mm or more for drain maintenance
Inspection
opening
450 x 450
or more
Control box
Maintenance cover for lters (Upper)
Maintenance cover for the other parts (Lower)
Air supply fan
RA
(return air)
SA
(supply air)
By-pass damper plate
High-E󰀩ciency lter (sold separately) position
Ceiling suspension xture (4-13 X 20 oval)
Power supply opening
150 to 250
Alternative duct position
Drain catch basin
Backow stopper
Ceiling
O.D φ32

Eng-6
3. Standard installation examples
Model Distance
LGH-50RVS-E 1 m or more
LGH-80 and 100RVS-E 2.5 m or more
• Duct length
EA
(exhaust air outlet)
Inspection opening
(450x450 or more)
SA
(supply air)
Supply air grille
(not included)
Deep hood
(to prevent rain water
from seeping in)
Downward gradient of duct:
1/30 or more (toward wall side) and provision
of distance in the table above (to prevent rain
water from seeping in)
Duct
Anchor bolt (to be provided by user)
RA
(return air)
Return air grille
(not included)
OA
(outside air intake)
Lossnay unit
Lossnay unit
Return air grille
(not Included)
Maintenance space
Inspection opening
Supply air grille
(not included)
Remote controller
(optional parts)
EA
(exhaust air outlet)
OA
(outside air intake)
OA
(outside air intake)
EA
(exhaust air outlet)
EA
(exhaust air outlet)
OA
(outside air intake)
Lossnay
unit
Electrically operated damper
(Protection against the intrusion of cold
air while Lossnay is stopped in winter)
(To be provided by the customer)
• In a region where there is risk of freezing in winter,
it is recommended to install an Electrically operated
damper, or the like, in order to prevent the intrusion of
(cold) outdoor air while Lossnay is stopped.
CAUTION
• When RA comes from a space which have strong odor like aromatic or
detergent in wash room or shower room, the SA location is recommended
not to arrange directly over the human living space.
• Follow the restrictions bellow with this Lossnay unit (LGH-RVS series).
In the case any of them is not observed, water leakage happens from the
unit.
• The unit shall be installed horizontally. The tolerance is ±0.5˚C.
• Do not install Lossnay unit upside-down.
• Do not install Lossnay unit vertically or on an incline.
• The surrounding air condition of the unit shall be between 0 and 40˚C, and
the dew point of the ambient air shall be lower than 11˚C in winter (e.g. 20˚C
56%RH or less).

Eng-7
4.1.3 Preparing the anchor bolts
Mount the washers (outer diameter of >21 mm for M10, >24 mm for
M12) and nuts onto the pre-recessed anchor bolts (M10 or M12), as
shown in the gure below.
[When using (customer-prepared) vibration isolation rubber]
When using (customer-prepared) vibration isolation rubber, there is
a possibility of causing a decrease in strength, so we recommend
the following type of construction.
4.1.4 Mounting the Lossnay unit
(1) Hang the ceiling suspension xtures on the anchor bolts and
adjust in such a way that Lossnay unit is level.
(2) Tighten up securely using double nuts.
CAUTION
• When suspending Lossnay unit from the ceiling, do not handle
it in such a way that force will be applied to the control box.
• Install the anchor bolts to ensure the product’s weight or
earthquake load. (Correctly rated wire/chain may also be used.)
Anchor bolt (M10 or M12)
Anchor bolt (M10 or M12)
Nut
Nut
Washer
Washer
Nut
Nut
Vibration isolation rubber
CAUTION
USE TWO NUTS
CAUTION
USE TWO NUTS
Anchor bolt Ceiling suspension xture
Washer Nut
4. Installation method
4.1 Hanging the Lossnay unit
4.1.1 Attaching the duct connecting anges
Use the supplied screws (size:4x8) to secure the duct connecting
anges to the Lossnay unit.
CAUTION
• Before attaching the duct connecting anges, check that no
foreign matter (scraps of paper, vinyl, etc.) has found inside
the unit.
• Attach the duct connecting anges for all position.
• Always use the accessory screws.
4.1.2 Turn the unit upside over from its
packaged position.
The top of Lossnay at packaged position is the bottom of the
installed position.
When opening the package for installation, turn the unit upside
down before hanging.
Always up the control box side , then turn the unit over.
CAUTION
• Put the pallet under the unit during lifting the unit up by a lifter.
If the unit is directly put on the lifter, the bottom casing may
deform because of the screw tip.
• When lift up the unit by human hand, put hands on the corner
of the bottom surface.
If the center of the bottom surface is supported, it may cause
deforming.
Mounting screw (size:4x8)
(Accessory parts)
Duct connecting ange
(Accessory parts)
Drain port
Pallet
Control box side

Eng-8
4.2.2 When changing the direction of the out
door side duct (EA/OA)
(1) Removal of the ange cover
Unscrew the ange cover mounting screws (4 pcs), and remove
the ange cover.
(2) Installation of the duct connecting ange
1. Install the duct connecting ange using attached mounting screws.
2. Fix the removed ange cover with the removed mounting
screws (4 pcs).
Flange cover
Mounting screw
(for ange cover)
Ceiling suspension xture
Mounting screw
(Accessory parts)
Duct connection ange
Ceiling suspension xture
4.2 Duct works
4.2.1 Connecting the ducts
(1) Fasten the duct securely to the duct connecting ange, and wrap
aluminium tape (eld supply) around the joints so that there is no
air leakage.
(2) Suspend the ducts from the ceiling so that their weight will not
be applied to the Lossnay unit.
(3) Two outdoor side ducts and SA duct must be covered with heat-
insulating material in order to prevent condensation.
CAUTION
• Also make sure to select a vent grill that does not easily
condense.
• When on-site commissioning is planned, a straight duct
length more than 10xD (D=duct diameter) from the source of
turbulence like bends, contractions and dampers etc, to the
measurement point is recommended for correct measurement.
In the United Kingdom, on-site measurement should
therefore be performed in accordance with BSRIA guideline
(Commissioning Air System. Application procedures for
buildings AG3/89.3(2001))
• Before attaching the ducts, check that no (debris or any other)
foreign matter (scraps of paper, vinyl, etc.) has found inside the
ducts.
• Do not touch the damper plate inside Lossnay unit when
connecting the ducts.
• If the ambient temperature around the Lossnay unit is close to
outdoor condition, it is recommended to insulate RA duct and
use additional insulation foam on the unit surface.
• Do not carry out the following types of duct construction.
(Doing so could cause a drop in the air volume and generate
abnormal noises.)
• When RA duct is not connected, install a net or other measure
on the RA ange to prevent foreign objects from being sucked
in.
• Install the unit in a location out of direct sunlight.
Aluminium tape
Duct connecting ange
Outdoor duct
Heat-insulating material
Lossnay
unit
Duct
Taping
Outdoor Side
Room Side
• Extremely
sharp bends
• Multiple bends • Bends right next
to the outlet
• Extreme reduction in
the diameter of the
connected ducts

Eng-9

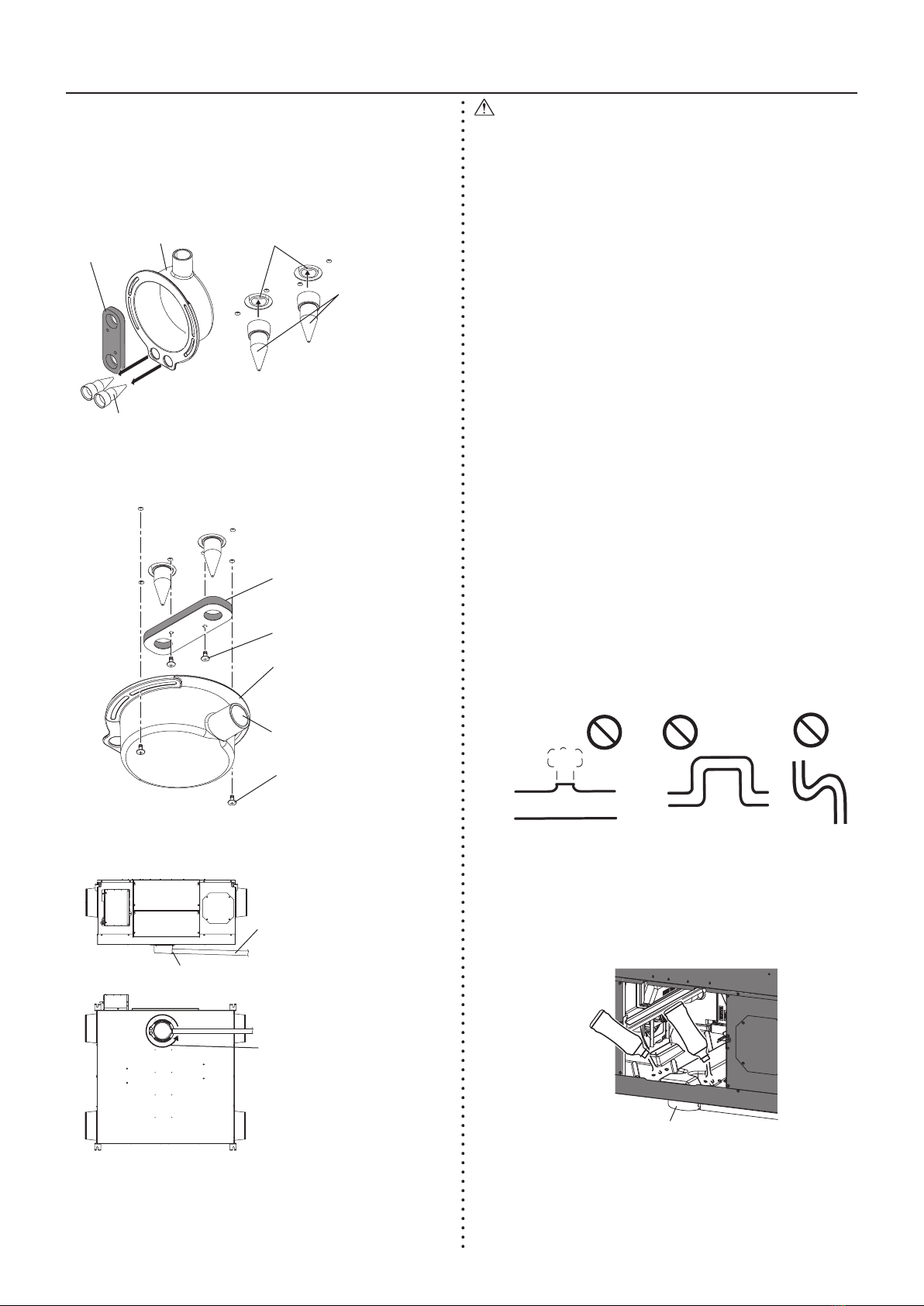

4.3 Drain pipe work
1. Remove the installation label from the product, and prepare it for
drain pipe installation.
2. Remove the two backow stoppers from the drain catch basin and
attach them to the two drain discharge holes of the drain pan.
3. Place the stopper holder so that the seal side faces the product,
then tighten the two special screws.
4. Align the drain discharge port direction of the drain catch basin
and attach it using the two special screws.
5. Connect the drain pipe to the drain discharge port, then make
sure the end of the drain pipe is capable of draining water.
Drain catch basin
Backow stopper
Stopper holder
Drain discharge hole
Backow stopper
Insert all the way
to the base of the
protrusion in the drain
discharge holes.
Drain pipe (gradient:1/100 or more)
When connecting Vinyl chloride pipe
O.D 32 mm, use pipe coupling.
Drain pipe pull-out direction
Rotate the drain catch basin and
secure the screws to pull out the drain
pipe in the desired direction.
Drain discharge port
The outer diameter of the drain discharge port is φ32.
CAUTION
• When installing the drain pipes, make sure there are no
solvents or oils on the backow stopper and drain pan.
• Do not forget to attach the backow stopper and stopper
holder. Failure to attach these items will make it impossible to
drain, resulting in leaks.
• When attaching the backow stopper to the drain pan, t it
securely into the base.
• The backow stopper is a service part. Be sure to secure the
drain pipe in a position where the drain catch basin locking
screws can be removed so that the backow stoppers can
be replaced when blockages occur. When the drain pipe is
secured close to the product, it may not be possible to remove
the backow stoppers by removing the drain catch basin
locking screws.
• Install the drain pipe so that it has a downward slope (of 1/100
or more) on the drain side.
• Use a screw tightening torque of 1.42 ± 0.1 N.m. Anything else
can damage the components and cause leaks.
• The drain pipe direction can be changed. Be sure to install the
pipes so as not to hinder maintenance.
• Make sure the drain pipe is not placed directly into sewers
like which producing sulfur gas. Doing so could result in
corrosion or bad odors.
• Make sure parts are securely tted so as to prevent leaks from
joints.
• When setting the drain pipe as the collective pipe, ensure not
to put positive pressure on Lossnay drain pipe from drain
backstream side(e.g. positive pressure from air conditioner
indoor unit or wind) It may cause drain over ow from the unit.
• Do not install any booster fan to the downstream side of the
fan of the product.
• Do not put the end of the drain pipe inside a gutter, etc. If the
gutter is frozen, it could lead to poor drainage and leaks.
• Do not use the following type of drain pipe layout. Doing so
could result in poor drainage and leaks.
• If an external drain pump is necessary, it shall be installed with
the responsibility of the installer. Error detection and indicator
function are mandatory.
6. Check that water is draining properly.
(1) Refer to “Removing the parts” in the Operating Instructions and
remove the pre-lter and Lossnay core.
(2) Pour approximately 500 ml of water into the drain pan on both
the air supply and exhaust sides.
(3) From the side of the drain catch basin, check that water is
draining from the backow stoppers and that all water has
drained from the drain catch basin.
(4) Refer to “Assembly after maintenance” and return the product to
its original state.
→
Drained
water
→
Drained
water
Odor trap
Air-bleeding
Pass-over
Drain catch basin
Stopper holder
Place the seal side on the product
side.
Special screw x2
Drain catch basin
Align the drain discharge port
in the drainage direction and
secure the screws.
Special screw x2
Place through the outer groove
on the drain catch basin and
secure two places.
Drain discharge port

Eng-10
Names of components in control box
4.4 Electrical installation
With this product, the wiring installation method will vary according to the design of the system.
Perform electrical installation to meet appropriate standards and regulations.
* Always use double insulated PVC cable for the transmission cables.
* Wiring work must be performed by qualied professionals.
* All supply circuits is disconnected and all LED on the circuit board shall be lit o󰀨, before accessing to the terminal devices.
Wire connection diagram
* TM1, TM2, TM3, TM4 and TB5 are eld work.
* Be sure to connect the ground wire.
* Be sure to install an all pole electric leakage isolator.
* Always use an isolator for the main switch power connection.
* Select proper circuit breaker according to the electrical current information in the chart below.
Model LGH-50RVS-E LGH-80RVS-E LGH-100RVS-E
Maximum current when operating [A] 2.2 3.7 4.2
Inrush current after power supply ON [A] 10 ms 6.1
100 ms 3.6
TM1
SW5
SW2
SW6
Grounding terminal
SW12
SW11
TM3
TB5
TM2
TM4
TM1: Terminal block (Power supply)
TM2: Terminal block (External control input)
TM3: Terminal block (Monitor output)
TM4: Terminal block (Transmission cable)
TB5: Terminal block (M-NET Transmission cable)
1
9 10 A
B
S
2
Y
Z
TM2
TM4TM3
TB5
TM2
TM1
L
N
M-NET
PCB
1 2
Volt-free contact
12 V or 24 VDC
Operation signals
Shield wire
Isolator
(Field supply)
Power supply
Lossnay controller (Max. 2) or
2nd Lossnay (Max. 15)

Eng-11
Connecting the power supply cable
1. Remove the black screws and the control
box cover.
2. Connecting the power supply cable and
transmission cable.
Pass the Power supply cable through the bush* (eld supply) and
connect to the TM1 terminal block using the round terminals.
Secure the cable with the bush.
(* Use an item that can rmly secure the cable such as a cable
gland.)
Be sure to tighten the ground wire to the grounding screw using the
round terminals with anti spread washer.
CAUTION
• Always separate the power supply cable and transmission
cable by 5 cm or more to prevent malfunctioning of the unit.
• Take power supply cable and transmission cable into control
box by another hole of the side plate.
• If the stripped length of the power supply cable is too long, the
conductors may touch and short out.
• Adequate power supply cable size is 1.0 mm2or more.
(1) Tighten the transmission cables to the terminal block.
(2) Secure the transmission cables using the cord clips.
Upon completion of the wiring connections, replace the control box
cover.
Note
• When using optional signal output terminal (PZ-N4GS-E),
please follow the install manual of it for the electrical
installation as well.
Black screws
Control box cover
Power supply cable Power supply cable
Insert the cutter
TM1
Bush
Transmission cable
Cable gland
Ground wire
Grounding screw
Anti spread washer
The following system conguration
can be created. Connect the necessary
parts.
1 When connecting with remote controller (PZ-62DR-E)
2When interlocked with indoor unit of air conditioner or other
external device including other manufactures
3When operating multiple Lossnay units
4Signal output from Lossnay unit
5When switching fan speed externally (when a sensor or other
device is connected)
6When switching By-pass externally
7To change fan speed by 0 - 10 VDC input
8When using the remote/local switching and the ON/OFF input
(level signal)
9When connecting to the City Multi or Mitsubishi Electric Air-
Conditioner Network System (MELANS)
0To start/stop Lossnay stand-alone operation without using the
remote control
aControl via Wi-Fi interface or MELCOBEMS MINI
bWhen connecting CO2sensor PZ-70CSB-E or PZ-70CSW-E
CAUTION
• When connecting external devices (electric heater, damper,
lamp, monitoring unit, etc.) using output signals of the
Lossnay unit, be sure to install safety equipment for the
external devices.
(It could cause re, damage, etc. without safety equipment.)
1When connecting with remote controller (PZ-62DR-E)
* When controlling Lossnay units with MELANS, connect wires
according to 9.
Securely connect the transmission cable from the remote controller to
1and 2 of the input terminal block (TM4). (No polarity)
Wire type: two-core sheathed cable
Wire diameter: 0.3 mm2
• If there are two remote controllers, connect them in the same way.
• Keep the overall length of the transmission cable between Lossnay
and the remote controller within 200 m.
Note
• Do not tighten screws of terminal block with a torque larger
than 0.5 N・m. It could damage the circuit board.
• Take care not to connect the power supply cable or M-NET
transmission cable.
• When connecting multiple cables to the terminal, use round
terminal.
• Solid wire (single-stranded wire) cannot be connected.
Power supply
Up to two remote controllers
Lossnay
2
1
Remote controller input terminal
Transmission cables

Eng-12
2When interlocked with indoor unit of air conditioner or
other external device including other manufactures
CAUTION
• The connection may vary according to the output signal type
of the external unit.
• Do not press the terminal with a force of more than 19.6 N
when connecting the cable to TM2.
Operating switch
for external device
Power supply
External
device
Lossnay
Power supply TM2
When using Mitsubishi Mr. Slim air conditioner with MA
Remote controller
Conrm that the pulse input switch (SW2-2) is set to “OFF”.
(Factory setting is “OFF”.) (Refer to function settings
No. 28
)
Connect the Slim-Lossnay connection cable connector side to
CN2L on the circuit board for the Mr. Slim indoor unit, then connect
the lead wire side to the 1and 2 of the input terminal block (TM2)
for the Lossnay external controller input. (No polarity)
• Always separate the power supply cable and the Slim-Lossnay
connection cable by 5 cm or more to prevent the unit from
malfunctioning.
• The Slim-Lossnay connection cable is 100 mm long. When
wiring, extend it as far as necessary.
Y Z
1 2
Lossnay external
control input
(TM2)
Slim-Lossnay connection cable
(Accessory parts)
Printed circuit board
Maximum 50 m
CN2L
Mr. Slim (Indoor unit)
Operating switch for
external device
Power supply
External
device
Note
• Use MA remote controller of Mr. Slim for switching Lossnay
ON/OFF or the fan speed.
• The ventilation mode is xed to “automatic ventilation” from
MA remote controller.
• Ensure that all connections are secure and that the appropriate
insulation is provided.
Use extension cable sheathed PVC cable or cable 0.5 mm2to
1.5 mm2.
• Only one Lossnay and one Mr. Slim unit can be interlocked.
Multiple units interlock is not possible.
• Lossnay can not be connected M-NET in this case.
[SW2-2] setting vary depending on the types of output signal of
external device.
When the external device has a charged operating signal
of 12 VDC or 24 VDC
• If the input is pulse signal, move the pulse input switch [SW2-2]
to the ON position. (Refer to function settings
No. 28
)
• When level signal is selected, the signal width has to be more
than 10 seconds for ON and OFF .
• When pulse signal is selected, a pulse width has to be at least
200 m sec. to turn Lossnay ON, and 10 sec. interval is necessary
to next output.
• The wiring should be as shown by the following picture.
Y Z
1 2
Lossnay external
control input
(TM2)
0.5 mm2to 1.5 mm2sheathed PVC cable
External device
12 or 24 VDC
Overall connection extension length
(Follow the operation manual for the external equipment.)
When the external device has an Volt-free contact signal
• If the input is pulse signal, move the pulse input switch [SW2-2]
to the ON position. (Refer to function settings
No. 28
)
• When level signal is selected, the signal width has to be more
than 10 seconds for ON and OFF .
• When pulse signal is selected, a pulse width has to be at least
200 m sec. to turn Lossnay ON, and 10 sec. interval is necessary
to next output.
• The wiring should be as shown by the following picture.
Y Z
1 2
Lossnay external
control input
(TM2)
0.5 mm2to 1.5 mm2sheathed PVC cable
External device
Volt-free contact
Maximum 500 m
CAUTION
• If an optocoupler or any other type of polar coupler is used at
the Volt-free contact, connect the positive side to Yand the
negative side to Z .
3When operating multiple Lossnay units
In the case that all Lossnay units are the same LGH-RVS-E series,
up to 15 multiple units can be operated at the same time.
1) Connect the Lossnay unit from Unit 1 to Unit 2, and from Unit 2 to
Unit 3 and so on up to a maximum of 15 units using a transmission
cable.
Wire type: two-core sheathed cable
Wire diameter: 0.3 mm2
2) When it is interlocked with an external device, set the Lossnay unit
which has external signal input to “Main”.
Lossnay
Remote controller
(PZ-62DR-E)
Lossnay
MAX 15 units
Power supply
Power supply
Power supply
Lossnay
Connect to
remote controller
(PZ-62DR-E)
Connect to
third Lossnay
21
21
Transmission cable
First
Lossnay
Second
Lossnay
TM4
TM4
CAUTION
• Do not tighten screws of terminal block with a torque larger
than 0.5 N.m. It could damage the circuit board.

Eng-13
Note
• When connecting multiple cables to the terminal, use round
terminal.
• Solid wire (single-stranded wire) cannot be connected.
• Only one unit can be set as main Lossnay. The operating signal
and pulse signal of the external device can be connected to
Main Lossnay only.
• Connect the power supply cable to each Lossnay unit.
• When setting the Lossnay address for use with a Mitsubishi
Electric Air-Conditioner Network System (MELANS) etc., the
Lossnay with the smallest address in the group will be the
Main Lossnay. When not setting the address, set the address
to “1” for only one unit in the group. The Lossnay with an
address of “1” is the Main Lossnay. (Refer to “Setting the
address” on the section 5 for more detail.)
4Signal output from Lossnay unit
Set DIP-SW or Function setting on PZ-62DR-E as following table
depending on the necessary output signal from Lossnay unit. For
more information of signal output, see function settings No.12 to 16 .
DIP-SW setting Function setting on
PZ-62DR-E Signal output
SW5-1 SW5-2
- -
12
0 Dip-SW priority
OFF OFF 1 Operation monitor
ON OFF 2 Malfunction monitor
OFF ON 3 By-pass monitor
ON ON 4 Supply fan operation monitor
N/A N/A 5 Exhaust fan operation monitor
N/A N/A 6 Pre-heater signal output
N/A N/A 7 After-heater signal output
• Do not tighten screws of terminal block with a torque larger than 0.5
N・m. It could damage the circuit board.
• When connecting multiple cables to the terminal, use round terminal.
• If multiple output signals are necessary, use optional signal output
terminal (PZ-N4GS-E).
When using Pre-heater output signal, the wiring should be as shown
by the following picture.
CAUTION
• Failure to follow below instructions, it could cause a re.
• Choose a OA pre-heater which can control the heater outlet air
temperature even both the air ow is maximum and minimum,
and set Lossnay inlet air temperature to 2 - 13˚C.
Otherwise it could fall the supply fan into intermittent
operation.
• Select a duct heater in compliance with local and national laws,
ordinances, and standards.
• Select a duct heater that is tested by a certication body.
• Always select a heater that is equipped with a non-self-
resetting safety device.
9
10
Indicator
External device
etc.
Power Supply
TM3
Max. 240 VAC, 1 A
24 VDC, 1 A
Min. 220 VAC, 100 mA
5 VDC, 100 mA
X15
9
10
Relay
Pre-heater
2 m or more
Power Supply
for heater Power Supply
for relay
TM3
Max. 240 VAC, 1 A
24 VDC, 1 A
Min. 220 VAC, 100 mA
5 VDC, 100 mA
SA
OA
Lossnay
• Do not directly supply power from the Lossnay unit to the duct
heater. Doing so could cause re.
• Install a circuit breaker for the duct heater in compliance with
all applicable laws, ordinances, and standards.
• Install the duct heater separated from the product by a
distance of 2 m or more.
Failure to do so may result in equipment damage due to the
transmission of residual heat from the heater.
• Ensure that the duct heater and Lossnay are wired and that
the Lossnay function settings have been congured, and then
always check operation by trial operation.
• For the duct heater output, see function setting No.61.
When using After-heater output signal, the wiring should be as shown
by the following picture.
For the heater, observe the cautions listed in Pre-heater.
5When switching fan speed externally
(when a sensor or other equipment is connected)
Using a eld supply sensor, etc., make connection by inserting the
optional remote controller adapter (PAC-SA88HA-E) in the connector
CN17 (Red) as shown by the gure.
Lossnay will operate at the fan speed following the table below,
regardless of the remote controller setting.
CN17 (Red) Fan speed
1-2 (Brown-Red) 4
1-3 (Brown-Orange) 3
1-4 (Brown-Yellow) 2
1-5 (Brown-Green) 1
nExample “Fan speed 4”
Use this in such a way that it ventilates at low fan speed normally,
and when the external sensor detects contamination of indoor air, or
SW1 is on, it changes to high fan speed operation.
When multiple Lossnay units are controlled by one input, PZ-62DR-E is
necessary.
The signal has to be inputed into main unit referring to 3.
Relay
2 m or more
Power Supply
for heater Power Supply
for relay
TM3
Max. 240 VAC, 1 A
24 VDC, 1 A
Min. 220 VAC, 100 mA
5 VDC, 100 mA
9
10
Lossnay
SA
OA
SW1 CN17
Field supply sensor, etc.
Remote controller adapter
(Optional) PAC-SA88HA-E
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Not used. Insulate completely.
Max wiring length 10 m
Lossnay
control board
Fan speed
selection

Eng-14
6When switching By-pass externally.
Establish the wire connection by inserting the optional remote
controller adapter (PAC-SA88HA-E) in the connector CN26 (White).
With SW1 is “ON”, the ventilation mode of Lossnay is changed to the
By-pass ventilation regardless of the setting on the remote controller.
When multiple Lossnay units are controlled by one input, PZ-62DR-E is
necessary.
The signal has to be input ed into main unit referring to 3.
* When the outdoor air temperature drops lower than 8˚C, it changes
to the heat recovery ventilation. (In this case, ventilation mode icon
on the display of the remote controller does not change from the
previous mode, it might be di󰀨erent from the actual unit operation.)
7To change fan speed by 0 - 10 VDC input
Establish the wire connection by inserting the optional remote
controller adapter (PAC-SA88HA-E) in the connector CN26 (White).
To change fan speed by 0 - 10 VDC input, the wiring should be as
shown by the above picture. Refer to function settings
No. 66
for
more details.
When multiple Lossnay units are controlled by one input, PZ-62DR-E
is necessary.
The signal has to be inputed into main unit referring to 3.
CAUTION
• Make sure of correct polarity.
8When using the remote/local switching and the ON/OFF
input (level signal)
Insert the optional remote ON/OFF adapter (PAC-SE55RA-E) in
CN32 on the Lossnay control circuit board.
When multiple Lossnay units are controlled by one input, the signal
has to be inputed into main unit referring to 3.
SW1: When this is ON, Lossnay cannot be turned ON/OFF by the
Remote Controller (PZ-62DR-E).
SW2: When SW1 is ON, Lossnay can be turned ON by setting SW2
at ON or turned OFF by setting SW2 at OFF.
SW1: Remote/local selector switch
SW2: ON/OFF switch
X, Y : Relay (Contactor rating DC 1 mA)
SW1
CN26
SW1: By-pass ventilation operation switch
(When closed: For By-pass ventilation operation)
Remote controller adapter
(Optional) PAC-SA88HA-E
Brown 1
Red 2
Orange 3
Yellow 4
Green 5
Lossnay
control board
Fan speed/
Ventilation
mode selection
Max wiring length 10 m
Not used. Insulate completely.
CN26
Remote controller adapter
(Optional) PAC-SA88HA-E
Yellow 4 (0 - 10 VDC)
Green 5 (COM)
Lossnay
control board
Fan speed/
Ventilation
mode selection
External
device
Max wiring length 10 m
Brown 1
Red 2
Orange 3
Not used. Insulate
completely.
Remote control
board
Remote ON/OFF adapter
(Optional) PAC-SE55RA-E
Lossnay
control board
Relay circuit
CN32
SW1
SW2
Y
X
Y
X
Max wiring length 10 m
Orange 1
Red 2
Brown 3
Relay power supply
When interlocking with Mitsubishi M-NET air conditioner
• Incase of PZ-62DR-E
* Limit the total length of transmission cables no longer than 500 m.
Limit the wiring length between Lossnay and the power supply unit
(Optional) or the outdoor unit no longer than 200 m.
Note
• LGH-RVS-E series Lossnay can NOT be set as the same
group with other series Lossnay such as LGH-RVX-E series
or LGH-RVXT-E series.
M-NET transmission cable
Lossnay
Power
supply unit
Lossnay MELANS
M-NET transmission cable
Air
conditioner
Air
conditioner
MA remote
controller
When connecting to PZ-62DR-E and MELANS
• Connect the power feeding unit.
(Optional)
PZ-62DR-E
PZ-62DR-E
9When connecting to the City Multi, Mitsubishi Electric Air-
Conditioner Network System (MELANS)
• Connect a shielded wire to terminal TB5 Son the circuit board.
Address setting is required. (Refer to function setting section.)
M-NET transmission cable: Connect any of the City Multi
indoor unit, or Mitsubishi Electric
Air-Conditioner Network System
(MELANS) - to the Lossnay.
• Remote Controller
PZ-62DR-E:
Connect to TM4 1, 2on the circuit board. (See Section 1
“When connecting with remote controller (PZ-62DR-E)”.)
• Securely connect the M-NET transmission cables to TB5 AB.
(No-Polar)
Type: (Shielded wire, CVVS/CPEVS)
Wire diameter: 1.25 mm2
CAUTION
• Do not tighten screws on the terminal block with a torque
larger than 0.5 N・m. It may damage the circuit board.
• Always use shielded wires only for the M-NET transmission
cables, and nish the shield properly.
• Be sure to cut M-NET power supply during Lossnay wiring,
otherwise it causes malfunction.
A
B
S
TB5 Shielded wire
M-NET transmission cable

Eng-15
10 To start/stop Lossnay stand-alone operation without using
the remote control
Start/stop the unit by a switch connected to TM2 Y Z .
When turned the unit ON, it operates at fan speed 4 and automatic
ventilation mode.
CAUTION
• Do not start/stop the unit by turning the power supply to the
unit ON/OFF.
L
N
Y Z
1 2
Switch
Isolator
TM2
TM1
Lossnay external
control input

Eng-16
11 Control via Wi-Fi interface or MELCOBEMS MINI
Connect the lead wire of a Wi-Fi interface or MELCOBEMS MINI to CN105 on circuit board of Lossnay unit.
Regarding the model name of the connectable Wi-Fi interface or MELCOBEMS MINI, please contact the
sales company in your market.
CAUTION
1. For the installation of the Wi-Fi interface, there are some precautions. Refer to the Installation manual of the Wi-Fi interface for more details.
2. After the installation, be sure to do a test run prior to the start of actual operations.
3. Follow the system conguration examples listed below.
System controller Prohibit remote controller Do NOT use “remote controller ON/OFF prohibition” function on system controller.
External control ON/OFF switching by CN32 NOT available with CN105 connection control.
External fan speed control
(CN17, CN26)
The unit follows external input signal. Therefore, the fan speed selection through CN105 connection
control become invalid.
External Bypass control
(CN26)
The unit follows external input signal. Therefore, the ventilation mode selection though CN105
connection control become invalid.
Interlocking Interlock with Mr. Slim Interlocking with Mr. Slim unit by Slim-Lossnay connection cable (CN2L-TM212 connection) is
NOT possible.
Interlock mode setting Only “ON/OFF interlock mode” is available. Please set function No.19 as 0 on PZ-62DR-E (factory
setting).
12 When connecting CO2 sensor PZ-70CSB-E or PZ-70CSW-E
Connect and install correctly by following the installation manual of PZ-70CSB-E or PZ-70CSW-E.
CN105
CN105
Lossnay Lossnay
Lossnay
Lossnay
Lossnay Lossnay Lossnay
PZ-43SMF-E
PZ-62DR-E
PZ-62DR-E
PZ-62DR-E PZ-62DR-E
Lossnay
Basic system
M-NET systemMultiple unit operation
Lossnay remote controller (PZ-62DR-E) or M-NET remote controller is necessary.
<NOTE>
The operation by pushing the controller button lastly has a priority.
Do NOT use “remote controller ON/OFF prohibition” function on system controller.
PZ-43SMF-E cannot be used with CN105
connection.
Wi-Fi interface/
MELCOBEMS MINI
(if necessary)
Multiple Lossnay unit
operation in one group is
NOT possible with CN105
connection.
Set one Lossnay unit which is connected Wi-Fi interface or
MELCOBEMS MINI as one group.
Set one Lossnay unit which is connected Wi-Fi interface or
MELCOBEMS MINI as one group. Do NOT make a group of
multiple Lossnay units when using CN105 connection.
Wi-Fi interface/
MELCOBEMS MINI
Wi-Fi interface/
MELCOBEMS MINI
Wi-Fi interface/
MELCOBEMS MINI
(if necessary)(if necessary)
Group 1 Group 2
M-NET system
controller
M-NET system
controller
Power supply unit
Power supply unit

Eng-17
5. Function settings
Address setting is required when connecting to City Multi and MELANS.
Setting the address
Use the following procedure when setting the address for dedicated
Lossnay.
(The method in determining the addresses will depend on the existing
system. Refer to the appropriate technical documents for details.)
(1) Remove the control box cover.
(2) Turn the address setting switch on the circuit board.
• SW12 indicates the tens digit and SW11 indicates the ones digit.
• The factory setting is “00”.
Address setting switch
SW11 (Ones digit)
Address setting switch
SW12 (Tens digit)
Changing the function selection
switches (SW-2, 5 and 6)
Set the selection switches (SW-2 and 5) to perform the appropriate
function.
* All function except “Trial operation” and “Auto fan speed setting
without Lossnay or M-NET remote controller” can be set also from
the remote controller (PZ-62DR-E). If the function is switched later
using the remote controller, it operates according to the setting on
the remote controller.
1
2
3
4
5
6
7
8
9
10
(SW2)
1
2
3
4
5
6
7
8
9
10
(SW5)
OFF ON
OFF ON
Trial operation
No. 28 Pulse input setting
No. 9 Delay start setting for air conditioner starting
No. 6 Indoor negative pressure setting
No. 7 Indoor positive pressure setting
No. 64 Fan speed for air volume “High” setting
No. 65 Fan speed for air volume “Low” setting
No. 5
Automatic recovery setting after power interruption
N/A
N/A
No. 12 Monitor output setting
No. 17 Exhaust fan setting during air conditioner defrosting
N/A
N/A
No. 66 CO2sensor or BMS setting
Auto fan speed setting without Lossnay or M-NET remote controller
N/A
* When the address number has been changed, the data in the
memory is automatically reset.
Change the function settings from the
remote controller PZ-62DR-E.
Please refer to the Instruction book of PZ-62DR-E for how to set the
function settings.
DIP-SW6 is to identify the model for circuit board. When replacing to
new circuit board, set the same setting as old one.
(SW6)
SW6-1 SW6-2 SW6-3 SW6-4 SW6-5 SW6-6
LGH-50RVS-E OFF OFF ON OFF OFF ON
LGH-80RVS-E OFF ON ON ON OFF ON
LGH-100RVS-E ON ON ON ON OFF ON
* Do not change from factory setting. If changed, please set as factory setting.

Eng-18
No Function Setting Data
Factory
setting
DIP-SW
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
1
Filter maintenance and fan
power up setting against lter
choking
Indicator
N/A
Fan
power up
N/A
Indicator
available
Fan
power up
N/A
Indicator
available
Fan
power up
available
Indicator
N/A
Fan
power up
available
— — — — — — — — — — — — 0 —
5
Automatic recovery setting after
power interruption
Dip-SW
priority
Stop
when the
power is
On
Start
when the
power is
On
Return to
the state
before
interrup-
tion
— — — — — — — — — — — — 0 2-8
6Indoor negative pressure
setting
Dip-SW
priority N/A Supply
1 down
Supply
2 down — — — — — — — — — — — — 0 2-4
7Indoor positive pressure setting Dip-SW
priority N/A
Exhaust
1 down
Exhaust
2 down
— — — — — — — — — — — — 0 2-5
8
Max. fan speed setting during
the rst 30 minutes
N/A Available — — — — — — — — — — — — — — 0 —
9 Delay start setting for air
conditioner starting
Dip-SW
priority N/A 15 min 30 min — — — — — — — — — — — — 0 2-3
12 Monitor output setting TM3
90
Dip-SW
priority
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
———————— 0 5-1
5-2
13 Monitor output setting
PZ-4GS-E COM-OUT1
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 1 —
14 Monitor output setting
PZ-4GS-E COM-OUT2
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 2 —
15 Monitor output setting
PZ-4GS-E COM-OUT3
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 3 —
16 Monitor output setting
PZ-4GS-E COM-OUT4
Operation
monitor
Malfunction
monitor
By-pass
monitor
Supply fan
monitor
Exhaust
fan monitor
Pre-
heater
output
SA fan monitor
output with
delay operation
(for After heater)
— ———————— 4 —
17 Exhaust fan setting during air
conditioner defrosting
No
change Stop Dip-SW
priority — — — — — — — — — — — — — 2 5-3
19 Interlock mode setting
ON/OFF
interlock
ON
interlock
OFF
interlock
External
input giv-
en priority
— — — — — — — — — — — — 0 —
28 Pulse input setting Dip-SW
priority
Non-pulse
input
Pulse
input — — — — — — — — — — — — — 0 2-2
30 Night-purge setting 1)
Air volume N/A
Fan speed 1 Fan speed 2 Fan speed 3 Fan speed 4 — — — ———————— 0 —
31
Night-purge setting 2)
Outdoor and indoor
temperature gap
0 K
(0˚C)
1 K
(1˚C)
2 K
(2˚C)
3 K
(3˚C)
4 K
(4˚C)
5 K
(5˚C)
6 K
(6˚C)
7 K
(7˚C) ———————— 5 —
32
Night-purge setting 3)
The lowest outdoor
temperature
Setting Data 0 to 15 --> The lowest outdoor temperature for Night-purge 15˚C to 30˚C 2 —
33
Night-purge setting 4)
Outdoor temperature detection
period
24 hr 48 hr 72 hr — — — — — — — — — — — — — 2 —
34 Input priority setting
Bunch
control
priority
Individual
control
priority
— — — — — — — — — — — — — — 0 —
36 Outdoor temperature display
setting N/A
Available — — — — — — — — — — — — — — 1 —
37 Indoor temperature display
setting N/A
Available — — — — — — — — — — — — — — 1 —
38 CO2concentration display
setting N/A
Available — — — — — — — — — — — — — — 1 —
39 Calculated supply air
temperature display setting N/A
Available — — — — — — — — — — — — — — 0 —
40
Temperature exchange
e󰀩ciency setting (10 digit)
Setting Data 0 to 9 --> 10 digit of temperature exchange e󰀩ciency 0 to 9 —————— 8 —
41 Temperature exchange
e󰀩ciency setting (1 digit) Setting Data 0 to 9 --> 1 digit of temperature exchange e󰀩ciency 0 to 9 —————— 2 —
42 Outdoor temperature
correction Setting Data 0 to 14 --> Outdoor temperature correction -7 K (-7˚C) to 7 K (7˚C) — 7 —
43 Indoor temperature correction Setting Data 0 to 14 --> Room temperature correction -7 K (-7˚C) to 7 K (7˚C) — 7 —
44 CO2concentration correction Setting Data 0 to 10 -->CO2concentration correction -500ppm 〜500ppm
(100ppm in increments) ————— 5 —
45 Supply fan monitor threshold
Fan speed
1 or higher
Fan speed
2 or higher
Fan speed
3 or higher
Fan speed
4
— — — — — — — — — — — — 0 —
46 Exhaust fan monitor threshold
Fan speed
1 or higher
Fan speed
2 or higher
Fan speed
3 or higher
Fan speed
4
— — — — — — — — — — — — 0 —
52
Automatic ventilation mode
setting 1)
Outdoor and indoor
temperature gap
Setting Data 0 to 7 --> Temperature gap 0 K (0˚C) to 7 K (7˚C) ———————— 0 —

Eng-19
No Function Setting Data
Factory
setting
DIP-SW
No.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
53
Automatic ventilation mode
setting 2)
The lowest outdoor
temperature setting
Setting Data 0 to 15 --> Lowest outdoor temperature 10˚C to 25˚C 6 —
54
Automatic ventilation mode
setting 3)
The lowest indoor temperature
setting
Setting Data 0 to 15 --> Lowest indoor temperature 15˚C to 30˚C 1 —
55 Supply fan power up for Fan
speed 4 N/A
1 level up 2 level up 3 level up 4 level up — — — ———————— 0 —
56 Exhaust fan power up for Fan
speed 4 N/A
1 level up 2 level up 3 level up 4 level up — — — ———————— 0 —
61 Pre-heater output setting 2)
OFF interval 1 hr 2 hr 3 hr 4 hr 5 hr — — — — — — — — — — — 0 —
62
LED usage setting for
PZ-70CSW-E during non
operation
Unlit Lit — — — — — — — — — — — — — — 0 —
64 Fan speed for air volume “High”
input
Dip-SW
priority
Fan speed 4 Fan speed 3 — — — — — — — — — — — — — 0 2-6
65 Fan speed for air volume “Low”
input
Dip-SW
priority
Fan speed 2 Fan speed 1 — — — — — — — — — — — — — 0 2-7
66 CO2sensor or BMS setting Dip-SW
priority N/A
3rd par-
ty’s CO2
seonsor
—
BMS
Pattern Z
CO2sensor
PZ-70CSW-E
—
CO2sensor
PZ-70CSB-E
———————— 0
5-6
5-7
5-8
67 Threshold minutes for
PZ-70CSW-E LED 10 min 15 min 20 min 25 min 30 min — — — — — — — — — — — 2 —
68 Threshold concentration for
PZ-70CSW-E LED
1000 ppm 1100 ppm 1200 ppm 1300 ppm 1400 ppm 1500 ppm 1600 ppm 1700 ppm 1800
ppm
1900
ppm
2000
ppm
————— 5 —
69 Emergency stop setting
Emergency
stop
Normal
stop — — — — — — — — — — — — — — 0 —
73 Airow setting for supply fan
speed 3
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 5 —
74 Airow setting for supply fan
speed 2
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 10 —
75 Airow setting for supply fan
speed 1
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 15 —
76 Airow setting for exhaust fan
speed 3
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 5 —
77 Airow setting for exhaust fan
speed 2
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 10 —
78 Airow setting for exhaust fan
speed 1
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 15 —
83 Filter maintenance interval
setting - Thousands digit
0 1 2 3 4 5 6 7 8 9 —————— 3 —
84 Filter maintenance interval
setting - Hundreds digit
0 1 2 3 4 5 6 7 8 9 —————— 0 —
87 Airow setting for supply fan
speed 4
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 0 —
88 Airow setting for exhaust fan
speed 4
100 % 95 % 90 % 85 % 80 % 75 % 70 % 65 % 60 % 55 % 50 % 45 % 40 % 35 % 30 % 25 % 0 —
89 CO2sensor setting - maximum
side - Hundreds digits
600 ppm 700 ppm 800 ppm 900 ppm 1000 ppm 1100 ppm 1200 ppm 1300 ppm 1400
ppm
1500
ppm
1600
ppm
1700
ppm
1800
ppm
1900
ppm
2000
ppm
— 4 —
90 CO2sensor setting - maximum
side - tens digits
0 ppm 50 ppm — — — — — — — — — — — — — — 0 —
91 CO2sensor setting - minimum
side - Hundreds digits
300 ppm 400 ppm 500 ppm 600 ppm 700 ppm 800 ppm 900 ppm 1000 ppm 1100
ppm
1200
ppm
1300
ppm
1400
ppm
1500
ppm
1600
ppm
1700
ppm
— 1 —
92 CO2sensor setting - minimum
side - tens digits
0 ppm 50 ppm — — — — — — — — — — — — — — 1 —
93 CO2sensor correction
-250 ppm -200 ppm -150 ppm -100 ppm -50 ppm 0 ppm 50 ppm 100 ppm 150
ppm
200
ppm
250
ppm
————— 5 —
100 Initialization (No.1 〜99) N/A Initialize — — — — — — — — — — — — — — 0 —
This table shows the summary of function settings. Please refer to the following pages for more details.
The functions indicated with “N/A” in the “DIP-SW No.” column are available only when using with remote controller PZ-62DR-E.
PZ-62DR-E can set Night purge setting (No.30), By-pass setting (No.52, 53, 54 ), CO2 sensor setting (No.89, 90, 91, 92), Filter maintenance interval setting
(No.83, 84) and Airow setting (No. 73-78, 87, 88) by di󰀨erent way more easily.
Refer to the remote controller PZ-62DR-E operation manual for more detail.

Eng-20
—Auto fan speed setting without Lossnay or
M-NET remote controller
When CO2sensor is connected but any remote controller is not
connected, SW 5-9 has to be ON in order to operate according to
CO2consentration.
When SW 5-9 is ON, any Lossnay remote controller or M-NET
system controller can not be connected and not possible to interlock
with City Multi or Mr. Slim unit.
DIP-SW
Setting
check
Auto fan speed setting without Lossnay or M-NET
remote controller
SW No. Setting
SW5-9
OFF
(Factory setting)
N/A
ON Fan speed changes according to CO2consentration
No. 1 Filter maintenance and fan power up
setting against lter choking
Set the schedule for lter cleaning based on the estimated
concentration of dust in the air.
When fan power up is available, exhaust and supply fans power up at
1,000 hrs and 2,000 hrs gradually .
If function
No. 55
or
No. 56
is already worked, fan power up function
may not be available.
Estimated hour di󰀨ers by actual operated fan speed.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Filter maintenance
indicator
Fan power
UP
SW No. Setting Function No. Setting Data
N/A
- -
1
0
(Factory setting)
N/A N/A
- - 1
Appears at the
interval of estimated
3,000 hrs
N/A
- - 2
Appears at the
interval of estimated
3,000 hrs
Available
- - 3 N/A Available
CAUTION
• When the cumulative operation time of the Lossnay exceeded
the estimated hours, the lter cleaning icon will appear on
the air conditioner remote controller or the Lossnay remote
controller. After cleaning the lter, the lter cleaning icon can
be reset. Refer to the Instruction book for the remote controller.
No.5 Automatic recovery setting after power
interruption
Sets for automatic recovery following power interruption.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Lossnay operation when
the power is recovered
SW No. Setting Function No. Setting Data
SW2-8
- -
5
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 Lossnay remains stopped.
- - 2 Lossnay starts operation.
ON* 3 Lossnay returns to the
state before interruption
* If a power failure happens when Lossnay is operating by external
signal bia TM2 12 or YZ , Lossnay returns the condition before
power failure regardless of the external input condition after power
recovery.
No. 6 Indoor negative pressure setting
Exhaust fan speed becomes
bigger than supply fan speed.
Remote controller indicates fan
speed of exhaust fan.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Down level of supply fan
speed
SW No. Setting Function No. Setting Data
SW2-4
- -
6
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 N/A
ON 2
Supply fan speed is 1
down to exhaust fan speed
- - 3
Supply fan speed is 2
down to exhaust fan speed
No.7 Indoor positive pressure setting
Supply fan speed becomes bigger
than exhaust fan speed.
Remote controller indicates fan
speed of supply fan.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Down level of exhaust
fan speed
SW No. Setting Function No. Setting Data
SW2-5
- -
7
0
(Factory setting)
DIP-SW priority
OFF
(Factory setting)
1 N/A
ON 2
Exhaust fan speed is 1
down to supply fan speed
- - 3
Exhaust fan speed is 2
down to supply fan speed
No.8 Max. fan speed setting during the rst 30
minutes
This sets the fan to run forcibly for 30 minutes when operation starts
to ventilate the indoor area. After 30 minutes, fan speed can be
changed.
Use this setting if the indoor air is contaminated at night when the
system is shut down and you desire to ventilate the indoor area
quickly when operation is started in the morning.
This function is N/A from Lossnay unit DIP-SW.
While this function is working, and selected fan speed are displayed
on the screen of PZ-62DR-E.
DIP-SW
Setting
check
PZ-62DR-E
Setting
check
Max. fan speed setting
during the rst 30 minutes
SW No.
Setting Function No. Setting Data
N/A - - 8
0
(Factory setting)
N/A
- - 1 Available
Fan speed
Display
Exhaust
fan
Supply fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1
Fan speed
Display
Supply
fan
Exhaust fan
1 down 2 down
4 4 3 2
3 3 2 1
2 2 1 1
1 1 1 1
