INSTRUCTION MANUAL
INVERTER
Plug-in option PRE-OPERATION INSTRUCTIONS 1
INSTALLATION AND WIRING 2
ENCODER SPECIFICATIONS AND
PARAMETER SETTINGS 3
ORIENTATION CONTROL 4
ENCODER FEEDBACK CONTROL 5
VECTOR CONTROL 6
FR-A8AP
Orientation control
Encoder feedback control
Vector control

2
Safety instructions
Thank you for choosing this Mitsubishi Electric inverter plug-in option.
This Instruction Manual provides handling information and precautions for use of this product. Incorrect handling might cause an unexpected fault. Before
using this product, always read this Instruction Manual carefully to use this product correctly.
Please forward this Instruction Manual to the end user.
Electric Shock Prevention
WARNING
While the inverter power is ON, do not open the front cover or the wiring cover. Do not run the inverter with the front cover or the wiring cover
removed. Otherwise you may access the exposed high voltage terminals or the charging part of the circuitry and get an electric shock.
Do not remove the inverter front cover even if the power supply is disconnected. The only exception for this would be when performing wiring
and periodic inspection. You may accidentally touch the charged inverter circuits and get an electric shock.
Before wiring or inspection, LED indication of the inverter unit operation panel must be switched OFF. Any person who is involved in wiring or
inspection shall wait for at least 10 minutes after the power supply has been switched OFF and check that there is no residual voltage using
a tester or the like. For some time after the power-OFF, a high voltage remains in the smoothing capacitor, and it is dangerous.
Any person who is involved in wiring or inspection of this product shall be fully competent to do the work.
The plug-in option must be installed before wiring. Otherwise you may get an electric shock or be injured.
Do not touch the plug-in option or handle the cables with wet hands. Otherwise you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or pinching. Otherwise you may get an electric shock.
WARNING Incorrect handling may cause hazardous conditions, resulting in death or severe injury.
Incorrect handling may cause hazardous conditions, resulting in medium or slight injury, or may cause only material
damage.
Do not attempt to install, operate, maintain or inspect the product until you have read through this Instruction Manual and supplementary
documents carefully and can use the equipment correctly. Do not use this product until you have a full knowledge of this product mechanism,
safety information and instructions. In this Instruction Manual, the safety instruction levels are classified into "WARNING" and "CAUTION".
CAUTION
The level may even lead to a serious consequence according to conditions. Both instruction levels must be followed
because these are important to personal safety.
CAUTION

3
Injury Prevention
Additional Instructions
The following instructions must be also followed. If the product is handled incorrectly, it may cause unexpected fault, an injury, or an electric shock.
CAUTION
The voltage applied to each terminal must be as specified in the Instruction Manual. Otherwise an explosion or damage may occur.
The cables must be connected to the correct terminals. Otherwise an explosion or damage may occur.
The polarity (+ and -) must be correct. Otherwise an explosion or damage may occur.
While power is ON or for some time after power OFF, do not touch the inverter as it will be extremely hot. Touching these devices may cause
burns.
CAUTION
Transportation and installation
Do not install or operate the plug-in option if it is damaged or has parts missing.
Do not stand or rest heavy objects on the product.
Ensure the mounting orientation of this product is correct.
Foreign conductive objects must be prevented from entering the inverter. That includes screws and metal fragments or other flammable
substance such as oil.
If halogens (including fluorine, chlorine, bromine, and iodine) contained in fumigants for wood packages enter this product, the product may
be damaged. Prevent the entry of fumigant residuals or use an alternative method such as heat disinfection. Note that sterilization or
disinfection of wood packages should be performed before packing the product.
Trial run
Before starting operation, confirm or adjust the parameter settings. Failure to do so may cause some machines to make unexpected
motions.
WARNING
Usage
Do not modify the product.
Do not remove any part which is not instructed to be removed in the Instruction Manuals. Doing so may lead to a failure or damage of the
product.

4
CAUTION
Usage
As all parameters return to their initial values after the Parameter clear or All parameter clear is performed, the parameters must be set again
as required before the operation is started.
Static electricity in your body must be discharged before you touch the product.
Maintenance, inspection and parts replacement
Do not carry out a megger (insulation resistance) test.
Disposal
The inverter must be treated as industrial waste.
General instruction
Many of the diagrams and drawings in this Instruction Manual show the inverter without a cover or partially open for explanation. Never
operate the inverter in this manner. The cover must be reinstalled and the instructions in the Instruction Manual must be followed when
operating the inverter.

5
— CONTENTS —
Safety instructions 2
1 PRE-OPERATION INSTRUCTIONS 7
1.1 Unpacking and product confirmation............................................................................................................................7
1.2 Component names ..........................................................................................................................................................8
2 INSTALLATION AND WIRING 9
2.1 Pre-installation instructions ...........................................................................................................................................9
2.2 Installation procedure ...................................................................................................................................................10
2.3 Encoder specification / terminating resistor switch setting......................................................................................14
2.4 Wiring..............................................................................................................................................................................17
2.5 Encoder cables dedicated to Mitsubishi Electric motors ..........................................................................................22
2.6 Terminals........................................................................................................................................................................25
3 ENCODER SPECIFICATIONS AND PARAMETER SETTINGS 26
3.1 Encoder ..........................................................................................................................................................................26
4 ORIENTATION CONTROL 31
4.1 Wiring example ..............................................................................................................................................................31
4.2 Terminals........................................................................................................................................................................33
4.3 Specifications ................................................................................................................................................................34
5 ENCODER FEEDBACK CONTROL 35
5.1 Wiring examples ............................................................................................................................................................35
5.2 Specifications ................................................................................................................................................................36

6
6 VECTOR CONTROL 37
6.1 Wiring examples ............................................................................................................................................................38
6.2 Specifications ................................................................................................................................................................42
APPENDIX 44
Appendix 1 Instructions for compliance with the EU Directives ....................................................................................44
Appendix 2 Instructions for EAC .......................................................................................................................................45
Appendix 3 Restricted Use of Hazardous Substances in Electronic and Electrical Products .....................................46
Appendix 4 Referenced Standard (Requirement of Chinese standardized law) ...........................................................47
Appendix 5 Compliance with the UK certification scheme .............................................................................................48
REVISIONS 51

PRE-OPERATION INSTRUCTIONS 7
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and product confirmation
Take the plug-in option out of the package, check the product name, and confirm that the product is as you ordered and intact.
This product is a plug-in option dedicated for the FR-A800 series.
Product confirmation
Check the enclosed items.
NOTE
• Connection diagrams in this Instruction Manual appear with the control logic of the input terminals as sink logic, unless
otherwise specified. (For the control logic, refer to the Instruction Manual(Detailed) of the inverter.)
Plug-in option
.......................................1
Mounting screw (M3 × 8 mm)
........2 (Refer to page 9.)
Spacer
........2 (Refer to page 9)
1 2 3 4
O
N
1
2
O
N
SW2
SW3
SW1

8PRE-OPERATION INSTRUCTIONS
1.2 Component names
Symbol Name Description Refer to
page
a Mounting hole Fixes the option to the inverter with screws, or installs spacers. 9
b Terminal block Connects to the encoder. 17
c Encoder type selection switch (SW3) Switches the encoder type (differential line driver/ complementary). 14
d CON2 connector Not used. ―
e Terminating resistor selection switch (SW1) Switches ON or OFF the internal terminating resistor. 14
f Switch for manufacturer setting (SW2) Do not change the initially-set status. (Switches 1 and 2 are OFF .) ―
g Board mounted option connector Connects to the option connector of the inverter. 9
h LED for manufacturer check Not used. ―
Front view Rear view
Terminal layout
PA2
PB2
PZ2
SD SD
PO
PA1
PB1
PZ1
PG PG
PIN
PIN and PO
are not used.
1
2
O
N
SW2
SW3
SW1
(a) (g)
(a)
(b) (a)
(a)
(a)
(a)
(e)
(d)
(f)
(c)
1 2 3 4
O
N
(h)
1
2
O
N

INSTALLATION AND WIRING 9
2
2INSTALLATION AND WIRING
2.1 Pre-installation instructions
Check that the inverter's input power and the control circuit power are both OFF.
CAUTION
• Do not mount or remove the plug-in option while the input power is ON. Doing so may damage the inverter or plug-in option.
• To avoid damage due to static electricity, static electricity in your body must be discharged before you touch the product.

10 INSTALLATION AND WIRING
2.2 Installation procedure
1. Remove the inverter front cover. (Refer to Chapter 2 of the Instruction Manual (Detailed) of the inverter instructions for
removing the front cover.)
2. Insert two spacers into the mounting holes that will not be used for mounting screws (see the diagrams on page 11 to
identify the holes).
3. Fit the board mounted option connector on this product to the guide of the option connector on the inverter, and insert the
option as far as it goes. (Insert it to the inverter option connector 1 or 2.)
4. Fasten this product to the inverter using the two mounting screws through the holes on either side (tightening torque 0.33
N·m to 0.40 N·m). If the screw holes do not line up, the connector may not be inserted deep enough. Check the
connector.
Spacer
Spacer
Option connector
on the inverter
Example of installation to connector 1

INSTALLATION AND WIRING 11
2
Insertion positions of screws and spacers (standard model)
Spacer
Spacer
Mounting screw
This connector is available when
other option is not connected to the connector 2.
Mounting screw
Spacer
Spacer
Mounting screw
Connector 1Connector 2
Connector 3
Spacer
Spacer

12 INSTALLATION AND WIRING
Insertion positions of screws and spacers (Ethernet model)
Spacer
Spacer
Mounting screw
Mounting screw
Connector 1
Connector 3
Spacer
Spacer
When the Ethernet board is connected, the FR-A8AP
can be connected.
When the Ethernet board is disconnected, the
FR-A8AP can be connected when other option is not
connected to the connector 2.
Connector 2

INSTALLATION AND WIRING 13
2
NOTE
• Be careful not to drop mounting screws during the installation or removal of the plug-in option.
• Only attached to the option connector with high priority can function at once if more than one option of the same name are
installed together on an inverter. Priority is given to option connectors in descending order (1 to 3), and options having a
lower priority do not function. (For the positions of the option connectors 1 to 3, refer to page 11.)
• When the inverter cannot recognize the option due to improper installation or any other reason, the protective function (E.1
to E.3) is displayed. The indication shown (when a fault occurs) depends on the connector used (option connector 1 to 3).
• When removing the plug-in option, remove the two screws on either side, and then pull it straight out. Pressure applied to
the option connector and to the option board may break the option.
Mounted position Fault indication
Option connector 1
Option connector 2
Option connector 3

14 INSTALLATION AND WIRING
2.3 Encoder specification / terminating resistor switch setting
Encoder specification selection switch (SW3)
Select either differential line driver or complementary.
It is initially set to the differential line driver. Switch its position according to output circuit.
Complementary
Differential line driver
(initial status)
1
2
O
N
SW2
SW3
SW1
1 2 3 4
O
N

INSTALLATION AND WIRING 15
2
Terminating resistor selection switch (SW1)
Select "ON"/"OFF" of the internal terminating resistor.
Set the switch to "ON" (initial status) when an encoder output type is differential line driver and set to "OFF" when
complementary.
ON : with internal terminating resistor (initial setting status)
OFF : without internal terminating resistor
NOTE
• Set all switches to the same setting ("ON"/ "OFF").
• If the encoder output type is differential line driver, set the terminating resistor switch to the "OFF" position when sharing the
same encoder with other unit (CNC (computerized numerical controller), etc) or a terminating resistor is connected to other
unit.
Internal terminating
resistor-ON
(initial status)
Internal terminating
resistor-OFF
1
2
O
N
SW2
SW3
SW1
1 2 3 4
O
N

16 INSTALLATION AND WIRING
Motor used and switch setting
*1 Set according to the motor (encoder).
*2 Prepare the power supply (5 V/12 V/15 V/24 V) for the encoder according to the encoder's output voltage.
*3 When the encoder output is the differential line driver type, only 5 V can be input.
NOTE
• Switch "SW2" is for manufacturer setting. Do not change the setting.
• When power is not supplied to the control circuit of the inverter, also turn OFF the encoder's power supply. Otherwise, the
plug-in option may be damaged.
Motor Encoder specification
selection switch (SW3)
Terminating resistor
selection switch (SW1)
Power
specifications*2
Mitsubishi Electric high-
performance energy-saving motor
with encoder
SF-PR-SC Complementary OFF 12V to 24V
Mitsubishi Electric Vector control
dedicated motor
SF-V5RU Complementary OFF 12V to 24V
SF-THY Complementary OFF 12 to 24 V
Mitsubishi standard motor with
encoder
Mitsubishi high-efficiency motor
with encoder
SF-JR Differential ON 5V
SF-HR Differential ON 5V
Other *1 *1 *2*3
Mitsubishi Electric constant-torque
motor with encoder
SF-JRCA Differential ON 5V
SF-HRCA Differential ON 5V
Other *1 *1 *1*3
Other manufacturer's motor with encoder *1 *1 *1*3

INSTALLATION AND WIRING 17
2
2.4 Wiring

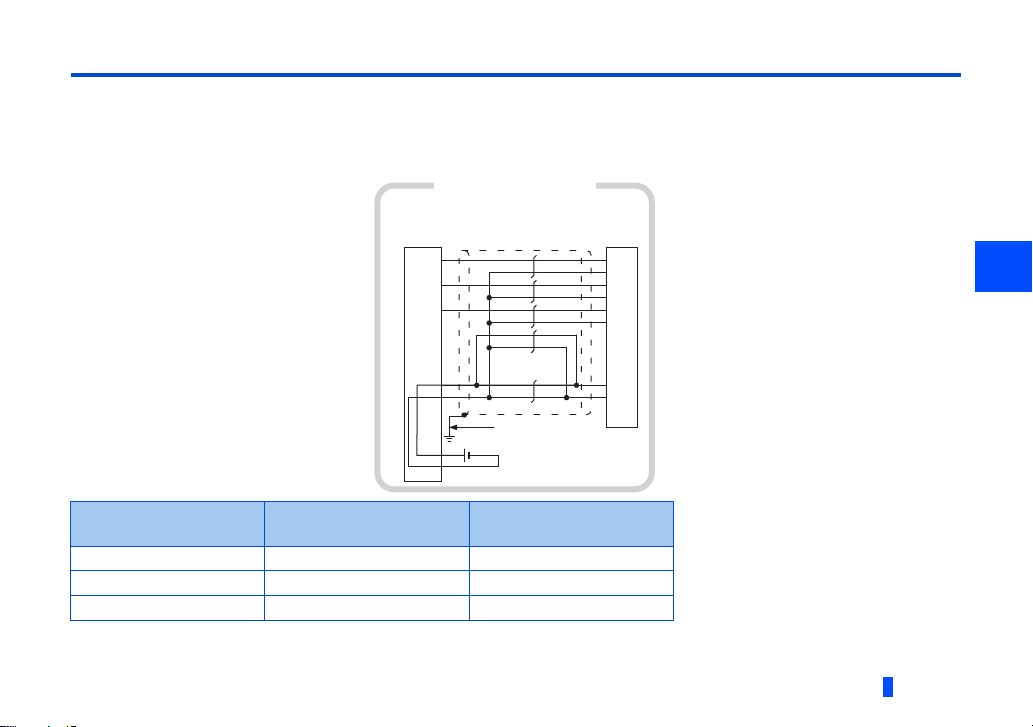

1. Use twisted pair shield cables (0.2 mm2or larger) to connect the FR-A8AP and position detector.
For the wiring to the terminals PG and SD, use several cables in parallel or use a thick cable, according to the wiring
length. To protect the cables from noise, run them away from any source of noise (e.g. the main circuit and power
voltage).
Wiring length Parallel connection
(Cable gauge 0.2 mm2)Larger-size cable
Within 10 m At least two cables in parallel 0.4 mm2or larger
Within 20 m At least four cables in parallel 0.75 mm2or larger
Within 100 m*1 At least six cables in parallel 1.25 mm2or larger
Inverter
(FR-A8AP)
Example of parallel connection
with two cables
(with complementary encoder output)
PZ2
PZ1
PB2
PB1
PA2
PA1
SD
SD
PG
PG
G
F
D
C
B
A
R
S
PLG
2mm2

18 INSTALLATION AND WIRING
*1 When differential driver is set and a wiring length is 30 m or more
The wiring length can be extended to 100 m by slightly increasing the 5 V power supply (approx. 5.5 V) and using six or more cables with
gauge size of 0.2 mm2in parallel or a cable with gauge size of 1.25 mm2or more. Note that the voltage applied should be within power
supply specifications of encoder.
To reduce noise of the encoder cable, earth (ground) the encoder shielded cable to the enclosure (as close as the inverter) with
a P clip or U clip made of metal.
NOTE
• For details of the optional encoder dedicated cable (FR-JCBL/FR-V7CBL), refer to page 22
• FR-V7CBL is provided with a P clip for earthing (grounding) shielded cable.
Encoder cable
Shield
P clip
Earthing (grounding)
example using a P clip

INSTALLATION AND WIRING 19
2
2. Wire the shielded twisted pair cable after stripping its sheath to make its cables loose.
Also, protect the shielded cable of the shielded twisted pair cable to ensure that it will not make contact with the
conductive area.
Strip the signal wires as follows. If too much of the wire is stripped, a short circuit may occur with neighboring wires. If not
enough of the wire is stripped, wires may become loose and fall out.
Twist the stripped end of wires to prevent them from fraying. Do not solder them.
Use a crimp terminal as necessary.
When using the crimp terminal, make sure that the stranded wire do not come out of the terminal.
Cable stripping length
Sheath
Shield
(perform protective treatment)
Shielded twisted pair cable
5 mm
Crumpled tip
Wires are not inserted
into the sleeve
Unstranded
wires
Damaged
Wire
Wire
Sleeve
Sleeve
0 to 0.5mm
0 to 0.5mm

20 INSTALLATION AND WIRING
NOTE
• Information on crimp terminals
Commercially available products (as of October 2020)
Phoenix Contact Co., Ltd.
NICHIFU Co., Ltd.
Terminal
screw size
Cable gauge
(mm2)
Ferrule part No. Crimping tool
model No.
With insulation sleeve Without insulation
sleeve
M2 0.3 to 0.5 Al 0,5-6WH A 0,5-6 CRIMPFOX 6
Screw size Cable gauge (mm2)Blade terminal
part No.
Insulation cap
part No.
Crimping tool
model No.
M2 0.3~0.75 BT 0.75-7 VC 0.75 NH 69
