FR-A7NC INSTRUCTION MANUAL
INVERTER
INVERTER
Plug-in option
INSTRUCTION MANUAL
INVERTER
2
3
4
5
6
7
8
9
HEAD OFFICE:MITSUBISHI DENKI BLDG MARUNOUCHI TOKYO 100-8310
FR-A7NC
communication function
PRE-OPERATION INSTRUCTIONS
INSTALLATION
WIRING
IB(NA)-0600167ENG-A(0405) MEE Printed in Japan Specifications subject to change without notice.
I/O SIGNAL LIST
DETAILS OF INPUT AND OUTPUT
PROGRAMMING EXAMPLES
FUNCTION OVERVIEW
INVERTER SETTING
HOW TO CHECK FOR ERROR USING THE LEDS

A-1
Thank you for choosing this Mitsubishi Inverter plug-in option.
This instruction manual gives handling information and
precautions for use of this equipment. Incorrect handling might
cause an unexpected fault. Before using the equipment, please
read this manual carefully to use the equipment to its optimum.
Please forward this manual to the end user.
1. Electric Shock Prevention
This section is specifically about
safety matters
Do not attempt to install, operate, maintain or inspect this
product until you have read through this instruction manual and
appended documents carefully and can use the equipment
correctly. Do not use this product until you have a full
knowledge of the equipment, safety information and
instructions.
In this instruction manual, the safety instruction levels are
classified into "WARNING" and "CAUTION".
Assumes that incorrect handling may
cause hazardous conditions, resulting
in death or severe injury.
Assumes that incorrect handling may
cause hazardous conditions, resulting
in medium or slight injury, or may
cause physical damage only.
Note that even the level may lead to a serious
consequence according to conditions. Please follow the
instructions of both levels because they are important to
personnel safety.
WARNING
CAUTION
CAUTION
SAFETY INSTRUCTIONS
WARNING
•While power is on or when the inverter is running, do not
open the front cover. You may get an electric shock.
•Do not run the inverter with the front cover or wiring cover
removed. Otherwise, you may access the exposed high-
voltage terminals and charging part and get an electric shock.
•If power is off, do not remove the front cover except for wiring
or periodic inspection. You may access the charged inverter
circuits and get an electric shock.
•Before starting wiring or inspection, check to make sure that
the inverter power indicator lamp is off, wait for at least 10
minutes after the power supply has been switched off, and
check that there are no residual voltage using a tester or the
like. The capacitor is charged with high voltage for some time
after power off and it is dangerous.
•Any person who is involved in the wiring or inspection of this
equipment should be fully competent to do the work.
•Always install the plug-in option before wiring. Otherwise,
you may get an electric shock or be injured.
•Do not touch the plug-in option with wet hands. Otherwise
you may get an electric shock.
•Do not subject the cables to scratches, excessive stress,
heavy loads or pinching. Otherwise you may get an electric
shock.

A-2
2. Injury Prevention
3. Additional Instructions
Also note the following points to prevent an accidental failure,
injury, electric shock, etc.
1) Transportation and mounting
2) Trial run
3) Usage
4) Maintenance, inspection and parts replacement
5) Disposal
6) General instruction
CAUTION
•Apply only the voltage specified in the instruction manual to
each terminal. Otherwise, burst, damage, etc. may occur.
•Ensure that the cables are connected to the correct terminals.
Otherwise, burst, damage, etc. may occur.
•Always make sure that polarity is correct to prevent damage, etc.
Otherwise, burst, damage may occur.
•While power is on or for some time after power-off, do not touch
the inverter as it is hot and you may get burnt.
CAUTION
•Do not install or operate the plug-in option if it is damaged or
has parts missing.
•Do not stand or rest heavy objects on the product.
•Check that the mounting orientation is correct.
•Prevent other conductive bodies such as screws and metal
fragments or other flammable substance such as oil from
entering the inverter.
CAUTION
•Before starting operation, confirm and adjust the parameters.
A failure to do so may cause some machines to make
unexpected motions.
WARNING
•Do not modify the equipment.
•Do not perform parts removal which is not instructed in this
manual. Doing so may lead to fault or damage of the inverter.
CAUTION
•When parameter clear or all parameter clear is performed,
reset the required parameters before starting operations.
Each parameter returns to the initial value.
•For prevention of damage due to static electricity, touch
nearby metal before touching this product to eliminate static
electricity from your body.
CAUTION
•Do not test the equipment with a megger (measure insulation
resistance).
CAUTION
•Treat as industrial waste.
All illustrations given in this manual may have been drawn with
covers or safety guards removed to provide in-depth
description. Before starting operation of the product, always
return the covers and guards into original positions as specified
and operate the equipment in accordance with the manual.

I
CONTENTS 
1PRE-OPERATION INSTRUCTIONS 1
1.1 Unpacking and Product Confirmation .............................................................................................1
1.1.1 Packing confirmation......................................................................................................................................1
1.1.2 Parts...............................................................................................................................................................2
1.2 Inverter Option Specifications..........................................................................................................3

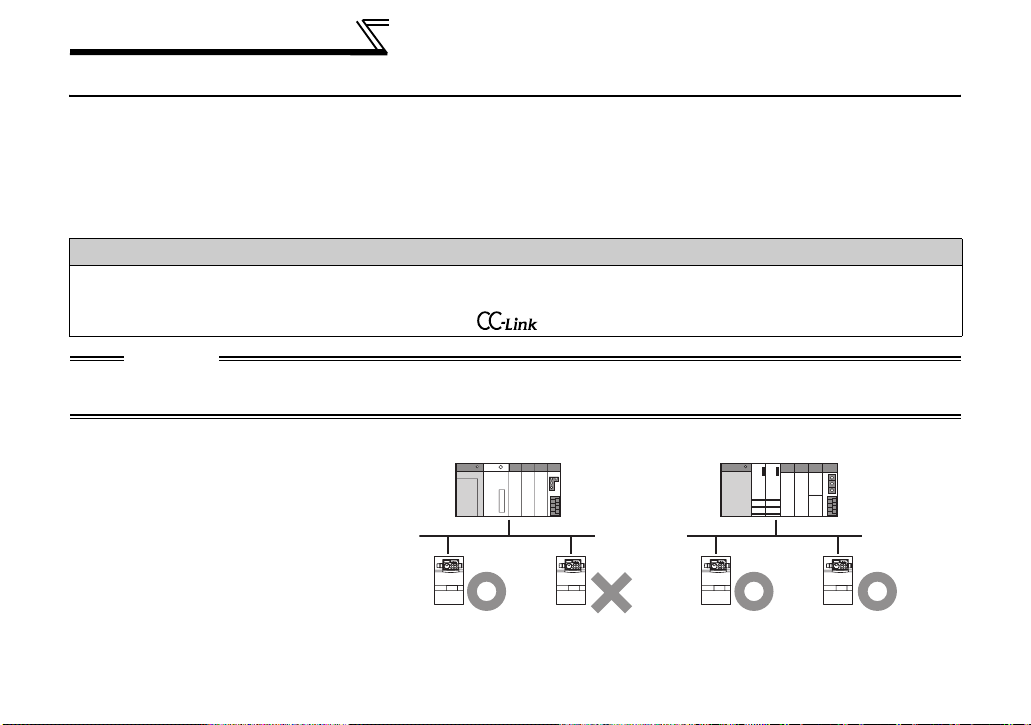

1.3 CC-Link Version.................................................................................................................................4
1.3.1 CC-Link Ver. 1.10...........................................................................................................................................4
1.3.2 CC-Link Ver. 2................................................................................................................................................4
2INSTALLATION 5
2.1 Pre-Installation Instructions .............................................................................................................5

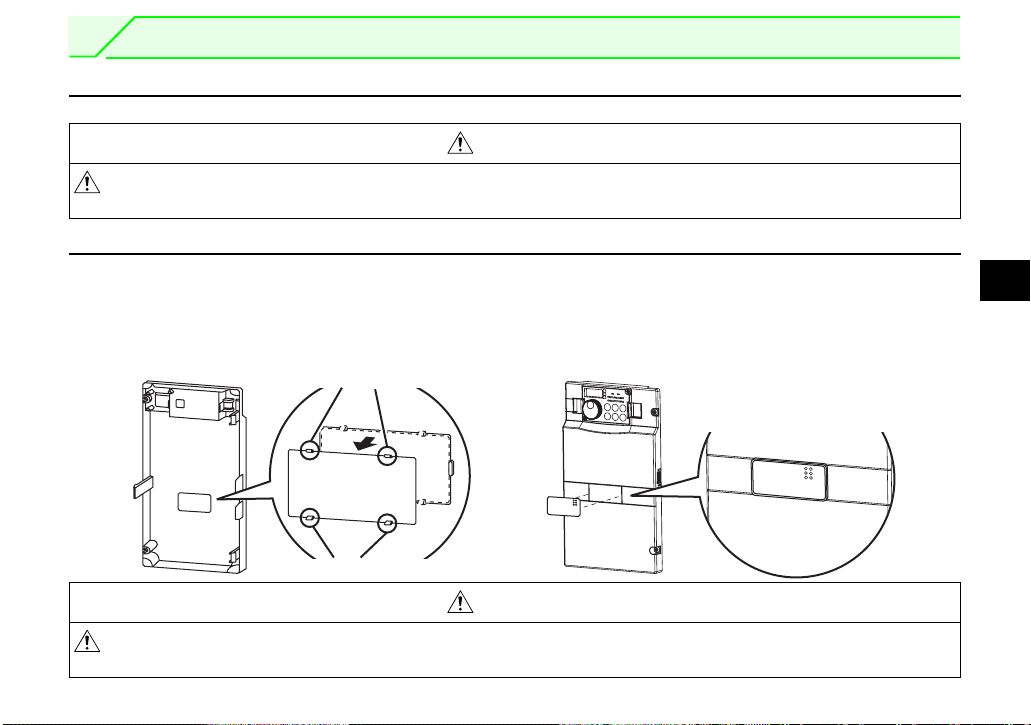

2.2 Installation of the communication option LED display cover .......................................................5

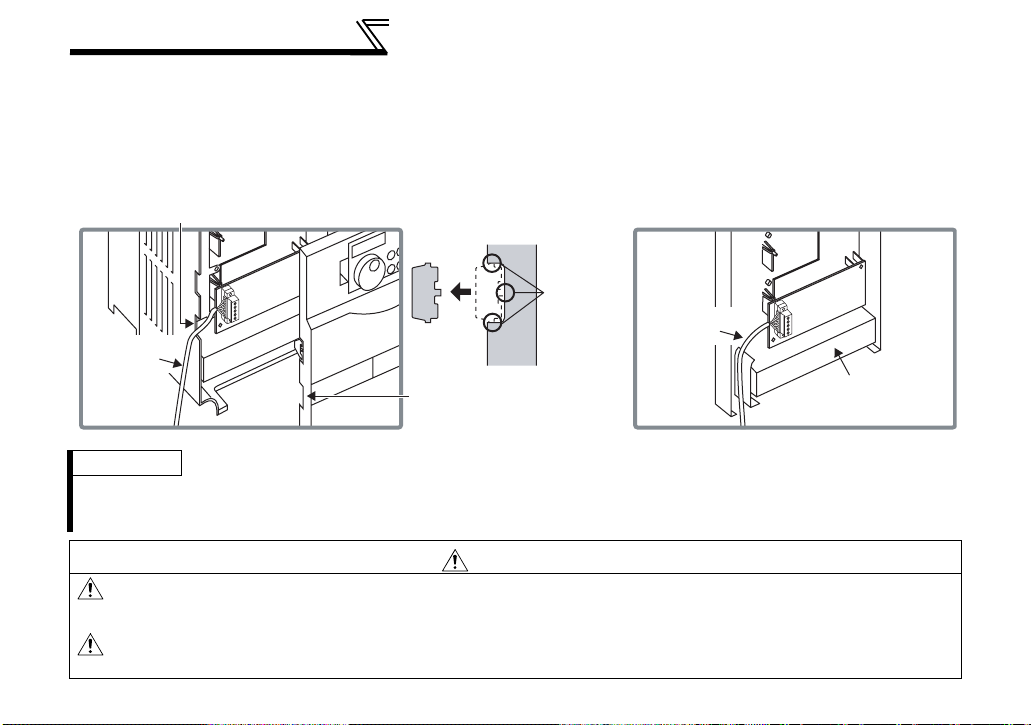

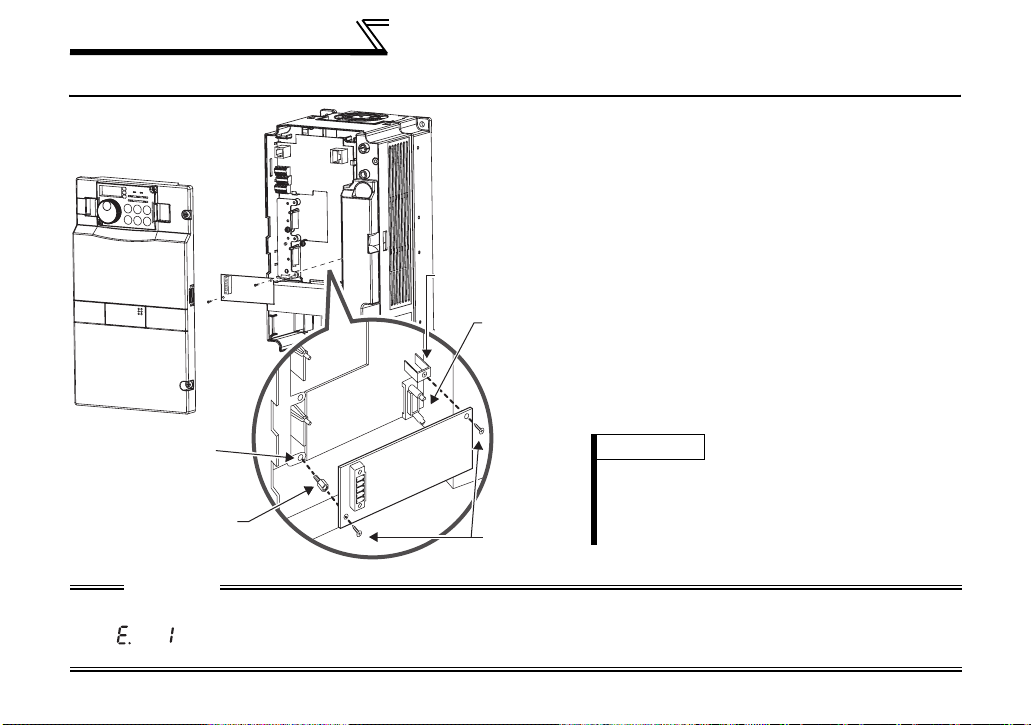

2.3 Installation Procedure.......................................................................................................................6
3WIRING 7

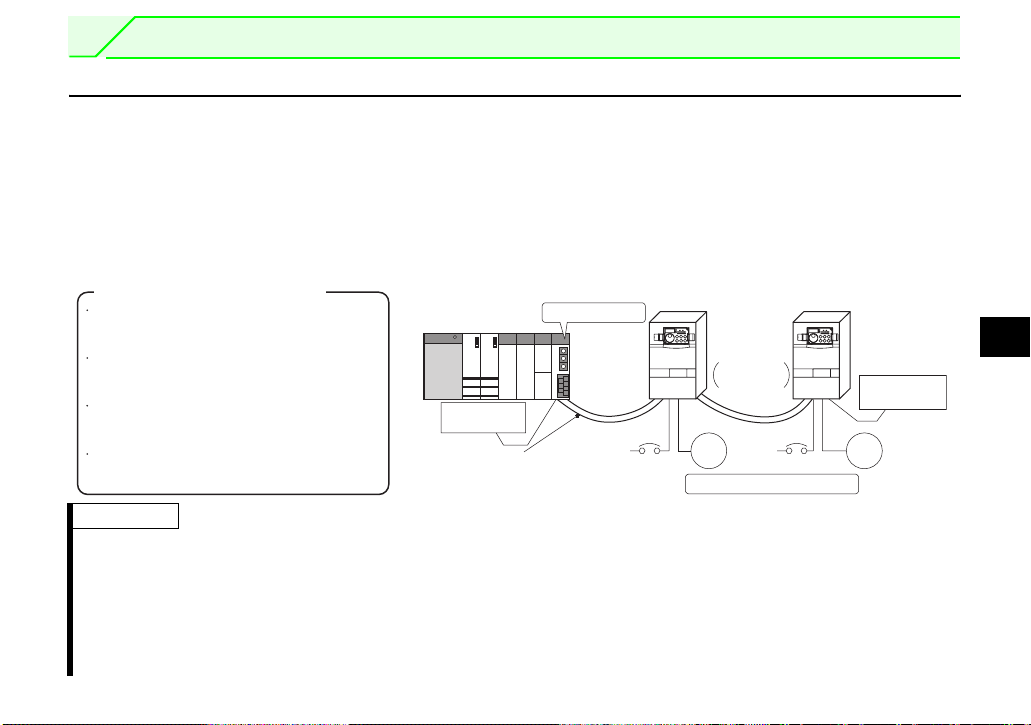

3.1 System Configuration Example........................................................................................................7
3.2 Connection of Several Inverters.......................................................................................................8
3.3 Connection Cable ............................................................................................................................11

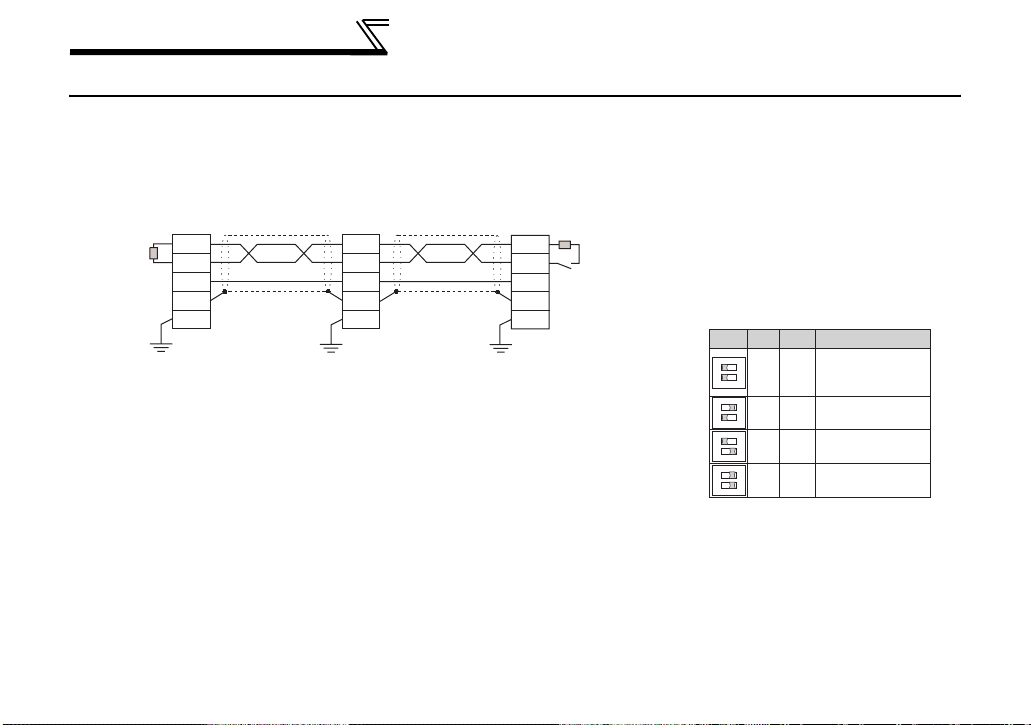

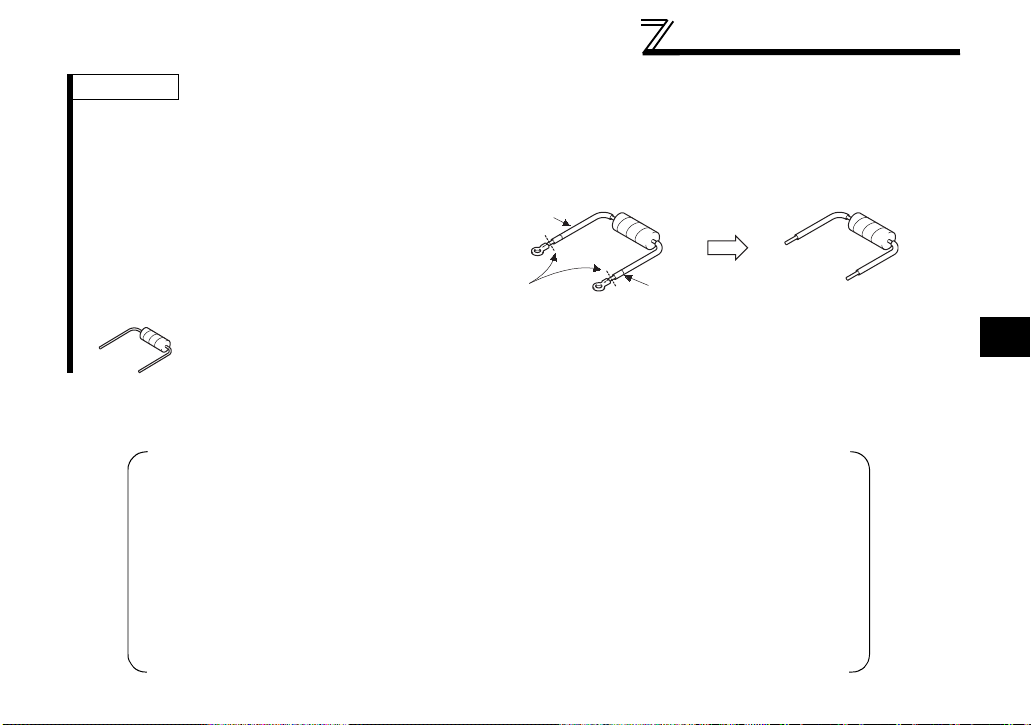

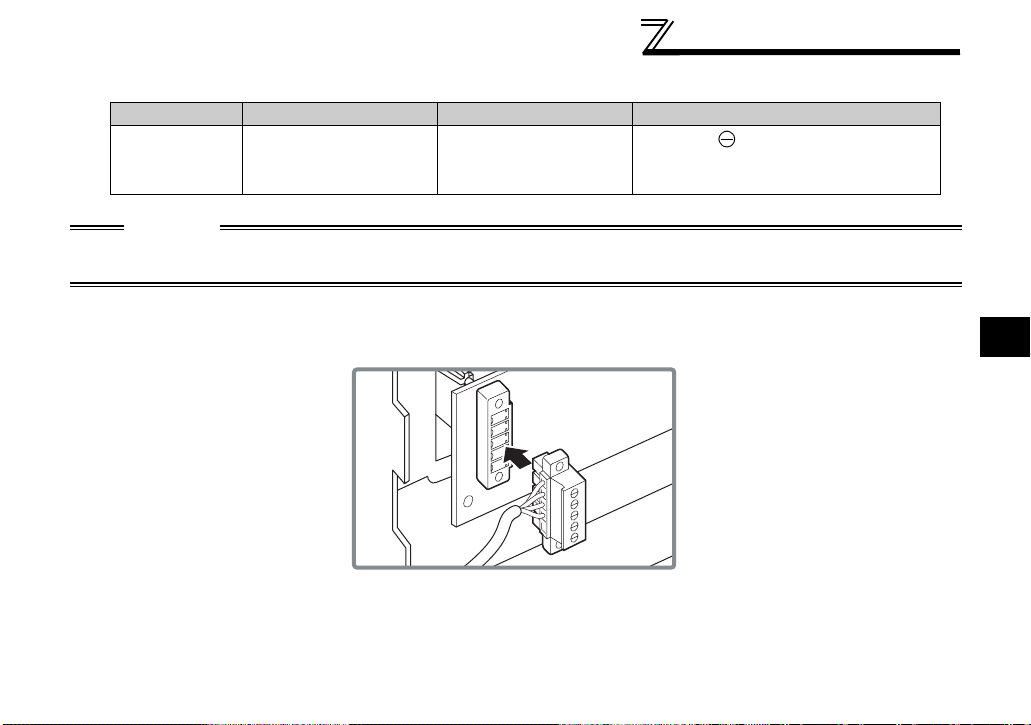

3.4 Wiring................................................................................................................................................12
4INVERTER SETTING 15
4.1 Parameter List..................................................................................................................................15
4.2 Operation Mode Setting ..................................................................................................................16
4.2.1 Operation mode indication............................................................................................................................16
4.2.2 Operation mode switching and communication startup mode (Pr. 79, Pr. 340)...........................................17

II
4.3 Operation and Speed Command Source (Pr. 338, Pr. 339, Pr. 550)............................................20
4.3.1 Communication EEPROM write selection (Pr. 342).....................................................................................23
4.4 Operation at Communication Error Occurrence...........................................................................24
4.4.1 Operation selection at communication error occurrence (Pr. 500 to Pr. 502) ..............................................24
4.4.2 Alarm and measures ....................................................................................................................................28
4.5 Inverter Reset...................................................................................................................................29
4.6 CC-Link function setting .................................................................................................................31
4.6.1 Station number setting (Pr. 542)...................................................................................................................31
4.6.2 Baud rate setting (Pr. 543) ...........................................................................................................................32
5FUNCTION OVERVIEW 33
5.1 Function Block Diagram..................................................................................................................33
5.2 Output from the Inverter to the Network........................................................................................34
5.3 Input to the Inverter from the Network...........................................................................................35
6I/O SIGNAL LIST 37
6.1 CC-Link Extended Setting (Pr. 544)................................................................................................37
6.2 I/O Signal List...................................................................................................................................38
6.2.1 I/O signal when CC-Link Ver.1 one station (FR-A5NC compatible) is occupied (Pr. 544 = 0).....................38
6.2.2 I/O signal when CC-Link Ver.1 one station is occupied (Pr. 544 = 1) ..........................................................40
6.2.3 I/O signal when CC-Link Ver.2 double setting is selected (Pr. 544 = 12).....................................................41
6.2.4 I/O signal when CC-Link Ver.2 quadruple setting is selected (Pr. 544 = 14) ...............................................42
6.2.5 I/O signal when CC-Link Ver.2 octuple setting is selected (Pr. 544 = 18)....................................................43
7DETAILS OF INPUT AND OUTPUT SIGNALS 45
7.1 Details of Remote Input and Output Signals.................................................................................45
7.1.1 Output signals (master unit to inverter (FR-A7NC)) .....................................................................................45
7.1.2 Input signals (inverter (FR-A7NC) to master unit)........................................................................................47
7.2 Details of Remote Resister .............................................................................................................49

III
7.2.1 Remote resister (master unit to inverter (FR-A7NC))...................................................................................49
7.2.2 Remote resister (inverter (FR-A7NC) to master unit)...................................................................................52
7.2.3 Instruction codes ..........................................................................................................................................55
7.2.4 Monitor codes...............................................................................................................................................59
8PROGRAMMING EXAMPLES 61
8.1 Program Example for Reading the Inverter Status.......................................................................64
8.2 Program Example for Setting the Operation Mode.......................................................................65
8.3 Program Example for Setting the Operation Commands ............................................................66
8.4 Program Example for Monitoring the Output Frequency.............................................................67
8.5 Program Example for Parameter Reading.....................................................................................68
8.6 Program Example for Parameter Writing.......................................................................................69
8.7 Program Example for Setting the Running Frequency ................................................................70
8.8 Program Example for Alarm Definition Reading...........................................................................72
8.9 Program Example for Resetting the Inverter at Inverter Error ....................................................73
8.10 Instructions ......................................................................................................................................74
9HOW TO CHECK FOR ERROR USING THE LEDS 77
9.1 When One Inverter Is Connected ...................................................................................................77
9.2 When Two or More Inverters Are Connected................................................................................79
9.3 Communication Stops During Operation ......................................................................................81

1
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and Product Confirmation
Take the plug-in option out of the package, check the unit name, and confirm that the product is as you
ordered and intact.
This product is a plug-in option dedicated for the FR-F700 series.

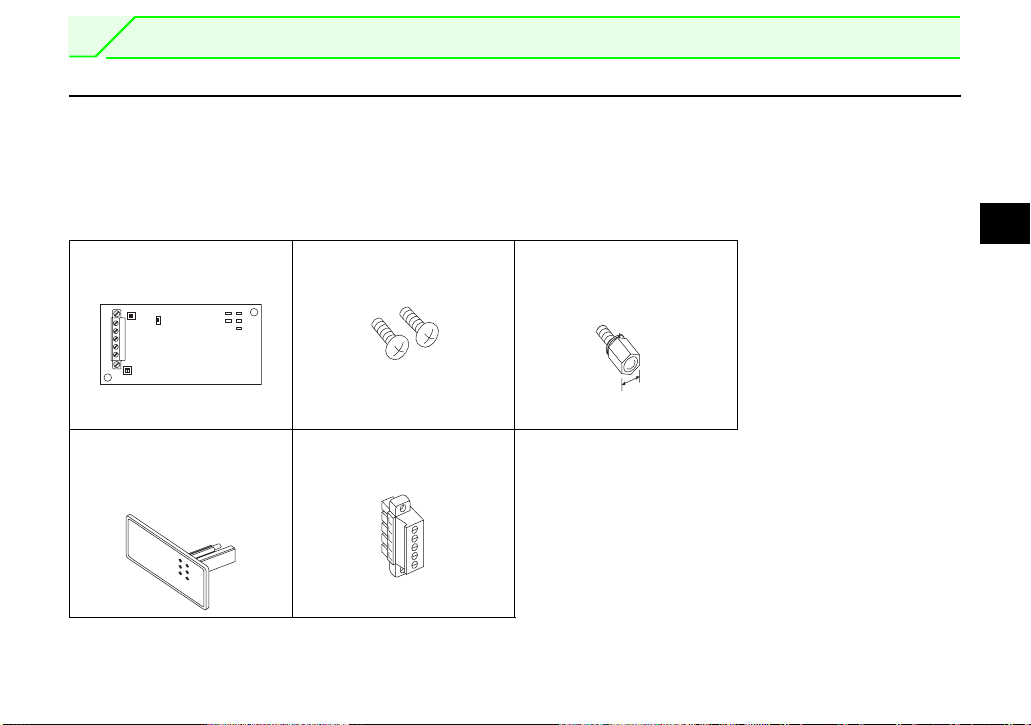

1.1.1 Packing confirmation
Check the enclosed items.
Plug-in option
.........................................1 Mounting screw (M3 ×6mm) .............. 2 (Refer to page 6.) Hex-head screw for option mounting (5.5mm)
...............1 (Refer to page 6.)
Communication option LED
display cover
.............. 1 (Refer to page 5.)
Terminal block
.........................................1
SD L.RUN
RD L.ERR
RUN
1
O
F
F2
1
O
F F2
5.5mm

2
PRE-OPERATION INSTRUCTIONS

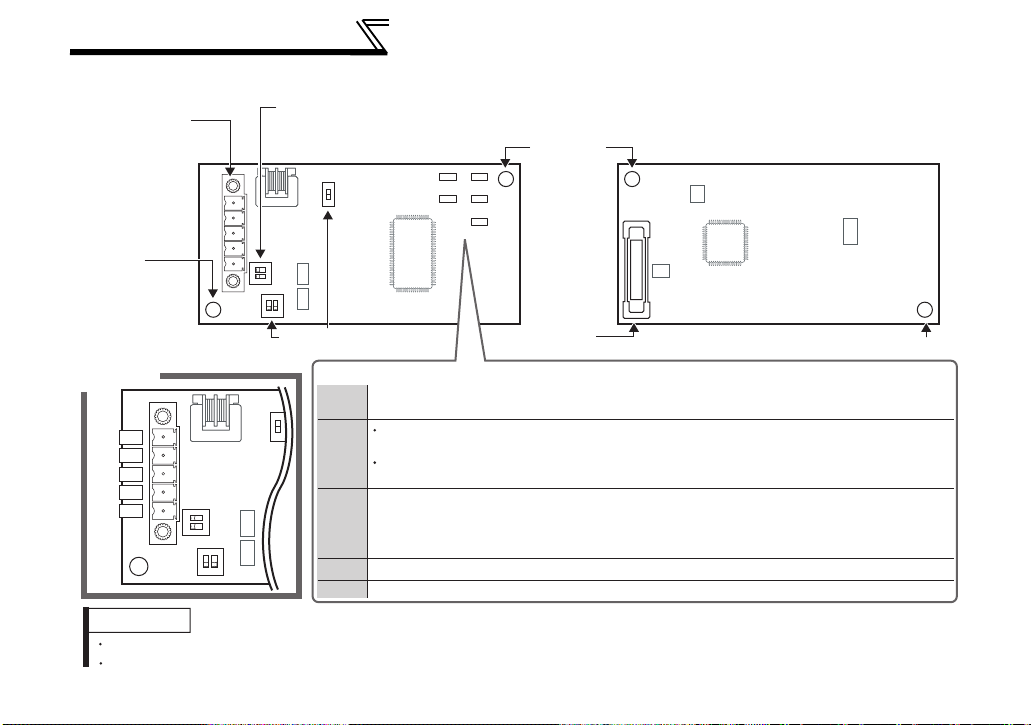

1.1.2 Parts
SD L.RUN
RD L.ERR
RUN
SD
RD
L.ERR
RUN
SW2
SW1
SW3
1
O
F
F2
1
O
F F2
REMARKS
Lit when refresh data is properly received. Turns off when a data transmission is
stopped for a certain period of time.
Turns off when no data is transmitted.
Lit when receive data is carrier detected.
Lit during normal operation (5V is supplied in the board) (Lit even in the
noncommunication status.)
Flickers when the master station is Ver.1 and the FR-A7NC is Ver.2 compatible.
Operation status indication LED......Lit/flicker of the LED indicate operation status.
L.RUN
Set the station number using Pr. 542 Communication station number (CC-Link).
Set transmission baud rate using Pr.543 Baud rate selection.
Lit when a communication error occurs in the own station and flickers when settings
of switch, etc. are changed while power is on.
Flickers when the Pr. 542 or Pr. 543 setting is changed.
Turn the power on again or turn the RES signal on.
Terminal
layout
SW2
SW1
SW3
1
O
F
F2
1
O
F F2
DA
DB
DG
SLD
FG
Front view Rear view
Mounting
hole
Mounting hole
Mounting
hole
Terminating resistor selection switch
Select the resistor value of the terminating resistor.
Switch for maker
Do not change.
Connector for
communication
Mount the
accessory
terminal block to
connect to the
network.
Connector
Connect to the inverter option connector.
(Refer to page 8.)
(Refer to page 31, 32.)
(Refer to page 31.)
(Refer to page 32.)
(Refer to page 4.)
(Refer to page 12.)

3
PRE-OPERATION INSTRUCTIONS
1
1.2 Inverter Option Specifications
Type Inverter plug-in option type terminal block connectable
Power supply 5VDC supplied from the inverter
Number of units
connected 42 units max. (Refer to page 37 for the number of stations occupied), May be used with other equipment.
Cable size 0.75 to 2mm2
Station type Remote device station
Number of stations
occupied Ver.1: occupies one station, Ver.2: occupies one station (selectable from among double, quadruple and octuple)
Communication cable CC-Link dedicated cable, CC-Link Ver. 1.10 compatible CC-Link dedicated cable

4
PRE-OPERATION INSTRUCTIONS
1.3 CC-Link Version
1.3.1 CC-Link Ver. 1.10
The conventional CC-Link products, whose inter-station cable lengths have equally been changed to 20cm
(7.87 inch) or more to improve the inter-station cable length restriction, are defined as CC-Link Ver. 1.10. In
comparison, the conventional products are defined as CC-Link Ver. 1.00.
Refer to the CC-Link Master Module Manual for the maximum overall cable lengths and inter-station cable
lengths of CC-Link Ver. 1.00 and Ver. 1.10.
1.3.2 CC-Link Ver. 2
The FR-A7NC is compatible with CC-
Link Ver.2.
When using the CC-Link Ver.2 setting
with the FR-A7NC, the master station
needs to be compatible with the CC-
Link Ver.2.
CC-Link Ver. 1.10 compatibility conditions
1)All modules that comprise a CC-Link system should be compatible with CC-Link Ver. 1.10.
2)All data link cables should be CC-Link Ver. 1.10 compatible, CC-Link dedicated cables.
(CC-Link Ver. 1.10 compatible cables have a logo or Ver. 1.10 indication.)
CAUTION
In a system that uses the CC-Link Ver. 1.00 and Ver. 1.10 modules and cables together, the maximum overall
cable length and inter-station cable length are as specified for CC-Link Ver. 1.00.
Master station
(Ver.1)
Master station
(Ver.2)
Ver.1
setting
Ver.1
setting
Ver.2
setting
Ver.2
setting
Communication
enabled
Communication
enabled
Communication
enabled
Communication
disabled
("RUN" LED flickers)

5
2
2INSTALLATION
2.1 Pre-Installation Instructions
Make sure that the input power of the inverter is off.
2.2 Installation of the communication option LED display cover
Mount the cover for displaying the operation status indication LED for the communication option on the
inverter front cover.
CAUTION
With input power on, do not install or remove the plug-in option. Otherwise, the inverter and
plug-in option may be damaged.
CAUTION
Take care not to hurt your hand and such with portions left by cutting hooks of the rear of the
front cover.
1)Cut off hooks on the rear of the inverter front
cover with nipper, etc. and open a window for
fitting the LED display cover.
2)Fit the communication option LED display
cover to the front of the inverter front cover
and push it into until fixed with hooks.
Fitting drawing
Fit it so that the position of
lenses is in the upper-right
of the LED display cover.
Cut off with a nipper, etc.
Cut off with a nipper, etc.

6
INSTALLATION
2.3 Installation Procedure
1) Remove the inverter front cover.
2) Mount the hex-head screw for option
mounting into the inverter screw hole (on
earth plate). (size 5.5mm, tightening
torque 0.56N⋅m to 0.75N⋅m)
3) Securely fit the connector of the plug-in
optiontothe inverter connector alongthe
guides.
4) Securely fix the both right and left sides
of the plug-in option to the inverter with
the accessory mounting screws. If the
screwholes do notline-up,theconnector
may not have been plugged snugly.
Check for loose plugging.
REMARKS
After removing two screws on the right and left
places, remove the plug-in option.
(The plug-in option is easily removed if the
control circuit terminal block is removed before.)
CAUTION
1. When the inverter can not recognize that the option unit is mounted due to improper installation, etc.,
" " (option alarm) is displayed.
2. Note that a hex-head screw for option mounting or mounting screw may drop during mounting and removal.
4) Mounting
screws
Inverter side
option
connector
Screw hole for
option mounting
Screw hole for
option mounting
(on earth plate)
Hex-head screw
for option mounting
1)
2)
3)

7
3
3WIRING
3.1 System Configuration Example
(1) PLC side
Loadthe"QJ61BT11N","QJ61BT11","AJ61QBT11","A1SJ61QBT11","AJ61BT11" or "A1SJ61BT11"
"Control&CommunicationLinksystem master/localmodule"onthe mainor extensionbase unithaving
the PLC CPU used as the master station.
(2) Inverter side
Mount the option (FR-A7NC) on the inverter.
(3) Connect the PLC CC-Link unit master station and the terminal block supplied with the FR-A7NC with
the CC-Link dedicated cable. After connecting the terminal block to the FR-A7NC, fit the front cover.
REMARKS
⋅When the CPU has automatic refresh function (example: QnA series CPU)
Through communication with the corresponding devices using sequence ladder logic, data is automatically
transferred to the refresh buffer of the master station at the execution of the END instruction to perform
communication with the remote devices.
⋅When the CPU does not have automatic refresh function (example: AnA series CPU)
Data is transferred to the refresh buffer of the master station directly by sequence ladder logic to perform
communication with the remote devices.
CC-Link dedicated cable
Inverter
Motor Motor
Power
supply
Inverter
Power
supply
Terminating
resistor
Terminating
resistor
Up to 42
units can be
connected
when only
inverters are
connected
Manual of the CC-Link master station
QJ61BT11N,
etc.
QJ61BT11N type
CC-Link System Master/Local Module
User's Manual ...SH-080394E
QJ61BT11 type
CC-Link System Master/Local Module
User's Manual ...SH-080016
AJ61QBT11/A1SJ61QBT11 type Control &
Communication Link System Master/Local Module
User's Manual ...IB-66722
AJ61BT11/A1SJ61BT11 type Control &
Communication Link System Master/Local Module
User's Manual ...IB-66721
Master station
Remote device station

8
WIRING
3.2 Connection of Several Inverters
Factory Automation can be applied to several inverters which share a link system as CC-Link remote
device stations and are controlled and monitored by PLC user programs.
*1 Use the terminating resistors supplied with the PLC.
*2 For the unit in the middle, set 1 and 2 of SW2 to OFF (without terminating
resistor).
For the shield cable of the CC-Link dedicated cable, connect it to
"SLD" of each unit and always earth (ground) it via "FG".
Terminals SLD and FG are connected inside the unit.
*3 Perform setting of the
terminating resistor selection
switch (SW1). (Refer to page 2
for the position of the switch.)
When connecting a terminating
resistor separately, do not use a
built-in terminating resistor.
(SW2 1-OFF, 2-OFF)
130Ωis a resistance value for the CC-
Link Ver.1.00 dedicated high performance
cable.
Shielded
twisted cable
DA
DB
DG
SLD
FG
Terminating
resistor *1
Terminating
resistor
selection
switch (SW2)
*3
Master module
Blue
White
Yellow
FR-A7NC*2 FR-A7NC
Shielded
twisted cable
DA
DB
DG
SLD
FG
DA
DB
DG
SLD
FG
Blue
White
Yellow
1
O
F
F2
1
O
F
F2
1
O
F
F2
1
O
F
F2
12
OFFOFF
ON OFF
OFF ON
ON ON
Description
Without
terminating
resistor
130Ω
Do not use.
110Ω

9
WIRING
3
(1) Maximum number of units connected to one master station (CC-Link Ver.1.10)
42 units (when connections are inverter only)
REMARKS
When performing online exchange
The built-in terminating resistor can not be exchanged online since the terminating resistor is on the FR-A7NC board and
disconnected when the terminal block is removed from the FR-A7NC connector for communication. When changing the FR-
A7NC online, connect a terminating resistor supplied with a PLC master module to the FR-A7NC after modifying it and do
not use the internal terminating resistor (SW2 1-OFF, 2-OFF).
Connection with the terminating resistor
Connect the terminating resistor between terminals
DA-DB of the FR-A7NC at the end.
Modify the terminating resistors supplied with the
PLC to use.
When a resistor is not supplied with the master unit,
use a resistor with 110Ω1/2W available on the market.
Cut Cut a tube
Tube
If any other units are included, the number of stations occupied depends on the unit
and therefore the following conditions must be satisfied:
{(1 ×a) + (2 ×b) + (3 ×c) + (4 ×d)} ≤64
a: Number of units occupying 1 station c: Number of units occupying 3 stations
b: Number of units occupying 2 stations d: Number of units occupying 4 stations
{(16 ×A) + (54 ×B) + (88 ×C)} ≤2304
A: Number of remote I/O ≤64
B: Number of remote device stations ≤42
C: Number of local, standby master and intelligent device stations ≤26

10
WIRING
(2) Maximum number of units connected to one master station (CC-Link Ver.2.00)
42 units (when connections are inverter only)
If any other units are included, the number of stations occupied depends on the unit and
therefore the following conditions must be satisfied:
⋅{(a + a2 + a4 + a8) + (b + b2+ b4 + b8) ×2 + (c + c2 + c4 + c8) ×3 + (d+ d2 + d4 + d8)×4} ≤64
⋅{(a ×32 + a2 ×32 + a4 ×64 + a8 ×128) + (b ×64 + b2 ×96 + b4 ×192 + b8 ×384) + (c ×
96 + c2 ×160 + c4 ×320 + c8 ×640) + (d ×128 + d2 ×224 + d4 ×448 + d8 ×896)} ≤8192
⋅{(a ×4 + a2 ×8 + a4 ×16 + a8 ×32) + (b ×8 + b2 ×16 + b4 ×32 + b8 ×64) + (c ×12 +
c2 ×24 + c4 ×48 + c8 ×96) + (d ×16 + d2 ×32 + d4 ×64 + d8 ×128)} ≤2048
a: Number of single setting devices occupying one station
b: Number of single setting devices occupying two stations
c: Number of single setting devices occupying three stations
d: Number of single setting devices occupying four stations
a2: Number of double setting devices occupying one station
b2: Number of double setting devices occupying two stations
c2: Number of double setting devices occupying three stations
d2: Number of double setting devices occupying four stations
a4: Number of quadruple setting devices occupying one station
b4: Number of quadruple setting devices occupying two stations
c4: Number of quadruple setting devices occupying three stations
d4: Number of quadruple setting devices occupying four stations
a8: Number of octuple setting devices occupying one station
b8: Number of octuple setting devices occupying two stations
c8: Number of octuple setting devices occupying three stations
d8: Number of octuple setting devices occupying four stations
⋅16 ×A + 54 ×B + 88 ×C ≤2304
A: Numbers of remote I/O ≤64
B: Number of remote device stations ≤42
C: Number of local and intelligent device stations ≤26

11
WIRING
3
3.3 Connection Cable
In the CC-Link system, use CC-Link dedicated cables.
If the cable used is other than the CC-Link dedicated cable, the performance of the CC-Link system is not
guaranteed.
For the specifications of the CC-Link dedicated cable, refer to the website of the CC-Link Partner
Association.
⋅Website of the CC-Link Partner Association http://www.cc-link.org/

12
WIRING
3.4 Wiring
(1) Strip off the sheath of the CC-Link dedicated cable and wind wires to use. If the length of the sheath
pealed is too long, a short circuit may occur among neighboring wires. If the length is too short, wires
might come off.
Use recommended cables. (Refer to page 11.) Recommended tightening torque : 0.22N⋅m to 0.25N⋅m
Recommended bar terminal
For wiring of the CC-link communication signal, two CC-
Link dedicated cables need to be twisted to wire to one
terminal block.
It is recommended to use the following bar terminaland tool.
Recommended products (as of October, 2003):
Phoenix Contact Co.,Ltd.
⋅Bar terminal model: AI-TWIN2 ×0.5-8WH
⋅Bar terminal crimping tool: CRIMPFOX UD6,
ZA3
Note the crimping method.
Hold the long side in a longitudinal direction and insert it
into the terminal block.
Connection of the shielded cable of the CC-
Link dedicated cable
Twist the shielded cable and
wire to the terminal SLD.
Use a compression tube and
junction terminal block.
Cable stripping size Wire the stripped cable after twisting it to prevent it from
becoming loose. In addition, do not solder it.
Use a bar type terminal as required.
6.5mm
shielded cable
Shielded cable
Prevent looseness with
a compression tube
CC-Link dedicated
cable
Use of a compression tube
Use of a junction terminal block
SLD
FR-A7NC
Junction terminal block Junction terminal block
SLD
FR-A7NC

13
WIRING
3
(2) Loosen the terminal screw and insert the cable into the terminal.
(3) Connect the terminal block to the connector for communication of the communication option.
Screw Size Tightening Torque Cable Size Screwdriver
M2 0.22N⋅m to 0.25N⋅m0.3mm2to 0.75mm2Small flat-blade screwdriver
(Tip thickness: 0.4mm /tip width:
2.5mm)
CAUTION
Undertightening can cause cable disconnection or malfunction. Overtightening can cause a short circuit or
malfunction due to damage to the screw or unit.

14
WIRING
(4) For wiring of the 30K(00620 (EC Version)) or less, route wires between the control circuit terminal block
and front cover. If cables can not be routed between the control circuit terminal block and front cover (5.5K
or less, 37K or more...7.76mm, 7.5K to 30K...7.26mm), remove a hook of the front cover and use a space
become available.
For wiring of the 37K(00770 (EC Version)) or more, use the space on the left side of the control circuit
terminal block.
REMARKS
⋅When the hook of the inverter front cover is cut off for wiring, the protective structure (JEM1030) changes to open
type (IP10).
⋅If the terminal block of the FR-A7NC is removed, built-in terminating resistor can not be used. (Refer to page 8.)
When installing the inverter front cover, the cables to the inverter's control circuit terminals and
option terminals should be routed properly in the wiring space to prevent them from being
caught between the inverter and its cover.
After wiring, wire offcuts must not be left in the inverter. They may cause an error, failure or
malfunction.
CC-Link
dedicated
cable
CC-Link
dedicated
cable
Cut off a hook on the inverter
front cover side surface.
(Cut off so that no portion is left.)
Cut off
with a
nipper,
etc.
Control circuit
terminal block
Wiring can be also performed using a cable
groove in the inverter side surface
30K or less 37K or more
C
AUTI
O
N
