Mitsubishi Electric FR-E500 Series User manual

TRANSISTORIZED INVERTER
INSTRUCTION MANUAL
FR-E500-NA
HIGH PERFORMANCE
&
HIGH FUNCTION
TRANSISTORIZED INVERTER
FR-E500
FR-E520-0.1K to 7.5K-NA
FR-E540-0.4K to 7.5K-NA
INSTRUCTION MANUAL
OUTLINE
OPERATION/
CONTROL
PARAMETERS
SPECIFICATIONS
INSTALLATION
AND WIRING
PROTECTIVE
FUNCTIONS
Chapter 6
Chapter 5
Chapter 4
Chapter 3
Chapter 2
Chapter 1
FR-E510W-0.1K to 0.75K-NA
IB (NA) 66866-C (9905) ROD Printed in Japan Specifications subject to change without notice.
HEAD OFFICE:MITSUBISHI DENKI BLDG MARUNOUCHI TOKYO 100-8310

A - 1
Thank you for choosing the Mitsubishi Transistorized inverter.
This instruction manual gives handling information and precautions for use of this
equipment.
Incorrect handling might cause an unexpected fault. Before using the inverter, please
read this manual carefully to use the equipment to its optimum.
Please forward this manual to the end user.
This section is specifically about safety matters
Do not attempt to install, operate, maintain or inspect the inverter until you have read
through this instruction manual and appended documents carefully and can use the
equipment correctly.
Do not use the inverter until you have a full knowledge of the equipment, safety
information and instructions.
In this manual, the safety instruction levels are classified into "WARNING" and
"CAUTION".
Assumes that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Assumes that incorrect handling may cause hazardous
conditions, resulting in medium or slight injury, or may
cause physical damage only.
Note that even the CAUTION level may lead to a serious consequence according to
conditions. Please follow the instructions of both levels because they are important
to personnel safety.
WARNING
CAUTION

A - 2
SAFETY INSTRUCTIONS
1. Electric Shock Prevention
WARNING
zWhile power is on or when the inverter is running, do not open the front cover.
You may get an electric shock.
zDo not run the inverter with the front cover removed. Otherwise, you may access
the exposed high-voltage terminals or the charging part of the circuitry and get
an electric shock.
zIf power is off, do not remove the front cover except for wiring or periodic
inspection. You may access the charged inverter circuits and get an electric
shock.
zBefore starting wiring or inspection, switch power off, wait for more than 10
minutes, and check for residual voltage with a meter (refer to chapter 2 for
further details) etc.
zEarth the inverter.
zAny person who is involved in the wiring or inspection of this equipment should
be fully competent to do the work.
zAlways install the inverter before wiring. Otherwise, you may get an electric
shock or be injured.
zOperate the switches and potentiometers with dry hands to prevent an electric
shock.
zDo not subject the cables to scratches, excessive stress, heavy loads or
pinching. Otherwise, you may get an electric shock.
zDo not change the cooling fan while power is on.
It is dangerous to change the cooling fan while power is on.
2. Fire Prevention
CAUTION
zMount the inverter and brake resistor on an incombustible surface. Installing the
inverter directly on or near a combustible surface could lead to a fire.
zIf the inverter has become faulty, switch off the inverter power. A continuous
flow of large current could cause a fire.
zWhen a brake resistor is used, use an alarm signal to switch power off.
Otherwise, the brake resistor will overheat abnormally due a brake transistor or
other fault, resulting in a fire.
zDo not connect a resistor directly to the DC terminals P(+), N(−). This could
cause a fire.

A - 3
3. Injury Prevention
CAUTION
zApply only the voltage specified in the instruction manual to each terminal to
prevent damage etc.
zEnsure that the cables are connected to the correct terminals. Otherwise,
damage etc. may occur.
zAlways make sure that polarity is correct to prevent damage etc.
zWhile power is on and for some time after power-off, do not touch the inverter or
brake resistor as they are hot and you may get burnt.
4. Additional instructions
Also note the following points to prevent an accidental failure, injury, electric shock, etc.
(1)Transportation and installation
CAUTION
zWhen carrying products, use correct lifting gear to prevent injury.
zDo not stack the inverter boxes higher than the number recommended.
zEnsure that installation position and material can withstand the weight of the
inverter. Install according to the information in the Instruction Manual.
zDo not operate if the inverter is damaged or has parts missing.
zDo not hold the inverter by the front cover or operation panel; it may fall off.
zDo not stand or rest heavy objects on the inverter.
zCheck the inverter mounting orientation is correct.
zPrevent screws, wire fragments or other conductive bodies or oil or other
flammable substance from entering the inverter.
zDo not drop the inverter, or subject it to impact.
zUse the inverter under the following environmental conditions:
Ambient
temperature Constant torque : -10°C to +50°C (14°F to 122 °F) (non-freezing)
Ambient humidity 90%RH or less (non-condensing)
Storage
temperature -20°C to +65°C * (-4°F to 149 °F)
Ambience Indoors (free from corrosive gas, flammable gas, oil mist, dust
and dirt)
Environment
Altitude, vibration Maximum 1000m (3280.80 feet) above sea level for standard operation. After that derate by 3% for every extra 500m
(1640.40 feet) up to 2500m (8202.00 feet) (91%).
*Temperatures applicable for a short time, e.g. in transit.

A - 4
(2)Wiring
CAUTION
zDo not fit capacitive equipment such as a power factor correction capacitor,
radio noise filter or surge suppressor to the output of the inverter.
zThe connection orientation of the output cables U, V, W to the motor will affect
the direction of rotation of the motor.
(3)Trial run
CAUTION
zCheck all parameters, and ensure that the machine will not be damaged by a
sudden start-up.
(4)Operation
WARNING
zWhen you have chosen the retry function, stay away from the equipment as it
will restart suddenly after an alarm stop.
zThe [STOP] key is valid only when the appropriate function setting has been
made. Prepare an emergency stop switch separately.
zMake sure that the start signal is off before resetting the inverter alarm. A failure
to do so may restart the motor suddenly.
zThe load used should be a three-phase induction motor only. Connection of any
other electrical equipment to the inverter output may damage the equipment.
zDo not modify the equipment.
CAUTION
zThe electronic overcurrent protection does not guarantee protection of the
motor from overheating.
zDo not use a magnetic contactor on the inverter input for frequent
starting/stopping of the inverter.
zUse a noise filter to reduce the effect of electromagnetic interference. Otherwise
nearby electronic equipment may be affected.
zTake measures to suppress harmonics. Otherwise power harmonics from the
inverter may heat/damage the power capacitor and generator.

A - 5
CAUTION
zWhen a 400V class motor is inverter-driven, it should be insulation-enhanced or
surge voltages suppressed. Surge voltages attributale to the wiring constants
may occur at the motor terminals, deteriorating the insulation of the motor.
zWhen parameter clear or all clear is performed, each parameter returns to the
factory setting. Re-set the required parameters before starting operation.
zThe inverter can be easily set for high-speed operation. Before changing its
setting, fully examine the performances of the motor and machine.
zIn addition to the inverter's holding function, install a holding device to ensure
safety.
zBefore running an inverter which had been stored for a long period, always
perform inspection and test operation.
(5)Emergency stop CAUTION
zProvide a safety backup such as an emergency brake which will prevent the
machine and equipment from hazardous conditions if the inverter fails.
(6)Maintenance, inspection and parts replacement
CAUTION
zDo not carry out a megger (insulation resistance) test on the control circuit of
the inverter.
(7)Disposing of the inverter CAUTION
zTreat as industrial waste.
(8)General instructions
Many of the diagrams and drawings in this instruction manual show the inverter
without a cover, or partially open. Never operate the inverter like this. Always
replace the cover and follow this instruction manual when operating the inverter.

I
CONTENTS
1 OUTLINE 1
1.1 Pre-Operation Information.......................................................................................... 1
1.1.1 Precautions for operation..................................................................................... 1
1.2 Basic Configuration.................................................................................................... 3
1.2.1 Basic configuration .............................................................................................. 3
1.3 Structure..................................................................................................................... 4

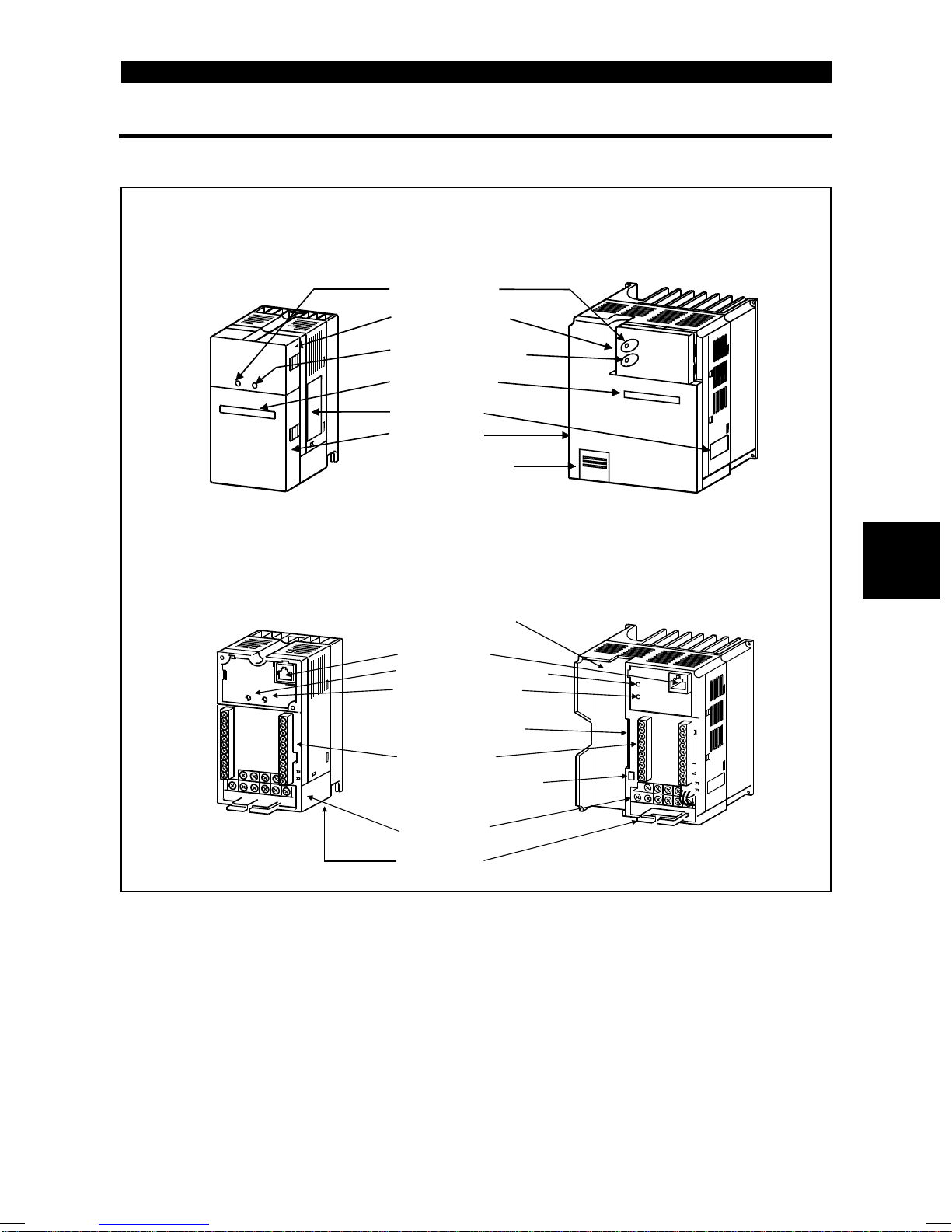

1.3.1 Appearance and structure ................................................................................... 4

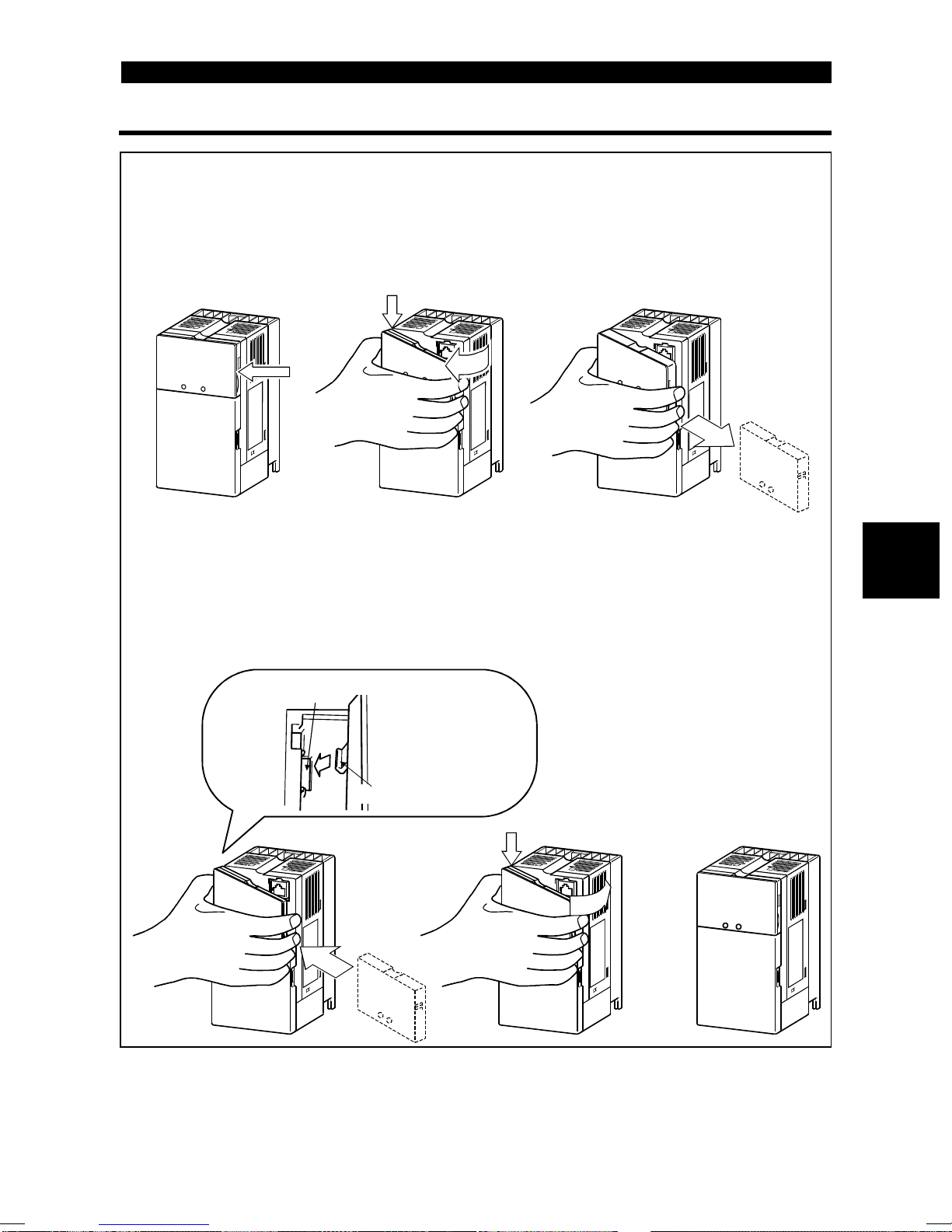

1.3.2 Removal and reinstallation of the front cover ...................................................... 5
1.3.3 Removal and reinstallation of the wiring cover .................................................... 7
1.3.4 Removal and reinstallation of the accessory cover.............................................. 8
1.3.5 Reinstallation and removal of the control panel................................................... 9
1.3.6 Removal of the control panel (FR-PA02-02) front cover..................................... 10
1.3.7 Exploded view.................................................................................................... 11
2 INSTALLATION AND WIRING 12
2.1 Installation................................................................................................................12
2.1.1 Instructions for installation................................................................................. 12
2.2 Wiring....................................................................................................................... 14
2.2.1 Terminal connection diagram ............................................................................ 14
2.2.2 Wiring of the main circuit ................................................................................... 18
2.2.3 Wiring of the control circuit ................................................................................ 23
2.2.4 Connection to the PU connector........................................................................ 28
2.2.5 Connection of stand-alone option units ............................................................. 31
2.2.6 Design information............................................................................................. 34
2.3 Other Wiring............................................................................................................. 35
2.3.1 Power supply harmonics.................................................................................... 35
2.3.2 Japanese harmonic suppression guideline........................................................ 36
2.3.3 Inverter-generated noise and reduction techniques........................................... 36
2.3.4 Leakage currents and countermeasures........................................................... 40
2.3.5 Inverter-driven 400V class motor....................................................................... 41
2.3.6 Peripheral devices............................................................................................. 42
2.3.7 Instructions for compliance with the UL and CSA standards............................. 46
2.3.8 Instructions for compliance with the European standards ................................. 47
Contents

II
3 OPERATION/CONTROL 49
3.1 Pre-Operation Information........................................................................................ 49
3.1.1 Types of operation modes................................................................................. 49
3.1.2 Power on............................................................................................................ 51
3.2 About the Control Panel........................................................................................... 52
3.2.1 Names and functions of the control panel (FR-PA02-02)................................... 52
3.2.2 Control panel mode is changed by pressing the MODE key ................................ 53
3.2.3 Monitoring.......................................................................................................... 53
3.2.4 Frequency setting.............................................................................................. 54
3.2.5 Parameter setting method ................................................................................. 54
3.2.6 Operation mode................................................................................................. 56
3.2.7 Help mode ......................................................................................................... 56
3.3 Operation ................................................................................................................. 59
3.3.1 Pre-operation checks......................................................................................... 59
3.3.2 External operation mode (Operation using the external
frequency setting potentiometer and external start signal) ................................ 60
3.3.3 PU operation mode (Operation using the control panel).................................... 61
3.3.4 Combined operation mode 1
(Operation using both external start signal and control panel).......................... 62
3.3.5 Combined operation mode 2 ............................................................................. 63
4 PARAMETERS 64
4.1 Parameter List.......................................................................................................... 64
4.1.1 Parameter list..................................................................................................... 64
4.1.2 List of parameters classified by purpose of use................................................. 70
4.1.3 Parameters recommended to be set by the user............................................... 72
4.2 Parameter Function Details...................................................................................... 73
4.2.1 Torque boost (Pr. 0, Pr. 46)............................................................................... 73
4.2.2 Output frequency range (Pr. 1, Pr. 2, Pr. 18)..................................................... 74
4.2.3 Base frequency, base frequency voltage (Pr. 3, Pr. 19, Pr. 47)......................... 75
4.2.4 Multi-speed operation (Pr. 4, Pr. 5, Pr. 6, Pr. 24 to Pr. 27, Pr. 232 to Pr. 239). 76
4.2.5 Acceleration/deceleration time (Pr. 7, Pr. 8, Pr. 20, Pr. 21, Pr. 44, Pr. 45)....... 77
4.2.6 Electronic overcurrent protection (Pr. 9, Pr. 48)................................................. 79
4.2.7 DC dynamic brake (Pr. 10 to Pr. 12).................................................................. 80

III
4.2.8 Starting frequency (Pr. 13)................................................................................. 81
4.2.9 Load pattern selection (Pr. 14) .......................................................................... 82
4.2.10 Jog operation (Pr. 15, Pr. 16) .......................................................................... 83
4.2.11 Stall prevention (Pr. 22, Pr. 23, Pr. 66)............................................................ 84
4.2.12 Acceleration/deceleration pattern (Pr. 29) ....................................................... 86
4.2.13 Regenerative brake duty (Pr. 30, Pr. 70)......................................................... 87
4.2.14 Frequency jump (Pr. 31 to Pr. 36).................................................................... 88
4.2.15 Speed display (Pr. 37)..................................................................................... 89
4.2.16 Frequency at 5V (10V) input (Pr. 38)............................................................... 90
4.2.17 Frequency at 20mA input (Pr. 39).................................................................... 90
4.2.18 Up-to-frequency sensitivity (Pr. 41).................................................................. 91
4.2.19 Output frequency detection (Pr. 42, Pr. 43)..................................................... 91
4.2.20 Monitor display (Pr. 52, Pr. 54, Pr. 158)........................................................... 93
4.2.21 Monitoring reference (Pr. 55, Pr. 56) ............................................................... 95
4.2.22 Automatic restart after instantaneous power failure
(Pr. 57, Pr. 58).................................................................................................. 96
4.2.23 Remote setting function selection (Pr. 59)....................................................... 97
4.2.24 Shortest acceleration/deceleration mode (Pr. 60 to Pr. 63)............................. 98
4.2.25 Retry function (Pr. 65, Pr. 67 to Pr. 69) ......................................................... 100
4.2.26 Applied motor (Pr. 71).................................................................................... 102
4.2.27 PWM carrier frequency (Pr. 72, Pr. 240) ....................................................... 103
4.2.28 Voltage input (Pr. 73)..................................................................................... 104
4.2.29 Input filter time constant (Pr. 74).................................................................... 105
4.2.30 Reset selection/PU disconnection detection/PU stop
selection (Pr. 75)............................................................................................ 105
4.2.31 Parameter write inhibit selection (Pr. 77)....................................................... 107
4.2.32 Reverse rotation prevention selection (Pr. 78)............................................... 108
4.2.33 Operation mode selection (Pr. 79)................................................................. 109
4.2.34 General-purpose magnetic flux vector control selection (Pr. 80)........................ 112
4.2.35 Offline auto tuning function (Pr. 82 to Pr. 84, Pr. 90, Pr. 96)......................... 114
4.2.36 Computer link operation (Pr. 117 to Pr. 124)................................................. 120
4.2.37 PID control (Pr. 128 to Pr. 134) ..................................................................... 131
4.2.38 Output current detection function (Pr. 150, Pr.151)....................................... 139
4.2.39 Zero current detection (Pr. 152, Pr.153)........................................................ 140
4.2.40 Stall prevention function and current limit function (Pr. 156)......................... 141
Contents

IV
4.2.41 User group selection (Pr. 160, Pr. 173 to Pr. 176)......................................... 143
4.2.42 Actual operation hour meter clear (Pr. 171)................................................... 145
4.2.43 Input terminal function selection (Pr. 180 to Pr. 183)..................................... 145
4.2.44 Output terminal function selection (Pr. 190 to Pr. 192).................................. 147
4.2.45 Cooling fan operation selection (Pr. 244) ...................................................... 148
4.2.46 Slip compensation (Pr. 245 to Pr. 247).......................................................... 149
4.2.47 Ground fault detection at start (Pr. 249)
(400V class does not have this function)....................................................... 150
4.2.48 Stop selection (Pr. 250)................................................................................. 151
4.2.49 Meter (frequency meter) calibration (Pr. 900) (200V class, 100V class)....... 153
4.2.50 Meter (frequency meter) calibration (Pr. 901) (400V class)........................... 155
4.2.51 Biases and gains of the frequency setting voltage (current)
(Pr. 902 to Pr. 905) ........................................................................................ 157
5 PROTECTIVE FUNCTIONS 163
5.1 Errors (Alarms)....................................................................................................... 163
5.1.1 Error (alarm) definitions................................................................................... 163
5.1.2 To know the operating status at the occurrence of alarm................................ 171
5.1.3 Correspondence between digital and actual characters.................................. 171
5.1.4 Resetting the inverter....................................................................................... 171
5.2 Troubleshooting ..................................................................................................... 172
5.2.1 Motor remains stopped.................................................................................... 172
5.2.2 Motor rotates in opposite direction................................................................... 172
5.2.3 Speed greatly differs from the setting.............................................................. 173
5.2.4 Acceleration/deceleration is not smooth.......................................................... 173
5.2.5 Motor current is large....................................................................................... 173
5.2.6 Speed does not increase................................................................................. 173
5.2.7 Speed varies during operation......................................................................... 173
5.2.8 Operation mode is not changed properly......................................................... 174
5.2.9 Control panel display is not operating.............................................................. 174
5.2.10 POWER lamp is not lit................................................................................... 174
5.2.11 Parameter write cannot be performed........................................................... 174
5.3 Precautions for Maintenance and Inspection......................................................... 175
5.3.1 Precautions for maintenance and inspection................................................... 175
5.3.2 Check items..................................................................................................... 175

V
5.3.3 Periodic inspection........................................................................................... 175
5.3.4 Insulation resistance test using megger........................................................... 176
5.3.5 Pressure test.................................................................................................... 176
5.3.6 Daily and Periodic Inspection .......................................................................... 177
5.3.7 Replacement of parts....................................................................................... 180
5.3.8 Measurement of main circuit voltages, currents and powers........................... 185
6 SPECIFICATIONS 188
6.1 Standard Specifications ......................................................................................... 188
6.1.1 Model specifications ........................................................................................ 188
6.1.2 Common specifications.................................................................................... 191
6.1.3 Outline drawings.............................................................................................. 193
APPENDIX 199
Appendix 1 Data Code List........................................................................................... 199
Contents

C H A P T E R 1
O U T L I N E
This chapter gives information on the basic "outline" of this
product.
Always read the instructions before using the equipment.
1.1 Pre-Operation Information ..........................................1
1.2 Basic Configuration.....................................................3
1.3 Structure.....................................................................4
<Abbreviations>
yPU
Control panel and parameter
unit (FR-PU04)
yInverter
Mitsubishi transistorized inverter
FR-E500 series
yPr.
Parameter number
CHAPTER 1
OUTLINE
Chapter 1
Chapter 2
Chapter 3
Chapter 4
Chapter 5
Chapter 6

OUTLINE
1
1.1 Pre-Operation Information
1 OUTLINE
1.1 Pre-Operation Information
1.1.1 Precautions for operation
This manual is written for the FR-E500 series transistorized inverters.
Incorrect handling may cause the inverter to operate incorrectly, causing its life to be
reduced considerably, or at the worst, the inverter to be damaged. Handle the inverter
properly in accordance with the information in each section as well as the precautions
and instructions of this manual to use it correctly.
For handling information on the parameter unit (FR-PU04), stand-alone options, etc.,
refer to the corresponding manuals.
(1)Unpacking and product check
Unpack the inverter and check the capacity plate on the front cover and the rating plate
on the inverter side face to ensure that the product agrees with your order and the
inverter is intact.
1) Inverter type
FR-E520-0.1K-NA/
Inverter type Serial number
Capacity plate
Ratin
g
plate
Capacity plate
Ratin
g
plate
Inverter type
Input ratin
g
Output ratin
g
Serial number
MITSUBISHI
MODEL INVERTER
FR-E520-0.1K-NA
INPUT :
OUTPUT :
SERIAL :
XXXXX
XXXXX
PASSED
zInverter type
Represents the
inverter capacity
"kW".
Symbol Voltage Class
E520
E540 Three-phase
400V class
Three-phase
200V class
FR - E520 -0.1K - NA
E510W Single-phase
100V class
2) Accessory
Instruction manual
If you have found any discrepancy, damage, etc., please contact your sales
representative.

OUTLINE
2
(2)Preparation of instruments and parts required for operation
Instruments and parts to be prepared depend on how the inverter is operated. Prepare
equipment and parts as necessary. (Refer to page 49.)
(3)Installation
To operate the inverter with high performance for a long time, install the inverter in a
proper place, in the correct direction, with proper clearances. (Refer to page 12.)
(4)Wiring
Connect the power supply, motor and operation signals (control signals) to the terminal
block. Note that incorrect connection may damage the inverter and peripheral devices.
(See page 14.)
1

OUTLINE
3
1.2 Basic Configuration
1.2 Basic Configuration
1.2.1 Basic configuration

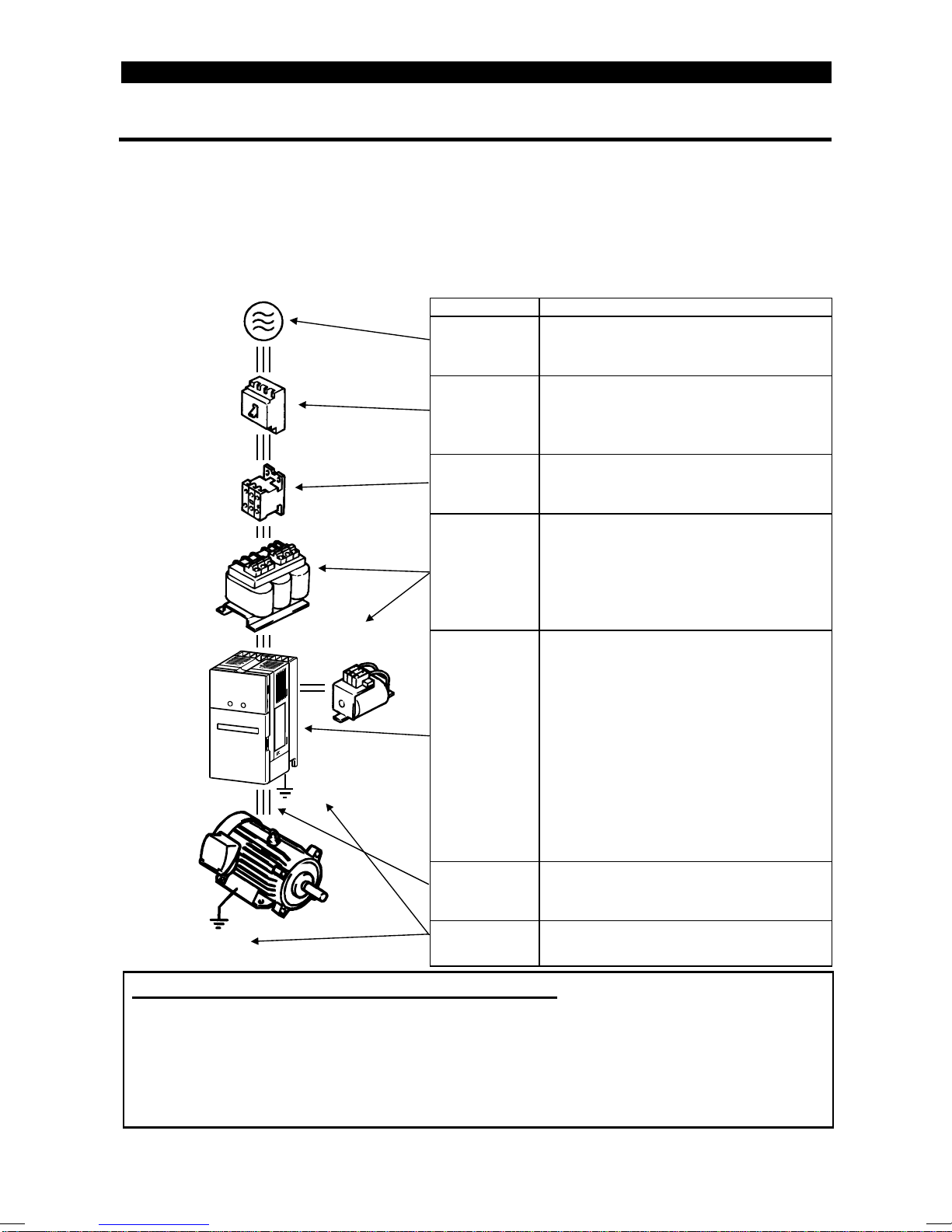

The following devices are required to operate the inverter. Proper peripheral devices
must be selected and correct connections made to ensure proper operation. Incorrect
system configuration and connections can cause the inverter to operate improperly, its
life to be reduced considerably, and in the worst case, the inverter to be damaged.
Please handle the inverter properly in accordance with the information in each section
as well as the precautions and instructions of this manual. (For connections of the
peripheral devices, refer to the corresponding manuals.)
Name Description
Power
supply Use the power supply within the
permissible power supply specifications
of the inverter. (Refer to page 188.)
Earth leakage
circuit breaker
or no-fuse
breaker
The breaker should be selected with
care since a large inrush current flows
in the inverter at power on. (Refer to
page 42.)
Magnetic
contactor Do not use this magnetic contactor to
start or stop the inverter. It might reduce
the inverter life. (Refer to page 42.)
Reactors
The reactors must be used when the
power factor is to be improved or the
inverter is installed near a large power
supply system (1000KVA or more and
wiring distance within 10m (32.81 feet)).
Make selection carefully.
Inverter
•The inverter life is influenced by
ambient temperature. The ambient
temperature should be as low as
possible within the permissible range.
This must be noted especially when
the inverter is installed in an enclosure.
(Refer to page 12.)
•Wrong wiring might lead to inverter
damage. The control signal lines should
be kept away from the main circuit to
protect them from noise. (Refer to page
14.)
Devices
connected
to the output
Do not connect a power capacitor,
surge suppressor or radio noise
filter to the output side.
Ground To prevent an electric shock, always
ground the motor and inverter.
Japanese Harmonic Suppression Guideline
The "harmonic suppression guideline for household appliances and general-purpose
products" was issued by the Ministry of International Trade and Industry in September,
1994. This guideline applies to the 3.7K* and less models of three-phase 200V classes.
By installing the power factor improving reactor (FR-BEL or FR-BAL), inverters comply
with the "harmonic suppression techniques for transistorized inverters (input current 20A
or less)" established by the Japan Electrical Manufacturers' Association.
* For the single-phase 100V class, the guideline applies to 0.75kW and less models.
(MC)
(NFB)
or
(ELB)
Ground
A
C reactor
(FR-BAL)
DC reactor
(FR-BEL)
Ground

OUTLINE
4
1.3 Structure
1.3 Structure
1.3.1 Appearance and structure
(1) Front view
POWER lamp
(yellow)
Accessory cover
ALARM lamp (red)
Ratin
g
plate
Front cover
Capacity plate
Wirin
g
port cover
for option
(100V class, 200V class) (400V class)
(2) Without accessory cover and front cover
Control circuit
terminal block
Main circuit
terminal block
Wirin
g
cover
Inboard option
mountin
g
position
PU conector*
POWER lamp (yellow)
ALARM lamp (red)
Connector for connection
of inboard option
(400V class only)
(400V class)
(100V class, 200V class)
Control lo
g
ic chan
g
in
g
connector
*Use the PU connector for the FR-PA02-02 or FR-PU04 option and RS-485
communication.
1

OUTLINE
5

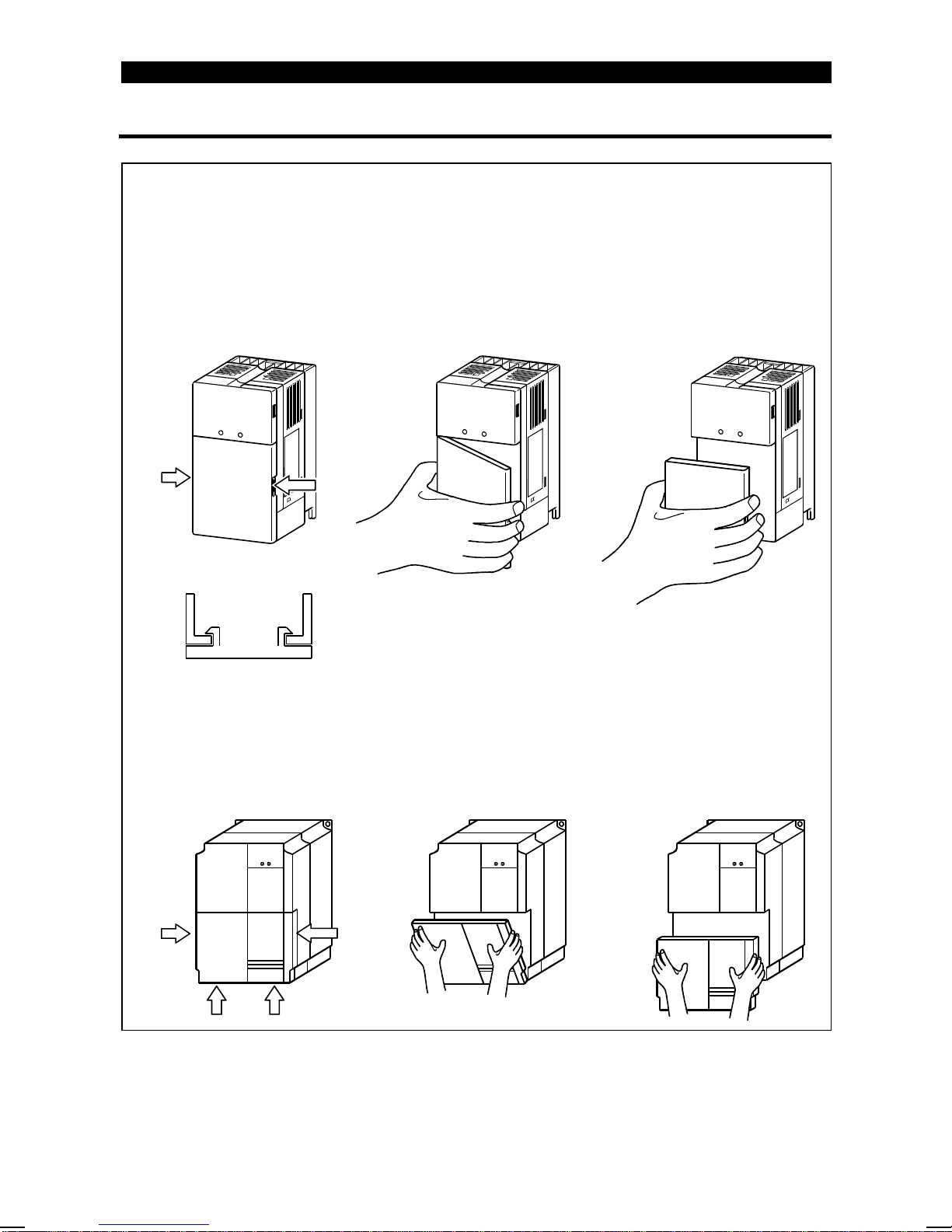

1.3.2 Removal and reinstallation of the front cover
zRemoval
(For the FR-E520-0.1K to 3.7K-NA, FR-E510W-0.1K to 0.75K-NA)
The front cover is secured by catches in positions A and B as shown below.
Push either A or B in the direction of arrows, and using the other end as a
support, pull the front cover toward you to remove.
1) 2) 3)
AB
(For the FR-E520-5.5K, 7.5K-NA)
The front cover is fixed with catches in positions A, B and C.
Push A and B in the directions of arrows at the same time and remove the
cover using C as supporting points.
C
B
C
A
1) 2) 3)

OUTLINE
6
(For the FR-E540-0.4K to 7.5K-NA)
The front cover is fixed with catches in positions A, B and C.
Push A and B in the directions of arrows at the same time and remove the
cover using C as supporting points.
2) 3)
C
A B
C
1)
zReinstallation
When reinstalling the front cover after wiring, fix the catches securely.
With the front cover removed, do not switch power on.
Note:1. Make sure that the front cover has been reinstalled securely.
2. The same serial number is printed on the capacity plate of the front cover
and the rating plate of the inverter. Before reinstalling the front cover, check
the serial numbers to ensure that the cover removed is reinstalled to the
inverter from where it was removed.
1

OUTLINE
7
1.3.3 Removal and reinstallation of the wiring cover
zRemoval
(For the FR-E520-0.1K to 7.5K-NA, FR-E510W-0.1K to 0.75K-NA)
The wiring cover is fixed by catches in positions 1) and 2).
Push either 1) or 2) in the direction of arrows and pull the wiring cover
downward to remove.
Wirin
g
hole
1) 2)
(For the FR-E540-0.4K to 7.5K-NA)
Remove the wiring cover by pulling it in the direction of arrow A.
A
Wirin
g
hole
zReinstallation
Pass the cables through the wiring hole and reinstall the cover in the original
position.

OUTLINE
8
1.3.4 Removal and reinstallation of the accessory cover

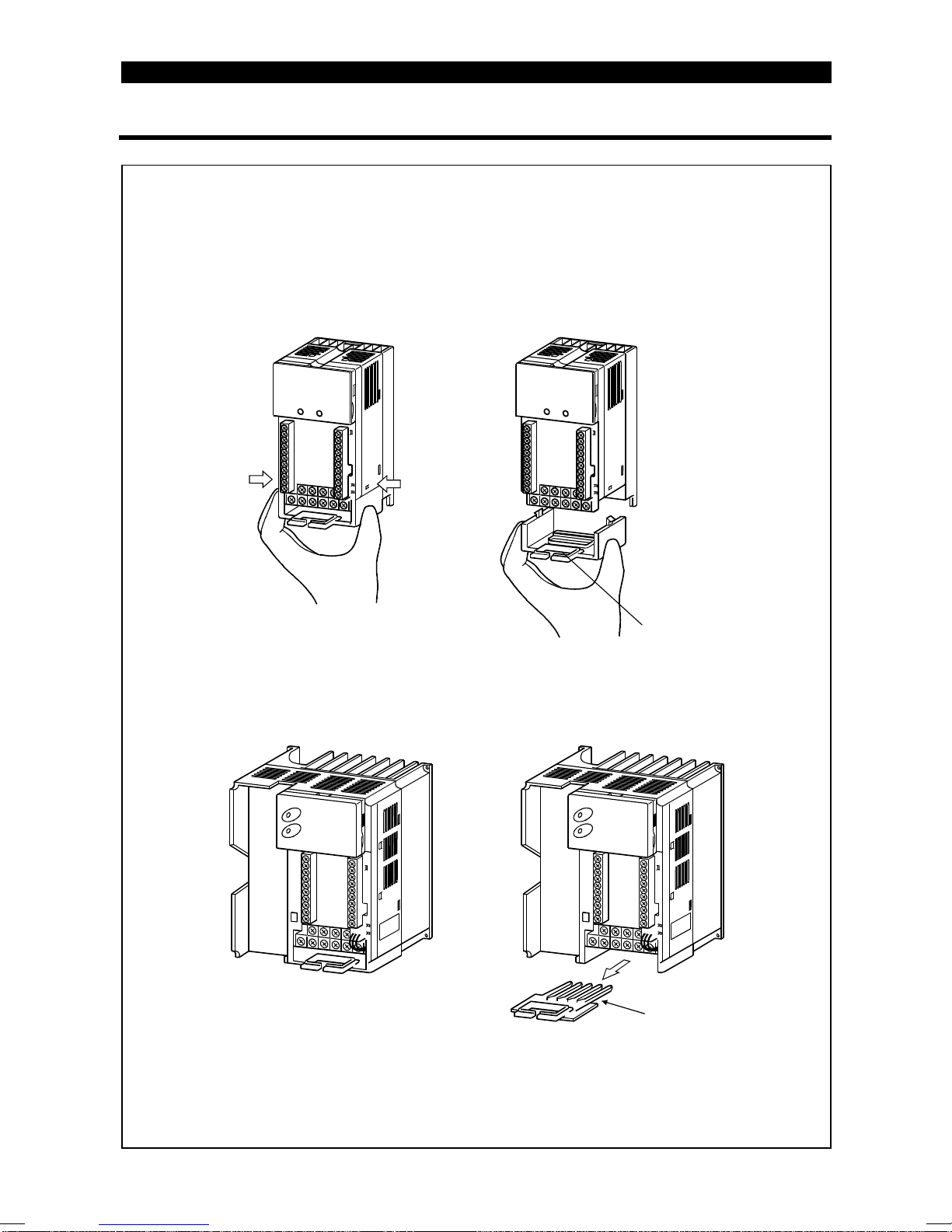

zRemoval of the accessory cover
Hold down the portion A indicated by the arrow and lift the right hand side using
the portion B indicated by the arrow as a support, and pull out the accessory
cover to the right.
A
1) B
2) 3)
zReinstallation of the accessory cover
Insert the mounting catch (left hand side) of the accessory cover into the
mounting position of the inverter and push in the right hand side mounting
catch to install the accessory cover.
Accessory cover
Mountin
g
position
Catch
2) A 1) 3)
1
