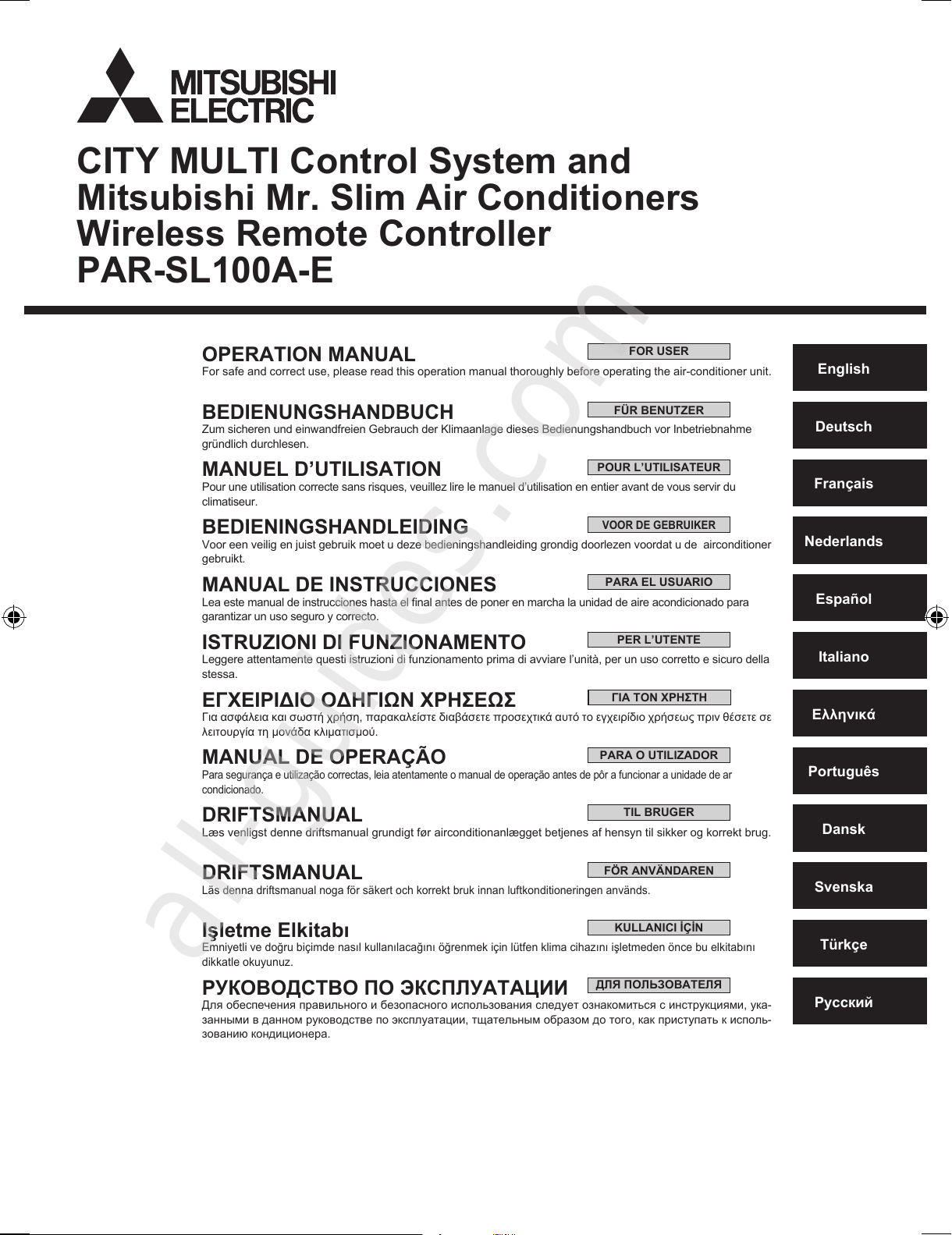

Mitsubishi Electric PAR-SL100A-E User manual

CITY MULTI Control System and
Mitsubishi Mr. Slim Air Conditioners
Wireless Remote Controller
PAR-SL100A-E
Işletme Elkitabı
Emniyetli ve doğru biçimde nasıl kullanılacağını öğrenmek için lütfen klima cihazını işletmeden önce bu elkitabını
dikkatle okuyunuz.
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
Для обеспечения правильного и безопасного использования следует ознакомиться с инструкциями, ука-
занными в данном руководстве по эксплуатации, тщательным образом до того, как приступать к исполь-
зованию кондиционера.
OPERATION MANUAL
For safe and correct use, please read this operation manual thoroughly before operating the air-conditioner unit.
BEDIENUNGSHANDBUCH
Zum sicheren und einwandfreien Gebrauch der Klimaanlage dieses Bedienungshandbuch vor Inbetriebnahme
gründlich durchlesen.
MANUEL D’UTILISATION
Pour une utilisation correcte sans risques, veuillez lire le manuel d’utilisation en entier avant de vous servir du
climatiseur.
BEDIENINGSHANDLEIDING
Voor een veilig en juist gebruik moet u deze bedieningshandleiding grondig doorlezen voordat u de airconditioner
gebruikt.
MANUAL DE INSTRUCCIONES
Lea este manual de instrucciones hasta el nal antes de poner en marcha la unidad de aire acondicionado para
garantizar un uso seguro y correcto.
ISTRUZIONI DI FUNZIONAMENTO
Leggere attentamente questi istruzioni di funzionamento prima di avviare l’unità, per un uso corretto e sicuro della
stessa.
MANUAL DE OPERAÇÃO
Para segurança e utilização correctas, leia atentamente o manual de operação antes de pôr a funcionar a unidade de ar
condicionado.
DRIFTSMANUAL
Læs venligst denne driftsmanual grundigt før airconditionanlægget betjenes af hensyn til sikker og korrekt brug.
DRIFTSMANUAL
Läs denna driftsmanual noga för säkert och korrekt bruk innan luftkonditioneringen används.
Türkçe
Русский
English
Deutsch
Français
Nederlands
Español
Italiano
Eλληνικά
Português
Dansk
Svenska
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ ΧΡΗΣΕΩΣ
Για ασφάλεια και σωστή χρήση, παρακαλείστε διαβάσετε προσεχτικά αυτό το εγχειρίδιο χρήσεως πριν θέσετε σε
λειτουργία τη μονάδα κλιματισμού.
TIL BRUGER
FÖR ANVÄNDAREN
PARA O UTILIZADOR
PER L’UTENTE
PARA EL USUARIO
VOOR DE GEBRUIKER
POUR L’UTILISATEUR
FÜR BENUTZER
FOR USER
ΓΙΑ ΤΟΝ ΧΡΗΣΤΗ
ДЛЯ ПОЛЬЗОВАТЕЛЯ
KULLANICI İÇİN
BT79G181H01_EN.indd 1 2016/01/12 11:59:53
All manuals and user guides at all-guides.com
all-guides.com

2
1. Safety Precautions
Contents
• Be sure to read these Safety precautions thoroughly and install the remote controller correctly.
• The following two symbols are used to denote dangers that may be caused by incorrect use. They are classied accord-
ing to the degree of danger.
WARNING: This symbol denotes what could lead to serious injury or death if you misuse the controller.
CAUTION: This symbol denotes what could lead to personal injury or damage to your property if you misuse
the controller.
• After reading this manual, be sure to forward it, together with the operation manual accompanying the indoor unit, to the
user.
Together with the operation manual for the indoor unit, this manual should be kept in a place where it can be referred
to at anytime by the user. When the user changes, be sure to forward the manual to the nal user.
WARNING
■Check the installation conditions.
• In order to prevent the controller falling down, make sure that it is installed in a place strong enough to withstand
its weight.
■Do not dispose of the controller by yourself.
• Consult your dealer in case of disposal.
■Stop operation when an abnormality occurs.
• Continuing to operate under abnormal conditions can result in breakdown, electric shock or re. When an abnor-
mality occurs (burning smell etc.), stop operations, turn off the power switch and consult your dealer.
1. Safety Precautions ..................................................... 2
2. Names and functions of controller components ......... 4
3. Before Operation ........................................................ 6
3.1. Replacing the batteries and how to set the current
time ..................................................................... 6
3.2. Initial setting ........................................................ 7
4. Operation .................................................................... 8

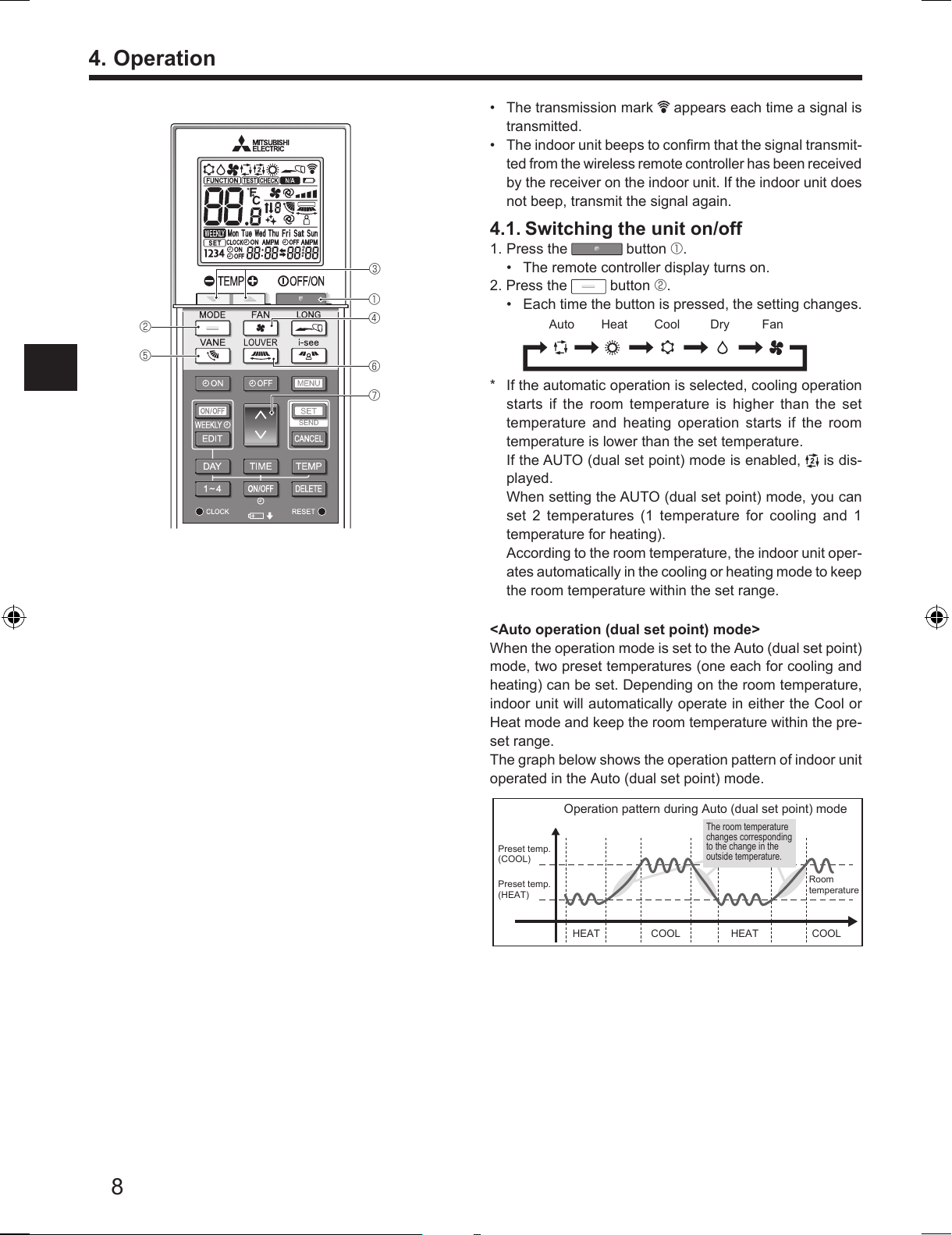

4.1. Switching the unit on/off...................................... 8

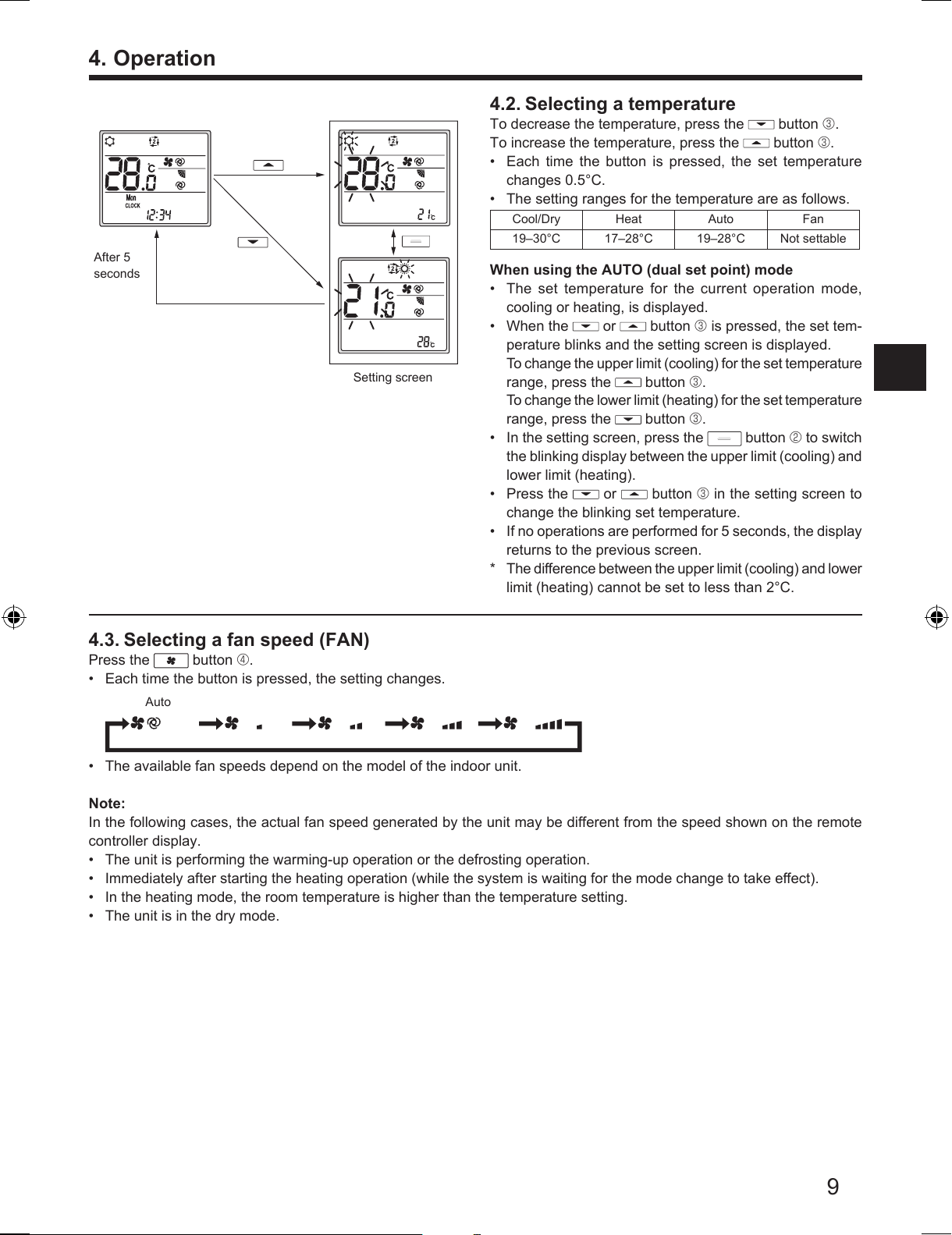

4.2. Selecting a temperature ..................................... 9
4.3. Selecting a fan speed (FAN) ............................... 9
4.4. Adjusting airflow direction ................................. 10
4.5. Using the on/off timer .........................................11

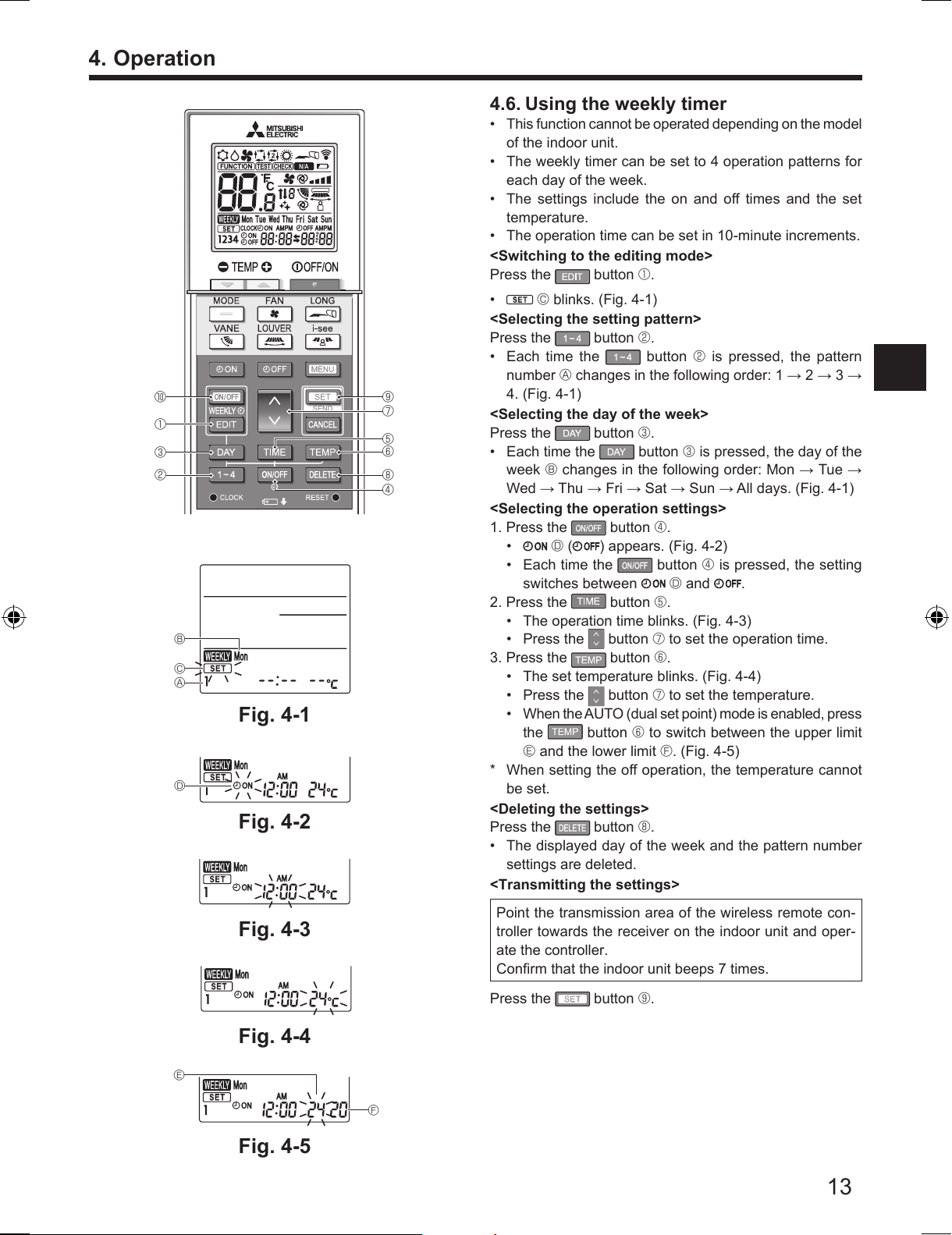

4.6. Using the weekly timer ..................................... 13
4.7. i-See sensor ..................................................... 14
5. Special Operation ..................................................... 15

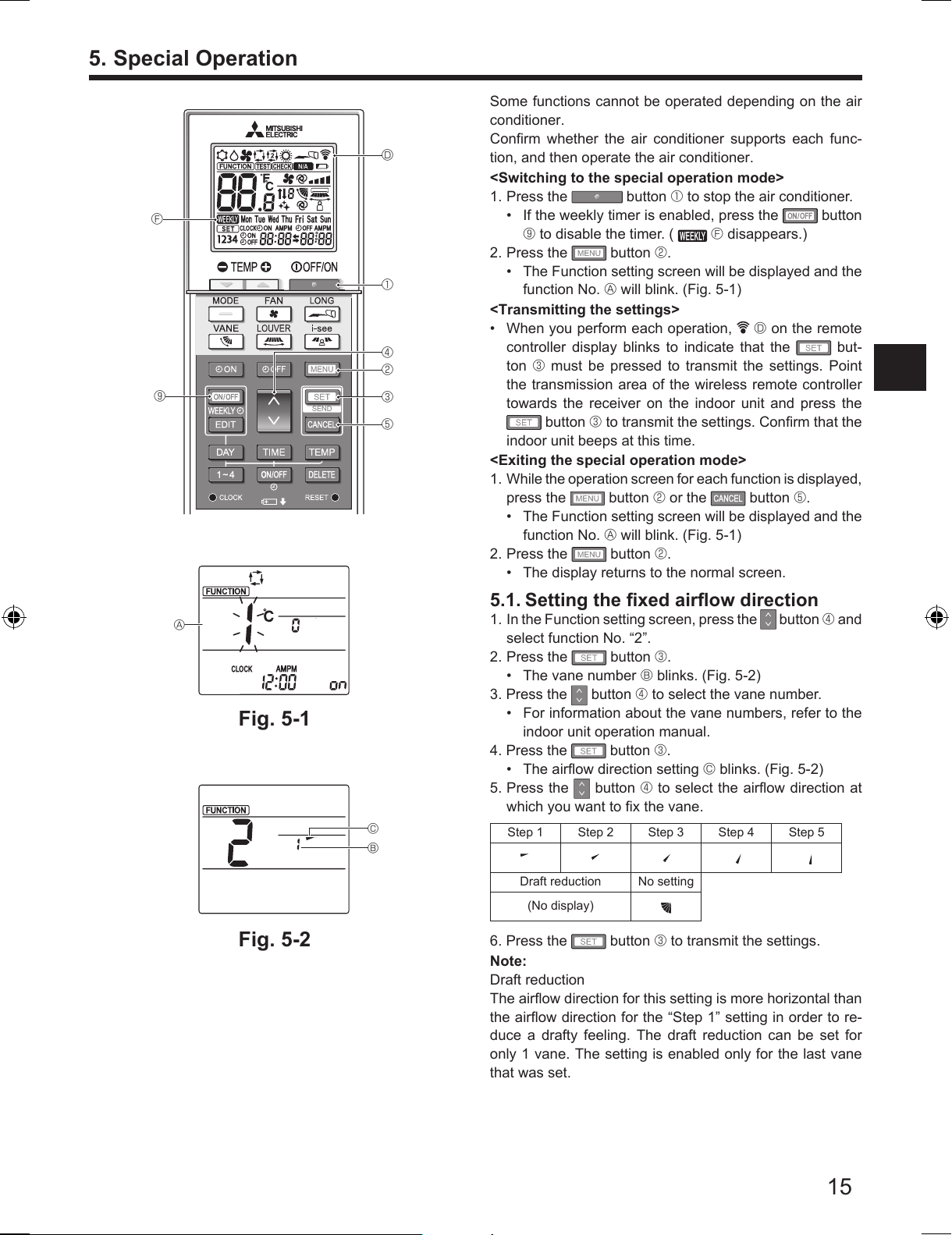

5.1. Setting the fixed airflow direction ...................... 15
5.2. Operating the ascending/descending panel ..... 16
6. Centrally Controlled .................................................. 16
7. Troubleshooting ........................................................ 16
This symbol mark is for EU countries only.
This symbol mark is according to the directive 2006/66/EC Article 20 Information for end-users and
Annex II.
Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and
components which can be recycled and/or reused. This symbol means that batteries and accumulators, at
their end-of-life, should be disposed of separately from your household waste. If a chemical symbol is printed
beneath the symbol (Fig. 1), this chemical symbol means that the battery or accumulator contains a heavy metal
at a certain concentration.
This will be indicated as follows: Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
In the European Union there are separate collection systems for used batteries and accumulators.
Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling
centre.
Please, help us to conserve the environment we live in!
Note
Fig. 1
BT79G181H01_EN.indd 2 2016/01/12 11:59:53
All manuals and user guides at all-guides.com

3

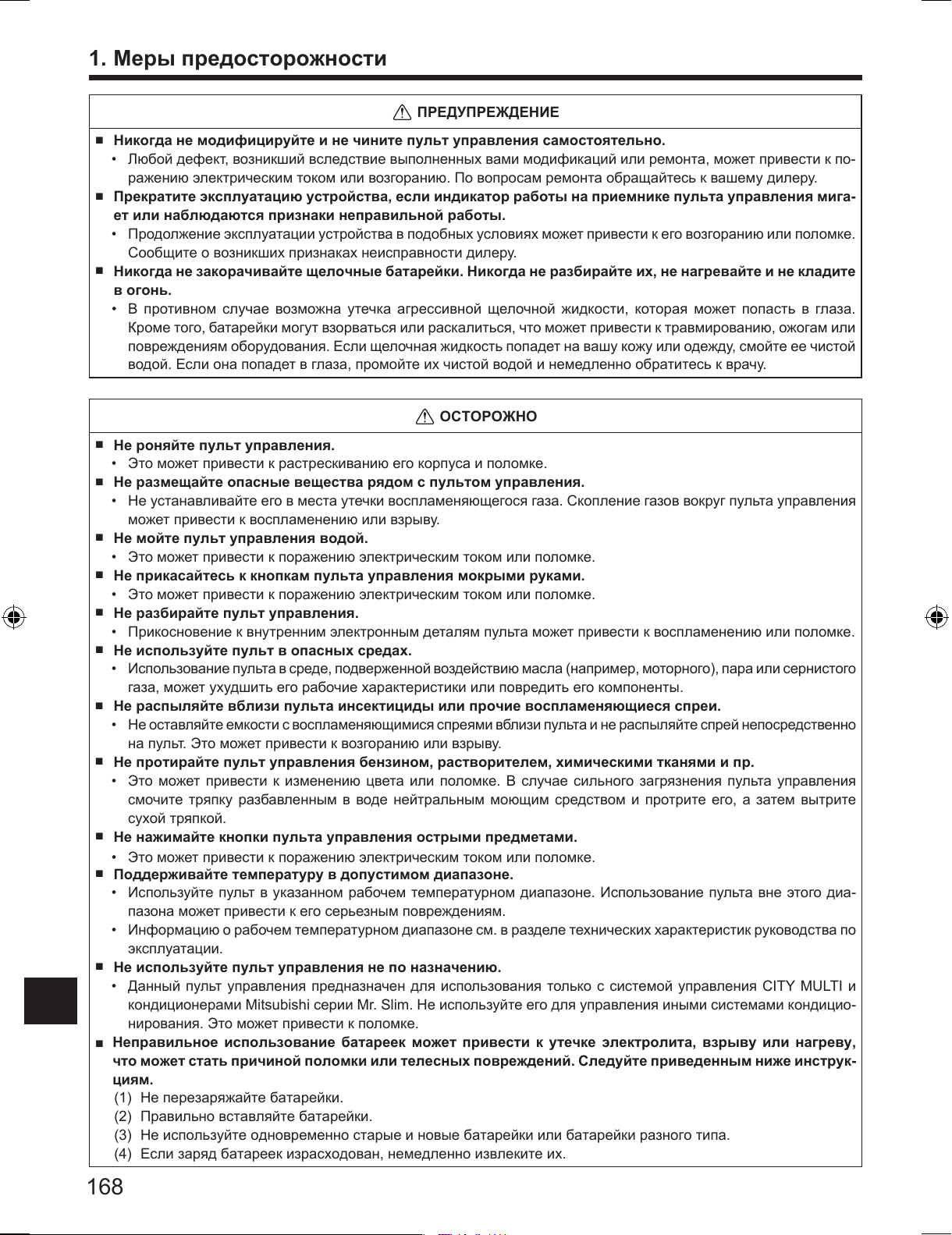

WARNING
■Never modify or repair the controller by yourself.
• Any deciency caused by your modication or repair may result in an electric shock or re. Consult your dealer
about repairs.
■Stop operation if the operation lamp on the controller’s receiver blinks or if an abnormality occurs.
• Leaving the controller in these conditions can lead to re or breakdown. Report such conditions to your dealer.
■Never allow the alkaline batteries to short-circuit. Never disassemble, heat or place them in re.
• Doing so can cause the strong alkaline liquid to leak and possibly enter your eyes or cause the batteries to explode
or heat up, resulting in personal injuries, burning or mechanical breakdowns. If strong alkaline liquid comes in
contact with your skin or clothes, wash it off with clean water. If it gets in to your eyes, wash them with clean water
and consult a doctor immediately.
CAUTION
■Do not drop the controller.
• Doing so may cause the case to crack and may disable control.
■Do not place any dangerous substances near the controller.
• Do not install in any place exposed to leakage of ammable gas. Flammable gases accumulated around the con-
troller may cause re or an explosion.
■Do not wash with water.
• Doing so may cause an electric shock or breakdown.
■Do not touch any control button with wet hands.
• Doing so may cause an electric shock or breakdown.
■Do not disassemble the controller.
• Contact with internal circuitry may cause re or breakdown.
■Do not use in special environments.
• Using in places exposed to oil (including machine oil), steam or sulfur gas can reduce the performance or can
cause damage to the components.
■Do not spray insecticide or other ammable sprays.
• Do not place ammable sprays near the controller or spray directly at the controller. Doing so may result in re or
explosion.
■Do not wipe the controller with benzine, thinner or chemical cloths etc.
• Doing so may cause discoloration or breakdowns. If the controller becomes extremely dirty, dampen a cloth with
water-diluted neutral detergent and wipe the controller with it, then wipe with a dry cloth.
■Do not press any control button with a sharp object.
• Doing so may cause an electric shock or breakdown.
■Keep the temperature within the specied range.
• Use the controller within the specied operating temperature range. Using in temperature outside that range can
cause serious breakdowns.
• For the specied operating temperature range, refer to the specications given on the operation manual.
■Do not use for other special purposes.
• The controller has been designed for use with the CITY MULTI Control System and Mitsubishi Mr. Slim Air Con-
ditioners only. Do not use for other purposes such as controlling other air conditioners. Doing so may result in
breakdown.
■ Incorrect use of batteries can cause liquid leakage, explosion or heating and may result in breakdown or
personal injury. Adhere to the following.
(1) Do not recharge the batteries.
(2) Insert the batteries in the correct direction.
(3) Do not mix a new battery with an old battery or batteries of different types.
(4) Remove the batteries immediately when they have run out.
1. Safety Precautions
BT79G181H01_EN.indd 3 2016/01/12 11:59:54
All manuals and user guides at all-guides.com

4
2. Names and functions of controller components
Operation mode
Cool Dry
Fan
Auto
(single set
point)
Heat
Auto*
(dual set
point)
Temperature setting
The units of temperature
can be changed. For details,
refer to the Installation
Manual.
Not available
Appears when a non-supported
function is selected.
Battery replacement indicator
Appears when the remaining bat-
tery power is low.
Vane setting
Step 1 Step 2 Step 3 Step 4 Step 5 Swing Auto
Fan speed setting
Auto
Set Temperature buttons
Weekly timer ON/OFF button*
Set Time button (Sets the time)
Air ow button (Changes up/
down air ow direction)
Mode button (Changes operation mode)
Timer ON button
Timer OFF button
OFF/ON button
Fan Speed button (Changes fan speed)
SET/SEND button
CANCEL button
Up/Down buttons
Menu button
i-see button*
Reset button
Remote controller display
Transmission area
3D i-see sensor (Air distribution)
Default Direct Indirect When Direct or In-
direct is selected,
the vane setting is
set to “Auto”.
Display
Controller interface
Note:
* This button is enabled or disabled
depending on the model of the in-
door unit.
* The initial setting is necessary.
Refer to 4) in 3.2.
BT79G181H01_EN.indd 4 2016/01/12 11:59:55
All manuals and user guides at all-guides.com

5

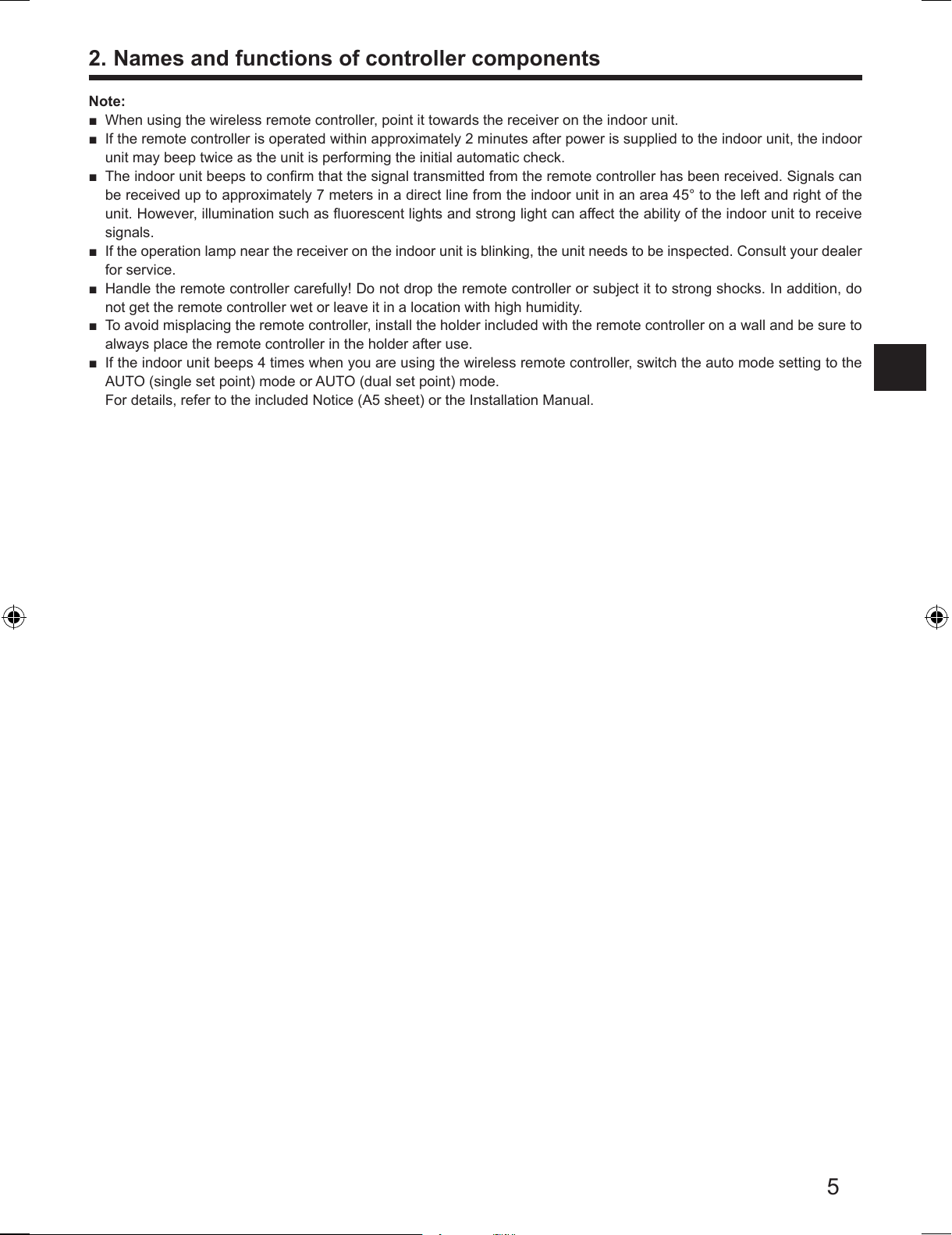

2. Names and functions of controller components
Note:
■ When using the wireless remote controller, point it towards the receiver on the indoor unit.
■ If the remote controller is operated within approximately 2 minutes after power is supplied to the indoor unit, the indoor
unit may beep twice as the unit is performing the initial automatic check.
■ The indoor unit beeps to conrm that the signal transmitted from the remote controller has been received. Signals can
be received up to approximately 7 meters in a direct line from the indoor unit in an area 45° to the left and right of the
unit. However, illumination such as uorescent lights and strong light can affect the ability of the indoor unit to receive
signals.
■ If the operation lamp near the receiver on the indoor unit is blinking, the unit needs to be inspected. Consult your dealer
for service.
■ Handle the remote controller carefully! Do not drop the remote controller or subject it to strong shocks. In addition, do
not get the remote controller wet or leave it in a location with high humidity.
■ To avoid misplacing the remote controller, install the holder included with the remote controller on a wall and be sure to
always place the remote controller in the holder after use.
■ If the indoor unit beeps 4 times when you are using the wireless remote controller, switch the auto mode setting to the
AUTO (single set point) mode or AUTO (dual set point) mode.
For details, refer to the included Notice (A5 sheet) or the Installation Manual.
BT79G181H01_EN.indd 5 2016/01/12 11:59:55
All manuals and user guides at all-guides.com

6

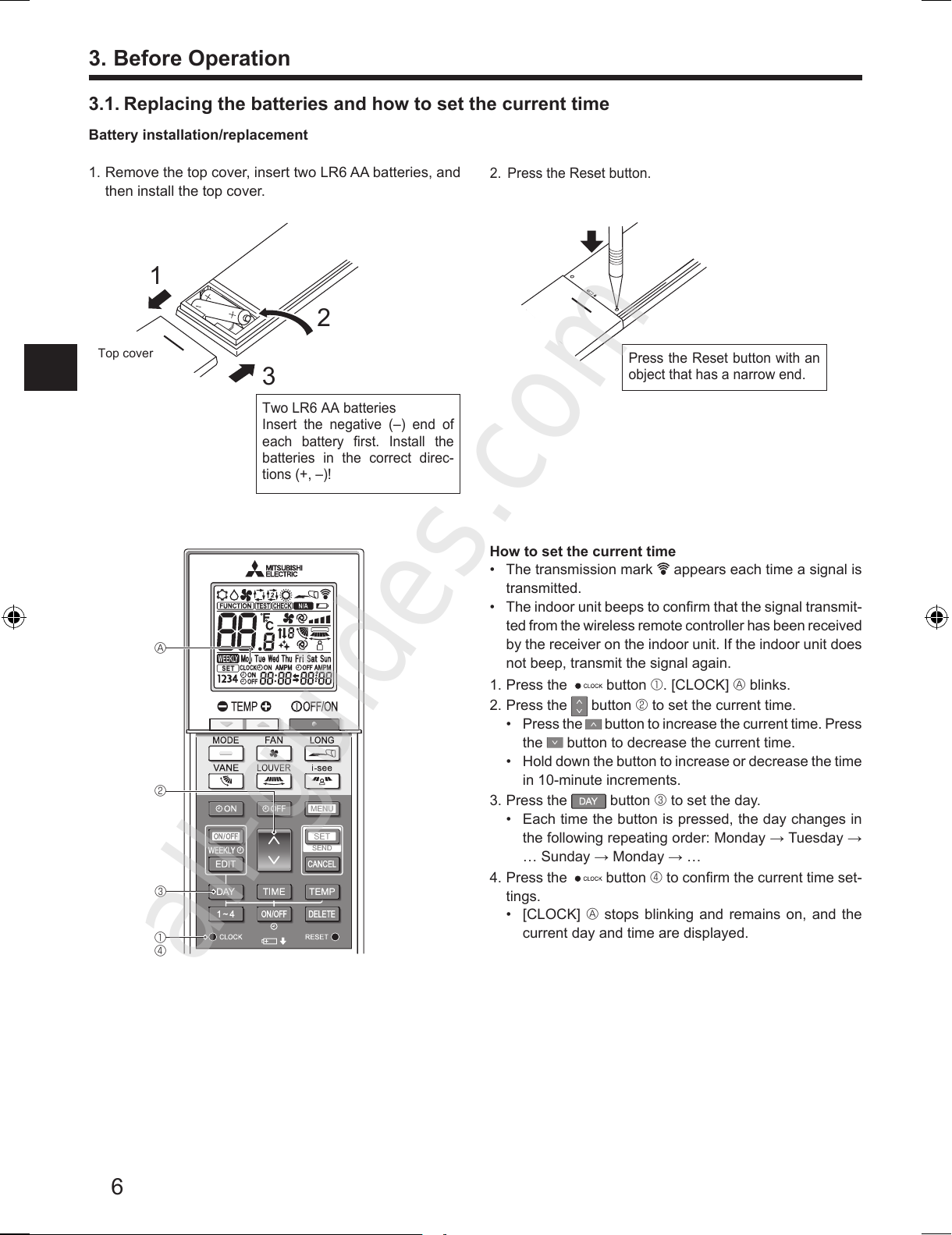

3. Before Operation
How to set the current time
• The transmission mark appears each time a signal is
transmitted.
• The indoor unit beeps to con rm that the signal transmit-
ted from the wireless remote controller has been received
by the receiver on the indoor unit. If the indoor unit does
not beep, transmit the signal again.
1. Press the button 1. [CLOCK] A blinks.
2. Press the button 2 to set the current time.
• Press the button to increase the current time. Press
the button to decrease the current time.
• Hold down the button to increase or decrease the time
in 10-minute increments.
3. Press the button 3 to set the day.
• Each time the button is pressed, the day changes in
the following repeating order: Monday → Tuesday →
… Sunday → Monday → …
4. Press the button 4 to con rm the current time set-
tings.
• [CLOCK] A stops blinking and remains on, and the
current day and time are displayed.
A
2
3
1
4
1
2
3
Press the Reset button with an
object that has a narrow end.
Top cover
Two LR6 AA batteries
Insert the negative (–) end of
each battery  rst. Install the
batteries in the correct direc-
tions (+, –)!
3.1. Replacing the batteries and how to set the current time
2. Press the Reset button.
Battery installation/replacement
1. Remove the top cover, insert two LR6 AA batteries, and
then install the top cover.
BT79G181H01_EN.indd 6 2016/01/12 11:59:56
All manuals and user guides at all-guides.com
all-guides.com

7
Fig. 3-1
Fig. 3-2
A
A
D
E
C
B
7
9
1
4
2
3
6
5
8
F
3. Before Operation
3.2. Initial setting
The following settings can be made in the initial setting mode.
Item Setting Fig. 3-1, 3-2
Temperature unit ºC/ºF A
Time display 12-hour format/24-hour format B
AUTO mode Single set point/Dual set point C
Pair No. 0–3 D
Backlight On/Off E
1) Switching to the initial setting mode
1. Press the button 1 to stop the air conditioner.
• If the weekly timer is enabled, press the button
9 to disable the timer. ( F disappears.)
2. Press the button 2.
• The Function setting screen will be displayed and the
function No. A will blink. (Fig. 3-1)
• Press the button 4 to change the function No.
3. Check that function No. “1” is displayed, and then press
the button 3.
• The display setting screen will be displayed. (Fig. 3-2)
2) Changing the temperature unit A (Fig. 3-2)
Press the button 5.
• Each time the button 5 is pressed, the setting
switches between and .
: The temperature is displayed in degrees Celsius.
:
The temperature is displayed in degrees Fahrenheit.
3) Changing the time display B (Fig. 3-2)
Press the button 6.
• Each time the button 6 is pressed, the setting
switches between and .
: The time is displayed in the 12-hour format.
: The time is displayed in the 24-hour format.
4) Changing the AUTO mode C (Fig. 3-2)
Press the button 7.
• Each time the button 7 is pressed, the setting
switches between and .
: The AUTO mode operates as the usual automatic
mode.
: The AUTO mode operates using dual set points.
5) Changing the pair No. D (Fig. 3-2)
Press the button 4.
• Each time the button 4 is pressed, the pair No. 0–3
changes.
6) Changing the backlight setting E (Fig. 3-2)
Press the button 8.
• Each time the button 8 is pressed, the setting
switches between and .
: The backlight comes on when a button is pressed.
: The backlight does not come on when a button
is pressed.
7) Completing the settings
Press the button 3.
• The function No. A blinks. (Fig. 3-1)
Press the button 2.
• The remote controller exits the initial setting mode.
(The air conditioner operation is stopped.)
BT79G181H01_EN.indd 7 2016/01/12 11:59:58
All manuals and user guides at all-guides.com

8
4. Operation
3
1
4
7
2
56
• The transmission mark appears each time a signal is
transmitted.
• The indoor unit beeps to con rm that the signal transmit-
ted from the wireless remote controller has been received
by the receiver on the indoor unit. If the indoor unit does
not beep, transmit the signal again.
4.1. Switching the unit on/off
1. Press the button 1.
• The remote controller display turns on.
2. Press the button 2.
• Each time the button is pressed, the setting changes.
Auto Heat Cool Dry Fan
* If the automatic operation is selected, cooling operation
starts if the room temperature is higher than the set
temperature and heating operation starts if the room
temperature is lower than the set temperature.
If the AUTO (dual set point) mode is enabled, is dis-
played.
When setting the AUTO (dual set point) mode, you can
set 2 temperatures (1 temperature for cooling and 1
temperature for heating).
According to the room temperature, the indoor unit oper-
ates automatically in the cooling or heating mode to keep
the room temperature within the set range.
<Auto operation (dual set point) mode>
When the operation mode is set to the Auto (dual set point)
mode, two preset temperatures (one each for cooling and
heating) can be set. Depending on the room temperature,
indoor unit will automatically operate in either the Cool or
Heat mode and keep the room temperature within the pre-
set range.
The graph below shows the operation pattern of indoor unit
operated in the Auto (dual set point) mode.
Operation pattern during Auto (dual set point) mode
HEAT COOL HEAT COOL
Preset temp.
(COOL)
Preset temp.
(HEAT)
Room
temperature
The room temperature
changes corresponding
to the change in the
outside temperature.
BT79G181H01_EN.indd 8 2016/01/12 11:59:58
All manuals and user guides at all-guides.com

9
4. Operation
4.2. Selecting a temperature
To decrease the temperature, press the button 3.
To increase the temperature, press the button 3.
• Each time the button is pressed, the set temperature
changes 0.5°C.
• The setting ranges for the temperature are as follows.
Cool/Dry Heat Auto Fan
19–30°C 17–28°C 19–28°C Not settable
When using the AUTO (dual set point) mode
• The set temperature for the current operation mode,
cooling or heating, is displayed.
• When the or button 3 is pressed, the set tem-
perature blinks and the setting screen is displayed.
To change the upper limit (cooling) for the set temperature
range, press the button 3.
To change the lower limit (heating) for the set temperature
range, press the button 3.
• In the setting screen, press the button 2 to switch
the blinking display between the upper limit (cooling) and
lower limit (heating).
• Press the or button 3 in the setting screen to
change the blinking set temperature.
• If no operations are performed for 5 seconds, the display
returns to the previous screen.
* The difference between the upper limit (cooling) and lower
limit (heating) cannot be set to less than 2°C.
4.3. Selecting a fan speed (FAN)
Press the button 4.
• Each time the button is pressed, the setting changes.
Auto
• The available fan speeds depend on the model of the indoor unit.
Note:
In the following cases, the actual fan speed generated by the unit may be different from the speed shown on the remote
controller display.
• The unit is performing the warming-up operation or the defrosting operation.
• Immediately after starting the heating operation (while the system is waiting for the mode change to take effect).
• In the heating mode, the room temperature is higher than the temperature setting.
• The unit is in the dry mode.
After 5
seconds
Setting screen
BT79G181H01_EN.indd 9 2016/01/12 11:59:59
All manuals and user guides at all-guides.com

10
4. Operation
4.4. Adjusting air ow direction
<Changing the vertical air ow direction (vane)>
Press the button 5.
• Each time the button is pressed, the setting changes.
Swing Auto Step 1 Step 2 Step 3 Step 4 Step 5
For models with swing and automatic functions
Step 1 Step 2 Step 3 Step 4
For models without swing and
automatic functions
* For models that are not equipped with a vertical air ow
setting function, A blinks twice when the vertical
air ow direction is set.
<Changing the horizontal air ow direction (louver)>
Press the button 6.
• Each time the button is pressed, the setting switches
between the swing operation and the  xed operation.
Fixed Swing
For models with the louver
setting function
* For models that are not equipped with a horizontal air ow
setting function, A blinks twice when the horizontal
air ow direction is set.
Note:
In the following cases, the vertical air ow direction of the
unit may be different from the direction shown on the re-
mote controller display.
• The unit is performing the warming-up operation or the
defrosting operation.
• Immediately after starting the heating operation (while the
system is waiting for the mode change to take effect).
• In the heating mode, the room temperature is higher than
the temperature setting.
2
5
1
4
6
3
A
7
BT79G181H01_EN.indd 10 2016/01/12 12:00:00
All manuals and user guides at all-guides.com

11
4. Operation
4.5. Using the on/off timer
• When setting the timer operation, point the transmis-
sion area of the wireless remote controller towards the
receiver on the indoor unit and con rm that the indoor
unit beeps when it receives signals from the remote
controller.
■ There are 3 types of timer operation.
• On timer operation: Only the timer to start the operation
is set.
• Off timer operation: Only the timer to stop the operation
is set.
• On/off timer operation: The timers to start and stop the
operation are both set.
■ Only 1 on-timer setting and 1 off-timer setting can be set
for the timer operation within a 24-hour period.
■ The time setting for the timer operation can be set in
10-minute increments.
[Set the time to start the unit as follows]
1. Press the button 4.
• The current time disappears, the on time appears, and
A blinks.
2. Press the button 2 to set the on time.
3. Press the button 3.
• A stops blinking and remains on to indicate that
the setting is complete.
* Even if no operations are performed for 10 seconds,
A stops blinking and remains on to indicate that
the setting is complete.
• If the on timer is set while the air conditioner is operat-
ing, the air conditioner stops.
[Set the time to stop the unit as follows]
1. Press the button 1.
• The current time disappears, the off time appears, and
B blinks.
2. Press the button 2 to set the off time.
3. Press the button 3.
• B stops blinking and remains on to indicate that
the setting is complete.
* Even if no operations are performed for 10 seconds,
B stops blinking and remains on to indicate that
the setting is complete.
4 1
2
3
5
A B
On time
Off time
Timer operation order
BT79G181H01_EN.indd 11 2016/01/12 12:00:01
All manuals and user guides at all-guides.com
all-guides.com

12
4. Operation
[Changing the set times]
Set both the off timer and on timer.
• In the display, or appears.
: Stops → Operates (on time) → Stops (off time)
: Operates → Stops (off time) → Operates (on time)
Example 1) The current time is 7:00 A.M.
The air conditioner starts operating at 8:00 A.M. and
stops at 6:30 P.M.
Example 2) The current time is 10:00 A.M.
The air conditioner stops operating at 6:30 P.M. and
starts at 8:00 A.M. on the following day.
[Canceling the timer operation]
■ Canceling the on timer operation
Press the button 4.
• The on time disappears and the on timer is canceled.
■ Canceling the off timer operation
Press the button 1.
• The off time disappears and the off timer is canceled.
■ Canceling the on/off timer operation
Press the button 4 or the button 1.
The on time and off time disappear and the timer is
canceled.
■ Canceling the timer operation and stopping the air con-
ditioner
Press the button 5.
• The air conditioner stops and the set timer operation
is canceled at the same time.
BT79G181H01_EN.indd 12 2016/01/12 12:00:01
All manuals and user guides at all-guides.com

13
4. Operation
4.6. Using the weekly timer
• This function cannot be operated depending on the model
of the indoor unit.
• The weekly timer can be set to 4 operation patterns for
each day of the week.
• The settings include the on and off times and the set
temperature.
• The operation time can be set in 10-minute increments.
<Switching to the editing mode>
Press the button 1.
• C blinks. (Fig. 4-1)
<Selecting the setting pattern>
Press the button 2.
• Each time the button 2 is pressed, the pattern
number A changes in the following order: 1 → 2 → 3 →
4. (Fig. 4-1)
<Selecting the day of the week>
Press the button 3.
• Each time the button 3 is pressed, the day of the
week B changes in the following order: Mon → Tue →
Wed → Thu → Fri → Sat → Sun → All days. (Fig. 4-1)
<Selecting the operation settings>
1. Press the button 4.
• D ( ) appears. (Fig. 4-2)
• Each time the button 4 is pressed, the setting
switches between D and .
2. Press the button 5.
• The operation time blinks. (Fig. 4-3)
• Press the button 7 to set the operation time.
3. Press the button 6.
• The set temperature blinks. (Fig. 4-4)
• Press the button 7 to set the temperature.
• When the AUTO (dual set point) mode is enabled, press
the button 6 to switch between the upper limit
E and the lower limit F. (Fig. 4-5)
* When setting the off operation, the temperature cannot
be set.
<Deleting the settings>
Press the button 8.
• The displayed day of the week and the pattern number
settings are deleted.
<Transmitting the settings>
Point the transmission area of the wireless remote con-
troller towards the receiver on the indoor unit and oper-
ate the controller.
Con rm that the indoor unit beeps 7 times.
Press the button 9.
0
1
3
2
7
4
9
6
5
8
Fig. 4-1
Fig. 4-2
Fig. 4-3
Fig. 4-4
Fig. 4-5
B
A
C
D
F
E
BT79G181H01_EN.indd 13 2016/01/12 12:00:02
All manuals and user guides at all-guides.com

14
4. Operation
<Enabling the weekly timer>
Point the transmission area of the wireless remote con-
troller towards the receiver on the indoor unit and oper-
ate the controller.
Press the button 0.
The weekly timer operates when is on.
• The weekly timer does not function when the on/off timer
is enabled.
• The weekly timer operates when all of the on/off timer
settings have been executed.
4.7. i-See sensor
• This function cannot be operated depending on the model
of the indoor unit.
1 Each time is pressed during operation, the setting
changes in the following order: OFF → Direct → Indirect.
Display
Setting OFF Direct Indirect
When the setting is changed from OFF to Direct or Indirect,
the vane setting changes to “Auto”. This setting is applied
collectively to all of the vanes.
2 The vanes automatically move relative to the areas where
persons are detected. When a person is detected, the
vanes operate as indicated in the following table.
Vane setting
Direct Indirect
Cooling horizontal → swing keep horizontal
Heating keep downward downward → horizontal
BT79G181H01_EN.indd 14 2016/01/12 12:00:03
All manuals and user guides at all-guides.com

15
5. Special Operation
Fig. 5-1
1
D
5
4
3
2
9
F
A
Some functions cannot be operated depending on the air
conditioner.
Con rm whether the air conditioner supports each func-
tion, and then operate the air conditioner.
<Switching to the special operation mode>
1. Press the button 1 to stop the air conditioner.
• If the weekly timer is enabled, press the button
9 to disable the timer. ( F disappears.)
2. Press the button 2.
• The Function setting screen will be displayed and the
function No. A will blink. (Fig. 5-1)
<Transmitting the settings>
• When you perform each operation, D on the remote
controller display blinks to indicate that the but-
ton 3 must be pressed to transmit the settings. Point
the transmission area of the wireless remote controller
towards the receiver on the indoor unit and press the
button 3 to transmit the settings. Con rm that the
indoor unit beeps at this time.
<Exiting the special operation mode>
1. While the operation screen for each function is displayed,
press the button 2 or the button 5.
• The Function setting screen will be displayed and the
function No. A will blink. (Fig. 5-1)
2. Press the button 2.
• The display returns to the normal screen.
5.1. Setting the  xed air ow direction
1. In the Function setting screen, press the button 4 and
select function No. “2”.
2. Press the button 3.
• The vane number B blinks. (Fig. 5-2)
3. Press the button 4 to select the vane number.
• For information about the vane numbers, refer to the
indoor unit operation manual.
4. Press the button 3.
• The air ow direction setting C blinks. (Fig. 5-2)
5. Press the button 4 to select the air ow direction at
which you want to  x the vane.
Step 1 Step 2 Step 3 Step 4 Step 5
Draft reduction No setting
(No display)
6. Press the button 3 to transmit the settings.
Note:
Draft reduction
The air ow direction for this setting is more horizontal than
the air ow direction for the “Step 1” setting in order to re-
duce a drafty feeling. The draft reduction can be set for
only 1 vane. The setting is enabled only for the last vane
that was set.
Fig. 5-2
B
C
BT79G181H01_EN.indd 15 2016/01/12 12:00:04
All manuals and user guides at all-guides.com

16
5. Special Operation
6. Centrally Controlled
7. Troubleshooting
<When remote operation by other remote controllers is prohibited>
When remote operation is prohibited by a central remote controller, the operations for stopping and starting operation
and the settings for the operation mode, temperature setting, vane setting, and fan speed cannot be performed from this
remote controller according to the prohibited settings.
<When a wireless remote controller is operated during central control>
The receiver of the wireless remote controller operates as follows.
Reception con rmation sound: 2 beeps
Operation lamp during operation: Turns off 3 times in 0.5-second intervals
Operation lamp when operation is stopped: Turns on 3 times in 0.5-second intervals
<When the operation lamp of the wireless remote controller receiver is blinking>
The blinking lamp indicates an air conditioner malfunction has occurred.
If this occurs, turn off the power switch immediately and consult your dealer.
Do not attempt to repair this equipment by yourself.
<When the indoor unit beeps 4 times and the operations are ineffective>
The auto mode setting (single set point or dual set point) is different for the remote controller and the system to which the
indoor unit is connected. Change the current setting according to the procedure in 4) in 3.2.
Fig. 5-3
D
5.2. Operating the ascending/descending
panel
1. In the Function setting screen, press the button 4 and
select function No. “3”.
2 Press the button 3.
• The ascending/descending mark D blinks. (Fig. 5-3)
3. Press the button 4 or the button 5.
• : Descending operation
• : Ascending operation
• : Stop operation
BT79G181H01_EN.indd 16 2016/01/12 12:00:04
All manuals and user guides at all-guides.com
all-guides.com

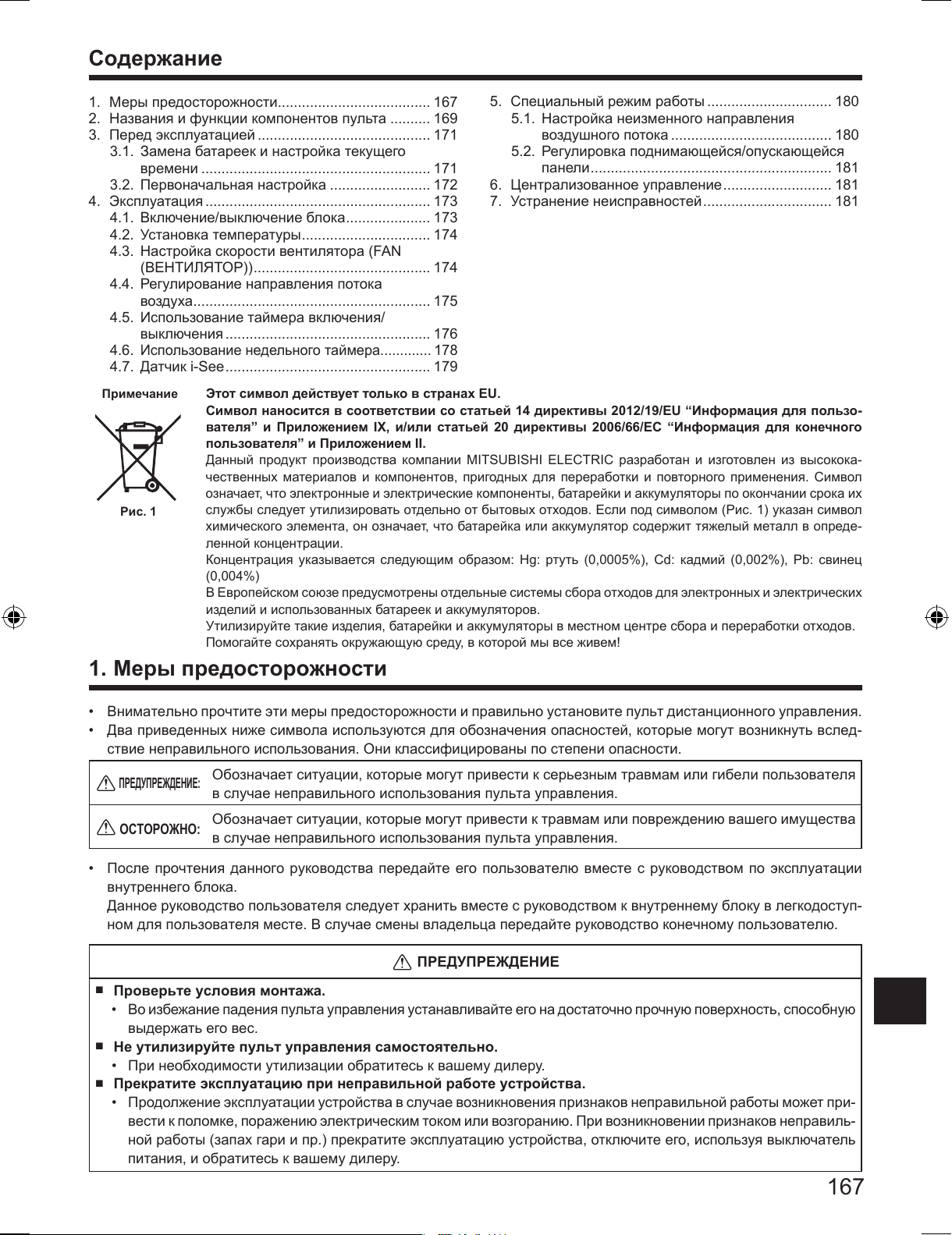

167
1.Мерыпредосторожности
Содержание
• Внимательнопрочтитеэтимерыпредосторожностииправильноустановитепультдистанционногоуправления.
• Дваприведенныхнижесимволаиспользуютсядляобозначенияопасностей,которыемогутвозникнутьвслед-
ствиенеправильногоиспользования.Ониклассифицированыпостепениопасности.
ПРЕДУПРЕЖДЕНИЕ:
Обозначаетситуации,которыемогутпривестиксерьезнымтравмамилигибелипользователя
вслучаенеправильногоиспользованияпультауправления.
ОСТОРОЖНО:
Обозначаетситуации,которыемогутпривестиктравмамилиповреждениювашегоимущества
вслучаенеправильногоиспользованияпультауправления.
• Послепрочтенияданногоруководствапередайтеегопользователювместесруководствомпоэксплуатации
внутреннегоблока.
 Данноеруководствопользователяследуетхранитьвместесруководствомквнутреннемублокувлегкодоступ-
номдляпользователяместе.Вслучаесменывладельцапередайтеруководствоконечномупользователю.
ПРЕДУПРЕЖДЕНИЕ
■Проверьтеусловиямонтажа.
• Воизбежаниепаденияпультауправленияустанавливайтеегонадостаточнопрочнуюповерхность,способную
выдержатьеговес.
■Неутилизируйтепультуправлениясамостоятельно.
• Принеобходимостиутилизацииобратитеськвашемудилеру.
■Прекратитеэксплуатациюпринеправильнойработеустройства.
• Продолжениеэксплуатацииустройствавслучаевозникновенияпризнаковнеправильнойработыможетпри-
вестикполомке,поражениюэлектрическимтокомиливозгоранию.Привозникновениипризнаковнеправиль-
нойработы(запахгариипр.)прекратитеэксплуатациюустройства,отключитеего,используявыключатель
питания,иобратитеськвашемудилеру.
1. Мерыпредосторожности...................................... 167
2. Названияифункциикомпонентовпульта.......... 169
3. Передэксплуатацией........................................... 171
3.1. Заменабатареекинастройкатекущего
времени......................................................... 171
3.2. Первоначальнаянастройка......................... 172
4. Эксплуатация........................................................ 173
4.1. Включение/выключениеблока..................... 173
4.2. Установкатемпературы................................ 174
4.3. Настройкаскоростивентилятора(FAN
(ВЕНТИЛЯТОР))............................................ 174
4.4. Регулированиенаправленияпотока
воздуха........................................................... 175
4.5. Использованиетаймеравключения/
выключения................................................... 176
4.6.
Использованиенедельноготаймера............. 178
4.7. Датчикi-See................................................... 179
5. Специальныйрежимработы............................... 180
5.1. Настройканеизменногонаправления
воздушногопотока........................................ 180
5.2. Регулировкаподнимающейся/опускающейся
панели............................................................ 181
6. Централизованноеуправление........................... 181
7. Устранениенеисправностей................................ 181
ЭтотсимволдействуеттольковстранахEU.
Символнаноситсявсоответствиисостатьей14директивы2012/19/EU“Информациядляпользо-
вателя”и ПриложениемIX,и/или статьей 20 директивы 2006/66/EC “Информациядля конечного
пользователя”иПриложениемII.
Данный продукт производствакомпании MITSUBISHI ELECTRIC разработан и изготовлен из высокока-
чественныхматериалови компонентов,пригодныхдляпереработкииповторногоприменения.Символ
означает,чтоэлектронныеиэлектрическиекомпоненты,батарейкииаккумуляторыпоокончаниисрокаих
службыследуетутилизироватьотдельноотбытовыхотходов.Еслиподсимволом(Pис.1)указансимвол
химическогоэлемента,онозначает,чтобатарейкаилиаккумуляторсодержиттяжелыйметаллвопреде-
леннойконцентрации.
Концентрацияуказываетсяследующимобразом:Hg: ртуть (0,0005%), Cd: кадмий (0,002%), Pb: свинец
(0,004%)
ВЕвропейскомсоюзепредусмотреныотдельныесистемысбораотходовдляэлектронныхиэлектрических
изделийииспользованныхбатареекиаккумуляторов.
Утилизируйтетакиеизделия,батарейкииаккумуляторывместномцентресбораипереработкиотходов.
Помогайтесохранятьокружающуюсреду,вкотороймывсеживем!
Примечание
Pис.1
BT79G181H01_RU.indd 167 2016/1/12 14:39:31
All manuals and user guides at all-guides.com

168
1.Мерыпредосторожности
ПРЕДУПРЕЖДЕНИЕ
■Никогданемодифицируйтеинечинитепультуправлениясамостоятельно.
• Любойдефект,возникшийвследствиевыполненныхвамимодификацийилиремонта,можетпривестикпо-
ражениюэлектрическимтокомиливозгоранию.Повопросамремонтаобращайтеськвашемудилеру.
■
Прекратитеэксплуатациюустройства,еслииндикаторработынаприемникепультауправлениямига-
етилинаблюдаютсяпризнакинеправильнойработы.
• Продолжениеэксплуатацииустройствавподобныхусловияхможетпривестикеговозгораниюилиполомке.
Сообщитеовозникшихпризнакахнеисправностидилеру.
■
Никогданезакорачивайтещелочныебатарейки.Никогданеразбирайтеих,ненагревайтеинекладите
вогонь.
• Впротивномслучае возможнаутечка агрессивнойщелочнойжидкости, котораяможет попасть вглаза.
Крометого,батарейкимогутвзорватьсяилираскалиться,чтоможетпривестиктравмированию,ожогамили
повреждениямоборудования.Еслищелочнаяжидкостьпопадетнавашукожуилиодежду,смойтееечистой
водой.Еслионапопадетвглаза,промойтеихчистойводойинемедленнообратитеськврачу.
ОСТОРОЖНО
■Нероняйтепультуправления.
• Этоможетпривестикрастрескиваниюегокорпусаиполомке.
■Неразмещайтеопасныевеществарядомспультомуправления.
• Неустанавливайтееговместаутечкивоспламеняющегосягаза.Скоплениегазоввокругпультауправления
можетпривестиквоспламенениюиливзрыву.
■Немойтепультуправленияводой.
• Этоможетпривестикпоражениюэлектрическимтокомилиполомке.
■Неприкасайтеськкнопкампультауправлениямокрымируками.
• Этоможетпривестикпоражениюэлектрическимтокомилиполомке.
■Неразбирайтепультуправления.
• Прикосновениеквнутреннимэлектроннымдеталямпультаможетпривестиквоспламенениюилиполомке.
■Неиспользуйтепультвопасныхсредах.
• Использованиепультавсреде,подверженнойвоздействиюмасла(например,моторного),параилисернистого
газа,можетухудшитьегорабочиехарактеристикиилиповредитьегокомпоненты.
■Нераспыляйтевблизипультаинсектицидыилипрочиевоспламеняющиесяспреи.
• Неоставляйтеемкостисвоспламеняющимисяспреямивблизипультаинераспыляйтеспрейнепосредственно
напульт.Этоможетпривестиквозгораниюиливзрыву.
■Непротирайтепультуправлениябензином,растворителем,химическимитканямиипр.
• Этоможетпривестикизменениюцветаилиполомке.Вслучаесильногозагрязненияпультауправления
смочитетряпку разбавленным в воденейтральныммоющимсредствомипротритеего,азатемвытрите
сухойтряпкой.
■Ненажимайтекнопкипультауправленияострымипредметами.
• Этоможетпривестикпоражениюэлектрическимтокомилиполомке.
■Поддерживайтетемпературувдопустимомдиапазоне.
• Используйтепультвуказанномрабочемтемпературномдиапазоне.Использованиепультавнеэтогодиа-
пазонаможетпривестикегосерьезнымповреждениям.
• Информациюорабочемтемпературномдиапазонесм.вразделетехническиххарактеристикруководствапо
эксплуатации.
■Неиспользуйтепультуправлениянепоназначению.
• ДанныйпультуправленияпредназначендляиспользованиятолькоссистемойуправленияCITYMULTIи
кондиционерамиMitsubishiсерииMr.Slim.Неиспользуйтеегодляуправленияинымисистемамикондицио-
нирования.Этоможетпривестикполомке.
■ Неправильноеиспользование батареекможетпривести кутечке электролита, взрывуили нагреву,
чтоможетстатьпричинойполомкиилителесныхповреждений.Следуйтеприведеннымнижеинструк-
циям.
(1)Неперезаряжайтебатарейки.
(2)Правильновставляйтебатарейки.
(3)Неиспользуйтеодновременностарыеиновыебатарейкиилибатарейкиразноготипа.
(4)Еслизарядбатареекизрасходован,немедленноизвлекитеих.
BT79G181H01_RU.indd 168 2016/1/12 14:39:31
All manuals and user guides at all-guides.com

169
2.Названияифункциикомпонентовпульта
Настройкатемпературы
Единицытемпературы
можноизменять.Подроб-
неесм.вруководствепо
установке.
Недоступно
Отображаетсяпривыборене-
поддерживаемойфункции.
Индикаторзаменыбатарей
Отображаетсяпринизкомуровнеостав-
шегосязарядабатареек.
Настройкаугладефлектора
Уровень1 Уровень2 Уровень3 Уровень4 Уровень5 Ход Авт.
Кнопкиустановкитемпературы
КнопканедельноготаймераON/OFF(ВКЛ./ВЫКЛ.)*
Кнопкаустановкивремени(Задаетвремя)
Кнопкавоздушногопотока(Изменяетна-
правлениевоздушногопотокавверх/вниз)
Кнопкарежима(Изменяетрежимработы)
Кнопкавключениетаймера
Кнопкаотключениетаймера
Кнопка“OFF/ON”(ВЫКЛ/ВКЛ)
Кнопкаконтроляскорости вентилято-
ра(Изменяетскоростьвентилятора)
КнопкаSET/SEND(НАСТРОИТЬ/ОТПРАВИТЬ)
КнопкаCANCEL(ОТМЕНА)
КнопкиВверх/Вниз
КнопкаMENU(МЕНЮ)
Кнопкаi-see*
КнопкаReset(Сброс)
Дисплейпультадистанционногоуправления
Областьпередачи
3D-датчикi-see(Распределениевоздуха)
Поумолчанию  Прямой  Непрямой
Привыборережи-
маDirect(Прямой)
илиIndirect
(Непрямой)на-
стройкаположе-
ниядефлектора
устанавливается
наAuto(Авто).
Интерфейсконтроллера
Примечание:
* Данная кнопка включается или
выключается в зависимости от
моделивнутреннегоприбора.
Индикация
Режимработы
Охлаждение Сушка
Вент.
Авт.
(одиночная
уставка)
Нагрев
Авт.*
(двойная
уставка)
* Требуется выполнение пер-
воначальной настройки. См.
п.4)вразделе3.2. Настройкаскоростивентилятора
Авто
BT79G181H01_RU.indd 169 2016/1/12 14:39:32
All manuals and user guides at all-guides.com

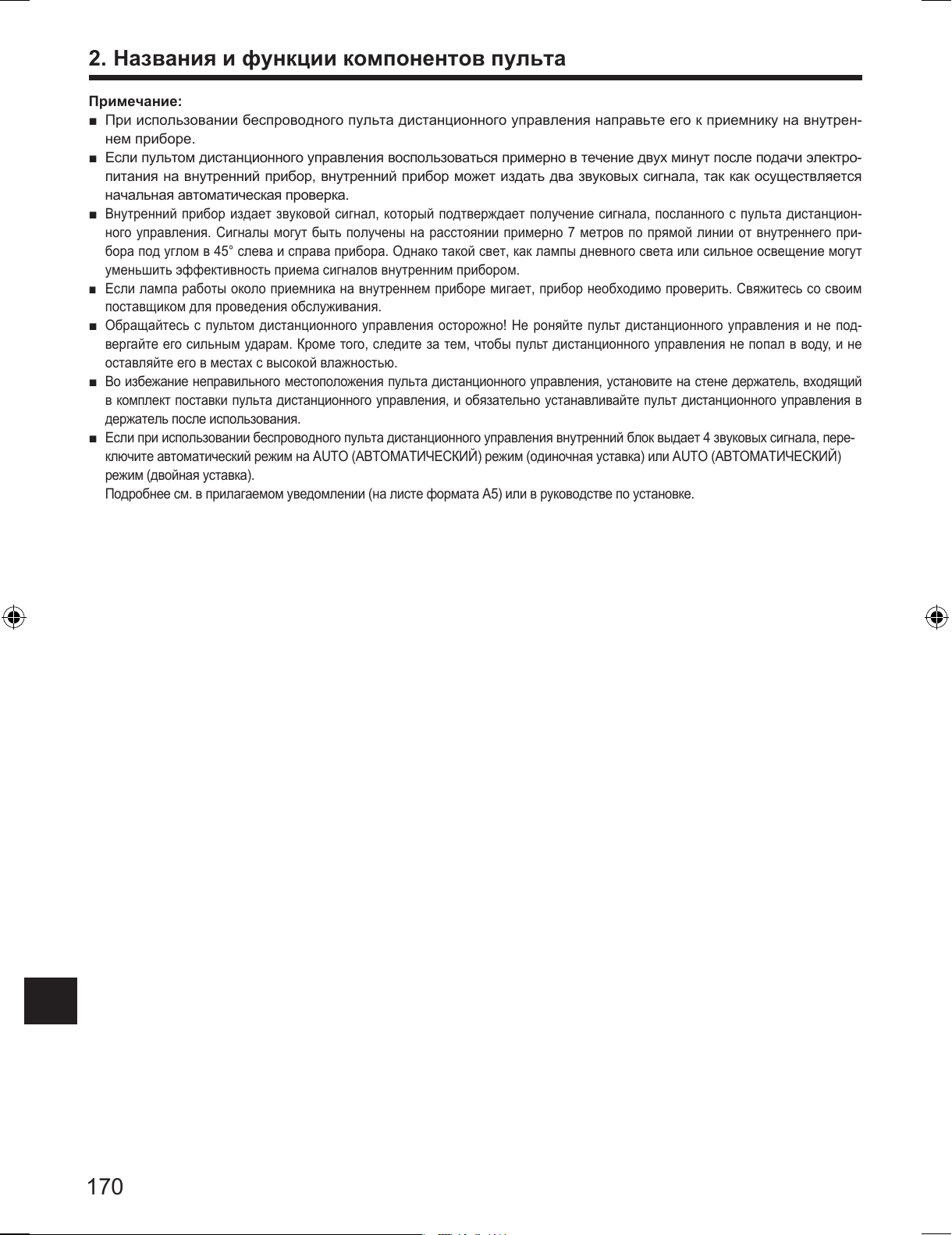

170
2.Названияифункциикомпонентовпульта
Примечание:
■ Прииспользованиибеспроводногопультадистанционногоуправлениянаправьтеегокприемникунавнутрен-
немприборе.
■ Еслипультомдистанционногоуправлениявоспользоватьсяпримерновтечениедвухминутпослеподачиэлектро-
питаниянавнутреннийприбор,внутреннийприборможетиздатьдвазвуковыхсигнала,таккакосуществляется
начальнаяавтоматическаяпроверка.
■
 Внутреннийприбориздаетзвуковойсигнал,которыйподтверждаетполучениесигнала,посланногоспультадистанцион-
ногоуправления.Сигналымогутбытьполученынарасстояниипримерно7метровпопрямойлинииотвнутреннегопри-
бораподугломв45°слеваисправаприбора.Однакотакойсвет,каклампыдневногосветаилисильноеосвещениемогут
уменьшитьэффективностьприемасигналоввнутреннимприбором.
■ Еслилампаработыоколоприемниканавнутреннемприборемигает,приборнеобходимопроверить.Свяжитесьсосвоим
поставщикомдляпроведенияобслуживания.
■  Обращайтесьспультомдистанционногоуправленияосторожно!Нероняйтепультдистанционногоуправленияинепод-
вергайтеегосильнымударам.Крометого,следитезатем,чтобыпультдистанционногоуправлениянепопалвводу,ине
оставляйтееговместахсвысокойвлажностью.
■  Воизбежаниенеправильногоместоположенияпультадистанционногоуправления,установитенастенедержатель,входящий
вкомплектпоставкипультадистанционногоуправления,иобязательноустанавливайтепультдистанционногоуправленияв
держательпослеиспользования.
■  Еслиприиспользованиибеспроводногопультадистанционногоуправлениявнутреннийблоквыдает4звуковыхсигнала,пере-
ключитеавтоматическийрежимнаAUTO(АВТОМАТИЧЕСКИЙ)режим(одиночнаяуставка)илиAUTO(АВТОМАТИЧЕСКИЙ)
режим(двойнаяуставка).
Подробнеесм.вприлагаемомуведомлении(налистеформатаA5)иливруководствепоустановке.
BT79G181H01_RU.indd 170 2016/1/12 14:39:32
All manuals and user guides at all-guides.com
