Mitsubishi Electric MELRemo PAR-CT0 Series User manual

Contents
1. Safety precautions ..............................................................2
2. Basic operations .................................................................4
2-1. Remote controller selection...................................................4
2-2. Power ON/OFF .....................................................................6
2-3. Temperature, operation mode, fan speed, vane angle,
ventilation, louver, and HOLD settings ..................................6
2-3-1. Preset temperature setting .........................................7
2-3-2. Operation mode setting ..............................................8
2-3-3. Fan speed setting .......................................................8
2-3-4. Vane angle setting ......................................................9
2-3-5. Ventilation setting........................................................9
2-3-6. Louver setting ...........................................................10
2-3-7. HOLD setting ............................................................10
3. Specifications.................................................................... 11
3-1. Applicable remote controllers .............................................. 11
3-2. Applicable smartphones ...................................................... 11
4. Q&A ..................................................................................12
5. Trademarks.......................................................................14
MELRemo
Smartphone application
(for users)
Applicable to PAR-CT0* series, PAC-SF0*CR, and PAR-4*MA series
remote controllers
Instruction Book
•MELRemo (hereafter referred to
as the Application) is an application
software that can operate the
remote controllers for MITSUBISHI
ELECTRIC air conditioning systems
on a smartphone via Bluetooth
communication.
•The costs associated with
downloading and updating
the Application, and costs of
telecommunication to use the
Application (including the additional
costs of telecommunication for
reconfiguring the settings when the
Application is not properly updated or
operated) are the responsibility of the
user.
WT08805X01

2
WT08805X01
1. Safety precautions
• Thoroughly read the following safety precautions before using the remote controller.
• Observe these precautions carefully to ensure safety.
WARNING Indicates a risk of death or serious injury.
CAUTION Indicates a risk of serious injury or structural damage.
• After reading this manual, pass it on to the end user to retain for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made available to those
who repair or relocate the remote controller. Make sure that the manual is passed on to any future users.
General precautions
WARNING
• Do not use the remote controller where pacemaker users may be around. If used, turn off its Bluetooth.
- Bluetooth may cause pacemakers to malfunction and leads to an accident.
• Do not use the remote controller near electrical medical devices. If used, turn off its Bluetooth.
- Bluetooth may cause these devices to malfunction and leads to an accident.
• Do not use the remote controller near automatic doors, fire alarms, or other automatically controlled devices. If
used, turn off its Bluetooth.
- Bluetooth may cause these devices to malfunction and leads to an accident.
CAUTION
• The remote controller is permitted for use only in the country where it was purchased.
• The remote controller uses signals in the 2.4 GHz band.
- Signals in the 2.4 GHz band are used by medical devices, other similar devices, and non-licensed amateur
radio stations (hereafter referred to as other radio stations).
1. Before using the remote controller, make sure there are no other radio stations in the vicinity.
2. If a radio interference occurs between the remote controller and other radio stations, move the remote
controller or stop using the remote controller (turn off Bluetooth).
3. If problems with radio interference occur, consult the dealer from which the remote controller was purchased.
• Keep an appropriate distance between the remote controller and radio-emitting devices, such as cordless phones,
microwave ovens, and wireless LANs, to prevent Bluetooth interference from these devices that can affect normal
operation and performance of the remote controller.
• The following actions may be punishable by law.
- Disassembling or alteration of the remote controller
- Removal of certification labels
• The maximum line-of-sight distance of the remote controller is 10 meters. This distance will be shorter when
obstacles or people are in the path of radio waves or radio interference from appliances (e.g., microwave ovens)
exists.

3
WT08805X01
Precautions for using smartphone application
• When operating an air conditioner from a remote controller located outside the visibility of the air conditioner,
make sure that the operation of the air conditioner will not negatively affect its surroundings or the occupants
beforehand.
• When occupants include children, elderly people, people with ailments, or people with disabilities, make sure the
remote controller is used in the presence of a capable, supervising adult.
• When one or more people are in a room with an air conditioner, let them know beforehand that the air conditioner
is going to be operated from a remote controller located outside the visibility of the air conditioner.
• Children must be supervised to stay away from the remote controller.
• Poor radio-wave conditions due to an existence of obstacles or radio-emitting devices, such as a microwave oven,
in the vicinity of the remote controller can lead to a non-response error. Periodically check the operating
conditions of the remote controller.
• The maximum line-of-sight distance of the remote controller is 10 meters. Obstacles in the path of radio waves
can shorten this distance. If a problem occurs, remove the obstacles or shorten the distance between the remote
controller and the connected device.

4
WT08805X01
2. Basic operations
•Using the Application, air conditioning systems can be operated.
• ThefollowingsettingscanbeconguredwiththeApplication:
ON/OFF, preset temperature, operation mode, fan speed, vane angle, ventilation,
louver, and HOLD* settings
*HOLD setting is displayed only when PAR-CT01MAU is connected.
 Note:Thesettingcannotbechangedforthefunctionwhoseoperationis
prohibited or locked from the centralized controller or the remote controller.
 Note:Theoperationmaynotbeacceptedwhentheairconditioningsystemis
operated from multiple Applications at the same time.

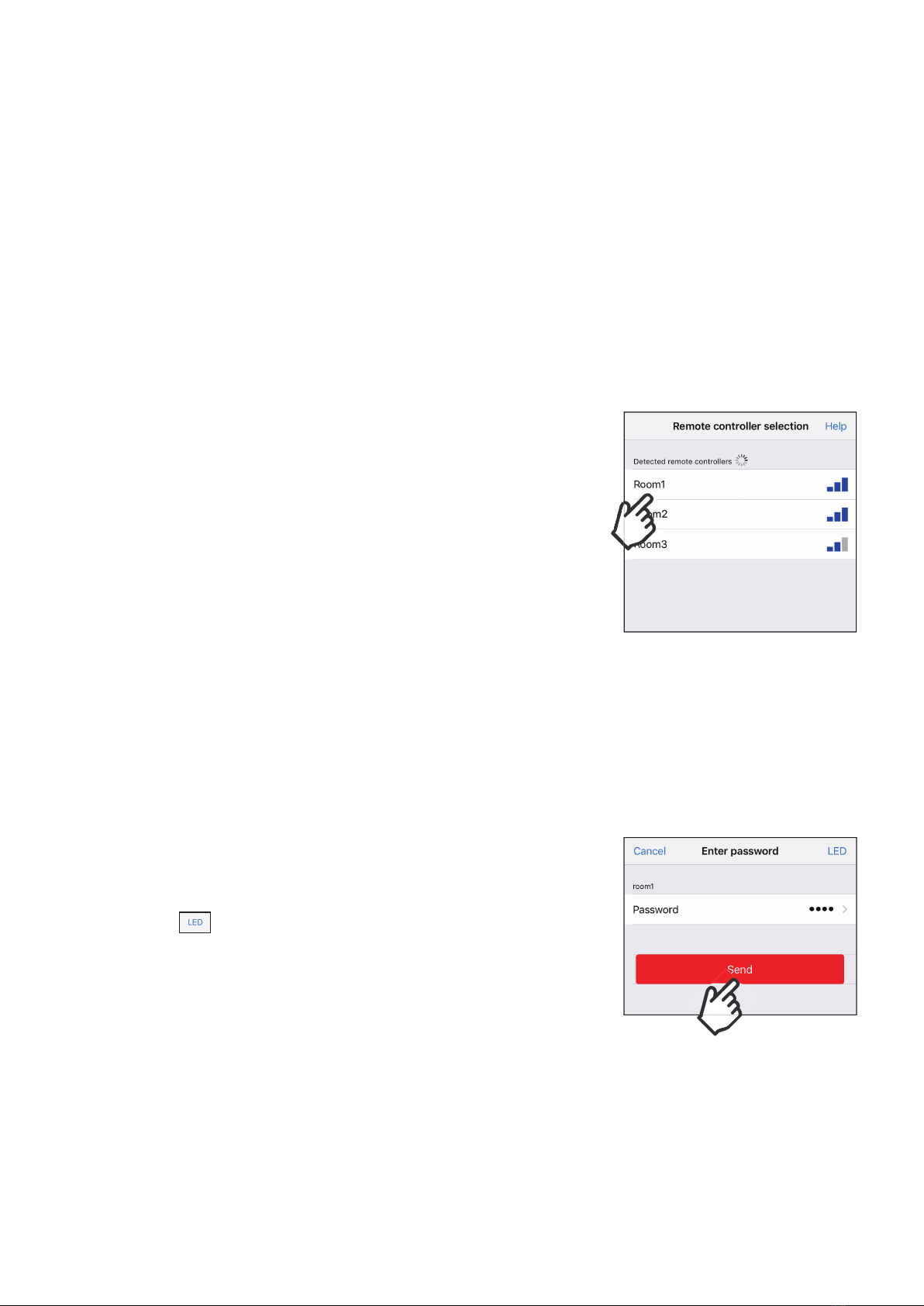

2-1. Remote controller selection
(1) Start up the Application.
A remote controller selection screen will appear.
The remote controllers that have been detected
willappearintheascendingorderofradioeld
intensity.
Tap the remote controller to be connected. The
LED on the selected remote controller will light up
seven times.
 Note:IftheLEDontheremotecontrollerdoes
not light up, tap a different remote
controller on the remote controller
selection screen.
 Note:Iftheremotecontrollertobeconnected
is not displayed on the detected remote
controller list, restart the Application.
(2) Enter the password*1, and then tap the [Send]
button.
When [ ] is tapped, the LED on the selected
remote controller will light up seven times.
Check if it is the selected remote controller.
 Note:Theselectedremotecontrollercanbe
connected only when the Status display
or Main display is displayed on the
selected remote controller.

5
WT08805X01

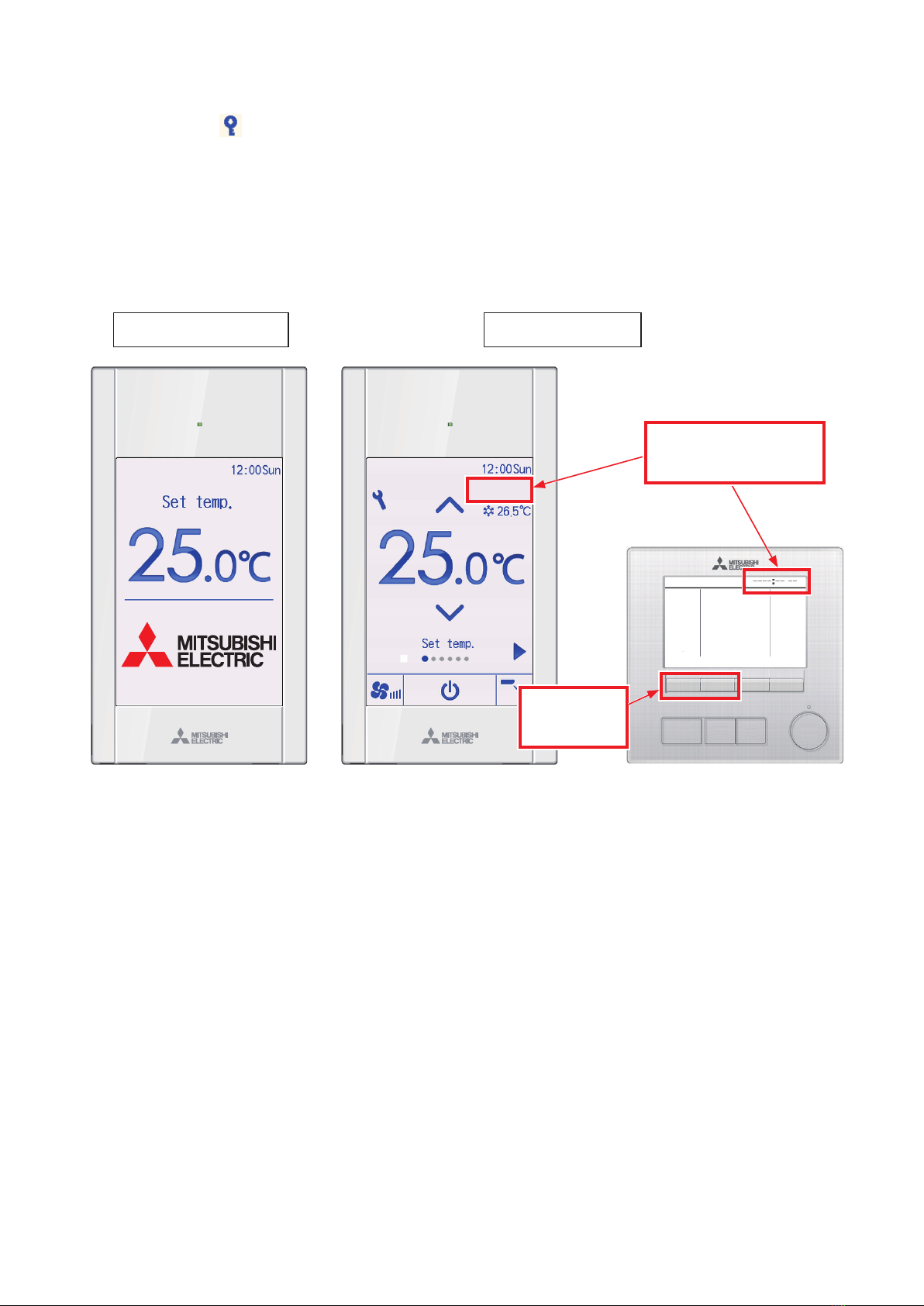

*1 The password can be displayed as follows.
•PAR-CT0*MA series and PAC-SF0*CR
→Tap [ ] at the top right corner of the Main display on the remote
controller to display the password.
•PAR-4*MA series
→Press the F1 and F2 buttons simultaneously when ON/OFF is set to OFF
on the Main display. The password →time →password will blink.
•PAR-CT0*MA series
•PAC-SF0*CR
•PAR-CT0*MA series
•PAC-SF0*CR
•PAR-4*MA series
Status display
F1 and F2
buttons
Main display
Password will be
displayed here.

6
WT08805X01
2-2. Power ON/OFF
(1) Tap the [ ] button to turn on or
off the air conditioner.
 Note:Ifanerrorcode(4-digit
or 8-digit) appears on
the screen, check the
error code and
troubleshoot
accordingly, referring to
the “Error code and
troubleshooting table”
on page 12.
2-3. Temperature, operation mode, fan speed, vane angle, ventilation,
louver, and HOLD settings
•The available functions vary with the connected air conditioner models. This
section explains all functions.
[1] How to switch the displays
(1) Swipe left or right ( ①) or tap the [ ◀] or [ ▶]
button ( ②)toswitchthefollowingsettingitems:
operation mode, preset temperature, vane angle,
louver, ventilation, and HOLD.
ON/OFF operation Error display
①
② ②

7
WT08805X01
[2] How to change the setting
(1) Tap the [ ] or [ ] button to change the
setting.
2-3-1. Preset temperature setting
•The preset temperature can be changed when the operation mode is Cool, Dry,
Heat, or Auto (dual set point mode or Setback mode).
Cool, Dry, Heat,
or Auto mode
Preset temperature
for cooling
Preset temperature for heating
Auto (dual set point or Setback) mode

8
WT08805X01
2-3-2. Operation mode setting
•Operation mode can be changed.
Cool Dry
Fan Auto
Heat Setback*1
*1 Setback mode can be set only when
PAR-CT01MAU is connected.
2-3-3. Fan speed setting
•Fan speed can be set.
Auto

9
WT08805X01

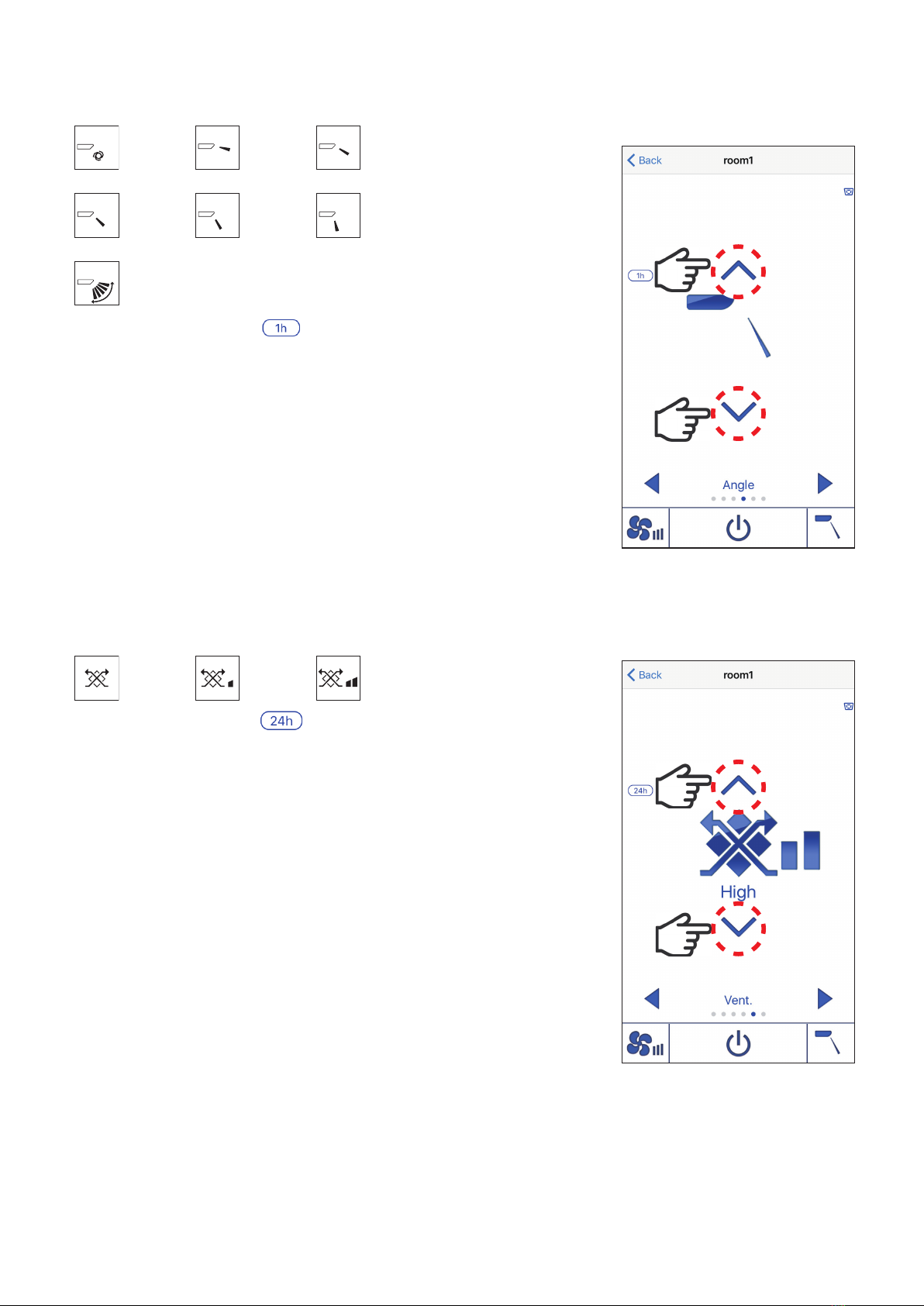

2-3-4. Vane angle setting
•Vane angle can be set.
Auto Auto Step 1 Step 2
Step 3 Step 4 Step 5
Swing Swing
 Note:Theicon may appear when the vane
angle is set to Step 2, 3, 4, or 5 during
cooling or dry operation. The icon will go off
in an hour, and the vane angle setting will
automatically change to Step 1.
2-3-5. Ventilation setting
•Ventilation can be set.
Off Low High
 Note:Theicon will appear when 24-hour
ventilation is set.
 Note:Thefanonsomemodelsofindoorunits
may be interlocked with certain models of
ventilation units.

10
WT08805X01
2-3-6. Louver setting
•Louver can be turned on or off.
Off Off On On
2-3-7. HOLD setting
*HOLD setting is available only when PAR-CT01MAU is connected.
•Tap the HOLD button to enable/disable the HOLD function. If the HOLD function is
enabled, the following functions will be prohibited.
•ON/OFF timer
•Auto-Off timer
•Weekly timer
•Automatic return to the preset temperature

11
WT08805X01
3. Specications
3-1. Applicable remote controllers
Model name
PAC-SF01CR
PAR-CT01MAA-PB/SB
PAR-CT01MAR-PB/SB
PAR-CT01MAC-PB
PAR-CT01MAU-SB
PAR-40MA
PAR-40MAAC
3-2. Applicable smartphones
• Operatingsystemrequirement:iPhoneiOS10.0.0orlater

12
WT08805X01
4. Q&A
[1] The remote controller to be connected is not displayed on the remote
controller selection screen.
•Check that the Bluetooth is ON on the remote controller and the Application,
and then restart the Application.
[2] An error is displayed.
•When an error occurs, 4-digit or 8-digit error code will appear on the screen.
Check the error code and troubleshoot accordingly, referring to the table below.
■Error code and troubleshooting table
Error code Errordenitions Error contents Action to take
8002 to 8006,
8101, 8102,
8201, 8202,
8204 to 8209,
8301
Bluetooth
communication
error
An error occurred
during the Bluetooth
communication.
Check the Bluetooth
settings [ON/OFF] on the
remote controller and the
Application, and send the
data again.
If the error persists,
restart the Application and
connect the Application
and the remote controller
again.
8203 Password error Password is wrong. Enter the correct
password.
8207–5410 Screen display
error
The Main display is
not displayed on the
remote controller
when the Application
is connecting to the
remote controller.
Display the Main display
on the remote controller.
8207–7300 Test run error The remote controller
is operated from the
Application while the
air conditioning system
is running a test run.
No operation from the
Application is accepted
during the test run.
Operate the remote
controller after the test run
is completed.
8207–7400 Function
selection error
The remote controller
is operated from the
Application during the
function selection of
the air conditioning
system.
Wait until the function
selectionisnished.
8207–7800 Remote controller
error
The remote controller
is operated from the
Application when an
error is occurring on
the remote controller.
Check the error contents
on the remote controller.

13
WT08805X01
Error code Errordenitions Error contents Action to take
8207–7900 Operation error The remote controller
is operated from the
Application while the
air conditioning system
is being started up.
Wait for the system to start
up, and then connect the
Application and the remote
controller again.
8302–3400 Send/Receive
error
Temperature setting
is made from the
Application while the
fan mode is set on the
remote controller.
Wait a moment.
8302–3500 ON/OFF error The target control
equipment is operated
while it is stopped.
Switch the ON/OFF
status of the target control
equipment from OFF to
ON.
8302–3900 Applicable screen
error
Temperature setting
is made from the
Application when the
operation modes on
the remote controller
and the Application are
different.
Wait a moment.
8302–5610
8302–5600
8302–5570
8302–5560
8302–5550
8302–5540
8302–5530
8302–5520
8302–5510
8302–5500
Remote controller
restriction error
The setting is not
conguredbecauseits
operation is restricted
in the initial settings for
the remote controller.
Disable the restriction
setting.
8301,
8303 to 8305
System
information
acquisition error
The system information
failed to be acquired.
Connect the Application
and the remote controller
again.
8405, 8406 Send error An error occurred
when the settings data
was sent from the
Application.
Check for proper remote
controller screen display
and the password, then
send the settings data
again.

14
WT08805X01
5. Trademarks
•iPhone, iPad, and iPod touch are registered trademarks of Apple Inc. in the U.S.
and other countries.
•The trademark iOS is used under the license of Cisco in the U.S and other
countries.
•App Store™ is the collective name of the service that provides download services
of application software for use on iPhones, iPads, and iPod touches.
•The word Bluetooth®and its logo mark are trademarks of Bluetooth
SIG, Inc., and Mitsubishi Electric Corporation is granted the right
to use these trademarks. Other trademarks and trade names are
properties of their respective companies.

HEADOFFICE:TOKYOBLDG.,2-7-3,MARUNOUCHI,CHIYODA-KU,TOKYO100-8310,JAPAN
MANUFACTURER:MITSUBISHIELECTRICCORPORATIONAir-conditioning&RefrigerationSystemsWorks
5-66,Tebira6Chome,Wakayama-city,640-8686,Japan WT08805X01
