Mitsubishi CQ-JB3160AA User manual
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V,
Negative Ground
Current Consumption Less than 3.0A at 0.5W
Maximum Power Output 35W×4ch (at 4Ω)
Output Impedance 4Ω
AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 24dB/µV (S/N 20dB)
FM Stereo Radio
Frequency Range 87.7 - 107.9MHz
Usable Sensitivity 7dB/µV (S/N 30dB)
CD Player (NCD-8KAI)
Signal to Noise Ratio More than 66dB
Total Harmonic Distortion Less than 0.4%
Channel Separation More than 55dB
Dimension** (W×H×D) 178 × 50 × 169mm
Weight** 1.55kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
MITSUBISHI
CQ-JB3160AA
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MITSUBISHI PART No. :MN141489
ID CODE :P0301
VEHICLE : LANCER/DIAMANTE
DESTINATION :North America
PRODUCED AFTER : June, 2003
AUTOMOTIVE MULTIMEDIA
Specifications*
ORDER No.5048
I0
1 FEATUERS 2
2 NOTEs 2
3 SYSTEM DIAGRAM 2
4 NAME AND FUNCTION OF EACH PARTS 3
5 WIRING CONNECTION 4
6 BLOCK DIAGRAM 5
7 TERMINALS DESCRIPTION 6
•
• •
• PLL (Phase Locked Loop) synthesized tuning.
•
• •
• 18-station preset (12-FM, 6-AM)
•
• •
• FM One-tuner diversity.
•
• •
• Electronic control of power and sound.
•
• •
• 4ch × 3 points Fix-Equalizer.
•
• •
• NCD-8KAI CD Deck
•
• •
• Apply for CD-R/CD-RW
•
• •
• CD random, repeat function.
8 PACKAGE AND IC BLOCK DIAGRAM 7
9 REPLACEMENT PARTS LIST 9
10 EXPLODED VIEW (Unit) 15
11 WIRING DIAGRAM 16
12 SCHEMATIC DIAGRAM (1) 20
13 SCHEMATIC DIAGRAM (2) 23
•
• •
• CD-CH, MD-CH control.
2 NOTEs
Difference between CQ-JB3160A and CQ-JB3160AA.
CQ-JB3160A CQ-JB3160AA
AM-NK function -Added
CONTENTS
Page Page
1 FEATUERS
3 SYSTEM DIAGRAM
2
MITSUBISHI / CQ-JB3160AA
4 NAME AND FUNCTION OF EACH PARTS
3
MITSUBISHI / CQ-JB3160AA

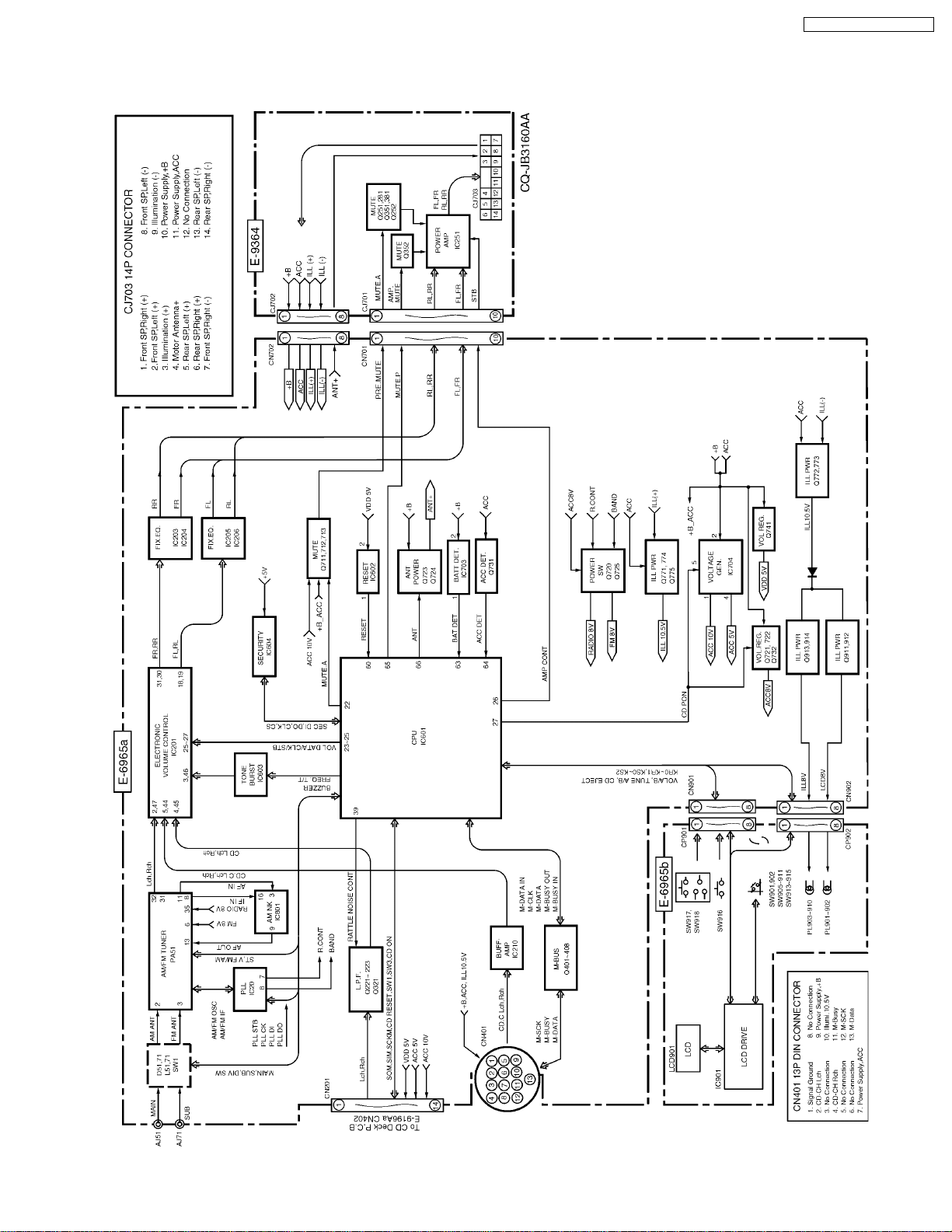

6 BLOCK DIAGRAM
6.1. Main/Display/Amp Block
5
MITSUBISHI / CQ-JB3160AA
7.1. Main Block
IC601 : C2BBGF000289
Pin
No. Port Descriptions I/O Vol.
(V)
1SUBVOLCLK (Ground pull-down) - 0
2 DIV SW Diversity switch I 5.1
3 - - - -
4 AVSS Ground - 0
5 SET S0 System function setting O 0
6 SET S1 System function setting O 0
7AVREF +5V power supply - 5.1
8 SET R0 System function setting I 0
9 SET R1 System function setting I 0
10 SET R2 System function setting I 0
11 CD DI CD data output O 2.4
12 CD DO CD data input I 1.4
13 CD CLK Shift clock for CD data O 4.9
14 PLL DI PLL data input I 5.0
15 MBUSY OUT M-BUS busy O 0
16 MBUSY IN M-BUS busy I 0
17 MDATA M-BUS data I/O 4.9
18 MCLK M-BUS clock O 4.9
19 PLLDO PLL data output O 0
20 PLLSTB PLL strobe O 0
21 PLLCLK PLL clock O 0
22 MUTE A Mute signal O 0
23 VOL STB Electric volume strobe O 0
24 VOL CLK Electric volume clock O 0
25 VOL DATA Electric volume data O 0
26 AMP CONT Power amp. stand-by O 4.9
27 CD PON CD power control O 4.9
28 CD ON CD control LSI enable O 4.9
29 SW1 CD disc-in SW I 0
30 SW3 CD disc-out SW I 4.8
31 TUNEA Tuner switch signal I 4.7
32 TUNEB Tuner switch signal I 0.5
33 GND Ground - 0
34 VOLINA Volume switch signal I 0
35 VOLINB Volume switch signal I 0
36 CD RESET CD controller reset O 0
37 MAIN Main antenna selection O 4.9
38 SUB Sub. antenna selection O 8.3
39 BIBIRI CNT Rattle noise check control O 5.0
40 SECDI Security data input I 0
41 SECDO Security data output O 0
42 SECCLK Security data read / write
clock O 0
43 SECCS Security ROM select O 0
44 FreqOUT Tone/Burst frequency O 0
45 TONE/TRG Tone/Triger control O 0
46 S.PULSE Speed pulse input I 0
47 Ga INPUT GALA signal input I 5.0
48 ST FM stereo detection I 0.3
49 LCD CONT LCD back ligth on/off O 4.8
50 BUZZER Buzzer output O 0
51 NC No connection - -
52 KS0 Key strobe O 0
53 KS1 Key strobe O 0
54 KS2 Key strobe O 0
55 KS3 Not used - -
56 KR0 Key data I 0
57 KR1 Key data I 1.6
58 KR2 (Groung pull-down) - 0
59 KR3 (Groung pull-down) - 0
60 RESET Reset input I 4.8
61 M-DATA IN M-BUS data I 4.9
62 CD EJECT CD eject SW I 4.8
63 BATTDET Battery level detection I 5.0
64 ACCDET ACC level detection I 0
65 MUTE_P Power amp. mute O 0
66 ANT Motor antenna power on/off O 0
Pin
No. Port Descriptions I/O Vol.
(V)
67 GND Ground - 0
68 VDD +5V power supply - 4.9
69 X2 Crystal oscillator - 0
70 X1 Crystal oscillator - 2.6
71 GND Ground - 0
72 XT2 Crystal oscillator - 2.7
73 XT1 Crystal oscillator - 2.5
74 AVDD +5V power supply - 4.9
75 AV REF0 +5V power supply - 5.0
76 VAM/FM AM/FM vcont I 0
77 REMOTE_A (+5V pull-up) - 5.0
78 BIBIRI.A (Ground pull-down) - 0
79 CLIPCONT Not used - -
80 REMOTE_D (Ground pull-down) - 0
Note 1 : Voltage measuerments are with respect to ground,
with a voltmeter (internal resistance : 10M ohms).
7 TERMINALS DESCRIPTION
6
MITSUBISHI / CQ-JB3160AA

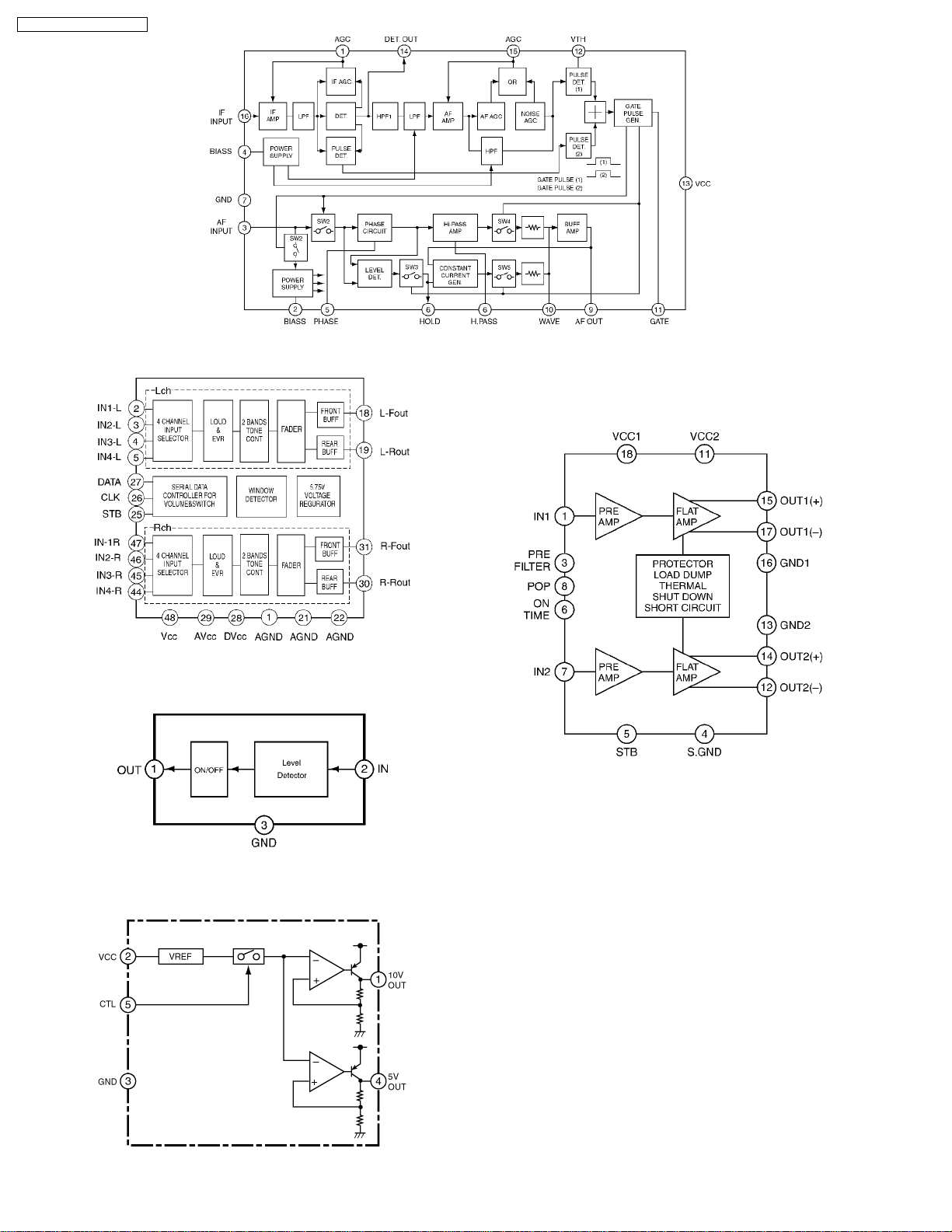

8 PACKAGE AND IC BLOCK DIAGRAM
8.1. Main Block
PA51 : YEP0PTA514B0
IC20 : YEAMLC72135C
7
MITSUBISHI / CQ-JB3160AA
IC201 : YEAMSN761026
IC602 : MN1382KTX / IC703 MN1382QTX
IC704 : YEAMA61W12ST
8.2. AMP Block
IC251 : C1BA00000326
IC801 : YEAMHA12181F
8
MITSUBISHI / CQ-JB3160AA
9 REPLACEMENT PARTS
LIST
Notes :
1.Be sure to make your orders of replacement parts
according to this list.
2.Important safety notice: Components, identified by mark
have special characteristics important for safety. When
replacing any of these components, use only
manufacturer´s specified parts.
3.Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4.The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
Ref.
No. Part No. Part Name & Description Remarks
[E6965] Main/Display Block
IC´s and TRANSISTORs
IC20 YEAMLC72135C IC
IC201 YEAMSN761026 IC
IC203 C0ABBB000179 IC
IC204 YEAMM5243FT1 IC
IC205 C0ABBB000179 IC
IC206 YEAMM5243FT1 IC
IC210 C0ABBB000179 IC
IC601 C2BBGF000287 IC
IC602 MN1382KTX IC
IC603 C0JBAM000048 IC
IC604 C3EBCG000037 IC
IC703 MN1382QTX IC
IC704 YEAMA61W12ST IC
IC801 YEAMHA12181F IC
IC901 YEAMSM6786 IC
PA51 YEP0PTA514B0 Electronic Tuner
Q221 B1GBHBEA0004 Transistor
Q222 B1ABCF000042 Transistor
Q223 B1GDCFLL0010 Transistor
Q321 B1GBHBEA0004 Transistor
Q401 B1GDCFJN0004 Transistor
Q402 B1GBCFGG0001 Transistor
Q403 B1ABCF000044 Transistor
Q404 B1ABCF000042 Transistor
Q405 B1ABCF000044 Transistor
Q406 B1ABCF000044 Transistor
Q407 B1ABCF000042 Transistor
Q408 B1ABCF000044 Transistor
Q711 B1GDCFLL0010 Transistor
Q712 YEANC114YKX Transistor
Q713 B1ABCF000042 Transistor
Q720 YEANBP1F3PT Transistor
Q721 2SD245300L Transistor
Q722 2SB1398QTA Transistor
Q723 2SB1398QTA Transistor
Q724 B1GDJEGJ0002 Transistor
Q725 YEANBP1F3PT Transistor
Q731 B1ABCF000044 Transistor
Q732 YEANC114YKX Transistor
Q741 B1BBAC000007 Transistor
Q771 2SD245300L Transistor
Q772 2SD0601AHR Transistor
Q773 YEAN2SD1856 Transistor
Q774 2SB1398QTA Transistor
Ref.
No. Part No. Part Name & Description Remarks
Q775 2SD0601AHR Transistor
Q911 YEANHQ1F3PT1 Transistor
Q912 B1GDJEGJ0002 Transistor
Q913 2SB1398QTA Transistor
Q914 2SD0601AHR Transistor
DIODEs
D51 MA3X55500L Diode
D71 MA551TX Diode
D401 MA152WKTX Diode
D402 MAZ32700ML Diode
D403 MAZ32700ML Diode
D404 MAZ32700ML Diode
D603 MA3X152K0L Diode
D610 MA152WKTX Diode
D621 MA741TX Diode
D710 B0BA03300012 Diode
D711 YEADRD91M1T2 Diode
D712 MA152WKTX Diode
D731 YEADRD75M2T1 Diode
D732 MA741TX Diode
D733 YEADRD56M3T1 Diode
D773 YEADRD12M1T1 Diode
D774 B0BC5R100014 Diode
D775 B0EAKP000011 Diode
D776 B0EAKP000011 Diode
D779 B0EAKP000011 Diode
D901 MA3X152K0L Diode
CAPACITORs
C25 YECUS1H220JM Ceramic, 22PF 50WV
C26 YECUS1H150JM Ceramic, 15PF 50WV
C51 F1J1H221A672 Ceramic, 220PF 50WV
C53 ECEA1AKS221I Electrolytic, 220µF 10WV
C55 YECUS1E223KX Ceramic, 0.022µF 25WV
C56 YECUS1E223KX Ceramic, 0.022µF 25WV
C58 F1J1H1020024 Ceramic, 1000PF 50WV
C59 F1J1H1020024 Ceramic, 1000PF 50WV
C60 F1J1H103A513 Ceramic, 0.01µF 50WV
C71 F1J1H221A672 Ceramic, 220PF 50WV
C101 YECUS1C154KX Ceramic, 0.15µF 16WV
C102 YECUS1H153KX Ceramic, 0.015µF 50WV
C103 YECUS1C563KX Ceramic, 0.056µF 16WV
C105 F1J1H2R0A007 Ceramic, 2.0PF 50WV
C106 F1J1H101A672 Ceramic, 100PF 50WV
C162 F1J1H103A513 Ceramic, 0.01µF 50WV
C163 F1J1H103A513 Ceramic, 0.01µF 50WV
C166 F1J1H103A513 Ceramic, 0.01µF 50WV
C201 ECEA1AKA221I Electrolytic, 220µF 10WV
C202 ECEA1HKS2R2I Electrolytic, 2.2µF 50WV
C203 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C204 YECUS1H390JM Ceramic, 39PF 50WV
C205 ECEA1EKA4R7I Electrolytic, 4.7µF 25WV
C206 YECUS1H390JM Ceramic, 39PF 50WV
C207 F1J1H681A672 Ceramic, 680PF 50WV
C208 F1J1H681A672 Ceramic, 680PF 50WV
C210 ECEA1HKA010I Electrolytic, 1µF 50WV
C211 ECEA1HKSR22I Electrolytic, 0.22µF 50WV
C212 ECEA1HKA010I Electrolytic, 1µF 50WV
C213 ECEA1ASN100I Electrolytic, 10µF 10WV
C214 F1J1H103A513 Ceramic, 0.01µF 50WV
C217 F1J1H682A675 Ceramic, 6800PF 50WV
C218 F1J1H821A672 Ceramic, 820PF 50WV
C220 ECEA1VSN2R2I Electrolytic, 2.2µF 35WV
C221 YECUS1C683KX Ceramic, 0.068µF 16WV
C222 ECEA1ASN100I Electrolytic, 10µF 10WV
C224 ECEA1HKS2R2I Electrolytic, 2.2µF 50WV
C225 ECEA1CKA100I Electrolytic, 10µF 16WV
C230 YECUS1C104KX Ceramic, 0.1µF 16WV
C231 YECUS1C104KX Ceramic, 0.1µF 16WV
C232 YECUS1E223KX Ceramic, 0.022µF 25WV
9
MITSUBISHI / CQ-JB3160AA
Ref.
No. Part No. Part Name & Description Remarks
C233 YECUS1C154KX Ceramic, 0.15µF 16WV
C236 YECUS1C474KX Ceramic, 0.47µF 16WV
C238 YECUS1H473KX Ceramic, 0.047µF 50WV
C240 F1J1H103A513 Ceramic, 0.01µF 50WV
C241 F1J1H681A672 Ceramic, 680PF 50WV
C242 F1J1H272A675 Ceramic, 2700PF 50WV
C243 F1J1H561A675 Ceramic, 560PF 50WV
C245 YECUS1H470JM Ceramic, 47PF 50WV
C250 ECEA1CKS100I Electrolytic, 10µF 16WV
C260 YECUS1C104KX Ceramic, 0.1µF 16WV
C261 YECUS1C104KX Ceramic, 0.1µF 16WV
C262 YECUS1H183KX Ceramic, 0.018µF 50WV
C263 YECUS1C334KX Ceramic, 0.33µF 16WV
C266 F1J1H562A675 Ceramic, 5600PF 50WV
C267 F1J1H221A672 Ceramic, 220PF 50WV
C269 F1J1C184A006 Ceramic, 0.18µF 16WV
C270 F1J1H561A675 Ceramic, 560PF 50WV
C275 YECUS1H470JM Ceramic, 47PF 50WV
C280 ECEA1CKS100I Electrolytic, 10µF 16WV
C302 ECEA1HKS2R2I Electrolytic, 2.2µF 50WV
C303 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C304 YECUS1H390JM Ceramic, 39PF 50WV
C305 ECEA1EKA4R7I Electrolytic, 4.7µF 25WV
C306 YECUS1H390JM Ceramic, 39PF 50WV
C307 F1J1H681A672 Ceramic, 680PF 50WV
C308 F1J1H681A672 Ceramic, 680PF 50WV
C310 ECEA1HKA010I Electrolytic, 1µF 50WV
C311 ECEA1HKSR22I Electrolytic, 0.22µF 50WV
C312 ECEA1HKA010I Electrolytic, 1µF 50WV
C313 ECEA1ASN100I Electrolytic, 10µF 10WV
C314 F1J1H103A513 Ceramic, 0.01µF 50WV
C317 F1J1H682A675 Ceramic, 6800PF 50WV
C318 F1J1H821A672 Ceramic, 820PF 50WV
C320 ECEA1VSN2R2I Electrolytic, 2.2µF 35WV
C321 YECUS1C683KX Ceramic, 0.068µF 16WV
C322 ECEA1ASN100I Electrolytic, 10µF 10WV
C324 ECEA1HKS2R2I Electrolytic, 2.2µF 50WV
C330 YECUS1C104KX Ceramic, 0.1µF 16WV
C331 YECUS1C104KX Ceramic, 0.1µF 16WV
C332 YECUS1E223KX Ceramic, 0.022µF 25WV
C333 YECUS1C154KX Ceramic, 0.15µF 16WV
C336 YECUS1C474KX Ceramic, 0.47µF 16WV
C338 YECUS1H473KX Ceramic, 0.047µF 50WV
C340 F1J1H103A513 Ceramic, 0.01µF 50WV
C341 F1J1H681A672 Ceramic, 680PF 50WV
C342 F1J1H272A675 Ceramic, 2700PF 50WV
C343 F1J1H561A675 Ceramic, 560PF 50WV
C345 YECUS1H470JM Ceramic, 47PF 50WV
C350 ECEA1CKS100I Electrolytic, 10µF 16WV
C360 YECUS1C104KX Ceramic, 0.1µF 16WV
C361 YECUS1C104KX Ceramic, 0.1µF 16WV
C362 YECUS1H183KX Ceramic, 0.018µF 50WV
C363 YECUS1C334KX Ceramic, 0.33µF 16WV
C366 F1J1H562A675 Ceramic, 5600PF 50WV
C367 F1J1H221A672 Ceramic, 220PF 50WV
C369 F1J1C184A006 Ceramic, 0.18µF 16WV
C370 F1J1H561A675 Ceramic, 560PF 50WV
C375 YECUS1H470JM Ceramic, 47PF 50WV
C380 ECEA1CKS100I Electrolytic, 10µF 16WV
C401 YECUS1H100CC Ceramic, 10PF 50WV
C402 YECUS1H100CC Ceramic, 10PF 50WV
C501 ECEA1CKA100I Electrolytic, 10µF 16WV
C502 F1J1H151A672 Ceramic, 150PF 50WV
C503 F1J1H471A672 Ceramic, 470PF 50WV
C504 YECUS1E223KX Ceramic, 0.022µF 25WV
C505 YECUS1E223KX Ceramic, 0.022µF 25WV
C506 F1J1H103A513 Ceramic, 0.01µF 50WV
C507 YECUS1H123KX Ceramic, 0.012µF 50WV
C508 YECUS1H123KX Ceramic, 0.012µF 50WV
C600 F1J1H103A513 Ceramic, 0.01µF 50WV
C602 YECUS1C104KX Ceramic, 0.1µF 16WV
C603 ECEA0JKS331I Electrolytic, 330µF 6.3WV
C604 F1J1H103A513 Ceramic, 0.01µF 50WV
Ref.
No. Part No. Part Name & Description Remarks
C605 YECUS1C104KX Ceramic, 0.1µF 16WV
C606 ECEA0JKS101I Electrolytic, 100µF 6.3WV
C607 ECEA1ESN4R7 Electrolytic, 4.7µF 25WV
C608 F1J1H103A513 Ceramic, 0.01µF 50WV
C609 YECUS1C104KX Ceramic, 0.1µF 16WV
C610 F1J1H472A675 Ceramic, 4700PF 50WV
C611 F1J1H103A513 Ceramic, 0.01µF 50WV
C612 F1J1H821A672 Ceramic, 820PF 50WV
C613 ECEA1AKA221I Electrolytic, 220µF 10WV
C614 YECUS1C224KX Ceramic, 0.22µF 16WV
C615 EECS0HD473H Electrolytic, 0.047F 5.5WV
C616 YECUS1C104KX Ceramic, 0.1µF 16WV
C620 YECUS1H220JM Ceramic, 22PF 50WV
C621 YECUS1H220JM Ceramic, 22PF 50WV
C622 YECUS1H390JM Ceramic, 39PF 50WV
C623 YECUS1H220JM Ceramic, 22PF 50WV
C651 YECUS1E223KX Ceramic, 0.022µF 25WV
C701 YECUS1C104KX Ceramic, 0.1µF 16WV
C702 YECUS1C104KX Ceramic, 0.1µF 16WV
C710 ECEA1CSN100I Electrolytic, 10µF 16WV
C711 ECEA1AKA101I Electrolytic, 100µF 10WV
C715 ECEA1CKA100I Electrolytic, 10µF 16WV
C716 YECUS1E473KX Ceramic, 0.047µF 25WV
C718 ECEA1AKA221I Electrolytic, 220µF 10WV
C720 F1J1H103A513 Ceramic, 0.01µF 50WV
C725 ECEA1HKS2R2I Electrolytic, 2.2µF 50WV
C726 ECEA1AKA101I Electrolytic, 100µF 10WV
C727 ECEA1AKA101I Electrolytic, 100µF 10WV
C731 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C732 F1J1H333A395 Ceramic, 0.033µF 50WV
C734 ECEA1CKA470I Electrolytic, 47µF 16WV
C735 YECUS1C224KX Ceramic, 0.22µF 16WV
C741 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C742 F1J1H103A513 Ceramic, 0.01µF 50WV
C744 ECEA1EKA4R7I Electrolytic, 4.7µF 25WV
C747 EEAFC1A820H Electrolytic, 82µF 10WV
C750 YECUS1C104KX Ceramic, 0.1µF 16WV
C751 ECA1AM221I Electrolytic, 220µF 10WV
C752 YECUS1E223KX Ceramic, 0.022µF 25WV
C753 YECUS1C104KX Ceramic, 0.1µF 16WV
C754 YECUS1C104KX Ceramic, 0.1µF 16WV
C755 F1J1H1020024 Ceramic, 1000PF 50WV
C758 ECEA0JKS101I Electrolytic, 100µF 6.3WV
C759 F1J1H103A513 Ceramic, 0.01µF 50WV
C760 ECA1CM102 Electrolytic, 1000µF 16WV
C761 F1J1H101A672 Ceramic, 100PF 50WV
C782 ECEA1AKS221I Electrolytic, 220µF 10WV
C783 F1J1H103A513 Ceramic, 0.01µF 50WV
C784 YECUS1C224KX Ceramic, 0.22µF 16WV
C785 ECEA1CKA220I Electrolytic, 22µF 16WV
C786 YECUS1C334KX Ceramic, 0.33µF 16WV
C787 YECUS1C334KX Ceramic, 0.33µF 16WV
C788 YECUS1C224KX Ceramic, 0.22µF 16WV
C790 EEAFC1A820H Electrolytic, 82µF 10WV
C801 ECEA1HKA3R3I Electrolytic, 3.3µF 50WV
C802 F1J1H333A395 Ceramic, 0.033µF 50WV
C803 ECEA1HSN010I Electrolytic, 1µF 50WV
C804 YECUS1C683KX Ceramic, 0.068µF 16WV
C805 F1J1H333A395 Ceramic, 0.033µF 50WV
C806 F1J1H333A395 Ceramic, 0.033µF 50WV
C808 F1J1H333A395 Ceramic, 0.033µF 50WV
C809 F1J1H332A675 Ceramic, 3300PF 50WV
C810 ECEA1AKA101I Electrolytic, 100µF 10WV
C811 F1J1H103A513 Ceramic, 0.01µF 50WV
C812 YECUS1C224KX Ceramic, 0.22µF 16WV
C813 F1J1H1020024 Ceramic, 1000PF 50WV
C816 F1J1H272A675 Ceramic, 2700PF 50WV
C901 YECUS1C105ZF Ceramic, 1µF 16WV
C902 YECUS1E223KX Ceramic, 0.022µF 25WV
C903 YECUS1E223KX Ceramic, 0.022µF 25WV
RESISTORs
10
MITSUBISHI / CQ-JB3160AA
Ref.
No. Part No. Part Name & Description Remarks
J602 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J701 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J702 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R34 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R35 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R51 ERJ6GEYJ564 Chip, 560kΩ
ΩΩ
Ω1/10W
R52 ERJ6GEYJ564 Chip, 560kΩ
ΩΩ
Ω1/10W
R55 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R56 ERJ6GEYJ563 Chip, 56kΩ
ΩΩ
Ω1/10W
R57 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R58 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R59 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R101 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R102 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R105 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R161 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R162 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R164 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R165 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R167 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R201 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R202 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R203 ERJ6GEYJ122 Chip, 1.2kΩ
ΩΩ
Ω1/10W
R204 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R205 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R207 ERJ8GEYJ273V Chip, 27kΩ
ΩΩ
Ω1/8W
R210 ERJ6GEYJ181 Chip, 180Ω
ΩΩ
Ω1/10W
R212 ERJ6GEYJ182 Chip, 1.8kΩ
ΩΩ
Ω1/10W
R215 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R216 ERJ6GEYJ682 Chip, 6.8kΩ
ΩΩ
Ω1/10W
R217 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R221 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R222 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R223 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R224 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R230 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R231 ERJ6GEYJ183 Chip, 18kΩ
ΩΩ
Ω1/10W
R232 ERJ6GEYJ823 Chip, 82kΩ
ΩΩ
Ω1/10W
R233 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R234 ERJ6GEYJ122 Chip, 1.2kΩ
ΩΩ
Ω1/10W
R235 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R237 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R238 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R240 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R245 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R246 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R247 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R248 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R260 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R261 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R262 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R263 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R264 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R266 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R267 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R270 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R301 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R302 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R303 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R304 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R305 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R307 ERJ8GEYJ273V Chip, 27kΩ
ΩΩ
Ω1/8W
R310 ERJ6GEYJ181 Chip, 180Ω
ΩΩ
Ω1/10W
R312 ERJ6GEYJ182 Chip, 1.8kΩ
ΩΩ
Ω1/10W
R315 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R316 ERJ6GEYJ682 Chip, 6.8kΩ
ΩΩ
Ω1/10W
R317 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R321 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R330 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R331 ERJ6GEYJ183 Chip, 18kΩ
ΩΩ
Ω1/10W
R332 ERJ6GEYJ823 Chip, 82kΩ
ΩΩ
Ω1/10W
R333 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R334 ERJ6GEYJ122 Chip, 1.2kΩ
ΩΩ
Ω1/10W
Ref.
No. Part No. Part Name & Description Remarks
R335 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R337 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R338 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R340 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R345 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R346 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R347 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R348 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R360 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R361 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R362 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R363 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R364 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R366 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R367 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R370 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R401 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R402 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R403 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R404 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R405 ERJ6GEYJ392 Chip, 3.9kΩ
ΩΩ
Ω1/10W
R406 ERJ6GEYJ122 Chip, 1.2kΩ
ΩΩ
Ω1/10W
R407 ERJ6GEYJ561 Chip, 560Ω
ΩΩ
Ω1/10W
R409 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R410 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R411 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R412 ERJ6GEYJ392 Chip, 3.9kΩ
ΩΩ
Ω1/10W
R413 ERJ6GEYJ122 Chip, 1.2kΩ
ΩΩ
Ω1/10W
R414 ERJ6GEYJ561 Chip, 560Ω
ΩΩ
Ω1/10W
R501 ERJ6GEYJ822 Chip, 8.2kΩ
ΩΩ
Ω1/10W
R502 ERJ6GEYJ823 Chip, 82kΩ
ΩΩ
Ω1/10W
R503 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R504 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R505 ERJ6GEYJ184 Chip, 180kΩ
ΩΩ
Ω1/10W
R506 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R507 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R508 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R509 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R601 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R602 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R603 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R604 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R605 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R606 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R607 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R608 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R609 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R610 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R611 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R612 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R614 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R615 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R616 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R617 ERJ6GEYJ564 Chip, 560kΩ
ΩΩ
Ω1/10W
R619 ERJ6GEYJ221V Chip, 220Ω
ΩΩ
Ω1/10W
R620 ERJ6GEYJ220 Chip, 22Ω
ΩΩ
Ω1/10W
R621 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R622 ERJ6GEYJ105 Chip, 1MΩ
ΩΩ
Ω1/10W
R623 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R624 ERJ6GEYJ105 Chip, 1MΩ
ΩΩ
Ω1/10W
R625 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R626 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R627 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R628 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R631 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R632 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R633 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R634 ERJ6GEYJ151 Chip, 150Ω
ΩΩ
Ω1/10W
R635 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R636 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R637 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R649 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R650 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
11
MITSUBISHI / CQ-JB3160AA
Ref.
No. Part No. Part Name & Description Remarks
R651 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R653 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R654 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R655 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R656 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R657 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R663 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R664 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R665 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R666 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R668 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R669 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R670 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R715 ERX12SJR22V Metal Film, 0.22Ω
ΩΩ
Ω1/2W
R716 ERJ6GEYJ183 Chip, 18kΩ
ΩΩ
Ω1/10W
R717 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R718 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R719 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R721 ERJ8GEYJ391V Chip, 390Ω
ΩΩ
Ω1/8W
R722 ERJ8GEYJ1R0V Chip, 1.0Ω
ΩΩ
Ω1/8W
R723 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R724 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R728 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R729 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R730 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R731 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R732 ERX1SJ2R2P Metal Film, 2.2Ω
ΩΩ
Ω1W
R733 ERX1SJ2R2P Metal Film, 2.2Ω
ΩΩ
Ω1W
R734 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R735 ERJ6GEYJ334 Chip, 330kΩ
ΩΩ
Ω1/10W
R736 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R737 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R738 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R740 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R741 ERJ8GEYJ2R2V Chip, 2.2Ω
ΩΩ
Ω1/8W
R742 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R743 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R744 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R747 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R748 ERJ6GEYJ123 Chip, 12kΩ
ΩΩ
Ω1/10W
R749 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R750 ERJ6GEYJ123 Chip, 12kΩ
ΩΩ
Ω1/10W
R751 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R752 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R753 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R754 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R755 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R756 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R771 ERJ8GEYJ391V Chip, 390Ω
ΩΩ
Ω1/8W
R772 ERJ8GEYJ122V Chip, 1.2kΩ
ΩΩ
Ω1/8W
R773 ERJ6GEYJ182 Chip, 1.8kΩ
ΩΩ
Ω1/10W
R774 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R775 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R779 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R780 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R781 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R782 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R783 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R801 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R802 ERJ6GEYJ123 Chip, 12kΩ
ΩΩ
Ω1/10W
R803 ERJ6GEYJ183 Chip, 18kΩ
ΩΩ
Ω1/10W
R804 ERJ6GEYJ184 Chip, 180kΩ
ΩΩ
Ω1/10W
R805 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R806 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R808 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R809 ERJ6GEYJ100 Chip, 10Ω
ΩΩ
Ω1/10W
R901 ERJ6GEYJ220 Chip, 22Ω
ΩΩ
Ω1/10W
R902 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R903 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R904 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R905 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R906 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R907 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
Ref.
No. Part No. Part Name & Description Remarks
R943 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R944 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R945 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R946 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R947 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R948 ERX1SJ1R0 Metal Film, 1.0Ω
ΩΩ
Ω1W
R950 ERJ8GEYJ1R2V Chip, 1.2Ω
ΩΩ
Ω1/8W
R951 ERJ8GEYJ1R2V Chip, 1.2Ω
ΩΩ
Ω1/8W
R952 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R953 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R954 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R955 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R956 ERJ8GEYJ3R3V Chip, 3.3Ω
ΩΩ
Ω1/8W
R957 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R958 ERJ8GEYJ3R3V Chip, 3.3Ω
ΩΩ
Ω1/8W
R959 ERJ8GEYJ4R7V Chip, 4.7Ω
ΩΩ
Ω1/8W
R960 ERDS1FJ270 Carbon, 27Ω
ΩΩ
Ω1/2W
R961 ERDS1FJ470 Carbon, 47Ω
ΩΩ
Ω1/2W
R962 ERG1SJ150P Metal Oxid, 15Ω
ΩΩ
Ω1W
R963 ERG1SJ150P Metal Oxid, 15Ω
ΩΩ
Ω1W
R964 ERG1SJ120P Metal Oxid, 12Ω
ΩΩ
Ω1W
R965 ERG1SJ120P Metal Oxid, 12Ω
ΩΩ
Ω1W
CONNECTORs
CN201 YEAEK623214S Connector, 14P
CN401 YEAE012081A Connector, 13P DIN
CN701 YEAETKCF10QS Connector, 10P
CN702 YEAETKCF08QS Connector, 8P
CN901 K1KA08B00189 Connector, 8P
CN902 K1KA08B00189 Connector, 8P
CP901 K1KB08A00087 Connector, 8P
CP902 K1KB08A00087 Connector, 8P
SWITCHEs
SW1 YEAS08042 Switch
SW901 K0F111A00336 Switch
SW902 K0F111A00336 Switch
SW905 K0F111A00336 Switch
SW906 K0F111A00336 Switch
SW907 K0F111A00336 Switch
SW908 K0F111A00336 Switch
SW909 K0F111A00336 Switch
SW910 K0F111A00336 Switch
SW911 K0F111A00336 Switch
SW913 K0F111A00336 Switch
SW914 K0F111A00336 Switch
SW915 K0F111A00336 Switch
SW916 K0F111A00336 Switch
SW917 EVQBSW00415B Switch
SW918 EVQBSW06309B Switch
LCD
LCD901 L5AAAGC00033 LCD
COILs
L51 YELT02M1R8KT Coil
L52 G1C3R3K00003 Coil
L71 G1C3R3K00003 Coil
L101 YELT02MR82KT Coil
L163 G1C3R3K00003 Coil
L501 G1C3R3K00003 Coil
L502 G1C3R3K00003 Coil
L601 YELT03N5R6KT Coil
L602 G1C3R3K00003 Coil
L603 G1C3R3K00003 Coil
L604 G1C3R3K00003 Coil
L605 G1C3R3K00003 Coil
L751 J0JCC0000012 Coil
L752 J0JCC0000012 Coil
12
MITSUBISHI / CQ-JB3160AA
Ref.
No. Part No. Part Name & Description Remarks
L753 YELTBMHS800T Coil
CRYSTALs
XL20 H0D720400003 Crystal
XL601 YEXL49U0419S Crystal
XL602 YEXLMC60327 Crystal
LAMPs
PL901 YEALHSIB045 Pilot Lamp
PL902 YEALHSIB045 Pilot Lamp
PL903 YEALHSIB024 Pilot Lamp
PL904 YEALHSIB024 Pilot Lamp
PL905 YEALHSIB024 Pilot Lamp
PL906 YEALHSIB024 Pilot Lamp
PL907 YEALHSLB010 Pilot Lamp
PL908 YEALHSIB024 Pilot Lamp
PL909 YEALHSLB010 Pilot Lamp
PL910 YEALSRMB011 Pilot Lamp
NEON TUBEs
Z51 J0LM00000001 Neon Tube
Z71 J0LM00000001 Neon Tube
NETWORK RESISTORs
RA600 EXBV8V471JV Network Resistor
RA601 EXBV8V222JV Network Resistor
RA602 EXBV8V222JV Network Resistor
RA603 EXBV8V222JV Network Resistor
RA604 EXBV8V222JV Network Resistor
RA605 EXBV8V222JV Network Resistor
RA606 EXBV8V222JV Network Resistor
RA607 EXBV8V222JV Network Resistor
RA608 EXBV8V222JV Network Resistor
RA609 EXBV8V222JV Network Resistor
RA610 EXBV8V222JV Network Resistor
RA611 EXBV8V473JV Network Resistor
RA612 EXBV8V222JV Network Resistor
RA613 EXBV8V222JV Network Resistor
THERMISTERs
R415 D4ZZ00000015 Thermister
R739 D4ZZ00000015 Thermister
[E9364] Amp Block
IC´s and TRANSISTORs
IC251 C1BA00000326 IC
Q251 B1GBHBEA0004 Transistor
Q252 YEANA114TK Transistor
Q281 B1GBHBEA0004 Transistor
Q351 B1GBHBEA0004 Transistor
Q352 YEANC114YKX Transistor
Q381 B1GBHBEA0004 Transistor
DIODEs
D771 B0ECMP000002 Diode
D772 B0EAKP000011 Diode
CAPACITORs
C251 ECEA1HKAR22B Electrolytic, 0.22µF 50WV
C252 F1J1H471A672 Ceramic, 470PF 50WV
C253 ECA1CM470I Electrolytic, 47µF 16WV
C254 YECUS1C104KX Ceramic, 0.1µF 16WV
C255 YECUS1C224KX Ceramic, 0.22µF 16WV
C256 ECEA1HKA3R3I Electrolytic, 3.3µF 50WV
Ref.
No. Part No. Part Name & Description Remarks
C281 ECEA1HKAR22B Electrolytic, 0.22µF 50WV
C282 F1J1H471A672 Ceramic, 470PF 50WV
C291 YECUS1C124KX Ceramic, 0.12µF 16WV
C292 YECUS1C124KX Ceramic, 0.12µF 16WV
C293 YECUS1C124KX Ceramic, 0.12µF 16WV
C294 YECUS1C124KX Ceramic, 0.12µF 16WV
C351 ECEA1HKAR22B Electrolytic, 0.22µF 50WV
C352 F1J1H471A672 Ceramic, 470PF 50WV
C381 ECEA1HKAR22B Electrolytic, 0.22µF 50WV
C382 F1J1H471A672 Ceramic, 470PF 50WV
C384 F1J1H103A513 Ceramic, 0.01µF 50WV
C391 YECUS1C124KX Ceramic, 0.12µF 16WV
C392 YECUS1C124KX Ceramic, 0.12µF 16WV
C393 YECUS1C124KX Ceramic, 0.12µF 16WV
C394 YECUS1C124KX Ceramic, 0.12µF 16WV
C701 F1J1H103A513 Ceramic, 0.01µF 50WV
C702 F1J1H103A513 Ceramic, 0.01µF 50WV
C703 ECA1HM100I Electrolytic, 10µF 50WV
C704 F1J1H103A513 Ceramic, 0.01µF 50WV
C706 F1J1H103A513 Ceramic, 0.01µF 50WV
C720 ECA1CM102B Electrolytic, 1000µF 16WV
C721 ECA1CM102B Electrolytic, 1000µF 16WV
C722 ECA1CM102B Electrolytic, 1000µF 16WV
C723 ECA1HM100I Electrolytic, 10µF 50WV
C724 ECQV1H104B46 Plastic Film, 0.1µF 50WV
RESISTORs
R250 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R251 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R252 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R253 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R280 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R281 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R282 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R283 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R291 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R292 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R293 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R294 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R350 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R351 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R352 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R353 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R354 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R355 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R356 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R380 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R381 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R382 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R383 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R391 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R392 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R393 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R394 ERJ6GEYJ2R2 Chip, 2.2Ω
ΩΩ
Ω1/10W
R702 ERX12SJR22V Metal Film, 0.22Ω
ΩΩ
Ω1/2W
R704 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R705 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R724 ERJ8GEYJ561V Chip, 560Ω
ΩΩ
Ω1/8W
R725 ERJ8GEYJ561V Chip, 560Ω
ΩΩ
Ω1/8W
R726 ERJ8GEYJ561V Chip, 560Ω
ΩΩ
Ω1/8W
R727 ERJ8GEYJ561V Chip, 560Ω
ΩΩ
Ω1/8W
CONNECTORs
CJ701 K1KA10B00162 Connector, 10P
CJ702 K1KA08B00189 Connector, 8P
CJ703 YEAE14SDLYS Connector, 14P
COILs
L701 YETQ016F160 Coil
L702 YETQ012G157 Coil
13
MITSUBISHI / CQ-JB3160AA
Ref.
No. Part No. Part Name & Description Remarks
Mechanical Parts
MISCELLANEOUS
AJ51 YEAA10066 Antenna Receplacle
AJ71 YEAA10074A Antenna Receplacle
AT1 YEFX0213797 Bracket, GND
AT2 YEFX0213797 Bracket, GND
CNP1 K9ZZ00000039 Connector, 14P
1YEFA031524 Upper Cover
2YEFS02307 Felt
3YEFX0215221 Bracket, Deck
6YEFF011058 Heat Sink
7YEFX0215178 Bracket, IC251
8YEFX0215179 Bracket, CJ703
9YEP0PT9364A0 PCB w/Component RTL
11 J0KZ00000008 EMI/EMC Filter
12 YEFX9991346 Bracket, GND
13 YEP0PT6965A0 PCB w/Component RTL
14 YEFE07497 Knob, VOL
15 YEFC028163 Escucheon Ass´y
16 YEFE07498 Knob, AUDIO
17 YEFK06971 Holder
18 YEFX0012129A Transparent Plate
19 YEFV021785 Optical Shade
20 YEFA131568 Case
21 YEFA05810 Bottom Cover
24 YEFA07559B Front Plate
25 YEFA09551 Side Plate(L)
26 YEFA09663 Side Plate(R)
27 YEFV03508 Magnetic Shield
28 YEFX0214200 Bracket, ANT
29 YEFX0213232B Bracket, ANT
30 YEFX0213488 Bracket, CN401
31 YEFX0214202 Bracket, IC704
32 YEFX0212830 Bracket, Q773
41 YEJS05016 Screw, 3 * 15
42 YEJS06093 Screw, 3 * 6
43 YEJS06278 Screw
44 YEJT03120 Tapping Screw, 3 * 8
45 YEJT03131 Tapping Screw, 2.6 * 5
46 YEJT03324 Tapping Screw, 2.8 * 5
47 XTB2+8GFX Tapping Screw, 2 * 5
48 XTB3+8FFX Tapping Screw, 3 * 8
49 XTB3+6FFX Tapping Screw, 3 * 6
14
MITSUBISHI / CQ-JB3160AA
11.2. Main Block (Bottom View)
[E-6965a][Bottom View]
CQ-JB3160AA MAIN P.C.B.
17
MITSUBISHI / CQ-JB3160AA
This manual suits for next models
1
Table of contents
Other Mitsubishi Car Receiver manuals
Mitsubishi
Mitsubishi DY-6MW7U53-2 User manual
Mitsubishi
Mitsubishi DY-1MU3R45-T User manual
Mitsubishi
Mitsubishi MZ360236EX(KDC336AXAM4) User manual
Mitsubishi
Mitsubishi MMES User manual
Mitsubishi
Mitsubishi MZ360119EX(DPXMP2090SM4) User manual
Mitsubishi
Mitsubishi CQ-EB6260L User manual
Mitsubishi
Mitsubishi MZ360216EX User manual
Mitsubishi
Mitsubishi DY-1MU3E21-T User manual
Mitsubishi
Mitsubishi DY-5MU4R69-T-3 User manual
Mitsubishi
Mitsubishi NR-261UM-07LAN5 User manual
