SERVICE MANUAL
MITSUBISHI ELECTRIC CORP. SANDA WORKS
Your company internal use only.
DY-1MU3R45-T,-2
Copyright (C) Mitsubishi Electric Corporation.
SE046913053E Ver.pptx14E
MITSUBISHI MOTORS
AM/FM-ST ELECTRONIC TUNING RADIO, CD PLAYER
2014 May.
Model : DY-1MU3R45-T
DY-1MU3R45-T-2
MELCO Code : 34U284, 34W880
PART No. : 8701A405, 8701A405
● FEATURES ........................................................................2,3
● SPECIFICATIONS ................................................................4
● OPERATION .........................................................................5
● CONNECTORS ....................................................................6
● SYSTEM CONFIGURATION ................................................7
● BLOCK DIAGRAM ................................................................8
● DISASSEMBLING PROCEDURES ................................9~15
● PARTS LIST...................................................................16,17
● ELECTRICAL PARTS LIST...........................................18~24
● PARTS LAYOUT ON PRINTED CIRCUIT BOARD ........25,26
● SCHEMATIC DIAGRAM
PCB-MAIN .....................................................................27
● VOLTAGE .....................................................................28~30
● WAVEFORM .......................................................................31
CONTENTS

2Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
FEATURES
< Audio Part >
●High power, 4ch amplifier incorporated. (compatible with 4Ωload)
●BASS, TREBLE, FADER, BALANCE and SCV adjustment via audio
adjustment button.
●Level adjustment via encoder volume. (BASS, TREBLE: ±6 steps / FADER,
BALANCE: ±11steps / SCV: OFF, LOW, MID, HIGH)
●AUTO LOUDNESS to vary frequency response depending on the volume
level.
●Tone adjustment variation control function for low-pitch sound (BASS) and
high-pitch sound (TREBLE) at maximum sound volume.
< Radio Part >
●Memory/Calling operation via preset memory button.
(FM1, FM2, AM Max. 6 stations for each.)
●Use of TUNE button featuring double functions of manual tuning and
automatic tuning.
●SCAN function.
●RBDS function.
< CD Part >
●Power Loading/Power Eject function.
●Dropout recovery function to automatically return to the play position before
dropout upon dropout.
●Laser pickup high temperature protective function to stop playing when the
ambient temperature is too high.
●Track selection function for immediate access to a song.
●Any Time Eject. (Disc eject or power eject is available in all modes including
ACC OFF)
●RELOAD function. (to avoid DISC being kept ejected)
●Title display function.
●Only 12 cm CD is supported. (8 cm CD not supported)
●Compatible with mp3. (MPEG1 AUDIO LAYER3, MPEG2 AUDIO LAYER3)
[CD-DA]
●Repeated play (single song repeat, Disc repeat) function.
●Random play (random play from DISC) function.
●Fast forward/Fast reverse function.
●SCAN function.
[MP3]
●Repeat play (single song repeat, folder-wise repeat) function.
●Random play (Folder-wise random play, random play across all folders
in a Disc) function.
●Fast forward/Fast reverse function.
●SCAN function.
< USB Part >
1) Playback of compressed/non-compressed audio files in USB mass storage.
●Support for USB2.0 Full-speed.
●MP3/WMA/AAC reproduction. (WAV no supported)
●File information acquisition.
●Support for bus power.
2) iPod control/playback via USB connection.
●Support for USB2.0 Full-speed.
●Support for iPod control.
●Reproduction of audio files in iPod.
●Support for iPod charging function via support for bus power.

3Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
FEATURES
< Supported USB devices >
Examples of playback-ready USB devices are shown in the table below.
Adaptability ○: Playback enabled (recommended),
Adaptability △: Playback enabled (not recommended),
Adaptability ×:Playback disabledadjustment button.
*1: Support for memories with memory capacity of 256 Mbytes or more
For the memory of 128 Mbytes, support is provided for FAT16 format only.
HUB class memories are not supported.
*2: Support for digital audio players (DAPs) compatible with mass storage class
Not supported except Sub Class: SCSI and Protocol: Bulk-Only.
Devices compatible with MTP only are not supported.
*3: Playback may be disabled depending on the device drive current or current c
onsumption.
*4: Playback may be disabled depending on the specifications of card reader
or memory card.
*5: ○Adaptable, ×Not adaptable
< Others >
●Clock function. (12-hour display)
●VFD (Vacuum Fluorescent Display) is employed.
●Support for rheostat. (operation button and panel lighting capable of
adjusting brightness in synchronization with the instrumental panel lighting)
●Long push button to generate operation tone for confirmation.
●Setting of speaker wiring connection analysis (vibration tone output) and
chattering noise on the vehicle assembly line.
●Support for telephone muting function.
●Support for telephone voice interrupt function.
●Stereo AUX input terminal.
●Support for connection to Bluetooth HFM. (Hands-Free-Module)
●Satellite Tuner (IE-BUS) connection correspondence.
USB device Flash
memory DAP HDD Card reader CD/DVD/FDD HUB iPod
Adaptability ○(*1) ○(*2) △(*3) △(*4) ××○(*5)
iPod type Function
Model Generation F/W version Control/ Playback Charging
iPod 5th generation 1.3- ○○
Classic
80GB/160GB 1.1.2- ○○
120GB 2.0.1- ○○
160GB (late2009) 2.0.4- ○○
nano
1st generation 1.3.1- ○○
2nd generation 1.1.3- ○○
3rd generation 1.1.3- ○○
4th generation 1.0.4- ○○
5th generation 1.0.2- ○○
6th generation 1.0- ○○
touch
1st generation 3.1.3- ○○
2nd generation 4.2.1- ○○
3rd generation 4.3.1- ○○
4th generation 4.3.1- ○○
i Phone
iPhone 3.1.3- ○○
iPhone 3G 4.2.1- ○○
iPhone 3GS 4.3.1- ○○
iPhone 4 4.3.1- ○○
iPhone 4S 5.0.1- ○○

4Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
SPECIFICATIONS
< AM Radio >
●Frequency Range : 530~1710kHz (10kHz step)
●Sensitivity : Less than 34dBμV
●Signal/Noise Ratio : More than 45dB
(60dBμV)
< FM Stereo Radio >
●Frequency Range : 87.75~107.90MHz (200kHz step)
●Sensitivity : Less than 12dBμV
●Signal/Noise Ratio : More than 55dB
(40dBμV)
< CD Player >
●Dynamic Range : More than 65dB
●Signal/Noise Ratio : More than 65dB
●Channel Separation : More than 55dB (1kHz)
< Others >
●Power Supply : DC 13.2V (10~16V)
Test Voltage 13.2V
Negative ground
●Backup Current : Less than 1.6mA
●Current Consumption : 2.5A±20% (Output 1W)
●Maximum Power Output : 35W x 4
●Output Impedance : 4Ω(SP Output)
●Working Temperature Range : -30℃~ +75℃
●Storage Temperature Range : -40℃~ +80℃
●Dimensions (W x D x H) : 206.5mm x 174.7mm x 105.4mm
●Weight : 1.62kg

5Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2

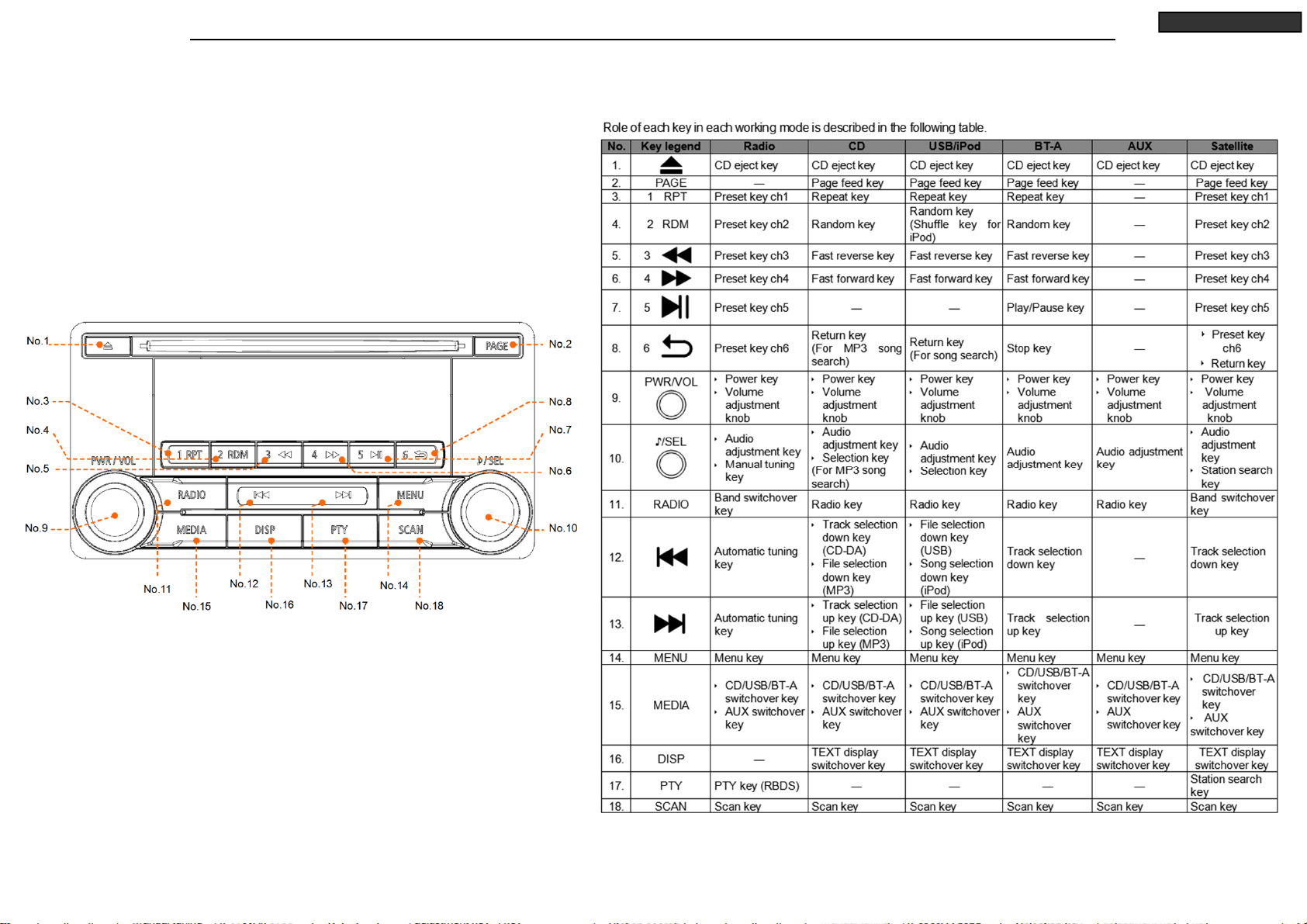

OPERATION

6Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2

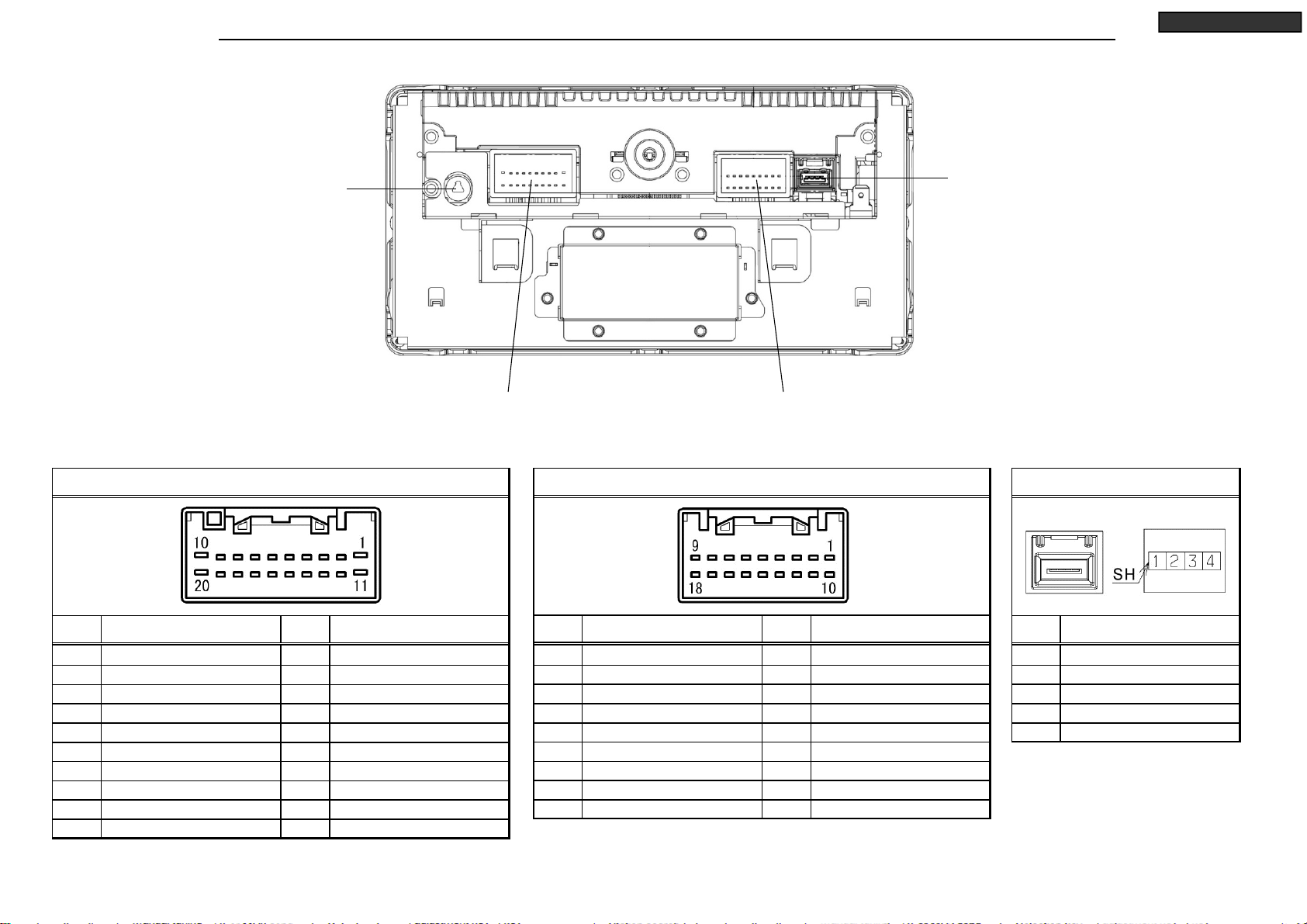

CONNECTORS
PinNo. Signal Name
1USBVBUS
2USBDATA-
3USBDATA+
4USBGND
SH USB SH
USB device 4P Connector
Main Antenna Socket
Power supply and speakers
20P Connector
IE-BUS and AUX device input
18P Connector
PinNo. Signal Name PinNo. Signal Name
1 BATTERY (+) 11 POWER GND
2 ILLUMINATION (+) 12 ILLUMINATION (-)
3 SPEAKER FL (+) 13 SPEAKER FL (-)
4 SPEAKER RL (+) 14 SPEAKER RL (-)
5 SPEAKER FR (+) 15 SPEAKER FR (-)
6 SPEAKER RR (+) 16 SPEAKER RR (-)
7 - 17 ANTENNA +B
8 Audio: CAN+ 18 Audio: CAN-
9 REMOCON 19 REMOCON GND
10 ACCESSORY (+) 20 VEHICLE SPEED PULSE
Power supply and speakers 20P Connector
PinNo. Signal Name PinNo. Signal Name
1 IE-BUS (+) 10 IE-BUS (-)
2 IE-BUS POWER ON 11 -
3 IE-BUS INPUT LEFT (+) 12 IE-BUS INPUT LEFT (-)
4 IE-BUS INPUT RIGHT (+) 13 IE-BUS INPUT RIGHT (-)
5 TEL INPUT 14 TEL MUTE
6 HFM/USB S-INPUT LEFT 15 TEL INPUT GND
7 HFM/USB S-INPUT RIGHT 16 HFM/USB INPUT GND
8 AUX/RSES INPUT LEFT 17 AUX/RSES/HFM/USB
9 AUX/RSES INPUT RIGHT 18 SHIELD GND
IE-BUS and AUX device input 18P Connector
USB device 4P Connector

7Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
SYSTEM CONFIGURATION
<AUDIO>
DY-1MU3R45-T
DY-1MU3R45-T-2
<i-Pod>
or
<USB MEMORY>
<HANDS-FREE
-MODULE>
<SIRIUS
TUNER>
<AUX>
<PHONE>
<ANTENNA>
FL
FR
RL
RR
<SPEAKER>

8Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
BLOCK DIAGRAM

9Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
M018(1) : NAME-CARD(DY-1MU3R45-T)
M019(2) : NAME-CARD(DY-1MU3R45-T-2)
M012(1)/M020(2) : LABEL
(1) DY-1MU3R45-T
(2) DY-1MU3R45-T-2
Model
*It is assembling procedure. Disassembling procedure is in reverse.
M012/M020

10 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Lock connector after inserting M002 to the connector of S2-DY follow below indicates,
then insert revers side to M002 and look the connector.
(Follow the indicates in view on right.)
2. Screw M017 and S2-DY with Ⓒ. (4 places)
3. Stick M010 on M017. (Follow the indicates in view on right.)
4. Insert two tabs of M005 to the rectangle hole of S2-DY.
And fit tabs on the two sides of M005 to the S2-DY.
Screw M005 with Ⓐ. (By Ⓐ2places)
Ⓐx 2
Ⓒx 4
M002 : FLAT-CABLE 18P
M010 : SHEET-HS
S2-DY
M017 : CD8-MECHA
(955823)
M017M010
M002(FFC) attachment detail
M010
No. Screw Tighten torque(N・m)
Ⓐ3X6 0.8 +0.2/-0.1
Ⓒ2.6X6S 0.6 +0.2/-0.1
M005 : COVER-U
M017.
M010 : SHEET-HS
M002
M017 : CD8-MECHA
(955823)

11 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Fit tab of S2-DY on S2-PANEL. (10 places)
Then pass FFC through the hole A of S2-DY.
Check that tab is fitted perfectly to S2-PANEL. (10 places) (Don’t float.)
2. Lock FFC after screw S2-DY and S2-PANEL with Ⓔ. (2 places)
Ⓔx 2
S2-DY
S2-PANEL
S2-DY
S2-PANEL
No. Screw Tighten torque(N・m)
Ⓔ2.6X6 0.6 +0.2/-0.1
FFC

12 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Screw M006 to M003 with Ⓒ.
2. Fit tabs on the two sides of M003 on ASSY-CHASSIS-B.
Screw M003 and ASSY-CHASSIS-B with Ⓐ. (2 places)
B and C, D and E, F and G fit, slide M003 Direction of the ground.
M003 : CHASSIS-F
Ⓐx 2
Ⓒ
M006 : PLATE-E
ASSY-CHASSIS-B
No. Screw Tighten torque(N・m)
Ⓐ3X6 0.8 +0.2/-0.1
Ⓒ2.6X6S 0.6 +0.2/-0.1

13 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. Stick M009 and M011 on M014.
(Follow the indicates in view on right.) (2 places)

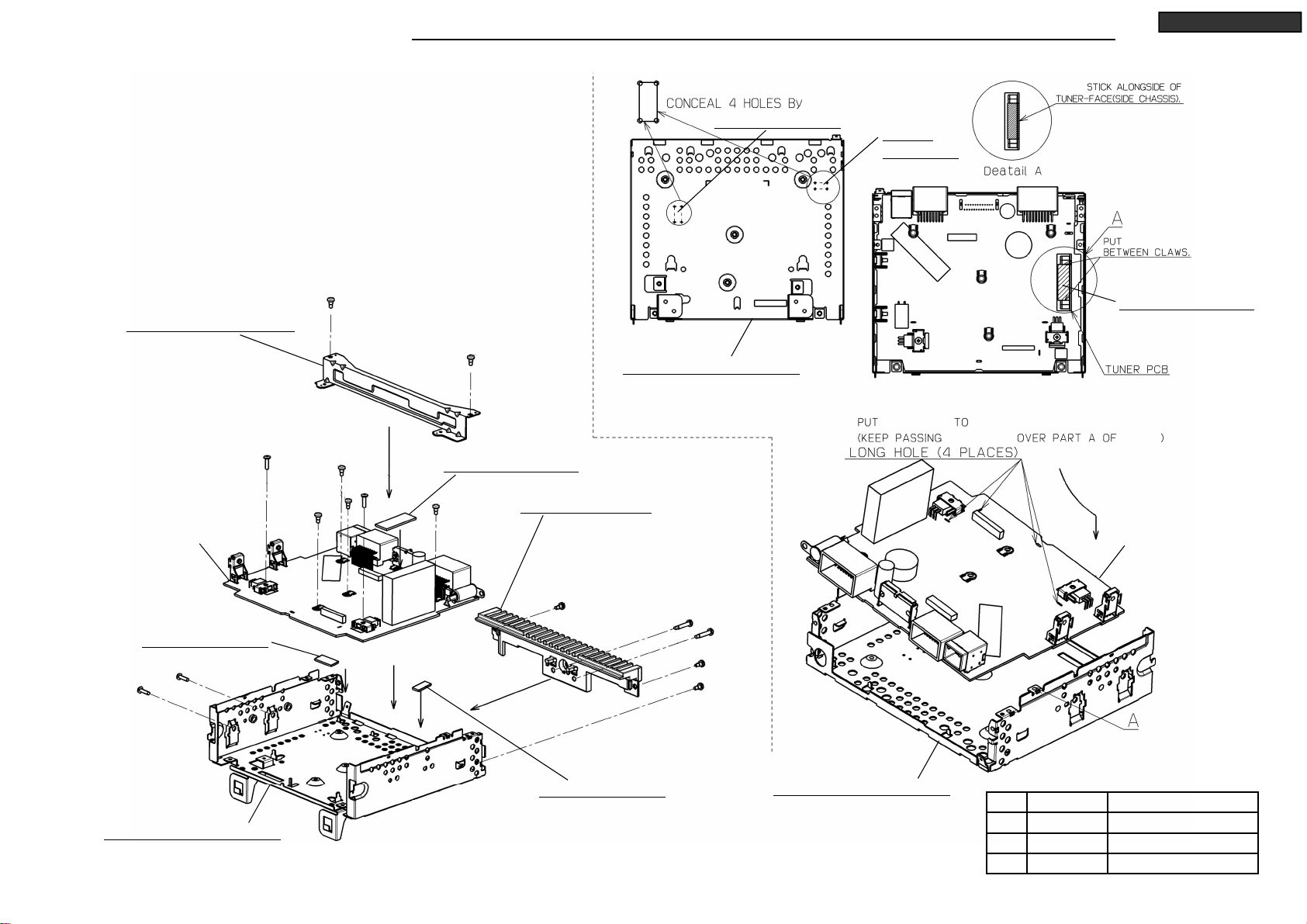

2. Put PCB-MAIN to M014 and screw with Ⓐ, Ⓓ. (Each 4 places)
(Check that 4 tabs are into holes of PCB-MAIN.)
Stick M008 to PCB-MAIN. *Follow the indicates in view on right.
3. Screw M004 to M014 with Ⓐ. (2 places)
4. Screw M007 to M014 with Ⓐ(3 places), Ⓑ(2 places).
No. Screw Tighten torque(N・m)
Ⓐ3X6 0.8 +0.2/-0.1
Ⓑ3X16 0.65 ±0.1
Ⓓ2.6X10S 0.6 +0.2/-0.1
PCB-MAIN
M009 : SHEET-HS
M011 : SHEET-HS
M004 : BRACKET-DECK
Ⓑx 2
Ⓓx 2
Ⓐx 2
M014 : ASSY-CHASSIS-B
Ⓐx 4
Ⓐx 3
M008 : CUSHION-E
M008
M009, M011.
Use low impact
type driver.
M014 : ASSY-CHASSIS-B
M009 : SHEET-HS M011 :
SHEET-HS
PCB-MAIN M014.
PCB-MAIN M014.
M008 : CUSHION-E
M007 : HEAT-SINK
M014 : ASSY-CHASSIS-B
Ⓓ
Ⓓ
PCB-MAIN
M008

14 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES
Ⓕx 12
M015 : ASSY-PANEL
M016 : ASSY-KNOB
No. Screw Tighten torque(N・m)
Ⓕ2X6 0.2 +0.15/-0.04
Figure A M001 Installation detailed
M013 : ASSY-VFD-MODULE
M001 : FLAT-CABLE 20P
●Disassembling procedures
In reverse of assembling procedures.
●Assembling procedures
1. After removing the protection sheet of M013 (Figure A),
screw M013 to M015 with Ⓕ. (12 places).
2. Insert M001 in connector on M013, and locked certainly.
(Follow the indicates in view on right.)
3. Fit M016 to M013. (2 places)

15 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
DISASSEMBLING PROCEDURES

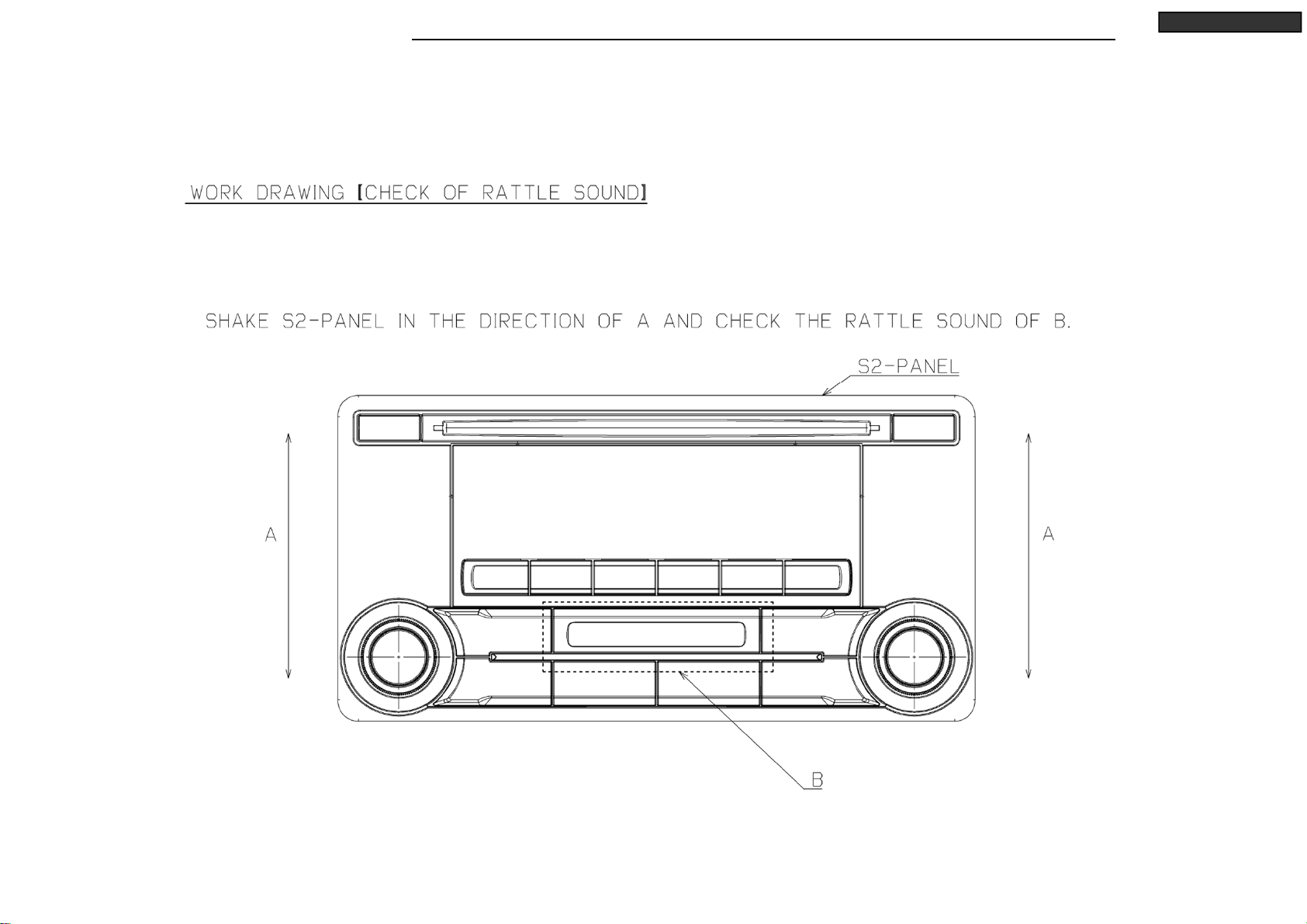

*It is assembling procedure. Disassembling procedure is in reverse.

16 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
PARTS LIST
< DY-1MU3R45-T >
* Marked part is the ASSY replacement.
Ref. No. Parts No. Parts Nam e Page
M001 246L58087 FLAT-CABLE 20P P.14
M002 246L58088 FLAT-CABLE 18P P.10
M003 560J41810 CHASSIS-F P.12
M004 591K40713 BRACKET-DECK P.13
M005 591K81321 COVER-U P.10
M006 593L49110 PLATE-E P.12
M007 635J12722 HEAT-SINK P.13
M008 643L84413 CUSHION-E P.13
M009 643L89720 SHEET-HS P.13
M010 643L89730 SHEET-HS P.10
M011 643L91912 SHEET-HS P.13
M012 851L76219 LABEL P.9
M013 890P20611 ASSY-VFD-MODULE P.14
M014 891L71910 ASSY-CHASSIS-B P.13
M015 892K54642 ASSY-PANEL P.14
M016 892L52520 ASSY-KNOB P.14
*M017 940L24414 CD8-MECHA(955823) P.10
M018 959M012O5 NAME-CARD(DY-1MU3R45-T) P.9
A 653P11046 SCREW-S-PAN 3X6 -
B 653P11052 SCREW-S-PAN 3X16 -
C 653P13028 SCREW-S-BIND 2.6X6S -
D 653P13032 SCREW-S-BIND 2.6X10S -
E 653P13428 SCREW-S-BIND 2.6X6 -
F 653P33014 SCREW-P-BIND 2X6 -

17 Your company internal use only.Copyright (C) Mitsubishi Electric Corporation.
DY-1MU3R45-T,-2
PARTS LIST
< DY-1MU3R45-T-2 >
Ref. No. Parts No. Parts Nam e Page
M001 246L58087 FLAT-CABLE 20P P.14
M002 246L58088 FLAT-CABLE 18P P.10
M003 560J41810 CHASSIS-F P.12
M004 591K40713 BRACKET-DECK P.13
M005 591K81321 COVER-U P.10
M006 593L49110 PLATE-E P.12
M007 635J12722 HEAT-SINK P.13
M008 643L84413 CUSHION-E P.13
M009 643L89720 SHEET-HS P.13
M010 643L89730 SHEET-HS P.10
M011 643L91912 SHEET-HS P.13
M013 890P20611 ASSY-VFD-MODULE P.14
M014 891L71910 ASSY-CHASSIS-B P.13
M015 892K54642 ASSY-PANEL P.14
M016 892L52520 ASSY-KNOB P.14
*M017 940L24414 CD8-MECHA(955823) P.10
M019 959M012O6 NAME-CARD(DY-1MU3R45-T-2) P.9
M020 851L76220 LABEL P.9
A 653P11046 SCREW-S-PAN 3X6 -
B 653P11052 SCREW-S-PAN 3X16 -
C 653P13028 SCREW-S-BIND 2.6X6S -
D 653P13032 SCREW-S-BIND 2.6X10S -
E 653P13428 SCREW-S-BIND 2.6X6 -
F 653P33014 SCREW-P-BIND 2X6 -
* Marked part is the ASSY replacement.

Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
A
NT1 449L076O2 SOCKET-ANT N931L86212 C327 141P18441 C-CERAMIC-CHIP GRM32DR71E106KA12E X7R 25V106K3225 N931L86312
C101 141L181O5 C-CERAMIC-CHIP GRM1882C1H150JA01D CH50V150J 1608 N931L86312 C331 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C102 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C333 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C103 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C334 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C104 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L86312 C335 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C105 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L86312 C340 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C106 103L299O9 R-CHIP RMC1/16JTP 1/10W 0 1608 N931L86312 C344 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C112 141P164O9 C-CERAMIC-CHIP GRM1552C1H391JA01D CH 50V 391J1005 N931L86312 C347 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C121 141P150O1 C-CERAMIC-CHIP UMK105BJ221KV-F B 50V 221K1005 N931L86312 C348 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C122 141P153O1 C-CERAMIC-CHIP GRM155B11E103KA01D B 25V 103K1005 N931L86312 C350 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C123 141P158O8 C-CERAMIC-CHIP CM05B473K10AH B 10V 473K1005 N931L86312 C351 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312
C124 141P158O8 C-CERAMIC-CHIP CM05B473K10AH B 10V 473K1005 N931L86312 C352 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312
C125 141P158O8 C-CERAMIC-CHIP CM05B473K10AH B 10V 473K1005 N931L86312 C353 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C141 141L164O9 C-CERAMIC-CHIP CM105W5R474K10AT B 10V 474K 1608 N931L86312 C354 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C142 141L164O9 C-CERAMIC-CHIP CM105W5R474K10AT B 10V 474K 1608 N931L86312 C355 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312
C145 141L164O9 C-CERAMIC-CHIP CM105W5R474K10AT B 10V 474K 1608 N931L86312 C356 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312
C146 141L164O9 C-CERAMIC-CHIP CM105W5R474K10AT B 10V 474K 1608 N931L86312 C359 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312
C151 141P158O8 C-CERAMIC-CHIP CM05B473K10AH B 10V 473K1005 N931L86312 C360E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C152 141P158O8 C-CERAMIC-CHIP CM05B473K10AH B 10V 473K1005 N931L86312 C361E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C153 141L168O5 C-CERAMIC-CHIP CM105B154K16AT-N B 16V 154K 1608 N931L86312 C371 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312
C154 141L187O7 C-CERAMIC-CHIP GRM1882C1H102JA01D CH 50V 102J1608 N931L86312 C372 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312
C155 141L187O7 C-CERAMIC-CHIP GRM1882C1H102JA01D CH 50V 102J1608 N931L86312 C380 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C171 181P80162 C-ELECTROLYTIC-CHIP UWX1H2R2MCL1GB 50V 2R2M N931L86312 C380E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C172 141P159O0 C-CERAMIC-CHIP GRM155B11A104KA01D B 10V 104K1005 N931L86312 C381 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C173 141P167O3 C-CERAMIC-CHIP GRM1552C1H561JA01D CH 50V 561J1005 N931L86312 C381E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C174 141P154O3 C-CERAMIC-CHIP CM05B333K16AH B 16V 333K1005 N931L86312 C384 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C175 181P80162 C-ELECTROLYTIC-CHIP UWX1H2R2MCL1GB 50V 2R2M N931L86312 C390 181P80124 C-ELECTROLYTIC-CHIP UWR1C220MCL1GB 16V 220M N931L86312
C176 141P159O0 C-CERAMIC-CHIP GRM155B11A104KA01D B 10V 104K1005 N931L86312 C391 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312
C178 181P80162 C-ELECTROLYTIC-CHIP UWX1H2R2MCL1GB 50V 2R2M N931L86312 C392 181P80161 C-ELECTROLYTIC-CHIP UWX1H010MCL1GB 50V 010M N931L86312
C179 141P162O3 C-CERAMIC-CHIP GRM1552C1H330JA01D CH 50V 330J1005 N931L86312 C3C1 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C180 141P162O3 C-CERAMIC-CHIP GRM1552C1H330JA01D CH 50V 330J1005 N931L86312 C3C3 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C201 141P151O7 C-CERAMIC-CHIP GRM155B11H472KA01D B 50V 472K1005 N931L86312 C401 141L165O0 C-CERAMIC-CHIP GRM188B10J105KC01D B6.3V 105K 1608 N931L86312
C202 141P151O7 C-CERAMIC-CHIP GRM155B11H472KA01D B 50V 472K1005 N931L86312 C402 141L163O4 C-CERAMIC-CHIP GRM188B11E273KA01D B 25V 273K 1608 N931L86312
C203 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C408 141P159O2 C-CERAMIC-CHIP C1005JB1A224KT B 10V 224K 1005 N931L86312
C204 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C409 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312
C206 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C410 141P161O3 C-CERAMIC-CHIP GRM1552C1H120JA01D CH 50V 120J1005 N931L86312
C207 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C411 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C208 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C412 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C209 141P151O7 C-CERAMIC-CHIP GRM155B11H472KA01D B 50V 472K1005 N931L86312 C414 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C210 141P151O7 C-CERAMIC-CHIP GRM155B11H472KA01D B 50V 472K1005 N931L86312 C415 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312
C211 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C416 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312
C212 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C417 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C300 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C420 141L169O6 C-CERAMIC-CHIP GRM188B10J225KE01D B6.3V 225K1608 N931L86312
C301 141L165O0 C-CERAMIC-CHIP GRM188B10J105KC01D B6.3V 105K 1608 N931L86312 C421 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C302 141L163O4 C-CERAMIC-CHIP GRM188B11E273KA01D B 25V 273K 1608 N931L86312 C422 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C307 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C424 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C308 141P159O2 C-CERAMIC-CHIP C1005JB1A224KT B 10V 224K 1005 N931L86312 C425 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C309 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C426 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C310 141P161O3 C-CERAMIC-CHIP GRM1552C1H120JA01D CH 50V 120J1005 N931L86312 C431 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C311 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 C433 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C312 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C434 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C313 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C440 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C314 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C444 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C315 141L069O7 C-CERAMIC-CHIP GRM21BB10J106KE01L B 6.3V 106K2125 N931L86312 C447 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C316 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C448 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312
C320 141P18441 C-CERAMIC-CHIP GRM32DR71E106KA12E X7R 25V106K3225 N931L86312 C450 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C320E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312 C451 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312
C321 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C452 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312
C321E 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312 C455 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312
C322 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C456 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312
C323 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C459 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312
C324 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C471 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312
C325 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C472 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312
C326 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C480 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
18
Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
C483 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C836 141L188O5 C-CERAMIC-CHIP GRM1882C1H222JA01 CH 50V 222J1608 N931L86312
C4W1 103L199O9 R-CHIP RMC1/10JPATP 1/8W 0 2125 N931L86312 C850 141L188O5 C-CERAMIC-CHIP GRM1882C1H222JA01 CH 50V 222J1608 N931L86312
C4W2 141L187O7 C-CERAMIC-CHIP GRM1882C1H102JA01D CH 50V 102J1608 N931L86312 C850
A
141P160O9 C-CERAMIC-CHIP GRM1552C1H8R0DA01D CH 50V 080D1005 N931L86312
C530 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C850B 141P160O9 C-CERAMIC-CHIP GRM1552C1H8R0DA01D CH 50V 080D1005 N931L86312
C534 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C850E 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312
C537 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C851E 181P80124 C-ELECTROLYTIC-CHIP UWR1C220MCL1GB 16V 220M N931L86312
C538 141P161O9 C-CERAMIC-CHIP GRM1552C1H220JA01D CH 50V 220J1005 N931L86312 C853 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C551 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312 C854 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C552 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312 C855 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C555 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312 C856 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C556 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312 C857 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C559 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312 C858 141L069O6 C-CERAMIC-CHIP GRM21BB10J475KA11L B 6.3V 475K2125 N931L86312
C571 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312 C859 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C572 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312 C860 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C5A0 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312 C861 141P167O1 C-CERAMIC-CHIP GRM1552C1H471JA01D CH 50V 471J1005 N931L86312
C5A6 141P154O6 C-CERAMIC-CHIP GRM155B31C104KA87D B 16V 104K 1005 N931L86312 C863 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C5A7 141P154O6 C-CERAMIC-CHIP GRM155B31C104KA87D B 16V 104K 1005 N931L86312 C865 141P161O3 C-CERAMIC-CHIP GRM1552C1H120JA01D CH 50V 120J1005 N931L86312
C5A8 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C866 141P161O3 C-CERAMIC-CHIP GRM1552C1H120JA01D CH 50V 120J1005 N931L86312
C5A9 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 C867 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C5B1 141L162O7 C-CERAMIC-CHIP C1608JB1H473KT B 50V 473K 1608 N931L86312 C868 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C630 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C869 141L069O6 C-CERAMIC-CHIP GRM21BB10J475KA11L B 6.3V 475K2125 N931L86312
C634 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C870 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312
C637 141P163O5 C-CERAMIC-CHIP GRM1552C1H101JA01D CH 50V 101J1005 N931L86312 C871 141P167O1 C-CERAMIC-CHIP GRM1552C1H471JA01D CH 50V 471J1005 N931L86312
C638 141P161O9 C-CERAMIC-CHIP GRM1552C1H220JA01D CH 50V 220J1005 N931L86312 C872 141P167O1 C-CERAMIC-CHIP GRM1552C1H471JA01D CH 50V 471J1005 N931L86312
C651 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312 C873 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C652 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312 C874 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C655 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312 C875 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C656 141L161O9 C-CERAMIC-CHIP GRM188B11H682KA01D B50V682K1608 N931L86312 C878 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312
C659 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312 C880 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312
C671 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312 C881 181P82710 C-ELECTROLYTIC EMVA100ARA151MF55G 10V 151M N931L86312
C672 141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312 C890 141L169O2 C-CERAMIC-CHIP C1608JB1A105KT B10V 105K 1608 N931L86312
C701 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C891 141L169O2 C-CERAMIC-CHIP C1608JB1A105KT B10V 105K 1608 N931L86312
C702 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C8A4 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C703 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C8A5 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C704 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C8K1 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312
C705 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C8K2 141L165O0 C-CERAMIC-CHIP GRM188B10J105KC01D B6.3V 105K 1608 N931L86312
C706 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C900 181P77011 C-ELECTROLYTIC RE3-16V332MH7S#N 16V 332M N931L86212
C708 141L067O1 C-CERAMIC-CHIP CM21B225K25AT B 25V 225K 2125 N931L86312 C901 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312
C709 141L067O1 C-CERAMIC-CHIP CM21B225K25AT B 25V 225K 2125 N931L86312 C902 141L066O8 C-CERAMIC-CHIP GRM21BB11E224KA01L B 25V 224K 2125 N931L86312
C710 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C905 141P163O1 C-CERAMIC-CHIP GRM1552C1H680JA01D CH 50V 680J1005 N931L86312
C711 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C910 181P113O1 C-ELECTROLYTIC 16YK1000MM55E1016 16V 102M N931L86212
C712 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C914 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C713 141L067O3 C-CERAMIC-CHIP GRM21BR11E105KA99L R 25V 105K 2125 N931L86312 C921 181P80149 C-ELECTROLYTIC-CHIP UWX1V4R7MCL1GB 35V 4R7M N931L86312
C714 141L067O1 C-CERAMIC-CHIP CM21B225K25AT B 25V 225K 2125 N931L86312 C931 141P164O3 C-CERAMIC-CHIP GRM1552C1H221JA01D CH 50V 221J1005 N931L86312
C716 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C932 141L161O7 C-CERAMIC-CHIP GRM188B11H472KA01D B 50V 472K 1608 N931L86312
C720 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C933 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C730 141L184O3 C-CERAMIC-CHIP GRM1882C1H221JA01D CH 50V 221J1608 N931L86312 C934 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C801 141P160O4 C-CERAMIC-CHIP GRM1553C1H3R0CA01D CJ 50V 030C1005 N931L86312 C941 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C802 141P160O3 C-CERAMIC-CHIP CM05CK2R0C50AH CK 50V 020C1005 N931L86312 C942 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C803 141P160O8 C-CERAMIC-CHIP GRM1552C1H7R0DA01D CH 50V 070D1005 N931L86312 C951 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312
C804 141P160O8 C-CERAMIC-CHIP GRM1552C1H7R0DA01D CH 50V 070D1005 N931L86312 C959 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C805 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C960 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C807 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C962 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312
C808 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 C963 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C809 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 C964 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C810 141P153O1 C-CERAMIC-CHIP GRM155B11E103KA01D B 25V 103K1005 N931L86312 C965 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312
C811 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 C966 141L169O0 C-CERAMIC-CHIP CM105B334K10AT-N B10V 334K 1608 N931L86312
C820 141L169O2 C-CERAMIC-CHIP C1608JB1A105KT B10V 105K 1608 N931L86312 C967 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C828 141L169O2 C-CERAMIC-CHIP C1608JB1A105KT B10V 105K 1608 N931L86312 C968 141L169O0 C-CERAMIC-CHIP CM105B334K10AT-N B10V 334K 1608 N931L86312
C829 141L188O5 C-CERAMIC-CHIP GRM1882C1H222JA01 CH 50V 222J1608 N931L86312 C969 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312
C830 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C971 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312
C831 141P167O9 C-CERAMIC-CHIP GRM1552C1H102JA01D CH 50V 102J1005 N931L86312 C972 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312
C832 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312 C973 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312
C834 141L188O5 C-CERAMIC-CHIP GRM1882C1H222JA01 CH 50V 222J1608 N931L86312 C983 141P18441 C-CERAMIC-CHIP GRM32DR71E106KA12E X7R 25V106K3225 N931L86312
19
Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST

Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
Ref. No. Parts No. Parts Name Note Spec.
Base Parts No.
C984 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 D705 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C985 141P173O3 C-CERAMIC-CHIP GRM32EB31C476ME15L B 16V 476M 3225 N931L86312 D708 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C987 141L044O0 C-CERAMIC-CHIP EMK316BJ106KLFT B 16V 106K 3216 N931L86312 D709 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C988 141L047O9 C-CERAMIC-CHIP GRM31CR71E475KA88L X7R 25V475K3216 N931L86312 D710 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C989 141P18441 C-CERAMIC-CHIP GRM32DR71E106KA12E X7R 25V106K3225 N931L86312 D711 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C991 141L049O1 C-CERAMIC-CHIP C3216JB1A106KT B 10V 106K 3216 N931L86312 D712 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C991
A
141P18441 C-CERAMIC-CHIP GRM32DR71E106KA12E X7R 25V106K3225 N931L86312 D713 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C994 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312 D714 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C995 141L185O5 C-CERAMIC-CHIP GRM1882C1E681JA01D CH 25V 681J1608 N931L86312 D716 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C996 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D717 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C997 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312 D718 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C998 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D719 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C999 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 D720 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C9A2 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312 D721 264P560O9 DIODE-ZENER-CHIP UDZS-TE-17 18B N931L86312
C9A3 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D722 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C9A4 189P01511 C-DOUBLE-LAYER DXN-5R5V104PUM 5.5V 104Z N931L86212 D723 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C9A5 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D724 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312
C9B1 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D731 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N931L86312
C9B2 181P80123 C-ELECTROLYTIC-CHIP UWX1C100MCL1GB 16V 100M N931L86312 D801 264P59813 DIODE-ZENER-CHIP DZ2J033MYL N931L86312
C9B3 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D825 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C9B4 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 D830 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9C1 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 D831 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9C2 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D881 264P59819 DIODE-ZENER-CHIP DZ2J051MYL N931L86312
C9C3 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D882 264P59819 DIODE-ZENER-CHIP DZ2J051MYL N931L86312
C9C4 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D883 264P59110 DIODE-ZENER-CHIP UMZC6.8NFST106 N931L86312
C9C5 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312 D901 264P516O1 DIODE-CHIP S3D6600 N931L86312
C9C6 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 D902 264P59827 DIODE-ZENER-CHIP DZ2J091MYL N931L86312
C9C7 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D903 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C9D1 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D911 264P59839 DIODE-ZENER-CHIP DZ2J270MYL N931L86312
C9D21 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 D931 264P64511 DIODE-CHIP RR264M-400TR N931L86312
C9D3 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312 D932 264P610O1 DIODE-CHIP MC2850-T111-1 N931L86312
C9E1 141L049O1 C-CERAMIC-CHIP C3216JB1A106KT B 10V 106K 3216 N931L86312 D941 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9E3 141L049O1 C-CERAMIC-CHIP C3216JB1A106KT B 10V 106K 3216 N931L86312 D951 264P59824 DIODE-ZENER-CHIP DZ2J068MYL N931L86312
C9E4 181P80127 C-ELECTROLYTIC-CHIP UWX1C101MCL1GB 16V 101M N931L86312 D960 264P607O2 DIODE-CHIP 1SR154-400TE25 N931L86312
C9E8 141L066O3 C-CERAMIC-CHIP CM21B475K16AT B 16V 475K 2125 N931L86312 D972 264P59827 DIODE-ZENER-CHIP DZ2J091MYL N931L86312
C9F1 181P80130 C-ELECTROLYTIC-CHIP UUR1C471MNL6GS 16V 471M N931L86312 D981 264P607O2 DIODE-CHIP 1SR154-400TE25 N931L86312
C9F2 141L162O1 C-CERAMIC-CHIP GRM188B11H103KA01D B 50V 103K 1608 N931L86312 D982 264P66410 DIODE RB055L-40
_
TE25 N931L86312
C9F3 141P150O9 C-CERAMIC-CHIP GRM155B11H102KD01D B 50V 102K1005 N931L86312 D9A1 264P607O2 DIODE-CHIP 1SR154-400TE25 N931L86312
C9F4 181P80128 C-ELECTROLYTIC-CHIP UUR1C221MNL1GS 16V 221M N931L86312 D9A2 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9F5 141L044O0 C-CERAMIC-CHIP EMK316BJ106KLFT B 16V 106K 3216 N931L86312 D9A3 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C9F6 141L069O5 C-CERAMIC-CHIP GRM21BB11C105KC01L B 16V 105K 2125 N931L86312 D9B1 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9F7 141L067O0 C-CERAMIC-CHIP CM21B474K25AT-N B 25V 474K2125 N931L86312 D9B2 264P607O2 DIODE-CHIP 1SR154-400TE25 N931L86312
C9F9 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D9C1 264P59821 DIODE-ZENER-CHIP DZ2J056MYL N931L86312
C9F
A
141L187O1 C-CERAMIC-CHIP GRM1882C1H561JA01D CH 50V 561J1608 N931L86312 D9F1 264P62210 DIODE RB161L-40-TE25 N931L86312
C9G1 141L069O7 C-CERAMIC-CHIP GRM21BB10J106KE01L B 6.3V 106K2125 N931L86312 D9F2 264P59822 DIODE-ZENER-CHIP DZ2J056HYL N931L86312
C9G2 141L169O2 C-CERAMIC-CHIP C1608JB1A105KT B10V 105K 1608 N931L86312 D9H1 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C9G3 141L069O5 C-CERAMIC-CHIP GRM21BB11C105KC01L B 16V 105K 2125 N931L86312 D9K1 264P66410 DIODE RB055L-40
_
TE25 N931L86312
C9H1 141L164O6 C-CERAMIC-CHIP GRM188B11C104KA01D B 16V 104K 1608 N931L86312 D9R1 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312
C9H2 141L069O1 C-CERAMIC-CHIP CM21B225K10AT-N B 10V 225K 2125 N931L86312 F921 299P137O1 PROTECTOR-CHIP ICP-S0.5TN N931L86312
C9H3 181P80126 C-ELECTROLYTIC-CHIP UWR1C470MCL1GB 16V 470M N931L86312 FE01 295P23512 TUNER 205E-3AF NAS BAND N931L86212
C9K1 181P80826 C-ELECTROLYTIC-CHIP UUD1C471MNLZMLGS 16V 471M N931L86312 HLD-207 593L70010 HOLDER-TR 20GZE-36 SILVER TOP T0.8 N931L86212
D121 264P610O2 DIODE-CHIP MC2840-T112-1 N931L86312 HLD-9A1 594L05820 HOLDER-TR N931L86212
D201 264P617O1 DIODE-CHIP MC2836-T150-1 N931L86312 HLD-9C1 594L05820 HOLDER-TR N931L86212
D202 264P618O1 DIODE-CHIP MC2838-T150-1 N931L86312 HLD-9F1 593L70010 HOLDER-TR 20GZE-36 SILVER TOP T0.8 N931L86212
D203 264P617O1 DIODE-CHIP MC2836-T150-1 N931L86312 IC171 263L081O0 IC-TAPE BU1924F-E2 RDS DEMODULATOR N931L86312
D204 264P618O1 DIODE-CHIP MC2838-T150-1 N931L86312 IC300 262P01710 IC LV47011P 4CH 50W N931L86212
D5A1 264P59629 DIODE-ZENER-CHIP UDZS-TE-17 22B N931L86312 IC301 263P08811 IC-TAR
Y
A
K7744XR N931L86312
D5A2 264P59629 DIODE-ZENER-CHIP UDZS-TE-17 22B N931L86312 IC330 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D5A3 264P59629 DIODE-ZENER-CHIP UDZS-TE-17 22B N931L86312 IC340 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D5A4 264L060O1 DIODE-CHIP 1SS355 FNTE-17 N931L86312 IC350 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D701 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312 IC380 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D702 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312 IC440 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D703 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312 IC450 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
D704 264P59835 DIODE-ZENER-CHIP DZ2J180MYL N931L86312 IC530 266L065O5 IC-TAPE NJM2115V-TE1 N931L86312
20
Copyright (C) Mitsubishi Electric Corporation. Your company internal use only.
ELECTRICAL PARTS LIST
