BX-3 MASONRY SAW
OWNER'S MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
Caution: Read all safety and operating instructions
before using this equipment. This owners manual MUST
accompany the equipment at all times.
Revision 100
Manual Part No. 158168
www.mkdiamond.com

2
Congratulations on your purchase of a Diamond Vantage Tile Saw. We are certain that you will be
pleased with your purchase. We take pride in producing the finest construction power tools and
diamond blades in the industry.
Operated correctly, your Saw should provide you with years of service. In order to help you, we have
included this manual. This owners manual contains information necessary to operate and maintain
your Saw safely and correctly. Please take a few minutes to familiarize yourself with the Saw by
reading and reviewing this manual.
If you should have questions concerning your Saw, please feel free to call our friendly customer
service department at: 866.322.4078
Regards,
Diamond Vantage
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.
INTRODUCTION

3
TABLE OF CONTENTS
SAFETY
Safety Message/Alert Symbols
Damage Prevention Message
General Safety Precautions and Hazard Symbols
California Proposition 65 Message
Hazard Symbols
Electrical Requirements and Grounding Instructions
Safety Decal Locations
Product Specications
UNPACKING AND ASSEMBLY
Contents
Transport
Assembly
SETUP, ADJUSTMENT AND OPERATION
Setup
Adjustment and Operation
Cleanup
MAINTENANCE AND TROUBLESHOOTING
Maintenance
Troubleshooting
EXPLODED VIEW AND PARTS LIST
Exploded View
Parts List
THEORY OF DIAMOND BLADE
Theory
ACCESSORIES
Accessories and Replacement Parts
ORDERING AND RETURN INSTRUCTIONS
Ordering Information
Return Materials Policy
Contact Information and Limited Warranty
4
5
5
6
7
8-9
11
12
13
13
14
15-16
17-19
20
21-26
27-28
30
31-32
33
34
35
35
35

4
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES:
NOTE: Equipment and/or property damage may result if these instructions are not followed.
In order to prevent injury, the following safety precautions and symbols should be followed at all times!
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
SAFETY PRECAUTIONS
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents.
DO NOT use power tools in damp or wet locations nor expose them to rain. Always
keep the work area well lighted.
All visitors and children should be kept a safe distance from work area.
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is preced-
ed by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you do not follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you do not follow directions.
CAUTION You CAN be INJURED if you do not follow directions. It may also be used to alert
against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine.
ALWAYS keep the Blade Guards in place.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
KEEP CHILDREN AWAY
DO NOT USE IN DANGEROUS PLACES
BX-3 SAFETY

5
If using an extension cord make sure it is in good condition first. When using an extension
cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage that will result in a loss of power and
overheating. TABLE 1, Page 10 shows the correct AWG size to use depending on cord
length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller
the gage number, the heavier the cord.
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair
covering to contain long hair.
Keep proper footing and balance at all times by not overreaching.
Clamps or a vise should be used to hold work whenever practical. Keeping your
hands free to operate a power tool is safer.
Keep tools clean for the best and safest performance. Always follow maintenance
instructions for lubricating, and when changing accessories.
Power tools should always be disconnected before servicing or when changing
accessories, such as blades, bits, cutters, and the like.
Make the workshops kid proof by using padlocks, master switches or by removing starter
keys.
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment, to do a job that it was not designed to do.
MAKE THE WORKSHOP KID PROOF
DO NOT FORCE THE TOOL
USE THE RIGHT TOOL
USE THE PROPER EXTENSION CORD
USE PROPER APPAREL
ALWAYS wear approved eye protection.
ALWAYS wear approved respiratory protection.
ALWAYS place the power ON/OFF switch in the OFF position when the saw is not in use.
ON / OFF
SECURE WORK
DO NOT OVERREACH
MAINTAIN TOOLS WITH CARE
DISCONNECT TOOLS
BX-3 SAFETY

6
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
Before using a power tool, check for damaged part. A guard or any other part that is
damaged should be carefully checked to determine if would operate properly and perform
its intended function. Always check moving parts for proper alignment or binding. Check
for broken parts and mountings and all other conditions that may affect the operation of
the power tool. A guard, or any damaged part, should be properly repaired or replaced.
ALWAYS feed work into a blade or cutter against the direction of rotation. A blade
or cutter should always be installed such that rotation is in the direction of the arrow
imprinted on the side of the blade or cutter.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. Always
turn a power tool OFF when leaving the work area, or, when a cut is finished.
CALIFORNIA PROPOSITION 65 MESSAGE
USE RECOMMENDED ACCESSORIES
NEVER LEAVE A TOOL UNATTENDED
NEVER STAND ON THE TOOL
CHECK FOR DAMAGED PARTS
DIRECTION OF FEED
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
•Lead, from lead-based paints
•Crystalline silica, from bricks and cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/SLTC/silicacrystalline/index.html
http://www.cdc.gov/niosh/consilic.html
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to lter out microscopic particles.
BX-3 SAFETY

7
Sawing and drilling generates dust. Excessive airborne particles may cause irritation to eyes, skin
and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200). Diamond
Blades improperly used are dangerous. Comply with American National Standards Institute Safety
Code, B7.1 and, Occupational Safety and Health Act covering Speed, Safety Guards, Flanges,
Mounting Procedures, General Operating Rules, Handling, Storage and General Machine Conditions
HAZARD SYMBOLS
NEVER touch electrical wires or components while the engine is running. They can be
sources of electrical shock which could cause severe injury or burns.
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury.
Never operate the motor with covers, shrouds, or guards removed.
NEVER tamper with the governor components or settings to increase the maximum
speed. Severe personal injury and damage to the engine or equipment can result if
operated at speeds above maximum.
((
)
)
on
DO NOT expose to rain or use in damp locations.
WARNING
ROTATING PARTS
ELECTRICAL SHOCK
OVER SPEED
DO NOT EXPOSE TO RAIN
BX-3 SAFETY

8
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
In order to prevent potential electrical shock and injury, the following electrical safety precautions and
symbols should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric cur-
rent to reduce the risk of electric shock. This tool is equipped with an electric cord having an equip-
ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
• Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a
qualied electrician
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric cord
or plug is necessary, do not connect the equipment-grounding conductor to a live terminal
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that
accept the tool’s plug
• Repair or replace a damaged or worn cord immediately
WARNING
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, lug, and the like, extending from the adapter, must be connected to
a permanent ground such as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
BX-3 SAFETY

9
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord

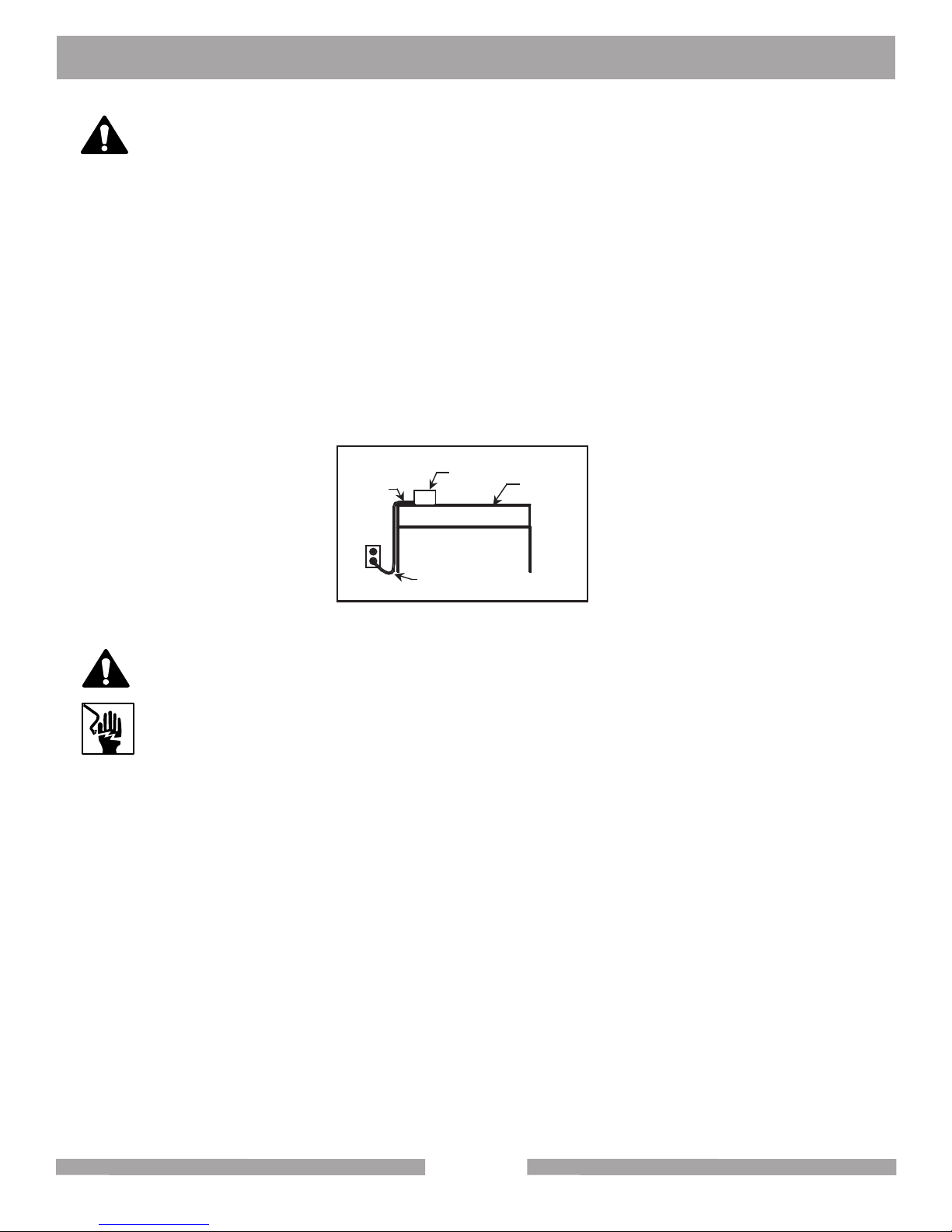

Drip Loop Information
To avoid the possibility of the appliance plug or receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A
“drip loop,” shown in the picture below, should be arranged by the user to properly position the power cord
relative to the power source.
The “drip loop” is that part of the cord below the level of the receptacle, or the connector, if an exten-
sion cord is used. This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking “Acceptable for use with outdoor appliances; store indoors while
not in use." Use only extension cords having an electrical rating not less than the rating
of the product. Do not use damaged extension cords. Examine extension cords before
using and replace if damaged. Do not abuse extension cords and do not yank on any
cord to disconnect. Keep cords away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnecting the product from the extension
cord.
WARNING
BX-3 SAFETY

10
Use of under sized extension cords result in low voltage to the motor that can
result in motor burnout and premature failure. MK Diamond warns that equipment
returned to us showing signs of being run in a low voltage condition, through the use
of undersized extension cords will be repaired or replaced totally at the customer's
expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
To reduce the risk of electrocution, keep all connections dry and off the ground. Do
not touch the plug with wet hands.
WARNING
WARNING
EXTENSION CORD MINIMUM GAGE FOR LENGTH
VOLTS TOTAL LENGTH OF CORD IN FEET
25 ft. AWG 50 ft. AWG 100 ft. AWG 150 ft. AWG
115v 14 12 Not Recommended Not Recommended
230v N/A 14 12 N/A
BX-3 SAFETY

11

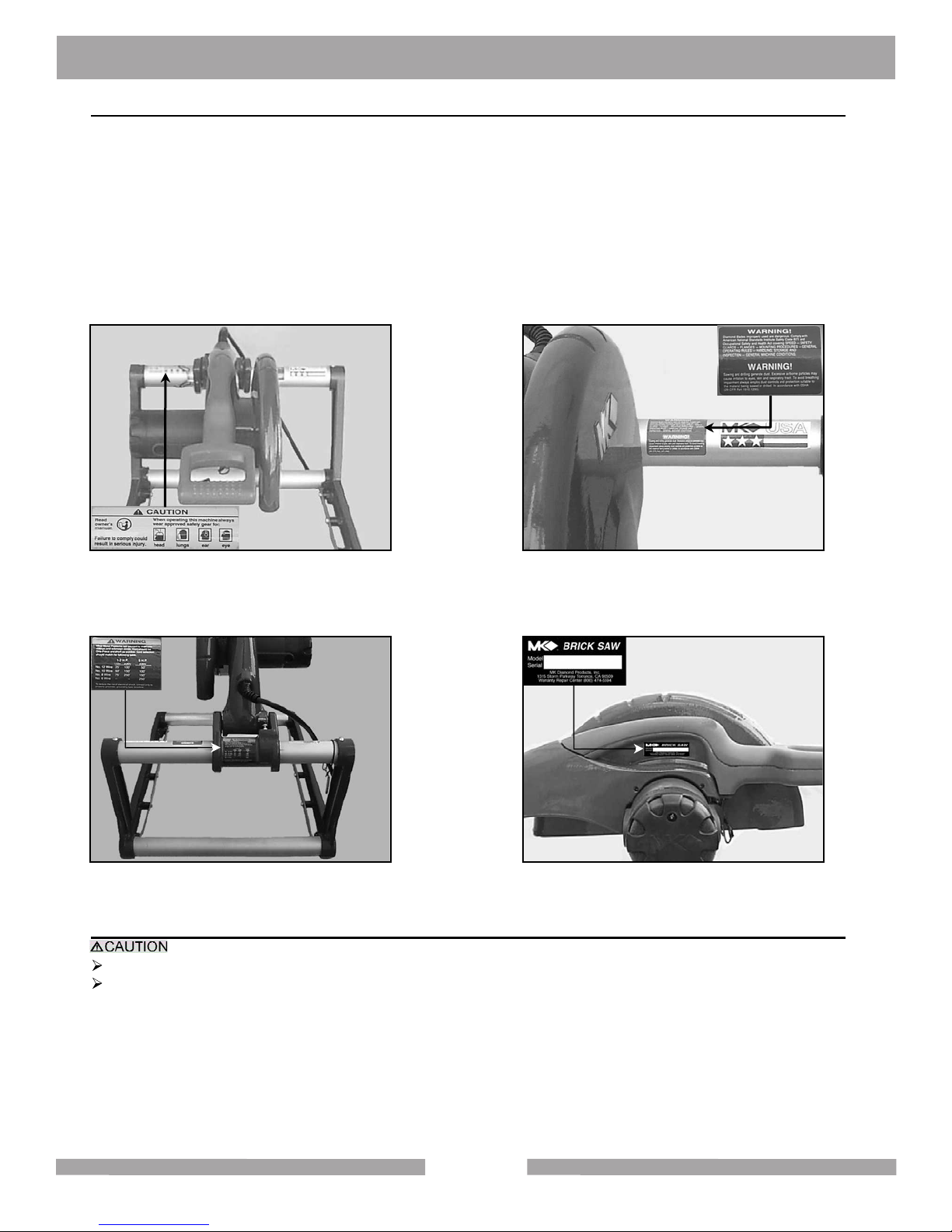

SAFETY LABEL LOCATIONS:
Safety labels are located according to Figures 1 to 4 below. The labels contain important safety information.
Please read the information contained on each safety label. These labels are considered a permanent part of
your saw. If a label comes off or becomes hard to read, contact MK Diamond or your dealer for a
replacement
.oNtraPnoitpircseDnoitacoLmetI
675551lebaLytefaSnoituaCrebmeMssorCreppU,ediStfeL.1
2. Right Side, Upper Cross Member 733451lebaLgninraWnoitalahnItsuD
276551lebaLgninraWdroCnoisnetxErebmeMssorCreppU,kcaB.3
4. Blade Guard Serial Number and Motor Specifications 158096
BRICK SAW SPECIFIC WARNINGS:
Read Owners Manual
Wear Protective Gear for –
• Head
• Lungs
• Ear
• Eye
21
34
BX-3 SAFETY

12
PRODUCT SPECIFICATIONS:
The BX-3 is a versatile lightweight, dry, masonry saw. Operated and used according to this manual, the BX-3
will provide years of dependable service.
General Description:
The BX-3, Brick Xtreme, is engineered as a 14" dry saw, consisting of a powerful 115v motor in a hard plastic
case. The saw is capable of cutting brick and masonry up to 8" x 8" x 16" in size; the blade has a five (5) inch
cutting depth.
Motor and Weight Specifications:
Motor and Weight specifications for the BX-3 are listed in Table 2 below.
v511egatloV
A51egarepmA
zH06ycneuqerF
mpr005,3MPR
*.sbl54thgieW
Table 2
Blade Capacity:
The BX-3 uses a 14-inch diameter segmented dry MK Diamond blade with a .110-inch cutting width.
Masonry Types:
The BX-3 can cut a variety of masonry types including, cinder block, slump stone block, wall brick, paver
brick, concrete block and cylinders, roofing tile, marble, granite, decorative rock or almost any other non-
ferrous material.
NOTE:
The BX-3 is not designed to cut plastic or ferrous (metals) material.
Spring Assisted Cutting Head:
The BX-3 is designed with a spring assisted Cutting Head to allow for easier step cutting. The Cutting Head
can be locked in the down position when cutting smaller pieces.
Lockable Trigger Switch:
The BX-3 is designed with a lockable trigger-operating switch in the handle to allow for ease of operation.
Removable Motor Air Filter:
The BX-3 is designed with an easy clean motor air filter to extend the life of the motor.
Replaceable Motor Brushes:
The BX-3 is designed with replaceable motor brushes to extend operating life.
BX-3 SAFETY

13
UNPACKING:
Your BX-3 has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
If not already done, remove the BX-3 from the carton and place it on a flat surface. Remove Strapping.
Remove the Accessories box from the main carton and place along side the BX-3 (Owners Manual is in
Accessories Box).
CONTENTS:
In the containers, you will find one (1) BX-3, one (1) 14 inch segmented dry diamond blade (or segmented
block blade), one (1) movable cutting table, one (1) adjustable cutting guide, one replacement motor air filter,
one (1) blade wrench, one (1) shaft wrench, one (1) owner's manual and one (1) warranty card.
BX-3 Segmented Dry
Diamond Blade
Adjustable
Cutting Guide
Movable Cutting
Table
Extra Motor
Air Filter
Blade
Wrench
Shaft
Wrench
Owner's
Manual
Warranty
Card
TRANSPORT:
The BX-3 weighs approximately forty (45) pounds (Without the Movable Cutting Table), making transport easy.
Always observe safe lifting practices when lifting the BX-3.
NOTE: Lock the Cutting Head in the DOWN position, and remove the Movable Cutting Table when
transporting the BX-3.
Due to its lightweight construction, the BX-3 is designed to be carried by the durable aluminum frame. Simply
lock the spring assisted cutting head in the DOWN position, grasp the frame by the lower front and upper
back cross members, lift and transport the BX-3 to the desired work location
Lift Point
Cutting Head
Locked Down
- OR -
Locking Pin
Inserted
09.2011
BX-3 MASONRY SAW
OWNERS MANUAL, PARTS LIST &
OPERATING INSTRUCTIONS
www.diamondvantage.com
Caution: Read all safety and operating instructions
before using this equipment. This owners manual MUST
accompany the equipment at all times.
Revision 100
ManualPart No. 158168-DV
BX-3 CONTENTS

14

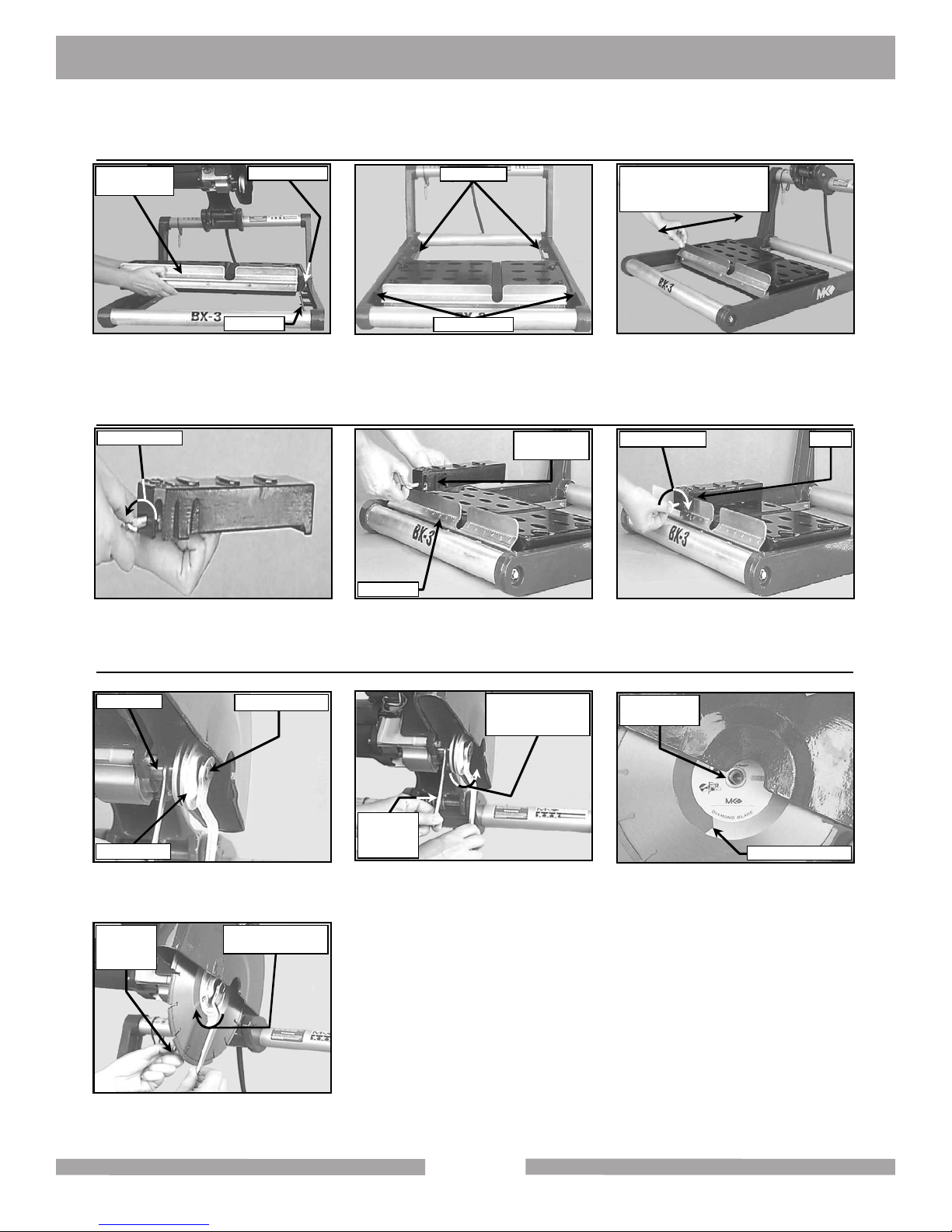

ASSEMBLY:
Follow the assembly instructions to prepare your BX-3 for operation.
1. Movable Cutting Table Installation:
2. Adjustable Cutting Guide Installation:
3. Diamond Blade Installation:
NOTE: When installing the Retaining Screw, do not “cross-thread" and DO NOT over tighten the screw.
(C)
Seat and Tighten
Adjustable Cutting Guide
(B)
Position Adjustable Cutting Guide
Rotate Blade
Wrench Clockwise
(C)
Verify Correct Seating
(A)
Loosen Thumbscrew
(B)
Remove Retaining Screw
and Outer Flange
(A)
Identify Retaining Screw
and Outer Flange
(D)
Install Retaining Screw and
Outer Flange - Tighten
(C)
Install and Seat Blade –
Verify Rotation
(B)
Seat Roller Wheels on
Guide Rails
(A)
Position Movable Cutting Table
Ease of Movement
(See Maintenance Section
If Problems Arise)
Seated
Cutting Table
Front
Roller Wheels
Guide Rail
Guide Rails
Roller Wheels
Ruler/Sto
p
Align
Parallel Slots
Turn to Tighten
Retaining Screw
Motor Shaft
Hold Shaft
Wrench
Stationary
Rotate Blade
Wrench
Counte
r
-clockwise
Outer Flange
Seat Blade on
Inner Flange
Rotation Direction
Hold Shaft
Wrench
Stationary
Turn to Loosen
BX-3 ASSEMBLY

15
SETUP:
• Before powering or starting, check for damage that could prevent this equipment from proper operation or
performing its intended function. Check for binding and alignment of moving parts. Check for damaged,
broken, or missing parts.
• Verify the trigger switch, locking button is in the "RELEASE" position.
• Before connecting the BX-3 to a power supply, be sure the voltage, cycle and phase of the job site power
source meet the requirements of TABLE 3
VOLTAGE: 115v
CYCLE: 60hz
PHASE: single phase
TABLE 3
• If using an extension power cord, make sure the length and wire gauge corresponds to the requirements
listed in TABLE 1 on page 7. An extension power cord that is too small in wire gauge (diameter), or too
long in length, will cause the motor to overheat and could cause premature failure.
• Use an approved Ground Fault Circuit Interrupter (GFCI)
• Do not cover the motor vents as this could lead to motor overheating.
Portable Generator:
If using a portable generator to provide power, ensure the generator meets the following minimum
requirements:
8 kW 120/240 volts 66.7/33.3 amps Single Phase
Pre-start Inspection:
The pre-start inspection should be performed before beginning any job.
NOTE: In order to avoid breaker tripping, a 20-amp circuit breaker should be used.
If the Diamond Blade shows signs of fatigue cracking, replace the blade before starting work.
(B)
Inspect Wooden Strip for
Excessive Grooves
(C)
Movable Cutting Table
Moves Freely
(A)
Inspect Blade for Damage – Verify
Blade Correct for Material Being Cut
(E)
Inspect Motor Air Filter for
Cleanliness
(D)
Inspect for Damage
(F)
Verify Trigger Switch Unlocked
Ease of Movement
(See Maintenance Section
if Problems Arise)
Cracks
Replace if Excessively Grooved
(See Maintenance Section
if Problems Arise)
Inspection
Points
Check for Cleanliness
(See Maintenance Section)
Underside of Handle
Trigger Switch
(Push to Unlock)
Trigger Lock
(Push to Lock)
BX-3 SETUP

16
If an extension cord is used, first verify it meets the requirements of TABLE 1 (page 9). Plug the
BX-3 into the extension cord; plug the extension cord into a GFCI. Finally, plug the GFCI into the
power source in that order.
(G)
Plug GFCI into BX-3
(H)
Plug GFCI into Power Source
GFCIPower
Source
BX-3 SETUP

17

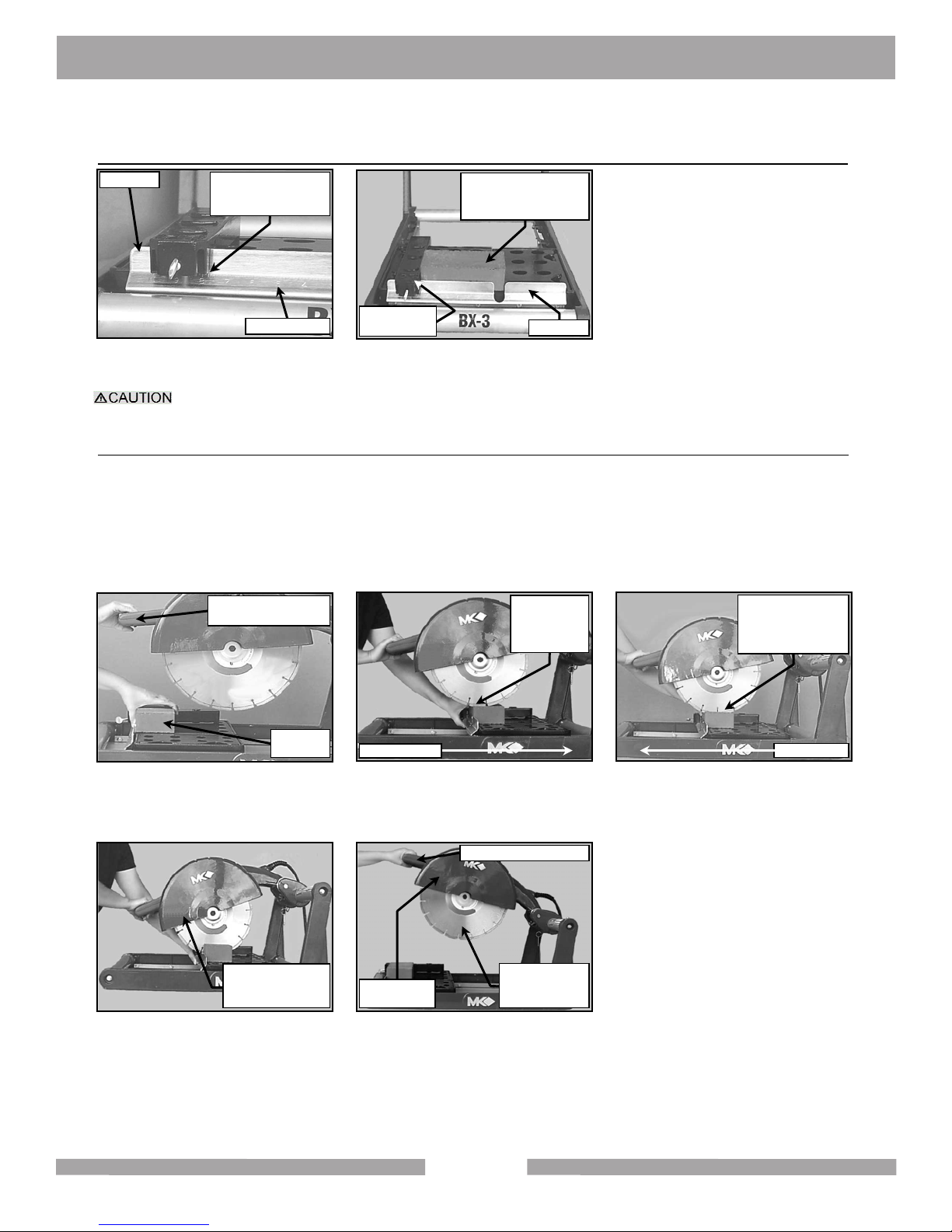

ADJUSTMENT AND OPERATION:
1. Cutting Setup:
DO NOT FORCE the blade to cut, it will do the job better and safer at rate for which it was
designed.
2. Step Cuts:
A Step Cut is performed when a series of small cuts of increasing depth are used to complete a single cut.
Step Cuts are used for large objects or for hard objects such as Firebrick and Pavers.
NOTE: 1. Step Cutting is the preferred cutting method for all cuts.
2. When cutting hard material Step Cutting should always be used.
3. Step Cutting will extend the life of the Diamond Blade.
(A)
Set Adjustable Cutting Guide
(B)
Position Masonry Piece
(B)
Step Cut “Push” Stroke
(A)
Step Cut Setup
(E)
Cutting Complete
(D)
Repeat Steps B and C
Until Cut Complete
(C)
Step Cut “Pull” Stroke
Ruler/Stop Set Edge of Cutting
Guide to Desired Cut
Length on Ruler/Stop
Ruler Markings Ruler/Stop
Set against Adjustable
Cutting Guide and
Ruler/Stop
Depress Trigger to
Start (Lock if Desired)
Hold Work
in Position Push Direction
Lower Cutting
Head 1/4 -1/2
Inch During
Push Stroke
Lower Cutting
Head Additional
1/4 -1/2 Inch During
Pull Stroke
Pull Direction
Repeat “Push”
and “Pull” Strokes
Until Cut Complete
Release Trigger Switch
Raise Cutting
Head
Allow Blade to
Stop Before
Removing Work
Adjustable
Cutting Guide
BX-3 ADJUSTMENT

18
3. Chop Cutting:
A Chop Cut is performed by cutting completely through an object in one pass.
4. Cutting with the Cutting Head Locked Down:
This method is preferred when cutting small objects.
(A)
Chop Cut Setup
(B)
Lower Cutting Head
to Begin Cutting
(C)
Continue Lowering Head
until Cut Complete
(D)
Cutting Complete
(B)
Locked Cutting Head Setup
(A)
Lock Cutting Head in
the Down Position
(E)
Cutting Complete
(D)
Continue Pushing Piece into
Blade until Cut Complete
(C)
Slowly Push Piece toward Blade
to Begin the Cut
Release Trigger Switch
Raise Cutting
Head
Allow Blade to
Stop Before
Removing Work
Depress Trigger to
Start (Lock if Desired)
Position
Work Below
Cutting Head
Lower Cutting
Head Smoothly
to Cut
Hold Roller
Trolley Stationery
Continue to Lower
Cutting Head until
Cut Complete
Align Holes and
Lock Cutting
Head in Position
Lock Trigger Switch
Hold Work
in PositionPush Slowl
y
to Cut
Continue to Push
until Cut Complete
Unlock Trigger Switch
When Cut Complete
Remove Locking
Pin to Release
Cutting Head Hold in Position
Push Slowl
y
to Cut
Allow Blade to
Stop Before
Removing Work
BX-3 ADJUSTMENT

19

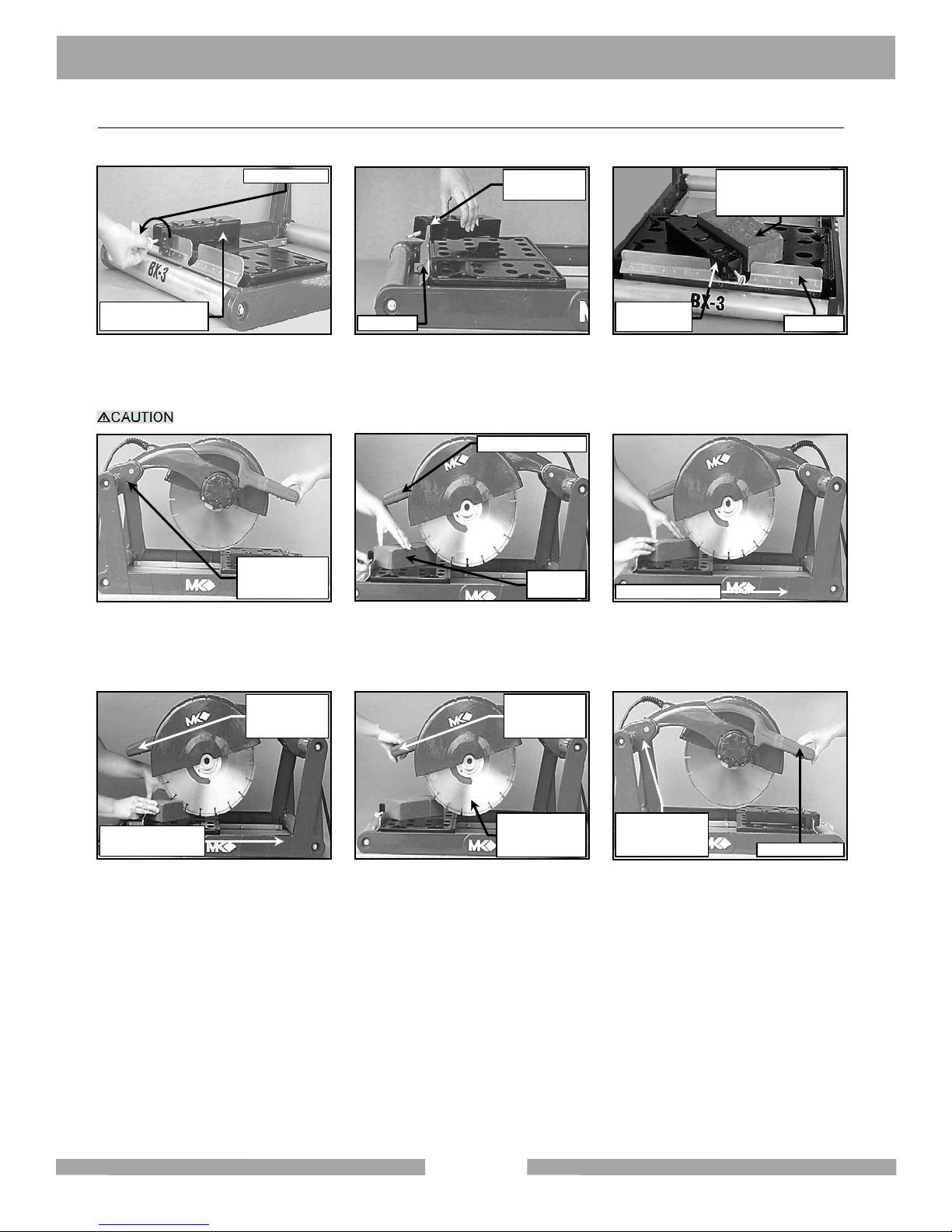

5. Angle Cuts:
Angle Cuts may be performed using the Step Cut, Chop Cut or the Locked Cutting Head cutting methods.
The following is utilizing the Locked Cutting Head method.
DO NOT FORCE TOOL, it will do the job better and safer at the rate for which it was designed.
(A)
Remove Adjustable
Cutting Guide
(B)
RepositionAdjustable
Cutting Guide
(C)
Position Adjustable
Cutting Guide
(E)
Locked Cutting Head Setup
(D)
Lock Cutting Head in
the Down Position
(I)
Release Cutting Head
(G)
Continue Pushing Piece into
Blade until Cut Complete
(F)
Slowly Push Piece toward Blade
to Begin the Cut
(H)
Cutting Complete
Remove Adjustable
Cuttin
g
Guide
Turn to Loosen
Ruler/Stop
Align 45°Slots
to Ruler/Stop
Ruler/Stop
Set against Adjustable
Cutting Guide and
Ruler/Stop
Align Holes and
Lock Cutting
Head in Position
Lock Trigger Switch
Hold Work
in PositionPush Slowl
y
to Cut
Continue to Push
until Cut Complete
Unlock Trigger
Switch when
Cut Complete
Remove Locking
Pin to Release
Cutting Head Hold in Position
Unlock Trigger
Switch when
Cut Complete
Allow Blade to
Stop Before
Removing Work
Adjustable
Cutting Guide
BX-3 ADJUSTMENT

20
6. Cleanup:
Always wear eye protection when using compressed air.
(B)
Unplug GFCI from BX-3
(C)
Remove Motor Filter Cap
(A)
Unplug GFCI from Power Source
(E)
Clean Filter by Tapping on Hard
Surface or using Compressed Air
(D)
Remove Filter from Filter Cap
(H)
Clean the Movable Cutting Table
Roller Wheels and Guide Rails
(G)
Install Motor Filter
Cap onto Motor
(F)
Reinstall Filter into Filter Cap
(I)
Clean Remainder of BX-3
Tap on Hard
Surface to
Dislodge Dirt
Power
Source
GFCI
Pull Foam Filter
Out of Filter Cap
A
lign Filter Cap
Retaining Clips
to Spacer Pins
Push Filter Cap
onto Spacer
Pins to seat
Clean Guide Rails
Clean BX-3
Usin
g
Clean Cloth
Pull Straight Back
To Remove Cap
Install Foam Filter
into Filter Cap
Clean Roller
Wheels
BX-3 ADJUSTMENT
