MK Diamond Products MK-1080 Application guide

MK-1080 PAVER SAW
OPERATION & PARTS MANUAL
www.mkdiamond.com
MK Diamond Products, Inc.
Caution: Read all safety and operating instructions before
using this equipment.This manual MUST accompany the
equipment at all times.
07.2009Revision 100
Manual Part No. 166894

22
MK-1080 PAVER SAW NOTES
Congratulations on your purchase of a MK-1080 Paver Saw. We are certain that you will be pleased
with your purchase. MK Diamond takes pride in producing the finest construction power tools and
diamond blades in the industry.
Operated correctly, your MK-1080 Paver Saw should provide you with years of service. In order to
help you, we have included this manual. This owners manual contains information necessary to operate
and maintain your MK-1080 Paver Saw safely and correctly. Please take a few minutes to familiarize
yourself with the MK-1080 Paver Saw by reading and reviewing this manual.
If you should have questions concerning your MK-1080 Paver Saw, please feel free to call our friendly
customer service department at: 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
SAFETY
Safety Message/Alert Symbols
Safety Warnings
Hazard Symbols
Rules for Safe Operation
Electric Motor Safety
Electrical Requirements & Grounding Instructions
Operation & Safety Decals
Safety Decal Locations
PRODUCT SPECIFICATIONS
Specications
INSPECTION & SET-UP

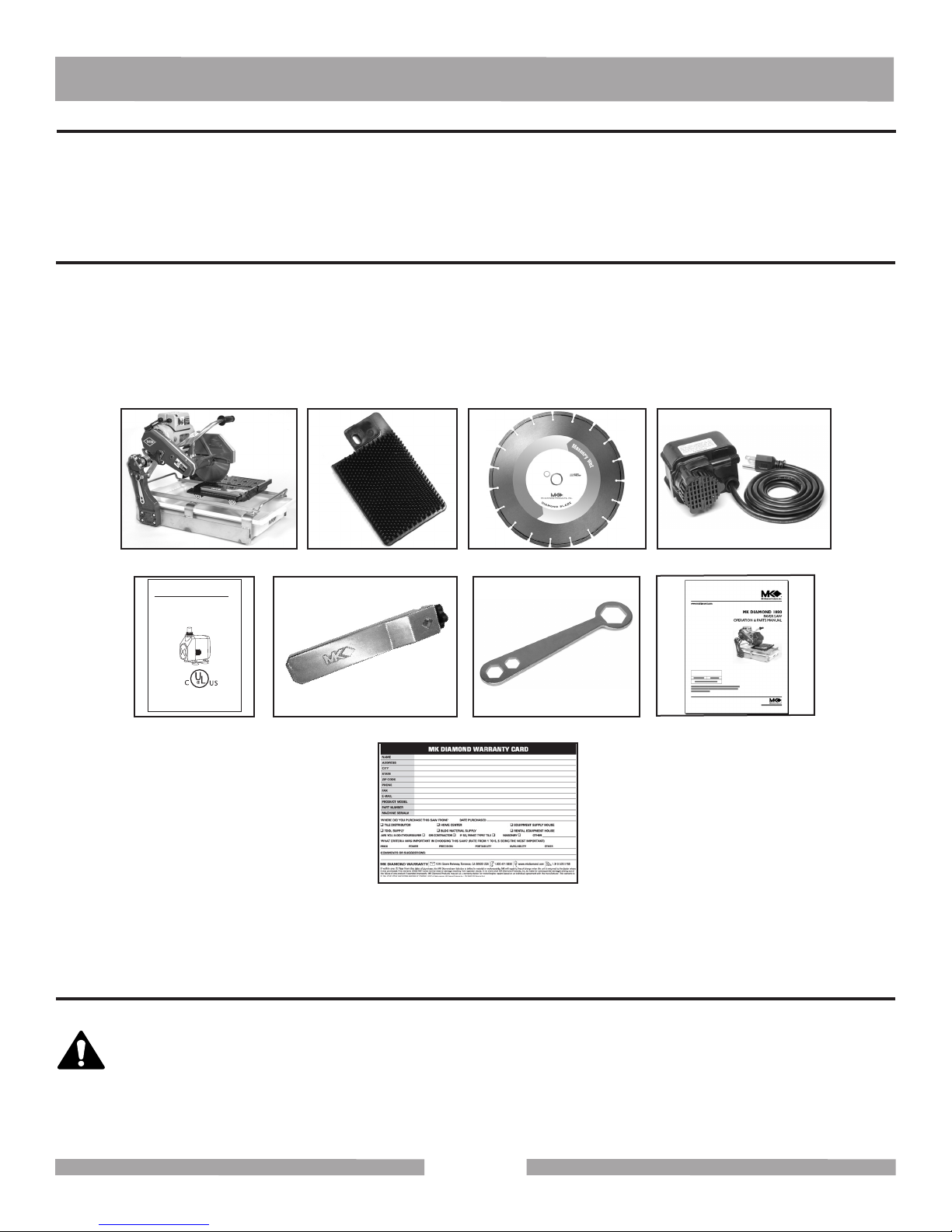

Unpacking & Contents

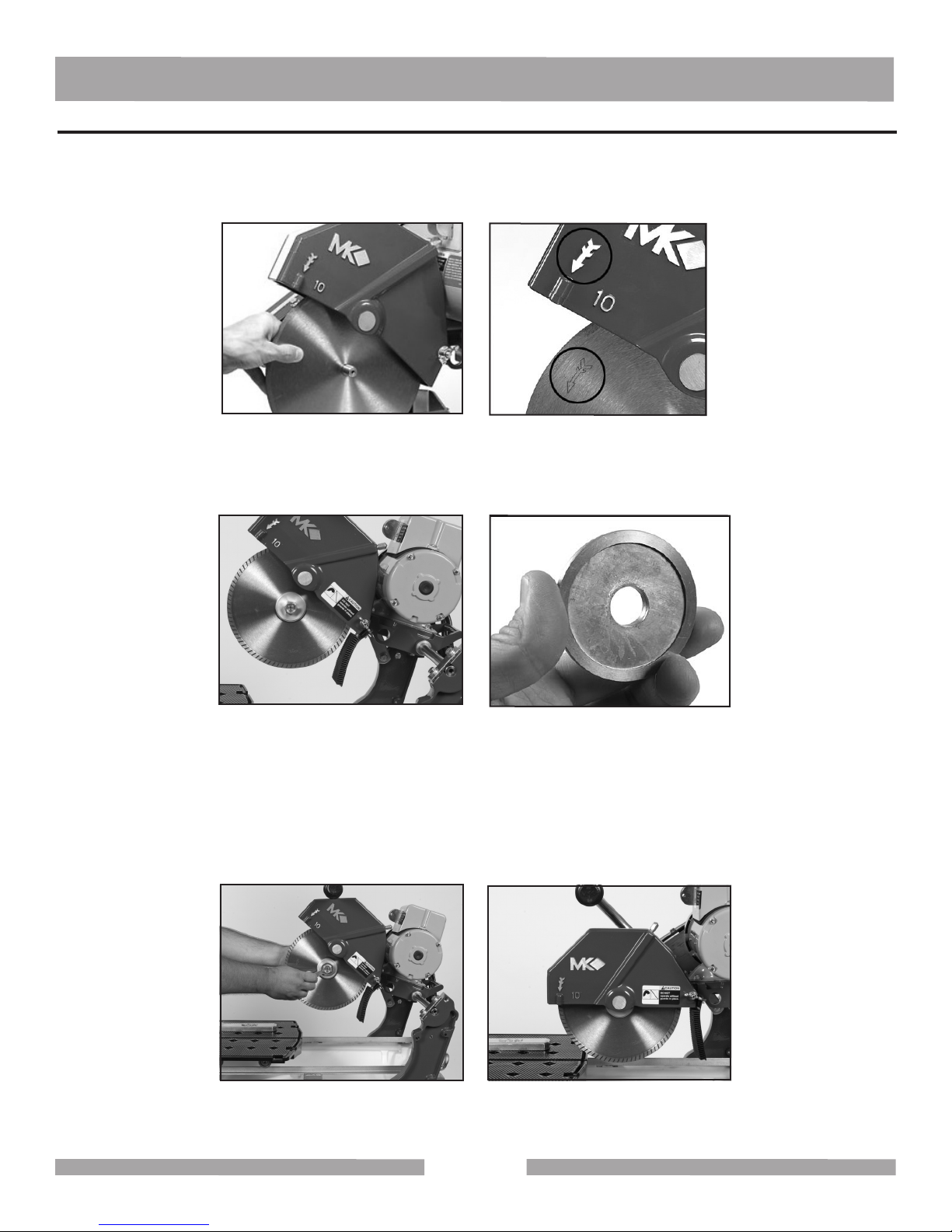

Installing the Blade
Installing the Water Pump
OPERATION
Motor Information
Cutting Operations
MAINTENANCE

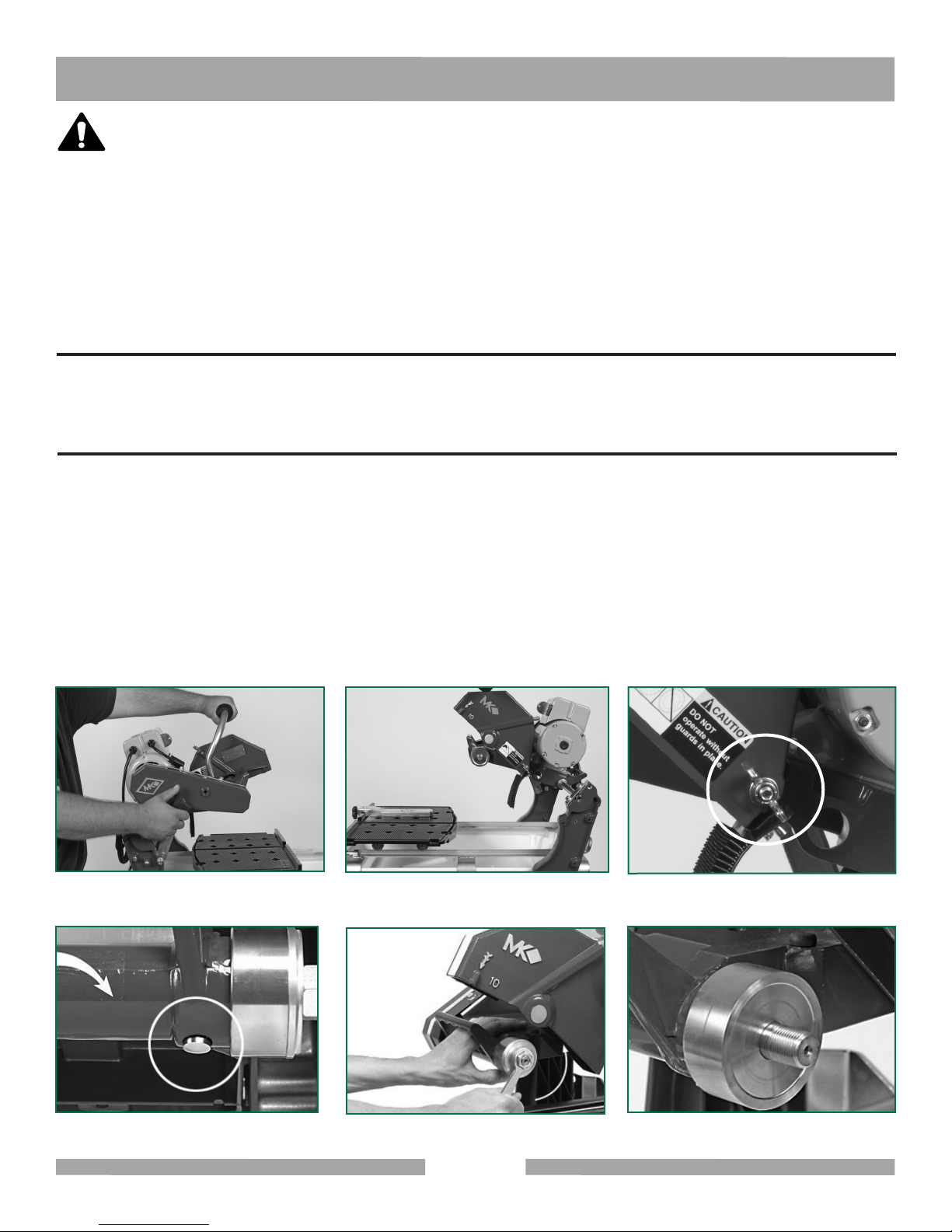

Adjusting Belt Tension
Adjusting Blade Alignment to Table
Diamond Blade Sharpening (Re-Dressing)
GENERAL PRODUCT INFORMATION
Parts List: Paver Saw, MK-1080 1.5 HP 120V 60HZ, 153203
Parts List: Paver Saw, MK-1080 Home Depot 1.5 HP 120V 60HZ, 153203-HD
Parts List: Paver Saw, MK-1080 Assy, Cutting Head, 166877
Parts List: Paver Saw, MK-1080 Home Depot Assy, Cutting Head, 166877-HD
Parts List: Paver Saw, MK-1080 Assy, Motor Mount, 166878
Parts List: Paver Saw, MK-1080 Home Depot Assy, Motor Mount, 166878-HD
Parts List: Paver Saw, MK-1080 Assy,Table, 166880
Parts List: Paver Saw, MK-1080 Assy, Blade Guard, 154297
Parts List: Paver Saw, MK-1080 Home Depot Assy, Blade Guard, 154297-HD
Parts List: Paver Saw, MK-1080 Assy, Spring Bushing, 166874
Ordering Information
Contact Information and Limited Warranty
4
5
6
7-8
9
10-11
12
13
14
15
16-17
18
19
20
21-22
23
23
24-25
26-27
28-29
30-31
32-33
34-35
36
37
38
39
40
40
MK-1080 PAVER SAW TABLE OF CONTENTS
PAGE
NO.
MK-1080 PAVER SAW

4
Safety precautions should be followed at all times when operating this equipment. Failure to read and
understand the Safety Precaution and Operating Instructions could result in injury to yourself and others.
This Operation and Part Manual has been developed to provide complete instructions for the safe and
efcient operation of the MK-1080 Paver Saw.
SAFETY MESSAGE / ALERT SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER
You WILL be KILLED or SERIOUSLY INJURED if you do not follow directions.
WARNING
You CAN be KILLED or SERIOUSLY INJURED if you do not follow directions.
CAUTION
You CAN be INJURED if you do not follow directions.It may also be used to alert
against unsafe practices.
NOTICE
You can cause PROPERTY DAMAGE to your machine if you don’t follow directions.
Each message tells you what the hazard is, what can happen, and what you can do to avoid or reduce injury.
Other important messages are preceded by the word NOTICE.
The safety labels should be periodically inspected and cleaned by the user to maintain good legibility at a
safe viewing distance. If the label is worn, damaged or illegible, it should be replaced. Contact MK Diamond or
your dealer for replacement.
MK-1080 PAVER SAW SAFETY
Before using this saw, ensure that the person operating the equipment has read and under-
stands all instructions in this manual.

5
MK-1080 PAVER SAW SAFETY
SAFETY WARNINGS
SILICA DUST WARNING:
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz, brick clay,
granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline
silica can cause serious or fatal respiratory diseases, including silicosis. In addition, California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer. When cutting such
materials, always follow respiratory precautions.
CALIFORNIA PROPOSITION 65 MESSAGE:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contain
chemicals known (to the State of California) to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
•Lead, from lead-based paints
•Crystalline silica, from bricks and cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/SLTC/silicacrystalline/index.html
http://www.oehha.org/prop65/out_of_date/6022kLstA.html
Your risk from these exposures varies depending on how often you do this type of work.To reduce your
exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment,
such as those dust masks that are specially designed to lter out microscopic particles.

6
MK-1080 PAVER SAW SAFETY
Potential hazards associated with the MK-1080 Paver Saw will be referenced with Hazard Symbols which
appear throughout this manual, and will be referenced in conjunction with Safety Message Alert Symbols.
NEVER operate equipment with covers, or guards removed.
ALWAYS place the power ON/OFF switch in the OFF position when the MK-1080 Paver Saw
is not in use.
ALWAYS wear approved eye protection.
HAZARD SYMBOLS
ON / OFF
ALWAYS wear approved respiratory protection.
ALWAYS read this Owner’s Manual before operating the machine.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist.
ALWAYS use caution around gears. Keep ngers, hands, hair and clothing away from all moving
parts to prevent injury.
DO NOT touch hot engine components while the machine is running or immediately after
operating.
NEVER touch the power cord with wet hands or while standing in water when it is connected
to a power source.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
ALWAYS wear approved ear protection.

7
• DO NOT operate or service this equipment before reading this entire manual.
This equipment should not be operated by persons under 18 years of age.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER operate this equipment under the inuence of drugs or alcohol.
Whenever necessary, replace nameplate, operation and safety decals when they become difcult to read.
• ALWAYS wear proper respiratory, hearing and shatterproof eye protection.
NEVER operate this equipment without protective clothing and steeltoed boots.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry
location out of the reach of children.
• NEVER leave the machine unattended.Turn off electric motor when unattended.
CAUTION must be observed while servicing the machine. Rotating parts can cause injury if contacted.
Ensure that any electrical extension cord is protected against damage. ALWAYS ensure that the electrical
extension cord is not trapped underneath the machine.
DO NOT allow extension cord to come into contact with water or uids. DO NOT spray water onto electric motor.
• NEVER operate the machine in an explosive atmosphere.
Before starting the machine, ALWAYS check that all guards are in position and correctly tted. Check the
machine for loose bolts before starting.
Keep area around the machine clear of obstructions which could cause persons to fall onto moving parts.
ALWAYS ensure that the machine is on level ground before using.
Know how to stop the machine quickly in case of emergency. NEVER try to stop a moving blade with your
hands.
MK-1080 PAVER SAW SAFETY
•
•
•
•
Failure to follow instructions in this manual may lead to serious injury or even death! This equipment is to
be operated by trained and qualied personnel only! This equipment is for industrial use only.
The following safety guidelines should always be used when operating the MK-1080 Paver Saw.
GENERAL SAFETY
•
•
•
•
•
•
•
•
DANGER
RULES FOR SAFE OPERATION
ON / OFF

8
ALWAYS disconnect AC power plug from power source before moving or servicing the machine.
Make sure the OFF/ON power switch on the electric motor is always in the OFF position before inserting
the machine’s power plug into an AC receptacle.
Operate electric motor only at the specied voltage indicated on the nameplate.
NEVER disconnect any “emergency or safety devices”.These devices are intended for operator safety.
Disconnection of these devices can cause severe injury, bodily harm or even death! Disconnection
of any of these devices will void all warranties.
Unauthorized equipment modications will void all warranties. Manufacturer does not assume responsibility
for any accident due to equipment modications.
NEVER use accessories or attachments, which are not recommended by MK Diamond for this equipment.
Damage to the equipment and/or injury to user may result.
The MK-1080 Paver Saw is designed to be used only with approved diamond cutters.
MK-1080 PAVER SAW SAFETY
•
•
•
•
•
•
•
•
•
•
NEVER lubricate components or attempt service on a running machine.
Keep the machinery in proper running condition.
Fix damage to the machine immediately and always replace broken parts, or missing decals.
MAINTENANCE SAFETY
WARNING
DO NOT use woodcutting, or carbide blades on this machine! Use ONLY Diamond blades on machine. Use
machine only to cut tile and masonry products. DO NOT use machine to cut wood or wood products.

9
To choose the proper extension cord:
•
•
ELECTRIC MOTOR SAFETY
For maintenance care and operation of the electric motor, refer to your electric motor instruction booklet
furnished with the electric motor.
Protect the electric motor from dust as much as possible and keep ventilating openings clean.
Electric Motor Connection
ALWAYS make certain that the power source required for the electric motor is correct and always use the
correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below the voltage rat-
ing of the motor. Failure to use proper voltage will cause the motor to overheat. Make certain that the correct
size grounded (3-wires) extension cord is used. See the table below.
•
•
DO NOT spray water on the electric motor. Do not touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
DO NOT operate electric motor in an explosive environment.
CAUTION
MK-1080 PAVER SAW SAFETY
NOTICE
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’
100’
150’
250’
Max. Cord Length
Max. Cord Length
Max. Cord Length
No. 12 Wire
No. 10 Wire
No. 8 Wire
115v 230v
Fig. 1 Extension Cord Table

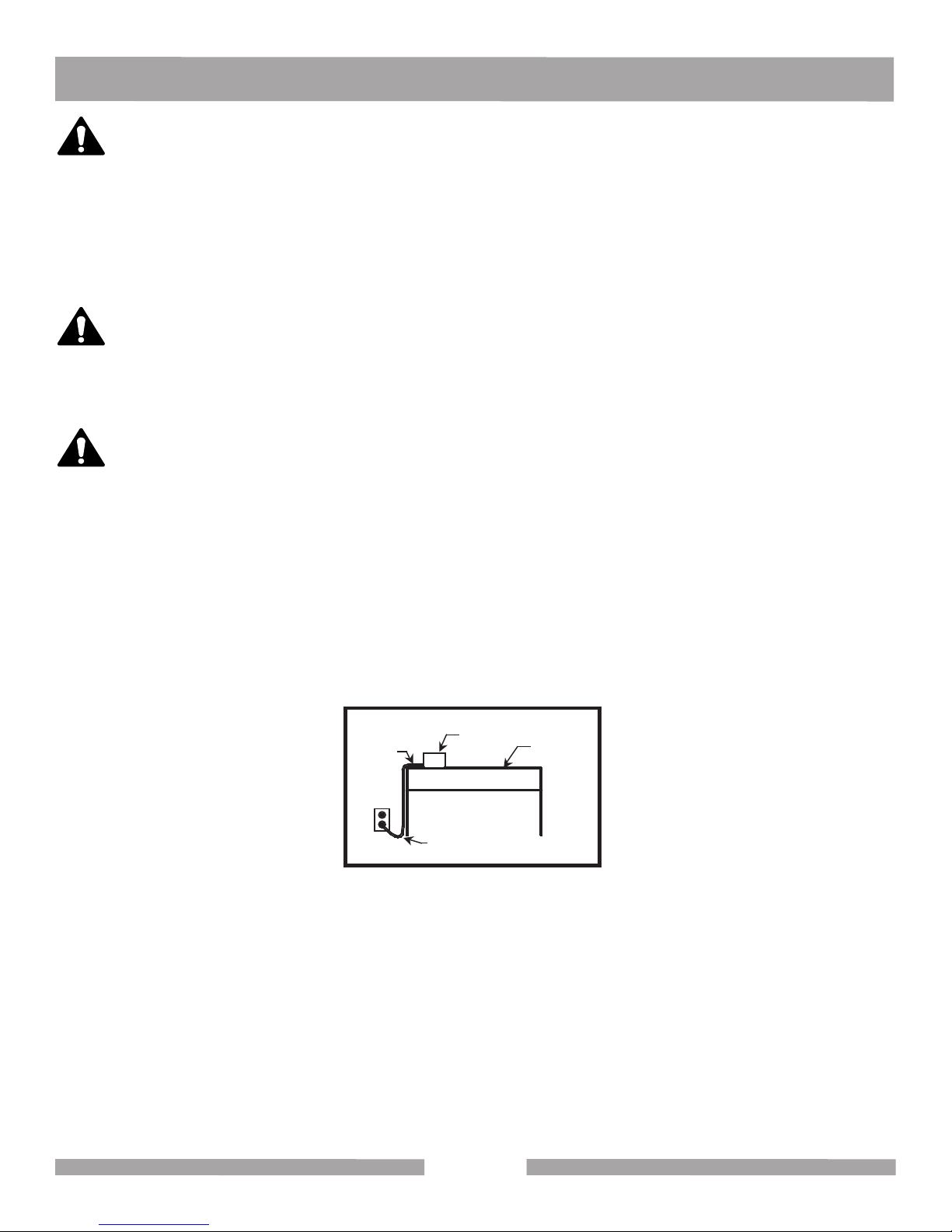

WARNING
Use only extensions cords that are intended for outdoor use. These extension cords are identied by a
marking,“Acceptable for use with outdoor appliances; store indoors while not in use.” Use only extension
cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords.
Examine extension cords before using and replace if damaged. Do not abuse extension cords and do not yank
on any cord to disconnect. Always disconnect the extension cord from the receptacle before disconnecting
the product from the extension cord.
WARNING
Locate the length of extension cord needed in
table to the right.
Once the proper length is found, move down the
column to obtain the correct AWG size required
for that length of extension cord.
Use of undersize extension cords result in low voltage to the motor that can result in motor burnout and
premature failure. MK Diamond warns that equipment returned to us showing signs of being run in a low
voltage condition, through the use of undersized extension cords will be repaired or replaced totally at the
customers expense. There will be no warranty claim.

10

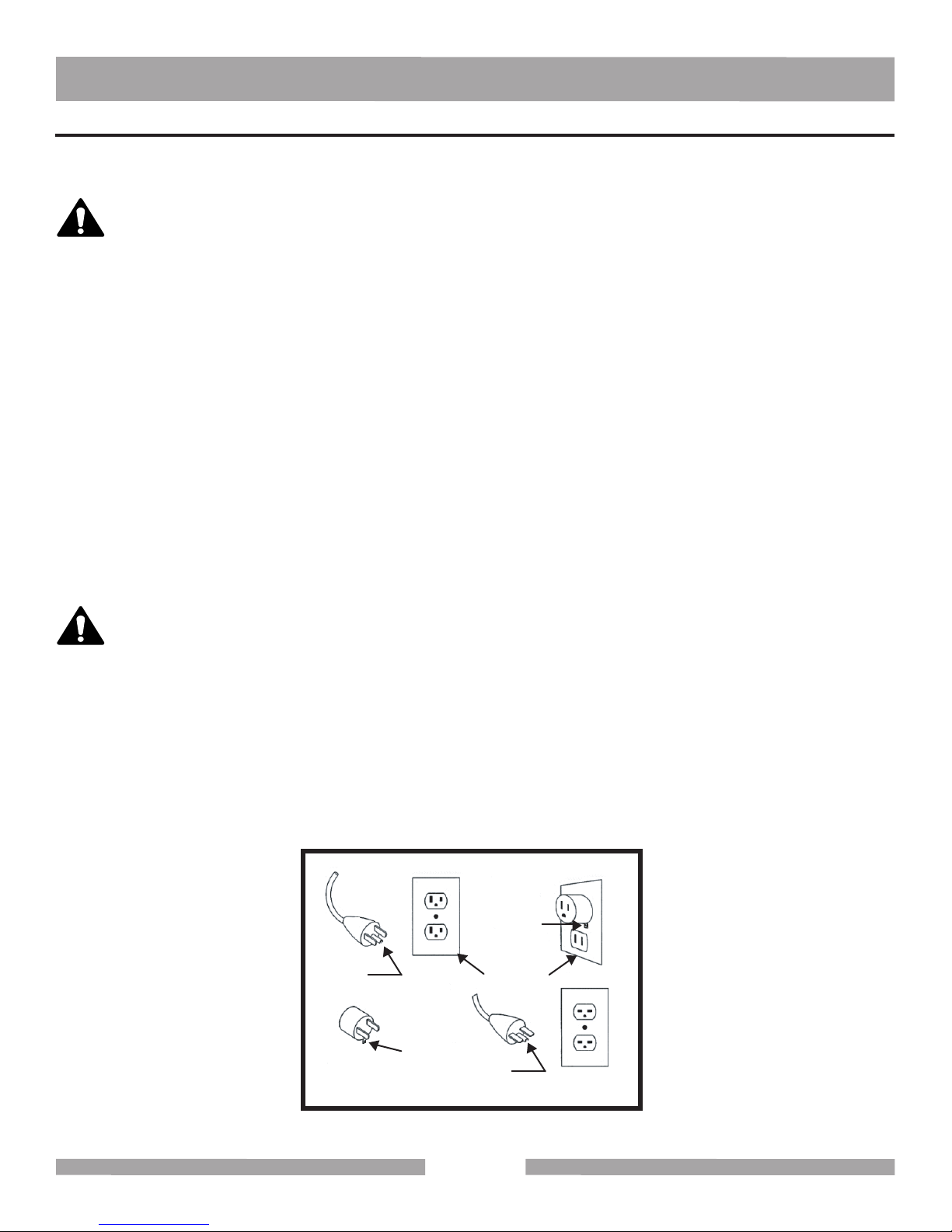

In order to prevent potential electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
In case of a malfunction or breakdown, grounding provides a path of least resistance for electric current to
reduce the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
•
•
•
•
•
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
WARNING
Do not modify the plug provided – if it will not t the outlet; have the proper outlet installed by a qualied
electrician.
Improper connections of the equipment-grounding conductor can result in a risk of electric shock. The
equipment-grounding conductor is the insulated conductor that has an outer surface that is green, with or
without yellow stripes. If repair or replacement of the electric cord or plug is necessary, do not connect
the equipment-grounding conductor to a live terminal.
Check with a qualied electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept the
tool’s plug.
Repair or replace a damaged or worn cord immediately.
WARNING
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A of
Figure 2. The tool has a grounding plug that looks like the plug illustrated in Sketch A of Figure 2. A temporary
adapter, which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary adapter
should be used only until a properly grounded outlet can be installed by a qualied electrician. The green-
colored rigid ear, lug, and the like, extending from the adapter, must be connected to a permanent ground such
as a properly grounded outlet box.
NOTE: Use of a temporary adapter is not permitted in Canada.
'ROUNDING
-EANS
!
-ETAL3CREW
#OVEROF
'ROUNDED
/UTLET"OX
$
!$!04%2
# 'ROUNDING
0IN
'ROUNDING
0IN "
Fig. 2 Circuit and Adapter Information
MK-1080 PAVER SAW SAFETY

11
MK-1080 PAVER SAW SAFETY
3UPPORTING
3URFACE
0OWER
4OOL
$RIP,OOP
0OWER
#ORD
To reduce the risk of electrocution, keep all connections dry and off the ground.
A Ground Fault Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this measure of safety.
When using an extension cord, the GFCI should be installed closest to the power source, followed by the
extension cord and lastly, the machine.
WARNING
WARNING
The pump requires a GFCI. To reduce risk of electric shock when operating the machine with the pump
plugged into the 3-pole receptacle on the motor, connect the saw to a GFCI outlet. See the pump manual and
informational tags enclosed separately for all pump information.
Fig. 3 Drip Loop Information
To avoid the possibility of the appliance plug or receptacle getting wet, position the machine to one side of
a wall mounted receptacle. This will prevent water from dripping onto the receptacle or plug. A “drip loop,”
shown in Figure 3, should be arranged by the user to properly position the power cord relative to the power source.
The “drip loop” is that part of the cord below the level of the receptacle, or the connector, if an extension
cord is used. This method of positioning the cord prevents the travel of water along the power cord and
coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker that
supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
WARNING

12
MK-1080 PAVER SAW SAFETY
The MK-1080 Paver Saw is equipped with a number of safety decals.These decals are provided for opera-
tor safety and maintenance information.The photo on the next page also shows the location of these decals.
Should any of these operation or safety decals become unreadable, replacements can be obtained by calling
[phone].
OPERATION & SAFETY DECALS
WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in
their composition may give off dust or mists containing crystalline silica. Silica is a basic
component of sand, quartz, brick clay, granite and numerous other minerals and rocks.
Repeated and/or substantial inhalation of airborne crystalline silica can cause serious
or fatal respiratory diseases, including silicosis. In addition,California and some other
authorities have listed respirable crystalline silica as a substance known to cause cancer.
!
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
DO NOT operate
this equipment
before reading
the owners’
manual!
WARNING
!
CAUTION
DO NOT
operate without
guards in place.
!
This saw is to be used
with a Ground Fault
Circuit Interrupter.
!CAUTION
Decal A Decal B
Decal C
Decal D
Decal E
Decal F
Figure 5. MK-1080 Paver Saw Safety Decal Sheet, Part No. 166011
Decal G Decal H Decal I
Receptacle is for
water pump only.
125V .6 amps max.
!CAUTION
WARNING
In the event of
blade failure,
replace blade
guard
immediately.
!
CAUTION
DO NOT
operate without
guards in place.
!
Most Motor Problems are caused by improper
voltage and extension cords. Cord should be
one-piece and short as possible. Cord
selection should match the following table.
1-2 H.P.
25’
50’
75’
100’
150’
250’
Max. Cord Length
Max. Cord Length
Max. Cord Length
No. 12 Wire
No. 10 Wire
No. 8 Wire
115v 230v
NOTICE
!

13
MK-1080 PAVER SAW SAFETY
SAFETY DECAL LOCATIONS
Decal
A
B
C
D
E
F
G
H
I
Location Description
Capacitor Box/Front Read Owners Manual
Electric Motor/Back Proposition 65, Dust Warning
Capacitor Box/Back Voltage & Cord Notice
Capacitor Box/Top Ground Warning (GFCI)
Blade Guard/Front Blade Guard Failure
Capacitor Box /Back Service Information
Capacitor Box/Top Water Pump Attachment
Belt Guard/Front Guards in Place
Blade Guard/Front Replace Blade Guard
Fig. 6 MK-1080 Paver Saw Safety Decal Locations
E
B
C & F
D & G
I
H
A

14
•
•
•
•
•
•
•
•
MK-1080 PAVER SAW PRODUCT SPECIFICATIONS
High torque, thermally protected 1-1/2 HP motor
Recoil spring counterbalanced cutting head
Cutting table travels on steel roller wheels
Heavy-duty blade shaft assembly with dual-sealed bearings & precision machined shaft
Single piece reinforced zinc-plated steel frame has carrying handles for easy
transportation
Hinged blade guard with stainless steel water tubing
10” wet cutting diamond blade and an industrial water pump included
One-year limited warranty
MK-1080 Paver Saw Specications
Model 153203 153591
Motor Single Phase 120V / 60 Hz Single Phase 230V / 50 Hz
Amps 12.4 AMP 6.8 AMP
Horsepower 1-1/2 HP 1-1/2 HP
Motor Overload Thermal Overload Reset Thermal Overload Reset
Motor Fan Enclosed Fan Cooled Enclosed Fan Cooled
Blade RPM 3,450 RPM 2,850 RPM
Blade Capacity 10” (254 mm) 10” (254 mm)
Arbor Size 5/8” (16 mm) 5/8” (16 mm)
Standard Length of Cut 16” (406 mm) 16” (406 mm)
Maximum Depth of Cut 3-3/4” (95 mm) 3-3/4” (95 mm)
Water Pump Protection Thermally Protected Thermally Protected
Water Pump Submersion Fully Submersible Fully Submersible
Water Pump Lubrication Self-Lubricating Self-Lubricating
Water Pump Capacity 170 gallons/hour (644 litres/hour) 245 gallons/hour (927 litres/hour)
ConveyorCartDimensions-
(LxW) - inches/cm
12-1/2” x 17”
318 x 432 mm
12-1/2” x 17”
318 x 432 mm
Paver Saw Weight 103 lbs. (46.7 kg) 103 lbs. (46.7 kg)
Saw Dimensions (LxWxH)
- inches/mm
33” x 23” x 23”
838 x 584 x 584 mm
33” x 23” x 23”
838 x 584 x 584 mm

15
MK-1080 PAVER SAW INSPECTION & SET-UP
UNPACKING
Remove the MK-1080 Paver Saw from the carton and place it on a at surface. Check contents with list below:
In your container, you will nd one (1) MK-1080 and water basin, one (1) splash guard, one (1) 10” diamond
blade, one (1) water pump, one (1) water pump manual, one (1) rip guide, one (1) blade nut wrench, one (1)
owner’s manual, one (1) warranty card.
CONTENTS
Your MK-1080 Paver Saw has been inventoried and packaged with the greatest of care. Inspect the contents
of carton against the contents list below. Ensure that all items are accounted for and that they are in sound
condition.If there are any missing or damaged parts,call MK Diamond Customer Service at [phone]
for instructions before proceeding.
MK-1080 Paver Saw
WATER PUMP
OWNERʼS MANUAL
INTRODUCTION
Pumps are carefully inspected and tested to ensure both safety and
operating performance. However, failure to follow the instructions and
warnings in this manual may result in pump damage and/or serious
injury. Be sure to read and save this manual for future reference.
UNPACKING
Your MK-1080 has been shipped from the factory thoroughly inspected. Only minimal assembly is required.
Use proper lifting techniques when lifting the MK-1080.
Splash Guard 10” Diamond Blade Water Pump
Water Pump Manual Rip Guide Blade Nut Wrench Owner’s Manual
Warranty Card
CAUTION

16
MK-1080 PAVER SAW INSPECTION & SET-UP
SAW FRAME
1.
2.
The Conveyor Cart is secured for shipping by plastic ties. Remove these plastic ties before use.
Ensure that the Cart runs smoothly along the tracks of the Inner Frame.
•
•
•
•
•
Before using the machine, check for any broken, worn or damaged parts and replace them immediately.
ALWAYS keep the machine clean and lubricated.
ALWAYS unwind the power supply cord completely and check for damage.
Carefully check the “Technical Data” Label before plugging in the machine. Follow the extension cord
requirements, as recommended on the machine label.
Work on a level and clean surface.
NOTICE
INSTALLING THE BLADE
1.
2.
3.
4.
While holding the cutting head handle down to counteract spring tension, loosen the cutting head lock screw
and allow the cutting head to gently rise to its highest point. (Figure 7).
Slide the cutting table to the front of the saw and raise the blade guard (Figure 8). It may be necessary to ad-
just the tightness of the blade guard wing nut (Figure 9).When properly tightened, the blade guard will move
relatively easily and also stay in the raised position.
Locate the shaft lock push button on the underside of the cutting head (Figure 10).
Depress the shaft lock push button and rotate the arbor shaft till the button locks the arbor shaft in position.
If necessary, use the blade wrench to turn the retaining nut counterclockwise to loosen from the arbor shaft
(Figure 11). Remove the nut and slide the outer ange (Figure 15) from the arbor shaft (Figure 12).
Fig. 7 Loosen Cutting Head Screw Fig. 8 Slide Table and Raise Blade Fig. 9 Adjust Blade Guard Tightness
Fig. 10 Locate Shaft Lock Button Fig. 11 Rotate Arbor Shaft Fig. 12 Remove Nut and Outer Flange

17
MK-1080 PAVER SAW INSPECTION & SET-UP
5.
6.
7.
8.
Install the diamond blade onto arbor shaft (Figure 13) with the direction of rotation arrow on the blade
matching the direction of the arrow on the blade guard (Figure 14). Verify that the blade is seated at against
the inner ange of the blade shaft.
Slide the outer ange back on the arbor shaft (Figure 15) with the recessed side of the ange (Figure 16)
facing the blade.
Install the retaining nut on the arbor shaft. Depress the shaft lock button and use the blade wrench to tighten
the retaining nut in a clockwise direction (Figure 17). When installing the retaining nut, do not “cross-thread”
and do not over tighten.
Lower the blade guard back down into the cutting position (Figure 18).
Fig. 13 Install Diamond Blade Fig. 14 Match Blade Arrows
Fig. 15 Put Flange On Arbor Shaft Fig. 16 Recessed Side Faces Blade
Fig. 17 Tighten Retaining Nut Fig. 18 Lower Blade Guard
Fig. 9 Adjust Blade Guard Tightness
Fig. 12 Remove Nut and Outer Flange
INSTALLING THE BLADE CONTINUED

18
INSTALLING THE WATER PUMP
1.
2.
3.
4.
5.
Install Plastic Fitting onto Water Pump (Figure 19).
Install Plastic Hose onto Plastic Water Pump Fitting (Figure 20).
Place Water Pump in pan (Figure 21).
Route Water Hose through Cushion Loop and under Motor between Fan Guard and Belt Guard (Figure 22).
Place Clamp on Hose and attach Hose to Blade Guard (Figure 23 and Figure 24).
MK-1080 PAVER SAW INSPECTION & SET-UP
To prevent the possibility of electrical shock, the MK-1080 must be unplugged when connecting theWater Pump.
WARNING
Fig. 19 Install Plastic Fitting Fig. 20 Install Plastic Hose Fig. 21 Place Water Pump in Pan
Fig. 22 Route Water Hose Fig. 23 Place Clamp on Hose Fig. 24 Attach Hose to Blade Guard
WATER PUMP SYSTEM INFORMATION
NOTICE
The Electric Water Pump is a powerful, thermally protected, self-lubricating, fully submersible unit capable of de-
livering 170 gallons (644 litres) of water per hour. For operator convenience, the pump power cord plugs into the
female receptacle of the motor terminal box, and is automatically activated as soon as the motor is turned to the
“ON” position.
The pump has been designed to operate “WET”, therefore it is advisable to disconnect the pump if the operation
calls for “DRY” cutting.When running wet, the pump should be kept in the water reservoir in a position that per-
mits the scupper to be fully submersed. For optimum performance and longevity, it is best to keep clean water in
the reservoir at all times.
You may wish to immerse your water pump in a drum of fresh water, as to allow clean/unslurried water to cool the
Diamond Blade.This action will keep your machine cleaner and allow the greatest life for your Diamond Blade.

19
Interruption of motor operation caused by the thermal switch indicates the existence of improper or insufcient
power to your electric motor. DOUBLE CHECK YOUR POWER SOURCE!
NOTICE
Fig. 21 Place Water Pump in Pan
MK-1080 PAVER SAW OPERATION
MOTOR INFORMATION
Your MK-1080 Paver Saw requires minimum preparation prior to operation. It is advisable, however, to periodi-
cally lubricate those metal components that pivot and rotate and observe three critical areas of concern:
1.
2.
3.
Ensure the proper/recommended Diamond Blade has been selected for the job.
Inspect and ensure the proper electrical power is available for your motor.
Ensure a constant ow of water is generated to the Diamond Blade.
Fig. 25 Thermal Overload Switch
For your own safety, NEVER start the motor until you fully understand the electrical
requirements and standards of your machine and jobsite. When starting the saw, the
operator should stand outside the path of the blade. Read requirements and features
of this saw.
WARNING
ON / OFF
The MK-1080 Paver Saw has not been engineered nor designed to cut materials (ie. steel, wood, etc.) other than
those comprised of ceramic/masonry material such as clay, stone, rock, cinder and masonry brick and block. For
best results, USE ONLY MK DIAMOND BLADES. For assistance in Diamond Blade selection, contact your
distributor or MK Diamond at [phone].
NOTICE
The electric motors used on the MK-1080 have been designed to deliver exceptional power over a long period
of time, with virtually no maintenance requirements. However, if they do NOT receive the proper voltage condi-
tions, their performance and longevity will degrade. Continued operations utilizing dubious power sourcing could
damage your electric motor. If extension cords are necessary, pay particular attention to their length and gauge.
Always be cautious around your jobsite power source!
NOTICE
THERMAL OVERLOAD PROTECTION
The Thermal Overload manual reset switch is located on the top housing of the electrical motor (Figure 25). If
an extreme internal temperature is sensed, the switch will “trip” and the motor will shut off automatically. If this
occurs, turn the motor “ON/OFF” switch to the “OFF” position and allow the motor to cool for at least ten
minutes before restarting. Push the “reset” button (using minimal force) and resume operations.
Fig. 24 Attach Hose to Blade Guard

20
MK-1080 PAVER SAW OPERATION
CUTTING OPERATIONS
The MK-1080 Paver Saw permits the operator several options for cutting relative to the design of the saw.The
Cutting Head may be adjusted to a xed position for “FORCED” cutting (the action of pushing the material
steadily into the blade). The material may also be “STEP” cut (the process of passing the material while adjusting
the blade to various depths as a means to incrementally cut the piece). Lastly, the “CHOPPING” action of the
saw can be employed to expeditiously “come down onto” and “push through” the material in one motion to
fully utilize the mechanics of the recoil spring /rolling conveyor cart. Whatever the preferred technique, please
follow these general guidelines:
1.
2.
3.
4.
Hold the material rmly against the conveyor cart backstop. Use the rip guide provided to support and
orient the material.
DO NOT force the material into the blade! Allow the diamonds to do the grinding.
When using a brand new diamond blade, make the rst few cuts slowly until the blade is “broken-in” and
cuts freely and easily.
After continuous cutting of very hard and dense materials, the blade’s cutting efciency may slow down.
Should this occur, it can be sharpened by making several passes against very abrasive material such as: soft
cinder block or lightweight sandstone. ENSURE PLENTY OF WATER IS USED DURING THIS
PROCESS!
WARNING
DO NOT operate saw without the blade guard in place. The exposed area of the blade should never exceed
180 degrees during operation. When installing the blade, ensure that the blade and anges are free of sediment,
so the t between ange and blade is even and true.
NOTICE
A Diamond Blade actually grinds...it does not cut. Not allowing the blade to perform the way it was engineered
may result in premature blade wear, diamond “glazing”, steel core warpage, or severe segment damage.
CLEANING & LUBRICATION
The slurry and cutting residue generated by the MK-1080 Paver Saw is considerable. A cleaning and lubrica-
tion schedule must be maintained in order to ensure long and trouble-free operation. As a common sensible
and preventative maintenance practice, clean the dirt and cutting deposits from your machine after each use.A
pressurized spray system may be used, however, never spray around the electric motor, switch box, or ON/OFF
switches. Further, the following lubrication points are advised:
•
•
•
Place light machine oil where friction, pivoting or rotation occurs between the structural components.
DO NOT OIL THE MOTOR!
Pump clean/fresh water for one minute through the Blade Guard Water Tubes to safeguard against a build
up of sediment and the possibility of clogging.
Rotate the entire Cutting Head Assembly on the Pivot Shaft and lubricate where the casting and shaft make
contact.
