MK Diamond Products MK-3000 Series User manual

www.mkdiamond.com
Caution: Read all safety and operating instructions
before using this equipment. This parts list MUST
accompany the equipment at all times.
MK-3000 SERIES
CONCRETE SAW
OPERATOR’S MANUAL
05.2014
Revision 300
Manual Part No. 166447-OM

22
INTRODUCTION
Congratulations on your purchase of a Walk-Behind Concrete Saw. We are certain that you will be
pleased with your purchase of your MK-3000 Concrete Saw. MK Diamond takes pride in producing
the finest construction power tools and diamond blades in the industry.
Operated correctly, your MK-3000 Series should provide you with years of service. In order to help
you, we have included this manual. This owners manual contains information necessary to operate
and maintain this machine safely and correctly. Please take a few minutes to familiarize yourself
with the machine by reading and reviewing this manual.
If you should have questions concerning your MK-3000 Series please feel free to call our friendly
customer service department at 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty card
(including the Serial Number) and mail it in as soon as possible.

3
SAFETY
Safety Message 4
Safety Precautions 4-7
Silica Dust Warning 8
Saw Blade Safety 9-10
Gas Engine Safety 11
Operation & Safety Decals 12
Safety Decal Locations 13

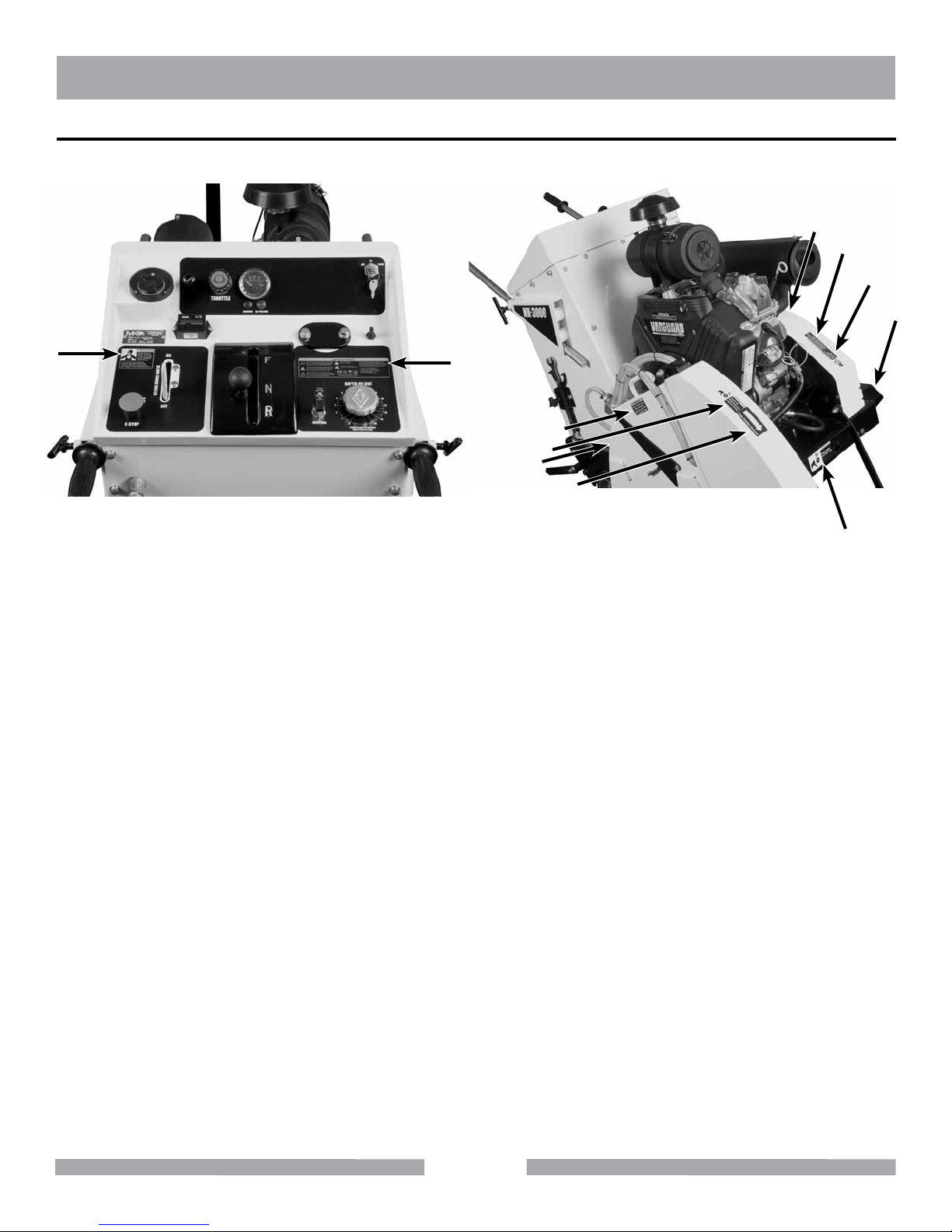

Console Decal Locations 14

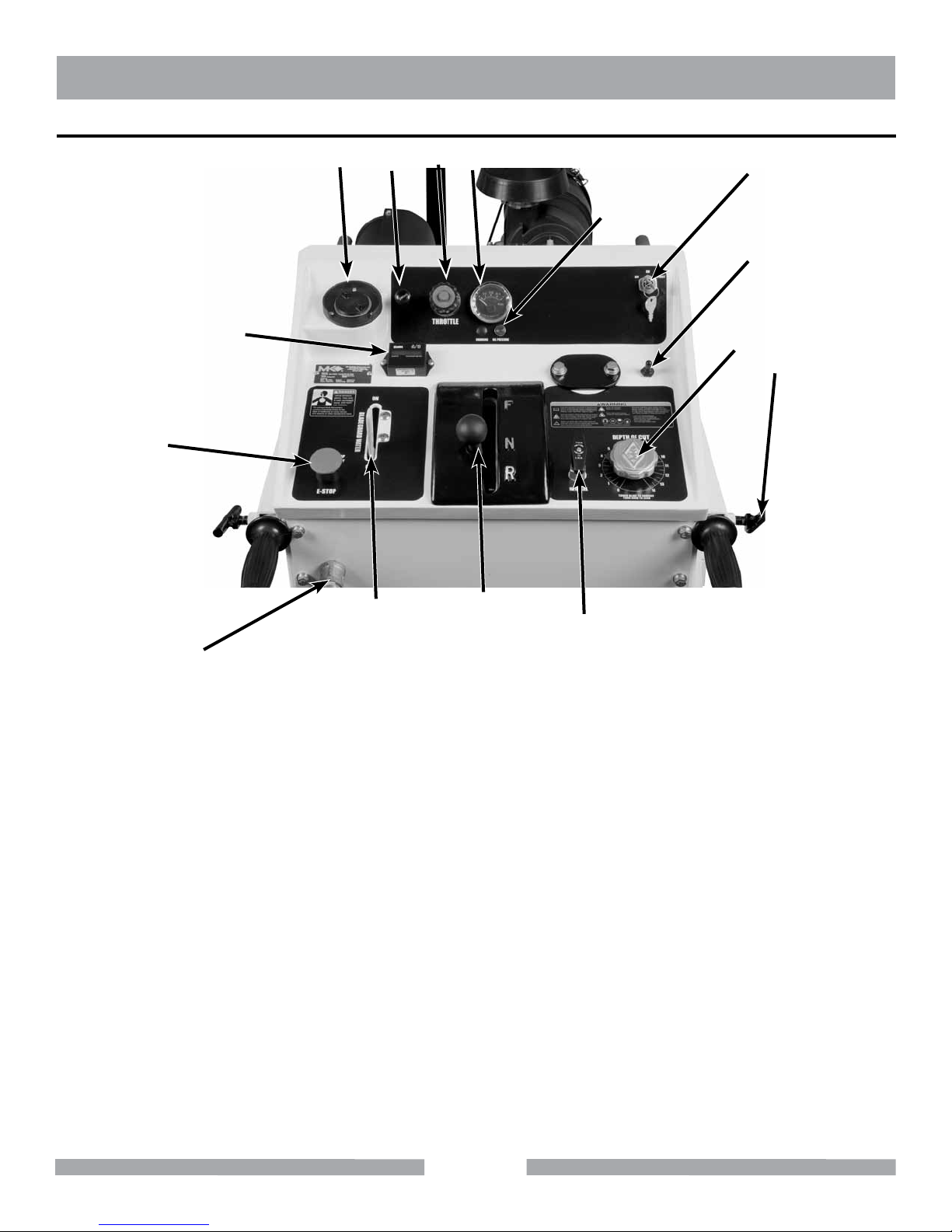

Console Control Descriptions 15
PRODUCT SPECIFICATIONS
Saw Features 16
Engine Specications 17
Model Specications 18
Blade Speed 19
INSPECTION & START-UP
Pre-Operation Checklist, Schedule Maintenance Quick Reference 20
OPERATION
Blade Mounting Instructions 21-22
Starting Engine, Starting Instructions 23
Saw Guide Alignment and Adjustment, Pointer Alignment 24
Maneuvering the Saw, Dry Cutting, Wet Cutting, Speed Control-Lever 25
Water Hook Up and Depth Indicator 26
MAINTENANCE
Engine, Hydrostatic Drive Unit, Air Cleaner, Bearings and Hydrostatic Drive Unit 26-27
Maintenance Schedule 28
Troubleshooting 29
GENERAL PRODUCT INFORMATION
Accessories, Ordering and Return Information 30
Contact Information and Limited Warranty 31
TABLE OF CONTENTS

4
MK-3000 SERIES SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
SAFETY PRECAUTIONS
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5
MK-3000 SERIES SAFETY
ON
(
(
))
ON
(
(
))
ON
(
(
))
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
MK-3000 SERIES SAFETY
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

7
MK-3000 SERIES SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.

8
MK-3000 SERIES SAFETY
Sawing, grinding and drilling generate dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
WARNING
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
•Crystalline silica from bricks, cement and other masonry products
•Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
ON
(
(
))

9
MK-3000 SERIES SAFETY
SAW BLADE SAFETY
For complete safety information, refer to ANSI Safety Code B7.1 available through the American
National Standards Institute.
ALWAYS keep area around the machine clear of obstructions and clear the work area of
unnecessary people. Keep all body parts away from the blade and all other moving parts.
Keep hands out of line of saw blade. Never reach around or over saw blade.
Before starting the machine, check that all guards are in position and correctly tted.
NEVER allow blade exposure from the guard to be more than 180 degrees. DO NOT
operate this machine with any guard removed.
Inspect the blade, anges, and shafts for damage before installing the blade. NEVER use
damaged or worn blade anges. Discard cracked, chipped or bent blades. Cracks in the
core, hot spots on the core, warping steel core, missing segments and damaged arbor hole
are all visible indications that the blade is damaged.
The blade shaft anges must be of proper diameter for the size of blade being used.
DO NOT exceed maximum blade speed, as excessive speed could result in blade break-
age. Use ONLY blades marked with a maximum operating speed greater than the blade
shaft speed. Verify speed and saw drive conguration by checking blade shaft RPM, pulley
diameters, and blade ange diameters.
Use the correct blade for the type of work being done. Use only reinforced abrasive blades
or steel center diamond blades. DO NOT use carbide-tipped blades. Check with the blade
manufacturer if you do not know if blade is correct.
Make sure the blade and anges are clean and free of dirt and debris before mounting the
blade on the saw. Verify the blade arbor hole matches the machine spindle before mounting
the blade. ALWAYS mount the blade solidly and rmly. Wrench tighten the arbor nut.
Make sure that the arrow on the blade points in the same direction as the arrow marked on
the blade guard. Before turning the switch "ON", make sure that the blade is correctly in-
stalled and operating properly.
In the event of blade failure, replace blade guard immediately.
Do not touch a dry cutting blade immediately after use. These blades require several min-
utes to cool after each cut. Do not use a blade that has been overheated (core has bluish
color).
CAUTION
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
WARNING
Diamond Blades improperly used are dangerous. Comply with American National Standards Institute
Safety Code B7.1 and Occupational Safety and Health Act covering Speed, Safety Guards, Flanges,
Mounting Procedures, General Operating Rules, Handling, Storage and General Machine Conditions.
ON
(
(
))

10
Never try to stop a moving blade with your hands.
DO NOT cut dry with blades marked "WET".
DO NOT make long continuous cuts with a dry diamond blade. Allow the blade to cool be-
tween cuts by freewheeling. Harder materials will cause the blade to heat more quickly.
Let the blade reach full speed before commencing the cut.
If the blade makes an unfamiliar noise or vibrate excessively, switch the saw of immediately
and disconnect it from the power source. Investigate the cause and remedy the problem
before restarting the saw.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
MK-3000 SERIES SAFETY

11
Gasoline is extremely ammable, its vapors can explode if ignited; store only in approved
containers, in well-ventilated, unoccupied buildings and away from sparks or ames. DO
NOT ll the fuel tank while the engine is running or hot. Spilled fuel could ignite if it con-
tacts hot parts or sparks from ignition. DO NOT overll tank. DO NOT start the engine near
spilled fuel. Never use gasoline as a cleaning agent.
Gasoline models are shipped from the factory dry, meaning without fuel or oil. Both must be added
before equipment can be used. Check the engine Manufacturer Owner's Manual for instructions on
fueling, break-in, servicing and proper engine care and use.
Refer to engine manufacturer manual for specic operating procedures and safety warnings.
ALWAYS check the fuel lines and fuel tanks for leaks and cracks before starting the engine.
DO NOT run the machine if fuel leaks are present or the fuel lines are loose.
Accidental start hazard. Disconnect spark plug prior to servicing.
EXPLOSIVE FUEL!
GAS SAFETY PRECAUTIONS
GAS ENGINE SAFETY
Engine exhaust gasses contain poisonous carbon monoxide (an odorless, colorless gas).
Avoid inhaling exhaust fumes Breathing it can cause unconsciousness and even kill you.
Always operate gasoline engine machines in a well-ventilated area. DO NOT operate in ar-
eas where exhaust fumes could accumulate without wearing appropriate respiratory protec-
tion. Never run the engine in a closed building or conned area.
LETHAL EXHAUST GASES!
ALWAYS rell fuel tank in a well-ventilated area.
ALWAYS replace the fuel tank cap after refueling.
ALWAYS close fuel value on engines when machine is not being operated.
FUELING SAFETY
ALWAYS use caution when handling fuel. Shut off the engine and allow to cool before refueling.
Move the machine at least 10 feet (3 meters) from the fueling point before starting the engine, and
make sure the gas cap is on the machine and the fuel can is properly tightened.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
NOTE: Prior to operation of this machine the operator must determine the existence and
location of any subsurface features that may be hazardous or could damage the
equipment, (i.e. electric cable, natural gas line etc.).
MK-3000 SERIES SAFETY

12
The MK-3000 is equipped with a number of safety decals (Figure 1) provided for operator safety and
maintenance information. Should any of these decals become unreadable, replacements can be ob-
tained by calling [phone].
Fig. 1 MK-3000 Safety Decal Sheet, Part No. 166009
OPERATION & SAFETY DECALS
Decal C
Decal D & E Decal F
Decal A
Decal G
Decal J
Decal B
NOTICE
Overtensioning of belts
will result in premature
crank and/or bearing failure.
!
Decal B
Decal I
DANGER
Lethal exhaust
gases. Use only
in well ventilated
areas. DO NOT
use indoors.
CAUTION
Keep
hands and
feet clear.
!
MK-3000 SERIES SAFETY

13
MK-3000 SERIES SAFETY DECALS
SAFETY DECAL LOCATIONS
Decal G
Decal H
Decal D
Decal F
Decal C
Decal B
Decal D
Decal E
Decal A
Decal
A
B
C
D
E
F
G
H
I
J
Location Description
Machine Front Caution Keep Hands and Feet Clear
Top of Belt Guard Caution Do Not Overtension Belts
Top of Belt Guard Caution Do Not Touch Hot Surface
Top of Belt Guard Caution Do Not Operate with Guard Removed
Face of Shaft Guard Caution Do Not Operate with Guard Removed
Top of Blade Guard Blade Rotation Direction
Side of Blade Guard Warning Do Not Change to Larger Blade Guard
Top of Blade Guard Caution Do Not Lift Guard When Engine Running
Console Read Owner’s Manual
Console Lethal Gas
Fig. 2 MK-3000 Safety Decal Locations
Decal J Decal I

14
CONSOLE DECAL LOCATIONS
MK-3000 SERIES SAFETY DECALS
Fig. 3 MK-3000 Console Decal Locations
Decal B Decal C
Decal A
Decal
A
B
C
Location Description
Console Top Instrument Label
Console Left Console Label Left
Console Right Console Label Right

15
MK-3000 SERIES SAFETY LABELS
CONSOLE CONTROL DESCRIPTIONS
Fig. 4 MK-3000 Console Controls
ABC
D
F
O
H
I
J
K
L
N
M
G
E
Object Name Function
AFuel Tank Fill Fill the fuel tank at this location.
BChoke Use when cold starting.
CEngine Throttle Controls engine speed.
DOil Pressure Light Indicates low oil pressure when illuminated.
EFuel Gauge Shows the level of fuel in the fuel tank.
FKeyed ON-OFF Start Use to start engine.
GT-Handle Knob Use to tighten operator grip handles.
HDepth Indicator Displays cutting depth.
IEngage Handle Engages Transmission.
JFNR Handle Used to Set Direction of Saw (Forward/Neu-
tral/Reverse).
KWater Inlet Hook-up for standard water hose.
LE-Stop Stops down engine in an emergency!
MWater Lever Controls water ow to Blade Guard.
NEngine Tachometer/Hour Meter Shows the engine RPM’s (running) and En-
gine Hours (stopped).
OBlade Raise & Lower Switch Increase & decrease the blade depth

16
MK-3000 SERIES SAW FEATURES
The MK-3000 Heavy-Duty Concrete Saw has been engineered for operator convenience, improved ac-
cessibility for maintenance and better control during operations. The MK-3000 has been designed for
both front and rear pivoting and has easily removable rear and side panels to provide easy accessibil-
ity for maintenance.
SAW FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Ergonomic FNR traverse control
Quick release, auto latching bayonet mount blade guard
1-7/16 blade shaft with heavy duty pillow block bearings
Three position adjustable solid steel handle bars
Blade guard has garden hose style connector for quick disconnecting
Rigid frame front pointer with high visibility guide wheel for accurate tracking
Instrumentation includes engine tach, fuel level and hour meter
Indicator lights for oil pressure and charging system
Depth of cut indicator
Valve control for delivery of water to blade guard
Saw designed for left or right side mounting of blade and blade guard
Blade guard water distribution system designed for optimal blade cooling
Front pivot
Removable rear and lower front panel for easy service
7 Rib Powerband from engine to center shaft
Hand wheel for positive adjustment of cutting depth
Wide front wheel base increases stability and allows ramp loading/unloading
Eaton model 6 Hydrostatic transmission coupled to an MK trans-axle
Transmission can be disengaged from axle to allow saw to be pushed manually
Travel speed 0-220 FPM forward, 0-100 FPM reverse
Neutral start switch to prevent starting with transmission in gear
Made in the U.S.A.

17
MK-3000 SERIES PRODUCT SPECIFICATIONS
Model MK-3020S MK-3020V MK-3020K
Engine Subaru (Gas) Vanguard (Gas) Kohler (Gas)
Power EH99 V-Twin 40 hp V-Twin Big Block OHV 35 hp Command Pro CH980 38 hp
Blade Capacity 20” 20” 20”
Depth of Cut 7-1/2” (190 mm) 7-1/2” (190 mm) 7-1/2” (190 mm)
Weight 650 lbs (295 kg) 650 lbs. (295 kg) 650 lbs. (295 kg)
Part # 170915-20 166447-20 166449-20
Model MK-3026S MK-3026V MK-3026K
Engine Subaru (Gas) Vanguard (Gas) Kohler (Gas)
Power EH99 V-Twin 40 hp V-Twin Big Block OHV 35 hp Command Pro CH980 38 hp
Blade Capacity 26” 26” 26”
Depth of Cut 10-1/2” (267 mm) 10-1/2” (267 mm) 10-1/2” (267 mm)
Weight 650 lbs (295 kg) 650 lbs. (295 kg) 650 lbs. (295 kg)
Part # 170915-26 166447-26 166449-26
Model MK-3030S MK-3030V MK-3030K
Engine Subaru (Gas) Vanguard (Gas) Kohler (Gas)
Power EH99 V-Twin 40 hp V-Twin Big Block OHV 35 hp Command Pro CH980 38 hp
Blade Capacity 30” 30” 30”
Depth of Cut 12-1/2” (190mm) 12-1/2” (318 mm) 12-1/2” (318 mm)
Weight 650 lbs (295 kg) 650 lbs. (295 kg) 650 lbs. (295 kg)
Part # 170915-30 166447-30 166449-30
General Specications
Arbor 1” with 3/8” Drive Pin
Blade RPM 1,900
Fuel Capacity 5 gal
Travel Speed Travel speed 0-220 FPM forward, 0-100 FPM reverse
Starting System Electric
L x W x H 50” x 29” x 42”
L x W x H (mm) 1,270 x 737 x 1,067 mm
Handle Extension 22” (559 mm)
ENGINE SPECIFICATIONS

18
MK-3000 SERIES PRODUCT SPECIFICATIONS
BLADE GUARD
CAPACITY 20” 26” 30”
(508 mm) (610 mm) (760 mm)
BLADESHAFT RPM 1,900
MAXIMUM
DEPTH OF CUT 7-1/2” 10-1/2” 12-1/2”
ARBOR SIZE 1” (25.4 mm) with 3/8” drive pin, blade can be mounted on either
side of shaft
BLADE SHAFT 1-7/16” (36.5 mm) diameter
BLADE SHAFT
BEARING Dual Row 1-7/16” Pillow Block Roller Bearings
BLADE SHAFT
DRIVE
7 Rib Powerband, optimized for correct blade shaft RPM at peak
engine power
BLADE CONTROL Electric leadscrew for positive adjustment of cutting depth
BLADE COOLANT Blade guard uses “ride on the blade” water tubes for superior water
delivery and blade cooling
AXLES FRONT
REAR
1” (25.4 mm) diameter
1” (25.4 mm) diameter
WHEELS FRONT
REAR
Front Wheel 6” x 2-1/2” wide rubber with 1” ball bearings with lubrica-
tion ttings.
Rear Wheel 8” x 2-1/2” wide solid rubber
TRANSMISSION
Hydrostatic Transmission with freewheel neutral control. Travel
speed 0-220 FPM Forwards, 0-100 FPM Reverse. FNR Handle con-
trols forward/neutral/reverse. Neutral safety start switch.
CHASSIS Heavy-duty rigid box and rib main frame construction.
Removable Service Panels for ease of maintenance.
CONSOLE Console with Tachometer/Hour Meter, Fuel Level Gauge, indicator
for Oil Pressure and Keyed Start Switch
POINTER Adjustable front and rear pointers
HANDLE BARS Three positions
STANDARD SAW SPECIFICATIONS

19
MK-3000 SERIES PRODUCT SPECIFICATIONS
BLADE SPEED
Fig. 5 Blade Guards
WARNING
Do not exceed blade shaft speed shown. Excessive blade speed could result in blade failure and seri-
ous personal injury.
GUARD SIZE BLADE SHAFT
SPEED*
BLADE SPEED (FPM)
Size FPM
20”
1900 RPM
16”
18”
20”
8,000
9,000
10,000
26”
18”
20”
24”
9,000
10,000
11,900
30”
26”
28”
30”
13,000
14,000
14,900
NOTICE
As shown on the chart, blade guards accept more than one size blade.
BLADE GUARDS AND BLADE SIZES
BLADE GUARD BLADE SIZE THAT CAN BE
USED WITH BLADE GUARD
20” Uses 16” up to 20”
26” Uses 18” up to 26”
30” Uses 26” up to 30”
*Blade Shaft Speed at full throttle engine setting at 3600 rpm.

20
MK-3000 SERIES INSPECTION & START-UP
PRE-OPERATION CHECKLIST
WARNING
Before leaving our factory, every machine is thoroughly tested. Follow instructions strictly and your
machine will give you long service in normal operating conditions.
1. Check engine oil. See Engine Owner’s Manual for type & quantity.
2. Connect battery cables.
3. Check hydrostatic transmission uid level.
4. Check the engine air cleaner.
Machine Cold
Before starting up the machine, make sure you read this entire Operation Manual and are
familiar with the operation of the machine.
1. Check the engine air cleaner hose clamps. Tighten as required.
2. Tension the blade drive V-belts. DO NOT overtension.
SCHEDULE MAINTENANCE QUICK REFERENCE
1-2 Hour Operation Checklist
WARNING
ALWAYS locate machine on a level surface with the engine “OFF” and the ignition switch set in the
“OFF” position before performing any maintenance. Let the machine cool down prior to any service.
Ensure the parking brake is set.
WARNING
Before performing any maintenance, ALWAYS locate machine on a level surface with the engine
“OFF” and the ignition switch set in the “OFF” position.
1. Check engine oil level.
2. Check blade guard for damage.
3. Check hoses and clamps for damage or looseness. Tighten or replace as necessary.
4. Check air cleaner for restriction. Replace at regular intervals air lters.
Service Daily
See the Maintenance Schedule Table on Page 25.
Other time interval service
