MK Diamond Products MK-1080 User manual

MK-1080 PAVER SAW
OWNER’S MANUAL,
OPERATION & PARTS MANUAL
www.mkdiamond.com
Caution: Read all safety and operating instructions before
using this equipment. This manual MUST accompany the
equipment at all times.
04.2015
Revision 103
Manual Part No. 166894

22
INTRODUCTION
Congratulations on your purchase of a MK-1080 Paver Saw. We are certain that you will be
pleased with your purchase. MK Diamond takes pride in producing the finest construction
power tools and diamond blades in the industry.
Operated correctly, your MK-1080 Paver Saw should provide you with years of service. In
order to help you, we have included this manual. This owners manual contains information
necessary to operate and maintain your MK-1080 Paver Saw safely and correctly. Please take
a few minutes to familiarize yourself with the MK-1080 Paver Saw by reading and reviewing
this manual.
If you should have questions concerning your MK-1080 Paver Saw, please feel free to call our
friendly customer service department at: 800 421-5830
Regards,
MK Diamond
NOTE THIS INFORMATION FOR FUTURE USE:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASE PLACE:
PURCHASE DATE:
NOTE: For your (1) one year warranty to be effective, complete the warranty
card (including the Serial Number) and mail it in as soon as possible.

3
SAFETY
Safety Message/Alert Symbols 4
General Safety Poprecautions/Hazard Symbols 4-7
California Proposition 65 Message 8

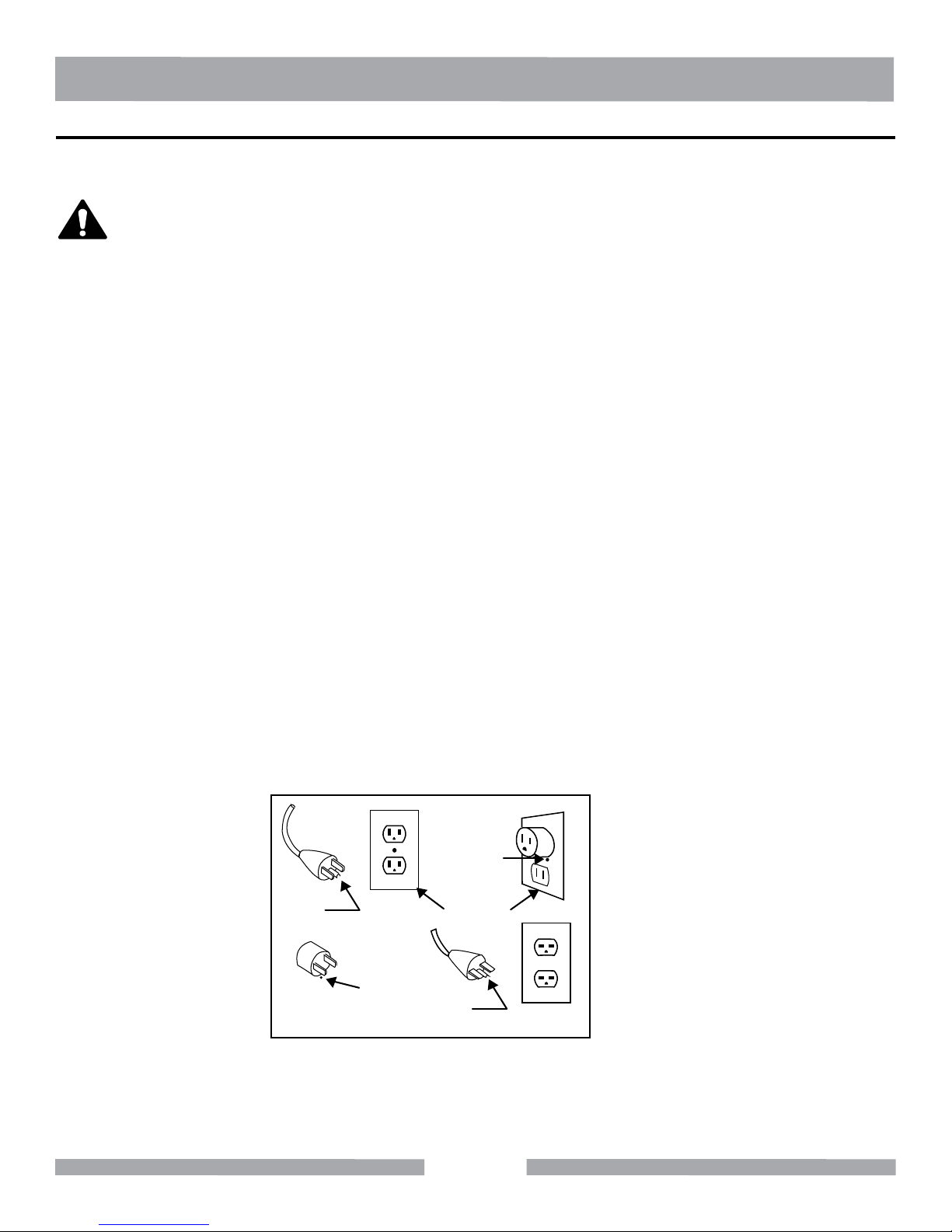

Electrical Requirements & Grounding Instructions 9
Electric Motor Safety 10-12
Operation & Safety Decals/Locations 13
PRODUCT SPECIFICATIONS
Specications 14
INSPECTION & SET-UP

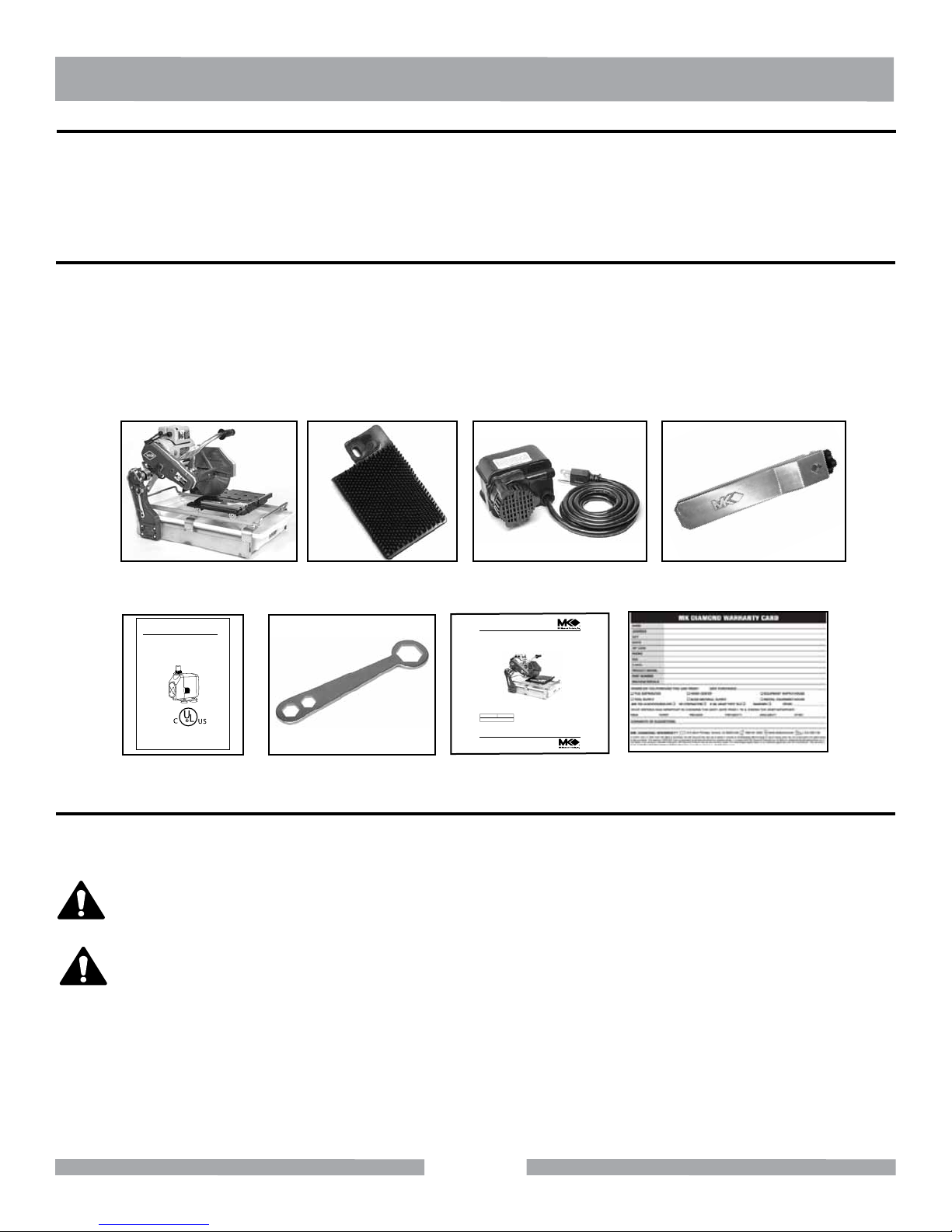

Unpacking & Contents 15

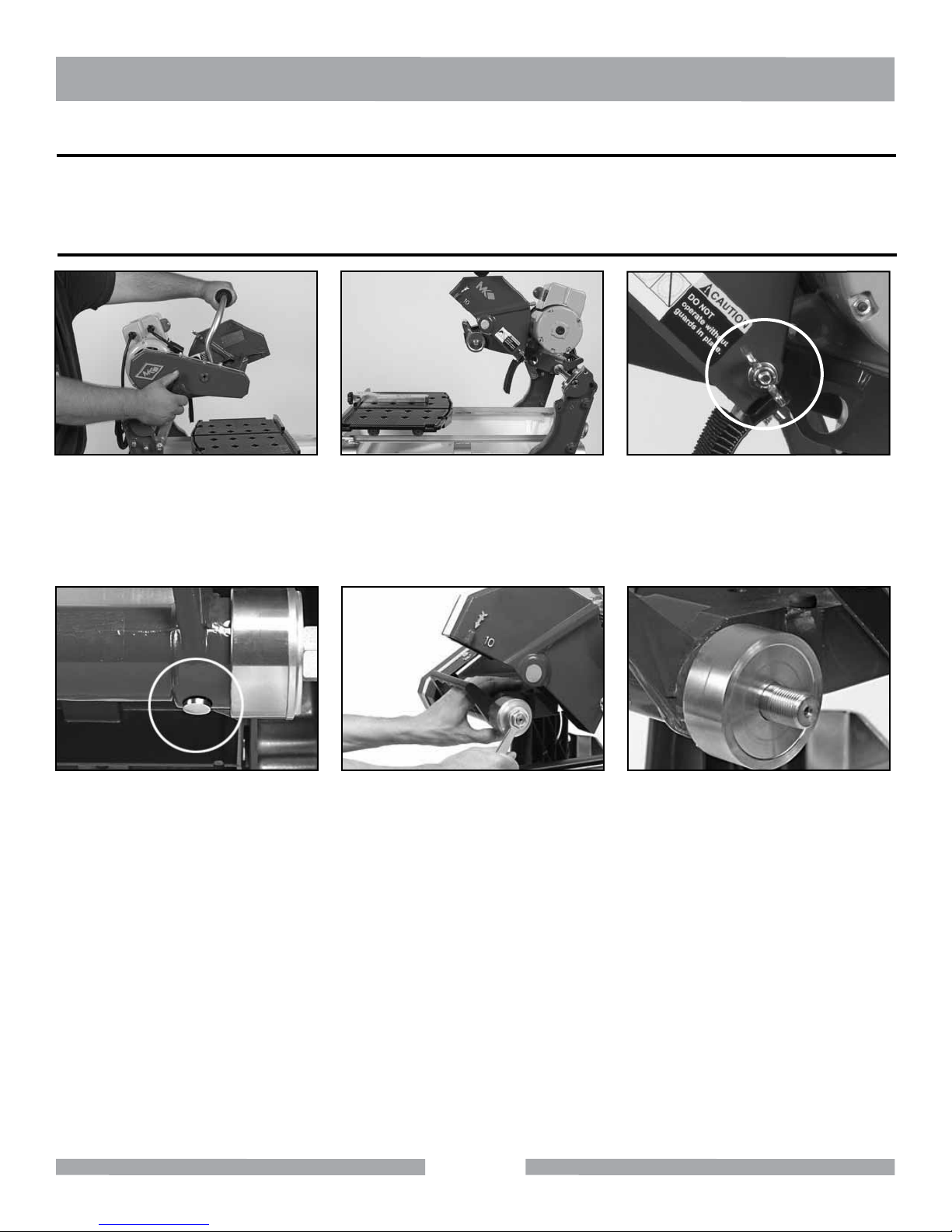

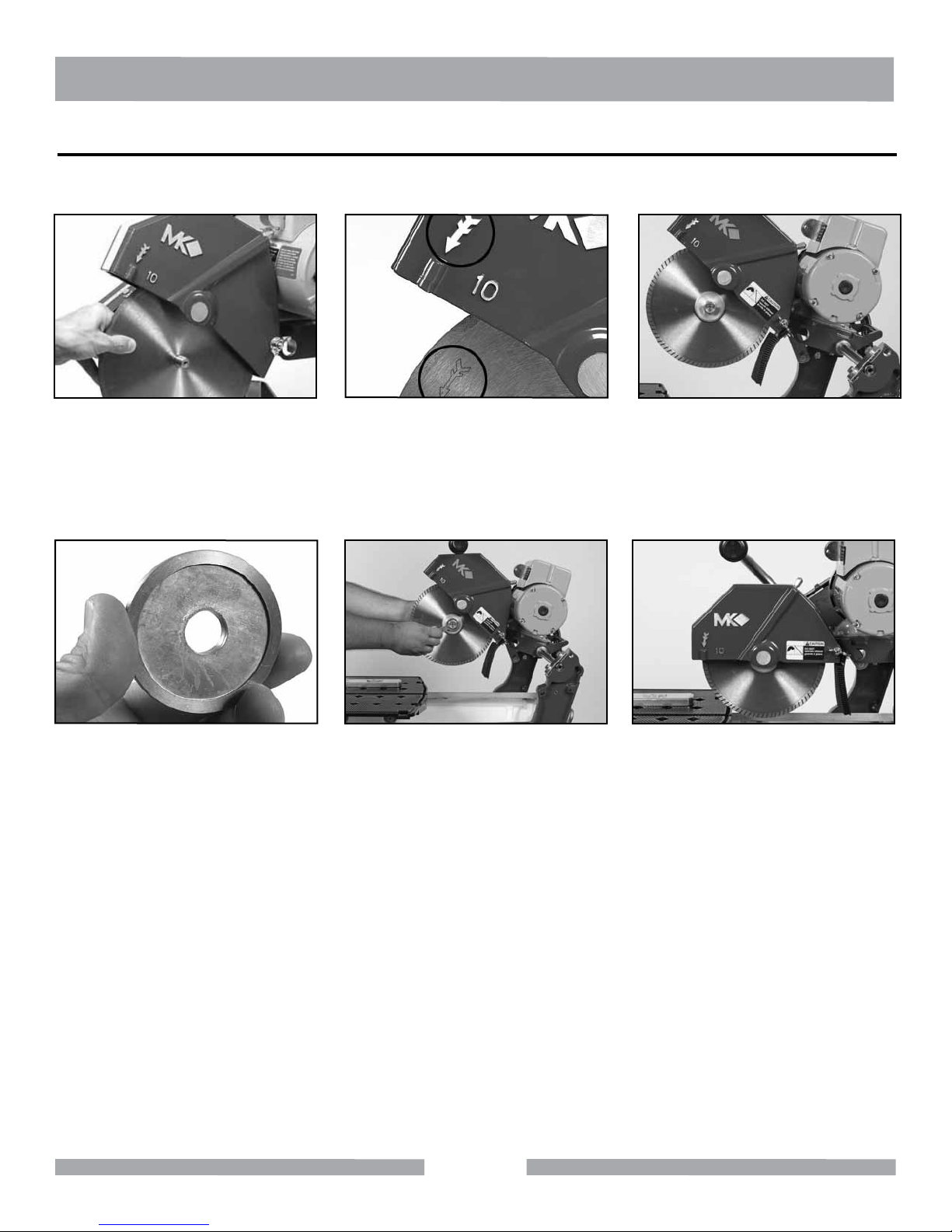

Installing the Blade 16-17
Installing the Water Pump 18
OPERATION
Motor Information 19
Cutting Operations 20
MAINTENANCE
Adjusting Belt Tension 21-22
Adjusting Blade Alignment to Table 23
Diamond Blade Sharpening (Re-Dressing) 23
GENERAL PRODUCT INFORMATION
Parts List: Paver Saw, MK-1080 1.5 HP 120V 60HZ, 153203 24-25
Parts List: Paver Saw, MK-1080 Home Depot 1.5 HP 120V 60HZ, 153203-HD 26-27
Parts List: Paver Saw, MK-1080 Assy, Cutting Head, 166877 28-29
Parts List: Paver Saw, MK-1080 Home Depot Assy, Cutting Head, 166877-HD 30-31
Parts List: Paver Saw, MK-1080 Assy, Motor Mount, 166878 32-33
Parts List: Paver Saw, MK-1080 Home Depot Assy, Motor Mount, 166878-HD 34-35
Parts List: Paver Saw, MK-1080 Assy, Table, 166880 36
Parts List: Paver Saw, MK-1080 Assy, Blade Guard, 154297 37
Parts List: Paver Saw, MK-1080 Home Depot Assy, Blade Guard, 154297-HD 38
Parts List: Paver Saw, MK-1080 Assy, Spring Bushing, 166874 39
Ordering Information 42
Contact Information and Limited Warranty 43
TABLE OF CONTENTS

4
MK-1080 PAVER SAW SAFETY
Read and follow all safety, operating and maintenance instructions. Failure to read and follow
these instructions could result in injury or death to you or others. Failure to read and follow these
instructions could also result in damage and/or reduced equipment life. Safety warnings and
guidelines do not by themselves eliminate danger. They are not substitutes for proper accident
prevention procedures and good judgement.
SAFETY MESSAGES
A Damage Prevention Message is to inform the user of important information and/or instructions that
could lead to equipment or other property damage if not followed. Information Messages convey
information that pertains to the equipment being used. Each message will be preceded by the word
NOTE, as in the example below.
DAMAGE PREVENTION AND INFORMATION MESSAGES
NOTE: Equipment and/or property damage may result if these instructions are not followed.
GENERAL SAFETY PRECAUTIONS AND HAZARD SYMBOLS
A safety message alerts you to potential hazards that could hurt you or others. Each safety message is
preceded by a safety alert symbol ( ) and one of three words: DANGER, WARNING, or CAUTION.
DANGER You WILL be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
WARNING You CAN be KILLED or SERIOUSLY INJURED if you DO NOT follow directions.
CAUTION You CAN be INJURED if you DO NOT follow directions. It may also be used to
alert against unsafe practices.
ALWAYS read this Owner’s Manual before operating the machine. DO NOT operate or
service this equipment before reading this entire manual. Read and understand all warn-
ings, instructions and controls on the machine. Know how to stop the equipment quickly in
case of emergency. It is the operators responsibility to use this machine under safe work-
ing conditions and conform with federal, state and local codes or regulations pertaining to
safety, air, pollution, noise etc...
ALWAYS keep the Blade and Belt Guards in place. DO NOT operate this machine with any
guard or safety device removed. A Guard, or any damaged part should be repaired or
replaced immediately.
NEVER operate this equipment without proper protective clothing, shatterproof
glasses, steel-toed boots and other protective devices required by the job. Non-slip
foot wear is recommended.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
((
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
In order to prevent injury, the following safety precautions and symbols should be followed at all times!

5

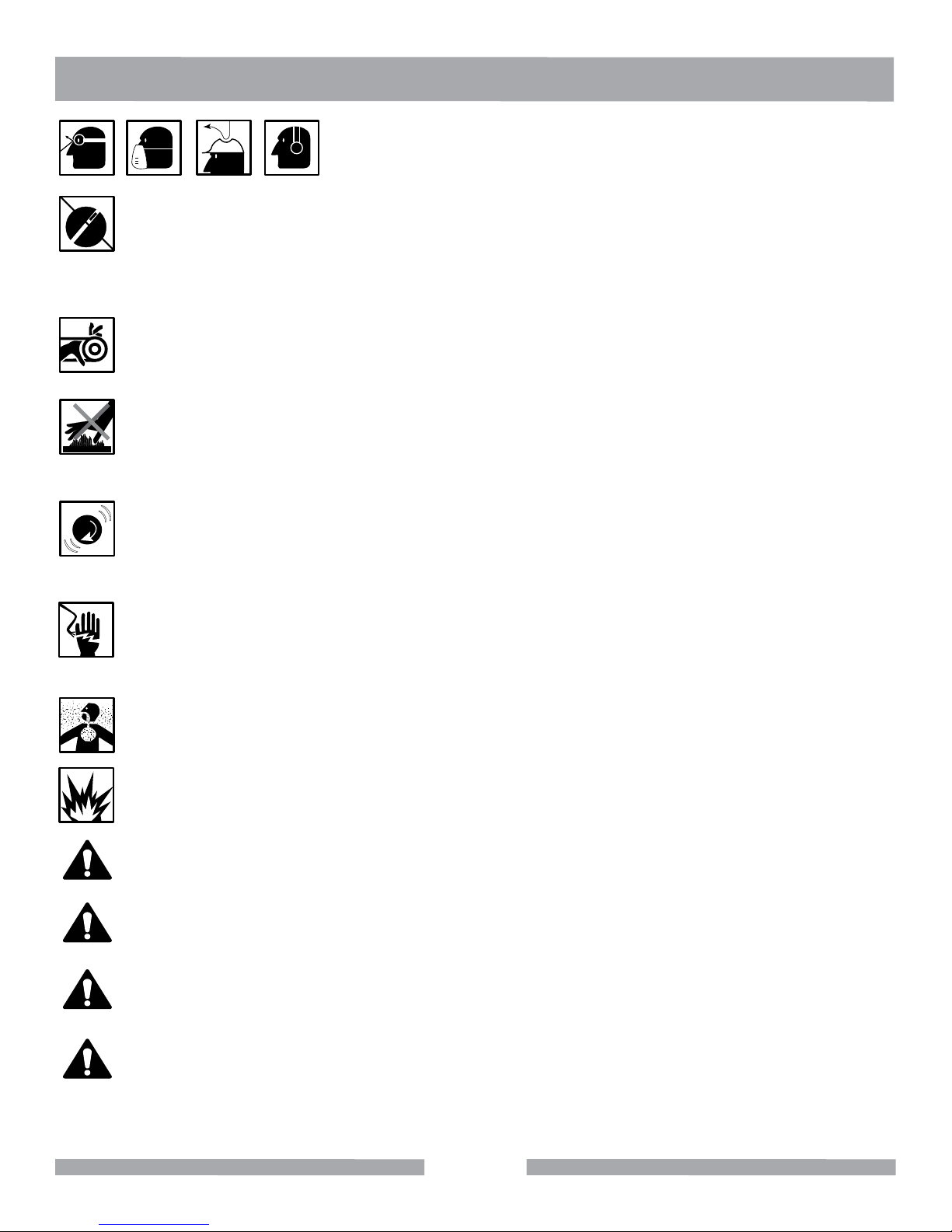

MK-1080 PAVER SAW SAFETY
ON
(
(
))
ON
(
(
))
ON
(
(
))
All visitors and children should be kept a safe distance from work area. Maintain a safe
operating distance to other personnel.
KEEP CHILDREN AWAY
MAKE THE WORKSHOP KID PROOF
Make the workshops kid proof by using padlocks, master switches or by removing starter keys.
ROTATING PARTS
Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never oper-
ate the motor with covers, shrouds, or guards, removed.
OVER SPEED
NEVER tamper with the governor components or settings to increase the maximum speed.
Severe personal injury and damage to the engine or equipment can result if operated at
speeds above maximum.
ELECTRICAL SHOCK
NEVER touch electrical wires or components while the engine is running. Exposed, frayed or
worn electrical wiring and plugs can be sources of electrical shock which could cause severe
injury or burns. Do not touch the plug with wet hands.
ALWAYS avoid inhalation of and skin contact with silica dust and/or mist. Provide proper
dust removal. Use dust-collection system when applicable.
NEVER operate the machine in an explosive atmosphere or near combustible materials.
Sparks from the cutting-action of this machine can ignite flammable materials, liquids, gases
or dust.
This equipment should not be operated by persons under 18 years of age.
ALWAYS wear approved respiratory, head, ear and eye protection
when operating this machine.
Before starting the engine/motor, be sure the ON/OFF switch is in the OFF position to pre-
vent accidental starting. Place the ON/OFF switch in the OFF position before performing any
service operation. ALWAYS place the power ON/OFF switch in the OFF position when the
machine is not in use.
ACCIDENTAL STARTS!
PERSONAL PROTECTIVE EQUIPMENT
Engine components can become extremely hot from operation. To prevent severe burns,
do not touch these areas while the engine is running, or immediately after it is turned off.
Never operate the engine with heat shields removed.
HOT PARTS!
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
DO NOT FORCE THE TOOL
A power tool will do a job better and safer operating at the rate for which it was designed.
DO NOT force a tool or an attachment to do a job that it was not designed to do.
ON
(
(
))

6
MK-1080 PAVER SAW SAFETY
Consult the owner’s manual for recommended accessories. Using improper accessories
may increase the risk of personal or by-stander injury. Unauthorized equipment
modifications will void all warranties. Manufacturer does not assume responsibility for any
accident due to equipment modifications.
ALWAYS ensure that the machine is on level ground before using.
Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally
contacted.
When loading or unloading the machine, use caution. Remove the blade prior to hoisting,
loading and transporting the machine.
USE RECOMMENDED ACCESSORIES
NEVER STAND ON THE TOOL
TRANSPORT
Form a habit of checking to see that keys and adjusting wrenches are removed from
the power tool before it is turned on.
Cluttered work areas and benches invite accidents. Keep area around machine clear of
obstructions which could cause persons to fall.
DO NOT operate equipment in dangerous or hazardous environments. DO NOT use power
tools in damp or wet locations nor expose them to rain. Always keep the work area well
lighted.
REMOVE ADJUSTING KEYS AND WRENCHES
KEEP WORK AREA CLEAN
DO NOT USE IN DANGEROUS PLACES
MAINTAIN TOOLS WITH CARE
Keep tools clean and maintained for the best and safest performance. Always follow
maintenance instructions and examine the machine before use. If any abnormal vibrations
or noises occurs, turn off machine immediately and have the problem corrected before
further use.
DISCONNECT TOOLS
Power tools should always be disconnected before servicing, adjusting or when changing
accessories, such as blades, bits, cutters, and the like.
DO NOT OVERREACH
Keep proper footing and balance at all times by not overreaching.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
SECURE WORK
Clamps or a vise should be used to hold work whenever practical. Keeping your hands free
to operate a power tool is safer.
ON
(
(
))
USE PROPER APPAREL
DO NOT wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may
be caught in moving parts. Non-slip footwear is recommended. Wear protective hair cover-
ing to contain long hair.
ON
(
(
))

7
MK-1080 PAVER SAW SAFETY
Before using a power tool, check for damaged parts. A guard or any other part that is
damaged should be carefully checked to determine if it would operate properly and
perform its intended function. Always check moving parts for proper alignment or binding.
Check for broken parts and mountings and all other conditions that may affect the
operation of the power tool. A guard, or any damaged part, should be properly repaired or
replaced. Always check the machine for loose bolts before starting.
A blade or cutter should always be installed so that rotation is in the direction of the
arrow imprinted on the side of the blade or cutter. It should correspond with the rotational
direction of the motor. Always feed work into a blade against the direction of rotation.
TURN POWER OFF - Do not leave a tool until it comes to a complete stop. ALWAYS
turn a power tool OFF when leaving the work area, or, when a cut is finished.
NEVER LEAVE A TOOL UNATTENDED
CHECK FOR DAMAGED PARTS
DIRECTION OF ROTATION
NEVER disconnect any "emergency or safety devices". These devices are intended for
operator safety. Disconnection of these devices can cause severe injury, bodily harm, or
even death! Disconnection of any of these devices will void all warranties. Unauthorized
equipment modifications will void all warranties. Manufacturer does not assume
responsibility for any accident due to equipment modifications.
NEVER operate this equipment under the influence of drugs or alcohol.
NEVER operate this equipment when not feeling well due to fatigue, illness or taking medicine.
NEVER use this machine with any cutter designed for woodworking.
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
ON
(
(
))
On belt driven equipment, overtensioning of belts will result in premature crank and/or bearing
failure.
Whenever necessary, replace nameplate, operation and safety decals when they become
difcult to read.
ALWAYS store equipment properly when it is not being used. Equipment should be stored in
a clean, dry location out of the reach of children
DO NOT lend or rent this equipment without including the Owner's Manual and the Engine/
Motor Manufacturer's Manual.
Check the chemical properties of the material to be cut/grinded and follow all EPA/OSHA
Regulations.

8
MK-1080 PAVER SAW SAFETY
Sawing, grinding and drilling generate dust. Excessive airborne particles may cause irritation to eyes,
skin and respiratory tract. To avoid breathing impairment, always employ dust controls and protection
suitable to the material being sawed or drilled; See OSHA (29 CFR Part 1910.1200).
WARNING
CALIFORNIA PROPOSITION 65 MESSAGE
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities con-
tain chemicals known (to the State of California) to cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• Lead, from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium, from chemically treated lumber
For further information, consult the following sources:
http://www.osha.gov/dsg/topics/silicacrystalline/index.html
http://www.cdc.gov/niosh/docs/96-112/
http://oehha.ca.gov/prop65/law/P65law72003.html
http://www.dir.ca.gov/Title8/sub4.html
Your risk from these exposures varies depending on how often you do this type of work. To reduce
your exposure to these chemicals, work in a well-ventilated area, and work with approved safety
equipment, such as dust masks that are specially designed to lter out microscopic particles. Where
use of a dust extraction device is possible, it should be used. To achieve a high level of dust collec-
tion, use an industrial HEPA vacuum cleaner. Observe OSHA 29 CFR part 1926.57 and 1926.103.
SILICA DUST WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials with silica in their composition
may give off dust or mists containing crystalline silica. Silica is a basic component of sand, quartz,
brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of
airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In ad-
dition, California and some other authorities have listed respirable crystalline silica as a substance
known to cause cancer. When cutting such materials, always follow respiratory precautions.
Use appropriate NIOSH-approved respiratory protection where dust hazard may occur. Paper masks
or surgical masks without a NIOSH approval number are not recommended because they do little to
protect the worker. For more information about respirator programs, including what respirators have
received NIOSH approval as safe and effective, please visit the NIOSH website at:
http://www.cdc.gov/niosh/topics/respirators
Observe OSHA regulations for respirator use (29 C.F.R.§1910.134).
Visit http://www.osha.gov for more information.
ON
(
(
))

9
MK-1080 PAVER SAW SAFETY
WARNING
In order to prevent electrical shock and injury, the following electrical safety precautions and symbols
should be followed at all times!
If permanently connected this tool should be connected to a grounded metal permanent
wiring system; or to a system having an equipment - grounding conductor.
In case of a malfunction or breakdown, grounding provides a path of least resistance for electrical
current to reduce the risk of electric shock. This tool is equipped with an electric cord which has an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• DO NOT modify the plug provided - if it will not t the outlet, have the proper outlet
installed by a qualied electrician.
• Improper connections of the equipment-grounding conductor can result in a risk of electric
shock. The equipment-grounding conductor is the insulated conductor that has an outer
surface that is green, with or without yellow stripes. If repair or replacement of the electric
cord or plug is necessary, DO NOT connect the equipment-grounding conductor to a live
terminal.
• Check with a qualied electrician or service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the tool is properly grounded.
• Use only 3-wire extension cords that have 3-prong grounding plugs and 3-pole receptacles
that accept the tool’s plug.
• Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks like the one shown in Sketch A.
The tool has a grounding plug that looks like the plug illustrated in Sketch A. A temporary adapter,
which looks like the adapter illustrated in sketches B and C, may be used to connect this plug to a
2-pole receptacle as shown in Sketch B, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualied electri-
cian. The green-colored rigid ear, plug, and the like, extending from the adapter, must be connected
to a permanent ground, such as a properly grounded outlet box.
ELECTRICAL REQUIREMENTS AND GROUNDING INSTRUCTIONS
NOTE:
ON
(
(
))
Grounding
Means
(A)
Metal Screw
Cover of
Grounded
Outlet Box
(D)
ADAPTER
(C) Grounding
Pin
Grounding
Pin (B)
Circuit and Adapter Information
Use of a temporary adapter is not permitted in Canada.NOTE:

10
MK-1080 PAVER SAW SAFETY
WARNING
WARNING
To reduce the risk of electrocution, keep all connections dry and off the ground. A Ground Fault
Circuit Interrupter (GFCI) should be provided on the circuit(s) or outlet(s) to be used for this
machine. Receptacles are available having built-in GFCI protections and may be used for this
measure of safety. When using an extension cord, GFCI should be installed closest to the power
source, followed by the extension cord and lastly, the machine.
The water pump requires a GFCI. To reduce risk of electrical shock when operating the machine
with the pump plugged into the 3-pole receptacle on the motor, connect the machine to a GFCI
outlet. See the pump manual and informational tags enclosed separately for all pump information.
ON
(
(
))
ON
(
(
))
CAUTION
DO NOT EXPOSE TO RAIN
For maintenance care and operation of the electric motor, refer to your electric motor instruction book-
let furnished with the electric motor. Protect the electric motor from dust as much as possible and keep
ventilating openings clean. Before plugging in the machine, make sure that the outlet voltage is within
the voltage marked on the machines's data plate.
DO NOT spray water on the electric motor. DO NOT touch the plug with wet hands. To reduce
the risk of electrocution, keep all connections dry and off the ground.
ELECTRIC MOTOR SAFETY
DO NOT operate electric motor in an explosive environment.
DO NOT expose to rain or use in damp locations.
ON
(
(
))
ON
(
(
))
ON
(
(
))
WARNING
If operating the equipment in damp locations is unavoidable, ALWAYS use a Ground Fault
Circuit Interrupter, ALWAYS wear rubber gloves and footwear in damp conditions.
DO NOT abuse the cord. Never use the cord to carry the equipment or to pull the plug from
the outlet. Keep the cord away from heat, sharp edges, and moving parts. Replace dam-
aged cords immediately. Damaged cords increase the risk of electric shock.
ON
(
(
))
ON
(
(
))
ON
(
(
))

11
MK-1080 PAVER SAW SAFETY
To avoid the possibility of the appliance or plug receptacle getting wet, position the machine to one
side of a wall mounted receptacle. This will prevent water from dripping into the receptacle or plug. A
"drip loop," shown in the picture below, should be arranged by the user to properly position the power
cord relative to the power source. Use the drip loop as a way to prevent GFCI and plug from getting
wet.
The "drip loop" is that part of the cord below the level of the receptacle (or the connector, if an exten-
sion cord is used). This method of positioning the cord prevents the travel of water along the power
cord and coming in contact with the receptacle.
If the plug or receptacle gets wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker
that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
Supporting
Surface
Power
Tool
Drip Loop
Power
Cord
Drip Loop Information
WARNING
ON
(
(
))
WARNING
Use only extension cords that are intended for outdoor use. These extension cords are
identied by a marking "Acceptable for use with outdoor appliances; store indoors while not
in use." Use only extension cords having an electrical rating not less than the rating of the
product. DO NOT use damaged extension cords. Examine extension cords before using and
replace if damaged. DO NOT abuse extension cords and DO NOT yank on any cord to dis-
connect. Keep cords away from heat and sharp edges. Always disconnect the extension cord
from the receptacle before disconnecting the product from the extension cord.
ALWAYS make certain that the power source required for the electric motor is correct and always
use the correct NEMA conguration plug. Motors can burn out when the line voltage falls 10% below
the voltage rating of the motor. Failure to use proper voltage will cause the motor to overheat. Make
certain that the correct size grounded (3-wires) extension cord is used.
ON
(
(
))
ON
(
(
))

12
MK-1080 PAVER SAW SAFETY
WARNING
Use of undersized extension cords result in low voltage to the motor that can result in motor burnout
and premature failure. MK Diamond warns that equipment returned to us showing signs of being run
in a low voltage condition, through the use of undersized extension cords,will be repaired or replaced
totally at the customer’s expense. There will be no warranty claim.
To choose the proper extension cord,
• Locate the length of extension cord needed in the table below.
• Once the proper length is found, move down the column to obtain the correct
AWG size required for that length of extension cord.
ON
(
(
))
MOTOR SPECS EXTENSION CORD LENGTH
Motor Voltage Amps 25' 50' 100'
168022G 120V 1 Ph 14.5 12 ga 10 ga 8 ga

13
The MK-1080 Paver Saw is equipped with a number of safety decals. These decals are provided for
operator safety and maintenance information. The photo on the next page also shows the location of
these decals. Should any of these operation or safety decals become unreadable, replacements can
be obtained by calling [phone].
OPERATION & SAFETY DECALS
MK-1080 PAVER SAW SAFETY
Decal Location Description
A Motor - Front Warning - Silica
B Motor - Front Warning - Read Manual
C Motor - Back Caution - Ground Fault Circuit Interrupter
D Motor - Back Caution - Receptacle Water Pump
E Motor - Side Service/Warranty
F Blade Guard Caution - Guards in Place
Belt Guard Caution - Guards in Place
G Blade Guard Warning - Replace Blade Guard
H Motor - Front Notice - Extension Cord
I Motor - Front QR Code for Manuals
Part # 154398
Part # 155587 (2) Part # 155588
WARNING
In the event of blade
failure, replace
blade guard
immediately.
!
Part # 164202
Part # 170480
Scan for manuals
WARNING
•Thisequipmentmayproducedustormistscontaining
 crystallinesilica.
•Silicaisabasiccomponentofmasonry,concrete,and
 othermaterials.
•Repeatedand/orsubstantialinhalationcancause
 seriousorfatalrespiratorydiseasesincludingsilicosis.
•RespirablecrystallinesilicaislistedbyCaliforniaand
 otherauthoritiesasasubstanceknowntocausecancer.
•Employdustcontrolsandprotectionper
 OSHA/NIOSH/MSHA.
!
DO NOT operate
this equipment
before reading the
owner’s manual.
WARNING
!
Part # 154822Part # 155678
Receptacle is for water
pump only.
125V .6 amps max.
!CAUTION
!CAUTION
This saw is to be used
with a Ground Fault
Circuit Interrupter.
CAUTION
DO NOT
operate without
guards in place.
!
Part # 155038
SERVICE OR
WARRANTY
FOR INFORMATION ON
PLEASE CALL
1-800-474-5594
Part # 155672
NOTICE
Most Motor Problems are
caused by Low Voltage from
Improper Extension Cords.
See Owner’s Manual for
Extension Cord Selection.
!
A
E
FG
H
I
B
C D
GA
F
EF
I
H
B
CD

14
MK-1080 PAVER SAW PRODUCT SPECIFICATIONS
• High torque, thermally protected 1-1/2 HP motor
• Recoil spring counterbalanced cutting head
• Cutting table travels on steel roller wheels
• Heavy-duty blade shaft assembly with dual-sealed bearings & precision machined shaft
• Single piece reinforced zinc-plated steel frame has carrying handles for easy transportation
• Hinged blade guard with stainless steel water tubing
• Industrial water pump included
• One-year limited warranty
MK-1080 Paver Saw Specications
Model 153203
Motor Single Phase 120V / 60 Hz
Amps 12.4 AMP
Horsepower 1-1/2 HP
Motor Overload Thermal Overload Reset
Motor Fan Enclosed Fan Cooled
Blade RPM 3,450 RPM
Blade Capacity 10” (254 mm)
Arbor Size 5/8” (16 mm)
Standard Length of Cut 16” (406 mm)
Maximum Depth of Cut 3-3/4” (95 mm)
Water Pump Protection Thermally Protected
Water Pump Submersion Fully Submersible
Water Pump Lubrication Self-Lubricating
Water Pump Capacity 170 gallons/hour (644 litres/hour)
Conveyor Cart Dimensions-(LxW) -
inches/cm
12-1/2” x 17”
318 x 432 mm
Paver Saw Weight 103 lbs. (46.7 kg)
Saw Dimensions (LxWxH) - inches/
mm
33” x 23” x 23”
838 x 584 x 584 mm

15
MK-1080 PAVER SAW INSPECTION & SET-UP
UNPACKING
Remove the MK-1080 Paver Saw from the carton and place it on a at surface. Check contents with list
below:
In your container, you will nd one (1) MK-1080 and water basin, one (1) splash guard, one (1) wa-
ter pump, one (1) water pump manual, one (1) rip guide, one (1) blade nut wrench, one (1) owner’s
manual, one (1) warranty card.
CONTENTS
Your MK-1080 Paver Saw has been inventoried and packaged with the greatest of care. Inspect the
contents of carton against the contents list below. Ensure that all items are accounted for and that
they are in sound condition. If there are any missing or damaged parts, call MK Diamond Customer
Service at [phone] for instructions before proceeding.
MK-1080 PAVER SAW
OWNER’S MANUAL,
OPERATION & PARTS MANUAL
www.mkdiamond.com
Caution: Read all safety and operating instructions before
using this equipment. This manual MUST accompany the
equipment at all times.
04.2015
Revision 103
Manual Part No. 166894
MK-1080 Paver Saw
WATER PUMP
OWNERʼS MANUAL
INTRODUCTION
Pumps are carefully inspected and tested to ensure both safety and
operating performance. However, failure to follow the instructions and
warnings in this manual may result in pump damage and/or serious
injury. Be sure to read and save this manual for future reference.
ASSEMBLY
Your MK-1080 has been shipped from the factory thoroughly inspected. Only minimal assembly is
required.
Splash Guard Water Pump Rip Guide
Water Pump Manual Blade Nut Wrench Owner’s Manual Warranty Card
CAUTION Use proper lifting techniques when lifting the MK-1080.
Before using the machine, check for any broken, worn or damaged parts and replace them imme-
diately.
• ALWAYS keep the machine clean and lubricated.
• ALWAYS unwind the power supply cord completely and check for damage.
• Carefully check the “Technical Data” Label before plugging in the machine. Follow the extension
cord requirements, as recommended on the machine label. Work on a level and clean surface.
NOTICE

16
MK-1080 PAVER SAW SET-UP
CONVEYOR CART
1. The Conveyor Cart is secured for shipping by plastic ties. Remove these plastic ties before use.
2. Ensure that the Cart runs smoothly along the tracks of the Inner Frame.
INSTALLING THE BLADE
(A)
While holding the cutting head handle
down to counteract spring tension,
loosen the cutting head lock screw and
allow the cutting head to gently rise to
its highest point.
(B)
Slide the cutting table to the front of
the saw and raise the blade guard.
(C)
It may be necessary to adjust the
tightness of the blade guard wing nut.
When properly tightened, the blade
guard will move relatively easily and
also stay in the raised position.
(D)
Locate the shaft lock push button on
the underside of the cutting head.
(E)
Depress the shaft lock push button and
rotate the arbor shaft till the button locks
the arbor shaft in position. If necessary,
use the blade wrench to turn the retaining
nut counterclockwise to loosen from the
arbor shaft.
(F)
Remove the nut and slide the outer
ange (I) from the arbor shaft.

17
MK-1080 PAVER SAW SET-UP
(G)
Install the diamond blade onto
arbor shaft.
(H)
The direction of rotation arrow on the
blade matching the direction of the ar-
row on the blade guard.
(I)
Verify that the blade is seated at
against the inner ange of the
blade shaft.
(J)
Slide the outer ange back on the
arbor shaft with the recessed side
of the ange facing the blade.
(K)
Install the retaining nut on the arbor
shaft. Depress the shaft lock button
and use the blade wrench to tighten the
retaining nut in a clockwise direction.
(L)
When installing the retaining nut, do
not “cross-thread” and do not over
tighten. Lower the blade guard back
down into the cutting position.
INSTALLING THE BLADE

18
INSTALLING THE WATER PUMP
MK-1080 PAVER SAW SET-UP
To prevent the possibility of electrical shock, the MK-1080 must be unplugged when connecting the
Water Pump.
WARNING
(A)
Install Plastic Fitting onto Water Pump.
(B)
Install Plastic Hose onto Plastic Water
Pump Fitting.
(C)
Place Water Pump in pan.
(D)
Route Water Hose through Cushion
Loop and under Motor between Fan
Guard and Belt Guard.
(E)
Place Clamp on Hose.
(F)
Attach Hose to Blade Guard.
WATER PUMP SYSTEM INFORMATION
NOTICE
The Electric Water Pump is a powerful, thermally protected, self-lubricating, fully submersible unit ca-
pable of delivering 170 gallons (644 litres) of water per hour. For operator convenience, the pump power
cord plugs into the female receptacle of the motor terminal box, and is automatically activated as soon as
the motor is turned to the “ON” position.
You may wish to immerse your water pump in a drum of fresh water, as to allow
clean/unslurried water to cool the Diamond Blade. This action will keep your machine
cleaner and allow the greatest life for your Diamond Blade.
The pump has been designed to operate “WET”, therefore it is advisable to disconnect the pump if the
operation calls for “DRY” cutting. When running wet, the pump should be kept in the water reservoir in a
position that permits the scupper to be fully submersed. For optimum performance and longevity, it is best
to keep clean water in the reservoir at all times.

19
Interruption of motor operation caused by the thermal switch indicates the existence of improper or insuf-
cient power to your electric motor. DOUBLE CHECK YOUR POWER SOURCE!
NOTICE
MK-1080 PAVER SAW SET-UP
MOTOR INFORMATION
• Ensure the proper/recommended Diamond Blade has been selected for the job.
• Inspect and ensure the proper electrical power is available for your motor.
• Ensure a constant ow of water is generated to the Diamond Blade.
(A)
Thermal Overload Switch
For your own safety, NEVER start the motor until you fully understand the electrical
requirements and standards of your machine and jobsite. When starting the saw,
the operator should stand outside the path of the blade. Read requirements and
features of this saw.
WARNING
ON / OFF
The MK-1080 Paver Saw has not been engineered nor designed to cut materials (ie. steel, wood, etc.)
other than those comprised of ceramic/masonry material such as clay, stone, rock, cinder and masonry
brick and block. For best results, USE ONLY MK DIAMOND BLADES. For assistance in Diamond Blade
selection, contact your distributor or MK Diamond at [phone].
NOTICE
The electric motors used on the MK-1080 have been designed to deliver exceptional power over a long
period of time, with virtually no maintenance requirements. However, if they do NOT receive the proper
voltage conditions, their performance and longevity will degrade. Continued operations utilizing dubious
power sourcing could damage your electric motor. If extension cords are necessary, pay particular atten-
tion to their length and gauge. Always be cautious around your jobsite power source!
NOTICE
The Thermal Overload manual reset switch is located on the top housing of the electrical motor (Fig-
ure 24). If an extreme internal temperature is sensed, the switch will “trip” and the motor will shut off
automatically. If this occurs, turn the motor “ON/OFF” switch to the “OFF” position and allow the mo-
tor to cool for at least ten minutes before restarting. Push the “reset” button (using minimal force) and
resume operations.
Your MK-1080 Paver Saw requires minimum preparation prior to operation. It is advisable, however, to
periodically lubricate those metal components that pivot and rotate and observe three critical areas of
concern:
THERMAL OVERLOAD PROTECTION

20
MK-1080 PAVER SAW OPERATION
CUTTING OPERATIONS
The MK-1080 Paver Saw permits the operator several options for cutting relative to the design of the
saw. The Cutting Head may be adjusted to a xed position for “FORCED” cutting (the action of pushing
the material steadily into the blade). The material may also be “STEP” cut (the process of passing the
material while adjusting the blade to various depths as a means to incrementally cut the piece). Lastly,
the “CHOPPING” action of the saw can be employed to expeditiously “come down onto” and “push
through” the material in one motion to fully utilize the mechanics of the recoil spring /rolling conveyor
cart. Whatever the preferred technique, please follow these general guidelines:
1. Hold the material rmly against the conveyor cart backstop. Use the rip guide provided to support
and orient the material.
2. DO NOT force the material into the blade! Allow the diamonds to do the grinding.
3. When using a brand new diamond blade, make the rst few cuts slowly until the blade is “broken-in”
and cuts freely and easily.
4. After continuous cutting of very hard and dense materials, the blade’s cutting efciency may slow
down. Should this occur, it can be sharpened by making several passes against very abrasive
material such as: soft cinder block or lightweight sandstone. ENSURE PLENTY OF WATER IS
USED DURING THIS PROCESS!
WARNING
DO NOT operate saw without the blade guard in place. The exposed area of the
blade should never exceed 180 degrees during operation. When installing the
blade, ensure that the blade and anges are free of sediment, so the t between
ange and blade is even and true.
NOTICE
A Diamond Blade actually grinds...it does not cut. Not allowing the blade to per-
form the way it was engineered may result in premature blade wear, diamond
“glazing”, steel core warpage, or severe segment damage.
CLEANING & LUBRICATION
The slurry and cutting residue generated by the MK-1080 Paver Saw is considerable. A cleaning and
lubrication schedule must be maintained in order to ensure long and trouble-free operation. As a com-
mon sensible and preventative maintenance practice, clean the dirt and cutting deposits from your
machine after each use. A pressurized spray system may be used, however, never spray around the
electric motor, switch box, or ON/OFF switches. Further, the following lubrication points are advised:
• Place light machine oil where friction, pivoting or rotation occurs between the structural
components.
DO NOT OIL THE MOTOR!
• Pump clean/fresh water for one minute through the Blade Guard Water Tubes to safeguard
against a build up of sediment and the possibility of clogging.
• Rotate the entire Cutting Head Assembly on the Pivot Shaft and lubricate where the casting and
shaft make contact.
