MK Martin land plane User manual

REV: 20-4
MK Martin Enterprise Inc.
3950 Ste󰀪er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
Operator’s / Parts Manual

Table of Contents
• Warranty ----------------------------------------------------------------------------------------------
• Registration ------------------------------------------------------------------------------------------
• Safety --------------------------------------------------------------------------------------------------
• Decal Location --------------------------------------------------------------------------------------
• Operation ---------------------------------------------------------------------------------------------
• Sign o󰀨 Form -----------------------------------------------------------------------------------------
• Land Plane Parts ----------------------------------------------------------------------------------
• Main Hydraulic Kit ----------------------------------------------------------------------------------
• Skid Steer Hydraulic Kit --------------------------------------------------------------------------
• 3-Point HItch Hydraulic Kit ------------------------------------------------------------------------
• Bolt Torque -------------------------------------------------------------------------------------------
• Maintenance -----------------------------------------------------------------------------------------
2
3-5
5-6
7
8
9
10-11
12
13
14
15
16

2
Warranty
Eff ective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on  le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or a󰀨 ect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insuffi cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Ste󰀪 er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Ste󰀪 er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Safety -- It’s in your interest!
Safety Guidelines
Safety of the operator is one of our main concerns, however it is up to you, the opera-
tor to practice caution and safety!
To avoid personal injury, study the following precautions and insist that those working with you
follow them.
The MK Land Plane is a very basic piece of equipment. Clear the area of people and espe-
cially children, as your attention will be concentrated on what the Land Plane is doing, rather
than the surrounding space. Try to stay aware of your surroundings at all times!
When adjusting or replacing parts, do not place yourself or other persons or any part of your
body under a raised Land Plane!
Do not place yourself or other persons or any part of your body under a raised blade!
Replace any missing or illegible decals. Location of the decals are indicated elsewhere in this
manual.
Do not use the equipment while under the inuence of drugs or alcohol.
Review the safety instructions annually.
This equipment should not be operated by children, or those unfamiliar with the operation of
the MK Land Plane.
Do not allow persons to operate this equipment until they have read this manual and/or
were instructed by a qualied Person.
Do not paint over or deface any safety signs or warning decals on this equipment.
Please be careful with the extra weight on the back of the tractor. It may be necessary to add
extra weight to the front of the tractor to keep it balanced properly.

7
Decal Location
2. MK Martin Decal
3. Before operating machine, carefully
read the instruction manual
1. Serial Plate
1
2
3
4

8
Operating
To attach the MK Land Plane to the tractor;
• Back the tractor to the Land Plane that is on level ground and fasten the lower hitch mount.
• Lengthen or shorten the top link until link can be pinned on the top hitch on the “A” Frame.
This will ensure that the Box Scraper will be level with the ground when the Land Plane is in
working position.
• To make the Land Plane more aggressive when moving forward, shorten the top link, thereby
tilting the Box Scraper forward and to lower the teeth in relation to the cutting edge.
• The shanks can also be adjusted up and down for more or less ripping capability.
• The Land Plane has a cutting edge at the rear for backing into the material. Please note when
using the Land Plane in reverse the angle of the tractor linkage will force the cutting edge
down and can create high stresses to the Land Plane frame. Use caution.
This MK Land Plane is not designed for excavating! Be careful when backing up as you
can now push the Land Plane into the load causing some of the tractor weight to transfer to the
Land Plane and may buckle it.

9
Sign Off Form
M K Martin Enterprise Inc. follows the general Safety Standards speci ed by the American
Society of Agricultural Engineers (ASAE) and the Occupational Health and Safety Administration
(OSHA). Anyone who will be operating and/or maintaining the equipment must read and clearly
understand ALL Safety Operating and Maintenance instructions presented in this manual. Do not
operate or allow anyone else to operate this equipment until such information has been reviewed.
Annually review this information before the season start-up. Make these reviews of SAFETY and
OPERATION annually as a standard practice for all your equipment. We feel that an untrained op-
erator is unquali ed to operate this machine. A sign-o󰀨 sheet is provided for your record keeping
to show that all personnel who will be working with the equipment have read and understood the
information in the operator’s manual and have been instructed in the operation of the equipment.
Date Employees Signature Employers Signature

10

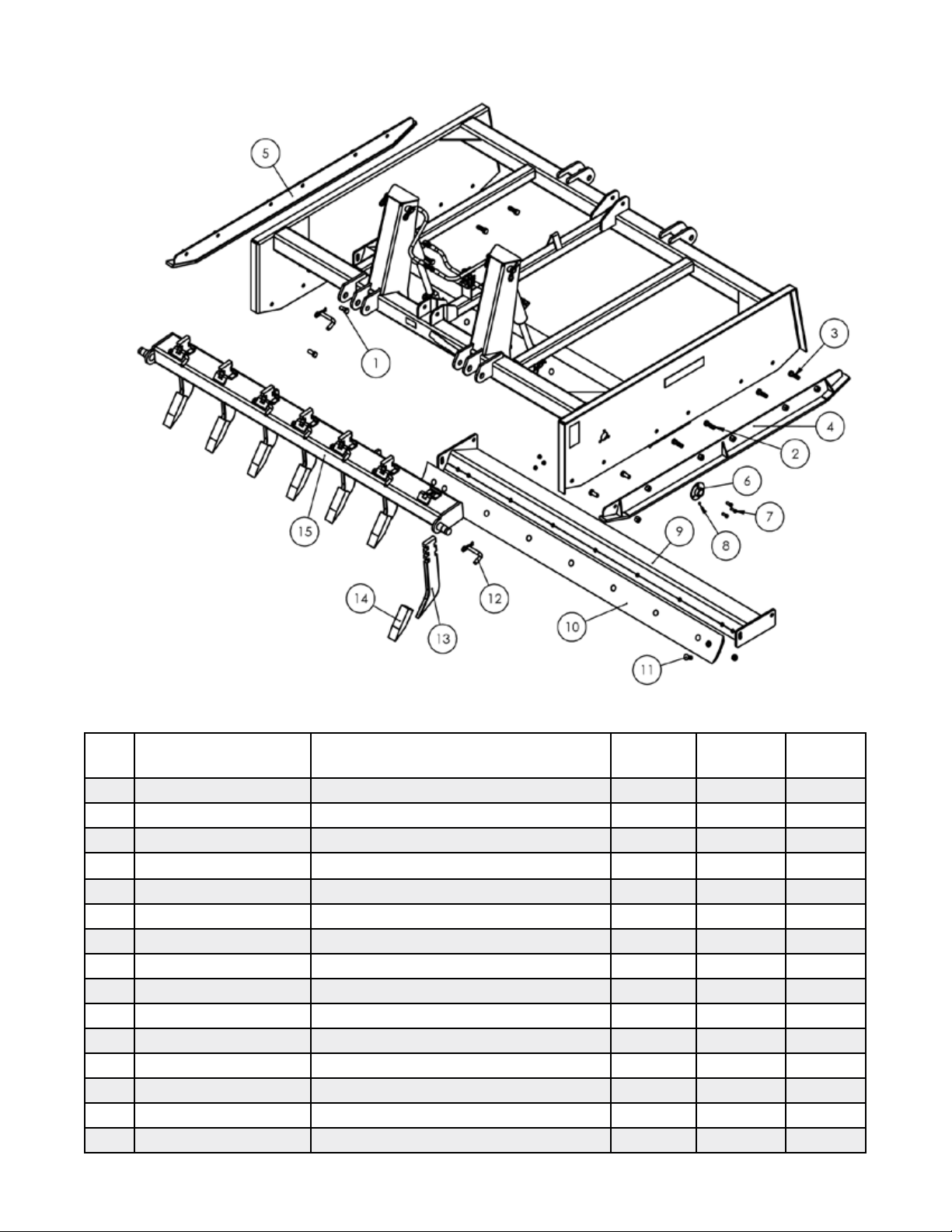

MK Land Plane Parts
Item
#
Part # Description 6ft Qty 7ft Qty 8ft Qty
1OL Bolt 5/8 x 1 1/2 c/w ln 4 4 4
2OL Bolt 5/8 x 2 clw ln 4 4 4
3OL Bolt 5/8 x 2 c/w nlw, ln 4 4 4
460333 Skid Shoe Left 1 1 1
560336 Skid Shoe Right 1 1 1
660361 Bushing Mount 2 2 2
7OL Bolt 3/8 x 1 clw ln 6 6 6
8OL 1/4 - 28 Grease Fitting 2 2 2
932872 6ft Lower Cross Member 2
32800 7ft Lower Cross Member 2
32876 8ft Lower Cross Member 2
10 53089 1/2 x 6 x 72 Cutting Edge 2
53092 1/2 x 6 x 84 Cutting Edge 2
53918 1/2 x 6 x 96 Cutting Edge 2
11 OL Plow Bolt 5/8 x 1 3/4 c/w ln 8 910

11
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut
Item
#
Part # Description 6ft Qty 7ft Qty 8ft Qty
12 wal385002 5/8 x 3 Bent Hitch Pin w/ Hair Pin 6 7 8
13 VBL3SH Scarier Shank 6 7 8
14 VBL3 Scarier Replacable Point 6 7 8
15 60609 6ft Scarier Bar 1
60528 7ft Scarier Bar 1
60571 8ft Scarier Bar 1
MK Land Plane Parts

12
Land Plane Main Hydraulic Kit
Item # Part # Description Qty
1cylHYS20FEM10-10 2 x 10 Welded Cylinder c/w Flange Pins 2
260375 1 x 7 3/8 Cylinder Pin c/w Hair Pin 2
36801-0806 1/2 MJIC x 3/8 MORB 90 Degree 4
460386 3/8” Hose 17” Long 2
560382 3/8” Hose 11” Long 2
6OL 1/4-20 Nut 8
72603-0808 3/4-16 Male JIC T-Joint 2
8OL U-Bolt 1/4-20 x 1/2” Pipe Size 4
960385 3/8” Hose 97” Long 2
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut

13
Land Plane Skid Steer Hydraulic Kit
Item # Part # Description Qty
150510 Skid Steer Brace Spacer 1
260459 Skid Steer Brace 2
3OL Bolt 5/8 x 6 c/w ln 1
4DJA7011 Manual Tube 1
5OL Bolt 1/4 x 1 c/w fw, ln 2
6OL Bolt 1 x 4 1/2 c/w ln 2
7OL Bolt 3/4 x 2 c/w ln 2
820456 Skid Steer Flat Face Male Coupler 1/2” Body 1/2” Thread 1
9800801008 Skid Steer Flat Face Female Coupler 3/4” Body 3/4”
Thread
1
10 2404-0808 1/2” MJIC to 1/2” Male Pipe Adaptor 2
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut

14
Land Plane 3-Point Hitch Hydraulic Kit
Item # Part # Description Qty
150723 Top Point Mast 1
2OL Bolt 5/8 x 4 c/w ln 1
3OL Bolt 5/8 x 5 c/w ln 1
4S71-4 Lift Pin c/w Lynch Pin, Spring Pin 2
52404-0808 1/2” MJIC to 1/2” Male Pipe Adaptor 2
6Agri-ball Nipple 1/2” npt 2
7OL Bolt 5/8 x 4 c/w ln 1
860373 Top Link Brace 1
9DJA7011 manual Tube 1
10 OL Bolt 1/4 x 1 c/w fw, ln 2
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut

15
Bolt Torque
As used on this machine
•Bolt torque table shown below gives torque values for various bolts used.
•This chart is for non-lubricated threads.
•Replace with same strength bolt.
Torque Speci cations. Torque values are identi ed by their head markings.
Diameter SAE 2 SAE 5 SAE 8
“A”ft-lb N.m ft-lb N.m ft-lb N.m
1/4 6 (8) 8 (11) 12 (16)
5/16 11 (15) 17 (24) 25 (33)
3/8 20 (27) 31 (42) 44 (59)
7/16 32 (43) 49 (67) 70 (95)
1/2 49 (66) 76 (105) 105 (145)
5/8 97 (130) 150 (205) 210 (285)
3/4 144 (195) 265 (360) 375 (510)
7/8 165 (225) 430 (585) 605 (820)
1250 (340) 645 (875) 910 (1230)
1 1/8 355 (480) 795 (1080) 1290 (1750)
1 1/4 500 (680) 1120 (1520) 1820 (2460)
1 1/2 870 (1180) 1950 (2640) 3160 (4290)
Allen head cap screw are similar to
SAE 8 quality
These torques are for reference only. Not all these sizes and grades are necessarily used in this
machine. Bolts that are used as a pivot or hinge have to be used with a locknut, therefore only
tighten enough to secure the bolt and still allowing the part to rotate freely.
SAE 2 SAE 8SAE 5 A

16
Maintenance
• After 1st 5 hours check all nuts and bolts and retighten if required.
• At 10 hours check all nuts and bolts and re-tighten if required. Repeat at 5 hour intervals until
all bolts have seated and stay tight.
Storage of MK Land Plane
• Store MK Land Plane in a rm, dry area, and set on blocks if the area is not rm enough to
support the equipment without sinking in.
• Clean o󰀨 all caked dirt and mud.
• When storing for a long period rusting may be a problem, applying oil to cutting edges and
shanks may prevent rusting, wipe all excess oil o󰀨 with a dry rag.
The Cutting Edges are reversible and after it shows considerable wear they can be reversed.
1. Loosen all the Plow bolts
2. Remove all bolts except the bolts at each end
3. Tilt the MK Land Plane on its back and remove the remaining bolts.
Note! Cutting Edge is heavy! Handle with care and use heavy gloves!

MK Martin Enterprise Inc.
3950 Ste󰀪 er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
