MK Martin MK Series User manual

MK 88-98 Series Grader Blade
MK588; MK688; MK788;
MK798; MK898
MK Martin Enterprise Inc.
3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
Operator’s / Parts Manual
Rev:18-1

Table of Contents
• Warranty ----------------------------------------------------------------------------------------------
• Registration ------------------------------------------------------------------------------------------
• Safety --------------------------------------------------------------------------------------------------
• Decal Location --------------------------------------------------------------------------------------
• Operation ---------------------------------------------------------------------------------------------
• Parts - 88 Series ------------------------------------------------------------------------------------
• Parts - 98 Series ------------------------------------------------------------------------------------
• Care and Maintenance ----------------------------------------------------------------------------
• Bolt Torque -------------------------------------------------------------------------------------------
2
3
5-6
7
8
9
10
11
12

2
Warranty
Eff ective on products retailed on or after November 1, 2017
Two Year Limited Consumer Warranty
Five Year Limited Consumer Warranty on Gearboxes
90 Day Limited Commercial Warranty including Gearboxes
Commercial includes rental and industrial applications.
Warranty begins at the time of customer delivery and is activated upon warranty registration receipt
at MK Martin Enterprise Inc.
Warranty coverage is null and void unless the Warranty Registration form has been completed
in full and is on  le at
MK Martin Enterprise Inc.
Keep your registration copy in a safe place, it is required as proof of warranty activation.
This new and unused product is warranted by MK Martin Enterprise Inc. to be free from defects in material and workmanship under
normal use and regular service as described in the owner’s manual, for a consumer period of 2 years and 5 years for gearboxes,
from the date of delivery, and commercial period of 90 days, including gearboxes, from the date of delivery. Warranty is limited to
the replacement of parts and / or repair of the product.
If issues develop within the warranty period with the product, contact the local dealer from which you purchased the unit. Only
MK
Martin
authorized dealers may make repairs to the product or a󰀨 ect the replacement of defective parts, unless otherwise approved
by
MK Martin . Repairs / replacement will be done at no charge within a reasonable time after the receipt of the product.
This warranty does not cover the following items:
1. Normal replacement of service items.
2. Normal maintenance or adjustments.
3. Machines or parts lost or damaged during shipment,
4. Accessory items / parts not supplied by
MK Martin
5. Damages resulting from:
 misuse, negligence, accident, theft or  re
 use of improper or insuffi cient fuel,  uids or lubricants
 use of after market parts or accessories, unless approved by
MK Martin
 modi cations, alteration, tampering or improper repair
 any device or accessories installed by other than an authorized dealer.
6. Tires are covered by the manufacturer of the tire and the warranty period speci ed by that manufac-
turer. Please contact the tire manufacturer for warranty on these items.
MK Martin Enterprise Inc. shall not, in any event, be liable for any losses, damages or costs; to include pro ts, travel, transportation,
pick up, delivery, towing cost, tow vehicle, loss of use, whether special, incidental, consequential or otherwise, in any way. Unit or
parts are returned at the customer’s expense.
Include a copy of your completed Warranty Registration form with any claim as proof of warranty activation.
There are no warranties, expressed or implied, other than those speci ed herein. No agent, employee or other person has any
authority to vary any of the foregoing provisions.
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on  le at MK Martin Enterprise Inc.
Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc.
3950 Steffl er Rd.  Elmira  Ontario, Canada  N3B 2Z3  Email : [email protected]  Fax : [phone]  Tel : [phone]
230817

3
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
---------------------------------------------------------------------------------------------------------------------
Purchaser’s warranty protection is valid only when this completed form or a copy of this form
is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged
delivery of equipment and owner’s / operator’s manual and has accepted the condition of the
equipment.
Date of delivery to purchaser -------------------------------------------------------
Type of Equipment -------------------------------------------------------------------
Model # ------------------------------- Serial # -------------------------------------
Retailer’s Signature Indicates
• Equipment was properly assembled as directed by manufacturer
• Equipment was tested for functionality and operates properly
• Purchaser was instructed in safe and proper operating procedures
• Warranty was explained to purchaser
• Purchaser was given the operators manual
Retailer
Signature ----------------------------------------------------------------
Company ---------------------------------------------------------------
Address ---------------------------------------------------------------
-------------------------------------------------------------
Purchaser’s signature indicates
• Acceptance of equipment fully assembled
• Received operator’s manual
• Clearly understands conditions of warranty
• Received instructions of safe and proper operation of equipment
Purchaser
Signature -----------------------------------------------------------
Company ---------------------------------------------------------
Mailing address -------------------------------------------------
City ------------------------------------------ Prov/State -------- Postal Code/Zip ---------------
Available phone number -----------------------------------------
Warranty is valid only when it has been received by manufacturer at address above

4
-------------------------------------------------------------------------------------------------------------------------
Postage
Stamp
M K Martin Enterprise Inc
3950 Steffl er Rd
Elmira ON CA N3B 2Z3
Fold Here
Please Cut and Return to M K Martin Enterprise Inc
Fold And Tape here Do not tape all edges or use staples
Warranty Registration

5
Safety
Take Note! This safety symbol is found throughout this manual to call your attention to instruc-
tions involving yourself and others working around the machine.
• Failure to follow these instructions can result in injury or death
This symbol means
-- Attention!
-- Become Alert!
-- Your Safety is involved!
Signal words are used in this manual.
Caution: Indicates a potentially hazardous situation that may result in injury.
Warning: Indicates a hazardous situation that could result in serious injury or death.
Danger: Indicates a hazardous situation that needs to be avoided. It is you the operator that
needs to be aware of these dangers.
If you have any questions not answered in this manual please contact your dealer or
M K Martin Enterprise Inc Tel: [phone]
3950 Steffl er Rd 1-855-664-2752
Elmira On Ca N3B 2Z3 Fax: [phone]
e-mail [email protected]
www.mkmartin.ca

6
Safety -- It’s in your interest!
Safety Guidelines
Safety of the operator is one of our main concerns, however it is up to you, the opera-
tor to practice caution and safety!
To avoid personal injury, study the following precautions and insist that those working
with you follow them.
The M K Grader Blade is a very basic piece of equipment. Clear the area of people and espe-
cially children, as your attention will be concentrated on what the blade is doing, rather than
the surrounding space. Try to stay aware of your surroundings at all times!
When adjusting or replacing parts, do not place yourself or other persons or any part of your
body under a raised blade!
Replace any missing or illegible decals. Location of the decals are indicated elsewhere in this
manual.
Do not use the equipment while under the inuence of drugs or alcohol.
Review the safety instructions annually.
This equipment should not be operated by children, or those unfamiliar with the operation of
the M K Martin Grader Blade.
Do not allow persons to operate this equipment until they have read this manual and/or
were instructed by a qualied Person.
Do not paint over or deface any safety signs or warning decals on this equipment.
Please be careful with the extra weight on the back of the tractor. It may be necessary
to add extra weight to the front of the tractor to keep it balanced properly.

7
Part #2
Before operating machine, care-
fully read the instruction manual
Decal Location
THIRD ANGLE PROJECTION
3
4
1
2
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\88 Series 2015\52815.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 4 OF4
DATE DRAWN
MATERIAL
52815
February-09-16 10:16:34 AM
DESCRIPTION
MK Series GB 5 Ft 2015
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\88 Series 2015\
Weight(lbs.)
0
Width Height Length
0 0 181.39 0
Blank Size Unit of Measure
ITEM ID.
52815
Config ID
52815
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING
Part #1 Series decal x2
Part #3
MK logo made in canada
#4 - Grease

8
Operating
The 88 series blade is designed for Cat#1 3ph and is adaptable for “Quick Hitch”
The 98 series blade is designed for Cat#2 3ph and is adaptable for “Quick Hitch”
The M K Grader Blade has 5 manual pinned stops as standard angle adjustment, the blade
can be rotated180° with 5 more stops available.
Optional hydraulic angle adjustment is available to allow the operator to control the angle from
the tractor seat.
88 Series: To reverse the direction of the blade, unpin the cylinder at the front of the A frame
and turn the blade 180°, then pin the cylinder back on the other side of the A frame.
98 series: To reverse the blade, remove the hydraulic cylinder, rotate the blade 180°. Switch
the stand and cylinder bracket and install the cylinder in the new position.
Please note:
M K 88 series blade uses an 8” stroke agricultural cylinder (20 1/4” - 28 1/4” closed to open)
M K 98 series blade uses an 12” stroke cylinder (22 1/4” - 34 1/4” closed to open)
To operate the M K Grader Blade
1. Attach to tractor as any 3ph equipment.
2. Ensure all pins are secure
3. Raise the blade slightly.
4. Undo stand pin and pull the stand up to the top position and lock with pin.
5. At this time you can use the leveling adjustment and level the blade by adjusting the top
link. The blade should also be adjusted with the lower hitch adjuster until the blade is level
with the ground.
6. The blade can be made more or less aggressive by adjusting the top link. This changes the
cutting angle.
7. The blade can be rotated left or right depending on the direction that you prefer the material
to move.
8. For nishing the grade, allow the material to slip under the edge before it moves o󰀨 the end
of the blade.
This Grader Blade is not designed for excavating! Be careful when backing up as you can
now push the blade into the load causing some of the tractor weight to transfer to the blade
beam and may buckle it.
Note:
OL = Obtain Locally
c/w = complete with
fw = Flatwasher
lw = Lockwasher
ln = Locknut
n = Nut

9
THIRD ANGLE PROJECTION
11 12
13
14
15
16
17
18
1
2
3
4 5 6
7
8
9
10
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\88 Series 2015\52815.SLDASM
DWG. NO.
REV
Model
SCALE 1:24
SHEET 2 OF2
DATE DRAWN
MATERIAL
52815
February-09-16 9:16:34 AM
DESCRIPTION
MK Series GB 5 Ft 2015
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\88 Series 2015\
Weight(lbs.)
0
Width Height Length
0 0 201.24 0
Blank Size Unit of Measure
ITEM ID.
52815
Config ID
52815
DIMENSIONS ARE IN INCHES
TOLERANCES NON SPECIFIED:
FRACTIONAL 1/64
BEND 1.0
TWO PLACE DECIMAL 0.01"
THREE PLACE DECIMAL 0.002"
Notes
DO NOT SCALE DRAWING

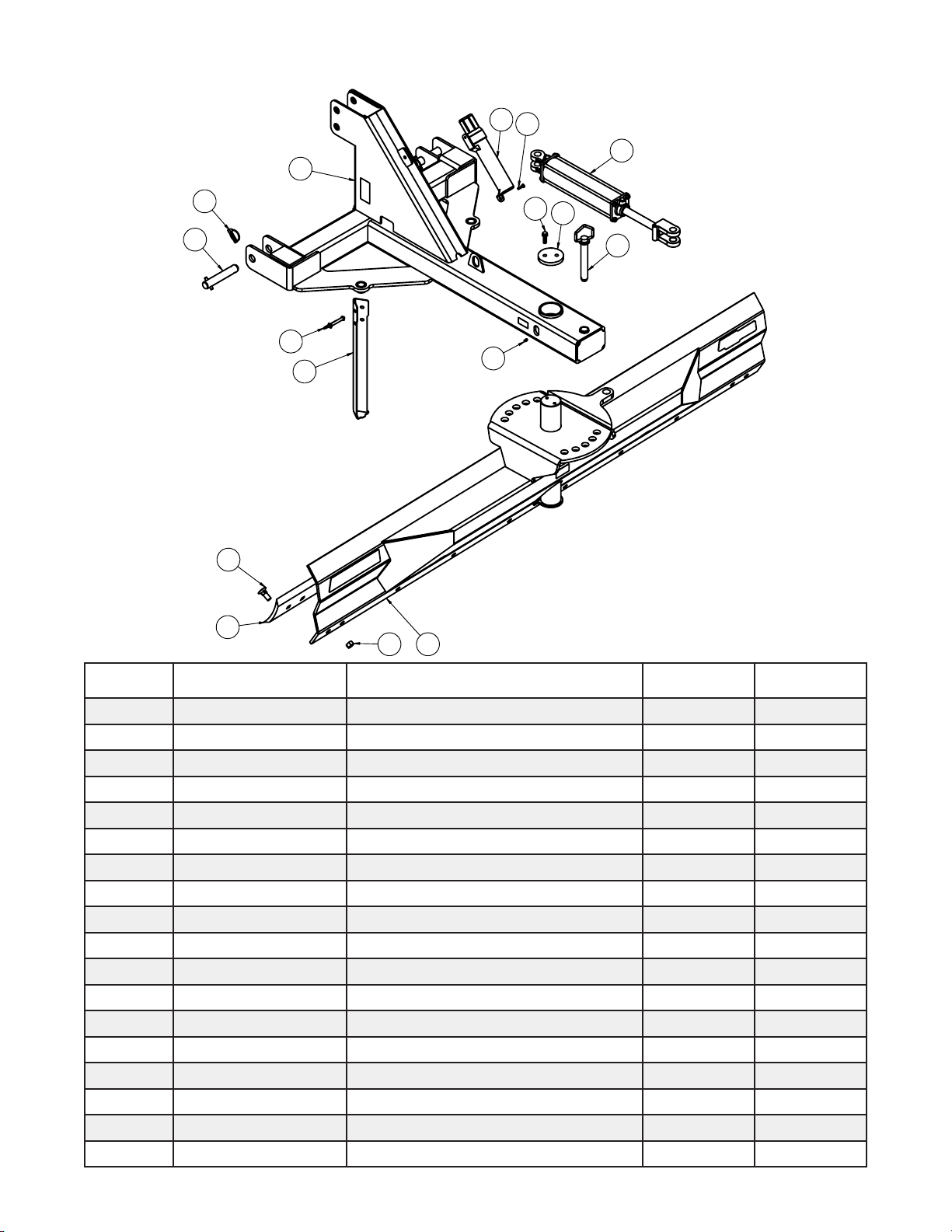

M K Grader Blade 88 Series
Item # Part # Description 588 Qty 688 Qty 788 Qty
152825 5’ Moldboard 1
52836 6’ Moldboard 1
52837 7’ Moldboard 1
252787 5’ Cutting Edge 1
53089 6’ Cutting Edge 1
53090 7’ Cutting Edge 1
3OL Plowbolt 5/8x1 1/2 c/w n 7 8 9
4OL Index Pin (3/4 Drawbar Pin) 1 1 1
5OL Bolt 3/8x1 c/w lw 2 2 2
652838 Swivel Cap 1 1 1
752834 Cylinder Bracket 1 1 1
8OL Bolt 3/4 x 2 1/2 c/w ln 1 1 1
9OL 2 1/2x8 Ag Cylinder (20 1/4 - 28 1/4) 1 1 1
10 1501-0606 3/8 NPT - 3/8 NPT Swivel Elbow 90° 2 2 2
11 23895 1/4 x 80 Hyd Hose 2 2 2
12 S71-4 agri-ball nipple 1/2 2 2 2
13 52649 Manual Tube 1 1 1
14 OL Flange Bolt 1/4 x 1 2 2 2
15 52810 Main Frame 1 1 1
16 53061 Cat #1 Lower Hitch Pin c/w lw, n 2 2 2
17 OL 3/8 PTO Pin 1 1 1
18 52840 Stand 1 1 1

10
M K Grader Blade 98 Series
10
9
8
7
6
4
3
2 1
14
15
16
13
11 12
5
5
4
3
1
Folder
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\211HRB-A001\
DWG. NO.
REV
SIZE
Model
SCALE 1:32
SHEET 2 OF4
DATE DRAWN
MATERIAL
22061
July-21-11 11:17:04 AM
DESCRIPTION
MK HD 8FT Grader Blade Assy
S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\211HRB-A001\
A
Weight(lbs.)
0
Width Height Length
0 0 616.53 0
Blank Size Unit of Measure
MK HD Grader Blade
22061
Config
Item # Part # Description 798 Qty 898 Qty
122339 7’ Mold board 1
22059 8’ Mold board 1
2OL 5/8 Nut 910
353090 7’ Cutting Edge 1
53918 8’ Cutting Edge 1
4OL Plow Bolt 5/8x1 3/4 910
5OL Grease Fitting 1/4-28 1 1
653180 Stand 1 1
7OL 3/8 PTO Pin 1 1
853896 Cat#2 Hitch Pin 2 2
9OL Lynch Pin 2 2
10 22053 Main Frame 1 1
11 52649 Manual Tube 1 1
12 OL 1/4 x 1 Pan Machine screw c/w fn 2 2
13 OL 3x12 Ag Cylinder 1 1
14 53914 Index Pin (1” Draw bar Pin 1 1
15 22060 Swivel Pin Cap 1 1
16 OL Bolt 7/16x1 1/2 c/w lw 2 2

11
MK Grader Blade
Care and Maintenance
After 1st 5 hours check all nuts and bolts and retighten if required. At 10 hours check all nuts
and bolts and re-tighten if required. Repeat at 5 hour intervals until all bolts have seated and
stay tight.
Storage of MK Grader Blade
Store MK Grader Blade in a rm, dry area, and set on blocks if the area is not rm enough to
support the equipment without sinking in. Clean o󰀨 all caked dirt and mud.
When storing for a long period and rusting may be a problem, unbolt swivel cap and apply oil
between the swivel shaft and swivel bushing, then replace the cap. This will prevent the mov-
able part from seizing up. Wipe all excess oil o󰀨 with a dry rag.
The Cutting Edge is reversible and after it shows considerable wear it can be reversed.
1 Loosen all the Plowbolts
2 Remove all bolts except the bolts at each end
3 Tilt the Grader Blade on its back and remove the remaining bolts.
Note! Cutting Edge is heavy! Handle with care and use heavy gloves!

12
Bolt Torque
As used on this machine
•Bolt torque table shown below gives torque values for various bolts used.
•This chart is for non-lubricated threads.
•Replace with same strength bolt.
Torque Speci cations. Torque values are identi ed by their head markings.
Diameter SAE 2 SAE 5 SAE 8
“A”ft-lb N.m ft-lb N.m ft-lb N.m
1/4 6 (8) 8 (11) 12 (16)
5/16 11 (15) 17 (24) 25 (33)
3/8 20 (27) 31 (42) 44 (59)
7/16 32 (43) 49 (67) 70 (95)
1/2 49 (66) 76 (105) 105 (145)
5/8 97 (130) 150 (205) 210 (285)
3/4 144 (195) 265 (360) 375 (510)
7/8 165 (225) 430 (585) 605 (820)
1250 (340) 645 (875) 910 (1230)
1 1/8 355 (480) 795 (1080) 1290 (1750)
1 1/4 500 (680) 1120 (1520) 1820 (2460)
1 1/2 870 (1180) 1950 (2640) 3160 (4290)
Allen head cap screw are similar to
SAE 8 quality
These torques are for reference only. Not all these sizes and grades are necessarily used in this
machine. Bolts that are used as a pivot or hinge have to be used with a locknut, therefore only
tighten enough to secure the bolt and still allowing the part to rotate freely.
SAE 2 SAE 8SAE 5 A

MK Martin Enterprise Inc.
3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3
Tel: [phone]
Toll Free: 1-855-664-2752
Fax: [phone]
E-mail: [email protected]
www.mkmartin.ca
