Gallagher Sheep Handler User manual



















GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
2



PUBLISHEDBY
GallagherAustraliaPTYLimited
14SomertonParkDrive,CampbellfieldVIC3061
www.gallagherams.com
Copyright©GallagherGroupLimited2012.
Allrightsreserved.PatentsPending.

GallagherSheepHandler–AutoWeighCrutchandDagManual
Edition1.0‐August2012
DISCLAIMER:Whileeveryefforthasbeenmade
toensureaccuracy,neitherGallagherGroup
Limitednoranyemployeeofthecompany,shallbe
liableonanygroundwhatsoevertoanypartyin
respectofdecisionsoractionstheymaymakeasa
resultofusingthisinformation.
InaccordancewiththeGallagherpolicyof
continuingdevelopment,designandspecifications
aresubjecttochangewithoutnotice.
DevelopedandmanufacturedbyGallagherGroup
Limited,anISO9001:2000CertifiedSupplier.













GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
3



TableofContents
Introduction.......................................................................................................4
WhatistheSheepHandler?...............................................................................4
BenefitsofusingtheSheepHandler..................................................................6
Scenariosforuse.................................................................................................8
Recommendationsfortheconstructionanduseofthe
surroundingyardsandraces...............................................................................9
Powerandcompressedairrequirements........................................................11
ScalesandRFIDreaderrequirements..............................................................12
PositioningtheSheepHandler..........................................................................12
AssemblingtheSheepHandlerforuse.............................................................13
IfTransportationKitisfitted.............................................................................13
Connectors........................................................................................................15
SettinguptheSheepHandlerforuse..............................................................16
Communications................................................................................................17
AdjustingtheSheepHandlerwidth...................................................................18
OperatingControls............................................................................................19
Pull/PushSwitches.............................................................................................22
UsingtheRemoteControl................................................................................23
UsingtheSheepHandler...................................................................................24
AutomaticReleaseMode..................................................................................25
ManualReleaseMode......................................................................................27
SwitchingbetweenModes...............................................................................29
SensorsandGates.............................................................................................29
CareandMaintenance.....................................................................................30
Warranty...........................................................................................................32















GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
4

Introduction

WelcometotheGallagherSheepHandler–AutoWeighCrutchandDagusermanual.This
manualrelatestomodelnumberSG05794.Inthismanualyouwillfindinstructionsonusing
theSheepHandleraswellashintstohelpyouresolveanyproblemsyoumayencounter.

WhatistheSheepHandler?

TheSheepHandlerisasheephandlingunitcontaininganintegratedweighingplatform,
catchandrolloverfunctionwhichwillconnectwithavarietyofweighscaleindicators.
Pneumaticallyoperatedgatesandclampsallowstocktobesecured,handledanddrafted.
Therollovermechanismallowsforcrutching,bellyandfootwork.Catchanddraftfunctions
caneitherbecontrolledautomatically,bysettingupconditionsintheweighscaleindicator,
ormanuallybythestockhandler.Apanelreadercanbeattachedtoallowreadingof
ElectronicID(EID)tags.

Thedraftinggatesautomaticallydraftstockbasedoncriteriarecordedorweight.The
conditionsfordraftingaresetupintheweighscaleindicatorattachedtotheSheep
Handler.Draftingcanalsobecontrolledmanuallybytheoperator.TheSheepHandleris
easytotransportwithitsowntransportationkit(purchasedseparatelySG05795)andeasily
setupforuseandpackedupfortransport.

TheSheepHandler’sextremelysturdyandstrongconstructionmakestheunitdurableand
longlastingandbecauseoftherubberwallsandflooryourstockaresaferfrompotential
harm.

Insummary,TheSheepHandlerwithDraftingenablesyoutocarryoutarangeofactivities
including:
AutomaticElectronicID(EID)TagReading,Weighing,DraftingandwiththeClampand
Rolloverfunction:Dagging,Crutching,EyeWiggingandFootWork.TheSheepHandlercan
alsobepartiallyoperatedfromadistanceusingaremotecontrol.


GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
5



ThedifferentpartsoftheSheepHandlerareshowninthediagrambelow:





A.DraftingGates
B.MainClamp/Rollover
C.EntryGate
D.LeadupRace/RampClamp

(Transportationkitnotdisplayed)











D
CB
A

GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
6

BenefitsofusingtheSheepHandler

ThebenefitsyouwillreceivefromusingtheSheepHandlerincludethefollowing:
•Savetimeandlabour
OnepersoncanoperatetheSheepHandlerusingtheremotecontrol.Thismeansthatyou
willstillbeincontrolofitsoperationwhileatadistance.Additionally,asyoucontrolthe
gatesbyusingtheremotecontrol(twowayonlystraightandleft),thephysicaldemandsof
operatinggates,particularlydraftinggates,isremoved.

•Improveworkefficiency
Increasethespeedofavarietyofstockmanagementtasksandalsodraftingthroughputas
theprocesscanbeautomated.Thismeansstock(andpeople)spendlesstimeintheyards.

•Decreasetheincidenceofinjuriesforstockandoperators
TheSheepHandler’ssolidmanufactureandrubberlinedwallsreducesthechanceofinjury
fromcollisionsorgeneralusage.Additionally,theunitholdssheepsecurereducingthe
handlingaspectandpotentialinjurytopersons.

•Quietoperation
TheinnovativeconstructionoftheSheepHandlerandthepneumaticoperationmeansthat
itisexceptionallyquietwhenworking.Thisreducesthestressonyouandstock.Stockwill
flowbetterandwillentertheunitmorereadilyasaresult.

•Carryoutseveralstockmanagementtasksatthesametime
TheSheepHandlerwithareadersetup(panelandreader)canautomaticallyreadEIDtags,
weighandthendraftwithoutyouhavingtocontrolit.Alloftheseactionscanbepre‐
programmedintoaweighscaleindicatorwhichwillcommunicatewiththeSheepHandler.
Thisgivesyouthefreedomtomoveawayfromtheweighinganddraftingarea,toorganise
stockatthesametimeastheseactionsareoccurring‐allwiththeabilitytostopandhold
ananimalatthepushofabuttonontheremote.



GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
7

•Easyallocationanddraftingofstockintodifferentmanagementgroups
Providingyourbrandandmodelofweighscaleindicatorsupportsit,itisasimpleprocessto
allocateanimalsintogroupssothattheycanbemanagedseparately.Thiscouldinclude
suchthingsas:thedivisionintodifferentgroupsbyweighttoallowpriorityfeeding,orthe
draftingoutofeweswithmultiplepregnancies.

•Improvestockflowthroughtheweighinganddraftingsystem
Asthereislesshumaninvolvementintheweighinganddraftingprocessstockfeelless
threatenedandmoreinclinedtomovefreelythroughthesystem.

•Decreasedraftingandweighingoperatorerrorsandhitthecorrecttargetmarketweight
whendrafting
Astheweighinganddraftingprocessesareautomatedthereislesschanceoferror.In
addition,accurateweighinganddraftingensuresthatallstockfallintothecorrectgroupsto
ensuretheyachievepremiumpricesatsale.












GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
8

Scenariosforuse

TheflexiblenatureoftheSheepHandlerallowsyoutocarryoutmanyactivitiessimplyand
easily.Theseinclude:

Automatically
•Weighinganimalsandreleasingthem,ordraftingthemusingtheweightgroupingsyou
havesetupinyourweighscaleindicator.
•ReadingEIDtagsandweighinganimals,thendraftingusingtheweightgroupingsyouhave
setupinyourweighscaleindicator(draftbyweight).
•ReadingEIDtagsthendraftingusingasetofconditionsyouhavesetupinyourweigh
scaleindicator(draftbylist)(therangeofoptionswillbedependentonthebrandand
modeloftheattachedweighscaleindicator).

Manually
•ControllingthemovementsofanimalsoutoftheSheepHandleryourself.
•Overridinganautomaticsettingtoretainananimalintheunitsothatyoucanexamineit
forsomereason,ordraftitinadifferentdirectionfromtheautomaticsetting.
•Temporarilypauseanautomaticoperationsothatyoucanresolveissues.
•Secureanimalsfortagging,drenching,docking,daggingetc.










GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
9

Recommendationsfortheconstructionanduseofthe
surroundingyardsandraces

(adaptedfrom"BehaviouralPrinciplesofLivestockHandling"byTempleGrandin)

RaceconstructionleadinguptotheSheepHandler

Sides
Sheephaveawidevisualfield.Thewidthisaffectedbytheamountofwooltheyhaveon
theirheadandrangesfrom191to306degrees.Anyhandlingraces,includingtherace
leadinguptotheSheepHandler,shouldhavesolidsidewallstopreventanimalsfrom
seeingdistractionsoutsidetherace.Anymovingobjects,(e.g.people,flappingobjectsora
coathungonaracefence)seenthroughthesidesofaracecancausebalkingorfrighten
sheep.Solidsidewallsareespeciallyimportantifanimalsareunaccustomedtothe
facility.

Layout
CurvedsinglefileracesarerecommendedformovingsheepuptotheSheepHandler.A
curvedraceismoreefficientfortworeasons.Firstly,itpreventstheanimalfromseeing
whatisattheotherendoftheraceuntilitisalmostthere.Secondly,ittakesadvantageof
thenaturaltendencyofsheeptocirclearoundahandlermovingalongtheinnerradiusof
therace.

Width
Ideallytheracewillbedesignedinawaythatorganisessheepintosinglefilebythetime
theyreachthejunctionwiththeSheepHandler.Thishelpstoensurethatonlyonesheep
enterstheSheepHandleratatimeandmakesstockflowsmoother.Assheepcanbeof
varyingsizes,(e.g.adultsheepandlambs),itisusefultohavearacewithadjustablesidesin
thefinalleadup(thelast180cm).Howeveriftheracewidthisfixed,approximately50cmis
therecommendedwidth.ThisisthesamedimensionastheinternaledgeoftheSheep
Handlerentrygatesurround.


GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
10

Materials
Thematerialsthesurroundingracesaremadeofhavethepotentialtoaffectthereliability
oftheRFIDreader.Metalcomponentsarebestavoidedifpossible,particularlyiftheyrub
together,asthiscancauseinterferenceinthesignalbetweenthereaderandtheEIDtag.

Visionandlighting
WheretheSheepHandlerispositionedilluminationshouldbeuniformanddiffuse,much
likeabrightcloudyday.Shadowsandbrightspotsshouldbeminimised.Sheephavea
tendencytomovefromdimareastobrighterareas,providedthelightisnotglaringintheir
eyes.SituatetheSheepHandlertotakeadvantageofnaturallight.Skylights,combinedwith
othernaturallighting,canevenoutlightlevelssoconsiderinstallingtranslucent
polycarbonateroofingandorwallsiftheareaisdark.

Noise
Infacilitieswherelivestockarehandled,loudornovelnoisesshouldbeavoidedbecause
theydistresslivestock.Thesoundofmetalclashingtogethercancausebalkingand
agitation.AstheSheepHandlerisconstructedandlinedtoensureitsoperationisveryquiet
butthenoiselevelinthesurroundingyardsshouldbeconsidered.Thecompressor
providingairfortheSheepHandlerisbestlocatedatadistancetoreducenoiselevels.
RubberstopsongatesintheyardsaroundtheSheepHandlerwillhelpreducenoise.

Theeffectsofpainorfright
Researchindicatesthatsheepcanrememberapainfulorfrighteningexperienceformany
months.ThefactthattheSheepHandlerhasbeendesignedwiththecomfortandsafetyof
stockinmindwillhelptoensureanimals'experienceispositive.Thiswillaidinthesmooth
entryandflowofstockthroughthesystemonfutureoccasions.Itisalsoworthwhile
keepinginmindthatlivestockwhichhavehadgentlehandlinginthepastwillbeless
stressedwhentheyarehandledinthefuture.Thinkabouthowyouractionswillaffectyour
futureinteractionswithstockandtheefficiencyoftheoperationsyouwishtocarryout.



GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
11

Powerandcompressedairrequirements

Both12voltpowerandcompressedairarenecessarytooperatetheSheepHandler.Anair
supplyisneededtooperatetherampclamp,mainclamp,bellyaccessanddraftgates.

Powerrequirements
TheSheepHandlerispoweredbyanonboard12VBattery.Thereisalsoa230Vto12VDC
chargerandadapterforuseindryweather.Thiscomesaspartofthepackagewhenyoubuy
theSheepHandlerandcanbeconnectedtoyourACpowersupply(inputrange100‐240V
AC).Withthisconnectedyoucanchargetheonboardbatteryandalsousingtheconnecters
ontheboxtochargeyourweighscaleindicatoratthesametime.

IfyouhaveaweighscaleindicatororaRFIDreaderattachedtheycouldbepoweredbythe
SheepHandlerastherearetwo12Voutputsavailable.

Note:IfyouarewantingtoreadEIDtagsthenmakesureyoukeepthepowersupply1m,
ormore,awayfromthepanelstoavoidinterferencewiththeRFIDreaderantennae.

Compressedairrequirements
Oncethecompressorisconnectedandrunningyouwillseethegatesmovetotheirstarting
positionsandgaugesmove.Forbestresults,aminimum12cfm,125psicompressorshould
beused.Theairrunsdirectlyintoafilterandthroughanoilerwhichmaintainstheramsand
pneumaticlines.

Note:Refertothemaintenanceguideinthismanualforfurtherinformation.







GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
12

ScalesandRFIDreaderrequirements

TheSheepHandlerhasbeenspecificallydesignedtooperatewiththeGallagherTSi,
Ruddweigh800,GallagherWeighScaleIndicatorW810andGallagherWeighScaleIndicator
W610.(Pleasenote:DraftingbylistisnotavailableontheWeighScaleIndicatorW610.)It
willalsooperatewithsomeotherbrandsofweighingindicators‐yourGallagherTerritory
Managerwillknowwhicharecompatible.RFID(radiofrequencyidentification)antennae
canbefittedtoapivotingstand.AnRFIDcontrollerBR(G03111)orR(G03113)unitis
neededtocommunicatewiththeantennae.TheantennaewillrecogniseEIDwhichare
eitherHDX(halfduplex)orFDX(fullduplex),andthosewhichareinsertedasimplantsor
boluses(howeverthesearelesscommonlyused).


PositioningtheSheepHandler

ItisrecommendedforbestperformancethattheSheepHandlerissetuponalevel,flat
surface.Ideallyforpermanentinstallations,aconcretepadofapproximately2m(wide)by
5m(length)shouldbelaidtofittheSheepHandler.Apermanentmountingalsoallowsfor
theoptimisationofsurroundingyardsandracestoefficientlyfeedstockintotheweighing
anddraftingsetup.










GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
13

AssemblingtheSheepHandlerforuse

PositiontheSheepHandleronflatlevelground

FolddownthestabiliserlegsonthemainplatformsothattheSheephandlerislevel




IfTransportationKitisFitted
Disconnectandremovedrawbarbyremovingthepinandslidingthedrawbarout.To
removethewheels,removethepinsandslidetheoutinthesameway



Disconnectthechainsholdinguptheleaduprampanddraftgatesandlowerbothto
theground.


GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
14





Oncetheentryrampisloweredslidetheramptotherighttocentralizetherampfor
operationandinsertthepintolockitintoposition.

Caution:Therampsareheavy.Takecarewhenloweringtheramps.

Attachtheplantpoletosideoftheunitandsetupyourshearingplantifrequired.
Attachpanelreader(ifused)andGallagherweighscaleindicatortotheunit.Referto
thesectiononweighscaleindicatorsetupformoreinformationonchoosingthe
correctscalesettings.
Connectairlinesand240vpowertotheunit.





GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
15

Connectors
A. 4pinAmphenolconnector
UsetheleadsuppliedinthemoduleenclosuretoconnecttheSheep
Handler’sloadbarstotheweighscaleindicator.
B. 2X2pinGMEconnectors
Theseare12Voutputorinputs.If240Vmainspowerisconnectedthesecan
beusedtochargeyourweighscaleindicatororreader.Youcanalsoconnect
anexternalbatteryandruntheunitfromanexternalbattery.Inthemodule
enclosureisaleadtoconnecttotheweighscaleindicatorinordertocharge
it.
C. RS232SerialPort
ThisconnectstheSheepHandlertothescaleindicatorsothatthehandler
canreceivedraftingcommands.Thereisaserialleadinthemodule
enclosure.WhentheSheepHandleriscommunicatingwithscaletheamber
LEDwillbeflashing.
D. 240Vinput
Connectextensionleadheretopowertheunit.
A
D
C
B
AmberLED

GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
16


SettinguptheSheepHandlerforuse
BeforeusingtheSheepHandlerensurethatyouhavethefollowingcorrectlyattached:
Power
Compressedair
Scales(ifweighinganimals)
EIDReader(ifscanningtags)

Toattachaweighscaleindicator:
Attachtheweighscaleindicatortothescalesmountonthetopofthemountpost.
AttachtheRS232cable(communicationscable)toPort1ontheweighscaleindicator.This
cablewilltransmitthedraftingdecisiondatafromthescaleindicatortotheunit,sothatthe
draftinggatescanbesetup.

ToattachEIDReader:
IfweighinganimalswithEIDtagsattachtheRFIDpaneltothepivotingstandontheunitand
mountthereadercontrollertothepanel.Connectthepanelcabletothecontroller.
ConnecttheRS232cable(communicationscable)betweentheRFIDreaderandPort2on
theweighscaleindicator.








GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
17


Communications
SettingupyourW810weighscaleindicatortocommunicatewiththeSheepHandler
ConnecttheSheepHandlertothescaleusingtheRS232serialleadprovidedin
themoduleenclosure.
Switchyourscaleonandturnthedialto‘S’.
Usingthearrowsscrolldowntocommunicationsthenpress‘Select”.
Changethe‘Port1’settingto‘DrafterSpecial2’or‘DrafterFast’.
IfusingEIDchangethePort2settingto‘EIDstandard’.
ThenpushOK.Thiswilltakeyoubacktothepreviousscreen.
TurnthedialbacktoAforAuto.
TheamberLEDshouldnowbeflashingonthemodulebox.

















GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
18


AdjustingtheSheepHandlerwidth

TheSheepHandler’sMainClampandRampClamphaveadjustablesidepanelsthatcanbe
adjustedtodifferentpositions.

MainClamp
Themainclampisadjustedbywindingthehandleabovetheclamptothedesiredposition.



RampClamp
Therampclampisadjustedbyremovingthepinsandslidingthewalloftheramptoanother
position,therewillbeholesintheadjustmentwherethepinscanslidebackintotosecure
theslidingwall.


GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
19



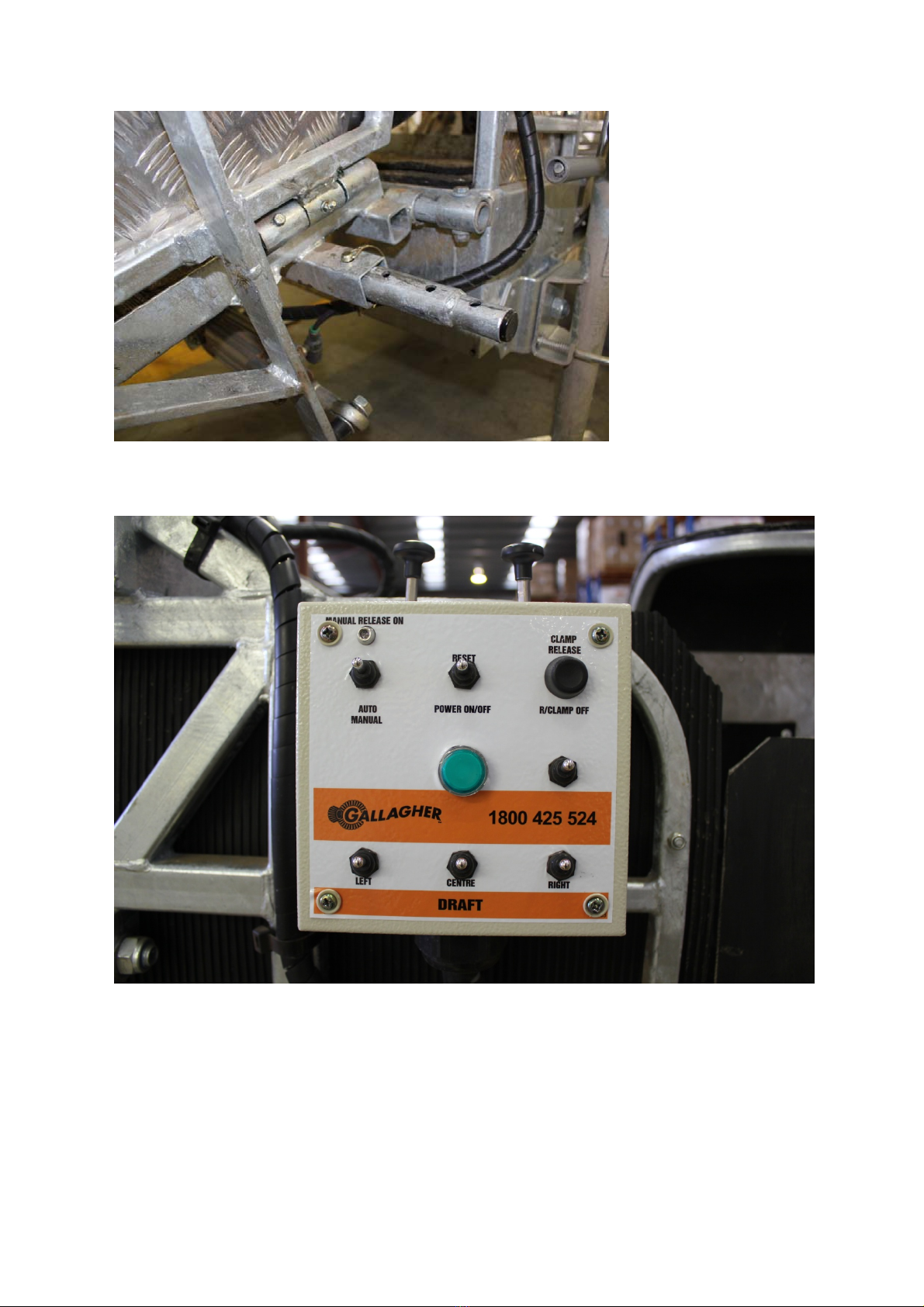

OperatingControls



Therearesixtoggleswitches,twopush/pullswitchesandapushbuttonusedtocontrolthe
SheepHandler.

Thethreebottomswitches(LEFT,CENTRE,andRIGHT)andallowmanualcontrolof
thedraftgates.

GallagherSheepHandler–AutoWeighCrutchandDagManualV1.0Aug2012
____________________________________________________________________________________________________
20

TheseswitchesneedtobeintheUPpositiontodraftinAutomaticReleaseMode.



AUTOMANUALswitch.ForManualReleaseModeensuretheswitchisinthedown
position.TheREDMANUALRELEASEONLEDwillbeilluminated.Thisallowsthe
sheeptobecapturedandworkedon.Anydraftsignalfromthescalewillbestored
andacteduponwhentheswitchisplacedinAutoReleaseMode.InAutoRelease
ModetheswitchshouldbeintheUPposition.TheREDMANUALRELEASEONLED
willnotbeilluminated.






Lightglowsred
wheninmanual
releasemode.
