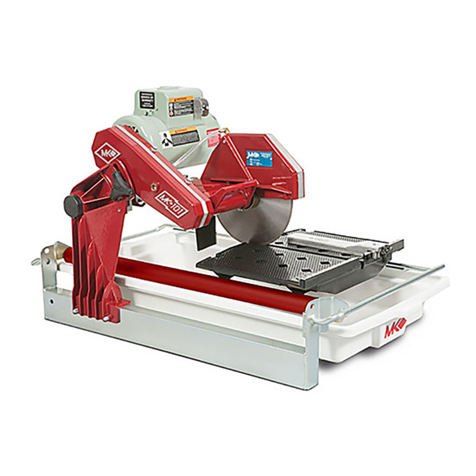

MK MK-101 Setup guide

MK-101
CAUTION:
Read all safety and
operating instructions
before using this
equipment
TILE SAW
OWNER’S MANUAL &
OPERATING INSTRUCTIONS
Enter the Serial Number of your new saw in the
space below. The Serial Number is located on the
left side of the blade guard.
NOTE:
For your (1) one year warranty to be effective,
complete the warranty card (including the Serial
Number and mail it in as soon as possible.
SERIAL NUMBER:
Maintenance Information

MK-101 Revision 4/01, Effective Date April 29, 2001 Page 26
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE:
1. New Maintenance:
Perform the following after initial purchase and operation of the MK-101.
2. Maintenance Following Use:
To extend the life of the MK-101, the following procedure should be performed after each use. Lubricate all
points listed below with light oils such as, 3 in 1, WD-40, etc.
* A GFCI wall socket is the preferred protective device.
Off
Position
ON/OFF
Switch
(A)
Check and adjust V-belt
tension Following 1st 48 hours of
operation (See V-belt Inspection)
(A)
Ensure the ON/OFF Switch
is in the OFF position
(B)
Unplug MK-101*
(C)
Lubricate the Guide Bar
(A)
Lubricate the Roller
Wheel Assembly
Inspect
V-belt
GFCI Guide Bar
Roller Wheel
Assembly

MK-101 Revision 4/01, Effective Date April 29, 2001 Page 27
MAINTENANCE AND TROUBLESHOOTING
3. Monthly Maintenance:
The following maintenance should be performed Monthly.
(A)
Remove the Diamond Blade
Retaining
Screw and
Outer Flange
Rotate Blade Wrench
counter-clockwise
to loosen
(D)
Verify the Roller Wheel
Assembly is tight and in
good condition
(F)
Verify the Motor Adjustment
Strap is tight
(E)
Verify all motor mounting
Bolts are tight
(B)
Lubricate the Outer Flange
and Retaining-nut
(C)
Lubricate the Inner Flange
(G)
Remove the Blade Guard
(H)
Lubricate the Blade Guard
Pivot Shaft
Outer
Flange
Inner
Flange
Verify
Tight
Verify Four
Bolts Tight
Verify Bolt
Tight
Turn Counter-
clockwise to remove
Blade Guard
Pivot Shaft

MK-101 Revision 4/01, Effective Date April 29, 2001 Page 28
MAINTENANCE AND TROUBLESHOOTING
4. Flow Adjustment:
NOTE: If flow to the diamond blade requires adjustment, perform the following actions.
(J)
Lubricate the Cutting Head
Adjustment Knob
(I)
Remove the Cutting Head (See
Adjusting the Cutting Head)
(L)
Lubricate the Cutting Head
Pivot Shaft
(K)
Lubricate the Cutting Head
Adjustment Knob retaining holes
(D)
Increase cooling flow by
releasing the Flow Adjusting
Clamp
(E)
Reduce cooling flow by
Pressing down on the Flow
Adjusting Clamp
Cutting
Head
Adjustment
Knob
Retaining
Holes
Pivot
Shaft
Pull Tab
to loosen
Press Tab
to Restrict
Flow

MK-101 Revision 4/01, Effective Date April 29, 2001 Page 29
MAINTENANCE AND TROUBLESHOOTING
1. Blade Dressing:
Like most cutting instruments, a diamond blade performs best when it is dressed. Over time and use,
diamonds on the outer edge of the blade will become smoothed or “glazed” over. This will reduce grinding
efficiency and may cause the blade to “wander” or bend giving the illusion of an alignment problem. When
this occurs, the blade will need to be dressed. The diamond blade can be dressed using the MK Dressing
Stick (part number 152972) and by following the steps below.
Cooling Flow
Points
On
Position
ON/OFF
Switch
Off
Position
ON/OFF
Switch
(C)
Position the Dressing Stick
(A)
Setup the MK101 for operation
(See Setup, Adjustment
and Operation)
(F)
Cut the Dressing Stick 7 or 8
times to dress the Blade
(B)
Set the Adjustable Cutting Guide
to cut a 1/16-strip
(D)
Turn the motor ON
(E)
Verify proper cooling flow on
both sides of the blade (See
Maintenance Section to
increase/decrease flow)
(G)
Ensure the ON/OFF Switch
is in the OFF position
Setup for
O
p
eration
Set Adjustable
Cutting Guide
Adjustable
Cutting Guide
Ruler/Stop
Hold Work
in Position
Direction
of Cut
