Mobilex Dolphin User manual

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
“Dolphin / Barracuda”
Manual Light Weight Wheelchairs
User's manual
Manufacturer:
MOBILEX A/S
Grønlandsvej 5
DK-8660 Skanderborg
Denmark
www.mobilex.dk
Type the serial number of your wheelchair for future refference: ….......................................................
Rev. 01/13 Page 1 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
1. General information
Dear customer,
This user manual contains a description of the medical device and important guidances to ensure a
correct and safe usage of the product. It is important prior to use to read this manual carefully. It is
especially important to read the safety requirements and follow these.
We continuously develop our products and we reserve the right without further notice to change the
specifications and functions of products described in below user's manual.
Observe below symbols attached to each chapter's name. They will help you to define which parts of
this user's manual are dedicated to you.
Pre-sale information: dealers, therapists, physicians.
Service information: technicians, dealers, therapists, services
End user information: users, attendants, therapists
Intended use of the device
The Dolphin/Barracuda manual light weight wheelchair is medical device indicated for use by those
persons with limited motion abilities who are unable to stand, walk and/or seat independently. It
dedicated for transportation and moving of such people in seating position. Users can move with the
wheelchair independently or with a help of attendant, The chair can be used indoor and as well
outdoor on different surfaces (asphalt, concrete, stone, gravel) in good weather conditions. Any
other use is prohibited.
The wheelchair has passed all necessary tests and it is in conformity with following European
Standards: PN-EN 12182:2005; PN-EN 12183:2010; PN-ISO 7176-1,3,5,7,8,15,19; PN-EN 1021-1:2007
It also fulfils all CE requirements imposed by the EEC 93/42 Medical Devices Directive. Upon a correct
usage of the wheelchair we foresee its failure-free work for years.
The sound recording of this user's manual for blind and short sighted persons is available at
manufacturer's office.
In case questions please take contact to your dealer or directly to Mobilex A/S.
Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
Denmark
Phone: [phone]
Telefax: [phone]
E-Mail: [e-mail]
2. Safety warnings & requirements
Make sure that this user manual is read by all persons using the device.
Manufacturer doesn’t take any responsibility for damages and/or injuries, caused by the fact
that the user manual has not been followed.
Use the product only in flawless condition.
If defects or errors are detected you must immediately contact the dealer.
Follow the instructions and warnings on all product labels.
Use the product only for the described purpose intended by manufacturer.
Avoid making constructive changes on the device, unless you have the manufacturer’s written
acceptance for such modifications.
The device must only be used on a stable surfaces.
All wheels should be in contact with the floor at ALL TIMES during use. This will ensure the
device is properly balanced and should avoid incidents.
The device must not be loaded with more than 120 kg.
Rev. 01/13 Page 2 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
Avoid burnings during usage of the chair in the direct sunlight. Different elements of the
product might become hot.
It is not recommended to use the wheelchair on sand, in mud or in extreme weather
conditions.
The attendant of a wheelchair user should be fully healthy and capable person.
Do not remove by your self any parts or accessories of the wheelchair. It may influence
product's stability and rigidity.
Do not place device near to the sources of heat or fire (fireplaces, ovens, heaters, stoves). It is
not recommended to smoke cigarettes when seated on the device. The wheelchair is not fire
resistant.
Follow below warnings for safe usage of the device:
The BARRACUDA wheelchair is not designed as a seating option for a user in moving vehicles. It is
forbidden to SIT on the BARRACUDA wheelchair in moving vehicles. The BARRACUDA wheelchair
should be safely stowed and secured for the time of it’s transportation. The user should be safely
transferred and seated in safe seating system of the vehicle. There is a great risk of serious incident,
injuries and property damage if above rules are not followed.
The DOLPHIN wheelchair is allowed to be used as a vehicle seating option in moving vehicles (like f.e.
buses, trains, metro etc.) when properly and securely immobilized. For detailed information please
refer to the chapter “Transport recommendations” (page 13).
The design of the wheelchair because of it’s functions include many
moving elements, slots, holes and gaps between device’s parts. There is a
risk of body part trapping during folding, unfolding and adjusting different
elements of the wheelchair. It specially concerns fingers or hands. It is also
possible to have a finger cut by moving parts of the device. Always be
careful when you adjust or set up a chair to not get your body parts
squeezed and injured.
3. Product Description
The “Dolphin/Barracuda” wheelchair comes with all the typical features like: parking brakes,
detachable footrests, elevable armrests etc. . The device is made from powder coated aluminium
tubing, it is warm to the touch and corrosion resistant. No tools are required for standard assembly.
Wheelchair provides:
A comfortable transportation and storage thanks to it's light aluminium, cross frame structure and
wheels with a quick-release axle, easiness of manoeuvring, easy transfer to - and out of the
wheelchair, the durability and the solidity of the structure. It also offers multiple adjustments. Some
are available as standard feature and some are options.
Devices are supplied in cartons, detached in to few elements for easier transportation:
The standard contents are:
1 Main cross frame with upholstery, armrests & front castors;
2 height adjustable push handles for assistant;
2 detachable footrests with footplates;
2 detachable main 24“ pneumatic wheels with pushrims
2 quick release axles for main wheels
Product label
This is a sample of the product label only (not
original)
The product label is located in the bottom of the
frame
Rev. 01/13 Page 3 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
Standard elements:
1. Push handle –height-adjustable, enabling the
attendant to manoeuvre the wheelchair.
2. Backrest – made of smooth incombustible material,
enabling also easy upholstery cleaning. On
Barracuda itis angle adjustable to 3 different
positions.
3. Armrest – adjustable in height and elevable. It is
used as a comfortable support of forearms. It also
facilitates getting in and out of the wheelchair.
4. Main wheel – Majority of the user's weight rests on
these 24 inches pneumatic wheels. Wheels can be
easily take off, which facilitates the transportation of
the wheelchair.
5. Push rim – Thanks to push rims fastened to main
wheels self propelled drive of the wheelchair is
possible.
WARNING! Do not put fingers between the
wheel and the handrim. It threatens the injury
of the palm.
6. Front wheel – 8 inches turning wheels are installed on rotating forks, which makes
manoeuvring of the wheelchair possible.
7. Cross –thanks to it the wheelchair can be easily folded for transportation and storage.
8. Footplate – User’s feet rest on it. It is possible to lift up the footrest, which can ease getting in
and out of the wheelchair.
9. Footrest – with fixed angle in standard equipment and elevable footrests as option (standard
on Barracuda). The removable footrest is a safe and comfortable support for legs. The footrest
is adjustable in length.
10.Seat – Made in similar way to the backrest.
11.Brake – Pushing of brake lever towards front causes it's activation and protects the
wheelchair against unwanted movement or rolling down the slope.
12. Seat cushion (not shown) – adjustable (by cutting) in depth.
WARNING! Always activate both brakes, if you do not ride the wheelchair.
Options and accessories
Depending on version and order specification, the chair may be equipped in multiple optional
equipment: elevable footrests (standard on Barrcuda), reclining back (only on Barracuda), anti-
tipping supports, headrest, table, spoke protectors etc.
Assembly description
With looking on the picture above the device should be assembled in quite instinctive way. But we
recommend wheelchair to be assembled and set up by professionals before it is delivered to end
user. We recommend to follow below steps:
In first place take all chair’s elements out of the box and check with the list from above if
nothing is missing. If you’d discover at that stage that some part is missing or damaged, do
not continue assembly process. Contact your supplier of the product right away.
Put the push handles in the tube endings on the backrest of the chair. Use attached fixing
knobs or levers to tie push handles in position.
Insert quick release axles in to the holes at the middle of main wheels. To be able to do that
you must press the button at the end of each axle. When axles are inserted the button
should be located on the same side of the wheel as handrim.
Attach wheels to the main frame by pressing the buttons on quick release axles and inserting
the axles in to wheel bushings. Then release the button. The quick release will lock in place
automatically. Try to pull the wheel out of it's socket to check if it is correctly attached. To
detach the main wheels proceed the same way by pressing the button in the middle of the
wheel and pull the wheel out of it's place.
Rev. 01/13 Page 4 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
Put the footrests on the frme by sliding their ends in to holes at the top front corners of the
frame. The footrests must be faced outwards at this point. When footrests ends are inserted
in to dedicated holes, turn them towards front of the chair. They should lock in place
automatically.
Put the cushion on the seat upholstery. The new cushion might require cutting to adjust it to
the seat depth. This adjustment is described further in this manual.
Before first usage it might be necesary to make following adjustments: seat depth
adjustment (if standard setting doesn't fit user), main wheels position adjustment (if
necessary), front wheel position adjustment (if main wheel height was changed), break
position adjustment (if rear wheel position or seat depth was changed), legrest length
adjustment, armrest height adjustment, back angle adjustment.
All above adjustments are described further in this user's manual.
How to unfold and fold the wheelchair
To fold:
Take of the cushion. Lift the
footplates up. Lift the upholstery of
the seat (in accordance with the
instructions on the drawing).
To unfold:
Place both hands on the seat
upholstery tubes press them down
(in accordance with the instructions
on the drawing). One should be
careful and not put the hand
between tubes and the wheelchair
frame during unfolding it.
4. Functions & adjustments description
Standard functions and adjustments:
Brakes
To apply the brake push the lever
forward (1). To release the brake pull
the lever toward the wheel (2).
The brake is activated when set to
position, as drawn in red.
The brake is inactive when set to psition
as drawn in green.
The brakes should always be activated
(in red position) when wheelchair
is stopped
The brakes should be always
deactivated (in green position) before
user will start to ride with the wheelchair.
Footrests
Fixed Footrests (standard)
Standard rigid footrests can be disassembled or pushed away on side. To incline and disassemble the
footrest it has to be unlocked by pulling out the safety-lock (1) then turn the footrest outside or
inside and pull it upwards (2). The footrest assembling should be conducted in reverse order by
inserting it in base of frame (3) and turning it inside (4). The safety-lock will self lock automatically.
WARNING! You should never climb or stand on the footrests, it may cause falling over
with the wheelchair. You should never lift the wheelchair by grabbing the footrests.
Rev. 01/13 Page 5 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
Rigid Footrests Elevable footrests
Footrests are height adjustable. To adjust their length one should release lock lever (5), choose the
height of the footrest and lock the lever. During using the wheelchair outdoor, the footrests must be
placed on height of minimum 4-5cm from the floor.
Elevable footrests (as standard only on Barracuda)
They offer wider range of adjustments of which the most important is ability to choose footrest angle.
Attaching and disassembling of elevable footrests works the same way as on standard ones.
Assembly and disassembly of elevable footrests is the same as on standard ones.
To adjust the legrest angle: press and hold button (1) with your finger, adjust the legrest angle by
moving it up or down (2) with your other hand, release button (1) to lock legrest in desired position.
To adjust calfrest height: release the lock lever (3) and move calfrest up or down to desired position.
Relock the lever (3) to secure the calfrest in desired position.
To adjust the foot plate height: release the lock lever (4) and move footplate up or down to desired
position. Relock the lever (4) to secure the footplate in desired position.
To fold the calfplate away: press the silver button (5) located behind the calfrest, Fold the calfrest to
the back, To open the calfplate back simply push it forward until the “click” sound is heard.
Armrests
The armrests are height-adjustable. To change the
position one should press the button (1), choose the
height of the armrest (2) and then tight the screw.
Rev. 01/13 Page 6 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
The armrests can be also inclined upwards, which ease getting
in and out of the chair (Fig.4). To unblock the safety-lock (1) one
should press the lever (2) placed on the side of the armrest and
then lift the side panel up (3).
After lowering the armrest and placing it on the guide bar,
the safety-lock (1) self locks automatically.
How to lift the wheelchair up
Pelvis stabilization
Adjust the position of overlapping part of
fabric (1) for optimal stabilization of the
pelvis. Then secure the overlap in place with
velcro straps located under it.
Backrest with angle adjustement (only on Barracuda)
To adjust the backrest angle
Press and hold the red button (1)
Use the second hand to adjust the backrest to desired angle (2)
Release button (1) to secure backrest in desired position
Repeat above steps on the other side of the backrest
WARNING! Always ensure that the angle of both back tubes is adjusted
to the same positions.
24” pneumatic rear wheels
The wheels on “Dolphin” chair can additionally be easily removed
and fitted in by pressing the quick-release button placed in the
centre of the wheel (1).
24” pneumatic tires are standard on the device. It is recommended
to use wheelchair with above size and type of wheels, but it is
Rev. 01/13 Page 7 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
also possible to use puncture proof tires.
The wheelchair is delivered with the standard aluminium push rims. The material and the distance
between the push rim and the wheel can influence on the grip strength of the wheelchair’s user.
One should be careful and not allow the fingers to get between spokes during driving in narrow
passages. To avoid such risk it is recommended to use a spoke protection (accessory).
WARNING!One should regularly control the pressure in tyres, which ought to be in
range of 2 – 2,2 bar depending on the weight of the user. The heavier user – the higher
pressure.
Advanced settings and adjustments
WARNING! We recommend all advanced adjustments to be done by the qualified staff
only. An inappropriate adjustment can cause deterioration of the safety usage of the
wheelchair and decrease its durability.
Main wheels position adjustment
The wheel balance on “Dolphin” chair can be additionally adjusted by moving the wheel axle. In such
case it is necessary to readjust also the position of the front, rotating castors.
To adjust the rear wheel position:
It is possible to adjust rear wheels up, down, forth and
back depending on wheel size and personal preferences
of a user. The height of wheel assembly allows to modify
the height of the wheelchair’s seat.
The horizontal adjustment (front/back) allows to influence
the stability and maneuverability of the chair. The most
common and neutral position is “B”. If it is necessary to
increase the maneuverability the wheel can be moved to
position “A”. It is easier to maneuver with wheelchair that’s
wheels are set to position ”A”, but the rearwards stability is
much lower. If the wheels are adjusted to “A” position, the
chair should always be equipped with activated anti-tip supports to protect wheelchair against
tipping over. Persons with amputated leg(s) should never use chair with wheels in position “A”. The
risk of tipping over is too high.
For users after leg(s) amputation position “C” was designed. It offer much more stability that other
positions, but even though users like that should always use chair equipped with activated anti-tip
supports to protect wheelchair against tipping over.
It is not recommended to use chair with wheels in position “C” by people who did not have any
amputation. Maneuvering with such chair might be very difficult for them.
WARNING! The correct position of wheels should be always determined by professional
therapist or wheelchair provider.
It is possible to reach 5 different height adjustments and 3 different horizontal adjustments
To adjust the height of the wheel:
• Take off the wheel by using quick release button.
• Disassemble the black wheel assembly plate by untying 4 bolts. Set the plate in to one of 5
available positions (holes 1&2, 2&3, 3&4, 4&5 or 5&6)
• Retie the bolts to secure the plate.
• Repeat above on the other side of the chair.
To adjust the horizontal position of the wheel (A, B or C)
• Take off the wheel by using quick release button.
• Unscrew the silver wheel socket mounted on black wheel assembly plate
• Relocate the socket in to desired hole (A, B or C)
• Tie the socket to secure it in position.
• Repeat above on the other side of the chair.
Rev. 01/13 Page 8 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk
Front, rotating castors with 8” wheels
The standard front wheels are 200x50 mm, made of polyurethane. We
recommend to stick to above type of wheels, but it is also possible to use
pneumatic tires. It is possible to mount different sizes of front wheels if it
is required by rear wheels position (see sheet below).
If the vertical position of rear wheels was modified it is necessary to
adjust the front castors position accordingly. The vertical turning
axle of the castor should always be in position of 90 (+/- 2°) degrees to
the floor. It is possible to adjust it by turning the acentric (1) bolt
until the required position is reached.
If the setting range has to be larger it might be necessary to change the
wheel position between holes (A, B, C, D) by unscrewing bolt (2) moving
the wheel up or down to needed height and tying the bolt (2) back.
In some situations it is needed to replace the standard front wheel (8”)
with the wheel of another size (6” or 7”).
The sheet below presents possible options of wheel positions. It gives a clear overview of seat
heights, rear wheel positioning holes, correct front wheel position and correct front wheel size
Correct positions and sizesof wheels depending on required seat height.
Required
Seat Height
Mounting position of rear wheel
assembly plate (hole numbers)
Front wheel position (hole
symbol on front fork)
Correct front
wheel size
45 cm 1+2 B 6”
46.3cm 2+3 B 7”
47.7cm 3+4 C 7”
50cm 4+5 C 8”
51.3cm 5+6 D 8”
Seat depth adjustement
It is also possible on the Dolphin/Barracuda wheelchair to adjust the seat depth to set it for individual
users heights and leg lengths.
WARNING! The correct seat depth should be always determined and set by professional
therapist or wheelchair provider.
To adjust seat depth:
• Unscrew the bolts (1) located on the inside of upper and lower tubes of the side frame.
• Slide the front part of the frame (2) forth or back to find the correct seat depth.
• Redo and tie the bolts (1) to secure the frame position.
• Repeat the same steps on the second side of the wheelchair.
• After readjusting the seat depth it is always necessary to readjust the brake position.
• After adjusting the seat depth it is necessary to set the correct cushion length (not shown) by
cutting the portion of rear part of the foam (if necessary) and overlapping the upholstery.
Rev. 01/13 Page 9 of 19 UM-271840-851-GB

Mobilex A/S
Grønlandsvej 5
DK-8660 Skanderborg
www.mobilex.dk

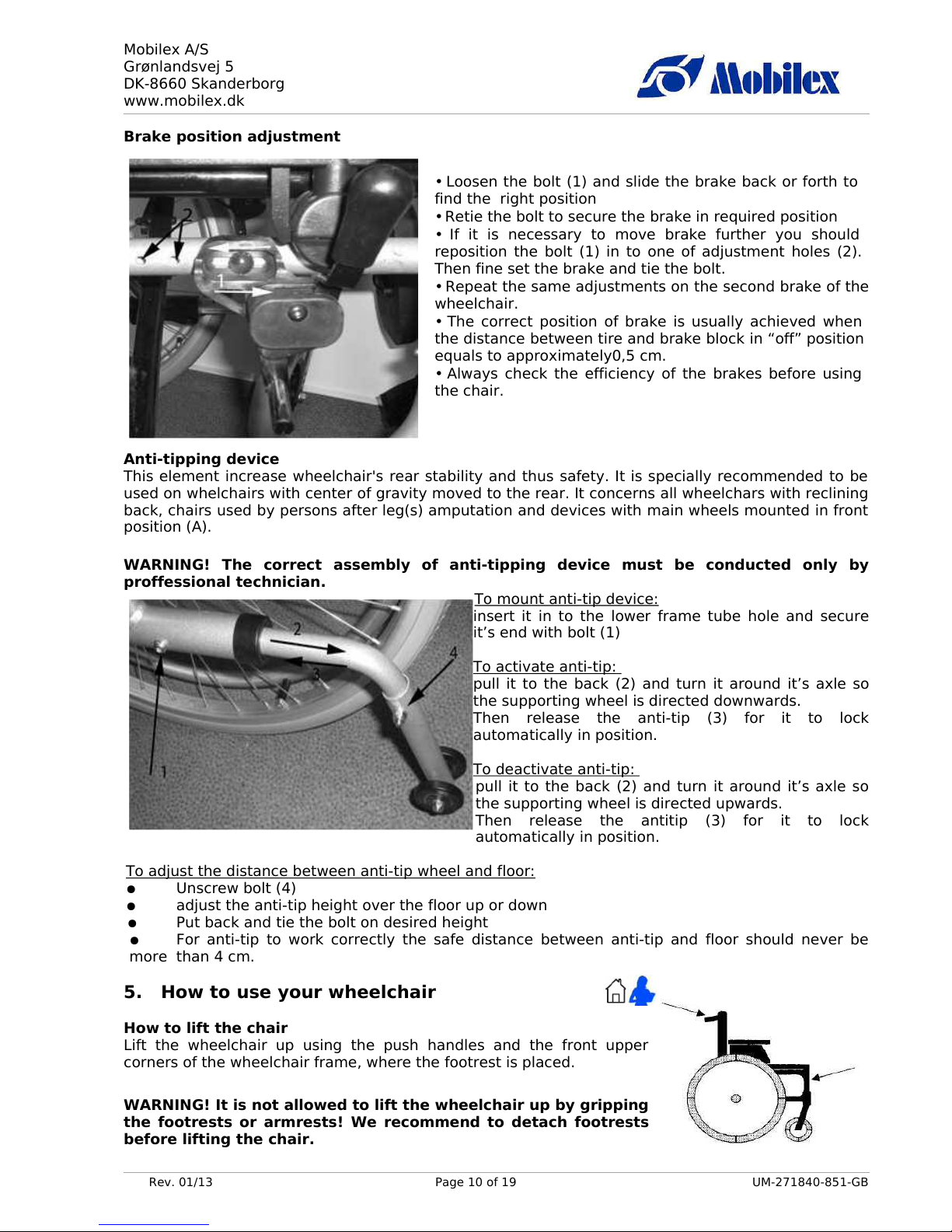

Brake position adjustment
• Loosen the bolt (1) and slide the brake back or forth to
find the right position
• Retie the bolt to secure the brake in required position
• If it is necessary to move brake further you should
reposition the bolt (1) in to one of adjustment holes (2).
Then fine set the brake and tie the bolt.
• Repeat the same adjustments on the second brake of the
wheelchair.
• The correct position of brake is usually achieved when
the distance between tire and brake block in “off” position
equals to approximately0,5 cm.
• Always check the efficiency of the brakes before using
the chair.
Anti-tipping device
This element increase wheelchair's rear stability and thus safety. It is specially recommended to be
used on whelchairs with center of gravity moved to the rear. It concerns all wheelchars with reclining
back, chairs used by persons after leg(s) amputation and devices with main wheels mounted in front
position (A).
WARNING! The correct assembly of anti-tipping device must be conducted only by
proffessional technician.
To mount anti-tip device:
insert it in to the lower frame tube hole and secure
it’s end with bolt (1)
To activate anti-tip:
pull it to the back (2) and turn it around it’s axle so
the supporting wheel is directed downwards.
Then release the anti-tip (3) for it to lock
automatically in position.
To deactivate anti-tip:
pull it to the back (2) and turn it around it’s axle so
the supporting wheel is directed upwards.
Then release the antitip (3) for it to lock
automatically in position.
To adjust the distance between anti-tip wheel and floor:
Unscrew bolt (4)
adjust the anti-tip height over the floor up or down
Put back and tie the bolt on desired height
For anti-tip to work correctly the safe distance between anti-tip and floor should never be
more than 4 cm.
5. How to use your wheelchair
How to lift the chair
Lift the wheelchair up using the push handles and the front upper
corners of the wheelchair frame, where the footrest is placed.
WARNING! It is not allowed to lift the wheelchair up by gripping
the footrests or armrests! We recommend to detach footrests
before lifting the chair.
Rev. 01/13 Page 10 of 19 UM-271840-851-GB
