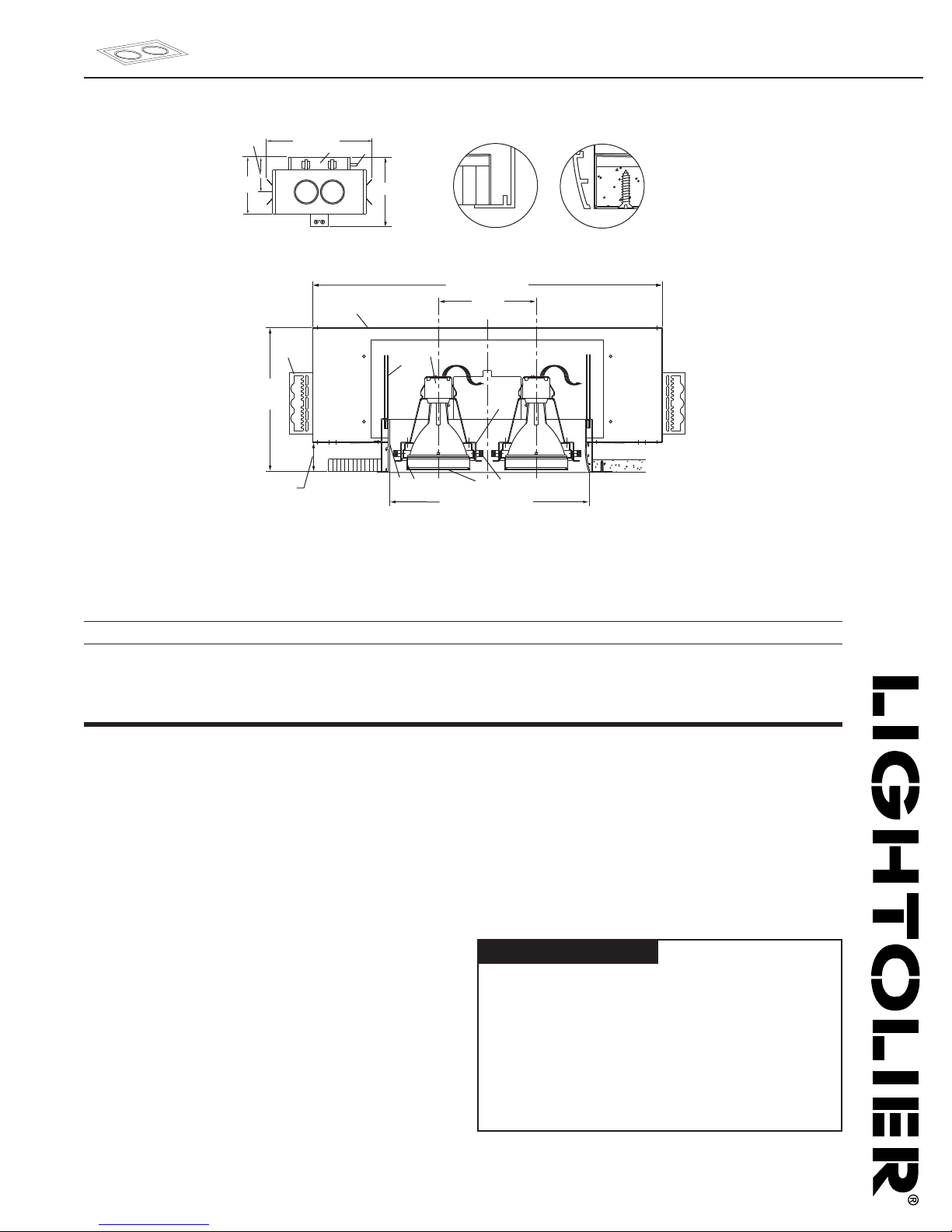

Flanged Trimless
Top View
8"
13"
83/4"
Depth
6" OC
21 1/2" L X 10" W
12" L X 6" W Opening
1 3/4"
24 1/4"
16"
Calculite®ProSpec®Linear Downlight PB2H3039
Page 1 of 2 2 Light PAR30 MH Series B
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
L ghtol er a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
Features
1. Aperture Frame: Provides clean support for lamp holders and overlapping
flange or trimless installation. Extruded aluminum. Rigidly welded together
on all corners.
2. Med a Cartr dge: Allows convenient loading and removal of up to one
accessory. Easily installed and removed for lamping with a simple twisting
motion. Constructed of die-formed aluminum.
3. Adjustable R ng: Allows 360° horizontal, and min. 40°, max. 45° (on length);
30° (on width) vertical adjustment.
4. Tort ont te Spr ng: For easy installation of aperture frame.
5. Hous ng: Die-formed 22 ga. steel. Finish: Black
6. Mount ng Brackets: Adjustable vertically from outside of housing.
7. Thermal Protector: Meets NEC and UL requirement.
8. Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse
rated, prewired with #18 SF-1 leads to Ballast Housing.
9. Ballast Hous ng: Die formed 18 ga. steel.
10.Junct on Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from
below.
11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media
Cartridge.
12.Lens Reta n ng R ng: .093" spring steel rod. Holds accessories in place.
Electr cal
Electron c Ballast: Individual for each lamp. High Power Factor. Input watts:
44; line current: .37 amps. Accessible from below.
UL listed for through branch circuit wiring with maximum of (8) no. 12
AWG, 90°C.
Ce l ng Cutout: 13 1/16" L x 7 3/16" W
Order ng Informat on: PAR30 MH Ser es B
Cat. No. Lamp Ce l ng Tr m Aperture F n sh
PB2H3039BL (2) 39W PAR30 MH Overlap Black with White Flange
PB2H3039WL (2) 39W PAR30 MH Overlap White with White Flange
PB2H3039BTL (2) 39W PAR30 MH Trimless Black
PB2H3039WTL (2) 39W PAR30 MH Trimless White
F n sh
All painted finishes are powder coated baked enamel.
Opt ons & Accessor es
Accessor es: 3 3/4" dia. series, filters, lenses, screens, and louvers (1) max.
Label
UL/cul (Suitable for Damp Location), I.B.E.W.
PB2H3039BL (Flanged) Black/White
PB2H3039WL (Flanged) White
PB2H3039BTL (Trimless) Black
PB2H3039WTL (Trimless) White

39W PAR30
FL
(FC) is initial footcandles at center of
beam.Beam length (L) and beam width
(W) are to where the candlepower is
reduced to 50% of center beam
candlepower.
CBCP is center beam candlepower.
(C) is distance to the center of the
beam.
Performance data shown is based on
bare lamp photometrics of MasterColor
lamps by Philips Lighting. Contact lamp
manufacturers for availability and
performance.
Accent L ght ng Performance Data
0° A m ng Angle 30° A m ng Angle 30° A m ng Angle 40° A m ng Angle
15’ 187 2.6’ 2.6’
20’ 105 3.5’ 3.5’
25’ 67 4.4’ 4.4’
30’ 47 5.2’ 5.2’
7’ 133 3.8’ 3.8’
10’ 65 5.4’ 5.4’
13’ 38 7.0’ 7.0’
16’ 25 8.6’ 8.6’
10’ 5.8’ 273 2.3’ 2.0’
15’ 8.7’ 121 3.5’ 3.0’
20’ 11.5’ 68 4.7’ 4.0’
25’ 14.4’ 44 5.8’ 5.1’
6’ 3.5’ 117 4.4’ 3.7’
9’ 5.2’ 52 6.6’ 5.6’
12’ 6.9’ 29 8.8’ 7.4’
15’ 8.7’ 19 11.0’ 9.9’
5’ 8.7’ 210 3.6’ 1.7’
8’ 13.9’ 82 5.7’ 2.8’
11’ 19.1’ 43 7.9’ 3.8’
14’ 24.2’ 27 10.0’ 4.9’
2’ 3.5’ 203 5.5’ 2.1’
3’ 5.2’ 90 8.2’ 3.2’
4’ 6.9’ 51 10.9’ 4.3’
5’ 8.7’ 33 13.7’ 5.4’
8’ 9.5’ 174 3.4’ 2.2’
12’ 14.3’ 77 5.1’ 3.3’
16’ 19.1’ 44 6.9’ 4.4’
20’ 23.8’ 28 8.6’ 5.5’
4’ 4.6’ 108 5.8’ 3.2’
6’ 7.2’ 48 8.7’ 6.0’
8’ 9.5’ 27 11.6’ 6.7’
10’ 11.9’ 17 14.4’ 8.3’
DFC LW DCFC LW D CFC LW D CFC LW
Beam Spread Rated
50% Max CP CBCP Life-Hrs
9000
9000
42000
6500
39W PAR30
SP
10°
30°
39W
Lamp
