Modena BZ 1050 DASS Owner's manual

User
Manual Book
Blast Chiller & Freezer
BZ 1050 DASS
BZ 1100 DASS
BZ 1130 DASS

TABLE OF CONTENT
Part 1: Safety Information 3
Environmental Notice 4
Part 2: Name of Parts 4
Part 3: Quick Start Guide 5
Control Panel 5
Chilling/Freezing Cycle 7
Defrost 12
Evaporator Fan Management During the Cycle 15
Alarm Signals 15
Programming Parameters 17
Lock/Unlock Control Panel 17
ON/OFF Button 17
Part 4: Maintenance 18
Cleaning and Maintenance 18
Part 5: Troubleshooting 18
Part 6: Specification 20
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com.

2
Read the user manual book carefully
•Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the
manufacturer.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•When positioning the appliance, ensure the supply cord is not
trapped or damaged.
•The refrigerant and insulation blowing agent inside the refrigerator
need special disposal procedure. Consult the disposal method with
related department
•Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance. Do not use plug adapter.
•To avoid hazard due to instability of the appliance, it must be fixed
in accordance with the instructions.
•Clean the surfaces that come in contact with food and accessible
drainage systems regularly
•If power outage occurs, unplug the power cord. Wait at least 10
minutes before starting the appliance to avoid damage to the
compressor.
•While carrying and positioning the appliance, do not damage the
cooler gas circuit.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, an authorized service agent or similar qualified
persons, in order to avoid a hazard.
PART 1: SAFETY INFORMATION

3
Environmental Notice
The packaging material used is recyclable. We recommend
that you separate plastic, paper and cardboard and give
them to recycling agents. To help preserve the environment,
the refrigerant used in this product is iso-butane (R600a) or
propane (R290), which does not affect the ozone layer and
has little impact on the greenhouse effect. According to
WEEE (Waste of Electrical and Electronic Equipment) guidelines, waste
from electrical and electronic devices should be collected separately. If
you need to remove of this appliance in the future, do not throw it away
with the rest of your domestic garbage. Instead, please take the
appliance to the nearest WEEE collecting agents, where available.
*Above picture is for reference only. Difference between the picture and actual
product may occur
**Feature and equipments differ by each product

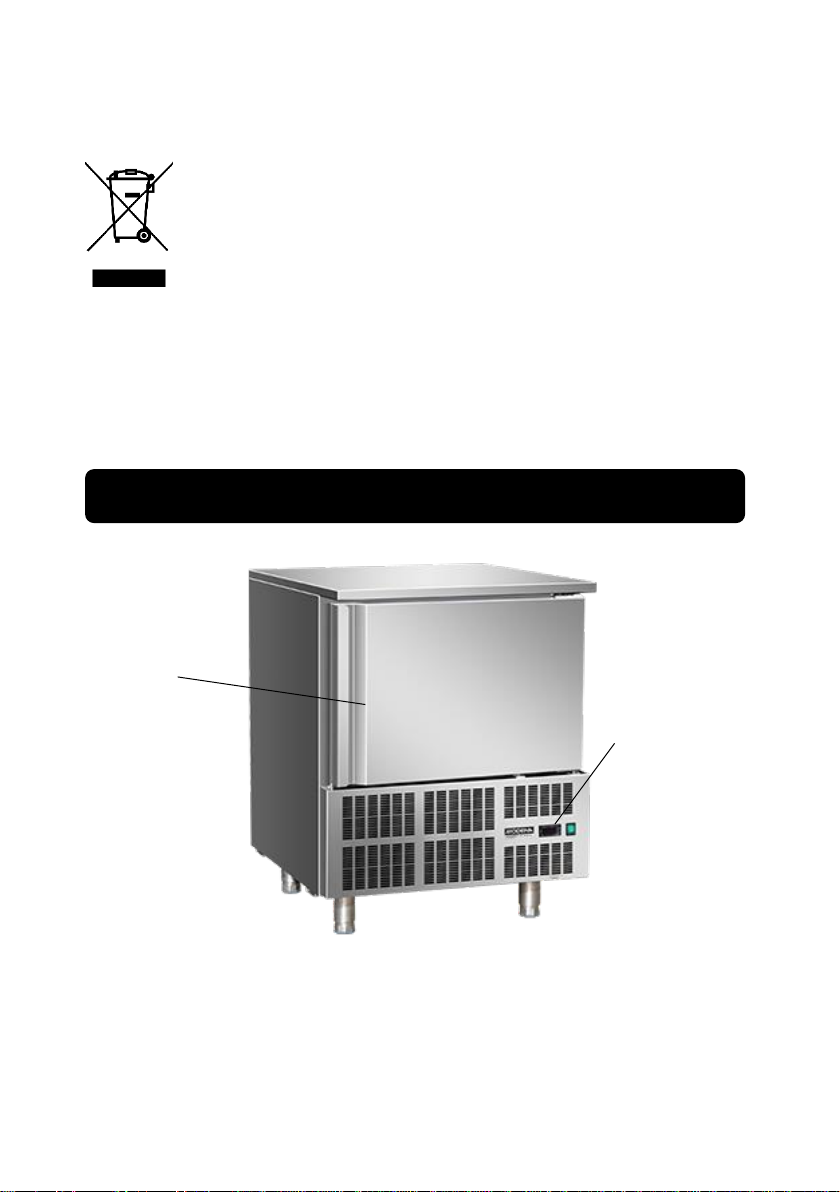

PART 2: NAME OF PARTS
Control panel
Door

4
General Features
The chilling and freezing cycle is programmed according to International
Food Safety Standards. There are 4 (four) types of cycle:
1. Cy1: For fast chilling and conservation of foods at positive
temperature
2. Cy2: For chilling and fast freezing of foods with holding
3. Cy3: Direct fast freezing with holding
4. Cy4: Direct fast freezing without holding
See Appendix 1 about Cycle Parameters for more details
Control Panel
Display
The upper display shows the temperature of the room probe.
The lower display shows the temperature of the inserts probe or the
count down timer. To pass to the one insert probe to the another one
use the DOWN key.
•Temperature
•Timer or insert probe
•Alarm and status icons
If an icon or LED is on, the
correspondent function is
enabled.
If an icon of LED is flashing, the correspondent function is delayed.
PART 3: QUICK START GUIDE


 


 




 

5
Keyboard in Stand-by Mode
How to Select a Cycle:
Push and release the
(3) button until the
desired cycle is selected.
How to Start a Cycle:
Push and release the
(2) button. The
correspendent yellow
LED is switched on,
How to Temporarily Stop the Running Cycle:
1. Press and release the (2) button.
2. The compressor and the fan will be stopped for the PAU time
(see parameters list) and the flashing messabge “Stb” will be
displayed.
3. To restart the cycle, preass and release the (2) button, the
cycle will restart from the point at which it was interrupted.
4. In any case the cycle autmatically restarts after the PAU time.
How to Stop a Cycle:
Push and hold the (2) button until the yellow LED is switched off.
Keyboard When Cycle is Running
DISPLAY TEMPERATURES
The upper display shows
the temperature of the
thermostat probe The
bottom display shows the
temperature of a insert
probe (if enabled) or the
count down timer. By
pushing DOWN key, the
probes iP1, iP2, iP3 and the
count-down timer are
displayed in sequence.
















 
 


6
PHASE DISPLAY: pushing
the UP key
the running phase is
displayed
PH1 = phase 1
PH2 = phase 2
PH3 = phase 3
HOW TO DISPLAY THE
REGULATION SET POINTS:
By pushing the SET key the
following information are
displayed in sequence:
•rSI = Room set point
•iSI = Stop phase set
point, referred to the
insert probe
•Back to the room
temperature.

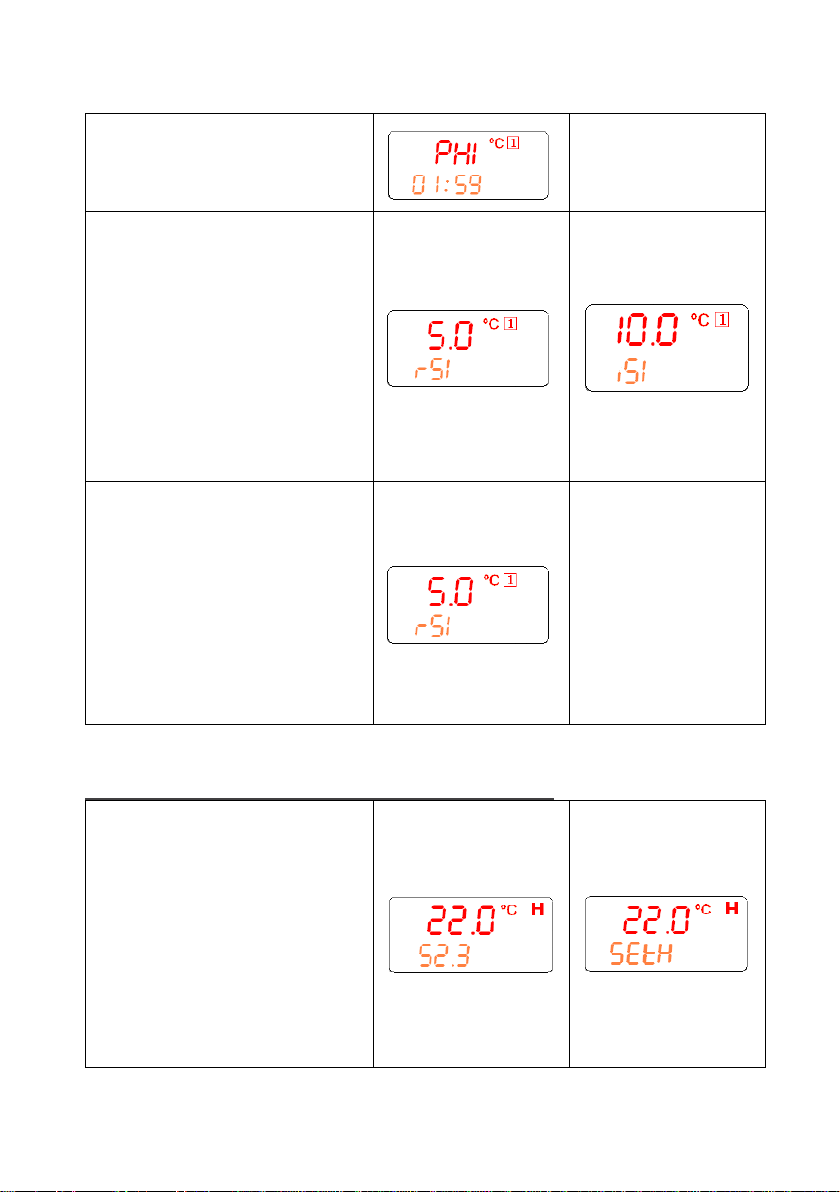

HOW TO MODIFY THE
ROOM SET POINT
While rSI or iSI are displayed
hold pushed the SET key till
the rSi or iSi label start
flashing and LED near the
SET key is turned on. Use
the arrow key to modify the
value and the SET key to
confirm it.
Keyboard When Holding Cycle is Running (H)
HOW TO DISPLAY THE
HOLDING REGULATION
SET POINTS:
While the holding cycle is
running, (H icon is on), push
the SET key and the holding
set point is displayed on the
UPPER display while the
SETH label on the bottom
display

7
HOW TO MODIFY THE
ROOM SET POINT
While SETH is displayed hold
pushed the SET key till the
SETH label starts flashing
and LED near the SET key is
turned on. Use the arrow key
to modify the value and the
SET key to confirm it. TO
CONFIRM AND EXIT: push
the SET key again.
Other Keys
LIGHT (4): push the LIGHT
(4) key to switch the light
on and off. The status of
the light is monitored by
the yellow LED upper the
key.
AUX (8): push the AUX (8)
key to switch the ausiliary
on and off. The status of
the auxiliary relay is monitored by the yellow LED upper the key.

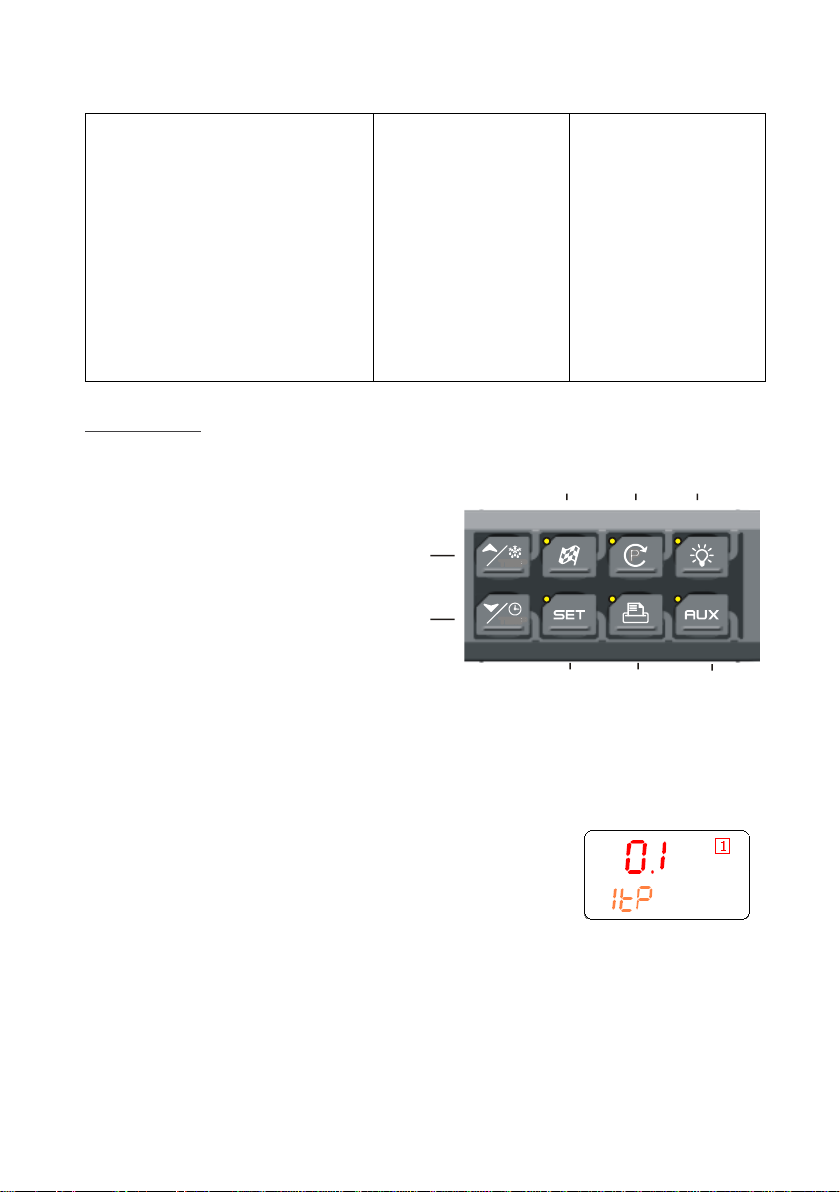

PRINTER / H (7): push the PRINTER key when the keyboard is connected
to the controller, to enable or disable the printer.
PRINTER CONFIGURATION MENU
Push the PRINTER (7) key for few seconds to enter
the printer configuration menu. The itP, label is
displayed, use the ARROW keys to browse the
parameters:
•To modify: push the SET key and then the ARROW keys.
•UP key: browse the menu:
•itP=time printing interval.
•PbP=data to print.
•PAr=enabled the printing of the parameter map.
















 
 


8
•CyC=enabled the printing of cycle parameters.
•PtH=enabled the printing during the holding phase.
•PrS=level Pr1 o Pr2.
•Pnu=number of printing.
•DOWN key back to the previous label.
•To confirm: push the SET key.
•To exit the Printer menu: push both SET+UP keys or wait for 5
sec.
How to Start Manual Defrost
Assure that none cycle is active or the hold mode is running. Keep UP
key pressed a few seconds.
Other Key Functions
+
To lock & unlock the keyboard Pon/PoF
+
To enter the programming mode when the
controller is in standby
Each parameter present in the Pr2 can be
removed or put into “Pr1” (user level) by
pressing SET+DOWN.
+
To return to the previous menu.
NOTE
the defrost will not be done if the temperature detected by the
evaporator probe is higher than EdF (stop defrost temperature)
parameter.

9

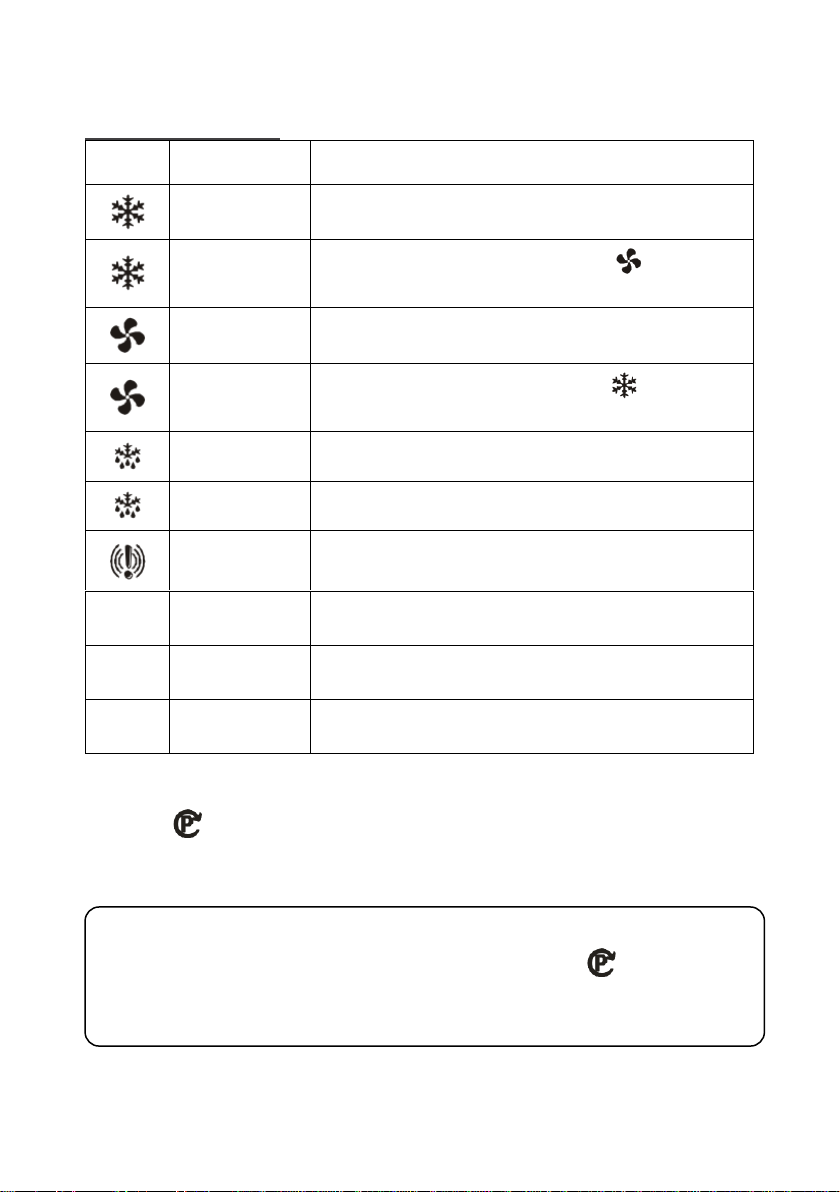

LED Light Meaning
LED
Mode
Description
ON
Compressor is enabled
Flashing
Programming Phase (flashing with LED )
Anti-short cycle delay enabled
ON
Fan is enabled
Flashing
Programming Phase (flashing with LED )
Anti-short cycle delay enabled
ON
Defrost is enabled
Flashing
Drip time in progress
ON
An alarm is occuring
1, 2, 3,
4, H
ON
Freezing cycle 1, 2, 3, 4 or hold mode active
1, 2, 3,
4, H
Flashing
Instrument temporarily stop
AUX,
AUX2
ON
Aux or Aux2 enabled
How To Select A Cycle
Push the to move among the cycles C1, C2, C3, C4 and the holding
cycle. The related symbol on the display will be lighted and the cycle will
be selected.
NOTE
to pass from a cycle to another one simply push the key when the
controller is in stand-by mode.

10
HOLD PHASE: To select Hsymbol pushing the .
Cycles are pre-set with the following values:
•Cy1: for fast chilling and conservation of foods (hard +soft chill).
•Cy2: for chilling and fast freezing of foods (hard +soft + freezing
cycle).
•Cy3: for direct fast freezing (only fast freezing cycle)
•Cy4: for fast freezing avoiding ice skin (hard chill + freezing
cycle)
•HLd: hold mode function
•dEF: for starting a manual defrost
Now the cycle is memorised and can be activated Now the cycle is
memorised and can be activated

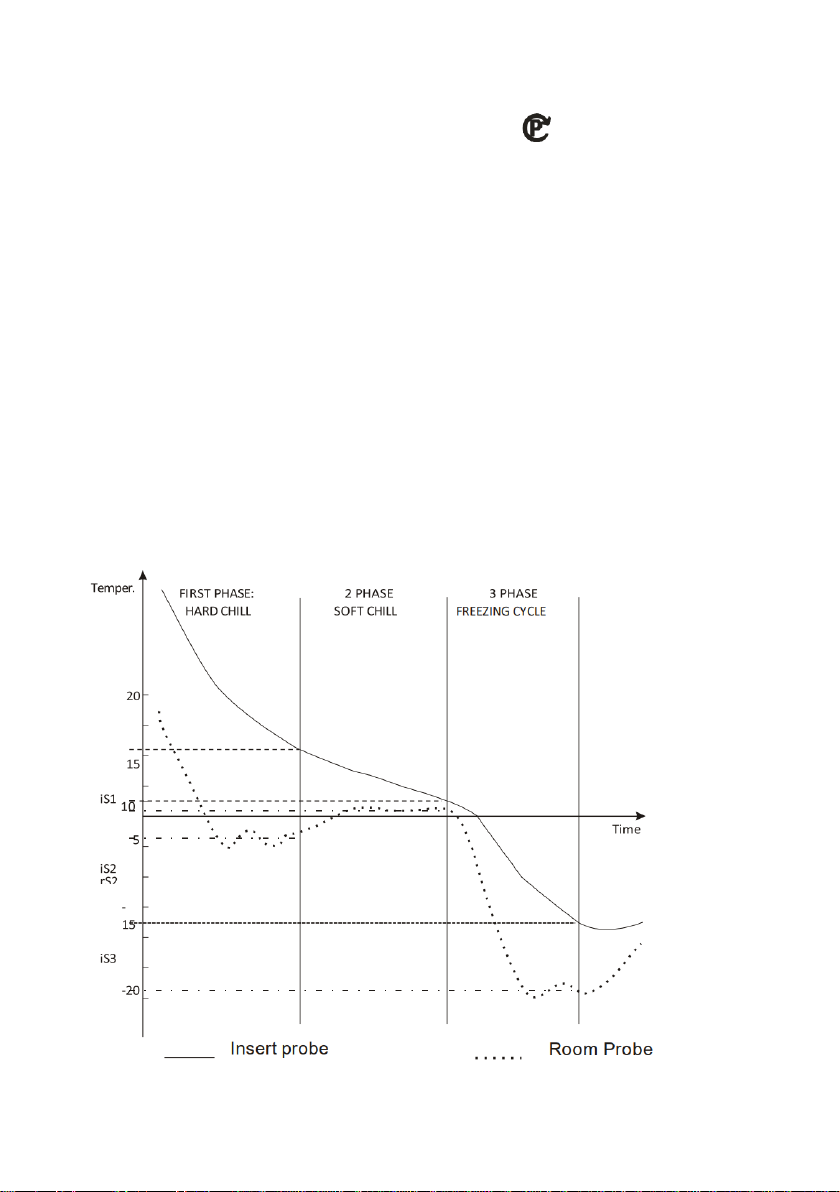

Example of Blast Chiller Cycle
The following drawing explains how a Blast Chiller cycle can be done.

11
1. First phase: Hard Chill
It is usually used to blast chill food just cooked.
It is normally used to fast chill hot foods. (e.g., from 80°C / 170°F
to 20°C / 70°F). During “Hard Chill”, both compressor and fan are
always on until the rS1 temperature is reached. At this point
compressor is turned on end off to keep the temperature of the
room at the rS1 value. “Hard Chill” ends when the temperature
measured by the insert probes reach the iS1 value.
2. Second phase: Soft Chill
The Soft Chill starts when the Hard Chill ends. It is used to
prevent thin layer of ice from forming on the product. The Soft
Chill lasts until the temperature measured by the insert probes
reach the set point iS2. During Soft Chill the temperature of the
room is regulated by the ambient probe with the set point rS2.
3. Third phase: Freezing Cycle
Freezing Cycle: used to fast freeze foods. The Freezing Cycle
starts when the Soft Chill ends. During the “Freezing Cycle” both
compressor and fan are always on until the rS3 temperature is
reached. At this point compressor and fans are turned on end off
to keep the temperature of the room at the rS3 value (normally
some degrees below iS3). Freezing Cycle ends when the
temperature measured by the insert probes reach the iS3 value.
4. End of Freezing Cycle & Start of Hold Phase (selectable)
The end of the freezing cycle is indicated by the sound of the
buzzer (Option). The alarm automatically stops after the “but”
time or by pressing any keys.
Once the freezing cycle is complete, the instrument
automatically starts the hold phase at the temperature set in
parameter HdS. If Cap = No, the hold phase is not carried out.
NOTE:
1. with dbH = yES a defrost is done before the holding phase.
2. If the end cycle temperature iS3 is not reached in the
maximum time Pd1+Pd2+Pd3(Option) the instrument keep
on working, but the alarm message “OCF” is given.

12
Alarms
Message
Cause
Output
EE
Data or
memory failure
Alarm output ON. Other outputs unchanged
rPF
Thermostat
Probe failure
Alarm output ON. Compressor output according to
parameters Con and CoF
EPF
Evaporator
Probe failure
Alarm output ON. Defrost termination is timed. No
temperature control on fans.
i1P, i2P,
i3P
Insert probe 1,
2, 3 failure
Alarm output ON. Other outputs unchanged. The
cycle is made by time
rtC
Real Time
Clock data lost
Alarm output ON. Other outputs unchanged.
rtF
Real Time
Clock failure
Alarm output ON. Other outputs unchanged. The date
and the duration of the cycle are not available
HA
Maximum
temperature
alarm
Alarm output ON. Other outputs unchanged
LA
Minimum
temperature
alarm
Alarm output ON. Other outputs unchanged
FF
Fast freezing
interrupted by
short power
failure
Alarm output ON. The freezing cycle restart from the
same point at which was
interrupted
PFA
Fast freezing
interrupted by
long power
failure
Alarm output ON. The freezing cycle restart from the
current phase
OCF
Max duration of
the cycle is
expired
Alarm output ON. Other outputs unchanged. In any
case the cycle ends when the
final temperature is reached
EA
External alarm
Alarm output ON. Other outputs unchanged
CA
Serious
external alarm
Alarm output ON. Other outputs OFF
dA
Door open
alarm
Alarm output ON. Other outputs unchanged

13
Cleaning and Maintenance
To make sure that the freezer is in optimum condition, the interior and
accessories must be cleaned regularly.
•Before performing cleaning activity, switch off the appliance and
unplug the power cord.
•Do not use abrasive cleaners.
•Clean the interior and accessories using cloth and lukewarm water.
After that, clean with clean water and dry completely.
•Dust can accumulate on the condenser and cause performance
drop. Clean the freezer condenser at least once a year using soft
brush or vacuum cleaner.
•After everything is dried completely, install the accessories and
freezer to the initial position.
•Clean the condenser & evaporator periodically from debris and dust
to ensure maximum performance
Check the following before contacting our Service Center in the event
of malfunction
PART 4: MAINTENANCE
IMPORTANT!
Appliance must not be connected to the main electrical socket during
cleaning! Risk of electric shock!
PART 5: TROUBLESHOOTING
WARNING!
Before troubleshooting, unplug the unit from power source. Only a
qualified technician is allowed to perform troubleshooting not stated
in this manual.

14
Problem
Possible Cause
Recommended Action
Appliance does
not work
•Power cord is unplugged
or loose
•Blown fuse or damaged
fuse
•Defective socket
•Insert power cord
correctly
•Check the fuse, replace if
needed
•Malfunction must be
repaired by qualified
electrician
Appliance is not
cold
•Thermostat not properly
adjusted
•Too much food
•Door is opened frequently
•Freezer is placed in hot
area
•Bad ventilation
•Frost accumulated inside
the freezer
•Adjust the thermostat until
it’s cold
•Rearrange or reduce the
food
•Do not open the door too
frequent
•Place freezer in a cool and
dry place
•Ensure adequate
ventilation
•Defrost and clean the
freezer
Appliance is too
cold
•Thermostat adjusted to
maximum position
•Adjust the thermostat with
lower setting
Dew outside of
freezer
•Ambient temperature and
humidity too high
•Place freezer in a cool and
dry place
Loud noise
•Freezer is touching the
wall or other object
•Freezer pipe is touching
other parts
•Reposition the freezer and
follow the minimum
distance
•If needed, bend the pipe
to avoid touching with
other objects
IMPORTANT!
There are some normal sounds during use (compressor sound,
circulating refrigerant sounds)

15
MODEL
BZ 1050 DASS
BZ 1100 DASS
BZ 1130 DASS
Capacity (Liter)
170
368
494
Power Input (Watt)
750
980
1200
Color
Stainless
Stainless
Stainless
Control panel
Digital
Digital
Digital
Refrigerant (Weight)
R290 (150g)
R290 (150g)
R290 (150g)
Rated Curent (A)
4.5
5.6
6.2
Rated Voltage (V)
220-240
220-240
220-240
Rated Frequency (Hz)
50
50
50
Defrost Power Input (W)
800
2×800
2×800
Product dimension
(WxDxH)(mm)
800×800×930
800×800×1515
800×800×1763
Design and specification can change without prior notice to improve the quality of the
product. The illustration in this manual is schematic and can be different with your actual
product. The values on label or in other documents are according to laboratory test and
relevant standards. Values can vary depending on the actual operational and
environmental condition of the product.
PART 6: SPECIFICATION

16
Para
mete
r
Parameter Description
Cy1
Cy2
Cy3
Cy4
CyS
Cycle setting; tEP = by temperature
tEP
tEP
tEP
tEP
dbC
Defrost before cycle
no
no
no
no
iS1
Insert probe set point: (-50 to 50, res. 1°C or 1°F) when the temperature
measured by the three insert
probes reaches this value the first phase is ended.
20°C
(68°F)
10°C
(50°F)
-18°C
(0°F)
-18°C
(0°F)
rS1
Room probe Set point for the first phase: (-50 to 50, res. 1°C or 1°F) it
prevents temperature from reaching a too low value during the hard cycle
-10°C
(14°F)
-10°C
(14°F)
-30°C
(-22°F)
-30°C
(-22°F)
Pd1
Maximum time for first phase: OFF to 4h00min, res. 10 min
2.0 h
2.0 h
4.0 h
4.0 h
iS2
Insert probe set point: (-50 to 50, res. 1°C or 1°F) when the temperature
measured by the three insert
probes reaches this value the first phase is ended.
5°C
(41°F)
5°C
(41°F)
-18°C
(0°F)
-18°C
(0°F)
rS2
Room probe Set point for the first phase: (-50 to 50, res. 1°C or 1°F) it
prevents temperature from reaching a too low value during the hard cycle
-2°C
(28°F)
-2°C
(28°F)
-30°C
(-22°F)
-30°C
(-22°F)
Pd2
Maximum time for first phase: OFF to 4h00min, res. 10 min
2.0 h
2.0 h
off
off
iS3
Insert probe set point: (-50 to 50, res. 1°C or 1°F) when the temperature
measured by the three insert
probes reaches this value the first phase is ended.
3°C
(37°F)
-18°C
(0°F)
-18°C
(0°F)
-18°C
(0°F)
rS3
Room probe Set point for the first phase: (-50 to 50, res. 1°C or 1°F) it
prevents temperature from reaching a too low value during the hard cycle
-2°C
(28°F)
-30°C
(-22°F)
-30°C
(-22°F)
-30°C
(-22°F)
Pd3
Maximum time for first phase: OFF to 4h00min, res. 10 min
off
2.0 h
off
off
dbH
Defrost before the hold phase
yes
yes
yes
no
HdS
Set point of the holding phase: (-50 to 50, res. 1°C or 1°F) with “OFF” the
hold phase is disabled.
3°C
(37°F)
-18°C
(0°F)
-18°C
(0°F)
off
APPENDIX 1: CYCLE PARAMETERS

05/23
PT MODENA INDONESIA
Jl. Industri Raya I Blok D-8,
Jatiuwung, Tangerang 15135
