Modena CC 3180 Owner's manual

User
Manual Book
Counter Chiller
CC 3180, CC 3221, CC 3141
CC 3231, CC 2130, CC 2121
CU 3300, CU 3061, CU 3001DC
CU 2200, CU 2041, CU 2001DB
CC 2041, CC 2131

2
Thank you for your trust in choosing MODENA products for your household needs. With your
satisfaction as our priority, we constantly aim to deliver stylishly designed products equipped
with state-of-the-art technology to assist you in your daily activities.
This is your guidebook containing everything you need to know about our product. Please reach
out to us if you need further assistance or other information via our Customer Care or our
official website www.modena.com.

3
CONTENTS
Page
INTRODUCTION
2
-
Part 1
: Name of Parts
4
-
Part 2
: Installation
4
-
Part 3
: How to Use
5
-
Part 4
: Cleaning & Maintenance
6
-
Part 5
: Specification
6

4
The pictue is a general overview and is not necessarily the same as the product you receive.
Features and completeness depends on the type of products.
Important safety information
1. To obtain full utilize of the cabinet, please read this manual book carefully.
2. It is the user’s responsibility to operate the appliance in accordance with the provided instructions.
3. Contact MODENA Call Center immediately in case of any malfunctions.
4. Place the cabinet in a dry and ventilated place.
5. Keep the cabinet away from strongly heat-emitting sources and do not expose it to direct sunlight.
6. Always keep in mind that all electrical appliances are sources of potential danger.
7. Do not store inflammable materialsuch as thinner, gasoline etc. in the cabinet.
8. We declare that no asbestos nor any CFC are used in the construction.
9. The oil in the compressor does not contain PCB.
Unpacking and installation
Remove the wooden pallet and the packing. External surfaces are supplied with a protection
foil, which must be removed before installation.
To ensure correct function it is important that the cabinet is level. The cabinet is
supplied with legs, these can be adjusted. See Picture 1.1.
Electrical Connection
The cabinet operates on rated voltage of 230 V/50 Hz. The power socket should be accessible.
All grounding requirements stipulated by the local electricity authorities must be observed. The cabinet plug and
power socket should then give correct grounding. If you have any doubt, contact your local supplier or authorized
technicians.
The flexible cord fitted to this appliance has three cores for use with a 3-pin 13-Amp or 3-pin 15- Amp plug. If a B.S.
1363 (13-Amp) fused plug is used, it should be fitted with a 13-Amp fuse.
The wires inside the main cord are colored in accordance with the following code:
Green/Yellow: Earth,
Blue: Neutral,
Brown: Live
Part 1: Name of Parts
Part 2: Installation
Picture 1.1

5
The main electrical connections must be done by authorized technicians
Start-up of the cabinet
Before use, we recommend that the cabinet is cleaned, see the section on maintenance and cleaning.
Important!
If the cabinet has been vertically placed during transport, please wait for 2 hours before starting up the
cabinet.
Connect the cabinet to a socket and turn on the switch on the control panel, see
Picture 1.9
Thermostat

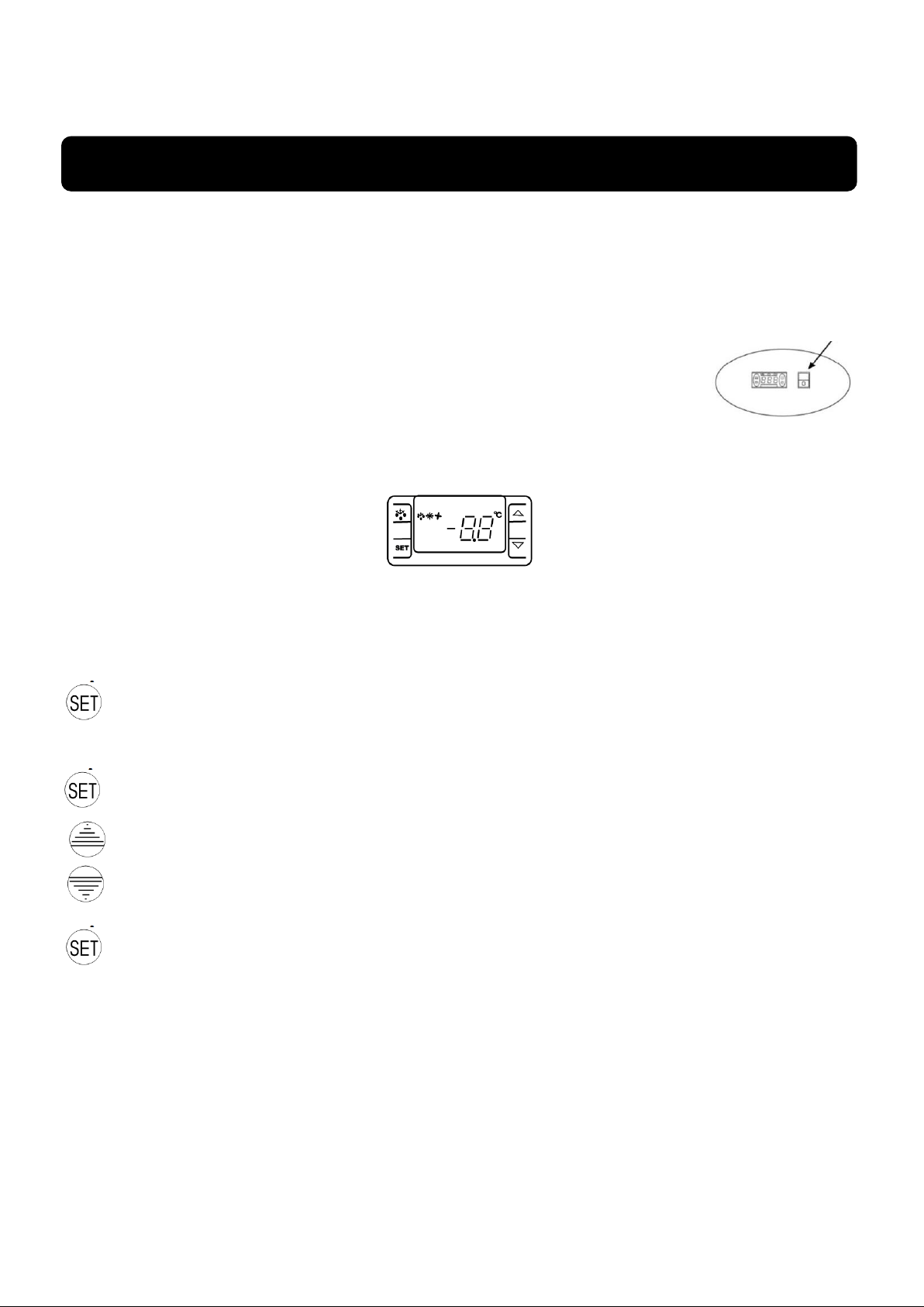

The thermostat is placed in the control panel, see Picture 2.0.
The thermostat has been pre-set and in most cases it is not necessary to adjust the settings.
When turning on the cabinet, the display will show the current temperature in the cabinet.
Display set temperature:
Press this button and the display will show the set temperature. Press the button
again to return to normal reading
Set new temperature:
Press this button continuously for more than 3 seconds and the display shows the set
temperature.
Press this button to increase the set temperature.
Press this button to lower the set temperature.
Press this button to save the new settings. The display will flash with the new value and will
then return to nornal reading.
Alarm codes:
“P1‟ Flashing in the display: indicates that the cabinet sensor is defective.
The cabinet will strive to keep the set temperature until it has been repaired.
“P2‟ Flashing in the display: indicates that the evaporator sensor is defective.
This does not influence the operation of the cabinet, but should be repaired as soon as possible.
Defrosting
The cabinet defrosts automatically with pre-set intervals. If the door is opened or the contents of the cabinet are
changed frequently it is necessary to defrost the cabinet manually.
Part 3: How to Use
Picture 1.9
Picture 2

6
Press this button continuously for more than 3 seconds to start a manual defrosting and it will return
to normal operation.
Defrosted water runs to a container placed in the compressor compartment and evaporates.
Cleaning & Maintenance
Switch the cooler off at the socket.
The cabinet must be periodically cleaned. Clean the external and internal surfaces of the cabinet with a light soap
solution and subsequently wipe dry. External surfaces can be maintained using steel oil.
DO NOT use cleansers containing chlorine or other harsh cleansers, as these can damage the stainless steel
surfaces and the internal cooling system.
Clean the condenser and the compressor compartment using a vacuum cleaner and a stiff brush.
DO NOT hose the compressor compartment with water as this can cause short circuits and damage on the
electrical parts
.
Service
The cooling system is a tightly sealed system and needs to be cleaned. It does not require supervision. If the
cabinet fails to cool, check if the reason is a power outage.
If you cannot locate the reason to the malfunction, please contact your supplier. Please inform model and serial
number of the cabinet. You can find this information on the rating label which is placed inside the cabinet on the top
right hand side.
Disposal
Disposal of the cabinet must take place in an environmentally correct way. Please note existing regulation on
disposal. There may be special requirements and conditions which must be followed.
MODEL
CC 3180
CC 3221
Type
Counter Chiller
Counter Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
3
2
Number of drawers
-
2
Number of shelves
3 removable
shelves
2 removable shelves
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
Yes
Yes
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Part 4: Cleaning & Maintenance
Part 5: Specification

7
Technical features :
Capacity (Liters)
465
465
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
1230
1230
Width (mm)
580
580
Height (mm)
560
560
Product dimension
Length (mm)
1795
1795
Width (mm)
700
700
Height (mm)
860
860
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
MODEL
CC 3141
CC 3231
Type
Counter Chiller
Counter Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
1
2
Number of drawers
4
3
Number of shelves
1 removable
shelves
2 removable shelves
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
Yes
Yes
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (Liters)
465
465
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
1230
1230
Width (mm)
580
580
Height (mm)
560
560
Product dimension
Length (mm)
1795
1795
Width (mm)
700
700
Height (mm)
860
860
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the

8
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
MODEL
CC 2130
CC 2121
Type
Counter Chiller
Counter Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
2
1
Number of drawers
-
2
Number of shelves
2 removable
shelves
1 removable shelves
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
Yes
Yes
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (liters)
314
314
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
795
795
Width (mm)
580
580
Height (mm)
560
560
Product dimension
Length (mm)
1360
1360
Width (mm)
700
700
Height (mm)
860
860
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
MODEL
CC 2041
CC 2131
Type
Counter Chiller
Counter Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
-
1
Number of drawers
4
3
Number of shelves
-
1 removable shelves
Interior lamp
-
-
Thermostat
Yes (Electronic)
Electronic thermostat

9
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
-
Yes
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (liters)
314
314
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
795
795
Width (mm)
580
580
Height (mm)
560
560
Product dimension
Length (mm)
1360
1360
Width (mm)
700
700
Height (mm)
860
860
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
MODEL
CU 3300
CU 3061
Type
Under Counter
Chiller
Under Counter
Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
3
-
Number of drawers
-
6
Number of shelves
3 removable
shelves
-
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
Yes
-
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (liters)
317
317
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
1230
1230
Width (mm)
580
580

10
Height (mm)
340
340
Product dimension
Length (mm)
1795
1795
Width (mm)
700
700
Height (mm)
650
650
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
MODEL
CU 3001 DC
CU 2200
Type
Under Counter
Chiller
Under Counter
Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
-
2
Number of drawers
3 Single drawers
-
Number of shelves
-
2 removable
shelves
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
-
Yes
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (Liters)
317
214
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
1230
795
Width (mm)
580
580
Height (mm)
340
340
Product dimension
Length (mm)
1795
1360
Width (mm)
700
700
Height (mm)
650
650
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.

11
MODEL
CU 2041
CU 2001 DB
Type
Under Counter
Chiller
Under Counter Chiller
Main features:
Ventilated cooling system
Yes
Yes
Automatic Defrost (No Frost)
Yes
Yes
Interior structure in Stainless steel 304
Yes
Yes
Exterior structure in Stainless steel 304
Yes
Yes
Number of doors
-
-
Number of drawers
4
2 Single drawers
Number of shelves
-
-
Interior lamp
-
-
Thermostat
Yes (Electronic)
Yes (Electronic)
Temperature display
Yes (Digital LED)
Yes (Digital LED)
Self-closing door
-
-
Replaceable magnetic gasket
Yes
Yes
Self evaporation
Yes
Yes
Removable compressor
Yes
Yes
Adjustable Feet
Yes
Yes
Lock & Key
Yes
Yes
Technical features :
Capacity (Liters)
214
214
Power (W)
350
350
Voltage / Frequency
230 V / 50 Hz
230 V / 50 Hz
Temperature range
-2°C ~ +10°C
-2°C ~ +10°C
Internal dimension
Length (mm)
795
795
Width (mm)
580
580
Height (mm)
340
340
Product dimension
Length (mm)
1360
1360
Width (mm)
700
700
Height (mm)
650
650
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary

11/20
