Modena Lustro Series Owner's manual

User
Manual Book
Spin Mop
Lustro Series
SM 3201 L

3
TABLE OF CONTENT
Part 1: Safety Information 4
Precautions 4
Environmental Notice 5
Part 2: Name of Parts 6
Part 3: Quick Start Guide 7
Installation 7
How to Use 7
How to Charge 8
Part 4: Maintenance 10
Removing and cleaning the mops 10
Changing the battery 11
Part 5: Troubleshooting 12
Part 6: Specification 13
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance through www.modena.com.

4
Read the user manual book carefully!
•Do not try to install or turn on the unit without having read the
indicated safety precautions in this manual.
•Do not disassemble the electrical parts of this appliance. Any repairs
done by an unauthorized person may cause serious injuries or
properties incident.
•The adult should supervise the children in order to make sure the
children can not play with the appliance.
•The appliance is not intended for use by persons(including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
•This appliance is intended to be household use only. Usage outside
the intended use or excessive use may void the warranty.
•Do not modify the power cord. If the power cord is damaged, it must
be replaced by technician with a replacement cable according to the
appliance specification
•To avoid danger of suffocation, keep plastic bag away from babies
and children.
Precautions
•Destroy the carton, plastic bag and other packing materials after the
product is unpacked. Children might use them for play.
•Children require supervision when using the product
•Keep the unit in a dry place and away from direct sunlight. Do not
place the machine on paper or foam. Do not place anything
flammable beside this machine.
•Never use organic liquids polishing chemical to clean the machine.
PART 1: SAFETY INFORMATION

5
Environmental Notice
The packaging material used is recyclable. We recommend
that you separate plastic, paper and cardboard and give
them to recycling agents. According to WEEE (Waste of
Electrical and Electronic Equipment) guidelines, waste from
electrical and electronic devices should be collected
separately. If you need to remove of this appliance in the
future, do not throw it away with the rest of your domestic garbage.
Instead, please take the appliance to the nearest WEEE collecting
agents, where available.

6

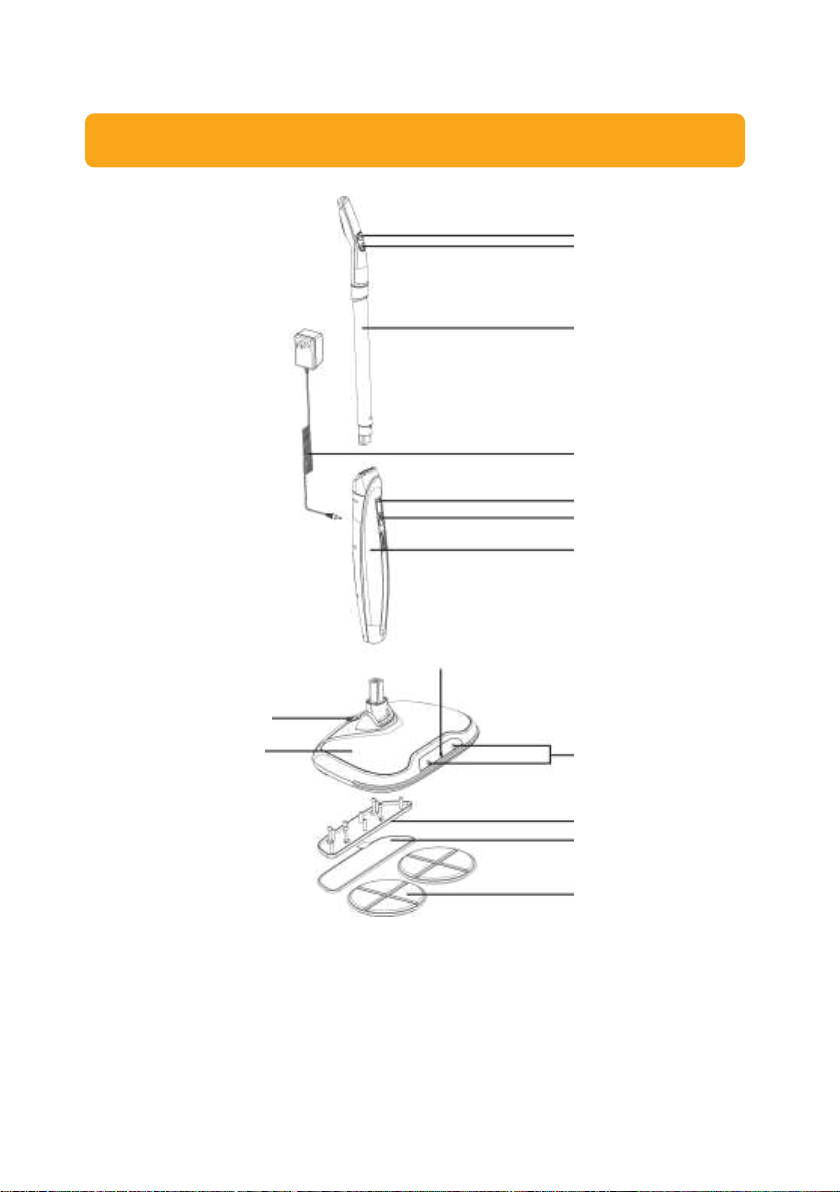

PART 2: NAME OF PARTS
Water button
Handle
Adaptor
Discharge lamp
Battery lamp
Upper unit
LED lamp
Back mop fixed unit
Back mop
Round mop
Water tank
Spray hole
Main unit
Power button

7

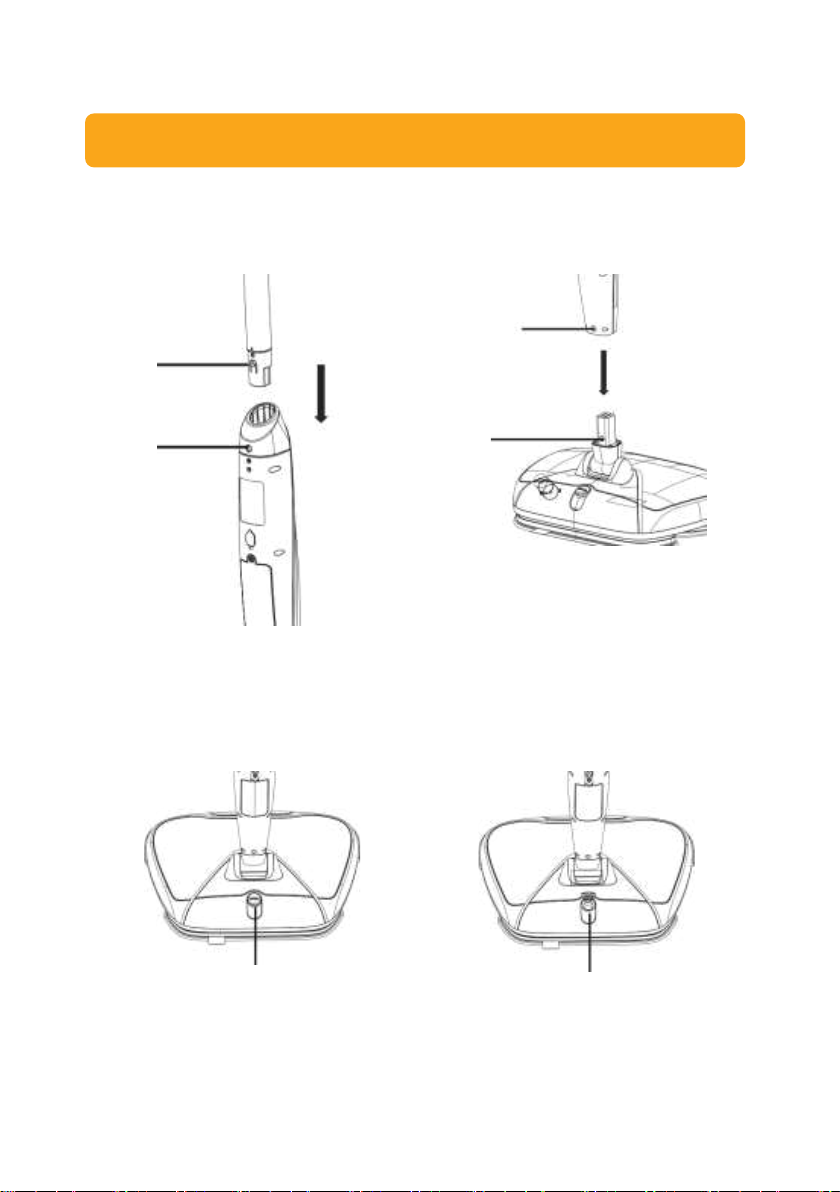

Installation
1. Insert the handle into the
upper unit until it clicks
2. Insert the upper body into
the main unit until it clicks
How to Use
1. Open the water tank cover
2. Pour water into the water
tank until it’s full and close
the cover
Water tank cover
Pour water
PART 3: QUICK START GUIDE
Fixed joint
Joint
Fixed joint
Joint

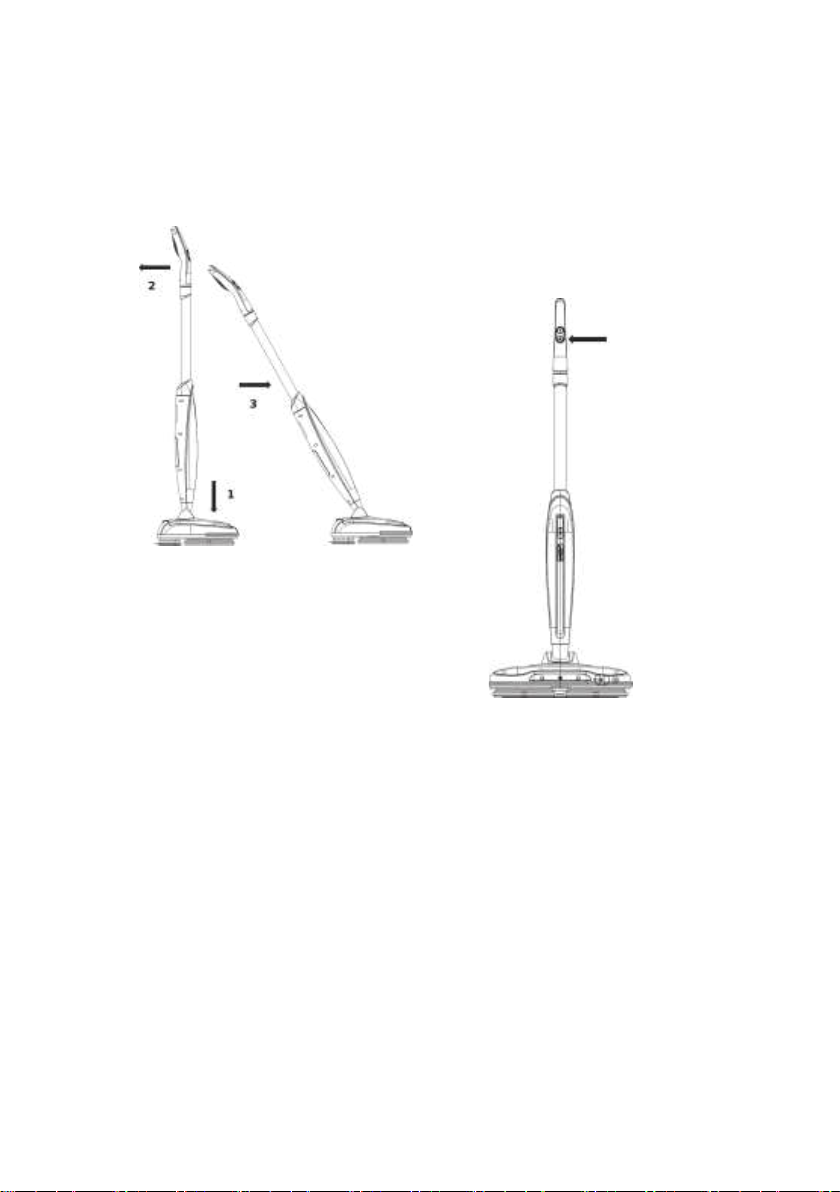

8
3. Put your leg on the product and
at the same time, pull the
handle back towards you until
you can hear ‘crack’ sound
4. Press the power button
once to turn on the
product and it will rotate
in low speed. Press the
power button once
more to switch to high
speed.
5. Press the water spray button to spray water on to the floor

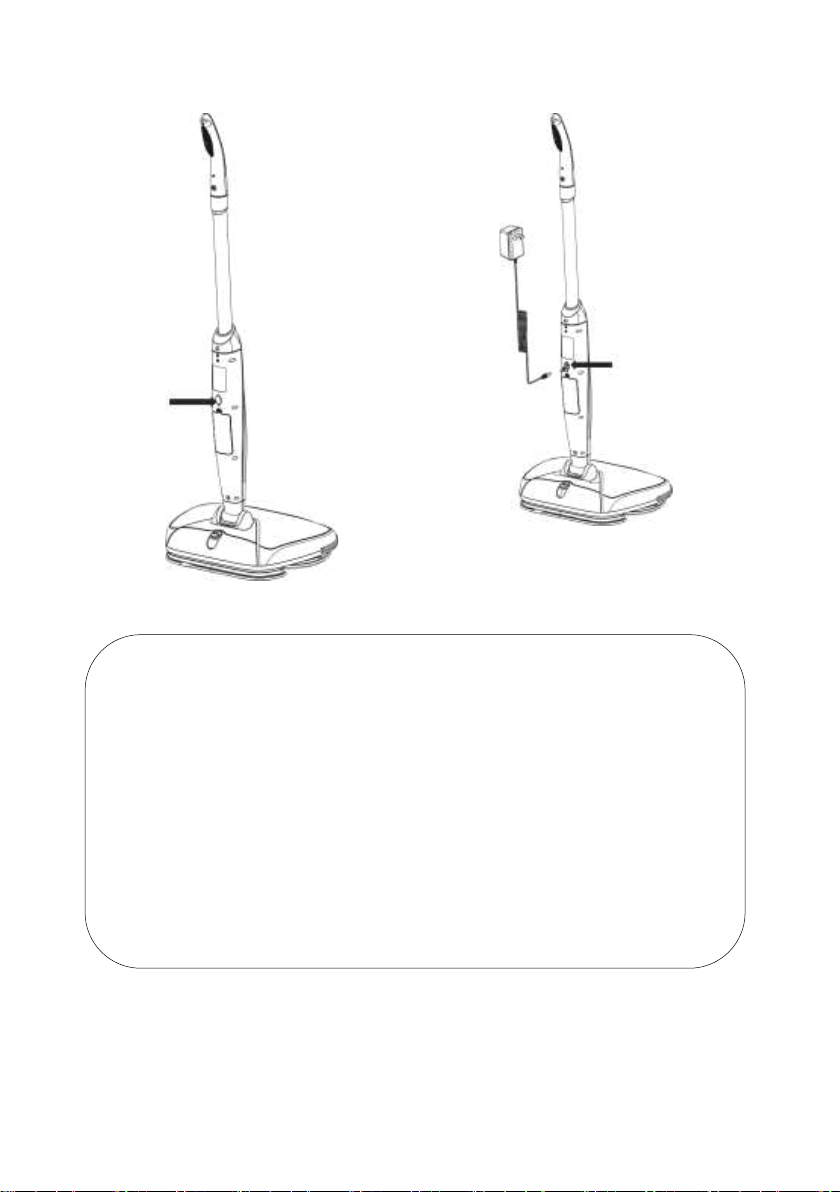

How to Charge
If the discharge light is flashing slowly, the power is low and needs to be
charged.
1. Switch off the product
2. Plug the charging adaptor to the power outlet
3. Open the charging port on the back of the product and plug in the cable
4. The discharge light will blink and the product will be charging
5. When the battery is full, all the battery indicator light will be turned on
6. Unplug the adaptor from the power outlet and unplug the cable from the
product

9
WARNING!
1. Make sure that the charging adaptor including the wire is not
damaged or broken
2. Please use the original adapter when charging
3. Please note that the charging port of the machine should not
be exposed to water. Otherwise, it will cause product failure.
4. Do not charge or store the product in a place below 0°C or
above 40°C, otherwise the product performance will be
reduced.
5. It is a normal phenomenon that temperature of the charger
rises during charging.
Rubber
cover
Plug in
Charging
cable

10
•When you need to clean and maintain this product, be sure to turn
off the product and disconnect the power supply.
•Wipe gently with a clean soft cloth dampened with water or a mild
detergent.
•Do not use a strong irritant lotion such as gasoline, alcohol or
rubber water.

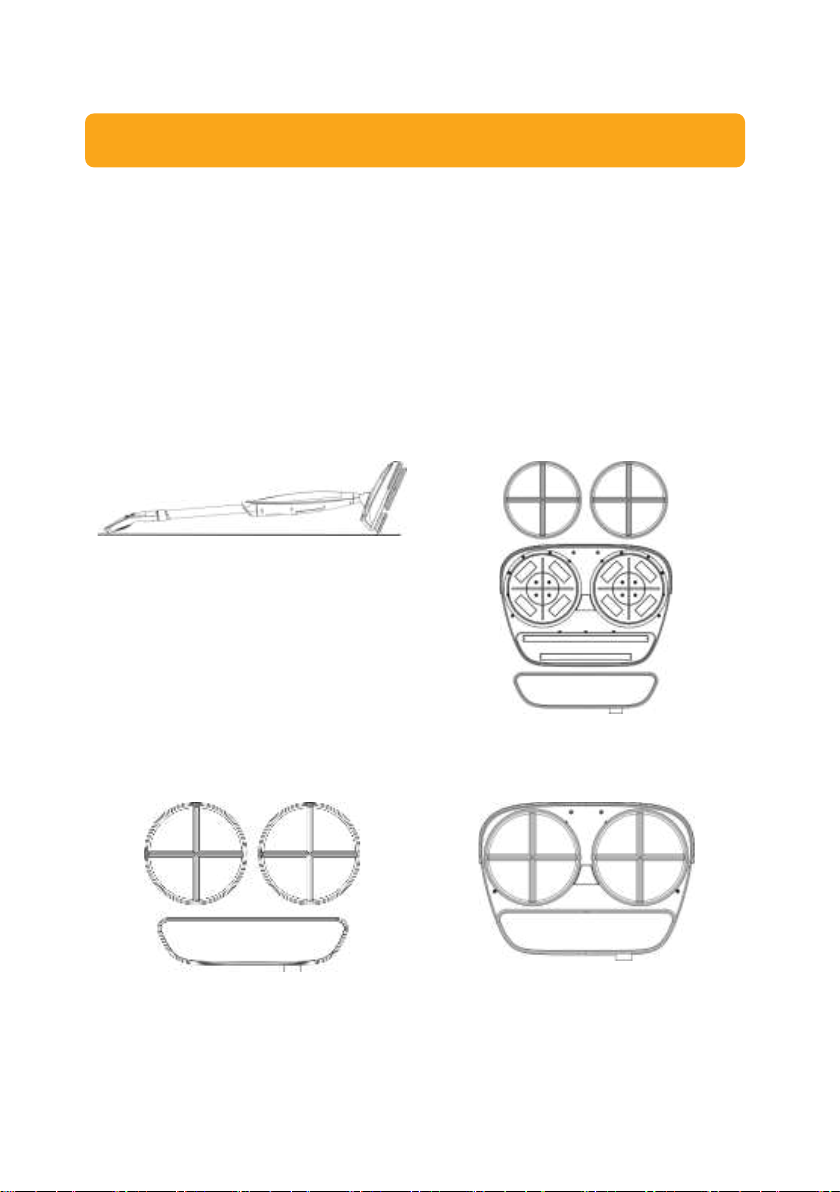

Removing and Cleaning the Mops
1. Put the product horizontally
2. Pull the mops to take it off
from the product
3. Wash the mops using
detergent (it is suggested to
use 40°C water)
4. Reassemble the mops to the
product
PART 4: MAINTENANCE

11
Changing the Battery
1. Open the battery cover with
a screwdriver
2. Take off the battery cover
3. Unplug the battery connector
from the main cable and take
off the battery
4. Connect the new battery to
the connector and put it
inside
5. Install the cover

12
Before contacting service center, check the following table:
Problem
Possible Cause
Recommended Action
Running time is short after
full charging
Battery life problem
Please contact dealer for
processing
Discharge light blinking
Low power
Recharge the product
All five lights are blinking
during operation
Overload protection
Check the bottom of the
product to see if it is stuck
by debris. Clean it
thoroughly and restart the
product
Battery light number 1,2
and 3,4 is blinking
High temperature
protection
Turn off the product and
wait for 30 minutes to let
it cool down. After that
you can restart the
product
PART 5: TROUBLESHOOTING

13
Model
SM 3201 L
Color
Black
Power supply
220-240V~50/60 Hz
Battery
Li-ion 2000 mAh
Power Input (Watt)
Low 30;
High 45
Spin speed (rpm)
Low 200±35;
High 290±50
Charging time (hours)
2±0.5
Operating time (minutes)
40-45
Water tank capacity (mL)
160
Water spray speed (mL/min)
150
Product dimension W x D x H (mm)
400 x 280 x 1110
Product weight (kg)
3.9
S = Stainless, R = Red, C = Cream, O = Orange, N = Green, U = Blue, W = White, V = Silver,
G = Grey, L = Black
Design and specification can change without prior notice to improve the quality of the
product. The illustration in this manual is schematic and can be different with your actual
product. The values on label or in other documents are according to laboratory test and
relevant standards. Values can vary depending on the actual operational and
environmental condition of the product.
PART 6: SPECIFICATION

04/21
PT MODENA INDONESIA
Jl. Industri Raya I Blok D-8,
Jatiuwung, Tangerang 15135
