Modena Tondo Series Owner's manual

User
Manual Book
Electric Storage Water Heater
Tondo Series
ES 30VD, ES 50VD, ES 80VD
ES 100VD
Disteso Series
ES 30HD, ES 50HD, ES 80HD
ES 100HD

2
TABLE OF CONTENT
Part 1: Important Safety Information 3
General Remark 3
Caution 3
Special Caution 3
Part 2: Product Introduction 6
Nomenclature 6
Technical Performance Parameters 6
Brief Introduction of Product Structure 7
Part 3: Installation 8
Installation Instruction 8
Plumbing Connection 9
Part 4: How to Use 11
Operating Procedure 11
Operating the Water Heater 12
Function Introduction 13
Product Features 13
Part 5: Maintenance 13
General Instruction 13
Tank Cleaning 15
Savety Valve Cleaning 15
Magnesium Anode 15
Heating Element 16
Part 6: Troubleshooting 15
Part 7: Disposal of Used Product 17
Part 8: Specification 18
Appendix: Wiring Diagram 20
This manual book explains everything you need to know about your
new product. Please contact our Customer Care should you need
further assistance through www.modena.com.

3
General Remark
The installation and maintenance has to be done by qualified
professionals or authorized technicians of MODENA. MODENA is not
responsible for any damage or malfunction caused by wrong
installation or the failure of following instructions that are included in
this manual book. For more information regarding to installation and
maintenance guidelines in details, please refer to below chapters.
Caution
Before installing this electric storage water heater, check and ensure
that the power socket is properly functional and reliably grounded.
Otherwise, the electrical storage water heater cannot be installed and
used. Do not use an extension cord if there is a problem with the
power socket. Incorrect installation and use of this water heater may
result in serious injuries and loss of property.
Special Caution
If the supply cord is damaged, it must be replaced by MODENA
technicians, MODENA service agent or similarly qualified persons in
order to avoid a hazard.
The power socket must be earthed (grounded) reliably. The rated
current of the socket should not be lower than 16A. The power
socket and the power plug should be kept dry to prevent electrical
leakage.
The installation height of the power socket should not be lower
than 1.8 m.
The wall in which the electrical storage water heater is installed
should be able to bear the twice bigger load than the weight of this
water heater filled fully with water without distortion and cracks.
Otherwise, other strengthening measures should be adopted.
PART 1: IMPORTANT SAFETY INFORMATION

4
The pressure relief valve that is attached with the water heater
must be installed at the cold water inlet of this appliance (see
Picture 1), and make sure it is not exposed in the foggy. The water
may be out-flowed from the pressure relief valve, so the outflow
pipe must be opened wide towards the air. The pressure relief
valve needs to be checked and cleaned regularly to avoid
blockage.
When using this water heater for the first time (or for the first use
after maintenance), this heater cannot be switched on until it has
been filled fully with water. When filling the water, at least one of
the outlet valves of the water heater must be opened to exhaust
the air. This valve can be closed after the water heater has been
filled fully with water.
This appliance (water heater) is not intended to be used by
persons with special needs for their physical, sensory or mental
capabilities, or lack of experience and knowledge (including
children), unless they have been given the supervision or
instructions concerning the use of the appliance by a person who
Picture 1
Pressure Relief/Safety Valve
Pressure Relief Hole
Copper Nut for Water Inlet
Nut for Hot Water Outlet
Hot Water Outlet Pipe
Shower
Cold Water Inlet Pipe
Mix Valve Handle

5
responsible for their safety. Children should be supervised to
ensure that they are not playing with this water heater.
During the heating process, there may be drops of water dripping
from the pressure relief hole, and this is a normal case. If there is
an over-leaking, please contact MODENA Customer Care for
repair. This pressure relief hole should not, under any
circumstances, be blocked; otherwise, the water heater may be
damaged, even resulting on accidents.
The drainage pipe that is connected to the pressure relief hole
must be kept sloping downwards.
Since the water temperature inside the heating tank can reach up
to 75oC, the hot water must not be directly flowed to human skin at
the initial use. Adjust the water temperature in accordance to
human skin endurance to avoid scalding.
If the flexible power supply cord is damaged, the special power
cord provided by MODENA must be selected, and replaced by
MODENA maintenance personnel (technician).
If any parts and components of this electrical storage water heater
are damaged please contact MODENA Customer Care for repair.
In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must be not supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
For the correct operation of the appliance, it is necessary to pay
attention that the maximum inlet water pressure is 0.8 MPa, and
the minimum inlet water pressure is 0.015 MPa.
When the water pressure is over 0.8 MPa, this will be automatically
activated the safety valve, and the water may drip from the
discharge pipe of the pressure-relief device (see Picture 2).
Therefore, this pipe must be left open towards the air
(atmosphere). The pressure-relief device should be operated /
activated regularly to remove limestone deposits and to avoid
blockage in the pipes.
Draining away the water inside the inner tank can be done from the
pressure relief valve. Twist off the thread screw of the pressure
relief valve and lift the handle of the drainage pipe valve upwards
(Picture 3). Every drainage pipe that connected to the pressure-
relief device has to be installed in a continuously downward
direction and in a frost-free environment.

6
Nomenclature (The Terms to Classified Product Types
and Names)
ES XXVD, ES XXHD
ES = the product code of the electric storage water heater;
XX = the capacity of the water heater (L);
VD, HD = the series of the water heater
Technical Performance Parameters
Rated Volume
30 L, 50 L, 80 L, 100 L
Rated Voltage
220-240 ⁓
Rated Power
1200 W/ 1200 W/ 1200 W/ 1500 W
Rated Pressure
0.8 MPa
Rated
Frequency
50Hz
Rated Water
Temperature
75 oC
Heating
Efficiency
>90%
Water-proof
Degree
IPX4
Structure
Mode
Hermetically Closed Type Water
Storage Style
Picture 2
Picture 3
PART 2: PRODUCT INTRODUCTION
Picture 4
Water Outlet
Safety Valve
Opened Water
Drainage Valve
Position
Handle for Water
Drainage Valve
Fixed Screw Nail

7

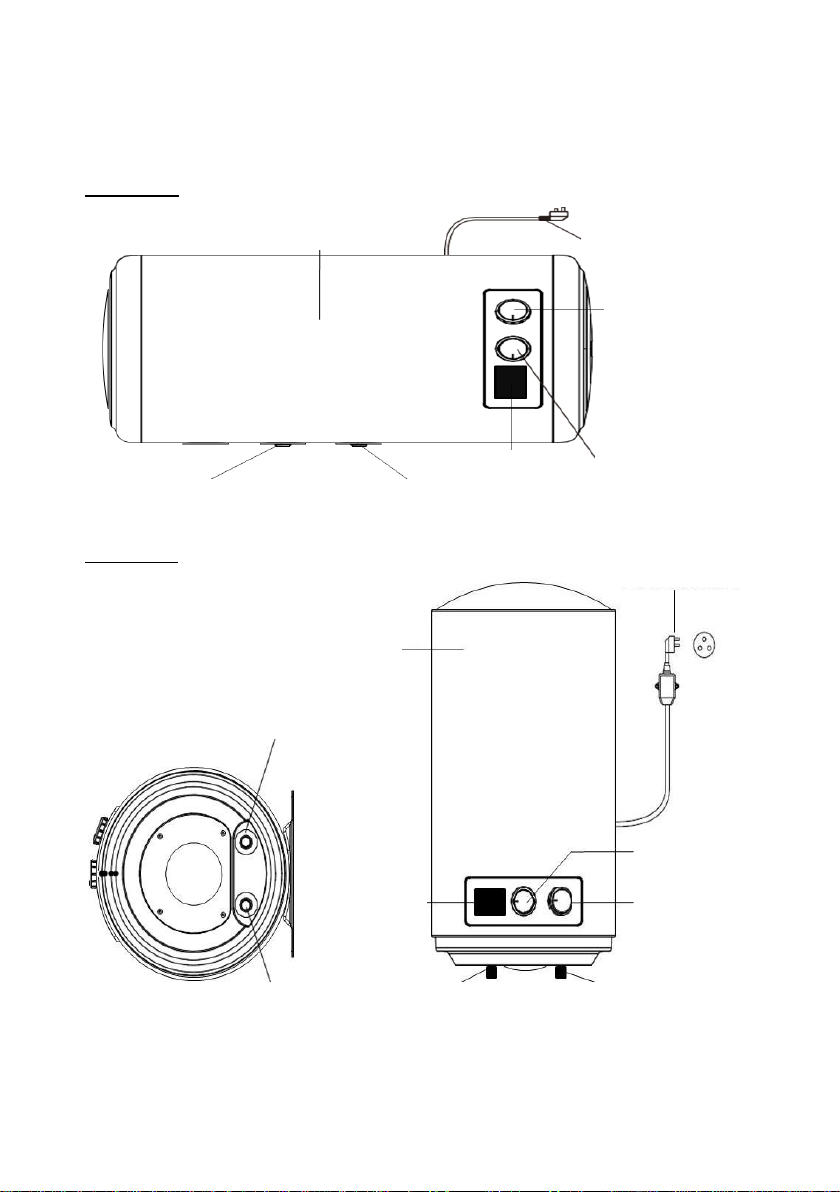

Brief Introduction of Product Structure
ES XXHD
ES XXVD
.
Picture 5
Machine Body
Power Cord
Hot Water Outlet
Cold Water Inlet
Temperature
Display
Temperature
Controller
Knob
Power
Controller
Knob
Power Cord
Machine Body
Cold Water Inlet
Temperature
Display
Hot Water Outlet
Hot Water Outlet
Cold Water Inlet
Power
Controller
Knob
* The features and product specifications depend on the product type
Temperature
Controller
Knob

8
Installation Instruction
This electric storage water heater shall be installed on a solid wall. If
the strength of the wall cannot bear the load equal to two times of
the total weight of the water heater filled fully with water, it is then
necessary to install a special support. In case of the hollow bricks
wall, ensure to fill it with concrete cement completely, and use
anchor fastener bolt (expansion bolt) in case of the hebel wall.
Before determined the location of the holes for the bolt, make sure
that the right side of the water heater has more than 200 mm (0.2
m) distance from the floor (ground), so that there is a space for the
repair process (if necessary).
After selecting a proper location for the bolts holes, install the
bracket to a solid wall.
Methods of installation : on the wall that is strong enough, drill 2
holes with a diameter of 8 mm, the distance between one hole to
another is 62 mm, and the hole depth is approximately 45 mm. Use
the anchor fastener bolt that provided along with this appliance for
securing the bracket firmly in the wall (see Picture 6)
Align the slots on the back of the water heater with the projections
of the bracket, and then, mount the water heater on the bracket.
Thereafter, slide the water heater gently towards the bottom side of
the bracket to be locked.
The power supply must have good quality and adopts the mono-
phase tri-pole that complies with the corresponding standard. Also,
the power supply must suitable with the ground line where it must
be installed properly in a high position and not easily splashed by
water.
Install the power plug to the power socket on the wall. The power
supply for this appliance must be around 220 V. It is recommended
to place the power socket on the right above the water heater. The
height of the socket to the ground should not be less than 1.8 m
(see Picture 7). If there is problem on the power cord, the cord
should be replaced by MODENA agents or qualified person who is
able to do the replacement and repair so as to ensure the safety.
PART 3: INSTALLATION

9
If the size of the bathroom is too small, the water heater can be
installed at another place. However, the water heater should be
installed closely to the stand-point of hot water use (bathroom) to
optimize the heat of the water.
Plumbing Connection
The dimension of each used pipe is G1/2 (”BSP ½”). The maximum
and minimum pressures of the water inlet should use Pa (Bar) as
the unit.
Connect the pressure relief valve to this water heater on its water
inlet.
In order to avoid leakage when connecting the plumbing, the
rubber seal gaskets that provided with this water heater must be
added at the end of the threads to ensure the connection is leak-
proof (see Picture 8).
Picture 6
Picture 7
E (Yellow/Green)
L (Brown)
N (Blue)
Ground
≥1.8 m

10
If the users want to utilize a multi-way supply system, refer to the
method shown in Picture 9 for connection of the plumbing.
Picture 8
Picture 9
Mixing
Valve
Rubber Gasket
Pressure Relief/Safety Valve
Cold Water Inlet Pipe
Copper Nut for Water Inlet
Shower
Hot Water Outlet Pipe
Nut for Hot Water Outlet
Handle for
Mixing Water Valve
Rubber Gasket
Pressure Relief Hole
Machine Body
Hot Water Outlet Pipe
Triple Connection
Pipe
Basin/
Water-pool
Pressure Relief
Pipe
Pressure Relief/Safety Valve
Shower
Water Inlet
Pipe
Water
Inlet
Valve

11
Operating Procedure
Check all the piping connection to avoid the leakage before turning
on this electric storage water heater.
Open one of the outlet valves of the water heater, then, open the
inlet valve .to get the water heater filled with water.
When the water flows out of the outlet pipe, it implies that the
water heater has been filled fully with water, and the outlet valve
can be closed.
Make sure that the tank is fully filled up with water; otherwise, it
will damage the heating elements.
During normal operation, the water inlet valve should always kept
open.
Insert the power plug into the power socket and check the
reliability of the leakage protection device (ELCB). Press the testing
button, the indicator light on the power plug should be off, and the
reset button should bounce up; then push down the reset button,
the indicator light will turns on to verify that the leakage protection
works well (see Picture 10). If the reset button cannot be pressed
during the use, the leakage protection device (ELCB) might be
error or fails to work; If the reset button is pressed down and
bounce up again, then it shows that the power circuit leaks or the
the power supply is disconnected.
NOTE
Please be sure to use the accessories provided by MODENA to
install this electric storage water heater. This electric storage
water heater cannot be hung on the bracket until it has been
confirmed to be firm and reliable. Otherwise, this water heater may
drop off from the wall, resulting to its damage, even serious
accidents of injury to the user.
PART 4: HOW TO USE

12
If the indicator lights turn on, the thermostat will automatically
control the temperature. When water temperature inside the heater
has reached the set point, water heater will switch off
automatically. When water temperature falls below the set point,
water heater will be turned on automatically to restore the heating.
Operating the Water Heater
Rotate the knob according to the marking (indicator) to increase or
decrease the temperature setting.
Rotate the power controller knob to the position I, II, or III, and the
water heating process starts.
The water heater needs to be turned on for a certain period of time
to reach the desired (set) temperature.
During the heating process, it is normal to see the slight drip at the
safety valve. Please do not cover the hole of the safety valve
outlet.
Connect the outlet hole to a drainage pipe. The water may drip
from the drainage pipe of the safety valve; therefore, this pipe
must be exposed to the atmosphere (air)
The safety valve has to be operated regularly (preferably at least
every six months) to remove the limestone deposit and to ensure
that it is not blocked.

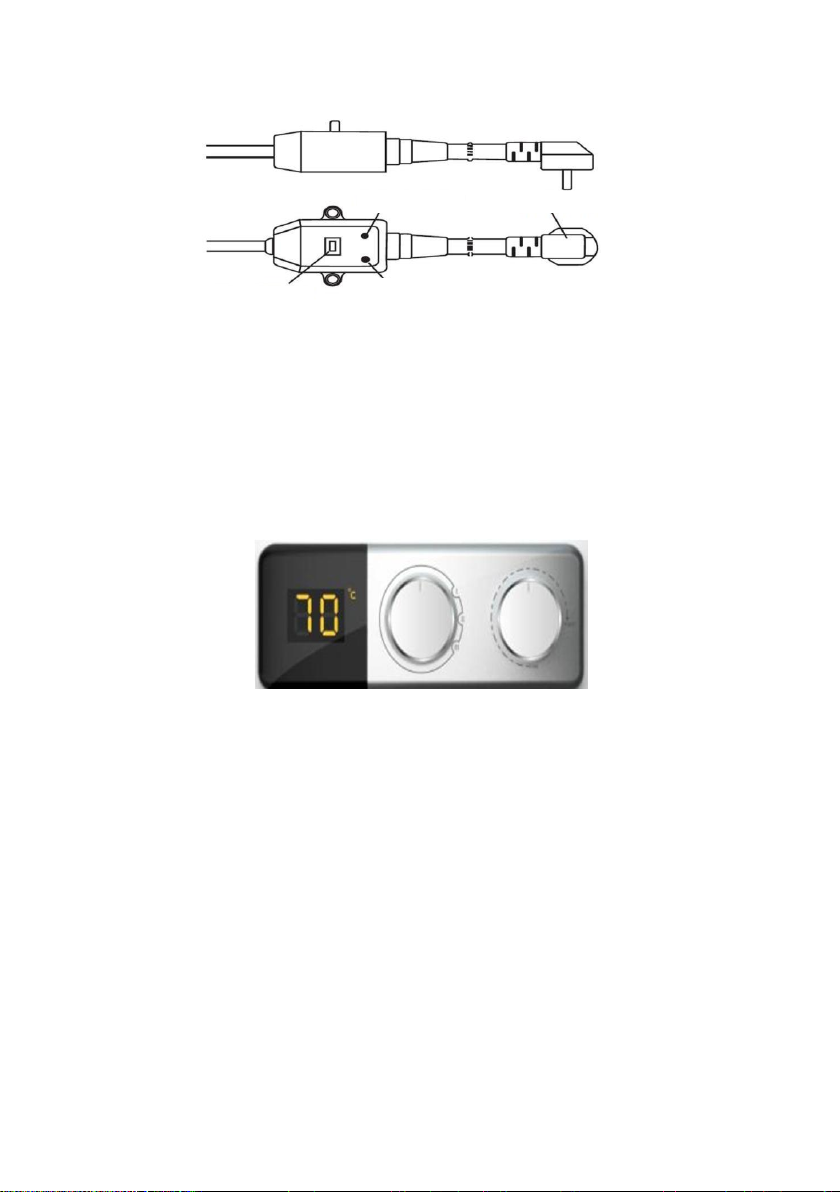

Picture 11
Picture 4
Picture 10
Testing Button
Reset Button
Indicator Light
Power Plug

13
Function Introduction
Display function: displays the actual temperature and the
temperature setting.
Heating function: within 30oC to 75oC to set the heating
temperature.
Safety function: with anti-dry protection, overheat protection to
keep safe when using.
Product Features
Super tank (Single Weld Line) with Titanium Porcelain Enamel
coating which is rut-proof, erosion-proof, higher efficiency and
having a longer life span.
Energy saving with minimum heat loss. The water temperature is
able to be maintained up to 48 hours after the power is switched
off.
General Instruction
Check the power plug and the power socket as often as possible.
Electrical contact must be secured and also must be provided
proper grounding The power plug and the power socket must not
heat excessively.
If the water heater is not used for a long time, especially in regions
with low air temperature (below 0 oC), it is necessary to drain the
water from the heating tank to prevent damage of the water heater
due to the water-freezing in the internal tank. Refer to the
“Important Safety Information” part in this manual book for the
method of draining away the water from the internal tank
PART 5: MAINTENANCE
WARNING!
Do cut off the power supply before do the water heater
maintenance to avoid the danger of electric shock.

14
To make the water heater operation durable, it is recommended to
regularly clean the internal tank and remove deposits in the heating
element of the water heater. Also, check the condition of the
magnesium anode (whether fully decomposed or not), and if
necessary, replace it with a new one in case of full decomposition.
Tank cleaning frequency depends on the hardness of the water in
each location where this water heater is applied. Cleaning must be
performed by MODENA or special maintenance services.
The water heater is equipped with a thermal switch, which cuts off
the power supply of the heating element upon overheating or the
absence of water in the tank. If the water heater is connected to
the power supply (electricity), but the water is not heated and the
indicator does not light up, then the thermal switch was off or not
switched on. To reset the water heater to the normal operating
condition, it is necessary to:
1. De-energize the water heater. Remove the plate of the front
cover (upside).
2. Press the button that is located at the center of the thermal
switch, (see Picture 12).
3. If the button is not pressed and there is no clicking, wait until
the thermal switch cools down to the initial temperature.
WARNING!
Non-professionals are not allowed to disassemble the thermal
switch to do the reset. Please contact professionals of MODENA to
maintain this electric storage water heater. Otherwise, MODENA will
not take responsibility of any accidents.
Manual Reset Button
Picture 12

15
Tank Cleaning
After having been used in a long time, the tank of the water heater will
have the dirt in it and therefore must be cleaned according to these
steps:
1. Turn off the power supply.
2. Close the cold water valve.
3. Open the hot water valve.
4. Open the pressure relief valve (if used).
5. Flush / rinse the tank with cold water.
6. Repeat this process several times until the tank is completely
clean.
Savety Valve Cleaning
Safety valves should be cleaned regularly to prevent any dirt that clogs
the valve:
1. Remove the safety valve, then clean and wash it.
2. Check if the parts of the valve are still able to move well.
3. After cleaning the valve, install the safety valve back to its position
by first giving the seal tape around the end of valve.
4. Fill the water heater with water after the pipes are refitted.
Magnesium Anode
Magnesium Anodes functions to neutralize the corrosive substances in
the water and will run out in a certain time depending on the corrosive
properties of the water. If the water has good enough quality (PAM),
magnesium anode should be replaced within 2 (two) years. If the water
quality is not good, magnesium anodes should be replaced 1 (one)
year. To replace the magnesium anodes, contact MODENA Customer
Care.

16
Heating Element
If the water contains lime (mud), the heating element cannot function
properly (slow heat) because it was covered by a crust of lime (mud).
Therefore, the heating element must be cleaned of each year.
Contact MODENA Customer Care for cleaning.
Check the things below before contacting MODENA Customer Care in
the moment of operation disturbance:
Problem
Possible Cause
Recommended Action
Heating indicator
light is off.
Failures on the temperature
controller.
Contact MODENA Customer
Care for repair.
Power indicator light
is off.
1. Power source is not
connected or badly
connected
2. Indicator light is damaged
3. Overheating sensor is
activated.
Contact MODENA Customer
Care for repair.
No water flows out
from hot water outlet.
1. Water supply is cut off
2. Water pressure is too low
3. Water Inlet valve is not
opened.
1. Wait for the restoration
of water supply.
2. Use the water heater
again when the water
pressure is increased.
3. Open the water inlet
valve of.
Water is not warm
enough.
1. Heating element is not
active.
2. Temperature controller is
malfunction.
3. No power supply to the
water heater.
1. Replace the heating
element and contact
MODENA Customer
Care for repair.
2. Contact MODENA
Customer Care for
repair.
3. Check the power
supply.
PART 6: TROUBLESHOOTING

17
Problem
Possible Cause
Recommended Action
Water temperature is
too high.
Failures on the temperature
control system.
Contact MODENA Customer
Care for repair.
Water leak
1. Trouble on the seal for
each connected pipes.
2. Leaking at the piping
connection
3. Leaking at the gasket
1. Seal up the piping
connection.
2. Tighten the connection.
3. Tighten the element or
replace the gasket and
Contact Customer Care
for repair.
This symbol on the product or in its packaging
indicates that this product must not be treated as
household waste. Instead, it should be taken to the
appropriate waste collection point for the recycling
of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by the inappropriate waste handling of this
product. For more detailed information about the recycling of this
product, please contact your local council or your household waste
disposal service
PART 7: DISPOSAL OF USED PRODUCT

18
Model
ES 100VD
ES 80VD
ES 50VD
ES 30VD
Type
Tank (Storage)
Installation
Vertical
Heat Source
Electricity
Heating Tank
Material
Stainless Steel
Heating Tank Coating
Titanium Porcelain Enamel
Temperature Setting
Yes
Power Selection
Yes
Temperature Display
Yes
Electric Safety
(ELCB)
Yes
Overpressure Safety
Yes
Thermostat
Double
Grounding Terminal
Yes
Anti-Rust
Magnihealth+
Capacity
100 L
80 L
50 L
30 L
Power
500/1000/
1500 W
400/800/
1200 W
400/800/
1200 W
400/800/
1200 W
Water Pressure
0.015 - 0.8 MPa
Water Pipe Diameter
0.5 Inch
Temperature
Max 75oC
Insulation Material
PUF (Polyurethane)
Product Dimension
410 x 410 x
1110 mm
410 x 410 x
920 mm
410 x 410 x
675 mm
340 x 340 x
620 mm
Product Weight
29.2 kg
25 kg
17.5 kg
14 kg
Specifications of this appliance may change without notice to improve the quality of the
product. Pictures in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are
obtained in laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the appliance, values may vary.
PART 8: SPECIFICATIONS

19
Model
ES 100HD
ES 80HD
ES 50HD
ES 30HD
Type
Tank (Storage)
Installation
Vertical
Heat Source
Electricity
Heating Tank
Material
Stainless Steel
Heating Tank
Coating
Titanium Porcelain Enamel
Temperature
Setting
Yes
Power Selection
Yes
Temperature
Display
Yes
Electric Safety
(ELCB)
Yes
Overpressure
Safety
Yes
Thermostat
Double
Grounding
Terminal
Yes
Anti-Rust
Magnihealth+
Capacity
100 L
80 L
50 L
30 L
Power
500/1000/
1500 W
500/1000/
1500 W
500/1000/
1500 W
500/1000/
1500 W
Water Pressure
0.015 - 0.8 MPa
Water Pipe
Diameter
0.5 Inci
Temperature
Max 75oC
Insulation
Material
PUF (Polyurethane)
Product
Dimension
1095 x 410 x
410 mm
918 x 410 x
410 mm
910 x 340 x
340 mm
650 x 340 x
340 mm
Product Weight
31 kg
25 kg
19 kg
13.6 kg
Specifications of this appliance may change without notice to improve the quality of the
product. Pictures in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are
obtained in laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the appliance, values may vary.

20
ES XXHD
ES XXVD
APPENDIX: WIRING DIAGRAM
Picture 13
Thermostat
Power Input Switch
Thermostat
Power Input Switch
Thermal
Cut-out
Thermal
Cut-out
Transformer
Transformer
Display
Display
