Modena Tondo Series Owner's manual

User Manual Book
(Electric Storage Water Heater)
Tondo Series
ES 30VD, ES 50VD, ES 80VD
ES 100VD
Disteso Series
ES 30HD, ES 50HD, ES 80HD
ES 100HD

2
Thank you for your trust in choosing MODENA products for your household
needs. With your satisfaction as our priority, we constantly aim to deliver
stylishly designed products equipped with state-of-the-art technology to
assist you in your daily activities.
This is your guidebook containing everything you need to know about our
product. Please reach us if you need further assistance or other information
via our Customer Care or our official website www.MODENA.com.

3
CONTENTS PAGE.
•Introduction 2
•Part 1 : Important Safety Information 4
•Part 2 : Product Introduction 5
•Part 3 : Installation 7
•Part 4 : How to Use 10
•Part 5 : Maintenance 11
•Part 6 : Troubleshooting 12
•Part 7 : Disposal of Used Product 13
•Part 8 : Specification 13

4
General Remark
The installation and maintenance has to be done by qualified professionals or authorized technicians
of MODENA. MODENA is not responsible for any damage or malfunction caused by wrong
installation or the failure of following instructions that are included in this manual book. For more
information regarding to installation and maintenance guidelines in details, please refer to below
chapters.
Caution
Before installing this electric storage water heater, check and ensure that the (power) electrical socket
is properly functional and reliably grounded. Otherwise, the electrical storage water heater cannot be
installed and used. Do not use an extension cord if there is a problem with the power socket. Incorrect
installation and use of this electrical water heater may result in serious injuries and loss of property.
Special Caution
Warning: If the supply cord is damaged. It must be replaced by MODENA technicians, MODENA
service agent or similarly qualified persons in order to avoid a hazard.
The power socket must be (grounded) earthed reliably. The rated current of the socket shall not
be lower than 16A. The socket and plug shall be kept dry to prevent electrical leakage.
The installation height of the power socket shall not be lower than 1.8m.
The wall in which the electrical storage water heater is installed shall be able to bear the twice
bigger load than the weight of this water heater filled fully with water without distortion and cracks.
Otherwise, other strengthening measures shall be adopted.
The pressure relief valve attached with the heater must be installed at the cold water inlet of this
heater (Picture 1), and make sure it is not exposed in the foggy. The water may be out flowed
from pressure relief valve, so the outflow pipe must open wide towards the air; The pressure relief
valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.
Part 1: Important Safety Information
Picture 1

5
When using the heater for the first time (or the first use after maintenance), the heater cannot be
switched on until it has been filled fully with water. When filling the water, at least one of the outlet
valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed
after the heater has been filled fully with water.
This appliance (water heater) is not intended to be used by persons with special needs for their
physical, sensory or mental capabilities, or lack of experience and knowledge (including children),
unless they have been given the supervision or instructions concerning the use of the appliance
by a person who responsible for their safety. Children should be supervised to ensure that they
are not playing with this water heater.
During the heating process, there may be drops of water dripping from the pressure relief hole.
This is a normal case. If there is an over-leaking, please contact MODENA customer call center
for repair. This pressure relief hole shall, under no circumstances, be blocked; otherwise, the
heater may be damaged, even resulting on accidents.
The drainage pipe connected to the pressure release hole must be kept sloping downwards.
Since the water temperature inside the heater can reach up to 75oC, the hot water must not be
directly flowed to human bodies at the initial use. Adjust the water temperature to a suitable
temperature to avoid scalding.
If the flexible power supply cord is damaged, the special supply cord provided by MODENA must
be selected, and replaced by MODENA maintenance personnel (technician).
If any parts and components of this electrical storage water heater are damaged please contact
MODENA Call Center for repair.
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must be not supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by the utility.
For the correct operation of the appliance, it is necessary to pay attention that the maximum inlet
water pressure is 0.8MPa, and the minimum inlet water pressure is 0.015MPa.
When the water pressure is over 0.8MPa, this will be automatically activated the safety valve, the
water may drip from the discharge pipe of the pressure-relief device (Picture 2). Therefore, this
pipe must be left open towards the air (atmosphere). The pressure-relief device should be
operated/activated regularly to remove limestone deposits and to ensure that the pipe is free from
blockage;

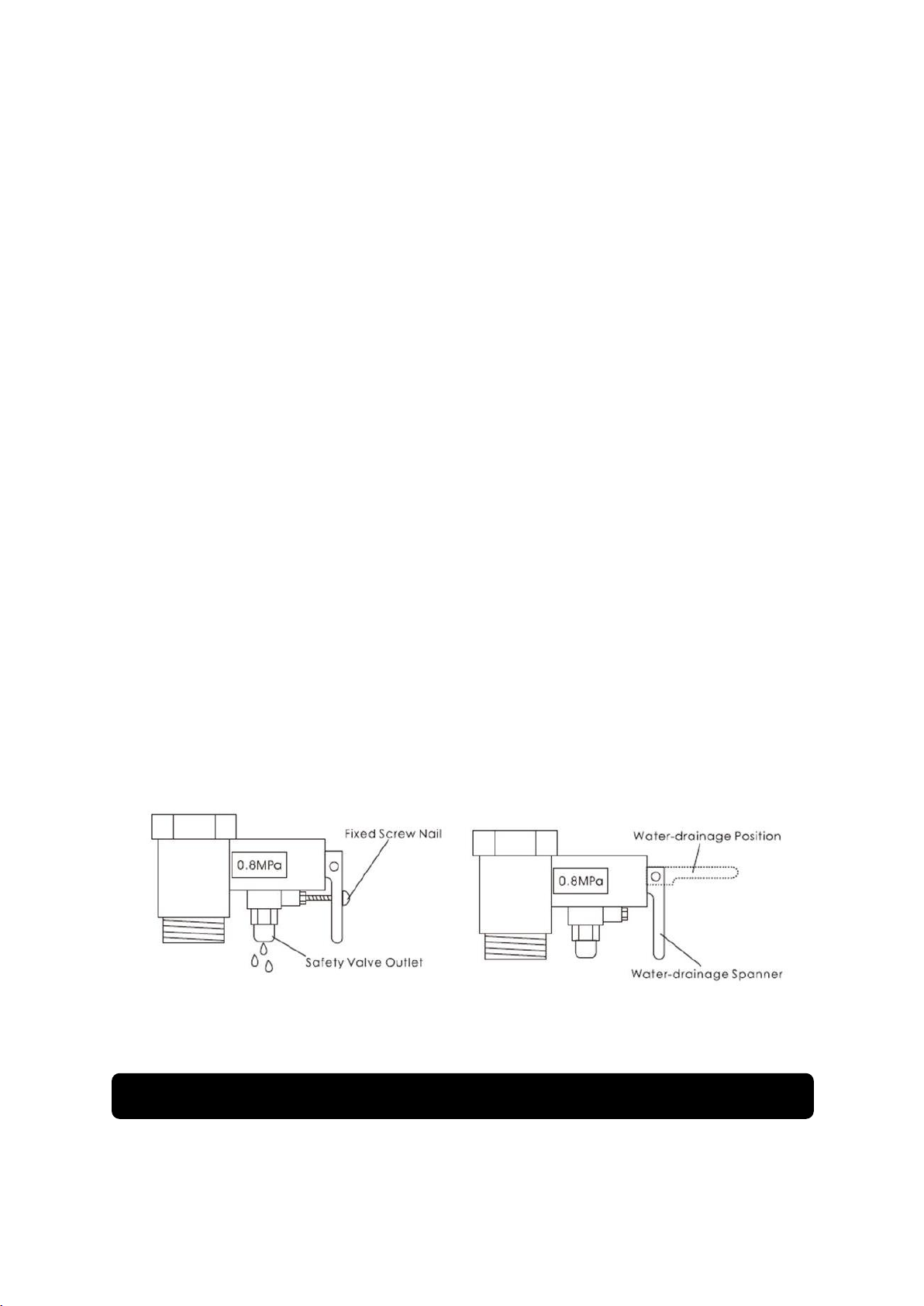

Draining away the water inside the inner container can be done from the pressure relief valve.
Twist the thread screw of the pressure relief valve off, and lift the drain handle upwards (Picture
3). A discharge pipe connected to the pressure-relief device has to be installed in a continuously
downward direction and in a frost-free environment.
Nomenclature (The Terms to Classified Product Types and Names)
Part 2: Product Introduction
Picture 2
Picture 3

6
ES XXVD, ES XXHD
ES = the product code of the electric storage water heater;
XX = the capacity of the water heater (L);
VD, HD = the series of the water heater
.
Technical Performance Parameters
Brief Introduction of Product Structure
ES XXHD
ES XXVD
* The features and product specifications depend on the product type.
Picture 4
Picture 5

7
Internal Wiring Diagram
ES XXHD
ES XXVD
Installation Instruction
This electric storage water heater shall be installed on a solid wall. If the strength of the wall cannot
bear the load equal to two times of the total weight of the water heater filled fully with water, it is
then necessary to install a special support. In case of the hollow bricks wall, ensure to fill it with
concrete cement completely, and use anchor fastener bolt (expansion bolt) in case of the hebel
wall.
Before determined the location of the holes for the bolt, make sure that the right side of the water
heater has more than 200 mm distance from the floor (ground), so that there is a space for the
repairment process (if necessary).
After selecting a proper location for the bolts holes, install the mounting bracket to a solid wall.
Part 3: Installation
Picture 6

8

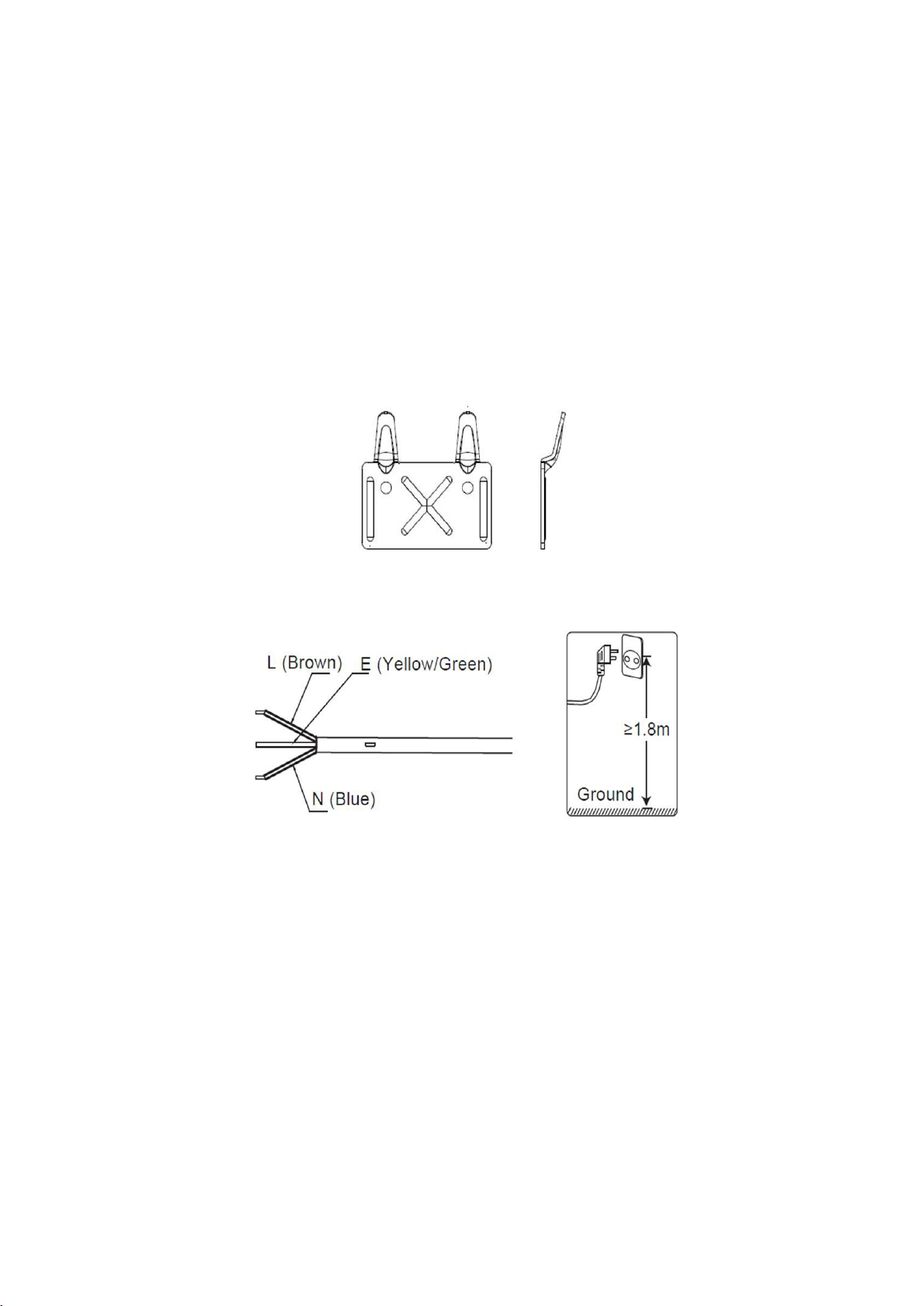

Methods of installation : On the wall that is strong enough, drill 2 holes with a diameter of 8 mm,
and the distance between the hole with another hole is 62 mm. Hole depth of approximately
45mm.Use the anchor fastener bolt provided along with the product for securing the bracket
(Picture 7) firmly in the wall
Align the slots on the back of the water heater with the projections on the bracket and install the
water heater on the bracket. Thereafter, slide the water heater gently towards the bottom side of
the bracket to be locked.
The power supply must have good quality and adopts the mono-phase tri-pole that complies with
the corresponding standard. Also, the power supply must suitable with the ground line where it
must be installed properly in a high position and not easily splashed by water.
Install the power plug to the supply socket on the wall. The power supply for this appliance must be
220V. It is recommended to place the power socket on the right above the heater. The height of
the socket to the ground shall not be less than 1.8m (see Picture 8). If there is problem on the
power cord, it should be replaced by MODENA, agencies or qualified person who is able to do the
replacement and repairment so as to ensure the safety.
If the size of the bathroom is too small, the water heater can be installed at another place.
However, the water heater shall be installed closely to the stand-point of its usage to optimize the
heat of the water.
Plumbing Connection
The dimension of each used pipe is G1/2 (”BSP ½”) ; The maximum and minimum pressures of
inlet should use Pa (Bar) as the unit.
Connect the pressure relief valve with the water heater on the inlet of the water heater.
In order to avoid leakage when connecting the plumbing, the rubber seal gaskets provided with
the water heater must be added at the end of the threads to ensure the connection is leak-proof
(see Picture 9).
Picture 7
Picture 8

9
If the users want to utilize a multi-way supply system, refer to the method shown in Diagram 10 for
connection of the plumbing.
Note:
Please be sure to use the accessories provided by MODENA to install this electric storage water
heater. This electric storage water heater cannot be hung on the bracket until it has been confirmed to
be firm and reliable. Otherwise, this water heater may drop off from the wall, resulting to its damage,
even serious accidents of injury to the user. When determining the locations for the holes of the bolt, it
shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater,
for the convenient maintenance of this water heater, if necessary.
Picture 9
Picture 10

10
Operating Procedure
Check all the piping connection to avoid the leakage case before turning on this electric storage
water heater.
Open one of the outlet valves of the water heater, then, open the inlet valve .to get the water
heater filled with water.
When the water flows out of the outlet pipe it implies that the heater has been filled fully with
water, and the outlet valve can be closed. .
Make sure that the tank is fully filled up with water; otherwise it will cause the heating elements to
be damaged. Note: During normal operation, the inlet valve shall be always kept open.
Insert the power plug into the power socket and check the reliability of the leakage protection
device (ELCB). Press the testing button, the indicator light on the power plug should be off, and
the reset button should bounce up; then push down the reset button, the indicator light will turns
on to verify that the leakage protection works well (Picture 11). If the reset button cannot be
pressed during the process of using, the leakage protection device (ELCB) might be error or fails
to work; If the reset button is pressed down and bounce up again, then it shows the power circuit
leaks or the power supply is disconnected.
If the indicator lights up, the thermostat will automatically control the temperature. When the water
temperature inside the heater has reached the set point, it will switch off this water heater
automatically. When the water temperature falls below the set point, the heater will be turned on
automatically to restore the heating.
Operating of the Water Heater
Rotate the knob according to the marking (indicator) to increase or decrease the temperature
setting.
Rotate the power adjustment knob to the position I, II, or III, and the water heating process starts.
The water heater needs to be turned on for a certain period of time to reach the desired (set)
temperature.
During the heating process, it is normal to see the slight drip at the safety valve. Please do not
cover the hole of the safety valve outlet.
Connect this outlet hole to a discharge pipe. The water may drip from the discharge pipe of the
safety valve; therefore this pipe must be exposed to the atmosphere.
The safety valve has to be operated regularly (preferably at least every six months) to remove the
limestone deposit and to ensure that it is not blocked.
Part 4: How to Use
Picture 11
Picture 12

11
Function Introduction
Display function: displays the actual temperature and the temperature setting.
Heating function: within 30oC to 75oC to set the heating temperature.
Safety function: with anti-dry protection, overheat protection to keep safe when using.
Product Features
Super tank (Single Weld Line) with Titanium Porcelain Enamel coating which is rut-proof, erosion-
proof, higher efficiency and having a longer life span.
Energy saving with minimum heat loss. The water temperature is able to be maintained up to 48
hours after the electricity is switched off.
Warning: Do cut off the power supply before maintenance, to avoid danger like electric shock.
Check the power plug and the power socket as often as possible. Secure electrical contact and
also proper grounding must be provided. The power plug and the power socket must not heat
excessively.
If the heater is not used for a long time, especially in the area with low air temperature (below
0oC), it is necessary to drain the water from the heater to prevent damage of the water heater,
due to water-freezing in the internal tank.(Refer to the “Cautions” chapter in this manual book for
the method of draining away the water from the inner container).
To make the water heater operation durable, it is recommended to regularly clean the internal
tank and remove deposits on the electric heating element of the water heater, as well as check
the condition of the magnesium anode (whether fully decomposed or not) and, if necessary,
replace it with a new one in case of full decomposition. Tank cleaning frequency depends on the
hardness of the water in each location where this water heater is applied. Cleaning must be
performed by MODENA or special maintenance services.
The water heater is equipped with a thermal switch, which cuts off the power supply of the heating
element upon overheating water or the absence of water in the water heater. If the water heater is
connected to the power supply (electricity), but the water is not heated and the indicator does not
light up, then the thermal switch was switched off or not switched on. To reset the water heater to
the operating condition, it is necessary to:
1. De-energize the water heater; remove the plate of the front cover (upside).
2. Press the button that is located at the center of the thermal switch, see Picture 13;
3. If the button is not pressed and there is no clicking, then you should wait until the thermal
switch cools down to the initial temperature.
Warning: Non-professionals are not allowed to disassemble the thermal switch to do the reset.
Please contact professionals of MODENA to maintain this electric storage water heater.
Otherwise, MODENA will not take responsibility of any accidents.
Tank Cleaning
After having been used in a long time, the storage (tank) of this water heater will have the dirt in it and
therefore must be cleaned:
Part 5: Maintenance
Picture 13

12
Turn off the power source.
Close the cold water tap.
Open the hot water tap.
Open the pressure relief valve (if it is used).
Flush / rinse with cold water tanks.
Repeat this process several times until the tank is completely clean.
Safety Valve Cleaning
Safety valves should be cleaned regularly to prevent any dirt that clogs the valve:
Remove the safety valve, then clean and wash it.
Check if the parts of the valve are still able to move well.
After cleaning, replace the safety valve in its place by giving the seal tape.
Fill the water heater with water after pipes refitted.
Magnesium Anode
Magnesium Anodes serves to neutralize corrosive substances in the water and will run out in a certain
time depending on the corrosive properties of the water. If the water has good enough quality (PAM),
Magnesium Anodes should be replaced within 2 (two) years. If the water quality is not good,
Magnesium Anodes should be replaced in maximum 1 (one) year period of time. To replace
Magnesium Anodes, contact MODENA Call Center.
Heating Element
If the water contains limestone (Mud), the heating element cannot function properly (slow heat)
because it was covered by a crust of limestone (mud). Therefore, heating element must be cleaned
off from the sediment each year. To do this cleaning procedure, contact MODENA Call Center.
Check the things below before contacting MODENA Call Center in the event of interruption of
operation:
Problem
Possible Cause
Recommended Action
Heating indicator light
is off.
Failures of the temperature
controller.
Contact MODENA Call Center for
repair.
Power indicator light is
off.
1. Power source is not connected
or badly connected
2. Indicator is damaged
3. Overheating sensor is overly
activated.
Contact MODENA Call Center for
repair.
No water coming out
from hot water outlet.
1. Running water supply is cut off
2. Hydraulic pressure is too low
3. Inlet valve of running water is not
open
1. Wait for the restoration of
running water supply.
2. Use the heater again when the
hydraulic pressure is
increased.
3. Open the inlet valve of running
water.
Water temperature is not
warm enough.
1. Heating element is deactivated.
2. Temperature controller is
malfunction.
3. No power to the water heater.
1. Replace the heating element
and contact MODENA Call
Center for repair.
2. Contact MODENA Call Center
for repair.
3. Check the power supply.
Water temperature is too
high.
Failures of the temperature control
system.
Contact MODENA Call Center for
repairs.
Part 6: Troubleshooting

13
Water leak
1. The seal for each connected
pipes is in trouble.
2. Leaking from the piping
connection
3. Leaking at the gasket
1. Seal up the piping connection
2. Tighten the connection
3. Tighten the element or replace
the gasket and Contact
MODENA Call Center for
repairs
This symbol on the product or in its packaging indicates that this product must not be
treated as household waste. Instead, it should be taken to the appropriate waste
collection point for the recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by the inappropriate waste handling of this product. For more detailed
information about the recycling of this product, please contact your local council or
your household waste disposal service
Model
ES 100VD
ES 80VD
ES 50VD
ES 30VD
Type
Tank (Storage)
Installation
Vertical
Heat Source
Electricity
Heating Tank Material
Stainless Steel
Heating Tank Coating
Titanium Porcelain Enamel
Temperature Setting
Yes
Power Selection
Yes
Temperature Display
Yes
Electric Safety (ELCB)
Yes
Overpressure Safety
Yes
Thermostat
Double
Grounding Terminal
Yes
Anti-Rust
Magnihealth+
Capacity
100 L
80 L
50 L
30 L
Power
500/1000/1500 W
400/800/1200 W
400/800/1200 W
400/800/1200 W
Water Pressure
0.015 - 0.8 MPa
Water Pipe Diameter
0.5 Inch
Temperature
Max 75oC
Insulation Material
PUF (Polyurethane)
Product Dimension
410 x 410 x 1110 mm
410 x 410 x 920 mm
410 x 410 x 675 mm
340 x 340 x 620 mm
Product Weight
29.2 kg
25 kg
17.5 kg
14 g
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this manual are
schematic and may not match your product exactly. Values stated on the machine labels or in the documentation
accompanying it are obtained in laboratory in accordance with the relevant standards. Depending on operational and
environmental conditions of the appliance, values may vary.
Part 7: Disposal of Used Product
Part 8: Specifications

14
Model
ES 100HD
ES 80HD
ES 50HD
ES 30HD
Type
Tank (Storage)
Installation
Vertical
Heat Source
Electricity
Heating Tank Material
Stainless Steel
Heating Tank Coating
Titanium Porcelain Enamel
Temperature Setting
Yes
Power Selection
Yes
Temperature Display
Yes
Electric Safety (ELCB)
Yes
Overpressure Safety
Yes
Thermostat
Double
Grounding Terminal
Yes
Anti-Rust
Magnihealth+
Capacity
100 L
80 L
50 L
30 L
Power
500/1000/1500 W
500/1000/1500 W
500/1000/1500 W
500/1000/1500 W
Water Pressure
0.015 - 0.8 MPa
Water Pipe Diameter
0.5 Inch
Temperature
Maks 75oC
Insulation Material
PUF (Polyurethane)
Product Dimension
1095 x 410 x 410 mm
918 x 410 x 410 mm
910 x 340 x 340 mm
650 x 340 x 340 mm
Product Weight
31 kg
25 kg
19 kg
13.6 kg
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.
.

11/20
