Modena Conesso Series Owner's manual

User
Manual Book
Electric Storage Water Heater
Conesso Series
ES 15 SKY, ES 30 SKY

2
TABLE OF CONTENT
Part 1: Important Safety Information 3
Part 2: Name of Parts 4
Product Structure 4
Control Panel and Display 4
Button Function 4
Part 3: Installation 5
Installation Instruction 5
Plumbing Connection 6
Electrical Connection 7
Part 4: How to Use 8
Operation Guideline 8
Modena Smart Application Configuration 9
Resetting the Factory Default Setting 10
Part 5: Maintenance 10
General Instruction 10
Tank Cleaning 12
Safety Valve Cleaning 12
Magnesium Anode 12
Heating Element 12
Part 6: Troubleshooting 13
Error Code 13
Part 7: Specification 14
Appendix: Wiring Diagram 15
This manual book explains everything you need to know about your
new product. Please contact our Customer Care should you need
further assistance through www.modena.com.

3
•For the correct operation of this appliance (water heater), it is
necessary to pay attention that the maximum inlet water pressure
is 0.8 MPa (0.8 Bar).
•If the power cord is damaged, it must be replaced by the
manufacturer or qualified technicians to avoid hazard. Contact
MODENA Customer Care for repair.
•The pressure relief valve must be operated and checked regularly
to remove limestone deposits and to ensure that it is not blocked.
•In order to avoid hazard due to inadvertent resetting of thermal
cut-off, this water heater must not be supplied through external
switching device, such as timer or connected to the circuit that is
regularly switch on and off by the utility.
•This water heater (appliance) cannot be used persons with special
needs for their physical, sensory or mental capabilities, or with lack
of experience and knowledge (including children). Unless, they
have been given supervision and instruction concerning the use of
the appliance in a state way and understand the hazard that will
involve. Children should not play with the appliance. Cleaning and
user maintenance should not be performed by children without
supervision.
•The electrical storage water heater must be installed with mono-
directional safety valve in the inlet pipe. When the tank pressure is
over than 0.8 MPa, it will automatically activate the safety valve,
and water will flow out from the drainage pipe. In any condition, the
outlet valve must not be blocked. If there is a need to empty the
water in the tank, close the main water supply first. Remove the
fixing screw nail on the safety valve, and then lift the plastic handle
up to let the water flow out naturally. See the picture below.
PART 1: IMPORTANT SAFETY INFORMATION
Fixed Screw Nail
Water Outlet Safety
Valve
Opened Water Drainage
Valve Position
Handle for Water Drainage
Valve

4
Product Structure
Control Panel and Display
Button Function
“General Operating Mode” Setting
Power On/Off
Power and Timer Modes Selector: press it to
interchange heating power (300/500/800W) and timer
modes (morning/evening/morning+evening timer).
Wi-Fi Connection Configuration: press it for 3s to connect
to EZ Mode (using external Wi-Fi network). Press +
to connect to AP Mode (using water heater’s built-in Wi-Fi).
Temperature and Time Adjustment
Remote Control Configuration
Power Cord
Control Panel + Display
Cold Water Inlet
Cover for Maintenance
Hot Water Outlet
1. Set Temperature /Actual Temperature
2. Error Code Display Zone
3. Time Display Zone
4. Function Icons Display Zone
5. Heating Status Display Zone
6. Function Buttons Zone
PART 2: NAME OF PARTS

5
Installation Instruction
The installation for the plumbing and the electrical wiring must be
done by qualified technicians, according to the installation
instructions and in compliance to the local authority regulations.
This water heater must be installed as near as possible to the
usage stand-point to reduce the heat loss along the pipes. To
facilitate maintenance process, make 50 cm distance for the easy-
access of the electrical parts.
This water heater should be installed on a solid cement wall and
close to the power and the water source.
Use only the accessories provided in the wrapping box to install
this electric storage water heater.
Before determining the bolt holes position, ensure that the water
heater position is more than 200 mm from the floor or ceiling board
in order to facilitate maintenance process when necessary.

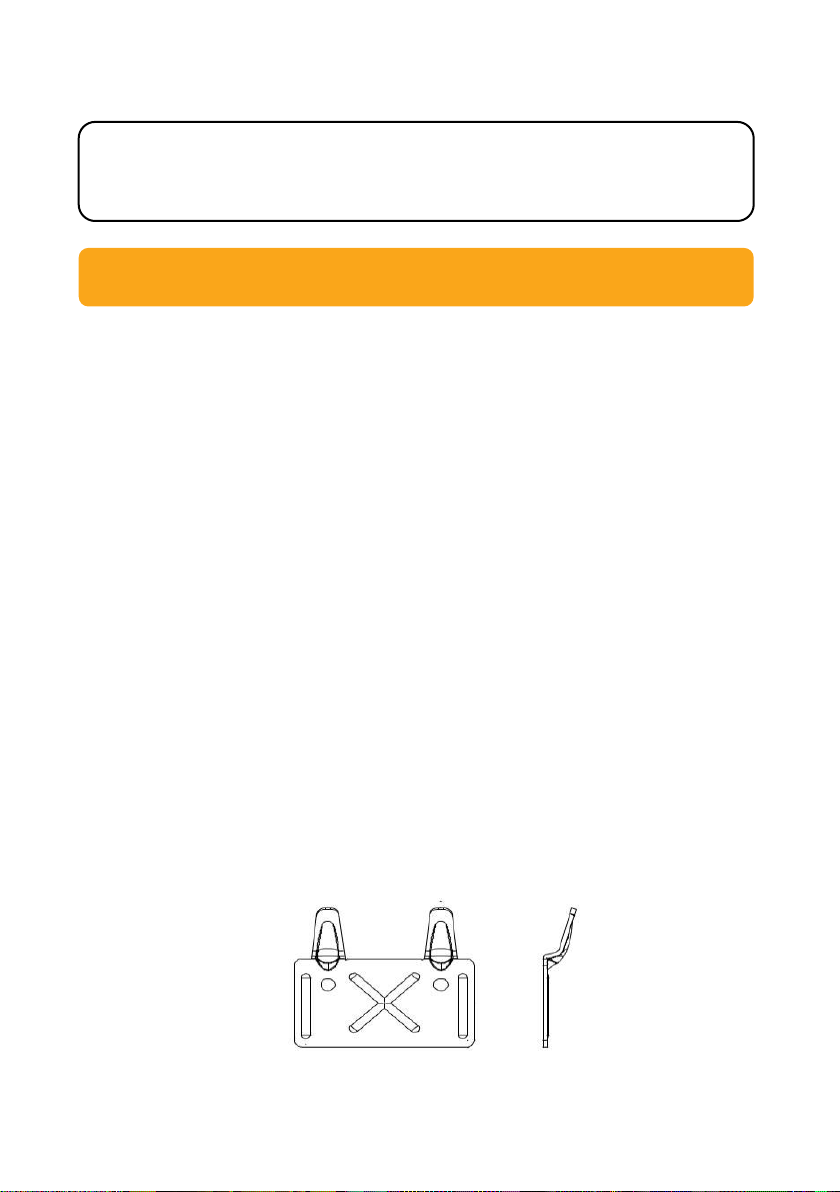

After selecting the proper position of installation, use the anchor
bolt to secure the hanging board firmly (see the picture below),
and then install the appliance.
MODENA is not responsible for any improper installation and
incorrect operation of this appliance due to the failure of user in
following the instructions in this manual book.
NOTE
The button functions on the remote control are same as on the
water heater.
PART 3: INSTALLATION

6
Plumbing Connection
All piping parts should use G1/2” standard. Wind some white
sealing tape to the thread sector of the inlet pipe (marked with
blue).
Install the safety valve to the inlet pipe and then connect it to the
cold water pipe supply line.
Install a drainage pipe to the safety valve to drain away waste
water.
Install the drainage pipe in continuously downward direction and in
a frost-free environment.
Connect the hot water pipe (marked with red) to the outlet pipe.
Do not over-tighten the safety valve and all pipe connections as it
may cause the damage to the connection.
Make sure that all pipes are clean before installing the tap/valve
and shower.
Hot Water Outlet
Nut of Hot Water Outlet
Mixing Valve
(Hot and Cold)
Shower
Cold Water Inlet
Safety Valve
Drainage Pipe
Nut of Cold Water Inlet

7
Electrical Connection
•Electrical connection must be done by a qualified technician.
•Electrical (power) supply is connected directly to the connector
provided with the grounding connection. The ground cord must be
green/yellow in color and attached to the terminal marked by the
grounding symbol.
•The water heater must be connected to the power supply that out
of reach from the person who is using shower.
•All wiring must conform to the local requirements.
NOTE
All plumbing connections must be done completely before doing
the electrical connections. Fill the tank with water and switch on
the valve to let the water exiting out until all the air inside the tank
has been expelled out. The electricity should only be turned on
after the tank is full of water.
Hot Water
Outlet
Triple Pipe Connection
Basin/
Water-pool
Safety Valve/Pressure Relief Valve
Water Inlet
Pipe
Mixing
Valve
Shower
Drainage Pipe
Cold Water Inlet/Supply

8
•Check all the plumbing (piping) connections to early detect leakage
before turning on this electric storage water heater.
•Make sure that the tank has been fully filled up with water;
otherwise it can cause the heating elements to be damaged.
•The water heater needs to be turned on for certain period of time
to reach the desired temperature.
•During the heating process, it is normal to see a bit of drip from the
safety valve. Do not cover the safety valve outlet hole.
•Connect the water outlet hole to a drainage pipe. Water may drip
from the safety valve of the drainage pipe of; therefore, this pipe
must be exposed to the atmosphere (air).
•The safety valve needs to be operated regularly (preferably at
least every six months) to remove the limestone deposit and to
ensure that it is not blocked.
Operation Guidelines
•Temperature Setting: press buttons to adjust the
temperature scale ranging from 30-75°C.
•Time Setting: Long press button for over 2s to set the clock
time. When the hour clock is flashing then press to set the
hour data. Re-press to set the minute data. System will quit
automatically if there is no operation in 5s.
•Standard Heating: the water heater will be in the full working cycle
to keep the hot water at the set temperature for 24 hours.
•Heating Timer: the water heater will ensure a hot water supply
with the set temperature at the required time.
•Wi-Fi Controller: users can install the customized Apps (IOS or
Android version) on smart-phone; connect to Wi-Fi or cellular data
(3G/4G) to control the water heater.
•Remote control configuration: turn on the water heater within 15s;
press buttons to enter configuration; then, the water
heater will beeps if the configuration is successful.
PART 4: HOW TO USE

9
Modena Smart Application Configuration
A. EZ Mode
1. Install Modena Smart application on the smart-phone .
2. Connect the smart-phone with Wi-Fi network.
3. Open the installed Modena Smart application .
4. Follow the registration steps instructed by the application.
5. Turn on the water heater; turn it off after 10s, and then turn it
on again (restart). Leave the appliance in the standby mode.
6. Click “+” icon at the top right of the application or click “Add
Device” icon.
7. Choose “Large Home Appliance” menu and then choose “Water
Heater”.
8. Long press the button on the appliance for 3s until the Wi-
Fi indicator light blinking, and then click “Confirm indicator
rapidly blink” on the application.
9. Input the username and the password of the Wi-Fi network and
then click “Confirm”.
10. The application will do pairing with the appliance and wait until
the process 100% finish.
11. After the “Device added successfully” notification appear, click
“Done”. The application is ready to use.
12. If it fails, click “Retry” and repeat the steps above.
B. AP Mode
1. Press " " (Wi-Fi) + " " buttons on the water heater at the
same time to confirm that the Wi-Fi indicator is flashing slowly.
2. Select "Other Mode" in the upper right corner of the EZ
network page.
3. Select "AP Mode" in the ''Select Network Configuration Mode''
page.
4. Click "Confirm indicator slowly blink" on the AP network
configuration confirmation page.
5. Enter the Wi-Fi information and password; click "Confirm" to
jump to the Wi-Fi hotspot connection introduction page.

10
6. Click ''Go to connect'' to enter to the Wi-Fi-choosing pages in
smart phone.
7. Select ''SmartLife'' hotspot and connect.
8. The application will do pairing with the device, wait until the
process 100% finish.
9. After ''Device added successfully” notification appears, click
''Done'', and the application is ready to use.
10. If it fails, click ''Retry'' and repeat above steps.
Resetting The Factory Default Setting
buttons to reset the factory default setting
Factory Default Setting
Standard Time
Mode
Temperature Setting
Rated Power Input
12.00
Standard Heating
75 °C
500 W
General Instruction
•Check the power plug and the power socket as often as possible.
Electrical contact must be secured and also must be provided
proper grounding. The power plug and the power socket must not
heat excessively.
•If the water heater is not used for a long time, especially in regions
with low air temperature (below 0 oC), it is necessary to drain the
water from the heating tank to prevent damage of the water heater
due to the water-freezing in the internal tank. Refer to the
“Important Safety Information” part in this manual book for the
method of draining away the water from the internal tank.
PART 5: MAINTENANCE
WARNING!
Do cut off the power supply before do the water heater
maintenance to avoid the danger of electric shock.
Press

11
•To ensure the durable operation of water heater, it is
recommended to regularly clean the internal tank and remove the
deposits in the electric heating element. Also, check the condition
of the magnesium anode (whether it is fully decomposed or not)
and, if necessary, replace it with a new one in case of full
decomposition. Tank cleaning frequency depends on the hardness
of the water in the usage location. Cleaning must be performed by
MODENA technicians or authorized maintenance services.
•This water heater is equipped with a thermal switch, which cuts off
the power supply of the heating element if the water is overheating
or no water in the heating element. If the water heater has been
connected to the power (electricity) source but the water is not
heated and the indicator does not light up, then the thermal switch
is “OFF”. To reset the water heater to the normal operating
condition, it is necessary to:
1. De-energize the water heater; remove the plate of the front
cover (upside);

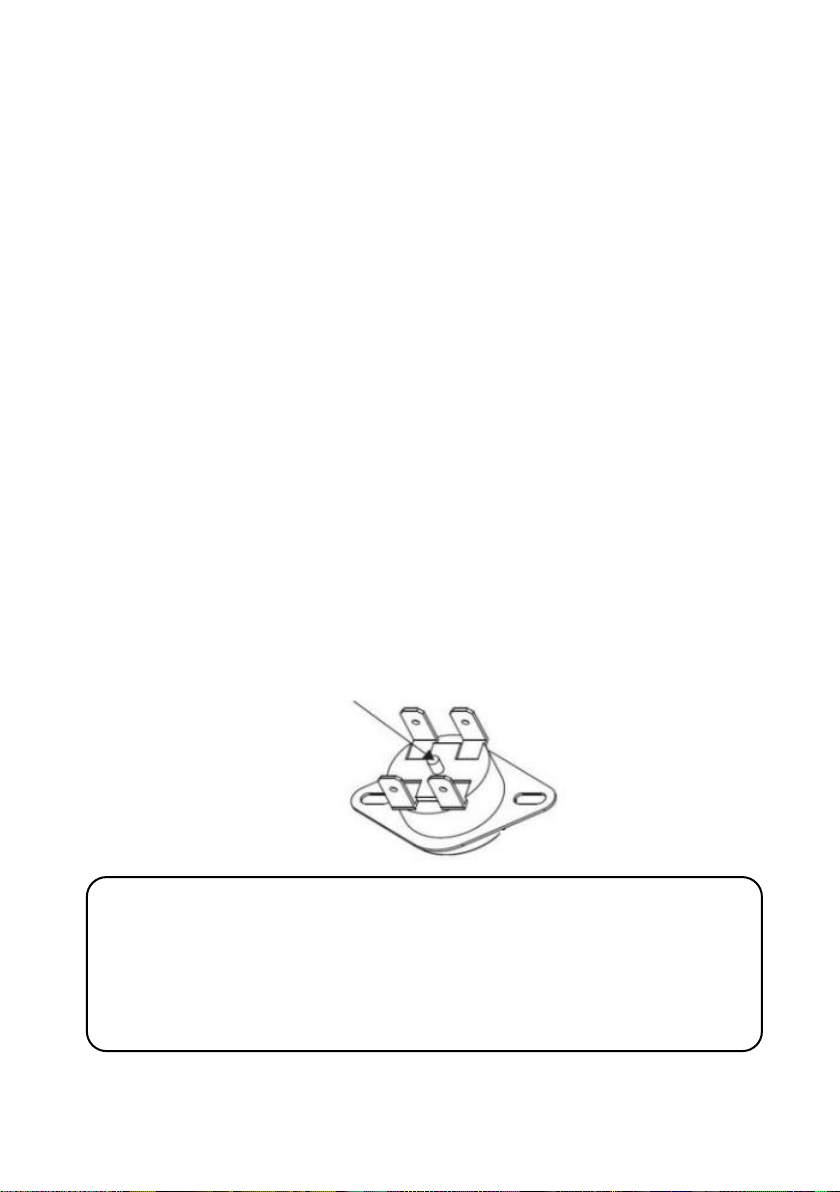

2. Press the button that is located at the center of the thermal
switch (see the picture below);
3. If the button is not pressed and there is no clicking, then you
should wait until the thermal switch cools down to the default
temperature.
WARNING!
Non-professionals technicians are not allowed to disassemble the
thermal switch to reset. Please contact MODENA professionals for
the appliance maintenance. Otherwise, MODENA will not take
responsibility if any accident happens because of the failed
maintenance procedure
Manual Reset Button

12
Tank Cleaning
After having been used in a long time, the tank of the water heater will
have the dirt in it and therefore must be cleaned according to these
steps:
1. Turn off the power supply.
2. Close the cold water valve.
3. Open the hot water valve.
4. Open the pressure relief valve (if used).
5. Flush / rinse the tank with cold water.
6. Repeat this process several times until the tank is completely
clean.
Savety Valve Cleaning
Safety valves should be cleaned regularly to prevent any dirt that clogs
the valve:
1. Remove the safety valve, then clean and wash it.
2. Check if the parts of the valve are still able to move well.
3. After cleaning the valve, install the safety valve back to its position
by first giving the seal tape around the end of valve.
4. Fill the water heater with water after the pipes are refitted.
Magnesium Anode
Magnesium Anodes functions to neutralize the corrosive substances in
the water and will run out in a certain time depending on the corrosive
properties of the water. If the water has good enough quality,
magnesium anode should be replaced within 2 (two) years. If the water
quality is not good, magnesium anodes should be replaced 1 (one)
year. To replace the magnesium anodes, contact MODENA Customer
Care.
Heating Element
If the water contains lime (mud), the heating element cannot function
properly (slow heat) because it was covered by a crust of lime (mud).
Therefore, the heating element must be cleaned of each year.
Contact MODENA Customer Care for cleaning.

13
Problem
Possible Cause
Recommended Action
Indicator light
cannot be on.
1. Power Supply is not
connected or badly
connected.
2. Indicator light is damaged.
3. Overheating sensor is
activated.
Contact MODENA Customer
Care
Water temperature
is not hot enough.
1. Heating elements are
deactivated or damaged.
2. Temperature controller is
malfunction.
3. No power connected to the
water heater.
1. Replace the heating
elements or contact
MODENA Customer
Care.
2. Contact MODENA
Customer Care.
3. Check the power supply
line.
No water flow out
from the hot water
outlet.
Main cold water valve is closed.
Turn on the main cold water
valve.
Water leak
1. Leakage from the plumbing
connection.
2. Leakage in the gasket.
1. Tighten the connection.
2. Tighten the elements
and replace the gasket.
Power supply is
disconnected.
There is short circuit in the
heating element.
Replace the heating
elements or contact
MODENA Customer Care.
Error Code
E1 Temperature sensor failure –turn off the water heater
immediately and contact MODENA Customer Care for the repair.
E3 Dry heating / there is no enough water in the tank –turn off the
water heater immediately and contact MODENA Customer Care
for the repair.
PART 6: TROUBLESHOOTING

14
Model
ES 30 SKY
ES 15 SKY
Type
Storage (Tank)
Installation
Vertical
Control Panel
Touch Control + Remote Control + Wi-Fi
Heat Source
Electric
Heating Tank Coating
Titanium Porcelain Enamel
Electric Safety (ELCB)
Yes
Overpressure Safety
Yes
Thermostat
Double
Anti-rust
Magnihealth
+
Capacity
30 L
15 L
Power
300/500/800 W
Water Pressure
0.8 MPa
Water Pipe Diameter
0.5 Inch
Temperature
Max 75 °C
Insulation Material
PUF (Polyurethane)
Waterproof Degree
IPX4
Product Dimension
452 x 452 x 370 mm
402 x 402 x 315 mm
Product Weight
13.0 kg
10.3 kg
Specifications of this appliance may change without notice to improve the quality of the
product. Figures in this manual are schematic and may not match your product exactly.
Values stated on the machine labels or in the documentation accompanying it are
obtained in laboratory in accordance with the relevant standards. Depending on
operational and environmental conditions of the appliance, values may vary.
PART 7: SPECIFICATION

12/20
