oInstruction Guide. oPower Cord. oCabinet Bracket, Right P/N: 02-00524.
Assembly, Parts & Hardware List
What's in the Box
Note: color and nish of items will vary.
oSide Skirt P/N: 02-00526.
(Ships installed on replace or with replace)
oCabinet Bracket, Left P/N: 02-00525.
oSize-Specic Wall Mount Bracket. (Ships installed on back of replace).oDrywall Stop P/N: 02-00645.
(2 per replace ships with replace).
#8x1" Screws #8x1-5/8" Screws #Hollow wall anchors
oHardware Kit: Image is example only.
oTop/Bottom Orion Cabinet Suite.

customerservice@modernames.com modernames.com
03
Assembly, Parts & Hardware List
Verify you have the correct suite for your replace
by checking the part number.
WSS-ORxx-xx
Size of the replace
52-60-76
Finish of the Suite
CS-DW-RTF-WW
EXAMPLE OF FINISH
(RTF is a ready-to-paint white primer nish, not shown.)
WW = WEATHERED WALNUT
DW = DRIFTWOOD GRAY
CS = COASTAL SAND

customerservice@modernames.com modernames.com
04
Installation and Assembly
1
Select a suitable location for your installation while taking into consideration the type of
installation, the running of your electrical, and the overall size of the nished installation.
Installed suite dimensions
2
Unpack and separate the contents of the Wall Mounted Studio Suite for the Orion Multi.
Reference page 2 to verify the contents. For any content that is missing, contact Modern Flames
customer service at 1-877-246-9353 or via email at customerservice@modernames.com.
o 52in Orion Version = 64.5" W x 30.5" H x 11.25" D.
o 60in Orion Version = 73" W x 30.5" H x 11.25" D.
o 76in Orion Version = 87.81" W x 30.5" H x 11.25" D.

customerservice@modernames.com modernames.com
05
Installation and Assembly
3
Remove the side skirts on the left and right sides of the replace. The skirts and screws will be
reused.
4
Remove the left and right side covers to reveal glass panels by removing the screws on each side
of your replace. Do not discard screws as they will be reused.
Left cover
Left skirt
Cover removed
Right skirt

customerservice@modernames.com modernames.com
06
Installation and Assembly
5
Remove the front glass by unscrewing the securing brackets located on the top front of the
glass, one on the left and one the right.
Glass
6
Carefully tilt the top edge of the glass and away from the replace and lift to fully remove it,
place the glass aside in a safe location to prevent any damage.
Left side bracket
7
Take out the hardware and media box from viewing area of the replace then locate the side
drywall stops P/N: 02-00645.
Right side bracket

customerservice@modernames.com modernames.com
07
Installation and Assembly
8
Set up the replace by installing the side drywall stops on each side. Use the same screws you
previously removed from side covers.
9
Install the side skirts by aligning it to the drywall stop and reinstalling the previously screws.
Left drywall stop Right drywall stop
Left side skirt Right side skirt

customerservice@modernames.com modernames.com
08
Installation and Assembly
10
Install cabinet mount brackets to all four corners.
Upper left bracket Upper right bracket
Lower left bracket Lower right bracket
11
If using the power cord, attach the power cord to the replace going through the top access
on the back right of your replace. Connect the power cord hot connection (black wire) to L1
on the replace terminal block, the power cord neutral connection (white wire) to N on the
terminal block, and the ground wire (green wire) to the ground on the terminal block.

customerservice@modernames.com modernames.com
09
Installation and Assembly
Electrical access
TURN OFF POWER FROM CIRCUIT BREAKER FIRSTTURN OFF POWER FROM CIRCUIT BREAKER FIRST
"Example shown from rear of replace" Neutral Line/Hot Ground
Terminal Block

customerservice@modernames.com modernames.com
10
Installation and Assembly
12

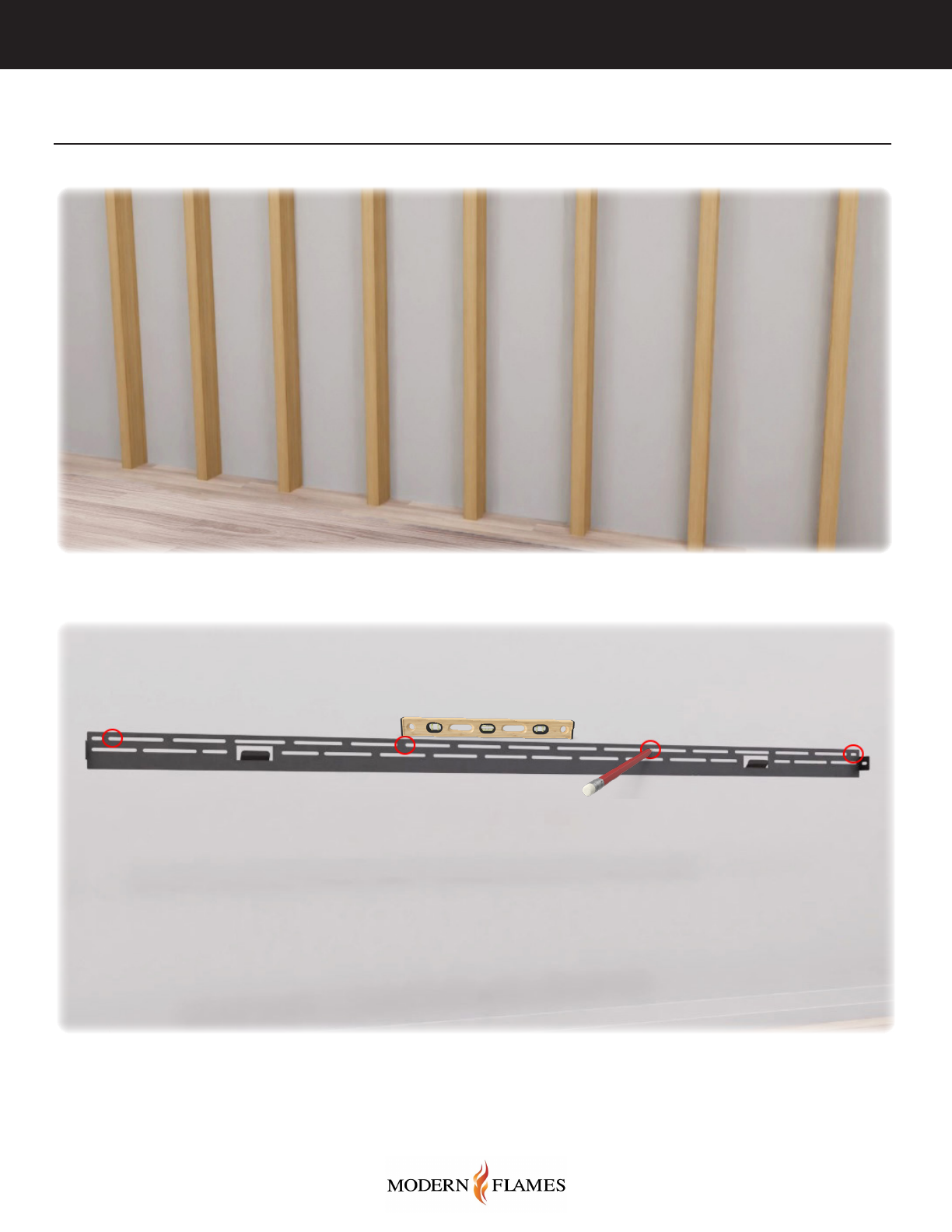

Locate the studs on the wall to install the size-specic wall mount bracket. You must be able
to secure a minimum of 2 studs for proper installation and as close to the end of the bracket
as possible. The hollow wall anchors provided are only for additional support between studs.
To assist in locating the replace bracket on the wall, measure from the top of the bracket to
the top of the replace. After locating the top placement of the replace on the wall, measure
down using the previous measurement and mark the location. This will be the top location of
the bracket for mounting purposes. The wall mounting bracket can now be removed. Do not
discard screws. With the wall mount bracket removed from the replace, press it against the
wall and line it up with the previous location mark. Ensure to level the bracket and mark any
slots that will be used for securing the bracket to the wall.
Wall mounting bracketWall mounting bracket
Right screwLeft screw

customerservice@modernames.com modernames.com
11
Installation and Assembly

customerservice@modernames.com modernames.com
12
Installation and Assembly
13
Align the bracket with the marks previously made and mount the bracket to the wall. Note:
- It is recommended to pre-drill mounting holes before installation with a 7/64” drill bit (not
included). - The hollow wall anchors will need to be installed before the wall mounting bracket.
- It is recommended that the anchors be installed with a Phillips tip screwdriver for proper
installation.
Wall anchor

customerservice@modernames.com modernames.com
13
Installation and Assembly
14
Run a hardwire line or locate an outlet 2.25" from the right side of the bracket to the center of
the outlet. The space where the outlet can be installed measures: 4”W x 4.5” H. Outlet position
can be horizontal or vertical.
Screw
Outlet

customerservice@modernames.com modernames.com
14
Installation and Assembly
15
With the wall mounting bracket installed, lift the replace onto the wall mount bracket,
ensuring all hooks on the bracket secure into the replace. Quantity of hooks varies the size.

customerservice@modernames.com modernames.com
15
Installation and Assembly
16
Secure the replace to the wall mounting bracket by re-inserting the previously removed
screws.
Right screw
Left screw

customerservice@modernames.com modernames.com
16
Installation and Assembly
18
Fireplace media and glass can now be installed. Reference the replace manual for details.
17
Power cord can now be connected to the outlet. Secure excess cable.
Front glass

customerservice@modernames.com modernames.com
17
13
Installation and Assembly
19
Evenly slide the bottom suite onto the replace by sliding it between cabinet mount brackets
and drywall stops. If binding occurs ensure it is being inserted evenly and level.

customerservice@modernames.com modernames.com
18
13
Installation and Assembly
20
Evenly slide the top suite onto the replace by sliding it between cabinet mount brackets and
drywall stops. Tuck any excess power cord wire in the cabinet cavity to ensure the top is fully
inserted. If binding occurs ensure it is being inserted and leveled.

customerservice@modernames.com modernames.com
19
Installation and Assembly
21
Installation complete. Note, the Studio suites for the Orion Multi replace are simply slid in
place for ease of installation. No additional screws or adhesive are required for the installation
of the suite tops and bottoms. A silicone caulking can be used to nish where the suites meet
the walls but it is not required.

customerservice@modernames.com modernames.com
20
