mods4cars smartTOP STLFBW3 User manual

INSTALLATION BMW Z4
STLFBW3
Comfort Roof Control Module for
BMW 3 Series Convertible (E93)
BMW Z4 Roadster (E89)
v1
Further information and manuals for all produ ts an be found on our web site
w w w . m o d s 4 a r s . o m
We expli itly point out that all fun tions of this ontrol unit should only be
used while exer ising aution and responsibility. We an NOT be held liable
for any damage or injury aused by installing or using this produ t.
PLEASE READ THE COMPLETE MANUAL CAREFULLY BEFORE USING THIS
PRODUCT.
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/bmw/...
1 of 4
4/25/2012 10:04 PM

Installation - Steps 1-3
1 Turn ignition on and open convertible top to the shown position
(service position), then stop Now turn ignition off and pull key
before ontinuing! From the right side, reach into the trunk and lift
the luggage divider (1) into the upper position Then remove plastic
cover (2) by pulling toward the front of the car It is only held in
place by three spring locks
2 The spring locking mechanisms are marked here with arrows
3 Now pull up on the bottom of the carpeted piece to reveal two
more spring locks (1) Remove the plastic plugs (2) and (3) to
remove the whole carpeted piece
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/bmw/...
2 of 4
4/25/2012 10:04 PM

Installation - Steps 4-6
4 Remove additional plugs (1) and (2) that hold the plastic cover in
place One (see arrow) is hidden right behind the trunk lid hinge
Remove the whole plastic piece
5 Underneath is another protective plastic cover Lift it out to reveal
a cluster of control units
6 The convertible top controller is white and easily distinguished by
a bright green and a long black connector Push down on the
locking tab (1) while moving the lever to the left (arrow) to remove
the black connector from the controller
mods4cars product manual
http://www.mods4cars.com/sms/db/smarttop/ext/support/manuals/bmw/...
3 of 4
4/25/2012 10:04 PM

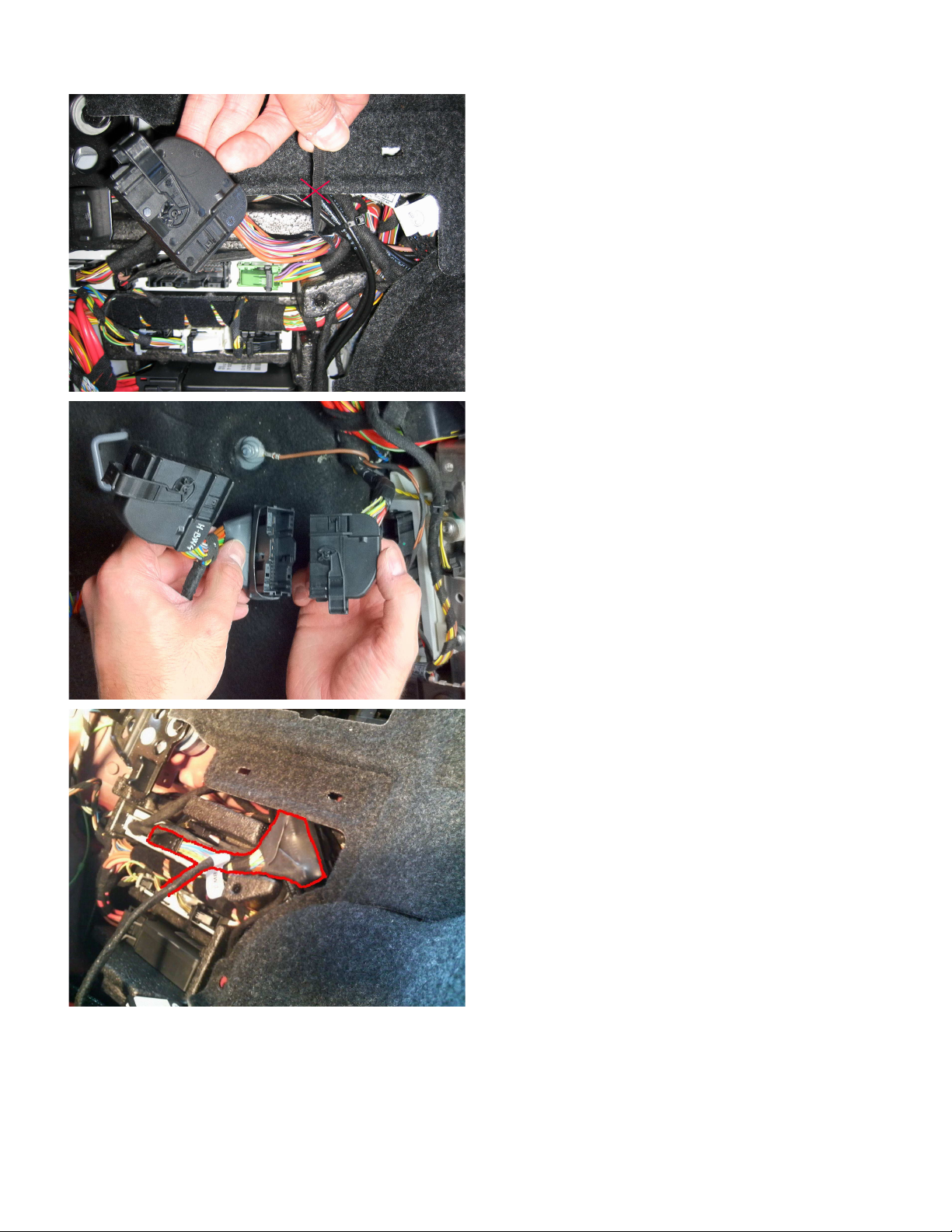

Installation - Steps 7-8
7 Remove the black plug from the top controller and replace it with
the one from the SmartTOP wiring harness Make sure the lever
locks into place Since the introduction of the plug and play wiring
harness, the cloth tape does NOT have to be removed (as seen
here) any more!
8 Connect the original plug to the matching socket on the wiring
harness (also making sure the lever locks into place) Connect the
SmartTOP module to the plug on the harness The green LED on
the module should light up briefly (module starts up) and after a
quick tap on the unlock button on the remote, should blink in a
regular pattern (data bus activity) Put everything back together
We recommend leaving the USB cable installed and accessible for
easy firmware updates or module configuration via laptop
9 The best way to stow the bulky harness and connectors in the
tight space is shown here This way the lid(s) can be reinstalled
without problems
