Monessen Hearth CR18-H User manual

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 1
Log Placement Instructions
Models: Charisma - CR18-H, CR24-H, CR30-H
Moxie - MX18-H, MX24-H, MX30-H
Dynamo - DY16-H, DY18-H, DY24-H, DY30-H,
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may
result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below or failure to use only parts specically approved for this log set may result in property damage or personal injury.
WARNING

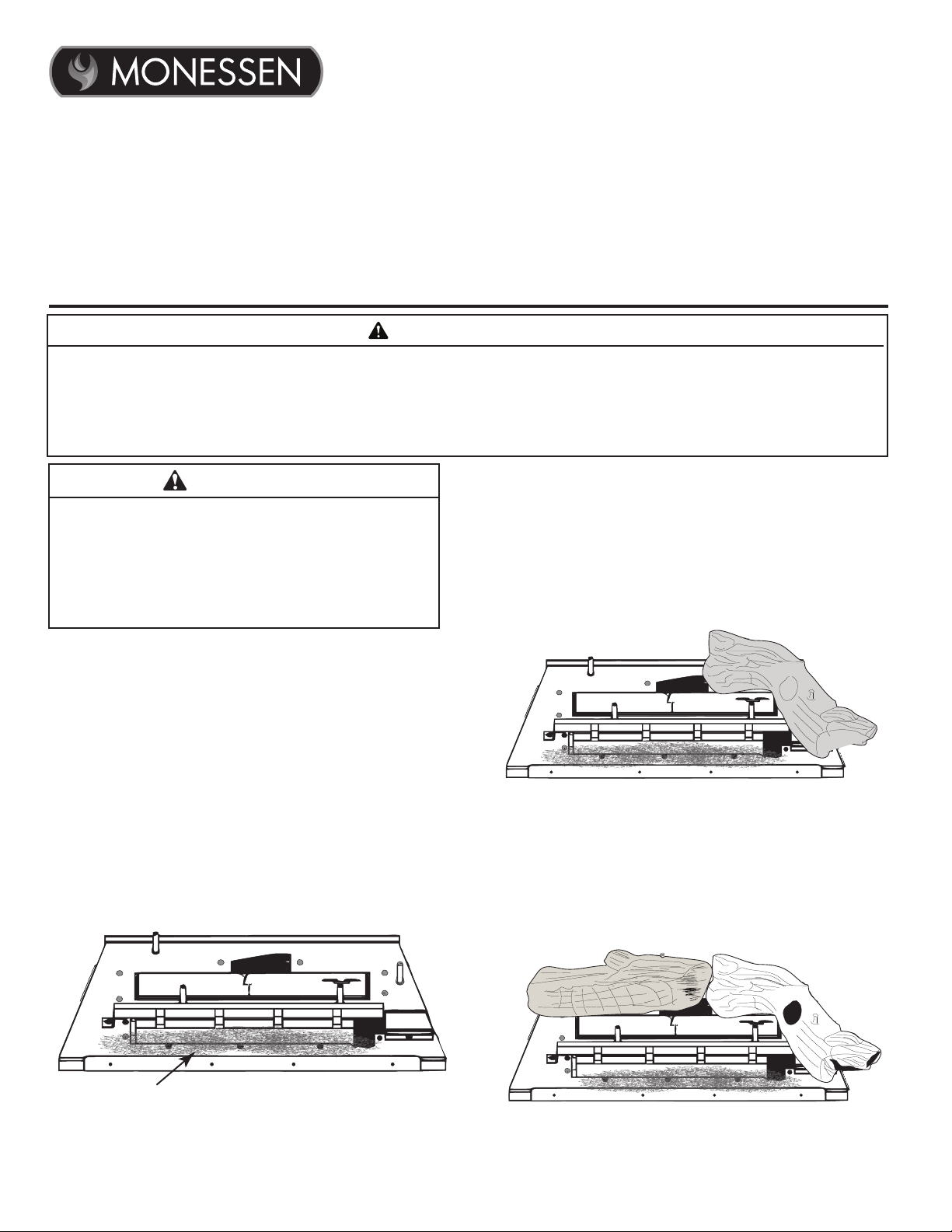

A. Log Placement (Charisma - CR18-H,
CR24-H, CR30-H)
1. Before installing logs, place rock wool in front of the
grate. Loosely apply nickel size pieces to allow the
gas to ow through for proper burn and not to be
obstructed. Failure to do so would cause a higher
level of CARBON MONOXIDE. See Figure 1.
1
Figure 2 - Log #1 Placement
2. Place log #1 on the right-hand side of the burner
assembly by positioning the pin locator hole on the
bottom of the log over the pin on the right-hand side
of the burner and by rotating the log clockwise toward
the back to contact the rear bend on the sheet metal
of the burner assembly. With the log in place, make
sure that the notch on the bottom of the log match up
with the bracket on the grate. See Figure 2.
2
Figure 3 - Log #2 Placement
3. Hold log #2 with the at surface away from you.
Place log #2 toward the back to the left by positioning
the pin locator hole on the bottom of the log over the
pin on the left-hand side and push back against the
rear bend on the sheet metal of the burner assembly.
See Figure 3.
Figure 1 - Installing Rock Wool
• Gloves are recommended when handling logs to
prevent skin irritation from loose bers. Logs
are fragile - handle with care.
• Use only rock wool provided with log set.
• DO NOT ADD ADDITIONAL ROCK WOOL.
WARNING
NOTE: Installation instructions are the same for 18",
24" and 30" log sets. Pictures used in this instruction
illustrate the 24" set. Some variation may exist between
the images and the set included with the instructions.
Wash hands after placing rock wool. Itching may occur.
Rock Wool

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 2
6
Figure 7 - Log #6 Placement
7
8
Figure 8 - Log #7 Placement
Figure 9 - Log #8 Placement
7. Hold log #6 with the at end toward the back. Place
log #6 by positioning the pin locator hole on the
bottom of the log over the pin on log #2 and set on
top of log #4. See Figure 7.
8. Hold log #7 with the pointed end to the left and the at
end toward the bottom. Place log #7 by positioning
the two pin locator holes on the bottom of the log over
the pins on log #1 and #2. See Figure 8.
9. Hold Log #8 with the branched end away from you.
Place log #8 by positioning the pin locator hole on
the bottom of the log over the pin on log #1 and by
rotating the log counter clockwise to match the notch
on the log with the rst tine on the grate. See Figure
9.
5. Hold log #4 with the pointed end toward the left.
Place log #4 by positioning the pin locator hole on the
bottom of the log over the right pin behind the grate
and resting the right end of the log over the notch on
log #1. See Figure 5.
4
Figure 5 - Log #4 Placement
6. Hold log #5 with the pointed end toward the right.
Place log #5 by positioning the pin locator hole on
the bottom of the log over the left pin behind the grate
and resting the left end of the log over the notch on
log #3. The ember face of logs #4 and #5 should be
straight and approximately 3/8" behind the grate bar.
See Figure 6.
5
Figure 6 - Log #5 Placement
3
Figure 4 - Log #3 Placement
4. Hold log #3 with your left hand with the fat end away
from you. Place log #3 by positioning the notch on
the bottom of the log over the left side of the grate
and rest the fat end onto log #2. See Figure 4.
NOTE: For log replacement, please refer to the Installa-
tion/Owner's Manual #4606-900.

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 3
B. Log Placement (Moxie MX18-H, MX24-H,
MX30-H)
1. Before installing logs, place rock wool in front of the
grate. Loosely apply nickel size pieces to allow the
gas to ow through for proper burn and not to be
obstructed. Failure to do so would cause a higher
level of CARBON MONOXIDE. See Figure 10.
1
2. Hold log #1 with the pointed end to the left. Place log
#1 behind the grate by positioning the two pin locator
holes on the bottom of the log over the pins behind
the grate. Push the log down to make sure it rests at
over the metal base. See Figure 11.
Figure 10 - Installing Rock Wool
Figure 11 - Log #1 Placement
2
3. Hold log #2 with the at surface to the right. Place
log #2 to the right side of the burner assembly by
positioning the pin locator hole on the bottom of the
log over the pin on the right-hand side. See Figure
12.
Figure 12 - Log #2 Placement
4. Hold log #3 in your left hand with the at surface
down. Place log #3 by matching the two notches on
the bottom of the log with the grate bar on the left and
the pointed end of log #1. See Figure 13.
3
Figure 13 - Log #3 Placement
5. Hold log #4 with the pointed end toward the right.
Place log #4 by positioning the pin locator hole on the
bottom of the log over the rear left pin on the burner
assembly toward the back and resting the left end of
the log over log #3. Make sure that the at surface on
the back of the log rest against the rear bend on the
burner assembly. See Figure 14.
4
Figure 14 - Log #4 Placement
6. Hold log #5 with wide end away from you. Place log
#5 by positioning it over the notch on log #1 and by
sliding the wide end toward the back. When in place,
the left rear of log #5 should come in contact with log
#4 and the left side of the slot on log #1. It should
match with log #4. See Figure 15.
5
Figure 15 - Log #5 Placement
Rock Wool

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 4
6
Figure 16 - Log #6 Placement
7
Figure 17 - Log #7 Placement
8
Figure 18 - Log #8 Log Placement
7. Hold log #6 with the at end toward the bottom. Place
log #6 by positioning the two pin locator holes on the
bottom of the log over the two pins on log #4 and log
#5. See Figure 16.
8. Hold log #7 with the at end toward the back. Place
log #7 by resting it behind log #2 and in front of the
rear bend on the back, rotate clockwise to contact the
back surface of log #7 to the metal bent upward on
the burner assembly. The branch on log #7 should
rest on log #5. See Figure 17.
9. Hold log #8 with the wider end to the left. Place it
against the rst tine on the grate on the right and
rest the pointed end over log #2. See Figure 18.

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 5
C. Log Placement (Dynamo DY16-H,
DY18-H, DY24-H, DY30-H)
1. Before installing logs, place rock wool in front of the
grate. Loosely apply nickel size pieces to allow the
gas to ow through for proper burn and not to be
obstructed. Failure to do so would cause a higher
level of CARBON MONOXIDE. See Figure 19.
Figure 19 - Install Rock Wool
2. Place Log #1 on the left-hand side of the burner
assembly by positioning the pin locator hole onto the
log pin on the left-hand side of the burner. When in
place, make sure the at back is ush against the
back of the burner assembly. See Figure 20.
Figure 20 - Log #1 Placement
3. Place Log #2 on the right-hand side of the burner
assembly by positioning the pin locator hole onto
the log pin on the right-hand side of the burner; then
rotate the part to the back. When in place, make sure
the back of Log #2 is up against the bend on the back
of the burner assembly. See Figure 21.
Figure 21 - Log #2 Placement
4. Place Log #3 in the lower left area of the burner
assembly with the cut out wrapping around the grate
and the front of the log up against the front lip of the
burner assembly. See Figure 22.
Figure 22 - Log #3 Placement
5. Place Log #4 in the center of the burner with the two
pin locator holes lining up with the two log pins on the
burner assembly. Make sure Log #4 is sitting all the
way down on the burner. See Figure 23.
Figure 23 - Log #4 Placement
6. Hold Log #5 with the at sides of the log facing to the
right. Place Log #5 so the cut out wraps around the
lower right grate tine. Make sure that Log #5 is sitting
on the upper left at area of Log #2. Make sure Log
#5 is rotated to the right as far as possible to avoid
ame impingement. See Figure 24.
Figure 24 - Log #5 Placement
1
2
3
4
5
Rock Wool

Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21 6
Monessen, a brand of Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.monessenhearth.com
PLACE THE DECORATIVE ROCK
The volcanic rocks are shipped with your log set. The vol-
canic rocks may be placed around the unit on the oor of
the rebox. Be sure to avoid any areas on the burner itself.
DO NOT sprinkle volcanic rocks on the logs,
around the pilot, nor near the burners. This
may cause sooting. Place volcanic rocks
only on the oor of the replace.
During initial operation of the new heater,
new burning logs and/or rock wool will give
o󰀨 a paper burning smell and orange ames
will be present. Simply open the windows
for a few hours to vent the odor.
CAUTION
NOTE: For log replacement, please refer to the Installa-
tion/Owner's Manual #4606-900.

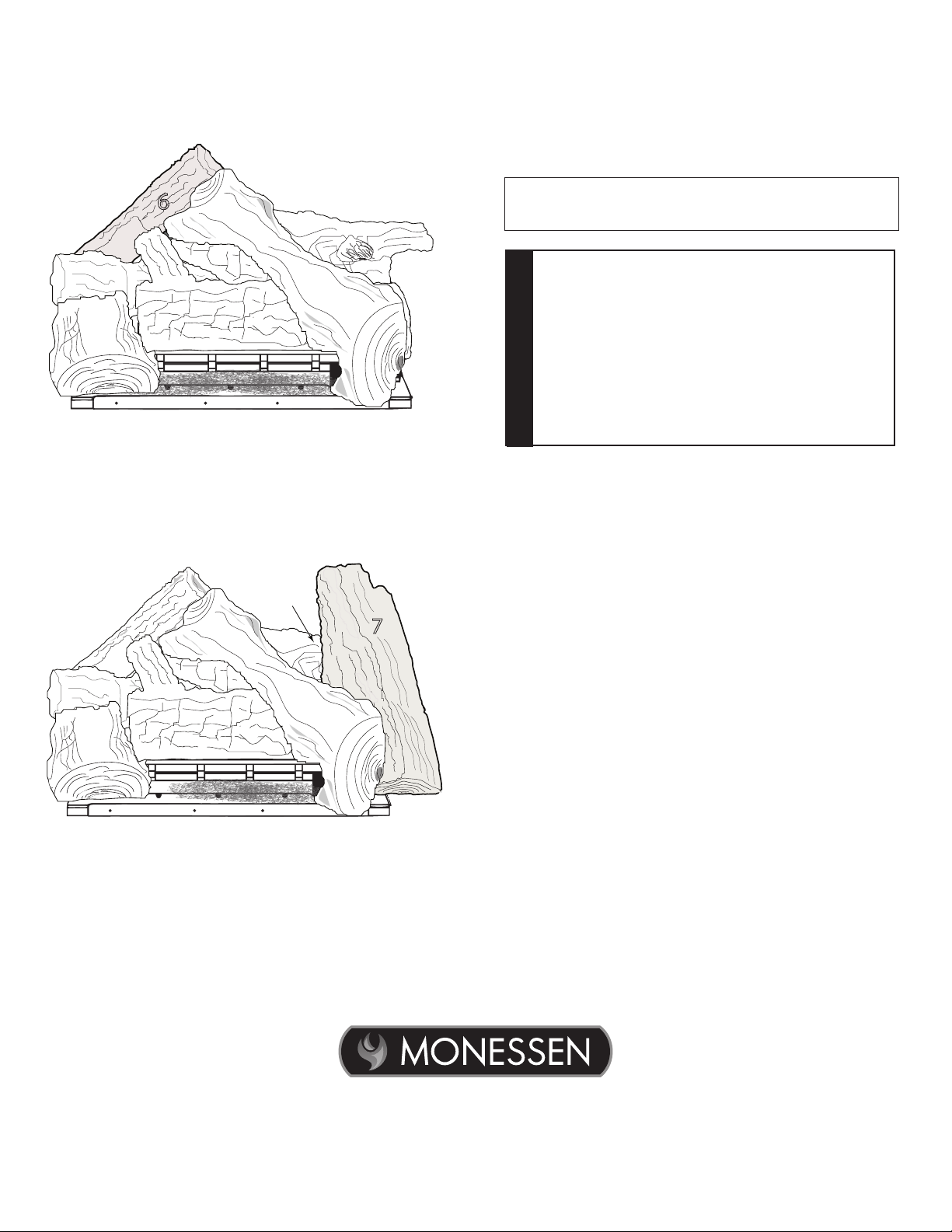

Figure 25 - Log #6 Placement
Figure 26 - Log #7 Placement
7. Place Log #6 by lining up the locating pins that are
on Log #1 and Log #2 with the slots on the bottom of
Log #6. When in place, Log #6 will be leaning on Log
#5. See Figure 25.
8. Place Log #7 on the lower right side of the burner.
Log #7 should rest on the front edge of the burner
and the lower left side should contact Log #5. The
upper left side of Log #7 should sit ush against the
positioning tab on Log #2. See Figure 26.
6
Positioning Tab
7
