Mono Epsilon Operating instructions

FG080 –EPSILON UL spec 09/07/21 1
OPERATING AND MAINTENANCE MANUAL
Epsilon
09/07/21 UL
Rev. A21
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
The use of templates and/or accessories not produced or supplied by
MONO Equipment will invalidate the machine’s warranty
Enter Serial No. here._____________________________________
In the event of an enquiry please quote this serial number.
www.monoequip.com
FILE 102

FG080 –EPSILON UL spec 09/07/21 2
PART NUMBER
B801-15-025

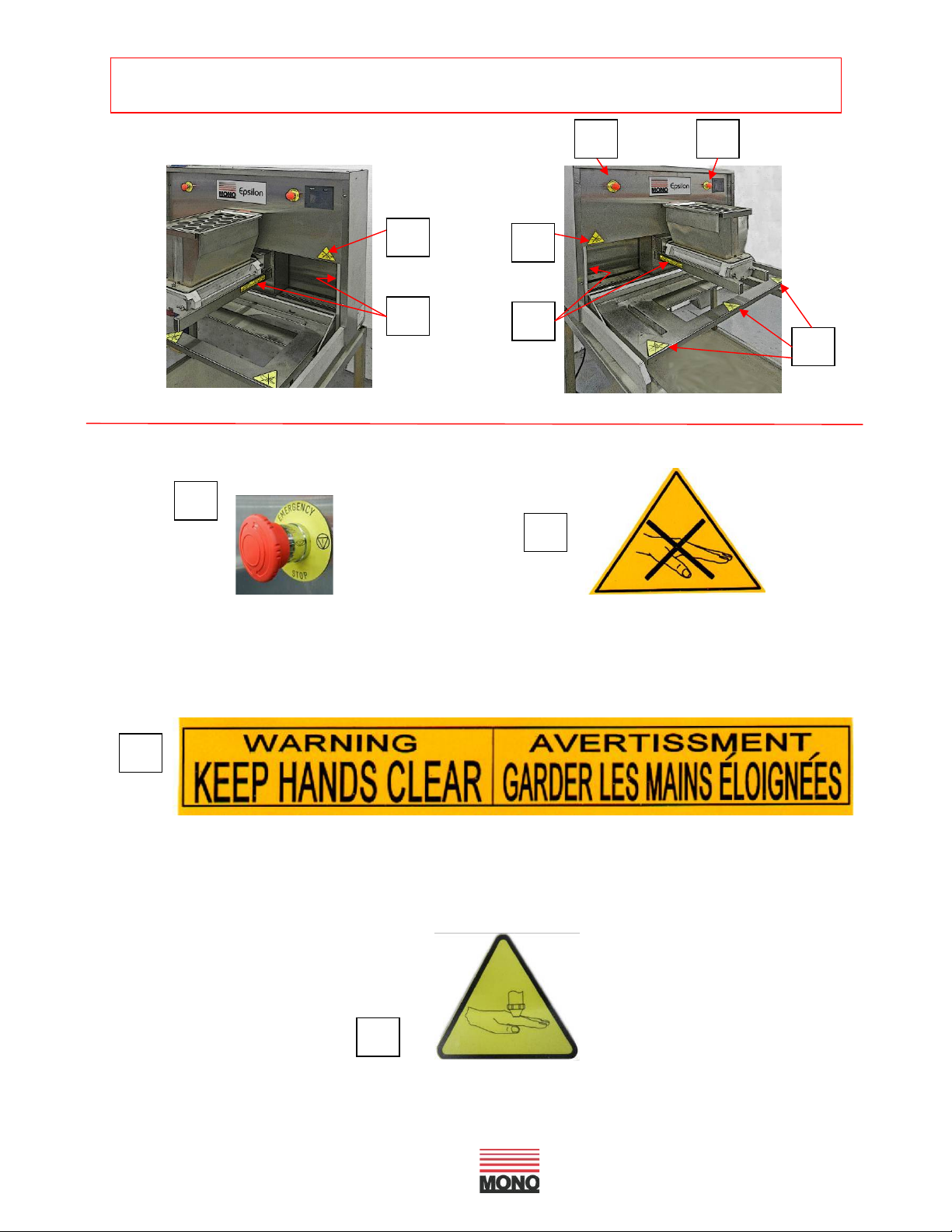

SAFETY LABELS FOR EPSILON DEPOSITOR
A
A
D
C
PART NUMBER 080-00-00101
(4off EACH LABEL)
B
C
D
B
A
B
C
PART NUMBER
080-00-00102
PART NUMBER
077-11-00100

FG080 –EPSILON UL spec 09/07/21 Rev.A21 3
Failure to adhere to the cleaning and
maintenance instructions detailed in this booklet
could affect the warranty of this machine.
FOR SAFE WORKING, PAY SPECIAL ATTENTION TO ITEMS MARKED
The use of templates and/or accessories not produced or supplied by
MONO Equipment will invalidate the machine’s warranty

FG080 –EPSILON UL spec 09/07/21 Rev.A21 4
CONTENTS
1.0 - INTRODUCTION
2.0 - DIMENSIONS
3.0 - SPECIFICATIONS
4.0 - SAFETY
5.0 - INSTALLATION
6.0 - ISOLATION
7.0 - CLEANING INSTRUCTIONS
8.0 - OPERATING CONDITIONS
9.0 - PREPARING FOR OPERATION
9A – FITTING THE HOPPER
9B – FITTING A TEMPLATE
10.0 - OPERATING INSTRUCTIONS
1 – SELECT PRODUCT TYPE
2 – SELECT SAVED PRODUCT TYPE
OR CHOOSE EMPTY SLOT TO CREATE A NEW PROGRAM
3 – OPERATOR SCREEN
4 – EDIT & SAVE SCREEN
4A – TRAY SETUP
5 – COPY
6 – DELETE
7 – PASSWORDS
8 – ENGINEERING SETTINGS
9 – FAULT INFORMATION SCREENS
11.0 - MAINTENANCE
12.0 - SPARES AND SERVICE
13.0 - SPARES LIST
14.0 - ELECTRICAL INFORMATION
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 5

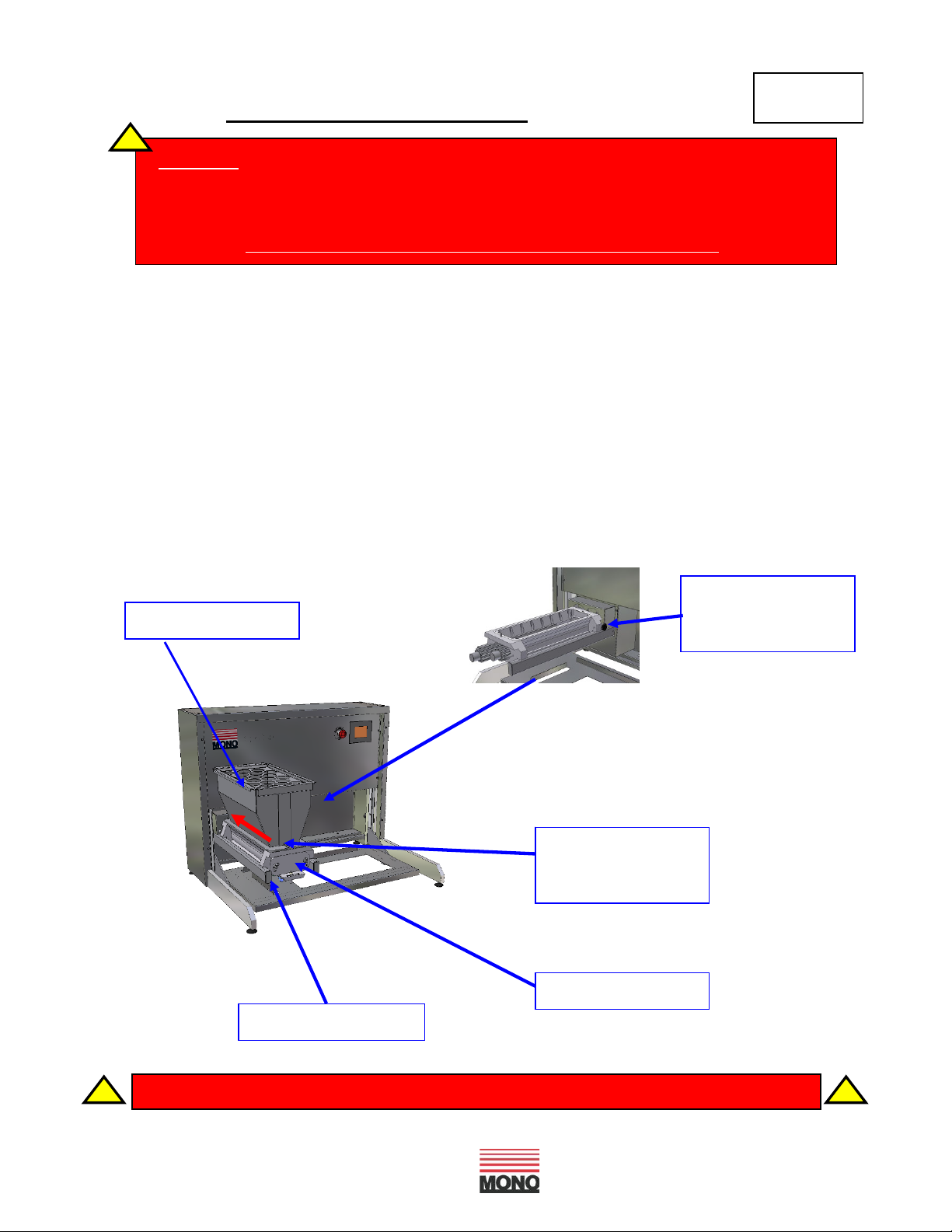

1.0 INTRODUCTION
EPSILON
As it is our policy to improve our machines continuously, we reserve the right to change specifications without prior notice
SOFT
DOUGH HOPPER
EASY CHANGE
TEMPLATES
TRAVELLING HOPPER
SYSTEM
(NO CONVEYOR BELTS)
LOAD FROM THE FRONT
TOUCH SCREEN CONTROL

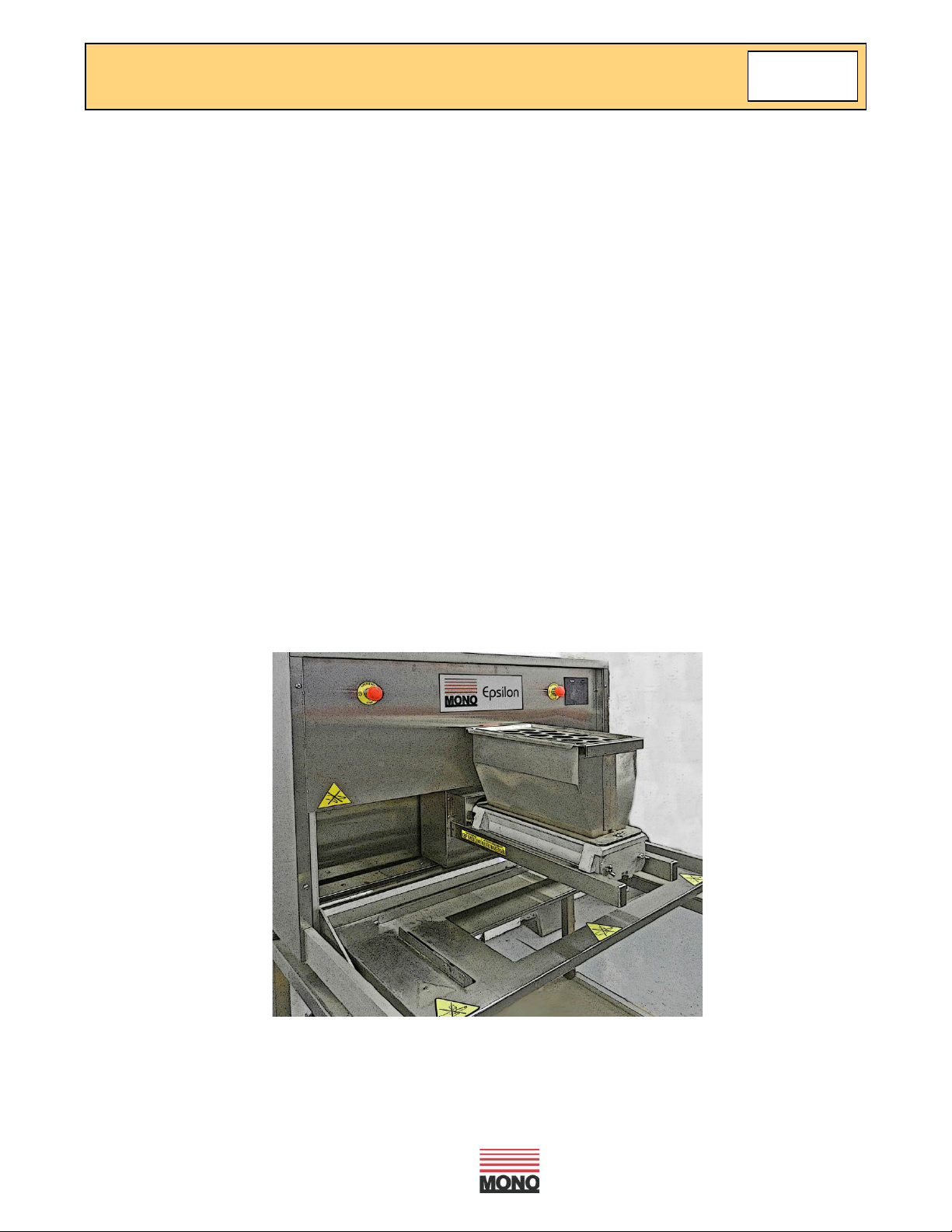

The ground breaking EPSILON tabletop confectionary depositor requires a small space to operate.
The unique travelling hopper system removes the need for a conveyor belt which means trays
can be loaded and unloaded in the most ergonomically efficient way – directly from the front.
The EPSILON can be transported through a normal doorway and plugged into
a standard 13amp socket.
Control is by a user friendly tri-color touch screen (in 14 languages) and can be used
to store up to 96 programs.
Robust stainless steel construction for durability and ease of cleaning.
A matching stainless steel table is also available to make the EPSILON freestanding.

FG080 –EPSILON UL spec 09/07/21 Rev.A21 6

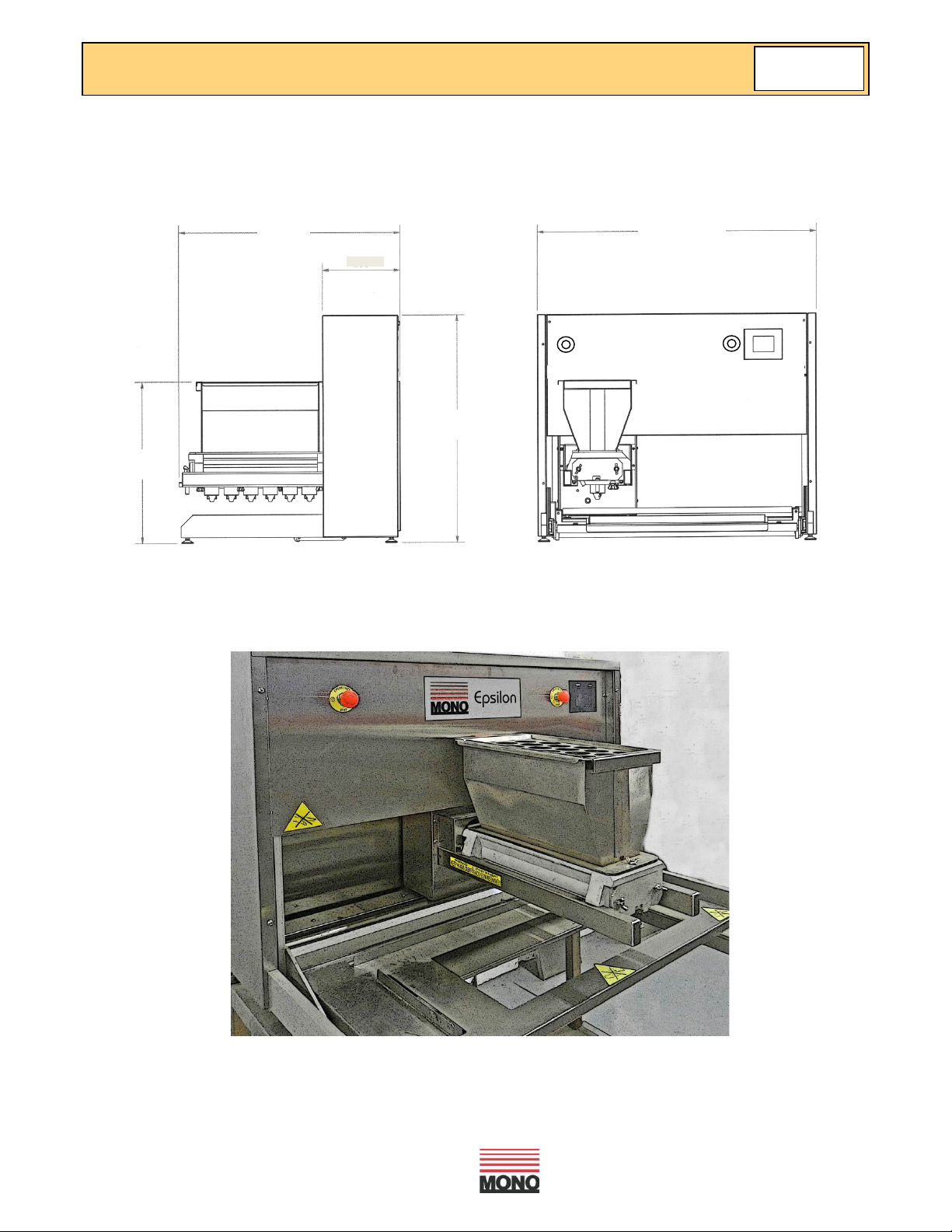

2.0 DIMENSIONS
EPSILON
30” 37.5”
31”
21.5”
10.5”

FG080 –EPSILON UL spec 09/07/21 Rev.A21 7
3.0 SPECIFICATIONS
MODEL 400 (15.7”) 450 (17.7”)
(Nom. hopper width (mm))
Weight (with hopper fitted) (Kg) : tba tba
Standard hopper 20 (35 pints) 22.5 (39.5 pints)
Capacity (litre) :
Power: Single phase,4.2A, 0.5kW, 120V, 60Hz
or 2.1A, 0.5kW, 208-240V, 60Hz
Cycles per minute = Depends on product.
i.e. 5 across 30g drop = 16 per minute.
Max program storage = 96
Number of languages = 14
Noise level = Less than 85dB
Electronics = All microprocessor controlled
NOTE:
The minimum deposit that can be made depends on several factors - recipe, mixing
method, template size, nozzle size and deposit speed.
As a guide the following is the minimum that should be attempted:
Macaroons 6g.
Meringues 3g.
Choux Paste 5g.
Viennese 4g.
Sponge Drops 4g.
SOFT DOUGH
As it is our policy to improve our machines continuously, we reserve the right to change specifications without prior notice
However, consult Mono Equipment if your intended product falls outside the above
general machine specification.
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 8
4.0 SAFETY
1Never use a machine in a faulty condition and always report any damage.
2Only trained engineers may remove parts from this machine if a tool is required.
3Always ensure hands are dry before touching any electrical appliance (including
cable, switch and plug). NEVER move machinery by pulling on the power cords
or cables.
4Ensure that the floor area around the Epsilon is clean to avoid slipping –
especially if carrying heavy hopper and template components to and from the
machine.
5All operatives must be fully trained.
Use of the machine can prove dangerous if:
the machine is operated by untrained or unskilled staff
the machine is not used for its intended purpose
the machine is not operated correctly
All safety devices applied to the machine during manufacture and the
operating instructions in this manual are required to operate this machine
safely. The owner and the operator are responsible for operating this machine
safely.
6People undergoing training on the machine must be under direct supervision.
7Do not operate the machine with any panels or guards removed.
8No loose clothing or jewellery should be worn while operating the machine.
9Switch off power at the mains isolator when machine is not in use and before
carrying out any cleaning or maintenance.
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 9
10 The bakery manager or the bakery supervisor should carry out daily safety
checks on the machine.
11 Do not operate machine without the hopper template fitted correctly.
12 Due to the essential requirement for handling heavy components during cleaning,
it is recommended that protective footwear be worn when carrying out such
procedures.
CAUTION:
The feed hopper and pump assembly can exceed 55lbs and will need to be lifted
off by two people, or dismantled into smaller components while still on the
machine.
ALL CLEANING AND MAINTENANCE OPERATIONS MUST
BE MADE WITH MACHINE DISCONNECTED FROM THE
POWER SUPPLY.
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 10
5.0 INSTALLATION
1Ensure that the depositor is connected to the correct electric supply as specified on
the serial number plate on the side of the machine.
2 Ensure that the correct fuse rating is fitted in the electrical supply.
3 The support table should be level and strong enough to support the machine and
loaded hopper.
4 This machine should be lifted by more than one person.
6.0 ISOLATION

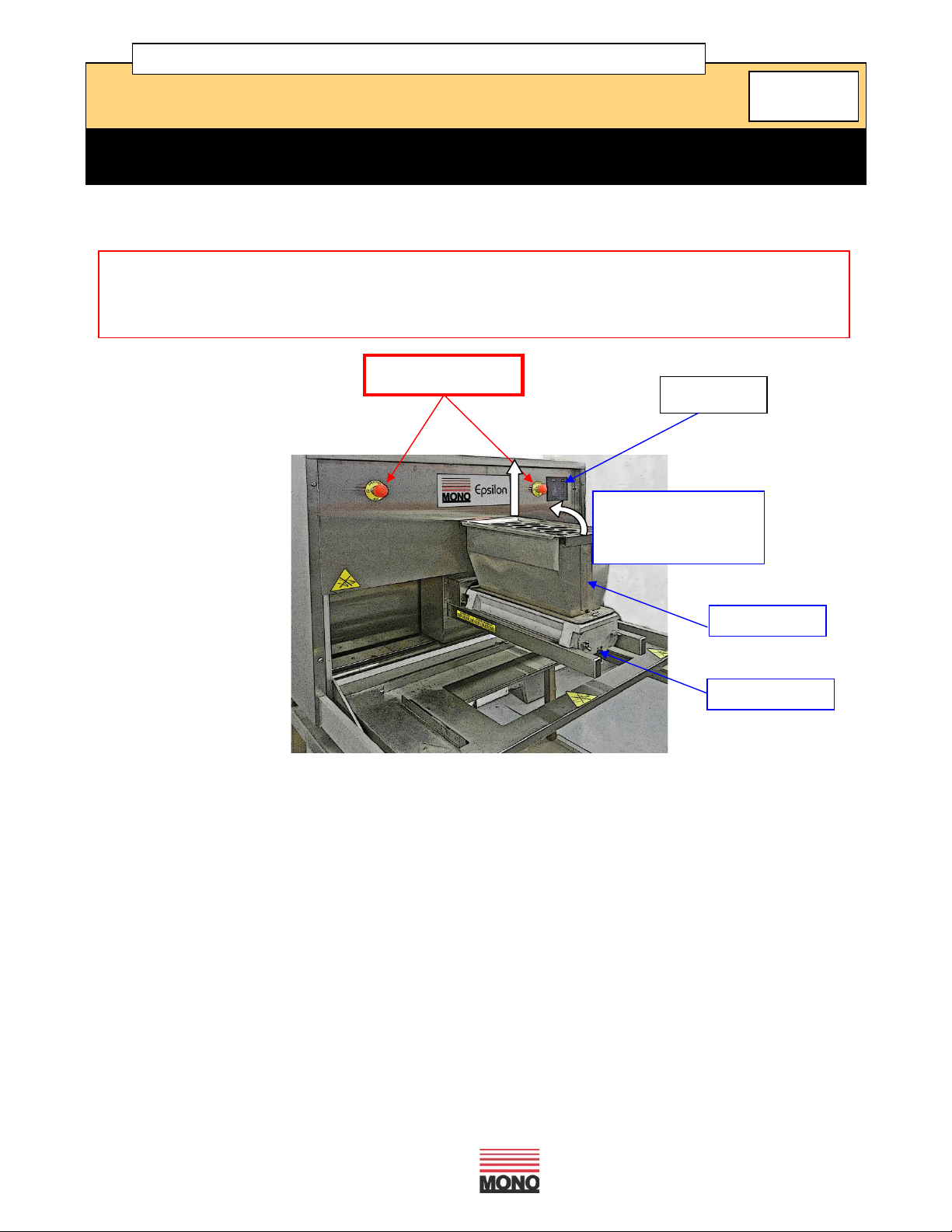

IN AN EMERGENCY, SWITCH OFF AT THE MAINS
WALL ISOLATOR, OR PUSH ONE OF THE
EMERGENCY STOP BUTTONS.
To release an emergency stop button, turn clockwise.
STOP BUTTONS
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 11
7.0 CLEANING INSTRUCTIONS
NOTE:
- Cleaning must be carried out by fully trained personnel only.
- Isolate machine from mains supply before carrying out any cleaning.
- Do not steam clean or use a jet of water.
-Do not use any form of caustic detergent or abrasive cleaners.-
All the outer surfaces of the machine should be wiped over daily with warm soapy water.
DOUGH HOPPERS
BETWEEN PRODUCT MIX CHANGES

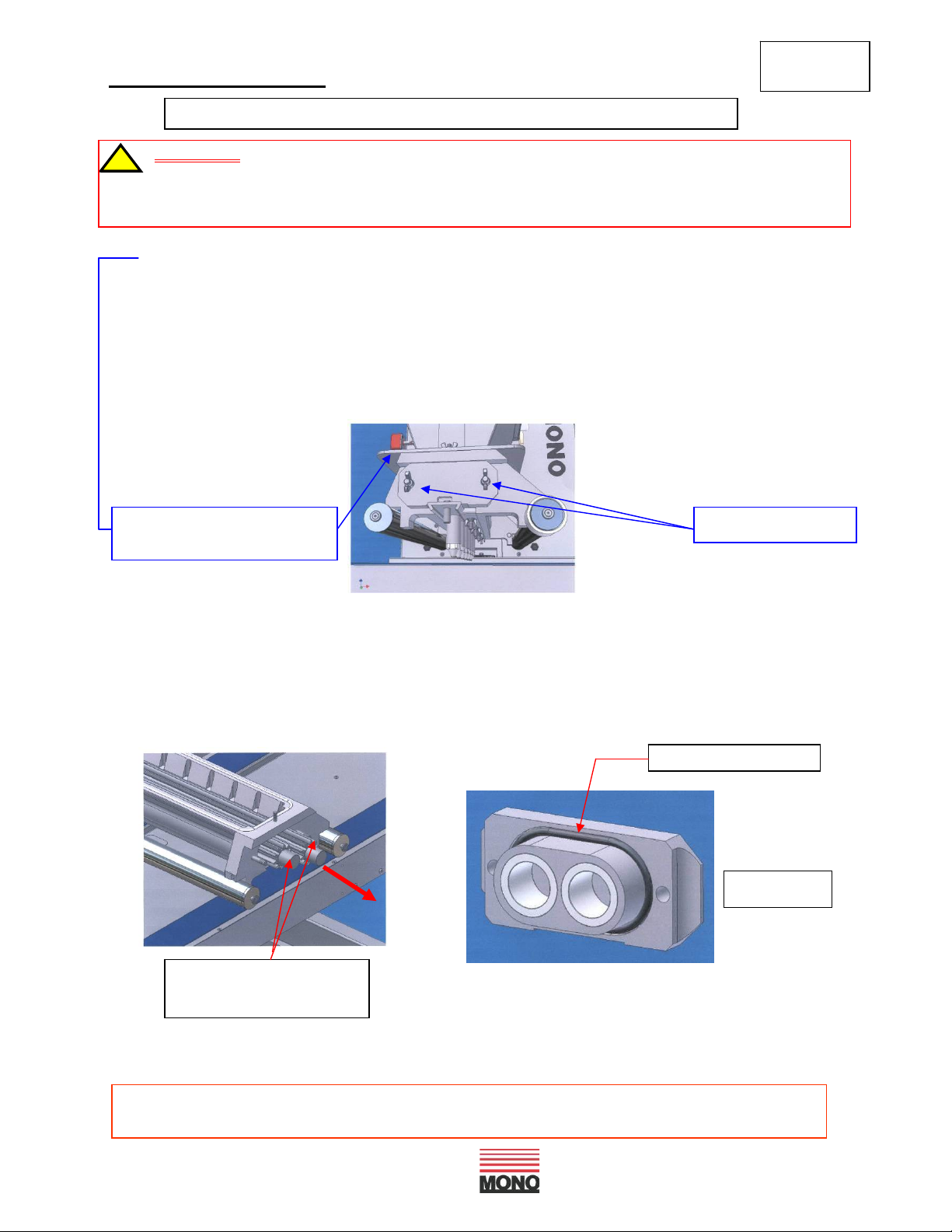

The feed hopper, pump assembly, template, nozzles etc. should be removed from
the machine and dismantled for thorough cleaning between product mix changes.
1. Open top safety guard (lift front and unhook the back edge) and remove excess
mixture remaining in the feed hopper.
2. Slacken template clamp strip nuts and remove fitted template from pump assembly
by sliding out while supporting it to avoid damage.
NOTE.
Thumbscrews only need to be released slightly to allow the template to slide away
from the pump assembly. If loosened too much, the template will have to be supported.
TEMPLATE
DOUGH HOPPER
EPSILON
CLAMP STRIP
AND NUTS
NOZZLES

FG080 –EPSILON UL spec 09/07/21 Rev.A21 12

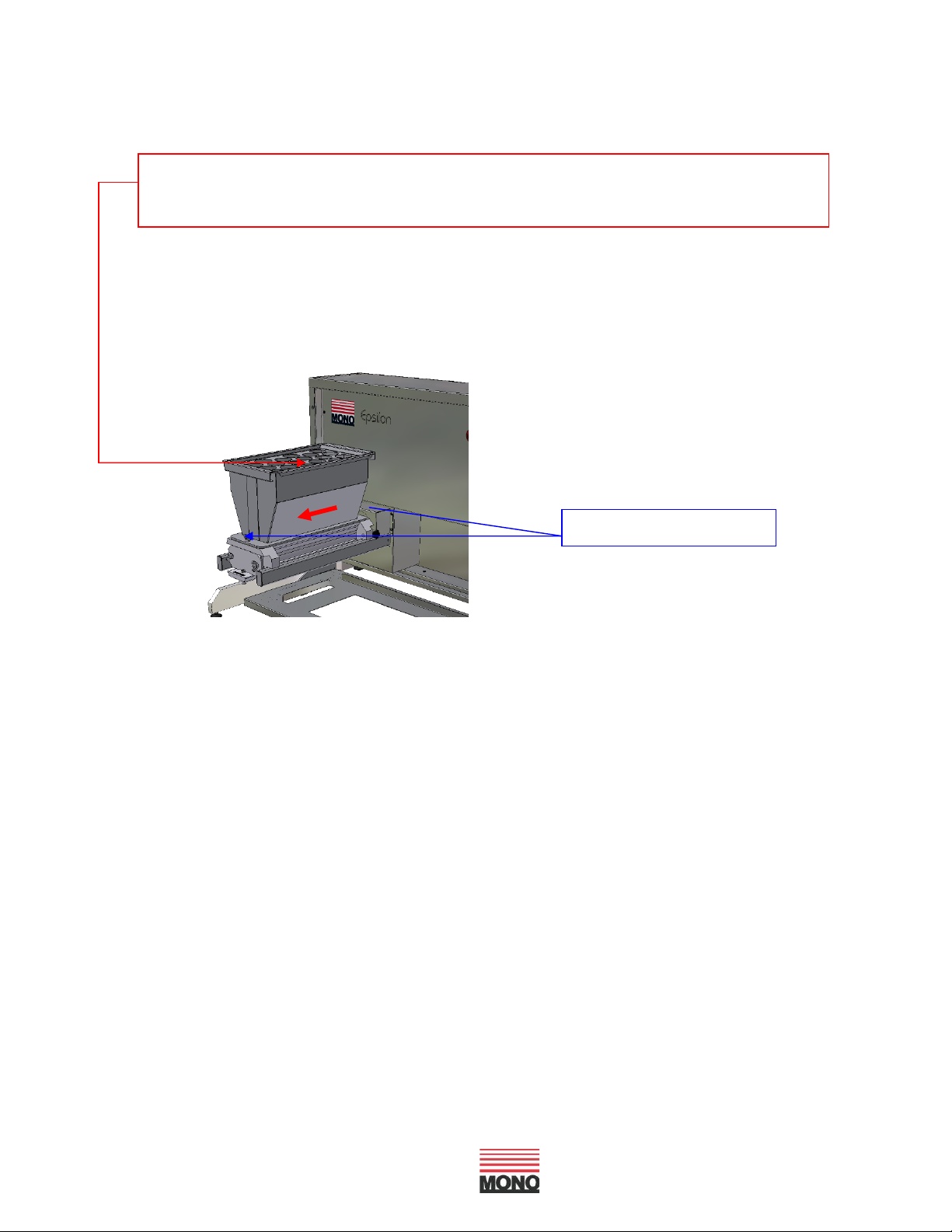

3 To reduce weight and bulk, separate and remove the empty feed hopper from the
pump assembly, by unscrewing the wing nuts, whilst still on the machine,.
To gain access to the inner wing nut, slide the complete hopper away from the machine
body slightly (keep on support bars) - this will also disengage the pump assembly from
the drive shaft.
Ensure that the wing nuts are placed where they will not be lost.
HOPPER WINGNUTS

FG080 –EPSILON UL spec 09/07/21 Rev.A21 13
CAUTION:
The feed hopper and pump assembly can exceed 55lbs and will need to be lifted
off by two people, or dismantled into smaller components while still on the
machine.
Take care to avoid damage to the sealing surface of the feed hopper during removal,
cleaning, assembly and storage.
1. After removing the feed hopper, check condition of feed hopper seal.
2. Unscrew the end cap retaining nuts from the accessible side of the pump assembly.
Ensure that the nuts are placed where they will not be lost.
3. Withdraw the end-cap with the pump gears.
Ensure that the ‘O’ sealing ring on the inside of the end-cap is not damaged during cleaning.
4. To fully dismantle pump assembly components for cleaning, remove remainder of
pump assembly from the machine and remove remaining end-cap.
ENDCAP NUTS
END CAP
‘O’ RING IN GROOVE
FEED HOPPER
SEALING SURFACE
DOUGH HOPPER
PUMP GEARS
REMOVE WITH END CAP
(
NOT SHOWN
)
PICTORIAL VIEWS SHOWN COULD BE DIFFERENT TO THE MACHINE BEING
WORKED ON BUT THE INSTRUCTIONS ARE THE SAME FOR ALL MODELS.
EPSILON
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY

FG080 –EPSILON UL spec 09/07/21 Rev.A21 14
EPSILON
To remove the table for cleaning:
1. Push the table down to its lowest level.
2. Lift the front edge and lift the table towards you.
The table will release from the back pins and can be placed in a washer for cleaning.
To replace the table after cleaning:
1. Hold table with the front edge raised and engage the slots over the pin on both sides.
2. Lower the table front edge.
When in the correct position the table will not slide forward.
TABLE
LOCATING PIN

FG080 –EPSILON UL spec 09/07/21 Rev.A21 15
8.0 OPERATING CONDITIONS
To obtain the best product results and consistent operation,
Make sure the depositor is used on a level surface.
(Adjust feet if required)
Ensure flat trays are used.
Ensure undamaged nozzles and templates are used.
Keep the machine clean.
Do not leave any components in the hopper.
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 16
9.0 PREPARING FOR OPERATION
1Select template and nozzles required and fit as section 9a & 9b following.
Fill hopper with mix and close hopper guard.
2Connect power cable to the correct electrical supply.
Make sure stop button is in released position (turn clockwise if required).
3Select an existing program or create a new program through the on-screen menus.
(see section 10 operation)
4 The machine is now ready for operation.
TEMPLATE
HOPPER
REMOVE GUARD TO FILL
HOPPER.
REPLACE CORRECTLY.
(MACHINE WILL NOT OPERATE WITHOUT
THIS GUARD IN POSITION)
SCREEN
STOP BUTTON
It is recommended that when heavy mixes are used, the inside of the hopper should be
coated with vegetable oil and for lighter mixes such as meringue, dampen with water. The oil
or water will help the mix to settle down the hopper walls and prevent air being sucked in.
EPSILON
NOTE: THIS MACHINE IS FOR USE WITH SOFT DOUGH ONLY
The use of templates and/or accessories not produced or supplied by MONO Equipment
will invalidate the machine’s warranty

FG080 –EPSILON UL spec 09/07/21 Rev.A21 17

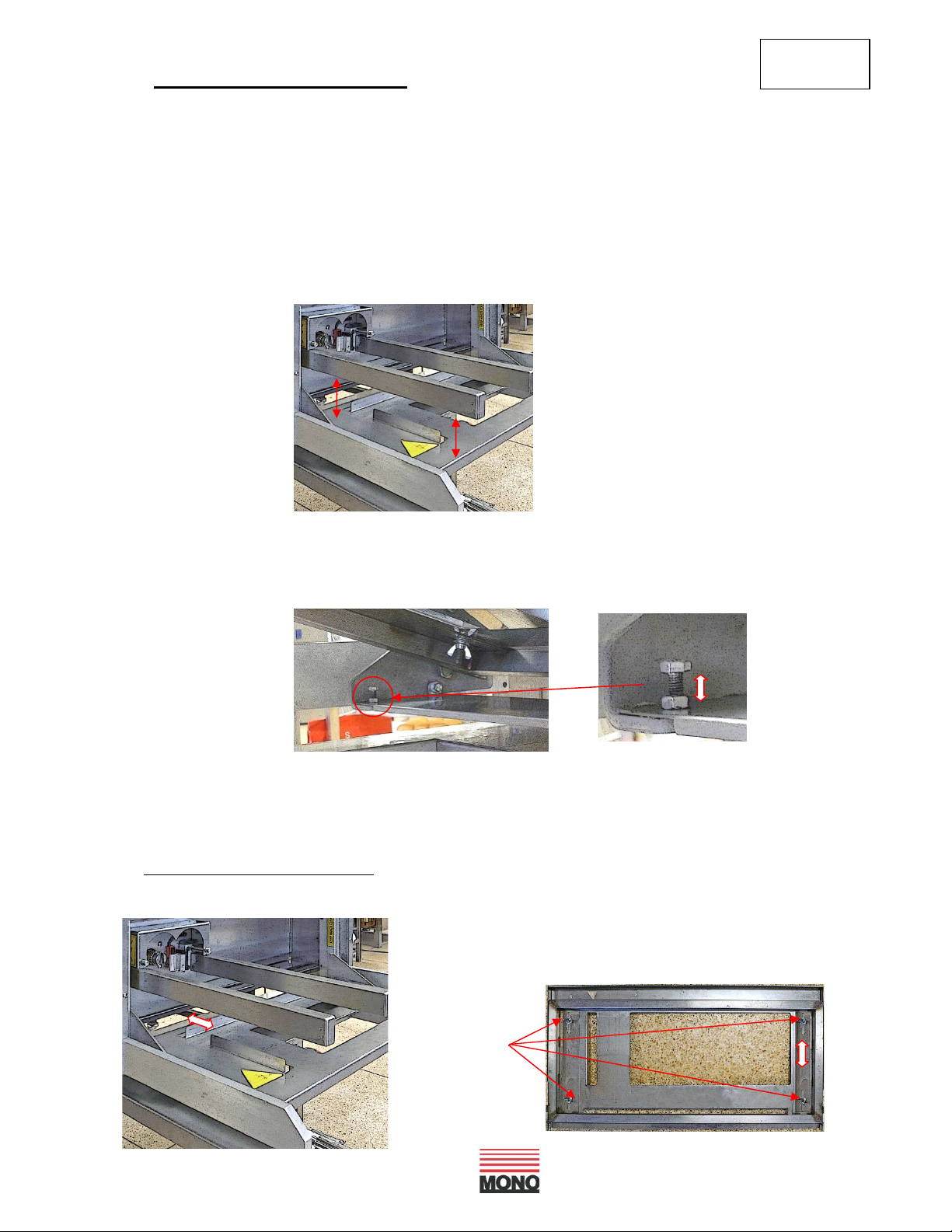

TABLE ADJUSTMENTS
It is important that the table is parallel with the hopper.
(If this is not correct the nozzles will not be the same distance from the trays and the
deposits will differ across the tray).
Measure the distance at “A” and “B” below and check that they are the same.
This should be checked with the hopper bars positioned at both the full left position and
the full right position.
If not the same, an adjustment can be made by raising or lowering the adjusters under
the table. There is one each side to allow the table to be adjusted evenly.
Lift the front edge of the table and, with a suitable spanner, release the locking nut. screw
the adjuster bolt up or down and then lock it in position with the locking nut.
TRAY GUIDE ADJUSTMENT
“A”
“B”
This allows different width trays to be accommodated.
To adjust the position of the back guide, remove the
table and turn it over. Loosen the thumb nuts and slide
the sheet across to the desired position. Tighten the
nuts and replace the table.
NUTS
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 18
9a FITTING THE HOPPER
CAUTION SHOULD BE TAKEN WHEN FITTING HOPPER AND PUMP ASSEMBLY
AS WEIGHT EXCEEDS 55lbs ON SOME MODELS
It will need to be lifted off by two people, or
dismantled into smaller components while still on the machine.
MAKE SURE FLOOR AREA AROUND MACHINE IS CLEAN
To reduce weight and bulk fit the complete hopper assembly in two stages - first the
pump assembly onto the support bars, then the feed hopper body onto the pump
assembly.
1 By hand, align pump assembly drive gear roller with drive shaft on machine.
2 Fit hopper to pump assembly and secure with wing nuts.
3 Slide hopper on support bars until fully up against machine.
4 Screw hopper locking knob hand tight.
PUMP ASSEMBLY
FEED HOPPER
DO NOT OPERATE MACHINE WITHOUT TEMPLATE FITTED
FEED HOPPER
WINGNUTS
(EACH END)
SUPPORT BARS
HOPPER
LOCKING KNOB
EPSILON

FG080 –EPSILON UL spec 09/07/21 19
9b FITTING A TEMPLATE
1 Select template and nozzles required.
(Nozzles are not required for sheeting, staggered or stub templates)
2 Attach nozzles to template body:
3 Slide template into matching recess at base of pump assembly until the stop is in
position.
4 Tighten nuts on clamp strip (on underside of pump assembly) to secure template.
NOTE. If the nuts are not securely tightened,
leakage of mix will occur, affecting deposit weights.
TEMPLATE
BODY
NOZZLES CLAMP STRIP NUTS
DO NOT OPERATE MACHINE WITHOUT TEMPLATE FITTED
EPSILON

FG080 –EPSILON UL spec 09/07/21 Rev.A21 20
10.0 ‘E
p
silon’ OPERATION EPSILON
ALL OPERATIONS ARE ACTIVATED BY TOUCHING AREAS ON THE SCREEN WITH A FINGER.
DO NOT USE EXCESSIVE FORCE OR HARD OBJECTS AS THIS WILL INVALIDATE MACHINE WARRANTY.
